Laser Irradiation Synthesis of AuPd Alloy with Decreased Alloying Degree for Efficient Ethanol Oxidation Reaction

by
Nan Jiang
1,2,3,†,
Liye Zhu
1,2,3,†,
Peng Liu
1,
Pengju Zhang
1,2,3,
Yuqi Gan
1,2,3,
Yan Zhao
1,2,3,* and
Yijian Jiang
1,2,3
1
School of Physics and Optoelectronic Engineering, Beijing University of Technology, Beijing 100124, China
2
Key Laboratory of Trans-Scale Laser Manufacturing Technology, Beijing University of Technology, Ministry of Education, Beijing 100124, China
3
Beijing Engineering Research Centre of Laser Technology, Beijing University of Technology, Beijing 100124, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2024, 17(8), 1876; https://doi.org/10.3390/ma17081876
Submission received: 25 March 2024 / Revised: 12 April 2024 / Accepted: 16 April 2024 / Published: 18 April 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
The preparation of electrocatalysts with high performance for the ethanol oxidation reaction is vital for the large-scale commercialization of direct ethanol fuel cells. Here, we successfully synthesized a high-performance electrocatalyst of a AuPd alloy with a decreased alloying degree via pulsed laser irradiation in liquids. As indicated by the experimental results, the photochemical effect-induced surficial deposition of Pd atoms, combined with the photothermal effect-induced interdiffusion of Au and Pd atoms, resulted in the formation of AuPd alloys with a decreased alloying degree. Structural characterization reveals that L-AuPd exhibits a lower degree of alloying compared to C-AuPd prepared via the conventional co-reduction method. This distinct structure endows L-AuPd with outstanding catalytic activity and stability in EOR, achieving mass and specific activities as high as 16.01 A mgPd−1 and 20.69 mA cm−2, 9.1 and 5.2 times than that of the commercial Pd/C respectively. Furthermore, L-AuPd retains 90.1% of its initial mass activity after 300 cycles. This work offers guidance for laser-assisted fabrication of efficient Pd-based catalysts in EOR.

1. Introduction

Direct ethanol fuel cells (DEFCs) are regarded as a highly promising green power source, owing to their high energy density and environmental benefits [1,2,3,4]. Nevertheless, slow kinetics at both the cathode and anode impede large-scale application, necessitating advanced catalysts to reduce reaction barriers [5]. Palladium (Pd), known for its ample reserves and moderate cost, is considered the leading anodic catalyst for ethanol oxidation reaction (EOR) [6,7,8]. Nonetheless, the electrocatalytic performance of conventional pure Pd nanomaterials is suboptimal, stemming from Pd’s intrinsic electronic structure [9,10]. To overcome this challenge, alloying Pd with other metals, such as Cu, Fe, Sb, Ni, and Bi, not only bolsters electrocatalytic performance but also curtails Pd usage, resulting in cost savings [11,12,13,14,15,16]. Moreover, the qualities of gold (Au), recognized for augmenting Pd-based catalysts with electronic benefits and poison resistance, have made AuPd alloys the subject of extensive research [17,18,19].
Extensive research demonstrates that catalysts uniformly alloyed via co-reduction display superior catalytic activity [20,21]. Nevertheless, ethanol oxidation reactions predominantly rely on continuous Pd sites for the adsorption and cleavage of reactant bonds [22,23]. Consequently, modulating the alloying degree to alter the prevalence of continuous Pd sites can affect the electrocatalytic efficacy. The laser liquid-phase synthesis of nanomaterials has garnered considerable interest due to its low thermal budget [24], high efficiency, and environmental friendliness [25]. Pulsed laser irradiation in liquids (PLIL), characterized by its pronounced non-equilibrium and quenching effects [26], can rapidly elevate the temperature of nanoparticles to very high temperatures (thousands of kelvins) [27] within an exceedingly brief duration and subsequently cool them back to ambient temperature with a cooling rate ranging from 106 to 1012 K/s [28]. This extreme non-equilibrium process facilitates the stabilization of certain unique metastable structures [29]. However, the fabrication of AuPd alloys with a decreased degree of alloying through laser irradiation in liquids requires further investigation.
In this study, we utilized 532 nm nanosecond pulsed laser irradiation in liquids to synthesize a high-performance electrocatalyst of a AuPd alloy with decreased alloying degree (L-AuPd). The structure and composition of the L-AuPd were thoroughly characterized by energy dispersive X-ray spectroscopy (EDS), transmission electron microscopy (TEM), X-ray photoelectron spectra (XPS), X-ray absorption fine structure (XAFS) spectroscopy, X-ray diffraction (XRD), and CO stripping voltammetry. It was shown that L-AuPd presents a lower degree of alloying than the conventionally co-reduced homogeneous AuPd alloy (C-AuPd). The distinctive structure conferred notable catalytic activity and stability on L-AuPd during the EOR. DFT calculations elucidated the factors contributing to the enhanced catalytic activity and stability. Based on the characterization results, we speculate that the formation of the AuPd alloy with a decreased alloying degree is attributed to the combined effects of laser photochemistry and photothermal processes. This work offers guidance for laser-assisted fabrication of efficient Pd-based catalysts in EOR.

2. Experimental Methods

2.1. Preparation of Au Nanoparticles

Au nanoparticles were produced chemically at room temperature [30]. The precursor solution was prepared by mixing a solution of HAuCl4 in ethylene glycol with the same volume of an oleylamine and tetralin blend. Subsequently, 20 μL of the reducing agent of the borane tert-butylamine complex at a concentration of 50 mM was added to the precursor solution to make the two mix well, and the reduction was carried out for 1 h at 20 °C. Finally, 3 mL of alcohol was added to the mixed solution to precipitate the Au nanoparticles, which were subsequently isolated by centrifugation at 9000 rpm for 10 min.

2.2. Preparation of L-AuPd

Initially, Au nanoparticles prepared via chemical methods were suspended in a defined volume of oleylamine to create the Au seed solution. Then, 60 mg of ascorbic acid (AA) was mixed with a PdCl2 solution with a Pd2+ concentration of 0.785 mM, and the mixture was dissolved in ethylene glycol to prepare the Pd precursor solution. The precursor solution and the Au seed solution were mixed well by ultrasonication. Subsequently, the combined solutions were exposed to irradiation from a Nd:YAG laser emitting nanosecond pulses at a 532 nm wavelength. The laser operated with a 10 ns pulse width, 100 mJ pulse energy, a beam spot roughly 0.8 cm2 in size, and a 33 Hz repetition rate. Following the laser exposure, 5 mL of alcohol was introduced to the solution to induce precipitation of the L-AuPd nanoparticles, which were subsequently isolated by centrifugation at 9000 rpm for 10 min.

2.3. Preparation of C-AuPd

The C-AuPd was synthesized via a conventional chemical co-reduction method. A defined amount of HAuCl4 and H2PdCl4 was added to 10 mL of deionized water, yielding a homogeneous solution. The atomic ratio of Au to Pd in HAuCl4 and H2PdCl4 was set at 1:1. Subsequently, 5 mg of carbon black was introduced to the solution and sonicated for 30 min. Following this, 500 μL of a 50 mM NaBH4 solution was added. Two hours later, the mixture underwent washing and centrifugation to yield C-AuPd.

3. Results and Discussion

3.1. Characterization of the L-AuPd

L-AuPd nanoparticles were synthesized through 532 nm nanosecond pulsed laser irradiation in liquids. Initially, Au nanoparticles, averaging 8 nm in diameter (Figure S1), were produced chemically at room temperature. Then, the as-prepared Au nanoparticles were dispersed into a solution, which contains specific concentrations of Pd2+ and ascorbic acid. The solution was irradiated with a 532 nm laser for the preparation of L-AuPd nanoparticles. Please consult the Experimental Methods section for further information on preparation. The HAADF-STEM picture of L-AuPd nanoparticles dispersed on carbon black is shown in Figure 1a. The inset of Figure 1a displays a size distribution histogram for L-AuPd nanoparticles, indicating an average nanoparticle diameter of 3.8 nm. The size of L-AuPd nanoparticles decreases compared to Au nanoparticles. This change is due to photothermal vaporization during laser irradiation [31].
To confirm the composition of L-AuPd nanoparticles, an EDS line scanning measurement was conducted (Figure 1c). The EDS line scanning across the L-AuPd nanoparticles is marked by the dashed line in Figure 1b. The profiles show that the atomic fraction of Au and Pd is intertwined, indicating that both elements are co-present within the nanoparticle. Additionally, EDS elemental mapping analysis, as depicted in Figure 1d, confirms the presence of Pd atoms intermingled with Au, suggesting the alloy’s elemental distribution. In the EDS picture, individual atoms seen surrounding the nanoparticles are attributed to the TEM analysis, which dispersed them from the L-AuPd nanoparticles due to electron beam exposure (Figure S2). The selected area electron diffraction (SAED) pattern depicted in Figure 1e reveals the fcc structure of L-AuPd nanoparticles. Figure 1f displays an AC-HAADF-STEM picture of the L-AuPd nanoparticles. Lattice spacings were measured at 0.231 nm, which lay between that of fcc pure Pd (d (111) = 0.224 nm) and fcc pure Au (d (111) = 0.235 nm), demonstrating the alloy structure of L-AuPd nanoparticles. Figure 1g and the inset are the inverse fast Fourier transform (IFFT) and fast Fourier transform (FFT) results of Figure 1f along the [011] zone axis. These white lines denote the ( 1 1 ¯ 1 ) and 1 ¯ 1 1 ¯ planes, respectively, demonstrating a distinct twin structure within this region. The orange line indicates the shared crystal face of the twin associated with the ( 2 ¯ 00 ) plane. Therefore, these results indicate that the alloy structure of L-AuPd nanoparticles was successfully synthesized via pulsed laser irradiation in liquids.
The preparation parameters of L-AuPd nanoparticles are listed as follows: L-AuPd-3 (100 mJ, 3 min), L-AuPd-6 (100 mJ, 6 min), L-AuPd-9 (100 mJ, 9 min). Figure 2a displays the absorbance spectra in the UV–Vis range for L-AuPd prepared at varying irradiation durations. Near 520 nm, the notable peak in absorption strength is ascribed to the localized surface plasmon resonance (LSPR) phenomenon in Au nanoparticles. As the laser irradiation time increases, the ~520 nm absorption peak broadens and eventually vanishes at the 9th minute. This result indicates that the structure of L-AuPd nanoparticles alters over irradiation time. The XRD patterns in Figure 2b confirm the crystalline phases change with laser irradiation. The XRD peaks of Au nanoparticles are characteristic of the face-centered cubic structure, with the peak at approximately 38.2° associated with the Au (111) crystal plane. For all irradiation times, the diffraction peaks of L-AuPd nanoparticles lie between that of Au (JCPDS No. 04-0784) and Pd (JCPDS No. 46-1043). As irradiation time increases, the most intense (111) peak shifts marginally towards higher angles, indicating the doping of Pd into the Au lattice to form a AuPd alloy. Figure 2c displays the variation in the (111) plane’s lattice spacings as determined by Vegard’s Law compared to those predicted by XRD data. Vegard’s law is a fundamental principle in materials science that describes the relationship between lattice parameters of solid solutions and composition changes in binary systems [32]. The C-AuPd is synthesized using NaBH4 in a chemical co-reduction method. The most pronounced (111) diffraction peaks occur at 38.21° (L-AuPd-3), 38.6° (L-AuPd-6), 39.03° (L-AuPd-9), and 39.22° (C-AuPd). Relative to the peak at 38.2° (Au/C), diffraction peaks of the alloys show a positive shift. dXRD denotes the lattice spacing for (111) crystal surface and is determined as follows:
2 d X R D ∗ sin θ = n λ .
As per Vegard’s law, the lattice spacing of uniform solid solution alloys is intermediate between the constituent metals and is influenced by the composition of each alloy. ICP-OES results for L-AuPd nanoparticles and C-AuPd are presented in Table S1. The Vegard lattice spacing (dVegard) for the (111) crystal surface and the lattice constant (a) are calculated as follows:
d V e g a r d = a 1 2 + 1 2 + 1 2 ,
a = 1 − x P d a A u + x P d a P d .
The lattice constant of Pd is expressed as aPd, and likewise, the lattice constant of Au is denoted as aAu. xPd is the atomic percentage of palladium in the alloy. Δd denotes the difference between dVegard and dXRD. The details of the calculations are given in Table S2. For C-AuPd synthesized via the co-reduction method, the Δd value is negative. For L-AuPd nanoparticles, in contrast, the Δd value is positive, increasing initially and then decreasing with prolonged laser irradiation time. The absolute Δd value (|Δd|) of L-AuPd nanoparticles is an order of magnitude larger than that of C-AuPd [33]. Between 3 and 6 min, the Δd increased from 1.45 × 10−3 nm to 2.86 × 10−3 nm, demonstrating the decrease in alloying degree of the L-AuPd nanoparticles. Simultaneously, the Au:Pd atomic ratio shifted from 1:0.38 to 1:1. We infer that during this time interval, the rate of photodeposition exceeded that of atomic diffusion under the photothermal effect. Between 6 and 9 min, the Au: Pd atomic ratio changed from 1:1 to 1:1.05 with no significant variation, suggesting depletion of Pd2+ in the solution by 6 min, resulting in no further reduction and deposition of Pd atoms. Notably, during this time interval, Δd decreased from 2.86 × 10−3 nm to 1.31 × 10−3 nm, indicating an increase in the degree of alloying. Therefore, we speculate that the degree of alloying increased due to atomic diffusion under the influence of the photothermal effect between 6 and 9 min. The variation in the alloying degree of the AuPd alloy with laser irradiation time is illustrated in the schematic diagram (Figure 2d).
To elucidate the low-alloyed structure of L-AuPd nanoparticles further, we selected the L-AuPd-6 sample with the lowest degree of alloying in L-AuPd nanoparticles as the sample group and the homogeneous C-AuPd prepared via a traditional co-reduction method as the control group for comparative analysis of the XPS results. Figure S3 and Table S3 show the XPS results of L-AuPd-3 and L-AuPd-9. Compared with the binding energies (BEs) of the Pd 3d5/2 and Pd 3d3/2 signals of Pd/C (335.10 and 340.36 eV), those of L-AuPd-6 (335.40 and 340.66 eV) are shifted by about +0.3 eV, while those of C-AuPd (335.04 and 340.30 eV) are shifted by about −0.06 eV (Figure 3a; Table S3). Meanwhile, the BEs of Au 4f7/2 and Au 4f5/2 signals of L-AuPd-6 (83.75 and 87.42 eV) and C-AuPd (83.61 and 87.28 eV) both are shifted by about −0.16 and −0.3 eV, respectively, compared with those of Au/C (83.91 and 87.58 eV) (Figure 3b; Table S3). The different changes in the BEs of Au and Pd in L-AuPd-6 and C-AuPd indicate that L-AuPd-6 and C-AuPd have different surface compositions and structures. For instance, the BEs of Au 4f and Pd 3d of C-AuPd are negatively shifted compared to Pd and Au, consistent with previous studies [34,35,36,37,38]. Due to the alloying effect between Au and Pd, Au gains sp electrons from Pd and loses an almost compensating number of d electrons, with a very small net charge transfer [34,38]. The Au 4f and Pd 3d BEs of L-AuPd-6 are negatively and positively shifted, respectively, which can be attributed to the consecutive Pd sites in L-AuPd-6 leading to the alloying interaction being weakened.
The X-ray absorption near edge structure (XANES) spectra of the Au L3 edge of the L-AuPd-6 show a significant increase in the intensity of the second band (11,935 eV) compared to that of the Au foil (Figure 3c). This feature arises from the bimetallic distance effect, which further confirms the gold–palladium alloy phase [39]. The Fourier-transformed k2-weighted EXAFS spectra shown in Figure 3d reveal three characteristic peaks of Au foil at 2.15, 2.52, and 2.94 Å, while for L-AuPd-6 and C-AuPd, the peaks at 2.15 and 2.85 Å correspond to Au-Au and Au-Pd bonds, respectively [40]. The incorporation of Pd changes the triple peaks of Au to a doublet due to the scattering from Au-Pd bonds [41]. Quantitative local structures were obtained by fitting the FT-EXAFS spectra. The quality of the fit is shown in Figure 3e and Figure S4, and the fitted structural parameters are summarized in Table S4. The fitting results indicate that the first shell layer’s average coordination numbers (CNs) for C-AuPd are marginally greater than those for L-AuPd-6, and the second shell layer’s CNs for C-AuPd are slightly less than those for L-AuPd-6. It is evident that the coordination environment around the L-AuPd-6’s gold atoms has changed, with some continuous Pd sites emerging in contrast to C-AuPd [39]. This indicates a change in the degree of alloying in L-AuPd-6. To elucidate the causes of these variations, we conducted a wavelet transform (WT) analysis on the EXAFS maps, affording a more distinct representation of R-space and k-space. Figure 3f illustrates that the profile intensity of Au foil peaks at (9.37 Å−1, 2.75 Å), whereas for AuPd alloys, the maximum intensities occur at (6.5 Å−1, 2.15 Å) and (4.85 Å−1, 2.85 Å), attributable to Au-Au and Au-Pd bonds, respectively. The differences in peak positions in the WT graphs between L-AuPd, C-AuPd, and Au foil demonstrate the alloying of Au with Pd to form AuPd alloys [42]. Compared to C-AuPd, L-AuPd-6 shows greater dispersion intensity for Au-Au bonds, consistent with the fitting results, indicating a change in the alloying degree of L-AuPd-6 [43]. Therefore, based on the characterization results, it can be concluded that L-AuPd NPs have a lower alloying degree than C-AuPd NPs.

3.2. Electrocatalytic Performance for EOR

The EOR performance of L-AuPd nanoparticles prepared with varying time parameters is shown in Figure S5. L-AuPd-3 exhibits the optimal catalytic performance, with a mass activity of 20.20 A mgPd−1 and a specific activity of 35.83 mA cm−2—11.54 and 9.05 times higher than commercial Pd/C. However, its stability is poor, just like a “firework”. L-AuPd-9 possesses excellent stability, maintaining 92.5% of its mass activity after 300 cycles; nevertheless, its catalytic performance is subpar. Therefore, considering both catalytic activity and stability, L-AuPd-6—sharing the same atomic ratio as C-AuPd—was selected for comparison with C-AuPd and Pd/C. In a 1.0 M KOH and 1.0 M ethanol solution, cyclic voltammograms (CVs) indicate that L-AuPd-6 demonstrates significantly higher current density than both C-AuPd and Pd/C (Figure 4a). As depicted in Figure 4b, L-AuPd-6 achieves a mass activity of 16.01 A mgPd−1 and a specific activity of 20.69 mA cm−2, substantially surpassing C-AuPd’s 5.66 A mgPd−1 and 12.24 mA cm−2, and is 9.1 and 5.2 times greater than commercial Pd/C. Furthermore, L-AuPd-6 has exhibited the highest recorded mass activity among Pd-based catalysts reported in the literature (Figure 4d and Table S5). The electrochemical surface area (ECSA) of L-AuPd-6 is 50.20 m2 gPd−1, exceeding that of C-AuPd (29.54 m2 gPd−1) and Pd/C (28.66 m2 gPd−1) (Table S6). The Tafel slopes presented in Figure 4c correspond to the EOR kinetics of the catalysts [44]. L-AuPd-6 demonstrates the fastest reaction kinetics with a slope of 158 mV dec−1, surpassing C-AuPd (180 mV dec−1) and Pd/C (244 mV dec−1). As depicted in Figure 4e, for L-AuPd-6, the CO oxidation onset potential is as low as that for C-AuPd, and even lower when compared to Pd/C, demonstrating that AuPd alloys facilitate CO removal at lower potentials compared to Pd/C. The peak of CO oxidation for C-AuPd experienced a negative shift of 15 mV compared to Pd/C, suggesting a reduced CO binding strength on C-AuPd [45,46]. For L-AuPd-6, the peak of CO oxidation showed a positive shift of 15 mV when compared to commercial Pd/C, which indicates a stronger CO binding. In the existing literature [47], it has been observed that the CO oxidation peak undergoes a positive shift in Au@Pd core-shell NPs due to the enhanced CO binding affinity caused by the presence of continuous Pd sites. This finding further validates the presence of analogous continuous Pd sites in the low-alloyed L-AuPd-6. However, the exposure of Au atoms in the low-alloyed L-AuPd-6 allows for the retention of continuous Pd sites while concurrently harnessing the synergistic Au-Pd effect. Consequently, this enhances both the efficiency of CO oxidation removal and the dehydrogenation of ethanol, thereby distinguishing L-AuPd-6 from Au@Pd core-shell NPs.
Chronoamperometry (CA) measurements were performed to evaluate the durability of the catalysts. The curves were recorded at 0.77 V vs. RHE. L-AuPd-6 maintains a significantly higher mass activity throughout the test compared to Pd/C and C-AuPd, both of which show rapid decay (Figure 4f). This result indicates the superior long-term mass activity of L-AuPd-6 toward EOR. Accelerated durability test (ADT) results reveal slower activity decays in L-AuPd-6 during cycling, with its residual catalytic activity remaining at 90.1%, outperforming C-AuPd at 83.7% and Pd/C at 55.8%, reflective of L-AuPd-6’s enhanced stability. Following the ADT, L-AuPd-6 remained well dispersed on carbon black, with slight agglomeration in some areas (Figure S6), which indicates that L-AuPd-6 has excellent structural stability, enabling it to maintain high catalytic activity after 300 cycles.

3.3. DFT Calculations

Density functional theory (DFT) calculations were performed to further investigate the effect of the continuous Pd sites on EOR. The atomic model of the continuous Pd sites in L-AuPd catalysts is shown in Figure 5a, along with the atomic models of C-AuPd and pure Pd. To investigate the electronic structure of the catalysts, the projected density of states (PDOS) for Pd atoms on the surfaces of L-AuPd, C-AuPd, and pure Pd are calculated, as shown in Figure S7. The result indicates that the d-band center of L-AuPd is at −1.37 eV, situated between that of C-AuPd (−1.30 eV) and pure Pd (−1.62 eV). Notably, the PDOS intensity near the Fermi level is significantly reduced for both L-AuPd and C-AuPd due to the interaction between Au and Pd. L-AuPd exhibits a higher PDOS near the Fermi level than C-AuPd. The depletion of d-band electrons near the Fermi level can lead to weaker adsorption of intermediates [48,49]. To further investigate the adsorption strength of intermediates on the catalyst surface, the free energy of L-AuPd, C-AuPd, and pure Pd were calculated (Figure 5b). The result shows that C2H5OH adsorption is 0.035 eV on L-AuPd and 0.045 eV on C-AuPd, which both are endothermic, but on pure Pd (−0.075 eV), it is exothermic. Notably, the adsorption energy of C2H5OH on C-AuPd is higher compared to that on L-AuPd, demonstrating the C2H5OH adsorption process of L-AuPd was improved. In Table S7, State2, the energy barrier for the first dehydrogenation step, is smaller on L-AuPd (0.078 eV) compared to C-AuPd (0.083 eV). In the next dehydrogenation step with the formation of CH3CHO* (Table S7, State 3), the reaction energy barrier on C-AuPd is −0.01 eV, indicating that the reaction is exothermic. Nevertheless, for L-AuPd and pure Pd, the endothermic reaction serves as the rate-determining step, with the energy barrier for L-AuPd (0.007 eV) being lower than that for pure Pd (0.16 eV). In the third exothermic dehydrogenation step (Table S7, State 4), L-AuPd displays an energy barrier of 0.32 eV, nearly equivalent to that of C-AuPd (0.306 eV). The energy barrier for the formation of CH3COOH in L-AuPd is 0.054 eV, which is almost comparable to 0.042 eV for C-AuPd, and both are significantly lower than 0.071 eV for pure Pd. The results suggest that the low-alloyed structure with consecutive Pd sites on L-AuPd is more favorable for the dehydrogenation process of ethanol, thereby improving its oxidation performance.
COads is a common poisonous intermediate during EOR, and OHads plays a key role in COads removal [50]. Figure 5c illustrates that the adsorption energy of CO on L-AuPd is −1.28 eV, similar to that on C-AuPd (−1.27 eV) and significantly lower than that on pure Pd (−1.38 eV). Meanwhile, the adsorption strength of OH on L-AuPd is more pronounced, at −2.73 eV, compared to C-AuPd (−2.41 eV) or pure Pd (−2.50 eV). A comparison of CO and OH adsorption energies between L-AuPd and C-AuPd reveals that L-AuPd, with its continuous Pd sites, can mitigate the adsorption of the toxic intermediate CO and concurrently facilitate CO removal through augmented OH adsorption [51]. Consequently, L-AuPd demonstrates superior CO anti-poisoning efficacy and outstanding stability.

4. Conclusions

In summary, we successfully synthesized a high-performance electrocatalyst of a AuPd alloy with a decreased alloying degree via pulsed laser irradiation in liquids. Comprehensive structural characterization revealed that L-AuPd has a lower alloying degree than conventionally co-reduced homogeneous C-AuPd. This distinct structure endows L-AuPd with exceptional catalytic activity and stability in EOR, achieving mass and specific activities as high as 16.01 A mgPd−1 and 20.69 mA cm−2, 9.1 and 5.2 times that of the commercial Pd/C, respectively. Furthermore, L-AuPd retains 90.1% of its initial mass activity after 300 cycles. DFT calculations further indicate that compared with C-AuPd, the low-alloyed L-AuPd effectively lowers reaction energy barriers for ethanol adsorption and CH3CHOH* formation and enhances CO anti-poisoning capability by augmenting OH* adsorption. Based on the characterization results, we speculate that the formation of the AuPd alloy with a decreased alloying degree is attributed to the combined effects of laser photochemistry and photothermal processes. This work offers guidance for laser-assisted fabrication of efficient Pd-based catalysts in EOR.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma17081876/s1, Materials and methods: Materials, Characterizations, Electrochemical measurement, and DFT Calculation; Figure S1: TEM of chemically synthesized Au nanoparticles; Figure S2: The single atoms showed in red cycles ejected from the L-AuPd nanoparticles during TEM characterization; Figure S3: XPS spectra of Pd 3d signals of L-AuPd-3 (a) and L-AuPd-9 (b), XPS spectra of Au 4f signals of L-AuPd-3 (c) and L-AuPd-9 (d); Figure S4: k2-weighted EXAFS oscillations [k2χ(k)] of Au foil, C-AuPd, and L-AuPd-6; Figure S5: The performance for EOR of the L-AuPd nanoparticles synthesized with different irradiation time; Figure S6: TEM image of L-AuPd nanoparticles/C after ADT test; Figure S7: PDOS profile of surface Pd atom on L-AuPd, C-AuPd, and pure Pd; Table S1: ICP-OES results of L-AuPd nanoparticles and C-AuPd; Table S2: The difference (Δd) between dXRD and dVegard of L-AuPd nanoparticles and C-AuPd. (Δd = dXRD − dVegard); Table S3: Summarized data of BEs of Pd 3d and Au 4f signals of L-AuPd nanoparticles and C-AuPd; Table S4: EXAFS fitting parameters at the Au L3-edge for various samples (S02 = 0.82 from Au-foil); Table S5: EOR activities of L-AuPd nanoparticles catalysts and Pd-based catalysts already reported in the literature; Table S6: ECSA data of L-AuPd NPs, C-AuPd and Pd/C catalysts; Table S7: The reaction pathway for EOR is list as following. Refs. [52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71] are cited in the Supplementary Materials.

Author Contributions

N.J.: conceptualization, data curation, formal analysis, investigation, methodology, writing—original draft, software. L.Z.: writing—review and editing, visualization. P.L.: writing—review and editing, visualization. P.Z.: formal analysis. Y.G.: methodology, validation. Y.Z.: supervision, project administration, funding acquisition. Y.J.: supervision, project administration, funding acquisition, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the support of the National Natural Science Foundation of China (12374283) and the Beijing Natural Science Foundation (3232001).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Seh, Z.W.; Kibsgaard, J.; Dickens, C.F.; Chorkendorff, I.; Norskov, J.K.; Jaramillo, T.F. Combining theory and experiment in electrocatalysis: Insights into materials design. Science 2017, 355, eaad4998. [Google Scholar] [CrossRef] [PubMed]
  2. Mohammadi, T.; Hosseini, M.G.; Pastor, E.; Ashassi-Sorkhabi, H. One-step growth of RuNi-MOF nanoarrays on carbon felt host as a high-performance binder-free electrode for dual application: Ethanol fuel cell and supercapacitor. J. Energy Storage 2024, 79, 110146. [Google Scholar] [CrossRef]
  3. Oliveira, D.S.; Colmati, F.; Gonzalez, E.R.; de Sousa Junior, R. Neurofuzzy modelling on the influence of Pt–Sn catalyst properties in direct ethanol fuel cells performance: Fuzzy inference system generation and cell power density optimization. Int. J. Hydrogen Energy 2023, 48, 24481–24491. [Google Scholar] [CrossRef]
  4. Gruzeł, G.; Szmuc, K.; Drzymała, E.; Piekarz, P.; Pajor-Świerzy, A.; Budziak, A.; Pastor, E. Thin layer vs. nanoparticles: Effect of SnO2 addition to PtRhNi nanoframes for ethanol oxidation reaction. Int. J. Hydrogen Energy 2022, 47, 14823–14835. [Google Scholar] [CrossRef]
  5. Tong, Y.; Yan, X.; Liang, J.; Dou, S.X. Metal-based electrocatalysts for methanol electro-oxidation: Progress, opportunities, and challenges. Small 2021, 17, e1904126. [Google Scholar] [CrossRef] [PubMed]
  6. Zheng, Y.; Wan, X.; Cheng, X.; Cheng, K.; Dai, Z.; Liu, Z. Advanced catalytic materials for ethanol oxidation in direct ethanol fuel cells. Catalysts 2020, 10, 166. [Google Scholar] [CrossRef]
  7. Luo, L.; Fu, C.; Yang, F.; Li, X.; Jiang, F.; Guo, Y.; Zhu, F.; Yang, L.; Shen, S.; Zhang, J. Composition-graded Cu–Pd nanospheres with Ir-doped surfaces on N-doped porous graphene for highly efficient ethanol electro-oxidation in alkaline media. ACS Catal. 2019, 10, 1171–1184. [Google Scholar] [CrossRef]
  8. Yu, X.; Luo, Z.; Zhang, T.; Tang, P.; Li, J.; Wang, X.; Llorca, J.; Arbiol, J.; Liu, J.; Cabot, A. Stability of Pd3Pb nanocubes during electrocatalytic ethanol oxidation. Chem. Mater 2020, 32, 2044–2052. [Google Scholar] [CrossRef]
  9. Qiu, B.; Xing, M.; Zhang, J. Recent advances in three-dimensional graphene based materials for catalysis applications. Chem. Soc. Rev. 2018, 47, 2165–2216. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, J.; Lu, S.; Xiang, Y.; Jiang, S.P. Intrinsic effect of carbon supports on the activity and stability of precious metal based catalysts for electrocatalytic alcohol oxidation in fuel cells: A review. ChemSusChem 2020, 13, 2484–2502. [Google Scholar] [CrossRef] [PubMed]
  11. Lodaya, K.M.; Tang, B.Y.; Bisbey, R.P.; Weng, S.; Westendorff, K.S.; Toh, W.L.; Surendranath, Y. An electrochemical approach for designing thermochemical bimetallic nitrate hydrogenation catalysts. Nat. Catal. 2024, 7, 262–272. [Google Scholar] [CrossRef]
  12. Moges, E.A.; Chang, C.Y.; Huang, W.H.; Lakshmanan, K.; Awoke, Y.A.; Pao, C.W.; Tsai, M.C.; Su, W.N.; Hwang, B.J. Sustainable Synthesis of Dual Single-Atom Catalyst of Pd—N4/Cu— N4 for Partial Oxidation of Ethylene Glycol. Adv. Funct. Mater. 2022, 32, 2206887. [Google Scholar] [CrossRef]
  13. Konwar, D.; Basumatary, P.; Lee, U.; Yoon, Y.S. P-doped SnFe nanocubes decorated with PdFe alloy nanoparticles for ethanol fuel cells. J. Mater. Chem. A 2021, 9, 10685–10694. [Google Scholar] [CrossRef]
  14. Zhang, Y.; Liu, X.; Liu, T.; Ma, X.; Feng, Y.; Xu, B.; Cai, W.; Li, Y.; Su, D.; Shao, Q.; et al. Rhombohedral Pd–Sb Nanoplates with Pd-Terminated Surface: An Efficient Bifunctional Fuel-Cell Catalyst. Adv. Mater. 2022, 34, e2202333. [Google Scholar] [CrossRef] [PubMed]
  15. Martínez-Lázaro, A.; Rodriguez-Barajas, M.H.; Rey-Raap, N.; Espinosa, F.I.; Álvarez-Contreras, L.; Ledesma-García, J.; Arriaga, L.G. Novel and high electrocatalytic activity aerogel Pd-TM (TM= Co, Ni, Fe). Mater. Today Nano 2023, 22, 100308. [Google Scholar] [CrossRef]
  16. Ertürk, A.S.; Meng, X.; Zhang, Y.; Elmacı, G. Focused microwave-assisted synthesis of activated XC-72R supported PdBi nanocatalyst for the enhanced electrocatalytic performance in formic acid oxidation. Int. J. Hydrogen Energy 2024, 51, 837–847. [Google Scholar] [CrossRef]
  17. Deng, Z.; Mostaghimi, A.H.B.; Gong, M.; Chen, N.; Siahrostami, S.; Wang, X. Pd 4d Orbital Overlapping Modulation on Au@Pd Nanowires for Efficient H2O2 Production. J. Am. Chem. Soc. 2024, 146, 2816–2823. [Google Scholar] [CrossRef]
  18. Paris, C.B.; Howe, A.G.; Lewis, R.J.; Hewes, D.; Morgan, D.J.; He, Q.; Edwards, J.K. Impact of the experimental parameters on catalytic activity when preparing polymer protected bimetallic nanoparticle catalysts on activated carbon. ACS Catal. 2022, 12, 4440–4454. [Google Scholar] [CrossRef] [PubMed]
  19. Loevlie, D.J.; Ferreira, B.; Mpourmpakis, G. Demystifying the chemical ordering of multimetallic nanoparticles. Acc. Chem. Res. 2023, 56, 248–257. [Google Scholar] [CrossRef] [PubMed]
  20. Jiang, M.; Hu, Y.; Zhang, W.; Wang, L.; Yang, S.; Liang, J.; Zhang, Z.; Zhang, X.; Jin, Z. Regulating the alloying degree and electronic structure of Pt–Au nanoparticles for high-efficiency direct C2+ alcohol fuel cells. Chem. Mater. 2021, 33, 3767–3778. [Google Scholar] [CrossRef]
  21. Ramachandran, K.; Vinothkannan, M.; Kim, A.R.; Ramakrishnan, S.; Yoo, D.J. Ultrafine bimetallic alloy supported on nitrogen doped reduced graphene oxide toward liquid-fuel oxidation: Profile of improved performance and extended durability. Int. J. Hydrogen Energy 2019, 44, 21769–21780. [Google Scholar] [CrossRef]
  22. Guo, Y.; Wang, M.; Zhu, Q.; Xiao, D.; Ma, D. Ensemble effect for single-atom, small cluster and nanoparticle catalysts. Nat. Catal. 2022, 5, 766–776. [Google Scholar] [CrossRef]
  23. Liu, R.; Zhang, L.Q.; Yu, C.; Sun, M.T.; Liu, J.F.; Jiang, G.B. Atomic-Level-Designed Catalytically Active Palladium Atoms on Ultrathin Gold Nanowires. Adv. Mater. 2017, 29, 1604571. [Google Scholar] [CrossRef] [PubMed]
  24. Hu, H.; Li, Q.; Li, L.; Teng, X.; Feng, Z.; Zhang, Y.; Wu, M.; Qiu, J. Laser irradiation of electrode materials for energy storage and conversion. Matter 2020, 3, 95–126. [Google Scholar] [CrossRef]
  25. Guo, Z.; Zhu, L.; Liu, X.; Zhang, R.; Zhu, T.; Jiang, N.; Zhao, Y.; Jiang, Y. Laser induced trace doping of Pd on Ru nanoparticles for an efficient hydrogen evolution electrocatalyst. Nanoscale 2023, 15, 1554–1560. [Google Scholar] [CrossRef] [PubMed]
  26. Pang, B.; Liu, X.; Liu, T.; Chen, T.; Shen, X.; Zhang, W.; Wang, S.; Liu, T.; Liu, D.; Ding, T.; et al. Laser-assisted high-performance PtRu alloy for pH-universal hydrogen evolution. Energy Environ. Sci. 2022, 15, 102–108. [Google Scholar] [CrossRef]
  27. Müller, A.M. Optical control of layered nanomaterial generation by pulsed-laser ablation in liquids. J. Mod. Opt. 2020, 67, 49–54. [Google Scholar] [CrossRef]
  28. RForsythe, C.; Cox, C.P.; Wilsey, M.K.; Muller, A.M. Pulsed laser in liquids made nanomaterials for catalysis. Chem. Rev. 2021, 121, 7568–7637. [Google Scholar] [CrossRef] [PubMed]
  29. Theerthagiri, J.; Karuppasamy, K.; Lee, S.J.; Shwetharani, R.; Kim, H.S.; Pasha, S.K.K.; Ashokkumar, M.; Choi, M.Y. Fundamentals and comprehensive insights on pulsed laser synthesis of advanced materials for diverse photo-and electrocatalytic applications. Light Sci. Appl. 2022, 11, 250. [Google Scholar] [CrossRef]
  30. Peng, S.; Lee, Y.; Wang, C.; Yin, H.; Dai, S.; Sun, S. A facile synthesis of monodisperse Au nanoparticles and their catalysis of CO oxidation. Nano Res. 2008, 1, 229–234. [Google Scholar] [CrossRef]
  31. Akinori Takami, H.K.; Koda, S. Laser-induced size reduction of noble metal particles. J. Phys. Chem. 1999, 103, 1226–1232. [Google Scholar] [CrossRef]
  32. Alan, R.D.; Ashcroft, N.W. Vegard’s law. Phys. Rev. A 1991, 43, 3161. [Google Scholar]
  33. Van der Hoeven, J.E.S.; Ngan, H.T.; Taylor, A.; Eagan, N.M.; Aizenberg, J.; Sautet, P.; Madix, R.J.; Friend, C.M. Entropic control of HD exchange rates over dilute Pd-in-Au alloy nanoparticle catalysts. ACS Catal. 2021, 11, 6971–6981. [Google Scholar] [CrossRef]
  34. Zhu, X.; Guo, Q.; Sun, Y.; Chen, S.; Wang, J.Q.; Wu, M.; Fu, W.; Tang, Y.; Duan, X.; Chen, D.; et al. Optimising surface d charge of AuPd nanoalloy catalysts for enhanced catalytic activity. Nat. Commun. 2019, 10, 1428. [Google Scholar] [CrossRef] [PubMed]
  35. Lin, H.; Muzzio, M.; Wei, K.; Zhang, P.; Li, J.; Li, N.; Yin, Z.; Su, D.; Sun, S. PdAu alloy nanoparticles for ethanol oxidation in alkaline conditions: Enhanced activity and C1 pathway selectivity. ACS Appl. Energy Mater. 2019, 2, 8701–8706. [Google Scholar] [CrossRef]
  36. Li, S.; Wang, L.; Wu, M.; Sun, Y.; Zhu, X.; Wan, Y. Measurable surface d charge of Pd as a descriptor for the selective hydrogenation activity of quinoline. Chin. J. Catal. 2020, 41, 1337–1347. [Google Scholar] [CrossRef]
  37. Yeon, S.; Lee, S.J.; Chinnadurai, D.; Yu, Y.; Lee, Y.W.; Choi, M.Y. Rapid alloying of Au–Pd nanospheres by a facile pulsed laser technique: Insights into a molar-dependent electrocatalytic methanol oxidation reaction. J. Alloys Compd. 2022, 891, 162011. [Google Scholar] [CrossRef]
  38. Nascente, P.A.; de Castro, S.G.; Landers, R.; Kleiman, G.G. X-ray photoemission and Auger energy shifts in some gold-palladium alloys. Phys. Rev. B Condens. Matter 1991, 43, 4659–4666. [Google Scholar] [CrossRef] [PubMed]
  39. Balcha, T.; Strobl, J.R.; Fowler, C.; Dash, P.; Scott, R.W.J. Selective aerobic oxidation of crotyl alcohol using AuPd core-shell nanoparticles. ACS Catal. 2011, 1, 425–436. [Google Scholar] [CrossRef]
  40. Zhang, X.; Sun, Z.; Jin, R.; Zhu, C.; Zhao, C.; Lin, Y.; Guan, Q.; Cao, L.; Wang, H.; Li, S.; et al. Conjugated dual size effect of core-shell particles synergizes bimetallic catalysis. Nat. Commun. 2023, 14, 530. [Google Scholar] [CrossRef] [PubMed]
  41. Liu, H.; Wu, Z.; Wang, R.; Dong, M.; Wang, G.; Qin, Z.; Fan, W. Structural and electronic feature evolution of Au-Pd bimetallic catalysts supported on graphene and SiO2 in H2 and O2. J. Catal. 2019, 376, 44–56. [Google Scholar] [CrossRef]
  42. Boubnov, A.; Timoshenko, J.; Wrasman, C.J.; Hoffman, A.S.; Cargnello, M.; Frenkel, A.I.; Bare, S.R. Insight into restructuring of Pd-Au nanoparticles using EXAFS. Radiat. Phys. Chem. 2020, 175, 108304. [Google Scholar] [CrossRef]
  43. Jones, W.; Su, R.; Wells, P.P.; Shen, Y.; Dimitratos, N.; Bowker, M.; Hutchings, G. Optimised photocatalytic hydrogen production using core–shell AuPd promoters with controlled shell thickness. Phys. Chem. Chem. Phys 2014, 16, 26638–26644. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, R.; Zhao, Y.; Guo, Z.; Liu, X.; Zhu, L.; Jiang, Y. Highly selective Pd nanosheet aerogel catalyst with hybrid strain induced by laser irradiation and P doping postprocess. Small 2023, 19, e2205587. [Google Scholar] [CrossRef] [PubMed]
  45. Luo, L.-M.; Zhan, W.; Zhang, R.-H.; Chen, D.; Hu, Q.-Y.; Guo, Y.-F.; Zhou, X.-W. Ternary CoAuPd and binary AuPd electrocatalysts for methanol oxidation and oxygen reduction reaction: Enhanced catalytic performance by surface reconstruction. J. Power Sources 2019, 412, 142–152. [Google Scholar] [CrossRef]
  46. Chen, L.; Lu, L.; Zhu, H.; Chen, Y.; Huang, Y.; Li, Y.; Wang, L. Improved ethanol electrooxidation performance by shortening Pd–Ni active site distance in Pd–Ni–P nanocatalysts. Nat. Commun. 2017, 8, 14136. [Google Scholar] [CrossRef]
  47. Liu, D.; Zeng, Q.; Liu, H.; Hu, C.; Chen, D.; Xu, L.; Yang, J. Combining the core-shell construction with an alloying effect for high efficiency ethanol electrooxidation. Cell Rep. Phys. Sci. 2021, 2, 3. [Google Scholar] [CrossRef]
  48. Qin, X.; Li, H.; Xie, S.; Li, K.; Jiang, T.; Ma, X.Y.; Cai, W.B. Mechanistic analysis-guided Pd-based catalysts for efficient hydrogen production from formic acid dehydrogenation. ACS Catal. 2020, 10, 3921–3932. [Google Scholar] [CrossRef]
  49. Duchesne, P.N.; Li, Z.Y.; Deming, C.P.; Fung, V.; Zhao, X.; Yuan, J.; Zhang, P. Golden single-atomic-site platinum electrocatalysts. Nat. Mater. 2018, 17, 1033–1039. [Google Scholar] [CrossRef]
  50. Zhu, L.; Zhang, R.; Liu, X.; Zhu, J.; Guo, Z.; Zhao, Y. Laser-Assisted synthesis of Bi-Decorated Pt aerogel for efficient methanol oxidation electrocatalysis. Appl. Surf. Sci. 2022, 592, 153219. [Google Scholar] [CrossRef]
  51. Feng, Q.; Zhao, S.; He, D.; Tian, S.; Gu, L.; Wen, X.; Chen, C.; Peng, Q.; Wang, D.; Li, Y. Strain engineering to enhance the electrooxidation performance of atomic-layer Pt on intermetallic Pt3Ga. J. Am. Chem. Soc. 2018, 140, 2773–2776. [Google Scholar] [CrossRef] [PubMed]
  52. Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169. [Google Scholar] [CrossRef] [PubMed]
  53. Joubert, G.K.D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1998, 59, 1758–1775. [Google Scholar]
  54. John, K.B.; Perdew, P. Matthias Ernzerhof. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 18. [Google Scholar]
  55. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  56. Wang, V.; Xu, N.; Liu, J.-C.; Tang, G.; Geng, W.-T. VASPKIT: A user-friendly interface facilitating high-throughput computing and analysis using VASP code. Comput. Phys. Commun. 2021, 267, 108033. [Google Scholar] [CrossRef]
  57. Du, R.; Wang, J.; Wang, Y.; Hubner, R.; Fan, X.; Senkovska, I.; Hu, Y.; Kaskel, S.; Eychmuller, A. Unveiling reductant chemistry in fabricating noble metal aerogels for superior oxygen evolution and ethanol oxidation. Nat. Commun. 2020, 11, 1590. [Google Scholar] [CrossRef] [PubMed]
  58. Liu, M.; Xie, M.; Jiang, Y.; Liu, Z.; Lu, Y.; Zhang, S.; Zhang, Z.; Wang, X.; Liu, K.; Zhang, Q.; et al. Core–shell nanoparticles with tensile strain enable highly efficient electrochemical ethanol oxidation. J. Mater. Chem. A 2021, 9, 15373–15380. [Google Scholar] [CrossRef]
  59. Wang, L.; Liu, Z.; Zhang, S.; Li, M.; Zhang, Y.; Li, Z.; Tang, Z. In situ assembly of ultrafine AuPd nanowires as efficient electrocatalysts for ethanol electroxidation. Int. J. Hydrogen Energy 2021, 46, 8549–8556. [Google Scholar] [CrossRef]
  60. Fan, X.; Zerebecki, S.; Du, R.; Hubner, R.; Marzum, G.; Jiang, G.; Hu, Y.; Barcikowki, S. Reichenberger and A. Eychmuller, Promoting the electrocatalytic performance of noble metal aerogels by ligand-directed modulation. Angew. Chem. 2020, 132, 5755–5760. [Google Scholar] [CrossRef]
  61. Qin, Y.; Huang, H.; Yu, W.; Zhang, H.; Li, Z.; Wang, Z.; Lai, J.; Wang, L.; Feng, S. Porous PdWM (M= Nb, Mo and Ta) trimetallene for high C1 selectivity in alkaline ethanol oxidation reaction. Adv. Sci. 2022, 9, e2103722. [Google Scholar] [CrossRef] [PubMed]
  62. Du, R.; Joswig, J.O.; Hubner, R.; Zhou, L.; Wei, W.; Hu, Y.; Eychmuller, A. Freeze–thaw-promoted fabrication of clean and hierarchically structured noble-metal aerogels for electrocatalysis and photoelectrocatalysis. Angew. Chem. 2020, 132, 8370–8377. [Google Scholar] [CrossRef]
  63. Wang, L.; Yu, Z.; Yan, W.; Liu, L.; Wang, M.; Kong, Q.; Hu, Z.; Geng, H.; Huang, X.; Li, Y. Palladium chalcogenide nanosheets with pd orbital hybridization for enhanced alcohol electro-oxidation performance. Appl. Catal. B-Environ. 2024, 343, 123564. [Google Scholar] [CrossRef]
  64. Zhou, X.; Ma, Y.; Ge, Y.; Zhu, S.; Cui, Y.; Chen, B.; Liao, L.; Yun, Q.; He, Z.; Long, H.; et al. Preparation of Au@ Pd core–shell nanorods with fcc-2H-fcc heterophase for highly efficient electrocatalytic alcohol oxidation. J. Am. Chem. Soc. 2022, 144, 547–555. [Google Scholar] [CrossRef] [PubMed]
  65. Zhou, M.; Liu, J.; Ling, C.; Ge, Y.; Chen, B.; Tan, C.; Fan, Z.; Huang, J.; Chen, J.; Liu, Z.; et al. Synthesis of Pd3Sn and PdCuSn nanorods with L12 phase for highly efficient electrocatalytic ethanol oxidation. Adv. Mater. 2022, 34, e2106115. [Google Scholar] [CrossRef] [PubMed]
  66. Han, S.; Ma, Y.; Yun, Q.; Wang, A.L.; Zhu, Q.; Zhang, H.; He, C.; Xia, J.; Meng, X.; Gao, L.; et al. The synergy of tensile strain and ligand effect in PtBi nanorings for boosting electrocatalytic alcohol oxidation. Adv. Funct. Mater. 2022, 32, 2208760. [Google Scholar] [CrossRef]
  67. Wang, D.; Zhang, Y.; Zhang, K.; Wang, X.; Wang, C.; Li, Z.; Gao, F.; Du, Y. Rapid synthesis of Palladium-Platinum-Nickel ultrathin porous nanosheets with high catalytic performance for alcohol electrooxidation. J. Colloid. Interface Sci. 2023, 650, 350–357. [Google Scholar] [CrossRef] [PubMed]
  68. Zhang, N.; Zhang, K.; Li, J.; Ye, C.; Du, Y. One-pot synthesis of 3D surface-wrinkled PdAu nanospheres for robust alcohols electrocatalysis. J. Colloid. Interface Sci. 2023, 650, 1509–1517. [Google Scholar] [CrossRef] [PubMed]
  69. Wu, J.; Cui, X.; Fan, J.; Zhao, J.; Zhang, Q.; Jia, G.; Wu, Q.; Zhang, D.; Hou, C.; Xu, S.; et al. Stable bimetallene hydride boosts anodic CO tolerance of fuel cells. ACS Energy Lett. 2021, 6, 1912–1919. [Google Scholar] [CrossRef]
  70. Li, S.; Shu, J.; Ma, S.; Yang, H.; Jin, J.; Zhang, X.; Jin, R. Engineering three-dimensional nitrogen-doped carbon black embedding nitrogen-doped graphene anchoring ultrafine surface-clean Pd nanoparticles as efficient ethanol oxidation electrocatalyst. Appl. Catal. B-Environ. 2021, 280, 119464. [Google Scholar] [CrossRef]
  71. Li, S.; Guan, A.; Wang, H.; Yan, Y.; Huang, H.; Jing, C.; Zhang, L.; Zhang, L.; Zheng, G. Hybrid palladium nanoparticles and nickel single atom catalysts for efficient electrocatalytic ethanol oxidation. J. Mater. Chem. A 2022, 10, 6129–6133. [Google Scholar] [CrossRef]
Materials 17 01876 g001

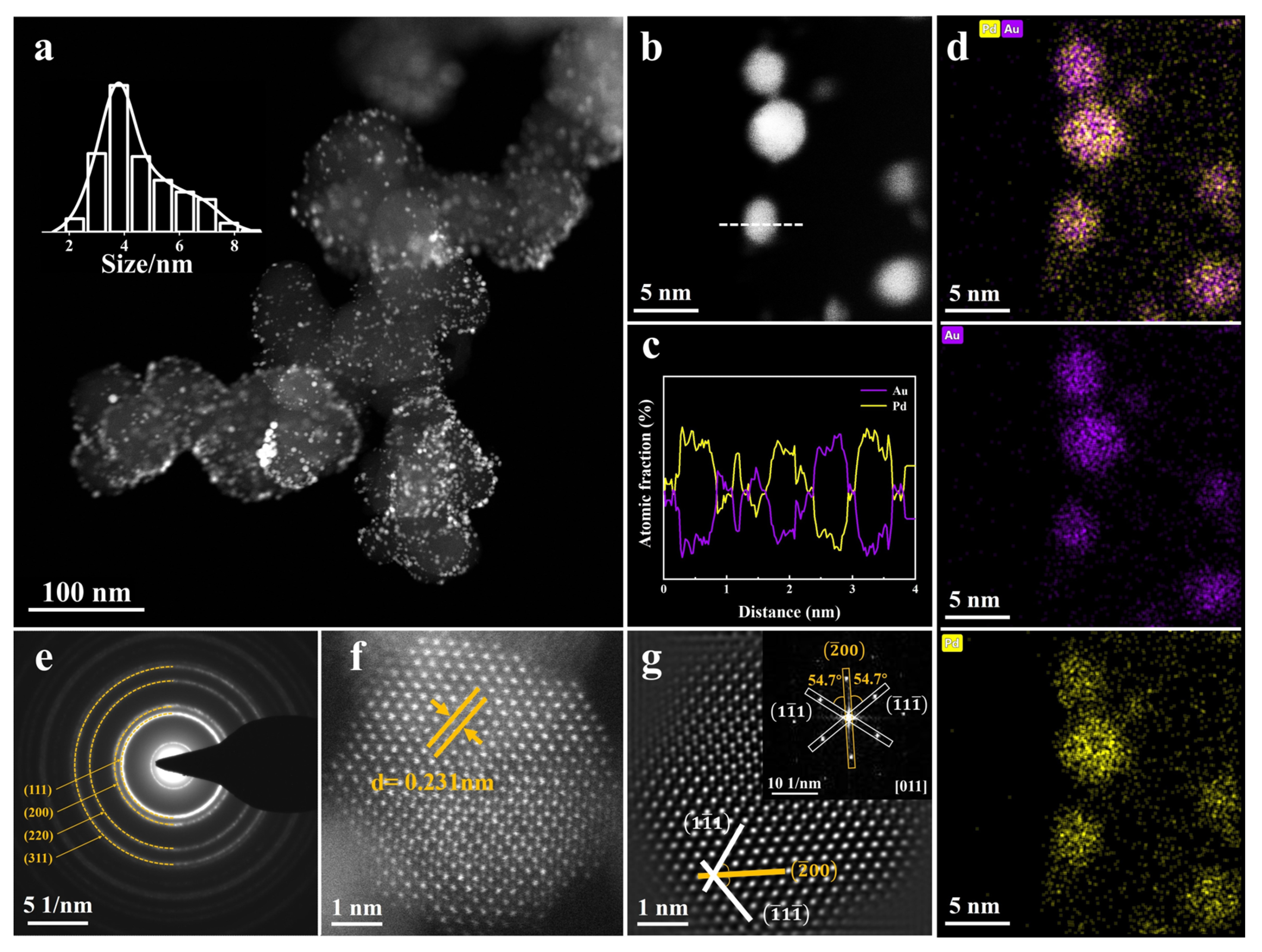

Figure 1. (a) HAADF-STEM picture of L-AuPd nanoparticles/C; inset displays size distribution histogram. (b) HAADF-STEM picture of L-AuPd nanoparticles. (c) EDS line scanning across an L-AuPd nanoparticle, as marked by the dashed line in (b). (d) Elemental profiles from HAADF-STEM-EDS, (e) SAED analysis, (f) AC-HADDF-STEM picture, (g) IFFT representation of (f); inset depicts the FFT of L-AuPd nanoparticles.
Figure 1. (a) HAADF-STEM picture of L-AuPd nanoparticles/C; inset displays size distribution histogram. (b) HAADF-STEM picture of L-AuPd nanoparticles. (c) EDS line scanning across an L-AuPd nanoparticle, as marked by the dashed line in (b). (d) Elemental profiles from HAADF-STEM-EDS, (e) SAED analysis, (f) AC-HADDF-STEM picture, (g) IFFT representation of (f); inset depicts the FFT of L-AuPd nanoparticles.
Materials 17 01876 g001
Materials 17 01876 g002

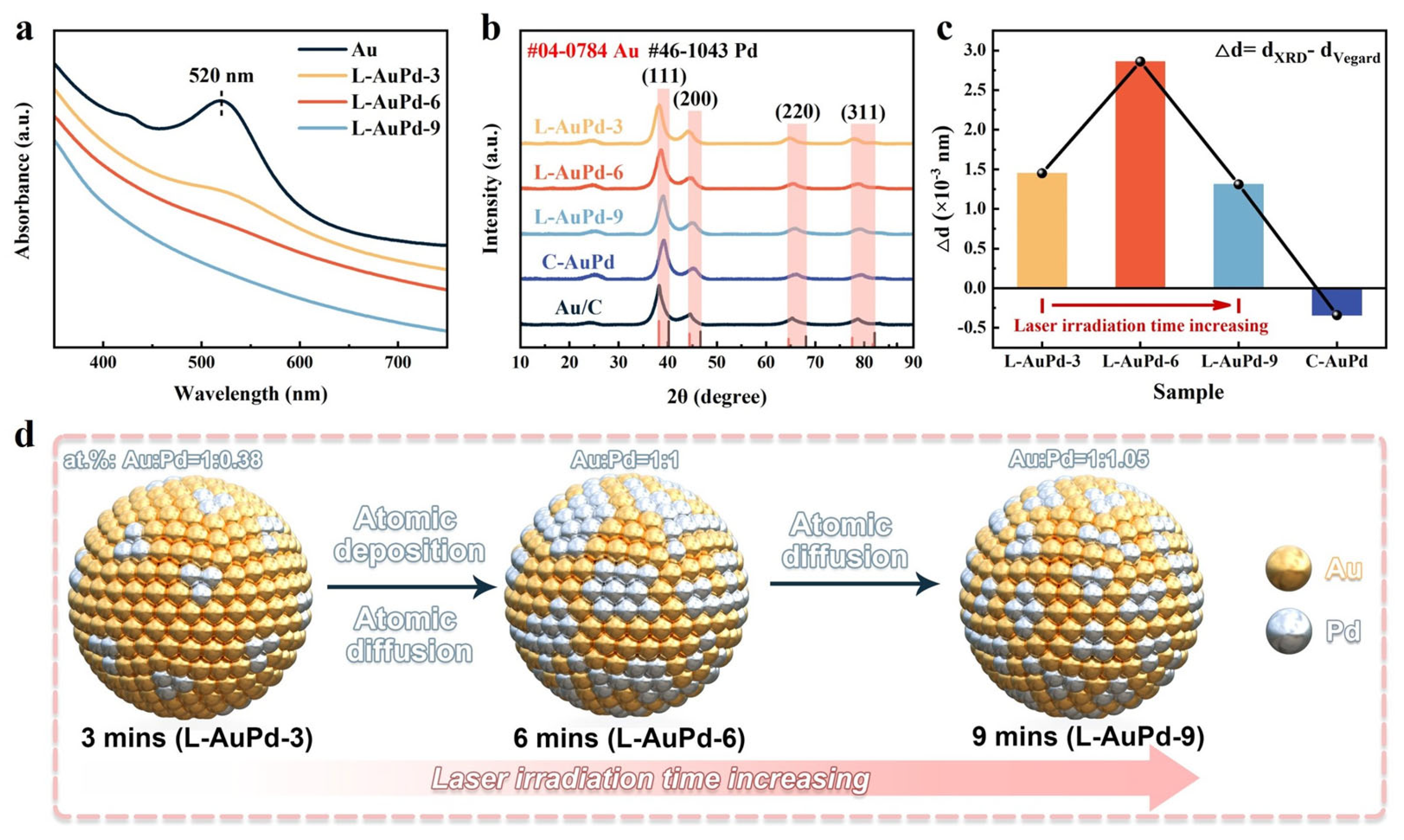

Figure 2. (a) UV–Vis absorbance spectra for L-AuPd nanoparticles. (b) XRD patterns for L-AuPd nanoparticles, C-AuPd, and Au/C. (c) Disparity in (111) plane lattice spacings from XRD data versus Vegard’s law. (d) Schematic depicting variation in L-AuPd nanoparticles’ degree of alloying with laser irradiation time.
Figure 2. (a) UV–Vis absorbance spectra for L-AuPd nanoparticles. (b) XRD patterns for L-AuPd nanoparticles, C-AuPd, and Au/C. (c) Disparity in (111) plane lattice spacings from XRD data versus Vegard’s law. (d) Schematic depicting variation in L-AuPd nanoparticles’ degree of alloying with laser irradiation time.
Materials 17 01876 g002
Materials 17 01876 g003

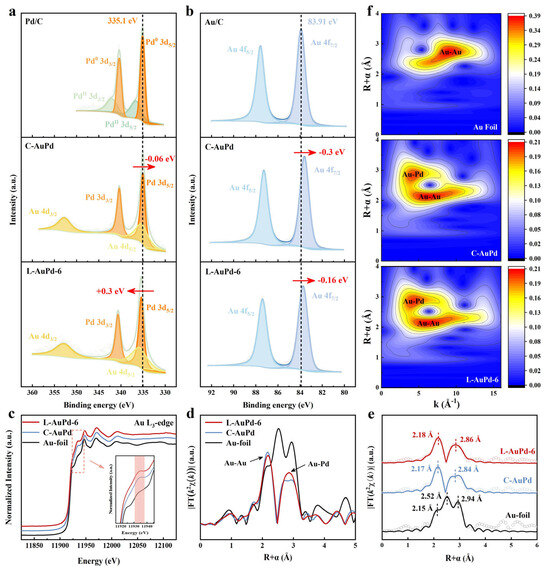

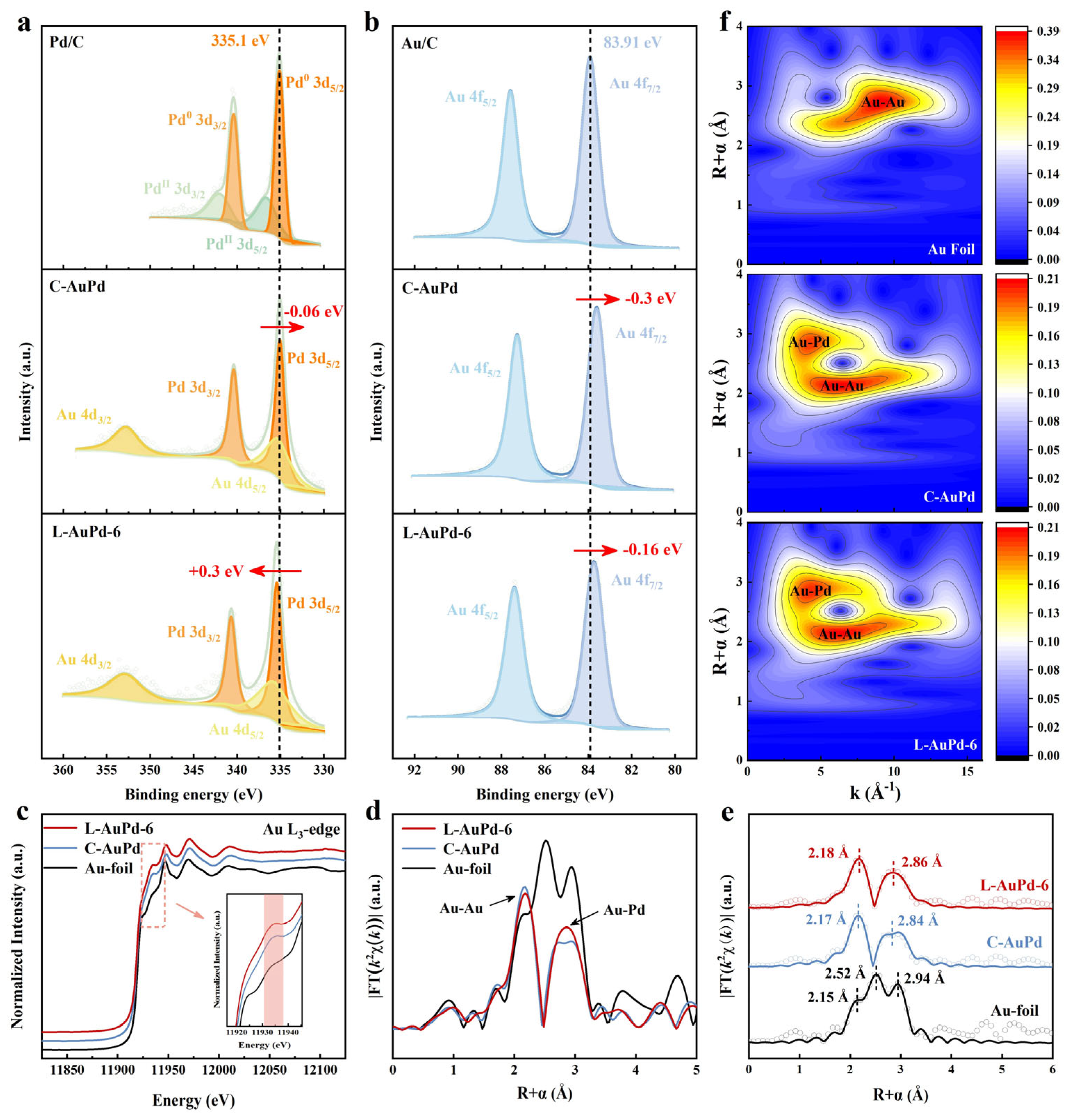

Figure 3. (a) XPS spectra of Pd 3d signals of Pd/C, C-AuPd, and L-AuPd-6. (b) XPS spectra of Au 4f signals of Au/C, C-AuPd, and L-AuPd-6. (c) Au L3 edge XANES spectra, (d) the Fourier transform k2-weighted EXAFS spectra, (e) k2-weighted Au L3 edge FT-EXAFS spectra, as well as the fitting curves and (f) wavelet transform for EXAFS spectra of Au foil, C-AuPd, and L-AuPd-6.
Figure 3. (a) XPS spectra of Pd 3d signals of Pd/C, C-AuPd, and L-AuPd-6. (b) XPS spectra of Au 4f signals of Au/C, C-AuPd, and L-AuPd-6. (c) Au L3 edge XANES spectra, (d) the Fourier transform k2-weighted EXAFS spectra, (e) k2-weighted Au L3 edge FT-EXAFS spectra, as well as the fitting curves and (f) wavelet transform for EXAFS spectra of Au foil, C-AuPd, and L-AuPd-6.
Materials 17 01876 g003
Materials 17 01876 g004

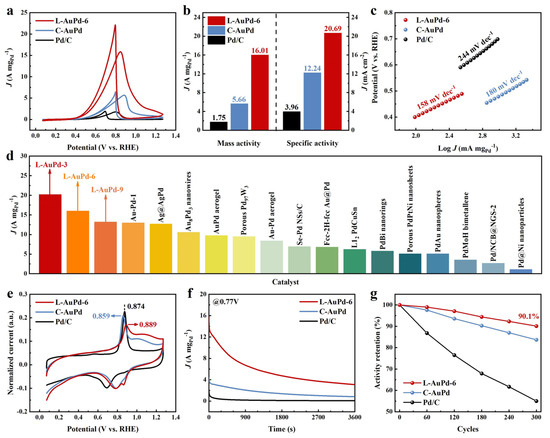

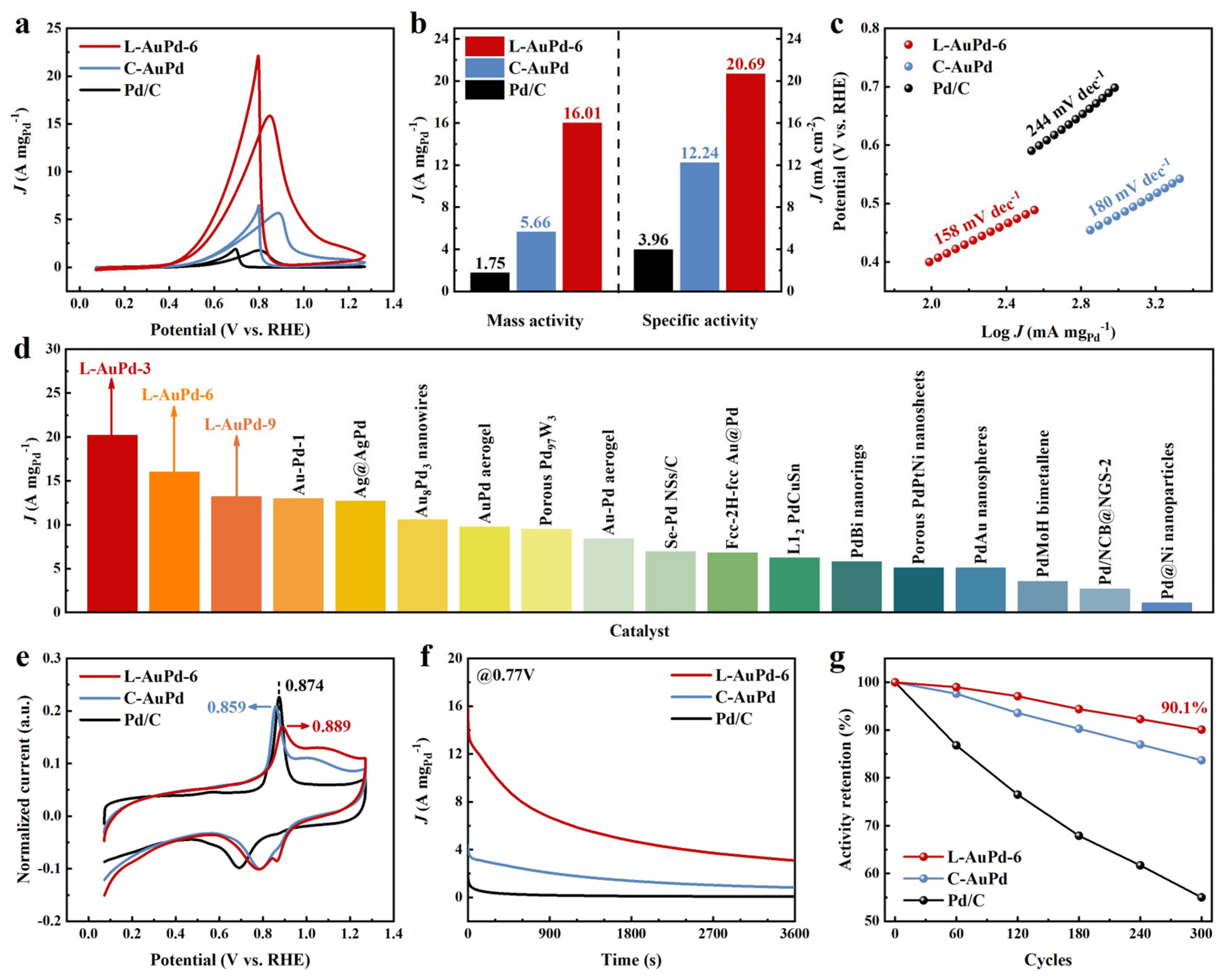

Figure 4. (a) CV profiles for Pd/C, C-AuPd, and L-AuPd-6 were obtained in N2-saturated 1.0 M KOH and 1.0 M ethanol at room temperature, with a scan rate of 50 mV s−1. (b) Mass activities and specific activities for the catalysts. (c) Tafel plots for the catalysts. (d) Comparative analysis of mass activity between L-AuPd catalysts and other reported Pd-based EOR catalysts. (e) CO stripping profiles for the catalysts in 1.0 M KOH. (f) Chronoamperometric responses for the catalysts were recorded at 0.77 V vs. RHE in 1.0 M KOH and 1.0 M ethanol. (g) Potential cycling stability of the catalysts in 1.0 M KOH and 1.0 M ethanol for 300 cycles with a scan rate of 50 mV s−1.
Figure 4. (a) CV profiles for Pd/C, C-AuPd, and L-AuPd-6 were obtained in N2-saturated 1.0 M KOH and 1.0 M ethanol at room temperature, with a scan rate of 50 mV s−1. (b) Mass activities and specific activities for the catalysts. (c) Tafel plots for the catalysts. (d) Comparative analysis of mass activity between L-AuPd catalysts and other reported Pd-based EOR catalysts. (e) CO stripping profiles for the catalysts in 1.0 M KOH. (f) Chronoamperometric responses for the catalysts were recorded at 0.77 V vs. RHE in 1.0 M KOH and 1.0 M ethanol. (g) Potential cycling stability of the catalysts in 1.0 M KOH and 1.0 M ethanol for 300 cycles with a scan rate of 50 mV s−1.
Materials 17 01876 g004
Materials 17 01876 g005

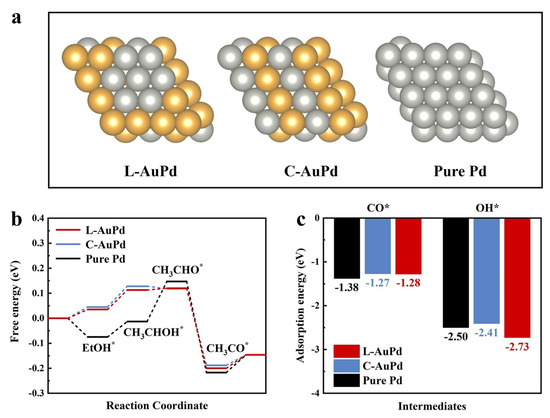

Figure 5. (a) Atomic model. (b) EOR free-energy profiles and (c) adsorption energies of OH* and CO* species for pure Pd, C-AuPd, and L-AuPd.
