Review

A Short Overview on Graphene and Graphene-Related Materials for Electrochemical Gas Sensing

by
Mallikarjun Madagalam
1,2,
Mattia Bartoli
2,3,* and
Alberto Tagliaferro
1,4,*
1
Department of Applied Science and Technology, Politecnico di Torino, Duca degli Abruzzi 24, 10129 Turin, Italy
2
National Interuniversity Consortium of Materials Science and Technology (INSTM), Via Giuseppe Giusti, 9, 50121 Florence, Italy
3
Center for Sustainable Future Technologies (CSFT), Istituto Italiano di Tecnologia (IIT), Via Livorno 60, 10144 Turin, Italy
4
Faculty of Science, OntarioTech University, Simcoe Street North, Oshawa, ON L1G 0C5, Canada
*
Authors to whom correspondence should be addressed.
Materials 2024, 17(2), 303; https://doi.org/10.3390/ma17020303
Submission received: 6 December 2023 / Revised: 5 January 2024 / Accepted: 5 January 2024 / Published: 7 January 2024
(This article belongs to the Special Issue Advanced Graphene and Graphene Oxide Materials)
Browse Figures
Versions Notes

Abstract

:
The development of new and high-performing electrode materials for sensing applications is one of the most intriguing and challenging research fields. There are several ways to approach this matter, but the use of nanostructured surfaces is among the most promising and highest performing. Graphene and graphene-related materials have contributed to spreading nanoscience across several fields in which the combination of morphological and electronic properties exploit their outstanding electrochemical properties. In this review, we discuss the use of graphene and graphene-like materials to produce gas sensors, highlighting the most relevant and new advancements in the field, with a particular focus on the interaction between the gases and the materials.

1. Introduction

The production of highly sensitive materials for electrochemical sensing is a matter of great relevance for analytic science. Actually, research is focusing on finding the best trade-off between the performance and the toughness of electrode materials [1]. In this field, graphene and graphene-related materials (GRMs) can play a game-changing role.
The outstanding electrical properties of graphene combined with its superior mechanical and optical properties have attracted great interest in electrochemical sensing applications due to the achievable sensitivity, rapid response times, and versatility in detecting a wide range of analytes never reached before [2]. The integration of graphene into electrochemical sensors has led to significant performance improvements in several fields of application, including environmental science [3], medical diagnostics [4] and quality control [5]. Graphene’s astonishing performance is due to the improvement of electron transfer at the electrode interface by a combination of electronic and chemical features [6]. Furthermore, graphene and GRMs’ high mechanical strength and flexibility further contribute to their utility in electrochemical sensing, ensuring the stability and longevity of sensors even under challenging conditions [7].
The tunability of graphene and GRMs allows their use across several types of sensors, including amperometric, potentiometric, and impedimetric ones. In amperometric sensing, the current generated by the electrochemical reaction at the electrode surface is measured and correlated with the concentration of the analyte. Graphene and GRMs contribute to sensitivity increments due to the combination of electrical conductivity and large surface area [8,9]. Potentiometric sensors measure the potential difference between a reference electrode and a working electrode, and the incorporation of graphene and GRMs enhance the stability and selectivity of the sensor, allowing them to be used in pH sensing [10] or ion detection [11]. Impedimetric sensors exploit changes in the impedance of the electrode interface upon interaction with the target analyte, and graphene’s conductivity and charge transport properties increase both the response rate and the sensitivity of impedimetric sensors [12]. Among all the possible applications, gas detection represents a critical application of GRMs in electrochemical sensing due to the great deal of attention that monitoring air quality [13] and ensuring workplace safety [14] have gained. GRM-based sensors are of particular interest due to their ability to selectively interact with specific gases that are able to induce changes in the electric signals detected [15]. This ability, together with the other outstanding properties of GRMs, is of paramount relevance for a new generation of highly sensitive tough materials for multiple gas sensing.
In this work, we report the most relevant achievements in the GRM-based electrodes field, focusing on pristine graphene, graphene oxide (GO) and reduced graphene oxide (rGO) and their tailored derivatives. We summarize the key electronic properties of graphene and GRMs and diffusely discuss their applications in gas sensing applications, focusing on CO2, CO, H2, NH3, NOx, H2S and SO2. We provide a concise and easy-to-be-exploited overview aimed to represent a reference point for researchers interested in approaching electrochemical sensing using neat and tailored graphene and GRMs in gas sensing.

2. Graphene and GRM Electrical Properties

In agreement with the International Union for Pure and Applied Chemistry Golden Book, graphene is defined as “a single carbon layer of the graphite structure, describing its nature by analogy to a polycyclic aromatic hydrocarbon of quasi infinite size” [16]. A pristine graphene layer is composed of a planar arrangement of carbon atoms bonded through three σ bonds with the p orbitals perpendicular to the sp2 plane, allowing a full delocalization of the π bonds [17,18,19]. This is the reason behind graphene’s exceptional electrical properties, particularly its in-plane electron mobility. At room temperature, the electron mobility in graphene can reach up to 15,000 cm2 V−1s−1 [20] due to a peculiar band organization formed by two conical points in the electronic band diagram known as Dirac points, as shown in Figure 1.

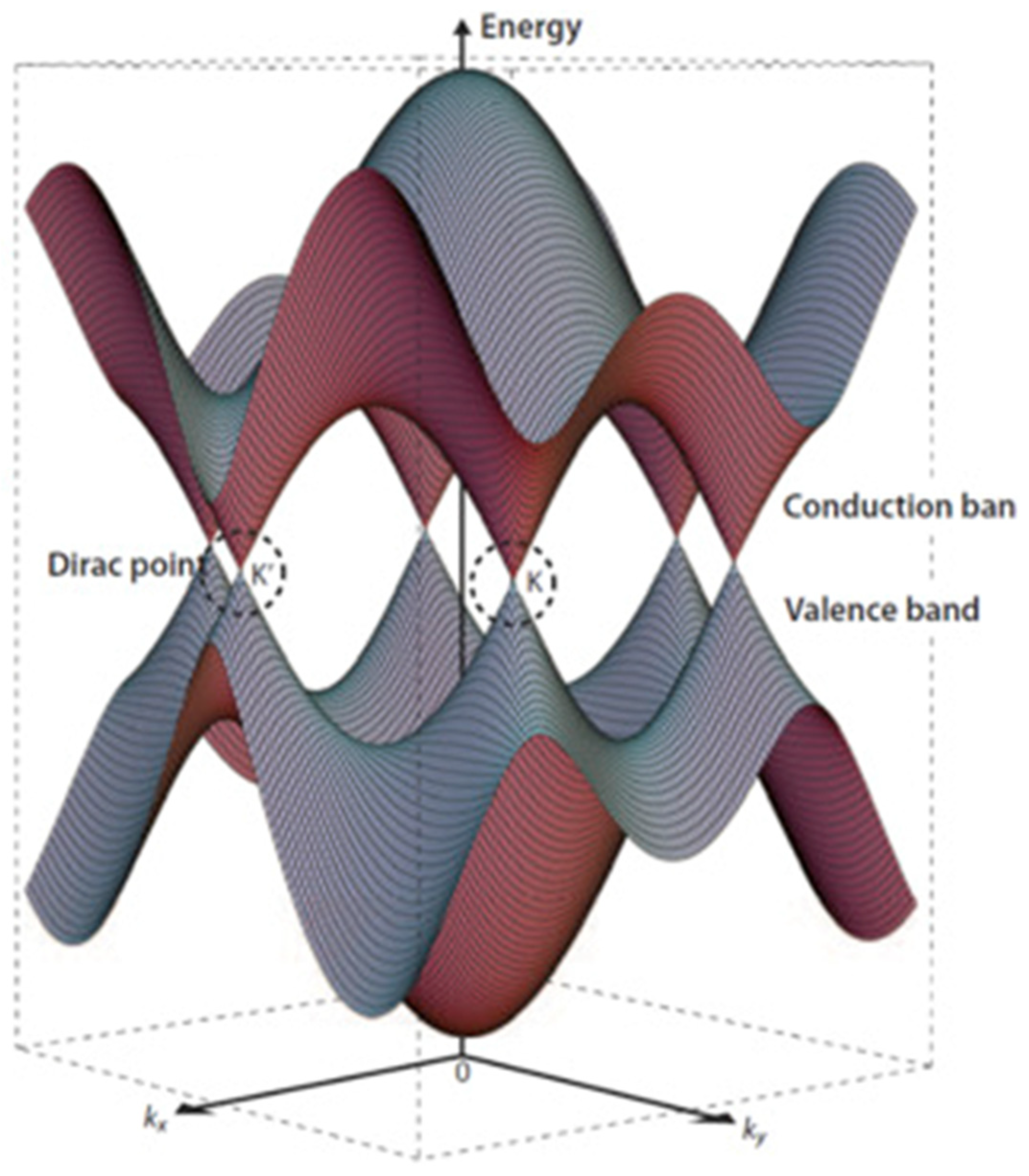

The linear dispersion around Dirac points contributes to the massless nature of charge carriers in graphene, allowing them to travel at incredibly high speeds without any significant scattering due to the eventual topological disorder due to the temperature [22]. Furthermore, graphene is characterized by a relevant Hall effect, with the plateaus occurring at half integers of 4 e2/h rather than 4 e2/h. Near-ideal graphene sheets show a pronounced Hall effect, while multilayer samples show a much weaker gate dependence due to the electric field screening promoted by the other layers [23]. Interestingly, the use of a high magnetic field combined with cryogenic temperatures induces a quantum Hall effect for both holes and electrons [24,25]. The superb electrical properties of graphene are, however, counterbalanced by the absence of a band gap. A great effort has been devoted to creating graphene-like materials with a proper band gap [26], and solutions such as graphene nanoribbons have been developed [27]. Graphene nanoribbons can be shrunk by modifying the charge carrier momentum in the transverse direction, resulting in a band gap opening based on the ribbon width [28]. Alternatively, graphene can be doped with nanostructures and heteroatoms [29].
The most popular and useful procedure to dope graphene is oxidation with the formation of GO. GO is rich in oxygen functionalities such as epoxide and hydroxyl groups on its basal lattice, while carbonyl and carboxylic residues are more abundant on the edges, as described by the Lerf-Klinowski model [30]. The electronic properties of GO are strictly related to the degree of oxidation, as reported by Krishnamoorthy et al. [31]. The increment of GO oxidation induced a reduction of electron mobility [32] as a consequence of the introduction of more defects in the lattice structure of graphene. These defects act as scattering centers for charge carriers, hindering the smooth movement of electrons through the material. Nevertheless, the relationship between oxidation degree and electron mobility is a complex mix of factors, such as the oxygen functional groups and their distribution on the graphene lattice. Interestingly, GO shows a band gap due to the presence of the same defect that reduces the charge carrier’s mobility. The oxygen functionalities alter the electronic configuration of the graphene plane, disrupting the π-conjugated system and forming localized states within the energy band structure of GO, giving rise to a band gap [33]. The presence of a band gap in GO promotes a semiconducting behavior contrary to pristine graphene that shows metallic conductivity [34]. This semiconducting behavior makes graphene oxide well-suited for applications in electronic devices where a controllable on/off state is essential [35]. An interesting compromise between the conductivity of pristine graphene and the properties of GO is the reduced form of GO, named rGO. rGO is produced using harsh reductive processes [36] for decreasing the oxygen residues of GO and trying to find a balance between pristine graphene and GO with a carbon/oxygen ratio ranging from 0.4 up to 13 wt% [37]. The electrical properties of rGO are far higher than those of GO but considerably inferior to graphene, while dispersibility showed an opposite trend [38].

3. Graphene and Graphene-Related Materials’ Electrochemical Sensing Performance

Graphene and GRMs show several key features that allowed the spread of their use in electrochemical sensing applications. Firstly, GRMs are highly sensitive to the surrounding chemical and physical environment [39,40,41]. This is of particular interest considering the interaction with gas molecules that are adsorbed on GRMs’ surface [42] that are able to alter the electronic conductivity [43]. The conductivity alteration induced by adsorbed gas prevents the correct interaction between the dangling π-orbitals and neighboring atom orbitals, altering the conduction bands and reducing the charge carrier’s mobility. This phenomenon can be used to quantify the number of adsorbed molecules through simple electrochemical measurements in which GRMs represent the working electrode. Furthermore, the interactions between gaseous molecules and GRMs can be easily tuned by tuning the graphene functionalization, increasing both the electrochemical performance and the selectivity of the system. These features, together with a fast response and recovery of the electrodes, have boosted the use of GRMs as electrochemical gas sensing platforms, as summarized in Table 1.
GRMs showed some key advantages over other 2D materials such as MXenes, mostly focused on their preparation and tailoring. The synthesis of MXenes is a complex multistage process that should operate in well-controlled conditions [96] for the production of a high-quality material, similar to the single-layer graphene process. Nevertheless, GRM production has been developed and optimized for scalability, as proven by the production of GO and rGO from a wide range of cheap feedstocks under mild conditions through robust processes [97,98,99]. Furthermore, the carbonaceous low-dimensional materials can exploit a wide range of reactivity, fostering an easy chemical tailoring and preserving their properties [100].

3.1. Pristine Graphene and GRM Sensing Performance in Electrochemical Gas Detection: CO2 and CO

Monitoring the asphyxiating gases produced from combustion, such as CO2 and CO, is a relevant safety issue [101]. The main issue of detecting CO2 through electrochemical sensing is the interference of other species in the atmosphere, such as water, CO and oxygen. Smith et al. [44] investigated the cross-sensitivity of a capacitive CO2 sensor in the presence of several residual atmospheres (Ar, H2O, N2) using a chemical vapor-deposited single-layer graphene. Particularly, the authors investigated the effect of humidity on the sensor performance, showing the absence of sensitivity towards CO2 in the presence of atmospheric-level humidity. The authors simulated through density functional theory (DFT) calculations the effect of H2O and CO2, showing that the reduction in sensitivity towards CO2 was due to the electronic alteration of graphene induced by the adsorbed water molecule. The study of CO2 with GRMs is of great interest for producing high-performance gas sensors, and it is affected by several key factors, such as doping, as reported in Figure 2.

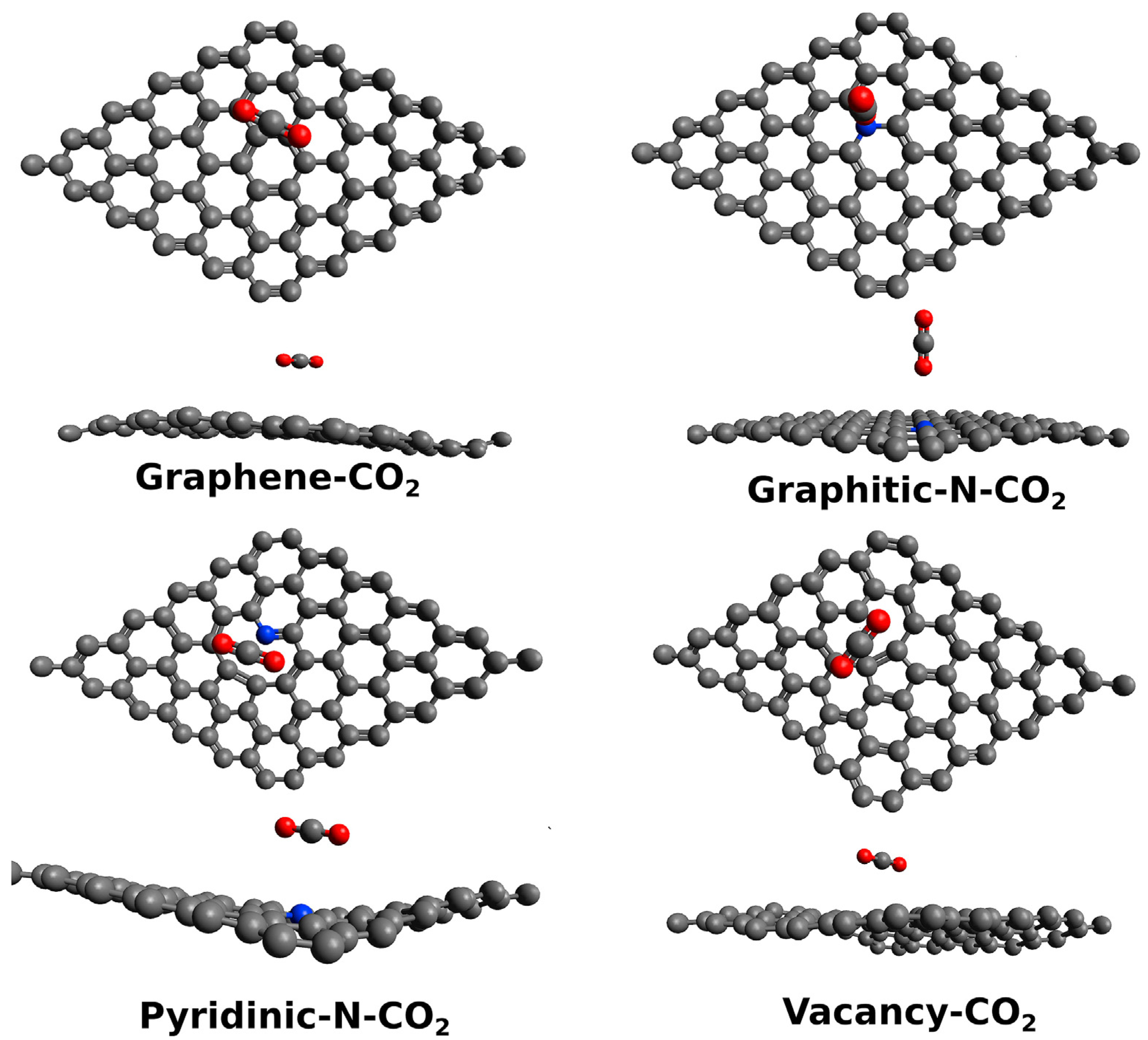

Castillo et al. [102] investigated the role of heteroatom-doped graphene in sensing CO2, proving that the presence of nitrogen graphitic sites can alter the local morphology of graphene sheets and improving the sensitivity towards CO2 over that achievable by using a Pt-decorated electrode. The authors suggested that this was due to the very same nature of nitrogen graphitic sites that act as p-type doping agents. This induced a pullout of electrons from CO2, improving the electrocatalytic activity of the nitrogen-doped graphene.
Deji et al. [103] evaluated the effect of boron and phosphorous co-doping of graphene nanoribbons for direct CO2 detection using first-principle DFT simulation. The authors reported that phosphorous-doped graphene showed an adsorption energy eight times higher than pristine material, while the boron-doped one outperformed it. This study is of particular significance as it assesses the relevance of the doping agent. Additionally, Elgammal et al. [104] also proved that the support onto which graphene is deposited affects the sensing process, even if not in such a relevant way. The authors modelled the performance of graphene supported on silica or sapphire substrates for detecting both CO2 and H2O molecules using DFT simulations. The results showing the differences between the substrates are in the range of 1 to 10 meV. Interestingly, authors reported that H2O molecules prefer to be adsorbed onto hollow sites in the center of the graphene hexagonal moieties, while CO2 molecules prefer sites bridging carbon–carbon bonds or directly on top of carbon atoms. Also, the authors reported that the adsorption energy of CO2 was up to 0.17 eV, while H2O showed values close to 0.09 eV.
The weak interactions between CO2 and graphene are a relevant issue, but several studies reported the possibility of using GRMs as solid materials for CO2 sensing. Yoon et al. [45] assembled a CO2 sensor fabricated by mechanical cleavage of nanographite plates. The authors were able to detect CO2 at room temperature in the presence of water (humid conditions), observing a linear response of conductance in the range between 10 and 100 ppm. Fan et al. [46] used a double-layer impedimetric electrode for the detection of CO2 without observing any significant influence of H2O for relative humidity (RH) up to 3%. The authors also proved that double-layer graphene performed better than single-layer due to the different spatial distribution of the electronic density.
GRMs have also been diffusely used for improving the interaction with CO2. Akhter et al. [47] designed a low-cost, low-power, miniature, highly sensitive and selective impedimetric CO2 sensor using GO. The authors reported a linear range from 400 ppm to 4000 ppm with good performance in reproducibility and stability. Furthermore, they also achieved a very negligible cross-sensitivity with H2O and a fast response and recovery rate. Muhammad Hafiz et al. [48] used rGO produced by hydrogen plasma as an impedimetric sensor. The authors reported a CO2 gas-sensing response of 71% (calculated as resistance variation of the electrode) in the presence of a CO2 concentration up to 1500 ppm in N2 and 37% RH, while the performance decreased down to a response of 15% in air environment with 68% RH. Nevertheless, the sensor showed a fast response and a good recovery rate. Alternatively, GRMs that include metal species can be used, as reported by Miao et al. [49]. The authors developed a platform system able to operate from 10 up to 60 °C with 97% RH and a CO2 linear response ranging from 300 up to 1100 ppm.

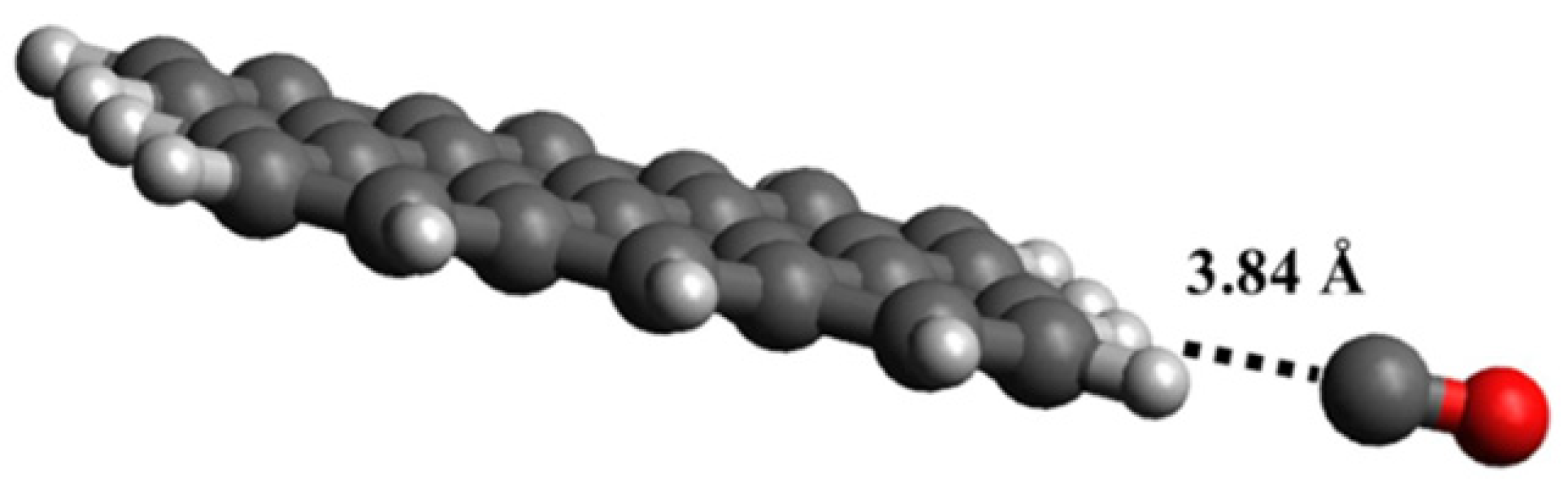

CO showed a different interaction geometry with graphene, as reported by the computational study of Dindorkar et al. [105] and summarized in Figure 3.
While CO2 preferentially interacts with carbon atoms, the CO preferential interaction is with the edges of graphene sheets (Figure 2). The authors also found that CO interacts directly with carbon atoms but only in highly doped fragments containing silicon carbide or boron nitride domains. Similar effects were reported in the presence of GO by Deji and co-workers [106] that also proved the effectiveness of the tailoring process, with metal nanoparticles decreasing the adsorption energy up to 40 times compared with pristine graphene [107]. Metal oxides combined with graphene and GRMs are able to form p-n junctions, increasing the conductivity and improving sensing performance [108]. When it comes to CO sensing, Pd has shown the most remarkable performance, as reported by Kashyap et al. [50], using palladium-tailored rGO as an impedimetric sensor. The authors tested the response to CO in the presence of both CH4 and H2, suggesting that the interaction mechanism of CO was lying between the sole interactions with electron withdrawing or electron donating. As reported by Shojaee et al. [51], the combination of Pd with a metal oxide such as SnO2 could be particularly beneficial for both response and recovery, improving, at the same time, the specific surface area of the material. The authors also provided an overview of the effect of RH on a 400 ppm CO sample analysis, reporting a decrement of response for RH up to 60%. They ascribed this behavior to the competitive adsorption of CO and water molecules on the Pd and SnO2. A further RH increment of up to 85% induced a considerable increment of electrode response due to the formation of surface conductive channels [67]. The surface porosity was also investigated by Ha et al. [52] using ZnO nanoparticles onto rGO. The authors achieved an electrode response value of 85% for 1000 ppm CO at 200 °C, with a recovery time of 9 s. Similarly, the response value, response time, and recovery time of the sensor at room temperature were 27.5%, 14 s, and 15 s, respectively. The sensor demonstrated a distinct response to various CO concentrations in the range of 1–1000 ppm and good selectivity towards CO gas. In addition, the sensor exhibited good repeatability in multicycle and long-term stability. Neetha et al. [53] decorated rGO with Mn3O4, achieving a response time of only 3 s at 25 °C using 50 ppm of CO. Similar results were obtained using SnO2 on graphene [54], CuO on rGO [56] and mixed metal oxide over rGO [55,57].
Nevertheless, inorganic tailoring is not a mandatory condition for detecting CO. rGO by itself can act as an active material for the detection of CO, as reported by Panda et al. [58]. The authors achieved a 71% sensitivity using 30 ppm CO at room temperature (RT), with a recovery time of up to 30 s and a remarkable sensitivity of up to 10 ppm. The authors suggested that the performance was due to the in situ production of atomic, ionic, and radical oxygen sites, which play a relevant role in both the adsorption of CO and electronic density rearmament. Furthermore, GRMs can be functionalized with polymers, as reported by Farea and co-workers [59,60] and by Mohammed et al. [61], or by metal organic frameworks boosting the overall CO sensing performance, as reported by More et al. [62].

3.2. Pristine Graphene and GRM Sensing Performance in Electrochemical Gas Detection: H2

H2 is among the most elusive gases to be detected, and neat graphene cannot be used for direct sensing of it. The most common strategy for H2 sensing is tailoring the GRM surface with metal nanoparticles, activating a mechanism known as spillover, as reported in Figure 4.

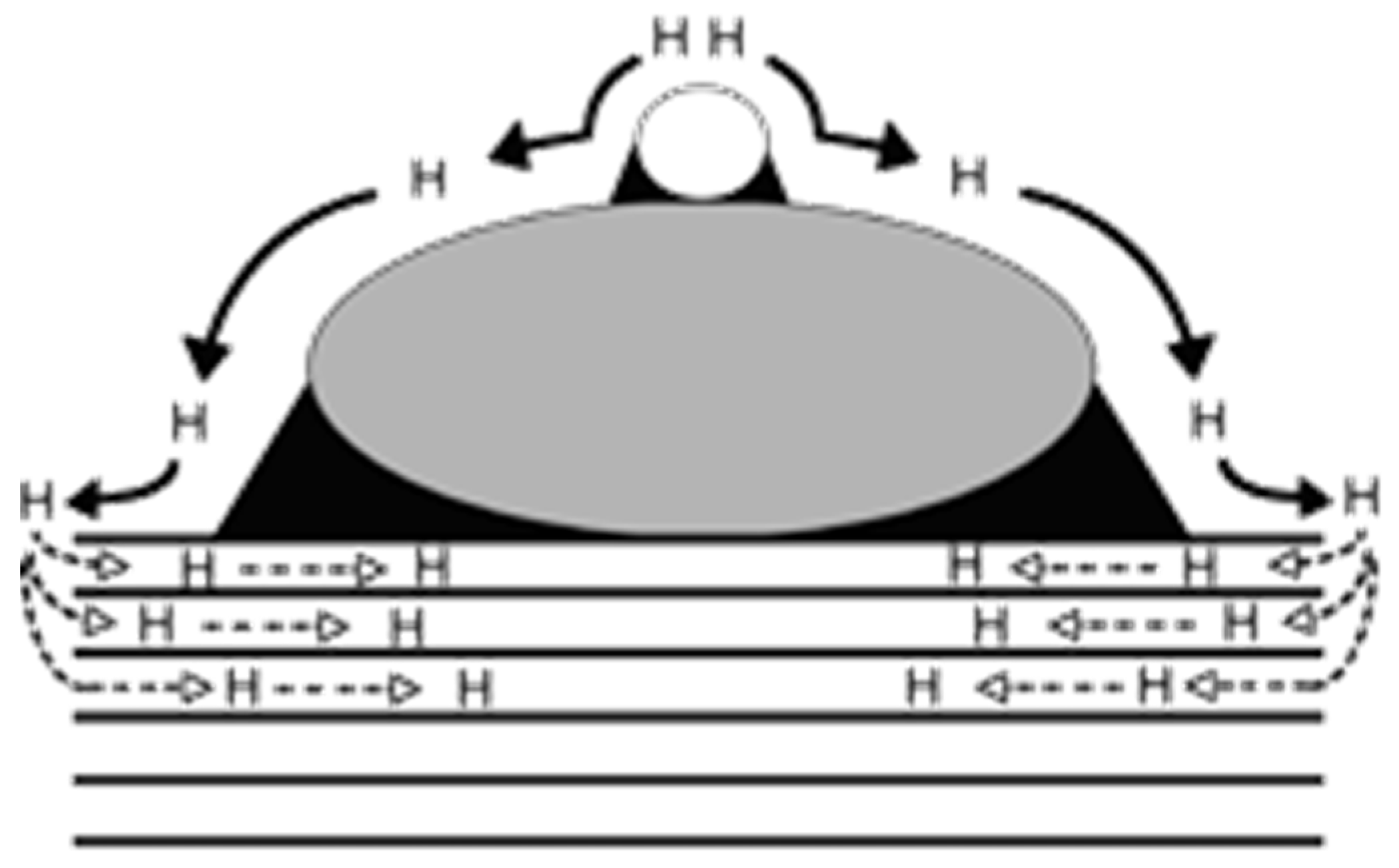

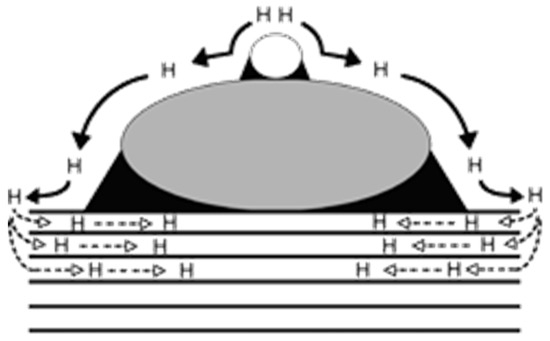

H2 spillover is a complex phenomenon occurring when H2 molecules dissociate onto a metal particle and diffuse as atomic hydrogen to the graphene support, while the second spillover involves a further transportation towards the carbon support. This behavior can be modulated by the introduction of layered GRMs, as reported by Kumar et al. [110], who modelled H2 sensing in a GRM containing a layer of antimonene. DFT calculations showed the presence of a Bader charge transfer mechanism from the antimonene layer towards the graphene one that was able to change the potential barrier from the Ohmic to the Schottky type. Moving to tailored GRMs, Pd and Pt are the higher-performing metals due to their ability to interact with hydrogen through adsorption and release processes [111,112,113,114,115,116,117,118]. As reported by Kishnani et al. [119], palladium-doped or -decorated graphene is very effective in sensing H2. Particularly, the authors reported a higher electrochemical activity and conductivity for palladium-decorated graphene compared with the palladium-doped one, while the charge transfer and recovery time showed an opposite trend. Chung et al. [63] decorated a single-layer graphene sheet with palladium nanoparticles of 3 nm of average size. The authors reported a response of 33% using 1000 ppm of H2 at 25 °C and a remarkable detection limit of 20 ppm. The effect of palladium active centers was also observed by Lange et al. [120] using cyclic voltammetry without providing any highlights on the mechanism. Lee et al. [64] incorporated palladium nanoparticles into a 3D-GRM structure, reaching a response of 41.9% under 3% H2 residual atmosphere.
Platinum has also been investigated as a viable alternative to palladium. Lu et al. [65] decorated rGO with platinum nanoparticles by using freeze-drying-assisted techniques, reaching a sensitivity toward 0.5% hydrogen up to 8% and a recovery time of 63 s. Similarly, Lee et al. [64] and Phan and co-workers [66] produced a highly porous 3D-GRM containing platinum nanoparticles, achieving good linearity from 1 to 100 ppm. As reported by Russo et al. [67], the addition of SnO2 to palladium-decorated rGO was particularly beneficial, enhancing the response of palladium-decorated GRMs over four times. The authors suggested that the enhancement of sensing performance was due to the formation of a heterojunction between the n-type SnO2 and the p-type rGO in the heterostructure, boosting the catalytic effect of platinum in promoting the dissociation of H2.
Non-noble metal oxides have also been used extensively coupled with GRMs for H2 detection. Ahmad Fauzi et al. [68] decorated a proton-conducting GO membrane with WO3, producing a potentiometric H2 sensor. The authors claimed a response of 50 mV in the presence of H2 100 ppm in air atmosphere and a detection limit of 11 ppm. ZnO was also used with GO, with interesting results, as reported by Rasch et al. [69]. The authors achieved a very low detection limit of 4 ppm, with a very fast response of around 114 s and a small recovery time of 30 s.

3.3. Pristinine Graphene and GRM Sensing Performance in Electrochemical Gas Detection: H2O

Humidity sensors play a critical role in several industrial sectors, such as semiconductor production, in which moisture content in the air is a critical parameter [121]. GRMs provide interesting solutions to detecting the moisture content of air, even at low concentrations, due to the interaction occurring between the graphene surface and H2O molecules, as sketched in Figure 5.

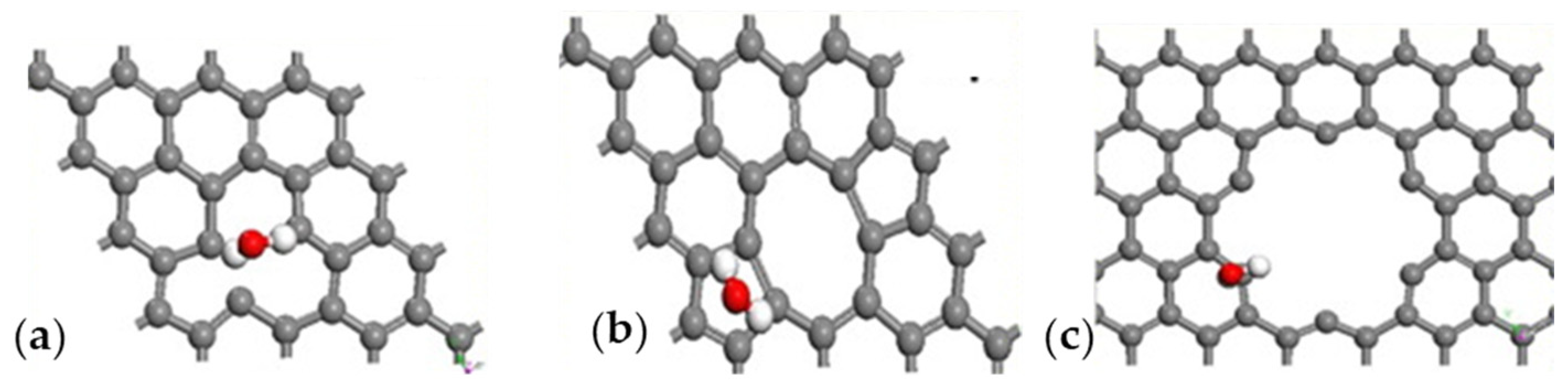

As reported in Figure 3, H2O molecules interact with graphene sheets without bonding and only through weak interactions with a distance of 2.5 Å and a higher deformation due to the interaction close to hole defects (Figure 5c), while the other cases (Figure 3a,b) did not show any significant distortion. Wang et al. [70] utilized vertically aligned graphene arrays as a humidity sensor platform. The authors observed the rise of system current with the increment of RH, suggesting a link to the Schottky barrier height with the junction resistance decrement due to the adsorption of vapor molecules. The authors suggested that the water molecules act as electron acceptors, increasing the hole density in the graphene systems. Zeng et al. [71] produced a self-powered H2O flexible sensor with ultrafast response and recovery time of up to 0.3 s using GO. The authors claimed to have obtained a faster response in the field of humidity sensors, and they were able to operate in an RH range from 33 to 98%. Interestingly, they proposed an interpretative model of H+ diffusion occurring during the sensing process based on Grotthuss hopping [123]. Yu et al. [121] produced a sensor based on rGO with the highest sensitivity for humidity. The authors suggested that this exceptional behavior was due to the spherical double surfaces and small pores in the 3D structure of rGO, allowing an optimal exposure of functionalities and a magnification of H2O interactions. Nevertheless, both GO and rGO suffer several issues, such as cross-reactivity towards the other gas present in the analyte. Seeneevassen et al. [124] used a GO sensor to monitor the humidity in an effluent gas, observing that the electrode must be conditioned before use through several cycles of humidification–dehumidification.
Huang et al. [125] faced the problem of humidity quantification in the agricultural sector, in which there are many interfering agents. The authors encapsulated rGO under a layer of GO deposited by spray coating, observing a reduction in cross-sensitivity towards both NH3 and ethanol and retaining a good response and high sensitivity of up to 0.4% RH. As for the detection of other species, GRM tailoring significantly helps the sensing process, as proven by decoration with metal oxides [70,72], metal nanoparticles or organic fragments [75].

3.4. Pristine Graphene and GRM Sensing Performance in Electrochemical Gas Detection: NH3 and NOx

The detection of NH3 is highly interesting due to the harmfulness of this gas [126,127]. The interaction with graphene is also, in this case, the key to understanding how to optimize the NH3 sensing process. As shown in Figure 6 [128], NH3 interaction with graphene occurs mainly through weak hybridizations between graphene and NH3 p orbitals. Accordingly, NH3 acts as an electron donor, but pristine graphene is not able to promote both good adsorption and an efficient small transfer charge, resulting in poor detection ability.

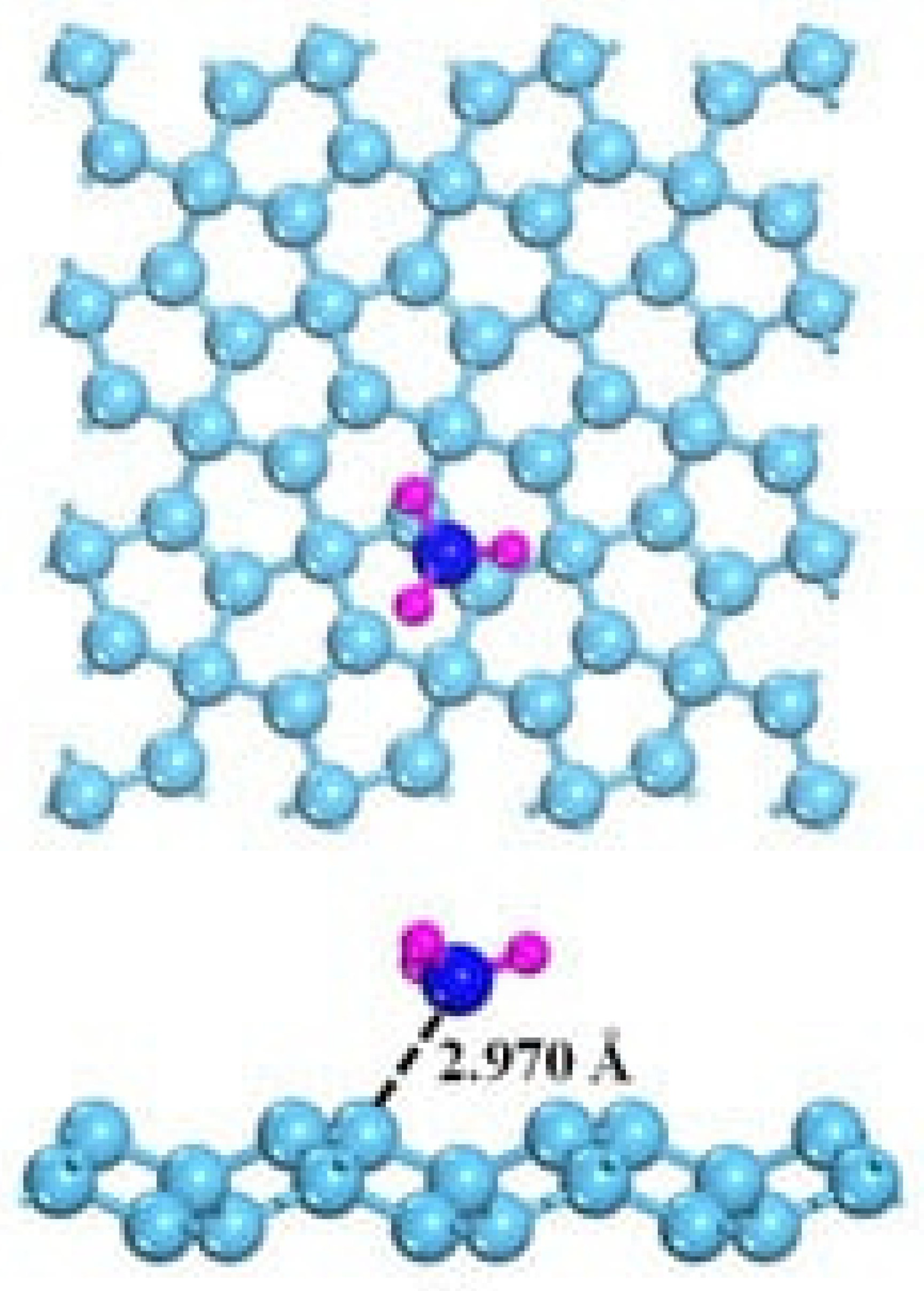

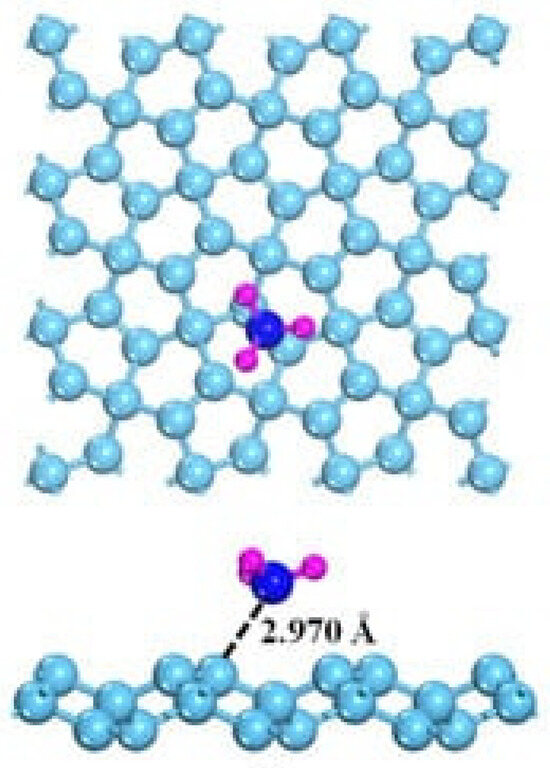

The interaction between NH3 and graphene was evaluated by Song et al. [76]. The authors investigated the connection between sensitivity and graphene layers using single-layer, double-layer and multilayer graphene and 12,500 ppm of NH3. The results showed that the electron transfer is three times higher in single-layer graphene than in the other species due to the easy rearrangement of charge density. Su et al. [77] used a similar approach for the production of a GO layered sensor. Also, in this case, the single-layer material showed the best performance, with a linear range from 5 to 100 ppm and a sensitivity over 15% greater than the multilayered GO. Among GRMs, fluorinated graphene also showed remarkable performance for NH3 sensing, showing a 7% change in the resistive response, while pristine GO did not show any sensing ability [78]. This behavior was due to the lower Fermi level of GO and to the increment of hole density in fluorinated GO. Alternatively, Li et al. [79] doped graphene using phosphorous for NH3 sensing. The authors reported an increment in performance with a reduction in both response and recovery time up to 71% and 73%, respectively and a detection limit of 69 ppb. Furthermore, the phosphorous-doped system showed a remarkable combination of repeatability, stability, and selectivity. The functionalization using both organic [80] and inorganic [81,82] species is also, in this case, a powerful tool for enhancing the electrochemical properties of GRMs.
NOx species represent the other great family of hazardous nitrogen-based gases [129]. Matatagui et al. [83] faced the issue represented by the detection of NO2 in the presence of NH3 using a multilayered porous graphene electrode. After photoactivation, the authors reported a change in resistance of 16% in the presence of 0.5 ppm NO2, with a detection limit of around 25 ppb. Interestingly, the response to both NH3 (50 ppm) and H2O (TH 33%) is negligible. The graphene decoration allowed for further improvement in the performance of the sensor by including silicon [84] or phosphorus [85], reaching a response of up to 22% and 59% resistance change using 50 ppm of NO2.
Duy et al. [86] deeply explored the tailoring of the rGO surface with metal frameworks, including TiO2 nanoparticles and WO3, WS2, and MoS2 nanoflakes using cellulose as a binder. The authors reported a sensitivity boost towards NO2, improving the detection limit up to 0.7 ppm using MoS2 nanoflakes. ZnO oxide nanoparticles have also been diffusely used for the same scope [130,131,132] with poor results if compared with other nanostructures, such as cobalt supported on rGO [87], chromium-tailored graphene [133], and mixed iron and cobalt oxide [88] or copper [89] onto graphene.

3.5. Pristine Graphene and GRM Sensing Performance in Electrochemical Gas Detection: H2S and SO2

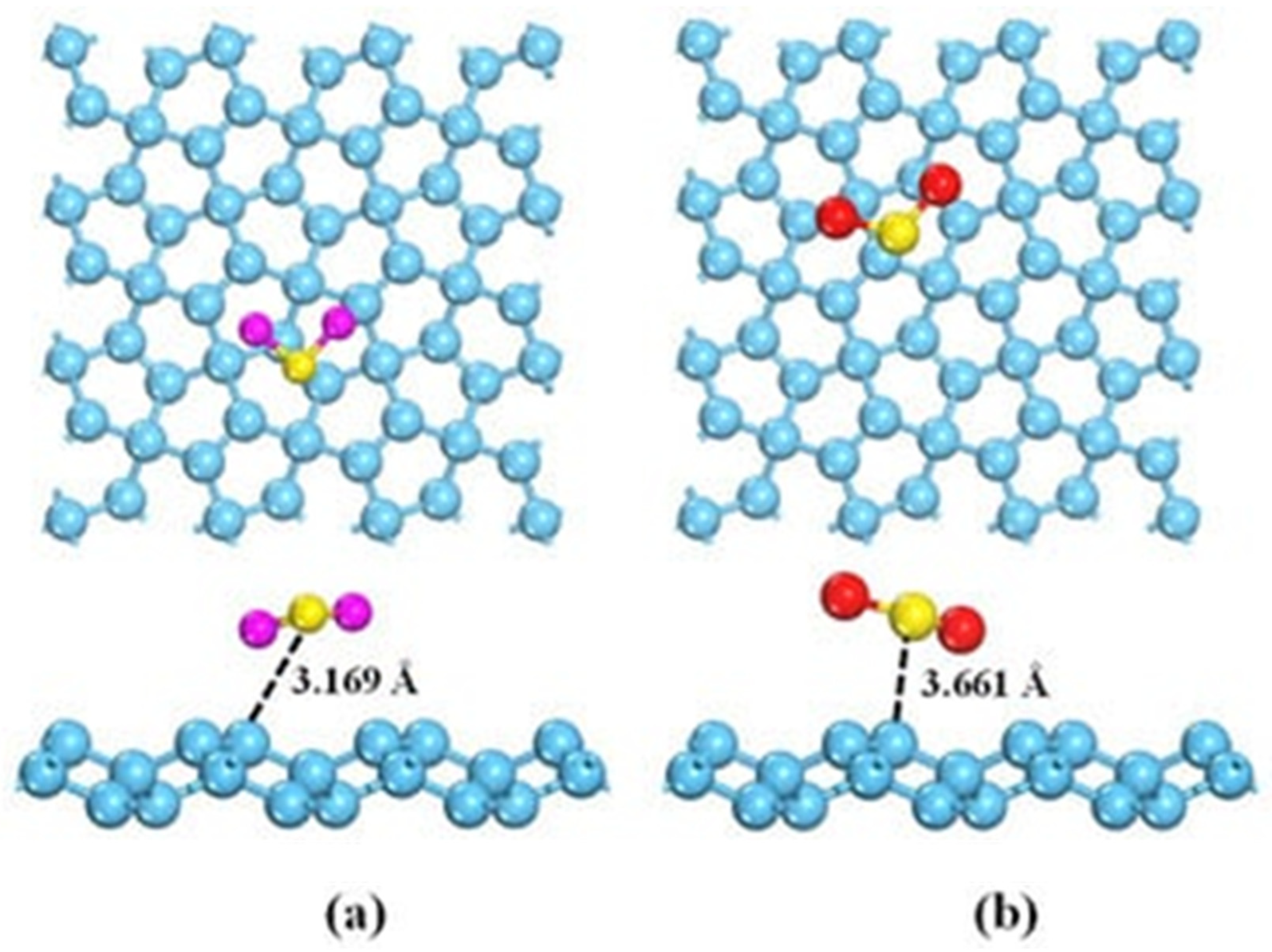

As previously described for NH3, the interaction between GRMs and H2S or SO2 occurs mainly by p-orbital interactions with the π graphene system. As shown in Figure 7a,b, H2S or SO2 interact with different geometry and distances due to the differences in the electron acceptor behavior of SO2, while H2S acts as an electron donor. Nevertheless, pristine graphene is only poorly able to detect them as a consequence of very weak interactions with them [134].
As reported in the computational research carried out by Liu et al. [87], the insertion of a dopant agent such as aluminum atoms together with Stone–Wales defects can be beneficial for boosting the adsorption of SO2, and a similar result was reported for H2S [135].
Ugale et al. [90] approached the detection of H2S using ZnO-tailored rGO fibers, reaching a detection limit of 8 ppm but a poor selectivity in the presence of NO. Song et al. [91] obtained better performance using SnO2 supported on rGO, achieving a 33% response in 2 s using 50 ppm of H2S. Furthermore, this system was totally reversible at 22 °C, allowing for long-time use. Similar results were obtained by using Co3O4-tailored graphene nanospheres [92] or by using copper or WO3 supported on rGO [92]. Even if the H2S and SO2 sensing using GRMs is a field of great interest for both health and safety, the majority of the published research is currently focused more on the computational point of view rather than the applicative process, creating a perilous gap in the research [135].
It is noteworthy that Kumar et al. [93,95] deeply investigated the utilization of rGO for the detection of SO2, achieving a limit of detection of up to 5 ppm by using annealed rGO.

3.6. Future Outlook for Pristine Graphene and GRM Gas Sensors: Wearable Devices

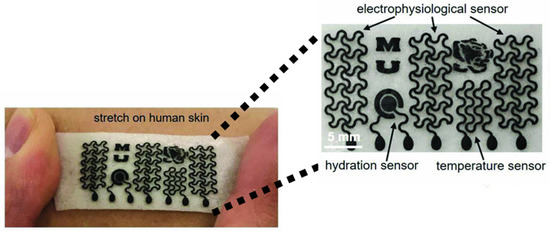

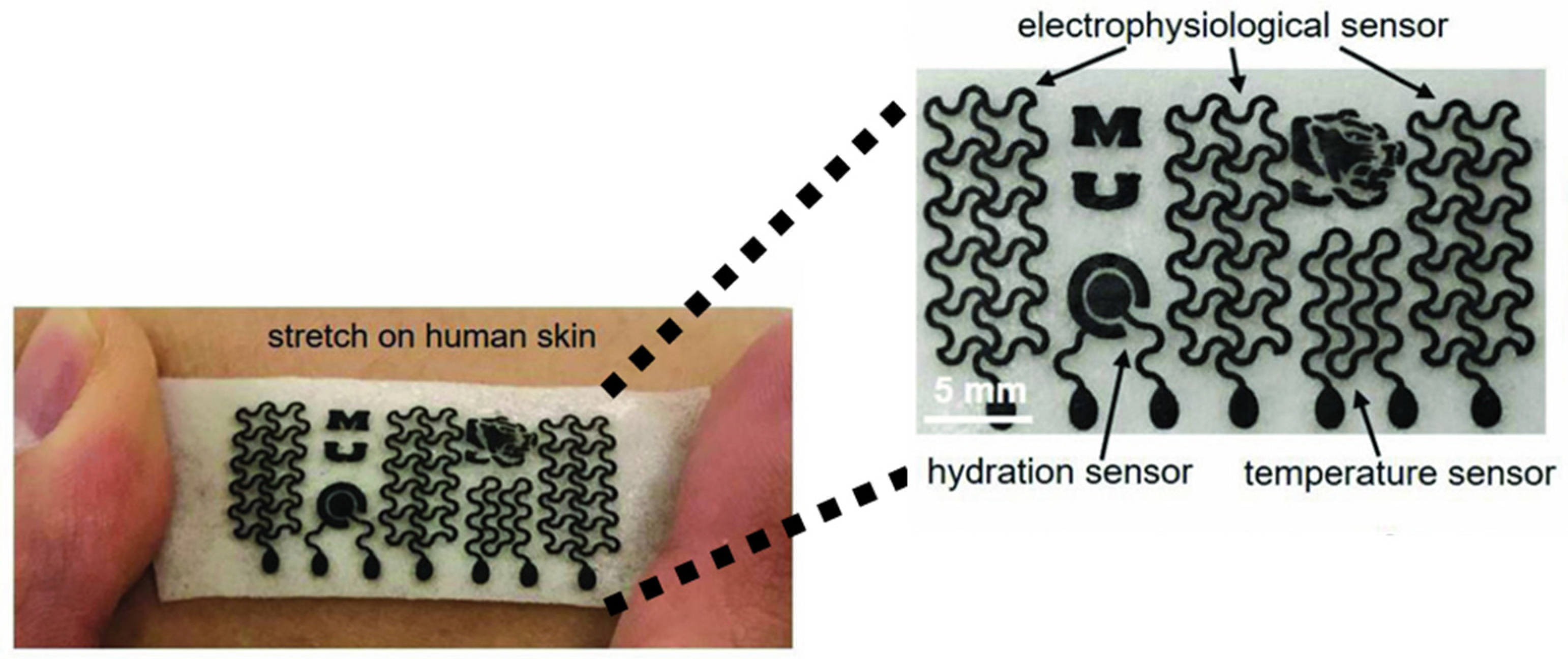

GRM-based gas sensors are still far from being affordable, but they show interesting perspectives for application in the production of wearable devices [136]. Wearable GRM gas sensors combine flexibility and light weight, enabling the creation of sensors integrated into clothing or into accessories and providing a non-intrusive solution for continuous gas monitoring [137,138].

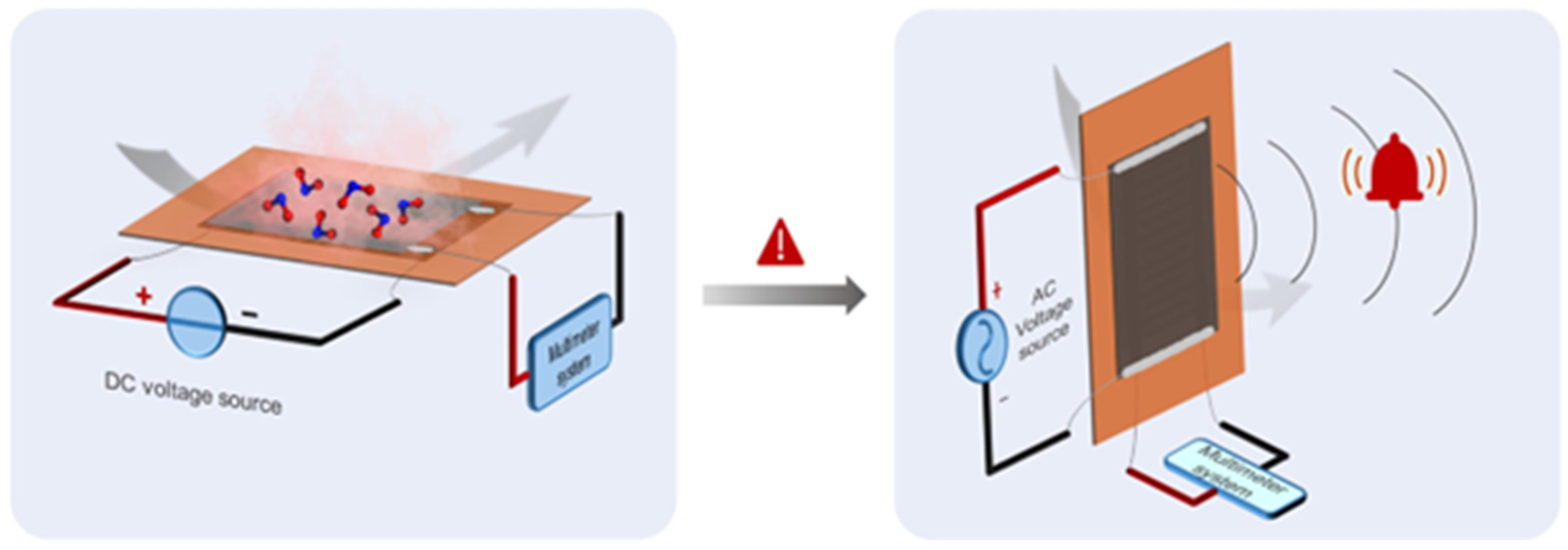

This sensor family will allow for real-time monitoring, enabling continuous tracking of environmental and personal exposure to gases [139] and promoting healthcare for several activities, including those in which workers can be exposed to hazardous gases. As reported in Figure 8, Peng et al. [140] produced a humidity sensor based on laser-induced graphene that is stretchable and able to operate in real industrial environments.
The wearable GRM gas sensor has another key feature, i.e., high energy efficiency, that allows for prolonged usage without the need for frequent recharging [141]. As shown in Figure 9, Sun et al. produced a GRM-based platform able to exploit several functions, such as real-time monitoring of temperature, hydration and sweat due to the remarkable water vapor permeability.
Monitoring using high-performance electrodes will allow a significant improvement in the safety of operation in vulnerable environments such as the semiconductor and food industries, where the atmosphere should be continuously monitored, and for chemical industries operating with complex gas mixtures at high temperatures and pressures.

4. Conclusions

The field of gas sensors is of paramount relevance for both health and safety. The development of new high-performance materials is the key to the future of the field, and GRMs can play a relevant and active role. Nowadays, their superior performance is counterbalanced by their high cost, but a great effort has been devoted to making their industrial production more economically feasible. Nevertheless, the usage of GRM-based gas sensors can easily reach all those applications in which performance is more important than economics. Furthermore, the field of wearable gas sensors for monitoring both people’s metabolism and the surrounding environment is a field of application where GRMs represent the state of the art.
We believe in the near-future scenario in which these materials will reach and improve other key sectors of daily life.
