Study on Corrosion Behavior and Mechanism of Ultrahigh-Strength Hot-Stamping Steel Based on Traditional and Compact Strip-Production Processes

by
Guoqiang Ma
1,
Yimian Chen
1,
Shuize Wang
1,2,*,
Honghui Wu
1,2,
Junheng Gao
1,2,
Guilin Wu
1,2,* and
Xinping Mao
1,2
1
Innovation Research Institute for Carbon Neutrality, University of Science and Technology Beijing, Beijing 100083, China
2
Yangjiang Branch, Guangdong Laboratory for Materials Science and Technology (Yangjiang Advanced Alloys Laboratory), Yangjiang 529500, China
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(8), 3064; https://doi.org/10.3390/ma16083064
Submission received: 21 March 2023 / Revised: 7 April 2023 / Accepted: 10 April 2023 / Published: 13 April 2023
(This article belongs to the Topic High-Performance Multicomponent Alloys)
Browse Figures
Versions Notes

Abstract

:
Hot-stamping steel is a type of high-strength steel that is mainly used in key safety components such as the front and rear bumpers, A-pillars, and B-pillars of vehicles. There are two methods of producing hot-stamping steel, i.e., the traditional process and the near net shape of compact strip production (CSP) process. To assess the potential risks of producing hot-stamping steel using CSP, the microstructure and mechanical properties, and especially the corrosion behavior were focused on between the traditional and CSP processes. The original microstructure of hot-stamping steel produced by the traditional process and the CSP process is different. After quenching, the microstructures transform into full martensite, and their mechanical properties meet the 1500 MPa grade. Corrosion tests showed that the faster the quenching speeds, the smaller the corrosion rate of the steel. The corrosion current density changes from 15 to 8.6 μA·cm−2. The corrosion resistance of hot-stamping steel produced by the CSP process is slightly better than that of traditional processes, mainly since the inclusion size and distribution density of CSP-produced steel were both smaller than those of the traditional process. The reduction of inclusions reduces the number of corrosion sites and improves the corrosion resistance of steel.

1. Introduction

Hot-stamping steel is a type of ultrahigh-strength steel that is specially designed for the production of high-strength and high-plasticity components, and it possesses excellent thermal plasticity, workability, and formability [1,2,3,4,5,6]. Due to its exceptional forming performance, hot-stamping steel can be plastically deformed at high temperatures, resulting in precise product shapes and sizes. In addition, it has good mechanical properties, wear resistance, strength, toughness, and corrosion resistance, making it a suitable material for use in various fields such as automobiles, machinery, aviation, and aerospace. One of the most commonly used hot-stamping steels is 22MnB5 (1500 MPa grade), which is used for automotive safety components such as front and rear bumpers, A-pillars, and B-pillars [7,8,9,10,11,12,13,14,15].
The traditional production methods of ultrahigh-strength steel usually include hot rolling, pickling, cold rolling, and annealing. Such a process has long product lines, high energy consumption, a long production cycle, and high production cost. In recent years, new production methods have been developed for short processes, such as the compact strip-production (CSP) process, which belongs to the method of near-net shape [16,17,18,19,20,21,22,23]. Thin slabs are hot rolled and coiled directly, and cold rolling and annealing processes are canceled in the CSP process. The CSP process has great potential in terms of energy saving and economic benefits, which can greatly reduce the production cost of materials and parts [16,18,24]. However, the CSP process has several potential disadvantages or challenges that need to be addressed. For example, it may not be as suitable for the products of thicker plates or more complex shapes. The high production speed of CSP can make it challenging to maintain the consistency of the microstructure and product quality, and there may be a higher risk of defects or surface imperfections compared to traditional production methods such as the changes in the type and distribution of inclusions and precipitations due to the difference in the process [16,19,20,25,26,27].
To assess the potential risks of producing hot-stamping steel using CSP, multiple studies have been performed to investigate the microstructure, mechanical properties, forming behavior, and hydrogen embrittleness, as well as the optimization of the CSP process parameters for producing hot-stamping steel with desired properties. Jin et al. [24] reported a more competitive press-hardening steel design based on C-Mn steel addition with Cr and B elements produced by the CSP process, which can induce good comprehensive performance and economy. Zhou et al. [28] found that the original microstructure has an effect on the microstructure and mechanical properties of the press-hardening steel produced by the CSP process. The austenite grains after austenitization are fine and uniform when the original structure is ferrite and pearlite, while the austenite grains after austenitization are coarse when the original structure is martensite. In addition, the strength after quenching is inverse to the strength of the original steel. Chen et al. [29,30] showed that the inclusions of hot-stamping steels produced by CSP are mainly spherical Al-Ca-O and CaS, while the inclusions in the traditional hot-stamping steels are TiN + Al2O3 + MnS with sharp edges and corners. The hydrogen embrittlement resistance of hot-stamping steels produced by CSP is superior to that of the traditional hot-stamping steels due to the influence of composition, shape, and distribution of inclusions.
The corrosion resistance of steel can also have an effect on the performance and lifespan of the automotive components since the parts must endure harsh conditions involving high temperatures and humidity. However, there is, to the best knowledge of the authors, no extensive research on the effect of manufacturing processes on the corrosion resistance of hot-stamping steels. It is well known that the chemical composition of the steel matrix, the microstructure, the composition, and the size distribution of the inclusions, the second phase, and the texture will have a great influence on the corrosion resistance, while the CSP process will change the influencing factors mentioned above compared to the traditional process. Therefore, the hot-stamping steel produced by the CSP and the traditional processes were chosen in this study. The mechanical property of steel sheets before and after heat treatment for the two production methods was tested, and the microstructures corresponding were analyzed. The corrosion behavior and mechanism of the steel sheet after heat treatment were investigated comprehensively.

2. Materials and Methods

The starting steel sheets were 1500 MPa grade hot-stamping steel taken from Hunan Valin Lianyuan Steel and produced by CSP and traditional processes. In the CSP process, the finisher entry and delivery temperature during hot rolling is controlled at 1080 °C and 890 °C, and the coiling temperature is controlled at 600 °C. In the traditional process, the slab discharging temperature is controlled at 1230 °C, the finisher delivery temperature is controlled at 890 °C, and the coiling temperature is controlled at 625 °C. In addition, the sheets produced by the traditional process were cold rolled and annealed at 680 °C for 10 h. The final thicknesses of steel sheets are 2 mm and 1.8 mm for the CSP and traditional processes, respectively. All samples were cut near the typical 1/4 width of the steel sheets. Optical emission spectrometry was used to test the chemical composition of the experimental steels, and the chemical composition is shown in Table 1.
The Ac1 and Ac3 temperatures for the present steels are about 720 °C and 850 °C, respectively, calculated from Andrew’s relationship [31]. The heat treatment temperature of 920 °C was thus selected for the present work based on Ac3 to complete austenitizing. The heat treatment time (T) of 4 min was selected based on an empirical formula:
T = K × D
where D is the thickness of the sample in millimeters and K is the heating coefficient taken to be 2 min/mm. After austenitizing, the samples were quenched with different cooling rates by quenching in oil, water, and 10 wt.% NaCl solution, respectively.
The original microstructure and the microstructure after quenching were observed by scanning electron microscope (SEM) and electron backscatter diffraction (EBSD). Inclusions in the steels were analyzed by a backscattered electron (BSE). The sizes of the inclusions were measured using the software Nano Measurer 1.2.5. The compositions of these inclusions were identified by energy disperse spectroscopy (EDS). There are five regions, each with a field size of approximately 0.62 mm2 (950 μm × 650 μm), for a total area greater than 3 mm2, that were analyzed using statistical methods. The inclusions sized less than 0.5 um were not included. The microstructural analysis was performed on the longitudinal section, which encompasses both the rolling direction (RD) and the normal direction (ND).
The MTS Exceed E45 electronic universal test system was used to conduct the tensile test, and a mechanical extensometer with a 50 mm gauge length was used to collect real-time strain during the test. Dog-bone-shaped tensile samples were cut from the sheets, with a gauge length of 50 mm, width of 12.5 mm, and thickness equal to that of the original sheets. Prior to the test, the gauge section’s thickness and width were measured using a vernier caliper. The test was conducted at a constant strain rate of 1 mm/min. To ensure accurate results, at least three samples were prepared for the tensile test. If the stress-strain curve exhibited a yield point, the stress corresponding to the lower yield point was taken as the yield strength. Otherwise, the stress corresponding to a plastic strain of 0.2% was used as the yield strength [32].
Electrochemical samples were cut into circular pieces with a diameter of 10 mm. The circular shape was designed to avoid the additional accelerated corrosion effect caused by the sharp corners of a square sample. The circular pieces were connected to copper wires using a soldering iron and encapsulated with epoxy resin and a curing agent in a 5:1 ratio, leaving a working surface of 0.785 cm2. During electrochemical corrosion testing, specimens were exposed to a 3.5% NaCl solution at room temperature. To conduct the electrochemical measurements, a conventional three-electrode cell system was used in a CS350 electrochemical workstation, with the sample as the working electrode, a saturated calomel electrode (SCE) as the reference electrode, and a 1 cm2 Pt electrode as the counter electrode. The potentiodynamic polarization curve was tested at a scan rate of 1 mV/s with a scan ranging from −1.0 V (SCE) to 0.5 V (SCE), and the data were fitted using Cview 2.6 software [33]. The EIS tests were carried out when samples are stabilized in the test solution within a frequency range of 100 kHz to 10 mHz and a sinusoidal perturbation with 10 mV amplitude, and then the data were analyzed by the software Zview 3.0a.

3. Results and Discussion

The original microstructures of hot-stamping steel produced by the traditional and CSP processes are shown in Figure 1. In the traditional process, equiaxed polygonal ferrite grains were observed, with spheroidized carbides/pearlites dispersed within the grain boundaries and interiors. The carbides/pearlites and ferrite grains are alternatively distributed in lamellar structures along the deformation direction. During cold rolling, the carbides/pearlites in the traditional process are fractured, followed by a long isothermal annealing process, during which the cold-deformed ferrite grains undergo recrystallization to form equiaxed polygonal grains, while the fragmented carbides undergo spheroidization. In the CSP process, where there are no cold rolling and annealing processes, the microstructure is a typical room-temperature structure of hypoeutectoid steel, consisting of ferrite and pearlite. The pearlite lamellar spacing is about 0.1–0.15 μm. The typical band structure formed by hot rolling is retained in the matrix. The original grain size of the hot-stamping steel produced by the traditional process is 5.6 μm, while that of the hot-stamping steel produced by the CSP process is 3.9 μm.
The mechanical properties of hot-stamping steel before and after quenching by traditional and CSP processes are shown in Figure 2. The tensile strength of steel produced by the traditional process is the lowest, at 473 MPa, with an elongation of 26%. This is mainly due to the traditional process steel undergoing an annealing process at 680 °C for 10 h. The CSP process samples have a higher tensile strength of 630 MPa and a lower elongation of 23%. The strength and plasticity of the original sheets are inversely related. The mechanical properties of the samples after quenching are greatly improved, and the steel plates produced by both the traditional process and the CSP process meet the requirements of 1500 MPa tensile strength, 1000 MPa yield strength, and 5% elongation after heat treatment. In addition, the strength of the sheets increases with the increase of the quenching cooling rate. The mechanical property parameters after quenching are tabulated in Table 2.
SEM microstructure images for traditional and CSP processes following quenching are presented in Figure 3. Lath martensite can be obtained through quenching after the samples are treated at 920 °C for 4 min. The microstructure of steel quenched in the three quenching media is fully martensite. However, the martensitic lath size varies slightly depending on the cooling rate. In general, the faster the cooling rate, the finer the martensite lath after the phase transition. The martensite lath quenched in a 10 wt.% NaCl solution is the thinnest, while the martensite lath quenched in quenching oil is the thickest.
EBSD characterization is shown in Figure 4. From the IPF images, the martensite blocks with low-angle boundaries can be clearly detected, and the martensite lath with similar orientations are distributed within the blocks. The martensite lath has straight boundaries, which are approximately parallel to the {111} plane of prior austenite, namely the habit plane. The four-level structure of martensite consists of prior austenite, martensite packet, martensite block, and martensite lath. A prior austenite grain is divided into three to five packets, which are collections of blocks with the same habit plane. Each block is composed of several laths with similar orientations. These laths are separated by retained austenite with a thickness of about 20 nm (unmeasurable by EBSD). These residual austenites contain a higher carbon content and are stable at room temperature.
Figure 5 shows the potentiodynamic polarization curves of all quenched samples by a different quenching medium. The cathodic branches of the potentiodynamic polarization curves indicate the process of cathodic oxygen reduction, and the anodic branches suggest the dissolution of anodic iron [34]. For hot-stamping steel produced by the traditional process, as seen in Figure 5a, the anodic branches reveal that all samples exhibit an analogous behavior with an active solution zone due to the nonpassivation of the electrode in a 3.5% NaCl solution. The anode current density of the oil-quenched sample is higher than that of the water-quenched sample, and higher than that of the 10% NaCl solution-quenched sample. In addition, a sudden change in the anodic branches means that there is a pitting breakdown occurring on the sample surface. For hot-stamping steel produced by the CSP process, as seen in Figure 5b, similar rules were found to the traditional process.
Tafel slope fitting was employed to obtain the corrosion current density and the results are shown in Figure 6. As the quenching cooling rate increases, the corrosion current density is 15 μA·cm−2, 13.4 μA·cm−2, and 9.1 μA·cm−2 for the traditional process, and is 13.4 μA·cm−2, 11 μA·cm−2, and 8.6 μA·cm−2 for CSP process. It can be seen that the quenching cooling rate will significantly affect the corrosion rate. The faster the cooling rate, the lower the corrosion rate. Furthermore, the corrosion current density of samples produced by the traditional process is higher than that of the CSP process at the same quenching cooling rate.
Further electrochemical tests using EIS are shown in Figure 7. As the quenching cooling rate increases, the polarization resistance is 789 Ω·cm2, 1344 Ω·cm2, and 2537 Ω·cm2 for the traditional process, and is 1186 Ω·cm2, 1473 Ω·cm2, and 2887 Ω·cm2 for the CSP process. These results are in good agreement with the potentiodynamic polarization curves.
The corrosion rate is affected by the type of quenching medium used, primarily based on the fact that quenching speeds lead to a finer microstructure and smaller equivalent grain size. While one study [35] has indicated that grain boundaries, as crystal defects, can promote corrosion in metallic materials, others [36,37,38] have demonstrated that a finer grain size can improve corrosion resistance, and the grain boundaries can act as corrosion barriers to retard corrosion kinetics [39,40]. In this study, an increase in quenching speed resulted in finer martensite-equivalent grain size and lower corrosion rates, which would be consistent with the hypothesis that grain boundaries act as corrosion barriers.
The presence of the second phase in the microstructure (mainly inclusions) would also affect the corrosion behavior due to their different structures from the matrix. Figure 8 shows the BSE images and the distribution of inclusions in steel produced by traditional and CSP processes, assisted by EDS analysis to classify the types of inclusions. In this study, Al2O3/Al inclusions and TiN inclusions were mainly considered. The results indicate that Al2O3/Al inclusions exhibit a spherical morphology and are generally larger in size, while the size of TiN inclusions is relatively small, and their morphology appears to be irregular. The detailed observations reveal that the Al2O3/Al inclusions can significantly accelerate the corrosion of the surrounding matrix, as indicated by the insets in Figure 8a,b. This is due to the difference in corrosion potentials between the inclusions and the matrix, which can lead to galvanic corrosion [41,42]. The more inclusions there are, the more severe the corrosion will be, theoretically. A wider view of the inclusions in the CSP process is shown in Figure 8c,d, where they are sparsely distributed and smaller in size.
The statistical analysis of inclusions in hot-stamping steel produced by the two processes is plotted in Figure 9 and Figure 10. The Al2O3/Al inclusions distribution in the two processes exhibits significant differences, while no significant difference is observed for TiN inclusions in this statistical method. For the traditional process, the average size of Al2O3/Al inclusions is 6.2 μm, while for the CSP process, it is 4.6 μm. The average size of TiN inclusions, on the other hand, was the same for both processes, at 3.1 μm. The average and maximum sizes of Al2O3/Al inclusions are both larger than those of TiN inclusions. Therefore, it is reasonable to believe that the difference in corrosion resistance between traditional and CSP processes is closely related to Al2O3/Al inclusions. The higher corrosion rate in the traditional process can be attributed to the presence of a large proportion of large-sized Al2O3/Al inclusions. Additionally, it can be observed from Figure 9c and Figure 10c that the total number of both Al2O3/Al and TiN inclusions in the traditional process is higher than that in the CSP process.
Due to the thin thickness of the billet (approximately 50–130 mm), the crystallizer in the CSP process is thin from the inlet to the outlet, and the casting nozzle is also thinner than in the conventional process. To prevent clogging and improve continuous casting, moderate calcium treatment is usually carried out after refining. The type of Al2O3/Al inclusions have some differences compared with traditional billets. The solidification time of the steel is shorter (1 min) and the cooling rate is faster (101–102 k/s) during CSP continuous casting [43,44]. The faster the solidification speed, the smaller the size of the inclusions. The larger cooling rate causes inclusions to have not enough time to generate and grow from the high-temperature phase, resulting in fewer large-sized inclusions in the CSP casting billet.
Inclusions in steel are unwanted impurities that are inevitably produced during the steelmaking process. Among the various types of inclusions, Al2O3 is the most common. Researchers have studied the impact of Al2O3 inclusions on the localized corrosion of steel. It has been observed that the presence of Al2O3-enriched inclusions in the steel can lead to the preferential dissolution of the surrounding steel through galvanic coupling [45]. Furthermore, the interface between the Al2O3 inclusions and the steel matrix has been found to be a site of pitting corrosion [46,47]. Therefore, it is clear that Al2O3 inclusions play a crucial role in the localized corrosion of steel. The CSP process, which produces steel with fewer and smaller inclusions, results in steel with better corrosion resistance compared to the traditional process. This is due to a reduced number of inclusions and their smaller size, resulting in fewer galvanic couples and, therefore, less localized corrosion occurring.

4. Conclusions

The microstructure and mechanical properties, and especially the corrosion behavior, were investigated between the traditional and CSP processes. The following conclusions were drawn.
(1)
The original microstructure of hot-stamping steel produced by the traditional process and the CSP process is different. After quenching, the microstructures transform into full martensite, and their mechanical properties meet the 1500 MPa grade. The faster the quenching speed, the higher the strength;
(2)
Corrosion tests showed that different quenching speeds can affect the corrosion rate, i.e., the faster the quenching rate, the finer the microstructure, and the smaller the corrosion rate of the steels. The corrosion resistance of hot-stamping steel produced by the CSP process is slightly better than that of traditional processes;
(3)
The effect of quenching speeds on the corrosion rate is based on the hypothesis that a finer grain size can improve corrosion resistance, and the grain boundaries can act as corrosion barriers to retard corrosion kinetics. The CSP process, which produces fewer and smaller inclusions, results in better corrosion resistance due to the reduced number of inclusions and their smaller size with fewer galvanic couples.

Author Contributions

Data curation, G.M. and Y.C.; formal analysis, G.M., Y.C., H.W., J.G., and S.W.; investigation, G.M.; resources, S.W.; supervision, S.W. and X.M.; writing—original draft, G.M., and Y.C; writing—review and editing, G.W., S.W. and X.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National State Key Research and Development Program (No. 2021YFB3702403), the National Natural Science Foundation of China (NSFC, Nos. 52071038, 52122408, 52104369 and 52071023).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rosenstock, D.; Banik, J.; Gerber, T.; Myslowicki, S. Hot stamping steel grades with increased tensile strength and ductility-MBW-K 1900, tribond 1200 and tribond 1400. IOP Conf. Ser. Mater. Sci. Eng. 2019, 651, 012040. [Google Scholar] [CrossRef]
  2. Tong, C.; Rong, Q.; Yardley, V.A.; Li, X.; Luo, J.; Zhu, G.; Shi, Z. New Developments and Future Trends in Low-Temperature Hot Stamping Technologies: A Review. Metals 2020, 10, 1652. [Google Scholar] [CrossRef]
  3. Jia, H.; Zhang, X.; Xu, J.; Sun, Y.; Li, J. Effect of Hydrogen Content and Strain Rate on Hydrogen-induced Delay Cracking for Hot-Stamped Steel. Metals 2019, 9, 798. [Google Scholar] [CrossRef] [Green Version]
  4. Yoo, J.; Jo, M.C.; Jo, M.C.; Kim, S.; Kim, S.H.; Oh, J.; Sohn, S.S.; Lee, S. Effects of solid solution and grain-boundary segregation of Mo on hydrogen embrittlement in 32MnB5 hot-stamping steels. Acta Mater. 2021, 207, 116661. [Google Scholar] [CrossRef]
  5. Tong, C.P.; Yardley, V.A.; Shi, Z.S.; Rong, Q.; Li, X.T.; Zhang, B.M.; Xu, D.C.; Lin, J.G. Investigation of the effect of initial states of medium-Mn steel on deformation behaviour under hot stamping conditions. Mater. Sci. Eng. A 2022, 855, 143914. [Google Scholar] [CrossRef]
  6. Zhao, B.X.; Sipkens, T.A.; Daun, K.J. Choosing an Optimal Austenitization Submodel Using Bayesian Model Selection. Metall. Mater. Trans. A 2022, 53, 3022–3033. [Google Scholar] [CrossRef]
  7. Zhang, Y.; Hui, W.; Zhao, X.; Wang, C.; Dong, H. Effects of Hot Stamping and Tempering on Hydrogen Embrittlement of a Low-Carbon Boron-Alloyed Steel. Materials 2018, 11, 2507. [Google Scholar] [CrossRef] [Green Version]
  8. Lee, S.J.; Ronevich, J.A.; Krauss, G.; Matlock, D.K. Hydrogen Embrittlement of Hardened Low-carbon Sheet Steel. ISIJ Int. 2010, 50, 294–301. [Google Scholar] [CrossRef] [Green Version]
  9. Parareda, S.; Casellas, D.; Frómeta, D.; Garcia-Llamas, E.; Lara, A.; Pujante, J.; Mateo, A. Effect of heat treatment conditions on the fatigue resistance of press hardened 22MnB5 steel evaluated through rapid testing technique. IOP Conf. Ser. Mater. Sci. Eng. 2021, 1157, 012014. [Google Scholar] [CrossRef]
  10. Parareda, S.; Casellas, D.; Frómeta, D.; Martínez, M.; Lara, A.; Barrero, A.; Pujante, J. Fatigue resistance of press hardened 22MnB5 steels. Int. J. Fatigue 2020, 130, 105262. [Google Scholar] [CrossRef]
  11. Zhang, S.; Huang, Y.; Sun, B.; Liao, Q.; Lu, H.; Jian, B.; Mohrbacher, H.; Zhang, W.; Guo, A.; Zhang, Y. Effect of Nb on hydrogen-induced delayed fracture in high strength hot stamping steels. Mater. Sci. Eng. A 2015, 626, 136–143. [Google Scholar] [CrossRef]
  12. Chen, W.-j.; Gao, P.-f.; Wang, S.; Lu, H.-z.; Zhao, Z.-z. Effect of vanadium on hydrogen embrittlement susceptibility of high-strength hot-stamped steel. J. Iron Steel Res. Int. 2020, 28, 211–222. [Google Scholar] [CrossRef]
  13. Kim, H.-J.; Jeon, S.-H.; Yang, W.-S.; Yoo, B.-G.; Chung, Y.-D.; Ha, H.-Y.; Chung, H.-Y. Effects of titanium content on hydrogen embrittlement susceptibility of hot-stamped boron steels. J. Alloys Compd. 2018, 735, 2067–2080. [Google Scholar] [CrossRef]
  14. Okayasu, M.; Fujiwara, T. Hydrogen embrittlement characteristics of hot-stamped 22MnB5 steel. Int. J. Hydrog. Energy 2021, 46, 19657–19669. [Google Scholar] [CrossRef]
  15. Zhou, J.; Wang, B.-y.; Huang, M.-d.; Cui, D. Effect of hot stamping parameters on the mechanical properties and microstructure of cold-rolled 22MnB5 steel strips. Int. J. Miner. Metall. Mater. 2014, 21, 544–555. [Google Scholar] [CrossRef]
  16. Reip, C.P.; Hennig, W.; Kempken, J.; Hagmann, R. Development of CSP (R) processed high strength pipe steels. In Microalloying for New Steel Processes and Applications; RodriguezIbabe, J.M., Gutierrez, I., Lopez, B., IzaMendia, I., Eds.; Trans Tech Publications Ltd.: Wollerau, Switzerland, 2005; Volume 500–501, pp. 287–294. [Google Scholar]
  17. Hensger, K.E.; Flemming, G.; Nobium Limited; Nobium, L. Recent Developments in Compact Strip Production of Nb-Microalloyed Steels. In Proceedings of the Niobium 2001 International Symposium, Orlando, FL, USA, 2–5 December 2001; pp. 405–426. [Google Scholar]
  18. Hensger, K.E. Processing of advanced structural steels on CSP plants. Metalurgija 2002, 41, 183–190. [Google Scholar]
  19. Yu, H.; Wang, X.Y. Research on Distribution of the Trace of Boron in Hot-Rolling and Annealing Low Carbon Steels in a Compact Strip Production Line. Adv. Sci. Lett. 2011, 4, 927–932. [Google Scholar]
  20. Dong, H.B.; Kang, Y.L.; Yu, H. A discussion on evolution of microstructures and influence factors during continuous rolling of compact strip production. J. Mater. Sci. Technol. 2004, 20, 274–278. [Google Scholar]
  21. Wang, L.T.; Deng, C.H.; Dong, M.; Shi, L.F.; Zhang, J.P. Development of Continuous Casting Technology of Electrical Steel and New Products. J. Iron Steel Res. Int. 2012, 19, 1–6. [Google Scholar] [CrossRef]
  22. Mao, X.P.; Huo, X.D.; Sun, X.J.; Chen, Q.L. Study on the Ti Micro-Alloyed Ultra-High Strength Steel Produced by Thin Slab Casting and Direct Rolling. J. Iron Steel Res. Int. 2009, 16, 354–363. [Google Scholar]
  23. Huang, G.; Jiao, G.H.; Wen, D.Z.; Zhou, C.Q.; Wu, K.M. Mechanical Properties of Heat Treated 65Mn Steel Produced by Compact Strip Production. In Proceedings of the International Conference on Structures and Building Materials, Guangzhou, China, 7–9 January 2011; pp. 832–836. [Google Scholar]
  24. Jin, J.C.; Gu, H.R.; Lu, Q.Q.; Zhang, W. The CSP Process Development of the Press Hardening Steel. In Proceedings of the 3rd International Conference on Advanced High Strength Steel and Press Hardening (ICHSU), Xi’an, China, 25–27 August 2016; pp. 426–430. [Google Scholar]
  25. Bayoumi, L.S.; Megahed, G.M. Optimisation of pinch roll load in thin slab continuous casting. Ironmak. Steelmak. 2003, 30, 497–502. [Google Scholar] [CrossRef]
  26. Yu, H.; Kang, Y.L. Effect of boron on hot strips of low carbon steel produced by compact strip production. J. Univ. Sci. Technol. Beijing 2008, 15, 138–142. [Google Scholar] [CrossRef]
  27. Wang, H.Y.; Ren, H.P.; Jin, Z.L.; Xing, S.Q. Microstructural Refinement and Precipitation Behavior of Low Carbon Steel Produced by Compact Strip Production. ISIJ Int. 2008, 48, 1451–1456. [Google Scholar] [CrossRef] [Green Version]
  28. Zhou, W.Q.; Pan, L.B.; Hu, K.H.; Sun, W.H.; Han, R.D. Effect of Original Microstructure on Microstructure and Mechanical Properties of High Strength Steel WHF1500H during Hot Forming. In Proceedings of the 10th International Conference on Processing and Manufacturing of Advanced Materials Processing, Fabrication, Properties, Applications (THERMEC), Cite Sci, Paris, France, 9–13 July 2018; pp. 206–211. [Google Scholar]
  29. Chen, Y.; Liu, J.; Huang, F.; Chen, L.; Su, Y.J.; Zhou, G.F. Influence of inclusions on hydrogen-induced delayed cracking in hot stamping steels. J. Iron Steel Inst. 2019, 26, 1199–1208. [Google Scholar] [CrossRef]
  30. Chen, Y.; Liu, J.; Huang, F.; Chen, L.; Su, Y.J.; Zhou, G.F. Influence of inclusions on hydrogen-induced delayed cracking in hot stamping steels (vol 26, pg 1199, 2019). J. Iron Steel Res. Int. 2021, 28, 505. [Google Scholar] [CrossRef]
  31. Andrews, K.W. Empirical formulae for the calculation of some transformation temperatures. J. Iron Steel Inst. 1965, 203, 721–727. [Google Scholar]
  32. Ma, G.; Hughes, D.A.; Godfrey, A.W.; Chen, Q.; Hansen, N.; Wu, G. Microstructure and strength of a tantalum-tungsten alloy after cold rolling from small to large strains. J. Mater. Sci. Technol. 2021, 83, 34–48. [Google Scholar] [CrossRef]
  33. Ma, G.; Wu, G.; Shi, W.; Xiang, S.; Chen, Q.; Mao, X. Effect of cold rolling on the corrosion behavior of Ta-4W alloy in sulphuric acid. Corros. Sci. 2020, 176, 108924. [Google Scholar] [CrossRef]
  34. Kwok, C.T.; Cheng, F.T.; Man, H.C. Synergistic effect of cavitation erosion and corrosion of various engineering alloys in 3.5% NaCl solution. Mater. Sci. Eng. A 2000, 290, 145–154. [Google Scholar] [CrossRef]
  35. Zhang, T.; Shao, Y.W.; Meng, G.Z.; Cui, Z.Y.; Wang, F.H. Corrosion of hot extrusion AZ91 magnesium alloy: I-relation between the microstructure and corrosion behavior. Corros. Sci. 2011, 53, 1960–1968. [Google Scholar] [CrossRef]
  36. Zhao, Q.; Fan, Y.; Fan, E.; Zhao, B.; Huang, Y.; Cheng, X.; Li, X. Influence factors and corrosion resistance criterion of low-alloy structural steel. Chin. J. Eng. 2021, 43, 255–262. [Google Scholar]
  37. Di Schino, A.; Barteri, M.; Kenny, J.M. Grain size dependence of mechanical, corrosion and tribological properties of high nitrogen stainless steels. J. Mater. Sci. 2003, 38, 3257–3262. [Google Scholar] [CrossRef]
  38. Jiang, B.; Xiang, Q.; Atrens, A.; Song, J.F.; Pan, F.S. Influence of crystallographic texture and grain size on the corrosion behaviour of as-extruded Mg alloy AZ31 sheets. Corros. Sci. 2017, 126, 374–380. [Google Scholar] [CrossRef]
  39. Argade, G.R.; Panigrahi, S.K.; Mishra, R.S. Effects of grain size on the corrosion resistance of wrought magnesium alloys containing neodymium. Corros. Sci. 2012, 58, 145–151. [Google Scholar] [CrossRef]
  40. Alvarez-Lopez, M.; Pereda, M.D.; del Valle, J.A.; Fernandez-Lorenzo, M.; Garcia-Alonso, M.C.; Ruano, O.A.; Escudero, M.L. Corrosion behaviour of AZ31 magnesium alloy with different grain sizes in simulated biological fluids. Acta Biomater. 2010, 6, 1763–1771. [Google Scholar] [CrossRef] [Green Version]
  41. Liu, C.; Revilla, R.I.; Liu, Z.; Zhang, D.; Li, X.; Terryn, H. Effect of inclusions modified by rare earth elements (Ce, La) on localized marine corrosion in Q460NH weathering steel. Corros. Sci. 2017, 129, 82–90. [Google Scholar] [CrossRef]
  42. Liu, C.; Revilla, R.I.; Zhang, D.; Liu, Z.; Lutz, A.; Zhang, F.; Zhao, T.; Ma, H.; Li, X.; Terryn, H. Role of Al2O3 inclusions on the localized corrosion of Q460NH weathering steel in marine environment. Corros. Sci. 2018, 138, 96–104. [Google Scholar] [CrossRef]
  43. Li, S.; Feng, H.; Wang, S.; Gao, J.; Zhao, H.; Wu, H.; Xu, S.; Feng, Q.; Li, H.; Liu, X.; et al. Phase Transformation Behaviors of Medium Carbon Steels Produced by Twin Roll Casting and Compact Strip Production Processes. Materials 2023, 16, 1980. [Google Scholar] [CrossRef]
  44. Mao, X. Near Net Shape Manufacturing Technology of Hot-Rolled Strip, 1st ed.; Metallurgical Industry Press: Beijing, China, 2020. [Google Scholar]
  45. Jin, T.Y.; Cheng, Y.F. In situ characterization by localized electrochemical impedance spectroscopy of the electrochemical activity of microscopic inclusions in an X100 steel. Corros. Sci. 2011, 53, 850–853. [Google Scholar] [CrossRef]
  46. Yang, Y.G.; Zhang, T.; Shao, Y.W.; Meng, G.Z.; Wang, F.H. New understanding of the effect of hydrostatic pressure on the corrosion of Ni-Cr-Mo-V high strength steel. Corros. Sci. 2013, 73, 250–261. [Google Scholar] [CrossRef]
  47. Liu, Q.; Yang, S.F.; Zhao, M.J.; Zhu, L.B.; Li, J.S. Pitting Corrosion of Steel Induced by Al2O3 Inclusions. Metals 2017, 7, 347. [Google Scholar] [CrossRef] [Green Version]
Materials 16 03064 g001 550
Figure 1. The original microstructure of hot-stamping steel for two processes: SEM images of the (a) traditional process and (a’) CSP process, EBSD inverse pole figure (IPF) maps of the (b) traditional process and (b’) CSP process, and corresponding band contrast of the (c) traditional process and (c’) CSP process.
Figure 1. The original microstructure of hot-stamping steel for two processes: SEM images of the (a) traditional process and (a’) CSP process, EBSD inverse pole figure (IPF) maps of the (b) traditional process and (b’) CSP process, and corresponding band contrast of the (c) traditional process and (c’) CSP process.
Materials 16 03064 g001
Materials 16 03064 g002 550

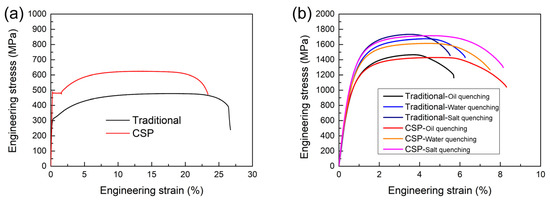

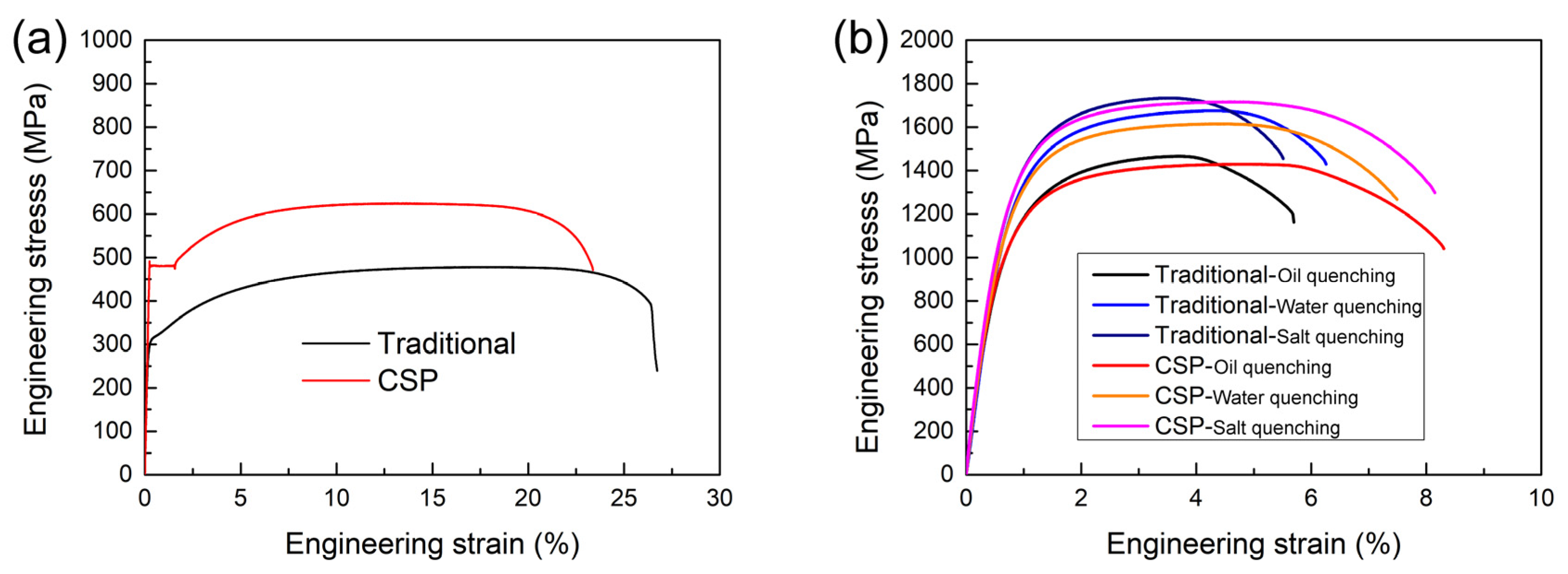

Figure 2. Mechanical properties of traditional and CSP processes produced steels: (a) engineering stress–strain curve of the original samples and (b) engineering stress–strain curve after quenching by a different quenching medium.
Figure 2. Mechanical properties of traditional and CSP processes produced steels: (a) engineering stress–strain curve of the original samples and (b) engineering stress–strain curve after quenching by a different quenching medium.
Materials 16 03064 g002
Materials 16 03064 g003 550
Figure 3. SEM images of marstenite quenching structure after heat treatment by the quenching oil of (a) traditional process and (a’) CSP process, the water of (b) traditional process and (b’) CSP process, and the 10 wt.% NaCl solution of (c) traditional process and (c’) CSP process.
Figure 3. SEM images of marstenite quenching structure after heat treatment by the quenching oil of (a) traditional process and (a’) CSP process, the water of (b) traditional process and (b’) CSP process, and the 10 wt.% NaCl solution of (c) traditional process and (c’) CSP process.
Materials 16 03064 g003
Materials 16 03064 g004 550
Figure 4. IPF maps of marstenite structure after quenched in the quenching oil of (a) traditional process and (a’) CSP process, the water of (b) traditional process and (b’) CSP process, and the 10 wt.% NaCl solution of (c) traditional process and (c’) CSP process.
Figure 4. IPF maps of marstenite structure after quenched in the quenching oil of (a) traditional process and (a’) CSP process, the water of (b) traditional process and (b’) CSP process, and the 10 wt.% NaCl solution of (c) traditional process and (c’) CSP process.
Materials 16 03064 g004
Materials 16 03064 g005 550

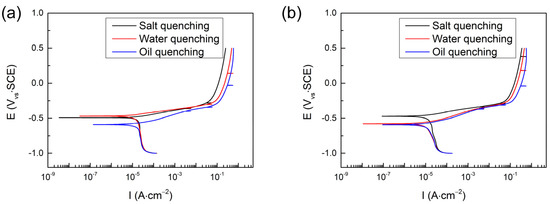

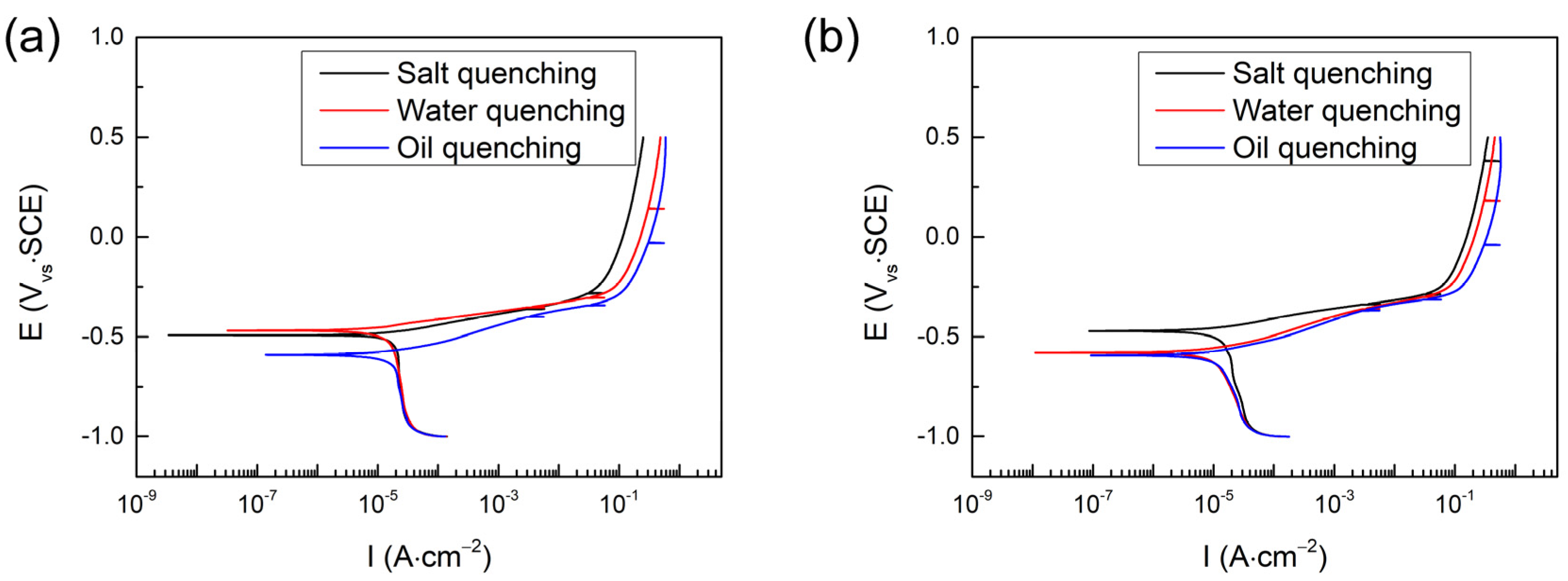

Figure 5. Potentiodynamic polarization curves for the samples quenched in the different quenching mediums in 3.5% NaCl solution: (a) traditional process, (b) CSP process.
Figure 5. Potentiodynamic polarization curves for the samples quenched in the different quenching mediums in 3.5% NaCl solution: (a) traditional process, (b) CSP process.
Materials 16 03064 g005
Materials 16 03064 g006 550

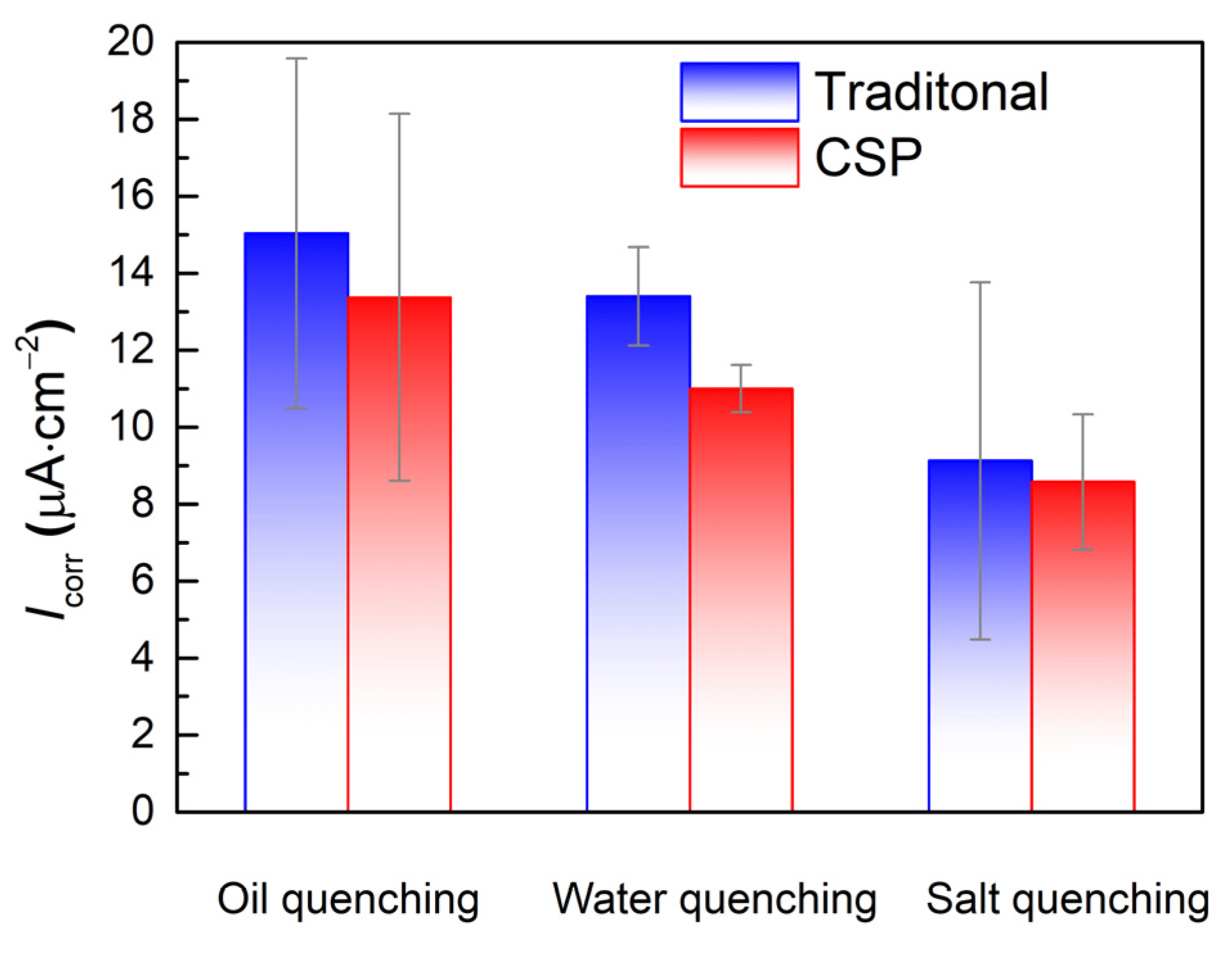

Figure 6. Calculated corrosion current density for the samples produced by traditional and CSP processes quenched in the different quenching mediums.
Figure 6. Calculated corrosion current density for the samples produced by traditional and CSP processes quenched in the different quenching mediums.
Materials 16 03064 g006
Materials 16 03064 g007 550

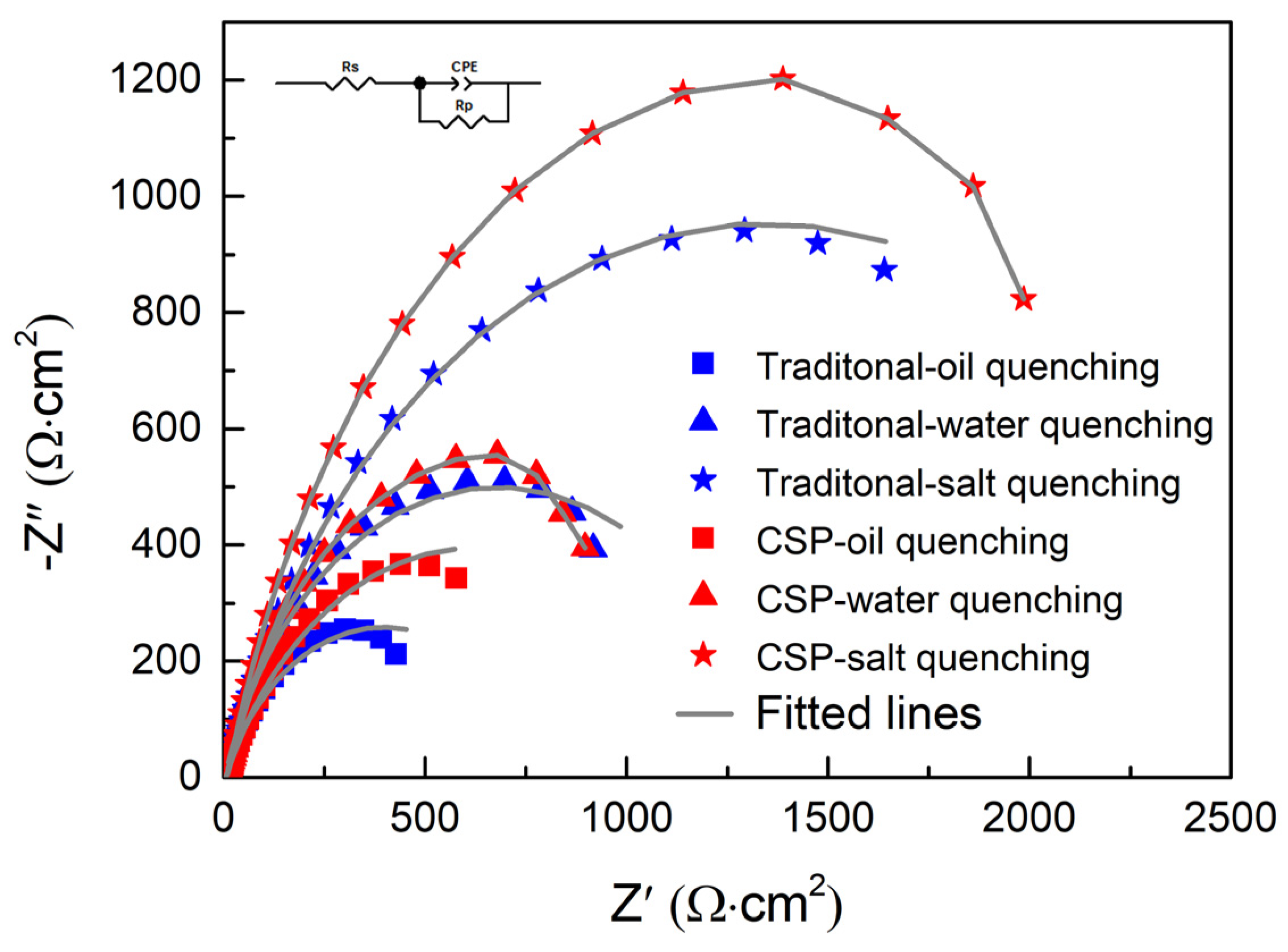

Figure 7. Electrochemical tests of Nyquist plots were tested for the samples produced by traditional and CSP processes quenched in the different quenching mediums.
Figure 7. Electrochemical tests of Nyquist plots were tested for the samples produced by traditional and CSP processes quenched in the different quenching mediums.
Materials 16 03064 g007
Materials 16 03064 g008 550
Figure 8. Matrix corrosion aggravated by the inclusions for the samples after quenching of (a) traditional process (b) CSP process, and the distribution of inclusions over a macro field of view for (c) traditional process (d) CSP process.
Figure 8. Matrix corrosion aggravated by the inclusions for the samples after quenching of (a) traditional process (b) CSP process, and the distribution of inclusions over a macro field of view for (c) traditional process (d) CSP process.
Materials 16 03064 g008
Materials 16 03064 g009 550

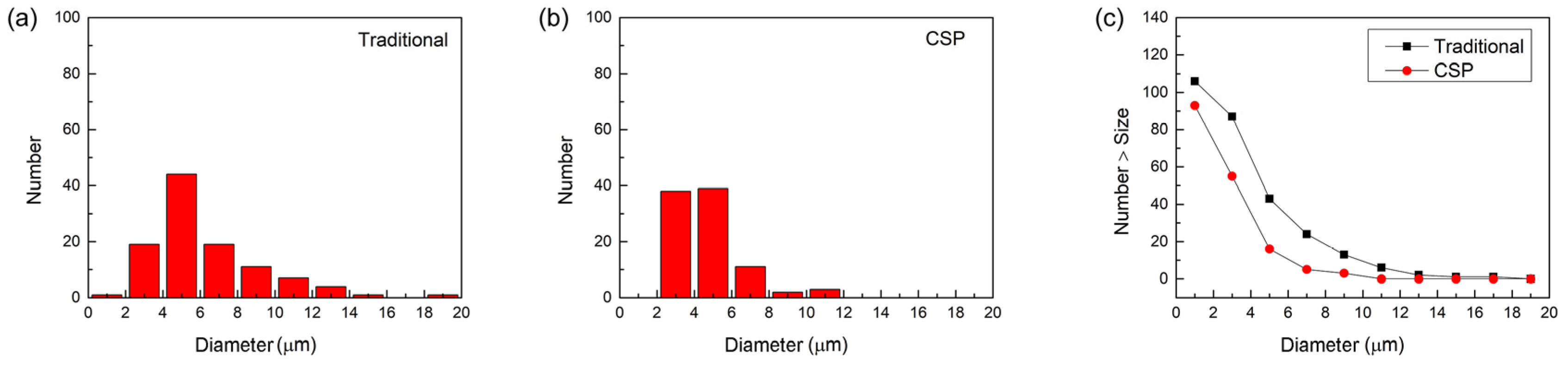

Figure 9. Statistics histograms of Al2O3/Al inclusions of (a) traditional process (b) CSP process, and (c) the cumulative distribution for the Al2O3/Al inclusions in two processes.
Figure 9. Statistics histograms of Al2O3/Al inclusions of (a) traditional process (b) CSP process, and (c) the cumulative distribution for the Al2O3/Al inclusions in two processes.
Materials 16 03064 g009
Materials 16 03064 g010 550

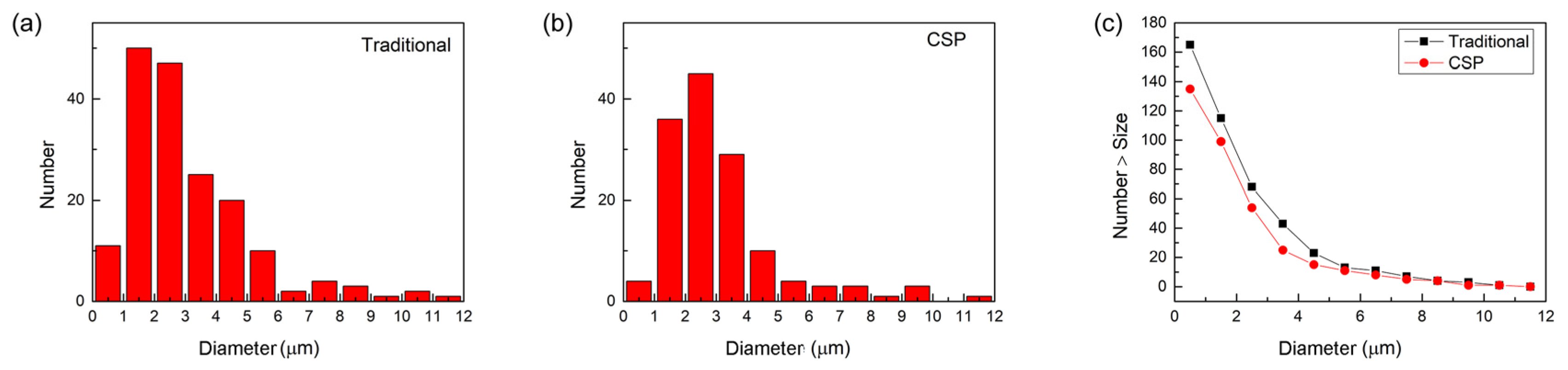

Figure 10. Statistics histograms of TiN inclusions of the (a) traditional process, (b) CSP process, and (c) the cumulative distribution for the Al2O3/Al inclusions in two processes.
Figure 10. Statistics histograms of TiN inclusions of the (a) traditional process, (b) CSP process, and (c) the cumulative distribution for the Al2O3/Al inclusions in two processes.
Materials 16 03064 g010
Table
Table 1. Chemical composition of 1500 MPa grade hot-stamping steel after traditional and CSP processes (wt.%).
Table 1. Chemical composition of 1500 MPa grade hot-stamping steel after traditional and CSP processes (wt.%).
SteelsCSiMnAlCrTiBFe
CSP0.230.281.150.0290.210.040.0028Bal.
Traditional0.260.311.240.0290.190.0380.0025Bal.
Table
Table 2. Mechanical property parameters of hot-stamping steel produced by traditional and CSP processes after quenching include yield strength (σs), tensile strength (σb), and total elongation (Etotal).
Table 2. Mechanical property parameters of hot-stamping steel produced by traditional and CSP processes after quenching include yield strength (σs), tensile strength (σb), and total elongation (Etotal).
Steelσy/MPaσUTS/MPaElongation/%
Quenching oilTraditional1016 ± 131469 ± 37.0 ± 0.6
CSP986 ± 171423 ± 137.8 ± 0.8
WaterTraditional1203 ± 291674 ± 176.8 ± 0.8
CSP1194 ± 311592 ± 256.8 ± 0.7
10 wt.% NaClTraditional1187 ± 131738 ± 215.9 ± 0.3
CSP1234 ± 481693 ± 167.7 ± 0.9
