# A New Theoretical Method for Studying Effects of Microstructure on Effective Thermal Conductivity of Vermicular Graphite Cast Iron

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. Computational Methods

#### 2.2. Experimental Methods

^{3}. The thermal diffusivity was measured using a laser flash apparatus (Netzsch LFA457, Selb, Germany), the thermal conductivity was calculated according to λ = α·ρ·C_p, where α is the measured thermal diffusivity, ρ is the bulk density and C_p is the specific heat [37]. The thermal conductivity of each specimen was the average value of three measurements at 300.5 K (room temperature at test).

## 3. Results and Discussion

#### 3.1. Basis of Theoretical Model

^{−9}m. Then, the assignment of the thermal conductivity of the virtual grids was used to make the numerical calculation results close to the actual values. The range of graphite volume fraction, thermal conductivity of matrix and nodular cast iron is usually 5–10%, 25–40 W/(m·K) and 25–40 W/(m·K), respectively [14,42]. Table 1 shows the calculated values of nodular cast iron corresponding to different assignments of thermal conductivity of the virtual grids. The final assignment adopted in this paper was 10

^{−6}W/(m·K), which also covered the effects of the actual thickness and incomplete contact of the interface, crystal defects, etc., on the heat conductivity of cast iron.

#### 3.2. Effects of Microstructure on Effective Thermal Conductivity

#### 3.2.1. Anisotropy of Graphite and Interface between Graphite and Matrix

#### 3.2.2. Graphite Shape Parameter

#### 3.2.3. Graphite Volume Fraction

#### 3.2.4. Thermal Conductivity of Matrix

#### 3.3. Establishment of Quantitative Model and Verification

## 4. Conclusions

- (1)
- The effective thermal conductivity of VGI increases in power function with the decrease in graphite shape parameter, and increases linearly with the increase in graphite volume fraction and thermal conductivity of matrix.
- (2)
- The change in graphite shape affects both graphite anisotropy and area of interface. The more the graphite shape deviates from the sphere, the greater the enhancement effect of graphite anisotropy on thermal conductivity than the hindrance effect of interface. These two effects are close when the graphite is spherical type.
- (3)
- A quantitative model was built to predict the effective thermal conductivity of VGI, which was suitable for the vermicularity of 0–100%.
- (4)
- The experimental results are in good agreement with the model calculations, and the error is about 3%. This proves the rationality of the models and assumptions adopted in the theoretical method.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zhang, X.X.; Zhang, G.W.; Xu, H. Homogeneity Research on Microstructure and Properties of Vermicular Graphite Cast Iron. Hot Work. Technol.
**2014**, 43, 27–30. [Google Scholar] - Wang, X.X.; Zhou, J.R.; Su, W. Casting of Cylinder Block and Cylinder Head of Engine. J. Netshape Form. Eng.
**2010**, 2, 79–86. [Google Scholar] - Zhang, M.X.; Pang, J.C.; Qiu, Y.; Li, S.X.; Wang, M.; Zhang, Z.F. Thermo-mechanical fatigue property and life prediction of vermicular graphite iron. Mater. Sci. Eng. A
**2017**, 698, 63–72. [Google Scholar] [CrossRef] - Soeudy, R.I.E. The effect of graphite aspect ratio on the mechanical and microstructural properties of cast iron. Mater. Und Werkst.
**2002**, 33, 73–79. [Google Scholar] [CrossRef] - Riposan, L.; Chisamera, M.; Stan, S. New developments in high quality grey cast Irons. China Foundry
**2014**, 11, 351–364. [Google Scholar] - Zhang, M.X.; Pang, J.C.; Meng, L.J.; Li, S.X.; Liu, Q.; Jiang, A.L.; Zhang, Z.F. Study on thermal fatigue behaviors of two kinds of vermicular graphite cast irons. Mater. Sci. Eng. A-Struct. Mater. Prop. Microstruct. Process.
**2021**, 814, 141212. [Google Scholar] [CrossRef] - Ma, Z.; Yang, Z.; Guo, Y.; Tao, D.; Li, J.; Wang, S. 3d morphology characterization of graphite and its effect on the thermal conductivity of vermicular graphite iron. Int. J. Mater. Res.
**2019**, 110, 591–599. [Google Scholar] [CrossRef] - Mroz, M.; Orlowicz, A.W.; Tupaj, M.; Jacek-Burek, M.; Radon, M.; Kawinski, M. The effect of structure on thermal power of cast-iron heat exchangers. Arch. Foundry Eng.
**2020**, 20, 27–30. [Google Scholar] - Selin, M.; Holmgren, D.; Svensson, I.L. Influence of alloying additions on microstructure and thermal properties in compact graphite irons. Int. J. Cast Met. Res.
**2009**, 22, 283–285. [Google Scholar] [CrossRef] - Lopez-Covaleda, E.A.; Ghodrat, S.; Kestens, L.A.; Sacre, C.H.; Pardoen, T. Proposal of characterization procedure of metal-graphite interfac strength in compacted graphite iron. Materials
**2018**, 11, 1159. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ming, P.; Tan, W. Numerical simulation of stress field of laser phase transformation hardening vermicular graphite cast iron based on beam discretization. Laser Optoelectron. Prog.
**2019**, 56, 231403. [Google Scholar] [CrossRef] - Wang, G.-Q.; Liu, Z.-L.; Li, Y.-X.; Chen, X. Different thermal fatigue behaviors between gray cast iron and vermicular graphite cast iron. China Foundry
**2022**, 19, 245–252. [Google Scholar] [CrossRef] - Holmgren, D. Review of thermal conductivity of cast iron. Int. J. Cast. Met. Res.
**2005**, 18, 331–345. [Google Scholar] [CrossRef] - Witik, R.A.; Payet, J.; Michaud, V.; Ludwig, C.; Månson, J.A. Assessing the life cycle costs and environmental performance of lightweight materials in automobile applications. Compos. Part A Appl. Sci. Manuf.
**2011**, 42, 1694–1709. [Google Scholar] [CrossRef] - Helsing, J.; Grimvall, G. Thermal conductivity of cast iron: Models and analysis of experiments. J. Appl. Phys.
**1991**, 70, 1198–1206. [Google Scholar] [CrossRef] - Wang, G.H.; Li, Y.X. Calculating the effective thermal conductivity of gray cast iron by using an interconnected graphite model. China Foundry
**2020**, 17, 5–11. [Google Scholar] [CrossRef] - Selin, M.; Konig, M. Regression analysis of thermal conductivity based on measurements of compacted graphite irons. Metall. Mater. Trans. A-Phys. Metall. Mater. Sci.
**2009**, 40, 3235–3244. [Google Scholar] [CrossRef] - Ma, Z.; Tao, D.; Yang, Z.; Guo, Y.; Li, J.; Liang, M.; Yeung, L.T.L. The effect of vermicularity on the thermal conductivity of vermicular graphite cast iron. Mater. Des.
**2016**, 93, 418–422. [Google Scholar] [CrossRef] - Wu, Y.; Li, J.; Yang, Z.; Ma, Z.; Guo, Y.; Tao, D.; Yang, T.; Liang, M. Computational Assessment of Thermal Conductivity of Compacted Graphite Cast Iron. Adv. Mater. Sci. Eng.
**2019**, 2019, 1–7. [Google Scholar] [CrossRef] [Green Version] - Ma, Z.J.; Wen, Q.; Gao, P.H.; Yang, Z.; Guo, Y.C.; Li, J.P.; Liang, M.X. Experimental assessment of interfacial contact thermal conductance between graphite and matrix in cast iron. Int. J. Cast Met. Res.
**2017**, 31, 1–7. [Google Scholar] [CrossRef] - Velichko, A.; Wiegmann, A.; Mücklich, F. Estimation of the effective conductivities of complex cast iron microstructures using FIB tomographic analysis. Acta Mater.
**2009**, 57, 5023–5035. [Google Scholar] [CrossRef] - Velichko, A.; Holzapfel, C.; Muecklich, F. 3D characterization of graphite morphologies in cast iron. Adv. Eng. Mater.
**2007**, 9, 39–45. [Google Scholar] [CrossRef] - Gao, B.Z.; Xu, J.Z.; Peng, J.J.; Kang, F.Y.; Du, H.D.; Li, J.; Chiang, S.W.; Xu, C.J.; Hu, N.; Ning, X.S. Experimental and theoretical studies of effective thermal conductivity of composites made of silicone rubber and Al2O3 particles. Thermochim. Acta
**2015**, 614, 1–8. [Google Scholar] [CrossRef] - Kidalov, S.V.; Shakhov, F.M. Thermal Conductivity of Diamond Composites. Materials
**2009**, 2, 2467–2495. [Google Scholar] [CrossRef] [Green Version] - Matsushita, T.; Saro, A.G.; Elmquist, L.; Jarfors, A.E.W. On the thermal conductivity of CGI and SGI cast irons. Int. J. Cast Met. Res.
**2018**, 31, 135–143. [Google Scholar] [CrossRef] - Hasselman, D.; Johnson, L.F. Effective Thermal Conductivity of Composites with Interfacial Thermal Barrier Resistance. J. Compos. Mater.
**1987**, 21, 508–515. [Google Scholar] [CrossRef] - Hatta, H.; Taya, M.; Kulacki, F.; Harder, J. Thermal diffusivities of composites with various types of filler. J. Compos. Mater.
**1992**, 26, 612–625. [Google Scholar] [CrossRef] - Nan, C.W.; Birringer, R.; Clarke, D.R.; Gleiter, H. Effective thermal conductivity of particulate composites with interfacial thermal resistance. J. Appl. Phys.
**1997**, 81, 6692–6699. [Google Scholar] [CrossRef] - Xu, J.Z.; Gao, B.Z.; Kang, F.Y. A reconstruction of Maxwell model for effective thermal conductivity of composite materials. Appl. Therm. Eng.
**2016**, 102, 972–979. [Google Scholar] [CrossRef] - Tewary, U.; Paul, D.; Mehtani, H.K.; Bhagavath, S.; Alankar, A.; Mohapatra, G.; Sahay, S.S.; Panwar, A.S.; Karagadde, S.; Samajdar, I. The Origin of Graphite Morphology in Cast Iron. Acta Mater.
**2022**, 226, 117660. [Google Scholar] [CrossRef] - Armstrong, M.A. Basic Topology; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2013. [Google Scholar]
- Deissler, R.G.; Boegli, J.S. An investigation of effective thermal conductivities of powders in various gases. ASME Trans.
**1958**, 80, 1417–1425. [Google Scholar] [CrossRef] - Qian, L.; Pang, X.; Zhou, J.; Yang, J.; Lin, S.; Hui, D. Theoretical model and finite element simulation on the effective thermal conductivity of particulate composite materials. Compos. Part B Eng.
**2017**, 116, 291–297. [Google Scholar] [CrossRef] - Ljustina, G.; Larsson, R.; Fagerström, M. A FE based maching simulation methodology accounting for cast iron microstructure. Finite Elem. Anal. Des.
**2014**, 80, 1–10. [Google Scholar] [CrossRef] - Wang, Y.; An, C.G.; He, Y.Z.; Li, H. Structure and properties of graphite microspheres containing ferromagnetic metal prepared by acid corrosion of cast iron. J. Mater. Eng. Perform.
**2014**, 23, 4446–4452. [Google Scholar] [CrossRef] - Liu, Y.; Xing, J.; Li, Y.; Sun, L.; Wang, Y. A first principles study of adhesion and electronic structure at Fe (110)/graphite (0001) interface. Appl. Surf. Sci.
**2017**, 405, 497–502. [Google Scholar] [CrossRef] - Xu, D.M.; Wang, G.Q.; Chen, X.; Li, Y.X.; Liu, Y.; Zhang, H.W. Effects of alloy elements on ductility and thermal conductivity of compacted graphite iron. China Foundry
**2018**, 15, 189–195. [Google Scholar] [CrossRef] [Green Version] - Stefanescu, D.M.; Alonso, G.; Larranaga, P.; De la Fuente, E.; Suarez, R. On the crystallization of graphite from liquid iron–carbon–silicon melts. Acta Mater.
**2016**, 107, 102–126. [Google Scholar] [CrossRef] - Lin, X.; Hua, M.; Tian, X.; Jiang, A.; Li, S.; Zhang, X.; Song, L.; Shao, A.; Wang, L. Growth mechanisms of vermicular graphite in cast iron. Mater. Today Commun.
**2021**, 29, 102993. [Google Scholar] [CrossRef] - Amini, S.; Abbaschian, R. Nucleation and growth kinetics of graphene layers from a molten phase. Carbon
**2013**, 51, 110–123. [Google Scholar] [CrossRef] - Wei, Z.; Yang, F.; Bi, K.; Yang, J.; Chen, Y. Tuning the interfacial thermal conductance via the anisotropic elastic properties of graphite. Carbon
**2019**, 144, 109–115. [Google Scholar] [CrossRef] - Wang, G.H.; Li, Y.X. Thermal conductivity of cast iron—A review. China Foundry
**2020**, 17, 29–39. [Google Scholar] [CrossRef] - Liu, Q.Y.; Zhang, X.F.; Sun, Y.C.; Jiang, A.L.; Li, J.C.; Zheng, H.L.; Tian, X.L. Quantitative models for microstructure and thermal conductivity of vermicular graphite cast iron cylinder block based on cooling rate. China Foundry
**2021**, 18, 52–59. [Google Scholar] [CrossRef] - Liu, Y.; Li, Y.; Xing, J.; Wang, S.; Zheng, B.; Tao, D.; Li, W. Effect of graphite morphology on the tensile strength and thermal conductivity of cast iron. Mater. Charact.
**2018**, 144, 155–165. [Google Scholar] [CrossRef]

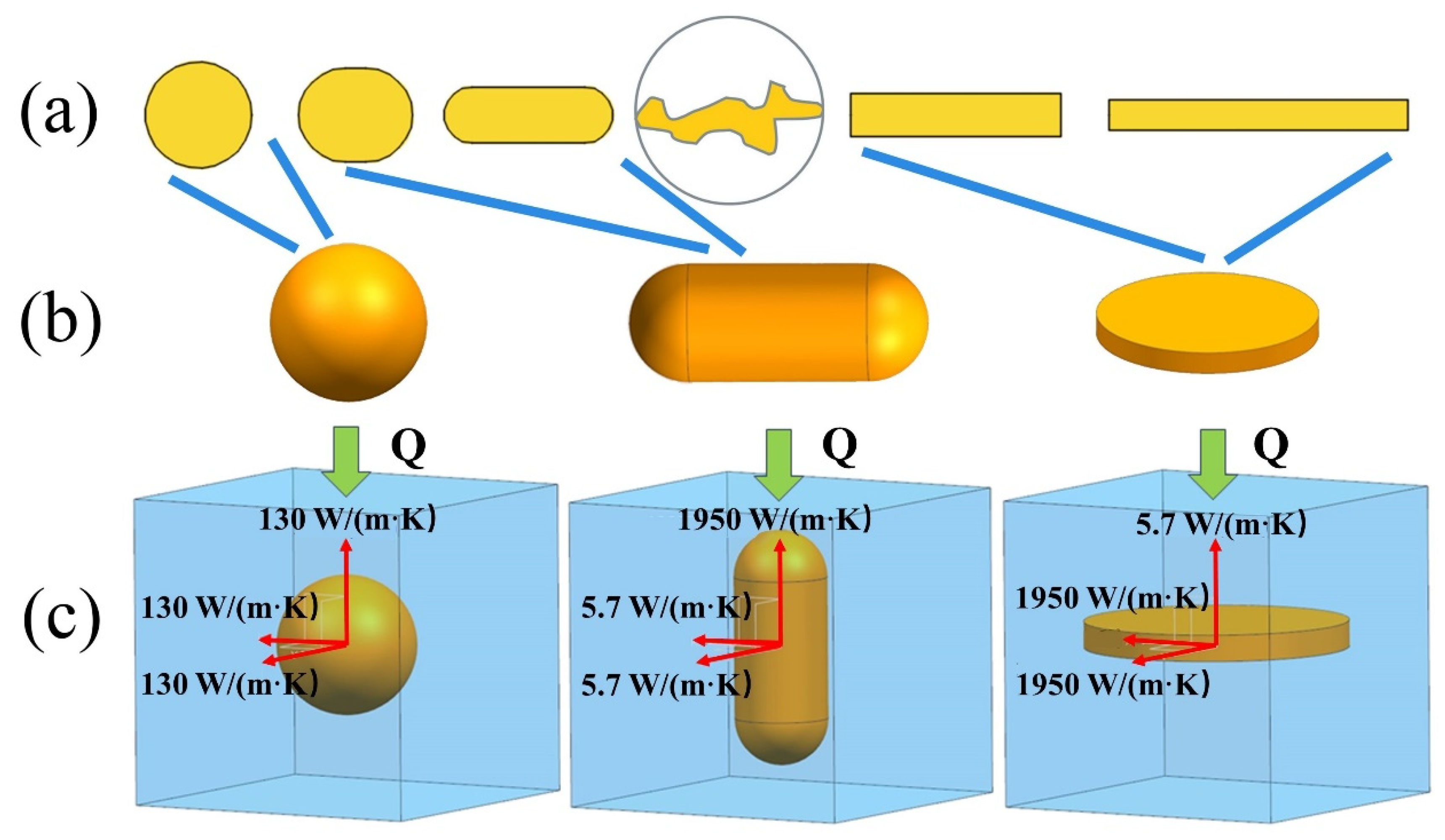

**Figure 1.**Establishment of a series of unit cell models by shape interpolation. (

**a**) Two-dimensional abstractions of typical structures in metallographic photographs. (

**b**) Three-dimensional abstractions of typical structures in metallographic photographs. (

**c**) Demonstrations about method to calculate equivalent thermal conductivity (one of all directions) of three-dimensional abstractive models.

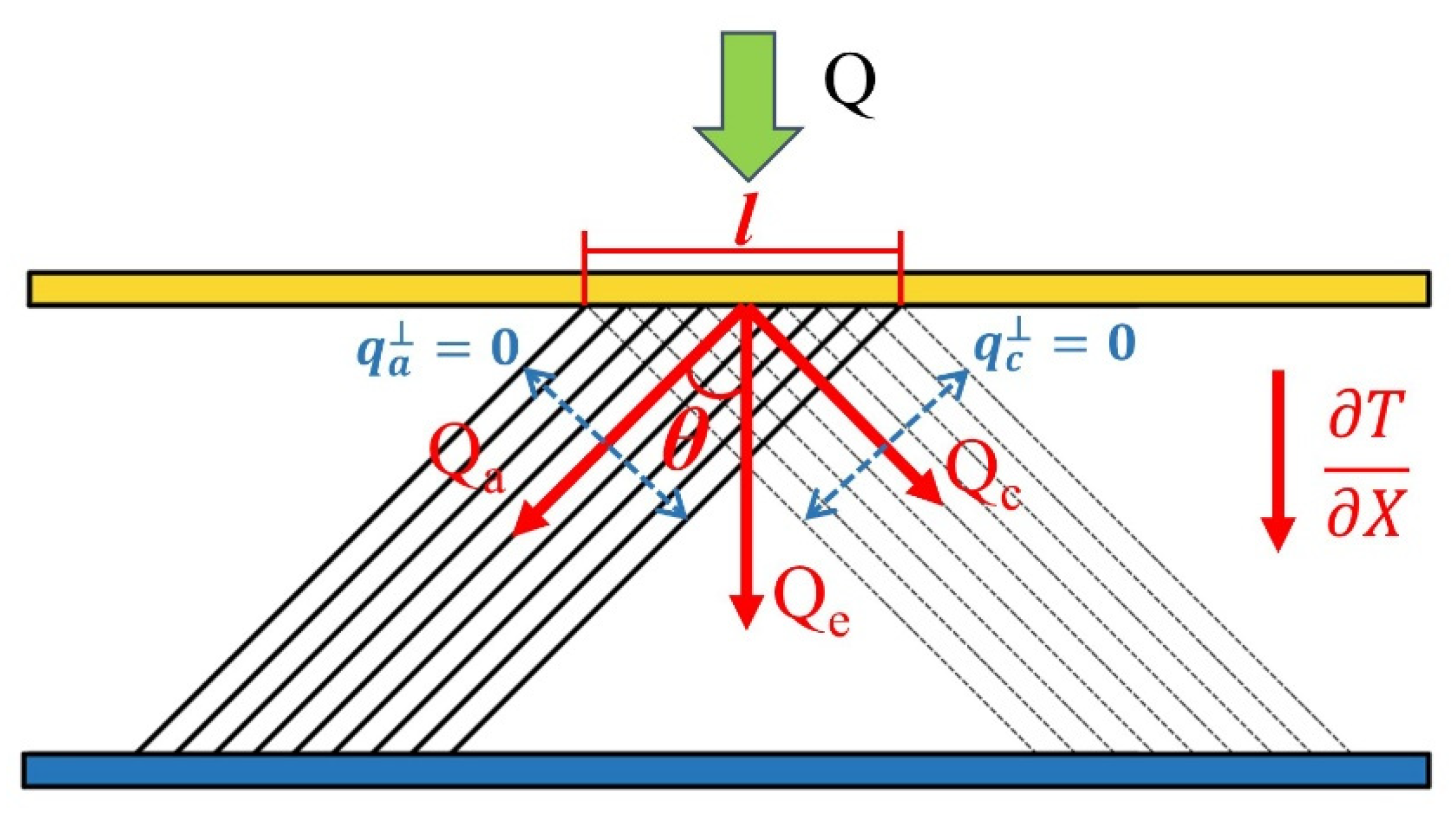

**Figure 2.**Conversion of non-main direction thermal conductivity of graphite under the one-dimensional steady heat transfer.

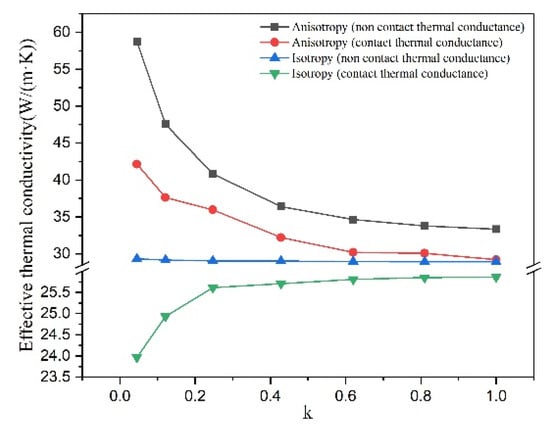

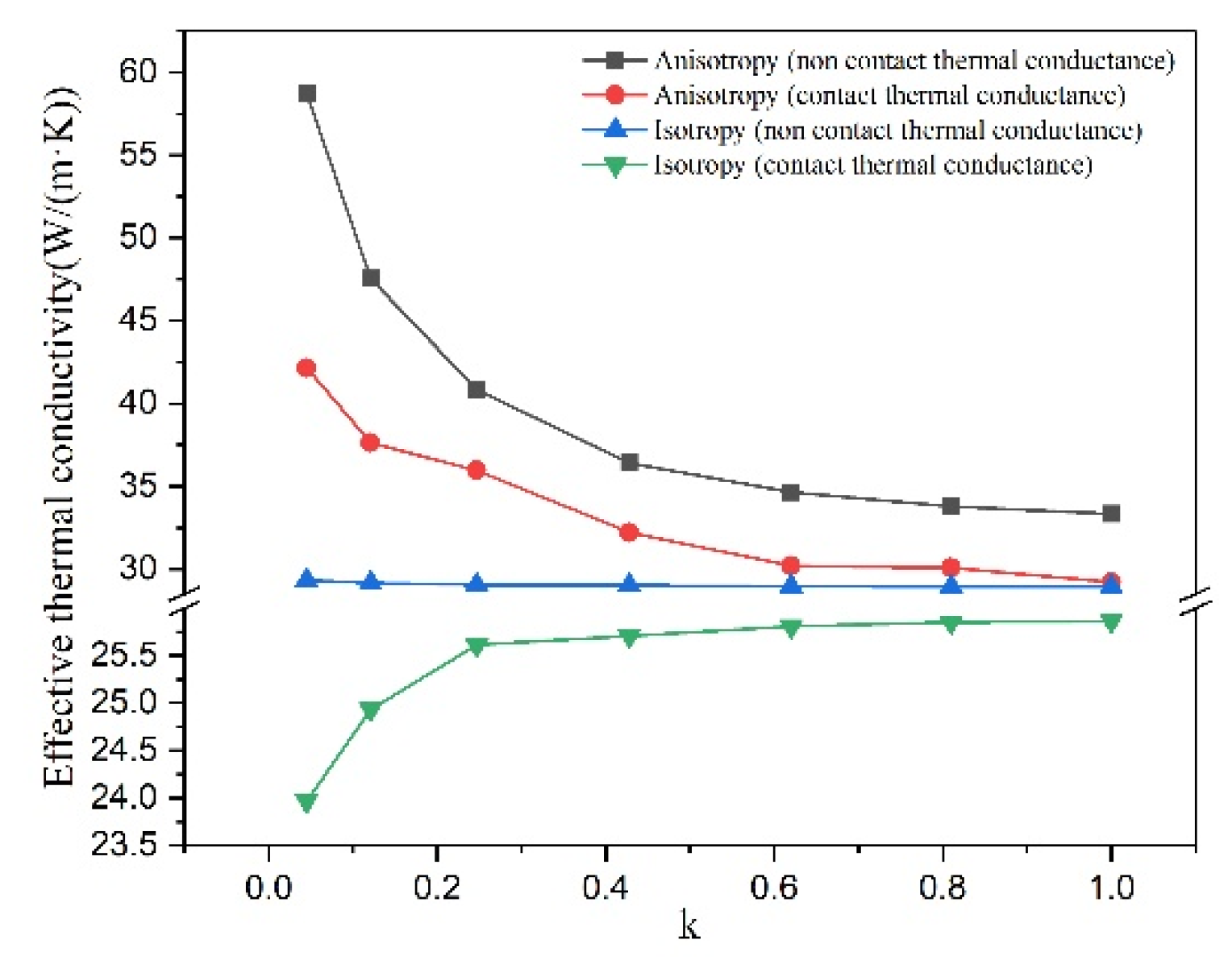

**Figure 3.**Effects of graphite anisotropy and ICTC on effective thermal conductivity of unit cell models containing simplified graphite models with different shape, v = 5%, ${\lambda}_{m}$ = 25 W/(m·K).

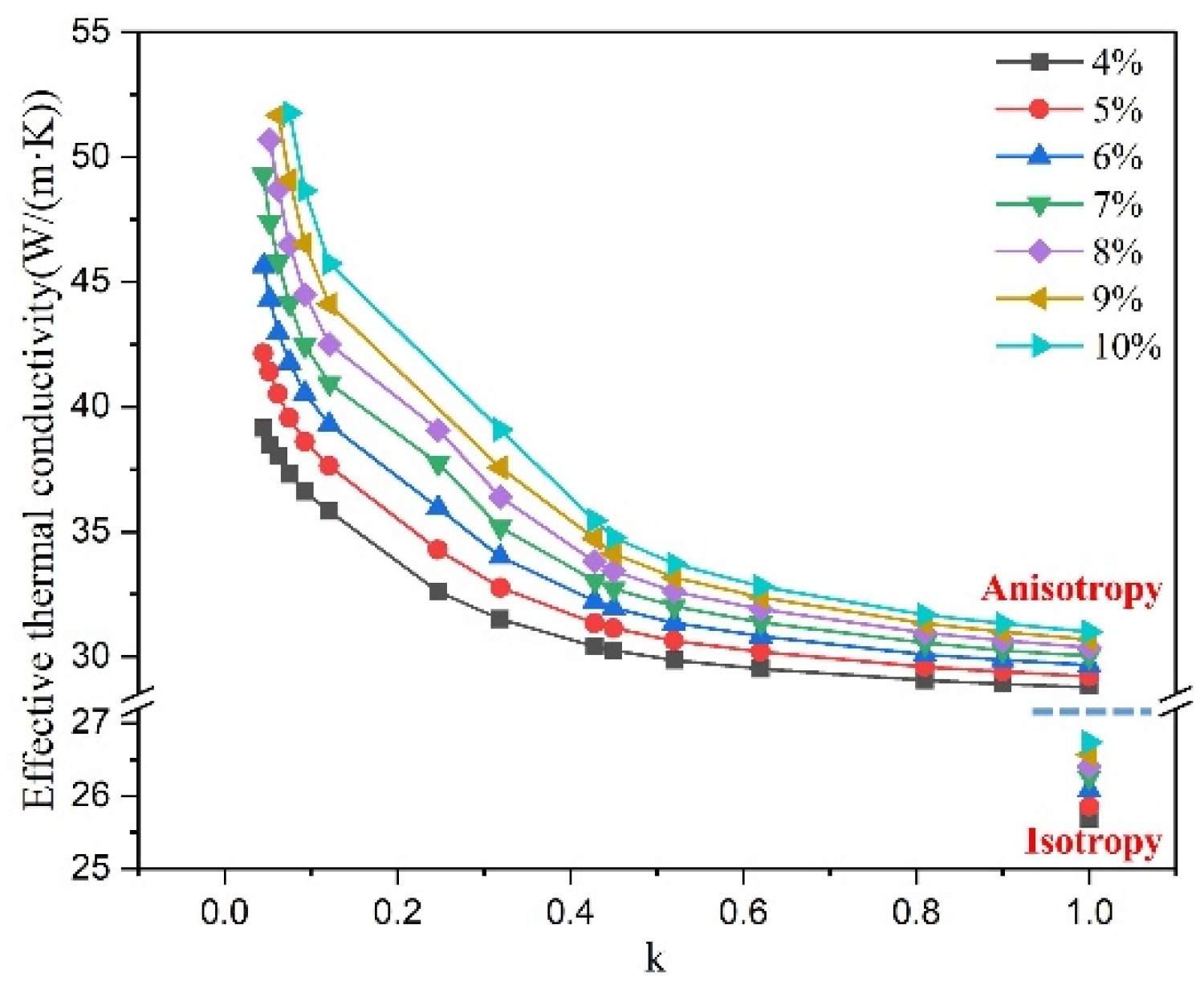

**Figure 4.**Effect of graphite shape parameter on effective thermal conductivity of cast iron, ${\lambda}_{m}$ = 25 W/(m·K) and spherical type: k = 1; capsule-based type: 0.9 > k > 0.24; disc type: 0.12 > k > 0.04.

**Figure 5.**Effect of graphite volume fraction on effective thermal conductivity of cast iron, ${\lambda}_{m}$ = 25 W/(m·K).

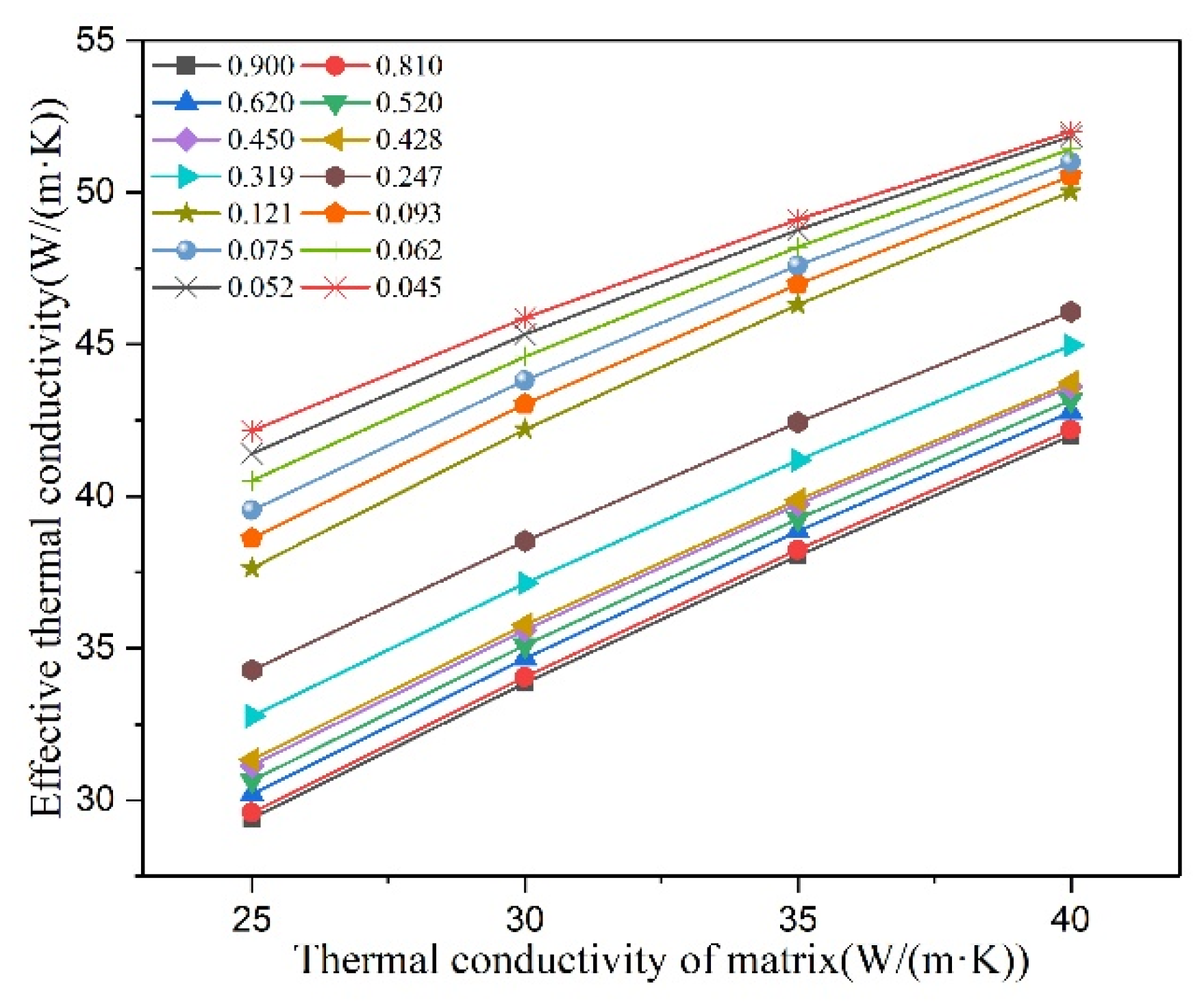

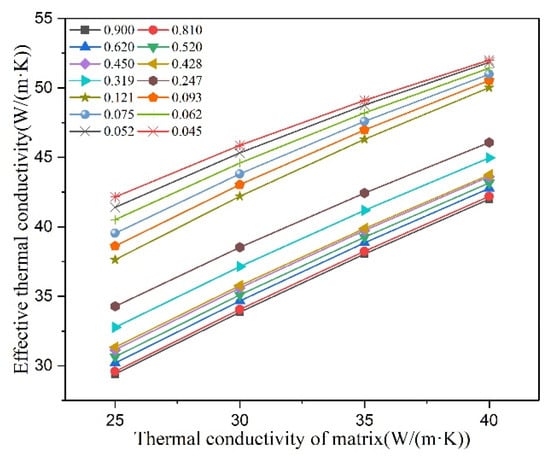

**Figure 6.**Effect of thermal conductivity of matrix on effective thermal conductivity of cast iron, v = 5%.

**Figure 7.**Two-dimensional morphology of graphite in (

**a**) specimen 1, (

**b**) specimen 2 and (

**c**) specimen 3 [43].

**Figure 8.**Three-dimensional morphology of graphite in (

**a**) specimen 1, (

**b**) specimen 2 and (

**c**) specimen 3.

**Table 1.**The calculated values of nodular cast iron corresponding to different assignments of thermal conductivity of the virtual grids. Unit: W/(m·K).

${\mathit{\lambda}}_{\mathit{I}}={10}^{-5}$ | ${\mathit{\lambda}}_{\mathit{I}}={10}^{-6}$ | ${\mathit{\lambda}}_{\mathit{I}}={10}^{-7}$ | |
---|---|---|---|

v = $5\%,\text{}{\lambda}_{m}$ $=25,\text{}{\mathsf{\lambda}}_{\mathrm{g}}$ = 130 | 28.60 | 25.86 | 13.20 |

v = $10\%,\text{}{\lambda}_{m}$ $=40,\text{}{\mathsf{\lambda}}_{\mathrm{g}}$ = 130 | 45.87 | 36.17 | 11.61 |

Parameters | Valuation |
---|---|

Size of unit cell model | 80 × 80 × 80 |

Number of calculation angles | 1061 |

Steps of mesh generation | 100 × 100 × 100 |

Graphite volume fraction | v = 4–10% |

Thermal conductivity of isotropic graphite (spherical type) | ${\mathsf{\lambda}}_{\mathrm{g}}$ = 130 W/(m·K) |

Thermal conductivity of anisotropic graphite (capsule-based type and disc type) | ${\mathsf{\lambda}}_{\mathrm{a}}$$=1950\text{}\mathrm{W}/(\mathrm{m}\xb7\mathrm{K}),{\mathsf{\lambda}}_{\mathrm{c}}$ = 5.7 W/(m·K) |

Thermal conductivity of matrix | ${\mathsf{\lambda}}_{\mathrm{m}}$ = 25–40 W/(m·K) |

Thermal conductivity of interface | ${\mathsf{\lambda}}_{\mathrm{I}}$ = 10^{−6} W/(m·K) |

Thickness of interface | T = 10^{−9} m |

553 × 553 × 707 μm ^{3} | v | k | ${\mathit{\lambda}}_{\mathit{m}}$ W/(m·K) | Experimental Value [43] W/(m·K) | Predicted Value W/(m·K) | Error % |
---|---|---|---|---|---|---|

specimen 1 | 0.060 | 0.145 | 25 | 38.904 | 39.689 | 2.017 |

specimen 2 | 0.042 | 0.150 | 25 | 34.951 | 35.737 | 2.248 |

specimen 3 | 0.043 | 0.145 | 25 | 36.095 | 36.144 | 0.135 |

599 × 599 × 839 μm^{3} | v | k | ${\mathit{\lambda}}_{\mathit{m}}$ W/(m·K) | Experimental Value W/(m·K) | Predicted Value W/(m·K) | Error % |
---|---|---|---|---|---|---|

(a) | 0.0998 | 0.428 | 7.02 | 23.65 | 23.75 | 0.42 |

(b) | 0.0999 | 0.407 | 7.02 | 24.47 | 24.20 | 1.10 |

(c) | 0.1029 | 0.250 | 7.02 | 28.16 | 29.04 | 3.13 |

(d) | 0.1032 | 0.246 | 7.02 | 29.95 | 29.24 | 2.37 |
