Fabrication of ZnWO4/Carbon Black Nanocomposites Modified Glassy Carbon Electrode for Enhanced Electrochemical Determination of Ciprofloxacin in Environmental Water Samples

by
Kiruthika Mariappan
1,
Saranvignesh Alagarsamy
1,
Shen-Ming Chen
1,* and
Subramanian Sakthinathan
2
1
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, No. 1, Section 3, Chung−Hsiao East Road, Taipei 106, Taiwan
2
Department of Materials and Mineral Resources Engineering, National Taipei University of Technology, No. 1, Section 3, Zhong-Xiao East Road, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Materials 2023, 16(2), 741; https://doi.org/10.3390/ma16020741
Submission received: 18 December 2022 / Revised: 5 January 2023 / Accepted: 9 January 2023 / Published: 12 January 2023
(This article belongs to the Special Issue Functional Composite Materials for Environmental Applications)
Browse Figures
Versions Notes

Abstract

:
The major problem facing humanity in the world right now is the sustainable provision of water and electricity. Therefore, it is essential to advance methods for the long-term elimination or removal of organic contaminants in the biosphere. Ciprofloxacin (CIP) is one of the most harmful pollutants affecting human health through improper industrial usage. In this study, a zinc tungsten oxide (ZnWO4) nanomaterial was prepared with a simple hydrothermal synthesis. The ZnWO4/Carbon black nanocomposites were fabricated for the determination of CIP. The nanocomposites were characterized by field emission scanning electron microscopy, energy dispersion X-ray spectroscopy, X-ray diffraction, X-ray photoelectron spectroscopy, and electrochemical impedance spectroscopy. Electrochemical studies were done using cyclic voltammetry and differential pulse voltammetry methods. Based on the electrode preparation, the electrochemical detection of CIP was carried out, producing exceptional electrocatalytic performance with a limit of detection of 0.02 μM and an excellent sensitivity of (1.71 μA μM−1 cm−2). In addition, the modified electrode displayed great selectivity and acceptable recoveries in an environmental water sample analysis for CIP detection of 97.6% to 99.2%. The technique demonstrated high sensitivity, selectivity, outstanding consistency, and promise for use in ciprofloxacin detection. Ciprofloxacin was discovered using this brand-new voltammetry technique in a water sample analysis.

1. Introduction

The second-generation fluoroquinolone ciprofloxacin (CIP), also known as 1-cyclopropyl-6-fluoro-1,4-dihydro-4-oxo-7-(1-piperazinyl)-3-quinoline carboxylic acid is used to treat various bacterial infections [1]. CIP is one of the most often prescribed fluoroquinolones and is widely used in people and cattle for its broad-spectrum antibacterial action. Unlike other antibiotics, CIP can be induced either parenterally or orally [2]. This medication is used to treat a variety of infectious disorders, including urinary tract, respiratory tract, and gastrointestinal tract infections, as well as skin and soft tissue infections. Furthermore, ingesting foods of animal origin in humans might result in allergic or carcinogenic responses owing to antibiotic residues [3]. However, the most severe of all the negative effects of antibiotic residues in the environment is the rise of microbial drug resistance. Additionally, it is used to treat those who have contracted anthrax following inhalation exposure [4,5]. Agranulocytosis, thrombocytopenia, myelosuppression, toxic epidermal necrolysis, swelling or tearing of a tendon, toxic epidermal necrolysis, myelosuppression, and myasthenia gravis are some of the adverse effects of the medication [6,7].
CIP overdose causes severe hepatotoxicity, and it is crucial to measure the amount of ciprofloxacin in human plasma, serum, and urine to track drug buildup in patients with hepatic dysfunction or to identify CIP poisoning in victims of severe overdose. Drug quality control also heavily relies on CIP analysis [8]. Therefore, a simple, quick, accurate approach for the measurement of CIP in pharmaceutical formulations and bodily fluids must be developed. Numerous techniques, including voltammetry, high-performance liquid chromatography, spectrophotometry, and fluorimetry, have been used for the analysis of CIP. It has a high absorption and distribution rate in fluids and tissues [9,10]. The capacity of the bacteria to grow despite the presence of antibiotics is how this phenomenon is defined. Antibiotics are not the only medication that leave traces in the environment [11]. Due to the availability of numerous medicines, including substituted acetanilide without a prescription, their residues may also be detected in the environment and cause reproductive harm or a restriction in cell proliferation [12,13]. Particularly, tungstate rare earth nanostructured metal oxides have drawn a lot of attention among the vast class of oxides due to their unique characteristics. Tungstate nanomaterials have grown much more appealing in recent years due to their numerous potentials uses as catalysts, solid-state lasers, photo luminescent devices, and solar electrochemical cells [14].
Due to the higher electrical conductivity of W atoms, metal tungstate nanoparticles represent an outstanding class of materials. Zinc tungsten oxide (ZnWO4) is the most used metal tungstate due to its superior chemical stability, increased catalytic activity, and molecular and electronic flexibility. Its band gap is 3.2 eV, due to its increased charge transfer to the catalyst, longer light reactive range, and improved carrier lifespan of the photo generated electron-hole pair. Furthermore, ZnWO4 nanomaterials find novel applications in sectors including luminescence, magnetic, photo electrocatalysis, and photocatalysis [15]. It has strong ultraviolet (UV) light responsiveness, adjustable band edges, optical transparency. The ease of supply, chemical stability, and sufficient strength of ZnWO4 has drawn a lot of interest [16]. Through the use of the proper modifications, such as hetero structure creation, doping/combining with transition metal ions, and noble metals., the band edge tanning of 4-centered nanostructures may be organized. Due to its special physical and chemical characteristics, ZnWO4 in particular has drawn attention. It has a wide range of possible applications, including as a scintillator material, in photoluminescence, and as photovoltaic property, humidity sensor, hydrogen sensor, and photo catalyst. Therefore, ZnWO4 based on binary tungstate might be a great photo catalyst for oxidizing water or filtering out hazardous contaminants from water sources. However, the quick reunion of photo-induced electron-hole pairs restricts the catalytic activity of pure ZnWO4 [17,18]. Through designed alterations, ZnWO4 nanoparticles can change their electrical environments, which can result in fascinating catalytic characteristics. In order to advance highly effective solar light-conserving photocatalysis for the removal of harmful pollutants, ZnWO4 has excellent physical and chemical characteristics that should be taken into consideration [19,20].
Recently, high-performing electrochemical sensors were developed using the nanomaterial carbon black (CB) as a modifier for glassy carbon electrodes (GCE). The modified GCE can be used for the adsorptive stripping voltammetry detection of CIP. Carbon black (CB) is an amorphous carbon nanomaterial made primarily of sp2 hybridized carbon atoms and a trace amount of sp3 atoms [21,22]. Its constituent particles are organized in reticulate chains or branches, and a graphite-like crystal composition may be seen there. Because of their very wide availability, high surface area-to-volume ratios, and numerous defect sites of carbon black nanoparticles (CBNPs) have attracted great interest as a potent nanomaterial [23,24].
CB is employed in many aspects of modern life and is known for being used for printer ink, rubber reinforcements, as an active ingredient in electrically conductive materials, and as paint pigments [25,26]. It has opened up new possibilities for the creation of electrochemical sensors with low cost and outstanding electroanalytical capabilities since it is less expensive than other carbon compounds such as carbon nanotubes and graphene [27]. Typically, some research teams have employed CB to create electrodes, thin films, and composite materials. Moreover, this nanomaterial may be easily changed with other materials, such as metallic nanoparticles and polymers [28,29]. CB is analogous to other carbon nanomaterials such as graphene, carbon nanotubes (both single-walled and multi-walled), and fullerene [30,31,32]. Hence, ZnWO4/CB has been emphasized as an excellent modifier that takes place in the electrochemical detection of the CIP [33]. Recently, GCE has been widely used due to its low residual current in aqueous media, is widely used in aqueous micellar solutions and is frequently used as an indicator. Several papers on glassy carbon electrodes have emphasized the extraordinary sensitivity of the apparent rates of redox reactions to the quality of the electrode surface, and this is the reason that we have chosen CB/ZnWO4/GCE for the detection of CIP [34].
Electrochemical sensors have improved the performance of conventional analytical equipment and generated low-cost substitutes by obviating the requirement for expensive reagents and delayed preparation. Since electrochemical sensors are inexpensive, portable, and simple to use, they have significant advantages over conventional analytical equipment. Electrochemical detection has advantages, such as high sensitivity, simple operation, great selectivity, short reaction time, low cost, and speedy detection. On the other hand, electrochemically active interferences in the sample, poor long-term stability, and difficult electron-transfer routes are the disadvantages of electrochemical sensors. These detection technologies also have several limitations, such as expensive electrode raw materials, environmental pollution, and lengthy electrode preparation times during the electrode material synthesis. However, electrochemical sensors, have a wide range of applications in food analysis, environmental monitoring, and clinical diagnostics. Therefore, we preferred the electrochemical method for detecting CIP by CB/ZnWO4/GCE [35]. The resulting nanocomposites exhibited extremely high catalytic activity and have a broad linear range, a low detection limit, good selectivity, stability, and repeatability. As a result, it is also used in the examination of practical applications using CB/ZnWO4/GCE towards CIP in diverse biological and environmental materials.

2. Experimental Section

2.1. Chemicals

Zinc nitrate hexahydrate (Zn(NO3)2·6H2O ≥ 98.0%), sodium tungstate dihydrate (Na2WO4·2H2O ≥ 99.0%), carbon black, sodium hydroxide (NaOH ≥ 98.0%), Ciprofloxacin and ethanol (C2H5OH) were purchased from Sigma Aldrich chemical company, Taipei, Taiwan. Here, CB nanomaterials were used as a nanocomposite with the combination of prepared ZnWO4. The phosphate buffer solution (PBS; 0.05 M) was prepared by Na2HPO4 and NaH2PO4 with regulations of 0.1 M H2SO4/NaOH. Deionized water was utilized to prepare all solutions and all electrochemical studies.

2.2. Preparation of ZnWO4/CB

The ZnWO4/CB composite was prepared by the simple hydrothermal method. In the common preparation process, Zinc nitrate hexahydrate (0.37 g) and sodium tungstate dihydrate (0.58 g) were dissolved with 40 mL of deionized water and the mixture was stirred continuously for 25 min. Then, 10 mL of NaOH (0.5 M) solution was mixed with the solution and it was stirred by magnetic stirring for another 20 min at room temperature. Finally, the precipitate was transferred into the Teflon-coated autoclave and kept for hydrothermal synthesis for 12 hrs with a temperature of 180 °C, after completing the reaction solution was centrifuged with C2H5OH/H2O. The synthesized ZnWO4 sample was calcinated at 400 °C for 3 h and the fine powder was collected. The prepared ZnWO4 was prepared with the combination of CB as ZnWO4/CB for the experimental procedures to obtain effective electrochemical results (Scheme 1).

2.3. Characterizations

The prepared samples were characterized by X-ray diffraction (XRD) which was conducted on an XPERT-PRO, PAN analytical B.V., (Netherlands) with Cu Kα radiation (k = 1.54 Å) in a range from 10° to 90° with a scan rate of 5.0° per minute. The structure, morphology, and elemental results were characterized by high-resolution transmission electron microscopy (HRTEM, JEOL JEM-2100F) and field emission scanning electron microscopy (FESEM; JEOLJSM-6500F) including energy-dispersive X-ray (EDX) studies, X-ray photoelectron spectroscopy (XPS) images were analyzed by a Thermo scientific multi-lab 2000. Electrochemical impedance spectroscopy (EIS) was recorded by the ZAHNER-Elektrik. The electrochemical methods were conducted by the CHI 1205B and CHI 900 electrochemical workstations used in the CV and DPV techniques. A glassy carbon electrode (GCE) (0.0729 cm2), Ag/AgCl saturated KCl, and Pt wire corresponds to the working electrode, reference electrode, and counter electrode, respectively.

2.4. Modification of the GCE/ZnWO4/CB Electrode

The GCE was cleaned with water and ethanol before being polished with alumina slurries for the sensor studies. The substance was then combined with 0.5 mL of deionized water and 2.0 mg of the ZnWO4/CB material to create a composite while being sonicated. To fabricate ZnWO4/CB modified GCE, 8.0μL of ZnWO4/CB composite was drop cast over the precleaned GCE surface and dried for 15 min at 40 °C in an air oven. Finally, all the electrochemical experiments were performed using the constructed working electrode for the detection of CIP described in Scheme 2.

3. Result and Discussion

3.1. Characterization

FE-SEM, EDAX, and TEM analysis were used to examine the surface morphology of pure CB, ZnWO4, and ZnWO4/CB composites. Figure 1A shows the SEM image of CB has elemental carbon organized into tiny particles to create the CB primary particle, which has an amorphous and quasi-graphitic structure. However, the characteristics of CB are nanostructured aggregates exhibiting semispherical groups. Additionally, these aggregate groupings have a defined long dimension. The range of CB particle sizes is 3.0 to 100 nm. The ZnWO4 nanoparticles were uniformly sized at 100 nm, and show a monoclinic crystal system in Figure 1B. Figure 1C,D exhibits the FE-SEM pictures of the ZnWO4/CB composite, the ZnWO4 nanoparticles were adorned on CB to form the ZnWO4/CB composite. In addition, energy dispersive X-ray spectra and elemental mapping analysis studies were used to study the chemical composition and distribution of the ZnWO4/CB composite (Figure 2A). Figure 2B shows the EDS spectrum found in Zinc (Zn), tungsten (W), carbon (C), and oxygen (O) components, without any other contaminants. Additionally, Figure 2C–F demonstrates the elemental mapping results which show that the Zn, W, C, and O in the scanning area were distributed uniformly throughout the ZnWO4/CB composite. Figure 1C shows that the elemental mapping exhibiting the ZnWO4 particles was uniformly distributed on the surface of CB. The EDAX studies depict the element weight with the percentages of Zn as 21.6%, Was 62.8%, O as 15.6%, and C as 100%, respectively [36]. Figure 3A,B shows the prepared nanocomposites further studied with TEM analysis, which shows that the ZnWO4 particles coated on the CB surface and a well-formed ZnWO4/CB composite.
Figure 4A shows the XPS studies done on the ZnWO4/CB composite, which indicate the survey scan of elements such as Zn 2p, W 4f, O 1s, and C 1s. The absorption of air atmosphere in the prepared sample shows the C element peak. The spectra of Zn 2p1/2 and Zn 2p3/2 are displayed in Figure 4B with binding energies of 1046.5 eV and 1045.6 eV. Figure 4C shows that W4f1/2 and W4f3/2 are ascribed to the corresponding peaks at 40.5 eV and 46.6 eV, respectively. Figure 4D shows that the O1s peaks at 534 eV are attributed to the metal–oxygen bond and the hydroxyl group that was absorbed from the moisture. Figure 4E shows that the binding energies C 1s peaks at 288 eV [36]. XPS studies confirmed the successful formation of the ZnWO4/CB composite.
Figure 4F shows the XRD pattern of the CB, ZnWO4, and ZnWO4/CB composite. The cubic point of the space group of ZnWO4/CB contains diffraction peaks at an angle of 2θ = 15.47°, 18.89°, 23.81°, 24.51°, 30.70°, 36.76°, 39.94°, 37.80°, 41.56°, 44.59°, 47.64°, 52.74°, 54.24°, 62.73°, 65.47°, 69.32°, 72.45° and 26.70° that corresponds to the (010), (100), (011), (110), (111), (120), (012), (102), (112), (030), (122), (020), (230), (023), (23) and (006) crystal planes, respectively (JCPDS-01-089-0447). These findings demonstrated that ZnWO4 and CB diffraction peaks successfully appeared in the ZnWO4/CB composite composition without impurities, which confirms the formation of the ZnWO4/CB composite [37].

3.2. Electrochemical Performance of Different Modified Electrodes

The interfacial resistance of the GCE, CB/GCE, ZnWO4/GCE, and ZnWO4/CB/GCE was investigated using electrochemical impedance spectra (EIS) utilizing a solution of 0.1 M KCl and 5.0 mM [Fe(CN)6]3−/4− at the detected potential of 10 mV and a frequency range of 0.1 Hz to 100 kHz. Figure 5A shows the EIS plot in two sections that are consistent with each other. The high-frequency semicircle region, which is associated with charge transfer resistance (Rct), and the low-frequency linear zone are related to diffusion kinetics. The bare GCE, CB/GCE, ZnWO4/GCE, and ZnWO4/CB/GCE have identified the Rct values of 745.7 Ω, 586.9 Ω,149.21 Ω, and 44.43 Ω, respectively.
Figure 5B shows the CV profiles of different modified electrodes using 0.1 M KCl and 5.0 mM [Fe (CN)6]−3/−4 at 50 mVs. All the modified electrodes had redox peaks. In comparison to the other electrodes, the bare GCE electrode exhibits the lowest peak-to-peak separation (ΔEp = 0.34 V) and the reversible current response (Ipa = 40.38 μA and Ipc = −40.32 μA) for the bare electrode, as well as the estimated values of ZnWO4/GCE (ΔEp = 0.45 V) and GCE/ZnWO4/CB, has (Ipa = 103.38 μA and Ipc = −103.32 μA). Hence, the lower Ep and higher redox peak currents indicate that the GCE/ZnWO4/CB has a greater electroactive surface area and transfers electrons more quickly than the other bare GCE, CB/GCE, and ZnWO4/GCE electrodes. Additionally, the GCE/ZnWO4/CB composite display a significantly increased redox peak current as compared to bare GCE, GCE/CB, and GCE/ZnWO4. As shown by these results, the enhanced GCE/ZnWO4/CB electrode exhibits strong conductive properties that promote higher charge transfer efficiency.

3.3. Electrochemical Oxidation of Various Modified Electrodes and Different pH

Figure 6A shows the electrochemical oxidation of CIP was studied by CV at 0.05 V s−1 with pH 7.0 on applied potentials starting from 0.4 V to 1.4 V with the bare GCE, GCE/CB, GCE/ZnWO4, and GCE/ZnWO4/CB. The current response in the 0.05 M PBS electrolyte solution with and without the addition of 100 µM of CIP and also represented by the bar diagram is shown in Figure 6A,B. On this electrode, a substantial oxidation peak current was determined. As can be seen, there is no oxidation peak current seen for the GCE/ZnWO4/CB when CIP is not present. The lowest oxidation peak current on the addition of CIP was observed at Ipa = 5.2 μA with an oxidation peak potential of (ΔEp) 1.02 V (bare GCE). After CB was coated on the GCE surface, oxidation peaks current of Ipa = 8.51 μA along a peak potential of Epa = 1.05 V was obtained. Additionally, the ZnWO4/ GCE electrode compared to the bare GCE and CB/GCE exhibits a moderately improved oxidation peak current and a positively transferred oxidation potential of (Epa = 1.48 V) and has Ipa = 30.53 μA with a peak potential of Epa = 0.85 V. As a result, GCE/ ZnWO4/CB has exceptional electrical conductivity and excellent catalytic function for detecting CIP. When compared to the bare GCE, CB/GCE, and ZnWO4/GCE, the fabricated GCE/ZnWO4/ CB showed the highest oxidation peak current response at Ipa = 60.9 μA, and the oxidation peak potential shifted to the more positive side (Epa = 0.93 V). In contrast to the other electrodes, the modified GCE/ZnWO4/CB exhibits exceptional electrochemical activity and a rapid electron shifting process during CIP detection (Scheme 3).
By the different pH ranging from 3.0 to 11.0, the impact of pH on the electrocatalytic behavior of CIP in 0.05 M PBS at 0.05 Vs−1 was determined by GCE/ZnWO4/CB electrode and shown in Figure 6C,D. An anodic peak current appeared from pH 3.0 to 11.0 upon the addition of 100 µM of CIP. As can be seen, as the pH rises from 3.0 to 7.0, the amplification of CIP steadily increases because there are more protons freely circulating. The electrolyte solution of GCE/ZnWO4/CB has Ipa = 60.13 μA with a peak potential of Epa = 0.83 V. Hence, the oxidation peaks current increases with pH above 7.0, probably as a result of the hydrogen ions interfering with CIP detection. Finally, the very quick decrease in peak currents in the pH range of 7.0–11.0. The pH of the CIP was then influenced, and the peak current shift was obtained. Thus, we have chosen pH 7.0 for further electrochemical studies. The CIP oxidized to the formation of cationic radical and the single electron transfer kinetics on the GCE/ZnWO4/CB electrode has occurred.

3.4. Effect of Different Concentrations and the Scan Rates

The CV response at a scan rate of 50 mV s−1 for CIP concentrations ranging from 0–100 µM at GCE/ZnWO4/CB in pH 7.0 (50 mM PBS). From 0 to 100 µM, the oxidation peaks current (Ipa) gradually increased concerning the various concentrations in Figure 7A and the mechanism of oxidation of CIP is shown in Scheme 3. The calibration curve between the oxidation peak current and various concentrations is shown in Figure 7B, Ipa (µA) = 0.1953X [µM] + 7.222, (R2 = 0.9952) is the corresponding regression equation and correlation coefficient which is represented in Figure 7B. However, the findings show that the GCE/ZnWO4/CB has excellent electrocatalytic activity towards CIP detection as well as it has quick electron transfer. The CV was carried out with GCE/ZnWO4/CB in various scan rate ranges of 20–200 mVs−1 and reached pH 7.0, as shown in Figure 7C, to test the various scan rates of CIP. As the sweeping scan rate is increased, the anodic peak current of CIP progressively rises. The relation between anodic peak current and scan rate is presented in Figure 7C. Figure 7D shows the linear regression equation is Ipa(µA) = 0.1479 × (mVs−1) + 18.361 and the coefficient of (R2 = 0.9935). This finding implies that diffusion controls the electrocatalytic oxidation of CIP detected on the GCE/ZnWO4/CB surface [37].

3.5. Differential Pulse Voltammetry (DPV), Interference Studies, and Repeatability of CIP

DPV has higher sensitivity, greater resolution, and better selectivity when compared to other voltammetry methods. In order to ascertain the reduced concentration of CIP on GCE/ZnWO4/CB in 0.05 M PBS (pH 7) containment, we chose the DPV approach, which is shown in Figure 8A. As the CIP concentration is increased from 0.01 µM to 120 µM, the oxidation peaks current rises linearly, as seen in the linear plot of the maximum current during oxidation vs. various CIP concentrations. We obtained three linear ranges. The linear calibration equation observed for the first linear range from 0.01 µM to 120 µM has Ipa (µA) = 0.3273 C (µM) + 11.127 (R2 = 9985) and is shown in Figure 8B. The analytical parameters from the first linear range were computed, with the calculated limit of detection being 0.02 µM and sensitivity being 1.71 µA µM−1 cm−2. The following equation was used for the calculation [38]
𝐿𝑂𝐷 = 3σ/S
Here S denotes the linear plot’s slope value and denotes the relative standard deviation (RSD). The acquired analytical properties were compared to those of previously reported sensors and included a wide linear range, good sensitivity, and a lower detection limit of CIP on GCE/ZnWO4/CB, which was calculated by Equation (1) [39]. GCE/ZnWO4/CB has received a lot of attention lately, due to their distinct optical, physical, and electrochemical applications as well as their prospective advantages in terms of higher surface area, improved chemical stability, equal particle size distribution, and high porosity. For electrochemically detecting CIP, we have created a ZnWO4 nanomaterial that exhibits a broad range of potential and has an outstanding catalytic activity. However, the detection response of the CIP at the CB/ZnWO4/GCE is lower than that of the other electrochemical sensor mentioned in Table 1 such as, TiO2/AuNPs/Nafion/CMK-3 electrode (LOD = 0.108 μM) [7], AuNP/CHI/SPCE electrode (LOD = 0.001 μM) [8], CNT-V2O5CS/SPCE electrode (LOD = 3.0 μM) [10], PBE electrode (LOD 4.96 μM) [40], TiO2/PVA-GCE electrode (LOD = 0.04 μM) [41], GR-ZnO/GCE electrode (LOD = 0.4 μM) [42], GO/ZnO/GCE electrode (LOD = 0.01 μM) [43], and OLA-Fe3O4/MWCNTs/GCE electrode (LOD = 0.06 M) [44]. Moreover, the CB/ZnWO4/GCE electrode exhibited CIP detection at a low detection limit and long linear range than another electrode due to the high activity and active surface area of the CB/ZnWO4/GCE. Therefore, this result demonstrates that the CB/ZnWO4/GCE can be used as an excellent electrode for the sensing of CIP.
DPV was conducted to determine the impact of varying possible anti-interference investigations in 0.05 PBS (pH 7) with 20 µM CIP at GCE/ZnWO4/CB. As can be shown in Figure 8C, CIP was selectively detected at the same time, with the oxidation peak potential being 1.26 V. The initial oxidation peak current and peak potential of the original CIP were unaffected by other interfering compounds. Furthermore, CIP with the presence of various interferents such as sulfadiazine, carbofuran, sulfamethazine, mefenamic acid, K+, Cl−, and Na+ were studied and shown in Figure 8C. The experiments were conducted in N2-immersed conditions with a pH of 7.0 (0.05 M PBS) and 0.05 V s−1. CIP’s independence from outside meddling has thus been demonstrated in Figure 8C. Additionally, the CV examination of the manufactured electrodes in the assessment of repeatability for the CIP sensor was successful and are shown in Figure 8D. With a critical current difference between the oxidation peak current of 100 µM CIP in 0.05 M PBS (pH 7), it can be concluded that the GCE/ZnWO4/CB had better sensor repeatability.

3.6. Reproducibility, Stability, and Real Sample Analysis

The reproducibility of GCE/ZnWO4/CB was tested in four separate tests using a different electrode in 100 µM CIP containing 0.05 M PBS (pH 7) and the results are shown in Figure 9A. We suggest that the manufactured sensor GCE/ZnWO4/CB has an outstanding level of reproducibility. Furthermore, the stability of storage was studied by the CV in N2 immersed in 0.05 M PBS (pH 7) containing 100 µM CIP at the extensive scan rate of 0.05 Vs−1 by the optimal circumstances shown in Figure 9B. The altered electrode current response shows very good stability as well as the electrocatalytic oxidizing property of CIP.
The presence of CIP in real samples taken from various rivers and tap water was detected by the GCE/ZnWO4/CB electrode (Figure 9C,D). As a result, real samples of the undefined concentration were spiked with the known concentration of CIP mentioned in Table 2. The recovery values exhibit the relative standard deviation (RSD) approach. These results represent the experimental applications of the GCE/ZnWO4/CB altered electrode for the determination of CIP in real samples of water with excellent recoveries. The recoveries values of river water and tap water samples were obtained as 98.5% and 99.6%, with average RSD values of 4.2% and 3.6%, respectively. The results of real sample analysis demonstrated the outstanding capability of GCE/ZnWO4/CB electrodes for the detection of the CIP. Therefore, the values found are very reasonable for use in practical applications.

4. Conclusions

In this study, we effectively prepared a reliable, simple, and affordable GCE/ZnWO4/CB electrode for the electrochemical detection of CIP. The crystalline structure and shape of the prepared materials were confirmed by the analytical spectroscopic characterizations of XRD, FTIR, FESEM, and EDX-elemental mapping. The GCE/ZnWO4/ CB electrode shows high sensitivity (1.71 μA μM−1 cm−2) with a lower detection limit of 0.02 µM, and the electrochemical performance of the modified GCE showed a long linear range from 0.02 to 120 µM, with effective electrocatalytic responsiveness of CIP detection. Furthermore, the suggested electrode has higher selectivity, stability, repeatability, and reproducibility. The GCE/ZnWO4/CB exhibited an excellent result for the electrochemical measurement of CIP in real water samples. Therefore, the GCE/ZnWO4/CB electrode is also a promising option for the electrochemical detection of hazardous chemicals in biological and environmental samples.

Author Contributions

Conceptualization, K.M., S.A. and S.S.; software, K.M., S.A. and S.S.; validation, K.M., S.A. and S.S.; formal analysis, K.M., S.A. and S.S.; investigation, K.M., S.A. and S.S.; resources, K.M., S.A., S.S. and S.-M.C.; data curation, K.M., S.A. and S.S.; writing—original draft preparation, K.M., S.A. and S.S.; visualization, K.M., S.A. and S.S.; supervision, S.-M.C.; project administration, S.-M.C.; funding acquisition, S.-M.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Science and Technology (MOST 111-2113-M-027-002), Taiwan (ROC).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. George, J.M.; Priyanka, R.N.; Mathew, B. Bimetallic Ag–Au nanoparticles as pH dependent dual sensing probe for Mn (II) ion and ciprofloxacin. Microchem. J. 2020, 155, 104686. [Google Scholar] [CrossRef]
  2. Jalalvand, A.R. A study originated from combination of electrochemistry and chemometrics for investigation of the inhibitory effects of ciprofloxacin as a potent inhibitor on cytochrome P450. Microchem. J. 2020, 157, 105104. [Google Scholar] [CrossRef]
  3. Matulewicz, K.; Kazmierski, L.; Wisniewski, M.; Roszkowski, S.; Roszkowski, K.; Kowalczyk, O.; Roy, A.; Tylkowski, B.; Bajek, A. Ciprofloxacin and graphene oxide combination new face of a known drug. Materials 2020, 13, 4224. [Google Scholar] [CrossRef]
  4. Nguyen, D.; Hui, A.; Weeks, A.; Heynen, M.; Joyce, E.; Sheardown, H.; Jones, L. Release of ciprofloxacin-HCl and dexamethasone phosphate by hyaluronic acid containing silicone polymers. Materials 2012, 5, 684–698. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Basyooni, M.A.; Zaki, S.E.; Ertugrul, S.; Yilmaz, M.; Eker, Y.R. Fast response of CO2 room temperature gas sensor based on mixed valence phases in molybdenum and tungsten oxide nanostructured thin films. Ceram. Int. 2019, 19, 33761–33767. [Google Scholar] [CrossRef]
  6. Shanmugana, S.; Gorjianb, S.; Elsheikhc, A.H.; Essa, F.A.; Omarad, Z.M.; Raghue, A.V. Investigation into the effects of SiO2/TiO2 nanolayer on the thermal performance of solar box type cooker. Energy Sources A Recovery Util. Environ. Eff. 2021, 43, 2724–2737. [Google Scholar] [CrossRef]
  7. Pollap, A.; Baran, K.; Kuszewska, N.; Kochana, J. Electrochemical sensing of ciprofloxacin and paracetamol in environmental water using titanium sol-based sensor. J. Electroanal. Chem. 2020, 878, 114574. [Google Scholar] [CrossRef]
  8. Reddy, K.R.; Brahman, P.K.; Suresh, L. Fabrication of high-performance disposable screen printed electrochemical sensor for ciprofloxacin sensing in biological samples. Measurement 2018, 127, 175–186. [Google Scholar] [CrossRef]
  9. Azriouil, M.M.M.; Ettadili, F.E.; Laghrib, F.; Farahi, A.; Saqrane, S.; Bakasse, M.; Lahrich, S.; El Mhammedi, M.A. Recent trends on electrochemical determination of antibiotic Ciprofloxacin in biological fluids, pharmaceutical formulations, environmental resources and foodstuffs: Direct and indirect approaches. Food Chem. Toxicol. 2022, 168, 113378. [Google Scholar] [CrossRef]
  10. Hu, X.; Goud, K.Y.; Kumar, V.S.; Catanante, G.; Li, Z.; Zhu, Z.; Marty, J.L. Disposable electrochemical aptasensor based on carbon nanotubes-V2O5-chitosan nanocomposite for detection of ciprofloxacin. Sens. Actuators B Chem. 2018, 268, 278–286. [Google Scholar] [CrossRef]
  11. Islam, R.; Singh, V.; Ammeter, D.; Schweizer, F.; Kuss, S. Electrochemical characterization of the antibiotic hybrid ciprofloxacin-tobramycin. Electrochem. Commun. 2020, 119, 106825. [Google Scholar] [CrossRef]
  12. Jalal, N.R.; Madrakian, T.; Afkhami, A.; Ghamsari, M. Polyethylenimine@ Fe3O4@ carbon nanotubes nanocomposite as a modifier in glassy carbon electrode for sensitive determination of ciprofloxacin in biological samples. J. Electroanal. Chem. 2019, 833, 281–289. [Google Scholar] [CrossRef]
  13. Babu, B.; Koutavarapu, R.; Shim, J.; Kim, J.; Yoo, K. Enhanced solar-light-driven photocatalytic and photoelectrochemical properties of zinc tungsten oxide nanorods anchored on bismuth tungsten oxide nanoflakes. Chemosphere 2021, 268, 129346. [Google Scholar] [CrossRef] [PubMed]
  14. Maleki, A.; Moradi, F.; Shahmoradi, B.; Rezaee, R.; Lee, S.M. The photocatalytic removal of diazinon from aqueous solutions using tungsten oxide doped zinc oxide nanoparticles immobilized on glass substrate. J. Mol. Liq. 2020, 297, 111918. [Google Scholar] [CrossRef]
  15. Koutavarapu, R.; Reddy, C.V.; Syed, K.; Reddy, K.R.; Saleh, T.A.; Lee, D.Y.; Aminabhavi, T.M. Novel Z-scheme binary zinc tungsten oxide/nickel ferrite nanohybrids for photocatalytic reduction of chromium (Cr (VI)), photoelectrochemical water splitting and degradation of toxic organic pollutants. J. Hazard. Mater. 2022, 423, 127044. [Google Scholar] [CrossRef]
  16. Cao, J.; Zhang, D.; Yue, Y.; Wang, X.; Srikhaow, A.; Sriprachuabwong, C.; Qin, J. Strongly coupled tungsten oxide/carbide heterogeneous hybrid for ultrastable aqueous rocking-chair zinc-ion batteries. J. Chem. Eng. 2021, 426, 131893. [Google Scholar] [CrossRef]
  17. Fu, R.; Yang, J.; Chang, W.C.; Chang, W.C.; Chang, C.M.; Lin, D.; Shieh, H.P.D. The influence of annealing temperature on amorphous indium-zinc-tungsten oxide thin-film transistors. Phys. Status Solidi 2018, 215, 1700785. [Google Scholar] [CrossRef]
  18. Reddy, C.; Koutavarapu, R.; Reddy, I.N.; Shim, J. Effect of a novel one-dimensional zinc tungsten oxide nanorods anchored two-dimensional graphitic carbon nitride nanosheets for improved solar-light-driven photocatalytic removal of toxic pollutants and photoelectrochemical water splitting. J. Mater. Sci. Mater. Electron 2021, 32, 33–46. [Google Scholar] [CrossRef]
  19. Shad, N.A.; Bajwa, S.Z.; Amin, N.; Taj, A.; Hameed, S.; Khan, Y.; Khan, W.S. Solution growth of 1D zinc tungstate (ZnWO4) nanowires; design, morphology, and electrochemical sensor fabrication for selective detection of chloramphenicol. J. Hazard. Mater. 2019, 367, 205–214. [Google Scholar] [CrossRef]
  20. Hou, C.; Tang, W.; Zhang, C.; Wang, Y.; Zhu, N. A novel and sensitive electrochemical sensor for bisphenol A determination based on carbon black supporting ferroferric oxide nanoparticles. Electrochim. Acta 2014, 144, 324–331. [Google Scholar] [CrossRef]
  21. Arduini, F.; Zanardi, C.; Cinti, S.; Terzi, F.; Moscone, D.; Palleschi, G.; Seeber, R. Effective electrochemical sensor based on screen-printed electrodes modified with a carbon black-Au nanoparticles composite. Sens. Actuators B Chem. 2015, 212, 536–543. [Google Scholar] [CrossRef]
  22. Deroco, P.B.; Melo, I.G.; Silva, L.S.; Eguiluz, K.I.; Salazar, B.G.R.; Fatibello, F.O. Carbon black supported Au–Pd core-shell nanoparticles within a di-hexadecyl phosphate film for the development of hydrazine electrochemical sensor. Sens. Actuators B Chem. 2018, 256, 535–542. [Google Scholar] [CrossRef]
  23. Cinti, S.; Colozza, N.; Cacciotti, I.; Moscone, D.; Polomoshnov, M.; Sowade, E.; Arduini, F. Electroanalysis moves towards paper-based printed electronics: Carbon black nanomodified inkjet-printed sensor for ascorbic acid detection as a case study. Sens. Actuators B Chem. 2018, 265, 155–160. [Google Scholar] [CrossRef]
  24. Messaoud, N.B.; Lahcen, A.A.; Dridi, C.; Amine, A. Ultrasound assisted magnetic imprinted polymer combined sensor based on carbon black and gold nanoparticles for selective and sensitive electrochemical detection of Bisphenol A. Sens. Actuators B Chem. 2018, 276, 304–312. [Google Scholar] [CrossRef]
  25. Baccarin, M.; Santos, F.A.; Vicentini, F.C.; Zucolotto, V.; Janegitz, B.C.; Fatibello, F.O. Electrochemical sensor based on reduced graphene oxide/carbon black/chitosan composite for the simultaneous determination of dopamine and paracetamol concentrations in urine samples. J. Electroanal. Chem. 2017, 799, 436–443. [Google Scholar] [CrossRef]
  26. Silva, T.A.; Moraes, F.C.; Janegitz, B.C.; Fatibello, F.O. Electrochemical biosensors based on nanostructured carbon black: A review. J. Nanomater. 2017, 2017, 4571614. [Google Scholar] [CrossRef] [Green Version]
  27. Santhiago, M.; Corrêa, C.C.; Bernardes, J.S.; Pereira, M.P.; Oliveira, L.J.; Strauss, M.; Bufon, C.C. Flexible and foldable fully-printed carbon black conductive nanostructures on paper for high-performance electronic, electrochemical, and wearable devices. ACS Appl. Mater. Interfaces 2017, 9, 24365–24372. [Google Scholar] [CrossRef] [PubMed]
  28. Cinti, S.; Mazzaracchio, V.; Cacciotti, I.; Moscone, D.; Arduini, F. Carbon black-modified electrodes screen-printed onto paper towel, waxed paper, and parafilm M. Sensors 2017, 17, 2267. [Google Scholar] [CrossRef]
  29. Goulart, L.A.; Guaraldo, T.T.; Lanza, M.R. A novel electrochemical sensor based on Printex L6 carbon black carrying CuO/Cu2O nanoparticles for propylparaben determination. Electroanalysis 2018, 30, 2967–2976. [Google Scholar] [CrossRef]
  30. Delgado, K.P.; Raymundo, P.P.A.; Campos, A.M.; Oliveira, J.O.N.; Janegitz, B.C. Ultralow cost electrochemical sensor made of potato starch and carbon black nanoballs to detect tetracycline in waters and milk. Electroanalysis 2018, 30, 2153–2159. [Google Scholar] [CrossRef]
  31. Batista, D.P.; Campanha, V.F.; Fatibello, F.O. An electrochemical sensor for the simultaneous determination of paracetamol and codeine using a glassy carbon electrode modified with nickel oxide nanoparticles and carbon black. Electroanalysis 2015, 27, 2214–2220. [Google Scholar] [CrossRef]
  32. Reddy, K.R.; Jeong, H.M.; Lee, Y.; Raghu, A.V. Synthesis of MWCNTs-core/Thiophene polymer-sheath composite nanocables by a cationic surfactant-assisted chemical oxidative polymerization and their structural properties. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 1477–1484. [Google Scholar] [CrossRef]
  33. Wang, Q.; Xue, Q.; Chen, T.; Li, J.; Liu, Y.; Shan, X.; Jia, J. Recent advances in electrochemical sensors for antibiotics and their applications. Chin. Chem. Lett. 2021, 32, 609–619. [Google Scholar] [CrossRef]
  34. Desimoni, E.; Brunetti, B. Glassy Carbon Electrodes Film-Modified with Acidic Functionalities. A Review. Electroanalysis 2012, 24, 1481–1500. [Google Scholar] [CrossRef]
  35. Ibrahim, I.R.; Matori, K.A.; Ismail, I.; Awang, Z.; Rusly, S.N.A.; Nazlan, R.; Ertugrul, M. A study on microwave absorption properties of carbon black and Ni0. 6Zn0. 4Fe2O4 nanocomposites by tuning the matching-absorbing layer structures. Sci. Rep. 2020, 10, 1–14. [Google Scholar] [CrossRef] [Green Version]
  36. Liu, Z.; Xu, J.; Liang, Q.; Li, Y.; Yu, H. CoS/ZnWO4 composite with band gap matching: Simple impregnation synthesis, efficient dye sensitization system for hydrogen production. J. Nanoparticle Res. 2020, 22, 1–11. [Google Scholar] [CrossRef]
  37. Fan, X.; Chen, X. Facile synthesis of NFL-ZnWO4 for pseudocapacitor applications. In Proceedings of the MATEC Web of Conferences, Lisbon, Portugal, 25–27 September 2019; Volume 272, p. 01005. [Google Scholar]
  38. Xie, A.J.; Chen, Y.; Luo, S.P.; Tao, Y.W.; Jin, Y.S.; Li, W.W. Electrochemical detection of ciprofloxacin based on graphene modified glassy carbon electrode. Mater. Technol. 2015, 30, 362–367. [Google Scholar] [CrossRef]
  39. Koventhan, C.; Vinothkumar, V.; Chen, S.M.; Sangili, A. Highly sensitive electrode materials for the voltammetric determination of nitrofurantoin based on zinc cobaltate nanosheets. New J. Chem. 2020, 44, 12036–12047. [Google Scholar] [CrossRef]
  40. De, S.C.C.; Alves, G.F.; Lisboa, T.P.; Matos, M.A.C.; Matos, R.C. Low cost paper-based electrochemical sensor for the detection of ciprofloxacin in honey and milk samples. J. Food Compos. Anal. 2022, 112, 104700. [Google Scholar]
  41. Zhao, J.; Huang, P.; Jin, W. Electrochemical sensor based on TiO2/polyvinyl alcohol nanocomposite for detection of ciprofloxacin in rainwater. Int. J. Electrochem. Sci. 2021, 16, 211018. [Google Scholar] [CrossRef]
  42. Yue, X.; Li, Z.; Zhao, S. A new electrochemical sensor for simultaneous detection of sulfamethoxazole and trimethoprim antibiotics based on graphene and ZnO nanorods modified glassy carbon electrode. Microchem. J. 2020, 159, 105440. [Google Scholar] [CrossRef]
  43. Sebastian, N.; Yu, W.C.; Balram, D. Electrochemical detection of an antibiotic drug chloramphenicol based on a graphene oxide/hierarchical zinc oxide nanocomposite. Inorg. Chem. Front. 2019, 6, 82–93. [Google Scholar] [CrossRef]
  44. Kumar, D.R.; Manoj, D.; Santhanalakshmi, J. Optimization of oleylamine Fe3O4/MWCNTs nanocomposite modified GC electrode for electrochemical determination of ofloxacin. J. Nanosci. Nanotechnol. 2014, 14, 5059. [Google Scholar] [CrossRef]
  45. Sawkar, R.R.; Shanbhag, M.M.; Tuwar, S.M.; Mondal, K.; Shetti, N.P. Sodium dodecyl sulfate mediated graphene sensor for electrochemical detection of the antibiotic drug: Ciprofloxacin. Materials 2022, 15, 7872. [Google Scholar] [CrossRef] [PubMed]
Materials 16 00741 sch001 550

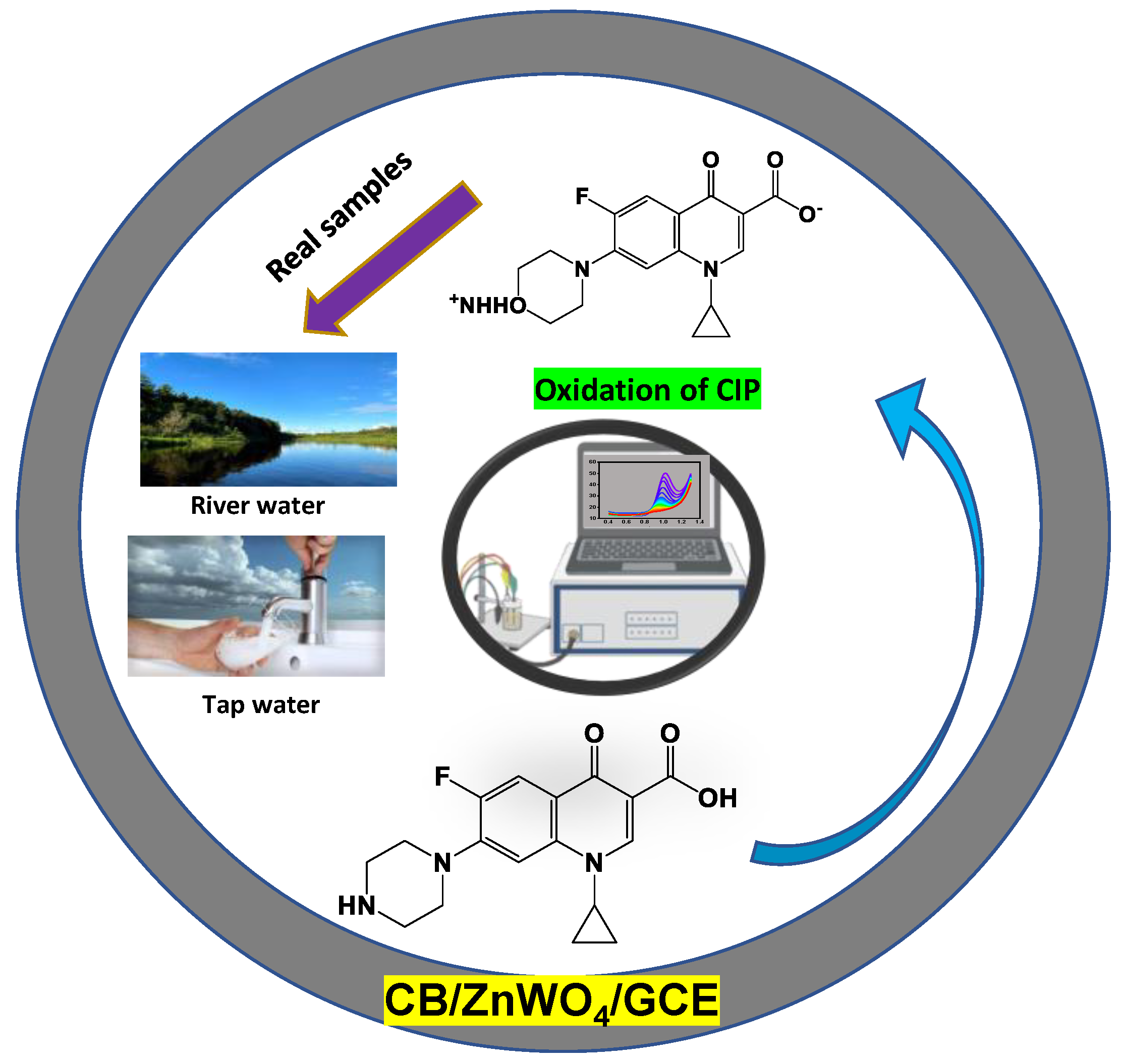

Scheme 1. Graphical abstract of overall work of GCE/ZnWO4/CB electrode for CIP sensor.
Scheme 1. Graphical abstract of overall work of GCE/ZnWO4/CB electrode for CIP sensor.
Materials 16 00741 sch001
Materials 16 00741 sch002 550

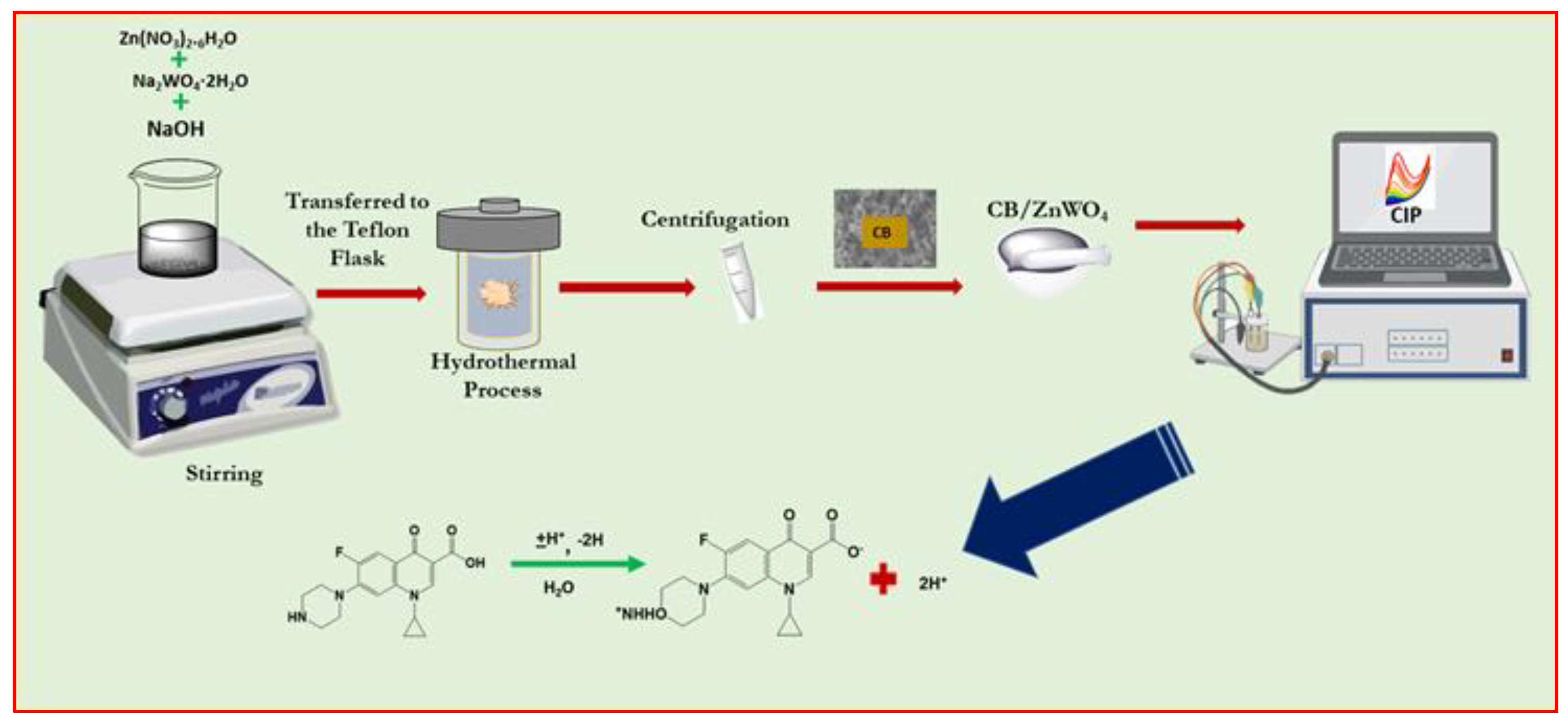

Scheme 2. Preparation of ZnWO4/CB/GCE for detection of CIP.
Scheme 2. Preparation of ZnWO4/CB/GCE for detection of CIP.
Materials 16 00741 sch002
Materials 16 00741 g001 550
Figure 1. (A) FE-SEM image of CB; (B) ZnWO4,; and (C,D) ZnWO4/CB composite.
Figure 1. (A) FE-SEM image of CB; (B) ZnWO4,; and (C,D) ZnWO4/CB composite.
Materials 16 00741 g001
Materials 16 00741 g002 550

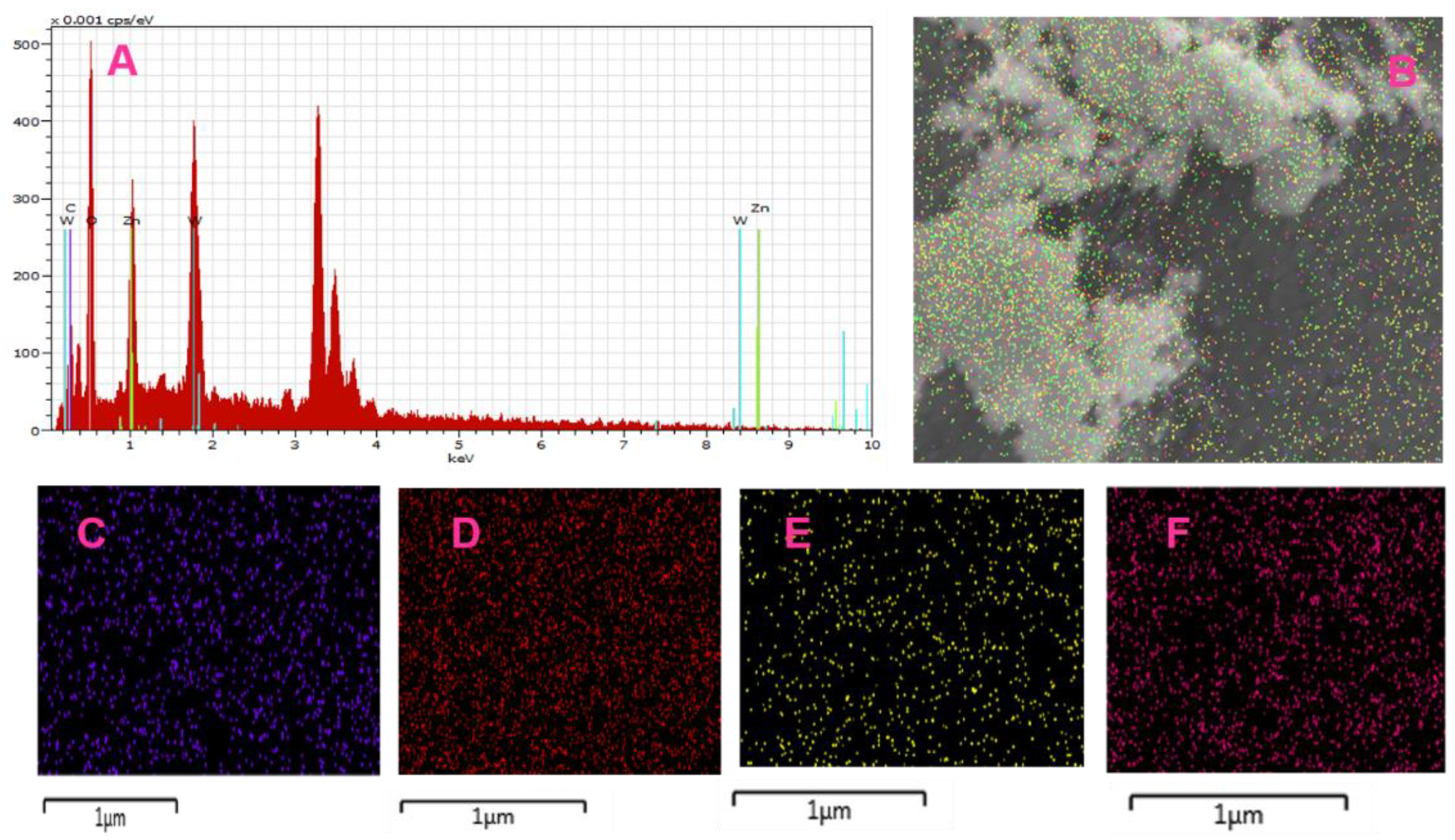

Figure 2. (A) EDAX; (B) elemental mapping of ZnWO4/CB composite; (C) Zn; (D) W; (E) O; and (F) C.
Figure 2. (A) EDAX; (B) elemental mapping of ZnWO4/CB composite; (C) Zn; (D) W; (E) O; and (F) C.
Materials 16 00741 g002
Materials 16 00741 g003 550
Figure 3. (A,B) TEM image of ZnWO4/CB composite.
Figure 3. (A,B) TEM image of ZnWO4/CB composite.
Materials 16 00741 g003
Materials 16 00741 g004 550

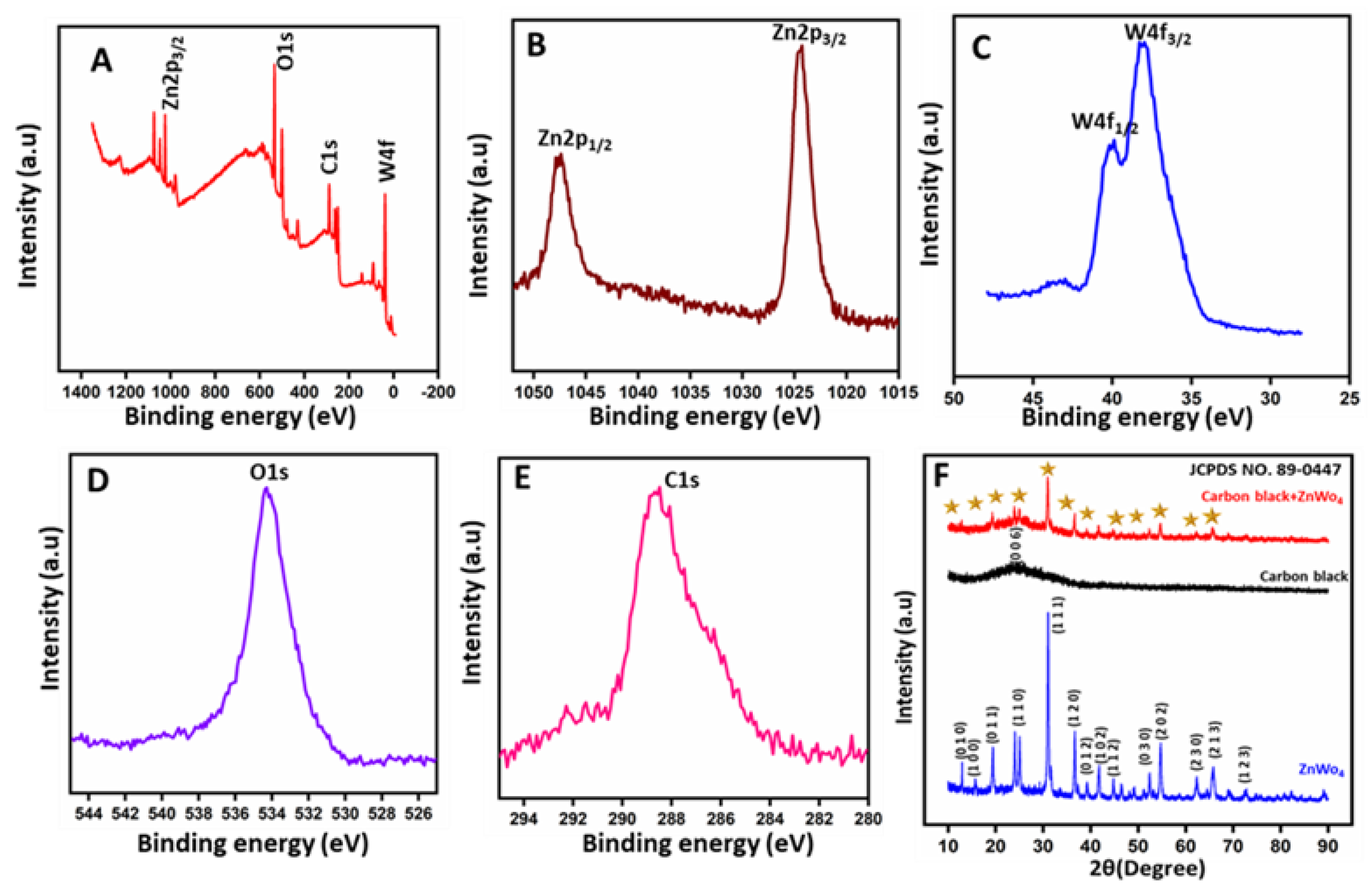

Figure 4. (A) XPS survey spectrum of ZnWO4/CB; (B) Zn 2p; (C) W 4f; (D) O 1s; (E) C 1s; and (F) XRD pattern of CB, ZnWO4, ZnWO4/CB composite.
Figure 4. (A) XPS survey spectrum of ZnWO4/CB; (B) Zn 2p; (C) W 4f; (D) O 1s; (E) C 1s; and (F) XRD pattern of CB, ZnWO4, ZnWO4/CB composite.
Materials 16 00741 g004
Materials 16 00741 g005 550

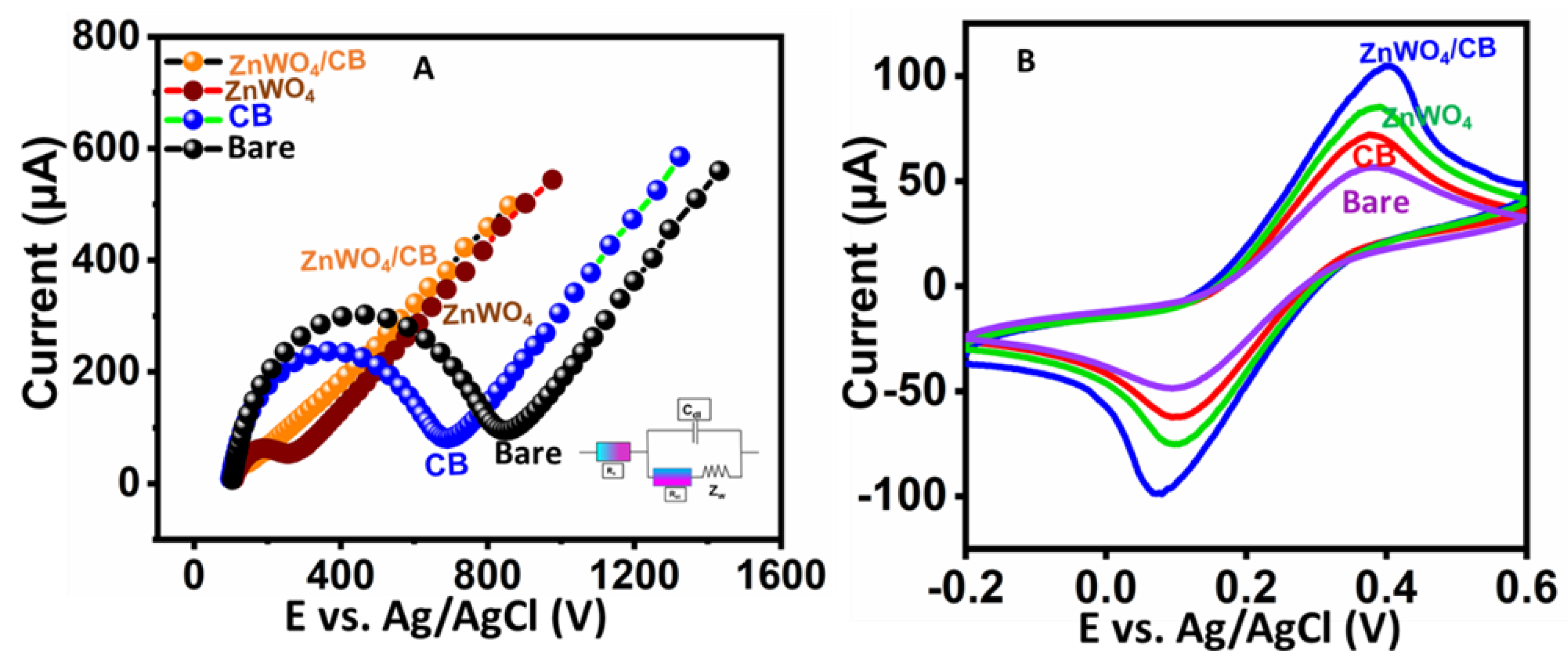

Figure 5. (A) EIS; and (B) CV studies of bare GCE, CB/GCE, ZnWO4/GCE, and GCE/ZnWO4/CB were performed by 0.1 M KCl with 5.0 mM [Fe(CN)6]3−/4−.
Figure 5. (A) EIS; and (B) CV studies of bare GCE, CB/GCE, ZnWO4/GCE, and GCE/ZnWO4/CB were performed by 0.1 M KCl with 5.0 mM [Fe(CN)6]3−/4−.
Materials 16 00741 g005
Materials 16 00741 g006 550

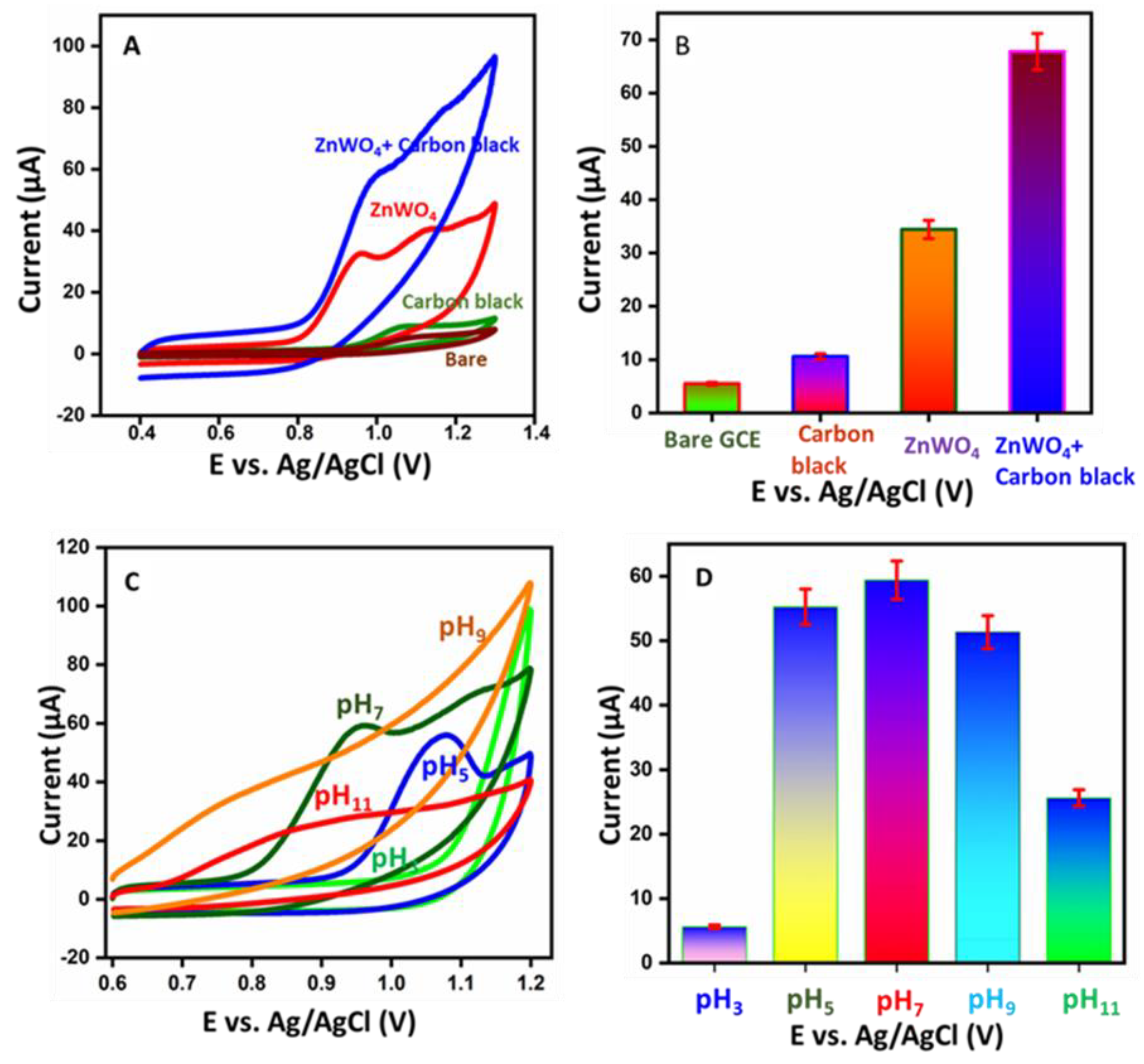

Figure 6. (A) CV studies of the bare GCE, GCE/CB, GCE/ZnWO4, and GCE/ZnWO4/CB in 100 μM CIP; (B) the bar graph for various modified electrodes, (C) CV measurements of GCE/ZnWO4/CB at various pH values (0.05 M PBS) at nitrogen immersed 100 µM CIP; and (D) the bar diagram for different pH graph of GCE/ZnWO4/CB for electrochemical detection of CIP.
Figure 6. (A) CV studies of the bare GCE, GCE/CB, GCE/ZnWO4, and GCE/ZnWO4/CB in 100 μM CIP; (B) the bar graph for various modified electrodes, (C) CV measurements of GCE/ZnWO4/CB at various pH values (0.05 M PBS) at nitrogen immersed 100 µM CIP; and (D) the bar diagram for different pH graph of GCE/ZnWO4/CB for electrochemical detection of CIP.
Materials 16 00741 g006
Materials 16 00741 sch003 550

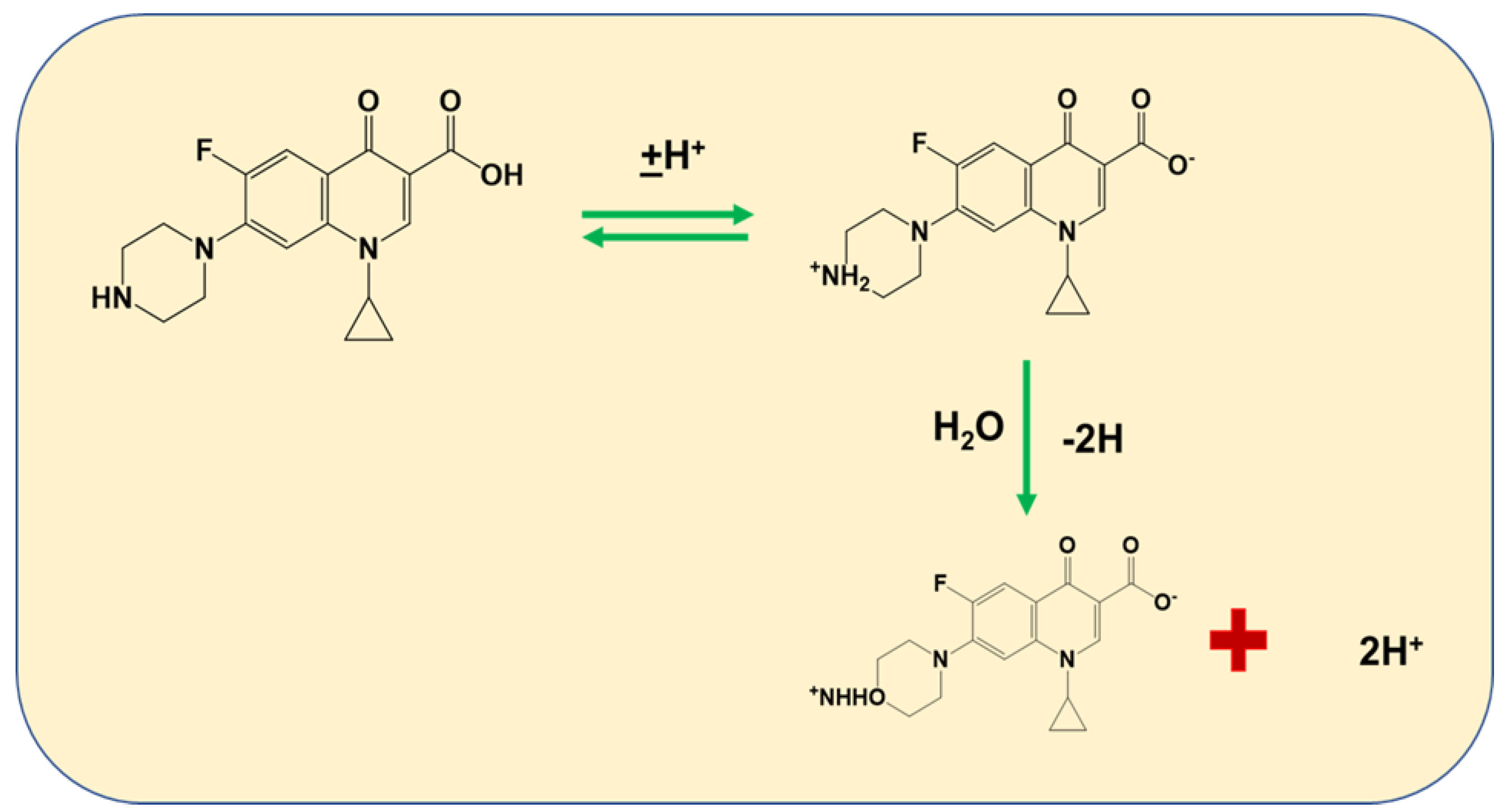

Scheme 3. Electrochemical oxidation of CIP by GCE/ZnWO4/CB electrode.
Scheme 3. Electrochemical oxidation of CIP by GCE/ZnWO4/CB electrode.
Materials 16 00741 sch003
Materials 16 00741 g007 550

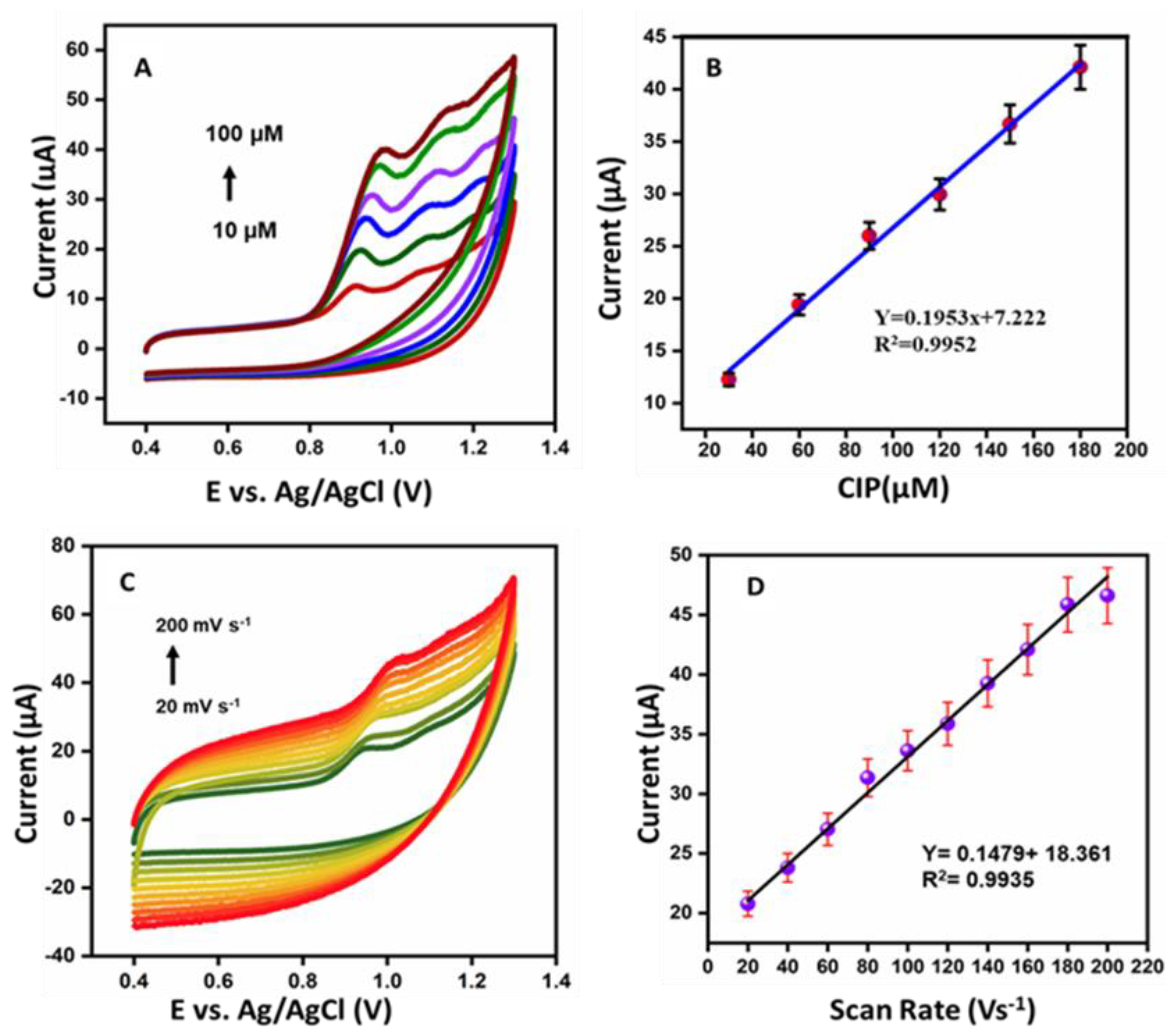

Figure 7. (A) CV curve of GCE/ZnWO4/CB with various additions of CIP (0–100 μM) at 50 mVs−1; (B) linear plots of current (Ipa) vs. other concentrations of CIP; (C) CV curves of the altered electrode GCE/ZnWO4/CB towards 100 µM CIP at various sweep rates (20–200 mV s–1); and (D) The graph between the square root of scan rate (v1/2) and anodic peak current was done with N2 immersed pH 7.0 (0.05 M PBS).
Figure 7. (A) CV curve of GCE/ZnWO4/CB with various additions of CIP (0–100 μM) at 50 mVs−1; (B) linear plots of current (Ipa) vs. other concentrations of CIP; (C) CV curves of the altered electrode GCE/ZnWO4/CB towards 100 µM CIP at various sweep rates (20–200 mV s–1); and (D) The graph between the square root of scan rate (v1/2) and anodic peak current was done with N2 immersed pH 7.0 (0.05 M PBS).
Materials 16 00741 g007
Materials 16 00741 g008 550

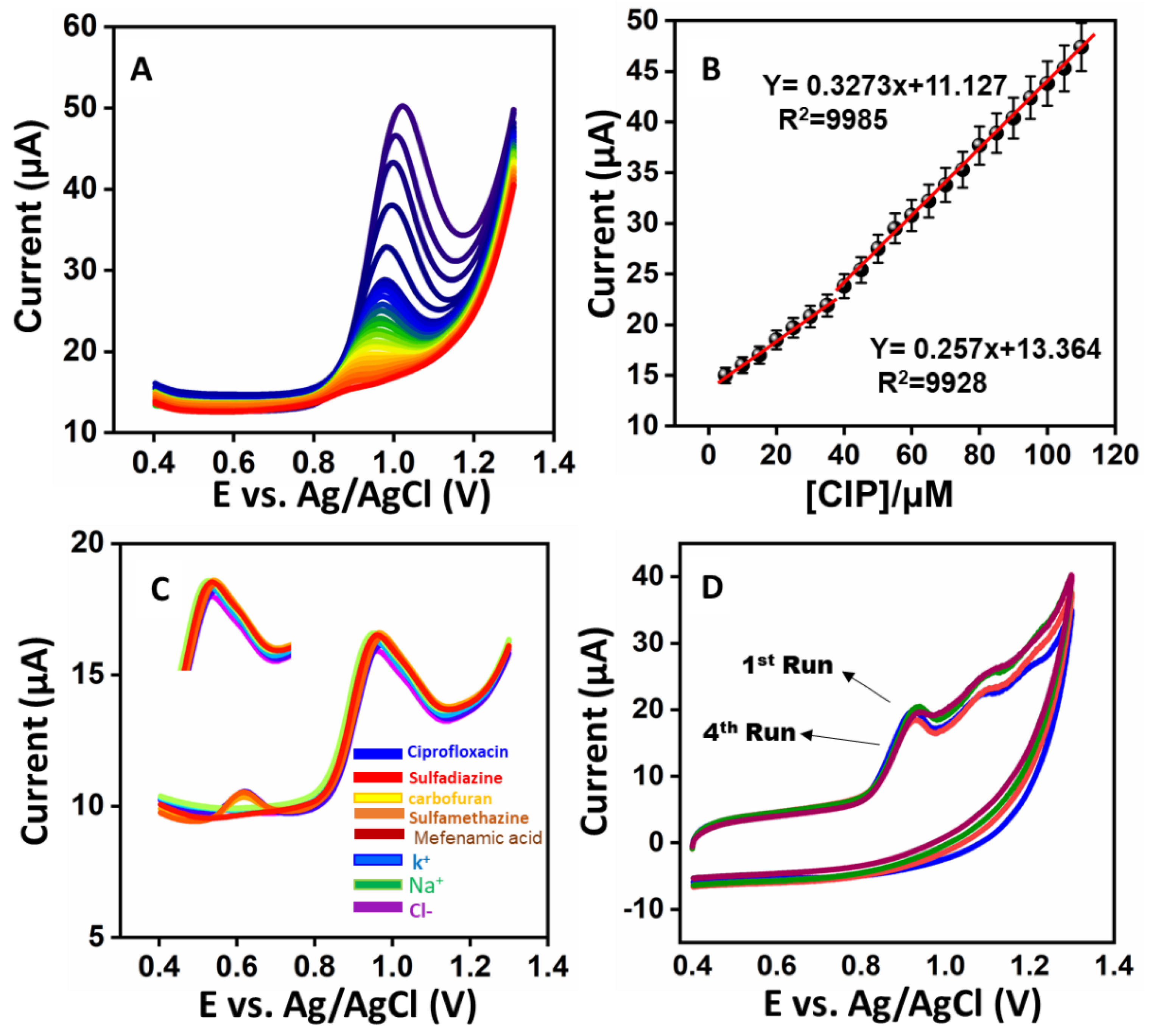

Figure 8. (A) DPV measurements of GCE/ZnWO4/CB with various addition of CIP range from 0.02 to 120 µM with N2 immersed in 0.05 M PBS (pH 7); (B) linear graph along oxidation peak current and different concentration of CIP); (C) interference studies of various interrupting compounds; and (D) repeatability study with N2 immersed in 0.05 M PBS (pH 7).
Figure 8. (A) DPV measurements of GCE/ZnWO4/CB with various addition of CIP range from 0.02 to 120 µM with N2 immersed in 0.05 M PBS (pH 7); (B) linear graph along oxidation peak current and different concentration of CIP); (C) interference studies of various interrupting compounds; and (D) repeatability study with N2 immersed in 0.05 M PBS (pH 7).
Materials 16 00741 g008
Materials 16 00741 g009 550

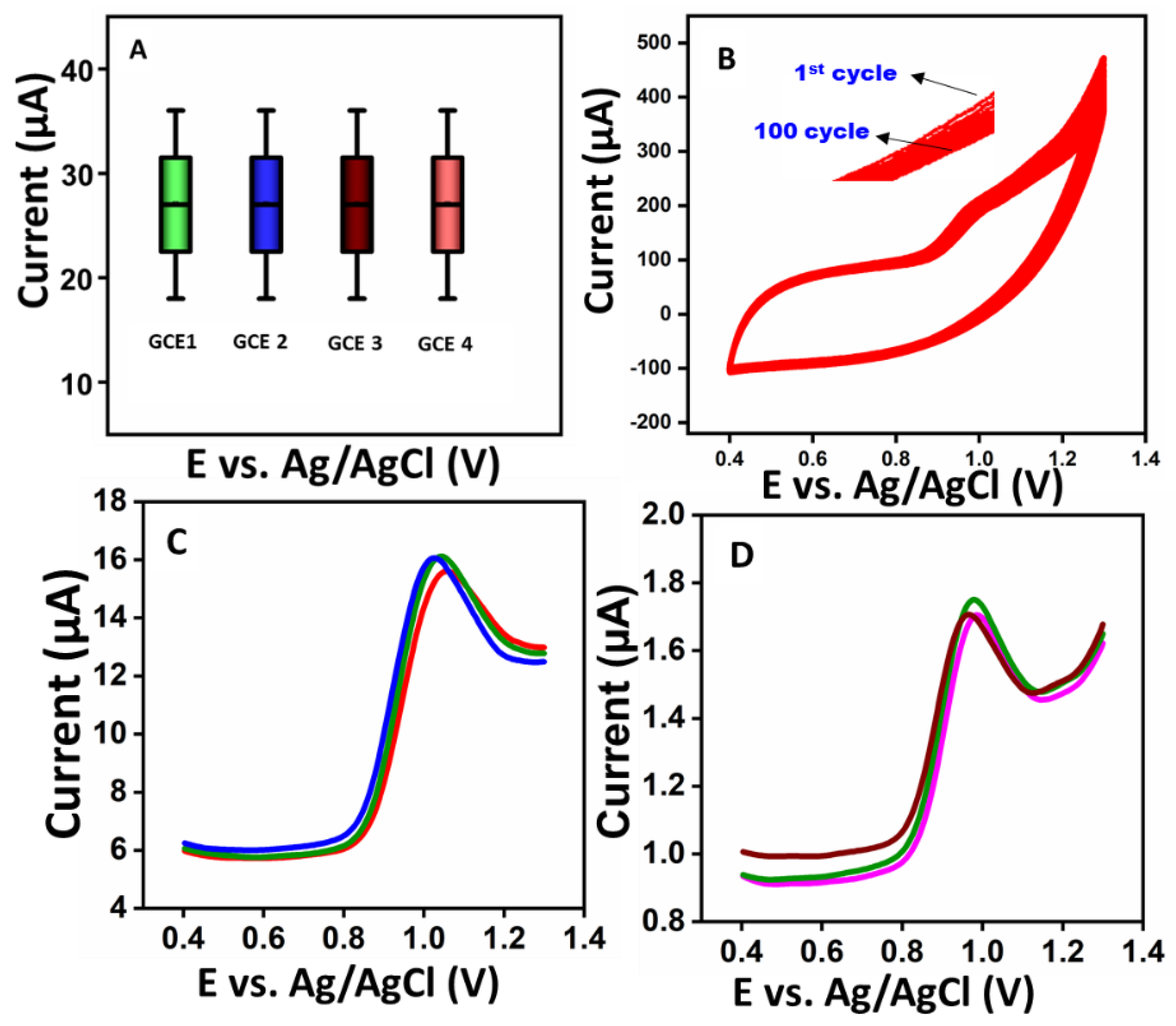

Figure 9. (A) Reproducibility studies of various CB/ZnWO4/GCE electrodes; (B) stability storage studies of GCE/ZnWO4/CB with CIP. DPV response of real samples such as river water; (C) and tap water; and (D) in 0.05 M PBS (pH 7) with various amounts of CIP.
Figure 9. (A) Reproducibility studies of various CB/ZnWO4/GCE electrodes; (B) stability storage studies of GCE/ZnWO4/CB with CIP. DPV response of real samples such as river water; (C) and tap water; and (D) in 0.05 M PBS (pH 7) with various amounts of CIP.
Materials 16 00741 g009
Table
Table 1. Comparison by modified GCE/ZnWO4/CB electrode with different sensors in CIP detection.
Table 1. Comparison by modified GCE/ZnWO4/CB electrode with different sensors in CIP detection.
Different ElectrodesLinear Range (µM)LOD (µM)References
a TiO2/b AuNPs/Nafion/c CMK-3 0.108[7]
d AuNP/e CHI/f SPCE-0.001[8]
g CNT-h V2O5CS/i SPCE-3.0[10]
j PBE-4.96[40]
TiO2/k PVA-GCE10–1200.04[41]
l GR-m ZnO/GCE1–1800.4[42]
n GO/ZnO/GCE0.2–7.20.01[43]
o OLA-p Fe3O4/q MWCNTs/GCE0.01–8.90.06[44]
r SDS·s Gr/t CPE0.3–1000.029[45]
u GCE/v ZnWO4/w CB0.02–1200.02This work
a Titanium dioxide, b Gold Nanoparticles, c mesoporous carbon, d Gold nanoparticles, e Chitosan, f Screen printed electrodes, g carbon nanotubes, h vanadium pentoxide-chitosan, i screen-printed carbon electrodes, j Paper based electrodes, k polyvinyl alcohol, l graphene, m zinc oxide, n graphene oxide, o Oleylamine, p Iron Oxide, q Multi-walled carbon nanotubes, r sodium dodecyl sulfate, s graphene, t Carbon paste electrodes, u Glassy carbon electrode, v Zinc tungsten oxide, w carbon black.
Table
Table 2. Outcomes for the detection of CIP in various real samples.
Table 2. Outcomes for the detection of CIP in various real samples.
Real SamplesAddedFoundRecovery (%)RSD (%)
River water10998.5
201998.14.20%
302997.6
Tap water109.599.2
201998.53.60%
3029.598.4
