Practical Approach for Determining Material Parameters When Predicting Austenite Grain Growth under Isothermal Heat Treatment
Abstract
:1. Introduction

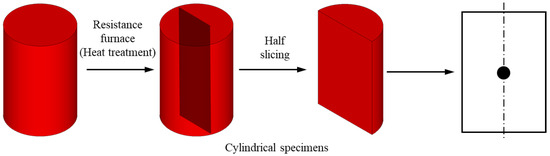

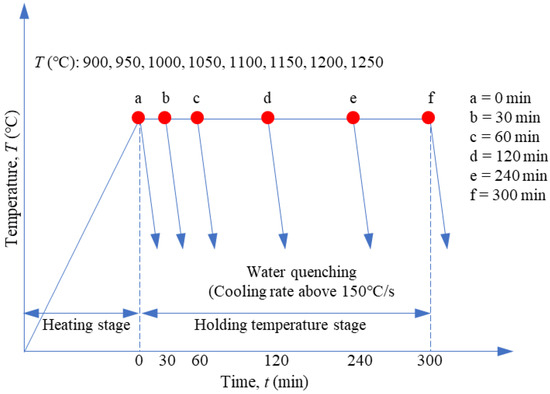

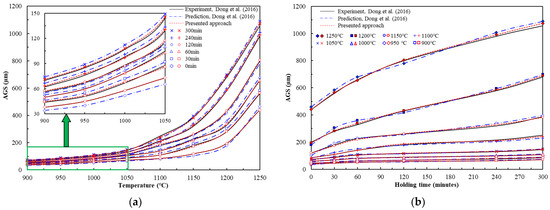

2. Materials and Experiments
3. Material Parameter Characterization and FE Model of AGS Growth
3.1. Mathematical Model of AGS Growth

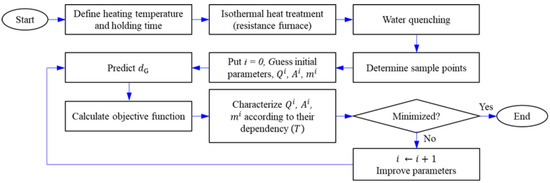

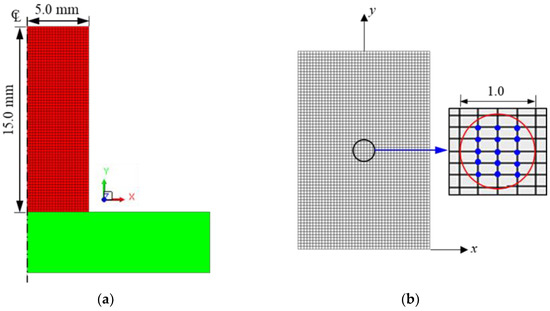

3.2. Finite Element Model
4. Results and Verification
4.1. Method Validation

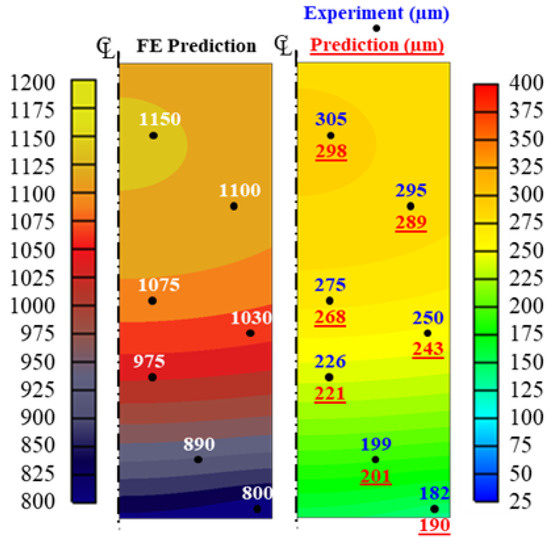

4.2. Application Example
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Dong, D.; Chen, F.; Cui, Z. Modeling of austenite grain growth during austenitization in a low alloy steel. J. Mater. Eng. Perform. 2016, 25, 152–164. [Google Scholar] [CrossRef]
- Li, Q.; Guo, B.; Li, X.; Zhang, Y.; Jian, J.; Ao, J.; Tang, Q.; Lu, Y. Fracture prediction of powder metallurgical Fe–Cu–C steel at elevated temperatures via finite element-aided hot tensile tests. J. Mater. Res. Technol. 2021, 12, 423–436. [Google Scholar] [CrossRef]
- Murugesan, M.; Sajjad, M.; Jung, D.W. Microstructure evaluation and constitutive modeling of AISI-1045 steel for flow stress prediction under hot working conditions. Symmetry 2020, 12, 782–800. [Google Scholar] [CrossRef]
- Chen, F.; Zhu, H.; Chen, W.; Ou, H.; Cui, Z. Multiscale modeling of discontinuous dynamic recrystallization during hot working by coupling multilevel cellular automaton and finite element method. Int. J. Plast. 2021, 145, 103064. [Google Scholar] [CrossRef]
- Varela-Castro, G.; Cabrera, J.M.; Prado, J.M. Critical Strain for Dynamic Recrystallisation. The particular case of steels. Metals 2020, 10, 135–193. [Google Scholar] [CrossRef]
- Zhu, H.; Ou, H. Constitutive modelling of hot deformation behaviour of metallic materials. Mater. Sci. Eng. 2022, 832, 142473. [Google Scholar] [CrossRef]
- Cui, Z.; Li, C.; Chen, F.; Sui, D. Modeling and simulation of austenite grain evolution for heavy forging steel 30Cr2Ni4MoV undergoing hot deformation. NUMIFORM 2013, 1532, 166–174. [Google Scholar] [CrossRef]
- Beck, P.A.; Kremer, J.C.; Demer, L. Grain growth in high purity aluminum. Phys. Rev. 1947, 71, 555. [Google Scholar] [CrossRef]
- Beck, P.A.; Holzworth, M.L.; Hu, H. Instantaneous rates of grain growth. Phys. Rev. 1948, 73, 526. [Google Scholar] [CrossRef]
- Hillert, M.J. On the theory of normal and abnormal grain growth. Acta. Metall. 1965, 13, 227–238. [Google Scholar] [CrossRef]
- Nishizawa, T. Grain growth in single- and dual-phase steels. ISIJ Int. 1984, 70, 1984–1992. [Google Scholar] [CrossRef]
- Turnbull, D. Theory of grain boundary migration rates. Trans. AIME 1951, 3, 661–665. [Google Scholar] [CrossRef]
- Yu, Q.; Sun, Y. Abnormal growth of austenite grain of low-carbon steel. Mater. Sci. Eng. A 2006, 420, 34–38. [Google Scholar] [CrossRef]
- Sellars, C.M.; Whiteman, J.A. Recrystallization and grain growth in hot rolling. Met. Sci. 1979, 13, 187–194. [Google Scholar] [CrossRef]
- Lee, S.J.; Lee, Y.K. Prediction of austenite grain growth during austenitization of low alloy steels. Mater. Des. 2008, 29, 1840–1844. [Google Scholar] [CrossRef]
- Xu, Y.; Tang, D.; Song, Y.; Pan, X. Prediction model for the austenite grain growth in a hot rolled dual phase steel. Mater. Des. 2012, 36, 275–278. [Google Scholar] [CrossRef]
- Duan, L.N.; Wang, J.M.; Liu, Q.Y.; Sun, X.J.; Cao, J.C. Austenite grain growth behavior of X80 pipeline steel in heating process. J. Iron Steel Res. Int. 2010, 17, 62–66. [Google Scholar] [CrossRef]
- Liu, Y.G.; Liu, J.; Li, M.Q. The study on kinetics of static recrystallization in the two-stage isothermal compression of 300M steel. Comput. Mater. Sci. 2014, 84, 115–121. [Google Scholar] [CrossRef]
- Chen, R.C.; Hong, C.; Li, J.J.; Zheng, Z.Z.; Li, P.C. Austenite grain growth and grain size distribution in isothermal heat-treatment of 300M steel. Procedia Eng. 2017, 207, 663–668. [Google Scholar] [CrossRef]
- Raghunathan, N.; Sheppard, T. Microstructural development during annealing of hot rolled Al-Mg alloys. Mater. Sci. Technol. 1989, 6, 542–549. [Google Scholar] [CrossRef]
- Anelli, E. Application of trolled cooling mathematical of wire rods modelling and bars. ISIJ Int. 1992, 32, 440–449. [Google Scholar] [CrossRef]
- Jung, K.H.; Lee, H.W.; Im, Y.T. A microstructure evolution model for numerical prediction of austenite grain size distribution. Int. J. Mech. Sci. 2010, 52, 1136–1144. [Google Scholar] [CrossRef]
- Donati, L.; Dzwonczyk, J.S.; Zhou, J.; Tomesani, L. Microstructure prediction of hot-deformed aluminium alloys. InKey Eng. Mater. 2008, 367, 107–116. [Google Scholar] [CrossRef]
- Schikorra, M.; Donati, L.; Tomesani, L.; Tekkaya, A.E. Microstructure analysis of aluminum extrusion: Prediction of microstructure on AA6060 alloy. J. Mater. Process. Technol. 2008, 201, 156–162. [Google Scholar] [CrossRef]
- Duijster, A.; Volker, A.; Van den Berg, F.; Celada-Casero, C. Estimation of Grain Size and Composition in Steel Using Laser UltraSonics Simulations at Different Temperatures. Appl. Sci. 2023, 13, 1121. [Google Scholar] [CrossRef]
- Razali, M.K.; Irani, M.; Joun, M.S. A new approach of predicting dynamic recrystallization using directly a flow stress model and its application to medium Mn steel. J. Mater. Res. Technol. 2021, 11, 1881–1894. [Google Scholar] [CrossRef]
- Joun, M.S. Recent advances in metal forming simulation technology for automobile parts by AFDEX. IOP Conf. Ser. Mater. Sci. Eng. 2020, 834, 012016. [Google Scholar] [CrossRef]
- Negozio, M.; Pelaccia, R.; Donati, L.; Reggiani, B. Simulation of the microstructure evolution during the extrusion of two industrial-scale AA6063 profiles. J. Manuf. Process 2023, 99, 501–512. [Google Scholar] [CrossRef]
- Razali, M.K.; Kim, S.W.; Irani, M.; Kim, M.C.; Joun, M.S. Practical quantification of the effects of flow stress, friction, microstructural properties, and the tribological environment on macro-and micro-structure formation during hot forging. Tribol. Int. 2021, 164, 107226. [Google Scholar] [CrossRef]
- Joun, M.S.; Razali, M.K.; Chung, S.H.; Irani, M. A direct method of calculating flow-related dynamic recrystallization parameters for generality and accuracy in predicting microstructural evolution. J. Mater. Res. Technol. 2022, 18, 3894–3907. [Google Scholar] [CrossRef]
- Razali, M.K.; Abd Ghawi, A.A.; Irani, M.; Joun, M.S. Practical approach for determining material parameters when predicting grain size after static recrystallization. J. Mater. Res. Technol. 2023, 23, 3928–3941. [Google Scholar] [CrossRef]
- Gladman, T.; Pickering, F.B. Grain-coarsening of austenite. J. Iron Steel Inst. 1967, 205, 653–664. [Google Scholar]
- Bernhard, C.; Reiter, J.; Presslinger, H. A model for predicting the austenite grain size at the surface of continuously-cast slabs. Metall. Mater. Trans. B 2008, 39, 885–895. [Google Scholar] [CrossRef]
- Dubois, M.; Militzer, M.; Moreau, A.; Bussière, J.F. A new technique for the quantitative real-time monitoring of austenite grain growth in steel. Scr. Mater. 2000, 42, 867–874. [Google Scholar] [CrossRef]
- Cai, Z.; An, J.; Cheng, B.; Zhu, M. Effect of Austenite Grain Size on the Hot Ductility of Nb-Bearing Peritectic Steel. Metall. Mater. Trans. 2023, 54, 141–152. [Google Scholar] [CrossRef]
- Ogawa, J.; Natsume, Y. Three-dimensional large-scale grain growth simulation using a cellular automaton model. Comput. Mater. Sci. 2021, 199, 110729. [Google Scholar] [CrossRef]
- Vorozheva, E.L.; Kudashov, D.V.; Khlybov, A.A.; Smetanin, K.S. Methods for studying the structural state of continuously cast slabs and the hot-rolled metal produced at the casting and rolling complex. Russ. Metall. (Met.) 2022, 2022, 496–504. [Google Scholar] [CrossRef]
T (°C) | Measured Parameter [1] | Optimized dG Parameters | ||
---|---|---|---|---|
d0 (μm) | Q (J/mol) | A | m | |

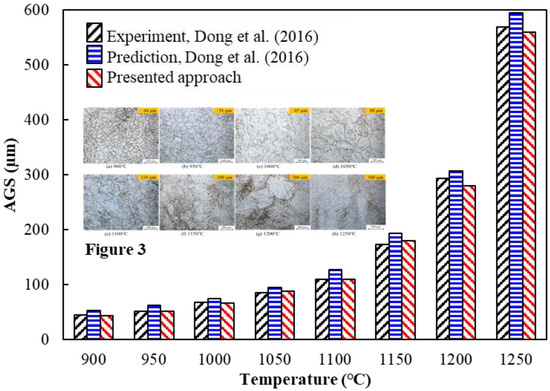

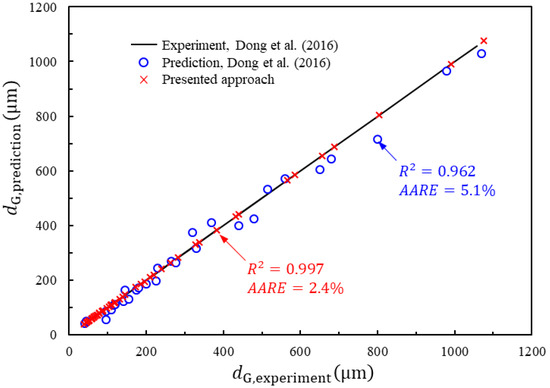

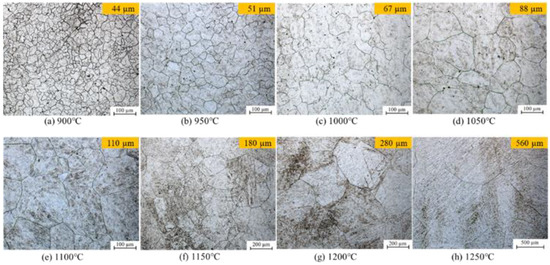

900 | 38.0 | 89,768 | 17,732 | 2.501 |
950 | 45.0 | 88,810 | 18,732 | 2.505 |
1000 | 58.0 | 69,550 | 19,732 | 2.848 |
1050 | 73.0 | 44,120 | 21,931 | 3.200 |
1100 | 85.0 | 32,094 | 23,702 | 3.145 |
1150 | 119.0 | 22,093 | 33,197 | 3.149 |
1200 | 200.0 | 22,000 | 33,200 | 2.904 |
1250 | 440.0 | 12,095 | 34,181 | 2.782 |
900 | 38.0 | 89,768 | 17,732 | 2.501 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Razali, M.K.; Abd Ghawi, A.A.; Irani, M.; Chung, S.H.; Choi, J.M.; Joun, M.S. Practical Approach for Determining Material Parameters When Predicting Austenite Grain Growth under Isothermal Heat Treatment. Materials 2023, 16, 6583. https://doi.org/10.3390/ma16196583
Razali MK, Abd Ghawi AA, Irani M, Chung SH, Choi JM, Joun MS. Practical Approach for Determining Material Parameters When Predicting Austenite Grain Growth under Isothermal Heat Treatment. Materials. 2023; 16(19):6583. https://doi.org/10.3390/ma16196583
Chicago/Turabian StyleRazali, Mohd Kaswandee, Afaf Amera Abd Ghawi, Missam Irani, Suk Hwan Chung, Jeong Muk Choi, and Man Soo Joun. 2023. "Practical Approach for Determining Material Parameters When Predicting Austenite Grain Growth under Isothermal Heat Treatment" Materials 16, no. 19: 6583. https://doi.org/10.3390/ma16196583
