In this study, Co40Fe40B10Dy10 thin films were deposited using a direct current (DC) magnetron sputtering technique. The films were deposited on glass substrates with thicknesses of 10, 20, 30, 40, and 50 nm, and heat-treated in a vacuum annealing furnace at 100, 200, and 300 °C. Various instruments were used to examine and analyze the effects of roughness on the magnetic, adhesive, and mechanical properties. From the low frequency alternating current magnetic susceptibility (χac) results, the optimum resonance frequency is 50 Hz, and the maximum χac value tends to increase with the increase in the thicknesses and annealing temperatures. The maximum χac value is 0.18 at a film thickness of 50 nm and an annealing temperature of 300 °C. From the four-point probe, it is found that the resistivity and sheet resistance values decrease with the increase in film deposition thicknesses and higher annealing temperatures. From the magnetic force microscopy (MFM), the stripe-like magnetic domain distribution is more obvious with the increase in annealing temperature. According to the contact angle data, at the same annealing temperature, the contact angle decreases as the thickness increases due to changes in surface morphology. The maximal surface energy value at 300 °C is 34.71 mJ/mm2. The transmittance decreases with increasing film thickness, while the absorption intensity is inversely proportional to the transmittance, implying that the thickness effect suppresses the photon signal. Smoother roughness has less domain pinning, more carrier conductivity, and less light scattering, resulting in superior magnetic, electrical, adhesive, and optical performance.

1. Introduction

CoFe was discovered by Ellis in 1927 and Elmen in 1929; it has excellent properties of high saturation magnetization (Ms), low coercivity (Hc), and high magnetic permeability, and has been studied by many scientists [1]. CoFe alloy is a soft magnetic alloy with high hardness and brittleness in physical properties, and because it is easy to lose magnetic anisotropy after high temperature annealing treatment, this is its biggest disadvantage. In order to improve the various properties and resolve the issue, extra elements were added. The literature studies have pointed out that the addition of 3% of rare earths (La, Ce, Sm, Gd, Dy, Ho, Er, Yb) has an effect on the microstructure of the CoFe material, the phase content, and the magnetic performance [2,3]. In most studies, the magnetic characterization of CoFe alloys has received widespread attention because of its high saturation magnetization and higher Curie temperature (Tc). The addition of metalloid boron (B), as demonstrated in the literature, indicates that a large number of boron additives are conducive to the formation of an amorphous state. This also makes the film layer more dense and improves the corrosion resistance of the material [4]. By incorporating a modest amount of boron into CoFe alloys, soft ferromagnetic ternary alloys can be created. Some scientists have studied the application of ferromagnetic amorphous alloys (CoFeB) in the manufacture of magnetic recording heads and the magnetic field applied during the plating process in an attempt to adjust the magnetic anisotropy and permeability [5]. For example, low-temperature boron ions were added to CoFe2O4 spinel structures for fixing the magnetic field [6]. CoFeB is a soft magnetic alloy used to form a free or pinned layer in a magnetic tunnel junction (MTJ) with low coercivity, low damping coefficient, high saturation magnetization, and strong perpendicular magnetic anisotropy (PMA), which shows a very large tunneling magnetoresistance (TMR) because of its excellent properties and the addition of the fourth rare earth element dysprosium. This addition can either enhance the original properties or obtain different properties [7,8]. The limitations and durability of the components in which magnetic films are employed may be a crucial indicator of whether they are irrevocably harmed in high temperature conditions. Rare earth elements, which are ferromagnetic metals, frequently have distinct features that can be exploited to improve the thermal stability, and electrical properties of thin films at high temperatures. Their qualities can be utilized to improve thin film thermal stability, resistivity, and saturation magnetization at high temperatures. The rare earth element dysprosium (Dy) is added to CoFeB. The addition of Dy can increase the secondary phase and the lattice expansion leading to deformation, the Young’s coefficient is increased, the magnetostrictive strain is decreased, and the Curie temperature is increased which means that the thermal stability is increased [9]. Furthermore, Dy and B can be added to improve physical characteristics and magnetic exchange-coupling strength [10,11,12,13]. For these reasons, it is critical to investigate the addition of a third or fourth element. It is worthwhile to invest in the specific properties by incorporating Dy and B into CoFe alloys to generate CoFeBDy films. Surface roughness is a significant property for using the magnetic component at room temperature and annealing temperatures. It has a substantial impact on the physical properties of thin films, particularly ultrathin films. Researchers have investigated the role of roughness in magnetic, electrical, and optical properties [14,15,16,17]. The effect of surface roughness on magnetic, adhesive, and electrical properties is worth considering. In this study, a 10–50 nm thick Co40Fe40Dy10B10 film is deposited on a glass substrate and then annealed at 100, 200, and 300 °C. The main purpose of this work is to explore surface roughness in order to study the relationship between the surface energy and magnetic-optical properties of CoFeBDy thin films at varied thicknesses and annealing temperatures. The film structure, magnetic characteristics, surface energy, and optical properties following annealing treatment were finally investigated using the aforementioned preset parameters. Furthermore, the relevance of the examination is in investigating the surface roughness in relation to researching the surface energy and magnetic-optical features of CoFeBDy thin films at varied thicknesses and annealing temperatures.

2. Materials and Methods

Thin films of CoFeBDy with a thickness of 10–50 nm were sputtered onto a glass substrate by direct current (DC) magnetron sputtering at room temperature (RT). The films were prepared under the following four conditions: (a) room temperature (RT), (b) annealing at 100 °C for 1 h, (c) annealing at 200 °C for 1 h, and (d) annealing at 300 °C for 1 h. The power was 50 W and the power density was 1.65 W/cm2. The base pressure of the chamber was 3.54 × 10−7 Torr, and the working pressure of the Ar was 3.09 × 10−3 Torr. The air flow rate was 20 sccm and the loader speed was 20 rpm. Following deposition, the samples were annealed for 1 h at temperatures between 100 °C and 300 °C with a controlled heating rate of 30 °C/min and a cooling rate of 0.5 °C/min. The vacuum chamber pressure was held constant at 2.5 × 10−3 Torr during the annealing process. The target composition was 40at% Co, 40at% Fe, 10at% B, and 10at% Dy. A variety of sintered materials were used to create the test target. The CoFeBY target is a commercial alloy made from pure metals that was obtained from Gredmann Taiwan Ltd., Taipei City, Taiwan. The substrate and target were 30 cm apart. The target has a 2 mm thickness and a diameter of 3 inches. A powder combination was created using 99.9% pure elements of Co, Fe, B, and Y. The target composition ratio was approved by the original factory for composition testing. The Ar ion bombardment and the sputtering deposition ion angle were responsible for the discrepancy between the target’s composition and its actual composition [18]. In order to evaluate the structure of the CoFeBDy thin films, grazing incidence X-ray diffraction (GIXRD) patterns of Cuk1 (PAN analytical X’pert PRO MRD, Malvern Panalytical Ltd., Cambridge, United Kingdom) and low angle diffraction incidence of around 2° were used. The low frequency alternate current magnetic susceptibility (χac) instrument of Co40Fe40B10Dy10 thin films was investigated using a χac analyzer (XacQuan). Standard samples were calibrated by external magnetic field χac measurements. A χac analyzer was used to test the samples. The range of the driving frequency was 10 to 25,000 Hz. Magnetization strength was used to calculate χac. For the purpose of preventing demagnetization, all samples were the same size and form. The χac values are in arbitrary units (a.u.), since the exchange results are comparative values with respect to the reference standard samples. The relationship between magnetization and frequency was measured by χac measurements. The χac analyzer detects the best resonance frequency (fres) and reveals the frequency of the largest χac. The resistivity and sheet resistance (Rs) values were assessed using the conventional four-point method for electrical characteristics. The morphology of the films was examined using an atomic force microscope (AFM, NanoMagnetics Instruments, Ankara, Turkey, ezAFM), and the magnetic domains of the films were characterized using magnetic force microscopy (MFM). Three scanning repetitions at RT were used to evaluate AFM in non-contact mode with average area evaluation. The roughness value utilized is Ra. Ra represents the arithmetic mean deviation used to evaluate the area. The size of the scanning was 20 μm × 20 μm. Additionally, AFM was used to calibrate the precise thickness using the height difference method. Deionized (DI) water and glycerol were used to calculate the average contact angle (CAM-110; Creating Nano Technologies, Tainan City, Taiwan) by measuring three times. The contact angle was determined after the sample was taken out. Finally, the surface energy was computed using the contact angle [19,20,21]. A visible light source with a wavelength range of 500–800 nm was used with a Spectro Smart Analyzer to evaluate the optical properties.

3. Results

3.1. XRD Structure Property

Figure 1a–d show the Co40Fe40B10Dy10 films with various thicknesses and annealing temperatures, and there are no significant peaks in the graphs, which means that the deposition on the glass substrate does not have any crystalline phases. According to the literature, it is proved that the addition of Dy and B to CoFe alloys causes the refinement of grain size when forming an amorphous structure [22,23]. Another reasonable reason is that the driving force of the heat treatment is insufficient to sustain grain growth to form crystals or the effect of the glass substrate itself is amorphous [24,25].
Figure 2 examines the calibrated thickness of the matching sputtering time in order to calibrate the accurate thicknesses. The diagram’s linear relationship implies that longer sputtering durations result in thicker films.

3.2. Magnetic and Electrical Properties

Figure 3a–d show the low frequency alternate current magnetic susceptibility (χac) values of Co40Fe40B10Dy10 films under four conditions. The χac dropped as the frequency increased between 50 and 25,000 Hz. The matching χac value increased as the thickness increased from 10 to 50 nm. It can be seen from the graphs that the maximum χac values with or without heat treatment have an increasing trend due to the effect of the thickness [26]. The maximum χac values are displayed in Table 1. The maximum χac value at RT is 0.14 with a thickness of 50 nm, 0.15 at 100 °C with a thickness of 50 nm, 0.17 at 200 °C with a thickness of 50 nm, and 0.18 at 300 °C with a thickness of 50 nm. From the graphs, the maximum χac values measured on the glass substrate are optimal at a resonance frequency of 50 Hz, but the χac values tend to decrease with the increase in the measurement frequency, which is probably due to the anisotropy of the magnetic crystals [27,28]. At each thickness, the fres value was 50 Hz. The optimal resonance frequency was determined to be less than 500 Hz, making it appropriate for usage in low frequency sensors, transformers, and magnetic components.
Figure 4a,b show the resistivity and sheet resistance. These have a significant downward trend with increasing thicknesses and annealing temperatures. The as-deposited and annealed conditions significantly impact the electrical characteristics of CoFeBDy films. Although higher annealing temperatures and thicker films appear to result in lower carrier hindrance, this causes lower resistance and is the main determinant of conductivity. According to the results of Figure 4, the resistivity ranged from 0.004 to 0.275 Ω-cm, while the sheet resistance ranged from 0.029 to 12.36 × 104 Ω/sq. From the graph, the resistivity or sheet resistance has a constant value when the glass substrate is deposited at 10 nm or 20 nm. It is speculated that this is due to the thinner film thickness so that the current directly penetrates the film and passes through the substrate to obtain a constant value. As the thicknesses and annealing temperatures increase, the resistivity and sheet resistance decrease, which may be due to the greater thicknesses and annealing temperatures deposited so that the roughness decreases, which is shown in Table 2. The smooth surface roughness causes less hindrance of current carriers as they flow, resulting in a drop in electrical values [29,30]. As shown in Figure 4, the electrical resistivity and sheet resistance of glass substrate are substantially higher than the amount of deposited CoFeBDy on the glass substrate. It implied that the deposited CoFeBDy films were in a continuous state.

3.3. Surface Roughness and Magnetic Domain

This measurement is based on a thickness of 50 nm with the maximum χac value, so the magnetic area distribution is the most obvious. It is pointed out that the more obvious tendency of the magnetic area distribution pattern is at greater thickness. Table 2 shows that the distribution of the magnetic area of Co40Fe40B10Dy10 is also in the shape of fine stripe, and the magnetic area is also more obvious with higher temperature treatment. The more obvious the stripe-like magnetic domain distribution, the smoother the surface roughness. On observing the 2D and 3D maps, it is found that the surface roughness is slightly smooth. The sample range for scanning is 20 μm × 20 μm. It is thought that the properties of the domain structures have a significant impact on the magnetic behaviors. With the film being annealed, the magnetic domain continuity and contrast are both enhanced. These are a result of the marginally improved exchange coupling [31,32]. Stronger magnetization is produced by the magnetic domain’s larger area, which is consistent with the χac finding. In addition, the surface roughness Ra decreases from RT to 300 °C annealing. At RT, the Ra is 1.93 nm, while at 300 °C, it is 1.19 nm. From Figure 3 and results presented in Table 2, the maximum alternate current magnetic susceptibility and surface roughness have a relationship, indicating that increased surface roughness can cause the pinning effect of the domain wall, which makes it difficult to move and reduce the χac value [33,34]. It is reasonable to conclude that the development of stripe magnetic domains results from the interaction of amorphous and nano-crystalline materials. The presence of an amorphous matrix with a higher density of nanograins will cause volume contraction, and the majority of amorphous substrates will thereby exert internal stresses on the grains, resulting in the development of magneto-elastic anisotropy and stripe domains [35,36].

3.4. Contact Angle and Surface Energy

The contact angle data from testing liquids such as DI water and glycerin are shown in Figure 5a through Figure 5d. The contact angles have a tendency to decrease when the annealing temperature is kept constant and the thickness of the film is increased. The contact angles also have a propensity to decrease at the same thickness and with higher annealing temperatures. This value is well-known in various solutions of Co40Fe40B10Dy10 film, where measured contact angles are less than 90°, which is proven to be a hydrophilic film and may have an impact on the surface contact angle of the two main components, including surface roughness and grain size of thin films. In this research, the higher annealing temperature results in decreased surface roughness and lower contact angle for the AFM at the same thickness [37,38,39].
Surface energy is depicted in Figure 6. The contact angle and Young’s equation are used to compute the surface energy [19,20,21]. Young’s equation is
σsg = σsl + σlg cosθ
In the equation, σsg stands for the surface free energy of the solid, σsl stands for the interfacial tension between liquid and solid, σlg stands for surface tension of the liquid, and θ is for contact angle.
The surface energy increases with thickness and annealing temperature. According to the calculations, the greatest surface energy of 50 nm at 300 °C was 34.71 mJ/mm2. When the films had a higher surface energy, the adhesion was at its maximum. Due to the versatility of Co40Fe40B10Dy10 films as an underlayer or buffer layer, surface energy and adhesion are essential. The contact angle decreases, and liquid absorption is strong when the surface energy is high. The surface tension of the liquid decreases with increasing surface energy, and there is a stronger attraction between the molecules of the liquid and the atoms of the solid than between the molecules of the liquid themselves. Consequently, simpler wetting and greater adhesion result from higher surface energy [40]. As a result, the 50 nm Co40Fe40B10Dy10 film that had been annealed at 300 °C had greater adhesive qualities than the others, which might theoretically be explained by changes in surface morphology [41].

3.5. Optical Properties

As shown in Figure 7a, the transmittance of the film at RT declines from 81.83% to 13.49% as the thickness of the film increases. Figure 7b shows that when the film is annealed at 100 °C, the transmittance reduces from 84.59% to 13.40% as the thickness of the film increases. Figure 7c shows that when the film is annealed at 200 °C, the transmittance reduces from 86.71% to 14.71% as the thickness of the film increases. Figure 7d shows that for the film at 300 °C heat treatment, the transmittance falls from 86.03% to 15.63% as the thickness of the film increases. The transmittance decreased with increasing thickness from 10 nm to 50 nm, implying that a greater thickness may limit light signal passage through the films, resulting in high transmittance and low absorbance [42].
The absorbance is depicted in Figure 8a through 8d under various conditions. Due to the effects of light dispersion caused by surface roughness, interference bands in optical absorption are not generally visible in thicker samples [43]. Greater light absorption and enhanced optical performance are implied by a smoother surface, which is compatible with the ZnO optical result [44]. Figure 8 shows that a greater thickness has a higher absorption intensity. The data demonstrate that the film’s transmittance is inversely related to its absorbance, and it is also clear from the literature that the thickness effect and the interface effect will suppress the light signal, which will have an impact on the penetration rate and reduce the transmittance [45,46,47]. In summary, the magnetic, electric, adhesive, and optical properties of CoFeBDy films depend significantly on their surface roughness at different annealing temperatures. The smoother roughness has less pinning effect on the domain wall, which makes it easier to move and enhance the χac value. A lower contact angle and a greater surface energy are produced by the decreased surface roughness. Additionally, lessening light scattering and increasing carrier conductivity are two additional benefits of smoother roughness, which lead to higher transmittance and lower electrical resistivity. Furthermore, the effects of increasing thickness and annealing temperature also affect magnetic and optical properties. The thickness effect and annealing process both contribute to improving magnetic performance. Low transmittance and high absorbance are the effects of thickness and contact on light signal suppression.

4. Conclusions

Due to the presence of Dy and B as well as a lack of thermal driving force to enable grain formation, XRD of the Co40Fe40B10Dy10 films reveals that they have an amorphous structure. At all conditions, the best resonance frequency is 50 Hz. The χac value tends to decrease with the increase in the measured frequency. The maximum χac value tends to increase with the increase in thickness and annealing temperatures. The four-point probe determines that the film’s resistivity and sheet resistance values tend to decrease as the film deposition thickness and annealing temperature increase. AFM detection of a 50 nm Co40Fe40B10Dy10 film reveals a stripe-like magnetic domain distribution as the heat treatment temperature rises. The surface roughness Ra value decreases with increasing annealing temperatures at 50 nm. The contact angle measurements revealed that all the Co40Fe40B10Dy10 films exhibited hydrophilic properties. At 300 °C and 50 nm, the maximum surface energy is attained. Because of the thickness effect and the interface effect, the transmittance of the film decreases with thickness and marginally increases from short wavelength to long wavelength. Smoother roughness has less domain pinning, more carrier conductivity, and less light scattering, resulting in superior magnetic, electrical, adhesive, and optical performance. In this investigation, the best condition is 50 nm annealed at 300 °C. The incorporation of dysprosium (Dy) into a CoFe has been shown to enhance thermal stability. Therefore, it is recommended that researchers investigate the thermal stability of the fabricated thin film, as this property holds considerable significance in the context of the study.

Author Contributions

Conceptualization, W.-J.L., Y.-H.C.,Y.-T.C., S.-H.L. and S.-L.O.; methodology, Y.-T.C., Y.-H.C., Y.-Z.W. and C.-L.W.; validation, formal analysis, Y.-Z.W., Y.-T.C., C.-L.W. and S.-L.O.; investigation, Y.-T.C. and W.-J.L.; resources, C.-C.C.; writing—original draft preparation, Y.-T.C.; writing—review and editing, Y.-T.C. and W.-J.L.; supervision, Y.-T.C. and Y.-H.C.; project administration, Y.-T.C. and S.-H.L.; funding acquisition, Y.-H.C. and C.-C.C. All authors have read and agreed to the published version of the manuscript.


This work was supported by the National Science Council, under Grant No. MOST 110-2221-E-992-054-MY3, MOST108-2221-E-224-015-MY3, MOST105-2112-M-224-001, and National Yunlin University of Science and Technology, under Grant No. 111T01 and 113T01.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.


  1. Elmen, G.W. Magnetic alloys of iron, nickel, and cobalt. Bell Syst. Tech. J. 1929, 8, 435–465. [Google Scholar] [CrossRef]
  2. Ghorbani, H.; Eshraghi, M.; Dodaran, A.A.S.; Kameli, P.; Protasowicki, S.; Johnson, C.; Vashaee, D. Effect of Yb doping on the structural and magnetic properties of cobalt ferrite nanoparticles. Mater. Res. Bull. 2022, 147, 111642. [Google Scholar] [CrossRef]
  3. Bulai, G.; Diamandescu, L.; Dumitru, I.; Gurlui, S.; Feder, M.; Caltun, O.F. Effect of rare earth substitution in cobalt ferrite bulk materials. J. Magn. Magn.Mater. 2015, 390, 123–131. [Google Scholar] [CrossRef]
  4. Li, J.M.; Zhang, Z.; Li, J.F.; Xue, M.Z.; Liu, Y.G. Effect of boron/phosphorus-containing additives on electrodeposited CoNiFe soft magnetic thin films. Trans. Nonferrous Met. Soc. China 2013, 23, 674–680. [Google Scholar] [CrossRef]
  5. Sharif, R.; Shamaila, S.; Ma, M.; Yao, L.D.; Yu, R.C.; Han, X.F.; Wang, Y.; Rahman, M.K. Magnetic and microstructural characterizations of CoFe and CoFeB nanowires. J. Magn. Magn. Mater. 2008, 320, 1512–1516. [Google Scholar] [CrossRef]
  6. Akyol, M.; Adanur, I.; Ayas, A.O.; Karadag, F.; Ekicibil, A. Effect of boron content on structure and magnetic properties in CoFe2O4 spinel nanocrystals. J. Alloys Compds. 2018, 744, 528–534. [Google Scholar] [CrossRef]
  7. Mathon, J.; Umerski, A. Theory of tunneling magnetoresistance of an epitaxial Fe/MgO/Fe (001) junction. Phys. Rev. B 2001, 63, 220403. [Google Scholar] [CrossRef]
  8. Chen, Y.T.; Hsieh, W.H. Thermal; magnetic; electric, and adhesive properties of amorphous Co60Fe20B20 thin films. J. Alloys Compd. 2013, 552, 283–288. [Google Scholar] [CrossRef]
  9. Liu, A.L.; Gao, Z.Y.; Gao, L.; Wu, Y. Effect of Dy addition on the microstructure and martensitic transformation of a Ni-rich TiNi shape memory alloy. J. Alloys Compd. 2007, 437, 339–343. [Google Scholar] [CrossRef]
  10. Huang, H.; Ou, Y.; Xu, S.; Fang, G.; Li, M.; Zhao, X.Z. Properties of Dy-doped ZnO nanocrystalline thin films prepared by pulsed laser deposition. Appl. Surf. Sci. 2008, 254, 2013–2016. [Google Scholar] [CrossRef]
  11. Ming, X.; Han, X.; Yang, M.; Yan, G. Enhanced magnetic performance of sintered Nd-Fe-B magnets by Dy-Co film grain boundary diffusion. J. Magn. Magn. Mater. 2014, 550, 169064. [Google Scholar] [CrossRef]
  12. Dou, G.; Cao, R.; Cai, C.; Han, C.; Guo, X.; Chen, J. Effects of boron content on the microstructure and impact toughness of 12Cr1MoVR low-alloy heat-resistant steel weld metals. Materials 2021, 14, 926. [Google Scholar] [CrossRef] [PubMed]
  13. Ikeda, S.; Miura, K.; Yamamoto, H.; Mizunuma, K.; Gan, H.D.; Endo, M.; Kanai, S.; Hayakawa, J.; Matsukura, F.; Ohno, H. A perpendicular-anisotropy CoFeB-MgO magnetic tunnel junction. Nat. Mater. 2010, 9, 721–724. [Google Scholar] [CrossRef]
  14. Vértesy, G.; Gasparics, A.; Griffin, J.M.; Mathew, J.; Fitzpatrick, M.E.; Uytdenhouwen, I. Analysis of surface roughness influence in non-destructive magnetic measurements applied to reactor pressure vessel steels. Appl. Sci. 2020, 10, 8938. [Google Scholar] [CrossRef]
  15. Favieres, C.; Vergara, J.; Madurga, V. Surface roughness influence on Néel-, crosstie, and bloch-type charged zigzag magnetic domain walls in nanostructured Fe films. Materials 2020, 13, 4249. [Google Scholar] [CrossRef] [PubMed]
  16. Nowicki, R.; Świercz, R.; Świercz, D.O.; Rozenek, M. Experimental investigation of technological indicators and surface roughness of hastelloy C-22 after electrical discharge machining using POCO graphite electrodes. Materials 2022, 15, 5631. [Google Scholar] [CrossRef] [PubMed]
  17. Vasiliu, R.D.; Porojan, S.D.; Bîrdeanu, M.I.; Porojan, L. Effect of thermocycling, surface treatments and microstructure on the optical properties and roughness of CAD-CAM and heat-pressed glass ceramics. Materials 2020, 13, 381. [Google Scholar] [CrossRef]
  18. Vasiliev, M.; Alam, M.N.E.; Alameh, K.; Premchander, P.; Lee, Y.T.; Kotov, V.A.; Lee, Y.P. Annealing behaviour and crystal structure of RF-sputtered Bi-substituted dysprosium iron-garnet films having excess co-sputtered Bi-oxide content. J. Phys. D Appl. Phys. 2011, 44, 075002. [Google Scholar] [CrossRef]
  19. Ma, K.; Chung, T.S.; Good, R.J. Surface energy of thermotropic liquid crystalline polyesters and polyesteramide. J. Polym. Sci. 1998, 36, 2327–2337. [Google Scholar] [CrossRef]
  20. Owens, D.K.; Wendt, R.C. Estimation of the surface free energy of polymers. J. Appl. Polym. Sci. 1969, 13, 1741–1747. [Google Scholar] [CrossRef]
  21. Kaelble, D.H.; Uy, K.C. A Reinterpretation of Organic Liquid-Polytetrafluoroethylene Surface Interactions. J. Adhes. 1970, 2, 50–60. [Google Scholar] [CrossRef]
  22. Li, H.; Wen, J.; He, J.; Shi, H.; Liu, Y. Effects of Dy Addition on the Mechanical and Degradation Properties of Mg–2Zn–0.5Zr Alloy. Adv. Eng. Mater. 2020, 22, 1901360. [Google Scholar] [CrossRef]
  23. Tamirisakandala, S.; Bhat, R.B.; Tiley, J.S.; Miracle, D.B. Grain refinement of cast titanium alloys via trace boron addition. Scr. Mater. 2005, 53, 1421–1426. [Google Scholar] [CrossRef]
  24. Kube, S.A.; Xing, W.; Kalidindi, A.; Sohn, S.; Datye, A.; Amram, D.; Schuh, C.A.; Schroer, J. Combinatorial study of thermal stability in ternary nanocrystalline alloys. Acta Mater. 2020, 188, 40–48. [Google Scholar] [CrossRef]
  25. Peng, H.R.; Huang, L.K.; Liu, F. A thermo-kinetic correlation for grain growth in nanocrystalline alloys. Mater. Lett. 2018, 219, 276–279. [Google Scholar] [CrossRef]
  26. Wang, K.; Xu, Z.; Huang, Y.; Qiu, Y.; Dong, S. Magnetic; thermal, electrical properties and crystallization kinetics of Co60Fe20B20 alloy films. Sci. China Mater. 2016, 59, 639–647. [Google Scholar] [CrossRef]
  27. Reis, M.S.; Rubinger, R.M.; Sobolev, N.A.; Valente, M.A.; Yamada, K.; Sato, K.; Todate, Y.; Bouravleuv, A.; von Ranke, P.J.; Gama, S. Influence of the strong magnetocrystalline anisotropy on the magnetocaloric properties of MnP single crystal. Phys. Rev. B 2008, 77, 104439. [Google Scholar] [CrossRef]
  28. Wen, D.; Li, J.; Gan, G.; Yang, Y.; Zhang, H.; Liu, Y. Double peaks of the permeability spectra of obliquely sputtered CoFeB amorphous films. Mater. Res. Bull. 2019, 110, 107–111. [Google Scholar] [CrossRef]
  29. Ke, Y.; Zahid, F.; Timoshevskii, V.; Xia, K.; Gall, D.; Guo, H. Resistivity of thin Cu films with surface roughness. Phy. Rev. B 2009, 79, 155406. [Google Scholar] [CrossRef]
  30. Marom, H.; Eizenberg, M. The effect of surface roughness on the resistivity increase in nanometric dimensions. J. Appl. Phy. 2006, 99, 123705. [Google Scholar] [CrossRef]
  31. Pandey, M.K.; Kar, A.K. Nickel concentration dependent evolution of magnetic domain structures in electrodeposited carbon composite thin films. J. Magn. Magn. Mater. 2020, 506, 166801. [Google Scholar] [CrossRef]
  32. Lisfi, A.; Lodder, J.C. Magnetic domains in Co thin films obliquely sputtered on a polymer substrate. Phys. Rev. B 2001, 63, 174441. [Google Scholar] [CrossRef]
  33. Choe, G.; Steinback, M. Surface roughness effects on magnetoresistive and magnetic properties of NiFe thin films. J. Appl. Phys. 1999, 85, 5777–5779. [Google Scholar] [CrossRef]
  34. Bhatia, G.; Srivastava, A.; Srivastava, P.C. Effect of ion irradiation on magnetic property of exchange coupled interfacial structures of Fe/NiO and NiO/Fe on Si substrates. Radiat. Eff. Defects Solids 2014, 169, 529–537. [Google Scholar]
  35. Tang, Z.; Ni, H.; Lu, B.; Zheng, M.; Huang, Y.A.; Lu, S.G.; Tang, M.; Gao, J. Thickness dependence of magnetic anisotropy and domains in amorphous Co40Fe40B20 thin films grown on PET flexible substrates. J. Magn. Magn. Mater. 2017, 426, 444–449. [Google Scholar] [CrossRef]
  36. Da, C.; Alagarsamy, P. Tuning the magnetic properties of stripe domain structured CoFeB films using stack structure with spacer layer thickness dependent interlayer coupling. J. Magn. Magn. Mater. 2018, 448, 23–30. [Google Scholar]
  37. Zenkin, S.; Belosludtsev, A.; Kos, S.; Čerstvý, R.; Haviar, S.; Netrvalova, M.F. Thickness dependent wetting properties and surface free energy of HfO2 thin films. Appl. Phys. Lett. 2016, 108, 231602. [Google Scholar] [CrossRef]
  38. McHale, G.; Newton, M.; Shirtcliffe, N. Water-repellent soil and its relationship to granularity, surface roughness and hydrophobicity: A materials science view. Eur. J. Soil Sci. 2005, 56, 445–452. [Google Scholar] [CrossRef]
  39. Madadi, F.; Rezaeian, A.; Edris, H.; Zhiani, M. Influence of surface roughness and hydrophobicity of bipolar plates on PEM performance. Surf. Coat. Technol. 2020, 389, 125676. [Google Scholar] [CrossRef]
  40. Giridhar, G.; Manepalli, R.K.N.R.; Apparao, G. Thermal and Rheological Measurement Techniques for Nanomaterials Characterization, 1st ed.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 173–195. [Google Scholar]
  41. Islsm, M.S.; Tong, L.; Falzon, P.J. Influence of metal surface preparation on its surface profile, contact angle, surface energy and adhesion with glass fibre prepreg. Int. J. Adhes. Adhes. 2014, 51, 32–41. [Google Scholar]
  42. Tavakoli, M.M.; Dastjerdi, H.T.; Zhao, J.; Shulenberger, K.E.; Carbonera, C.; Po, R.; Cominetti, A.; Bianchi, G.; Klein, N.D.; Bawendi, M.G.; et al. Light management in organic photovoltaics processed in ambient conditions using ZnO nanowire and antireflection layer with nanocone array. Small 2019, 15, 1900508. [Google Scholar] [CrossRef]
  43. Plancheta, K.; Kot, A.; Gac, J.B.; Zajac, M.; Sikora, M.; Radecka, M.; Zakrzewska, K. Evolution of surface properties of titanium oxide thin films. Appl. Sur. Sci. 2023, 608, 155046. [Google Scholar] [CrossRef]
  44. Hariwal, R.V.; Malik, H.K.; Negi, A.; Asokan, K. Favourable tuning of optical absorbance, bandgap and surface roughness of ZnO thin films by C ion implantation at the critical angle. Appl. Surf. Sci. 2022, 7, 100189. [Google Scholar] [CrossRef]
  45. Heavens, O.S. Optical properties of thin films. Rep. Prog. Phys. 1960, 23, 1. [Google Scholar] [CrossRef]
  46. Aspnes, D.E. Optical properties of thin films. Thin Solid Films 1982, 89, 249–262. [Google Scholar] [CrossRef]
  47. Kapustianyk, V.; Turko, B.; Kostruba, A.; Sofiani, Z.; Derkowska, B.; Seignon, S.D.; Barwiński, B.; Eliyashevskyi, Y.; Sahraoui, B. Influence of size effect and sputtering conditions on the crystallinity and optical properties of ZnO thin films. Opt. Commun. 2007, 269, 346–350. [Google Scholar] [CrossRef]

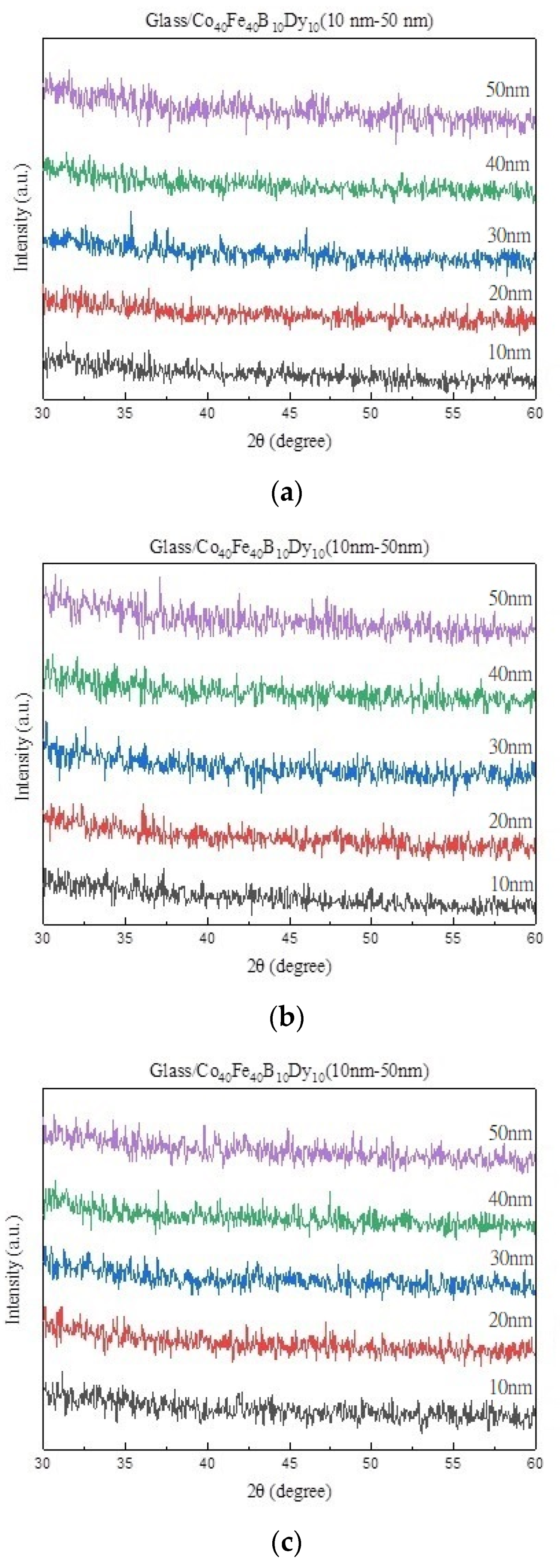

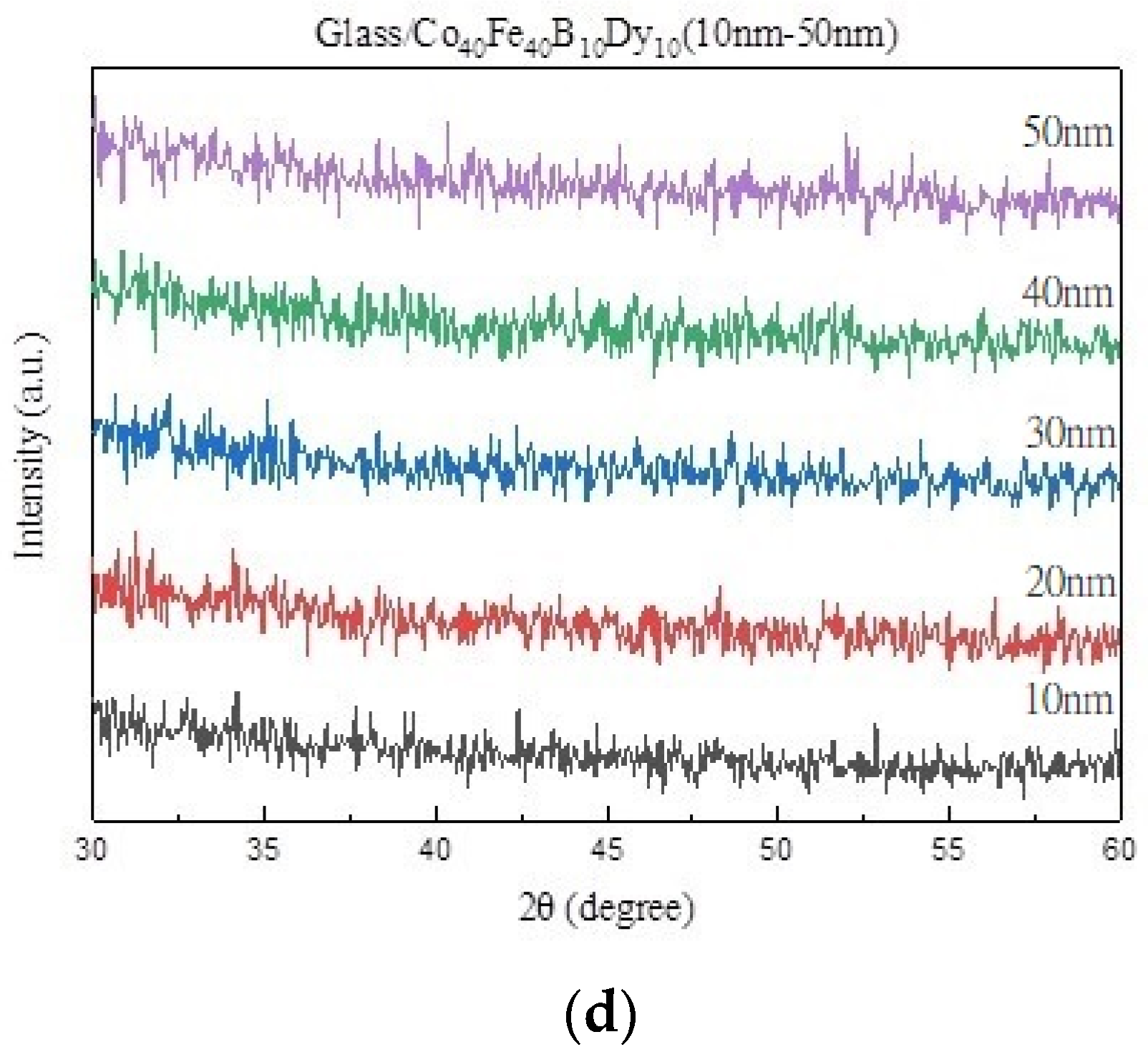

Figure 1. XRD patterns of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Figure 1. XRD patterns of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Materials 16 05995 g001aMaterials 16 05995 g001b

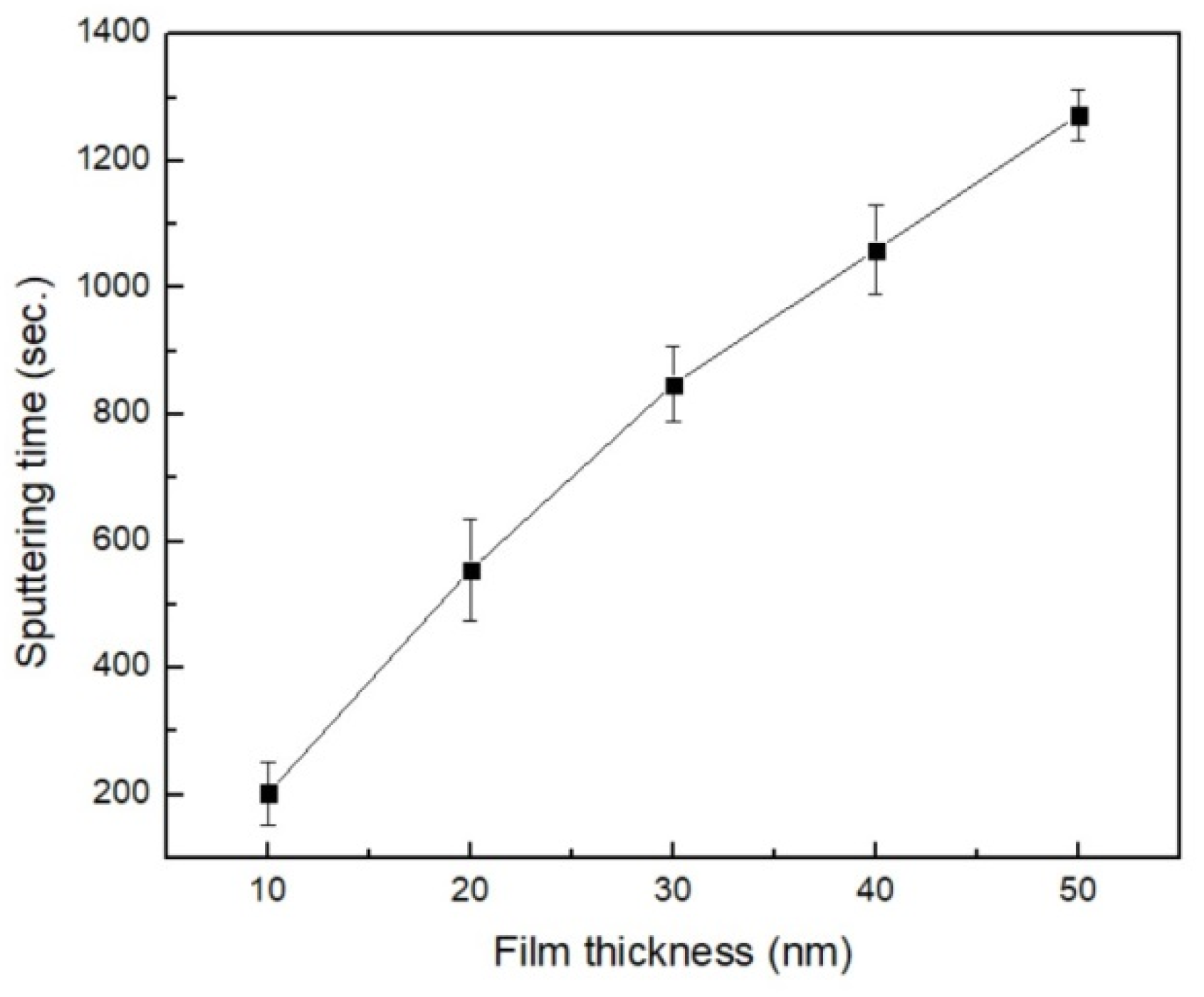

Figure 2. The calibrated thickness of sputtered time.
Figure 2. The calibrated thickness of sputtered time.
Materials 16 05995 g002

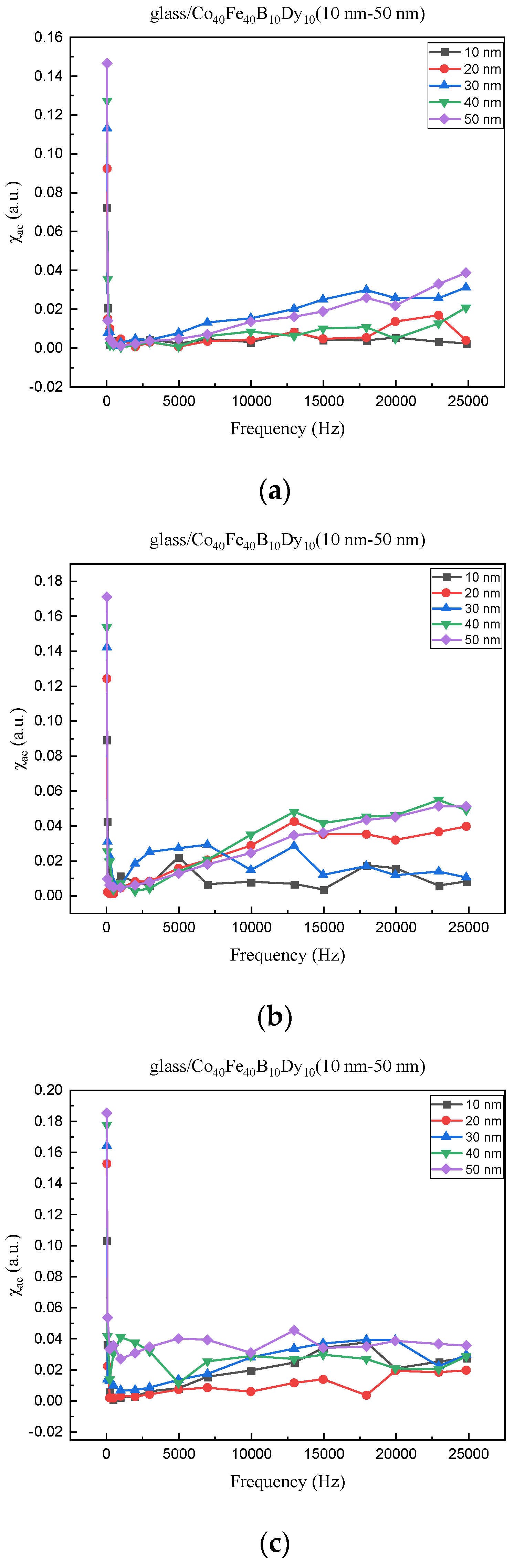

Figure 3. Low frequency alternate current magnetic susceptibility (χac) of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Figure 3. Low frequency alternate current magnetic susceptibility (χac) of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Materials 16 05995 g003aMaterials 16 05995 g003b

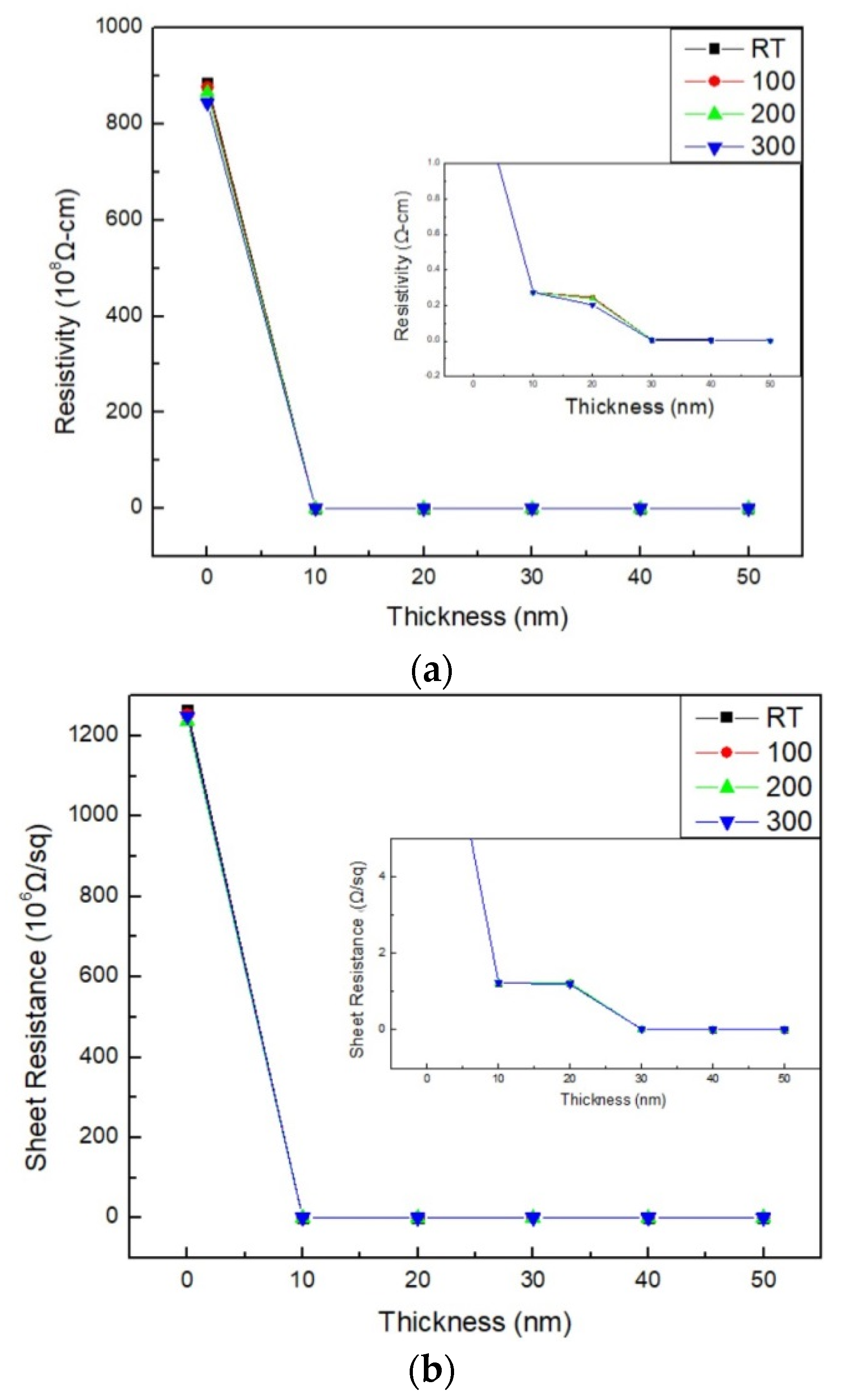

Figure 4. (a) Resistivity and (b) sheet resistance of Co40Fe40B10Dy10 films.
Figure 4. (a) Resistivity and (b) sheet resistance of Co40Fe40B10Dy10 films.
Materials 16 05995 g004

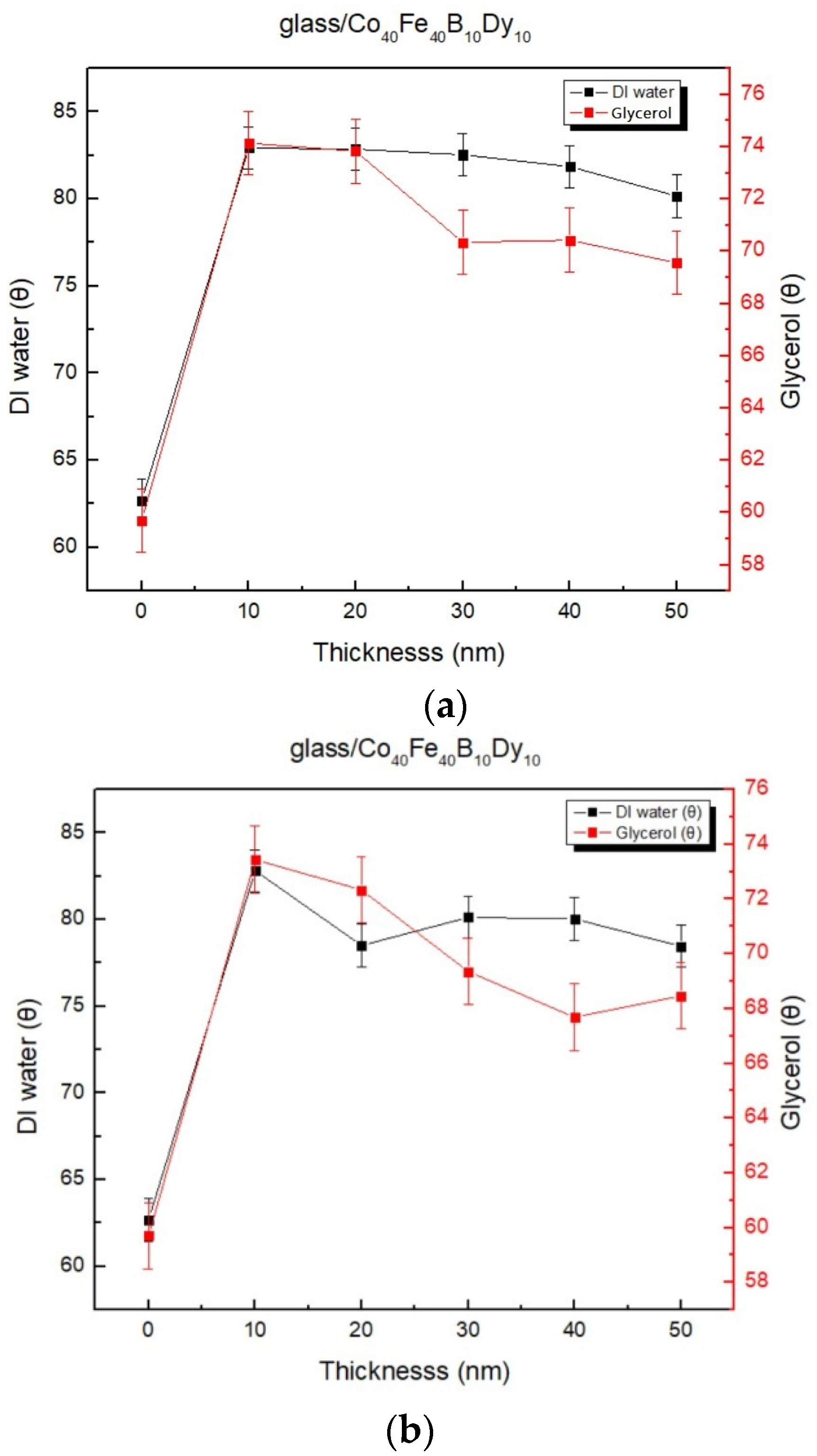

Figure 5. Contact angles of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Figure 5. Contact angles of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Materials 16 05995 g005aMaterials 16 05995 g005b
Figure 6. Surface energy of Co40Fe40B10Dy10 films.
Figure 6. Surface energy of Co40Fe40B10Dy10 films.
Materials 16 05995 g006

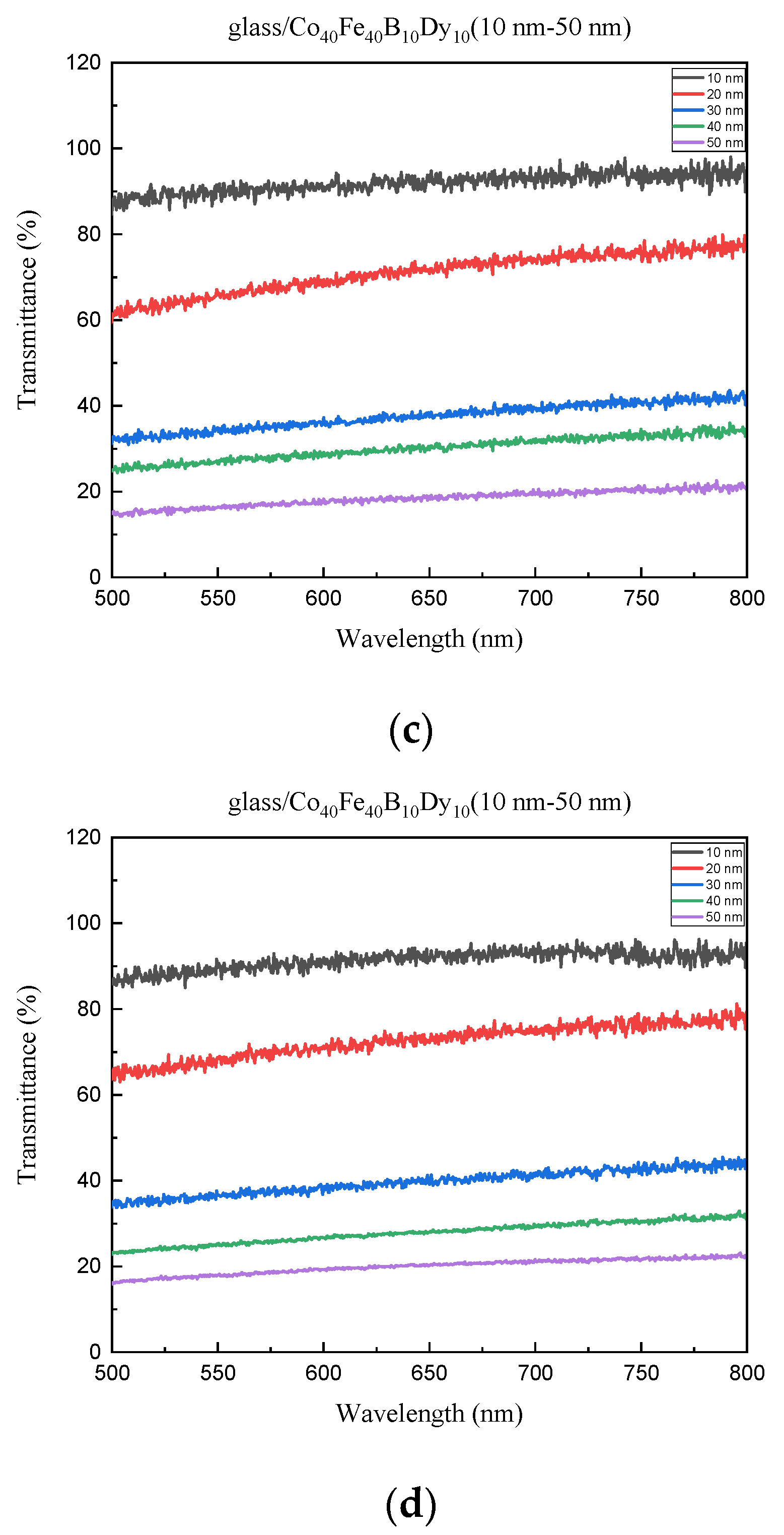

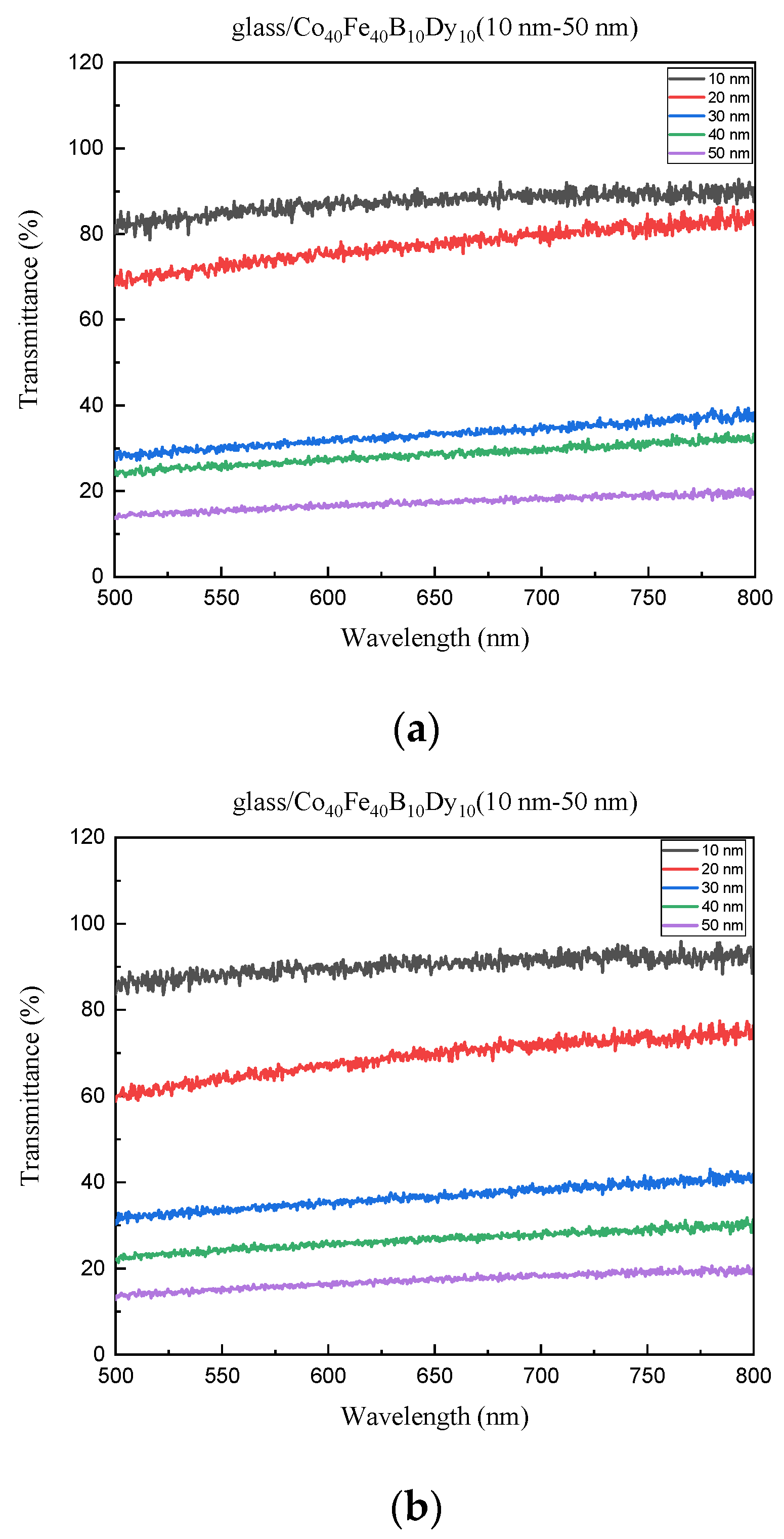

Figure 7. Transmittance of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Figure 7. Transmittance of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Materials 16 05995 g007aMaterials 16 05995 g007b

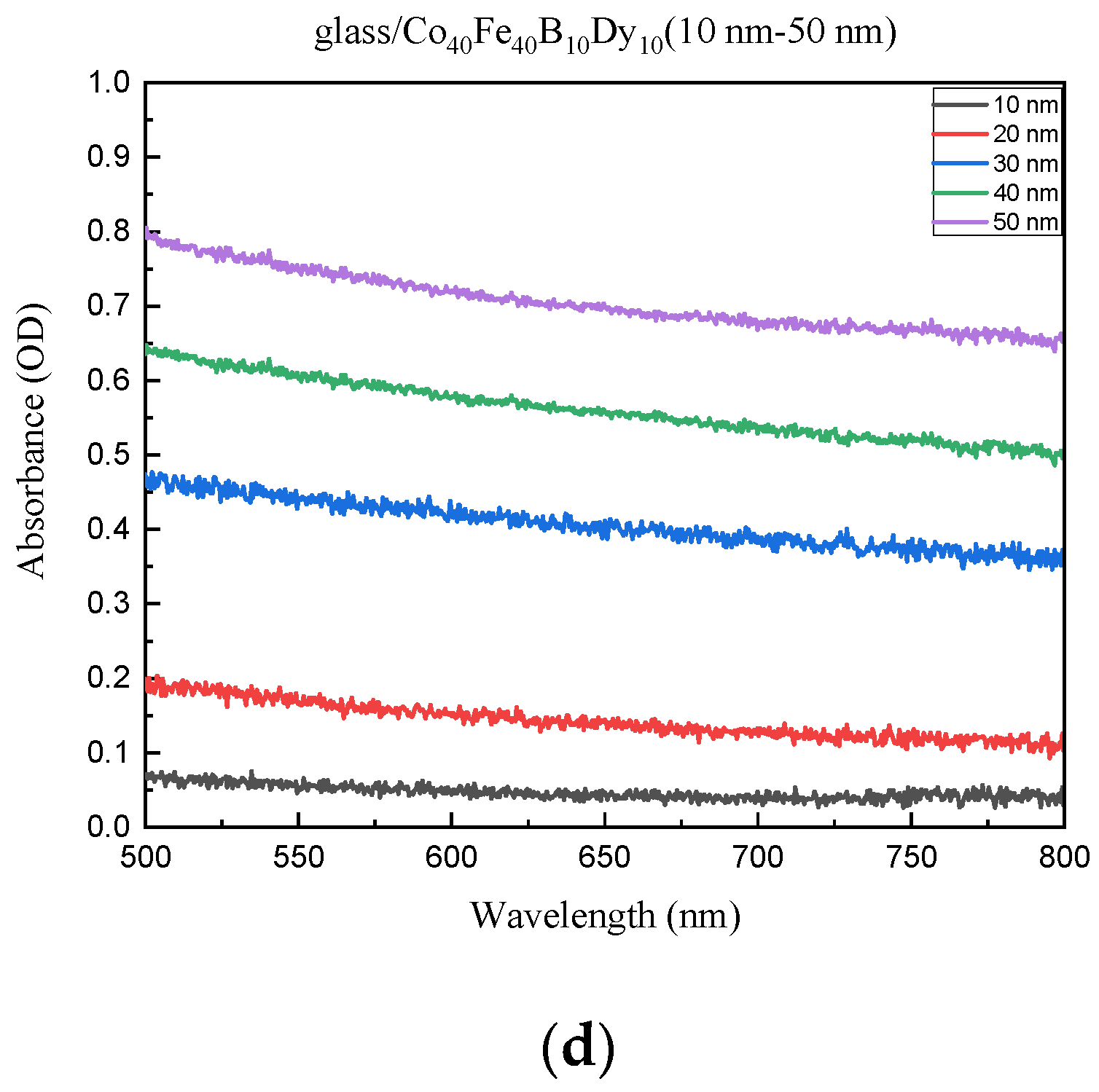

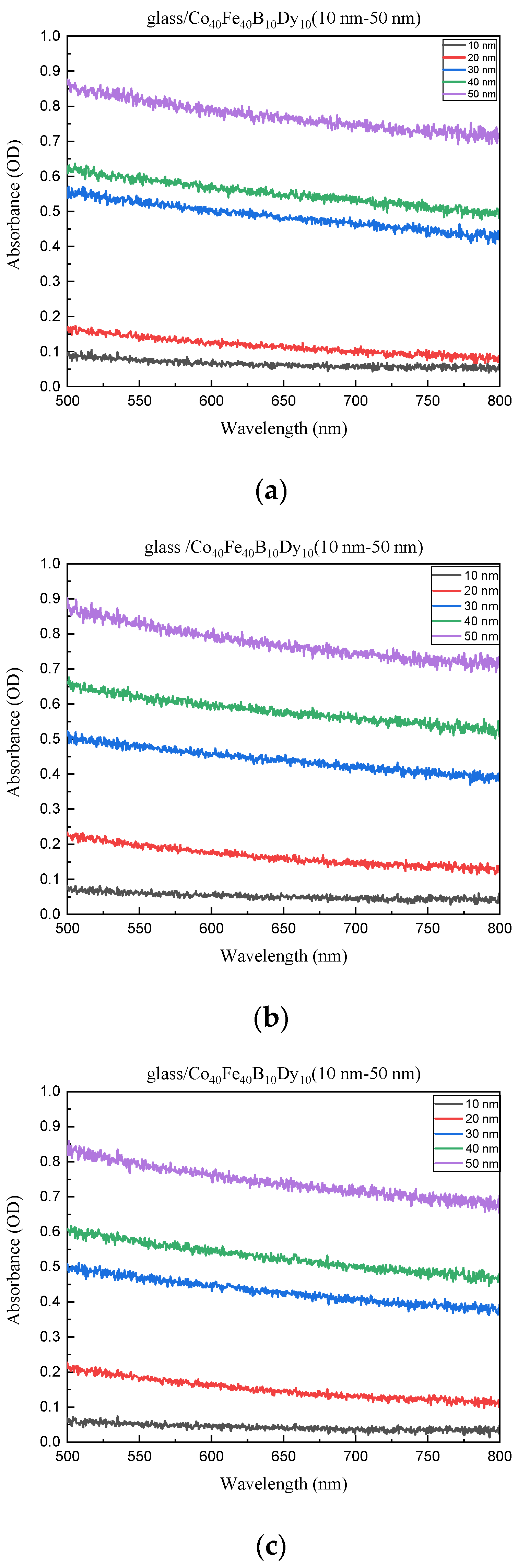

Figure 8. Absorbance of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Figure 8. Absorbance of Co40Fe40B10Dy10 films. (a) RT, (b) after annealing at 100 °C, (c) after annealing at 200 °C, (d) after annealing at 300 °C.
Materials 16 05995 g008aMaterials 16 05995 g008b
Table 1. Maximum χac values of Glass/Co40Fe40B10Dy10 (10~50 nm) thin films at different temperatures.
Table 1. Maximum χac values of Glass/Co40Fe40B10Dy10 (10~50 nm) thin films at different temperatures.
100 °C
200 °C
300 °C
10 nm0.
20 nm0.
30 nm0.
40 nm0.
50 nm0.
Table 2. Co40Fe40B10Dy10 50 nm films at different annealing temperatures with MFM images and surface roughness.
Table 2. Co40Fe40B10Dy10 50 nm films at different annealing temperatures with MFM images and surface roughness.

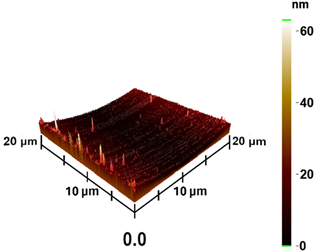

Magnetic DomainSurface Roughness
Roughness, Ra
RTMaterials 16 05995 i001Materials 16 05995 i002
Materials 16 05995 i003
1.93 nm

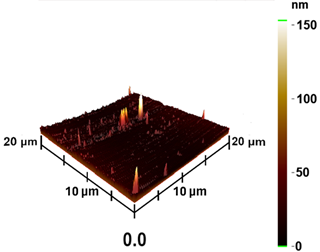

100Materials 16 05995 i004Materials 16 05995 i005
Materials 16 05995 i006
1.79 nm
200Materials 16 05995 i007Materials 16 05995 i008
Materials 16 05995 i009
1.71 nm

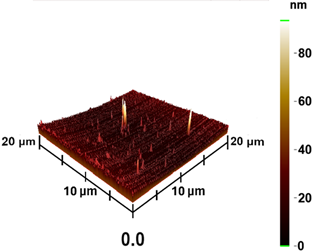

300Materials 16 05995 i010Materials 16 05995 i011
