# Axion Field Influence on Josephson Junction Quasipotential

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Model

#### 2.1. RCSJ Model

#### 2.2. Axion

#### 2.3. Axion–JJ System

## 3. Calculation of the Quasipotential

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

JJ | Josephson junction |

RCSJ | resistively and capacitively shunted junction |

## References

- Preskill, J.; Wise, M.B.; Wilczek, F. Cosmology of the invisible axion. Phys. Lett. B
**1983**, 120, 127–132. [Google Scholar] [CrossRef] - Abbott, L.; Sikivie, P. A cosmological bound on the invisible axion. Phys. Lett. B
**1983**, 120, 133–136. [Google Scholar] [CrossRef] - Dine, M.; Fischler, W. The not-so-harmless axion. Phys. Lett. B
**1983**, 120, 137–141. [Google Scholar] [CrossRef] - Alesini, D.; Babusci, D.; Barone, C.; Buonomo, B.; Beretta, M.M.; Bianchini, L.; Castellano, G.; Chiarello, F.; Di Gioacchino, D.; Falferi, P.; et al. Status of the SIMP Project: Toward the Single Microwave Photon Detection. J. Low Temp. Phys.
**2020**, 199, 348–354. [Google Scholar] [CrossRef] - Rettaroli, A.; Alesini, D.; Babusci, D.; Barone, C.; Buonomo, B.; Beretta, M.M.; Castellano, G.; Chiarello, F.; Di Gioacchino, D.; Felici, G.; et al. Josephson Junctions as Single Microwave Photon Counters: Simulation and Characterization. Instruments
**2021**, 5, 25. [Google Scholar] [CrossRef] - Barbieri, R.; Braggio, C.; Carugno, G.; Gallo, C.; Lombardi, A.; Ortolan, A.; Pengo, R.; Ruoso, G.; Speake, C. Searching for galactic axions through magnetized media: The QUAX proposal. Phys. Dark Universe
**2017**, 15, 135–141. [Google Scholar] [CrossRef] - McAllister, B.T.; Flower, G.; Ivanov, E.N.; Goryachev, M.; Bourhill, J.; Tobar, M.E. The ORGAN experiment: An axion haloscope above 15 GHz. Phys. Dark Universe
**2017**, 18, 67–72. [Google Scholar] [CrossRef] - Crescini, N.; Alesini, D.; Braggio, C.; Carugno, G.; D’Agostino, D.; Di Gioacchino, D.; Falferi, P.; Gambardella, U.; Gatti, C.; Iannone, G.; et al. Axion Search with a Quantum-Limited Ferromagnetic Haloscope. Phys. Rev. Lett.
**2020**, 124, 171801. [Google Scholar] [CrossRef] - Beck, C. Possible Resonance Effect of Axionic Dark Matter in Josephson Junctions. Phys. Rev. Lett.
**2013**, 111, 231801. [Google Scholar] [CrossRef] - Grimaudo, R.; Valenti, D.; Spagnolo, B.; Filatrella, G.; Guarcello, C. Josephson-junction-based axion detection through resonant activation. Phys. Rev. D
**2022**, 105, 033007. [Google Scholar] [CrossRef] - Grimaudo, R.; Valenti, D.; Filatrella, G.; Spagnolo, B.; Guarcello, C. Coupled quantum pendula as a possible model for Josephson-junction-based axion detection. Chaos Solitons Fractals
**2023**, 173, 113745. [Google Scholar] [CrossRef] - Beck, C. Possible resonance effect of dark matter axions in SNS Josephson junctions. arXiv
**2017**, arXiv:1710.04299. [Google Scholar] - Hoffmann, C.; Lefloch, F.; Sanquer, M.; Pannetier, B. Mesoscopic transition in the shot noise of diffusive superconductor–normal-metal–superconductor junctions. Phys. Rev. B
**2004**, 70, 180503. [Google Scholar] [CrossRef] - Bae, M.H.; Dinsmore, R.C., III; Sahu, M.; Lee, H.J.; Bezryadin, A. Zero-crossing Shapiro steps in high-T
_{c}superconducting microstructures tailored by a focused ion beam. Phys. Rev. B**2008**, 77, 144501. [Google Scholar] [CrossRef] - He, L.; Wang, J.; Chan, M.H. Shapiro Steps in the Absence of Microwave Radiation. arXiv
**2011**, arXiv:1107.0061. [Google Scholar] - Golikova, T.E.; Hübler, F.; Beckmann, D.; Batov, I.E.; Karminskaya, T.Y.; Kupriyanov, M.Y.; Golubov, A.A.; Ryazanov, V.V. Double proximity effect in hybrid planar superconductor-(normal metal/ferromagnet)-superconductor structures. Phys. Rev. B
**2012**, 86, 064416. [Google Scholar] [CrossRef] - Bretheau, L.; Girit, Ç.Ö.; Pothier, H.; Esteve, D.; Urbina, C. Exciting Andreev pairs in a superconducting atomic contact. Nature
**2013**, 499, 312–315. [Google Scholar] [CrossRef] - Wang, J.; Wang, Z.; Wang, P. Magnetic field enhanced critical current and subharmonic structures in dissipative superconducting gold nanowires. Quantum Front.
**2022**, 1, 21. [Google Scholar] [CrossRef] - Braginski, A.I. Superconductor Electronics: Status and Outlook. J. Supercond. Nov. Magn.
**2019**, 32, 23–44. [Google Scholar] [CrossRef] - Tafuri, F. Fundamentals and Frontiers of the Josephson Effect; Springer Nature: Berlin/Heidelberg, Germany, 2019; Volume 286. [Google Scholar]
- Valenti, D.; Denaro, G.; Spagnolo, B.; Mazzola, S.; Basilone, G.; Conversano, F.; Brunet, C.; Bonanno, A. Stochastic models for phytoplankton dynamics in Mediterranean Sea. Ecol. Complex.
**2016**, 27, 84–103. [Google Scholar] [CrossRef] - Valenti, D.; Fazio, G.; Spagnolo, B. Stabilizing effect of volatility in financial markets. Phys. Rev. E
**2018**, 97, 062307. [Google Scholar] [CrossRef] - Tobiska, J.; Nazarov, Y.V. Josephson Junctions as Threshold Detectors for Full Counting Statistics. Phys. Rev. Lett.
**2004**, 93, 106801. [Google Scholar] [CrossRef] - Pekola, J.P. Josephson Junction as a Detector of Poissonian Charge Injection. Phys. Rev. Lett.
**2004**, 93, 206601. [Google Scholar] [CrossRef] - Ankerhold, J. Detecting Charge Noise with a Josephson Junction: A Problem of Thermal Escape in Presence of Non-Gaussian Fluctuations. Phys. Rev. Lett.
**2007**, 98, 036601. [Google Scholar] [CrossRef] - Sukhorukov, E.V.; Jordan, A.N. Stochastic Dynamics of a Josephson Junction Threshold Detector. Phys. Rev. Lett.
**2007**, 98, 136803. [Google Scholar] [CrossRef] - Timofeev, A.V.; Meschke, M.; Peltonen, J.T.; Heikkilä, T.T.; Pekola, J.P. Wideband Detection of the Third Moment of Shot Noise by a Hysteretic Josephson Junction. Phys. Rev. Lett.
**2007**, 98, 207001. [Google Scholar] [CrossRef] - Huard, B.; Pothier, H.; Birge, N.O.; Esteve, D.; Waintal, X.; Ankerhold, J. Josephson junctions as detectors for non-Gaussian noise. Ann. Phys.
**2007**, 16, 736–750. [Google Scholar] [CrossRef] - Grabert, H. Theory of a Josephson junction detector of non-Gaussian noise. Phys. Rev. B
**2008**, 77, 205315. [Google Scholar] [CrossRef] - Filatrella, G.; Pierro, V. Detection of noise-corrupted sinusoidal signals with Josephson junctions. Phys. Rev. E
**2010**, 82, 046712. [Google Scholar] [CrossRef] - Guarcello, C.; Valenti, D.; Augello, G.; Spagnolo, B. The Role of Non-Gaussian Sources in the Transient Dynamics of Long Josephson Junctions. Acta Phys. Pol. B
**2013**, 44, 997–1005. [Google Scholar] [CrossRef] - Guarcello, C.; Filatrella, G.; Spagnolo, B.; Pierro, V.; Valenti, D. Voltage drop across Josephson junctions for Lévy noise detection. Phys. Rev. Res.
**2020**, 2, 043332. [Google Scholar] [CrossRef] - Guarcello, C. Lévy noise effects on Josephson junctions. Chaos Solitons Fractals
**2021**, 153, 111531. [Google Scholar] [CrossRef] - Walsh, E.D.; Efetov, D.K.; Lee, G.H.; Heuck, M.; Crossno, J.; Ohki, T.A.; Kim, P.; Englund, D.; Fong, K.C. Graphene-Based Josephson-Junction Single-Photon Detector. Phys. Rev. Appl.
**2017**, 8, 024022. [Google Scholar] [CrossRef] - Kuzmin, L.S.; Sobolev, A.S.; Gatti, C.; Di Gioacchino, D.; Crescini, N.; Gordeeva, A.; Il’ichev, E. Single Photon Counter Based on a Josephson Junction at 14 GHz for Searching Galactic Axions. IEEE Trans. Appl. Supercond.
**2018**, 28, 1–5. [Google Scholar] [CrossRef] - Guarcello, C.; Braggio, A.; Solinas, P.; Giazotto, F. Nonlinear Critical-Current Thermal Response of an Asymmetric Josephson Tunnel Junction. Phys. Rev. Appl.
**2019**, 11, 024002. [Google Scholar] [CrossRef] - Revin, L.S.; Pankratov, A.L.; Gordeeva, A.V.; Yablokov, A.A.; Rakut, I.V.; Zbrozhek, V.O.; Kuzmin, L.S. Microwave photon detection by an Al Josephson junction. Beilstein J. Nanotechnol.
**2020**, 11, 960–965. [Google Scholar] [CrossRef] - Yablokov, A.; Glushkov, E.; Pankratov, A.; Gordeeva, A.; Kuzmin, L.; Il’ichev, E. Resonant response drives sensitivity of Josephson escape detector. Chaos Solitons Fractals
**2021**, 148, 111058. [Google Scholar] [CrossRef] - Piedjou Komnang, A.; Guarcello, C.; Barone, C.; Gatti, C.; Pagano, S.; Pierro, V.; Rettaroli, A.; Filatrella, G. Analysis of Josephson junctions switching time distributions for the detection of single microwave photons. Chaos Solitons Fractals
**2021**, 142, 110496. [Google Scholar] [CrossRef] - Guarcello, C.; Piedjou Komnang, A.S.; Barone, C.; Rettaroli, A.; Gatti, C.; Pagano, S.; Filatrella, G. Josephson-Based Scheme for the Detection of Microwave Photons. Phys. Rev. Appl.
**2021**, 16, 054015. [Google Scholar] [CrossRef] - Pankratov, A.L.; Revin, L.S.; Gordeeva, A.V.; Yablokov, A.A.; Kuzmin, L.S.; Il’ichev, E. Towards a microwave single-photon counter for searching axions. NPJ Quantum Inf.
**2022**, 8, 61. [Google Scholar] [CrossRef] - Pankratov, A.L.; Gordeeva, A.V.; Revin, L.S.; Ladeynov, D.A.; Yablokov, A.A.; Kuzmin, L.S. Approaching microwave photon sensitivity with Al Josephson junctions. Beilstein J. Nanotechnol.
**2022**, 13, 582–589. [Google Scholar] [CrossRef] [PubMed] - Graham, R.; Tél, T. Weak-noise limit of Fokker-Planck models and non differentiable potentials for dissipative dynamical systems. Phys. Rev. A
**1985**, 31, 1109. [Google Scholar] [CrossRef] [PubMed] - Kautz, R.L. Thermally induced escape: The principle of minimum available noise energy. Phys. Rev. A
**1988**, 38, 2066–2080. [Google Scholar] [CrossRef] - Kautz, R.L. Shapiro steps in large-area metallic-barrier Josephson junctions. J. Appl. Phys.
**1995**, 78, 5811–5819. [Google Scholar] [CrossRef] - Kautz, R.L. Noise, chaos, and the Josephson voltage standard. Rep. Prog. Phys.
**1996**, 59, 935–992. [Google Scholar] [CrossRef] - Pountougnigni, O.V.; Yamapi, R.; Filatrella, G.; Tchawoua, C. Noise and disorder effects in a series of birhythmic Josephson junctions coupled to a resonator. Phys. Rev. E
**2019**, 99, 032220. [Google Scholar] [CrossRef] - McConnell, A.; Idris, S.; Opatosky, B.; Amet, F.M.C. Phase locking and noise-driven dynamics in a Josephson-junction electronic analog. Phys. Rev. B
**2021**, 104, 184513. [Google Scholar] [CrossRef] - Dykman, M.I.; Smelyanskiy, V.N.; Luchinsky, D.G.; Mannella, R.; McClintock, P.V.E.; Stein, N.D. Large Fluctuations in a Periodically Driven Dynamical System. Int. J. Bifurc. Chaos
**1998**, 08, 747–754. [Google Scholar] [CrossRef] - Kraut, S.; Feudel, U. Enhancement of noise-induced escape through the existence of a chaotic saddle. Phys. Rev. E
**2003**, 67, 015204. [Google Scholar] [CrossRef] - Kraut, S.; Feudel, U. Noise-induced escape through a chaotic saddle: Lowering of the activation energy. Phys. D Nonlinear Phenom.
**2003**, 181, 222–234. [Google Scholar] [CrossRef] - Khovanov, I.A.; Khovanova, N.A. Numerical simulations versus theoretical predictions for a non-Gaussian noise induced escape problem in application to full counting statistics. Phys. Rev. B
**2014**, 89, 085419. [Google Scholar] [CrossRef] - Li, Y.; Liu, X. Noise induced escape in one-population and two-population stochastic neural networks with internal states. Chaos Interdiscip. J. Nonlinear Sci.
**2019**, 29, 023137. [Google Scholar] [CrossRef] - Frimmer, M.; Heugel, T.L.; Nosan, I.C.V.; Tebbenjohanns, F.; Hälg, D.; Akin, A.; Degen, C.L.; Novotny, L.; Chitra, R.; Zilberberg, O.; et al. Rapid Flipping of Parametric Phase States. Phys. Rev. Lett.
**2019**, 123, 254102. [Google Scholar] [CrossRef] - Barone, A.; Paterno, G. Physics and Applications of the Josephson Effect; Wiley: New York, NY, USA, 1982. [Google Scholar]
- Likharev, K. Dynamics of Josephson Junctions and Circuits; CRC Press: Boca Raton, FL, USA, 1986. [Google Scholar]
- McCumber, D.E. Effect of ac Impedance on dc Voltage-Current Characteristics of Superconductor Weak-Link Junctions. J. Appl. Phys.
**1968**, 39, 3113–3118. [Google Scholar] [CrossRef] - Guarcello, C.; Valenti, D.; Spagnolo, B.; Pierro, V.; Filatrella, G. Josephson-based Threshold Detector for Lévy-Distributed Current Fluctuations. Phys. Rev. Appl.
**2019**, 11, 044078. [Google Scholar] [CrossRef] - Beenakker, C.W.J. Three “Universal” Mesoscopic Josephson Effects. In Low-Dimensional Electronic Systems; Bauer, G., Kuchar, F., Heinrich, H., Eds.; Springer: Berlin/Heidelberg, Germany, 1992; pp. 78–82. [Google Scholar]
- Kramers, H. Brownian motion in a field of force and the diffusion model of chemical reactions. Physica
**1940**, 7, 284–304. [Google Scholar] [CrossRef] - Sikivie, P. Experimental Tests of the “Invisible” Axion. Phys. Rev. Lett.
**1983**, 51, 1415–1417. [Google Scholar] [CrossRef] - Visinelli, L. Axion-electromagnetic waves. Mod. Phys. Lett. A
**2013**, 28, 1350162. [Google Scholar] [CrossRef] - Sikivie, P.; Yang, Q. Bose-Einstein condensation of dark matter axions. Phys. Rev. Lett.
**2009**, 103, 111301. [Google Scholar] [CrossRef] - Duffy, L.D.; van Bibber, K. Axions as dark matter particles. New J. Phys.
**2009**, 11, 105008. [Google Scholar] [CrossRef] - Yan, J.; Beck, C. Nonlinear dynamics of coupled axion-Josephson junction systems. Phys. D Nonlinear Phenom.
**2020**, 403, 132294. [Google Scholar] [CrossRef] - Gordeeva, A.V.; Pankratov, A.L. Minimization of timing errors in reproduction of single flux quantum pulses. Appl. Phys. Lett.
**2006**, 88, 022505. [Google Scholar] [CrossRef] - Blackburn, J.A.; Marchese, J.E.; Cirillo, M.; Grønbech-Jensen, N. Classical analysis of capacitively coupled superconducting qubits. Phys. Rev. B
**2009**, 79, 054516. [Google Scholar] [CrossRef] - Dubos, P.; Courtois, H.; Pannetier, B.; Wilhelm, F.K.; Zaikin, A.D.; Schön, G. Josephson critical current in a long mesoscopic S-N-S junction. Phys. Rev. B
**2001**, 63, 064502. [Google Scholar] [CrossRef] - Bergeret, F.S.; Cuevas, J.C. The Vortex State and Josephson Critical Current of a Diffusive SNS Junction. J. Low Temp. Phys.
**2008**, 153, 304–324. [Google Scholar] [CrossRef] - Du, X.; Skachko, I.; Andrei, E.Y. Josephson current and multiple Andreev reflections in graphene SNS junctions. Phys. Rev. B
**2008**, 77, 184507. [Google Scholar] [CrossRef] - Graham, R.; Tél, T. Nonequilibrium potential for coexisting attractors. Phys. Rev. A
**1986**, 33, 1322–1337. [Google Scholar] [CrossRef] - Pankratov, A.L.; Gordeeva, A.V.; Kuzmin, L.S. Drastic Suppression of Noise-Induced Errors in Underdamped Long Josephson Junctions. Phys. Rev. Lett.
**2012**, 109, 087003. [Google Scholar] [CrossRef] - Risken, H. The Fokker-Planck Equation: Methods of Solution and Applications; Springer: Berlin/Heidelberg, Germany, 1989. [Google Scholar]
- Kumar, B.V.K.V.; Carroll, C.W. Performance Of Wigner Distribution Function Based Detection Methods. Opt. Eng.
**1984**, 23, 732–737. [Google Scholar] [CrossRef] - Hamilton, C.A. Josephson voltage standards. Rev. Sci. Instruments
**2000**, 71, 3611–3623. [Google Scholar] [CrossRef] - Piedjou Komnang, A.S.; Guarcello, C.; Barone, C.; Pagano, S.; Filatrella, G. Analysis of Josephson Junction Lifetimes for the Detection of Single Photons in a Thermal Noise Background. In Proceedings of the 2021 IEEE 14th Workshop on Low Temperature Electronics (WOLTE), Matera, Italy, 12–16 April 2021; pp. 1–4. [Google Scholar] [CrossRef]
- Filatrella, G.; Barone, C.; Carapella, G.; Gatti, C.; Granata, V.; Guarcello, C.; Mauro, C.; Komnang, A.P.; Pierro, V.; Rettaroli, A.; et al. Theoretical and Numerical Estimate of Signal-to-Noise Ratio in the Analysis of Josephson Junctions Lifetime for Photon Detection. IEEE Trans. Appl. Supercond.
**2023**, 33, 0600105. [Google Scholar] [CrossRef] - Kautz, R.L. Quasipotential and the stability of phase lock in nonhysteretic Josephson junctions. J. Appl. Phys.
**1994**, 76, 5538–5544. [Google Scholar] [CrossRef]

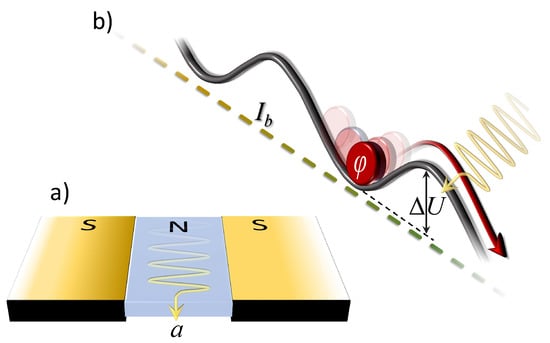

**Figure 1.**Schematic illustration of the device. (

**a**) The physical process: An axion field a enters the normal barrier between two superconducting electrodes. (

**b**) The mathematical model: The phase particle in a minimum of the washboard potential U, tilted by a bias current, is perturbed by the axion (represented by the arrow that hits the particle-phase $\phi $). Under the combined effect of thermal noise and axion–JJ coupling, the JJ phase can overcome the barrier $\Delta U$ and roll down along the potential. In this case, a detectable voltage $\propto \langle d\phi /dt\rangle $ appears.

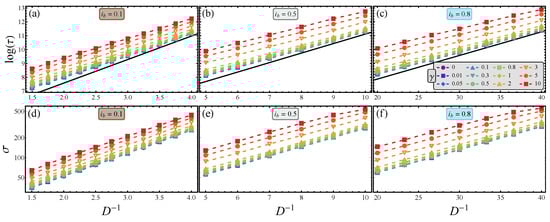

**Figure 2.**Behavior of the average value (

**top**panels) and the root mean square (

**bottom**panels) of the switching time distributions as a function of the inverse noise intensity, for different values of the axion–JJ coupling, $\gamma $, and three different bias current, ${i}_{b}=\{0.1,0.5,\phantom{\rule{4.pt}{0ex}}\mathrm{and}\phantom{\rule{4.pt}{0ex}}0.8\}$, see panels (

**a**,

**d**), (

**b**,

**e**), and (

**c**,

**f**), respectively. The black solid line without symbols in the top panels denotes the full Kramers theory for the dissipative Josephson escape [73]. The other parameters of the system are $\epsilon =1$, ${\beta}_{c}=100$, ${t}_{max}={10}^{6}$, and $N={10}^{4}$. The legend in panel (

**c**) refers to all panels.

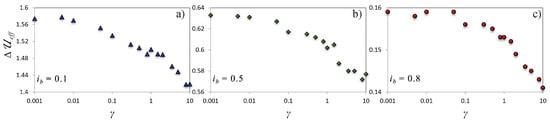

**Figure 3.**Behavior of the quasipotential effective barrier, $\Delta {\mathcal{U}}_{eff}$, retrieved from the data shown in Figure 2, as a function of the axion–JJ coupling $\gamma $. Panels (
