Article

Hydrothermal Synthesis of a Cellular NiO Film on Carbon Paper as a Promising Way to Obtain a Hierarchically Organized Electrode for a Flexible Supercapacitor

by
Tatiana L. Simonenko
,
Nikolay P. Simonenko
,
Philipp Yu. Gorobtsov
,
Elizaveta P. Simonenko
* and
Nikolay T. Kuznetsov
Kurnakov Institute of General and Inorganic Chemistry of the Russian Academy of Sciences, 31 Leninsky pr., Moscow 119991, Russia
*
Author to whom correspondence should be addressed.
Materials 2023, 16(15), 5208; https://doi.org/10.3390/ma16155208
Submission received: 30 June 2023 / Revised: 20 July 2023 / Accepted: 23 July 2023 / Published: 25 July 2023
(This article belongs to the Special Issue New Advances in Characterization of Cellular Materials—2nd Edition)
Browse Figures
Versions Notes

Abstract

:
The formation of a cellular hierarchically organized NiO film on a carbon paper substrate under hydrothermal conditions using triethanolamine as a base has been studied. The thermal behavior of the carbon paper substrate with the applied semi-product shell was studied using synchronous thermal analysis (TGA/DSC) and it was demonstrated that such modification of the material surface leads to a noticeable increase in its thermal stability. Using scanning electron microscopy (SEM), it was shown that the NiO film grown on the carbon fiber surface is characterized by a complex cellular morphology, organized by partially layered individual nanosheets of about 4–5 nm thickness and lateral dimensions up to 1–2 μm, some edges and folds of which are located vertically relative to the carbon fiber surface. The surface of the obtained material was also examined using atomic force microscopy (AFM), and the electronic work function of the oxide shell surface was evaluated using the Kelvin probe force microscopy (KPFM) method. The electrochemical parameters of the obtained flexible NiO/CP electrode were analyzed: the dependence of the specific capacitance on the current density was determined and the stability of the material during cycling was studied, which showed that the proposed approach is promising for manufacturing hierarchically organized electrodes for flexible supercapacitors.

1. Introduction

Currently, a transition to a low-carbon economy and the development of distributed energy require not only the creation of alternative power generation systems [1,2], but also storage devices [3,4,5]. Among the various currently available energy storage technologies, supercapacitors are especially in demand and ensure the operation of systems requiring high power, charging/discharging rates, and cyclic stability, and they possess long life and a wide operating temperature range (from −40 to 70 °C). In particular, supercapacitors appear very promising in the field of electric transport, memory and uninterruptible power supply systems, in the creation of modern renewable energy production plants both as an independent element and in combination with batteries, and also find wide application in the field of portable electronics [4,6,7,8,9].
It can be seen that the direction of modern microelectronics evolution is increasingly shifting from rigid to flexible printed circuits, functional and structural elements, as well as their miniaturization in order to create flexible and wearable devices [10,11,12]. This calls for innovation and adaptation of existing materials and technologies to develop flexible and stretchable planar supercapacitors while maintaining their mechanical strength and high performance characteristics, which in turn depend on the active electrode material, as well as the supporting substrate. Some of the most popular substrate materials for such devices today are different carbon materials (e.g., carbon fiber, carbon paper, carbon veil), whose advantages include high electrical conductivity, mechanical strength with a large number of bending/folding cycles, environmental friendliness, and high availability of these materials [13,14]. Transition metal oxides (TMO) can be highlighted as the active electrode material of supercapacitors, possessing a pseudocapacitance effect, which leads to higher specific capacitance values compared to electric double-layer capacitors (EDLC) [15,16,17,18]. For example, nickel oxide is one of the most popular electrode materials owing to its high theoretical specific capacitance (3750 F/g), chemical stability, low toxicity, and wide availability [10,19,20]. Nevertheless, there are a several factors that limit the achievement of high capacitance values for transition metal oxides in practice. First of all, it concerns insufficiently high electrical conductivity, leading to increased sheet resistance and charge transfer resistance, which ultimately manifests itself in increased equivalent series resistance (RESR) of the device in general [21]. A promising approach to the above problem is the formation of hybrid supercapacitor electrodes that include both materials with a pseudocapacitive effect (for example, TMO) and carbon materials operating as EDLC materials, which makes it possible to achieve high values of both ionic and electronic conductivity due to the synergistic effect of different natural components [14,22,23].
When creating supercapacitor materials, increased attention is paid to the specific features of their microstructure in order to ensure high dispersity and increased specific surface area, which increases the number active sites capable of participating in electrochemical reactions that occur during the electrode’s operation. In this context, as a rule, the most popular methods for the directed synthesis of materials for alternative energy devices with the desired characteristics are liquid-phase methods, which enable one to vary a large number of synthesis parameters and influence the functional properties of the resulting materials [24,25,26,27,28,29,30,31,32]. Among this group of methods, hydrothermal synthesis is particularly noteworthy; depending on the process conditions (temperature, reactor pressure, synthesis duration, concentration and type of reagents used), it allows the formation of both nanopowders and coatings with different microstructure (particle size and shape, as well as pores), crystallinity degree, and type and degree of crystal structure defects [33,34,35,36,37]. In addition, the hydrothermal method allows the formation of anisotropic (including cellular and hierarchically organized) materials, which, usually, improve the functional characteristics of devices on their basis [38,39,40,41,42].
The hydrothermal synthesis of nickel oxide or nickel hydroxide involves popular bases (or their combinations) such as urea, sodium hydroxide, and ammonia hydrate [43,44,45,46]. Additional use of structure-forming agents (e.g., ammonium or sodium oxalates [47,48,49,50,51]) and surfactants (ethylene glycol, polyethylene glycol [48,49]) is also possible. We have previously investigated the peculiarities of the hydrothermal synthesis of nickel oxide as nanopowder with triethanolamine, which serves not only as a base but also as a complexing and structure-forming agent [52]. Proceeding from the results obtained [52], we selected the hydrothermal synthesis conditions for nickel oxide in the form of a film. The present work is a logical development of the previous one and is aimed at the formation of a flexible electrode based on a cellular hierarchically organized NiO film grown on a carbon paper (CP) substrate; further, it is aimed at studying the microstructure features of the resulting composite and its functional characteristics to evaluate the prospects of the proposed material as an electrode for modern flexible supercapacitors.

2. Materials and Methods

2.1. Hydrothermal Growth of NiO Film

The formation of a nickel oxide film on a carbon paper surface was performed according to the following procedure: At the first stage, a reaction system of 8.5 mL was prepared, which was an aqueous solution of nickel chloride (c = 0.005 mol/L; NiCl2·6H2O, >98%, RUSHIM, Moscow, Russia) and triethanolamine (c = 0.010 mol/L; C6H15NO3, 99%, Chimmed, Moscow, Russia). The obtained system was then transferred into a 25 mL stainless steel autoclave with a Teflon liner in which a cleaned carbon paper substrate (overall dimensions: 20 × 7 × 0.1 mm) was placed beforehand. Then, the system was heat-treated at 200 °C (heating rate of 1.5 °C/min) for 1 h, resulting in the formation of a semi-product film on the carbon fiber surface. After natural cooling of the autoclave, the substrate with the film was removed, washed with distilled water, dried (50 °C, 2 h), and subjected to additional heat treatment under thermal analysis conditions (300 °C, 2 h; in an air flow) to decompose semi-product and crystallize target nickel oxide.

2.2. Characterization of the Obtained Electrode

The thermal behavior of the film grown by the hydrothermal method on the carbon paper surface, as well as its crystallization, were studied simultaneously under synchronous thermal analysis conditions (SDT Q-600 thermal analyzer, TA Instruments, New Castle, DE, USA) in the temperature interval of 25–300 °C at a rate of 10°/min in an air flow of 250 mL/min, with further exposure at 300 °C for 2 h.
The microstructure features of the obtained film on the CP surface were studied by scanning electron microscopy (SEM; NVision-40, Carl Zeiss, Inc., Oberkochen, Germany) using secondary electron detectors (Everhart-Thornley SE2 detector, Inlens detector) and a backscattered electron detector (ESB) at an accelerating voltage of 1 kV. Elemental analysis and mapping of elements’ distribution over the carbon fiber surface were performed in the framework of SEM using the INCA X-MAX 80 X-ray spectral elemental microanalysis system (Oxford Instruments, Abingdon, United Kingdom) at an accelerating voltage of 20 kV and a focal distance of 5 mm.
The surface of the grown NiO film was also studied using different atomic force microscopy techniques on the Solver PRO-M microscope (NT-MDT, Zelenograd, Russia). Thus, using a tapping mode, the material’s topography was studied. Simultaneously, the surface was examined in the phase contrast mode for topographic image refinement, and surface potential distribution maps were plotted using Kelvin probe force microscopy. Using these maps, the electronic work function values of the material surface were calculated. ETALON series probes with W2C-conductive coating (ScanSens, Bremen, Germany) having a tip radius <35 nm were used for all AFM measurements.
Electrochemical properties of the obtained sample were studied using a P-40X potentiostat–galvanostat equipped with an FRA-24M electrochemical impedance measurement module (Electrochemical Instruments, Chernogolovka, Russia) within the three-electrode scheme. Carbon paper with a cellular nickel oxide film grown on its surface was the working electrode in this case, while the Ag/AgCl electrode and graphite rod were used as reference and counter electrodes, respectively. The material was characterized by cyclic voltammetry (CVA), galvanostatic charge–discharge (GCD), and electrochemical impedance spectroscopy (EIS). An aqueous KOH solution (c = 3 mol/L) was used as the electrolyte.

3. Results and Discussion

The initial carbon paper, after growing a semi-product film on its surface, was studied further by means of synchronous thermal analysis (Figure 1). This method was necessary to control the crystallization process of the NiO film on the carbon fiber surface, as well as to determine the mass fraction of active material in the resulting electrode. As can be seen from the TGA curves (Figure 1a) when heating the samples in the first stage, there is a linear weight loss—up to 200 °C for the initial carbon paper and up to 210 °C for the composite material. At the same time, for the initial CP at this stage, Δm has a value two times higher (0.30%) than in the case of the sample with modified surface (0.15%). Such differences in the material’s behavior may be related to the transformation of the material microstructural characteristics during hydrothermal treatment, which probably resulted in the removal of weakly bound sorbed molecules of atmospheric gases from the substrate surface. At the same time, modification of the CP surface with a semi-product shell followed by drying of the material prevented active sorption of atmospheric gases before the thermal analysis.
Further heating of both samples shows an intensification of the mass loss, which may be due to the oxidation and removal of the binder used in CP fabrication. As can be seen from the corresponding DSC curves (Figure 1b), for both samples, this process is accompanied by an exothermic effect. At the same time, the application of the semi-product shell to the CP surface also resulted in a shift of the exo-effect maximum, referring to the highest rate of the process at the corresponding temperature, by 10°, from 288 to 298 °C. The shift of the initiation and the active phase of this process (by 10°) for the modified CP to the region of higher temperatures may be related to the fact that the formed semi-product shell performs a protective function, slowing down the removal of the polymer binder from the carbon fiber surface. From the TGA curves, it can also be seen that the second stage of weight loss for the initial carbon paper is generally completed in 60 min from the start of heating (in 30 min from the beginning of exposure at 300 °C). For the modified sample, mass stabilization is observed after 90 min (60 min after the exposure at 300 °C begins). Furthermore, the shell application on the carbon fiber surface leads to an increase in the final Δm value (11.4%) during thermal analysis in comparison with the initial carbon paper (10.6%). Considering the differences in the magnitude of the total mass loss and the duration of the material’s mass stabilization during heat treatment, it can be assumed that in the case of the modified sample, the intermediate decomposition, accompanied by the water molecule release, makes a significant contribution to this process.
As we have shown previously [52], at the synthesis stage, under appropriate conditions (reaction system composition, reagent concentrations, and heat treatment conditions), β-Ni(OH)2 is formed as a semi-product containing a small amount of Ni2(CO3)(OH)2 as an impurity. Based on the difference between the mass loss values for the initial and modified carbon paper (about 0.8%), the mass of the NiO shell material formed as a result of heat treatment was estimated. Thus, due to the fact that the value of Δm = 0.8% corresponds to the mass of water molecules formed and evaporated during the decomposition of the semi-product at the level of 0.03 mg, the mass of the β-Ni(OH)2 film in this case is about 0.16 mg, and the mass of the formed nickel oxide film has a value of about 0.13 mg (given the final sample mass of about 3.54 mg, the mass fraction of the NiO shell was about 3.6%). Thus, by means of synchronous thermal analysis, the behavior of the initial and modified carbon paper was studied and the weight of the NiO film formed on the CP surface was estimated.
The microstructural features of the obtained NiO/CP composite electrode were examined by scanning electron microscopy (Figure 2). As can be seen from the micrographs (Figure 2a–c), the sample consists of chaotically distributed carbon fibers with a thickness of about 7 μm. At the same time, the main surface of the fibers is covered by the hydrothermally grown oxide shell. When the surface of a single fiber is studied with the SE2 secondary electron detector, it can be observed (Figure 2d) that the NiO film is characterized by a complex morphology, and the image (Figure 2e) obtained with the ESB backscattered electron detector clearly demonstrates the distribution by mean atomic number, where the shell material with a higher molar mass value is significantly different from the carbon fiber underneath it. The results of a more detailed analysis of the oxide shell’s morphology (Figure 2f–i) indicate that the formed film has a developed cellular microstructure which, due to the large number of active sites capable of participating in electrochemical reactions, is more preferable to ensure high efficiency of supercapacitor electrodes. It can be seen that the NiO film is organized from partially overlapping individual nanosheets with a thickness of about 4–5 nm and lateral dimensions up to 1–2 μm. The mutual arrangement of the individual nanosheets, some edges and folds of which are vertical to the surface of the carbon fiber, can be clearly seen when studying the material surface with an InLens secondary electron detector (Figure 2i). The results show that the main surface of the oxide film consists of several mutually overlapping NiO nanosheets.
The microstructure of the contact area between the NiO nanosheets and the carbon fiber surface was analyzed in more detail by scanning electron microscopy using different detectors (Figure 3a–c). As can be seen from the micrographs (Figure 3a) obtained with an Everhart–Thornley secondary electron detector (SE2) and well reflecting the material topography, some individual oxide nanosheets directly adhere to the carbon fiber surface, completely repeating its ribbed topography. At the same time, despite a rather low accelerating voltage (1 kV), these nanosheets appear translucent for the electron beam, which further confirms their thin-film nature.
The nickel oxide nanosheets’ structure can be observed more clearly as a result of the secondary electron detector (InLens), which allows us to form an image of the scanned surface with higher resolution (Figure 3b). In particular, individual nanosheets of small size in the lateral plane (about 200–300 nm in diameter), which consist of smaller planar particles (about 20–50 nm in diameter) and are probably the crystallization centers, which are formed at the initial stage of nanosheet enlargement, can be observed on some areas of the carbon fiber surface. The phase contrast mode image of the investigated area (Figure 3c) acquired with the backscattered electron detector (ESB) further confirms that the observed cellular and hierarchically organized nanosheet-based structures are related to nickel oxide and are on the surface of a carbon substrate characterized by a significantly lower molar mass value. Also, the image of the surface in the mode of average atomic number distribution according to the gray shade intensity enables us to distinguish areas within the oxide shell, which differ in thickness.
Simultaneously, with the study of the microstructural features of the obtained NiO/CP composite electrode, maps of carbon (Figure 3e) and nickel (Figure 3f) distribution over the surface of the studied material (Figure 3d) were also plotted with the use of energy-dispersive X-ray microanalysis. As can be seen from the corresponding micrograph, even though the formed oxide film consists of very thin nanosheets, it nevertheless shows up quite well using an in-lens secondary electron detector, even at a high electron beam accelerating voltage (20 kV). When examining the obtained element distribution maps, it can be seen that due to the thin-film nature of the oxide film and the sufficiently deep penetration of the electron beam, carbon is observed as the main chemical element on the surface of the fibers. At the same time, on the surface of carbon fibers, to a much lesser extent but evenly distributed, is nickel, which belongs to the NiO shell. The results of elemental analysis of the surface of individual fibers in this case allowed us to establish the following content of its constituent elements (at. %): C (96.6), O (3.3), Ni (0.1). Taking into account the fact that carbon and oxygen are light elements, the concentration of which this method allows us to determine with a sufficiently large error, the results obtained cannot be considered quantitative, but they confirm the presence of nickel oxide on the carbon fiber surface, as well as the thin-film structure of the hierarchically organized NiO shell formed in hydrothermal conditions.
The AFM data on the study of a single carbon fiber surface coated with NiO film (Figure 4) are in good agreement with the SEM data. Thus, the topographic image (Figure 4a) shows complex-shaped NiO nanosheets, the edges and folds of which are oriented vertically (rising by 100–150 nm) relative to the carbon fiber surface. The resultant root mean square surface roughness of the coating was 43 nm. Furthermore, it can be seen that the oxide nanosheets tightly adhere to the carbon fiber surface and repeat its ribbed relief, which indicates their thin-film structure and high adhesion. The phase contrast image demonstrates (Figure 4b) that the probe was in the oscillation phase <90° almost all the time while scanning the studied area, which clearly indicates the absence of artifacts in the obtained topographic scan. Thus, with the help of AFM, the material’s morphology was examined sufficiently reliably and, for its additional visualization, a 3D image of the surface is given (Figure 4d).
The surface potential distribution map (Figure 4c) plotted in the course of KPFM measurements indicates that this parameter is distributed relatively uniformly over the studied area of the modified carbon fiber surface: the dispersion in values over an area of 25 μm2 reaches only ~45 mV, and the surface topography has little effect on potential distribution, although the maximum height difference in the topographic scan reaches 400 nm. The results indicate a high conductivity of the material, i.e., the nickel oxide film does not act as a significant barrier to charge transfer over the surface of the formed NiO/CP composite electrode. The work function value of the material surface calculated using the surface potential distribution map was 4.73 eV, which is slightly lower than the traditional values of this parameter for carbon fibers (4.95 eV) [53] or carbon nanoparticles (4.90–5.05 eV) [54,55], but very close to the work function values for nickel oxide obtained using the hydrothermal synthesis techniques that we use: 4.75 eV [56] and 4.70 eV [57]. In this connection, the results obtained by the AFM method demonstrate that a sufficiently homogeneous cellular film of nickel oxide was formed on almost the entire carbon fiber surface in hydrothermal conditions which, in some areas, tightly adheres to the carbon fiber surface and completely follows its topography.
Further, the electrochemical characteristics of the obtained NiO/CP electrode were investigated in a three-electrode scheme. As a comparison, Figure 5a,b shows cyclic voltammetry curves of the initial substrate, as well as the substrate with the grown film, registered at different scanning rates in 3M KOH medium. It can be seen that in the case of a clean substrate, the voltammetry patterns typical for non-activated carbon materials were obtained without any redox peaks [58]. At the same time, the response currents over the entire investigated potential range from −0.1 to 0.7 V are approximately an order of magnitude lower compared to the NiO/CP electrode, which indicates a negligibly small contribution of the substrate to the total electrode capacitance. Application of the active NiO layer (Figure 5b) to the carbon paper surface leads to a change in the CVA curve shape and the occurrence of two redox peaks, indicating the reversible transition between Ni2+ and Ni3+ taking place during Faraday reactions in the electrolyte medium, as well as the pseudocapacitance contribution to the total capacitance [59]:
NiO + OH− ↔ NiOOH + e−
The redox processes taking place are caused mainly by the incorporation of OH groups from the electrolyte into the nickel oxide nanostructure during anodic and cathodic reactions, which further indicates the advantages of the porous or cellular microstructures of the active nickel oxide material in terms of increasing the amount of energy stored. It should also be noted that besides the change in the shape of the electrode CVA curve compared to similar curves for the substrate, there is also a significant increase in the area under the curves, which further points to an enhancement of the total electrode capacitance and a considerable contribution of the active layer [60].
In order to provide more detailed analysis of the formed NiO/CP electrode’s electrochemical behavior, galvanostatic charge–discharge tests were performed in the potential range of 0–0.5 V at current densities of 0.5–20 A/g. The specific capacitance (Cg) values of the electrode material under study were calculated on the basis of the discharge curves data according to the equation [20]:
Cg = (I × Δt)/(m × ΔV),
where I is the direct current value (A), Δt is the discharge time (s), and m is the mass of the active electrode material (g); ΔV is the potential window during the discharge.
The obtained curves (Figure 5c) are characterized by a non-linear change in the voltage magnitude over time during the charge–discharge process, which confirms the occurrence of Faraday processes when cycling the material. As the current density increases, the discharge time decreases; however, the curves’ shape is preserved without significant changes, indicating a high stability of the electrode material. The specific capacitance value of the NiO/CP electrode decreases from 207 to 160 F/g with increasing current density from 0.5 to 20 A/g (Figure 5d). The observed trend is characteristic of the electrode materials and is due to the diffuse limitations of the electrolyte ions’ access to the active sites in the material at high current densities [60]. The cycling life test during a process of 2000 charge/discharge cycles showed that the specific capacitance remains at 95% at a current density of 5 A/g (Figure 5e), which may be related to the features of the NiO film hierarchical structure.
Further, the obtained NiO/CP electrode was investigated by electrochemical impedance spectroscopy in the frequency range of 100 kHz–0.1 Hz. It can be seen (Figure 5f) that the resulting impedance spectrum consists of a semicircle and a linear part. The intersection point of the EIS curve with the real axis in the high-frequency range represents series resistance Rs (1.62 Ohm) and corresponds to the sum of the electrolyte resistance and the contact resistance occurring between the active material and the carbon paper substrate. The diameter of the semicircle observed in the hodograph in the middle-frequency range corresponds to the ion/electron charge transfer resistance Rct (12.30 Ohm). Since the active material under study shows relatively low values of Rs (1.62 Ohm) and Rct (12.30 Ohm), it can be assumed that in this case there is rather active ion transport at the electrode–electrolyte boundary, which can have a positive effect on the rate performance of the electrode. The linear component of the EIS spectrum can be described by the Warburg impedance (W0) corresponding to the diffusion of electrolyte ions to the active sites of the electrode material.
Thus, the capacitance values of the cellular NiO film grown on the carbon paper surface using the hydrothermal method generally correspond to the values for the electrode materials of nickel oxide-based supercapacitors [20,61,62,63]. An additional increase in the capacitance value could probably be achieved by increasing the concentration of the used reagents in the reaction system composition in order to form a thicker oxide film on the carbon fiber surface. It should be noted that this work demonstrates a promising one-pot hydrothermal synthesis of NiO as a thin hierarchically organized film on the surface of a flexible carbon paper substrate. The resulting material demonstrated high cycling stability (95% capacitance retention during 2000 cycles at 5 A/g), as well as specific capacitance values (207 F/g at 0.5 A/g), allowing us to consider it as a promising component of environmentally friendly flexible μ-supercapacitors.

4. Conclusions

This study investigated the formation of a cellular hierarchically organized NiO film on a carbon paper substrate under hydrothermal conditions as a flexible composite NiO/CP supercapacitor electrode. Using TGA/DSC analysis, the thermal behavior of the carbon paper substrate with the semi-product coating was studied and it was shown that such modification of the material surface leads to a noticeable increase in its thermal stability. Using SEM, it was shown that the NiO film grown on the carbon fiber surface under hydrothermal conditions is characterized by a complex cellular morphology, made of partially overlapping individual nanosheets of about 4–5 nm thickness and lateral dimensions up to 1–2 μm, some edges and folds of which are located vertically relative to the surface of the carbon fiber. When studying the contact area between the NiO nanosheets and the carbon fiber surface, it was found that some individual oxide nanosheets directly adhere to its surface, completely repeating its ribbed topography. It was shown that some parts of the carbon fiber surface contain individual nanosheets of small size in the lateral plane (about 200–300 nm in diameter), which consist of smaller flat particles (about 20–50 nm in diameter) and are probably the centers of crystallization, being formed at the initial stage of nanosheet enlargement. The obtained results of energy-dispersive X-ray microanalysis confirm the presence of nickel oxide on the carbon fiber surface, as well as the thin film structure of the hierarchically organized NiO shell formed in hydrothermal conditions. The results of AFM are in good agreement with the SEM data and confirm the cellular structure of the oxide film, as well as the presence of thin oxide nanosheets on the carbon fiber surface tightly adhering to them and repeating their topography. The electronic work function of the oxide film surface was estimated by KPFM with a value of 4.73 eV. The electrochemical characteristics of the prepared flexible NiO/CP electrode were investigated in the framework of the three-electrode scheme. As a result, the obtained material showed high cycling stability (95% capacitance retention during 2000 cycles at 5 A/g) and values of specific capacitance (207 F/g at 0.5 A/g), allowing us to consider it as a promising component of environmentally friendly flexible μ-supercapacitors.

Author Contributions

Conceptualization, T.L.S. and N.P.S.; investigation, T.L.S., P.Y.G. and N.P.S.; writing—original draft preparation, T.L.S., P.Y.G., N.P.S., E.P.S. and N.T.K.; writing—review and editing, T.L.S. and N.P.S.; visualization, T.L.S., P.Y.G. and N.P.S.; supervision, N.P.S., E.P.S. and N.T.K.; funding acquisition, T.L.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Council for Grants of the President of the Russian Federation for the state support of young Russian scientists (grant MK-1749.2022.1.3). XRD and SEM studies were carried out using shared experimental facilities supported by the Ministry of Science and Higher Education of the Russian Federation as part of the IGIC RAS state assignment.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nadeem, T.B.; Siddiqui, M.; Khalid, M.; Asif, M. Distributed Energy Systems: A Review of Classification, Technologies, Applications, and Policies. Energy Strategy Rev. 2023, 48, 101096. [Google Scholar] [CrossRef]
  2. Owaku, T.; Yamamoto, H.; Akisawa, A. Optimal SOFC-CHP Installation Planning and Operation Model Considering Geographic Characteristics of Energy Supply Infrastructure. Energies 2023, 16, 2236. [Google Scholar] [CrossRef]
  3. McIlwaine, N.; Foley, A.M.; Best, R.; Morrow, D.J.; Kez, D. Al Modelling the Effect of Distributed Battery Energy Storage in an Isolated Power System. Energy 2023, 263, 125789. [Google Scholar] [CrossRef]
  4. Yadlapalli, R.T.; Alla, R.R.; Kandipati, R.; Kotapati, A. Super Capacitors for Energy Storage: Progress, Applications and Challenges. J. Energy Storage 2022, 49, 104194. [Google Scholar] [CrossRef]
  5. Benoy, S.M.; Pandey, M.; Bhattacharjya, D.; Saikia, B.K. Recent Trends in Supercapacitor-Battery Hybrid Energy Storage Devices Based on Carbon Materials. J. Energy Storage 2022, 52, 104938. [Google Scholar] [CrossRef]
  6. Subasinghage, K.; Gunawardane, K.; Padmawansa, N.; Kularatna, N.; Moradian, M. Modern Supercapacitors Technologies and Their Applicability in Mature Electrical Engineering Applications. Energies 2022, 15, 7752. [Google Scholar] [CrossRef]
  7. Devi, S.B.; Vignesh, V.; Kumar, P.V.; Oh, M.S.; Navamathavan, R. Transport Supercapacitors. In Smart Supercapacitors; Elsevier: Amsterdam, The Netherlands, 2023; pp. 503–534. [Google Scholar]
  8. Rahman, A.; Myo Aung, K.; Ihsan, S.; Raja Ahsan Shah, R.M.; Al Qubeissi, M.; Aljarrah, M.T. Solar Energy Dependent Supercapacitor System with ANFIS Controller for Auxiliary Load of Electric Vehicles. Energies 2023, 16, 2690. [Google Scholar] [CrossRef]
  9. Nguyen, D.C.T.; Shin, J.; Kim, S.-K.; Lee, S.-H. Solar-Powered Supercapacitors Integrated with a Shared Electrode. ACS Appl. Energy Mater. 2021, 4, 14014–14021. [Google Scholar] [CrossRef]
  10. Yang, Y.; Zhu, T.; Shen, L.; Liu, Y.; Zhang, D.; Zheng, B.; Gong, K.; Zheng, J.; Gong, X. Recent Progress in the All-solid-state Flexible Supercapacitors. SmartMat 2022, 3, 349–383. [Google Scholar] [CrossRef]
  11. Wang, W.; Cao, J.; Yu, J.; Tian, F.; Luo, X.; Hao, Y.; Huang, J.; Wang, F.; Zhou, W.; Xu, J.; et al. Flexible Supercapacitors Based on Stretchable Conducting Polymer Electrodes. Polymers 2023, 15, 1856. [Google Scholar] [CrossRef]
  12. Chen, L.; Wang, J.; Yang, Z.; Zhang, J.; Hou, S.; Hao, C.; Zhang, J. Recent Advances in Flexible Supercapacitors. J. Solid State Electrochem. 2022, 26, 2627–2658. [Google Scholar] [CrossRef]
  13. Mousavi, S.M.; Hashemi, S.A.; Parvin, N.; Lai, C.W.; Bahrani, S.; Chiang, W.; Mazraedoost, S. Carbon Substrates for Flexible Supercapacitors and Energy Storage Applications. In Flexible Supercapacitor Nanoarchitectonics; Wiley: Hoboken, NJ, USA, 2021; pp. 95–141. [Google Scholar]
  14. Mishra, A.; Shetti, N.P.; Basu, S.; Raghava Reddy, K.; Aminabhavi, T.M. Carbon Cloth-based Hybrid Materials as Flexible Electrochemical Supercapacitors. ChemElectroChem 2019, 6, 5771–5786. [Google Scholar] [CrossRef]
  15. Delbari, S.A.; Ghadimi, L.S.; Hadi, R.; Farhoudian, S.; Nedaei, M.; Babapoor, A.; Sabahi Namini, A.; Van Le, Q.; Shokouhimehr, M.; Shahedi Asl, M.; et al. Transition Metal Oxide-Based Electrode Materials for Flexible Supercapacitors: A Review. J. Alloys Compd. 2021, 857, 158281. [Google Scholar] [CrossRef]
  16. Guan, M.; Wang, Q.; Zhang, X.; Bao, J.; Gong, X.; Liu, Y. Two-Dimensional Transition Metal Oxide and Hydroxide-Based Hierarchical Architectures for Advanced Supercapacitor Materials. Front. Chem. 2020, 8, 390. [Google Scholar] [CrossRef] [PubMed]
  17. Kumar, R.; Sahoo, S.; Tan, W.K.; Kawamura, G.; Matsuda, A.; Kar, K.K. Microwave-Assisted Thin Reduced Graphene Oxide-Cobalt Oxide Nanoparticles as Hybrids for Electrode Materials in Supercapacitor. J. Energy Storage 2021, 40, 102724. [Google Scholar] [CrossRef]
  18. Akkinepally, B.; Neelakanta Reddy, I.; Lee, C.; Jo Ko, T.; Srinivasa Rao, P.; Shim, J. Promising Electrode Material of Fe3O4 Nanoparticles Decorated on V2O5 Nanobelts for High-Performance Symmetric Supercapacitors. Ceram. Int. 2023, 49, 6280–6288. [Google Scholar] [CrossRef]
  19. Ramkumar, R.; Dhakal, G.; Shim, J.-J.; Kim, W.K. NiO/Ni Nanowafer Aerogel Electrodes for High Performance Supercapacitors. Nanomaterials 2022, 12, 3813. [Google Scholar] [CrossRef]
  20. Dhas, S.D.; Maldar, P.S.; Patil, M.D.; Nagare, A.B.; Waikar, M.R.; Sonkawade, R.G.; Moholkar, A.V. Synthesis of NiO Nanoparticles for Supercapacitor Application as an Efficient Electrode Material. Vacuum 2020, 181, 109646. [Google Scholar] [CrossRef]
  21. Zhang, X.; Jiang, C.; Liang, J.; Wu, W. Electrode Materials and Device Architecture Strategies for Flexible Supercapacitors in Wearable Energy Storage. J. Mater. Chem. A 2021, 9, 8099–8128. [Google Scholar] [CrossRef]
  22. Mohd Abdah, M.A.A.; Azman, N.H.N.; Kulandaivalu, S.; Sulaiman, Y. Review of the Use of Transition-Metal-Oxide and Conducting Polymer-Based Fibres for High-Performance Supercapacitors. Mater. Des. 2020, 186, 108199. [Google Scholar] [CrossRef]
  23. Fan, Z.; Huang, X.; Tan, C.; Zhang, H. Thin Metal Nanostructures: Synthesis, Properties and Applications. Chem. Sci. 2015, 6, 95–111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Lokhande, P.E.; Chavan, U.S.; Pandey, A. Materials and Fabrication Methods for Electrochemical Supercapacitors: Overview. Electrochem. Energy Rev. 2020, 3, 155–186. [Google Scholar] [CrossRef]
  25. Kalinina, M.V.; Morozova, L.V.; Egorova, T.L.; Arsent’ev, M.Y.; Drozdova, I.A.; Shilova, O.A. Synthesis and Physicochemical Properties of a Solid Oxide Nanocomposite Based on a ZrO2–Y2O3–Gd2O3–MgO System. Glas. Phys. Chem. 2016, 42, 505–511. [Google Scholar] [CrossRef]
  26. Egorova, T.L.; Kalinina, M.V.; Simonenko, E.P.; Simonenko, N.P.; Kopitsa, G.P.; Glumov, O.V.; Mel’nikova, N.A.; Murin, I.V.; Almásy, L.; Shilova, O.A. Study of the Effect of Methods for Liquid-Phase Synthesis of Nanopowders on the Structure and Physicochemical Properties of Ceramics in the CeO2–Y2O3 System. Russ. J. Inorg. Chem. 2017, 62, 1275–1285. [Google Scholar] [CrossRef]
  27. Egorova, T.L.; Kalinina, M.V.; Simonenko, E.P.; Simonenko, N.P.; Shilova, O.A.; Sevastyanov, V.G.; Kuznetsov, N.T. Liquid-Phase Synthesis and Physicochemical Properties of Xerogels, Nanopowders and Thin Films of the CeO2–Y2O3 System. Russ. J. Inorg. Chem. 2016, 61, 1061–1069. [Google Scholar] [CrossRef]
  28. Simonenko, T.L.; Kalinina, M.V.; Simonenko, N.P.; Simonenko, E.P.; Khamova, T.V.; Shilova, O.A. Synthesis and Physicochemical Properties of Nanopowders and Ceramics in a CeO2–Gd2O3 System. Glas. Phys. Chem. 2018, 44, 314–321. [Google Scholar] [CrossRef]
  29. Simonenko, T.L.; Simonenko, N.P.; Simonenko, E.P.; Sevast’yanov, V.G.; Kuznetsov, N.T. Synthesis of One-Dimensional Nanostructures of CeO2–10% Y2O3 Oxide by Programmed Coprecipitation in the Presence of Polyvinyl Alcohol. Russ. J. Inorg. Chem. 2019, 64, 1475–1481. [Google Scholar] [CrossRef]
  30. Hadi, N.H.; Somalu, M.R.; Samat, A.A.; Muchtar, A.; Baharuddin, N.A.; Anwar, M. A Review on the Preparation of Anode Materials and Anode Films for Solid Oxide Fuel Cell Applications. Int. J. Energy Res. 2021, 45, 14357–14388. [Google Scholar] [CrossRef]
  31. Rangasamy, V.S.; Vanhulsel, A. Synthesis and Processing of Battery Materials: Giving It the Plasma Touch. Batter. Supercaps 2021, 4, 692–716. [Google Scholar] [CrossRef]
  32. Calimli, M.H.; Karahan, T.G.; Khan, A.; Sen, F. General Synthesis Methods of Inorganic Materials for Supercapacitors. In Handbook of Supercapacitor Materials; Wiley: Hoboken, NJ, USA, 2021; pp. 187–203. [Google Scholar]
  33. Ullah, E.; Ullah Shah, M.Z.; Ahmad, S.A.; Sajjad, M.; Khan, S.; Alzahrani, F.M.; Yahya, A.E.M.; Eldin, S.M.; Akkinepally, B.; Shah, A.; et al. Hydrothermal Assisted Synthesis of Hierarchical SnO2 Micro Flowers with CdO Nanoparticles Based Membrane for Energy Storage Applications. Chemosphere 2023, 321, 138004. [Google Scholar] [CrossRef]
  34. Nandagudi, A.; Nagarajarao, S.H.; Santosh, M.S.; Basavaraja, B.M.; Malode, S.J.; Mascarenhas, R.J.; Shetti, N.P. Hydrothermal Synthesis of Transition Metal Oxides, Transition Metal Oxide/Carbonaceous Material Nanocomposites for Supercapacitor Applications. Mater. Today Sustain. 2022, 19, 100214. [Google Scholar] [CrossRef]
  35. Yadav, S.; Sharma, A. Importance and Challenges of Hydrothermal Technique for Synthesis of Transition Metal Oxides and Composites as Supercapacitor Electrode Materials. J. Energy Storage 2021, 44, 103295. [Google Scholar] [CrossRef]
  36. Liang, R.; Du, Y.; Xiao, P.; Cheng, J.; Yuan, S.; Chen, Y.; Yuan, J.; Chen, J. Transition Metal Oxide Electrode Materials for Supercapacitors: A Review of Recent Developments. Nanomaterials 2021, 11, 1248. [Google Scholar] [CrossRef] [PubMed]
  37. Forouzandeh, P.; Kumaravel, V.; Pillai, S.C. Electrode Materials for Supercapacitors: A Review of Recent Advances. Catalysts 2020, 10, 969. [Google Scholar] [CrossRef]
  38. Ramachandran, T.; Hamed, F.; Raji, R.K.; Majhi, S.M.; Barik, D.; Kumar, Y.A.; Jauhar, R.M.; Pachamuthu, M.P.; Vijayalakshmi, L.; Ansar, S. Enhancing Asymmetric Supercapacitor Performance with NiCo2O4–NiO Hybrid Electrode Fabrication. J. Phys. Chem. Solids 2023, 180, 111467. [Google Scholar] [CrossRef]
  39. Upadhyay, S.; Kumar, N.; Tanwar, N.; Priya, R.; Chetana, S.; Joshi, N.C.; Hossain, I.; Pandey, O.P. Hydrothermal Synthesis of Nickel Oxide Nanoflowers as a Blend of 1D and 2D Morphologies for Its Improved OER Activity and Supercapacitance. J. Mater. Sci. Mater. Electron. 2023, 34, 1253. [Google Scholar] [CrossRef]
  40. Yang, F.; Zhang, K.; Li, W.; Xu, K. Structure-Designed Synthesis of Hierarchical NiCo2O4@NiO Composites for High-Performance Supercapacitors. J. Colloid Interface Sci. 2019, 556, 386–391. [Google Scholar] [CrossRef]
  41. Li, Z.; Liu, Q.; Sun, L.; Li, N.; Wang, X.; Wang, Q.; Zhang, D.; Wang, B. Hydrothermal Synthesis of 3D Hierarchical Ordered Porous Carbon from Yam Biowastes for Enhanced Supercapacitor Performance. Chem. Eng. Sci. 2022, 252, 117514. [Google Scholar] [CrossRef]
  42. Ali, A.; Ammar, M.; Mukhtar, A.; Ahmed, T.; Ali, M.; Waqas, M.; Amin, M.N.; Rasheed, A. 3D NiO Nanowires@NiO Nanosheets Core-Shell Structures Grown on Nickel Foam for High Performance Supercapacitor Electrode. J. Electroanal. Chem. 2020, 857, 113710. [Google Scholar] [CrossRef]
  43. Fan, J.; Lu, J.; Sha, Z.; Zuo, W.; Fei, X.; Zhu, M. Conformally Anchoring Nanocatalyst onto Quartz Fibers Enables Versatile Microreactor Platforms for Continuous-Flow Catalysis. Sci. China Chem. 2021, 64, 1596–1604. [Google Scholar] [CrossRef]
  44. Zhang, Y.; Zhao, J.; Kang, X.; Chen, G.; Li, Y. Synthesis the Flower-like N-C/NiO Nanocomposites by One-Pot Hydrothermal Method as Efficient Electrocatalyst for Methanol Oxidation in Alkaline Electrolyte. Colloids Surf. A Physicochem. Eng. Asp. 2021, 629, 127466. [Google Scholar] [CrossRef]
  45. Wan, X.; Yuan, M.; Tie, S.; Lan, S. Effects of Catalyst Characters on the Photocatalytic Activity and Process of NiO Nanoparticles in the Degradation of Methylene Blue. Appl. Surf. Sci. 2013, 277, 40–46. [Google Scholar] [CrossRef]
  46. Madhura, T.R.; Kumar, G.G.; Ramaraj, R. Reduced Graphene Oxide Supported 2D-NiO Nanosheets Modified Electrode for Urea Detection. J. Solid State Electrochem. 2020, 24, 3073–3081. [Google Scholar] [CrossRef]
  47. Zhou, L.; Zeng, W.; Li, Y. A Facile One-Step Hydrothermal Synthesis of a Novel NiO/ZnO Nanorod Composite and Its Enhanced Ethanol Sensing Property. Mater. Lett. 2019, 254, 92–95. [Google Scholar] [CrossRef]
  48. Liu, B.; Yang, H.; Zhao, H.; An, L.; Zhang, L.; Shi, R.; Wang, L.; Bao, L.; Chen, Y. Synthesis and Enhanced Gas-Sensing Properties of Ultralong NiO Nanowires Assembled with NiO Nanocrystals. Sens. Actuators B Chem. 2011, 156, 251–262. [Google Scholar] [CrossRef]
  49. Miao, B.; Zeng, W.; Lin, L.; Xu, S. Characterization and Gas-Sensing Properties of NiO Nanowires Prepared through Hydrothermal Method. Phys. E Low-Dimens. Syst. Nanostructures 2013, 52, 40–45. [Google Scholar] [CrossRef]
  50. Yu, Y.; Xia, Y.; Zeng, W.; Liu, R. Synthesis of Multiple Networked NiO Nanostructures for Enhanced Gas Sensing Performance. Mater. Lett. 2017, 206, 80–83. [Google Scholar] [CrossRef]
  51. Chung, Y.; Park, H.; Lee, E.; Kim, S.-H.; Kim, D.-J. Communication—Gas Sensing Behaviors of Electrophoretically Deposited Nickel Oxide Films from Morphologically Tailored Particles. J. Electrochem. Soc. 2016, 163, B624–B626. [Google Scholar] [CrossRef]
  52. Dudorova, D.A.; Simonenko, T.L.; Simonenko, N.P.; Gorobtsov, P.Y.; Volkov, I.A.; Simonenko, E.P.; Kuznetsov, N.T. Hydrothermal Synthesis of Nickel Oxide and Its Application in the Additive Manufacturing of Planar Nanostructures. Molecules 2023, 28, 2515. [Google Scholar] [CrossRef]
  53. Cai, X.; Hou, S.; Wu, H.; Lv, Z.; Fu, Y.; Wang, D.; Zhang, C.; Kafafy, H.; Chu, Z.; Zou, D. All-Carbon Electrode-Based Fiber-Shaped Dye-Sensitized Solar Cells. Phys. Chem. Chem. Phys. 2012, 14, 125–130. [Google Scholar] [CrossRef]
  54. Spadafora, E.J.; Saint-Aubin, K.; Celle, C.; Demadrille, R.; Grévin, B.; Simonato, J.-P. Work Function Tuning for Flexible Transparent Electrodes Based on Functionalized Metallic Single Walled Carbon Nanotubes. Carbon N. Y. 2012, 50, 3459–3464. [Google Scholar] [CrossRef]
  55. Shiraishi, M.; Ata, M. Work Function of Carbon Nanotubes. Carbon N. Y. 2001, 39, 1913–1917. [Google Scholar] [CrossRef]
  56. Simonenko, T.L.; Simonenko, N.P.; Gorobtsov, P.Y.; Dudorova, D.A.; Simonenko, E.P.; Sevastyanov, V.G.; Kuznetsov, N.T. Triethanolamine-Assisted Hydrothermal Synthesis of Hierarchically Organized Nickel Oxide Particles. Russ. J. Inorg. Chem. 2022, 67, 622–627. [Google Scholar] [CrossRef]
  57. Simonenko, T.L.; Simonenko, N.P.; Gorobtsov, P.Y.; Grafov, O.Y.; Simonenko, E.P.; Kuznetsov, N.T. Synthesis of ((CeO2)0.8(Sm2O3)0.2)@NiO Core-Shell Type Nanostructures and Microextrusion Printing of a Composite Anode Based on Them. Materials 2022, 15, 8918. [Google Scholar] [CrossRef]
  58. Waseem, S.; Dubey, P.; Singh, M.; Sundriyal, S.; Maheshwari, P.H. Chemically Oxidized Carbon Paper as a Free-Standing Electrode for Supercapacitor: An Insight into Surface and Diffusion Contribution. ChemistrySelect 2023, 8, e202204377. [Google Scholar] [CrossRef]
  59. Zhang, C.; Qian, L.; Zhang, K.; Yuan, S.; Xiao, J.; Wang, S. Hierarchical Porous Ni/NiO Core–Shells with Superior Conductivity for Electrochemical Pseudo-Capacitors and Glucose Sensors. J. Mater. Chem. A 2015, 3, 10519–10525. [Google Scholar] [CrossRef]
  60. Manibalan, G.; Murugadoss, G.; Kuppusami, P.; Kandhasamy, N.; Rajesh Kumar, M. Synthesis of Heterogeneous NiO Nanoparticles for High-Performance Electrochemical Supercapacitor Application. J. Mater. Sci. Mater. Electron. 2021, 32, 5945–5954. [Google Scholar] [CrossRef]
  61. Xiao, H.; Yao, S.; Liu, H.; Qu, F.; Zhang, X.; Wu, X. NiO Nanosheet Assembles for Supercapacitor Electrode Materials. Prog. Nat. Sci. Mater. Int. 2016, 26, 271–275. [Google Scholar] [CrossRef] [Green Version]
  62. Kolathodi, M.S.; Palei, M.; Natarajan, T.S. Electrospun NiO Nanofibers as Cathode Materials for High Performance Asymmetric Supercapacitors. J. Mater. Chem. A 2015, 3, 7513–7522. [Google Scholar] [CrossRef]
  63. Wang, Y.; Xing, S.; Zhang, E.; Wei, J.; Suo, H.; Zhao, C.; Zhao, X. One-Pot Synthesis of Nickel Oxide–Carbon Composite Microspheres on Nickel Foam for Supercapacitors. J. Mater. Sci. 2012, 47, 2182–2187. [Google Scholar] [CrossRef]
Materials 16 05208 g001 550

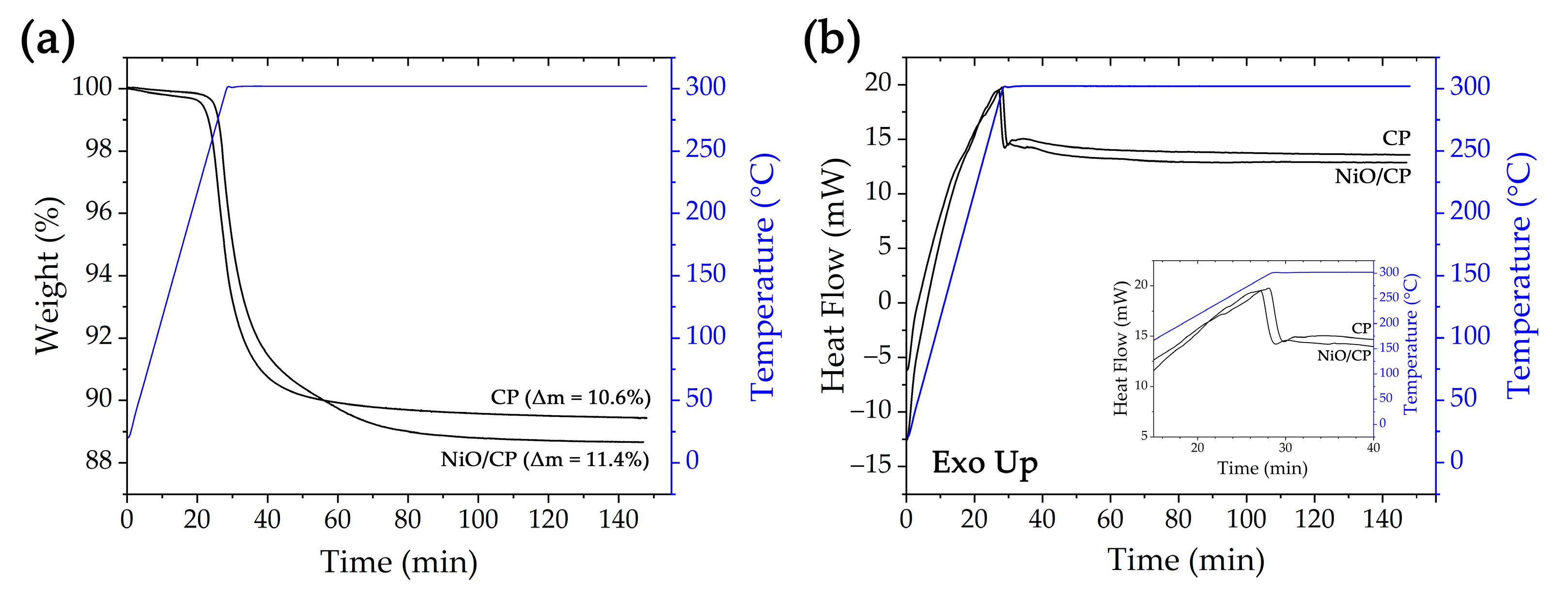

Figure 1. TGA (a) and DSC (b) curves of the initial carbon paper and CP after growing the semiproduct film on its surface. The temperature curve is shown in blue.
Figure 1. TGA (a) and DSC (b) curves of the initial carbon paper and CP after growing the semiproduct film on its surface. The temperature curve is shown in blue.
Materials 16 05208 g001
Materials 16 05208 g002 550

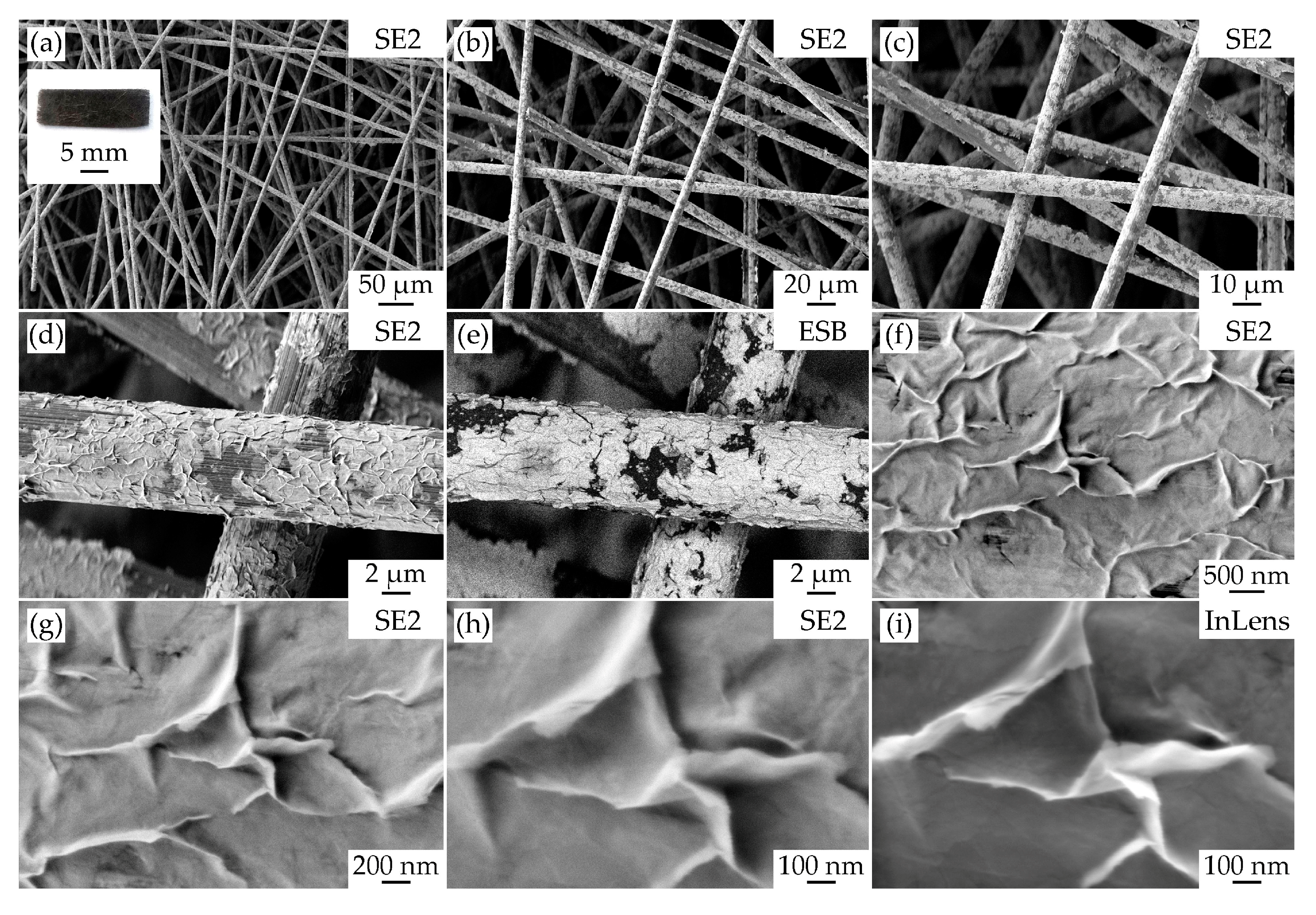

Figure 2. Microstructure of the obtained NiO/CP electrode surface, studied by scanning electron microscopy using different detectors (a–i), as well as the appearance of the sample ((a), inset).
Figure 2. Microstructure of the obtained NiO/CP electrode surface, studied by scanning electron microscopy using different detectors (a–i), as well as the appearance of the sample ((a), inset).
Materials 16 05208 g002
Materials 16 05208 g003 550

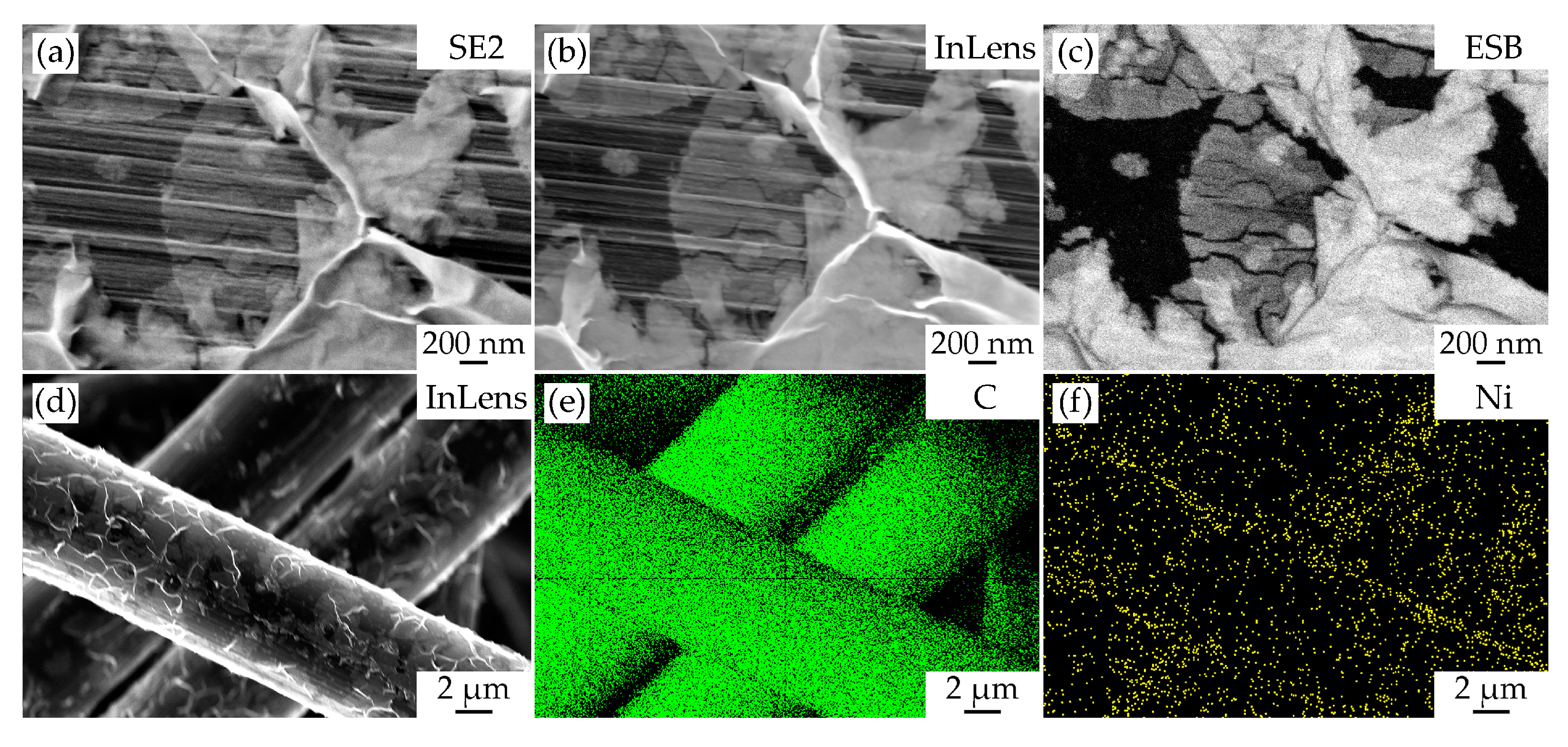

Figure 3. Microstructure of the contact area between the NiO nanosheets and the carbon fiber surface observed using different detectors (a–c), as well as maps of carbon (e) and nickel (f) distribution over the surface of the obtained NiO/CP electrode area (d).
Figure 3. Microstructure of the contact area between the NiO nanosheets and the carbon fiber surface observed using different detectors (a–c), as well as maps of carbon (e) and nickel (f) distribution over the surface of the obtained NiO/CP electrode area (d).
Materials 16 05208 g003
Materials 16 05208 g004 550

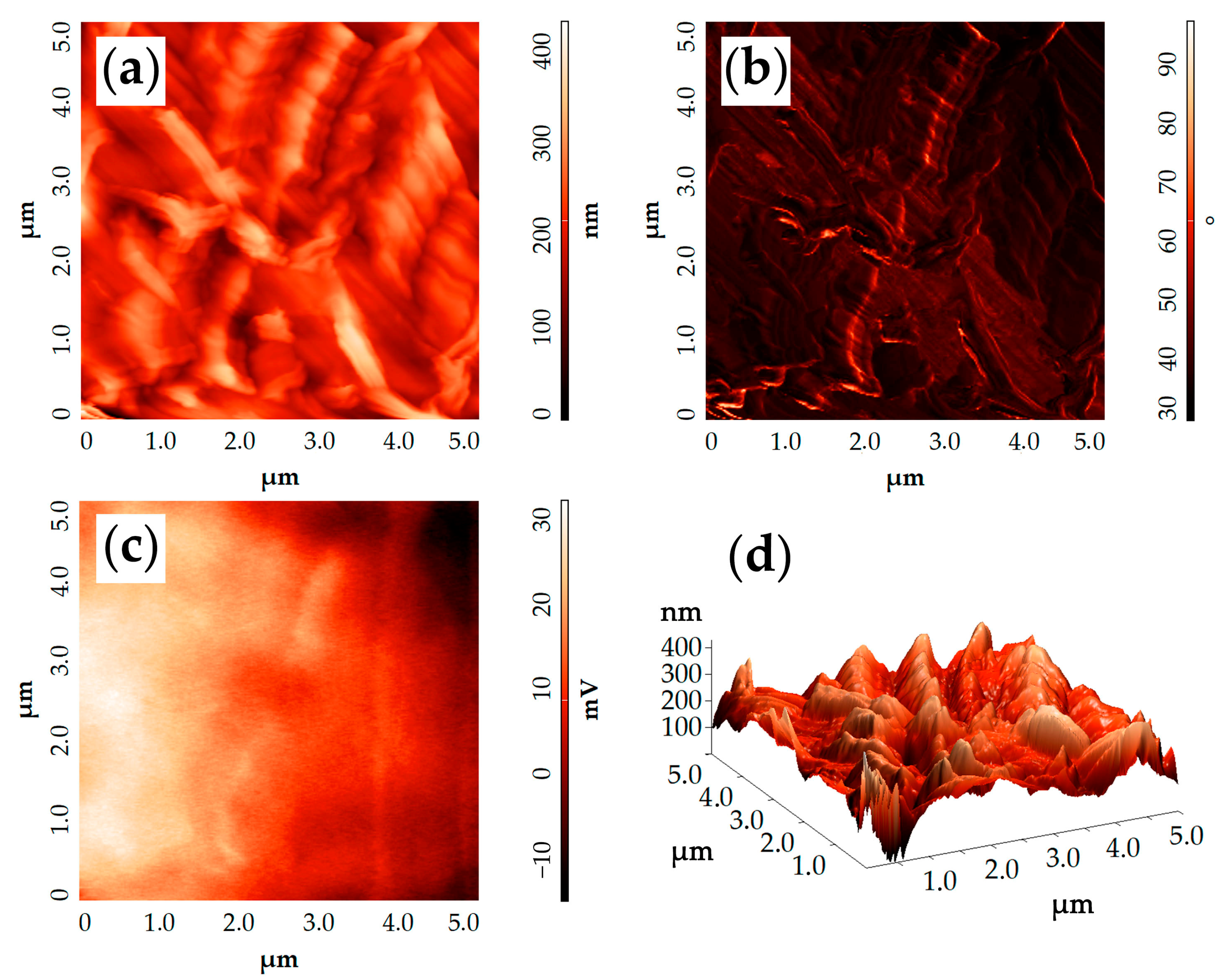

Figure 4. AFM results of NiO shell on carbon fiber: (a) topography, (b) relief in the phase contrast mode, (c) surface potential distribution map (according to KPFM data), (d) 3D image.
Figure 4. AFM results of NiO shell on carbon fiber: (a) topography, (b) relief in the phase contrast mode, (c) surface potential distribution map (according to KPFM data), (d) 3D image.
Materials 16 05208 g004
Materials 16 05208 g005 550

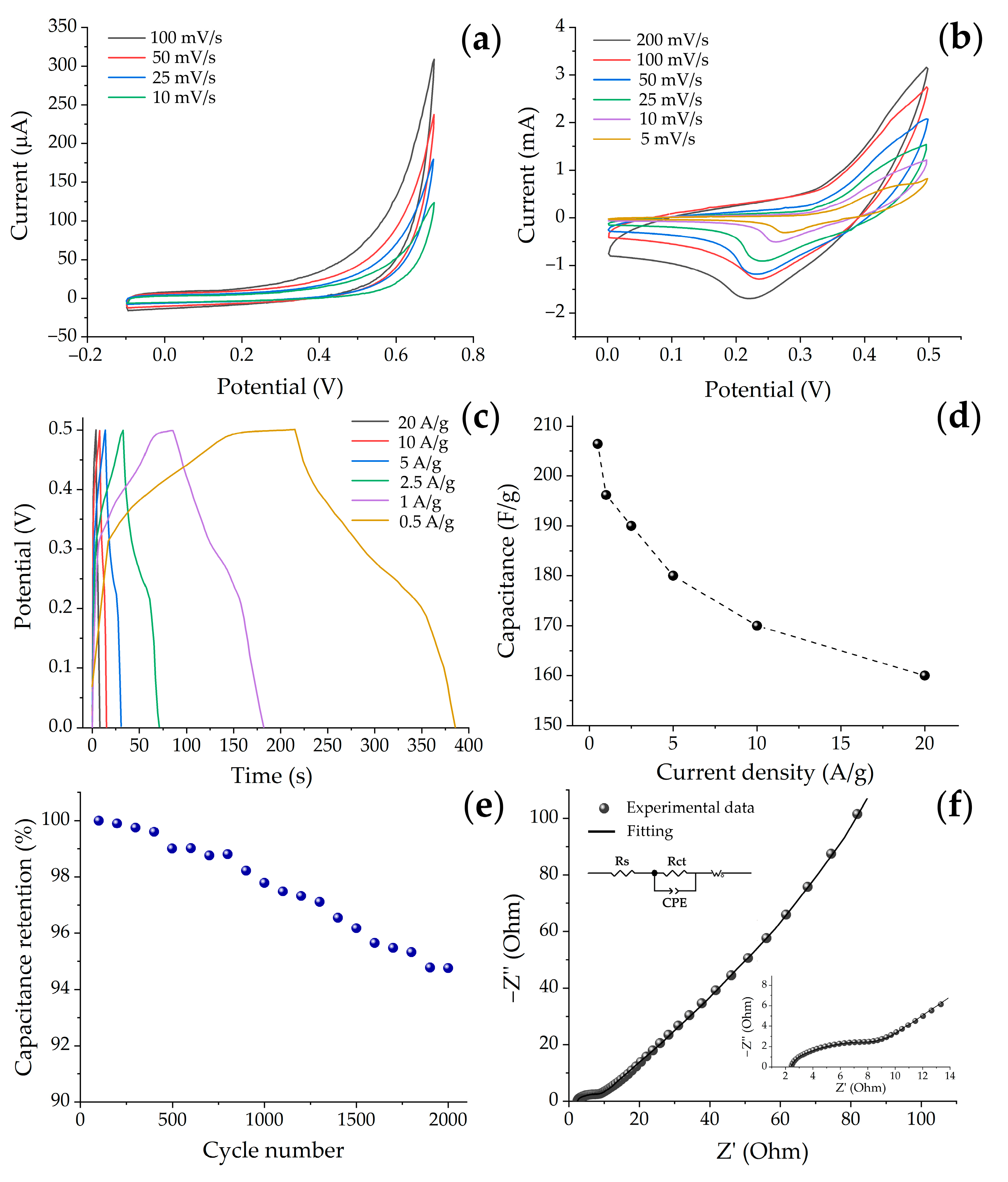

Figure 5. Cyclic voltammograms of pure CP (a) and NiO/CP electrode (b) in 3 M KOH solution obtained at different scan rates, GCD curves at different current densities (c), rate capability (d), cycling life test at 5 A/g for 2000 cycles (e), and the EIS Nyquist plot for NiO/CP electrode (f) as well as the enlargement of high-frequency part and equivalent circuit diagram ((f), inset).
