Article

Adsorption and Photodegradation of Lanasol Yellow 4G in Aqueous Solution by Natural Zeolite Treated by CO2-Laser Radiation

by
David Correa-Coyac
1,
Alexandre Michtchenko
1,*,
Gregorio Zacahua-Tlacuatl
2,*,
Yair Cruz-Narváez
2,
José J. Castro-Arellano
2,
Monserrat Sanpedro-Díaz
2,
Carlos F. de J. Rivera-Talamantes
1 and
Yury M. Shulga
3
1
Instituto Politécnico Nacional, SEPI-ESIME-Zacatenco, Av. IPN S/N, Ed.5, 3-r piso, Ciudad de México 07738, Mexico
2
Laboratorio de Posgrado e Investigación de Operaciones Unitarias-ESIQIE, Instituto Politécnico Nacional, Zacatenco, UPALM, Zacatenco, Col. Lindavista, Ciudad de México 07738, Mexico
3
Federal Research Center of Problem of Chemical Physics and Medicinal Chemistry, Russian Academy of Sciences, Moscow 142432, Russia
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(13), 4855; https://doi.org/10.3390/ma16134855
Submission received: 28 May 2023 / Revised: 24 June 2023 / Accepted: 3 July 2023 / Published: 6 July 2023
(This article belongs to the Special Issue Synthesis and Application of Catalytic Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Natural zeolite is a widely used material with excellent environmental cleaning performance, especially in water and wastewater treatment. Natural zeolite (Zini) calcined by CO2-laser radiation (ZL) was tested as a catalyst for the photodegradation and the adsorption of industrial azo dye Lanasol Yellow 4G (LY4G) in water. Morphology, chemical structure, and surface composition of Zini and ZL were analyzed by XRD, SEM, EDS, and XPS. UV/Visible spectrophotometry was used to evaluate the photocatalytic activity of Zini and ZL. The photocatalytic activity of the studied zeolites was associated with the presence of Fe oxides in their composition. Laser-treated natural zeolite showed higher efficiency as a photocatalyst compared to untreated natural zeolite.

1. Introduction

The textile and clothing industries satisfy fundamental human needs and employ millions of people worldwide [1,2]. However, textile companies are responsible for producing several industrial pollutants, contributing to ecological problems, especially waterbody pollution [3,4]. Untreated effluents discharged into bodies of water contain mainly a mixture of dyes, metals, and other pollutants [5]. Even at low concentrations, dyes are undesirable in aquatic environments because they limit light penetration and interfere with the growth of aquatic plants. The amount of oxygen in ecosystems decreases due to a light reduction [6,7,8].
Azo dyes are the most popular type of synthetic dyes. All azo dyes necessarily contain one or more azo groups (–N=N–). Figure 1 shows the molecular structure of one of the azo dyes, namely Lanasol Yellow 4G. The azo group is responsible for the color of azo dyes, linking two aromatic groups together [9]. The presence of these azo groups in certain dyes raises concerns about potential human health risks and environmental pollution [10]. Consequently, it is essential to follow proper safety and disposal procedures when using these dyes, as they can be hazardous to human health and the environment if not handled correctly. Therefore, they must be removed from the wastewater to fulfill effluent regulations before disposal [11,12,13,14]. To comply with strict environmental regulations, many techniques have been adopted to remove dyes from water and wastewater [15,16,17,18,19,20,21,22,23]. Several methods have been documented for the removal of Lanasol Yellow 4G from aqueous solutions. Gallinaceous feathers have been shown as a unique adsorbent for the LY4G azo dye [24]. Also, the impact of oxidants on the photoelectrocatalytic decolorization of LY4G has been examined using a nanocomposite of α-Fe2O3, TiO2, and activated charcoal under visible light conditions [25]. Additionally, sonocatalytic degradation has been studied as a viable approach, with a specific focus on the use of synthesized ZrO2 nanoparticles on biochar for the degradation of this dye [26]. In this study, we evaluate the potential of natural zeolite and natural zeolite calcined by CO2-laser radiation, both as an adsorbent and as a photocatalyst for dye removal, with the aim of proposing a novel and effective treatment method.
Advanced oxidation processes (AOPs) are among the best and most promising technologies for the reduction of toxicity and completely mineralizing recalcitrant contaminants of wastewater, such as aromatics, pesticides, and synthetic organic dyes [27,28]. Various advanced oxidation processes for dye degradation have been developed in recent years [29,30,31,32,33]. The application of AOPs essentially involves the production of reactive species, such as hydroxyl radicals (•OH), sulfate radicals (SO4•−), and superoxide radicals (O2−•)), that contribute to the degradation of organic pollutants [16,28,34,35].
AOPs refer to a set of oxidative water treatments that may be classified into two main groups: procedures that include the use of radiation and techniques that do not involve the use of radiation. Radiation-assisted AOPs processes include photolysis, photocatalysis, and the photo-Fenton process, while non-irradiation processes include the Fenton-based process, electrochemical oxidation, electrical discharge, ozonation, and sonolysis, among others [23,36,37].
According to the literature, the photo-Fenton reaction under acidic conditions (about pH 2.8) offers high levels of degradation due to high solubility and good stability of Fe(III), which increases the rate of HO• radical formation [38,39,40]. The goal of this study is to determine the optimal parameters for increasing the removal of azo dye in a photo-Fenton process that involves Fe(III) at a pH of 2.5 in different aqueous matrices. Both natural and synthetic zeolites can be beneficial materials for a variety of industries as adsorbents, soil modifiers, and ion exchangers [23,41].
Natural zeolites are abundant and cheap materials that have been widely used as adsorbents for dyes and various other pollutants during water and wastewater treatment processes [42,43,44]. They also have demonstrated significant catalytic activity in the oxidation of azo dyes [31,45,46,47,48]. They are interesting candidates as heterogenous catalysts for wastewater treatment by Fenton and photo-Fenton oxidation. The Fenton process is a widely used method for wastewater treatment due to its rapid Fe/H2O2 reactions, relatively cheap input chemicals, and the ability to degrade many organic materials [49,50].
In this study, the potential for photodegradation of the azo dye Lanasol Yellow 4G (LY4G) in water was investigated using an inexpensive iron-containing natural zeolite from the Catano-Etla region of Oaxaca State, Mexico. In a novel approach, CO2-laser radiation was employed to excite the zeolite and potentially enhance its catalytic activity. As reported in the literature, laser radiation treatment can result in significant modification of the catalyst surface in certain cases [51]. Laser irradiation was chosen as a calcination technique for this study due to its precision in controlling exposure duration and energy, allowing for finely tuned adjustments to the calcination process. This method guarantees a rapid, uniform heating rate, resulting in the production of high-quality, homogeneous photocatalysts while minimizing any non-uniformity that is frequently found with conventional heating techniques. Furthermore, the natural zeolite and the laser-irradiated zeolite samples were evaluated for their efficacy as adsorbents for the mentioned dye.

2. Materials and Methods

2.1. Chemical and Reagents

Natural zeolite from the region of Etla, Oaxaca State, Mexico was ground using a steel ball mill. The mill shell had an internal diameter and length of 0.2032 m. The grinding process was conducted for a duration of 3 h. A total of 80 balls ranging in diameter from 1 cm to 4 cm were utilized in the grinding process. Ferric chloride (FeCl3), and hydrochloric acid (HCl, 36%) were provided by Meyer, Mexico City, Mexico, while Hydrogen peroxide (H2O2, 50%) was provided by Alquimia, Mexico City, Mexico. All the aqueous solutions were prepared with Milli-Q water. Lanasol Yellow 4G (C19H12BrCl2N5Na2O8S2) was supplied by Novartis, Mexico City, Mexico. The chemical structure of LY4G is shown in Figure 1. The industrial dye was used without further purification. The solution was irradiated using a 13 W UV-A lamp, with λmax = 355 nm, provided by Lumiaction®, Taipei, Taiwan.

2.2. Laser Radiation Treatment

Natural zeolite powder was thermally treated using a continuous wave CO2-laser (λ = 10.6 µm) with a maximum power output of 75 Watts. Therefore, the laser radiation treatments involved a three-stage temperature profile. The initial stage of the laser radiation treatment involves a preheating period, which is essential for elevating the temperature of the samples close to that of the calcination process. Five seconds of preheating was utilized in every laser radiation treatment.
The second stage of the laser radiation treatment entails the calcination of the catalyst, carried out over varying durations (15, 30, 60, and 240 s) and across a range of temperatures (300, 550, and 700 °C). Finally, the third stage encompasses the spontaneous decline in temperature that occurs after the laser is switched off, marking the conclusion of the laser calcination period.
To facilitate clarity, ZL samples have been denoted by two indices, time, and temperature. For instance, ZLTt represents the natural zeolite calcined by CO2-laser radiation (ZL), where t is the time and T is the temperature of laser calcination. For example, the identifier ZL55015 indicates that the sample was annealed at 550 °C for 15 s. The natural zeolite sample, already introduced as Zini, serves as the reference point.

2.3. Characterization of Photocatalyst

The surface area of Zini and ZL was analyzed using the Brunauer-Emmett-Teller (BET) technique, and the pore size distribution was determined by the Barrett-Joyner-Halenda (BJH) method, employing a Micromeritics ASAP 2045N instrument (Norcross, GA, USA). The crystal structure was obtained using an X-ray diffractometer (XRD, SIEMENS D500, Erlangen, Germany) with an operating voltage of 35 kV. The surface morphology and chemical composition of the samples were examined with a scanning electron microscope (SEM, JEOL JSM-7800F, Tokyo, Japan) coupled with energy-dispersive X-ray spectroscopy (EDS). Surface chemical composition was also investigated using X-ray photoelectron spectroscopy (XPS, Thermo Fisher K-Alpha, Waltham, MA, USA). Finally, a UV-Vis spectrophotometer (Nanodrop One C, Thermo Fisher Scientific, Waltham, MA, USA) was employed to evaluate the degradation efficiency of the azo dye LY4G.

2.4. Adsorption Experiments

Adsorption experiments were carried out in quintuplicate, and average results were calculated to ensure the reliability and reproducibility of the data. The adsorption studies of Zini and ZL55015 were conducted in 40 mL glass flat-bottom vials under a constant stir rate of 180 rpm to evaluate their efficiency in removing the LY4G dye from aqueous solutions. The adsorption experiments were designed to evaluate the effects of various parameters including pH, and zeolite type (either Zini or ZL55015), on the discoloration performance of the LY4G dye. Adsorption experiments were conducted at a controlled environment of 24 °C in the dark. A solution of 35 mL of the LY4G dye, at a concentration of 150 ppm, was created using high-purity Milli-Q water. Then, 2 mg of zeolite was integrated into the solution, initiating the adsorption procedure.

2.5. Photodegradation Experiments

The photocatalytic activities of Zini, ZL55015, ZL55030, ZL55060, and ZL550240 were evaluated using the photo-Fenton process in a Pyrex glass reactor. This reactor, with a volume of 500 mL, a diameter (di) of 70.7 mm, and a depth (h) of 155 mm, was stirred at a rate of 700 rpm. Each experiment utilized a reaction mixture comprising 20 mg of the specified zeolite and 28 mg of FeCl3 dispersed in a 350 mL solution with a concentration of 150 ppm of LY4G dye. This resulted in a water layer with a thickness of approximately 89 mm. Then the pH of the solution was adjusted to 2.5 (using the proper HCl solution), and 4 mL of hydrogen peroxide was then added. The work pressure was atmospheric pressure (585 mm Hg). Experimental tests were conducted using an average UV-A light intensity of 360 W/m2 (Figure S1). The UV-A lamp was submerged in the solution, and the exterior of the reactor was covered with aluminum foil to prevent light leakage. The reactor also incorporates a water-cooling jacket to dissipate heat generated by the lamp, while keeping the temperature steady. The cooling water temperature was set to 24 °C with a flow of 13 L/min for all tests. Figure 2 illustrates the reactor assembly used in the photocatalytic tests.

2.6. Evaluation of Degradation Efficiency and Adsorption Capacity

The evaluation of azo dye concentration was conducted using UV/Vis spectrophotometry. Measurements were taken every 30 min for an hour in the adsorption study, and every 5 min over 30 min in the photodegradation test. Samples were centrifuged before concentration measurements were taken. The UV/Vis spectra of LY4G were recorded from 200 to 700 nm, with the maximum absorbance wavelength found at 400 nm. The absorption intensity at 400 nm can be used to calculate the concentration of LY4G at specific time intervals in adsorption and photocatalytic studies. The degradation efficiency (%) was calculated using Equation (1):
d e g r a d a t i o n   e f f i c i e n c y % = 100 % × C 0 − C C 0
where C0 and C represent the initial and final concentrations of the azo dye, respectively. Furthermore, Equation (2) was used to determine the adsorption capacity (Q, mg g−1).
Q = C i − C e V W
where Ci and Ce are the initial and the equilibrium concentration of the adsorbate (mg L−1) respectively, V is the volume of the solution containing the adsorbate (L) and W is the mass of the adsorbent (g).

3. Results

3.1. Surface Area and Porosity Analysis

The calcination temperature of natural zeolites is a crucial factor in the activation process, which influences the surface area of these materials [52,53,54,55]. According to the literature, calcination temperature significantly affects the number of active sites, crystallinity, and pore size distribution. Consequently, comprehending and manipulating calcination conditions emerges as an indispensable aspect in the pursuit of harnessing the full potential of natural zeolites across diverse applications [56,57].
In this study, Brunauer-Emmett-Teller (BET) analyses were conducted on Zini and ZL samples at calcination temperatures of 300, 550, and 700 °C for a duration of 15 s, (ZL30015, ZL55015, and ZL70015, respectively). Table 1 details the change in surface area and porosity properties caused by different temperature calcination processes applied to natural zeolites using CO2-laser radiation.
The samples exposed to different calcination temperatures demonstrate significant variations in surface area, pore volume, and average pore radius. Among these temperatures, calcination at 550 °C proves to be the most effective method in enhancing the surface and pore volume areas (BET and BJH) of the ZL samples. In contrast, the calcination process carried out at 300 °C and 700 °C leads to a decrease in surface area in contrast to the original Zini sample. Interestingly, the pore radius values exhibit a general decline as the calcination temperature increases, with the smallest pore radius corresponding to the ZL55015 sample. It has been observed that an increase in surface area often correlates with an enhancement in pore volume and a reduction in pore radius. This correlation could potentially lead to the formation of bottleneck-shaped pores, signifying a noteworthy morphological transformation in the material [58]. A comprehensive literature review reveals a lack of studies specifically addressing the relationship between pore size and its impact on adsorption capacity and photocatalytic activity in natural zeolites. Nonetheless, the physical state of occluded molecules in zeolites depends on the size and structure of the pores in the host material [59,60]. Based on prior studies, it has been established that calcination treatment is the most effective method for modifying the properties of natural zeolite. According to the literature data, a temperature of 550 °C is defined as the optimal temperature for annealing natural zeolites [30,45,61]. Considering these findings, the XRD characteristics of Zini and ZL55015 samples are further explored.

3.2. X-ray Diffraction Analysis

Figure 3 illustrates the X-ray diffraction patterns of Zini and ZL55015 samples, obtained using a 2θ range of 5 to 60°, with a step of 0.02° and a scanning velocity of 2°/min. The phases were identified through peak comparison with JCPDS files including clinoptilolite (025-1349), erionite (022-0854), mordenite (06-0239), heulandite (21-131), feldspar (025-0618), and quartz (033-1161). The major mineralogical phase identified through XRD analysis was a clinoptilolite-heulandite type zeolite, displaying typical patterns.
Table 2 presents the estimates of the degree of crystallinity (DC) and crystallite size (D) for the 5 samples studied. The evaluation of the DC was carried out according to Equation (3).
D C = ∫ 5 60 I 2 θ d θ − ∫ 5 60 F 2 θ d θ ∫ 5 60 I 2 θ d θ
where I is the intensity of the X-ray pattern, and F is the intensity of the X-ray background (see Figure 3). The crystallinity of the studied samples changes slightly. Crystallite size estimation was performed using the Scherrer formula on the three narrowest peaks located at approximately 9.7°, 25.5°, and 41.0°.
It is worth noting that the sizes of crystallites differ to some extent along different crystallographic directions. Specifically, for the crystallographic direction corresponding to 2θ = 41.0°, the crystallite size remains practically unchanged (within the range of 28.9–29.9 nm) with respect to annealing temperature. Although more noticeable changes are observed for other crystallographic directions, clear calcination times dependencies are not evident. As can be seen from Table 2 after CO2-laser calcination in the zeolite, the degree of crystallinity and the size of the crystallites somewhat change.

3.3. Morphology and Chemical Composition of Zeolite

Based on the analysis of the surface area and porosity, ZL55015 exhibited higher values following CO2 laser radiation treatment. Consequently, ZL55015, along with Zini, was chosen for SEM analysis.
The SEM images for the Zini and ZL55015 samples at various magnifications are depicted in Figure 4. The comparison between the SEM micrographs of Zini sample (Figure 4a,b) and ZL55015 (Figure 4c,d) reveals notable morphological differences and shifts in particle size distribution due to the calcination process by CO2-laser radiation.
Specifically, the SEM micrographs of ZL55015, captured at 500× and 25,000× magnifications, demonstrate the presence of notably smaller particles and decreased particle agglomeration in comparison to the Zini sample. This alteration in morphology and particle size distribution not only reflects the impact of the calcination process, but also potentially influences the adsorption and photodegradation capabilities of the zeolite, which is a significant factor in the context of our study.
The EDS data presented in Table 3 indicates the presence of expected elements such as silicon, aluminum, oxygen, and carbon, as well as magnesium, sodium, potassium, calcium, and iron in the analyzed samples. Iron is well-known for its exceptional performance as a photocatalyst in dye photodegradation processes. According to the data presented in Table 3, it can be observed that the Si/Al ratio for Zini is 4.67, while for ZL55015, it is 4.05. This suggest that the annealing process by laser radiation at 550 °C may induce certain alterations in the sample composition in the analyzed region.

3.4. XPS

Considering the findings from previous analyses of the sample treated at 550 °C, we proposed to modify the duration of the laser radiation treatment. The objective was to investigate how this variable affects the elemental content in the surface layer of the samples.
The study of the surface composition of natural zeolite and the impact of annealing on its near-surface layer composition was further pursued using the XPS method. An overview spectrum of the original sample is shown in Figure 5. Upon close examination of the sample under study, it has been determined that the surface contains not only the elements previously detected through the EDS method, but also traces of fluorine and nitrogen. According to the data presented in Table 4 referring to the composition of the samples under study, it is evident that the use of laser radiation treatment results in a diminution in the concentration of oxygen in the near-surface region. This decrease can be attributed to the partial restoration of the surface. Together with a decrease in oxygen concentration, an increase in carbon concentration occurs. In some cases, excessive carburization can lead to gasification of the support, which can further impact the activity of catalyst. Therefore, controlling the carburization conditions is crucial for maintaining the desired catalyst activity in various reactions [62,63].

3.5. Effect of pH on Dye Adsorption

The effect of pH on the adsorption of LY4G dye by Zini and ZL55015 samples was evaluated. In this study, the adsorption capacities Q (see Equation (2)) of these samples were determined at certain pH levels (2.5, 4, 5.5 and 7) to determine the optimal pH for maximum adsorption efficiency and to understand the effect of pH on the interaction between the adsorbate and adsorbent. The equilibrium concentration (Ce) was measured at t = 60 min.
Based on the adsorption capacity values at different pH levels (Table 5), it can be concluded that the adsorption process for both Zini and ZL55015 samples is most favorable under acidic conditions, particularly at pH 2.5. For both samples, the adsorption capacity decreases as the pH increases, reaching its lowest value at the neutral pH of 7. This trend is consistent with previous studies conducted on natural zeolites from the same region [61]. Both samples demonstrated relatively lower adsorption capacities, with Zini achieving a removal efficiency of 6.2% and ZL55015 achieving 4.4%. This phenomenon could potentially explain the observed correlation with pH levels.
Under acidic conditions, the higher concentration of [H3O]+ ions in the solution can protonate the surface functional groups of the zeolite particles, resulting in a decrease in the effective surface charges of the material. The dissociation of the dye in an aqueous medium is favored at lower pH levels. Thus, the anion of the dye formed during dissociation has the potential to be adsorbed at the cationic sites of the zeolite. This phenomenon can provide an explanation for the observed pH dependence.

3.6. Evaluation of Photocatalytic Activity

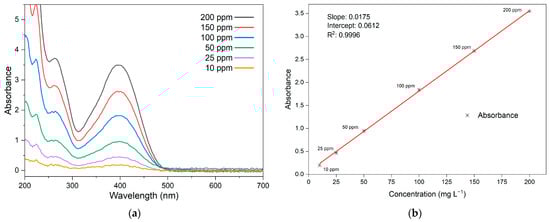

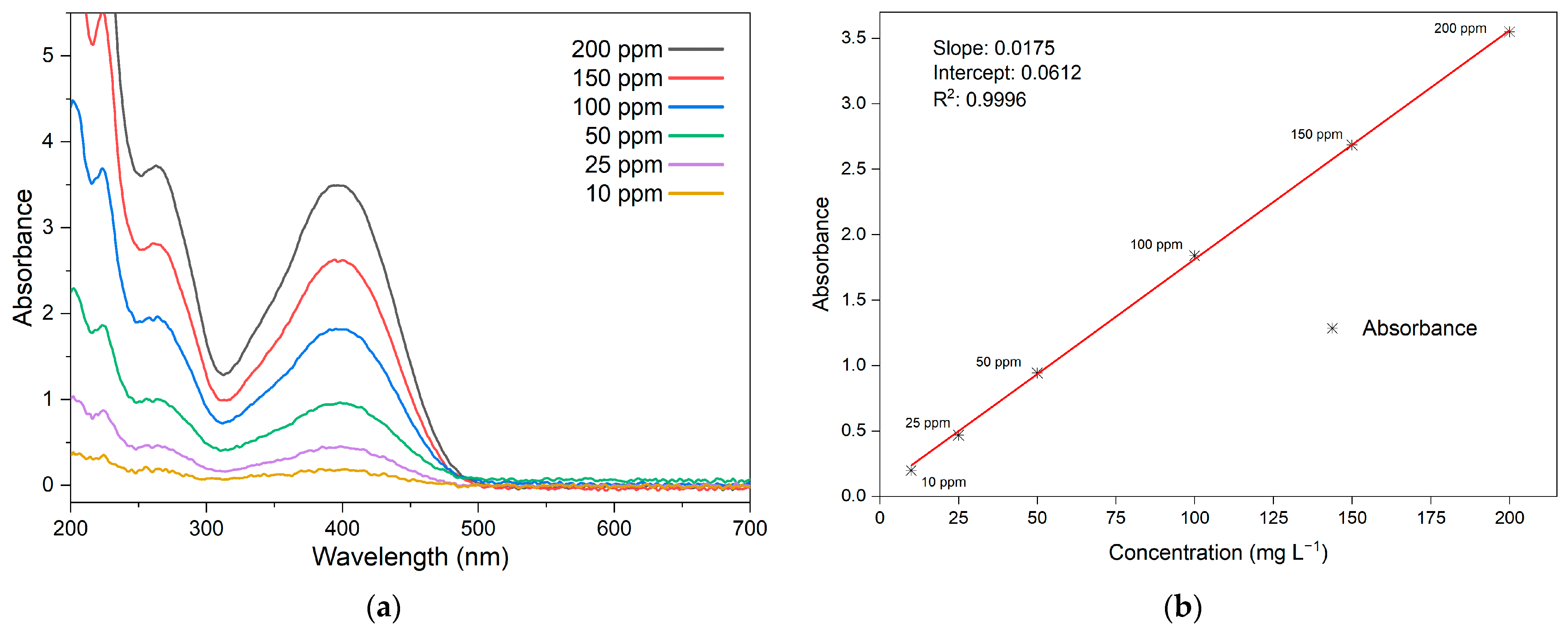

In Figure 6a, the spectrum of LY4G solutions is presented across a range of concentrations. The LY4G spectrum exhibit a notable peak at 400 nm, indicating its highest level of absorbance within this range. A calibration curve for the azo dye is constructed by using the absorbance values at this specific wavelength for different concentrations, as demonstrated in Figure 6b.
The catalytic efficiency of Zini and ZL zeolites, calcined at 550 °C (ZL550), in the bleaching reaction of an aqueous LY4G dye solution. The results are presented in Figure 7, where the comparative performance of four different samples of ZL550 samples. Each sample was subjected to different pre-annealing times (15, 30, 60, and 240 s).

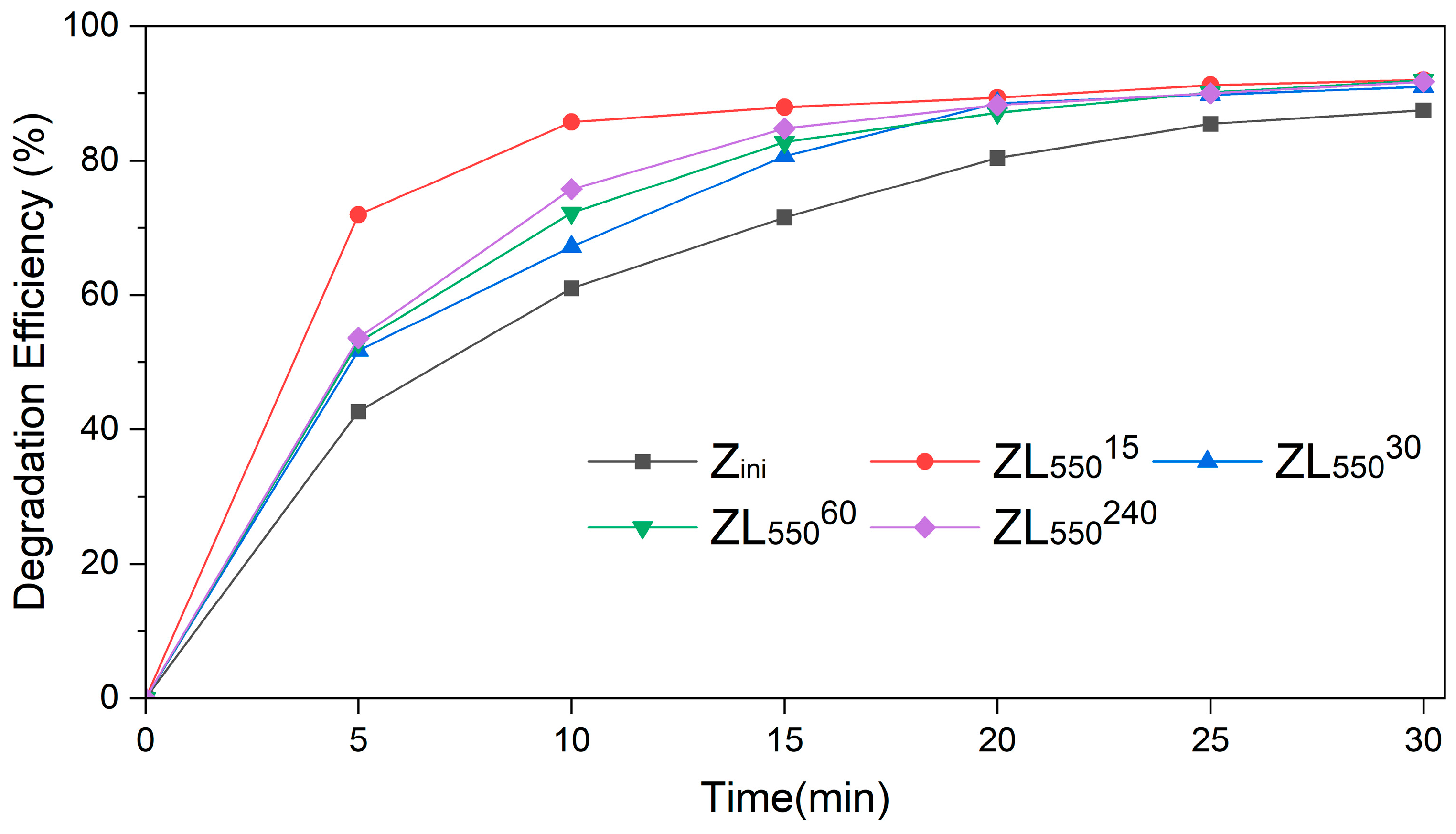

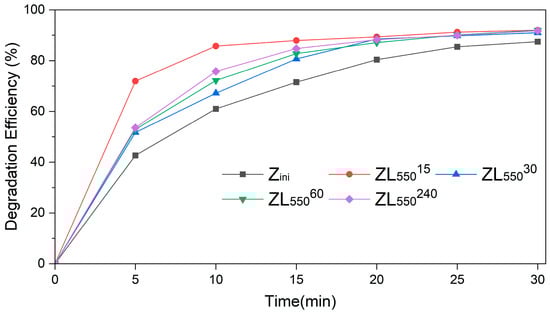

The results of the experiment, as shown in Figure 7, indicate that the ZL55015 sample, calcined for 15 s, demonstrated the most effective degradation efficiency over most reaction time intervals, while the original Zini sample exhibited the lowest efficiency in this regard. This can be attributed to the presence of Fe species detected in samples through EDS analysis. The Fe species are known to enhance the photocatalytic activity of zeolites. Thus, a higher presence of Fe species contributes to more degradation efficiency. In particular, the degradation efficiency of ZL55015 was at 71.9% within the first 5 min of the reaction, while the Zini sample was only at 42.7%. As the reaction progressed to 30 min, the degradation efficiency of ZL55015 peaked at 92%, while the Zini sample exhibited a degradation efficiency of 87.4%. These observations suggest that the calcination duration significantly affects the photocatalytic capabilities of the ZL samples, especially in the first minutes of the reaction.

4. Conclusions

In this study, the adsorption and photocatalytic properties of natural zeolite and natural zeolite calcined by CO2-laser radiation were evaluated for the removal of Lanasol Yellow 4G. The results revealed the influence of calcination temperature and duration on the degradation processes. It was observed that natural zeolite treated with CO2-laser radiation at 550 °C for 15 s exhibited the most significant enhancement of LY4G degradation, outperforming both the uncalcined natural zeolite and those subjected to alternative calcination conditions. The CO2-laser calcination treatment enhanced the surface area and pore volume of ZL55015 sample, simultaneously decreasing the pore radius. The degradation efficiency of ZL55015 reached 71.9% within just 5 min, surpassing the original Zini sample which achieved an efficiency of 42.7%. These data highlight the importance of CO2-laser radiation to optimize the catalytic efficiency of natural zeolite for LY4G degradation. Both samples demonstrated relatively lower adsorption capacities, with Zini achieving a removal efficiency of 6.2% and ZL55015 achieving 4.4%. However, despite these limitations, CO2-laser radiation treatment proved effective in amplifying the photocatalytic performance of natural zeolite for LY4G degradation. These findings highlight the potential of CO2-laser radiation to optimize the catalytic efficiency of natural zeolite, promising for real-world applications in wastewater treatment.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma16134855/s1, Figure S1: Emission spectra of the UV-A lamp used in the photodegradation process.

Author Contributions

Conceptualization, A.M., G.Z.-T. and Y.C.-N.; methodology, Y.C.-N., J.J.C.-A. and A.M.; validation, D.C.-C., M.S.-D. and C.F.d.J.R.-T.; formal analysis, Y.M.S. and J.J.C.-A.; investigation, D.C.-C., M.S.-D. and C.F.d.J.R.-T.; resources, Y.M.S., Y.C.-N., J.J.C.-A. and A.M.; data curation, D.C.-C., M.S.-D., A.M., G.Z.-T. and Y.C.-N.; writing—original draft preparation, D.C.-C.; writing—review and editing, A.M., G.Z.-T. and Y.M.S.; visualization, D.C.-C. and M.S.-D.; supervision, A.M., G.Z.-T. and Y.C.-N.; project administration, Y.C.-N., J.J.C.-A. and A.M.; funding acquisition, A.M., J.J.C.-A., G.Z.-T. and Y.C.-N. All authors have read and agreed to the published version of the manuscript.

Funding

This project was funded by Instituto Politécnico Nacional (SIP-20220296, SIP-20220837) and by the Consejo Nacional de Ciencia y Tecnología in the 2019 call “Apoyos para adquisición y mantenimiento de infraestructura en instituciones y laboratorios de investigación especializada” (CONACyT 302670) and the call “Ciencia de Frontera” (CF-2019/6669).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy.

Acknowledgments

D.C.-C. is grateful to CONACyT and BEIFI B191005 for the support. The authors acknowledge the Centro de Nanociencias y Micro y Nanotecnologías (CNMN) of the Instituto Politécnico Nacional (IPN) for their invaluable assistance in the characterization of the samples for our study. Y.M.S. thanks the Ministry of Science and Higher Education of the Russian Federation (State Task No. AAAA-A19-119032690060-9).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Desore, A.; Narula, S.A. An overview on corporate response towards sustainability issues in textile industry. Environ. Dev. Sustain. 2018, 20, 1439–1459. [Google Scholar] [CrossRef]
  2. Agarwal, S.; Singh, A.P. Performance evaluation of textile wastewater treatment techniques using sustainability index: An integrated fuzzy approach of assessment. J. Clean. Prod. 2022, 337, 130384. [Google Scholar] [CrossRef]
  3. Lellis, B.; Fávaro-Polonio, C.Z.; Pamphile, J.A.; Polonio, J.C. Effects of textile dyes on health and the environment and bioremediation potential of living organisms. Biotechnol. Res. Innov. 2019, 3, 275–290. [Google Scholar] [CrossRef]
  4. Yaseen, D.A.; Scholz, M. Textile dye wastewater characteristics and constituents of synthetic effluents: A critical review. Int. J. Environ. Sci. Technol. 2019, 16, 1193–1226. [Google Scholar] [CrossRef] [Green Version]
  5. Hasan, M.M.; Alam, A.M.; Haque, A.; Moly, H.H.; Tanjil, M. Impacts of textile and leather effluent on environment: An assessment through life cycle of fishes and plants. J. Text. Eng. Fash. Technol. 2021, 7, 111–117. [Google Scholar] [CrossRef]
  6. Mishra, S.; Acharya, R.; Parida, K. Spinel-Ferrite-Decorated Graphene-Based Nanocomposites for Enhanced Photocatalytic Detoxification of Organic Dyes in Aqueous Medium: A Review. Water 2023, 15, 81. [Google Scholar] [CrossRef]
  7. Imran, M.; Crowley, D.E.; Khalid, A.; Hussain, S.; Mumtaz, M.W.; Arshad, M. Microbial biotechnology for decolorization of textile wastewaters. Rev. Environ. Sci. Biotechnol. 2015, 14, 73–92. [Google Scholar] [CrossRef]
  8. Jawad, M.A.; Kadhim, A.J.; Aljeboree, A.M. Removal of direct dye from aqueous solution by a low-cost hydrogel: Adsorption kinetics, and isotherms study. Int. J. Pharm. Qual. Assur. 2021, 12, 191–195. [Google Scholar]
  9. Benkhaya, S.; M’rabet, S.; El Harfi, A. Classifications, properties, recent synthesis and applications of azo dyes. Heliyon 2020, 6, e03271. [Google Scholar] [CrossRef] [Green Version]
  10. Deng, F.C.; Wang, C.; Gu, W.; Chen, Y.Y.; Han, J.J.; Du, H.; Peng, H.; Tang, S. Research advances in the adverse effects of azo dyes. Zhonghua Yu Fang Yi Xue Za Zhi 2020, 54, 1478–1483. [Google Scholar]
  11. Elfeky, A.S.; Youssef, H.F. Adsorption of Dye from Wastewater onto ZnO Nanoparticles-Loaded Zeolite: Kinetic. Thermodyn. Isotherm Stud. 2019, 234, 255–278. [Google Scholar]
  12. Dutta, S.; Bhattacharjee, J. Chapter 1—A comparative study between physicochemical and biological methods for effective removal of textile dye from wastewater. In Development in Wastewater Treatment Research and Processes; Shah, M.P., Rodriguez-Couto, S., Kapoor, R.T., Eds.; Elsevier: Amsterdam, The Netherlands, 2022; pp. 1–21. [Google Scholar]
  13. Hussain, G.; Abass, N.; Shabir, G.; Athar, M.; Saeed, A.; Saleem, R.; Ali, F.; Khan, M.A. New acid dyes and their metal complexes based on substituted phenols for leather: Synthesis, characterization and optical studies. J. Appl. Res. Technol. 2017, 15, 346–355. [Google Scholar] [CrossRef] [Green Version]
  14. Golka, K.; Kopps, S.; Myslak, Z.W. Carcinogenicity of azo colorants: Influence of solubility and bioavailability. Toxicol. Lett. 2004, 151, 203–210. [Google Scholar] [CrossRef] [PubMed]
  15. Bafana, A.; Devi, S.S.; Chakrabarti, T. Azo dyes: Past, present and the future. Environ. Rev. 2011, 19, 350–370. [Google Scholar] [CrossRef]
  16. Shah, M.P. Azo Dye Removal Technologies. Austin J. Biotechnol. Bioeng. 2018, 5. [Google Scholar]
  17. Ismail, G.A.; Sakai, H. Review on effect of different type of dyes on advanced oxidation processes (AOPs) for textile color removal. Chemosphere 2022, 291, 132906. [Google Scholar] [CrossRef]
  18. Rodríguez-Chueca, J.; Carbajo, J.; García-Muñoz, P. Intensification of Photo-Assisted Advanced Oxidation Processes for Water Treatment: A Critical Review. Catalysts 2023, 13, 401. [Google Scholar] [CrossRef]
  19. Singh, P.K.; Singh, R.L. Bio-removal of Azo Dyes: A Review. Int. J. Appl. Sci. Biotechnol. 2017, 5, 108–126. [Google Scholar] [CrossRef]
  20. Chowdhury, P.; Elkamel, A.; Ray, A.K. Photocatalytic Processes for the Removal of Dye. In Green Chemistry for Dyes Removal from Waste Water: Research Trends and Applications; John Wiley and Sons: Hoboken, NJ, USA, 2015; pp. 119–137. [Google Scholar]
  21. Mishra, A.K.; Arockiadoss, T.; Ramaprabhu, S. Study of removal of azo dye by functionalized multi walled carbon nanotubes. Chem. Eng. J. 2010, 162, 1026–1034. [Google Scholar] [CrossRef]
  22. Oyarce, E.; Roa, K.; Boulett, A.; Sotelo, S.; Cantero-López, P.; Sánchez, J.; Rivas, B.L. Removal of dyes by polymer-enhanced ultrafiltration: An overview. Polymers 2021, 13, 3450. [Google Scholar] [CrossRef] [PubMed]
  23. Arma, B.; Ozdemir, O. The removal of reactive azo dyes by natural and modified zeolites. J. Chem. Technol. Biotechnol. 2003, 732, 725–732. [Google Scholar]
  24. Moura, L.M.A.; Gonçalves, E.P.R.; Amorim, M.T.; Teles De Vasconcelos, L.A.; Beça, C.G.G. Adsorption of yellow lanasol 4g reactive dye in a simulated textile effluent on gallinaceous feathers. Eur. Water Manag. Online 2004. [Google Scholar]
  25. Ayoubi-Feiz, B.; Aber, S.; Sheydaei, M. Effect of oxidants on photoelectrocatalytic decolourization using α-Fe2O3/TiO2/activated charcoal plate nanocomposite under visible light. RSC Adv. 2015, 5, 19368–19378. [Google Scholar] [CrossRef]
  26. Khataee, A.; Kayan, B.; Gholami, P.; Kalderis, D.; Akay, S.; Dinpazhoh, L. Sonocatalytic degradation of Reactive Yellow 39 using synthesized ZrO2 nanoparticles on biochar. Ultrason. Sonochem. 2017, 39, 540–549. [Google Scholar] [CrossRef] [PubMed]
  27. Buthiyappan, A.; Abdul Aziz, A.R.; Wan Daud, W.M.A. Recent advances and prospects of catalytic advanced oxidation process in treating textile effluents. Rev. Chem. Eng. 2016, 32, 1–47. [Google Scholar] [CrossRef]
  28. Ghime, D.; Ghosh, P. Advanced Oxidation Processes: A Powerful Treatment Option for the Removal of Recalcitrant Organic Compounds; IntechOpen: London, UK, 2020. [Google Scholar]
  29. Arimi, M.M. Modified natural zeolite as heterogeneous Fenton catalyst in treatment of recalcitrants in industrial effluent. Prog. Nat. Sci. Mater. Int. 2017, 27, 275–282. [Google Scholar] [CrossRef]
  30. Domenzain-Gonzalez, J.; Castro-Arellano, J.J.; Galicia-Luna, L.A.; Rodriguez-Cruz, M.; Hernandez-Lopez, R.T.; Lartundo-Rojas, L. Photocatalytic membrane reactor based on Mexican Natural Zeolite: RB5 dye removal by photo-Fenton process. J. Environ. Chem. Eng. 2021, 9, 105281. [Google Scholar] [CrossRef]
  31. Domenzain-gonzalez, J.; Castro-arellano, J.J.; Galicia-luna, L.A. Removal of RB5 Dye Using a Mexican Natural Zeolite: Characterization and Evaluation. Int. J. Sci. Eng. Res. 2016, 7, 1169. [Google Scholar]
  32. Sadik, W.A. Decolourization of an azo dye by heterogeneous photocatalysis. Process Saf. Environ. Prot. 2007, 85, 515–520. [Google Scholar] [CrossRef]
  33. Ledakowicz, S.; Paździor, K. Recent Achievements in Dyes Removal Focused on Advanced Oxidation Processes Integrated with Biological Methods. Molecules 2021, 26, 870. [Google Scholar] [CrossRef]
  34. Gopal, G.; Alex, S.A.; Chandrasekaran, N.; Mukherjee, A. A review on tetracycline removal from aqueous systems by advanced treatment techniques. RSC Adv. 2020, 10, 27081–27095. [Google Scholar] [CrossRef]
  35. Glaze, W.H.; Kang, J.; Douglas, H. The Chemistry of Water Treatment Processes Involving Ozone, Hydrogen Peroxide and Ultraviolet Radiation. Ozone Sci. Eng. 2008, 9, 335–352. [Google Scholar] [CrossRef]
  36. Rauf, M.A.; Meetani, M.A.; Hisaindee, S. An overview on the photocatalytic degradation of azo dyes in the presence of TiO2 doped with selective transition metals. Desalination 2011, 276, 13–27. [Google Scholar] [CrossRef]
  37. Nidheesh, P.V.; Zhou, M.; Oturan, M.A. An overview on the removal of synthetic dyes from water by electrochemical advanced oxidation processes. Chemosphere 2018, 197, 210–227. [Google Scholar] [CrossRef]
  38. Punjabi, P.B. Fenton and Photo-Fenton Processes. In Advanced Oxidation Processes for Waste Water Treatment; Academic Press: Cambridge, MA, USA, 2018. [Google Scholar]
  39. Giwa, A.R.A.; Bello, I.A.; Olabintan, A.B.; Bello, O.S.; Saleh, T.A. Kinetic and thermodynamic studies of fenton oxidative decolorization of methylene blue. Heliyon 2020, 6, 4–10. [Google Scholar] [CrossRef] [PubMed]
  40. Vasquez-Medrano, R.; Prato-Garcia, D.; Vedrenne, M. Ferrioxalate-Mediated Processes. In Advanced Oxidation Processes for Waste Water Treatment; Academic Press: Cambridge, MA, USA, 2018; pp. 89–113. [Google Scholar]
  41. Tekbaş, M.; Yatmaz, H.C.; Bektaş, N. Heterogeneous photo-Fenton oxidation of reactive azo dye solutions using iron exchanged zeolite as a catalyst. Microporous Mesoporous Mater. 2008, 115, 594–602, 2008. [Google Scholar] [CrossRef]
  42. Alabbad, E.A. Efficacy assessment of natural zeolite containing wastewater on the adsorption behaviour of Direct Yellow 50 from; equilibrium, kinetics and thermodynamic studies. Arab. J. Chem. 2021, 14, 103041. [Google Scholar] [CrossRef]
  43. Wang, S.; Peng, Y. Natural zeolites as effective adsorbents in water and wastewater treatment. Chem. Eng. J. 2010, 156, 11–24. [Google Scholar] [CrossRef]
  44. Krol, M. Natural vs. Synthetic Zeolites. Crystals 2020, 10, 622. [Google Scholar] [CrossRef]
  45. Domenzain-Gonzalez, J.; Castro-Arellano, J.J.; Galicia-Luna, L.A.; Lartundo-Rojas, L. Photo-Fenton Degradation of RB5 Dye in Aqueous Solution Using Fe Supported on Mexican Natural Zeolite. Int. J. Photoenergy 2019, 2019, 4981631. [Google Scholar] [CrossRef] [Green Version]
  46. Hassan, H.; Zahidi, M.M. Decolorization of Acid Red 1 using natural zeolite via heterogeneous fenton-like oxidation. J. Phys. Conf. Ser. 2019, 1349, 012131. [Google Scholar] [CrossRef]
  47. Inchaurrondo, N.S.; Font, J. Clay, Zeolite and Oxide Minerals: Natural Catalytic Materials for the Ozonation of Organic Pollutants. Molecules 2022, 27, 2151. [Google Scholar] [CrossRef] [PubMed]
  48. Benkli, Y.E.; Can, M.F.; Turan, M.; Çelik, M.S. Modification of organo-zeolite surface for the removal of reactive azo dyes in fixed-bed reactors. Water Res. 2005, 39, 487–493. [Google Scholar] [CrossRef] [PubMed]
  49. Hartmann, M.; Kullmann, S.; Keller, H. Wastewater treatment with heterogeneous Fenton-type catalysts based on porous materials. J. Mater. Chem. 2010, 20, 9002–9017. [Google Scholar] [CrossRef]
  50. Velichkova, F.; Delmas, H.; Julcour, C.; Koumanova, B. Heterogeneous fenton and photo-fenton oxidation for paracetamol removal using iron containing ZSM-5 zeolite as catalyst. AIChE J. 2017, 63, 669–679. [Google Scholar] [CrossRef] [Green Version]
  51. Shang, J.; Xu, C.; Wang, Q.; Wang, S.; Chen, J.; Wang, X. Oxygen Vacancies Boosted by Laser Irradiation Enable NiCo Layered Double Hydroxide with a High Oxygen Reduction/Evolution Catalytic Activity in Zn–Air Batteries and Water Splitting. ACS Appl. Energy Mater. 2022, 5, 12427–12436. [Google Scholar] [CrossRef]
  52. Viveros, J.; Ramírez, E.; Pérez, I.; Chavez, F.; Petranovskii, V. X-ray diffraction and photocatalytic activity of natural Mexican clinoptilolite. J. Eng. Res. 2023, 3, 2–9. [Google Scholar] [CrossRef]
  53. Widodo, P.P. The Effects of Calcinations Temperature on the Activation of Natural Zeolite Sumbermanjing Wetan Malang Regency the Number of Active Sites, Crystallinity and Pore Size. Ph.D. Thesis, Department of Chemistry and Science, State University of Malang, Malang, Indonesia, 2011. [Google Scholar]
  54. Dong, Y.-B.; Zhang, Y.; Lin, H.; Li, H. Effects of calcination temperature on physicochemical properties of natural zeolite. Zhongguo Youse Jinshu Xuebao/Chin. J. Nonferrous Met. 2017, 27, 1520–1526. [Google Scholar]
  55. Wahono, S.K.; Prasetyo, D.J.; Jatmiko, T.H.; Suwanto, A.; Pratiwi, D.; Hernawan; Vasilev, K. Transformation of Mordenite-Clinoptilolite Natural Zeolite at Different Calcination Temperatures. IOP Conf. Ser. Earth Environ. Sci. 2019, 251, 012009. [Google Scholar] [CrossRef]
  56. Mukti, N.I.F. Modifikasi Zeolit Alam Sebagai Adsorben Ammonium Hidroksida (NH4OH). Teknoin 2016, 22, 10. [Google Scholar]
  57. Narasimhulu, K.; Gettu, R.; Babu, K.G. Beneficiation of Natural Zeolite through Flash Calcination for Its Use as a Mineral Admixture in Concrete. J. Mater. Civ. Eng. 2014, 26, 24–33. [Google Scholar] [CrossRef]
  58. Gregg, S.J.; Sing, K.S.W.; Salzberg, H.W. Adsorption Surface Area and Porosity. J. Electrochem. Soc. 1967, 114, 111–194. [Google Scholar] [CrossRef]
  59. Munirah, N.R.; Wahab, A. Antibiotic Purification by Using Zeolites Adsorbent. Bachelor’s Thesis, University of Malaysia Pahang, Pahang, Malaysia, 2009. [Google Scholar]
  60. Sahasrabudhe, A.; Mitra, S.; Tripathi, A.K.; Mukhopadhyay, R.; Gupta, N.M. Effect of pore characteristics on the dynamics of cyclohexane molecules confined in ZSM-5 and MCM-41 molecular sieves: FTIR and QENS study. Phys. Chem. Chem. Phys. 2003, 5, 3066–3075. [Google Scholar] [CrossRef]
  61. Zacahua-Tlacuatl, G.; Pérez-González, J.; Castro-Arellano, J.J.; Balmori-Ramírez, H. Rheological characterization and extrusion of suspensions of natural zeolites. Appl. Rheol. 2010, 20, 34037. [Google Scholar]
  62. Bartholomew, C.H. Mechanisms of catalyst deactivation. Appl. Catal. A Gen. 2001, 212, 17–60. [Google Scholar] [CrossRef]
  63. Kim, C.H.; Hur, Y.G.; Lee, K.Y. Relationship between surface characteristics and catalytic properties of unsupported nickel-tungsten carbide catalysts for the hydrocracking of vacuum residue. Fuel 2022, 309, 122103. [Google Scholar] [CrossRef]
Materials 16 04855 g001 550

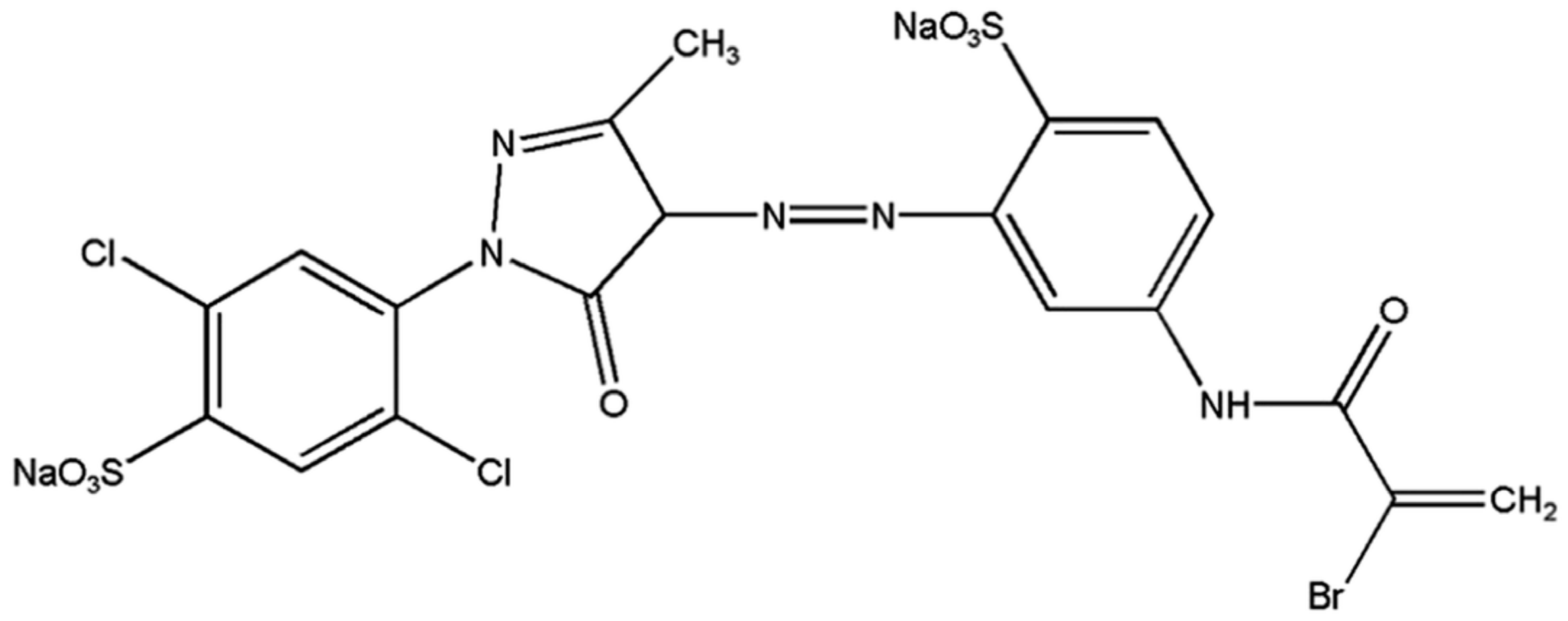

Figure 1. Molecular structure of Lanasol Yellow 4G. Adapted from the literature.
Figure 1. Molecular structure of Lanasol Yellow 4G. Adapted from the literature.
Materials 16 04855 g001
Materials 16 04855 g002 550

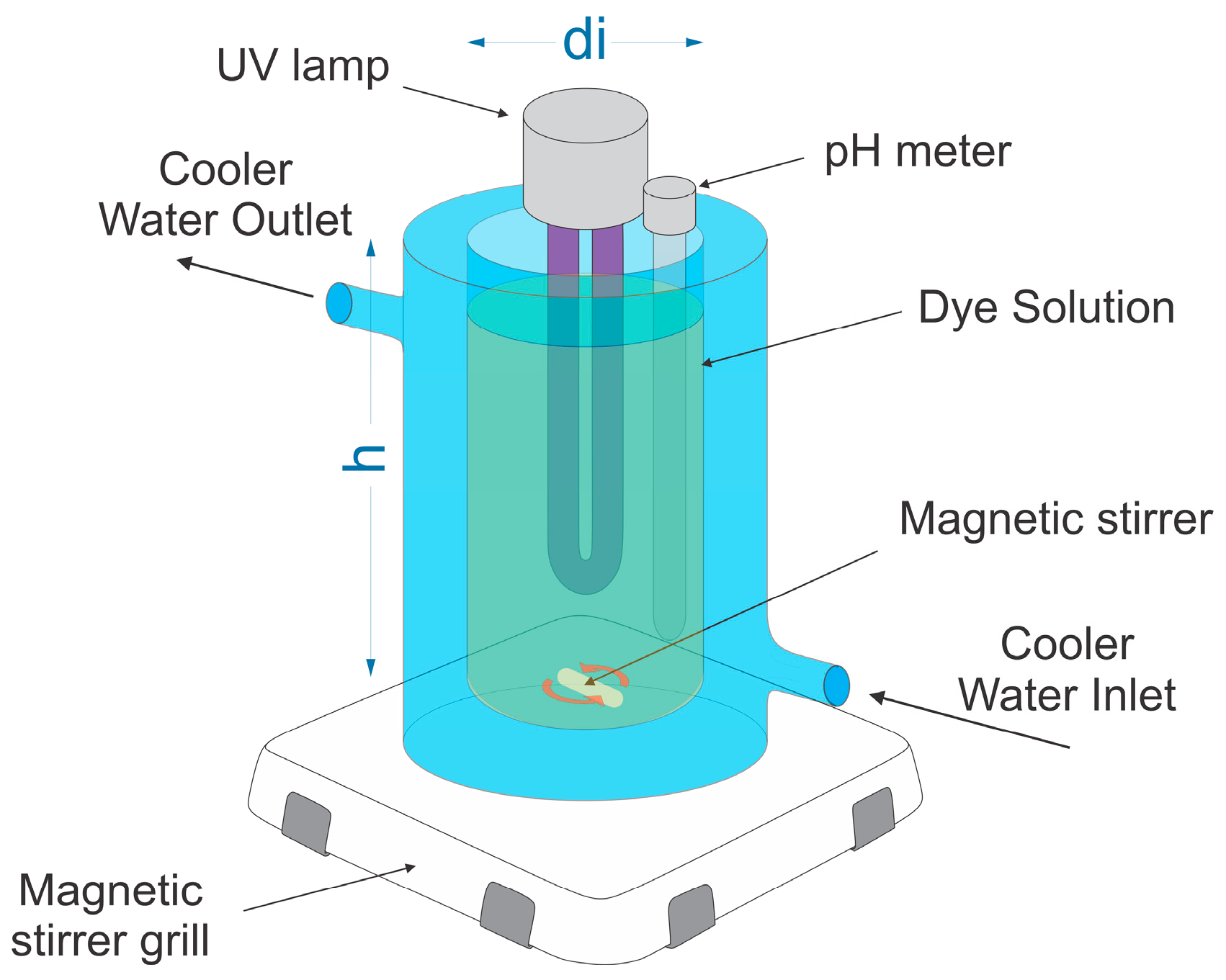

Figure 2. Schematic representation of the photocatalytic reactor assembly.
Figure 2. Schematic representation of the photocatalytic reactor assembly.
Materials 16 04855 g002
Materials 16 04855 g003 550

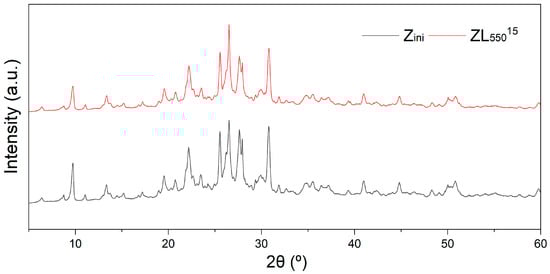

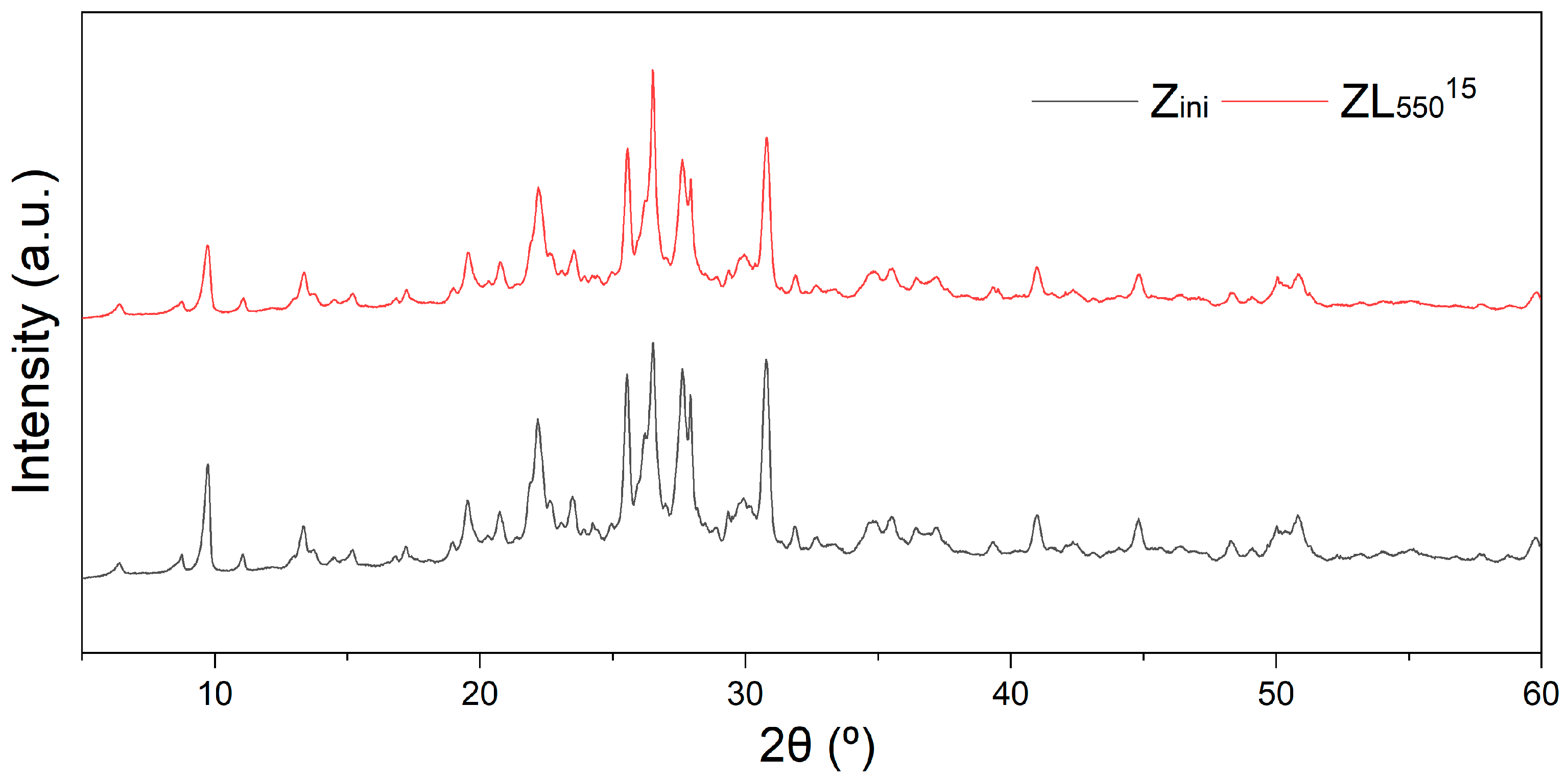

Figure 3. X-ray Diffraction patterns of natural zeolite (Zini) and CO2-laser calcined zeolite (ZL55015).
Figure 3. X-ray Diffraction patterns of natural zeolite (Zini) and CO2-laser calcined zeolite (ZL55015).
Materials 16 04855 g003
Materials 16 04855 g004a 550Materials 16 04855 g004b 550
Figure 4. SEM micrographs of Zini (a,b) and ZL55015 (c,d) samples at 500× and 25,000× magnifications, respectively.
Figure 4. SEM micrographs of Zini (a,b) and ZL55015 (c,d) samples at 500× and 25,000× magnifications, respectively.
Materials 16 04855 g004aMaterials 16 04855 g004b
Materials 16 04855 g005 550

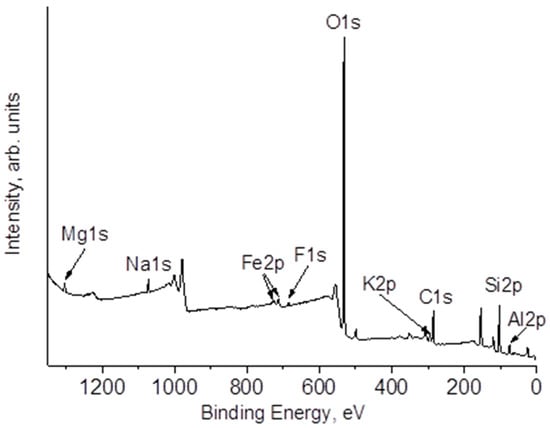

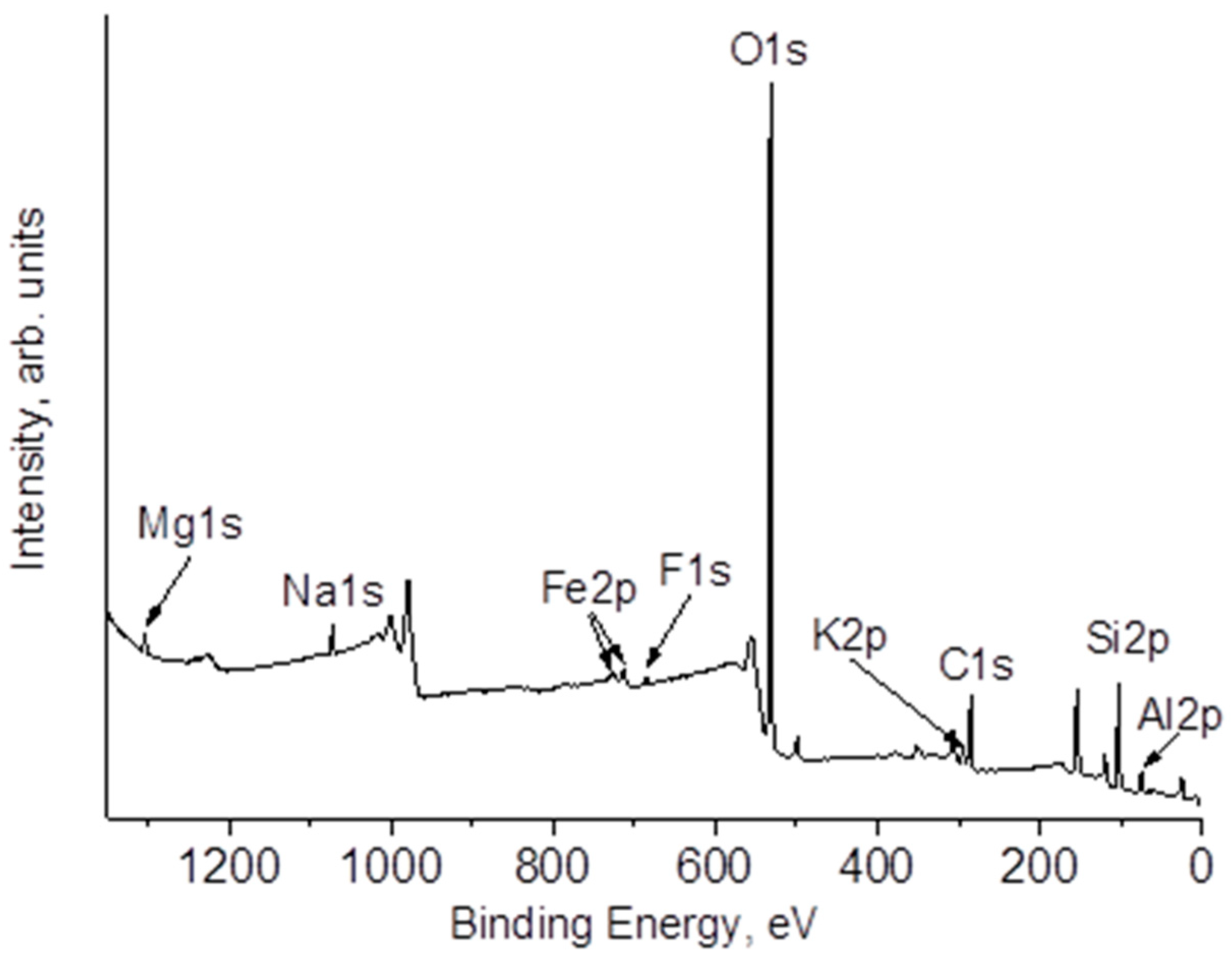

Figure 5. XPS survey spectrum of Zini.
Figure 5. XPS survey spectrum of Zini.
Materials 16 04855 g005
Materials 16 04855 g006 550
Figure 6. (a) Absorbance spectra of LY4G solutions at various concentrations and the corresponding (b) calibration curve at 400 nm.
Figure 6. (a) Absorbance spectra of LY4G solutions at various concentrations and the corresponding (b) calibration curve at 400 nm.
Materials 16 04855 g006
Materials 16 04855 g007 550
Figure 7. The degradation efficiency of Zini and ZL samples in the photo-Fenton reaction.
Figure 7. The degradation efficiency of Zini and ZL samples in the photo-Fenton reaction.
Materials 16 04855 g007
Table
Table 1. Surface area, pore volume, and pore radius for Zini and ZL samples calcined at different temperatures for 15 s.
Table 1. Surface area, pore volume, and pore radius for Zini and ZL samples calcined at different temperatures for 15 s.
SampleCalcination
Temperature (°C)		Surface Area (BET)
(m2/g)		Pore Volume
(×10−2 cm³/g)		Pore Radius DV (r)
(Å)
Zini023.62.322.6
ZL3001530019.32.621.4
ZL5501555025.86.816.9
ZL7001570013.34.817.2
Table
Table 2. Crystallinity and grain size of Zini, ZL55015, ZL55030, ZL55060, and ZL550240 catalysts.
Table 2. Crystallinity and grain size of Zini, ZL55015, ZL55030, ZL55060, and ZL550240 catalysts.
SampleCalcination
Temperature (°C)
and Time (s)		Crystallinity
(%)		2θ
(Degree)		D
(nm)
Zini-28.469.734.9
25.542.2
41.029.8
ZL55015550; 1528.509.729.7
25.540.4
41.028.9
ZL55030550; 3030.159.732.7
25.542.9
41.029.9
ZL55060550; 6024.349.728.7
25.539.3
41.029.8
ZL550240550; 24029.219.733.6
25.541.1
41.029.4
Table
Table 3. Elemental composition (%) and absolute error (%) of Zini and ZL55015 samples determined by EDS analysis.
Table 3. Elemental composition (%) and absolute error (%) of Zini and ZL55015 samples determined by EDS analysis.
ElementsZiniZL55015
Mean %Abs. Error %Mean %Abs. Error %
C20.71.322.91.5
O53.62.951.22.9
Al3.90.24.40.2
Si18.20.817.80.7
Na1.20.11.00.1
Mg0.200.030.200.02
K0.900.041.000.04
Ca0.800.030.800.03
Fe0.500.040.800.04
Table
Table 4. The content of elements in the surface layer of the studied samples (in atomic %), determined from the integrated intensities of analytical lines in the XPS spectra.
Table 4. The content of elements in the surface layer of the studied samples (in atomic %), determined from the integrated intensities of analytical lines in the XPS spectra.
ElementsZiniZL55015ZL55030ZL55060ZL550240
O54.253.550.250.046.5
Si19.118.917.718.016.1
Fe1.01.01.00.90.9
C14.415.621.521.227.5
Al6.16.25.55.55.1
Mg1.21.20.91.00.7
Na1.11.21.01.11.0
Ca0.80.80.70.70.7
F0.80.70.60.60.5
K0.70.60.60.60.5
N0.60.40.40.40.5
Table
Table 5. Effect of pH on adsorption studies at equilibrium (60 min).
Table 5. Effect of pH on adsorption studies at equilibrium (60 min).
pHZini
(Q, mg g−1)		ZL55015
(Q, mg g−1)
2.5162.1116.0
462.495.7
5.582.552.7
759.639.0
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Correa-Coyac, D.; Michtchenko, A.; Zacahua-Tlacuatl, G.; Cruz-Narváez, Y.; Castro-Arellano, J.J.; Sanpedro-Díaz, M.; Rivera-Talamantes, C.F.d.J.; Shulga, Y.M. Adsorption and Photodegradation of Lanasol Yellow 4G in Aqueous Solution by Natural Zeolite Treated by CO2-Laser Radiation. Materials 2023, 16, 4855. https://doi.org/10.3390/ma16134855

AMA Style

Correa-Coyac D, Michtchenko A, Zacahua-Tlacuatl G, Cruz-Narváez Y, Castro-Arellano JJ, Sanpedro-Díaz M, Rivera-Talamantes CFdJ, Shulga YM. Adsorption and Photodegradation of Lanasol Yellow 4G in Aqueous Solution by Natural Zeolite Treated by CO2-Laser Radiation. Materials. 2023; 16(13):4855. https://doi.org/10.3390/ma16134855

Chicago/Turabian Style

Correa-Coyac, David, Alexandre Michtchenko, Gregorio Zacahua-Tlacuatl, Yair Cruz-Narváez, José J. Castro-Arellano, Monserrat Sanpedro-Díaz, Carlos F. de J. Rivera-Talamantes, and Yury M. Shulga. 2023. "Adsorption and Photodegradation of Lanasol Yellow 4G in Aqueous Solution by Natural Zeolite Treated by CO2-Laser Radiation" Materials 16, no. 13: 4855. https://doi.org/10.3390/ma16134855

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
