Synthesis of Sulfur@g-C3N4 and CuS@g-C3N4 Catalysts for Hydrogen Production from Sodium Borohydride

by
Khulaif Alshammari
*,
Turki Alotaibi
,
Majed Alshammari
,
Sultan Alhassan
,
Alhulw H. Alshammari
and
Taha Abdel Mohaymen Taha
Physics Department, College of Science, Jouf University, Sakaka P.O. Box 2014, Saudi Arabia
*
Author to whom correspondence should be addressed.
Materials 2023, 16(12), 4218; https://doi.org/10.3390/ma16124218
Submission received: 11 April 2023 / Revised: 17 May 2023 / Accepted: 17 May 2023 / Published: 7 June 2023
(This article belongs to the Section Catalytic Materials)
Browse Figures
Versions Notes

Abstract

In this work, the S@g-C3N4 and CuS@g-C3N4 catalysts were prepared via the polycondensation process. The structural properties of these samples were completed on XRD, FTIR and ESEM techniques. The XRD pattern of S@g-C3N4 presents a sharp peak at 27.2° and a weak peak at 13.01° and the reflections of CuS belong to the hexagonal phase. The interplanar distance decreased from 0.328 to 0.319 nm that facilitate charge carrier separation and promoting H2 generation. FTIR data revealed the structural change according to absorption bands of g-C3N4. ESEM images of S@g-C3N4 exhibited the described layered sheet structure for g-C3N4 materials and CuS@g-C3N4 demonstrated that the sheet materials were fragmented throughout the growth process. The data of BET revealed a higher surface area (55 m2/g) for the CuS-g-C3N4 nanosheet. The UV–vis absorption spectrum of S@g-C3N4 showed a strong peak at 322 nm, which weakened after the growth of CuS at g-C3N4. The PL emission data showed a peak at 441 nm, which correlated with electron–hole pair recombination. The data of hydrogen evolution showed improved performance for the CuS@g-C3N4 catalyst (5227 mL/g·min). Moreover, the activation energy was determined for S@g-C3N4 and CuS@g-C3N4, which showed a lowering from 47.33 ± 0.02 to 41.15 ± 0.02 KJ/mol.

1. Introduction

Hydrogen is an important and versatile source of energy. Hydrogen has huge potential to drive the global energy transition as a clean fuel even though it is the smallest molecule in the universe [1,2]. Different procedures may be used to extract hydrogen from a variety of sources, both renewable and nonrenewable. It is a flammable gas inside engines, and it can also be employed in a vehicle fuel cell, electricity production, or heat generation. For all these purposes, hydrogen can replace fossil fuels without radiating CO2 gas. In the same context, hydrogen is a neutral carrier of energy, such as electricity, but it decarbonizes non-electrified sectors, such as heavy industry, long-distance transportation, or periodic storage [3,4,5]. Increasing the rate of hydrogen production contributes to reducing costs and maximizing utilization. Therefore, work has been in full swing to develop catalysts of various materials to enhance hydrogen production. A variety of developed catalysts have been used to produce hydrogen for the benefit of society and as an alternative energy source.
Carbon nitrides, which are inexpensive and environmentally friendly materials, have recently proven to be a potential option for catalysts. Carbon nitrides and carbon nitride derivatives are promising catalysts. Carbon nitrides are substances with nitrogen and carbon serving as the backbone-building constituents [6]. The class of mostly planar structures known as graphitic carbon nitrides (g-C3N4) is generated from the parent binary molecule. Polymerized Tris-s-triazine layers are used to make bulk polymeric g-C3N4. Melamine, urea, thiourea, or a mixture of these compounds are heated to between 500 and 600 °C to produce g-C3N4 [7,8]. The study of carbon nitrides aims to comprehend the characteristics of these compounds, particularly their catalytic performance. A common explanation for the catalytic activity of catalysts is the presence of morphological defects such as vacancies, steps, corners, and edges [9]. The band gap and surface chemistry of the material can vary because of changes in the final characteristic crystal structure, which can be affected by the temperature of the pyrolysis process. In addition to being plentiful and simple to make using pyrolysis procedures, g-C3N4 is also interesting since it is non-toxic, very stable, and has no metals. Bulk samples suffer from small surface areas, average optical absorption, fast charge recombination, moderate redox ability, and limited charge carrier mobility [10,11,12]. Many strategies have been completed to improve g-C3N4 such as metal nanoparticle decoration, non-metal doping, nano-structuring and exfoliation methods, heterojunctions with other catalysts, and protonation of the surface [13,14,15].
Intrinsic doping with different non-metals has been found to be effective for H2 evolution, lowering the bandgap, improving catalyst surface area, and reducing non-radiative recombination by forming midgap states [16,17]. Meanwhile, exfoliation methods for g-C3N4 have concentrated on lowering layer thickness to counteract the consequences of poor charge transfer due to the minor effects of surface area. The ability to electrostatic self-assemble composite structures with negatively surface-charged materials to function as cocatalysts is one of the main benefits of positively charged g-C3N4 material [18,19]. A common method for defect control involves changing the number of vacancies in order to improve the material’s photocatalytic H2 evolution rate, nonlinear optical characteristics, and other physical and chemical features. Accordingly, different S [20], P [21], B [22] and TiO2 [23] integrated g-C3N4 were employed for catalytic hydrogen evolution. The presence of doping S in the matrix of g-C3N4 leads to the reduction of their band gap, induced charge rearrangement and improved the electron–hole separation. The direct control of the g-C3N4 band structure and the improvement of its optical absorption capability are two benefits of the sulfur doping technique. The visible light response photocatalytic performance of g-C3N4 was enhanced by using phosphor-doped graphitic carbon nitride as a catalyst. In order to improve photocatalysis, the interfacial heterojunction between g-C3N4 and TiO2 can offer a reliable channel for the transfer of charge. The integration of TiO2 into g-C3N4 delayed the electron–hole recombination and thus improved the catalytic performance.
Copper sulfide (CuS), a chalcogenide with special properties, has been proposed as a viable candidate for a variety of applications [24]. CuS is a low-cost semiconductor with high abundance and lower toxicity [25]. In stark contrast to bulk material, CuS nanomaterials have exceptional physical, chemical, structural, and surface features [26]. Solid-state reactivity of elements [27], solid-state metathesis [28], and self-propagating high-temperature synthesis [29] were used to produce copper sulfide. Meanwhile, CuS structures can be prepared via traditional chemical procedures such as the sol–gel method [30], hydrothermal [31] and solvothermal synthesis [32]. The crystal structure of CuS is typically hexagonal with a space group of P63/mmc [33]. Light emission, charge transport, photocatalysis, and thermal diffusion investigations have all made extensive use of p-type CuS semiconductors [34]. Band gaps for CuS microspheres are 2.08 eV, for CuS nanotubes are 2.06 eV, for CuS nanoflakes are 2.16 eV, and for CuS nanoparticles are 1.88 eV [35]. Therefore, CuS possesses high absorption of solar energy [36] and improved nonlinear optical properties [37]. Moreover, the electronic structure of CuS allows the useful application of these materials in photocatalysis [38].
The synthesis of metal oxide/g-C3N4 nanocomposites can be conducted through various methods such as the sonomechanical, hydrothermal, solvothermal and polycondensation synthesis methods. The sonomechanical synthesis is the most common method for the metal oxide and g-C3N4 nanosheet. This method was used to synthesize the molybdenum (MoO3) and g-C3N4 ultrathin sheet [39]. The disadvantage of this synthesis process is attributed to its weak interaction which may lead to dissociation after some catalytic cycles. Hydrothermal synthesis is a well-known method for nanomaterials preparation. It is a solution-based reaction where it can be carried out in a wide range of temperatures [40]. Hydrothermal synthesis has been previously used for the synthesis of CuS/g-C3N4 composites [41]. These hydrothermal preparation methods have some disadvantages such as a lack of recycling and regenerating the catalysts [42].
The solvothermal method has also been widely used for the synthesis of g-C3N4 when precursor and solvent are placed in an autoclave under a mild temperature. In this case, templates are helpful to control the morphology [43]. The solvothermal synthesis process has some disadvantages such as its synthesis process requires multi-steps in comparison with polycondensation. However, the polycondensation and solvothermal synthesis methods have been considered as low energy consumption and low-cost processes [44]. These synthesis methods require templates to prepare nanosheets with certain shapes such as nanotubes. Polycondensation is facile and common synthesis process which includes cost-effective nitrogen-rich precursors [45]. In the literature, the polycondensation process has been utilised for the NiS-g-C3N4 nanocomposites synthesis [46].
The general purpose of this study is to investigate alternative ways for tailoring the optical, structural, and catalytic characteristics of S@g-C3N4 and CuS@g-C3N4 nanocomposites. The used one-pot method is desirable since it is facile and not costly. The structural properties of these samples were completed on XRD, FTIR and ESEM techniques. The optical bandgap and photoluminescence analysis for these nanostructures will be investigated. Finally, the catalytic performance for hydrogen generation from NaBH4 will be analysed for S@g-C3N4 and CuS@g-C3N4.

2. Experimental

The polycondensation route was used to synthesize S@g-C3N4 via the thermal decomposition of thiourea in air. A 150 mL porcelain crucible with a cover was then filled with 12.5 g of thiourea that had been finely ground in an agate mortar. The crucible was heated to 550 °C in an air environment at a ramp rate of 3.0 °C/min, kept at that temperature for 2 h, and then cooled to room temperature. CuS@g-C3N4 nanocomposite was prepared via grinding of 12.5 g thiourea and 1.0 g CuCl2.6H2O by agate mortar for 30 min. The mixture was transferred to a porcelain crucible that was inserted into a muffle furnace. The heating process was completed at 550 °C for 2 h. Finally, the powder was ground and stored in a glass tube.
A powder Shimadzu XRD 7000 X-ray diffractometer (Kyoto, Japan) with a 2θ range of 5.0 to 80° was used to examine the crystal structure of nanocomposites. The samples were fixed on a glass holder. A Shimadzu 100 FTIR spectrometer was used to measure the FTIR spectra of samples. An environmental scanning electron microscope with an energy dispersive spectroscopy system (ESEM, Thermo Fisher with Oxford detector, Waltham, MA, USA) was used to examine structural morphology and elemental composition. The measurements of surface area and pore size were completed on the Quantachrome system (The NOVA A 4200e High- Speed). For the prepared samples, a Thermo Scientific Evolution 200 UV–vis spectrophotometer (Waltham, MA, USA) with a resolution of 0.1 nm was used to record the UV–vis spectra. The xenon lamp provides strong illumination from the UV to the near-IR region of the spectrum. An effective way to gain knowledge about material band structure and electron–hole recombination in photocatalysis is by the photoluminescence spectroscopy. A Cary Eclipse fluorescence spectrometer (Shimadzu, UK) was used to conduct photoluminescence spectroscopy. The excitation wavelength was selected to be 300 nm.
The inclusion methodology was used to assess the synthesized material’s hydrogen catalytic performance. Normally, 100 mL of distilled water was added without stirring after 10 mg of the nanocomposite sample had been combined with 1.0 g of NaBH4. The volume of hydrogen gas was measured using the water displacement method. Moreover, the measurements were carried out at 293, 303, 313 and 323 K.

3. Results and Discussion

The typical XRD patterns were used to identify the crystal structures of S@g-C3N4 and CuS@g-C3N4 nanocomposites. Figure 1 depicts the XRD spectra of the developed catalysts. The diffraction pattern of S@g-C3N4 presents a sharp peak at 27.2° and a weak peak at 13.1°, which corresponds to the (002) and (100) planes, respectively [47]. The sharp diffraction peak can be attributed to aromatic system interlayer stacking, whereas the weak diffraction peak can be attributed to aromatic in-plane structural packing. The diffraction pattern of CuS belongs to the hexagonal phase according to (PCPDF card No: 782121) and corresponds to (101), (006), (105), (110), (108), (116) and (118) planes with peak locations at 2 θ = 27.8°, 32.6°, 38.8°, 49°, 53°, 58.4° and 66.4°, respectively [48]. The distinct and strong diffraction peaks provide evidence that the catalysts exhibit good crystallinity. The three main peaks (35.6°, 38.8° and 49°) were applied in the Scherer equation was used to determine the average crystallite grain size of CuS@g-C3N4 to be 10 nm [49,50]:
D = 0.9 λ β c o s θ
where D represents the typical crystallite grain size, λ represents the X-ray wavelength, and β represents full width at half maximum.
In graphitic carbon nitride, peaks centered at 13.1° and 27.2° are related to hydrogen bonding for sustaining intralayer long-range atomic order and van der Waals forces for managing interlayer periodic stacking along the c-axis [51]. The intensity of the peak located at 13.1o was reduced after the growth of the CuS nanosheet demonstrating that the long-range order of the in-plane structural packing in the g-C3N4 sheets has been much reduced because of hydrogen bond breaking in the intralayer framework [52]. The specific peak of g-C3N4 located at 27.2° is shifted to 27.8°, which is due to the addition of the CuS group on g-C3N4 nanosheets. The interplanar distance decreased from 0.328 to 0.319 nm which facilitated charge carrier separation and promoted H2 generation. In addition, the C–N sheet structure of S@g-C3N4 moiety of CuS@g-C3N4 is slightly changed, resulting in a drop in the intensity peak of CuS@g-C3N4 compared to S@gC3N4 [53,54]. Moreover, the periodic stacking of the layers may be disturbed by the hydrogen bonding-free layers [51].
The Fourier transform infrared spectroscopy (FTIR) spectra of S@g-C3N4 and CuS@g-C3N4 nanosheet are presented in Figure 2. The existence of the S–C bond at 721 cm−1 in S@gC3N4 indicated that sulfur was successfully incorporated into the g-C3N4 structure [55]. Due to the significantly larger ionic radius of copper (approximately 145 picometers) and sulfur (approximately 180 picometers) in comparison to carbon and nitrogen (measuring at 70 and 65 picometers, respectively), it is unlikely that substitution doping will take place. Furthermore, it has been established that g-C3N4 is a compound held together by covalent bonds. The doping of Cu+ and S+ as an ion state in a substitutional site was found to be unfeasible. Furthermore, according to reference [56], the maximum interplanar distance of nitride pores is 0.71 nm, which is sufficient to accommodate Cu+ and S+. This finding verifies that interstitial doping took place, while substitution doping was not present [57]. The absorption bands at 802 and 1209–1620 cm−1 are attributed to aromatic in-plane structural packing C=C/C=N/C-N bonds [58]. The peaks at 1635 cm−1 and 1110 cm−1 were attributed to the hydroxyl groups on the surface of hydrated oxide and thioacetamide on the surface of CuS, respectively [59]. The band at 2349 cm−1 is assigned to adsorbed CO2 while the bands located at 3090–3300 cm−1 are attributed to NH and OH groups [60,61].
ESEM electron spectroscopy was used to investigate the structure of S@g-C3N4 and CuS@g-C3N4 nanostructures. Figure 3 demonstrates that S@g-C3N4 exhibits the described layered sheet structure for g-C3N4 materials. In Figure 3, CuS@g-C3N4 demonstrates that the sheet materials have been fragmented throughout the growth process, exposing additional edge sites. Therefore, the CuS@g-C3N4 nanosheet is expected to possess high surface area and porosity. The 3D surface plot was also provided in Figure 3 for S@g-C3N4 and CuS@g-C3N4. The obtained plots confirm the sheet morphology of S@g-C3N4 and fragmented flakes for CuS@g-C3N4.
Surprisingly, XRD analysis and ESEM microscope images revealed a layered structure of CuS@g-C3N4 nanocomposite and supported the formation of interlayers of CuS between g-C3N4 nanosheets. Moreover, this leads to a decrease in the interplanar distance and thus delays the electron–hole recombination.
The surface area of the S@g-C3N4 and CuS-g-C3N4 nanocomposite samples was determined using the N2 adsorption–desorption isotherm plotted in Figure 4. The samples showed type IV isotherm without saturation, indicating mesoporous architecture. The data of BET revealed a surface area of 40 and 55 m2/g for the samples S@g-C3N4 and CuS-g-C3N4. Meanwhile, the Barett-Joyner-Halenda (BJH) pore volume analysis showed 0.24 cm3 for S@g-C3N4 and 0.34 cm3 for CuS-g-C3N4. This shows an increase in pore volume after the growth of CuS nanoparticles. Therefore, the polycondensation process helped to increase the porosity of nanostructures and thus enhance the catalytic performance of these materials as the number of active sites is increased [62,63].
The capacity of a material to absorb light in the visible, near-UV, and near-infrared regions of the electromagnetic spectrum is investigated using the UV–vis spectrophotometry analysis. The UV–vis absorption spectra of S@g-C3N4 and CuS@g-C3N4 nanostructures are displayed in Figure 5a. The spectrum of S@g-C3N4 showed a strong peak at 322 nm, which comes because of n→π* electronic transitions [64]. This peak is weakened after the growth of CuS at g-C3N4. Accordingly, the growth of CuS@g-C3N4 produces a change in the electronic structure of g-C3N4 and affects the photo-induced electron–hole generation.
The optical bandgap investigation gives more information about the electronic structure of materials. Photon absorption (αhv) and optical bandgap (Eopt) have the following mathematical relationship [65,66]:
α h v = A h v − E o p t n
where A is a constant and n = 0.5 for direct allowed transitions. The intercept of straight lines at (αhν)2 = 0 for the graphs shown in Figure 5b gives the values of the optical band gap. Therefore, the estimated band gaps of S@g-C3N4 and CuS@g-C3N4 nanostructures are 2.6 and 2.3 eV. The development of new energy levels or changes in the electronic structure of g-C3N4 accounts for bandgap reduction [67,68]. The up-shift of the valence band (VB) and the downshift of the conduction band (CB) cause the bandgap to shrink in the CuS@g-C3N4 sample [69]. The intercalation of CuS molecules between g-C3N4 interlayers bridges the layers that reduce the electronic localization and spread the p-conjugated system [70].
The photoluminescence (PL) analysis of the catalyst gives information about charge separation dynamics and the electron–hole recombination rates [71]. Accordingly, the emission spectra of S@g-C3N4 and CuS@g-C3N4 are displayed in Figure 6. The two samples showed a PL emission at 441 nm, which correlated with electron–hole pair recombination. Meanwhile, the intensity of this band decreased after the growth of CuS. This leads to high separation of photo-induced electron–hole pairs [72]. This finding reveals that after CuS at g-C3N4, the recombination rates were dramatically lowered. Thus, the catalytic performance of this sample is expected to be improved.
For the CuS@g-C3N4 sample, an additional emission peak located at 387 nm was observed in Figure 6c. This emission peak is attributed to copper sulfide nanoflakes and this result agrees with the literature [73].
We studied the hydrogen generation from 1.0 g of NaBH4 and added the catalysts, which are 0.01 g of S/g-C3N4, and 0.01 g of CuS/g-C3N4. Figure 7 represents the hydrogen generation volume against the time for NaBH4 (no catalyst), S@g-C3N4 and CuS@g-C3N4; the experiment completed at 293 K. It is shown that the addition of only 0.01 g catalyst accelerates the hydrogen production. The highest hydrogen production was achieved for CuS@g-C3N4. This comes because of more active sites located at the surface of CuS@g-C3N4 as explained by surface area and pore size analysis. Understanding the active sites will assist in the design and manufacturing of catalysts with increased activity, selectivity, and stability. Nanocatalysts have active regions of many catalytic processes only include a small number of atoms or minority species. When compared to the atoms in the bulk, these various surface atoms have distinct chemical environments, which may also cause variations in charge redistribution at the interface [74]. For many catalytic applications, corners and edges are now generally acknowledged to be more effective active sites [75]. The morphological structure of g-C3N4 has a significant impact on its performance. There are few active surface sites in conventional g-C3N4 because of its layered bulk structure. Therefore, the number of active surface sites can be increased by activating the g-C3N4 surface. Further, the addition of an active material capable of precisely adsorbing the reaction substrates increases the active sites of g-C3N4. Due to the increased exposure of active sites, the 2D structure of photocatalysts offers enormous promise. An efficient method to lower the activation barrier for catalytic processes competing with the recombination of photogenerated carriers is to add a supportive cocatalyst to enlarge the active site [76].
The hydrogen evolution of S@g-C3N4 and CuS@g-C3N4 was measured at different temperatures (239, 303, 313, and 323 K). Figure 8a,b represents the increase in the hydrogen production of S@g-C3N4 when the temperatures increased from 293 to 323 K. The hydrogen generation rate (K) is connected to the volume of hydrogen (V), the mass of the catalyst (mcat) and time (t) through the following equation [77,78];
K = V t . m c a t
Figure 8b represents the value of the highest hydrogen evolution rate, which is 5034 mL/g·min at 323 K. The lowest value is 805 mL/g·min at 293 K. Moreover, the data of hydrogen production for CuS@g-C3N4 were displayed in Figure 9a. The increase in temperature improves hydrogen production. Further, the second catalyst CuS@g-C3N4 highest hydrogen evolution rate is 5227 mL/g·min at 323 K, as shown in Figure 9b.
The data of hydrogen generation rate vs temperature allow for the estimation of activation energy (Ea). In this context, the following Arrhenius relation connects the activation energy for NaBH4 hydrolysis to the temperature (T) [78,79]:
ln K = ln A − E a R T
where is an exponential factor and R defines the gas constant (8.314 kJ K−1 mol−1). The slope of straight lines shown in Figure 10 helps with Ea calculations. The apparent activation energy was determined for S@g-C3N4 and CuS@g-C3N4, which showed values of 47.33 ± 0.02 and 41.15 ± 0.02 KJ/mol. Moreover, the activation energies of S@g-C3N4 and CuS@g-C3N4 nanostructures are lower than that for Co-P/CNTs-Ni foam catalyst [80], Co–Mo–B/C [81], Co3O4@TiO2-g-C3N4 [82], Co@TiO2 [83] and CoB/Ag–TiO2 [84] as seen in Table 1.
A comparison of hydrogen generation rate and activation energy for our nanocatalyst and other materials is listed in Table 1. The data recorded in this table indicated that the prepared CuS@g-C3N4 catalyst is superior to other materials.

4. Conclusions

The nanocomposites of S@g-C3N4 and CuS@g-C3N4 catalysts were prepared via the polycondensation process. XRD and FTIR analysis confirmed the structural transformation of S@g-C3N4 and CuS@g-C3N4. ESEM images of S@g-C3N4 exhibited the described layered sheet structure for g-C3N4 materials and CuS@g-C3N4 demonstrated that the sheet materials were fragmented throughout the growth process. BET data revealed a surface area of 40 and 55 m2/g for the samples S@g-C3N4 and CuS-g-C3N4. Meanwhile, the BJH pore volume analysis showed 0.24 cm3 for S@g-C3N4 and 0.34 cm3 for CuS-g-C3N4. UV–Vis absorption measurements showed that the estimated band gaps of S@g-C3N4 and CuS@g-C3N4 nanostructures are 2.6 and 2.3 eV. The two samples showed a PL emission at 430–480 nm, with the intensity of this band decreasing after the growth of CuS. The data of hydrogen evolution showed that the sample CuS@g-C3N4 has high generation rates and lower activation energy 41.15 ± 0.02 KJ/mol. These findings approve the importance of the prepared CuS@g-C3N4 nanostructures for hydrogen production from NaBH4.

Author Contributions

All the authors (K.A., T.A., M.A., S.A., A.H.A. and T.A.M.T.) have equal contributions to the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through project number 223202.

Informed Consent Statement

Hereby: the corresponding author declares that the authors have thoroughly read the Journal Policy. Here, I declare that this contribution is original and has not been published anywhere. Furthermore, I declare that this article does not contain any plagiarized materials.

Data Availability Statement

The data that support the findings of this study are available from the author upon reasonable request.

Acknowledgments

The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through project number 223202.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Hjeij, D.; Biçer, Y.; Koc, M. Hydrogen strategy as an energy transition and economic transformation avenue for natural gas exporting countries: Qatar as a case study. Int. J. Hydrog. Energy 2022, 47, 4977–5009. [Google Scholar] [CrossRef]
  2. Borowski, P.F.; Karlikowska, B. Clean Hydrogen Is a Challenge for Enterprises in the Era of Low-Emission and Zero-Emission Economy. Energies 2023, 16, 1171. [Google Scholar] [CrossRef]
  3. Hunt, J.D.; Nascimento, A.; Nascimento, N.; Vieira, L.W.; Romero, O.J. Possible pathways for oil and gas companies in a sustainable future: From the perspective of a hydrogen economy. Renew. Sustain. Energy Rev. 2022, 160, 112291. [Google Scholar] [CrossRef]
  4. Varuvel, E.G.; Thiyagarajan, S.; Sonthalia, A.; Prakash, T.; Awad, S.; Aloui, F.; Pugazhendhi, A. Some studies on reducing carbon dioxide emission from a CRDI engine with hydrogen and a carbon capture system. Int. J. Hydrog. Energy 2022, 47, 26746–26757. [Google Scholar] [CrossRef]
  5. Ardo, F.M.; Lim, J.W.; Ramli, A.; Lam, M.K.; Kiatkittipong, W.; Abdelfattah, E.A.; Shahid, M.K.; Usman, A.; Wongsakulphasatch, S.; Sahrin, N.T. A review in redressing challenges to produce sustainable hydrogen from microalgae for aviation industry. Fuel 2022, 330, 125646. [Google Scholar] [CrossRef]
  6. Verma, S.K.; Verma, R.; Girish, Y.R.; Xue, F.; Yan, L.; Verma, S.; Singh, M.; Vaishnav, Y.; Shaik, A.B.; Bhandare, R.R.; et al. Heterogeneous graphitic carbon nitrides in visible-light-initiated organic transformations. Green Chem. 2022, 24, 438–479. [Google Scholar] [CrossRef]
  7. Guan, X.; Li, Z.; Geng, X.; Lei, Z.; Karakoti, A.; Wu, T.; Kumar, P.; Yi, J.; Vinu, A. Emerging Trends of Carbon-Based Quantum Dots: Nanoarchitectonics and Applications. Small 2023, 1, 2207181. [Google Scholar] [CrossRef]
  8. Wang, J.; Wang, S. A critical review on graphitic carbon nitride (g-C3N4)-based materials: Preparation, modification and environmental application. Coord. Chem. Rev. 2022, 453, 214338. [Google Scholar] [CrossRef]
  9. Tomboc, G.M.; Venkateshalu, S.; Ngo, Q.T.; Choi, S.; Pollet, B.G.; Lee, H.; Lee, K. Defect-induced electronic modification and surface reconstruction of catalysts during water oxidation process. Chem. Eng. J. 2022, 454, 140254. [Google Scholar] [CrossRef]
  10. Wu, B.; Zhang, L.; Jiang, B.; Li, Q.; Tian, C.; Xie, Y.; Li, W.; Fu, H. Ultrathin porous carbon nitride bundles with an adjustable energy band structure toward simultaneous solar photocatalytic water splitting and selective phenylcarbinol oxidation. Angew. Chem. Int. Ed. 2021, 60, 4815–4822. [Google Scholar] [CrossRef]
  11. Liu, J.; Fu, W.; Liao, Y.; Fan, J.; Xiang, Q. Recent advances in crystalline carbon nitride for photocatalysis. J. Mater. Sci. Technol. 2021, 91, 224–240. [Google Scholar] [CrossRef]
  12. Chilivery, R.; Zhang, R.; Chen, G.; Yao, D.; Fan, D.; Lu, F.; Song, Y. Facile in situ construction of novel hybrid 3D-BiOCl@ PDA heterostructures with vacancy induced charge transfer for efficient visible light driven photocatalysis and antibacterial activity. Colloids Surf. A Physicochem. Eng. Asp. 2023, 656, 130415. [Google Scholar] [CrossRef]
  13. Starukh, H.; Praus, P. Doping of graphitic carbon nitride with non-metal elements and its applications in photocatalysis. Catalysts 2020, 10, 1119. [Google Scholar] [CrossRef]
  14. Yu, M.; Yuan, X.; Guo, J.; Tang, N.; Ye, S.; Liang, J.; Jiang, L. Selective graphene-like metal-free 2D nanomaterials and their composites for photocatalysis. Chemosphere 2021, 284, 131254. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, Y.; Mori, T.; Niu, L.; Ye, J. Non-covalent doping of graphitic carbon nitride polymer with graphene: Controlled electronic structure and enhanced optoelectronic conversion. Energy Environ. Sci. 2011, 4, 4517–4521. [Google Scholar] [CrossRef]
  16. Samanta, S.; Yadav, R.; Kumar, A.; Sinha, A.K.; Srivastava, R. Surface modified C, O co-doped polymeric g-C3N4 as an efficient photocatalyst for visible light assisted CO2 reduction and H2O2 production. Appl. Catal. B Environ. 2019, 259, 118054. [Google Scholar] [CrossRef]
  17. Shwetharani, R.; Sakar, M.; Fernando, C.A.N.; Binas, V.; Balakrishna, R.G. Recent advances and strategies to tailor the energy levels, active sites and electron mobility in titania and its doped/composite analogues for hydrogen evolution in sunlight. Catal. Sci. Technol. 2019, 9, 12–46. [Google Scholar] [CrossRef]
  18. Ma, L.; Fan, H.; Fu, K.; Lei, S.; Hu, Q.; Huang, H.; He, G. Protonation of graphitic carbon nitride (g-C3N4) for an electrostatically self-assembling carbon@ g-C3N4 core–shell nanostructure toward high hydrogen evolution. ACS Sustain. Chem. Eng. 2017, 5, 7093–7103. [Google Scholar] [CrossRef]
  19. Hayat, A.; Sohail, M.; Anwar, U.; Taha, T.A.; Qazi, H.I.A.; Amina; Ajmal, Z.; Al-Sehemi, A.G.; Algarni, H.; Al-Ghamdi, A.A.; et al. A Targeted Review of Current Progress, Challenges and Future Perspective of g-C3N4 based Hybrid Photocatalyst toward Multidimensional Applications. Chem. Rec. 2022, 23, e202200143. [Google Scholar]
  20. Long, D.; Chen, Z.; Rao, X.; Zhang, Y. Sulfur-doped g-C3N4 and BiPO4 nanorod hybrid architectures for enhanced photocatalytic hydrogen evolution under visible light irradiation. ACS Appl. Energy Mater. 2020, 3, 5024–5030. [Google Scholar] [CrossRef]
  21. Zhu, Y.-P.; Ren, T.-Z.; Yuan, Z.-Y. Mesoporous Phosphorus-Doped g-C3N4 Nanostructured Flowers with Superior Photocatalytic Hydrogen Evolution Performance. ACS Appl. Mater. Interfaces 2015, 7, 16850–16856. [Google Scholar] [CrossRef]
  22. Qin, J.; Jiao, Y.; Liu, M.; Li, Y.; Wang, J. Heat treatment to prepare boron doped g-C3N4 nanodots/carbon-rich g-C3N4 nanosheets heterojunction with enhanced photocatalytic performance for water splitting hydrogen evolution. J. Alloys Compd. 2022, 898, 162846. [Google Scholar] [CrossRef]
  23. Saka, C. Phosphorus decorated g-C3N4-TiO2 particles as efficient metal-free catalysts for hydrogen release by NaBH4 methanolysis. Fuel 2022, 322, 124196. [Google Scholar] [CrossRef]
  24. Mutalik, C.; Okoro, G.; Krisnawati, D.I.; Jazidie, A.; Rahmawati, E.Q.; Rahayu, D.; Hsu, W.-T.; Kuo, T.-R. Copper sulfide with morphology-dependent photodynamic and photothermal antibacterial activities. J. Colloid Interface Sci. 2022, 607, 1825–1835. [Google Scholar] [CrossRef] [PubMed]
  25. Zheng, W.; Zhang, S. Three-dimensional graphitic C3N4/CuS composite as the low-cost and high performance counter electrodes in QDSCs. J. Alloys Compd. 2021, 862, 158706. [Google Scholar] [CrossRef]
  26. Saranya, M.; Santhosh, C.; Augustine, S.P.; Grace, A.N. Synthesis and characterisation of CuS nanomaterials using hydrothermal route. J. Exp. Nanosci. 2014, 9, 329–336. [Google Scholar] [CrossRef]
  27. Tezuka, K.; Sheets, W.C.; Kurihara, R.; Shan, Y.J.; Imoto, H.; Marks, T.J.; Poeppelmeier, K.R. Synthesis of covellite (CuS) from the elements. Solid State Sci. 2007, 9, 95–99. [Google Scholar] [CrossRef]
  28. Chaki, S.H.; Deshpande, M.P.; Mahato, K.S.; Chaudhary, M.D.; Tailor, J.P. Synthesis and Characterization of CuS Nanowhiskers. Adv. Sci. Lett. 2012, 17, 162–166. [Google Scholar] [CrossRef]
  29. Bozheyev, F.; An, V.; Irtegov, Y. Properties of copper and molybdenum sulfide powders produced by self-propagating high-temperature synthesis. In Advanced Materials Research; Trans Tech Publications Ltd.: Stafa-Zurich, Switzerland, 2014; Volume 872, pp. 191–196. [Google Scholar]
  30. Narjis, A.; Outzourhit, A.; Aberkouks, A.; El Hasnaoui, M.; Nkhaili, L. Spectroscopic study and thermoelectric properties of a mixed phase copper sulfide lamellas. J. Alloys Compd. 2018, 762, 46–48. [Google Scholar] [CrossRef]
  31. Lu, Q.; Gao, F.; Zhao, D. One-Step Synthesis and Assembly of Copper Sulfide Nanoparticles to Nanowires, Nanotubes, and Nanovesicles by a Simple Organic Amine-Assisted Hydrothermal Process. Nano Lett. 2002, 2, 725–728. [Google Scholar] [CrossRef]
  32. Thongtem, T.; Phuruangrat, A.; Thongtem, S. Characterization of copper sulfide nanostructured spheres and nanotubes synthesized by microwave-assisted solvothermal method. Mater. Lett. 2010, 64, 136–139. [Google Scholar] [CrossRef]
  33. Ghezelbash, A.; Korgel, B.A. Nickel Sulfide and Copper Sulfide Nanocrystal Synthesis and Polymorphism. Langmuir 2005, 21, 9451–9456. [Google Scholar] [CrossRef] [PubMed]
  34. Vamvasakis, I.; Trapali, A.; Miao, J.; Liu, B.; Armatas, G.S. Enhanced visible-light photocatalytic hydrogen production activity of three-dimensional mesoporous p-CuS/n-CdS nanocrystal assemblies. Inorgan. Chem. Front. 2017, 4, 433–441. [Google Scholar] [CrossRef]
  35. Shamraiz, U.; Badshah, A.; Hussain, R.A.; Nadeem, M.A.; Saba, S. Surfactant free fabrication of copper sulphide (CuS–Cu 2 S) nanoparticles from single source precursor for photocatalytic applications. J. Saudi Chem. Soc. 2017, 21, 390–398. [Google Scholar] [CrossRef]
  36. Mane, R.; Lokhande, C. Chemical deposition method for metal chalcogenide thin films. Mater. Chem. Phys. 2000, 65, 1–31. [Google Scholar] [CrossRef]
  37. Roy, P.; Srivastava, S.K. Hydrothermal growth of CuS nanowires from Cu− dithiooxamide, a novel single-source precursor. Cryst. Growth Des. 2006, 6, 1921–1926. [Google Scholar] [CrossRef]
  38. Tanveer, M.; Cao, C.; Aslam, I.; Ali, Z.; Idrees, F.; Tahir, M.; Khan, W.S.; Butt, F.K.; Mahmood, A. Effect of the morphology of CuS upon the photocatalytic degradation of organic dyes. RSC Adv. 2014, 4, 63447–63456. [Google Scholar] [CrossRef]
  39. Balasubramanian, P.; Annalakshmi, M.; Chen, S.-M.; Chen, T.-W. Sonochemical synthesis of molybdenum oxide (MoO3) microspheres anchored graphitic carbon nitride (g-C3N4) ultrathin sheets for enhanced electrochemical sensing of Furazolidone. Ultrason. Sonochem. 2019, 50, 96–104. [Google Scholar] [CrossRef]
  40. Gan, Y.X.; Jayatissa, A.H.; Yu, Z.; Chen, X.; Li, M. Hydrothermal Synthesis of Nanomaterials. J. Nanomater. 2020, 2020, 1–3. [Google Scholar] [CrossRef]
  41. Khan, A.; Alam, U.; Raza, W.; Bahnemann, D.; Muneer, M. One-pot, self-assembled hydrothermal synthesis of 3D flower-like CuS/g-C3N4 composite with enhanced photocatalytic activity under visible-light irradiation. J. Phys. Chem. Solids 2018, 115, 59–68. [Google Scholar] [CrossRef]
  42. Zanon Costa, C.; Falabella Sousa-Aguiar, E.; Peixoto Gimenes Couto, M.A.; Souza de Carvalho Filho, J.F. Hydrothermal treatment of vegetable oils and fats aiming at yielding hydrocarbons: A review. Catalysts 2020, 10, 843. [Google Scholar] [CrossRef]
  43. Li, C.; Wu, X.; Shan, J.; Liu, J.; Huang, X. Preparation, Characterization of Graphitic Carbon Nitride Photo-Catalytic Nanocomposites and Their Application in Wastewater Remediation: A Review. Crystals 2021, 11, 723. [Google Scholar] [CrossRef]
  44. Alaghmandfard, A.; Ghandi, K. A Comprehensive Review of Graphitic Carbon Nitride (g-C3N4)–Metal Oxide-Based Nanocomposites: Potential for Photocatalysis and Sensing. Nanomaterials 2022, 12, 294. [Google Scholar] [CrossRef] [PubMed]
  45. Dong, J.; Zhang, Y.; Hussain, M.I.; Zhou, W.; Chen, Y.; Wang, L.N. g-C3N4: Properties, pore modifications, and photocatalytic applications. Nanomaterials 2022, 12, 121. [Google Scholar] [CrossRef]
  46. Alshammari, A.H.; Alshammari, K.; Alotaibi, T.; Alshammari, M.; Alhassan, S.; Taha, T.A.M. In Situ Polycondensation Synthesis of NiS-g-C3N4 Nanocomposites for Catalytic Hydrogen Generation from NaBH4. Nanomaterials 2023, 13, 938. [Google Scholar] [CrossRef]
  47. Liu, G.; Qiao, X.; Gondal, M.A.; Liu, Y.; Shen, K.; Xu, Q. Comparative study of pure g-C3N4 and sulfur-doped g-C3N4 catalyst performance in photo-degradation of persistent pollutant under visible light. J. Nanosci. Nanotechnol. 2018, 18, 4142–4154. [Google Scholar] [CrossRef]
  48. Dutta, D.P.; Pathak, D.D.; Abraham, S.; Ravuri, B.R. An insight into the sodium-ion and lithium-ion storage properties of CuS/graphitic carbon nitride nanocomposite. RSC Adv. 2022, 12, 12383–12395. [Google Scholar] [CrossRef]
  49. Taha, T.A.; Saad, R.; Zayed, M.; Shaban, M.; Ahmed, A.M. Tuning the surface morphologies of ZnO nanofilms for enhanced sensitivity and selectivity of CO2 gas sensor. Appl. Phys. A 2023, 129, 115. [Google Scholar] [CrossRef]
  50. Manzoor, S.; Abid, A.G.; Aman, S.; Abdullah, M.; Rashid, A.R.; Ali, H.M.; Ali, T.E.; Assiri, M.A.; Ashiq, M.N.; Taha, T. Facile synthesis of CoFePO4 on eggshell membrane for oxygen evolution reaction and supercapacitor applications. Ceram. Int. 2022, 48, 36975–36982. [Google Scholar] [CrossRef]
  51. Kang, Y.; Yang, Y.; Yin, L.-C.; Kang, X.; Wang, L.; Liu, G.; Cheng, H.-M. Selective Breaking of Hydrogen Bonds of Layered Carbon Nitride for Visible Light Photocatalysis. Adv. Mater. 2016, 28, 6471–6477. [Google Scholar] [CrossRef]
  52. Niu, P.; Liu, G.; Cheng, H.-M. Nitrogen Vacancy-Promoted Photocatalytic Activity of Graphitic Carbon Nitride. J. Phys. Chem. C 2012, 116, 11013–11018. [Google Scholar] [CrossRef]
  53. Chhabra, T.; Bahuguna, A.; Dhankhar, S.S.; Nagaraja, C.M.; Krishnan, V. Sulfonated graphitic carbon nitride as a highly selective and efficient heterogeneous catalyst for the conversion of biomass-derived saccharides to 5-hydroxymethylfurfural in green solvents. Green Chem. 2019, 21, 6012–6026. [Google Scholar] [CrossRef]
  54. Zhang, T.; Li, X.; Qiao, X.; Zheng, M.; Guo, L.; Song, W.; Lin, W. Initial Mechanisms for an Overall Behavior of Lignin Pyrolysis through Large-Scale ReaxFF Molecular Dynamics Simulations. Energy Fuels 2016, 30, 3140–3150. [Google Scholar] [CrossRef]
  55. Zhang, J.; Sun, J.; Maeda, K.; Domen, K.; Liu, P.; Antonietti, M.; Fu, X.; Wang, X. Sulfur-mediated synthesis of carbon nitride: Band-gap engineering and improved functions for photocatalysis. Energy Environ. Sci. 2011, 4, 675–678. [Google Scholar] [CrossRef]
  56. Ma, X.; Lv, Y.; Xu, J.; Liu, Y.; Zhang, R.; Zhu, Y. A Strategy of Enhancing the Photoactivity of g-C3N4 via Doping of Nonmetal Elements: A First-Principles Study. J. Phys. Chem. C 2012, 116, 23485–23493. [Google Scholar] [CrossRef]
  57. Qu, X.; Hu, S.; Bai, J.; Li, P.; Lu, G.; Kang, X. Synthesis of band gap-tunable alkali metal modified graphitic carbon nitride with outstanding photocatalytic H2O2 production ability via molten salt method. J. Mater. Sci. Technol. 2018, 34, 1932–1938. [Google Scholar] [CrossRef]
  58. Peymanfar, R.; Afghahi, S.S.S.; Javanshir, S. Preparation and investigation of structural, magnetic, and microwave absorption properties of a SrAl1. 3Fe10. 7O19/multiwalled carbon nanotube nanocomposite in X and Ku-band frequencies. J. Nanosci. Nanotechnol. 2019, 19, 3911–3918. [Google Scholar] [CrossRef]
  59. An, S.; Zhang, G.; Liu, J.; Li, K.; Wan, G.; Liang, Y.; Ji, D.; Miller, J.T.; Song, C.; Liu, W.; et al. A facile sulfur-assisted method to synthesize porous alveolate Fe/g-C3N4 catalysts with ultra-small cluster and atomically dispersed Fe sites. Chin. J. Catal. 2020, 41, 1198–1207. [Google Scholar] [CrossRef]
  60. Li, X.; Xing, J.; Zhang, C.; Han, B.; Zhang, Y.; Wen, T.; Leng, R.; Jiang, Z.; Ai, Y.; Wang, X. Adsorption of Lead on Sulfur-Doped Graphitic Carbon Nitride Nanosheets: Experimental and Theoretical Calculation Study. ACS Sustain. Chem. Eng. 2018, 6, 10606–10615. [Google Scholar] [CrossRef]
  61. Cao, S.; Fan, B.; Feng, Y.; Chen, H.; Jiang, F.; Wang, X. Sulfur-doped g-C3N4 nanosheets with carbon vacancies: General synthesis and improved activity for simulated solar-light photocatalytic nitrogen fixation. Chem. Eng. J. 2018, 353, 147–156. [Google Scholar] [CrossRef]
  62. Liu, H.; Cheng, D.-G.; Chen, F.; Zhan, X. 2D Porous N-Deficient g-C3N4 Nanosheet Decorated with CdS Nanoparticles for Enhanced Visible-Light-Driven Photocatalysis. ACS Sustain. Chem. Eng. 2020, 8, 16897–16904. [Google Scholar] [CrossRef]
  63. Wang, A.-J.; Li, H.; Huang, H.; Qian, Z.-S.; Feng, J.-J. Fluorescent graphene-like carbon nitrides: Synthesis, properties and applications. J. Mater. Chem. C 2016, 4, 8146–8160. [Google Scholar] [CrossRef]
  64. Alshammari, A.H.; Alshammari, M.; Ibrahim, M.; Alshammari, K.; Taha, T.A.M. New Hybrid PVC/PVP Polymer Blend Modified with Er2O3 Nanoparticles for Optoelectronic Applications. Polymers 2023, 15, 684. [Google Scholar] [CrossRef] [PubMed]
  65. Alshammari, A.H.; Alshammari, M.; Alshammari, K.; Allam, N.K.; Taha, T. PVC/PVP/SrTiO3 polymer blend nanocomposites as potential materials for optoelectronic applications. Results Phys. 2023, 44, 106173. [Google Scholar] [CrossRef]
  66. Zhu, Z.; Tang, X.; Wang, T.; Fan, W.; Liu, Z.; Li, C.; Huo, P.; Yan, Y. Insight into the effect of co-doped to the photocatalytic performance and electronic structure of g-C3N4 by first principle. Appl. Catal. B Environ. 2019, 241, 319–328. [Google Scholar] [CrossRef]
  67. Dong, G.; Zhang, Y.; Pan, Q.; Qiu, J. A fantastic graphitic carbon nitride (g-C3N4) material: Electronic structure, photocatalytic and photoelectronic properties. J. Photochem. Photobiol. C Photochem. Rev. 2014, 20, 33–50. [Google Scholar] [CrossRef]
  68. Velusamy, P.; Sathiya, M.; Liu, Y.; Liu, S.; Babu, R.R.; Aly, M.A.S.; Elangovan, E.; Chang, H.; Mao, L.; Xing, R. Investigating the effect of Nd3+ dopant and the formation of g-C3N4/BiOI heterostructure on the microstructural, optical and photoelectrocatalytic properties of g-C3N4. Appl. Surf. Sci. 2021, 561, 150082. [Google Scholar] [CrossRef]
  69. Yang, Z.; Chu, D.; Jia, G.; Yao, M.; Liu, B. Significantly narrowed bandgap and enhanced charge separation in porous, nitrogen-vacancy red g-C3N4 for visible light photocatalytic H2 production. Appl. Surf. Sci. 2020, 504, 144407. [Google Scholar] [CrossRef]
  70. Modwi, A.; Mustafa, B.; Toghan, A.; Taha, K.K. Scalable fabrication and characterization of Y2O3@ g-C3N4 nanocomposite for the enhancement of photocatalytic removal of Congo red dye under visible light. J. Mater. Sci. Mater. Electron. 2023, 34, 298. [Google Scholar] [CrossRef]
  71. Rong, X.; Qiu, F.; Rong, J.; Zhu, X.; Yan, J.; Yang, D. Enhanced visible light photocatalytic activity of W-doped porous g-C3N4 and effect of H2O2. Mater. Lett. 2016, 164, 127–131. [Google Scholar] [CrossRef]
  72. Xu, D.; Dai, P.; Liu, X.; Cao, C.; Guo, Q. Carbon-supported cobalt catalyst for hydrogen generation from alkaline sodium borohydride solution. J. Power Sources 2008, 182, 616–620. [Google Scholar] [CrossRef]
  73. Kushwah, R.; Singh, A.; Anshul, A.; Mishra, D.; Amritphale, S.S. Facile and controlled synthesis of copper sulfide nanostructures of varying morphology. J. Mater. Sci. Mater. Electron. 2017, 28, 5597–5602. [Google Scholar] [CrossRef]
  74. Ni, B.; Wang, X. Face the Edges: Catalytic Active Sites of Nanomaterials. Adv. Sci. 2015, 2, 1500085. [Google Scholar] [CrossRef]
  75. Back, S.; Yeom, M.S.; Jung, Y. Active Sites of Au and Ag Nanoparticle Catalysts for CO2 Electroreduction to CO. ACS Catal. 2015, 5, 5089–5096. [Google Scholar] [CrossRef]
  76. Li, Y.; Li, X.; Zhang, H.; Fan, J.; Xiang, Q. Design and application of active sites in g-C3N4-based photocatalysts. J. Mater. Sci. Technol. 2020, 56, 69–88. [Google Scholar] [CrossRef]
  77. Saka, C. g-C3N4 particles with boron and oxygen dopants/carbon vacancies for efficient dehydrogenation in sodium borohydride methanolysis. Int. J. Hydrog. Energy 2022, 47, 19016–19026. [Google Scholar] [CrossRef]
  78. Huang, X.-N.; Lv, C.-J.; Huang, Y.-X.; Liu, S.; Wang, C.; Chen, D. Effects of amalgam on hydrogen generation by hydrolysis of aluminum with water. Int. J. Hydrog. Energy 2011, 36, 15119–15124. [Google Scholar] [CrossRef]
  79. Xu, D.; Wang, H.; Guo, Q.; Ji, S. Catalytic behavior of carbon supported Ni–B, Co–B and Co–Ni–B in hydrogen generation by hydrolysis of KBH4. Fuel Process. Technol. 2011, 92, 1606–1610. [Google Scholar] [CrossRef]
  80. Wang, F.; Zhang, Y.; Luo, Y.; Wang, Y.; Zhu, H. Preparation of dandelion-like Co–Mo–P/CNTs-Ni foam catalyst and its performance in hydrogen production by alcoholysis of sodium borohydride. Int. J. Hydrog. Energy 2020, 45, 30443–30454. [Google Scholar] [CrossRef]
  81. Wei, Y.; Wang, R.; Meng, L.; Wang, Y.; Li, G.; Xin, S.; Zhao, X.; Zhang, K. Hydrogen generation from alkaline NaBH4 solution using a dandelion-like Co–Mo–B catalyst supported on carbon cloth. Int. J. Hydrog. Energy 2017, 42, 9945–9951. [Google Scholar] [CrossRef]
  82. Colak, T.O.; Altaf, C.T.; Minkina, V.G.; Shabunya, S.I.; Sankir, M.; Sankir, N.D.; Kalinin, V.I. Efficient Hydrogen Generation with Co3O4@TiO2-g-C3N4 Composite Catalyst via Catalytic NaBH4 Hydrolysis. Catal. Lett. 2021, 152, 2779–2788. [Google Scholar] [CrossRef]
  83. Altaf, C.T.; Colak, T.O.; Minkina, V.G.; Shabunya, S.I.; Sankir, M.; Sankir, N.D.; Kalinin, V.I. Effect of Titanium Dioxide Support for Cobalt Nanoparticle Catalysts for Hydrogen Generation from Sodium Borohydride Hydrolysis. Catal. Lett. 2022, 1–12. [Google Scholar] [CrossRef]
  84. Shen, X.; Wang, Q.; Wu, Q.; Guo, S.; Zhang, Z.; Sun, Z.; Liu, B.; Wang, Z.; Zhao, B.; Ding, W. CoB supported on Ag-activated TiO2 as a highly active catalyst for hydrolysis of alkaline NaBH4 solution. Energy 2015, 90, 464–474. [Google Scholar] [CrossRef]
Materials 16 04218 g001

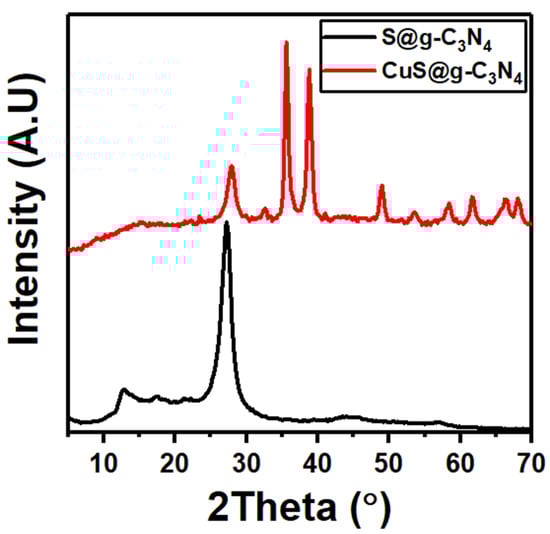

Figure 1. XRD diffraction patterns of S@g-C3N4 and CuS@g-C3N4 nanostructures.
Figure 1. XRD diffraction patterns of S@g-C3N4 and CuS@g-C3N4 nanostructures.
Materials 16 04218 g001
Materials 16 04218 g002

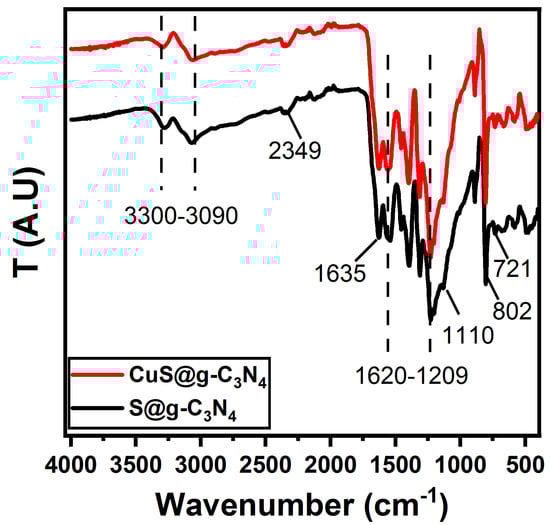

Figure 2. FTIR spectra of S@g-C3N4 and CuS@g-C3N4 nanostructures.
Figure 2. FTIR spectra of S@g-C3N4 and CuS@g-C3N4 nanostructures.
Materials 16 04218 g002
Materials 16 04218 g003
Figure 3. ESEM images of S@g-C3N4 and CuS@g-C3N4 nanostructures.
Figure 3. ESEM images of S@g-C3N4 and CuS@g-C3N4 nanostructures.
Materials 16 04218 g003
Materials 16 04218 g004

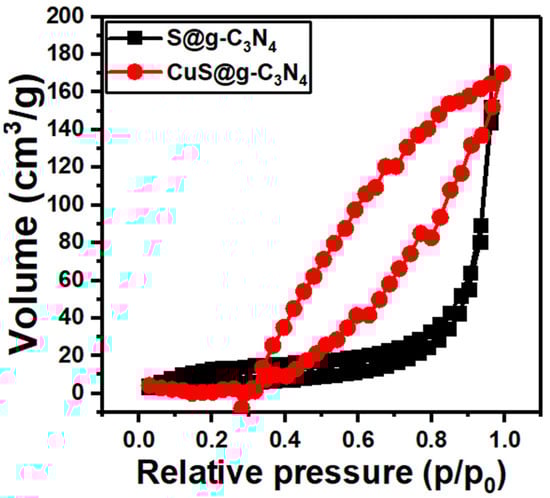

Figure 4. N2 isotherm for S@g-C3N4 and CuS@g-C3N4 nanostructures.
Figure 4. N2 isotherm for S@g-C3N4 and CuS@g-C3N4 nanostructures.
Materials 16 04218 g004
Materials 16 04218 g005

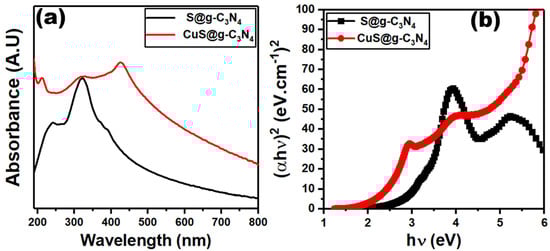

Figure 5. Plots of (a) absorbance vs. wavelength and (b) (ahν)2 vs. photon energy for S@g-C3N4 and CuS@g-C3N4 nanostructures.
Figure 5. Plots of (a) absorbance vs. wavelength and (b) (ahν)2 vs. photon energy for S@g-C3N4 and CuS@g-C3N4 nanostructures.
Materials 16 04218 g005
Materials 16 04218 g006

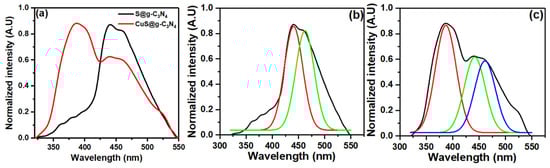

Figure 6. Photoluminescence scans for (a) S@g-C3N4 and CuS@g-C3N4 nanostructures, (b) deconvoluted spectrum of S@g-C3N4 and (c) deconvoluted spectrum of CuS@g-C3N4.
Figure 6. Photoluminescence scans for (a) S@g-C3N4 and CuS@g-C3N4 nanostructures, (b) deconvoluted spectrum of S@g-C3N4 and (c) deconvoluted spectrum of CuS@g-C3N4.
Materials 16 04218 g006
Materials 16 04218 g007

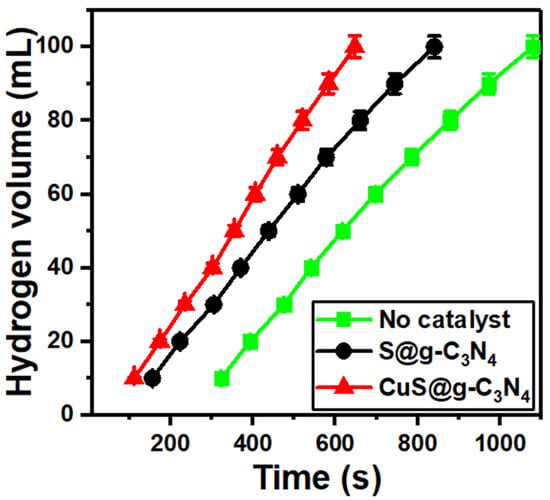

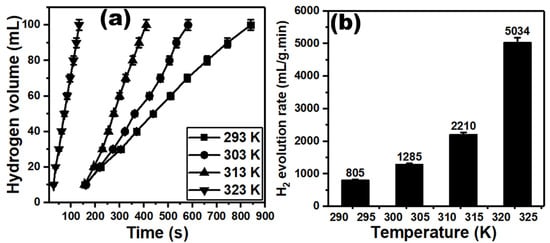

Figure 7. Hydrogen generation from NaBH4 for S@g-C3N4 and CuS@g-C3N4 nanostructures at 293 K.
Figure 7. Hydrogen generation from NaBH4 for S@g-C3N4 and CuS@g-C3N4 nanostructures at 293 K.
Materials 16 04218 g007
Materials 16 04218 g008
Figure 8. Plots of (a) hydrogen volume versus time and (b) hydrogen evolution rate versus the temperature for S@g-C3N4.
Figure 8. Plots of (a) hydrogen volume versus time and (b) hydrogen evolution rate versus the temperature for S@g-C3N4.
Materials 16 04218 g008
Materials 16 04218 g009

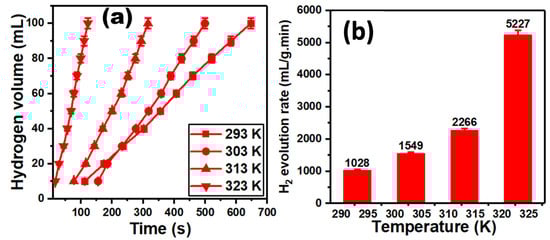

Figure 9. Plots of (a) hydrogen volume versus time and (b) hydrogen evolution rate versus the temperature for CuS@g-C3N4.
Figure 9. Plots of (a) hydrogen volume versus time and (b) hydrogen evolution rate versus the temperature for CuS@g-C3N4.
Materials 16 04218 g009
Materials 16 04218 g010

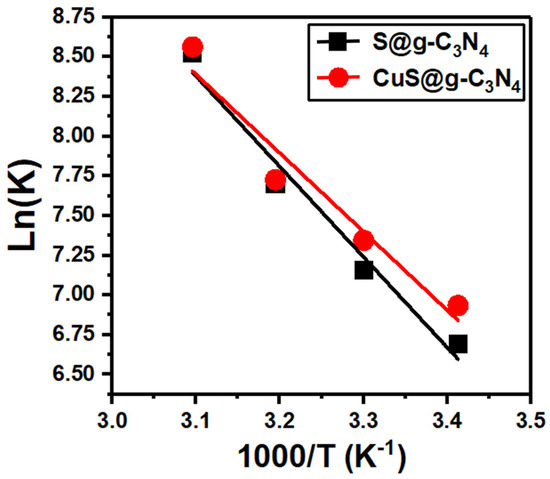

Figure 10. Plots of ln(K) vs. 1000/T for S@g-C3N4 and CuS@g-C3N4 nanostructures.
Figure 10. Plots of ln(K) vs. 1000/T for S@g-C3N4 and CuS@g-C3N4 nanostructures.
Materials 16 04218 g010
Table 1. Catalysts for hydrogen release through hydrolysis of NaBH4.
Table 1. Catalysts for hydrogen release through hydrolysis of NaBH4.
CatalystFormHydrogen Evolution Rate (mL/g·min)Activation Energy (KJ/mol)Ref.
Co-P/CNTs-NiFoam264047.27[79]
Co–Mo–B/CPowder1280.851.0[80]
Co3O4@TiO2-g-C3N4Powder120058.0[81]
Co@TiO2(P25)Powder66045.2[82]
CoB/Ag–TiO2Powder39344.0[83]
CuS@g-C3N4Powder522741.15 ± 0.02This study
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alshammari, K.; Alotaibi, T.; Alshammari, M.; Alhassan, S.; Alshammari, A.H.; Taha, T.A.M. Synthesis of Sulfur@g-C3N4 and CuS@g-C3N4 Catalysts for Hydrogen Production from Sodium Borohydride. Materials 2023, 16, 4218. https://doi.org/10.3390/ma16124218

AMA Style

Alshammari K, Alotaibi T, Alshammari M, Alhassan S, Alshammari AH, Taha TAM. Synthesis of Sulfur@g-C3N4 and CuS@g-C3N4 Catalysts for Hydrogen Production from Sodium Borohydride. Materials. 2023; 16(12):4218. https://doi.org/10.3390/ma16124218

Chicago/Turabian Style

Alshammari, Khulaif, Turki Alotaibi, Majed Alshammari, Sultan Alhassan, Alhulw H. Alshammari, and Taha Abdel Mohaymen Taha. 2023. "Synthesis of Sulfur@g-C3N4 and CuS@g-C3N4 Catalysts for Hydrogen Production from Sodium Borohydride" Materials 16, no. 12: 4218. https://doi.org/10.3390/ma16124218

APA Style

Alshammari, K., Alotaibi, T., Alshammari, M., Alhassan, S., Alshammari, A. H., & Taha, T. A. M. (2023). Synthesis of Sulfur@g-C3N4 and CuS@g-C3N4 Catalysts for Hydrogen Production from Sodium Borohydride. Materials, 16(12), 4218. https://doi.org/10.3390/ma16124218

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
