Structure, Antiferroelectricity and Energy-Storage Performance of Lead Hafnate in a Wide Temperature Range

Abstract

Lead hafnate (PbHfO₃) has attracted a lot of renewed interest due to its potential as antiferroelectric (AFE) material for energy storage. However, its room temperature (RT) energy-storage performance has not been well established and no reports on the energy-storage feature of its high-temperature intermediate phase (IM) are available. In this work, high-quality PbHfO₃ ceramics were prepared via the solid-state synthesis route. Based on high-temperature X-ray diffraction data, the IM of PbHfO₃ was found to be orthorhombic, Imma space group, with antiparallel alignment of Pb²⁺ ions along the [001]_cubic directions. The polarization–electric field (P–E) relation of PbHfO₃ is displayed at RT as well as in the temperature range of the IM. A typical AFE loop revealed an optimal recoverable energy-storage density (W_rec) of 2.7 J/cm³, which is 286% higher than the reported data with an efficiency (η) of 65% at 235 kV/cm at RT. A relatively high W_rec value of 0.7 J/cm³ was found at 190 °C with an η of 89% at 65 kV/cm. These results demonstrate that PbHfO₃ is a prototypical AFE from RT up to 200 °C, making it a suitable material for energy-storage applications in a wide temperature range.

1. Introduction

While ferroelectric (FE) materials with a parallel arrangement of dipoles in the polar directions have found a wide range of applications such as in transduction sensors, actuators, non-volatile memory, photovoltaics, etc., [1,2,3] antiferroelectric (AFE) materials with an antiparallel alignment of adjacent dipoles are promising candidates for energy-storage applications due to their high-power density, good reliability, long working lifetime, high charge-discharge rate and excellent thermal stability [4,5,6,7]. The energy-storage capability of AFE arises from the electric-field-induced phase transition from the AFE state into an FE state, which is associated with the switching of antiparallel dipoles to parallel dipoles. Despite their great potential, antiferroelectric materials generally suffer from some serious drawbacks such as limited energy density, low dielectric breakdown strength (DBS) and high critical electric fields (E_cr) needed to induce the AFE–FE transition [5,8]. To overcome these issues many lead-based and lead-free solid solutions have been studied in the past few decades. Among them, the most widely explored AFE material is lead zirconate (PbZrO₃).

Being a prototypical antiferroelectric material, PbZrO₃ has been studied in terms of structure, phase transitions and electrical properties. It adopts an orthorhombic structure of Pbam space group at room temperature, with the octahedral tilting following the a⁻a⁻c⁰ scheme (according to the Glazer notation) [9]. On the other hand, lead hafnate (PbHfO₃), which is isostructural to PbZrO₃, has not been studied thoroughly. The room temperature symmetry of PbHfO₃ was reported to be Pbam, which is analogous to PbZrO₃. However, the structure and symmetry of the intermediate phase and its AFE properties remain under debate. Based on the X-ray diffraction pattern, Kupriyanov et al. proposed that the intermediate phase is polar, but is composed of a mixture of two symmetries, C2mm and P4mm [10]. On the other hand, Bosak et al. suggested a centrosymmetric orthorhombic symmetry with the Imma(00γ)s00 super space group which is linked to incommensurate modulations mainly due to the ordered lead displacements [11].

For PbZrO₃, it is difficult to realize the electric-field-induced AFE-to-FE phase transition at room temperature due to its extremely high E_cr which is greater than its DBS. Thus, substitutions of cations such as La and Sn in PbZrO₃ were carried out to help not only in decreasing its E_cr and increasing its DBS, but also in realizing AFE double hysteresis loops, so as to increase its recoverable energy-storage density (W_rec), which reached 10.4 J/cm³ when the solid solution was prepared via the rolling process [11,12,13]. However, for PbHfO₃, no clear evidence for room-temperature and high-temperature double P–E loops and thus no energy-storage performance has been reported for conventionally prepared stoichiometric PbHfO₃. Earlier, similar to PbZrO₃, it was difficult to detect the electric-field-induced AFE-to-FE transition in PbHfO₃ since its E_cr is larger than its DBS [14]. Later, the substitutions of various elements into the lattice of PbHfO₃ led to the observation of double hysteresis loops upon reducing the material’s E_cr.

Table 1. Summary of key properties including recoverable energy density (W_rec), energy-storage efficiency (η), dielectric breakdown strength (DBS) and methods of preparation of lead hafnium and lead hafnium-based solid solutions.

Materials	Synthesis Method	Wrec J/cm3	η %	DBS kV/cm	Refs.	Year
Pb(Hf0.98Ti0.02)O3	Solid-state reaction with 3 wt% PbO excess	4.15	65.3	190	[15]	2023
(Pb1−3x/2Lax)Hf0.96Ti0.04O3	Solid-state reaction with 3 wt% PbO excess	11.2	88.9	360	[16]	2022
Pb0.925Ba0.045La0.03(Hf0.6Sn0.4)0.9925O3	Rolling process	7.3	91	290	[17]	2021
Pb0.98La0.02(HfxSn1−x)0.995O3	Rolling process	7.63	94	380	[18]	2020
PbHf1−xSnxO3	Solid-state reaction with 3 wt% PbO excess	10.2	78.9	320	[19,20]	2020, 2022
(1−x)PbHfO3−xPb(Mg1/2W1/2)O3	Two-step solid-state reaction	3.7	72.5	155	[8]	2019
PbHfO3	Rolling process	7.6	80.8	270	[21]	2019
PbHfO3	Solid-state reaction with 3 wt% PbO excess	7.9	75.3	258	[20]	2022
PbHfO3	Solid-state reaction	0.7	-	220	[21]	2019

compares the key properties including recoverable energy density (W_rec), energy-storage efficiency (η) and dielectric breakdown strength (DBS) of lead hafnium and its solid solutions, along with their respective methods of preparation.

By analyzing Table 1 above, it is apparent that the W_rec of PbHfO₃ varies depending on the method of preparation used. Gao et al. were not able to display the AFE double hysteresis loop for PbHfO₃ at room temperature even at an applied electric field of around 80 kV/cm [8]. Wei et al. only obtained a very slim AFE loop with a weak W_rec of 0.7 J/cm³ at room temperature for PbHfO₃ prepared via solid-state reaction. Nevertheless, a much higher W_rec, 7.6 J/cm³, was found for the ceramic prepared via the rolling process [21]. Recently, Ge et al. obtained a W_rec of 7.9 J/cm³ via the conventional solid-state method but they added an excess amount of PbO powder during the sample preparation [20]. The abovementioned studies present inconsistent values of W_rec at room temperature for PbHfO₃, especially when the ceramic samples were prepared via the conventional solid-state reaction. However, due to the high volatilization of lead oxide at high temperatures, it is challenging to prepare high-density and pure-phase PbHfO₃ experimentally. Moreover, the addition of excess PbO in the preparation could raise the question of maintaining stoichiometry and the concern over lead contamination. It is thus of foremost importance to assess the room temperature energy-storage performance of PbHfO₃ stoichiometrically prepared via solid-state route, so as to design better PbHfO₃-based materials with high W_rec for energy-storage applications.

On the other hand, as mentioned above, it was suggested that the intermediate phase of PbHfO₃ is linked to an incommensurate structure; however, Holder et al. showed a nearly ferroelectric-like hysteresis loop for PbHfO₃ single crystals in the temperature range between 197 °C and 204 °C of the intermediate phase [22]. These contradictory results raise the following questions: (i) If the intermediate phase were a centrosymmetric orthorhombic structure with the Imma(00γ)s00 super space group, how could a nearly ferroelectric-like P–E loop be displayed? (ii) What is the true nature of the intermediate phase? (iii) How are the Pb²⁺ ions arranged in the intermediate phase?

To answer these questions, the structure and properties of the prototypical AFE PbHfO₃ are investigated systematically in this work. Highly dense stoichiometric PbHfO₃ ceramics were prepared via the solid-state synthesis and sintering route. The crystal structure of the intermediate phase was refined and proved to be AFE with the Imma space group. The microstructure, energy-storage density, electric breakdown strength and temperature-dependent dielectric properties were studied. The results reveal that PbHfO₃ exhibits AFE behavior with double hysteresis loops in both the room-temperature phase and in the intermediate phase with a high recoverable energy density, making pure PbHfO₃ a viable material for energy-storage applications in a wide range of temperatures.

2. Materials and Methods

2.1. Experimental Procedure

In this work, PbHfO₃ was prepared via the solid-state reaction method. Reagent-grade oxides of PbO (99.9%, Alfa Aesar, Ward Hill, MA, USA) and HfO₂ (98%, Aldrich Chemistry, Milwaukee, WI, USA) were used as starting materials. All the raw materials were weighed and mixed according to their stoichiometric ratios. The mixed powders were hand-ground in the presence of ethanol for two hours. The slurry was dried at room temperature and pressed into pellets of 20 mm diameter under a pressure of 200 MPa. To prevent the volatilization of PbO at high temperatures, calcination was performed at 850 °C for 4 h via a double-crucible method [23]. In this method the pellets were placed on an alumina plate which was covered with a small Al₂O₃ crucible (the diameter of the crucible was large enough to cover all the pellets). Extra PbO powder was added on top of the small alumina crucible. The small alumina crucible with the pellets inside was then covered with another alumina crucible with a larger diameter. The extra PbO helped to provide a high PbO partial pressure at high temperatures and, thereby, inhibited the volatilization of PbO from the pellets. The calcined pellets were then crushed into powder using hand-grinding for 2 h. The dried powder was mixed with 5 wt% PVA as binder and pressed into pellets with a diameter of 10 mm and a thickness of about 1 mm. To obtain high-density ceramics, the pellets were sintered at 1100 °C for 4 h. During the sintering process, the pellets were submerged into sacrificial powder of the same composition so that the volatilization of PbO at high temperatures was further minimized. The sintered ceramics were pale white in color. To study the electrical properties, the ceramics were polished on the circular faces which were then covered with silver paste as electrodes. The samples were fired at 550 °C for 30 min to provide good ohmic contact.

The crystal structure, phase purity and lattice parameters were determined using X-ray powder diffraction (high resolution Bruker (Billerica, MA, USA), D8 Advance diffractometer with a copper Kα1 X-ray tube) on the fine powder obtained by crushing the as-sintered pellets. Helium ion beam microscopy was used to examine the surface morphology and microstructure of the as-sintered pellets (Zeiss ORION NanoFab, Jena, Germany). An acceleration voltage of 25 kV and an aperture of 10 μm were used to obtain an ion current of 0.153 pA. As the samples were non-conductive in nature, the sample was tilted to an angle of 0.14° to obtain clear and good quality images, and the charge compensation was achieved using the flood gun, together with a line averaging over 16 lines and a dwell time of 500 μs.

The dielectric permittivity was measured from room temperature to 300 °C using a Novocontrol Alpha high-resolution broadband dielectric spectrometer equipped with a temperature-controlled Novotherm HT furnace over a frequency range of 100 Hz to 1 MHz. The samples used to measure the dielectric properties had a thickness of approximately 0.8 mm. Polarization vs. electric field (P–E) hysteresis loops were displayed at 10 Hz on ceramic samples of a thickness of around 0.15 mm using a standard ferroelectric analyzer (Radiant RT66A Standard Ferroelectric Testing System (Radiant Technologies inc., Albuquerque, NM)) at room temperature, and the loops at high temperatures were measured using a DELTA 9023 furnace (Delta Design Inc., CA, USA).

2.2. Principles of Energy-Storage Capacitors

A capacitor typically consists of two electrically conductive plates separated by a dielectric layer. When the capacitor is charged, electrical energy is stored within the dielectric. The ability to store energy in a dielectric capacitor is dependent upon its capacitance (C) which can be expressed as [24,25]

$$\mathrm{C}={\mathsf{\epsilon }}_{\mathrm{r}}{\mathsf{\epsilon }}_0\frac{A}{d},$$

(1)

where ε_r is the relative permittivity, ε₀ is the permittivity of the vacuum (≈8.85 × 10⁻¹² F m⁻¹) and A and d are the area of the conducting plate and the distance between the two parallel plates, respectively. The charging process begins as soon as the dielectric capacitor is placed under an applied electric field, and it terminates when the potential generated by the accumulated charges (±Q) on the opposite plates is equal to the applied voltage (v). The capacitance, C, can be defined as the incremental change in charge with respect to applied voltage as

$$\mathrm{C}=\frac{dq}{dv},$$

(2)

and the amount of electrostatic energy stored can be calculated as

$$W={\int }_0^{Q_{max}}vdq$$

(3)

Generally, the density of charges on the surface of the plates is equal to the electrical displacement (=ε_rε₀E) in the dielectric material. Thus, the expression for energy stored per unit volume (stored energy density W_st) can be given as

$$W_{st}=\frac{{\int }_0^{Q_{max}}vdq}{Ad},$$

(4)

which can be further rewritten as

$$W_{st}={\int }_0^{D_{max}}EdD,$$

(5)

where the electric field E is equal to v/d and D_max is the electric displacement under the maximum applied electric field E_max.

For ferroelectric materials D = Polarization, P, so Equation (5) can be written as

$$W_{st}={\int }_0^{P_{max}}EdP,$$

(6)

or as

$$W_{st}={\int }_0^{P_{max}}EdP \left(0<E<E_{max}\right),$$

(7)

and the recoverable energy density is

$$W_{rec}=-{\int }_{P_{max}}^{P_r}EdP<W_{st},$$

(8)

where P_max and P_r are the maximum polarization and remanent polarization, respectively.

3. Results and Analysis

3.1. Structural Analysis

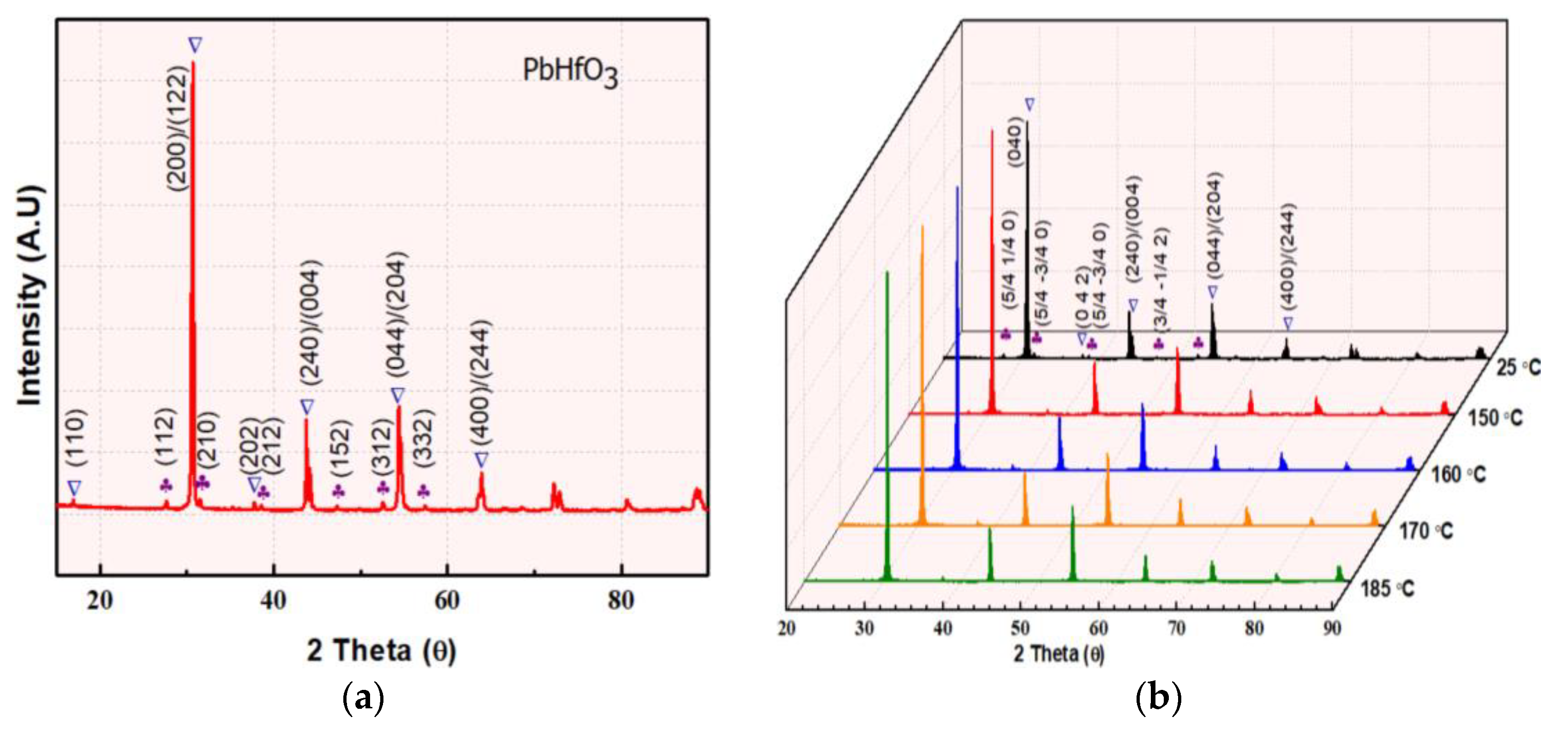

The room temperature powder XRD pattern of an as-sintered PbHfO₃ ceramic is presented in Figure 1a. Refinement of all the major peaks (marked by the ∇ symbol) with the help of GSAS2full 4801 software [26] revealed that the compound crystalizes into a perovskite structure with an orthorhombic symmetry of the Pbam space group. No pyrochlore phase was observed. The visible low-intensity peaks identified by “♣” represent the ¼ (hkl) superlattice peaks. These superlattice peaks are characteristic of the antiferroelectric structure of PbHfO_3, as they appear due to the antiparallel displacements of Pb²⁺ ions along the pseudocubic [110]_pc directions [10,27,28]. To better represent the superlattice peaks and to study the structural change more closely, the orthorhombic lattice setting of √2a_pc × 2√2a_pc × 2a_pc was converted into a pseudocubic lattice setting, a_pc × a_pc × a_pc, by using the following transformation matrix [27]:

$$({\mathrm{h}}_0{\mathrm{k}}_0{\mathrm{l}}_0)\left(\begin{array}{ccc}\frac{1}{2}& -\frac{1}{2}& 0\\ \frac{1}{4}& \frac{1}{4}& 0\\ 0& 0& \frac{1}{2}\end{array}\right)=({\mathrm{h}}_{\mathrm{pc}}{\mathrm{k}}_{\mathrm{pc}}{\mathrm{l}}_{\mathrm{pc}}),$$

(9)

where a_pc is the cell dimension of the para-electric cubic phase.

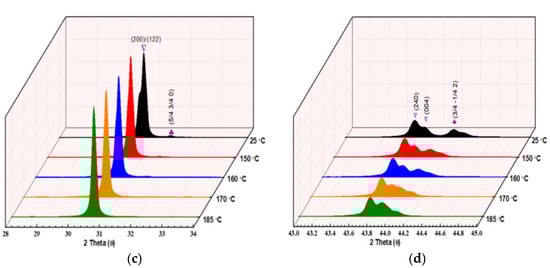

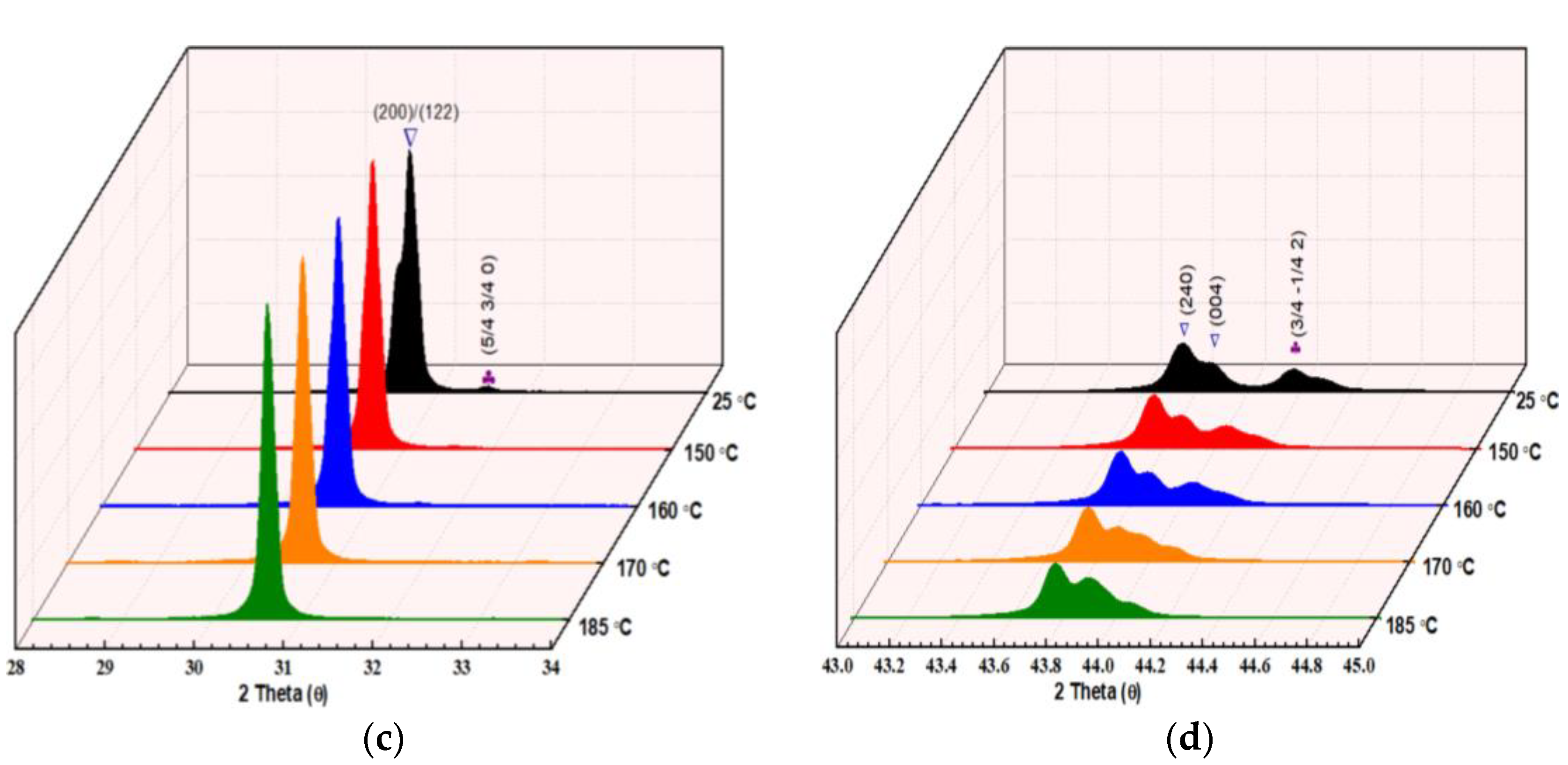

To investigate the symmetry of the intermediate phase, temperature-variable structural analysis was performed. Figure 1b depicts the powder XRD patterns of PbHfO₃ measured at selected temperatures between room temperature and 185 °C (powder XRD at temperatures higher than 200 °C was not carried out as it is beyond the limit of our instrument). Distinctly, the (200)/(122) peaks merge in to a single peak (Figure 1c) at 160 °C, and, at the same time, the shape of the (240)/(004) peaks (Figure 1d) changes significantly. These indicate a structural change from the orthorhombic Pbam symmetry to an orthorhombic Imma symmetry (to be discussed later). Moreover, the diminishing intensity of the superlattice peaks with increasing temperature also supports the change in symmetry.

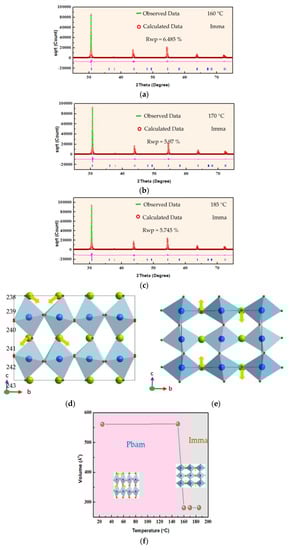

To investigate the abovementioned phase transition, a detailed analysis of the structure of PbHfO₃ in the intermediate phase was carried out using the Rietveld refinements of the high-temperature X-ray diffraction data using the GSAS2full 4801 software. Figure 2a–e present the refinement results for the intermediate phase, with comparison of the experimental and calculated XRD patterns, along with the respective space groups and reliability factors. Since no superlattice reflections of the 1/4 (hkl)-type were found in the temperature range of the intermediate phase, the Pbam space group can be excluded, while the Imma space group fits the experimental data most satisfactorily. The assignment of the Imma space group to the intermediate phase of PbHfO₃ agrees with a report by Bosak et al. [11]. The details of the Rietveld refinement results of PbHfO₃ at different temperatures within the intermediate phase are given in

Table 2. Refined structural parameters of PbHfO₃ at different temperatures.

Temperature °C	Space Group	Ions	x	y	z	Rwp %	wR %	GOF
25	Pbam	Pb2+1	0.6985	0.12986	0	3.469	5.106	1.514
		Pb2+2	0.7146	0.1238	0.5
		Hf	0.24284	0.1237	0.2527
		O1	0.297	0.095	0
		O2	0.272	0.150	0.5
		O3	0.033	0.260	0.224
		O4	0.0	0.5	0.300
		O5	0	0	0.300
150	Pbam	Pb2+1	0.7137	0.1297	0	3.434	4.926	1.513
		Pb2+2	0.7192	0.1247	0.5
		Hf	0.2446	0.1249	0.2487
		O1	0.318	0.112	0
		O2	0.271	0.157	0.5
		O3	0.02	0.259	0.217
		O4	0.0	0.5	0.273
		O5	0	0	0.254
160	Imma	Pb2+1	0.03348	0.75000	0.50355	6.485	6.49	2.32
		Hf	0.0000	0.000	0.000
		O1	0.0000	0.75000	0.02158
		O2	0.25000	0.00564	0.25000
170	Imma	Pb2+1	0.02492	0.75000	0.50307	5.97	5.97	2.13
		Hf	0.0000	0.0000	1.0000
		O1	0.0000	0.75000	0.02432
		O2	0.2500	0.02760	0.2500
185	Imma	Pb2+1	0.02909	0.75000	0.50520	5.745	5.75	2.05
		Hf	0.0000	0.0000	0.0000
		O1	0.0000	0.75000	0.01175
		O2	0.2500	0.02738	0.25000

. The reliability factors of the weighted patterns (R_wp), the final refinement (wR) and the goodness of fit (GOF) are in the ranges of 3.434–6.485%, 4.926–6.49% and 1.513–2.32%, respectively, indicating good fitting of the selected structural model. At high temperatures, no oxygen octahedral tilting about the a-axis was observed, as opposed to at room temperature. The tilting scheme for the Imma phase is a⁰b^-b^-, while at room temperature; the Pbam symmetry shows the a⁻a⁻c⁰ tilting scheme, similar to that in lead zirconate [9,28,29,30]. The antiparallel displacement of Pb²⁺ ions was found to be along the [001]_cubic direction in the intermediate phase, as shown in Figure 2e, which is clearly different from the alignment of Pb²⁺ ions at room temperature, as shown in Figure 2d. This antiparallel dipolar alignment suggests an AFE nature for the intermediate phase. The change in the lattice volume with temperature is presented in Figure 2f. It can be seen that the unit cell volume was drastically decreased upon heating at about 160 °C, as PbHfO₃ underwent the transition from the room temperature Pbam phase to the intermediate phase of the Imma space group.

3.2. Dielectric Properties

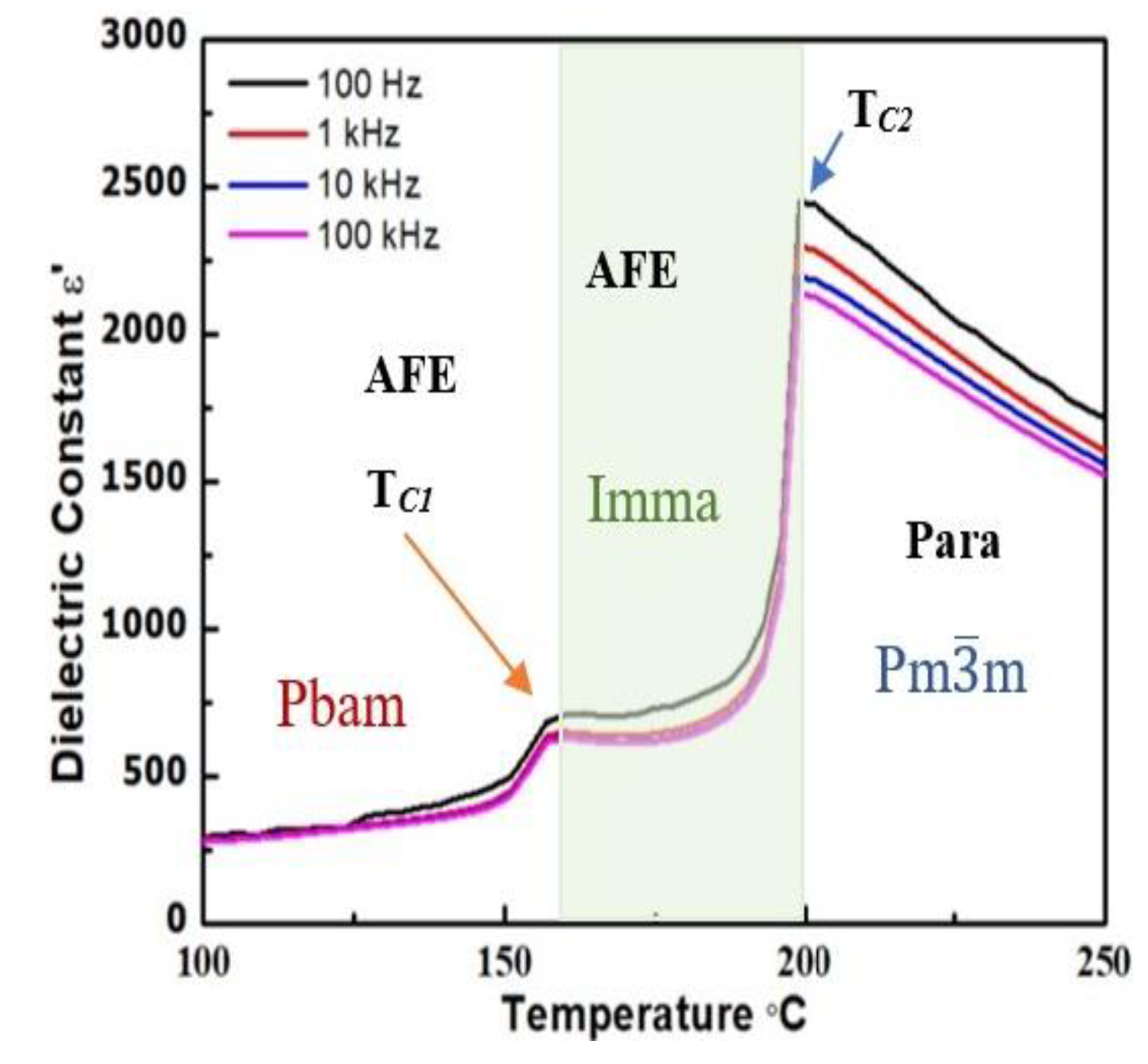

Figure 3 depicts the temperature and frequency dependencies of the dielectric permittivity of an as-sintered ceramic measured at various frequencies upon heating. Two dielectric anomalies can be clearly found at 163 °C (T_C1) and 199 °C (T_C2), which correspond to the phase transitions from the antiferroelectric orthorhombic Pbam phase to the antiferroelectric orthorhombic Imma phase, and from the antiferroelectric Imma phase to the paraelectric, cubic Pm$\stackrel{-}{3}$m phase, respectively.

3.3. Microstructure and Energy-Storage Performance

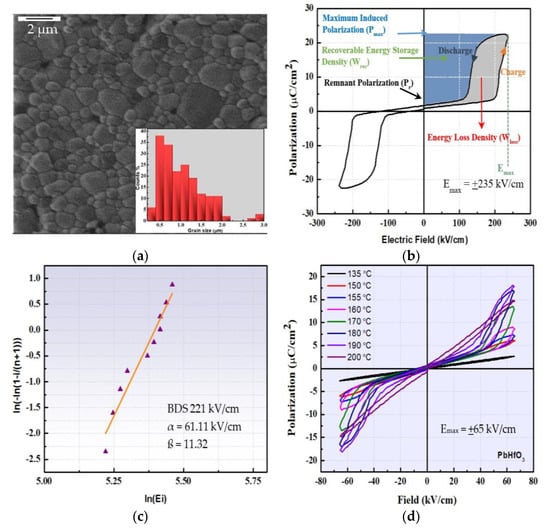

To reveal the AFE character of PbHfO₃, which is primordial for energy-storage applications, it is necessary to obtain high-density ceramics with optimum microstructures, so as to apply a high electric field and to realize the AFE to FE switching. Figure 4a presents the HIM image of a PbHfO₃ ceramic, which shows a dense microstructure achieved via the conventional sintering process described in Section 2. The average relative density of the ceramics reached 95% of the theoretical density of 10.27 g/cm³. The average grain size of the ceramic calculated with the help of ImageJ 1.8.0 software was about 0.5 μm. The graph of the average grain size distribution is presented in the inset of Figure 4a.

The polarization–electric field (P–E) relation of PbHfO₃ measured at room temperature at 10 Hz is depicted in Figure 4b. The P–E relation exhibits a typical AFE double hysteresis loop, which results from the electric-field-induced AFE-to-FE phase transition, demonstrating the antiferroelectricity of PbHfO₃ at room temperature thanks to the high quality of the ceramics. The maximum induced polarization was 23 μC/cm² at an applied electric field of 235 kV/cm and the remanent polarization was 1.63 μC/cm² when the applied electric field returned to zero. Theoretically, the stored energy density (W_st) and recoverable energy density (W_rec) can be calculated as discussed in Section 2.2.

The calculated stored energy density W_st, recoverable energy density W_rec, energy loss W_loss and efficiency ɳ were found to be 4.216 J/cm³, 2.7 J/cm³, 1.5 J/cm³ and 65%, respectively, with the energy-storage efficiency calculated from [31]:

$$\mathrm{ɳ}=\frac{W_{rec}}{W_{st}}=\frac{W_{rec}}{W_{rec}+W_{loss}}\times 100\mathrm{\%}$$

(10)

The dielectric breakdown strength (DBS) is one of the most important factors affecting energy-storage performance. It is highly influenced by the density, grain size and microstructure of the ceramics. Dense ceramics with smaller grain size tend to exhibit higher DBS values. Figure 4c presents the Weibull distribution of the DBS for the PbHfO₃ ceramics, which can be expressed as [31,32,33,34,35,36]

X_i = ln (E_i),

(11)

Y_i = ln (ln (1/(1 − P_i))),

(12)

and

P_i = i/(n + 1),

(13)

where X_i and Y_i are the parameters in the Weibull distribution function, E_i is the specific breakdown electric field of the specimen, P_i is the polarizability, n is the sum of specimens and i is the serial number of the specimen. To obtain the average breakdown strength of PbHfO₃, ten samples were examined and their data taken into consideration. The shape parameter ß is the slope of the line, and is related to the range of the DBS. The intercept on the X-axis is ln(α), where α is the scale parameter which reflects the magnitude of the DBS. The values of ß and α were found to be 11.32 and 61.11 kV/cm, respectively. All the dielectric breakdown data were found to follow the Weibull distribution and the obtained DBS value for PbHfO₃ was 221 kV/cm. The values of ß and the DBS are in good agreement with previously reported data [14].

Figure 4d portrays the polarization–electric field (P–E) relation of PbHfO₃ measured at ±65 kV/cm in the temperature range from 150 to 190 °C. Well-defined double hysteresis loops clearly demonstrate the antiferroelectric nature for the intermediate Imma phase. The display of the AFE loops is in strong support of the antiparallel alignment of Pb²⁺ ions along the [001]_cubic direction, as depicted from the refined crystal structure of PbHfO₃. The highest polarization of 18.0 μC/cm² was obtained at 190 °C with a very small value of remanent polarization of 0.6 μC/cm². The calculated W_st, W_rec, W_loss and ɳ were 0.774 J/cm³, 0.7 J/cm³, 0.084 J/cm³ and 89%, respectively, at 190 °C.

4. Discussion

Environmental concerns related to lead: Environmental concerns related to the safety of hazardous materials, such as lead oxide, involved in processing, distribution, transportation, and final decomposition are important issues and require careful consideration. In our case, to ensure the safety, the lead hafnate ceramics were sintered and calcined using a muffle furnace which was kept under a high-power ventilation hood. This effectively prevented the volatile materials from escaping into the air, thereby mitigating potential health hazards associated with the exposure of lead oxide during the processing. The double crucible method used in this work for calcining and sintering helped further minimize the volatilization of lead oxide. During transportation, the raw materials were properly packed, contained and labelled [37,38]. For the disposal of lead-based materials, they could be converted into nontoxic products or metals and recycled as solid waste [39,40].

Economics of scale achievement: The solid-state synthesis route developed in this work offers several advantages over other processing routes, such as wet chemical methods, by its simplicity and need for less equipment and is thus a viable technique for scaling up industrial production of lead hafnate for practical applications. Additionally, the raw materials used in the solid-state synthesis are relatively inexpensive, making it a cost-effective option for commercial manufacturing [41].

In an effort to clarify the structural nature and AFE properties of lead hafnate, high-quality and dense PbHfO₃ ceramics were prepared in pure perovskite phase using the solid-state synthesis method and a conventional sintering process with special caution to preserve the stoichiometry. Detailed structural analysis using the Rietveld refinements confirmed the orthorhombic symmetry with the Pbam space group at room temperature which is in agreement with earlier reports [10,28]. Temperature-variable structural analysis revealed an orthorhombic Imma symmetry for the intermediate phase of lead hafnate between 150 °C and 185 °C, which agrees with a report by Bosak et al. [11]. The refined crystal structure of the Imma phase illustrates antiparallel displacement of Pb²⁺ ions along the [001]_cubic direction with the tilting scheme of a⁰b^-b^-, which is different from the antiparallel alignment of Pb²⁺ ions in the Pbam phase at room temperature.

The high quality of the ceramics allowed us to apply a high enough electric field so as to display the P–E double hysteresis loops, demonstrating the AFE nature of PbHfO₃ at room temperature and also at high temperatures (up to 190 °C). The realization of the double P–E loops also allowed us to evaluate the energy-storage performance of PbHfO₃. The recoverable energy density was found to be 2.7 J/cm³ with an efficiency of 65% at 235 kV/cm at room temperature. According to the data presented in Table 1, the energy-storage performance of the lead hafnate ceramics prepared in this work is 286% higher than the values reported so far for the conventionally prepared stoichiometry PbHfO₃ without the addition of extra PbO. This enhanced performance is attributed to the high density and small grain size of the ceramics, which lead to a high value of dielectric breakdown strength, DBS, allowing the antiferroelectric-phase-to-ferroelectric-phase transition to be induced at room temperature.

The double P–E hysteresis loops displayed at high temperatures reveal for the first time the presence of antiferroelectricity in the intermediate phase, with a recoverable energy density of 0.7 J/cm³ and an efficiency of 89% at an electric field of 65 kV/cm at 190 °C.

5. Conclusions

To better understand the structural nature and AFE properties of lead hafnate, high-quality and dense PbHfO₃ ceramics were prepared in pure perovskite phase using the solid-state synthesis method and a conventional sintering process with special caution to preserve the stoichiometry without adding excess PbO. However, due to the high volatilization of lead oxide at high temperatures, it is challenging to prepare high-density and pure-phase PbHfO₃ experimentally. Rietveld refinements on high-temperature structural analysis revealed an orthorhombic Imma symmetry for the intermediate phase of lead hafnate between 150 °C and 185 °C, with antiparallel displacement of Pb²⁺ ions along the [001]_pc direction with the tilting scheme of a⁰b⁻b⁻. This is different from the antiparallel alignment of Pb²⁺ ions in the Pbam phase at room temperature. The realization of the double P–E loops at room temperature also allowed us to evaluate the energy-storage performance of PbHfO₃. At room temperature, the recoverable energy density was found to be 2.7 J/cm³, with an efficiency of 65% at 235 kV/cm at room temperature. The energy-storage performance of lead hafnate prepared in this work is 286% higher than the values reported so far for the conventionally prepared stoichiometry PbHfO₃. This enhanced performance is attributed to two key factors: the high density and the small grain size of the ceramics. This led to a high value of dielectric breakdown strength, DBS, which allows the transition of antiferroelectric phase to ferroelectric phase at room temperature. The double P–E hysteresis loops displayed at high temperatures reveal, for the first time, the presence of antiferroelectricity in the intermediate phase. These results demonstrate that the prototypical AFE PbHfO₃ is indeed a promising candidate for energy-storage applications [42] in a wide range of temperatures from room temperature up to 190 °C.
