# A Novel Ultrasonic Fatigue Test and Application in Bending Fatigue of TC4 Titanium Alloy

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

^{7}to 10

^{9}cycles, which involves the problem of VHCF [1,2]. In fact, aviation components such as engine blades are vulnerable to the combined action of high frequency and low load, which means their failure forms also have VHCF characteristics [3]. At the same time, the revised national military standard “General Specification for Aeronautical Turbojet and Turbofan Engines” (GJB241A-2010) also clearly stipulates that “all components of the aero-engine must have a life of not less than 10

^{9}cycles”. Therefore, due to the higher requirements for long life and reliability of aviation components, the research on VHCF has received special attention in the aerospace field.

**.**

## 2. Specimen Design for Very High Cycle Bending Fatigue

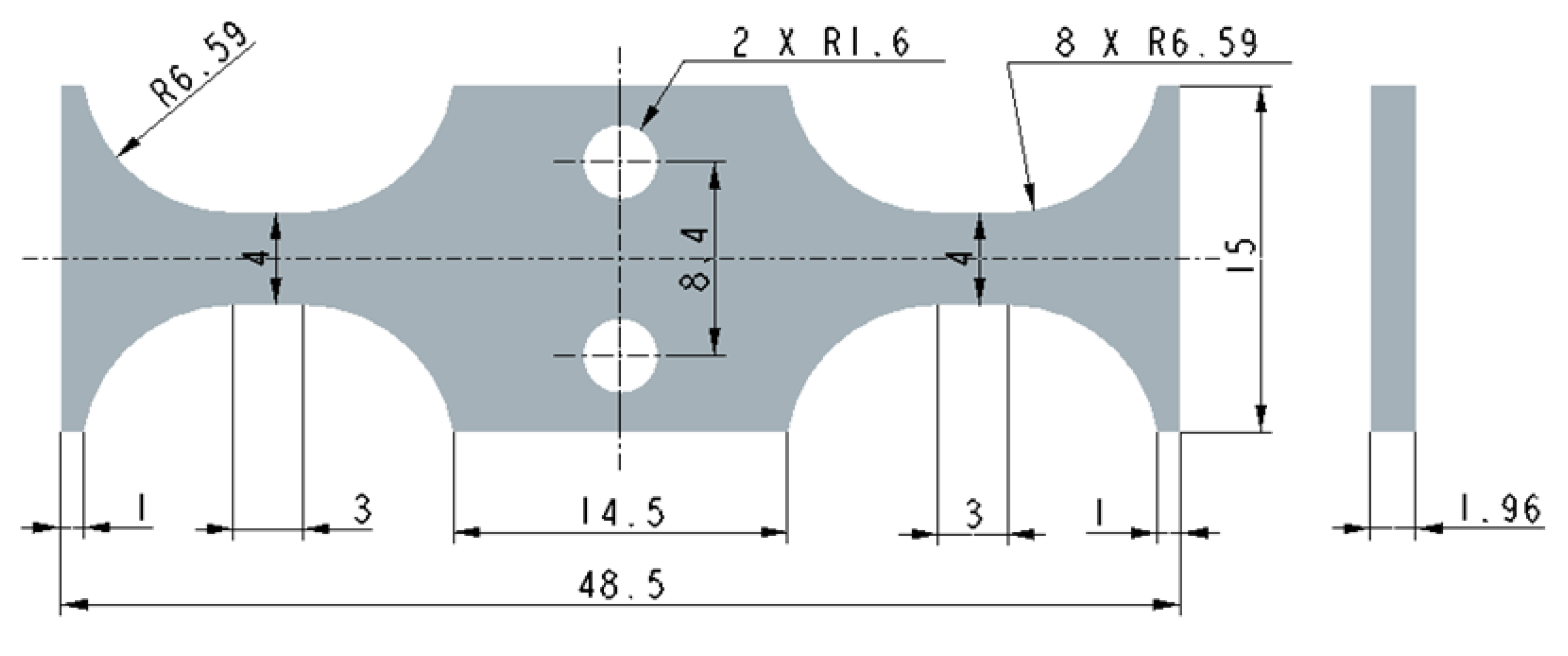

_{0}), the coefficient of displacement to stress (${C}_{s}$) needs to be calculated before the experiment [29]. Therefore, the bending vibration mode of the specimen as well as the distribution of stresses in the gauge section need to be considered.

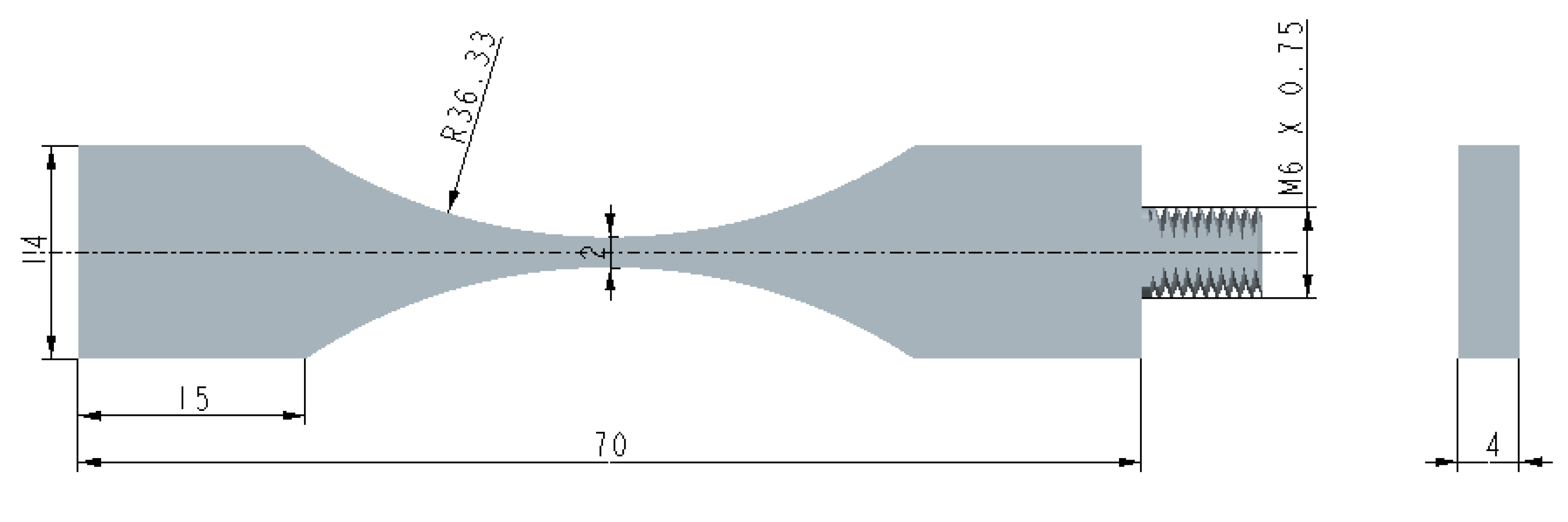

#### 2.1. Specimen Design and Analysis

#### 2.2. Stress Calibration

_{0}) of the system; i.e.:

## 3. Experiment Materials and Methods

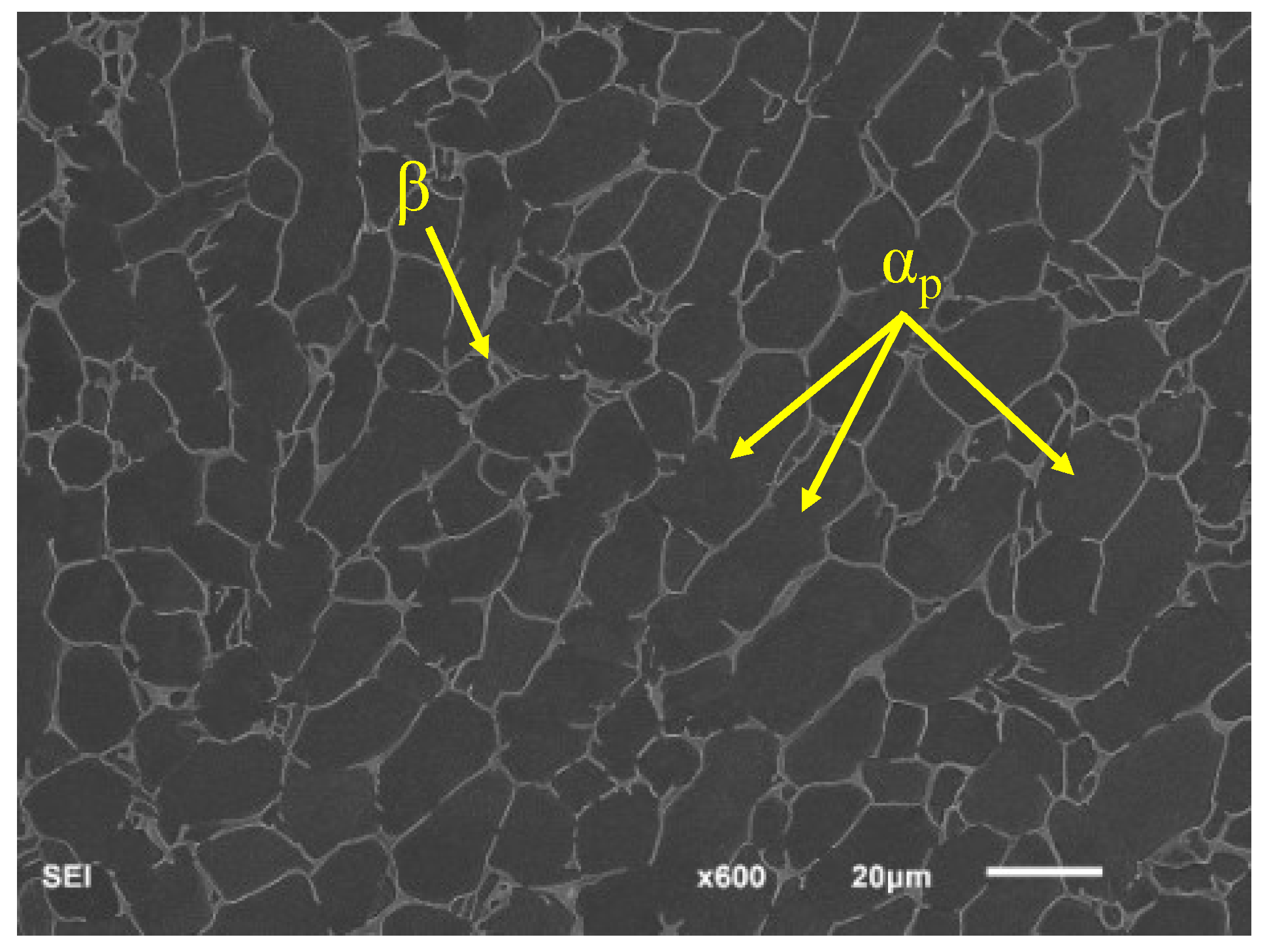

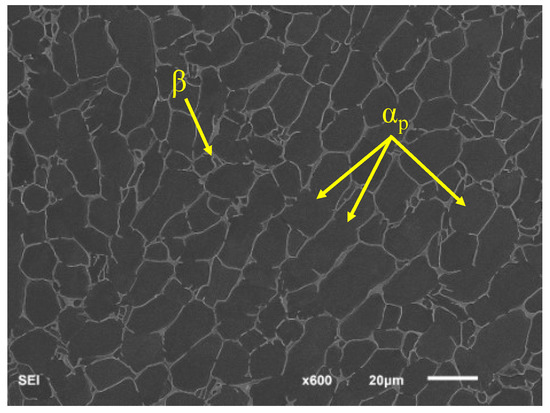

#### 3.1. Materials

#### 3.2. Ultrasonic Fatigue Test

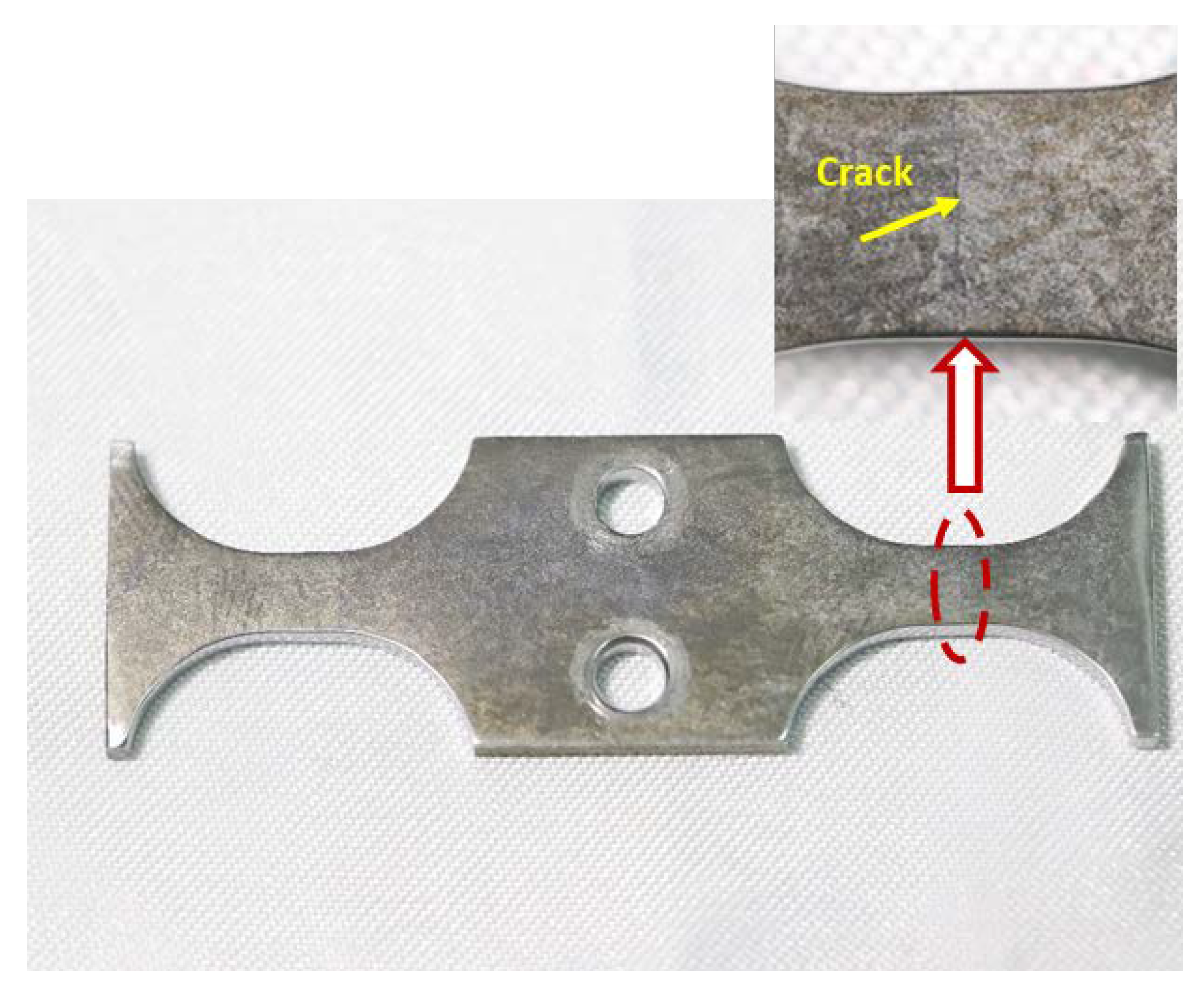

_{0}) of the ultrasonic fatigue system. Figure 6c shows that the test point of the sensor was located at point M.

^{9}, the fatigue test was stopped and the specimen was considered to be undamaged.

#### 3.3. Comparison Fatigue Test

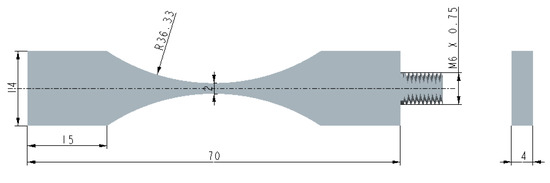

^{7}cycles. In order to investigate the difference between axial loading fatigue and bending loading fatigue in the VHCF regime, a set of ultrasonic axial loading tests on a plate were conducted for comparison. Figure 7 shows the geometry of the axially loaded specimens.

## 4. Results and Discussion

#### 4.1. S-N Curve

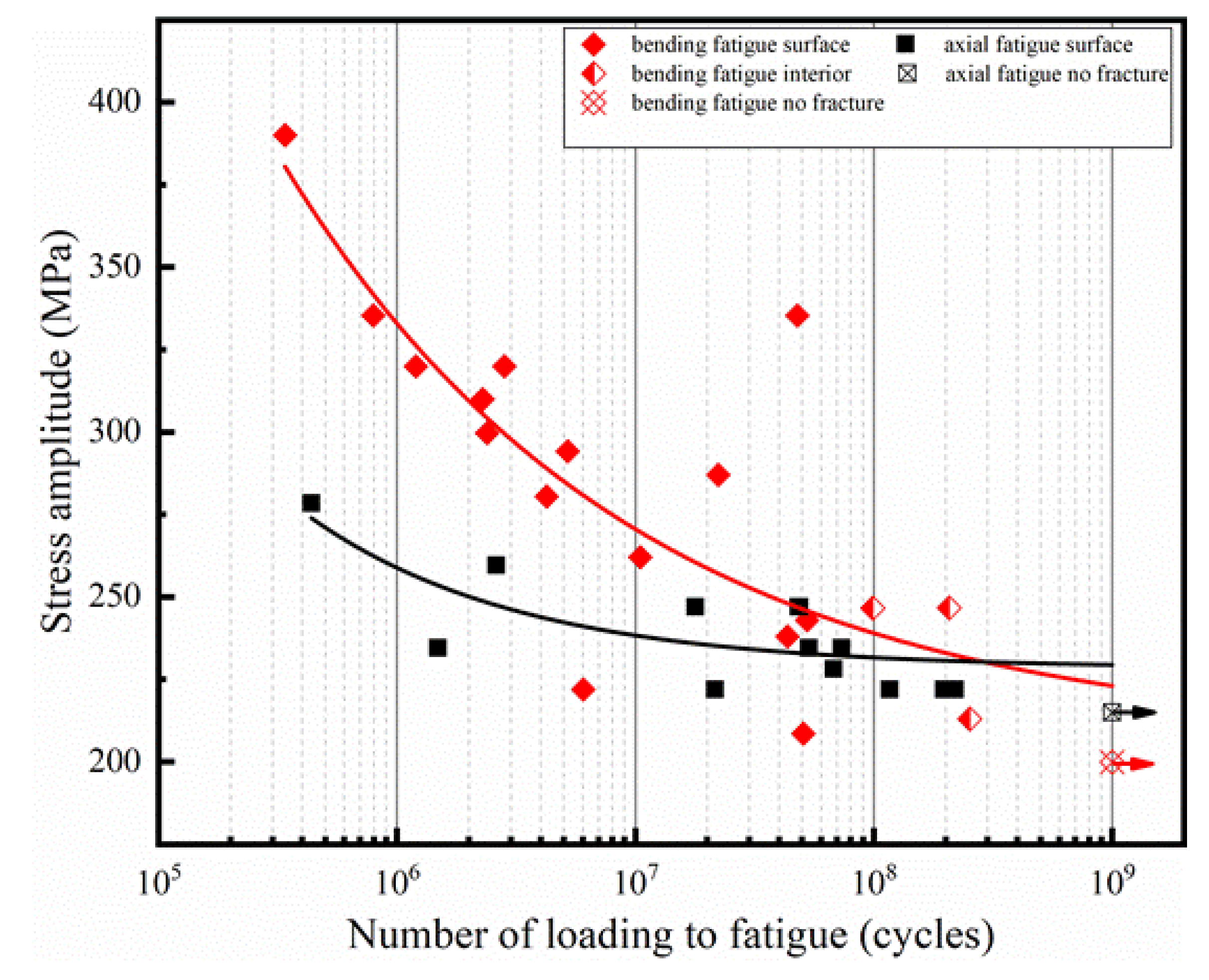

^{9}cycles, which was consistent with the traditional view of “infinite life” [38]. In addition, under bending loading, there were two typical types of crack initiation; namely, surface crack initiation and internal crack initiation. This was consistent with the results of conventional axial fatigue loading. Finally, the ultrasonic bending fatigue test and the ultrasonic axial fatigue test obtained 19 and 14 valid data, respectively, as shown in Table 2.

^{8}cycles. Previous studies have shown that under high stress amplitude, the bending load can show better fatigue resistance than the axial load. However, the difference will gradually decrease with the increase of cycle times, and even show the trend of intersection [16,21,43].

#### 4.2. Fracture Morphology

## 5. Conclusions

- A new bending fatigue model in the resonant state under ultrasonic loading was developed in which the accelerated bending frequency reached 20 kHz and the symmetrical stress distribution at the gauge section was optimized compared with the conventional cantilever model.
- The S-N curve for the studied material showed that the fatigue data of the bending loading and axial loading intended to have an intersection point when the cycles went beyond 10
^{8}. Re-discussion of the conservative design strategy may be required regarding bending loading and axial loading in the VHCF regime. - There were two types of bending fatigue loading—surface crack initiation and internal crack initiation. As the cycle life increased, the possibility of an internal crack occurring also increased.

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

R | Stress ratio (minimum stress/maximum stress) |

${\sigma}_{a}$ | Stress amplitude |

${\sigma}_{0},a,b$ | Material constants |

${N}_{f}$ | Number of cycles to failure |

${C}_{s}$ | Coefficient of displacement to stress |

A_{0} | Excitation displacement of the system |

R^{2} | Coefficient of determination |

HCF | High cycle fatigue (${N}_{f}$ > 10^{5}) |

VHCF | Very high cycle fatigue (${N}_{f}$ > 10^{7}) |

FEA | Finite element analysis |

## References

- Takeuchi, E.; Furuya, Y.; Nagashima, N.; Matsuoka, S. The effect of frequency on the giga-cycle fatigue properties of a Ti-6Al-4V alloy. Fatigue Fract. Eng. Mater. Struct.
**2008**, 31, 599–605. [Google Scholar] [CrossRef] - Hong, Y.; Sun, C. The nature and the mechanism of crack initiation and early growth for very-high-cycle fatigue of metallic materials—An overview. Theor. Appl. Fract. Mech.
**2017**, 92, 331–350. [Google Scholar] [CrossRef] [Green Version] - Yang, K.; He, C.; Huang, Q.; Huang, Z.Y.; Wang, C.; Wang, Q.; Liu, Y.J.; Zhong, B. Very high cycle fatigue behaviors of a turbine engine blade alloy at various stress ratios. Int. J. Fatigue
**2017**, 99, 35–43. [Google Scholar] [CrossRef] - Bathias, C. Piezoelectric fatigue testing machines and devices. Int. J. Fatigue
**2006**, 28, 1438–1445. [Google Scholar] [CrossRef] - Pan, X.; Qian, G.; Wu, S.; Fu, Y.; Hong, Y. Internal crack characteristics in very-high-cycle fatigue of a gradient structured titanium alloy. Sci. Rep.
**2020**, 10, 4742. [Google Scholar] [CrossRef] [Green Version] - Lesperance, X.; Ilie, P.; Ince, A. Very high cycle fatigue characterization of additively manufactured AlSi10Mg and AlSi7Mg aluminium alloys based on ultrasonic fatigue testing. Fatigue Fract. Eng. Mater. Struct.
**2020**, 44, 876–884. [Google Scholar] [CrossRef] - Sharma, A.; Oh, M.C.; Ahn, B. Recent Advances in Very High Cycle Fatigue Behavior of Metals and Alloys—A Review. Metals
**2020**, 10, 1200. [Google Scholar] - Stanzl-Tschegg, S. Very high cycle fatigue measuring techniques. Int. J. Fatigue
**2014**, 60, 2–17. [Google Scholar] [CrossRef] - Oguma, H.; Nakamura, T. Fatigue crack propagation properties of Ti–6Al–4V in vacuum environments. Int. J. Fatigue
**2013**, 50, 89–93. [Google Scholar] [CrossRef] - Sakai, T. Review and Prospects for Current Studies on Very High Cycle Fatigue of Metallic Materials for Machine Structural Use. J. Solid Mech. Mater. Eng.
**2009**, 3, 425–439. [Google Scholar] [CrossRef] [Green Version] - Hong, Y.; Liu, X.; Lei, Z.; Sun, C. The formation mechanism of characteristic region at crack initiation for very-high-cycle fatigue of high-strength steels. Int. J. Fatigue
**2016**, 89, 108–118. [Google Scholar] [CrossRef] - Nie, B.; Zhao, Z.; Chen, D.; Liu, S.; Lu, M.; Zhang, J.; Liang, F. Effect of Basketweave Microstructure on Very High Cycle Fatigue Behavior of TC21 Titanium Alloy. Metals
**2018**, 8, 401. [Google Scholar] [CrossRef] [Green Version] - Jebieshia, T.R.; Kim, J.M.; Kang, J.W.; Son, S.W.; Kim, H.D. Microstructural and Very High Cycle Fatigue (VHCF) Behavior of Ti6Al4V-A Comparative Study. Materials
**2020**, 13, 1948. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Guennec, B.; Ueno, A.; Sakai, T.; Takanashi, M.; Itabashi, Y. Effect of the loading frequency on fatigue properties of JIS S15C low carbon steel and some discussions based on micro-plasticity behavior. Int. J. Fatigue
**2014**, 66, 29–38. [Google Scholar] [CrossRef] - Macek, W.; Owsiński, R.; Trembacz, J.; Branco, R. Three-dimensional fractographic analysis of total fracture areas in 6082 aluminium alloy specimens under fatigue bending with controlled damage degree. Mech. Mater.
**2020**, 147, 103410. [Google Scholar] [CrossRef] - Tomaszewski, T.; Strzelecki, P.; Mazurkiewicz, A.; Musial, J. Probabilistic Estimation of Fatigue Strength for Axial and Bending Loading in High-Cycle Fatigue. Materials
**2020**, 13, 1148. [Google Scholar] [CrossRef] [Green Version] - Nadot, Y. Fatigue from Defect: Influence of Size, Type, Position, Morphology and Loading. Int. J. Fatigue
**2022**, 154, 106531. [Google Scholar] [CrossRef] - Kawai, M. 2D woven fabric composites under fatigue loading of different types and in different environmental conditions. In Fatigue of Textile Composites; Woodhead Publishing: Cambridge, UK, 2015; pp. 149–191. [Google Scholar]
- Cao, X.; Zhu, J.; Gao, F.; Gao, Z. Influence of Fine Grains on the Bending Fatigue Behavior of Two Implant Titanium Alloys. Materials
**2020**, 14, 171. [Google Scholar] [CrossRef] - Sakai, T.; Oguma, N.; Morikawa, A. Microscopic and nanoscopic observations of metallurgical structures around inclusions at interior crack initiation site for a bearing steel in very high-cycle fatigue. Fatigue Fract. Eng. Mater. Struct.
**2015**, 38, 1305–1314. [Google Scholar] [CrossRef] - Shrestha, R.; Simsiriwong, J.; Shamsaei, N. Fatigue behavior of additive manufactured 316L stainless steel under axial versus rotating-bending loading: Synergistic effects of stress gradient, surface roughness, and volumetric defects. Int. J. Fatigue
**2021**, 144, 106063. [Google Scholar] [CrossRef] - Olmi, G.; Freddi, A. A new method for modelling the support effect under rotating bending fatigue: Application to Ti-6Al-4V alloy, with and without shot peening. Fatigue Fract. Eng. Mater. Struct.
**2013**, 36, 981–993. [Google Scholar] [CrossRef] - Bao, X.; Cheng, L.; Ding, J.; Chen, X.; Lu, K.; Cui, W. The Effect of Microstructure and Axial Tension on Three-Point Bending Fatigue Behavior of TC4 in High Cycle and Very High Cycle Regimes. Materials
**2019**, 13, 68. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Macek, W. Fracture surface formation of notched 2017A-T4 aluminium alloy under bending fatigue. Int. J. Fract.
**2021**, 234, 141–157. [Google Scholar] [CrossRef] - Wang, C.; Chen, X.; Cheng, L.; Ding, J. High-cycle and very-high-cycle fatigue properties of CFRP-aramid honeycomb sandwich structure in three-point bending. Int. J. Fatigue
**2022**, 155, 106576. [Google Scholar] [CrossRef] - Hu, Y.; Chen, Y.; He, C.; Liu, Y.; Wang, Q.; Wang, C. Bending Fatigue Behavior of 316L Stainless Steel up to Very High Cycle Fatigue Regime. Materials
**2020**, 13, 4820. [Google Scholar] [CrossRef] - Ghadimi, H.; Jirandehi, A.P.; Nemati, S.; Guo, S. Small-sized specimen design with the provision for high-frequency bending-fatigue testing. Fatigue Fract. Eng. Mater. Struct.
**2021**, 44, 3517–3537. [Google Scholar] [CrossRef] - Jemii, H.; Bahri, A.; Taktak, R.; Guermazi, N.; Lebon, F. Mechanical behavior and fracture characteristics of polymeric pipes under curved three point bending tests: Experimental and numerical approaches. Eng. Fail. Anal.
**2022**, 138, 106352. [Google Scholar] [CrossRef] - Yang, D.; Tang, S.; Hu, Y.; Nikitin, A.; Wang, Q.; Liu, Y.; Li, L.; He, C.; Li, Y.; Xu, B.; et al. A Novel Model of Ultrasonic Fatigue Test in Pure Bending. Materials
**2022**, 15, 4864. [Google Scholar] [CrossRef] - Ding, K. Three-dimensional Dynamic Finite Element Analysis of Multiple Laser Shock Peening Processes. Surf. Eng.
**2013**, 19, 351–358. [Google Scholar] [CrossRef] - Vasu, A.; Grandhi, R.V. Effects of curved geometry on residual stress in laser peening. Surf. Coat. Technol.
**2013**, 218, 71–79. [Google Scholar] [CrossRef] - Jiao, S.; Gao, C.; Cheng, L.; Li, X.; Feng, Y. A Very High-Cycle Fatigue Test and Fatigue Properties of TC17 Titanium Alloy. J. Mater. Eng. Perform.
**2016**, 25, 1085–1093. [Google Scholar] [CrossRef] - Wang, B.; Cheng, L.; Li, D. Study on very high cycle fatigue properties of forged TC4 titanium alloy treated by laser shock peening under three-point bending. Int. J. Fatigue
**2022**, 156, 106668. [Google Scholar] [CrossRef] - Yang, Z.; Li, H.; Wen, J.; Huang, F.; Wang, Z.; Yi, Z.; Xie, Y.; Dong, H. The microstructure evolution of ballastless track high-strength concrete exposed to compressive and flexural fatigue loads. Int. J. Fatigue
**2023**, 166, 107247. [Google Scholar] [CrossRef] - Li, W.; Sakai, T.; Li, Q.; Lu, L.T.; Wang, P. Effect of loading type on fatigue properties of high strength bearing steel in very high cycle regime. Mater. Sci. Eng. A
**2011**, 528, 5044–5052. [Google Scholar] [CrossRef] - Wu, G.Q.; Shi, C.L.; Sha, W.; Sha, A.X.; Jiang, H.R. Effect of microstructure on the fatigue properties of Ti–6Al–4V titanium alloys. Mater Des.
**2013**, 46, 668–674. [Google Scholar] [CrossRef] [Green Version] - Rack, H.J.; Qazi, J.I. Titanium alloys for biomedical applications. Mater. Sci. Eng. C
**2006**, 26, 1269–1277. [Google Scholar] [CrossRef] - Bathias, B. There is no infinite fatigue life in metallic materials. Fatigue Fract. Eng. Mater. Struct.
**1999**, 22, 559–565. [Google Scholar] [CrossRef] - Liu, F.; Peng, H.; Liu, Y.; Wang, C.; Wang, Q.; Chen, Y. Crack initiation mechanism of titanium alloy in very high cycle fatigue regime at 400℃ considering stress ratio effect. Int. J. Fatigue
**2022**, 163, 107012. [Google Scholar] [CrossRef] - Nie, X.; He, W.; Cao, Z.; Song, J.; Li, X.; Pang, Z.; Yan, X. Experimental study and fatigue life prediction on high cycle fatigue performance of laser-peened TC4 titanium alloy. Mater. Sci. Eng. A
**2021**, 822, 141658. [Google Scholar] [CrossRef] - Xu, W.; Chen, X.; Gao, Z.; Li, Y.; He, Y.; Tao, C. Fatigue behaviors of a titanium alloy in the VHCF regime based on a vibration-based bending fatigue test. Fatigue Fract. Eng. Mater. Struct.
**2022**, 45, 2549–2562. [Google Scholar] [CrossRef] - Hong, Y.; Zhao, A.; Qian, G.; Zhou, C. Fatigue Strength and Crack Initiation Mechanism of Very-High-Cycle Fatigue for Low Alloy Steels. Metall. Mater. Trans. A
**2011**, 43, 2753–2762. [Google Scholar] [CrossRef] - Xu, W.; Zhao, Y.; Chen, X.; Zhong, B.; Yu, H.; He, Y.; Tao, C. An Ultra-High Frequency Vibration-Based Fatigue Test and Its Comparative Study of a Titanium Alloy in the VHCF Regime. Metals
**2020**, 10, 1415. [Google Scholar] [CrossRef] - Pan, X.; Su, H.; Sun, C.; Hong, Y. The behavior of crack initiation and early growth in high-cycle and very-high-cycle fatigue regimes for a titanium alloy. Int. J. Fatigue
**2018**, 115, 67–78. [Google Scholar] [CrossRef] [Green Version] - Huang, Z.Y.; Liu, H.Q.; Wang, H.M.; Wagner, D.; Khan, M.K.; Wang, Q.Y. Effect of stress ratio on VHCF behavior for a compressor blade titanium alloy. Int. J. Fatigue
**2016**, 93, 232–237. [Google Scholar] [CrossRef] - Chai, G.; Forsman, T.; Gustavsson, F.; Wang, C. Formation of fine grained area in martensitic steel during very high cycle fatigue. Fatigue Fract. Eng. Mater. Struct.
**2015**, 38, 1315–1323. [Google Scholar] [CrossRef] - Bridier, F.; McDowell, D.; Villechaise, P.; Mendez, J. Crystal plasticity modeling of slip activity in Ti–6Al–4V under high cycle fatigue loading. Int. J. Plast.
**2009**, 25, 1066–1082. [Google Scholar] [CrossRef] - McDowell, D.; Dunne, F. Microstructure-sensitive computational modeling of fatigue crack formation. Int. J. Fatigue
**2010**, 32, 1521–1542. [Google Scholar] [CrossRef] - Liu, F.; He, C.; Chen, Y.; Zhang, H.; Wang, Q.; Liu, Y. Effects of defects on tensile and fatigue behaviors of selective laser melted titanium alloy in very high cycle regime. Int. J. Fatigue
**2020**, 140, 105795. [Google Scholar] [CrossRef]

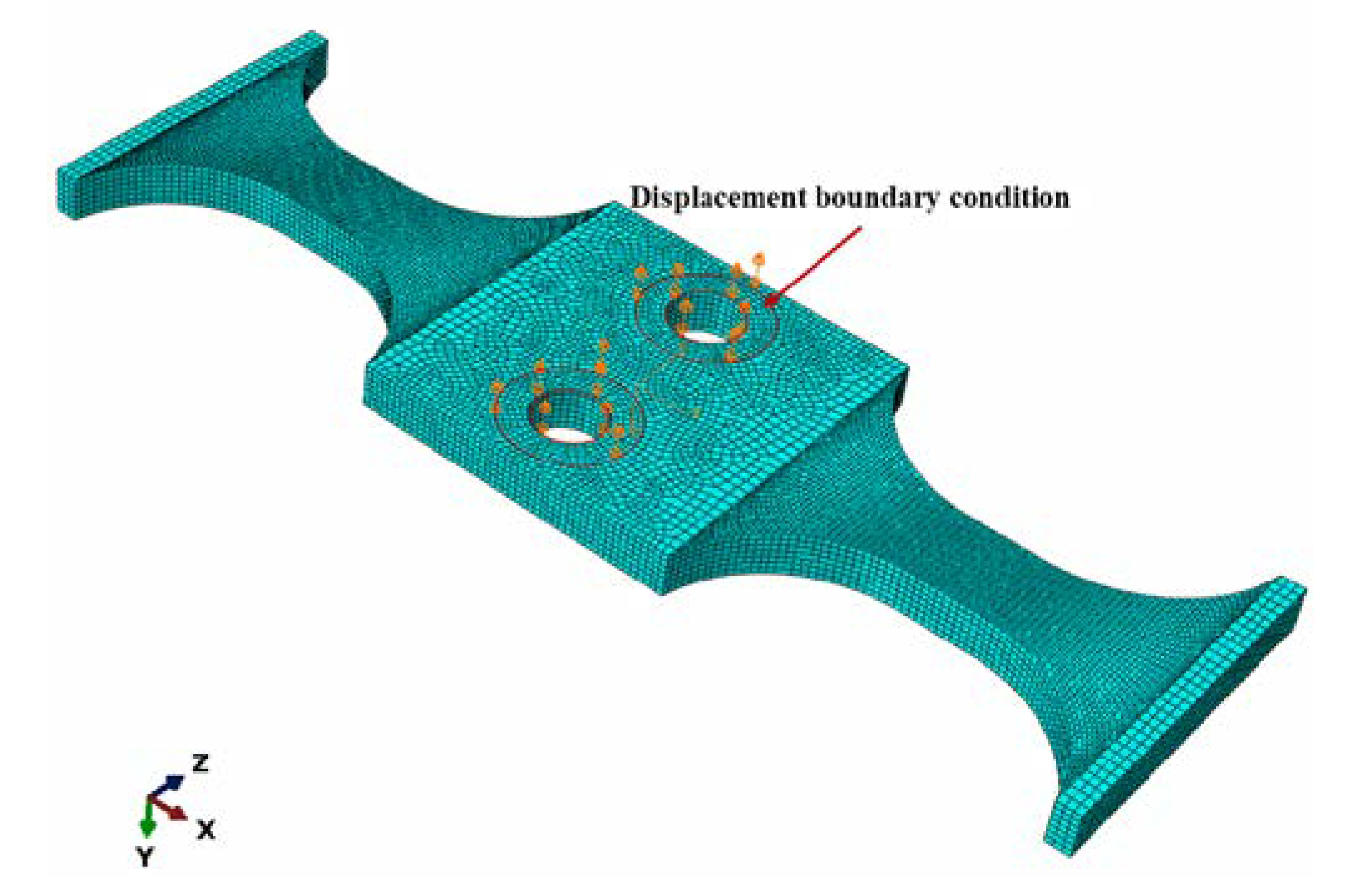

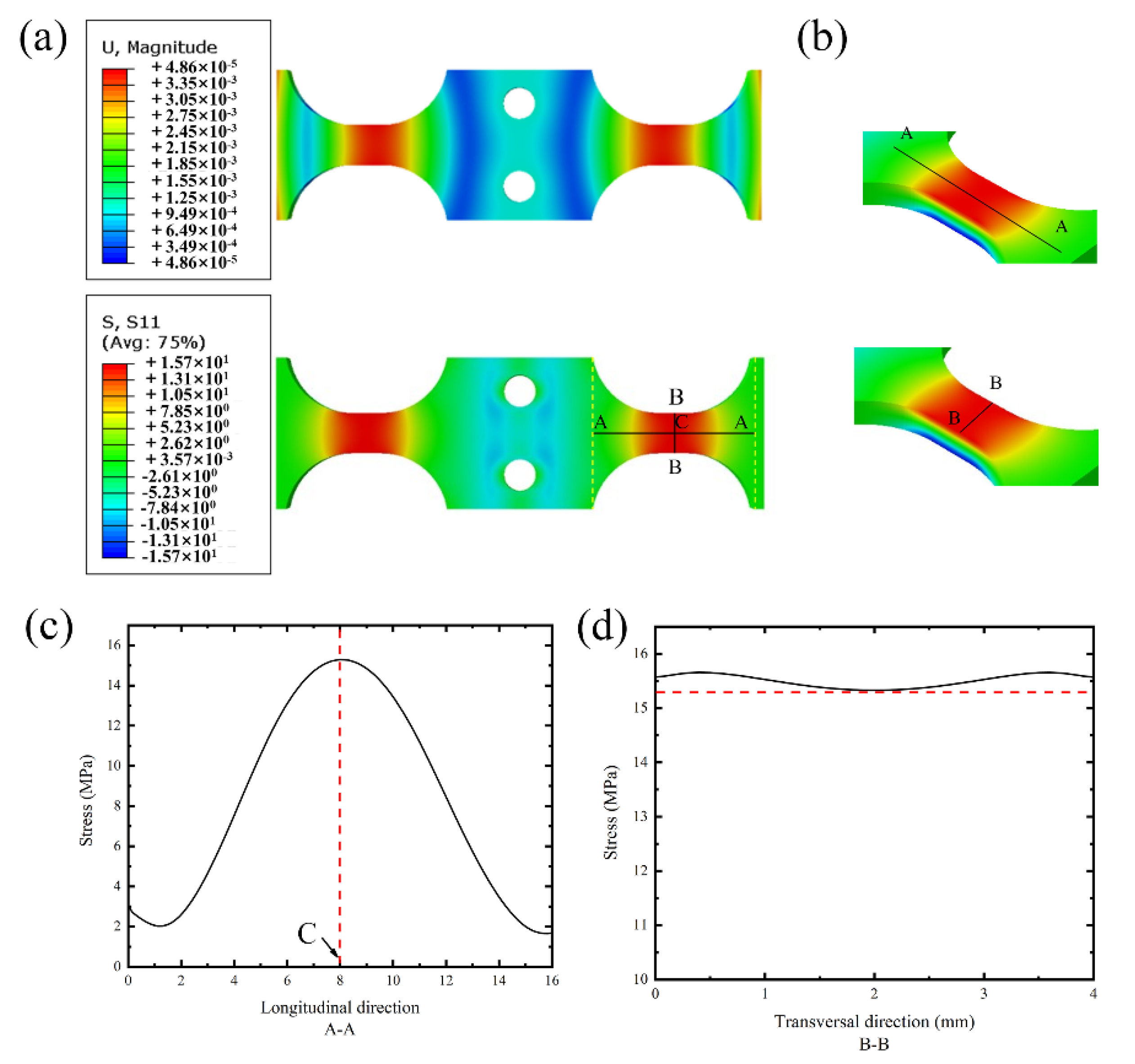

**Figure 3.**The stress distribution on the bent specimen: (

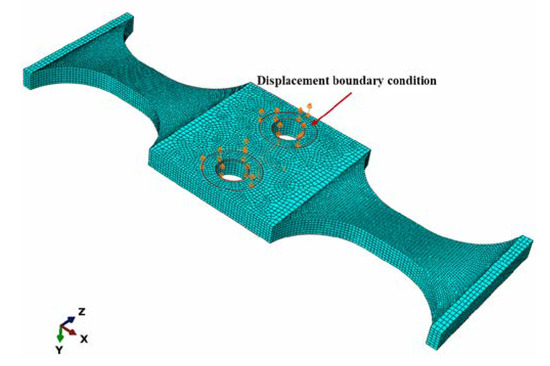

**a**) finite element analysis (FEA) solved dis-tribution of displacement and stress; (

**b**) paths of stress collecting at the gauge section; (

**c**) stress profile along the longitudinal direction; (

**d**) stress profile along the transversal direction.

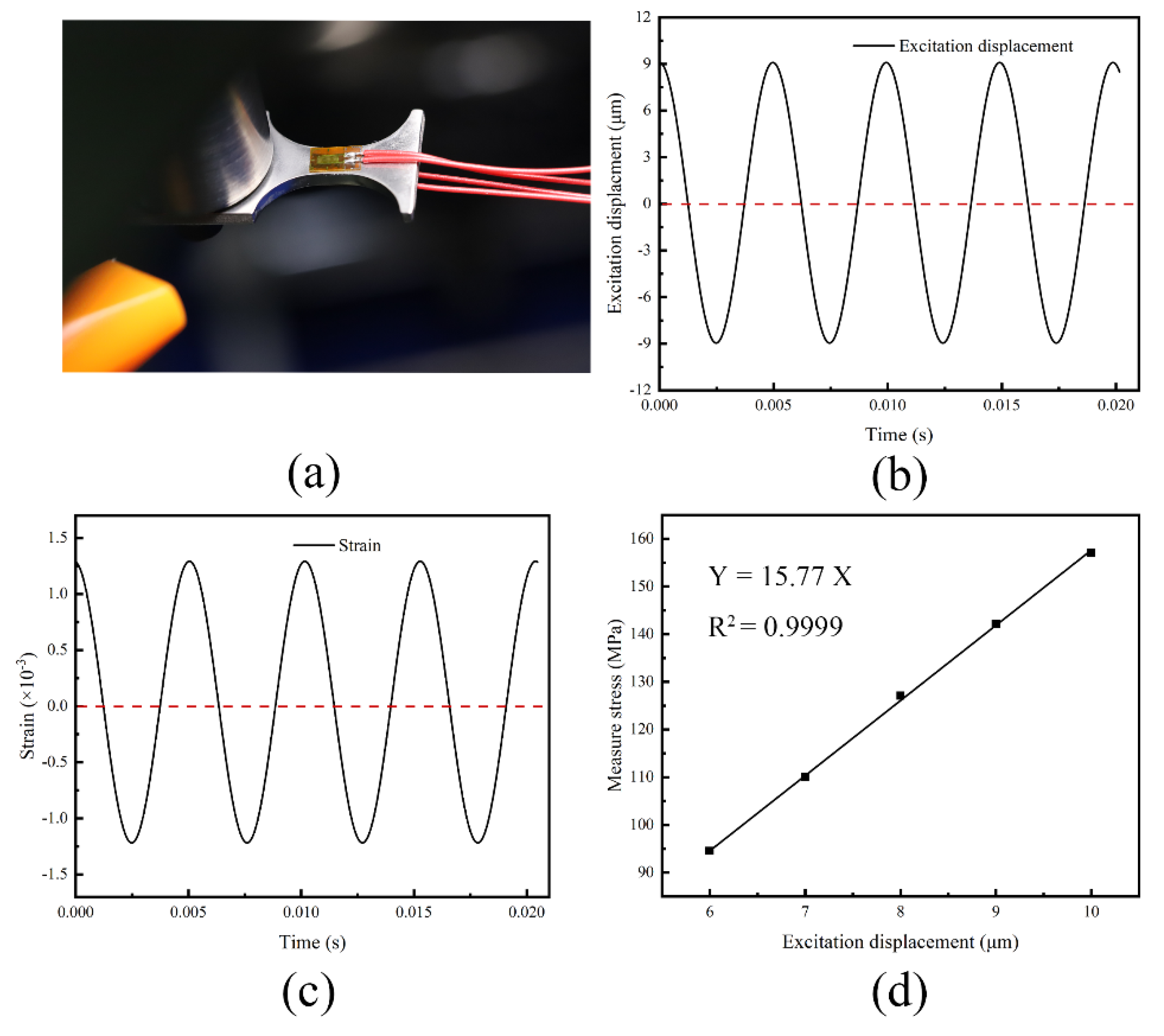

**Figure 4.**Strain measurement: (

**a**) diagram of strain gages; (

**b**) waveform of excitation displacement; (

**c**) waveform of measured strain; (

**d**) relationship between measured stress and FEA stress.

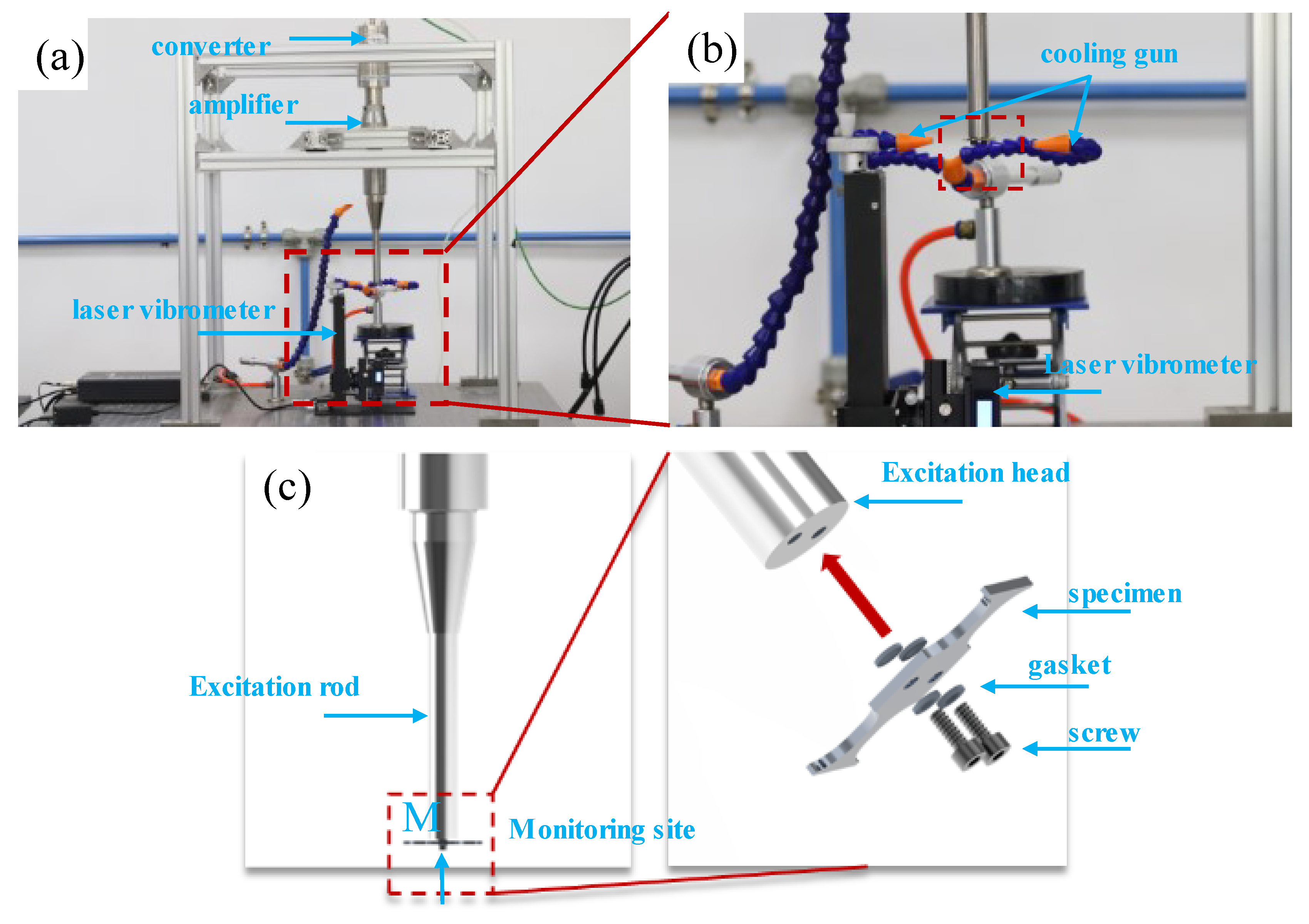

**Figure 6.**Bending test based on ultrasonic fatigue system: (

**a**) full view of the system; (

**b**) details of the constraint; (

**c**) composition of the bending constraint method.

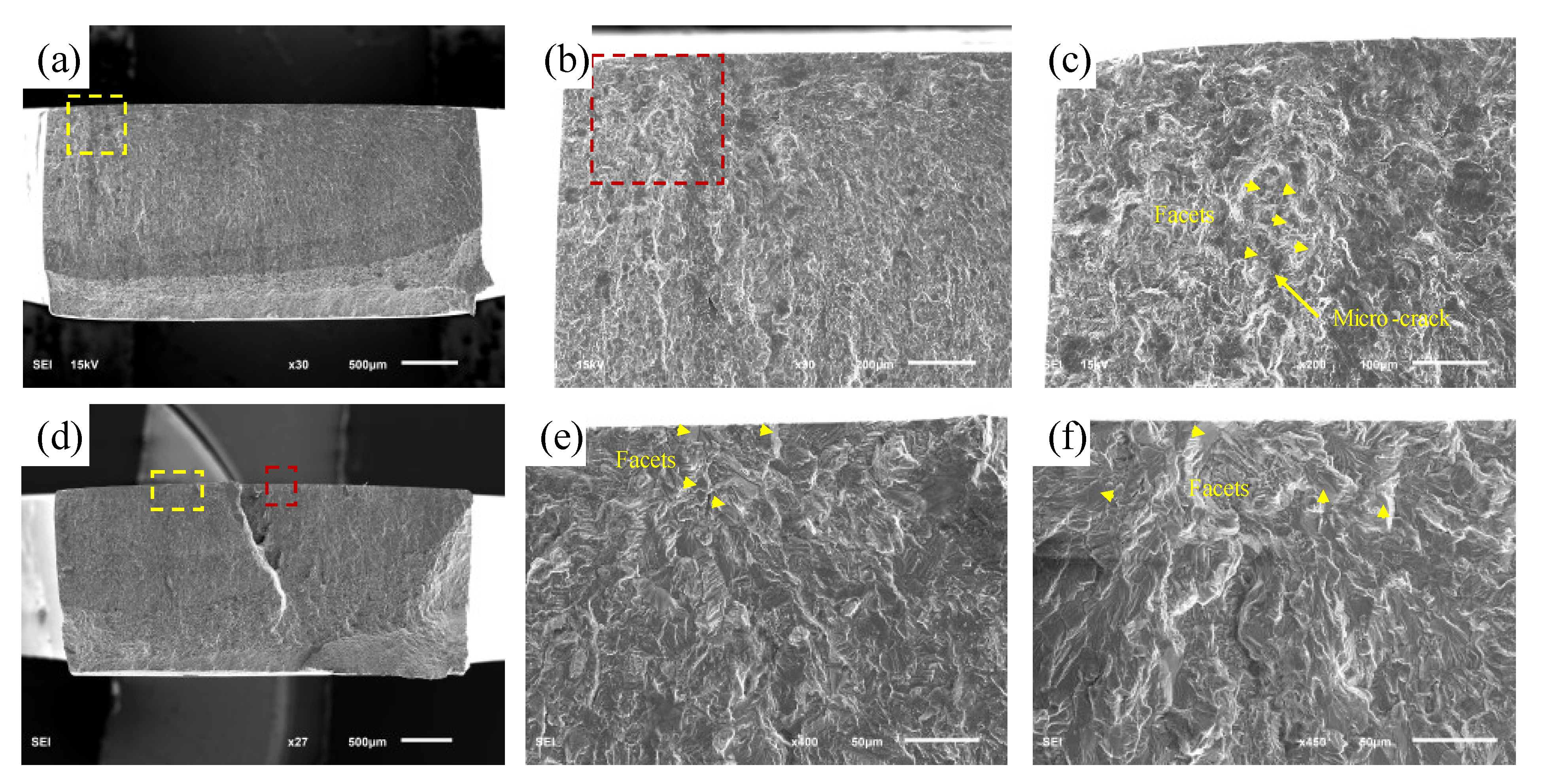

**Figure 10.**Typical fracture morphology in the HCF: (

**a**–

**c**) ${\sigma}_{a}=390.14$ MPa, ${N}_{f}=3.39\times {10}^{5}$ cycles; (

**d**–

**f**) ${\sigma}_{a}=220.01$ MPa, ${N}_{f}=6.05\times {10}^{6}$ cycles.

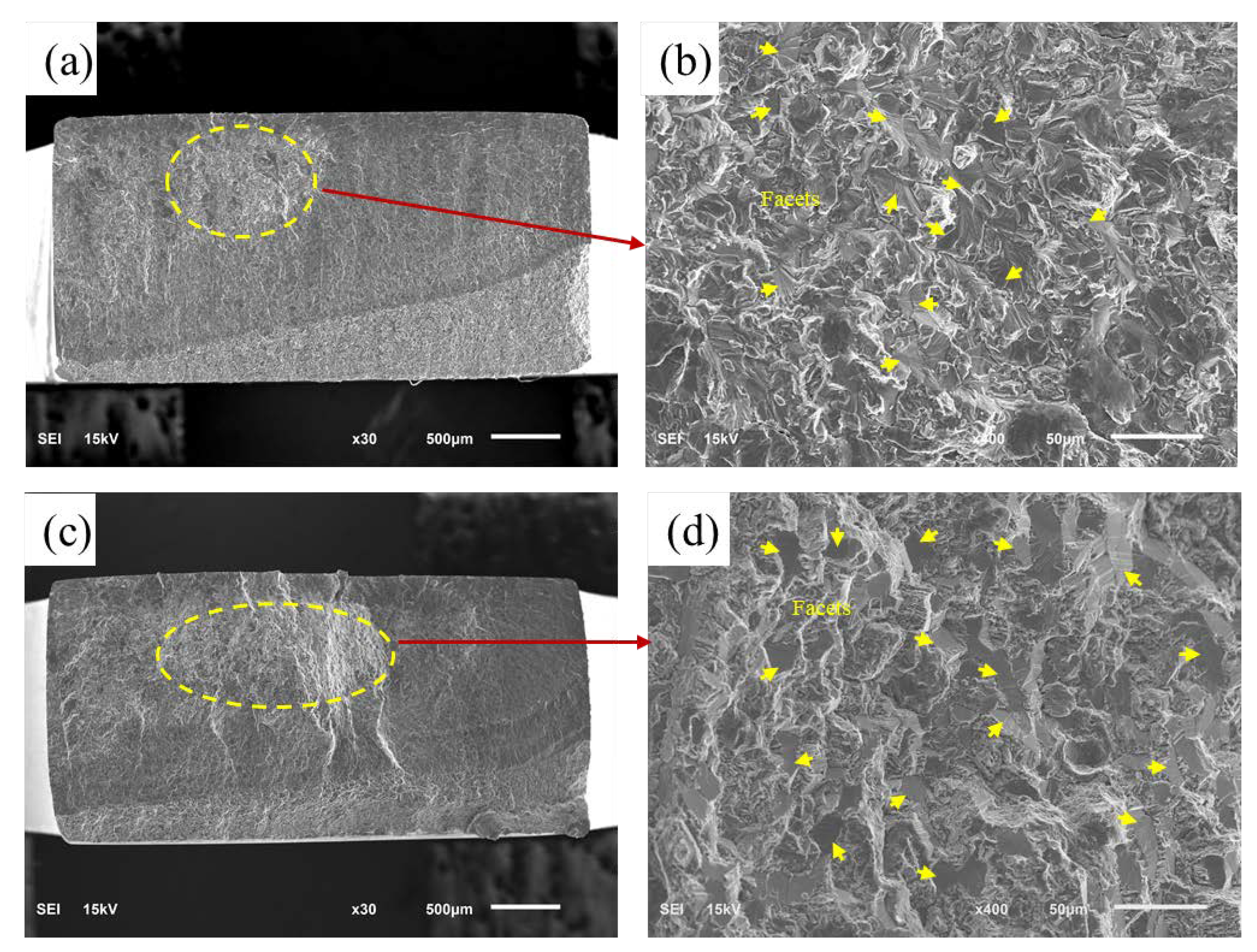

**Figure 11.**Typical fracture morphology in the VHCF: (

**a**,

**b**) ${\sigma}_{a}=246.66$ MPa, ${N}_{f}=9.91\times {10}^{7}$; (

**c**,

**d**) ${\sigma}_{a}=213.1$ MPa, ${N}_{f}=2.53\times {10}^{8}$ cycles.

Young’s Modulus (GPa) | Yield Strength (MPa) | Tensile Strength (MPa) | Poisson’s Ratio | Hardness (Hv) |
---|---|---|---|---|

113 | 915 | 954 | 0.33 | 330 |

Bending Load | Axial Load | ||||
---|---|---|---|---|---|

Specimen No. | Stress Level (MPa) | Fatigue Cycle (Cycles) | Specimen No. | Stress Level (MPa) | Fatigue Cycle (Cycles) |

1 | 390.14 | 3.39 × 10^{5} | 1 | 278.29 | 4.38 × 10^{5} |

2 | 335.41 | 4.78 × 10^{7} | 2 | 259.49 | 2.61× 10^{6} |

3 | 335.41 | 7.96 × 10^{5} | 3 | 246.96 | 1.79 × 10^{7} |

4 | 320.00 | 1.20 × 10^{6} | 4 | 246.96 | 4.90 × 10^{7} |

5 | 320.00 | 2.82 × 10^{6} | 5 | 246.96 | 4.84 × 10^{7} |

6 | 310.00 | 2.29 × 10^{6} | 6 | 234.43 | 1.49 × 10^{6} |

7 | 299.75 | 2.39 × 10^{6} | 7 | 234.43 | 5.35 × 10^{7} |

8 | 294.25 | 5.20 × 10^{6} | 8 | 234.43 | 7.36 × 10^{7} |

9 | 287.07 | 2.23 × 10^{7} | 9 | 228.16 | 6.80 × 10^{7} |

10 | 280.50 | 4.25 × 10^{6} | 10 | 221.90 | 1.17 × 10^{8} |

11 | 262.10 | 1.05 × 10^{7} | 11 | 221.90 | 2.16 × 10^{7} |

12 | 246.77 | 2.07 × 10^{8} | 12 | 221.90 | 2.20 × 10^{8} |

13 | 246.66 | 9.91 × 10^{7} | 13 | 221.90 | 1.98 × 10^{8} |

14 | 243.02 | 5.26 × 10^{7} | 14 | 215.00 | 1.00 × 10^{9} |

15 | 238.03 | 4.35 × 10^{7} | |||

16 | 222.01 | 6.05 × 10^{6} | |||

17 | 213.10 | 2.53 × 10^{8} | |||

18 | 208.59 | 5.06 × 10^{7} | |||

19 | 200.00 | 1.00 × 10^{9} |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Tang, S.; Wang, X.; Huang, B.; Yang, D.; Li, L.; He, C.; Xu, B.; Liu, Y.; Wang, C.; Wang, Q.
A Novel Ultrasonic Fatigue Test and Application in Bending Fatigue of TC4 Titanium Alloy. *Materials* **2023**, *16*, 5.
https://doi.org/10.3390/ma16010005

**AMA Style**

Tang S, Wang X, Huang B, Yang D, Li L, He C, Xu B, Liu Y, Wang C, Wang Q.
A Novel Ultrasonic Fatigue Test and Application in Bending Fatigue of TC4 Titanium Alloy. *Materials*. 2023; 16(1):5.
https://doi.org/10.3390/ma16010005

**Chicago/Turabian Style**

Tang, Sen, Xinyu Wang, Beihai Huang, Dongtong Yang, Lang Li, Chao He, Bo Xu, Yongjie Liu, Chong Wang, and Qingyuan Wang.
2023. "A Novel Ultrasonic Fatigue Test and Application in Bending Fatigue of TC4 Titanium Alloy" *Materials* 16, no. 1: 5.
https://doi.org/10.3390/ma16010005
