Optimizing the L/S Ratio in Geopolymers for the Production of Large-Size Elements with 3D Printing Technology
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Preparation of Specimens
2.3. Methods
3. Results and Discussion

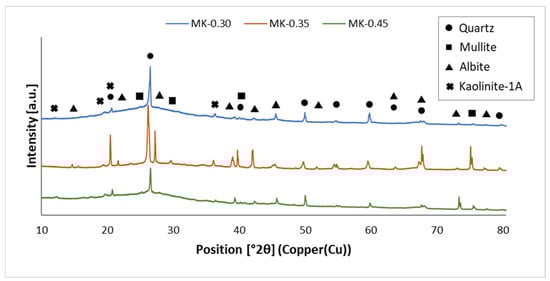

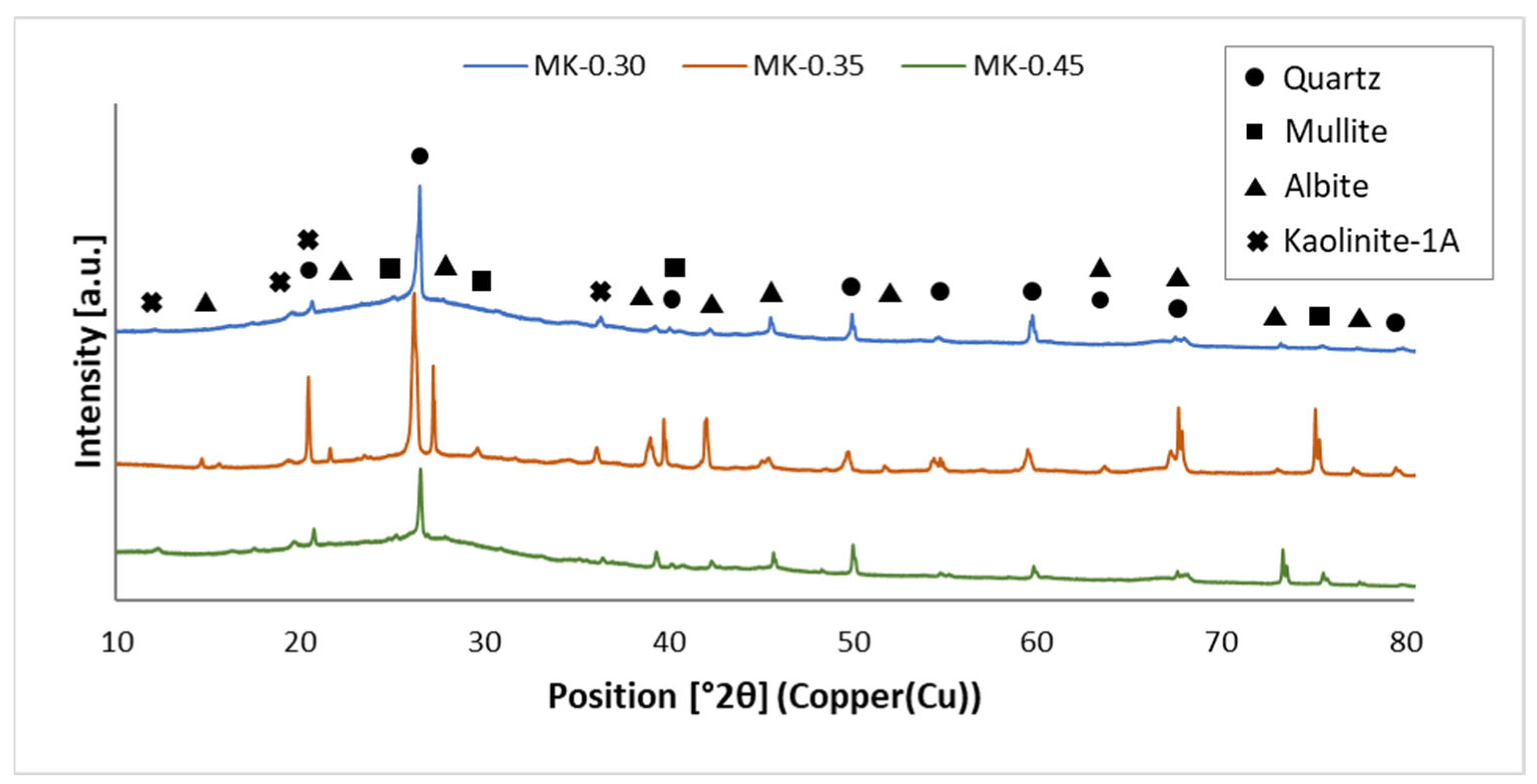

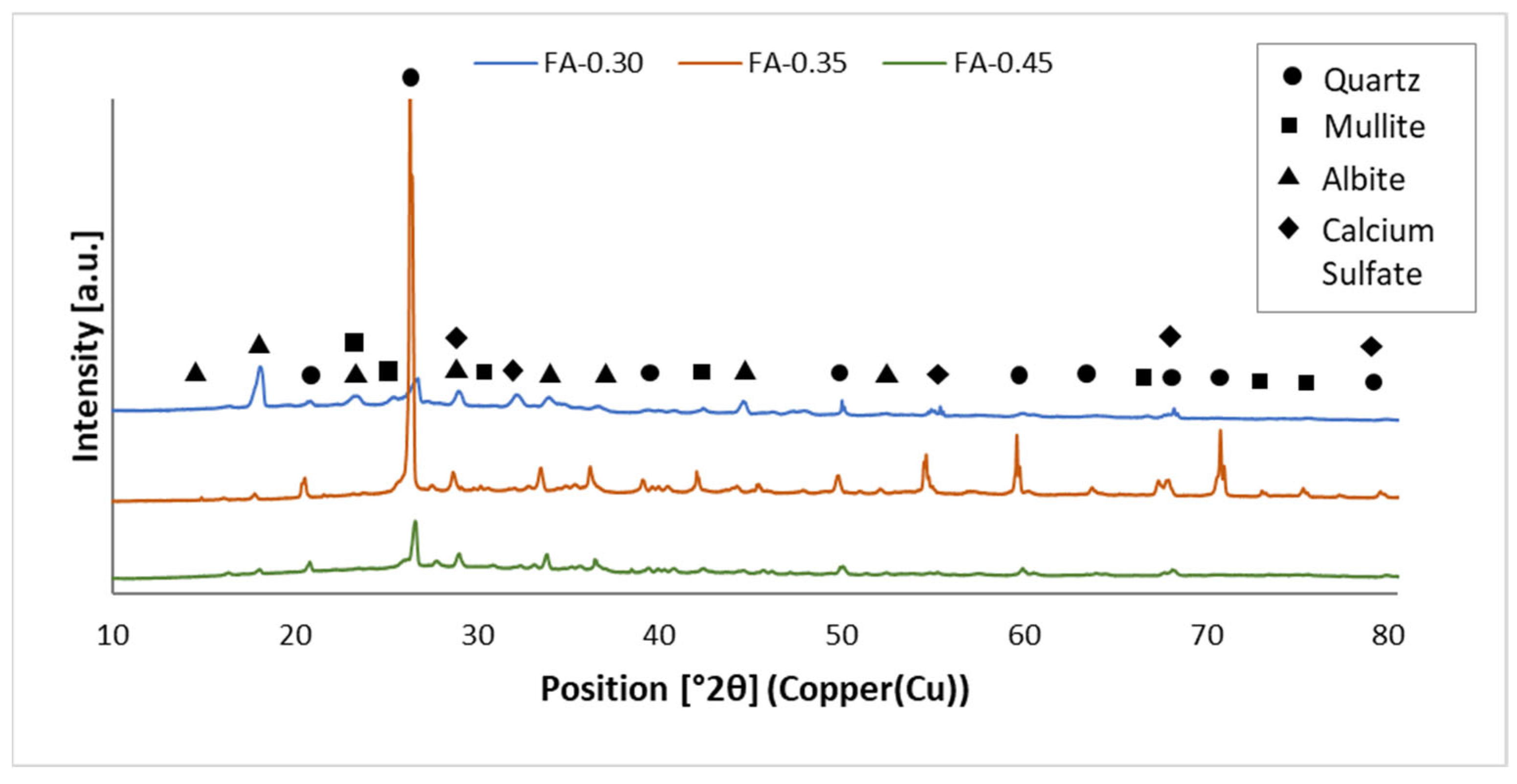

3.1. X-ray Diffraction

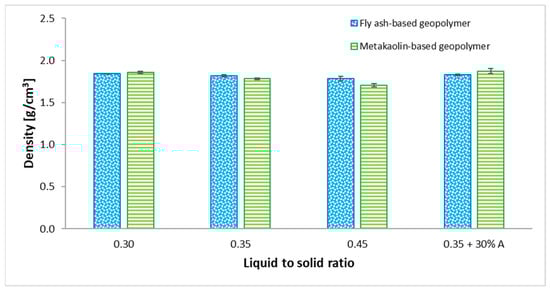

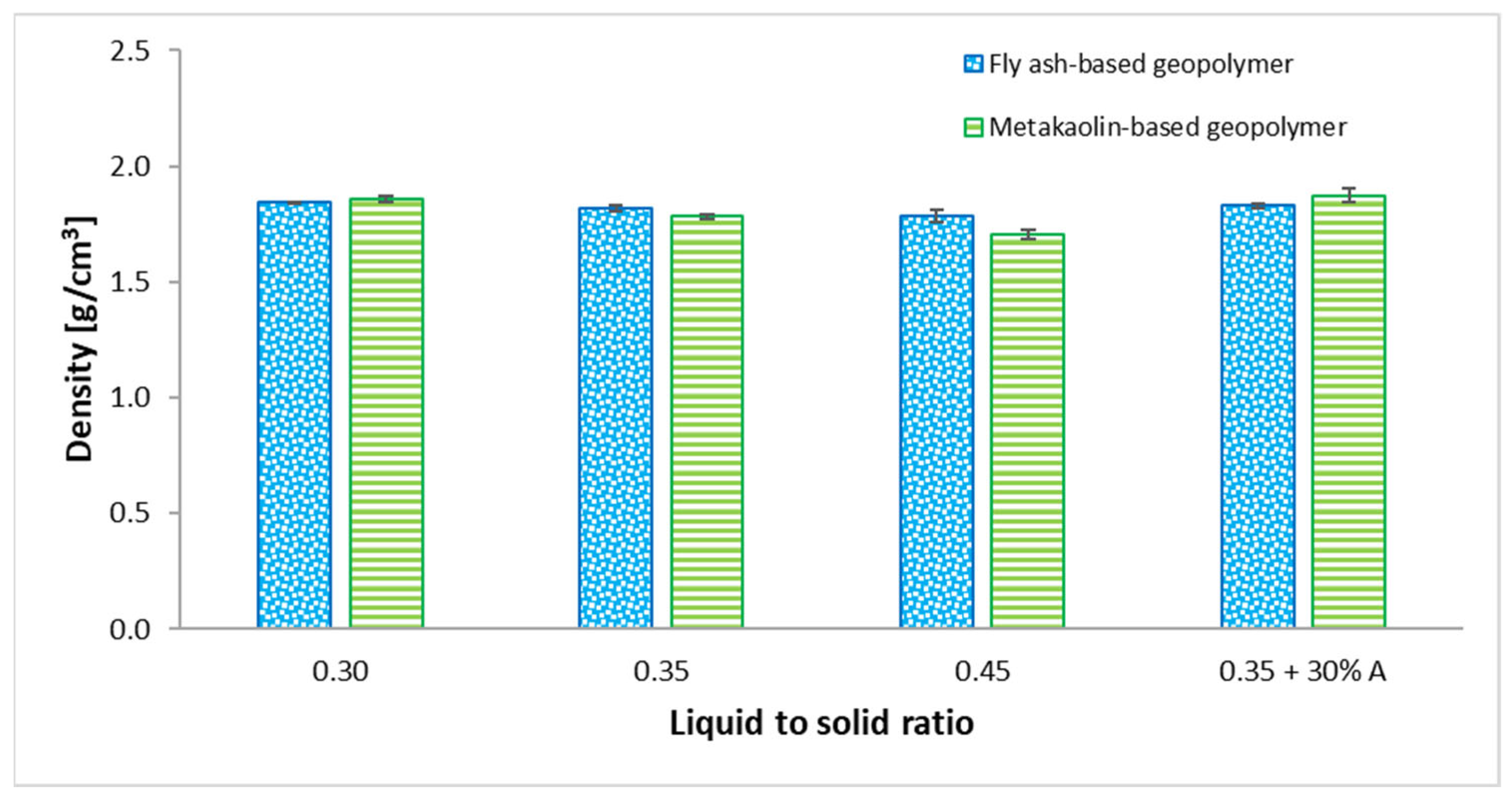

3.2. Densities of Geopolymer Samples

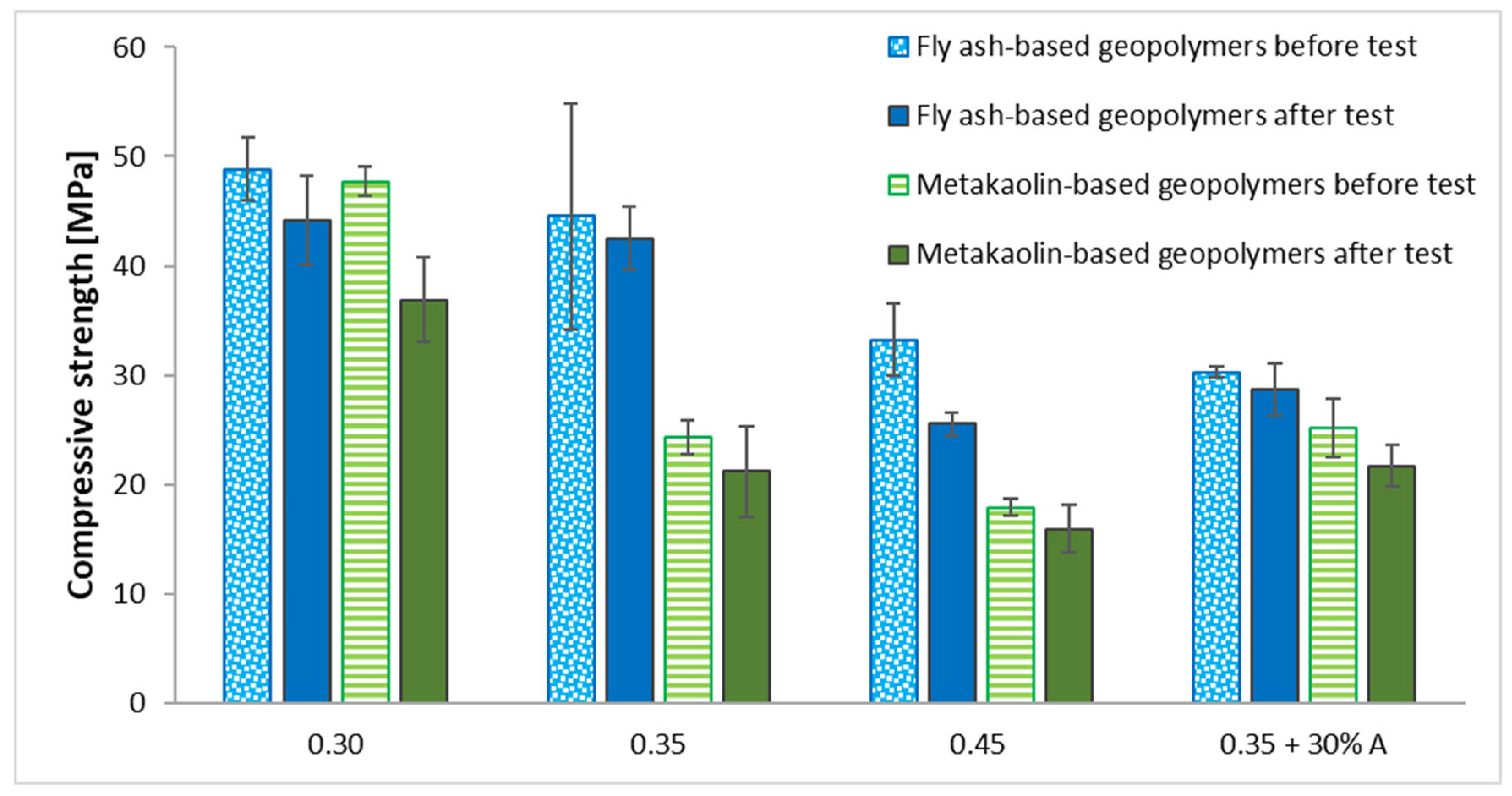

3.3. The Compressive Strength of Geopolymers

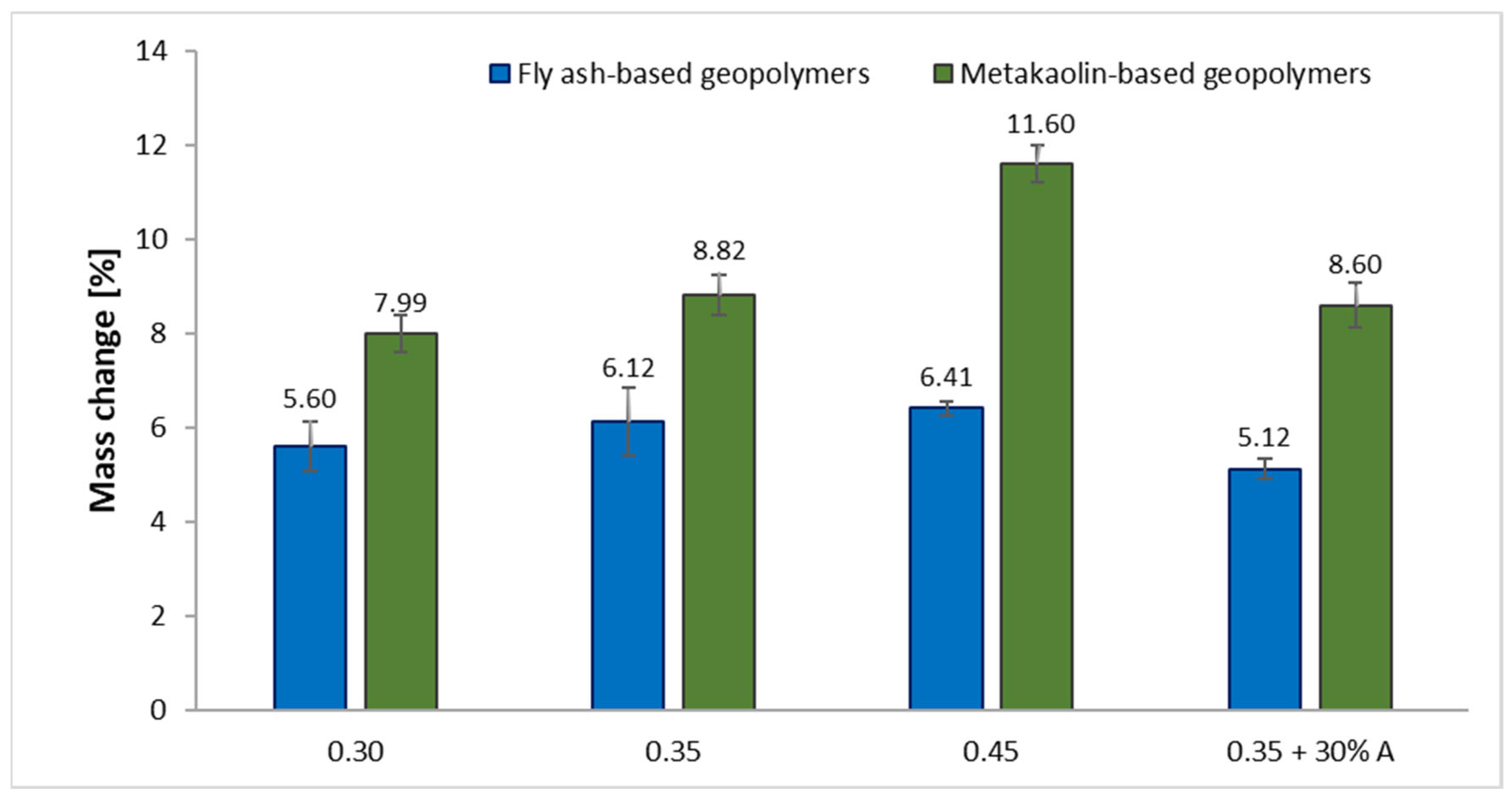

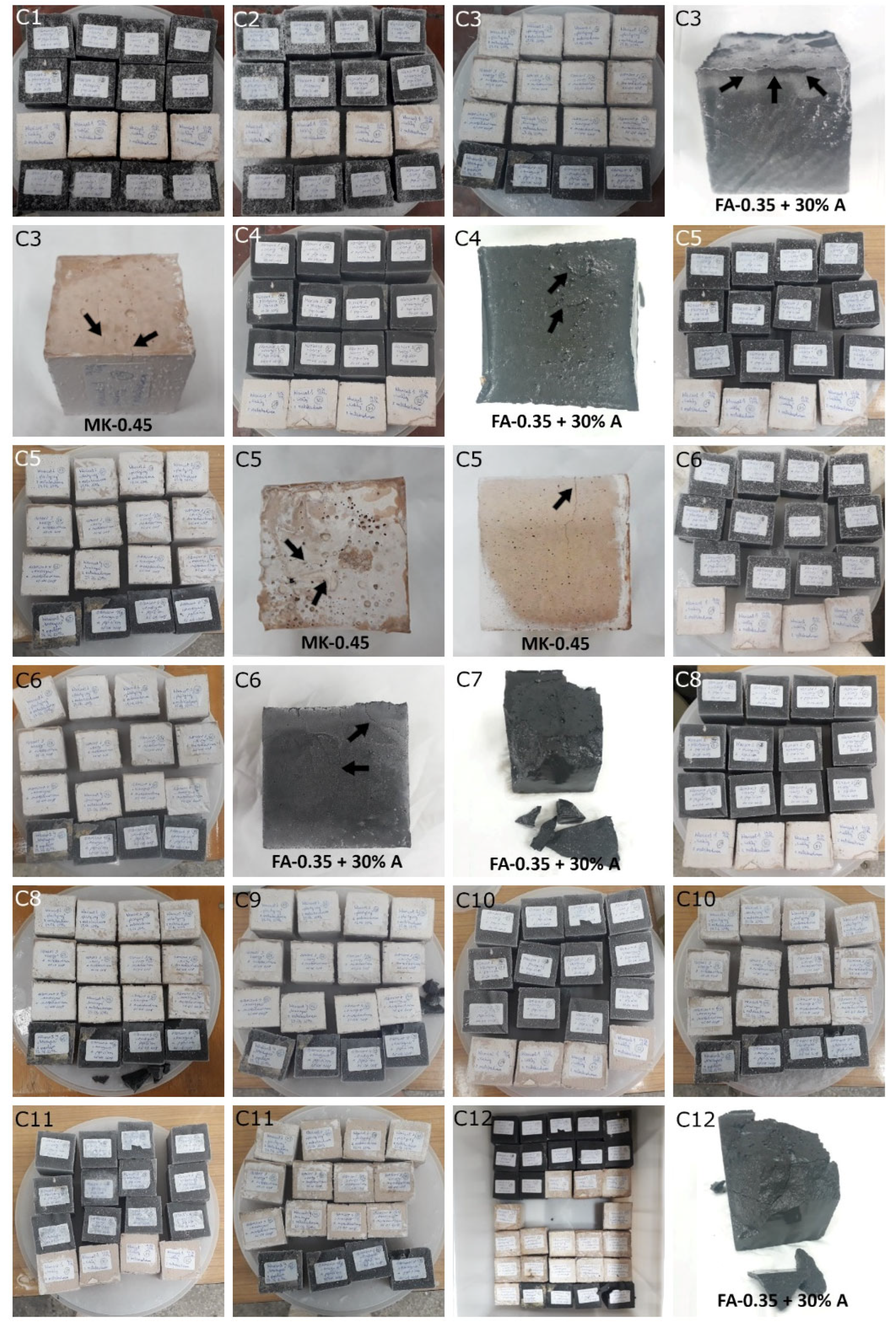

3.4. Evaluation of the Morphology of Samples after Frost Resistance Tests
3.5. Water Permeability

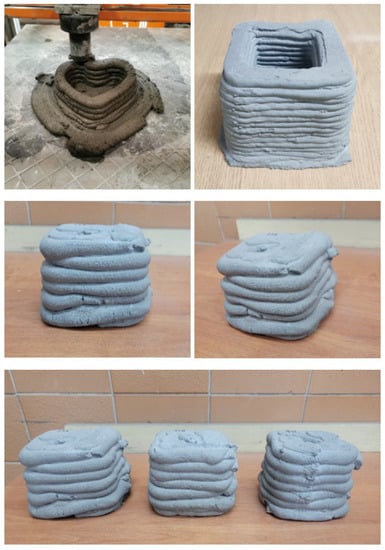

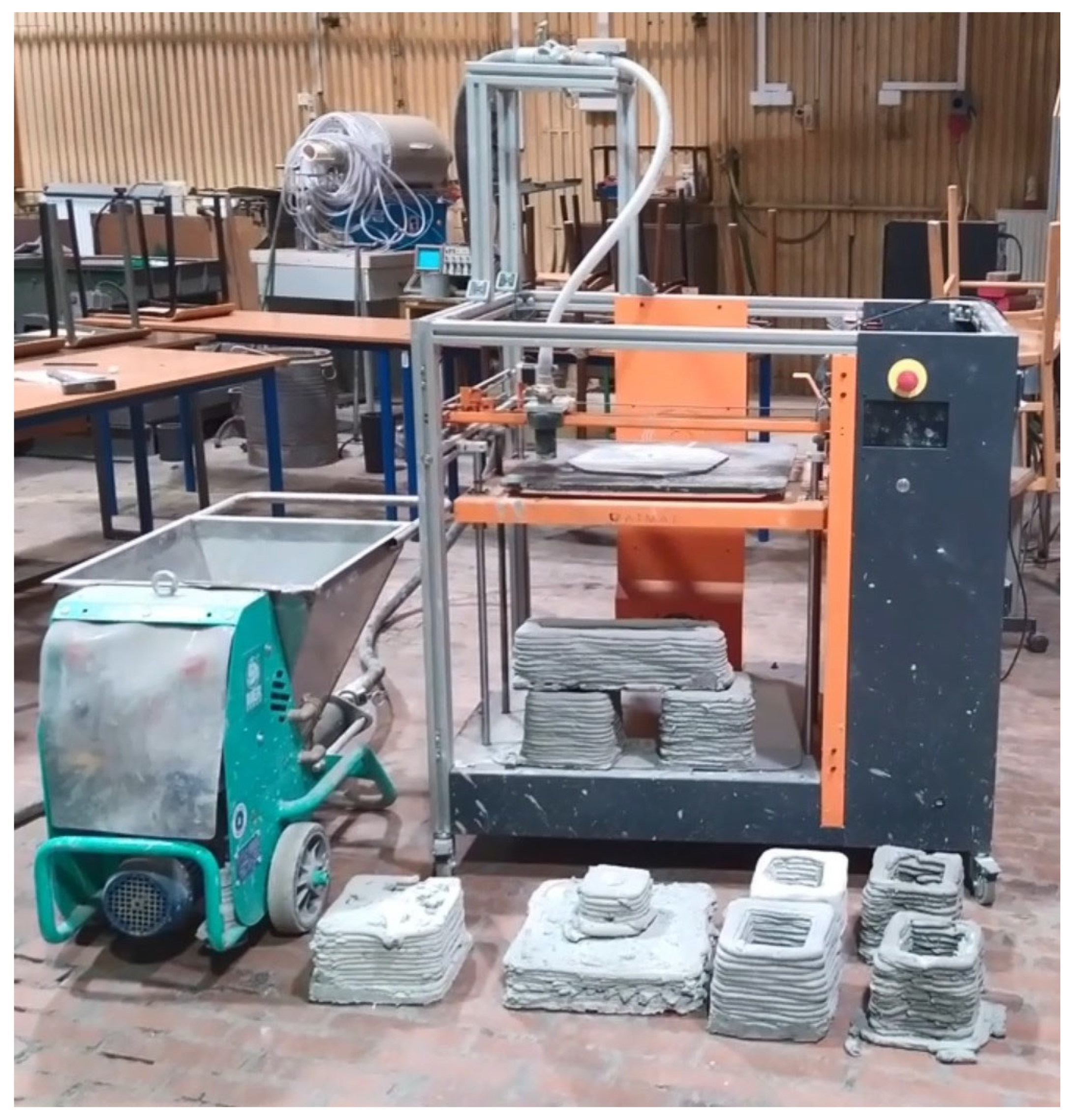

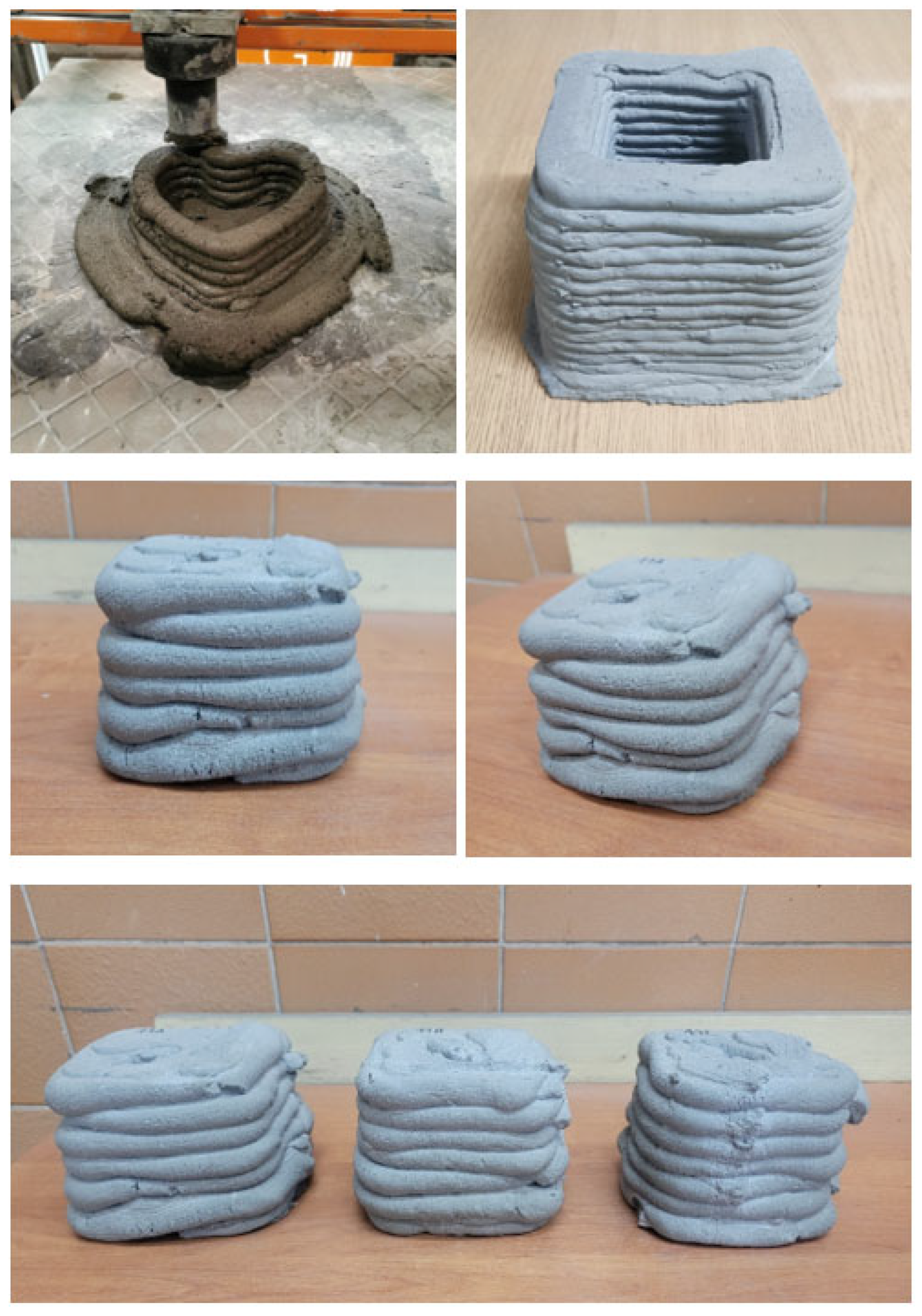

4. Large-Format 3D Printing
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Singh, N.B.; Middendorf, B. Geopolymers as an Alternative to Portland Cement: An Overview. Constr. Build. Mater. 2020, 237, 117455. [Google Scholar] [CrossRef]
- Chen, X.; Zhou, M.; Shen, W.; Zhu, G.; Ge, X. Mechanical Properties and Microstructure of Metakaolin-Based Geopolymer Compound-Modified by Polyacrylic Emulsion and Polypropylene Fibers. Constr. Build. Mater. 2018, 190, 680–690. [Google Scholar] [CrossRef]
- Korniejenko, K.; Frączek, E.; Pytlak, E.; Adamski, M. Mechanical Properties of Geopolymer Composites Reinforced with Natural Fibers. Procedia Eng. 2016, 151, 388–393. [Google Scholar] [CrossRef]
- Davidovits, J. Geopolymer Chemistry and Applications, 5th ed.; Geopolymer Institute: Saint-Quentin, France, 2020; Volume 680. [Google Scholar]
- Łach, M.; Hebdowska-Krupa, M.; Stefańska, A.; Stefanek, J.; Stanek, A.; Mikuła, J.; Hebda, M. Characterisation of Post-Production Raw Material from the Raciszyn II Deposit as a Material Suitable for the Production of Alkaline-Activated Materials. J. Therm. Anal. Calorim. 2019, 138, 4551–4559. [Google Scholar] [CrossRef] [Green Version]
- Ojha, A.; Aggarwal, P. Fly Ash Based Geopolymer Concrete: A Comprehensive Review. Silicon 2021, 14, 2453–2472. [Google Scholar] [CrossRef]
- Abdulkareem, M.; Havukainen, J.; Nuortila-Jokinen, J.; Horttanainen, M. Environmental and Economic Perspective of Waste-Derived Activators on Alkali-Activated Mortars. J. Clean. Prod. 2021, 280, 124651. [Google Scholar] [CrossRef]
- Pławecka, K.; Przybyła, J.; Korniejenko, K.; Lin, W.-T.; Cheng, A.; Łach, M. Recycling of Mechanically Ground Wind Turbine Blades as Filler in Geopolymer Composite. Materials 2021, 14, 6539. [Google Scholar] [CrossRef]
- Łach, M. Geopolymer Foams—Will They Ever Become a Viable Alternative to Popular Insulation Materials?—A Critical Opinion. Materials 2021, 14, 3568. [Google Scholar] [CrossRef]
- Gupta, P.; Nagpal, G.; Gupta, N. Fly Ash-Based Geopolymers: An Emerging Sustainable Solution for Heavy Metal Remediation from Aqueous Medium. Beni-Suef Univ. J. Basic Appl. Sci. 2021, 10, 89. [Google Scholar] [CrossRef]
- Mayhoub, O.A.; Nasr, E.S.A.R.; Ali, Y.; Kohail, M. Properties of Slag Based Geopolymer Reactive Powder Concrete. Ain Shams Eng. J. 2021, 12, 99–105. [Google Scholar] [CrossRef]
- Plawecka, K.; Figiela, B.; Grela, A.; Buczkowska, K.E. Geopolymers Based on Plasma Incineration Waste as a Material for Circular Economy. IOP Conf. Ser. Earth Environ. Sci. 2021, 942, 012008. [Google Scholar] [CrossRef]
- Kim, B.; Lee, S. Review on Characteristics of Metakaolin-Based Geopolymer and Fast Setting. J. Korean Ceram. Soc. 2020, 57, 368–377. [Google Scholar] [CrossRef]
- Al-Zboon, K.K.; Al-smadi, B.M.; Al-Khawaldh, S. Natural Volcanic Tuff-Based Geopolymer for Zn Removal: Adsorption Isotherm, Kinetic, and Thermodynamic Study. Water Air Soil Pollut. 2016, 227, 248. [Google Scholar] [CrossRef]
- Assi, L.N.; Carter, K.; Deaver, E.; Ziehl, P. Review of Availability of Source Materials for Geopolymer/Sustainable Concrete. J. Clean. Prod. 2020, 263, 121477. [Google Scholar] [CrossRef]
- Sata, V.; Chindaprasirt, P. Use of Construction and Demolition Waste (CDW) for Alkali-Activated or Geopolymer Concrete. In Advances in Construction and Demolition Waste Recycling; Woodhead Publishing: Sawston, UK, 2020; pp. 385–403. [Google Scholar] [CrossRef]
- Verdolotti, L.; Iannace, S.; Lavorgna, M.; Lamanna, R. Geopolymerization Reaction to Consolidate Incoherent Pozzolanic Soil. J. Mater. Sci. 2007, 43, 865–873. [Google Scholar] [CrossRef]
- Hoc Thang, N. Geopolymerization: A Review on Physico-Chemical Factors Influence to the Reaction Process. J. Polym. Compos. 2020, 8, 1–9. [Google Scholar] [CrossRef]
- Korniejenko, K.; Kozub, B.; Bąk, A.; Balamurugan, P.; Uthayakumar, M.; Furtos, G. Tackling the Circular Economy Challenges—Composites Recycling: Used Tyres, Wind Turbine Blades, and Solar Panels. J. Compos. Sci. 2021, 5, 243. [Google Scholar] [CrossRef]
- Korniejenko, K.; Mucsi, G.; Papné Halyag, N.; Szabó, R.; Mierzwiński, D.; Louda, P. Mechanical Properties of Basalt Fiber Reinforced Fly Ash-Based Geopolymer Composites. KnE Eng. 2020, 5, 86–100. [Google Scholar] [CrossRef] [Green Version]
- Kastiukas, G.; Zhou, X. Effects of Waste Glass on Alkali-Activated Tungsten Mining Waste: Composition and Mechanical Properties. Mater. Struct./Mater. Constr. 2017, 50, 194. [Google Scholar] [CrossRef] [Green Version]
- Memon, F.A.; Nuruddin, M.F.; Khan, S.; Shafiq, N.; Ayub, T. Effect of Sodium Hydroxide Concentration on Fresh Properties and Compressive Strength of Self-Compacting Geopolymer Concrete. J. Eng. Sci. Technol. 2013, 50, 7713–7724. [Google Scholar]
- Park, S.; Pour-Ghaz, M. What Is the Role of Water in the Geopolymerization of Metakaolin? Constr. Build. Mater. 2018, 182, 360–370. [Google Scholar] [CrossRef]
- Xu, Z.; Yue, J.; Pang, G.; Li, R.; Zhang, P.; Xu, S. Influence of the Activator Concentration and Solid/Liquid Ratio on the Strength and Shrinkage Characteristics of Alkali-Activated Slag Geopolymer Pastes. Adv. Civ. Eng. 2021, 2021, 6631316. [Google Scholar] [CrossRef]
- Nikoloutsopoulos, N.; Sotiropoulou, A.; Kakali, G.; Tsivilis, S. The Effect of Solid/Liquid Ratio on Setting Time, Workability and Compressive Strength of Fly Ash Based Geopolymers. Mater. Today Proc. 2018, 5, 27441–27445. [Google Scholar] [CrossRef]
- Jaya, N.A.; Liew, Y.M.; Heah, C.Y.; Abdullah, M.M.A.B. Effect of Solid-to-Liquid Ratios on Metakaolin Geopolymers. In AIP Conference Proceedings; American Institute of Physics Inc.: University Park, MD, USA, 2018; Volume 2045. [Google Scholar]
- Živica, V. Effects of the Very Low Water/Cement Ratio. Constr. Build. Mater. 2009, 23, 3579–3582. [Google Scholar] [CrossRef]
- Mubarak, K.; Bois, K.J.; Zoughi, R. A Simple, Robust, and on-Site Microwave Technique for Determining Water-to-Cement Ratio (w/c) of Fresh Portland Cement-Based Materials. IEEE Trans. Instrum. Meas. 2001, 50, 1255–1263. [Google Scholar] [CrossRef]
- Joshi, T.; Dave, U. Evaluation of Strength, Permeability and Void Ratio of Pervious Concrete with Changing W/C Ratio and Aggregate Size. Int. J. Civ. Eng. Technol. 2016, 7, 276–284. [Google Scholar]
- Autef, A.; Joussein, E.; Gasgnier, G.; Rossignol, S. Role of the Silica Source on the Geopolymerization Rate. J. Non-Cryst. Solids 2012, 358, 2886–2893. [Google Scholar] [CrossRef]
- Provis, J.L.; Yong, C.Z.; Duxson, P.; van Deventer, J.S.J. Correlating Mechanical and Thermal Properties of Sodium Silicate-Fly Ash Geopolymers. Colloids Surf. A Physicochem. Eng. Asp. 2009, 336, 57–63. [Google Scholar] [CrossRef]
- Hairi, S.N.M.; Jameson, G.N.L.; Rogers, J.J.; MacKenzie, K.J.D. Synthesis and Properties of Inorganic Polymers (Geopolymers) Derived from Bayer Process Residue (Red Mud) and Bauxite. J. Mater. Sci. 2015, 50, 7713–7724. [Google Scholar] [CrossRef]
- Kwek, S.Y.; Awang, H.; Cheah, C.B. Influence of Liquid-to-Solid and Alkaline Activator (Sodium Silicate to Sodium Hydroxide) Ratios on Fresh and Hardened Properties of Alkali-Activated Palm Oil Fuel Ash Geopolymer. Materials 2021, 14, 4253. [Google Scholar] [CrossRef]
- He, P.; Wang, M.; Fu, S.; Jia, D.; Yan, S.; Yuan, J.; Xu, J.; Wang, P.; Zhou, Y. Effects of Si/Al Ratio on the Structure and Properties of Metakaolin Based Geopolymer. Ceram. Int. 2016, 42, 14416–14422. [Google Scholar] [CrossRef]
- Wan, Q.; Rao, F.; Song, S.; Garcia, R.E.; Estrella, R.M.; Patino, C.L.; Zhang, Y. Geopolymerization Reaction, Microstructure and Simulation of Metakaolin-Based Geopolymers at Extended Si/Al Ratios. Cem. Concr. Compos. 2017, 79, 45–52. [Google Scholar] [CrossRef]
- Belforti, F.; Azarsa, P.; Gupta, R.; Dave, U. Effect of Freeze-Thaw on K-Based Geopolymer Concrete (GPC) and Portland Cement Concrete (PCC). Technol. Driv. Engine Growth 2018, 65–72. [Google Scholar] [CrossRef]
- Azarsa, P.; Gupta, R. Freeze-Thaw Performance Characterization and Leachability of Potassium-Based Geopolymer Concrete. J. Compos. Sci. 2020, 4, 45. [Google Scholar] [CrossRef]
- Fu, Y.; Cai, L.; Yonggen, W. Freeze–Thaw Cycle Test and Damage Mechanics Models of Alkali-Activated Slag Concrete. Constr. Build. Mater. 2011, 25, 3144–3148. [Google Scholar] [CrossRef]
- Yuan, Y.; Zhao, R.; Li, R.; Wang, Y.; Cheng, Z.; Li, F.; John Ma, Z. Frost Resistance of Fiber-Reinforced Blended Slag and Class F Fly Ash-Based Geopolymer Concrete under the Coupling Effect of Freeze-Thaw Cycling and Axial Compressive Loading. Constr. Build. Mater. 2020, 250. [Google Scholar] [CrossRef]
- Nazarpour, H.; Jamali, M. Mechanical and Freezing Cycles Properties of Geopolymer Concrete with Recycled Aggregate. Struct. Concr. 2020, 21, 1004–1012. [Google Scholar] [CrossRef]
- Degirmenci, F.N. Freeze-Thaw and Fire Resistance of Geopolymer Mortar Based on Natural and Waste Pozzolans. Ceramics-Silikáty 2018, 62, 41–49. [Google Scholar] [CrossRef] [Green Version]
- Lu, B.; Weng, Y.; Li, M.; Qian, Y.; Leong, K.F.; Tan, M.J.; Qian, S. A Systematical Review of 3D Printable Cementitious Materials. Constr. Build. Mater. 2019, 207, 477–490. [Google Scholar] [CrossRef]
- Zhang, J.; Wang, J.; Dong, S.; Yu, X.; Han, B. A Review of the Current Progress and Application of 3D Printed Concrete. Compos. Part A Appl. Sci. Manuf. 2019, 125, 105533. [Google Scholar] [CrossRef]
- Marczyk, J.; Ziejewska, C.; Łach, M.; Korniejenko, K.; Lin, W.T.; Hebda, M. Possibilities of Using the 3D Printing Process in the Concrete and Geopolymers Application. In IOP Conference Series: Materials Science and Engineering; IOP Publishing Ltd.: Bristol, UK, 2019; Volume 706. [Google Scholar]
- Zhang, D.W.; Wang, D.M.; Lin, X.Q.; Zhang, T. The Study of the Structure Rebuilding and Yield Stress of 3D Printing Geopolymer Pastes. Constr. Build. Mater. 2018, 184, 575–580. [Google Scholar] [CrossRef]
- Panda, B.; Unluer, C.; Tan, M.J. Investigation of the Rheology and Strength of Geopolymer Mixtures for Extrusion-Based 3D Printing. Cem. Concr. Compos. 2018, 94, 307–314. [Google Scholar] [CrossRef]
- Marczyk, J.; Ziejewska, C.; Gadek, S.; Korniejenko, K.; Łach, M.; Góra, M.; Kurek, I.; Dogan-Saglamtimur, N.; Hebda, M.; Szechynska-Hebda, M. Hybrid Materials Based on Fly Ash, Metakaolin, and Cement for 3D Printing. Materials 2021, 14, 6874. [Google Scholar] [CrossRef]
- Kerestedjian, T.N. Editorial for the Special Issue “The Rietveld Method in Geomaterials Characterisation”. Minerals 2021, 11, 814. [Google Scholar] [CrossRef]
- Jiao, Z.; Li, X.; Yu, Q. Effect of Curing Conditions on Freeze-Thaw Resistance of Geopolymer Mortars Containing Various Calcium Resources. Constr. Build. Mater. 2021, 313, 125507. [Google Scholar] [CrossRef]
- Wang, Q.; Lu, Q.; Li, X.; Wang, Z.; Lyu, X. Characterization and Comparison of the Cement Produced Using Clam Wreckage and Limestone: Cement Clinker, Freeze–Thaw Resistance, and Hydration Products. Constr. Build. Mater. 2021, 310, 125219. [Google Scholar] [CrossRef]
- Osholana, T.S.; Dludlu, M.K.; Oboirien, B.; Sadiku, R. Enhanced Reactivity of Geopolymers Produced from Fluidized Bed Combustion Bottom Ash. South Afr. J. Chem. Eng. 2020, 34, 72–77. [Google Scholar] [CrossRef]
- Chen, X.; Zhang, J.; Lu, M.; Chen, B.; Gao, S.; Bai, J.; Zhang, H.; Yang, Y. Study on the Effect of Calcium and Sulfur Content on the Properties of Fly Ash Based Geopolymer. Constr. Build. Mater. 2022, 314, 125650. [Google Scholar] [CrossRef]
- Chen, Z.; Wan, X.; Qian, Y.; Qiao, J.; Jia, J.; Mo, L.; Gao, M.; Cui, H.; Liu, Y.; Min, F. The Effect on the Compressive Strength of Fly Ash Based Geopolymer Concrete with the Generation of Hydroxy Sodalite. Constr. Build. Mater. 2021, 309, 125174. [Google Scholar] [CrossRef]
- Lu, C.; Wang, Q.; Liu, Y.; Xue, T.; Yu, Q.; Chen, S. Influence of New Organic Alkali Activators on Microstructure and Strength of Fly Ash Geopolymer. Ceram. Int. 2022, 48, 12442–12449. [Google Scholar] [CrossRef]
- Pushpalal, D.; Danzandorj, S.; Bayarjavkhlan, N.; Nishiwaki, T.; Yamamoto, K. Compressive Strength Development and Durability Properties of High-Calcium Fly Ash Incorporated Concrete in Extremely Cold Weather. Constr. Build. Mater. 2022, 316, 125801. [Google Scholar] [CrossRef]
- Wang, X.; Zhang, C.; Zhu, H.; Wu, Q. Reaction Kinetics and Mechanical Properties of a Mineral-Micropowder/Metakaoloin-Based Geopolymer. Ceram. Int. 2022, 48, 14173–14181. [Google Scholar] [CrossRef]
- Aouan, B.; Alehyen, S.; Fadil, M.; EL Alouani, M.; Khabbazi, A.; Atbir, A.; Taibi, M. Compressive Strength Optimization of Metakaolin-based Geopolymer by Central Composite Design. Chem. Data Collect. 2021, 31, 100636. [Google Scholar] [CrossRef]
- Costa, L.M.; Almeida, N.G.S.; Houmard, M.; Cetlin, P.R.; Silva, G.J.B.; Aguilar, M.T.P. Influence of the Addition of Amorphous and Crystalline Silica on the Structural Properties of Metakaolin-Based Geopolymers. Appl. Clay Sci. 2021, 215, 106312. [Google Scholar] [CrossRef]
- Burduhos Nergis, D.D.; Vizureanu, P.; Sandu, A.V.; Burduhos Nergis, D.P.; Bejinariu, C. XRD and TG-DTA Study of New Phosphate-Based Geopolymers with Coal Ash or Metakaolin as Aluminosilicate Source and Mine Tailings Addition. Materials 2021, 15, 202. [Google Scholar] [CrossRef] [PubMed]
- Castillo, H.; Collado, H.; Droguett, T.; Sánchez, S.; Vesely, M.; Garrido, P.; Palma, S. Factors Affecting the Compressive Strength of Geopolymers: A Review. Minerals 2021, 11, 1317. [Google Scholar] [CrossRef]
- Adam, A.A.; Ramadhan, B.R.; Maricar, S. The Effects of Water to Solid Ratio, Activator to Binder Ratio, and Lime Proportion on the Compressive Strength of Ambient-Cured Geopolymer Concrete. J. Civ. Eng. Forum 2019, 5, 161–168. [Google Scholar] [CrossRef]
- Awaluddin, A.; Ahmad, A.; Olivia, M. Parametric Study on the Compressive Strength Geopolymer Paving Block. In IOP Conference Series: Materials Science and Engineering; Institute of Physics Publishing: Bristol, UK, 2018; Volume 345. [Google Scholar]
- Sahin, F.; Uysal, M.; Canpolat, O.; Cosgun, T.; Dehghanpour, H. The Effect of Polyvinyl Fibers on Metakaolin-Based Geopolymer Mortars with Different Aggregate Filling. Constr. Build. Mater. 2021, 300, 124257. [Google Scholar] [CrossRef]
- Şahin, F.; Uysal, M.; Canpolat, O. Systematic Evaluation of the Aggregate Types and Properties on Metakaolin Based Geopolymer Composites. Constr. Build. Mater. 2021, 278, 122414. [Google Scholar] [CrossRef]
- Pilehvar, S.; Szczotok, A.M.; Rodríguez, J.F.; Valentini, L.; Lanzón, M.; Pamies, R.; Kjøniksen, A.L. Effect of Freeze-Thaw Cycles on the Mechanical Behavior of Geopolymer Concrete and Portland Cement Concrete Containing Micro-Encapsulated Phase Change Materials. Constr. Build. Mater. 2019, 200, 94–103. [Google Scholar] [CrossRef]
- Ping, Q.; Sun, H.; Zhang, C.; Zhou, X. Physics and Dynamics Characteristics and Energy Analysis of Freeze-Thaw Limestone. Adv. Civ. Eng. 2020, 2020, 8820172. [Google Scholar] [CrossRef]
- Bumanis, G.; Dembovska, L.; Korjakins, A.; Bajare, D. Applicability of Freeze-Thaw Resistance Testing Methods for High Strength Concrete at Extreme −52.5 °C and Standard −18 °C Testing Conditions. Case Stud. Constr. Mater. 2018, 8, 139–149. [Google Scholar] [CrossRef]
- Török, Á.; Szemerey-Kiss, B. Freeze-Thaw Durability of Repair Mortars and Porous Limestone: Compatibility Issues. Prog. Earth Planet. Sci. 2019, 6, 1–12. [Google Scholar] [CrossRef] [Green Version]
- Temuujin, J.; Minjigmaa, A.; Davaabal, B.; Bayarzul, U.; Ankhtuya, A.; Jadambaa, T.; Mackenzie, K.J.D. Utilization of Radioactive High-Calcium Mongolian Flyash for the Preparation of Alkali-Activated Geopolymers for Safe Use as Construction Materials. Ceram. Int. 2014, 40, 16475–16483. [Google Scholar] [CrossRef]
- Alzaza, A.; Ohenoja, K.; Illikainen, M. Improved Strength Development and Frost Resistance of Portland Cement Ground-Granulated Blast Furnace Slag Binary Binder Cured at 0 °C with the Addition of Calcium Silicate Hydrate Seeds. J. Build. Eng. 2022, 48, 103904. [Google Scholar] [CrossRef]
- Jindal, B.B.; Jangra, P.; Garg, A. Effects of Ultra Fine Slag as Mineral Admixture on the Compressive Strength, Water Absorption and Permeability of Rice Husk Ash Based Geopolymer Concrete. Mater. Today Proc. 2020, 32, 871–877. [Google Scholar] [CrossRef]
- Keerio, M.A.; Saand, A.; Kumar, A.; Bheel, N.; Ali, K. Effect of Local Metakaolin Developed from Natural Material Soorh and Coal Bottom Ash on Fresh, Hardened Properties and Embodied Carbon of Self-Compacting Concrete. Environ. Sci. Pollut. Res. 2021, 28, 60000–60018. [Google Scholar] [CrossRef]
- Duan, P.; Yan, C.; Zhou, W.; Luo, W.; Shen, C. An Investigation of the Microstructure and Durability of a Fluidized Bed Fly Ash–Metakaolin Geopolymer after Heat and Acid Exposure. Mater. Des. 2015, 74, 125–137. [Google Scholar] [CrossRef]
Component | Fly Ash (%) | Metakaolin (%) |
---|---|---|
SiO2 | 48.22 | 52.43 |
Al2O3 | 26.13 | 42.75 |
Fe2O3 | 7.01 | 1.20 |
CaO | 5.12 | 0.49 |
K2O | 3.48 | 1.30 |
MgO | 1.72 | 0.18 |
Na2O | 1.62 | 0.00 |
SO3 | 1.11 | 0.03 |
TiO2 | 1.11 | 0.31 |
P2O5 | 0.70 | 0.44 |
MnO | 0.09 | 0.01 |
Sample | Composition | Liquid/Solid Ratio | ||||
---|---|---|---|---|---|---|
FA (g) | MK (g) | Sand (g) | Basalt Aggregate (g) | 10-Molar NaOH/Water Glass 1:2.5 (g) | ||
FA–0.30 | 100 | - | 100 | - | 60 | 0.30 |
FA–0.35 | 100 | - | 100 | - | 70 | 0.35 |
FA–0.45 | 100 | - | 100 | - | 90 | 0.45 |
FA–0.35 + 30% A | 80 | - | 60 | 60 | 70 | 0.35 |
MK–0.30 | - | 100 | 100 | - | 60 | 0.30 |
MK–0.35 | - | 100 | 100 | - | 70 | 0.35 |
MK–0.45 | - | 100 | 100 | - | 90 | 0.45 |
MK–0.35 + 30% A | - | 80 | 60 | 60 | 70 | 0.35 |
Phase | Quantitative Share (%) | |||||
---|---|---|---|---|---|---|
FA–0.30 | FA–0.35 | FA–0.45 | MK–0.30 | MK–0.35 | MK–0.45 | |
Quartz | 36.6 | 45.1 | 18.3 | 12.6 | 44.8 | 10.1 |
Mullite | 18.1 | 28.9 | 20.4 | 12.8 | 8.8 | 9.8 |
Albite | 21.4 | 4.2 | 20.4 | 59.1 | 41.0 | 67.2 |
Calcium Sulfate | 23.9 | 21.8 | 40.8 | - | - | - |
Kaolinite-1A | - | - | - | 15.6 | 5.3 | 12.9 |
Designation | Reference Sample | After the Compressive Strength Test | |
---|---|---|---|
Samples Not Subjected to the Freeze–Thaw Cycles | Samples after 12 Freeze–Thaw Cycles | ||
FA–0.30 | |||
FA–0.35 | |||
FA–0.45 | |||
FA–0.35 + 30% A | |||
MK–0.30 | |||
MK–0.35 | |||
MK–0.45 | |||
MK–0.35 + 30% A |
Sample | Time (h) | Depth of Water Penetration (mm) | ||
---|---|---|---|---|
24 | 48 | 76 | ||
FA–0.30 | not soaked | not soaked | not soaked | 14 ± 2 |
MK–0.30 | not soaked | not soaked | soaked | 150 ± 0 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Marczyk, J.; Ziejewska, C.; Pławecka, K.; Bąk, A.; Łach, M.; Korniejenko, K.; Hager, I.; Mikuła, J.; Lin, W.-T.; Hebda, M. Optimizing the L/S Ratio in Geopolymers for the Production of Large-Size Elements with 3D Printing Technology. Materials 2022, 15, 3362. https://doi.org/10.3390/ma15093362
Marczyk J, Ziejewska C, Pławecka K, Bąk A, Łach M, Korniejenko K, Hager I, Mikuła J, Lin W-T, Hebda M. Optimizing the L/S Ratio in Geopolymers for the Production of Large-Size Elements with 3D Printing Technology. Materials. 2022; 15(9):3362. https://doi.org/10.3390/ma15093362
Chicago/Turabian StyleMarczyk, Joanna, Celina Ziejewska, Kinga Pławecka, Agnieszka Bąk, Michał Łach, Kinga Korniejenko, Izabela Hager, Janusz Mikuła, Wei-Ting Lin, and Marek Hebda. 2022. "Optimizing the L/S Ratio in Geopolymers for the Production of Large-Size Elements with 3D Printing Technology" Materials 15, no. 9: 3362. https://doi.org/10.3390/ma15093362
