Magnetic Resonance Studies of Hybrid Nanocomposites Containing Nanocrystalline TiO2 and Graphene-Related Materials

by
Nikos Guskos
1,
Grzegorz Zolnierkiewicz
1,
Ewelina Kusiak-Nejman
2,
Aleksander Guskos
1,
Konstantinos Aidinis
3,
Marta Bobrowska
1,
Paweł Berczynski
1,
Agnieszka Wanag
2,
Iwona Pelech
2,
Urszula Narkiewicz
2,* and
Antoni W. Morawski
2
1
Department of Physics, Faculty of Mechanical Engineering and Mechatronics, West Pomeranian University of Technology in Szczecin, al. Piastow 48, 70-311 Szczecin, Poland
2
Department of Inorganic Chemical Technology and Environment Engineering, Faculty of Chemical Technology and Engineering, West Pomeranian of Technology in Szczecin, Pulaskiego 10, 70-322 Szczecin, Poland
3
Department of Electrical and Computer Engineering, Ajman University, Ajman P.O. Box 346, United Arab Emirates
*
Author to whom correspondence should be addressed.
Materials 2022, 15(6), 2244; https://doi.org/10.3390/ma15062244
Submission received: 28 January 2022 / Revised: 9 March 2022 / Accepted: 16 March 2022 / Published: 18 March 2022
(This article belongs to the Special Issue Magnetic Compounds: From Fundamentals to Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Nanocomposites based on nanocrystalline titania modified with graphene-related materials (reduced and oxidized form of graphene) showed the existence of magnetic agglomerates. All parameters of magnetic resonance spectra strongly depended on the materials’ modification processes. The reduction of graphene oxide significantly increased the number of magnetic moments, which caused crucial changes in the reorientation and relaxation processes. At room temperature, a wide resonance line dominated for all nanocomposites studied and in some cases, a narrow resonance line derived from the conduction electrons. Some nanocomposites (samples of titania modified with graphene oxide, prepared with the addition of water or butan-1-ol) showed a single domain magnetic (ferromagnetic) arrangement, and others (samples of titania modified with reduced graphene oxide) exhibited magnetic anisotropy. In addition, the spectra of EPR from free radicals were observed for all samples at the temperature of 4 K. The magnetic resonance imaging methods enable the capturing of even a small number of localized magnetic moments, which significantly affects the physicochemical properties of the materials.

1. Introduction

Titania is an interesting material with many applications, e.g., photovoltaics, photocatalysis, filters, electronic instruments, food industry, or construction. The positive features of the material are also related to its low price and chemical resistance. The composites of titania with graphene have recently been intensively studied for their photocatalytic [1,2,3,4,5,6,7,8] and conductive [9,10,11,12,13] properties. Thanks to the conductive properties and magnetic arrangement of titania and its composites, their potential application in spintronic are reported as well [14,15,16,17,18]. Localized magnetic centers and the forming magnetic agglomerates play an important role in the physical properties of the composites.
The EPR/FMR (electron paramagnetic resonance/ferromagnetic resonance) [8,19,20,21,22,23,24,25,26,27,28,29,30,31,32] is suitable for investigating these magnetic centers. Magnetic resonance spectra from different magnetic centers and magnetic correlated spin systems were often observed at higher temperatures. Due to the relaxation processes at lower temperatures, spectra associated with the trivalent titanium ions can be seen as other localized magnetic centers. In graphene oxide (GO) and N-doped reduced graphene oxide (N-rGO), the formation of spatially “isolated” magnetic clusters, free radicals, and a Pauli law component was observed.
Each modification by different methods brings new information about photocatalytic processes to understand them as an application possibility better. As pointed out, magnetic resonance imaging methods capture a small number of localized magnetic moments, significantly affecting the physicochemical properties.
In our previous paper [8], titania nanocomposites modified with reduced graphene oxide (rGO), prepared using the solvothermal method followed by calcination, were discussed. The modification of titania with rGO improved the photocatalytic properties. EPR/FMR measurements showed an occurrence of oxygen defects and ferromagnetic ordering systems.
The aim of the present work was to investigate the magnetic resonance spectra of nanocomposites based on nanocrystalline titania and graphene-related materials. Furthermore, we want to emphasize the exceptional sensitivity of the magnetic resonance method. Using this method, a phase structure can be determined more precisely, which is crucial in photocatalytic, photovoltaic, and spintronic processes [8]. Due to the presence of oxygen defects and trivalent titanium ions, localized magnetic moments in the composites containing titania can significantly influence the physicochemical properties. The magnetic resonance imaging method is very sensitive, enabling the capturing of even a small number of localized magnetic moments.

2. Materials and Methods

The nanocomposites named TiO2-1ButOH_A, TiO2-H2O-GO_5%_A, TiO2-1ButOH-GO_5%_A, TiO2-GO_5%_M, TiO2-H2O-rGO_5%_A, TiO2-1ButOH-rGO_5%_A, and TiO2-rGO_5%_M (where A means autoclave and M means mechanical mixing) were prepared utilizing the hydro- or solvothermal method under elevated pressure conditions (under autogenic pressure). The method of materials preparation and detailed characterization was presented in our previous paper [33]. In brief, the first group of samples was obtained by mechanical mixing of 4 g of starting TiO2 with 5 wt.% of GO or rGO compounds (samples denoted with M–mechanical mixing). The second group of samples was hydrothermally/solvothermally treated in a BLH-800 pressure autoclave (Berghof Products + Instruments GmbH, Eningen, Germany) together with 5 cm3 of ultra-pure water or butan-1-ol at 200 °C for 4 h and then dried at 105 °C for 24 h to remove residual water and alcohol used as pressurizing agent. Water or butan-1-ol were used as chemicals for the one-step hydrothermal/solvothermal preparation method as the pressurising agents in the preparation method. Heating a fine dry powder of the semiconductor in a pressure autoclave did not generate elevated pressure conditions, i.e., due to very low moisture content in the powdered sample. Therefore, no rinsing step was utilized in the case for the mechanically mixed samples.
Detailed XRD studies of the composites were conducted and discussed in the previous paper [33]. The samples contained almost only the anatase phase; the rutile content was lower than 1%.
The EPR/FMR spectra were recorded using a standard X-band spectrometer type Bruker E500 (9.455 GHz) with a magnetic field modulation of 100 kHz. The magnetic field was scaled with an NMR magnetometer. Samples containing 10–30 mg of the tested substance in the form of a fine powder, without any cement dielectric, were sealed into 4 mm in diameter quartz tubes. All measurements were performed at liquid helium and room temperature.

3. Results

Figure 1 and Figure 2 present the magnetic resonance spectra of the nanocomposites TiO2-1ButOH_A and TiO2-1ButOH-GO_5%_A, respectively, recorded at liquid helium (a) and room (b) temperature.
Comparing Figure 1a with Figure 2a, it can be concluded that the modification of titania with graphene oxide resulted in a tenfold increase of the intensity of the resonance line at the temperature of 4K.
When comparing the spectra recorded at room temperature, some narrowing of the resonance line after the modification with GO can be observed (Figure 1b and Figure 2b).
All nanocomposites exhibited broad resonance lines at room temperature, not observed at liquid helium temperature. This phenomenon is characteristic of magnetic agglomerations introduced into nonmagnetic matrices [34].
The effective geff factor can be calculated from the magnetic resonance condition (hν = geff µBHr, where h is Planck constant, ν is the microwave frequency, µB is Bohr magneton, and Hr is a magnetic resonance field). The integrated intensity related to the number of magnetic moments involved in the resonance is defined as Iint = A·∆Hpp2, where A corresponds to amplitude and ∆Hpp is the peak-to-peak line width. The effective geff factors, integrated intensities, and other resonance spectra parameters for the samples under investigation are shown in Table 1. When two values are shown in the same line, the first value corresponds to the Lorentzian function and the second value to the Gaussian function.
The resonance line for the nanocomposite TiO2-1ButOH-GO_5%_A is almost symmetrical and well fitted using the Lorentzian function (Figure 3). The three nanocomposites of titania were modified with reduced GO and treated mechanically or in an autoclave (TiO2-H2O-rGO_5%_A, TiO2-1ButOH-rGO_5%_A, and TiO2-rGO_5%_M), the best fitting at room temperature was obtained by using two functions: Lorentz and Gauss (Figure 4).
Additionally, a very narrow symmetric resonance line (Figure 3) arising from free radicals [35,36] was observed for the sample TiO2-1ButOH-GO_5%_A. This line measured at RT was also observed for the nanocomposite TiO2-H2O-GO_5%. The narrow resonance line with the geff = 2.0026(1) and peak-to-peak line width ΔH = 6.6(1) were the same for both samples. However, the intensity in the sample washed with butan-1-ol was over one order greater. Table 1 shows FMR parameters at room temperature, where spectra originating from magnetic agglomerates are more intensiv. In liquid helium temperature, the following values were reached: geff = 1.9999(1) and peak-to-peak linewidth ΔH = 19.9(1) for TiO2-H2O-GO_5%_A; geff = 1.9998(1) and peak-to-peak linewidth ΔH = 17.5(1) for TiO2-1ButOH-GO_5%_A. In liquid helium temperature, the amplitude ratio decreased to 1.76 between nanocomposites TiO2-H2O-GO_5%_A and TiO2-1ButOH-GO_5%_A. This may be due to the skin effect. In general, the skin effect is related to an increase of charge density in the surface and subsurface regions of the material, compared to that of the bulk. In our case, the skin effect is associated with an increase in microwave radiation absorption and an increase in conductivity. Our materials are semiconductors that increase conductivity with increasing temperature. Higher conductivity of the nanocomposite treated with butan-1-ol was observed.
In both kinds of nanocomposites, the essential line width increased at liquid helium temperature. A single Lorentzian function can well fit this line. The experimental EPR parameters, characteristic for localized defect spins, agree with previous reports, e.g., [28,29,35] on the RT EPR spectra of nanocomposites containing modified TiO2.
For the nanocomposites containing rGO, very low intensity of the resonance line at liquid helium temperature was observed.
In TiO2/graphitic carbon nanocomposites obtained in thermal treatment at higher temperatures, a wide resonance line was recorded above 150 K [8].
An EPR resonance line was often observed in the multishell nanographite samples and connected with aggregation processes. Therefore, the spectral experimental phenomena observed in this work behave differently than those described in previous works [8,37,38].
In Table 1, the obtained parameters of the magnetic resonance spectra at RT were given.
The integrated intensity for TiO2-1ButOH_A, TiO2-H2O-rGO_5%_A, TiO2-1ButOH-rGO_5%_A, and TiO2-rGO_5%_M nanocomposites showed that the most spin systems were found in these four samples. The spectrum for the first, the TiO2-1ButOH_A sample, is well fitted using the Gauss function, while for the other three nanocomposites, the spectra are fitted using two functions, Gauss and Lorentz.
In the remaining three nanocomposites with GO (TiO2-H2O-GO_5%_A, TiO2-1ButOH-GO_5%_A, and TiO2-GO_5%_M), the quantity of the spin systems was reduced by one order of magnitude. In this case, the best fitting of the resonance spectrum was obtained using Lorentz’ or Gauss’ function. In the three nanocomposites containing rGO, the presence of magnetic anisotropy was determined, and the total integrated intensity increased significantly compared to the first titania sample shown in Table 1. The total integrated intensity (the sum of values mentioned in the fourth column of Table 1) increased 1.57 times for the sample TiO2-H2O-rGO_5%_A, 4.09 times for the sample TiO2-1ButOH-rGO_5%_A, and 3.03 times for the sample TiO2-rGO_5%, respectively (in comparison with the first sample). The increase in the total integrated intensity is related to the increase in spin systems involved in magnetic resonance. The reduction of graphene oxide causes a significant increase in the number of magnetic moments and, at the same time, an increase of magnetic anisotropy. It achieves the highest value of ΔHr for the sample TiO2-H2O-rGO_5%_A (the lowest number of magnetic moments) and the smallest value for theTiO2-1ButOH-rGO_5%_A nanocomposite (the highest number of magnetic moments). Such a significant increase in the total integrated intensity in the TiO2-1ButOH-rGO_5%_A nanocomposite can be caused by the smaller size of the magnetic agglomerates in this sample.
For the second, third, and fourth samples in Table 1, the line width was much lower than the other four samples. Among the four remaining samples, the lowest number of magnetic moments occurred for the TiO2-1ButOH_A nanocomposite, for which the lowest value of the line width was noted. The broadening of the magnetic resonance line is related to the effects of magnetic dipole−dipole interaction. Increasing the number of correlated spin systems results in the development of more significant relaxation processes for the transition from an excited to a normal state. The geff parameter is associated with the position of the resonance lines, and its change is bound by the resonance condition by changing the internal magnetic field. In the first sample, TiO2-1ButOH_A, we can observe the formation of the highest value of the internal magnetic field and the highest line width compared with the next three samples in Table 1. The sample can be taken as a reference to other nanocomposites. In the last three nanocomposites (listed in Table 1) containing rGO, we can observe a significant increase in the number of magnetic agglomerations. It can enhance the magnetic anisotropy, with a significant increase in the internal magnetic field and the width of the resonance linewidth, due to dipole−dipole interactions (Table 1).
A complicated EPR spectra were observed at a low temperature, arising from different magnetic centers in some of the investigated nanocomposites related to defects associated with trivalent titanium ions. They are assigned to surface and bulk oxygen vacancy-stabilized trivalent titanium ions in the lattice sites in the subsurface layer.
The resonance line for the nanocomposites of TiO2 with reduced graphene oxide (rGO), prepared using the solvothermal method followed by calcination (samples TiO2-H2O-rGO_5%_A and TiO2-1ButOH-rGO_5%_A), was fitted with the Gaussian and Lorentz functions. The results obtained for the sample TiO2-H2O-rGO_5%_A showed some significant differences in the positions of the resonant lines, linewidth, and integrated intensities in relation to the other two nanocomposites containing rGO (TiO2-1ButOH-rGO_5%_A and TiO2-rGO_5%_M).
The magnetic anisotropy was very similar, compared to other nanocomposites described in the previous work [8]. However, comparing the magnetic resonance parameters of the nanocomposites TiO2-H2O-rGO_5%_A and TiO2-1ButOH-rGO_5%_A with the TiO2/rGO-8-600 nanocomposite [8], significant differences in the position of the resonance lines and a significant increase in the line width of the resonance lines could be observed.
The preparation method and the additional factor associated with the titania-to-rGO ratio significantly affect those parameters related to reorientation and relaxation processes. Oxygen vacancies play a crucial role in photocatalytic processes, even if localized magnetic moments are present.
A very intense, narrow symmetric resonance line was observed for the nanocomposites TiO2-1ButOH-GO_5%_A and TiO2-H2O-GO_5% at RT with the geff = 2.0026(1), which could arise from electron conductivity [37]. The broad resonance line observed at RT comes from magnetic agglomerates formed by oxygen defects associated with titanium ions [8]. Complex magnetic systems are formed in the modified titanium dioxide [38]. The XRD method is less sensitive to studying this effect than the EPR/FMR method. In the case of some of TiO2/rGO nanocomposites, the magnetic resonance line from magnetic ordering was observed, and in an appropriate calcination temperature system, the integrated intensity of the resonance lines from oxygen defects (free radicals) drastically increased [6].
The nanocomposites titania/rGO exhibited an enhanced photoactivity, e.g., of acid blue or phenol photodecomposition process [8,37].
After separating nanocrystallites, the above composites can be applied in medicine. In addition, considering their nanosize, they can be useful in spintronics, similar to titania doped with metals [16,18,38]. Finally, the nanocomposites can also be used as nano-level magnets because nanopores are usually larger than magnetic nanoparticles.

4. Conclusions

All studied nanocomposites showed the presence of magnetic agglomerates. The parameters of magnetic resonance strongly depended on the modification processes. Oxygen reduction significantly increased the number of magnetic moments, which caused crucial changes in the reorientation and relaxation processes. Many localized magnetic centers were observed at low temperatures because resonant lines from magnetic agglomerates are usually more intense at high temperatures. In titania modified with various forms of graphene, the localized ferromagnetic ordering was observed at room temperature. The nanocomposites can also be used in spintronics, thanks to the coexistence of ferromagnetic ordering and electric conduction. The formation of magnetic agglomerates can adversely affect the ordering processes of magnetic moments. Localized oxygen vacancies magnetic centers can essentially influence catalytic and photocatalytic processes.

Author Contributions

Conceptualization, N.G.; Funding acquisition, U.N.; Investigation, G.Z., A.G., M.B., P.B., A.W. and I.P.; Methodology, N.G., I.P. and A.W.M.; Project administration, U.N.; Supervision, N.G.; Visualization, G.Z., K.A. and P.B.; Writing—original draft, E.K.-N.; Writing—review & editing, U.N. and A.W.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Norway Grants 2014-2021 via the National Centre for Research and Development under the grant number NOR/POLNORCCS/PhotoRed/0007/2019-00.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data supporting reported results can be delivered on demand by the authors.

Acknowledgments

The research leading to these results received funding from the Norway Grants 2014–2021 via the National Centre for Research and Development under the grant number NOR/POLNORCCS/PhotoRed/0007/2019-00.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Xiang, Q.; Yu, J.; Jaroniec, M. Enhanced photocatalytic H2-production activity of graphene-modified titania nanosheets. Nanoscale 2011, 3, 3670–3678. [Google Scholar] [CrossRef] [PubMed]
  2. Hu, C.; Lu, T.; Chen, F.; Zhang, R. A brief review of graphene-metal oxide composites synthesis and applications in photocatalysis. J. Chin. Adv. Mater. Soc. 2013, 1, 21–39. [Google Scholar] [CrossRef]
  3. Wang, L.; Sasaki, T. Titanium Oxide Nanosheets: Graphene Analogues with Versatile Functionalities. Chem. Rev. 2014, 114, 9455–9486. [Google Scholar] [CrossRef]
  4. Yadav, H.M.; Kim, J.S. Solvothermal synthesis of anatase TiO2-graphene oxide nanocomposites and their photocatalytic performance. J. All. Comp. 2016, 688, 123–129. [Google Scholar] [CrossRef]
  5. Štengl, V.; Popelková, D.; Vláčil, P. TiO2–Graphene Nanocomposite as High Performance Photocatalysts. J. Phys. Chem. C 2011, 115, 25209–25218. [Google Scholar] [CrossRef]
  6. Tang, B.; Chen, H.; Peng, P.; Wang, Z.; Huang, W. Graphene Modified TiO2 Composite Photocatalysts: Mechanism, Progress and Perspective. Nanomaterials 2018, 8, 105. [Google Scholar] [CrossRef] [Green Version]
  7. Kusiak-Nejman, E.; Morawski, A.W. TiO2/graphene-based nanocomposites for water treatment: A brief overview of charge carrier transfer, antimicrobial and photocatalytic performance. Appl. Catal. B Environ. 2019, 253, 179–186. [Google Scholar] [CrossRef]
  8. Guskos, N.; Zolnierkiewicz, G.; Guskos, A.; Aidinis, K.; Wanag, A.; Kusiak-Nejman, E.; Narkiewicz, U.; Morawski, A.W. Magnetic moment centers in titanium dioxide photocatalysts loaded on reduced graphene oxide flakes. Rev. Adv. Mater. Sci. 2021, 60, 57–63. [Google Scholar] [CrossRef]
  9. Li, N.; Liu, G.; Zhen, C.; Li, F.; Zhang, L.; Cheng, H.M. Battery Performance and Photocatalytic Activity of Mesoporous Anatase TiO2 Nanospheres/Graphene Composites by Template-Free Self-Assembly. Adv. Funct. Mater. 2011, 21, 1717–1722. [Google Scholar] [CrossRef]
  10. Ahmadi, N.; Nemati, A.; Bagherzadeh, M. Synthesis and properties of Ce-doped TiO2-reduced graphene oxide nanocomposite. J. All. Comp. 2018, 742, 986–995. [Google Scholar] [CrossRef]
  11. Phama, H.; Duong, T.; Phanb, N.; Tonga, H.; Rajagopalanc, B.; Suk, J.; James, C.; Dickersona, H. Hydrogenated TiO2@reduced graphene oxide sandwich-like nanosheets for high voltage supercapacitor applications. Carbon 2018, 126, 135–144. [Google Scholar] [CrossRef]
  12. Xiang, C.; Guo, R.; Lin, S.; Jiang, S.; Lan, J.; Wang, C.; Cui, C.; Xiao, H.; Zhang, Y. Lightweight and ultrathin TiO2-Ti3C2TX/graphene film with electromagnetic interference shielding. Chem. Eng. J. 2019, 360, 1158–1166. [Google Scholar] [CrossRef]
  13. Tao, E.; Ma, Z.; Yang, S.; Li, Y.; Ma, D.; Xing, Z.; Li, Y. Enhanced electrical conductivity of TiO2/graphene: The role of introducing Ca2+. J. All. Comp. 2020, 27, 154280. [Google Scholar]
  14. Rossella, F.; Galinetto, P.; Mozzati, M.C.; Malavasi, L.; Fernandez, Y.D.; Drera, G.; Sangaletti, L. TiO2 thin films for spintronics application: A Raman study. J. Raman Spectrosc. 2010, 41, 558–565. [Google Scholar] [CrossRef]
  15. Quiroz, H.P.; Dussan, A. Synthesis temperature dependence on magnetic properties of cobalt doped TiO2 thin films for spintronic applications. Appl. Surf. Sci. 2019, 484, 688–691. [Google Scholar] [CrossRef]
  16. Fadlallah, M.M.; Eckern, U. Electronic and optical properties of metal-doped TiO2 nanotubes: Spintronic and photocatalytic applications. New J. Phys. 2020, 22, 093028-15. [Google Scholar] [CrossRef]
  17. Rezapour, M.R.; Myung, C.W.; Yun, J.; Ghassami, A.; Li, N.; Yu, S.U.; Hajibabaei, A.; Park, Y.; Kim, K.S. Graphene and Graphene Analogs toward Optical, A., Electronic, Spintronic, Green-Chemical, Energy-Material, Sensing, and Medical Applications. ACS Appl. Mater. Interfaces 2017, 9, 24393–24406. [Google Scholar] [CrossRef]
  18. Heiddy, P.; Quiroz, E.F.; Dussan, G.A. Ferromagnetic-like behavior of Co doped TiO2 flexible thin films fabricated via co-sputtering for spintronic applications. Heliyon 2020, 6, e03338-7. [Google Scholar]
  19. Heiddy, Q.; Galíndez, P.; Dussan, E.F.; Cardona-Rodriguez, A.; Ramirez, A.; Gabriel, J. Super-exchange interaction model in DMOs: Co doped TiO2 thin films. J. Mater. Sci. 2021, 56, 581–591. [Google Scholar]
  20. Hurum, D.C.; Agrios, A.G.; Gray, K.A. Explaining the Enhanced Photocatalytic Activity of Degussa P25 Mixed-Phase TiO2 Using EPR. J. Phys. Chem. B 2003, 107, 4545–4549. [Google Scholar] [CrossRef]
  21. Guskos, N.; Typek, J.; Zolnierkiewicz, G.; Kusiak-Nejman, E.; Mozia, S.; Morawski, A.W. Magnetic Properties of Cobalt and Nitrogen Co-modified Titanium Dioxide Nanocomposites. In Nanomaterials for Security, Part of the Series NATO Science for Peace and Security Series A: Chemistry and Biology; Springer: Dordrecht, The Netherlands, 2016; pp. 109–125. [Google Scholar]
  22. Typek, J.; Guskos, N.; Zolnierkiewicz, G.; Mozia, S.; Morawski, A.W. Magnetic properties of nickel doped titanium dioxide: A case Ni,N-TiO2 nanocomposites. Rev. Adv. Mater. Sci. 2016, 44, 407–419. [Google Scholar]
  23. Diamantopoulou, A.; Glenis, S.; Zolnierkiewicz, G.; Guskos, N.; Likodimos, V. Magnetism in pristine and chemically reduced graphene oxide. J. Appl. Phys. 2017, 121, 0439061-11. [Google Scholar] [CrossRef]
  24. Dvoranová, D.; Mazúr, I.; Papailias, I.; Giannakopoulou, T.; Trapalis, C.; Brezová, V. EPR Investigations of g-C3N4/TiO2 Nanocomposites. Catalysts 2018, 8, 47. [Google Scholar] [CrossRef] [Green Version]
  25. Letiery, S.; Gargiulo, V.; Vitiello, G.; Maddalena, P.; Alfe, M.; Marotta, M. Evidencing opposite charge-transfer processes at TiO2/graphene-related materials interface through a combined EPR, photoluminescence and photocatalysis assessment. Catal. Today 2018, 315, 19–30. [Google Scholar] [CrossRef]
  26. Tryba, B.; Wozniak, M.; Zolnierkiewicz, G.; Guskos, N.; Morawski, A.W.; Colbeau-Justin, C.; Wrobel, R.; Nitta, A.; Ohtani, B. Influence of an Electronic Structure of N-TiO2 on Its Photocatalytic Activity towards Decomposition of Acetaldehyde under UV and Fluorescent Lamps Irradiation. Catalysts 2018, 8, 85. [Google Scholar] [CrossRef] [Green Version]
  27. Typek, J.; Guskos, N.; Żołnierkiewicz, G.; Pilarska, M.; Guskos, A.; Kusiak-Nejman, E.; Morawski, A. Magnetic properties of TiO2/graphitic carbon nanocomposites. Rev. Adv. Mater. Sci. 2019, 58, 107–122. [Google Scholar] [CrossRef] [Green Version]
  28. Wang, B.; Fielding, A.J.; Dryfe, R.A.W. Electron paramagnetic resonance as a structural tool to study graphene oxide: Potential dependence of the EPR response. J. Phys. Chem. 2019, 123, 22556–22563. [Google Scholar] [CrossRef]
  29. Wang, B.; Likodimos, V.; Fielding, A.J.; Dryfe, R.A.W. In situ electron paramagnetic resonance spectroelectrochemical study of graphene-based supercapacitors: Comparison between chemically reduced graphene oxide and nitrogen-doped reduced graphene oxide. Carbon 2020, 160, 236–246. [Google Scholar] [CrossRef]
  30. Marć, M.; Najder-Kozdrowska, L.; Guskos, N.; Zołnierkiewicz, G.; Montero, A.M.; Dudek, M.R. The Use of Ultra-Small Fe3O4 Magnetic Nanoparticles for Hydrothermal Synthesis of Fe3+-Doped Titanate Nanotubes. Materials 2020, 13, 4612. [Google Scholar] [CrossRef]
  31. Martín-Gómez, J.; Hidalgo-Carrillo, J.; Montes, V.; Estévez, R.; Escamilla, J.C.; Urbano, F.J. EPR and CV studies cast further light on the origin of the enhanced hydrogen production through glycerol photoreforming on CuO:TiO2 physical mixtures. J. Environ. Chem. Eng. 2021, 9, 105336. [Google Scholar] [CrossRef]
  32. Antonov, D.O.; Tambasova, D.P.; Shishmakov, A.B.; Kirilyuk, I.A.; Kovaleva, E.G. Acidic and Electrosurface Properties of Binary TiO2-SiO2 Xerogels Using EPR of pH-Sensitive Nitroxides. Gels 2021, 7, 119. [Google Scholar] [CrossRef]
  33. Kusiak-Nejman, E.; Moszyński, D.; Kapica-Kozar, J.; Wanag, A.; Morawski, A.W. Assessment of the suitability of the one-step hydrothermal method for preparation of noncovalently/covalently-bonded TiO2/graphene-based hybrids. Nanomaterials 2018, 647, 1–17. [Google Scholar]
  34. Guskos, N.; Likodimos, V.; Glenis, S.; Typek, J.; Maryniak, M.; Roslaniec, Z.; Baran, M.; Szymczak, R.; Petridis, D.; Kwiatkowska, M. Matrix freezing effect on the magnetic properties of γ-Fe2O3 nanoparticles dispersed in multiblock copolymer. J. Appl. Phys. 2006, 99, 084307. [Google Scholar] [CrossRef]
  35. Guskos, N.; Guskos, A.; Typek, J.; Berczynski, P.; Dolat, D.; Grzmil, B.; Morawski, A.W. Influence of annealing and rinsing on magnetic and photocatalytic properties of TiO2. Mater. Sci. Eng. 2012, B 177, 223–228. [Google Scholar] [CrossRef]
  36. Guskos, N.; Glenis, S.; Zolnierkiewicz, G.; Guskos, A.; Typek, J.; Berczynski, P.; Dolat, D.; Grzmil, B.; Ohtani, B.; Morawski, A.W. Magnetic resonance study of co-modified (Fe,N)-TiO2. J. All. Comp. 2014, 606, 32–36. [Google Scholar] [CrossRef]
  37. Kusiak-Nejman, E.; Wanag, A.; Kowalczyk, Ł.; Kapica-Kozar, J.; Colbeau-Justin, C.; Mendez Medrano, M.G.; Morawski, A.W. Graphene oxide-TiO2 and reduced graphene oxide-TiO2 nanocomposites: Insight in charge-carrier lifetime measurements. Catal. Today 2017, 287, 189–195. [Google Scholar] [CrossRef]
  38. Hussein, M.; Assadi, N.; Hanaor, D.A.H. Theoretical study on copper’s energetics and magnetism in TiO2 polymorphs. J. Appl. Phys. 2013, 113, 233913. [Google Scholar]
Materials 15 02244 g001 550

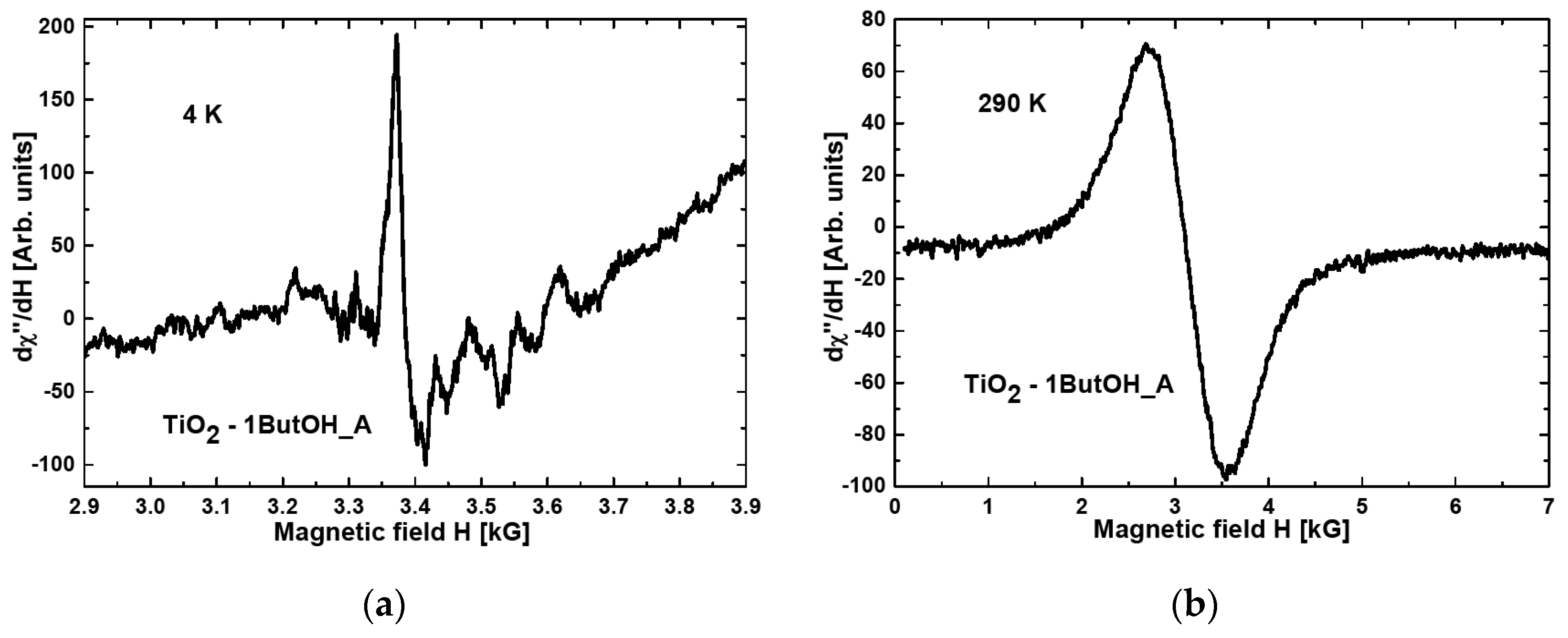

Figure 1. Magnetic resonance spectra obtained at (a) 4 K and (b) RT for the nanocomposite TiO2-1ButOH_A.
Figure 1. Magnetic resonance spectra obtained at (a) 4 K and (b) RT for the nanocomposite TiO2-1ButOH_A.
Materials 15 02244 g001
Materials 15 02244 g002 550

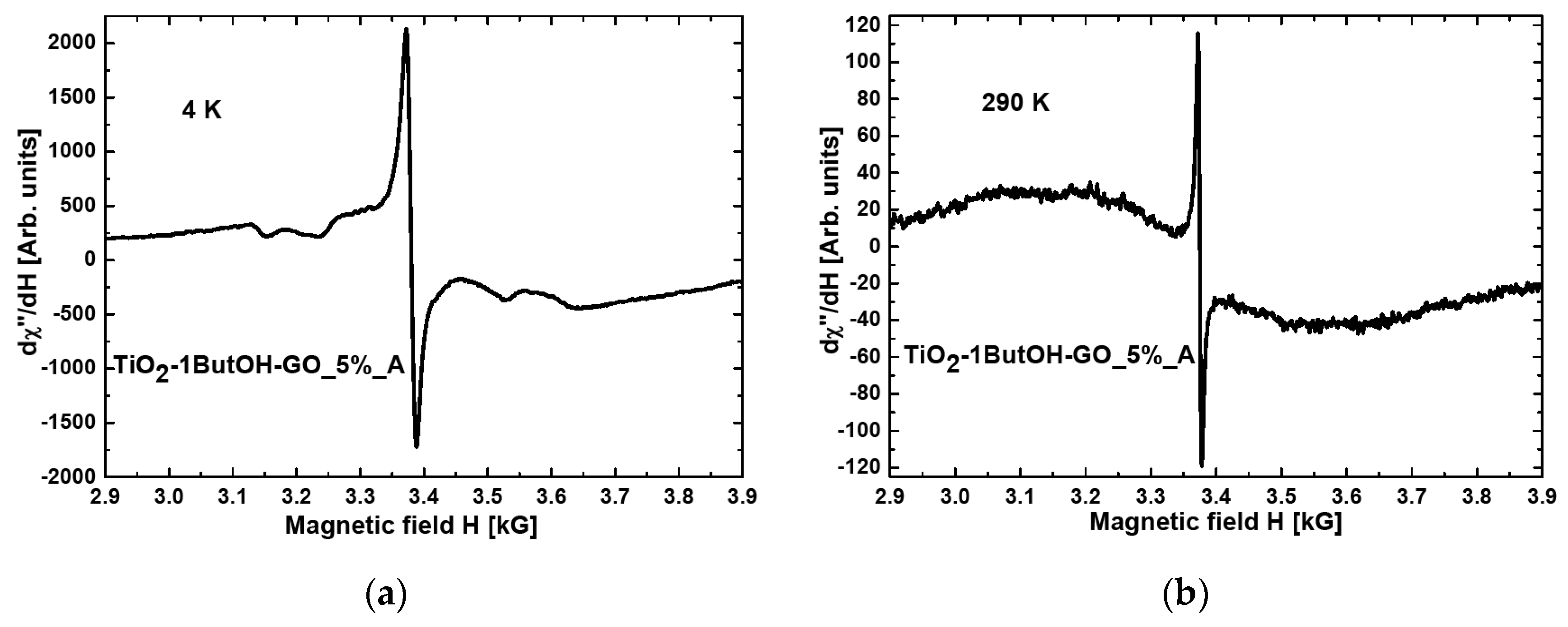

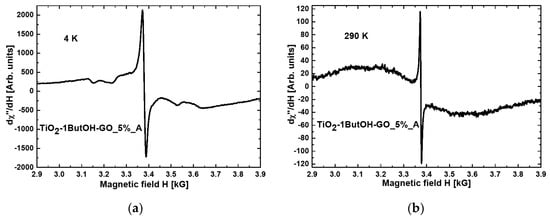

Figure 2. Magnetic resonance spectra measured at (a) 4 K and (b) RT for nanocomposite TiO2-1ButOH-GO_5%_A.
Figure 2. Magnetic resonance spectra measured at (a) 4 K and (b) RT for nanocomposite TiO2-1ButOH-GO_5%_A.
Materials 15 02244 g002
Materials 15 02244 g003 550

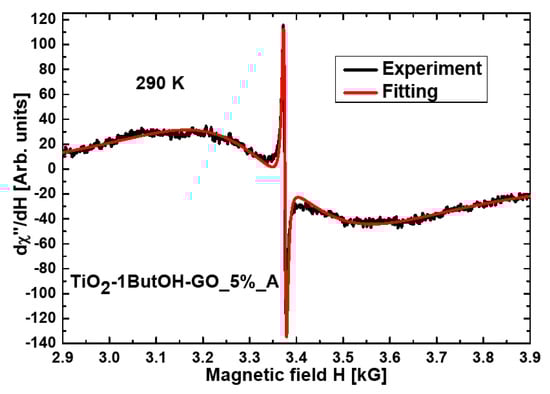

Figure 3. The fitting by the Lorentzian function obtained for the nanocomposite TiO2-1ButOH-GO_5%_A.
Figure 3. The fitting by the Lorentzian function obtained for the nanocomposite TiO2-1ButOH-GO_5%_A.
Materials 15 02244 g003
Materials 15 02244 g004 550

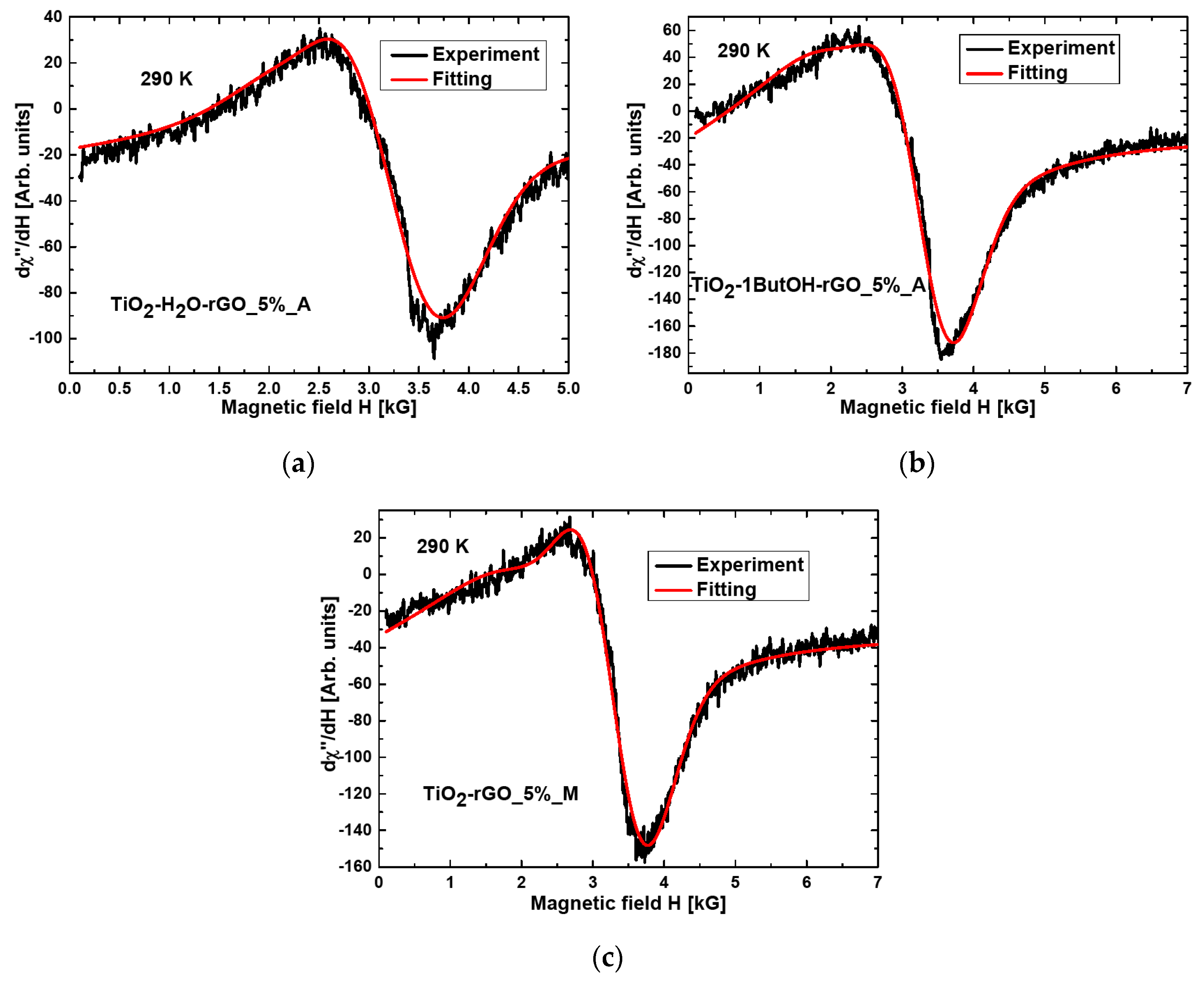

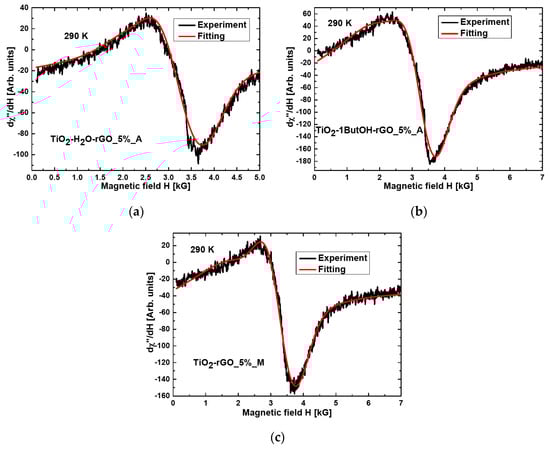

Figure 4. The fitting by Lorentzian and Gaussian function obtained for the nanocomposite (a) TiO2-H2O-rGO_5%_A; (b) TiO2-1ButOH-rGO_5%_A; (c) TiO2-rGO_5%_M.
Figure 4. The fitting by Lorentzian and Gaussian function obtained for the nanocomposite (a) TiO2-H2O-rGO_5%_A; (b) TiO2-1ButOH-rGO_5%_A; (c) TiO2-rGO_5%_M.
Materials 15 02244 g004
Table
Table 1. The parameters: geff, line width, integrated intensity, and the difference between resonance fields for modified nanocomposites TiO2 at room temperature.
Table 1. The parameters: geff, line width, integrated intensity, and the difference between resonance fields for modified nanocomposites TiO2 at room temperature.
NanocompositesgeffΔHpp (G)I/I1ΔHr (G)
TiO2-1ButOH_A2.162(1)912(3)1.00
TiO2-H2O-GO_5%_A2.025(1)537(3)0.07
TiO2-1ButOH-GO_5%_A2.010(1)397(3)0.09
TiO2-GO_5%_M2.013(1)336(1)0.11
TiO2-H2O-rGO_5%_A3.038(90)
2.109(9)		1138(63)
1116(22)		0.36
1.21		980
TiO2-1ButOH-rGO_5%_A2.644(14)
2.065(3)		1701(22)
970(10)		2.85
1.24		717
TiO2-rGO_5%_M2.669(17)
2.046(2)		1838(28)
978(8)		1.94
1.09		772
