Achievements and Future Perspectives of the Trivalent Thulium-Ion-Doped Mixed-Sesquioxide Ceramics for Laser Applications

Abstract

This paper is devoted to reviewing the latest results achieved in solid-state lasers based on thulium-doped mixed-sesquioxide ceramics, i.e., (Lu,Sc,Y)₂O₃. The near- and mid-infrared regions are of interest for many applications, from medicine to remote sensing, as they match molecular fingerprints and cover several atmospheric transparency windows. These matrices are characterized by a strong electron–phonon interaction—which results in a large splitting of the ground state—and by a spectral broadening of the optical transition suitable for developing tunable and short-pulse lasers. In particular, the manuscript reports on the trivalent thulium laser transitions at 1.5, 1.9, and 2.3 µm, along with the thermal and optical characteristics of the (Lu,Sc,Y)₂O₃ ceramics, including the fabrication techniques, spectroscopic and optical properties, and laser performances achieved in different pumping regimes, such as continuous-wave (CW), quasi-CW, and pulsed modes. A comparison of the performance obtained with these mixed-sesquioxide ceramics and with the corresponding crystals is reported.

1. Introduction

Over the last several years, a large number of scientific papers focused on trivalent thulium ions (Tm³⁺) as activators in laser-grade materials have been published, because Tm³⁺, together with Ho³⁺ [1], is an excellent candidate for the development of laser sources emitting in the near- and mid-infrared, from 1.5 to 2.3 µm [2]. As a matter of fact, the most common bulk matrices (i.e., crystals and transparent polycrystalline ceramics [3])—such as YAG [3,4,5,6,7,8,9,10,11], Lu₂O₃ [12,13,14,15,16], Sc₂O₃ [17,18,19,20,21], Y₂O₃ [22,23,24,25], YLF [26,27], CaF₂ [28,29,30], LuAG [31,32,33]—were developed and studied achieving good performance in terms of laser output power, short pulse duration, and broad range of tunability (from 1.84 to 2.07 µm).

What makes trivalent thulium ions even more interesting is the possibility to excite the Tm³⁺ laser transitions at 2 µm [3] and 2.3 µm [34] by means of high-efficiency, commercially available semiconductor-based pump sources, exploiting the strong absorption band located at 790–800 nm [35]. Moreover, as the corresponding full width at half-maximum (FWHM) is in the range of a few tens of nanometers (i.e., 25–40 nm), tight control of the wavelength peak of laser diodes (LDs) is not mandatory. In the past, complex and more expensive pumping laser systems such as Ti:sapphire were used.

As many applications require laser emission at longer wavelengths—as will be clarified later on—some crystals [36,37,38,39,40,41,42] and mixed ceramics have attracted the interest of the scientific community because they are characterized by slightly broader and smoother gain spectra, which can be exploited in developing tunable and sub-100 fs laser systems [43,44,45].

Among outstanding hosts, many research groups have focused their attention on three cubic sesquioxide ceramics [46]—i.e., Lu₂O₃ [14,15,16], Sc₂O₃ [21], and Y₂O₃ [22]—because they can form solid solutions—i.e., (Lu,Sc,Y)₂O₃—maintaining excellent thermomechanical properties and optical quality. It is well known that sesquioxide ceramics show high thermal conductivity, a high refractive index (i.e., 1.94 at 800 nm and 1.92 at 2066 nm in 2at.% Tm:Lu₂O₃ [16]), a broad transparency range (0.22–8 µm), a positive dn/dt thermo optical coefficient (i.e., (2.0 ± 0.5) × 10⁻⁵ K⁻¹ in 2at.% Tm:Lu₂O₃ [47]), low-energy phonons, and a high nonlinear refractive index (at 2070 nm n₂ = 3.3 × 10⁻¹⁶ cm²/W [15] and 8.6 × 10⁻¹⁶ cm²/W at 1064 nm [48]). Moreover, they support high concentrations of dopants, preserving their optical quality and good values of thermal conductivity in comparison with the undoped compositions. In particular, the thermal conductivity of Lu³⁺-based matrices is almost insensitive to the concentration of dopants, as Tm³⁺ and Lu³⁺ have similar ionic radii (i.e., r_ion(Tm³⁺) = 0.0869 nm and r_ion(Lu³⁺) = 0.0861 nm for VI-fold oxygen coordination [49]) and mass [50]. Furthermore, sesquioxides are characterized by a strong Stark splitting of manifolds, which results in an emission wavelength longer than 2050 nm. They have been tested in CW, Q-switching (100 ns at 2066 nm in Tm:Lu₂O₃ [16]), and mode-locking regimes (180 fs at 2070 nm 2at.% Tm:Lu₂O₃ [15]). Tm³⁺-doped sesquioxides are still a lively field of investigation.

Thanks to many efforts made to improve the manufacturing techniques, in recent years Tm³⁺-doped mixed-sesquioxide ceramics such as (Lu,Y)₂O₃ [51,52], (Sc,Y)₂O₃ [53], and (Lu,Sc)₂O₃ [54,55,56], as well as garnets (i.e., YSAG [57,58]), have been fabricated and their potentiality tested, finding excellent results. For instance, pulses as short as 54 fs were generated in Tm:(Lu_2/3Sc_1/3)₂O₃ [52], and a CW tuning range of 200 nm was measured in Tm:LuYO₃ [59].

Regarding their applications, infrared laser sources are currently used in many technological applications [60], such as material processing [61], remote sensing [62,63], gas monitoring [60], medicine [64,65], and optical communication systems. All are triggered by two important properties of the infrared spectral range: first, many roto-vibrational absorption lines of various molecules are located in this range, known as the molecular fingerprint region; secondly, it contains several atmospheric transparency windows [66]. Moreover, 2 µm range radiation, known as the “eye-safe region”, plays a crucial role in all applications where eye safety is strategic; this is because the vitreous body of the human eye absorbs the radiation in this spectral range, preventing damage to the retina.

For example, radiation below 2.3 µm matches the absorption lines of methane and carbon dioxide [67], while in medicine it allows noninvasive measurements of glucose levels [68]; its strong absorption in water is attractive for surgical applications, since its depth of penetration into biological tissues is a few hundred micrometers, enabling microsurgical approaches (i.e., at 2.09 µm and 2.02 µm the penetration depth in water is 300 µm and 180 µm, respectively). Two-micrometer high-power laser systems can serve as pump sources for mid-infrared optical parametric oscillators (OPOs) [69] which, in turn, allow generation of laser wavelengths from 3 to 12 µm [70]. An interesting example is ZnGeP₂-based OPOs, which are pumped at 2.1 µm and emit in the range from 3 to 5 µm [71]. Radiation at 1.5 μm is a useful wavelength for optical communication systems because it belongs to the S-band, i.e., 1.47–1.52 μm; it can be used as a laser pump for erbium-doped fiber amplifiers, as well as for Raman fiber amplifiers.

The main purpose of this paper is to review the important goals achieved with (Lu,Y)₂O₃, (Lu,Sc)₂O₃, and (Sc,Y)₂O₃ mixed-sesquioxide ceramics doped with Tm³⁺ ions. The full potential of these matrices is still to be explored. The knowledge of the state of the art can be useful to focus on future goals. This article is organized as follows: First, the main conditions for exciting a selected laser transition of Tm³⁺ are discussed. Secondly, for each mixed-sesquioxide ceramic, we report and discuss their spectroscopic and optical properties, as well as their laser behavior in CW and pulsed regimes. The results are then compared with those obtained in pure crystals or ceramics (whenever possible), because this paves the way for understanding how the induced disorder in lattices, by substituting some ions of the ordered host, influences the laser behavior of the mixed matrices.

2. Tm³⁺ Ion Laser Transitions: General Considerations

Thulium is the least abundant chemical element among those belonging to the rare-earth family (REEs); it is never found in pure form, and in 1911 it took Charles James around 15,000 recrystallizations of Tm(BrO₃)₃ to obtain a spectroscopically pure sample [72]. Thulium has many isotopes, of which only one is stable: natural Thulium is composed entirely by ¹⁶⁹Tm.

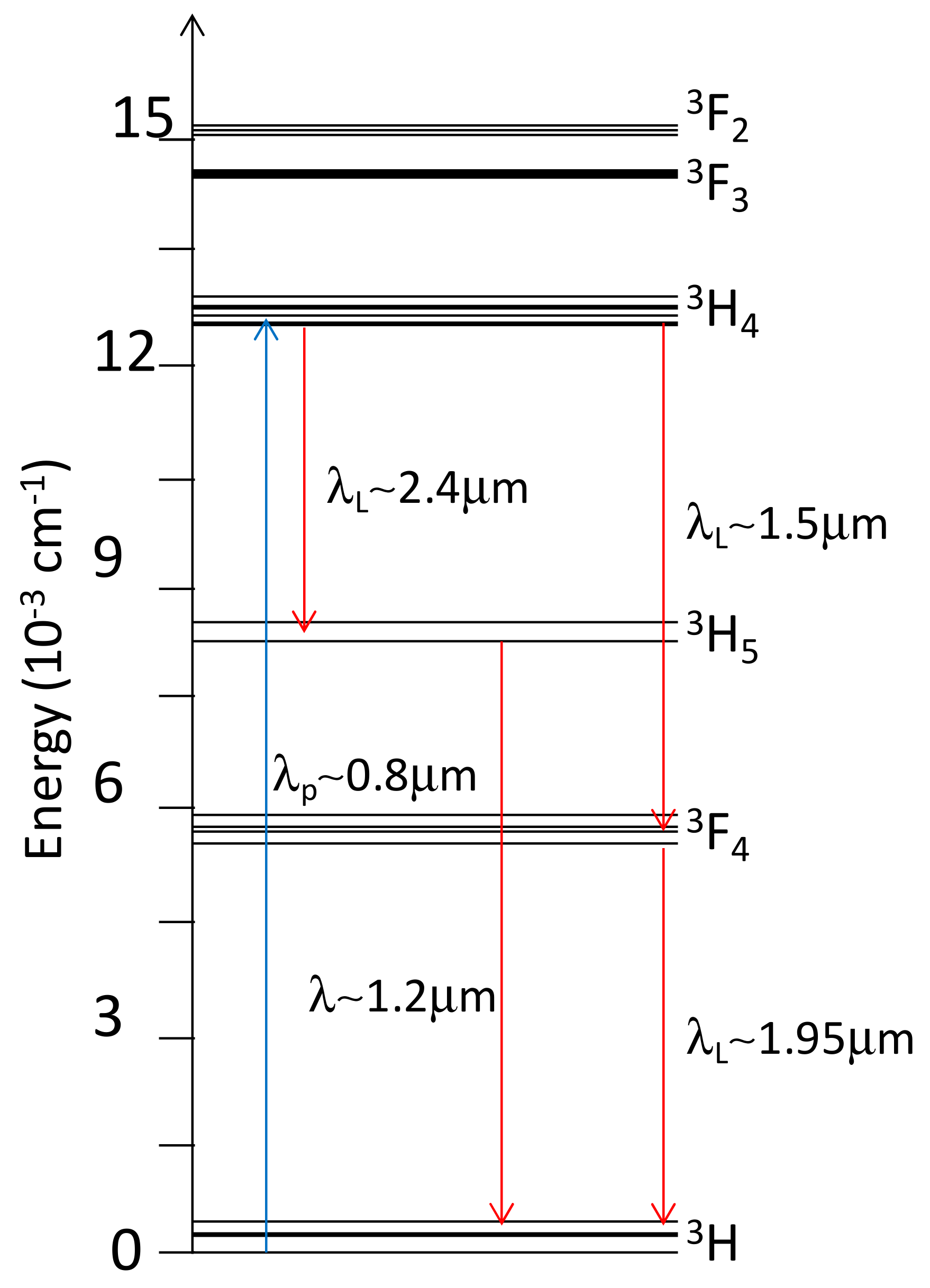

The trivalent ion, Tm³⁺, with an electron configuration [Xe]4f¹², is employed in solid-state laser physics because of its three active optical transitions in near- and mid-infrared—i.e., ³H₄ → ³H₅, ³F₄ → ³H₆, and ³H₄ → ³F₄—with emissions centered at around 2.3 µm, 1.9 µm, and 1.5 µm, respectively. As the energy diagram of Tm³⁺ is extremely complex [73,74], a specific oscillation wavelength can be reached only if some conditions are fulfilled, since Tm³⁺ metastable states are involved in energy transfer processes such as non-radiative decay, excited-state absorption (ESA), and upconversion processes that take place. In Figure 1, the energy level scheme of Tm³⁺-doped Lu₂O₃ is reported.

Secondly, the Stark splitting of the Tm³⁺ manifolds is tightly connected to the host crystal field. In the most commonly used garnets, such as YAG or LuAG, the value of the splitting is lower than in mixed sesquioxides; for this reason, with the garnets, the range of tunability spans from 1.84 to 2 µm, while with the sesquioxides it can exceed 2.3 µm.

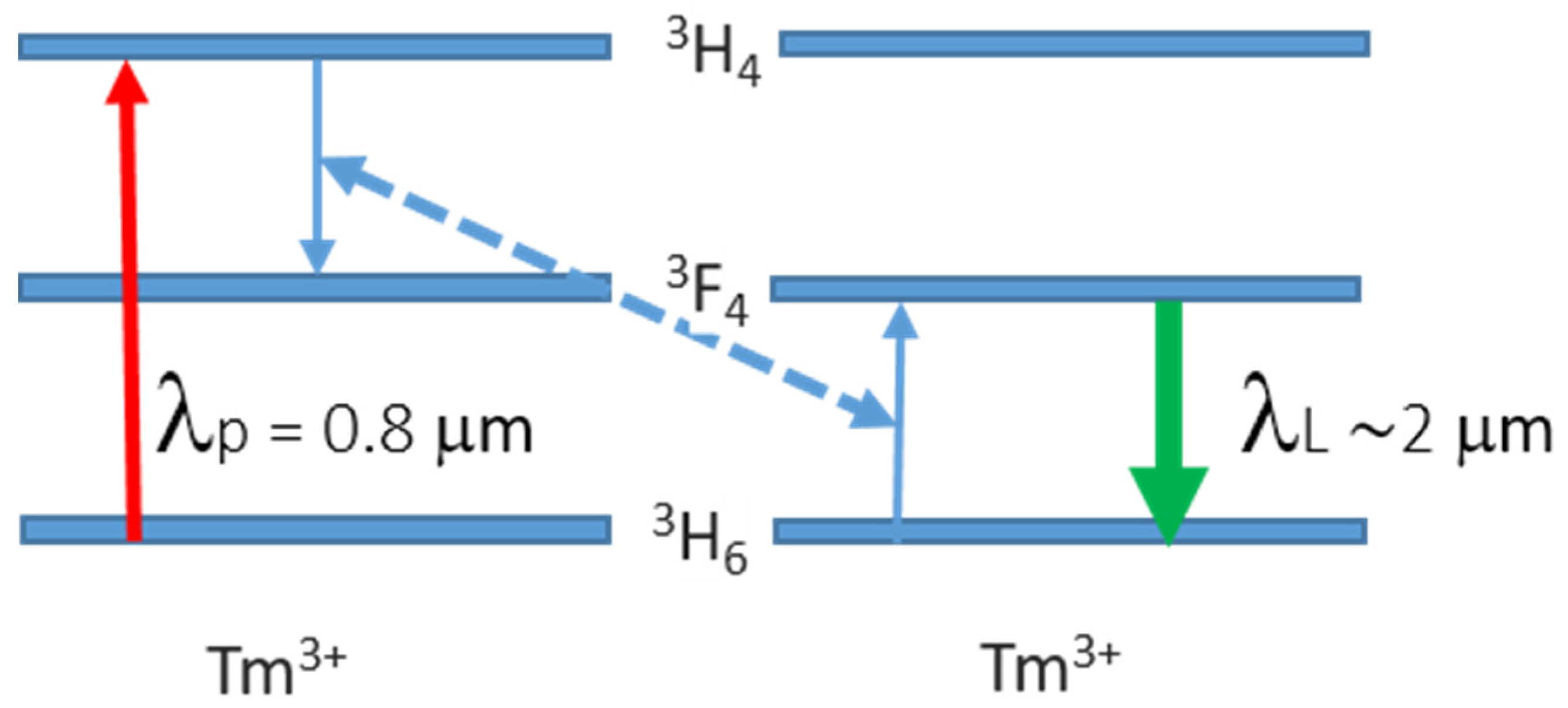

The concentration of Tm³⁺ ions is a crucial factor because, at high levels of doping cross-relaxation (CR) processes can take place between two neighboring Tm³⁺ ions [4,75], triggering the 2 µm transition, as is explained below (see Figure 2).

In the following sections we will discuss the properties of the main laser transitions and the conditions needed to activate them.

2.1. Tm^3+ 3H₄ → ³F₄ Near-Infrared Emission at 1.5 µm

The existence of the ³H₄ → ³F₄ laser emission at around 1.5 µm [76,77,78,79] was demonstrated for the first time in 1983 in (Yb,Tm):BaYb₂F₈ and (Tm,Yb):LiYbF₄ crystals pumped with a 1054 nm neodymium laser [80]. Five years later, laser oscillations in pure Tm³⁺-doped multimode fluoride fibers at around 1.48 µm, pumping with a krypton ion laser operating at 676 nm, were demonstrated [81]. Later on, other demonstrations followed in fibers [79,82]. Concerning its usage as a bulk material, few studies have been reported in the literature; the reason can be found in the nature of the transition, as it is a self-terminating four-level laser transition. As the lifetime of the lower laser level is longer than that of the upper state, laser oscillation occurs for a limited time, because the population accumulates in the lower laser level, so that eventually the population inversion cannot be maintained. This drawback is overcome by co-doping the matrices in order to either lengthen the upper level or shorten the lower level lifetime of the laser transition. It has been demonstrated that if hosts are co-doped with Tb³⁺ or Ho³⁺ ions and pumped at 0.6 or 0.8 µm, the lifetime of the ³H₄ level can be shortened. Another possibility to depopulate the ³F₄ is to exploit its excited level absorption toward the ³F₂ level. This scheme was implemented by Komukai et al. [82] in ZBLAN glass fibers, using a Nd:YAG laser as a pump source. The excitation of Tm³⁺ to the ³H₄ level was possible thanks to the weak absorption of Tm³⁺ in the ground state, in combination with the long absorption length allowed by the fibers. This effectively resulted in a two-photon pumping scheme. A similar scheme was proposed by Antipenko et al. [80] for crystals; in this case, the excitation of Tm was provided by absorption and multistep excitation transfer from Yb³⁺ ions used as sensitizers and pumped on the ²F_7/2 → ²F_5/2 transition. Concerning the nature of the host, essentially, when a sample doped with Tm³⁺ is pumped at 0.8 µm (i.e., ³H₆ → ³H₄), all radiative decay paths are activated. Fortunately, the mechanisms underpinning the laser’s action at different laser wavelengths are triggered differently. The usage of low-energy phonons together with low-doping materials is a good compromise; however, there is no shortage of exceptions. In CaF₂, which is in principle an excellent large host with high thermal conductivity compared to other fluoride crystals and glasses, special attention is required. Due to the charge compensation [83] necessary to allow the neutrality of the host, even for low concentrations of dopant, aggregates of thulium ions can be formed, enhancing the probability of CR process triggering the transition at 2 µm. Fortunately, it has been demonstrated that in matrices co-doped with Y²⁺ ions it is possible to reduce the thulium aggregation. Thus far, no laser emission at this wavelength has been achieved in any laser ceramics.

2.2. Tm^3+ 3F₄ → ³H₆ Near-Infrared Emission at 2 µm

The optical transition Tm^3+ 3F₄ → ³H₆ [4] is widely used in laser systems with emission at around 1.9 µm. As it involves one of the thermally populated Stark levels of ³H₆, emission from 1.8 to 2.2 µm can be obtained. In principle, the ³F₄ → ³H₆ optical transition can be excited by two different pumping schemes, which are characterized by different efficiencies. The least efficient scheme is based on direct pumping of the lower manifold ³H₆ by a pump source at around 1.7–1.8 µm to the upper manifold ³F₄ [5]; the most efficient is triggered by a non-radiative mechanism such as the cross-relaxation process (³H₆ + ³H₄ → ³F₄ +³F₄) in a matrix activated with a sufficient doping concentration [4,75], because the dipole–dipole interaction depends on the ion spacing, and shows a square dependence on the ion excitation density. If a pump wavelength centered at around 780 nm is used, Tm³⁺ ions are excited from the ³H₆ to the ³H₄ level. Thanks to the CR process, an electron of one ion relaxes from ³H₄ to ³F₄ (first excited ion), while an electron of the other ions is excited to ³F₄ (second excited ion). Both ions contribute to populating the upper laser level ³F₄ so that two excited ions are generated for each absorbed pump photon. This is referred to as a “two-for-one cross-relaxation mechanism”. As at room temperature a small percentage of the population (i.e., 2at.% in Tm:YAG) is placed on the high-energy states of the ground manifold, the ³F₄→³H₆ laser transition can be considered to be a quasi-three-level system whose overall quantum efficiency approaches 2 (beyond Stokes limit) [84], compensating for the high quantum defect. This transition can be activated in matrices with a level of doping higher than 2at.%, and moderates phonon energy. Historically, the first laser based on this transition with emission at 2 µm (Tm:YAG) was built in 1965 [85], while the pulsed regime was achieved 10 years later in a co-doped (Cr,Tm):YAG [34].

2.3. ³H₄ → ³H₅ Transition at 2.3 µm

The emission of Tm^3+ 3H₄ → ³H₅ optical transition is centered at around 2.3 µm [34,86], and can be excited at 0.8 µm; it can be managed as a quasi-four-level laser transition, as non-radiative multiphonon relaxations depopulate the ³H₅ level. However, its activation is complex, because the ³H₄ level is a metastable state involved in several decay mechanisms. First, the ³H₄ level is the upper level of the laser transition centered at 1.5 µm (i.e., ³H₄ → ³F₄); secondly, quenching mechanisms such as non-radiative relaxation, CR near Tm³⁺ ions, and energy transfer to impurities can depopulate the level. This oscillation was demonstrated in low-doping fluoride crystals [87,88,89], where non-radiative relaxation processes scarcely take place [90]. In YLF matrices, a continuous tunability was measured from 2.20 to 2.46 µm [91]. Lately, crystal oxides such as Tm-doped YAlO₃ [92] and YAG [93] have been successfully tested. The dopant concentration underlying the CR mechanism between the ³H₄ and ³F₄ levels can be minimized, as several studies have already demonstrated, doping the host with a level of activators lower than 2at.%.

Unfortunately, to date, no laser oscillations at this wavelength have been demonstrated in ceramics.

2.4. Tm³⁺ Visible Laser Emissions

Although so far, to the best of our knowledge, no visible laser oscillations have been achieved and reported in the literature in mixed ceramics, it is interesting to observe that a Tm:YLF laser emitting in the blue, resonantly pumped by a XeF laser, was already presented in 1981 by Baer et al. [94]. Spectroscopic investigations focused on fluorophosphate glass hosts have been performed since 1984 and have demonstrated that the Tm^{3+ 1}D₂ → ³H₄ transition can be used to obtain a laser oscillation in the visible region, at around 450 nm [95,96]. In fact, pumping of a 1at.% Tm:YLF crystal with two laser dyes at 780.78 nm and 648.77 nm oscillations in the blue (¹D₂ → ³F₄ transition) and green (¹D₂ → ³H₅ transition) regions was achieved; upconversion laser operation was at 77 K [97]. In 1992, blue upconversion laser emission at 450.2 nm (¹D₂ → ³F₄ transition) and at 483.0 nm (¹G₄ → ³H₆ transition) was also achieved in a Tm:YLiF₄ crystal. The first transition was excited by sequential two-photon absorption with a Ti:sapphire laser source at 784.5 nm and 648 nm. In this experiment, the operation temperature was also up to 70 K. The laser emission at 483 nm was obtained by pumping with a single red dye laser whose wavelength was resonant with the absorption from a metastable intermediate state. The laser emission was observed up to 160 K [98]. In a (Tm,Yb):BaY₂F₈ crystal, where ytterbium plays the role of sensitizer, upconversion laser operation has been demonstrated in the visible region—in particular at 456 nm, 482 nm, 512 nm (Tm^{3+ 1}D₂ → ³H₄ transition), and 649 nm. These measurements were performed at room temperature by pumping the sample with a CW 960 nm Ti:sapphire laser as well as a diode laser [99].

3. Mixed Ceramic Matrices

Before focusing on mixed-sesquioxide ceramics, some general consideration of ceramics may be useful for readers.

It has largely been demonstrated that transparent polycrystalline ceramics can overcome some drawbacks related to the melt growth of cubic sesquioxide crystals, which are characterized by high melting points (2490 °C in Lu₂O₃, 2485 °C in Sc₂O₃, 2425 °C in Y₂O₃) and by phase transition points lower than the melting points of the lattice [100].

Generally speaking, in ceramics it is possible to achieve high levels of doping and uniformity in dopant distribution, as well as excellent thermomechanical and optical properties comparable to their crystalline counterparts. Laser-grade ceramics can be fabricated thanks to the constant improvement in their manufacturing technique, because the mixture of powder fabrication methods and sintering processes plays a fundamental role in achieving the greatest optical transparency of ceramics. Today, ceramics with optical transparency near Fresnel’s theoretical limit are manufactured [101,102,103].

Nanocrystalline powders can be fabricated via several processes, such as combustion synthesis [104,105], the hydrothermal method [106], emulsion synthesis, sol–gel processing [107], co-precipitation in aqueous media [108,109,110], or laser ablation [111,112]. As far as the sintering process is concerned, the techniques currently being applied include vacuum sintering [113], vacuum sintering followed by hot isostatic pressing [114,115], hot pressing (HP) [116], hot pressing and hot isostatic pressing (HP–HIP) [117], spark plasma sintering (SPS) [118,119], and pressureless sintering under a flowing H₂ atmosphere [120]. Of course, each production technique has strengths and weaknesses, imposing severe limitations on the dimensions and shape of the sample, its uniformity, and the fabrication time. For example, ceramics made by SPS can be fabricated in a short time; however, they have a small size. Moreover, the vacuum sintering temperatures of each material reported in the literature to date show a fairly narrow interval of variation, from 1700 °C to 1850 °C.

The mixed-sesquioxide ceramics mentioned in this review represent the solid solutions of the most common cubic sesquioxides, such as Lu₂O₃, Sc₂O₃, and Y₂O₃; they are obtained via a partial substitution of cations in the lattice by different rare-earth ions. For instance, (Sc_xY_1−x)₂O₃ [53], (Lu_xY_1−x)₂O₃ [51,52], and (Lu_xSc_1−x)₂O₃ [54,55,56] matrices can be obtained by replacing an Y³⁺ ion with Sc³⁺ or Lu³⁺ in the first two hosts, and a Sc³⁺ ion with Lu³⁺ in the last matrix.

A major challenge in the process of lasing quality mixed-sesquioxide ceramics is the attainment of a pore-free microstructure with homogeneous distribution of chemical components at the nanoscale level, so as to avoid refractive index modulation near grain boundaries. In this regard, two main fabrication methods can be distinguished: The first method consists of a sintering plus HIP approach, with the utilization of commercially available powders or nanoparticles synthesized by co-precipitation and added ZrO₂ as a grain growth inhibitor [54,121,122]. The second method involves conventional vacuum sintering of weakly agglomerated nanoparticles produced by laser ablation [53,112].

The main effect of substitutions, due to the different masses and radii of the cations (i.e., r_ion(Y³⁺) = 0.9 Å, r_ion(Sc³⁺) = 0.745 Å and r_ion(Lu³⁺) = 0.861 Å [49]), is a change in the lattice parameters because the size of the unit cell increases and, in turn, modifies the crystal field strength; the latter affects the position and the linewidth of the Tm³⁺ levels. The large splitting of the levels results in a broad range of tunability—broader than in pure matrices—while the emission spectra assume a smoother shape, better suited for a mode-locking regime. It was clearly demonstrated in Tm³⁺-doped (Sc_xY_1−x)₂O₃ that the decrease in the cation radius increases the crystal field strength and, thus, the Stark splitting of manifolds involved in such laser transitions as, for instance, ³F₄, ³H₆, and so on [123]. At the same time, the separation between the lowest Stark electronic sublevels of the two manifolds ³F₄ and ³H₆ remains nearly identical when moving from Tm:Y₂O₃ to Tm:Sc₂O₃.

Concerning the crystallographic properties, yttrium, lutetium, and scandium sesquioxides are isostructural, and are capable of forming continuous series of solid solutions (Lu_xY_1−x)₂O₃, (Sc_xY_1−x)₂O₃, and (Lu_xSc_1−x)₂O₃, with a bixbyite-type cubic structure (space group Ia3–Th7). However, when the difference in the ionic radii of the substituting and substituted cations is significant, crystallization in a different, completely ordered lattice (i.e., perovskite structure) can be observed. For example, at room temperature and pressure the smallest rare-earth ion Sc³⁺ and several lanthanides (Ln, from La³⁺ to Ho³⁺) form Ln-scandates—orthorhombic perovskites with the space group Pbnm [124]. In addition, pure perovskite-type YScO₃ phases have previously been synthesized via the flux method using a PbO/PbF₂ flux [125], by a combination of the polymerized complex method and solid-state reaction [126] and by heating up a corresponding mixture of oxides to 1000 °C at 20 kbar for 1 h [127]. Conversely, only a bixbyite-type cubic structure was detected in polycrystalline samples based on mixed (Lu,Y,Sc)₂O₃ matrices fabricated using ceramic technology.

3.1. Thermal Conductivity of Mixed Ceramics

As already mentioned, the thermal conductivity (K) of laser gain matrices depends on two parameters: the nature of the host, and the concentration of the dopant. Garnets, for instance, have a higher undoped thermal conductivity than fluorides, but lower than that of the sesquioxides, which are preferred for the development of high-average-power laser systems [128]. In all matrices, a decrease in thermal conductivity is observed with increased dopant concentration [50]. This phenomenon can be attributed to the different weight of the substituted cation and active RE ion, because the phonons—which transport the heating in insulator materials—are scattered at the doping ions, also known as mass defects, with a consequent decrease in K [129]. Accordingly, only Lu³⁺-based hosts do not show this trend, because the mass of Tm³⁺ is similar to that of Lu³⁺.

In undoped mixed matrices, the thermal conductivity is expected to be lower than in pure matrices due to the intrinsic disorder; moreover, it decreases when increasing the concentration of dopants. This has been very well demonstrated in mixed crystals such as LuScO₃ [130]. We have no theoretical reasons to suppose that this should be different in mixed matrices; on the contrary, this could explain the saturation measured, for instance, in CW Tm³⁺:LuYO₃ ceramic emissions [51].

As the data on thermal conductivity of mixed ceramics and its temperature dependence are scarce or nonexistent, only the values for several RE³⁺-doped disordered sesquioxide crystals can be reported. For instance, Liu et al. measured 5.488 W/(m K) and 5.019 W/(m K) for 1at.% Yb:Lu_0.99Y_1.01O₃ and 1at.% Yb:LuScO₃ crystals, respectively [131]. Krankel et al. reported Czochralski growth and temperature-dependent thermal conductivity of (Er_0.07Sc_0.50Y_0.43)₂O₃ crystals [132]. At room temperature the thermal conductivity reached 4.1 W/(m K). Nevertheless, these values are comparable with those of other disordered matrices, such as RE³⁺-doped CaGdAlO₄ and Ca₃Nb_1.5Ga_3.5O₁₂ [133,134], exhibiting broad gain bandwidth suitable for ultrashort-pulse laser operation.

3.2. Description and Comparison of the Fabrication Techniques Used to Develop the Mixed Sesquioxides Ceramics

Recently, an alternative method of synthesizing sesquioxide transparent ceramics has been proposed—to reduce the sintering temperature by forming a solid solution [46,135]. It was found that Y₂O₃, Sc₂O₃, and Lu₂O₃ can be mixed in arbitrary ratios to form a complete solid solution series with the formula of (Lu_xY_ySc_1−x−y)₂O₃ (0 ≤ x < 1, 0 ≤ y < 1, and 0 < x + y ≤ 1), and the melting points of the binary and ternary systems are generally lower than that of any constituent component [136,137].

It is essential for laser applications to fabricate highly transparent sesquioxide ceramics with clean grain boundaries and narrowly distributed grain size. The availability of powders with desired properties, such as good dispersion and high reactivity, is crucial to obtaining better quality ceramics, because large particle size and hard aggregation may necessitate high sintering temperatures and, thus, may cause exaggerated grain growth [46].

As for the sintering methods, the solid-state reaction method is one of the conventional ways to sinter powders for polycrystalline transparent ceramics. This method is often used for the fabrication of complex oxides (such as YAG [7] starting from Y₂O₃ and Al₂O₃ powders, or LuAG from Lu₂O₃ and Al₂O₃ powders [31]), where the formation of the final complex oxide occurs during the sintering phase. Another conventional method is non-reactive sintering of nanopowders with high sinterability. In this kind of process, the starting powders already have their final chemical composition, and in the sintering phase the ceramic is formed by growth and densification of the microcrystals. The starting powders are usually obtained via wet chemical reactions, including homogeneous precipitation [138], the sol–gel method [139], co-precipitation [55,121,140,141,142] methods, etc. Other investigations have addressed the use of spark plasma sintering (SPS) for the production of Sc₂O₃, Y₂O₃, and Lu₂O₃ transparent ceramics [118,119], but not yet for the production of mixed sesquioxides.

3.3. Tm³⁺: (Lu_1−xSc_x)₂O₃ with 0 < x < 1

In 2017, for the first time, a Tm³⁺:LuScO₃ ceramic was fabricated by using a solid-state reactive sintering method with an average grain size of 1.65 µm [55]. The laser behavior of the sample was tested by CW pumping the sample at 790 with an AlGaAs laser diode, obtaining an output power of 211 mW with slope efficiency of ~8.2%. The mode-locking regime was demonstrated using single-walled carbon nanotubes (SWCNTs) as a saturable absorber. The shortest pulse width was 0.59 µs, with a repetition rate of 34.72 kHz. The maximum average output power was 32 mW. Concerning the spectroscopic data, and from comparison of spectra obtained for crystals and ceramics, no relevant differences in peak location were observed. The room temperature absorption spectrum of ceramic samples from 300 to 2100 nm shows six bands associated with Tm³⁺ transitions from the ³H₆ ground state to ¹D₂, ¹G₄, ³F_2,3, ³H₄, ³H₅, and ³F₄ excited states, respectively. The peak absorption cross-section and its full width at half-maximum (FWHM) for the Tm^3+ 3H₆ → ³H₄ transition at 793 nm were calculated to be 3.5 × 10⁻²¹ cm² and 32 nm, respectively. The absorption cross-section is comparable to that of Tm³⁺:Lu₂O₃ ceramic and crystal (3.8 × 10⁻²¹ cm² at 796 nm). The emission spectrum covers the wavelength range from 1550 to 2200 nm and corresponds to the transition ³F₄ → ³H₆ of the Tm³⁺ ion. The emission band centered at 1970 nm measures an FWHM of 75 nm and stays between the peaks measured in Sc₂O₃ at 1940 nm and in Lu₂O₃ at 1980 nm [143,144]. The multipeak structure measured in pure matrices disappears in mixed ceramics and crystals due to the spectral broadening generated by the disorder induced by the substitution of Lu³⁺ ions with Sc³⁺ ions. These ions are characterized by different masses and radii, as explained in the previous section; additionally, the latter exhibits smoothing of the whole spectrum, which could be helpful in obtaining ultrashort-pulse lasers via the mode-locking technique. Concerning the fluorescence lifetime of the ³F₄ level, it was measured to be 3.2 ms, which is comparable with that of Tm³⁺:Lu₂O₃ ceramic (i.e., 3.7 ms [16]) and Tm³⁺:Lu₂O₃ crystal (i.e., 3.8 ms [143,144]). The large emission band and long lifetime clearly indicate that Tm³⁺:LuScO₃ ceramic is a very promising material in mode-locking regimes.

The same year, an excellent result was obtained when a 4.76at.% Tm³⁺:(Lu_2/3Sc_1/3)₂O₃ mixed-sesquioxide ceramic [121] was synthesized via hot isostatic pressing (HIP), improving upon the results reported in [55]. According to the absorption spectrum data acquired at room temperature, the absorption cross-sections were calculated for the transitions ³H₆ → ³F₄ and ³H₆ → ³H₄, finding σ_abs = 4.26 × 10⁻²¹ cm² at 1622 nm and σ_abs = 2.80 × 10⁻²¹ cm² at 793 nm (the FWHM was 25 nm). The broadening of the emission peaks with respect to the pure matrices (i.e., Lu₂O₃, Sc₂O₃) was confirmed at 6 K as well. Spontaneous radiative transitions and radiative lifetimes were assessed by means of the Judd–Ofelt theory. The probabilities for the maximum spontaneous radiative transitions, σ_SE, were σ_SE = 7.15 × 10⁻²¹ cm² at 1951 nm and σ_SE = 2.38 × 10⁻²¹ cm² at 2090 nm. Concerning the radiative lifetime of the lowest excited state, it was found that τ_rad(³F₄) = 4.01 ms, which is comparable with the values of the luminescence time measured in 1at.% Tm:LuScO₃ single crystal and 2at.% Tm:LuScO₃ ceramic, i.e., 3.84 and 3.2 ms, respectively. The laser behavior in the CW regime was tested by a microchip-type cavity. The maximum output power was 1.01 W at 2095 and 2102 nm, with a slope efficiency of η = 24% for T_OC = 3%. The laser threshold was P_abs = 0.86 W. In the mode-locking regime obtained via a near-surface design GaSb-based SESAM, it was demonstrated that Tm³⁺:(Lu_2/3Sc_1/3)₂O₃ mixed ceramics can generate nearly Fourier-limited pulses of 63 fs pulse duration. The sample was pumped with a high-beam-quality Ti:sapphire laser source.

Mixed-sesquioxide ceramics with different Lu/Sc balances were fabricated via the solid-state reactive sintering method (pre-sintered in vacuum and then post-sintered by HIP) using ZrO₂ (99.5%) powder as a sintering aid, i.e., 1at.% and 1.5at.% Tm:Lu_1.6Sc_0.4O₃ with a thickness of 2.6 mm [54]. The high optical quality of these ceramics, which have an average grain size of 1.54 µm, was demonstrated by transmittance measurements, i.e., 82.21% at the lasing wavelength of 2.09 µm, which is near to the Fresnel theoretical value of 82.28% (n = 1.906 at 2 µm). The samples were excited by a fiber-coupled AlGaAs diode laser at 796 nm in order to measure the emission spectra at room temperature and 77 K, and these results were compared in order to calculate the Stark splitting of the levels involved in laser action: a Stark splitting of 920 cm⁻¹ in the ground state ³H₄ and 472 cm⁻¹ in the ³F₄ of Tm³⁺ was found. Thanks to these large Stark splittings, the laser can emit at around 2.09 µm due to transition from the lowest Stark level ³F₄ to the highest Stark level of ³H₆. The stimulated emission cross -section at 2.09 µm is σ_em = 1.1 × 10⁻²¹ cm². From the absorption spectra, the absorption cross-section at 796 nm responsible for the ³H₆ → ³H₄ transition was calculated, finding it to be σ_abs = 3.1 × 10⁻²¹ cm². A plano-concave cavity was used to test the samples; for the 1at.% Tm³⁺ ceramic, the maximum output power was 9.8 W, with a slope efficiency of 40%; the optical-to-optical conversion efficiency was measured at 25.8%. Comparable results were found with the 1.5at.% Tm³⁺ laser, i.e., 11 W with 39% slope efficiency and an optical-to-optical efficiency of 28.9%. With both samples, the emission wavelength was 2090 nm. By comparing the theoretical data (38%) for the conversion from one 796 nm photon to one 2090 nm photon, it was clear that cross-relaxation between two closed Tm³⁺ ions took place.

Over the years, various manufacturing techniques have been developed to improve the optical qualities of ceramics. Recently, a 2at.% Tm³⁺:(Lu_0.8Sc_0.2)₂O₃ was obtained via the gel-casting of well-dispersed nanopowders obtained by co-precipitation method using an alcohol–water solvent, which was expected to yield more homogeneous and transparent ceramics [122]. The excellent optical quality of samples was carried out from the optical in-line transmittance of a 12 mm long ceramic rod, with results as high as 80.3% at 2090 nm, which is comparable with the theoretical transmittance of ~81.4% at 2090 nm. The average grain sizes spanned from 2 to 5 µm. The attenuation coefficient at 2090 nm was 0.006 cm⁻¹. The absorption and emission spectra of the sample were acquired at room temperature. Concerning the absorption bands, four bands centered at 686, 796, 1207, and 1625 nm were attributed to the Tm³⁺ transitions from its ground state of ³H₆ to the excited states of ³F_2,3, ³H₄, ³H₅, and ⁴F₄, respectively. Focusing on the whole ³H₆→³H₄ absorption band that peaked at 796 nm, its FWHM was around 38 nm, which is broader than that of Tm³⁺-doped Lu₂O₃ ceramics. Accordingly, in the CW laser test, the sample, having been placed in a plano-concave cavity, was pumped using a commercial laser diode with emission at 796 nm. A maximum output power of 1.88 W was measured, with a slope efficiency of 24.6% (with respect to the input pump power) and an optical-to-optical efficiency of 14.1%. The laser threshold of the absorbed pump power was 3.2 W.

Recently, a 58 fs laser pulse was generated at 2081 nm by Kerr-lens mode locking in a 2.8at.% Tm:(Lu_2/3Sc_1/3)₂O₃ transparent ceramic [56] fabricated by hot isostatic pressing (HIP) of commercial powders at 1800 °C and 195 MPa in an Ar atmosphere [121]. In CW operation mode, this delivers a maximum output power of 490 mW at around 2088 nm (T_OC = 0.5%), with an efficiency conversion of 26.8%. Short pulses were obtained in a Kerr-lens mode-locking regime by exploiting the high nonlinear refractive index (n₂) of the ceramic. We should note that in Tm:Lu₂O₃ ceramics this was measured at n₂ = 3.3 × 10⁻¹⁶ cm²/W at 2070 nm [15] and n₂ = 8.6 × 10⁻¹⁶ cm²/W at 1064 nm, and it is expected that in mixed-sesquioxide ceramics this value should be almost preserved. The average output power was 220 mW at a pulse repetition rate of 84.8 MHz. The peak on-axis laser intensity in the sample was ∼510 GW/cm². It was very well demonstrated that the emitted spectra at wavelengths longer than 2.2 µm are attributable to vibronic transitions of the Tm³⁺ and played a fundamental role in achieving laser pulses as short as 58 fs.

For the sake of clarity and completeness, we should recall that in 2011 the first 1at.% Tm³⁺-doped LuScO₃ crystal was grown by Koopmann et al. [143]. In CW, an output power of 705 mW with a slope of 55% at around 2.1 µm was measured in a nearly concentric resonator; the laser threshold was only 0.38 mW. Concerning the range of tunability, it was demonstrated from 1960 to 2115 nm (i.e., 155 nm). Two years later, a Ti:sapphire-pumped mode-locked Tm:LuScO₃ crystal laser was demonstrated [145]. In 2018, a new high-optical-quality mixed-sesquioxide crystal—i.e., 4at.% Tm:LuScO₃—was grown via the heat exchanger method in a rhenium crucible and tested in a four-mirror z-fold cavity pumping for the first time by a laser diode at 793 nm [146]. In a CW regime, the laser delivered 660 mW at 2102 nm (T_OC = 2%), with a slope efficiency of up to 33%, while the laser threshold was 194 mW. The tunability of laser was measured from 1973 nm to 2141 nm (i.e., 148 nm), with an FWHM of 75 nm. The femtosecond mode-locking operation was achieved via an ion-implanted InGaAsSb quantum-well-based SESAM, which enabled the generation of near-transform-limited pulses of 170 fs at 2093 nm, with an average output power of 113 mW and a pulse repetition frequency of 115.2 MHz.

3.4. Tm³⁺: (Lu_1−xY_x)₂O₃ with 0 < x < 1

The year 2017 was a profitable one, as the first 3at.% Tm-doped (Lu_0.5Y_0.5)₂O₃ was also fabricated by solid-state reactive sintering (T_sintering = 1700 °C) and tested in CW and Q-switching regimes [51]. The sample was pumped with a fiber-coupled AlGaAs laser diode at 790 nm. In CW, it delivered a maximum output power of 1.55 W, with a slope efficiency of 19.9% at 2050 nm. Passive Q-switching was obtained using a Cr:ZnSe saturable absorber. At 2047 nm, a maximum average output power of 0.54 W was found, along with a pulse width of 120.3 ns and a pulse energy of 20.5 µJ, while the pulse peak power was 170.6 W. Spectroscopic measurements have shown that the location of the main absorption peaks at 775.5, 796.5, and 811.5 nm matched those of Tm-doped Lu₂O₃ [16] and Y₂O₃ ceramics [25], and the calculated absorption coefficient at 796.5 nm and 790 nm was 2.6 cm⁻¹ and 1.6 cm⁻¹, respectively.

Two years later, the first mode-locking regime was demonstrated with a 3at.% Tm:LuYO₃ mixed ceramic synthesized via a solid-state reactive sintering method [147]. The mode-locking laser operation was achieved by inserting an SESAM with a modulation depth of 1.2% and a relaxation time of 10 ps into the cavity. Pulses with a duration of 41 ps and a repetition rate of 139.3 MHz at 2061 nm were obtained. Concerning the spectroscopic measurements, the sample was pumped with a fiber-coupled laser diode at 796 nm. The absorption cross-section at the pump wavelength was calculated to be σ_abs = 3.8 × 10⁻²¹ cm², with an FWHM of 25 nm. This is comparable with results obtained in Tm:Lu₂O₃, and higher than in Tm:LuScO₃, where σ_abs = 3.5 × 10⁻²¹ cm² was found [55]. Conversely, emission cross-sections calculated at the two main peaks of the fluorescence spectra—i.e., at 1937 nm and at 2055 nm—were found to be σ_em = 6.0 × 10⁻²¹ cm² and 3.0 × 10⁻²¹ cm², respectively; these results are lower than in 2at.% Tm³⁺:Lu₂O₃ (i.e., 8.2 × 10⁻²¹ cm² [16]) and Y₂O₃ (i.e., 9.9 × 10⁻²¹ cm² [148]). The fluorescence time of the ³F₄ → ³H₆ laser transition was 2.6 ms. CW laser behavior was tested by closing the cavity using output couplers with different transmissions (T_OC). The maximum output power of 1.20 W, with a slope efficiency of 25.1% and threshold of 0.53 W, was obtained with a T_OC = 3%. The highest slope efficiency of 33.1% was achieved with a T_OC = 10%, with a maximum output power of 0.88 W and threshold of 1.5 W.

Passive mode-locking of a 3at.% Tm:LuYO₃ ceramic was also demonstrated by using a single-walled carbon nanotube saturable absorber [59]. When pumping at 795 nm with a Ti:sapphire laser, pulses as short as 57 fs were measured at 2045 nm, with an average power of 63 mW and a repetition rate of 72.6 MHz. This is an excellent achievement compared with those obtained in a Tm:Lu₂O₃ ceramic operating in a mode-locking regime with a saturable absorber, i.e., 180 fs [15]; it is similar to the pulse duration of 63 fs obtained with Lu_2/3Sc_1/3O₃ [54]. The tunability of the sample in the CW regime was preliminarily tested by inserting a 3.2 mm thick birefringent quartz plate into the cavity. The curve of tunability ranged from 1909 to 2109 nm—i.e., 200 nm—with the main peak located at 2074.2 nm and a corresponding maximum output power of 440 mW (T_OC = 1.5%). Under the same experimental conditions, in 3at.% Tm:Lu_2/3Sc_1/3O₃ ceramic, a tuning range as broad as 130 nm was found [54].

Recently, the same group has measured the shortest pulses [52,149] ever reported in literature for any bulk solid-state lasers based on Tm³⁺. The gain material was a 3at.% Tm:LuYO₃ ceramic mode-locked with a GaSb-based SESAM. At a repetition rate of ∼78 MHz, a pulse of 54 fs was measured at 2049 nm, with an average output power of 51 mW.

The laser performances of a ceramic fabricated by hot isostatic pressing with a sintering temperature of 1700 °C were tested in CW, pumping the ceramic with a continuous-wave narrow-line-bandwidth Ti:sapphire laser at 795.3 nm. By closing the four-mirror bow-tie cavity using an output coupler with a transmission of T_OC = 3%, an output power of 603 mW with a slope efficiency of 33.2% and a laser threshold of 200 mW was measured.

Concerning Tm:LuYO₃ crystals, a sample was grown via the optical floating zone method for the first time in 2020 [150]; unfortunately, no data on laser behavior have been reported in the literature. Spectroscopic characterization at room temperature was performed, finding an absorption cross-section at 796 nm of σ_abs = 7.3 × 10⁻²⁰ cm² with the FWHM of 48 nm; lower values were measured at 2057 nm (σ_abs = 0.2 × 10⁻²⁰ cm²) and 1936 nm (σ_abs = 1.4 × 10⁻²⁰ cm²). The emission cross-section at 2056 nm was σ_em = 1.95 × 10⁻²⁰ cm², with an FWHM of nearly 300 nm. The measured fluorescence lifetime of ³F₄ was 0.86 ms.

3.5. Tm³⁺: (Y_1−xSc_x)₂O₃ with 0 < x < 1

(Y,Sc)₂O₃ is very attractive because the large difference in the ionic radii of Y³⁺ and Sc³⁺ [49] is expected to enhance the disorder of the lattice and, in turn, a large Stark splitting of Tm³⁺ levels should be measured. However, it has been extremely difficult to grow large, single crystals, due to a phase transition from hexagonal to cubic structure occurring at a temperature near to the melting point of yttrium oxide, above 2400 °C. However, thanks to the continued efforts of the scientific community, small matrices doped with Nd³⁺, Er³⁺, and Yb³⁺ have been grown and investigated. The first Nd³⁺:YScO₃ crystal with a cubic bixbyite-type structure was grown in 1976 [151]. An investigation of the excitation spectra and fluorescence dynamics of Er³⁺:YScO₃ single-crystal fiber grown via the laser-heated pedestal growth (LHPG) method was reported in 1991 [152]. The orthorhombic perovskite single-crystal Y_0.96ScO_2.94 grown from mixtures of sesquioxides with the flux reagents PbF₂ and PbO was spectroscopically investigated, and nuclear magnetic resonance of a sample doped with 1at.% Yb³⁺ was carried out [125]. X-ray diffraction analysis and micro-Raman characterization were carried out in a 0.1at.% Nd³⁺:YScO₃ crystal fiber grown via the LHPG method [153].

In 2013, for the first time, Yb³⁺-doped (Sc_xY_1−x)₂O₃ ceramics with x = 0.1 and 0.9, developed using high-purity nanopowders and pressureless sintering in a H₂ atmosphere, were fabricated [154,155]. The first laser oscillation was demonstrated only recently in 6at.% Yb-doped (Sc_xY_1−x)₂O₃ ceramics with different Y³⁺/Sc³⁺ balances (x = 0, 0.273, 0.508, and 0.742), fabricated via solid-state vacuum sintering of laser-ablated mixed-sesquioxide nanoparticles [112].

To the best of our knowledge, only one study focused on Tm³⁺:(Y_1−xSc_x)₂O₃ with 0 < x < 1 ceramic has been reported in the literature [53,156]. This study demonstrated the first laser action of a 5at.% Tm³⁺-doped (Sc_0.252Y_0.698)₂O₃ ceramic made via solid-state vacuum sintering of laser-ablated mixed-sesquioxide nanoparticles. Pumped at 793 nm in quasi-CW mode, this ceramic delivers 1.24 W with a slope efficiency of 9.45% at 2076 nm. Absorption spectra were acquired at several temperatures, from 93 K to 293 K: three broad bands located at 670–700 nm, 760–820 nm, and 1600–1700 nm were observed, associated with Tm³⁺ transitions from ³H₆. The variation of the temperature affects the absorption coefficients (α) in different ways. In the case of the main peaks (657, 685, 764, and 774 nm), the α-coefficient decreases when increasing the temperature; conversely, the peaks located at 697 nm as well as in the range of 779–840 nm show an enhancement of α. This can be attributed to the change in the thermal population distribution of the sublevels in the ³H₆ manifold. When increasing the temperature, the population in the upper sublevels increases, enhancing the absorption from the transitions starting from the upper sublevels, and the population in the lowest sublevel decreases, reducing the absorption coefficient of the transition starting from this sublevel. It is interesting to observe that when compared with Tm:Y₂O₃ the well-defined peak structure observable in the Tm:Y₂O₃ spectra is almost lost in the disordered sample—a clear signature of the disorder of the lattice. The individual sublevels of the ³H₆ ground manifold are inhomogeneously broadened by the variation in the Stark splitting occurring at different lattice sites due to the random partial substitution of Y³⁺ cations with smaller Sc³⁺ ions. In mixed (Sc_0.252Y_0.698)₂O₃ the main peaks are less intense and broader; moreover, they are shifted to shorter wavelengths. In particular, the absorption coefficient (α) at 685.3 nm decreases from α = 140.6 cm⁻¹ at 93 K to α = 81.9 cm⁻¹ at room temperature. In Tm:Y₂O₃, the measured values were α = 79.8 cm⁻¹ at 93 K and α = 66.1 cm⁻¹ at RT. Regarding the emission spectrum, (Sc_0.252Y_0.698)₂O₃ shows two peaks located at 1946 nm and 2098 nm. If compared with Tm:Y₂O₃ [53], it can be observed that the emission cross-section at 1946 nm decreases from σ_em = 10.4 × 10⁻²¹ cm² in Tm:Y₂O₃ to σ_em = 7.6 × 10⁻²¹ cm² in the disordered matrix (Sc_0.252Y_0.698)₂O₃. However, the peak at a longer wavelength is shifted from 2060 nm (Tm:Y₂O₃) to 2098 nm (Sc_0.252Y_0.698)₂O₃. The emission cross-section at 2060 nm in Tm:Y₂O₃ was σ_em = 5.1 × 10⁻²¹ cm², while σ_em = 3.9 × 10⁻²¹ cm² at 2098 nm was found in (Sc_0.252Y_0.698)₂O₃. The CW tuning range was investigated in a coupled cavity configuration with an external grating, with 600 lines/mm placed in the Littrow configuration—a continuous range of tunability from 1927.5 nm to 2108.5 nm, i.e., 181 nm was measured.

4. Discussion

The continuous improvement of ceramic fabrication techniques has made it possible to obtain samples with high optical quality as well as materials that are difficult to produce in crystalline form, such as lutetia, for laser applications. Thanks to these ceramics, various research groups have developed lasers with output powers of hundreds of watts and short pulses. Without any doubt, today, the laser performance achieved by transparent polycrystalline ceramics is almost comparable with the corresponding crystals. Ceramic matrices as YAG, LuAG, LuYAG, sesquioxides, etc., doped with Tm³⁺ ions, have been spectroscopically tested, and laser oscillations have been achieved in the so-called eye-safe region (above 1.4 µm).

In the last five years, alongside the interest in the most common matrices [157,158], the idea of manufacturing mixed matrices (see

Table 1. Spectroscopic data on the mixed ceramics reported in the literature; λ_abs and λ_em are the wavelengths at which the absorption and emission cross-sections were calculated, respectively.

Sample	Doping at.%	σabs (×10−21 cm−2)	λabs (nm)	σem (×10−21 cm−2)	λem (nm)	Grain Size (µm)	Lattice Const. (Å)	Ref.
LuScO3	2	3.5	793	-		1.65		[55]
(Lu2/3Sc1/3)2O3	4.76	2.8	793	7.15	1951	4–5	10.3683	[121]
(Lu2/3Sc1/3)2O3	4.76	4.2	1622	2.38	2090			[121]
Lu1.6Sc0.4O3	1.5	3.1	796	1.11	2090	1.54		[54]
Lu0.8Sc0.2O3	2	-		-		2.5		[122]
(Lu2/3Sc1/3)2O3	2.8	-		7.0	1950	-	-	[56]
LuYO3	3	3.8	796	6.0	1937	1.65	-	[51]
LuYO3	3	3.0	2055	-		1.65	-	[147]
LuScO3 crystal	1	2.6	793	8.0	1956	-	10.105	[143]
(Sc1/4Y3/4)2O3	5			3.9	2098	28.2	10.401	[53]

and

Table 2. CW and quasi-CW laser performance of the mixed ceramics reported in the literature; P_out: laser output power; λ_L: laser wavelength emission; η: slope efficiency; P_th: laser threshold.

Sample	Doping at.%	Pout (W)	λL (nm)	η (%)	Pth (W)	Ref.
LuScO3	2	0.211	1982	8.2	0.840	[55]
(Lu2/3Sc1/3)2O3	4.76	1	2100	24	0.860	[121]
Lu1.6Sc0.4O3	1	9.8	2090	40	2.8	[54]
Lu1.6Sc0.4O3	1.5	11	2090	39	5.0	[54]
Lu0.8Sc0.2O3	2	1.88	2090	24.6	3.2	[122]
(Lu2/3Sc1/3)2O3	2.8	0.490	2088	26.8	-	[56]
LuYO3	3	1.55	2050	19.9	1.1	[51]
LuYO3	3	1.20	2067	25.1	0.530	[147]
LuYO3	3	0.440	2074	-	0.140	[59]
YO3	3	0.603	2060	33.2	0.250	[52]
LuYO3	3	0.600	2076	11.5	0.250	[52]
(Sc1/4Y3/4)O3	5	1.24	2077	9.45	3.49	[53]
LuScO3 crystal	1	0.250	1982	55	0.038	[143]
LuScO3 crystal	1	0.705	2100	55	0.038	[143]

) doped with various rare-earth ions [159,160] has emerged because, due to their crystalline structure distorted by the replacement of some cations of the matrix with other rare-earth ions, they could pave the way for the development of lasers with pulses in the order of a few tens of femtoseconds. The first results published in the literature are encouraging, as 50 fs laser pulses have been demonstrated (see

Table 3. Data obtained in the pulsed regime of the mixed ceramics reported in the literature; λ_L: laser wavelength emission; P_out: laser output power; τ_L: pulse duration; f: repetition rate.

Sample	λL (nm)	Pout (mW)	τL (fs)	f (MHz)	Ref.
LuScO3	1975	32	590 ps	34.72	[55]
Lu2/3Sc1/3O3	2057	30	63	78.9	[54]
Lu2/3Sc1/3O3	2081	220	58	84.8	[56]
LuYO3	2048	51	54	78	[52]
LuYO3	2045	63	57	72.6	[59]
LuYO3	2061	121	410	139.3	[147]
LuYO3	2047	540	120.3 ns	26.31	[51]
LuScO3c	2093	113	170	115.2	[146]

). However, the knowledge we have on the spectroscopic behavior of this mixed matrix is limited to some hosts that have already been fabricated, and the physical and thermomechanical parameters are not yet known. Accordingly, a great effort will have to be made in terms of improving both the quality of the mixed matrices and the knowledge of the physical processes that determine the activation of some specific laser transitions. For instance, we believe that the development of lasers with visible emission operating at room temperature could be one of the most important goals.

The spectroscopic properties and laser behavior (i.e., laser emission wavelength, tuning range, and available pulse durations) of sesquioxide solid solutions are directly dependent on the composition of the mixed matrix, and the selection of a particular balance between cations should be based on the specific field in which the active medium and corresponding laser are planned to be applied. For instance, compared to (Lu_xY_1−x)₂O₃ materials, mixed compositions with Sc—such as (Lu_xSc_x)₂O₃ and (Y_xSc_x)₂O₃—possess broader absorption and emission spectra of Tm³⁺ ions, supporting an extended tuning range and shorter pulse durations at the expense of a somewhat lower thermal conductivity, due to the larger difference in ionic radii and mass between Lu³⁺ (Y³⁺) and Sc³⁺. For enhanced Tm³⁺-doping concentrations and high-average-power laser action, disordered ceramics and crystals based on Lu₂O₃ seem more preferable, owing to the small discrepancy between Lu³⁺ and Tm³⁺, inducing a minor level of disorder and better preserving the thermophysical characteristics.

Considering possible mass production of mixed-sesquioxide gain media, the cost of raw materials should be taken into account. High-purity Y₂O₃ micro- and nanopowders are currently available on the market at a reasonable cost, while proper lutetium and scandium sesquioxide powders are much harder to find, and they are several times more expensive than yttria. Even though the modern fabrication methods yield disordered ceramic matrices with lasing quality, considerable efforts will be required for obtaining large-sized and large-aperture active components, so as to give an impulse to further development of the advanced 2 μm solid-state lasers required in various fields of science and technology. In this regard, the approach suggested by Wu et al., consisting of gel-casting of well-dispersed nanopowders followed by HIP treatment [122] for the synthesis of 12 mm long 2at.% Tm:(Lu_0.8Sc_0.2)₂O₃ ceramic rods, with an attenuation coefficient of ~0.006 cm⁻¹ at 2090 nm, is a major step towards large, high-optical-quality samples.

Tm³⁺-doped mixed-sesquioxide materials could be elaborated in the direction of additional broadening of gain profiles by the utilization of Ho³⁺ as a co-dopant. The point is that the gain profiles of Tm³⁺ and Ho³⁺ in co-doped hosts have overlapping regions, and it is possible to combine stimulated emissions of both active ions for ultrashort-pulse lasing. For instance, Wang et al. [44] demonstrated 46 fs pulses at 2033 nm from an SESAM mode-locked Tm,Ho:Ca(Gd,Lu)AlO₄ laser, which is the shortest duration ever obtained in a Tm- and/or Ho-based gain medium. The aspect of optimal ratio between Tm and Ho ions in sesquioxides—and especially in mixed sesquioxides—needs detailed investigation.

5. Conclusions

In this paper, we report a summary of fabrication techniques, spectroscopy, and laser performance of trivalent thulium-doped mixed-sesquioxide ceramics, i.e., (Lu,Sc,Y)₂O₃. In particular, a careful description of the properties and mechanisms of the thulium laser transition emission at around 1.5, 1.9, and 2.3 µm is given. The results obtained with Tm³⁺-doped ceramic hosts were compared to performance achieved with the corresponding crystals in all pumping regimes. The emission wavelengths ranging from 1.5 µm up to 2.3 µm make the trivalent thulium ions very useful, as Tm³⁺ can be used in a consistent number of applications, from medicine to LIDAR (light detection and ranging) tests. Although important milestones have already been achieved by thulium-based lasers, their features are still unexplored in fields such as, for instance, laser inertial fusion energy.
