pH-Sensitive Silver-Containing Carbon Dots Based on Folic Acid

Department of Chemistry, Renmin University of China, Beijing 100872, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(5), 1880; https://doi.org/10.3390/ma15051880
Received: 18 January 2022 / Revised: 15 February 2022 / Accepted: 25 February 2022 / Published: 3 March 2022

Abstract

:
Herein, Ag-containing carbon dots (Ag-CDs) was synthesized based on folic acid. In a neutral solution, its fluorescence emission owns a structure fixing fluorescent species with the emission maximum at 400 nm and an excitation-wavelength dependent fluorescent species, respectively. By comparing fluorescent emission and excitation spectra, the electronic absorption origins of these fluorescent species were assigned. With the assistance of UV–Vis absorption and XPS, the pH-regulating fluorescence mechanism of Ag-CDs was studied and proposed. A particularly strong fluorescence emitter was observed at pH ~12 with a mixing coordination structure as Ag(CDs-NH2)OH. The as-prepared Ag-CDs might be developed into a fluorescent sensor, especially at extremely basic conditions.

1. Introduction

Carbon dots (CDs), a kind of fluorescent carbon-based materials, have attracted great attention recently for a wide variety of chemical and biological applications, such as biosensing, bioimaging, drug delivery, photodynamic therapy, photocatalysis and electrocatalysis, due to their good fluorescence quantum yield, excellent solubility, high biocompatibility, nontoxicity, and good photochemical stability [1,2,3,4]. Generally, almost all CDs show excitation-dependent fluorescence [5]. Among many proposed origins of the excitation-dependent fluorescence, the surface functional group of CDs draws the most attention. Nie et al. suggested that the surface functional groups of CDs, such as C=O and C=N, can efficiently introduce new energy levels for electron transitions and contribute to the main origin of excitation-dependent fluorescence [6]. Wen et al. proposed that the excitation-wavelength-dependent fluorescence arises from the abundant carboxyl functional groups on the surface [7]. Wang et al. found that no matter what kind of method is used to fabricate CDs, all their fluorescence originates from special edge states consisting of several carbon atoms on the edge of the carbon backbone and surface carbonyl or carboxyl groups as well [8]. Lei et al. demonstrated that the functional groups with different degrees of oxidation on the surface of CDs lead to the variation in emission wavelength by changing the energy band gap of CDs [9]. Sharma et al. proposed that surface functional groups determining aggregation are the origin of discrete multiple electronic states for the excitation-dependent emission in carbon nanodots [10]. In addition to the excitation-dependent fluorescence, CDs sometimes have another shorter wavelength emissive component without excitation-dependent behavior. This excitation-independent shorter wavelength emission is found to depend on the states of surface amino-groups, while the excitation-dependent longer wavelength emission is due to the presence of carboxyl or hydroxyl groups [5,11]. The roles of N-doping in forming the emission states of CDs were reviewed by Wang et al. [2]. In this review, either N-doping directly into the carbon skeleton, or Mg/N, P/N, and S/N co-doping were demonstrated to be good strategies to bring more excellent properties to the resulting CDs. Some other researches showed that N-doping CDs could be developed into a potential fluorescent probe for detecting environmental Hg2+ ions [12] or pathogenic bacteria at an acidic pH [13]. Recently, Khan et al. reported N-doping green-emissive CDs synthesized via a solid-state reaction method with good thermal stability and much better quantum yield in ethanol than in water [14].
The fluorescence of CDs is usually found to be pH-dependent, which is attributed to the reversible protonation and deprotonation of functional groups on the surface of CDs [15,16,17,18,19] and the aggregation of CDs [17,20,21]. Among these, N-doping also plays a very important role. For example, CDs prepared by Maillard reaction with L-tryptophan as N resources own excellent photoluminescence stability and stable pH-dependence and could be used to selectively detect Cr (VI) in tap water [22]. Jute-derived fluorescent surface-quaternized CDs were developed as fluorescent nanobuttons to detect aqueous chromium (VI) and a pH-responsive drug release carrier [23]. CDs with polyethyleneimine (PEI) as a surface passivation agent exhibits pH-responsive optical properties [24].
In addition, the environmental metal ions affect the fluorescence of CDs too, and this has been used to develop a CDs-based metal ion sensor. Among the metal elements studied, Ag+ was found to significantly enhance the fluorescence of CDs by chelating Ag+ with surface functional groups [25,26,27]. Therefore, directly doping Ag+ into CDs during preparation is a promising way to develop Ag-containing CDs (Ag-CDs) [28,29,30].
The doped Ag+ may occupy part of the surface functional groups of CDs, which generally are also sensitive to the environmental pH values. However, the pH effect on the fluorescence behavior of Ag-CDs has not been studied yet. In this study, a hydrothermal method was applied to synthetize Ag-containing carbon dots (Ag-CDs) by using folic acid (FA) as a carbon source and sliver nitrate as a silver source. The compositional and structural characterizations by Fourier transform infrared absorption spectroscopy (FT-IR) and X-ray photoelectron spectroscopy (XPS) confirmed the primary amine and carboxyl groups co-existing on the surface of prepared Ag-CDs. By comparing their UV–Vis absorption, fluorescence emission and excitation spectra, the electronic absorption origins of the two fluorescent species observed in neutral solution were assigned. With the assistance of UV–Vis absorption and XPS, the pH effect on the fluorescence of Ag-CDs was studied. A very strong fluorescence species observed at pH ~12 was deduced to be with mixing coordination structure as Ag(CDs-NH2)OH. Finally, the pH-regulating fluorescence mechanism of Ag-CDs was proposed. It is worth noting that two of the three fluorescent species are Ag-containing.
In this research, Ag-containing CDs based on folic acid were prepared, and a more detailed mechanism of its pH-regulating fluorescence was studied and proposed. This contribution might be developed into a fluorescent sensor, especially in extremely basic conditions.

2. Experimental Section

2.1. Reagents and Apparatus

All the needed reagents and apparatus in the studies were shown in Supplementary Materials.

2.2. Preparation of Ag-Containing Carbon Dots (Ag-CDs)

Ag-doped carbon dots (Ag-CDs) were prepared by the one-step hydrothermal method. Firstly, 0.1 g of folic acid (FA) and 0.2 g of AgNO3 were dissolved in 30 mL of ultra-pure water. Then, the solutions were transferred into an autoclave (50 mL) and heated at 200 ℃ for 12 h. The resulting suspensions were centrifuged at 15000 rpm for 10 minutes, filtered by micro-filtration membranes (ϕ = 0.22 μm) three times, and then dialyzed (MWCO 1000 Da) for one day. The purified Ag-CDs were obtained and stored.

2.3. Effect of pH on the Fluorescence of Ag-CDs

To investigate the effect of pH on the fluorescence properties of Ag-CDs, concentrated NaOH and H2SO4 aqueous solutions were used to adjust the pH values of Ag-CDs solution as 0.74, 1.32, 2.25, 3.09, 4.06, 5.06, 5.89, 6.37, 7.00, 8.19, 9.04, 9.99, 11.10, 12.15, 12.97, and 13.50, respectively. The pH value was measured with a digital pH meter (PHS-3C, YOKE INSTRUMENT, Shanghai, China). The reversibility of the effect of pH on the fluorescence of Ag-CDs was investigated by changing the pH values between pH = 12.15 and pH = 2.25 by repeatedly adding concentrated NaOH or H2SO4. The fluorescence emission spectra were recorded by the fluorescence spectrophotometer (HITACHI F-4600, HITACHI, Tokyo, Japan).

2.4. pH Fluorescent Test Paper

In order to evaluate the practical application ability of Ag-CDs as a pH fluorescent probe, the filter paper was soaked in Ag-CDs solutions for 1 minute and then dried at 90 °C for 2 h to obtain the pH fluorescent test paper. To determine the feasibility of the test paper in various water samples, tap water and ultrapure water were chosen for comparison. Three pH values were selected for the tests, i.e., 11.15, 12.20 and 13.02. The prepared test papers were soaked in various water samples for 2 s and were taken out immediately. After staying in the air for 10 min, the fluorescent photographs were taken under UV light.

3. Results and discussion

3.1. Morphology and Composition of Ag-CDs

To study the morphology of Ag-CDs prepared in this research, a TEM image was measured, as shown in Figure 1a. The TEM image (Figure 1a) of Ag-CDs shows that the prepared Ag-CDs own good dispersity and the particle size had an average diameter of 3.23 ± 1 nm (insert (I) in Figure 1a). In addition, the lattice spacing of crystallized Ag-CDs was determined as 0.21 nm corresponding to the (110) diffraction plane of graphitic carbon (JCPDS cards 26-1076), as shown as insert (II-1) in Figure 1a [31].
To obtain the functional group information, the FT-IR spectrum of Ag-CDs was measured and is presented in Figure 1b. The moderate and broad bands peaked at 3186 and 2834 cm−1 were assigned as the stretching modes of O-H in the carboxyl group and C-H on sp3 carbons, respectively, and the broadening and down-shifting of the former peak were due to the hydrogen bonds in existing intra- or inter-particles [32,33]. The strong band peak at 1682 cm−1 was attributed to the stretching mode of the C=O group in the carboxyl group [34]. The peaks at 1574 and 1516 cm−1 were assigned as the C=C stretching modes of the graphitic backbone of Ag-CDs [35]. The peaks at 1337 cm−1 could be ascribed to the stretching modes of C-N, which originated from the primary and secondary amine groups attached to the graphitic backbone [36]. The peaks at 1184, 1095, and 1041 cm−1 are assigned as the stretching modes of C-O [6,17,35].
The elemental composition of Ag-CDs was determined by XPS (the full XPS spectrum of Ag-CDs is shown in Figure S1 in the Supplementary Materials), and the results for C1s, Ag3d, N1s, and O1s are shown in Figure 1c–f, respectively. In C1s’ XPS spectrum (Figure 1c), three peaks at 284.8, 286.2, and 288.4 eV were assigned as the carbon atoms in C-C, C-O, and O-C=O groups, respectively [12,33,37,38,39]. In the Ag3d spectrum (Figure 1d), the peaks at 367.7 and 373.78 eV were attributed to Ag3d5/2 and Ag3d3/2, respectively, which indicated the presence of Ag+ [26,40]. In N1s’ spectrum (Figure 1e), the peak at 400.0 was assigned as the N atoms in -NH-/-NH2 groups [32,38]. In O1s’ spectrum (Figure 1f), the peaks at 531.7 and 532.6 eV were attributed to the carbon atoms in C=O and C-O groups, respectively [33]. In combination with all the results of FT-IR and XPS, primary and secondary amino (-NH2/-NH-), carboxylic (-COOH), and hydroxyl (-OH) groups were determined to attach to the graphitic carbon backbone of Ag-CDs prepared in this research.

3.2. Assignment of the Electronic Absorption Origins of the Fluorescent Species of Ag-CDs in Neutral Solution

Figure 2a shows the absorption spectrum of Ag-CDs in a neutralized aqueous solution. A moderate absorption band range in wavelengths from 275 to 350 nm and a weaker shoulder range from 350 to 500 nm were observed. The normalized fluorescence emission spectra of Ag-CDs under excitation at various wavelengths (λEX) are shown in Figure 2b. Upon excitation at wavelengths of 270–330 nm (thinner black line in Figure 2b), the spectrum seems almost the same as the single band peaked at ~400 nm, indicating that a structure-fixing luminescent species exists in this spectral region. When λEX is ≥ 350 nm and moves toward red, the emission spectra show characteristic excitation-wavelength-dependent spectral behavior, i.e., moving towards red too. This typical fluorescent species observed in many carbon dots was mainly attributed to the excitation-wavelength selecting size dependence of emissive traps on the surface of CDs [41,42]. Notably, upon excitation at ~350 nm, the emission spectrum shows dual-emission characteristics. Such spectral pattern was used as a standard region for pH effect study in the following.
The electronic absorption origins of fluorescent emission of Ag-CDs were studied by fluorescent excitation spectra. The normalized spectra (Figure 2c) were categorized into two groups based on fluorescent probing wavelengths (λpr). For the first group, i.e., λpr in 350–400 nm, the normalized excitation spectra have two bands. The one in the shorter wavelength range (250–330 nm) that peaked at 294 nm has almost the same spectral pattern on the blue edges, which mainly corresponds to the structure-fixing fluorescent species and is further ascertained as in 270–330 nm, as shown in Figure 2b. Another one is just constantly red-shifting and intensity-enhancing upon λpr red-shifting. For the second group, i.e., λpr in 460–550 nm, the normalized fluorescence excitation spectra have almost the same spectral pattern in the blue region (250–330 nm) and varied ones in the red region (330–500 nm), especially the red-edges, which gradually shift toward longer wavelengths. This fluorescence species and the second one in the first group were assigned together, similar to the typical excitation-wavelength-dependent luminescent species aforementioned.
To summarize, two fluorescent species were determined to exist in Ag-CDs in neutral solution. One has a fixed electronic structure with absorption in 250-330 nm, and the other is an excitation-wavelength-dependent species with absorption in 250-500 nm.

3.3. pH-Regulating Fluorescent Variation in Ag-CDs

The pH effect on fluorescent properties of Ag-CDs was studied by measuring their UV–Vis absorption and fluorescence emission spectra at various pH values in a range of 0.74–13.50. The results are summarized in Figure 3. Under daylight (Figure 3a-I), the aqueous solutions of Ag-CDs are almost colorless at pH < 12.15 but gradually become yellowish when pH ≥ 12.15. Correspondingly, under UV light 365 nm (Figure 3a-II), all solutions exhibit blue fluorescence. At extremely acidic and alkaline conditions, i.e., pH < 2.25 and >12.15, the fluorescent emission becomes obviously weaker, while at pH 12.15, the utmost bright fluorescence is observed, and at all the other pH values, the fluorescent emission seems the same as each other.
The fluorescence spectra of Ag-CDs under λEX 360 nm at various pH values were shown in Figure 3b, which were consistent with the luminescent photos in Figure 3a-II. At extremely acidic conditions (pH < 2.25), the spectra show a single-peak band with the emission maximum (λmax) at 400 nm; at pH in 2.25–11.10, the fluorescent spectra show uniform dual-emission characteristics with peaks at 400 and 450 nm, respectively; at pH ≥ 12.15, the fluorescent spectra have a single-peak band with λmax at 460 nm, and the fluorescent intensity significantly enhances at pH 12.15 and decreases quickly upon the pH value increasing further. It is worth pointing out that the fluorescent emission at 450 nm observed in pH 2.25–11.10 has a different origin from the emission at 460 nm observed in pH ≥ 12.15. A more detailed discussion is in Section 3.4.
Fluorescent intensities, probed, respectively, at 400 and 450 nm were depicted in Figure 3c versus the variation of pH values. Apparently, the 450 nm is a more sensitive probing wavelength for studying pH-effect on fluorescence. Along with the pH change from 0.74 to 13.50, three stages were clearly seen, i.e., pH at 0.74–2.25, 2.25–11.10, and 12.15–13.50, respectively. The fluorescent intensity correspondingly undergoes the following changes, i.e., gradually increasing, keeping constant, and significantly enhancing and dropping down soon.
The absorption spectra of Ag-CDs at various pH were shown as in Figure 3d. At a pH between 0.74 and 11.10, the spectra seem unchanged. At three extremely alkaline conditions, a different spectral pattern was observed. The obvious collapse of the 300–350 nm peak and the significant increase in the 350–500 nm shoulder (Figure 3d) indicate that a structural change happens particularly upon the pH changing from 11 to 12.

3.4. Structural Mechanism of pH-Regulating Fluorescence of Ag-CDs

The results of FT-IR and XPS (Section 3.1.) indicate that primary amine (-NH2), -COOH, -OH, and Ag+ coexist in the Ag-CDs prepared in this research. By spectral analysis in a neutral solution, as mentioned in Section 3.2., two fluorescent species were deduced to coexist in a neutral solution of Ag-CDs. One has a fixed structure with electronic absorption in the range of 250-330 nm, and the other has wavelength-dependent fluorescent emission properties with absorption in the range of 250–500 nm. The further pH-regulating fluorescence study (Section 3.3.) proves that the extremely acidic and alkaline conditions will cause structural changes, which either quench the fluorescence species of 450 nm or generate a new fluorescence species emitting at 460 nm. Combining all the aforementioned results, we proposed a pH-regulating and Ag+-containing fluorescent mechanism, as shown in Scheme 1.
At a pH in 2.20–11.15, two fluorescent species coexist in Ag-CDs, i.e., the one free of Ag+ with characteristic fluorescence at 400 nm and the other with the Ag+(-NH2)2 group and characteristic fluorescence at 450 nm, which were named FL-1 and FL-2, respectively. These two fluorescent species contribute to the typical dual-emission spectra measured in a neutral solution. When the pH is at an extremely acidic condition, i.e., pH ≤ 1.32, the amino group of FL-2 is thoroughly protonated, and the originally coordinated Ag+ might be dissolved in the extremely acidic solution. This causes the fluorescence emission to stop at 450 nm (seeing Figure 3b,c). When the pH is at 12.15, the concentrated OH may compete with –NH2 in coordinating with Ag+ to form a new intermediate, as proposed in Scheme 1 as FL-3. The significantly enhancing fluorescence intensity and characteristic emission at 460 nm differentiate FL-3 from FL-2. Furthermore, at this pH value, the fluorescence of FL-1 and its corresponding absorption vanish together, indicating that an extremely alkaline condition causes the structural change and the consequential fluorescence quenching of FL-1. When the pH increases further, the fluorescence intensity of Ag-CDs drops quickly, but the spectral pattern remains unchanged because a more alkaline condition will cause the formed AgOH to quickly transform into Ag2O irreversibly, which is supported by the yellowish color of solutions at extremely alkaline conditions seen under daylight (Figure 3a).
High-resolution X-ray photoelectron spectroscopy (XPS) of Ag3d and N1s at various pH values (Figure 4) were used to support the proposed mechanisms above.
As shown in Figure 4a, at a pH of 1.32, no Ag+ signal was observed. This could be explained by the thorough protonation of the amino group by the extremely acidic conditions (as shown as FL-1 in Scheme 1), which causes Ag+ to dissolve into the solutions. Upon the pH increasing, the gradual deprotonation of –NH3+ results in the formation of Ag(-NH2)2+ again, while FL-1 and FL-2 coexist and generate a dual-emission spectral at pH 2.25–11.10. At a pH of 2.25, which is the ending point of the transition stage from aqueous Ag+ to Ag(-NH2)2+, the Ag+(-NH2)(H2O) might exist too. Since the filling capability of a lone pair from an oxygen atom of H2O is apparently weaker than that from a nitrogen atom of –NH2 groups, there might be smaller electron binding energy (BE) of Ag3d at pH 2.25 (the red line in Figure 4a) than that at neutral pH (the blue line in Figure 4a). When pH arrives at 12.15, a new intermediate state forms as proposed as FL-3 in Scheme 1. Higher BE of Ag3d is observed (purple line in Figure 4a). This could be explained by one coordination bond between Ag+ and -NH2 being replaced by a covalent bond Ag-O. When basicity increases further, AgOH may transform into Ag2O irreversibly, which decreases the fluorescence intensity of FL-3 and exhibits a yellowish color correspondingly (seeing the photographs at daylight at pH ≥ 12.15 in Figure 3a-I). Reasonably, the XPS signal of Ag3d disappears again at pH 12.97 since most of the coordinated Ag+ has transformed into Ag2O. The XPS of N1s of Ag-CDs at the same pH values is shown in Figure 4b. At a pH of 1.72, the amino group mainly exists in –NH3+ form, and the positive charge causes the BE of N1s to be the highest one (black line in Figure 4b). When the pH is at 2.25 (red line in Figure 4b), the transition from –NH3+ to coordination with Ag+ results in a free –NH2-like state. This is very close to the extremely alkaline state (pH 12.97, brown line in Figure 4b) since all the -NH2 becomes free again due to the almost-complete precipitation of Ag2O. When the pH is neutral or at 11.10 (blue and green lines in Figure 4b), the coordination state as Ag(-NH2)2 has middle BE values between free -NH2 and –NH3+ states since the positive charge of Ag+ has a weaker binding capability to electrons than that of H+ but a larger one than a free –NH2 state. When the pH is at 12.15, the amine group is at the transition state of Ag(-NH2)OH, and the electron donation effect of a negative charge of OH weakens the bound capability of Ag+ to electron compared with that at Ag(-NH2)2 state. That is why the BE value at pH 12.15 (purple lines in Figure 4b) is smaller than that at a neutral state.

3.5. Fluorescent Reversibility Ag-CDs upon the Variation in pH

The very bright fluorescence emission of Ag-CDs at pH 12.15 and the sensitive pH effect on fluorescence probed at 450 nm, as shown above, drove us to explore the potential of Ag-CDs used as a fluorescent probe at extremely alkaline pH values. Figure 5 presents the repeatability and reversibility test of fluorescent intensity changing between pH 2.25 and 12.15. The as-prepared Ag-CDs are subjected to pH cycling between pH = 12.15 and pH = 2.25 using NaOH and H2SO4 solutions repeatedly. As shown in Figure 5, the fluorescence intensities decrease significantly upon a pH change from 12.15 to 2.25. Afterwards, the FL intensity was restored nearly as before when the pH was changed back from 2.25 to 12.15. The luminescence switching operation could be repeated for four consecutive cycles without fatigue, indicating the good reversibility of the pH fluorescent sensor based on Ag-CDs. The photo-stability of Ag-CDs was evaluated by continuously measuring the fluorescence intensity probed at 400 and 450 nm, respectively, under excitation at 360 nm. The results are shown in Figure S2 in Supplementary Materials, which indicated that Ag-CDs prepared in this research have good photo-stability [16,29].
This result implies that Ag-CDs in this research have good reversibility upon variation in pH values, which facilitates it to be developed as a fluorescent sensor practically at a very broad pH range.

3.6. pH Fluorescent Test Paper

As displayed in Figure 6a, the filter paper was soaked in Ag-CDs solutions and dried to obtain the pH fluorescent test paper, and the fluorescent photograph was taken upon excitation at 365 nm. The prepared pH fluorescent test papers were then soaked in water samples, including blank and the ultrapure water samples at various pH values (11.15, 12.20, and 13.02), and were taken out immediately. The photographs were taken under excitation at 365 nm. From Figure 6b(a-3), compared with other test papers, the pH fluorescent test paper soaked in ultrapure water at pH = 12.20 showed the brightest fluorescence, indicating that the pH fluorescent test paper could be a sensitive pH-sensing device under strongly alkaline conditions. After 10 min under daylight, the pH fluorescent test paper was measured again, and the results shown in Figure 6b(a-4) indicated very good photo-stability of the prepared fluorescent sensor based on Ag-CDs. In addition, the pH fluorescent test paper was evaluated in a real sample, i.e., tap water, too. As shown in Figure 6b(b-3), the results for sensing pH variation in tap water were consistent with those in ultrapure water. This result proves that the pH fluorescent test paper based on Ag-CDs prepared here could be developed into a pH sensor with practical applications under strongly alkaline conditions.

4. Conclusions

The Ag+-doped CDs were synthesized through the hydrothermal method in this work. The structural mechanism has been studied through various spectroscopic methods under a broad range of pH values. The primary amine, carboxyl groups, and Ag+ were determined to coexist in the as-prepared Ag-CDs by FT-IR and XPS. The electronic absorption origins of the two fluorescent species in the neutral solution have been assigned through a comparison between fluorescent emission and excitation spectra. With the assistance of XPS at various pH values, the pH-regulating fluorescence mechanism was proposed. The most interesting finding is a very bright fluorescent species observed at pH 12.15, and the further fluorescent reversibility test upon pH variation and the pH fluorescent test paper prove that the Ag-CDs prepared in this study might be developed into a fluorescent sensor, especially at extremely basic conditions. This work also paves the road for developing a similar pH-regulated metal ion-doped CDs-based fluorescent sensor.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15051880/s1, Figure S1. XPS spectrum of Ag-CDs. Figure S2. The photo-stability test. The fluorescence intensities of Ag-CDs were continuously measured for 180 s at 400 and 450 nm under excitation at 360 nm. Figure S3. (a) Photographs of Ag-CDs at different pH (10.20–13.95) under daylight (I) and UV light (II, excited at 365 nm). (b) The fluorescence spectrum of Ag-CDs at different pH, λex = 360 nm, respectively. (c) The fluorescence intensities at 400 and 450 nm of Ag-CDs at different pH, λex = 360 nm, respectively; Figure S4. The fluorescence lifetime of Ag-CDs; Figure S5. (a) Photographs of Ag-CDs containing metal ions (Ba2+, Ca2+, Co2+, Cr3+, Cu2+, Fe2+, K+, Mg2+, Mn2+, Na+, Ni2+, Pb2+ and Zn2+, 1 mM) under daylight (up) and UV light (down, excited at 365 nm). Fluorescence emission spectra (b) and normalized fluorescence intensities (c) of Ag-CDs containing metal ions (Ba2+, Ca2+, Co2+, Cr3+, Cu2+, Fe2+, K+, Mg2+, Mn2+, Na+, Ni2+, Pb2+ and Zn2+, 1 mM), λex = 360 nm; Figure S6. High-resolution XPS spectra of Ag3d of Ag-CDs at pH 1.32 (a), 2.25 (b), Ag-CDs (c), 11.10 (d), 12.15 (e), 12.97 (f), respectively; Figure S7. High-resolution XPS spectra of N1s of Ag-CDs at pH 1.32 (a), 2.25 (b), Ag-CDs (c), 11.10 (d), 12.15 (e), 12.97 (f), respectively; Table S1 [6,22,24,43,44,45,46,47,48]. Comparisons of pH sensing range of various fluorescent probes based on carbon dots.

Author Contributions

Data curation, Q.X. and K.L.; Formal analysis, Q.X. and P.W.; Methodology, Q.X. and P.W.; Validation, Q.X. and P.W.; Writing—original draft, Q.X. and K.L.; Writing—review and editing, P.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been supported by the National Natural Science Foundation of China Nos. 21673289, 22073113.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data will be made available on request.

Acknowledgments

This work has been supported by the National Natural Science Foundation of China Nos. 21673289, 22073113.

Conflicts of Interest

The authors declare that there are no conflict of interest.

References

  1. Lim, S.-Y.; Shen, W.; Gao, Z.-Q. Carbon quantum dots and their applications. Chem. Soc. Rev. 2015, 44, 362–381. [Google Scholar] [CrossRef]
  2. Wang, Y.; Hu, A. Carbon quantum dots: Synthesis, properties and applications. J. Mater. Chem. C 2014, 2, 6921–6939. [Google Scholar] [CrossRef][Green Version]
  3. Mansuriya, B.D.; Altintas, Z. Carbon Dots: Classification, Properties, Synthesis, Characterization, and Applications in Health Care—An Updated Review (2018–2021). Nanomaterials 2021, 11, 2525. [Google Scholar] [CrossRef] [PubMed]
  4. Jorns, M.; Pappas, D. A Review of Fluorescent Carbon Dots, Their Synthesis, Physical and Chemical Characteristics, and Applications. Nanomaterials 2021, 11, 1448. [Google Scholar] [CrossRef] [PubMed]
  5. Khan, S.; Gupta, A.; Verma, N.C.; Nandi, C.K. Time-Resolved Emission Reveals Ensemble of Emissive States as the Origin of Multicolor Fluorescence in Carbon Dots. Nano Lett. 2015, 15, 8300–8305. [Google Scholar] [CrossRef] [PubMed]
  6. Nie, H.; Li, M.; Li, Q.; Liang, S.; Tan, Y.; Sheng, L.; Shi, W.; Zhang, S.X.-A. Carbon Dots with Continuously Tunable Full-Color Emission and Their Application in Ratiometric pH Sensing. Chem. Mater. 2014, 26, 3104–3112. [Google Scholar] [CrossRef]
  7. Wen, X.; Yu, P.; Toh, Y.-R.; Hao, X.; Tang, J. Intrinsic and Extrinsic Fluorescence in Carbon Nanodots: Ultrafast Time-Resolved Fluorescence and Carrier Dynamics. Adv. Opt. Mater. 2013, 1, 173–178. [Google Scholar] [CrossRef]
  8. Wang, L.; Zhu, S.; Wang, H.-Y.; Qu, S.-N.; Zhang, Y.-L.; Zhang, J.; Chen, Q.-D.; Xu, H.-L.; Han, W.; Yang, B.; et al. Common Origin of Green Luminescence in Carbon Nanodots and Graphene Quantum Dots. ACS Nano 2014, 8, 2541–2547. [Google Scholar] [CrossRef] [PubMed]
  9. Lei, C.-W.; Hsieh, M.-L.; Liu, W.-R. A facile approach to synthesize carbon quantum dots with pH-dependent properties. Dyes Pigments 2019, 169, 73–80. [Google Scholar] [CrossRef]
  10. Sharma, A.; Gupta, T.G.A.; Ballal, A.; Ghosh, S.K.; Kumbhakar, M. Origin of Excitation Dependent Fluorescence in Carbon Nanodots. J. Phys. Chem. Lett. 2016, 7, 3695–3702. [Google Scholar] [CrossRef]
  11. Li, X.; Zhang, S.; Kulinich, S.; Liu, Y.; Zeng, H. Engineering surface states of carbon dots to achieve controllable luminescence for solid-luminescent composites and sensitive Be2+ detection. Sci. Rep. 2014, 4, 4976. [Google Scholar] [CrossRef]
  12. Zhang, R.; Chen, W. Nitrogen-doped carbon quantum dots: Facile synthesis and application as a “turn-off” fluorescent probe for detection of Hg2+ ions. Biosens. Bioelectron. 2014, 55, 83–90. [Google Scholar] [CrossRef]
  13. Pathak, A.; Venugopal, P.; Nair, B.G.; Suneesh, P.V.; Babu, S.T.G. Facile pH-sensitive optical detection of pathogenic bacteria and cell imaging using multi-emissive nitrogen-doped carbon dots. Microchem. J. 2020, 159, 105324. [Google Scholar] [CrossRef]
  14. Khan, W.U.; Wang, D.; Wang, Y. Highly Green Emissive Nitrogen-Doped Carbon Dots with Excellent Thermal Stability for Bioimaging and Solid-State LED. Inorg. Chem. 2018, 57, 15229–15239. [Google Scholar] [CrossRef]
  15. Barati, A.; Shamsipur, M.; Abdollahi, H. Carbon dots with strong excitation-dependent fluorescence changes towards pH. Application as nanosensors for a broad range of pH. Anal. Chim. Acta 2016, 931, 25–33. [Google Scholar] [CrossRef]
  16. Mondal, T.K.; Saha, S.K. Facile Approach To Synthesize Nitrogen- and Oxygen-Rich Carbon Quantum Dots for pH Sensor, Fluorescent Indicator, and Invisible Ink Applications. ACS Sustain. Chem. Eng. 2019, 7, 19669–19678. [Google Scholar] [CrossRef]
  17. Zhang, X.-Q.; Chen, C.-Y.; Peng, D.-P.; Zhou, Y.-Z.; Zhuang, J.-L.; Zhang, X.-J.; Lei, B.-F.; Liu, Y.-L.; Hu, C.-F. pH-Responsive carbon dots with red emission for real-time and visual detection of amines. J. Mater. Chem. C 2020, 8, 11563–11571. [Google Scholar] [CrossRef]
  18. Sun, X.-F.; Chen, M.-J.; Zhang, Y.-Q.; Yin, Y.-J.; Zhang, L.-W.; Li, H.-G.; Hao, J.-C. Photoluminescent and pH-Responsive Su-pramolecular Structures from Co-assembly of Carbon Quantum Dots and Zwitterionic Surfactant Micelles. J. Mater. Chem. B 2018, 6, 7021–7032. [Google Scholar] [CrossRef] [PubMed]
  19. Hao, Y.; Gan, Z.; Zhu, X.; Li, T.; Wu, X.; Chu, P.K. Emission from Trions in Carbon Quantum Dots. J. Phys. Chem. C 2015, 119, 2956–2962. [Google Scholar] [CrossRef]
  20. Chauhan, P.; Mundekkad, D.; Mukherjee, A.; Chaudhary, S.; Umar, A.; Baskoutas, S. Coconut Carbon Dots: Progressive Large-Scale Synthesis, Detailed Biological Activities and Smart Sensing Aptitudes towards Tyrosine. Nanomaterials 2022, 12, 162. [Google Scholar] [CrossRef] [PubMed]
  21. Kalaiyarasan, G.; Joseph, J. Determination of vitamin B12 via pH-dependent quenching of the fluorescence of nitrogen doped carbon quantum dots. Microchim. Acta 2017, 184, 3883–3891. [Google Scholar] [CrossRef]
  22. Ma, Z.; Ma, Y.; Gu, M.; Huo, X.; Ma, S.; Lu, Y.; Ning, Y.; Zhang, X.; Tian, B.; Feng, Z. Carbon Dots Derived from the Maillard Reaction for pH Sensors and Cr (VI) Detection. Nanomaterials 2020, 10, 1924. [Google Scholar] [CrossRef]
  23. Das, P.; Maruthapandi, M.; Saravanan, A.; Natan, M.; Jacobi, G.; Banin, E.; Gedanken, A. Carbon Dots for Heavy-Metal Sens-ing, pH-Sensitive Cargo Delivery, and Antibacterial Applications. ACS Appl. Nano Mater. 2020, 3, 11777–11790. [Google Scholar] [CrossRef]
  24. Wang, C.; Xu, Z.; Zhang, C. Polyethyleneimine-Functionalized Fluorescent Carbon Dots: Water Stability, pH Sensing, and Cellular Imaging. ChemNanoMat 2015, 1, 122–127. [Google Scholar] [CrossRef]
  25. Qian, Z.; Ma, J.; Shan, X.; Feng, H.; Shao, L.; Chen, J. Highly Luminescent N-Doped Carbon Quantum Dots as an Effective Multifunctional Fluorescence Sensing Platform. Chem. A Eur. J. 2014, 20, 2254–2263. [Google Scholar] [CrossRef]
  26. Gao, X.-H.; Lu, Y.-Z.; Zhang, R.-Z.; He, S.-J.; Ju, J.; Liu, M.-M.; Li, L.; Chen, W. One-pot synthesis of carbon nanodots for fluo-rescence turn-on detection of Ag+ based on the Ag+-induced enhancement of fluorescence. J. Mater. Chem. C 2015, 3, 2302–2309. [Google Scholar] [CrossRef]
  27. Li, C.; Zhang, X.; Zhang, W.; Qin, X.; Zhu, C. Carbon quantum dots derived from pure solvent tetrahydrofuran as a fluorescent probe to detect pH and silver ion. J. Photochem. Photobiol. A Chem. 2019, 382, 111981. [Google Scholar] [CrossRef]
  28. Zhuo, S.J.; Fang, J.; Wang, J.; Zhu, C.-Q. One-step hydrothermal synthesis of silver-doped carbon quantum dots for highly selective detection of uric acid. Methods Appl. Fluoresc. 2020, 8, 015005. [Google Scholar] [CrossRef] [PubMed]
  29. Shekarbeygi, Z.; Karami, C.; Esmaeili, E.; Moradi, S.; Shahlaei, M. Development of Ag nanoparticle-carbon quan-tum dot nanocomplex as fluorescence sensor for determination of gemcitabine. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2021, 262, 120148. [Google Scholar] [CrossRef] [PubMed]
  30. Kim, B.G.; Nguyen, D.D.; Jang, W.; Kim, J.K.; Wang, D.H. Formulation of conductive nanocomposites by incorporating silver-doped carbon quantum dots for efficient charge extraction. Int. J. Energy Res. 2021, 45, 21324–21339. [Google Scholar] [CrossRef]
  31. Yang, S.-W.; Sun, J.; Li, X.-B.; Zhou, W.; Wang, Z.-Y.; He, P.; Ding, G.-Q.; Xie, X.-M.; Kang, Z.-H.; Jiang, M.-H. Large-scale fab-rication of heavy doped carbon quantum dots with tunable-photoluminescence and sensitive fluorescence detection. J. Mater. Chem. A 2014, 2, 8660–8667. [Google Scholar] [CrossRef]
  32. Gong, X.; Lu, W.; Paau, M.C.; Hu, Q.; Wu, X.; Shuang, S.; Dong, C.; Choi, M.M. Facile synthesis of nitrogen-doped carbon dots for Fe3+ sensing and cellular imaging. Anal. Chim. Acta 2015, 861, 74–84. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, B.; Yang, Q.; Li, Z.; Hao, J. Green synthesis of luminescent carbon dots and carbon-coated metal particles: Two birds with one stone. Colloids Surf. A Physicochem. Eng. Asp. 2015, 485, 34–41. [Google Scholar] [CrossRef]
  34. Bischoff, D.; Varlet, A.; Simonet, P.; Eich, M.; Overweg, H.C.; Ihn, T.; Ensslin, K. Localized charge carriers in graphene nanodevices. Appl. Phys. Rev. 2015, 2, 031301. [Google Scholar] [CrossRef][Green Version]
  35. Vijayan, V.M.; Komeri, R.; Victor, S.P.; Muthu, J. Photoluminescent PEG based comacromers as excitation dependent fluor-ophores for biomedical applications. Colloids Surf. B Biointerfaces 2015, 135, 243–252. [Google Scholar] [CrossRef]
  36. Park, H.; Noh, S.H.; Lee, J.H.; Lee, W.J.; Jaung, J.Y.; Lee, S.G.; Han, T.H. Large Scale Synthesis and Light Emitting Fibers of Tailor-Made Graphene Quantum Dots. Sci. Rep. 2015, 5, 14163. [Google Scholar] [CrossRef][Green Version]
  37. Wu, Z.; Feng, M.; Chen, X.; Tang, X. N-dots as a photoluminescent probe for the rapid and selective detection of Hg2+ and Ag+ in aqueous solution. J. Mater. Chem. B 2016, 4, 2086–2089. [Google Scholar] [CrossRef]
  38. Zhou, Z.-X.; Shen, Y.-F.; Li, Y.; Liu, A.-R.; Liu, S.-Q.; Zhang, Y.J. Chemical Cleavage of Layered Carbon Nitride with Enhanced Photoluminescent Performances and Photoconduction. ACS Nano 2015, 9, 12480–12487. [Google Scholar] [CrossRef]
  39. Li, H.; Sun, C.; Vijayaraghavan, R.; Zhou, F.; Zhang, X.; MacFarlane, D.R. Long lifetime photoluminescence in N, S co-doped carbon quantum dots from an ionic liquid and their applications in ultrasensitive detection of pesticides. Carbon 2016, 104, 33–39. [Google Scholar] [CrossRef]
  40. Fan, X.; Qin, X.; Jing, L.; Luan, Y.; Xie, M. Controllable synthesis of floatable nanocrystalline Ag2S and Ag by a silane coupling agent-modified solvothermal method. Mater. Res. Bull. 2012, 47, 3732–3737. [Google Scholar] [CrossRef]
  41. Bao, L.; Zhang, Z.-L.; Tian, Z.-Q.; Zhang, L.; Liu, C.; Lin, Y.; Qi, B.-P.; Pang, D.W. Electrochemical tuning of luminescent car-bon nanodots: From preparation to luminescence mechanism. Adv. Mater. 2011, 23, 5801–5806. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, Z.-X.; Ding, S.-N. One-pot green synthesis of high quantum yield oxygen-doped, nitrogen-rich, photoluminescent polymer carbon nanoribbons as an effective fluorescent sensing platform for sensitive and selective detection of silver (I) and mercury (II) ions. Anal. Chem. 2014, 86, 7436–7445. [Google Scholar] [CrossRef] [PubMed]
  43. Shangguan, J.-F.; He, D.-G.; He, X.-X.; Wang, K.-M.; Xu, F.-Z.; Liu, J.-Q.; Tang, J.-L.; Yang, X.; Huang, J. Label-free carbon-dots-based ratiometric fluorescence pH nanoprobes for intracellular pH sensing. Anal. Chem. 2016, 88, 7837–7843. [Google Scholar] [CrossRef] [PubMed]
  44. Hai, X.; Wang, Y.-T.; Hao, X.-Y.; Wang, J.-H. Folic acid encapsulated graphene quantum dots for ratiometric pH sensing and specific multicolor imaging in living cells. Sens. Actuators B Chem. 2018, 268, 61–69. [Google Scholar] [CrossRef]
  45. Wang, C.-X.; Xu, Z.-Z.; Cheng, H.; Lin, H.-H.; Humphrey, M.-G.; Zhang, C. A hydrothermal route to water-stable luminescent carbon dots as nanosensors for pH and temperature. Carbon 2015, 82, 87–95. [Google Scholar] [CrossRef]
  46. Du, F.-K.; Ming, Y.H.; Zeng, F.; Yu, C.-G.; Wu, S.-Z. A low cytotoxic and ratiometric fluorescent nanosensor based on carbon-dots for intracellular pH sensing and mapping. Nanotechnology 2013, 24, 365101. [Google Scholar] [CrossRef]
  47. Liao, S. Huang, X.-Q. Yang, H.; Chen, X.-Q. Nitrogen-doped carbon quantum dots as a fluorescent probe to detect copper ions, glutathione, and intracellular pH. Anal. Bioanal. Chem. 2018, 410, 7701–7710. [Google Scholar] [CrossRef]
  48. Sun, Y.-Q.; Wang, X.-J.; Wang, C.; Tong, D.-Y.; Wu, Q.; Jiang, K.-L.; Jiang, Y.-N; Wang, C.-X.; Yang, M.-H. Red emitting and highly stable carbon dots with dual response to pH values and ferric ions. Microchim. Acta 2018, 185, 83. [Google Scholar] [CrossRef]

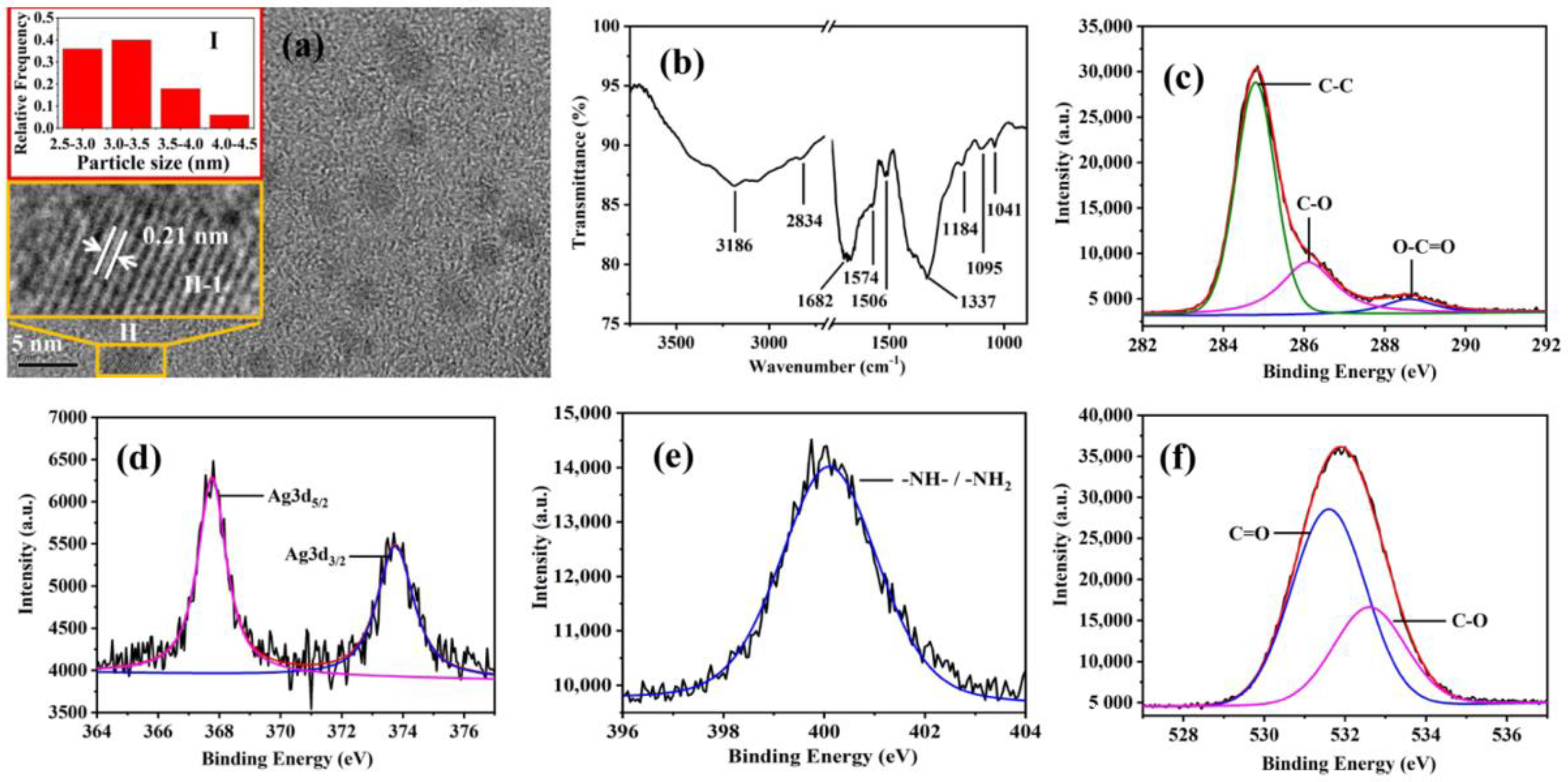

Figure 1. (a) TEM image of Ag-CDs. (Inserts: (I) Particle size distribution histogram of Ag-CDs. (II-1) Magnified image of ”II” Ag-CD.) FT-IR spectrum (b), high-resolution XPS spectra of C1s (c), Ag3d (d), N1s (e), and O1s (f), respectively, of Ag-CDs.
Figure 1. (a) TEM image of Ag-CDs. (Inserts: (I) Particle size distribution histogram of Ag-CDs. (II-1) Magnified image of ”II” Ag-CD.) FT-IR spectrum (b), high-resolution XPS spectra of C1s (c), Ag3d (d), N1s (e), and O1s (f), respectively, of Ag-CDs.
Materials 15 01880 g001

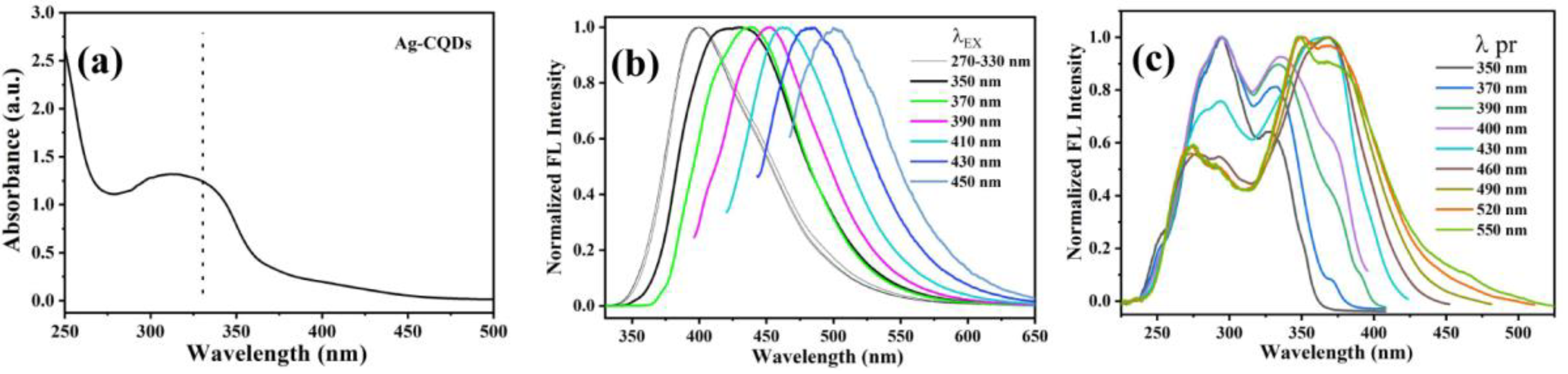

Figure 2. (a) The UV–Vis absorption spectrum, (b) the normalized fluorescent emission spectra under various excitation wavelengths (λEX), and (c) the normalized fluorescent excitation spectra under various probed wavelengths (λpr) of Ag-CDs in neutralized aqueous solution.
Figure 2. (a) The UV–Vis absorption spectrum, (b) the normalized fluorescent emission spectra under various excitation wavelengths (λEX), and (c) the normalized fluorescent excitation spectra under various probed wavelengths (λpr) of Ag-CDs in neutralized aqueous solution.
Materials 15 01880 g002

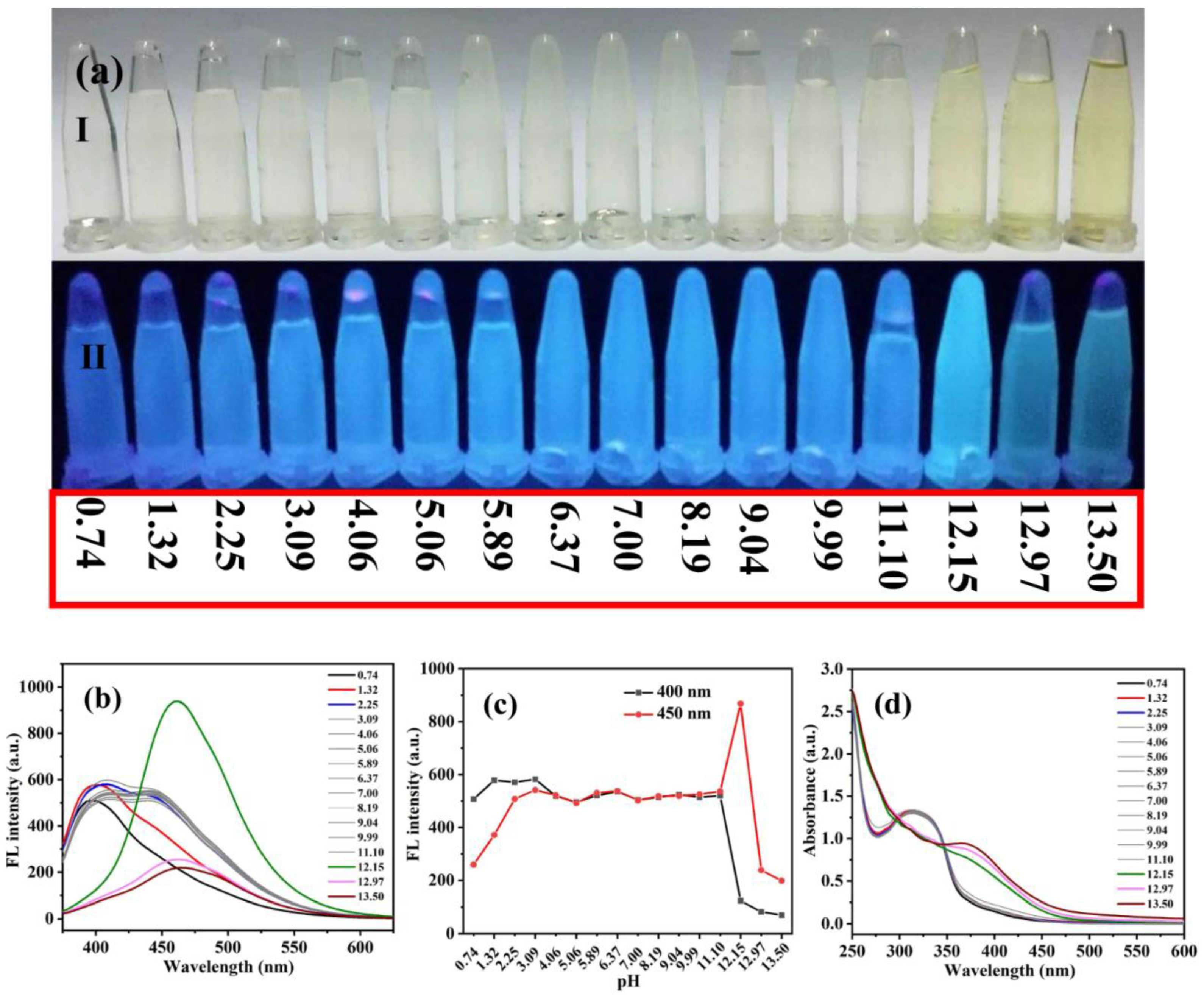

Figure 3. (a) Photographs of Ag-CDs in aqueous solutions at various pH values under daylight (a-I) and UV light (365 nm, a-II). Fluorescent emission spectra at λEX 360 nm (b), fluorescent intensity probed at 400 and 450 nm (c), and absorption spectra (d) of Ag-CDs detected at various pH values.
Figure 3. (a) Photographs of Ag-CDs in aqueous solutions at various pH values under daylight (a-I) and UV light (365 nm, a-II). Fluorescent emission spectra at λEX 360 nm (b), fluorescent intensity probed at 400 and 450 nm (c), and absorption spectra (d) of Ag-CDs detected at various pH values.
Materials 15 01880 g003

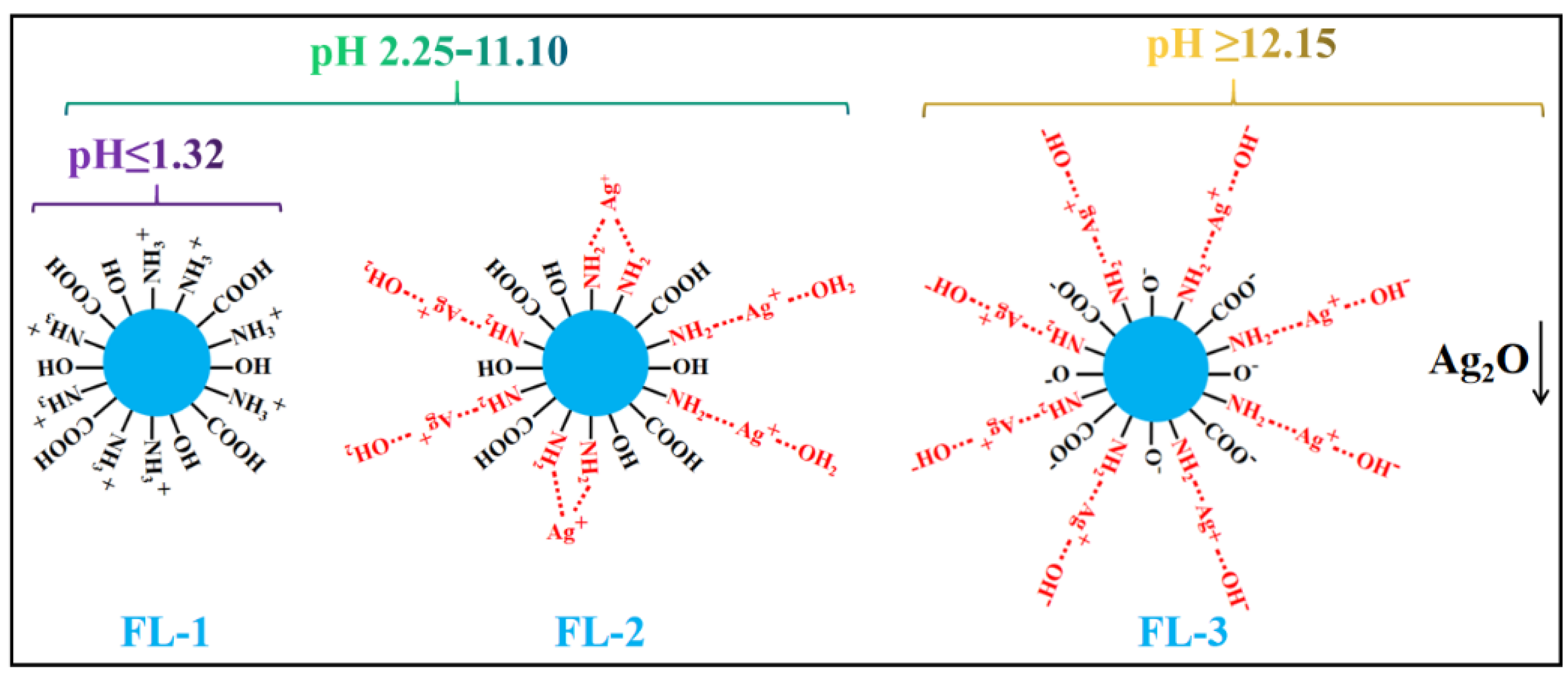

Scheme 1. Proposed structural mechanism of pH-regulated fluorescence of Ag-CDs.
Scheme 1. Proposed structural mechanism of pH-regulated fluorescence of Ag-CDs.
Materials 15 01880 sch001

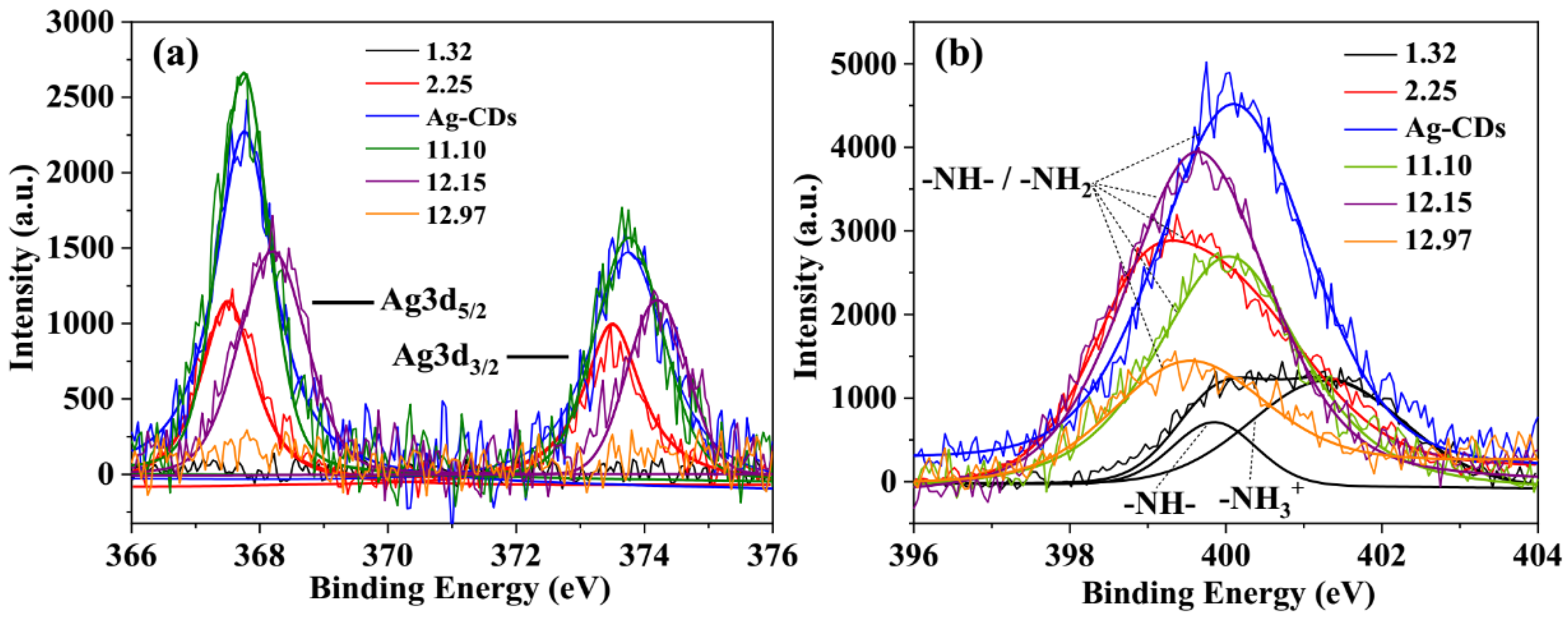

Figure 4. High-resolution XPS spectra of Ag3d (a) and N1s (b) of Ag-CDs at pH 1.32, 2.25, 11.10, 12.15, and 12.97, respectively.
Figure 4. High-resolution XPS spectra of Ag3d (a) and N1s (b) of Ag-CDs at pH 1.32, 2.25, 11.10, 12.15, and 12.97, respectively.
Materials 15 01880 g004

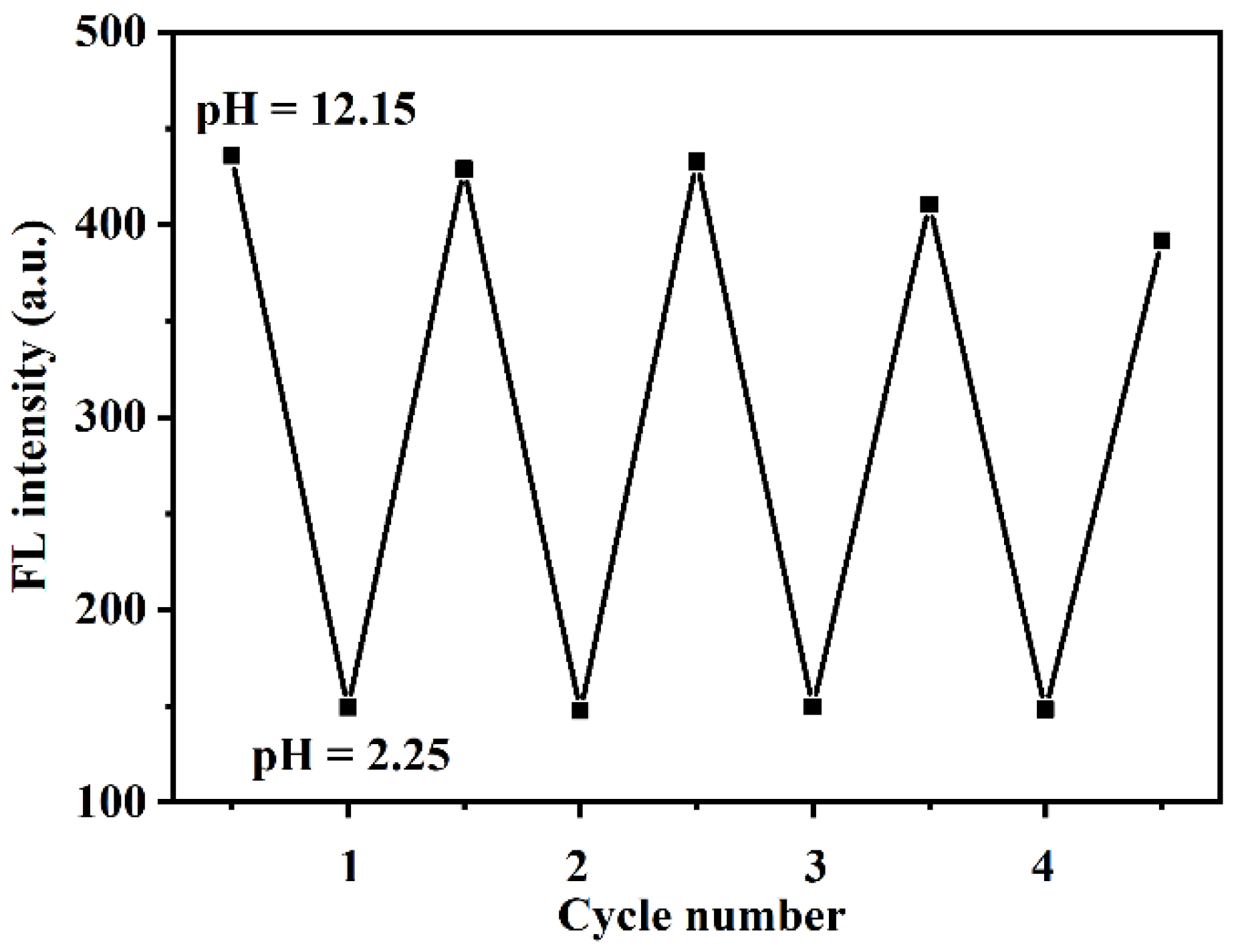

Figure 5. Fluorescence intensity probed at 450 nm upon the cyclic switching of Ag-CDs under alternating conditions of pH = 12.15 and pH = 2.25 (λEX = 360 nm).
