# Back-Propagation Neural Network Optimized by K-Fold Cross-Validation for Prediction of Torsional Strength of Reinforced Concrete Beam

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

^{2}) are among the evaluation metrics used to assess the performance of the trained model. To elaborate on the superiority of the proposed network models in predicting the torsional strength of RC beams, a parametric study is conducted by comparing the proposed model to three commonly used empirical formulae from existing design codes. The comparative findings of this research study demonstrate that the performance of the BP neural network is highly similar to that of design codes; however, its accuracy is inadequate. After improving the weights and thresholds by k-fold cross-validation and GA, the prediction of the BP neural network shows higher consistency with the actual measured values. The outcome of this study can be used as a theoretical reference for the optimal design of RC beams in practical applications.

## 1. Introduction

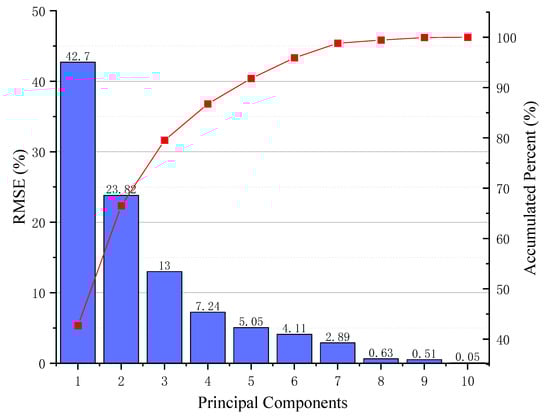

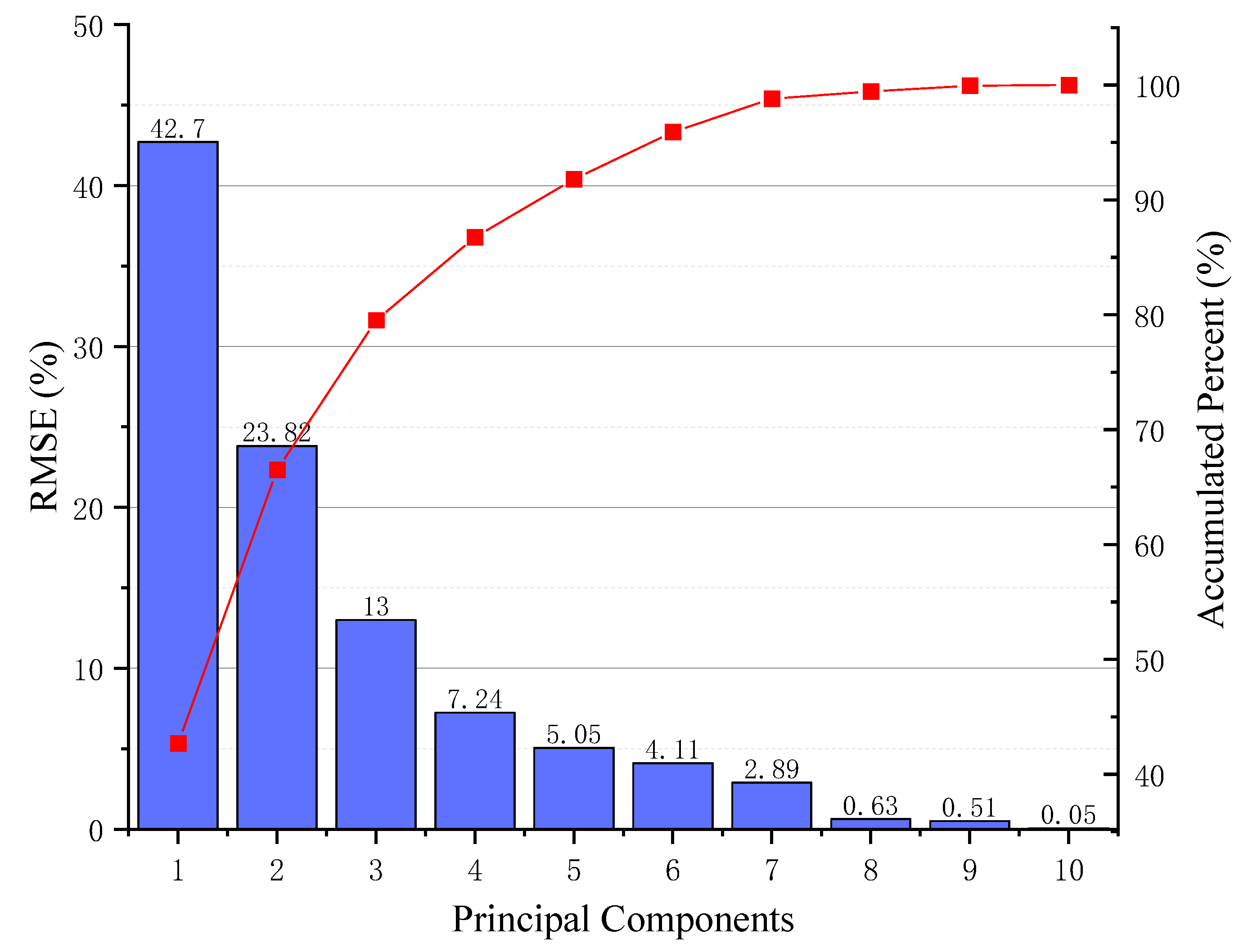

## 2. Data Collection and Analysis

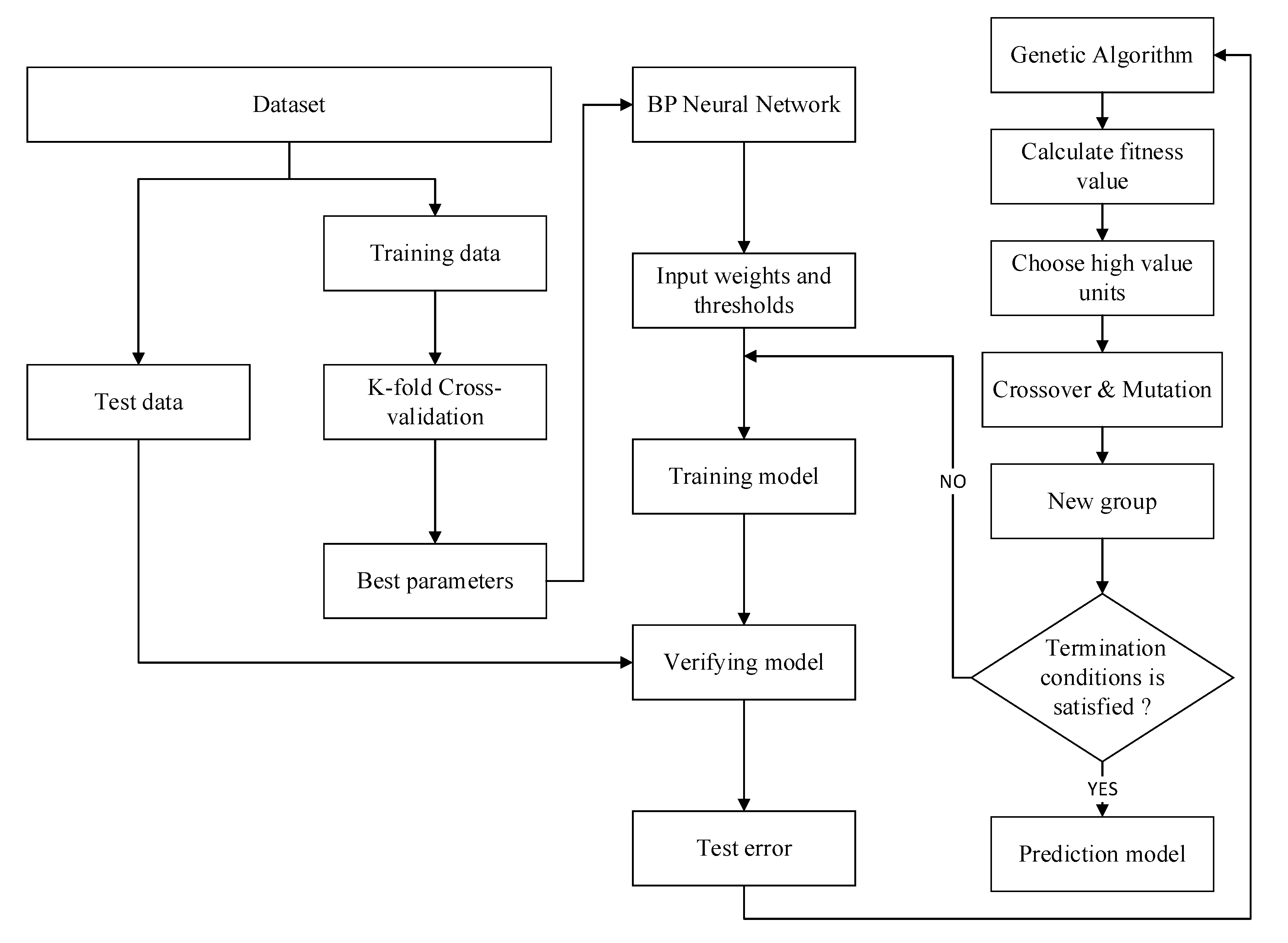

## 3. Methodology

#### 3.1. Design Code

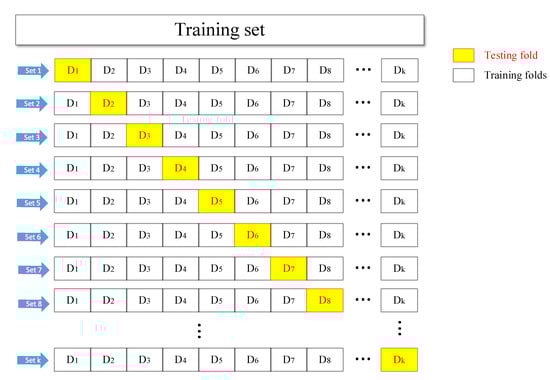

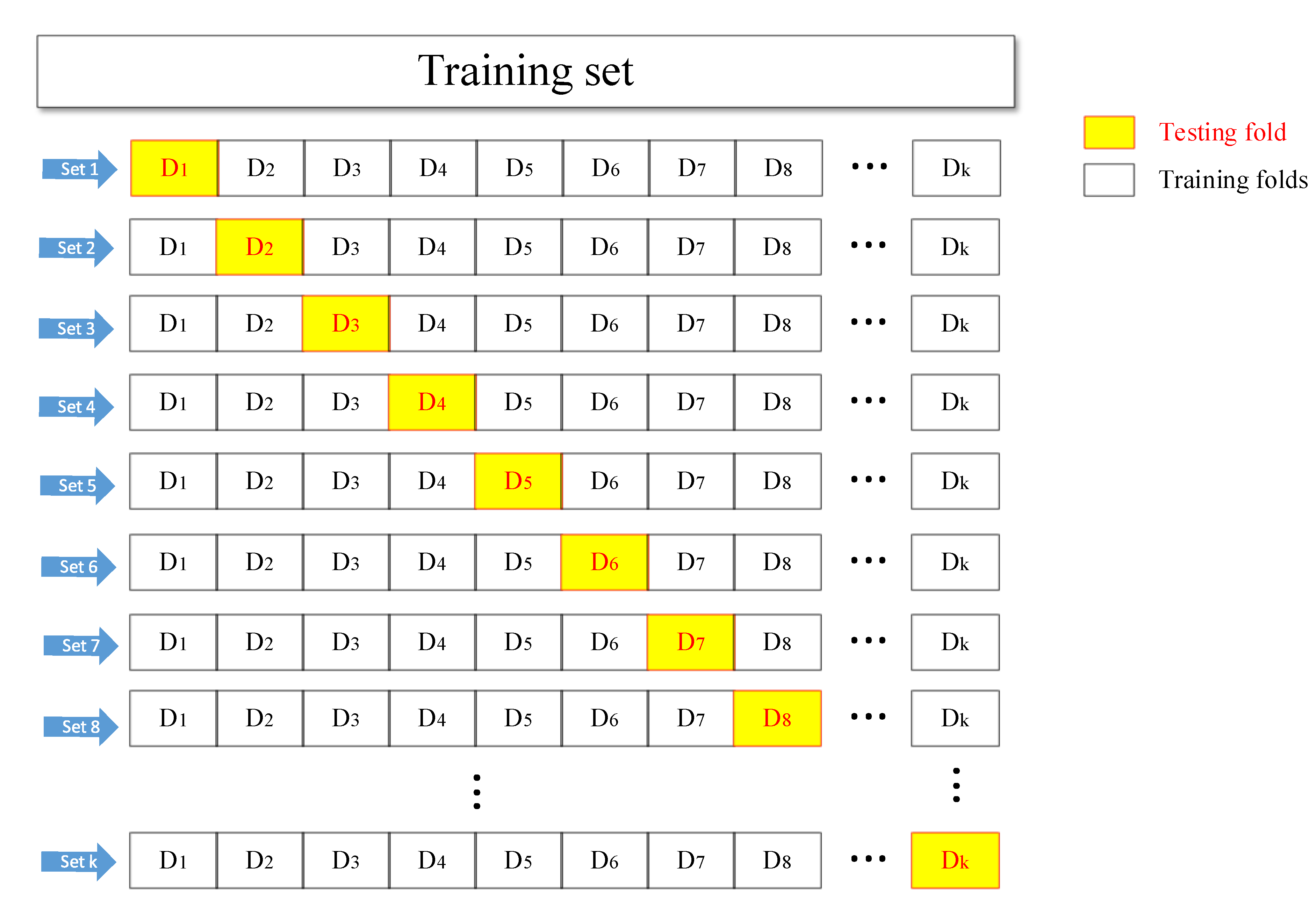

#### 3.2. K-Fold Cross-Validation

- Select one of the training folds as the testing dataset.
- The remaining K−1 groups are used as the training set.
- Use the selected training dataset to train the model and evaluate it with the testing dataset.

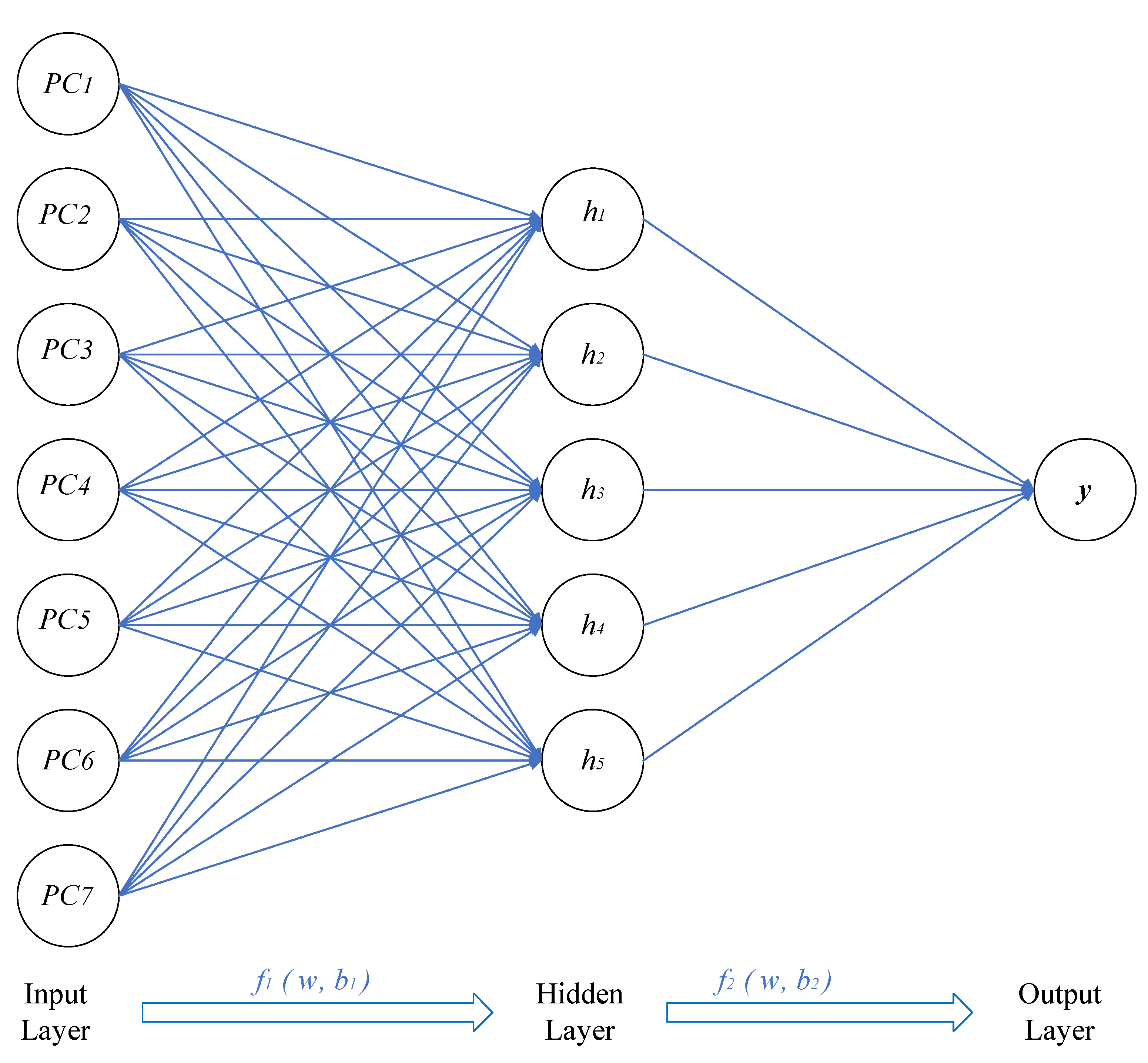

#### 3.3. BP Neural Network and Genetic Algorithm

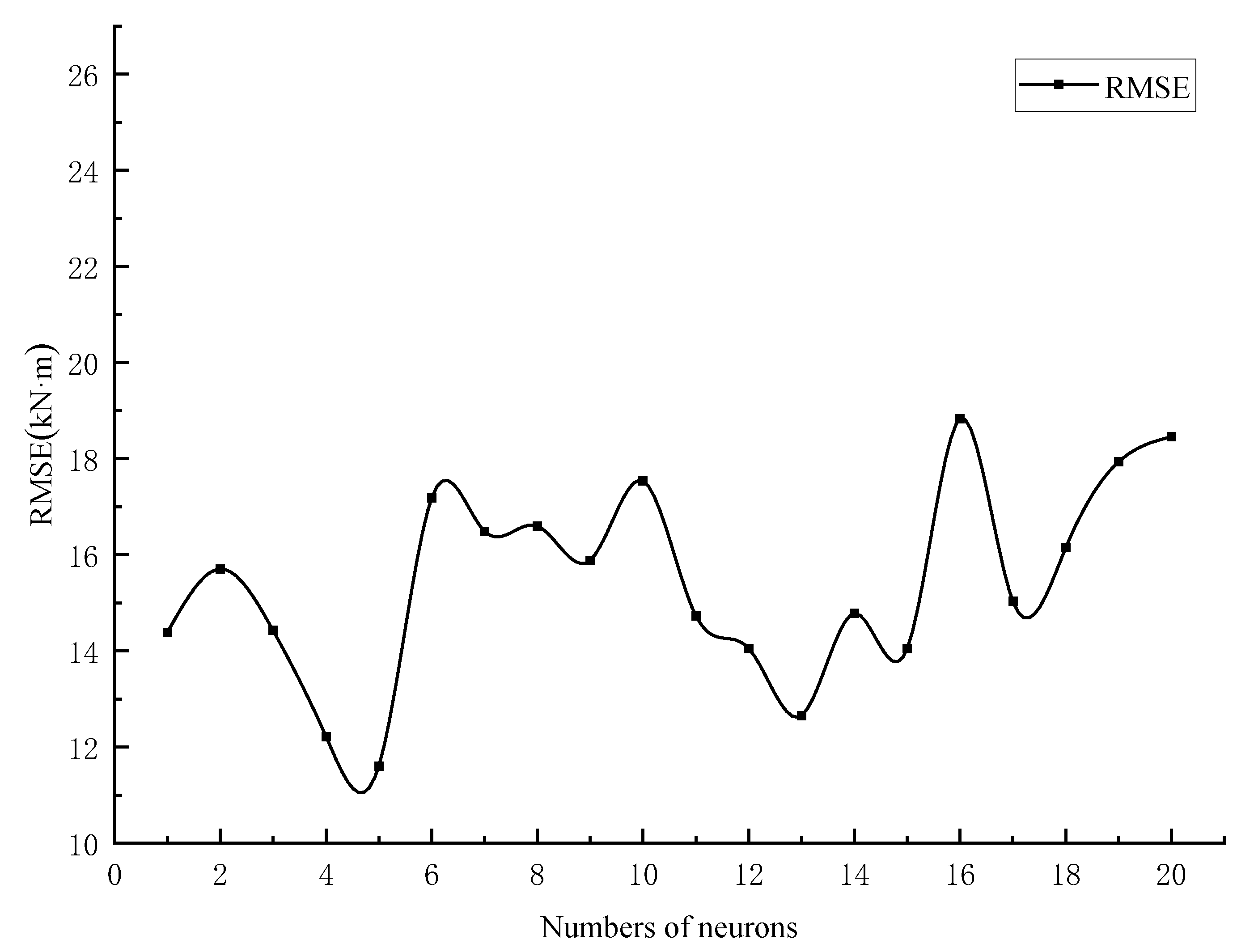

#### 3.4. Model Parameter Setting

#### 3.5. Evaluation Metrics

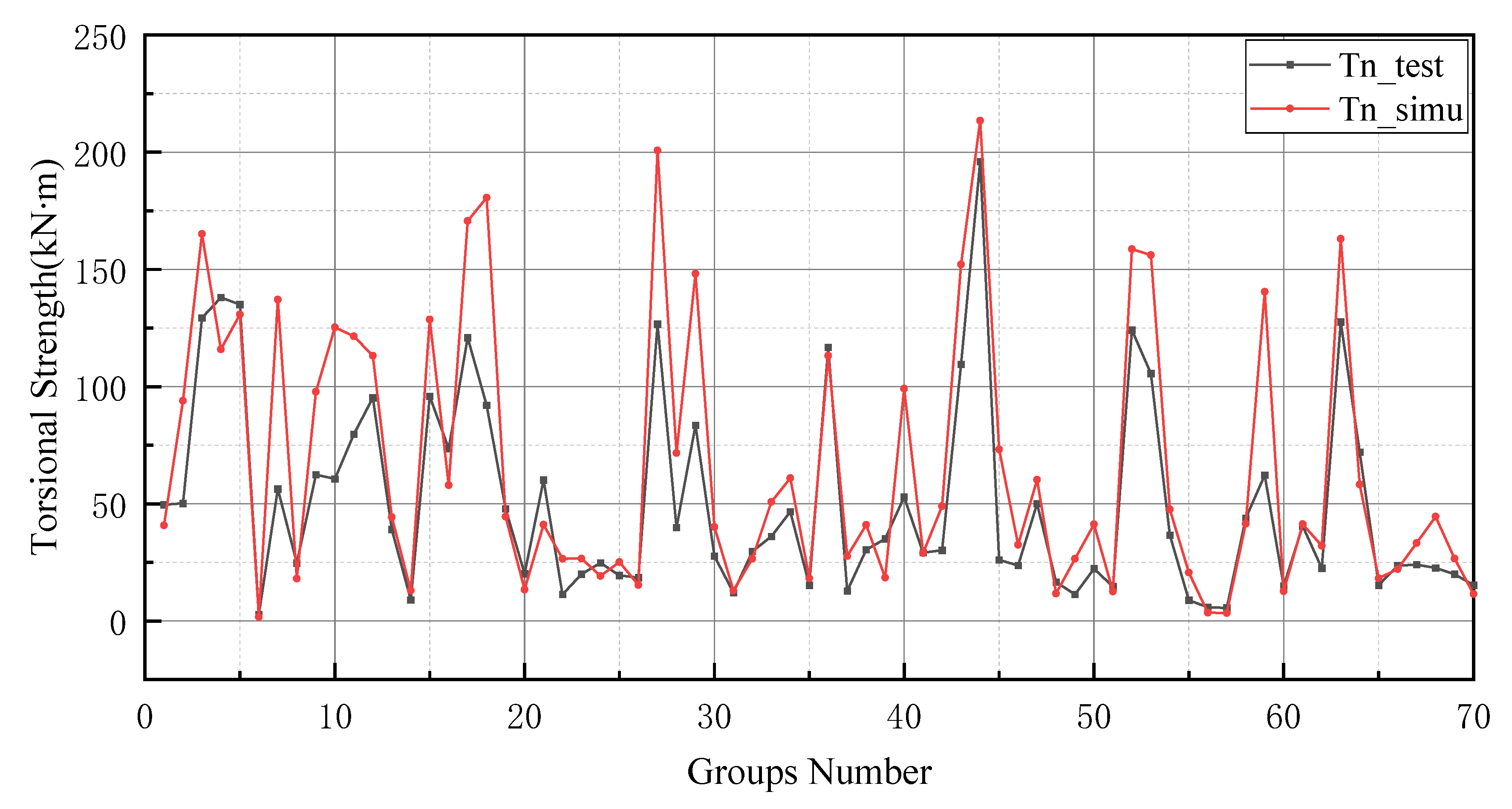

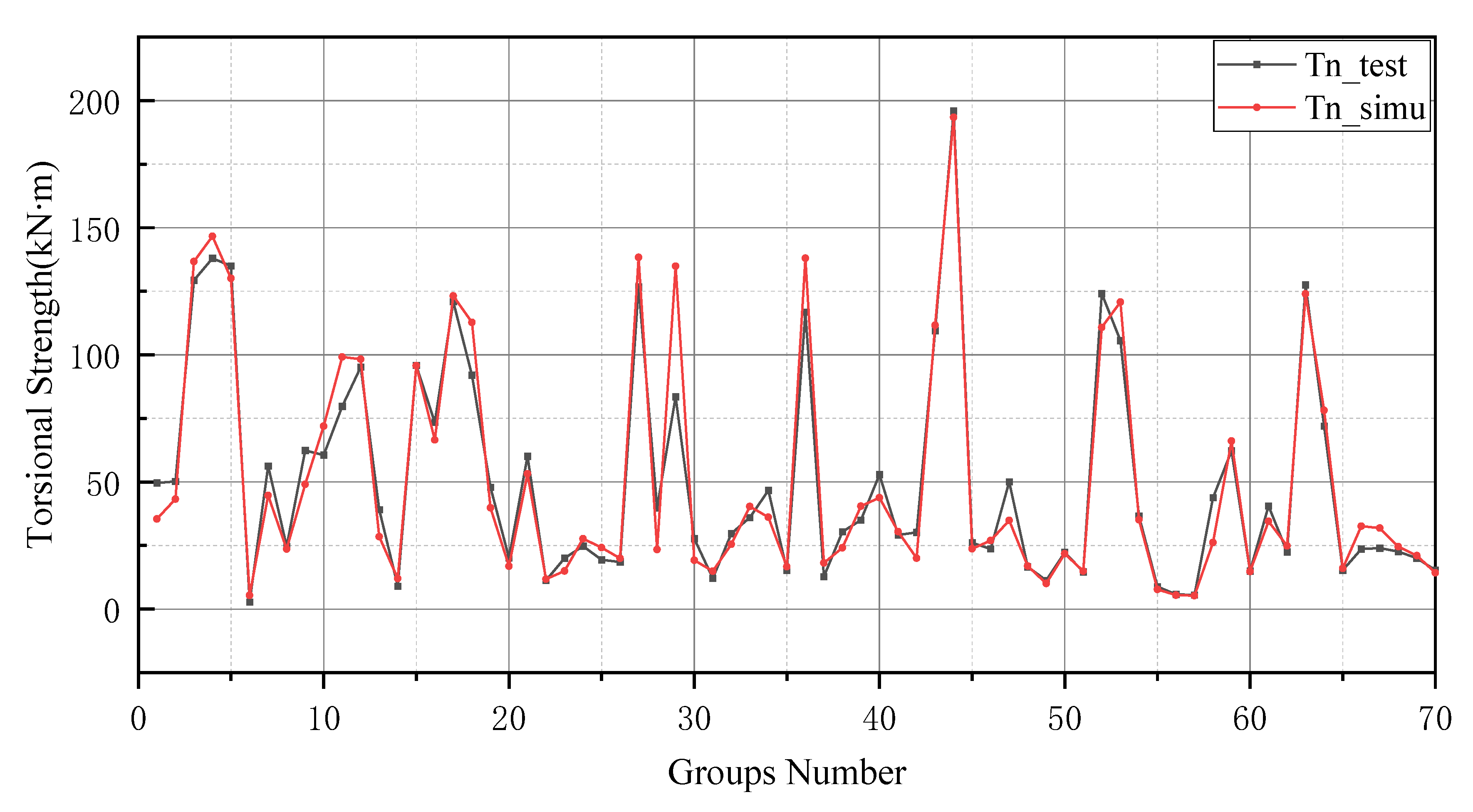

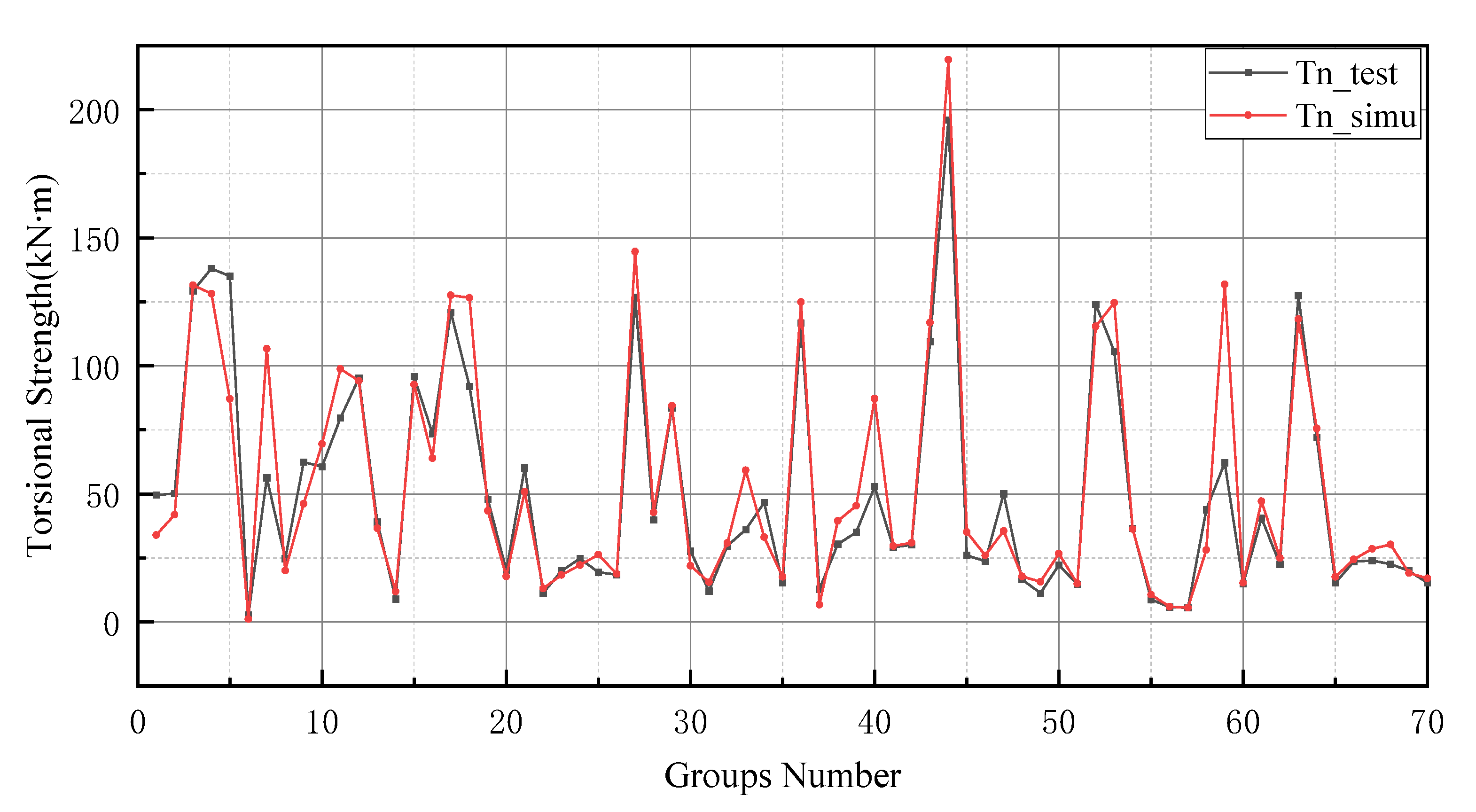

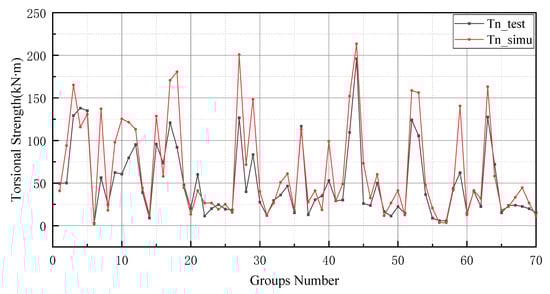

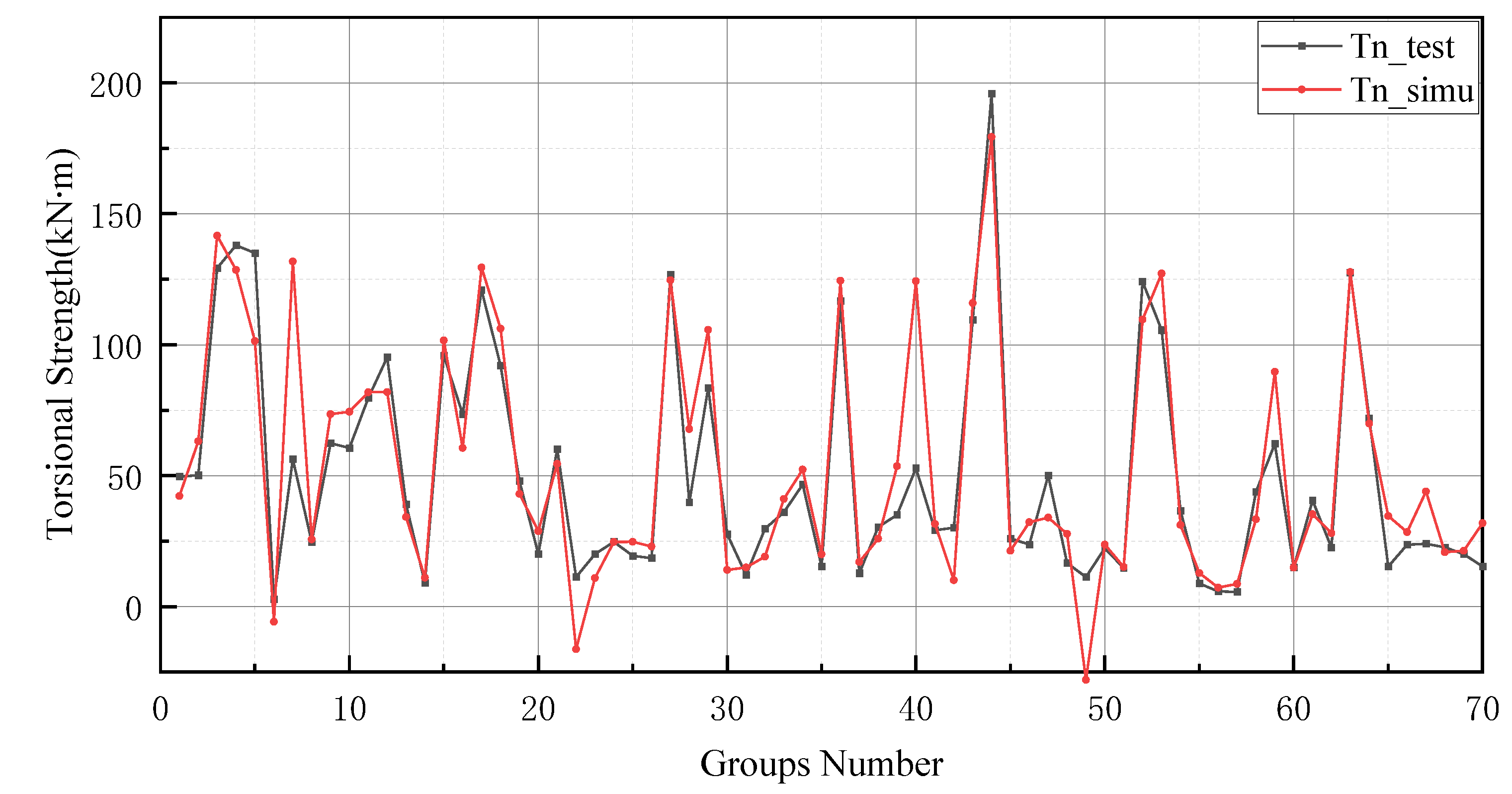

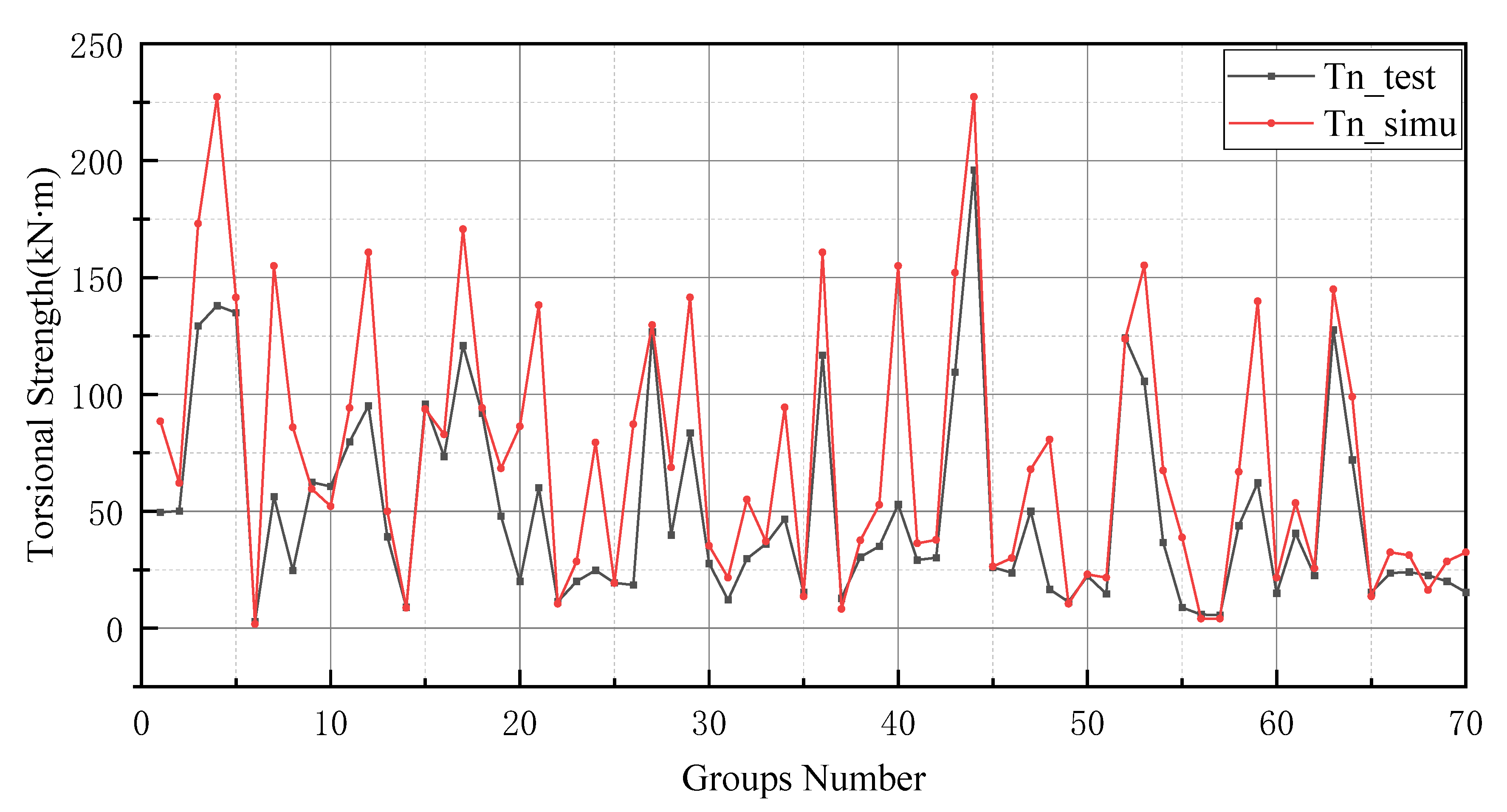

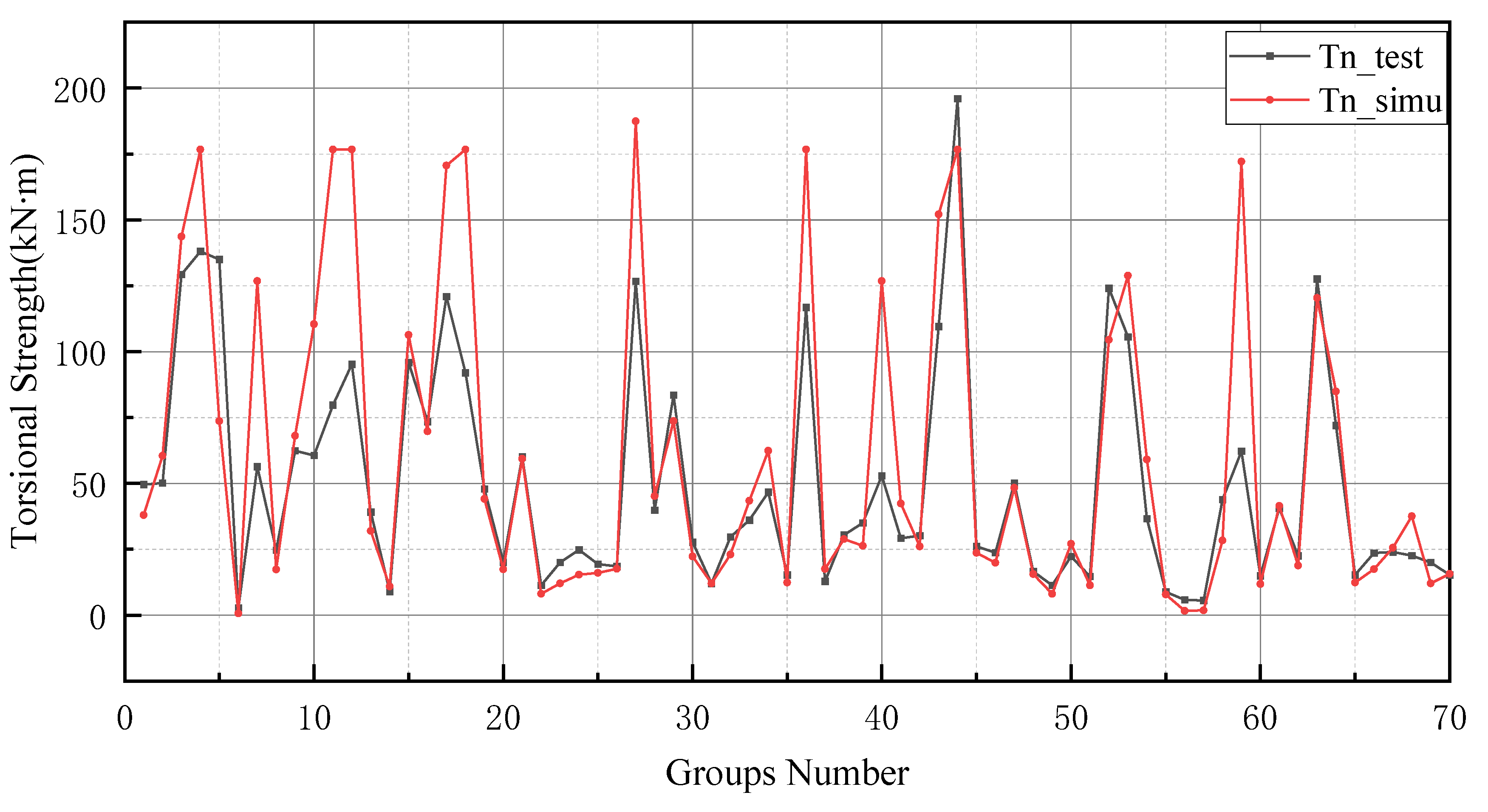

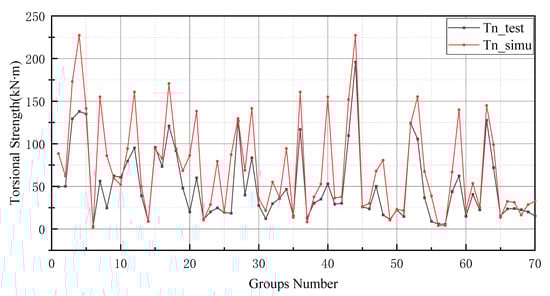

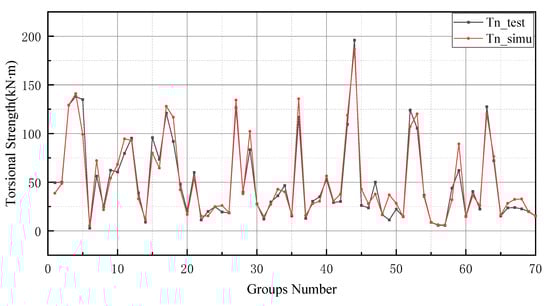

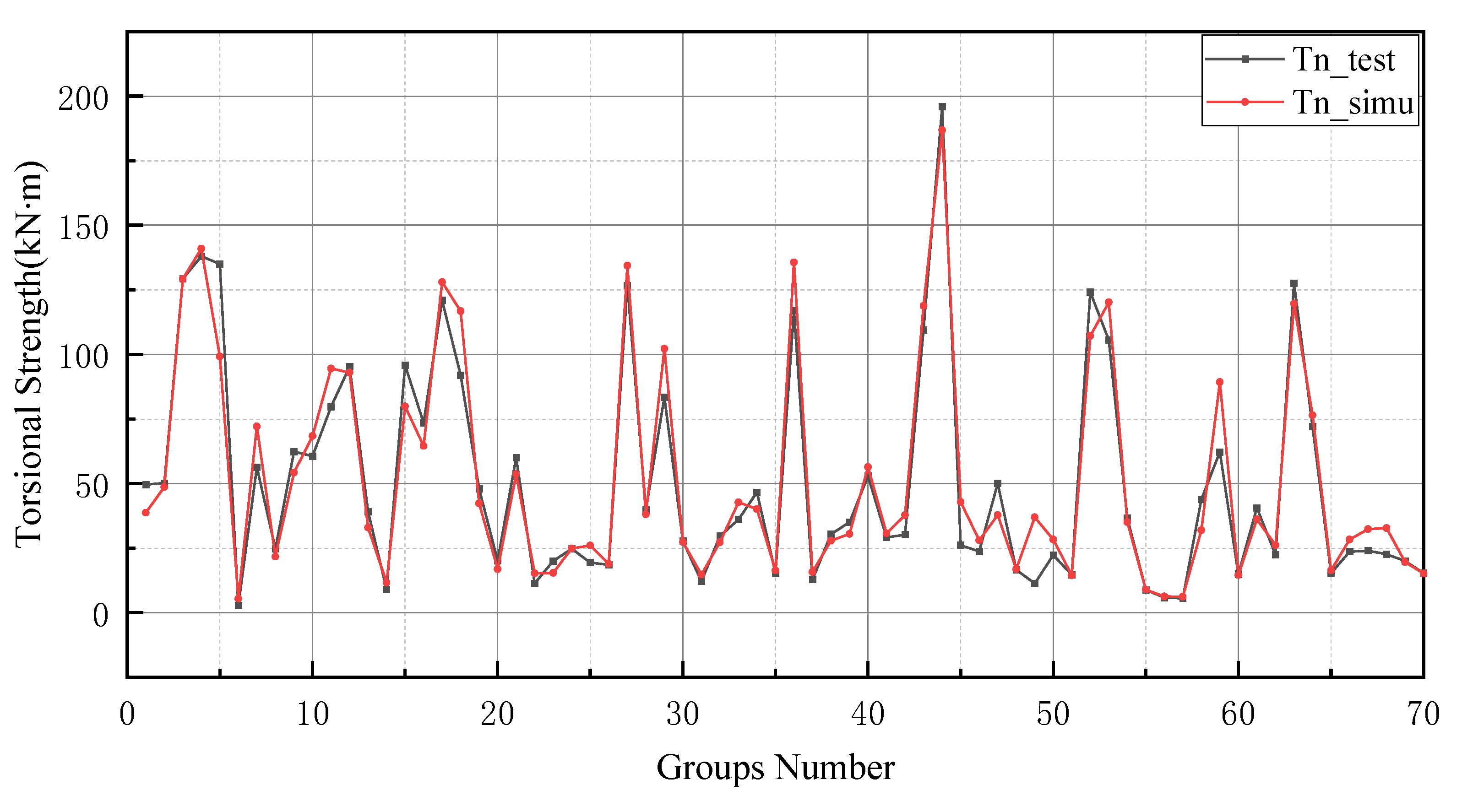

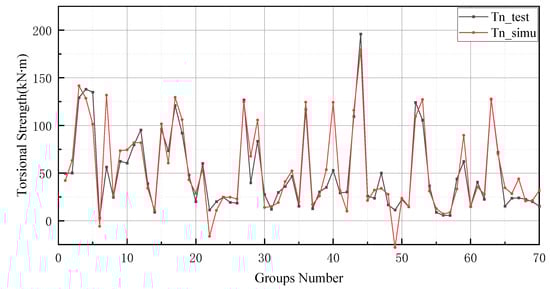

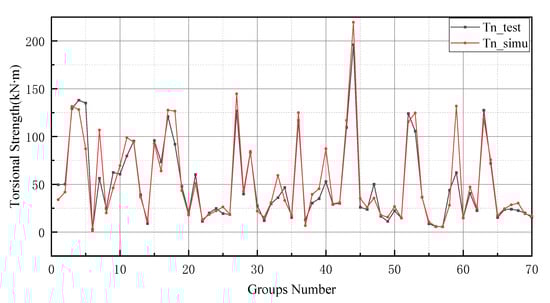

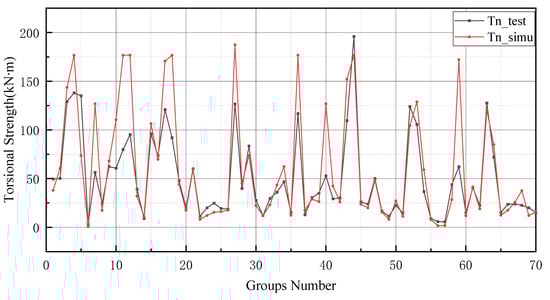

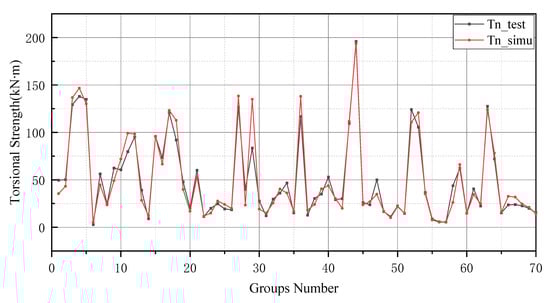

## 4. Results and Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- ACI Committee 318; Building Code Requirements for Structural Concrete (ACI 318-14) and Commentary. American Concrete Institute: Farmington Hills, MI, USA, 2014.
- CSA A23. 3-14; Design of Concrete Structures. Canadian Standards 437 Association: Toronto, ON, Canada, 2014.
- TBC-500-2000; Requirements for Design and Construction of Reinforced Concrete Structures. Turkish Standards TS-500: Ankara, Turkey, 2000.
- BS 8110; Structural Use of Concrete—Part 1 Code of Practice for Design and Construction. British Standards Institution: London, UK, 1997.
- JSCE. Standard Specifications for Concrete and Structures-2007. Materials and Construction; Japan Society of Civil Engineers (JSCE): Shinjuku, Tokyo, 2007. [Google Scholar]
- Ali, M.A.; White, R.N. Toward a rational approach for design of minimum torsion reinforcement. ACI Struct. J.
**1999**, 96, 40–45. [Google Scholar] - Ju, H.; Han, S.; Kim, K.S. Analytical model for torsional behavior of RC members combined with bending, shear, and axial loads. J. Build. Eng.
**2020**, 32, 101730. [Google Scholar] [CrossRef] - Ju, H.; Lee, D.H.; Kim, K.S. Minimum torsional reinforcement ratio for reinforced concrete members with steel fibers. Compos. Struct.
**2018**, 207, 460–470. [Google Scholar] [CrossRef] - Ju, H.; Lee, D.H.; Hwang, J.-H.; Kang, J.-W.; Kim, K.S.; Oh, Y.-H. Torsional behavior model of steel-fiber-reinforced concrete members modifying fixed-angle softened-truss model. Compos. Part B Eng.
**2013**, 45, 215–231. [Google Scholar] [CrossRef] - Cevik, A.; Arslan, M.H.; Köroğlu, M.A. Genetic-programming-based modeling of RC beam torsional strength. KSCE J. Civ. Eng.
**2010**, 14, 371–384. [Google Scholar] [CrossRef] - Cihan, M.T. Prediction of Concrete Compressive Strength and Slump by Machine Learning Methods. Adv. Civ. Eng.
**2019**, 2019, 3069046. [Google Scholar] [CrossRef] - Ling, H.; Qian, C.; Kang, W.; Liang, C.; Chen, H. Combination of Support Vector Machine and K-Fold cross validation to predict compressive strength of concrete in marine environment. Constr. Build. Mater.
**2019**, 206, 355–363. [Google Scholar] [CrossRef] - Tanarslan, H.; Secer, M.; Kumanlioglu, A. An approach for estimating the capacity of RC beams strengthened in shear with FRP reinforcements using artificial neural networks. Constr. Build. Mater.
**2012**, 30, 556–568. [Google Scholar] [CrossRef] - Naderpour, H.; Haji, M.; Mirrashid, M. Shear capacity estimation of FRP-reinforced concrete beams using computational intelligence. Structures
**2020**, 28, 321–328. [Google Scholar] [CrossRef] - Shear Capacity of Reinforced Concrete Beams Using Neural Network. Int. J. Concr. Struct. Mater.
**2007**, 1, 63–73. [CrossRef] [Green Version] - Amani, J.; Moeini, R. Prediction of shear strength of reinforced concrete beams using adaptive neuro-fuzzy inference system and artificial neural network. Sci. Iran.
**2012**, 19, 242–248. [Google Scholar] [CrossRef] [Green Version] - Arslan, M.H. Predicting of torsional strength of RC beams by using different artificial neural network algorithms and building codes. Adv. Eng. Softw.
**2010**, 41, 946–955. [Google Scholar] [CrossRef] - Lv, Y.; Liu, T.; Ma, J.; Wei, S.; Gao, C. Study on settlement prediction model of deep foundation pit in sand and pebble strata based on grey theory and BP neural network. Arab. J. Geosci.
**2020**, 13, 1238. [Google Scholar] [CrossRef] - Wu, J.; Cheng, Y.; Liu, C.; Lee, I.; Huang, W. A BP Neural Network Based on GA for Optimizing Energy Consumption of Copper Electrowinning. Math. Probl. Eng.
**2020**, 2020, 1026128. [Google Scholar] [CrossRef] - Liu, C.Y.; Wang, Y.; Hu, X.M.; Han, Y.L.; Zhang, X.P.; Du, L.Z. Application of GA-BP Neural Network Optimized by Grey Verhulst Model around Settlement Prediction of Foundation Pit. Geofluids
**2021**, 2021, 5595277. [Google Scholar] [CrossRef] - Yu, Y.; Nguyen, T.N.; Li, J.; Sanchez, L.F.M.; Nguyen, A. Predicting elastic modulus degradation of alkali silica reaction affected concrete using soft computing techniques: A comparative study. Constr. Build. Mater.
**2021**, 274, 122024. [Google Scholar] [CrossRef] - Ilkhani, M.; Naderpour, H.; Kheyroddin, A. A proposed novel approach for torsional strength prediction of RC beams. J. Build. Eng.
**2019**, 25, 100810. [Google Scholar] [CrossRef] - Arslan, M.H.; Ceylan, M.; Kaltakcı, M.Y.; Ozbay, Y.; Gulay, G. Prediction of force reduction factor R of prefabricated industrial buildings using neural networks. Struct. Eng. Mech.
**2007**, 27, 117–134. [Google Scholar] [CrossRef] - Feng, Y.; Mohammadi, M.; Wang, L.; Rashidi, M.; Mehrabi, P. Application of artificial intelligence to evaluate the fresh properties of self-consolidating concrete. Materials
**2021**, 14, 4885. [Google Scholar] [CrossRef] - Liu, J.; Mohammadi, M.; Zhan, Y.; Zheng, P.; Rashidi, M.; Mehrabi, P. Utilizing artificial intelligence to predict the superplasticizer demand of self-consolidating concrete incorporating pumice, slag, and fly ash powders. Materials
**2021**, 14, 6792. [Google Scholar] [CrossRef] - Nguyen, T.N.; Yu, Y.; Li, J.; Gowripalan, N.; Sirivivatnanon, V. Elastic modulus of ASR-affected concrete: An evaluation using Artificial Neural Network. Comput. Concr.
**2019**, 24, 541–553. [Google Scholar] - Chiu, H.-J.; Fang, I.-K.; Young, W.-T.; Shiau, J.-K. Behavior of reinforced concrete beams with minimum torsional reinforcement. Eng. Struct.
**2006**, 29, 2193–2205. [Google Scholar] [CrossRef] - Bernardo, L.; Lopes, S. Plastic analysis and twist capacity of high-strength concrete hollow beams under pure torsion. Eng. Struct.
**2013**, 49, 190–201. [Google Scholar] [CrossRef] - Alabdulhady, M.Y.; Sneed, L.H. Torsional strengthening of reinforced concrete beams with externally bonded composites: A state of the art review. Constr. Build. Mater.
**2019**, 205, 148–163. [Google Scholar] [CrossRef] - Yu, Y.; Li, W.; Li, J.; Nguyen, T.N. A novel optimised self-learning method for compressive strength prediction of high performance concrete. Constr. Build. Mater.
**2018**, 184, 229–247. [Google Scholar] [CrossRef] - Teixeira, M.; Bernardo, L. Ductility of RC beams under torsion. Eng. Struct.
**2018**, 168, 759–769. [Google Scholar] [CrossRef] - Campbell, N.A.; Atchley, W.R. The geometry of canonical variate analysis. Syst. Biol.
**1981**, 30, 268–280. [Google Scholar] [CrossRef] - Haykin, S. Neural Networks, a Comprehensive Foundation; Macmillan: New York, NY, USA, 1994. [Google Scholar]
- Richemond, P.H.; Guo, Y. Combining learning rate decay and weight decay with complexity gradient descent—Part I. arXiv
**2019**, arXiv:1902.02881. [Google Scholar] - Ferreira, C. Gene expression programming in problem solving. In Proceedings of the 6th Online World Conference on Soft Computing in Industrial Applications, Online, 10–24 September 2001. [Google Scholar]
- Tsai, H.-C.; Liao, M.-C. Modeling Torsional Strength of Reinforced Concrete Beams using Genetic Programming Polynomials with Building Codes. KSCE J. Civ. Eng.
**2019**, 23, 3464–3475. [Google Scholar] [CrossRef] - Koza, J.R. Genetic Programming: On the Programming of Computers by Means of Natural Selection; MIT Press: Cambridge, MA, USA, 1992. [Google Scholar]
- Draper, N.R.; Smith, H. Applied Regression Analysis; Wiley-Interscience: Hoboken, NJ, USA, 1998; ISBN 978-0-471-17082-2. [Google Scholar]
- Chai, T.; Draxler, R.R. Root mean square error (RMSE) or mean absolute error (MAE)?—Arguments against avoiding RMSE in the literature. Geosci. Model Dev.
**2014**, 7, 1247–1250. [Google Scholar] [CrossRef] [Green Version]

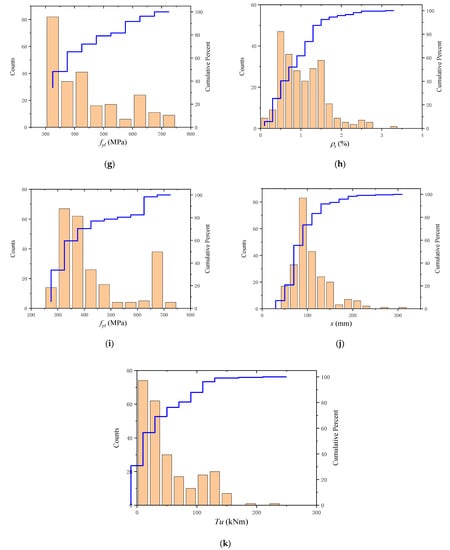

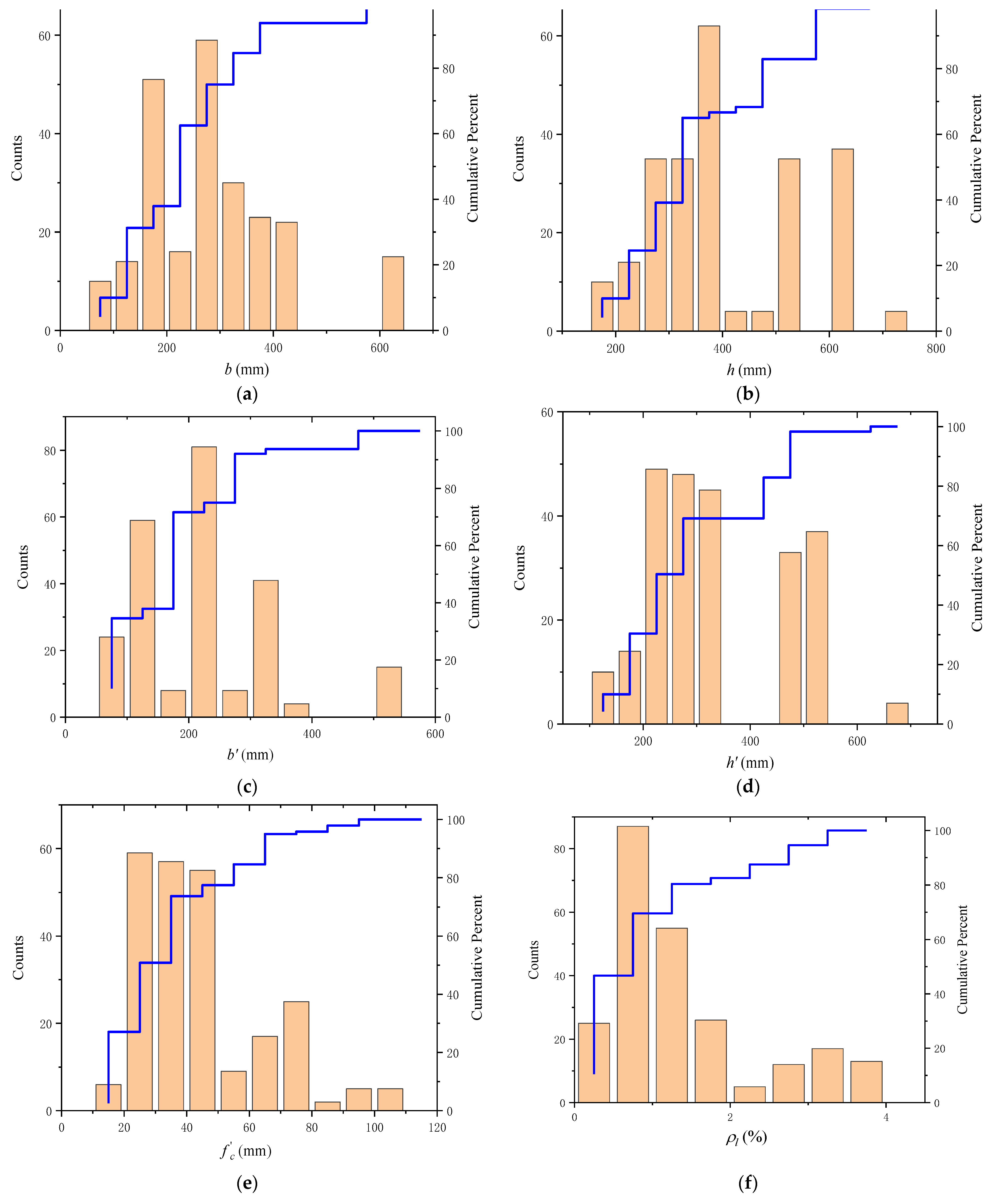

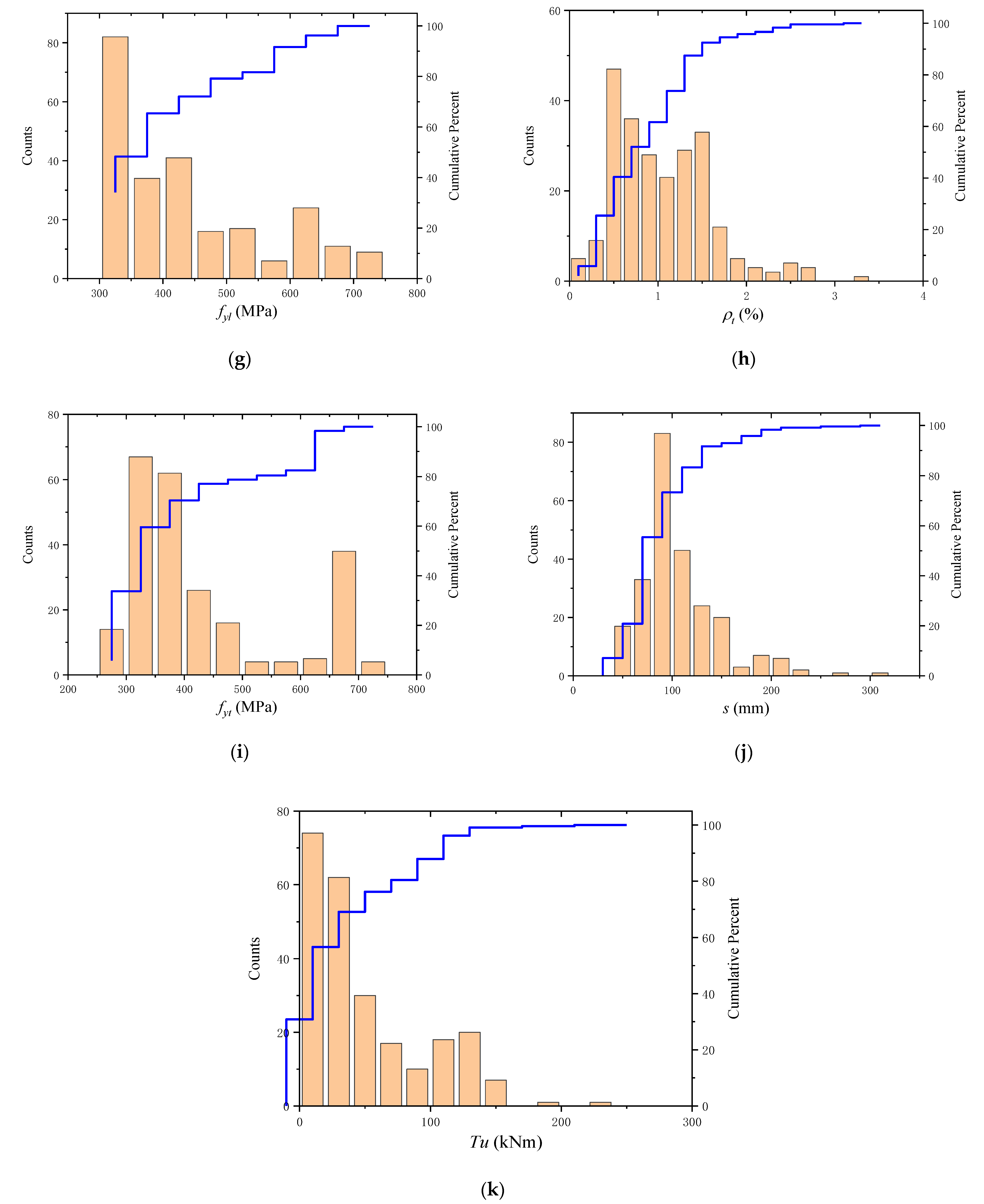

**Figure 1.**Historical distributions of parameters (

**a**) RC beam section’s width ($b$); (

**b**) RC beam section’s depth ($h$); (

**c**) Closed stirrup width (${b}^{\prime}$); (

**d**) Closed stirrup depth (${h}^{\prime}$); (

**e**) Compressive strength (${f}_{c}{}^{\prime}$); (

**f**) Longitudinal reinforcement ratio (${\rho}_{l}$); (

**g**) Yield strength of the longitudinal reinforcement (${f}_{yl}$); (

**h**) Transverse reinforcement ratio (${\mathsf{\rho}}_{t}$); (

**i**) Yield strength of transverse reinforcement (${f}_{yt}$); (

**j**) Closed stirrup spacing (s); (

**k**) Torsional strength (${T}_{n}$).

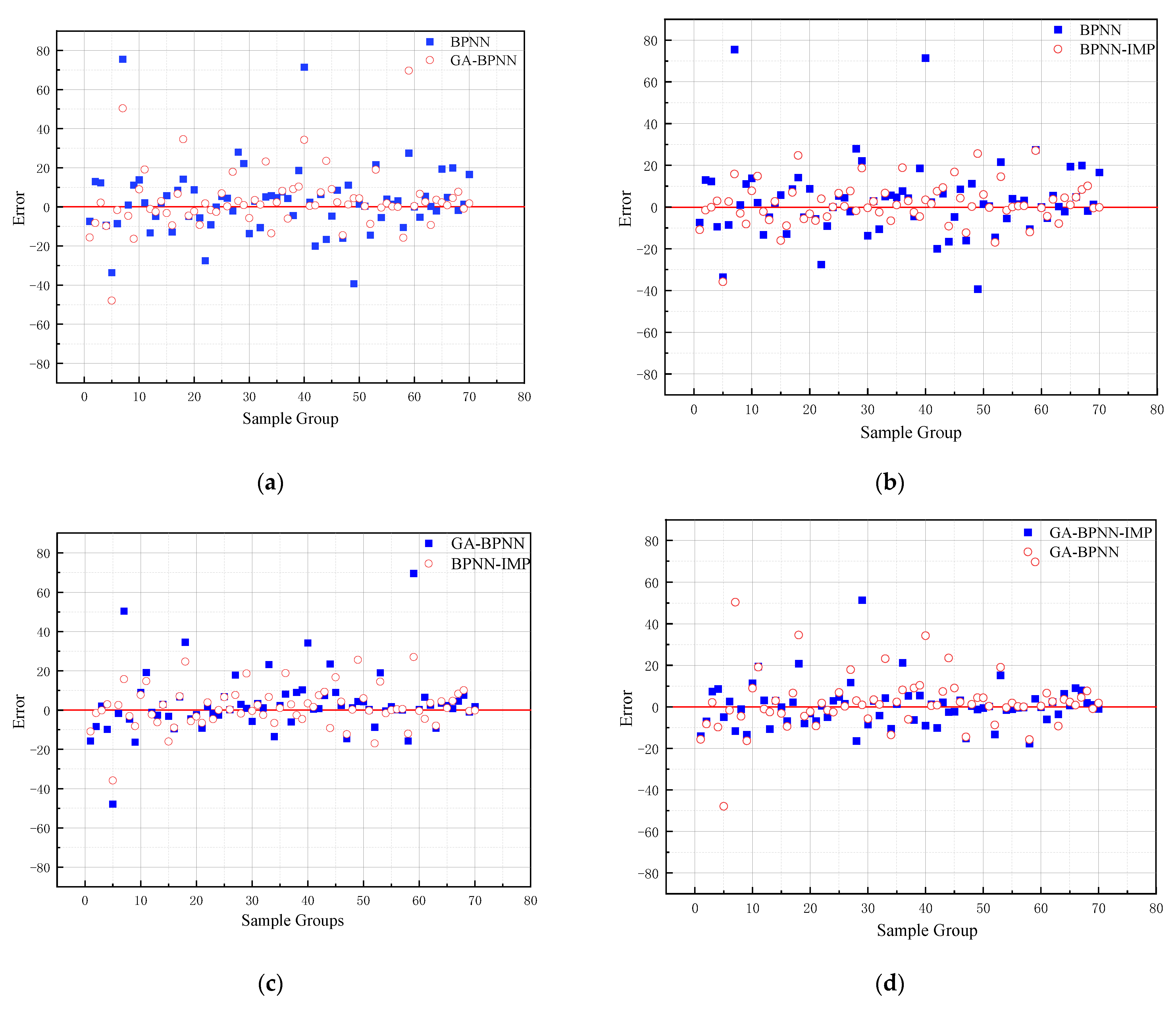

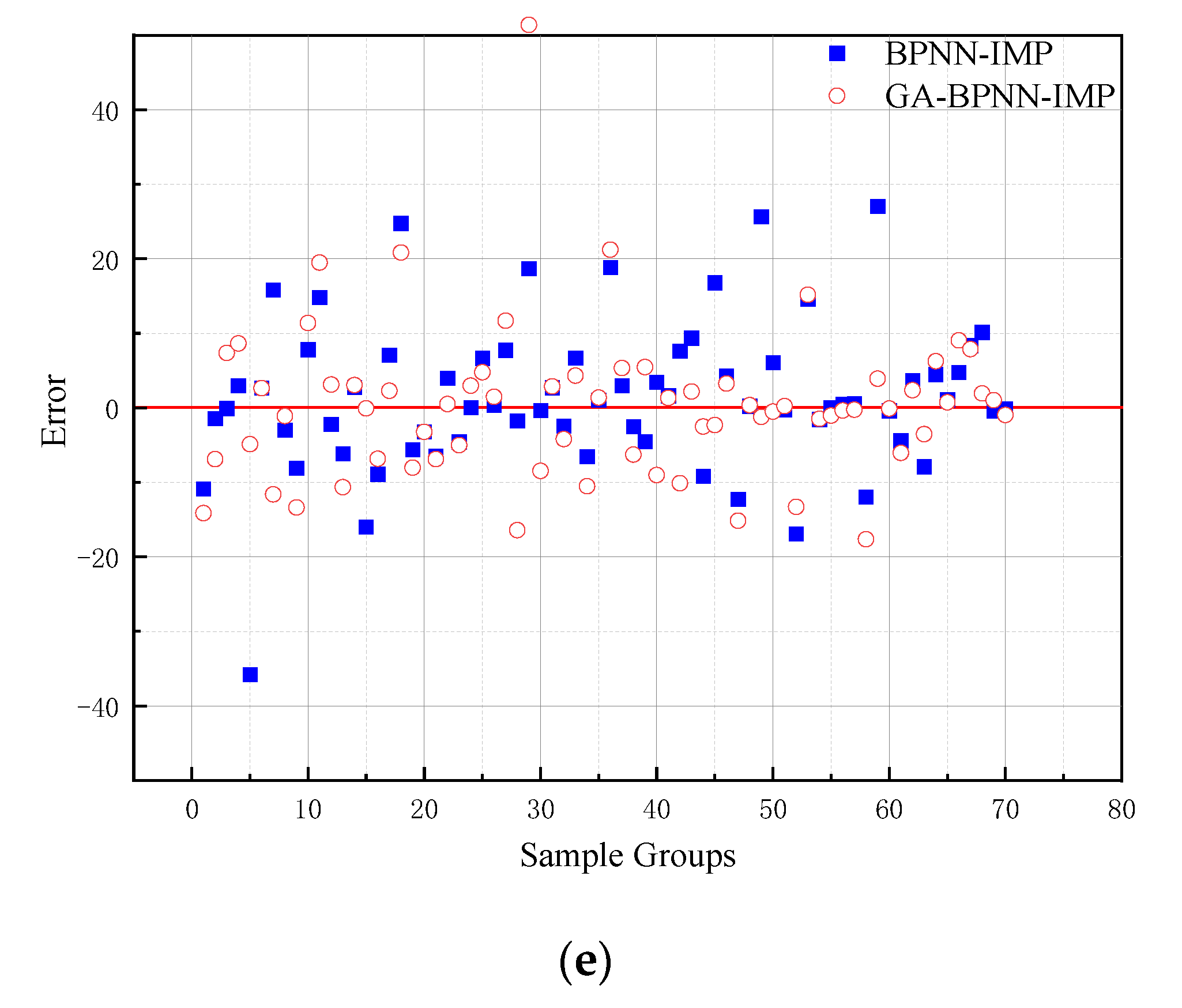

**Figure 8.**Error distribution between different models. (

**a**) Error comparison between BPNN and GA-BPNN. (

**b**) Error comparison between BPNN and optimized BPNN. (

**c**) Error comparison between optimized BPNN and GA-BPNN. (

**d**) Error comparison between GA-BPNN and optimized GA-BPNN. (

**e**) Error comparison between optimized BPNN and optimized GA-BPNN.

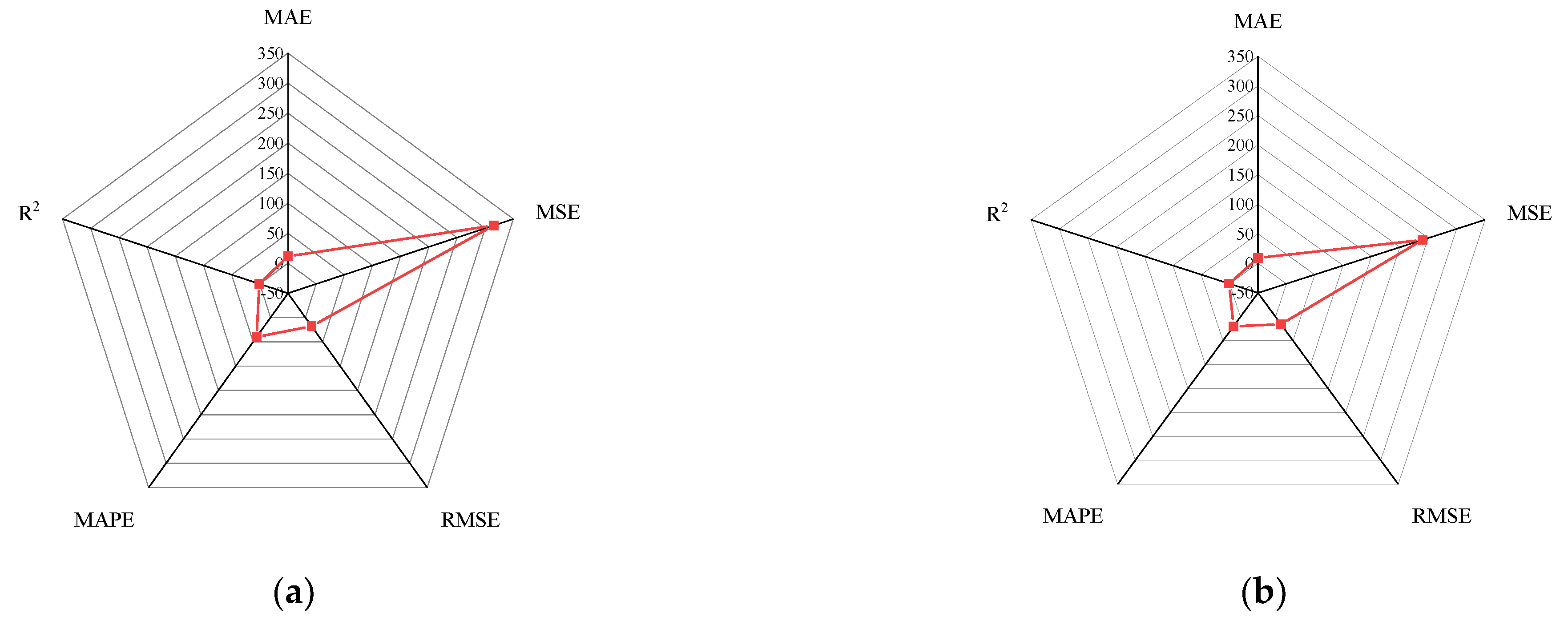

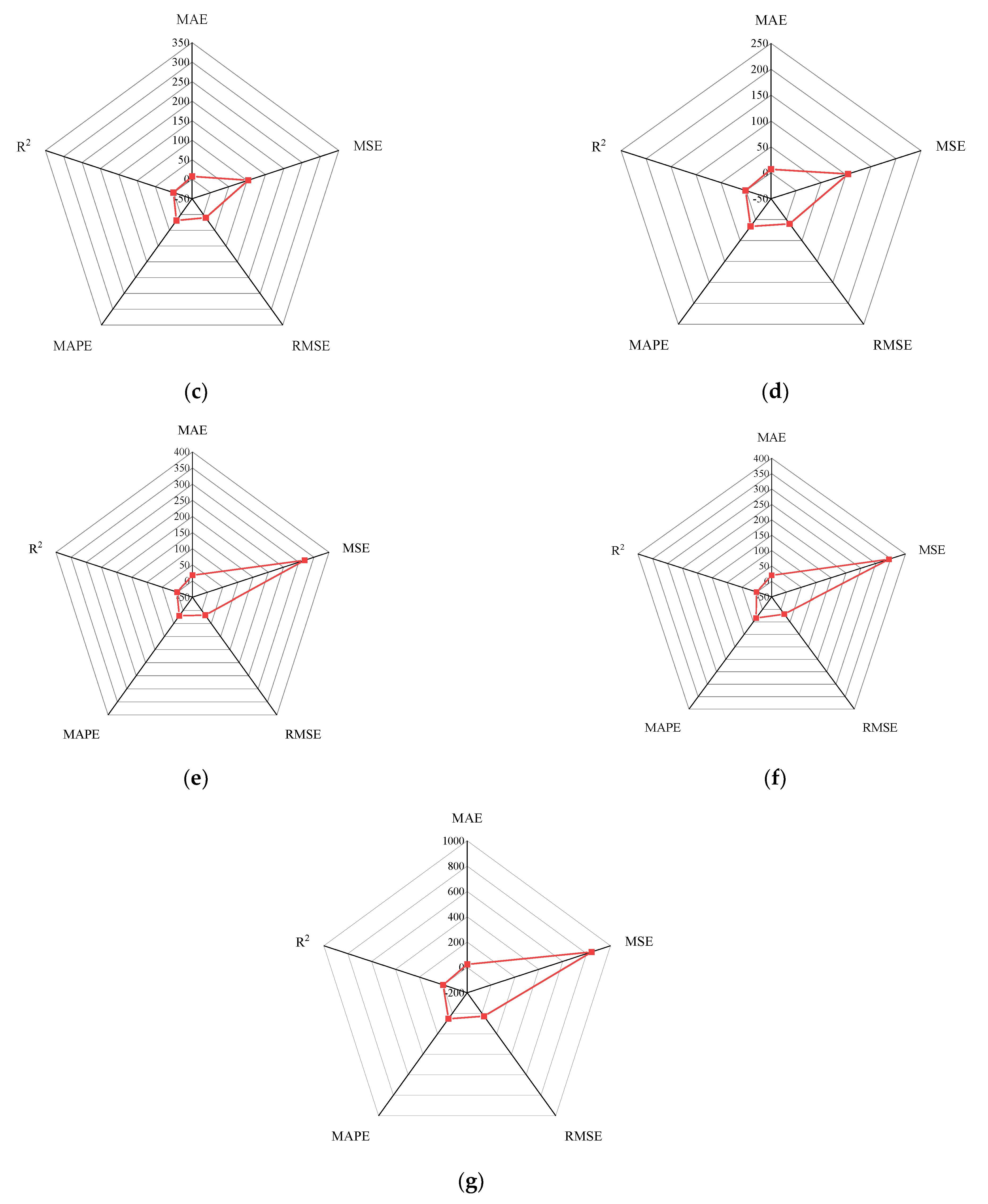

**Figure 15.**Radar diagram of calculation results. (

**a**) BP neural network; (

**b**) GA-BP neural network; (

**c**) Optimized BP neural network; (

**d**) Optimized GA-BP neural network; (

**e**) ACI-318-14; (

**f**) BS-8110; (

**g**) TBC-500-2000.

Parameters | Input/Output | Unit | Minimum | Maximum | Average | σ |
---|---|---|---|---|---|---|

Section details | b | mm | 85 | 600 | 265.943 | 124.295 |

h | mm | 178 | 600 | 391.155 | 134.699 | |

b′ | mm | 56.5 | 546 | 219.021 | 112.81 | |

h′ | mm | 149.5 | 549 | 336.241 | 123.514 | |

Concrete | ${f}_{c}$ | MPa | 14.3 | 109.8 | 45.309 | 20.175 |

Longitudinal bar | ${f}_{yl}$ | MPa | 310 | 724 | 437.871 | 121.795 |

${\mathsf{\rho}}_{l}$ | Percentage | 0.18 | 3.89 | 1.370 | 0.980 | |

Transvers bar | ${f}_{yt}$ | MPa | 265 | 715 | 430.422 | 130.735 |

${\mathsf{\rho}}_{t}$ | Percentage | 0.13 | 3.2 | 1.034 | 0.539 | |

s | mm | 41 | 300 | 104.095 | 39.595 | |

Test strength | ${\mathrm{T}}_{\mathrm{u}}$ | kN·m | 2.18 | 239 | 265.943 | 124.295 |

Parameters | PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 |
---|---|---|---|---|---|---|---|

$b$ | 0.4513 | −0.0733 | −0.1332 | −0.0737 | −0.2801 | 0.1528 | 0.3637 |

$h$ | 0.4105 | −0.1879 | −0.1967 | 0.2998 | 0.2935 | −0.0503 | −0.1717 |

${b}^{\prime}$ | 0.4447 | −0.0665 | −0.14140 | −0.1248 | −0.2906 | 0.2082 | 0.3884 |

${h}^{\prime}$ | 0.4029 | −0.1520 | −0.2235 | 0.3162 | 0.3667 | −0.0109 | −0.2833 |

${f}_{c}{}^{\prime}$ | 0.1861 | 0.4078 | 0.14240 | −0.4710 | 0.6869 | 0.1614 | 0.2243 |

${\mathsf{\rho}}_{l}$ | −0.1359 | 0.4595 | −0.0914 | 0.6491 | 0.1079 | −0.1887 | 0.5298 |

${f}_{yl}$ | 0.2955 | 0.4469 | 0.2218 | 0.0426 | −0.2801 | −0.1148 | −0.1564 |

${\mathsf{\rho}}_{t}$ | −0.2355 | 0.2810 | −0.5069 | 0.0827 | −0.0536 | 0.7372 | −0.1903 |

${f}_{yt}$ | 0.2680 | 0.4601 | 0.2442 | 0.0754 | −0.2099 | 0.0434 | −0.4526 |

$s$ | 0.0066 | −0.2531 | 0.6923 | 0.3522 | 0.0862 | 0.5572 | 0.1033 |

Building Standard | Expression for Torsional Strength | Reference |
---|---|---|

ACI-318-14 | ${T}_{n}=\frac{2{A}_{o}{A}_{t}{f}_{yt}}{s}cot\mathsf{\theta}$ | ${A}_{t}$—the area of one leg of a closed stirrup resisting torsion. ${A}_{o}$—the gross area enclosed by shear flow path ${f}_{yt}$—characteristic strength of the links ${A}_{e}$—the cross-sectional area of the surrounding stirrups $\mathsf{\theta}$—the torsional angel |

BS-8110 | ${T}_{n}=\frac{0.8{b}^{\prime}{h}^{\prime}\left(0.87{f}_{yt}\right){A}_{t}}{s}$ | |

TBC-500-2000 | ${T}_{n}=\frac{2{A}_{o}{A}_{e}{f}_{yt}}{2\left({b}^{\prime}+{h}^{\prime}\right)}$ |

Evaluation Metric | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
---|---|---|---|---|---|---|---|---|---|---|

MAE (kN·m) | 8.430 | 14.536 | 10.930 | 16.924 | 14.549 | 7.059 | 4.511 | 6.072 | 5.727 | 4.737 |

MSE $({\mathrm{kN}}^{2}\xb7{\mathrm{m}}^{2})$ | 126.362 | 333.467 | 230.512 | 1144.994 | 625.964 | 82.497 | 542.109 | 289.448 | 63.630 | 51.052 |

RMSE (kN·m) | 11.241 | 18.261 | 15.183 | 33.838 | 25.019 | 9.083 | 23.283 | 17.013 | 7.977 | 7.145 |

MAPE (%) | 33.530 | 33.431 | 38.752 | 30.469 | 19.198 | 27.160 | 16.307 | 17.697 | 45.789 | 18.477 |

${\mathrm{R}}^{2}$ | 0.945 | 0.896 | 0.756 | 0.840 | 0.776 | 0.968 | 0.979 | 0.952 | 0.952 | 0.979 |

Models | MAE (kN·m) | MSE $(\mathrm{k}{\mathrm{N}}^{2}\xb7{\mathrm{m}}^{2})$ | RMSE (kN·m) | MAPE (%) | ${\mathrm{R}}^{2}$ |
---|---|---|---|---|---|

BP neural networks | 11.548 | 315.363 | 17.758 | 40.117 | 0.846 |

GA-BP neural networks | 9.109 | 240.046 | 15.493 | 19.798 | 0.887 |

Optimized BP neural networks | 7.063 | 103.100 | 10.154 | 18.957 | 0.943 |

Optimized GA-BP neural networks | 6.742 | 103.988 | 10.197 | 16.251 | 0.950 |

ACI-318-14 | 17.832 | 320.016 | 17.889 | 20.205 | 0.867 |

BS-8110 | 19.700 | 344.436 | 18.559 | 34.507 | 0.856 |

TBC-500-2000 | 24.154 | 842.799 | 29.031 | 54.252 | 0.756 |
