# Investigations of Structural, Electronic and Magnetic Properties of MnSe under High Pressure

^{1}

^{2}

^{*}

## Abstract

**:**

_{3}/mmc) to the P4/nmm phase at 50.5 GPa and further to the Pnma phase at 81 GPa are observed. However, if the transition starts from the room-temperature phase with a NaCl-type structure (Fm-3m), the transition-sequences and -pressures will be different, indicating that temperature can strongly affect the phase transition behaviors of MnSe. Furthermore, we found that pressure-induced negative charge transfer will promote spin crossover. The calculated superconducting properties of the Pnma phase indicate that it may be an unconventional superconductor.

## 1. Introduction

_{2}, have also attracted attention, since they exhibit large cell volume collapse and spin crossover during pressure-induced phase transitions [9,10,11]. Interestingly, a recent study reported the observation of superconductivity with T

_{C}~ 9 K in pressurized MnSe at ~35 GPa [12]. However, the superconducting structure is not clear yet.

_{3}/mmc symmetry when the temperature is lower than 266 K [13]. However, the same transition was observed at 140 K during the cooling process performed by means of synchrotron X-ray and neutron diffraction [14]. Furthermore, experimental works based on the in situ synchrotron XRD pattern [12] and the in situ angle dispersive synchrotron X-ray diffraction pattern [9] demonstrated that at room temperature, the low-pressure (LP) (0~12 GPa) and high-pressure (HP) (>30 GPa) phase structures of MnSe are NaCl-type with Fm-3m symmetry and MnP-type with Pnma symmetry, respectively. However, in [9], it is pointed out that there is an unknown tetrahedral structure between the Fm-3m and Pnma phases. The study also indicates the coexistence of the Fm-3m and P6

_{3}/mmc phases between 12.2 GPa and 16 GPa and the coexistence of the Fm-3m, P6

_{3}/mmc and Pnma phases between 16 GPa and 30 GPa [12]. On the other hand, the existing theoretical works [15,16] mainly studied the electronic structures of the Fm-3m phase, and there is a lack of reports on the structural evolution of MnSe under high pressure. We found that although lots of works had been conducted to explore the structures of MnSe, the evolution of the structure with pressure has not been clarified yet, especially the mixed phases between the Fm-3m phase and the Pnma phase observed by the experiment [9,12].

## 2. Methods

^{−6}eV and 0.001 eV/Å, respectively. The first Brillouin zone was represented by the Monkhorst–Pack scheme [22,23], and the number of k points was sufficiently dense (k × a = 40, k × b = 40, and k × c = 40) to bring about convergent results. The exchange and correlation energy were described within local density approximation [24] (LDA), generalized gradient approximation (GGA) parametrized using the Perdew–Burke–Ernzerhof functional [25], LDA with the Hubbard U correction (LDA + U) and GGA with the Hubbard U correction (GGA + U) [26]. The onsite Coulomb interaction U of 1 eV, 2 eV, 3 eV and 4 eV was used for the Mn-d electrons. All the studied structures were completely relaxed until the total stress tensor was reduced to 0.01 GPa. Because it was experimentally reported that the magnetic moment of NaCl-type MnSe with Fm-3m symmetry was along the [111] direction [14,27], we used GGA and GGA + U (U = 1 eV, 2 eV, 3 eV, and 4 eV) based on Dudarev’s method [26] to simulate the energy of configuration of the magnetic moment along the [001] and [111] directions, respectively. The orientations of the magnetic moment of all the structures were set using the spin quantization axis (SAXIS-tag) in the VASP code. All the magnetic moments were given with respect to the axis, where all the magnetic moments written or read by VASP were given with respect to this axis. For example, when the direction of the magnetic moment is along [001], the quantization axis is set to “SAXIS = 0 0 1”. The results showed that the energy of the system for a magnetic moment along the [111] direction was only 0.25 meV/atom lower than that along the [001] direction, indicating that the energy was not very sensitive to the direction of the magnetic moment. Therefore, the magnetic moment in all the calculations was set along the [001] direction. Furthermore, the enthalpies of formation (H) of all the structures were calculated as follows:

_{B}should be set as “ISPIN = 2” and “MAGMOM = 5 −5 0 0” and the corresponding FM state should be set as “ISPIN = 2” and “MAGMOM = 5 5 0 0”. The phonon dispersions of all the structures were calculated using the density functional perturbation theory (DFPT) method within the LDA + U (U = 4 eV) functional, as implemented in the PHONOPY code [28,29]. Crystal structure searching at 0, 20, 80 and 100 GPa was carried out by using the Crystal structure AnaLYsis by Particle Swarm Optimization (CALYPSO) code [30,31].

^{−5}Ry/Å, and the convergence criterion for self-consistent calculations was set to 10

^{−6}Ry. The energy cutoff of the wave functions and charge density were set to 80 Ry and 640 Ry, respectively, and 4 × 6 × 4 k-point meshes were used, both of which ensure the convergence of energies within 0.0001 Ry/atom. The related calculations of the superconducting properties were performed based on the fully relaxed structure, and we used 2 × 1 × 2 q-point meshes for EPC parameter λ, which represents the strength of the electron–phonon interaction. The larger the EPC constant λ, the higher the superconducting transition temperature of conventional superconductors.

## 3. Results and Discussion

#### 3.1. Structural Evolution under Pressure

_{3}/mmc symmetry and a MnP-type structure with Pnma symmetry reported in previous studies [9,12,13]. Besides, we also used the CALYPSO software to search for structures based on the GGA and GGA + U functionals. The results based on the GGA functional show that the stable structures are the tetragonal phase with P4/nmm (1) symmetry at 0 GPa, the hexagonal phase with P6

_{3}/mmc symmetry at 20 GPa and the orthogonal phase with Pmmn symmetry at 80 GPa and 100 GPa, respectively. However, the structure search using the GGA + U (U = 4 eV) functional show that the stable structures at 0 GPa, 20 GPa, 80 GPa and 100 GPa are the tetragonal phase with I-4m2 symmetry, the hexagonal phase with P6

_{3}/mmc symmetry, the tetragonal phase with P4/nmm symmetry and the cubic phase with Pm-3m symmetry, respectively. The applied U value had strong effects on the searched stable structures. In combination with the structure search in the GGA and GGA + U framework, eight kinetic stable structures were selected to calculate the dependence of enthalpy on pressure (shown in Figure 1) through the GGA (LDA) and GGA (LDA) + U functionals.

_{3}/mmc symmetry at lower temperature [13,14]. In addition, the results calculated using GGA + U (U = 1 eV and 3 eV) also cannot correctly describe the ground state structure of MnSe. Compared with GGA which usually overestimates the lattice constant, LDA slightly underestimates them [36]. A natural follow-up work is to look into the structural changes of MnSe under high pressure based on the LDA and LDA + U functionals. The results show that U = 4 eV can well describe the structure of MnSe when the U values of 1 eV, 2 eV, 3 eV, and 4 eV are applied. For ease of discussion, only the evolutions of relative enthalpies with pressure for U = 2 eV and U = 4 eV were plotted, respectively, as shown in Figure 1e–f. It can be found that compared to LDA and LDA + U (U = 2 eV), adopted U = 4 eV for the LDA + U scheme can accurately describe the stable MnSe phase at 0 GPa. The most and the second most stable phases present at 0 GPa (shown in Figure 1f) are the P6

_{3}/mmc phase and the Fm-3m phase, respectively, consistent with the experimental observations [13,14]. Therefore, in the following, the discussions about the HP properties are based on the results calculated using LDA + U (U = 4 eV), as shown in Figure 1f.

_{3}/mmc symmetry at lower temperature has lower enthalpy, indicating that temperature affects the stability of the structure. We further compared the difference in Helmholtz free energy of the two structures at different temperatures. The results showed that the energy of the P6

_{3}/mmc phase was 50 meV/atom lower and 2 meV/atom higher than that of the Fm-3m phase at 0 K and 900 K, respectively, which suggests that the Fm-3m phase is more stable at high temperatures and the energy difference between the Fm-3m and P6

_{3}/mmc phases decreases with increasing temperature. As pressure increased, a phase transition from the P6

_{3}/mmc phase to the tetragonal phase with P4/nmm symmetry occurred, which involved a volume compression of 3%, evidencing the first-order phase transition (shown in Figure 2a). The P4/nmm phase had the lowest energy at the pressure range of 50.5 GPa~81.0 GPa, and it transformed into a MnP-type structure with Pnma symmetry combined with a volume reduction of 6% (Figure 2a). When the pressure was less than 10 GPa, two high-pressure phases, P4/nmm and Pnma phases, spontaneously transformed into Fm-3m and P6

_{3}/mmc structures, respectively. The above discussions suggest that the sequences of phase transition we simulated (P6

_{3}/mmc → P4/nmm → Pnma) at 0 K are slightly different from the experimentally observed results (Fm-3m → an unknown tetragonal phase → Pnma) [9] at room temperature, which is caused by the different stable structure of MnSe at room temperature and lower temperature. Please note that at 10 GPa, the enthalpies of the P4/nmm and Pnma phases are very close to the high-temperature phase at ambient pressure (Fm-3m phase). Therefore, if the Fm-3m phase is used for pressure loading, the phase transition to the Pnma phase and further to the P4/nmm phase may occur at ~10 GPa and 23.8 GPa, respectively. We found that temperature has strong effects not only on the stable phase at ambient pressure, but also on the high-pressure phase transition sequences, which may give rise to the coexistence of mixed phases at a large pressure range [9,12]. Please note, the tetragonal phase with P4/nmm symmetry has not been reported before and can provide a reference for illustrating the experimentally observed unknown tetrahedral structure between the Fm-3m and Pnma phases [9]. Based on the above discussion, we concluded that temperature modulates the phase transition sequences under pressure by affecting the stable structure under ambient pressure.

_{3}/mmc) class as ${\mathrm{C}}_{11}>\left|{\mathrm{C}}_{12}\right|,2{\mathrm{C}}_{13}^{2}{\mathrm{C}}_{33}\left({\mathrm{C}}_{11}+{\mathrm{C}}_{12}\right),{\mathrm{C}}_{44}0,{\mathrm{C}}_{66}0$, of the tetragonal (P4/nmm) class as ${\mathrm{C}}_{11}>\left|{\mathrm{C}}_{12}\right|,2{\mathrm{C}}_{13}^{2}{\mathrm{C}}_{33}\left({\mathrm{C}}_{11}+{\mathrm{C}}_{12}\right),{\mathrm{C}}_{44}0,{\mathrm{C}}_{66}0$ and of the orthorhombic (Pnma) phase as ${\mathrm{C}}_{11}>0,{\mathrm{C}}_{44}0,{\mathrm{C}}_{55}0,{\mathrm{C}}_{66}0,{\mathrm{C}}_{11}{\mathrm{C}}_{22}{\mathrm{C}}_{12}^{2},{\mathrm{C}}_{11}{\mathrm{C}}_{22}{\mathrm{C}}_{33}+2{\mathrm{C}}_{12}{\mathrm{C}}_{13}{\mathrm{C}}_{23}-{\mathrm{C}}_{11}{\mathrm{C}}_{23}^{2}-{\mathrm{C}}_{22}{\mathrm{C}}_{13}^{2}-{\mathrm{C}}_{33}{\mathrm{C}}_{12}^{2}0$ [37]. These results indicate the three phases are kinetically and mechanically stable.

#### 3.2. Electronic and Magnetic Properties

_{3}/mmc symmetry, P4/nmm symmetry and Pnma symmetry. The energy of the non-magnetism (NM) state was much higher than that of the FM and AFM states within the investigated pressure range (0~120 GPa). Figure 5 represents the calculated pressure dependence of enthalpy difference between the AFM and FM states. Calculations based on LDA + U (U = 4 eV) provided an AFM state with a 4.51 μ

_{B}magnetic moment, the ground magnetic state of the Fm-3m phase at 0 GPa, which is consistent with theoretical [16] and experimental results [38]. Except the Pnma phase, pressure can induce a magnetic transition from AFM to FM in the other three phases. However, AFM is always the ground magnetic state in their thermodynamically stable pressure range, which means that the AFM state has the lowest enthalpy value compared to FM in the corresponding pressure range. For example, as shown in Figure 1f and Figure 5b, the P6

_{3}/mmc phase with AFM state has the lowest enthalpy in the pressure range of 0–50.5 GPa.

_{3}/mmc phase, the P4/nmm phase and the Pnma phase are shown as a function of pressure in Figure 2b. The band gap of the P6

_{3}/mmc phase gradually decreases to 0 eV at 20 GPa, leading to a metal–insulator transition, comparable to the results reported in the experiment [9]. The analysis of the partial density of states (PDOS) (Figure 3a–c) of the P6

_{3}/mmc phase at 40 GPa, the P4/nmm phase at 81 GPa and the Pnma phase at 81 GPa show that metallization originates from the itinerant Mn-d electrons as well as the increased density of states at the Fermi level. Evolutions of the magnetic moment and Bader charge with pressure are shown in Figure 2c; we found that the magnetic moment of MnSe decreased with pressure increasing. The magnetic moment gradually dropped from a high-spin state (4.40 μ

_{B}) at 0 GPa to 3.62 μ

_{B}at 60 GPa and then rapidly dropped to 1.59 μ

_{B}at 81 GPa. Finally, the low-spin state with a magnetic moment of 0.96 μ

_{B}was achieved at the pressure of 120 GPa. The results indicate that pressure-driven spin crossover of MnSe occurs at a large pressure range (0~120 GPa). Furthermore, with pressure increasing, negative charge transfer from Se to Mn can be found, as shown in Figure 2c, and the decreasing (increasing) behavior of the Bader charge in Se (Mn) atoms as a function of pressure is similar to the counterpart of Mn’s magnetic moment. The results mean that the negative charge transfer promotes the spin crossover of MnSe.

#### 3.3. Superconducting Properties of the Pnma Phase

^{−1}mainly comes from the vibration of Se atoms. The intermediate frequency region within 271~413 cm

^{−1}and the high frequency region above 413 cm

^{−1}mainly come from the vibration of Mn atoms. The calculated Eliashberg phonon spectral function ${\mathsf{\alpha}}^{2}\mathrm{F}\left(\mathsf{\omega}\right)$ and EPC parameter λ representing the strength of the electron–phonon interaction are plotted in Figure 6b. The total EPC strength is as follows:

^{−1}), medium-frequency (271~413 cm

^{−1}), as well as high-frequency (above 413 cm

^{−1}) vibration accounted for 26.9%, 54.9% and 18.2% of the total EPC constant, respectively. Based on the Allen–Dynes equation [39,40], the calculated superconducting transition temperature is very close to 0 K (0.004 K), which is far smaller than the experimentally reported value [12]. The smaller superconducting transition temperature indicates that MnSe may not be a conventional superconductor.

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Taniguchi, M.; Ley, L.; Johnson, R.L.; Ghijsen, J.; Cardona, M. Synchrotron Radiation Study of Cd
_{1−x}Mn_{x}Te (0 ≤ x ≤ 0.65). Phys. Rev. B**1986**, 33, 1206–1212. [Google Scholar] [CrossRef] [PubMed] - Ley, L.; Taniguchi, M.; Ghijsen, J.; Johnson, R.L.; Fujimori, A. Manganese-Derived Partial Density of States in Cd
_{1−x}Mn_{x}Te. Phys. Rev. B**1987**, 35, 2839–2843. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Taniguchi, M.; Fujimori, M.; Fujisawa, M.; Mori, T.; Souma, I.; Oka, Y. Mn 3d Partial Density-of-States and p-d Hybridization in Cd
_{1−x}Mn_{x}Y (Y = S, Se and Te). Solid State Commun.**1987**, 62, 431–434. [Google Scholar] [CrossRef] - Wang, Y.; Zhou, Z.; Wen, T.; Zhou, Y.; Li, N.; Han, F.; Xiao, Y.; Chow, P.; Sun, J.; Pravica, M.; et al. Pressure-Driven Cooperative Spin-Crossover, Large-Volume Collapse, and Semiconductor-to-Metal Transition in Manganese(II) Honeycomb Lattices. J. Am. Chem. Soc.
**2016**, 138, 15751–15757. [Google Scholar] [CrossRef] [PubMed] - Rueff, J.-P.; Kao, C.-C.; Struzhkin, V.V.; Badro, J.; Shu, J.; Hemley, R.J.; Mao, H.K. Pressure-Induced High-Spin to Low-Spin Transition in FeS Evidenced by X-Ray Emission Spectroscopy. Phys. Rev. Lett.
**1999**, 82, 3284–3287. [Google Scholar] [CrossRef] [Green Version] - Zhang, H.; Niu, C.; Zhang, J.; Zou, L.; Zeng, Z.; Wang, X. Spin-Crossover Induced Ferromagnetism and Layer Stacking-Order Change in Pressurized 2D Antiferromagnet MnPS
_{3}. Phys. Chem. Chem. Phys.**2021**, 23, 9679–9685. [Google Scholar] [CrossRef] [PubMed] - Wolf, S.A.; Awschalom, D.D.; Buhrman, R.A.; Daughton, J.M.; von Molnár, S.; Roukes, M.L.; Chtchelkanova, A.Y.; Treger, D.M. Spintronics: A Spin-Based Electronics Vision for the Future. Science
**2001**, 294, 1488–1495. [Google Scholar] [CrossRef] [Green Version] - Ozawa, K.; Anzai, S.; Hamaguchi, Y. Effect of Pressure on the Magnetic Transition Point of Manganese Telluride. Phys. Lett.
**1966**, 20, 132–133. [Google Scholar] [CrossRef] - Wang, Y.; Bai, L.; Wen, T.; Yang, L.; Gou, H.; Xiao, Y.; Chow, P.; Pravica, M.; Yang, W.; Zhao, Y. Giant Pressure-Driven Lattice Collapse Coupled with Intermetallic Bonding and Spin-State Transition in Manganese Chalcogenides. Angew. Chem. Int. Ed.
**2016**, 128, 10350–10353. [Google Scholar] [CrossRef] - Dyachenko, A.A.; Lukoyanov, A.V.; Shorikov, A.O.; Anisimov, V.I. Magnetically Driven Phase Transitions with a Large Volume Collapse in MnSe under Pressure: A DFT + DMFT Study. Phys. Rev. B
**2018**, 98, 085139. [Google Scholar] [CrossRef] - Kimber, S.A.J.; Salamat, A.; Evans, S.R.; Jeschke, H.O.; Muthukumar, K.; Tomic, M.; Salvat-Pujol, F.; Valentí, R.; Kaisheva, M.V.; Zizak, I.; et al. Giant Pressure-Induced Volume Collapse in the Pyrite Mineral MnS
_{2}. Proc. Natl. Acad. Sci. USA**2014**, 111, 5106–5110. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hung, T.L.; Huang, C.H.; Deng, L.Z.; Ou, M.N.; Chen, Y.Y.; Wu, M.K.; Huyan, S.Y.; Chu, C.W.; Chen, P.J.; Lee, T.K. Pressure Induced Superconductivity in MnSe. Nat. Commun.
**2021**, 12, 5436. [Google Scholar] [CrossRef] [PubMed] - Efrem D’Sa, J.B.C.; Bhobe, P.A.; Priolkar, K.R.; Das, A.; Krishna, P.S.R.; Sarode, P.R.; Prabhu, R.B. Low Temperature Magnetic Structure of MnSe. Pramana-J. Phys.
**2004**, 63, 227–232. [Google Scholar] [CrossRef] - Huang, C.H.; Wang, C.W.; Chang, C.C.; Lee, Y.C.; Huang, G.T.; Wang, M.J.; Wu, M.K. Anomalous Magnetic Properties in Mn (Se, S) System. J. Magn. Magn. Mater.
**2019**, 483, 205–211. [Google Scholar] [CrossRef] - Anisimov, V.V.; Gunnarsson, O. Density-Functional Calculation of Effective Coulomb Interactions in Metals. Phys. Rev. B
**1991**, 43, 7570–7574. [Google Scholar] [CrossRef] - Amiri, P.; Hashemifar, S.J.; Akbarzadeh, H. Density Functional Study of Narrow Cubic MnSe Nanowires: Role of MnSe Chains. Phys. Rev. B
**2011**, 83, 165424. [Google Scholar] [CrossRef] - Xiao, G.; Yang, X.; Zhang, X.; Wang, K.; Huang, X.; Ding, Z.; Ma, Y.; Zou, G.; Zou, B. A Protocol to Fabricate Nanostructured New Phase: B
_{31}-Type MnS Synthesized under High Pressure. J. Am. Chem. Soc.**2015**, 137, 10297–10303. [Google Scholar] [CrossRef] - Kresse, G.; Joubert, D. From Ultrasoft Pseudopotentials to the Projector Augmented-Wave Method. Phys. Rev. B
**1999**, 59, 1758–1775. [Google Scholar] [CrossRef] - Kresse, G.; Furthmüller, J. Efficient Iterative Schemes for Ab Initio Total-Energy Calculations Using a Plane-Wave Basis Set. Phys. Rev. B
**1996**, 54, 11169. [Google Scholar] [CrossRef] - Hafner, J. Ab-Initio Simulations of Materials Using Vasp: Density-Functional Theory and Beyond. J. Comput. Chem.
**2008**, 29, 2044–2078. [Google Scholar] [CrossRef] - Zhao, J.; Zhang, H.; Niu, C.; Zhang, J.; Zeng, Z.; Wang, X. Investigations of High-Pressure Properties of MnF
_{2}Based on the First-Principles Method. J. Phys. Chem. C**2021**, 125, 21709–21717. [Google Scholar] [CrossRef] - Monkhorst, H.J.; Pack, J.D. Special Points for Brillouin-Zone Integrations. Phys. Rev. B
**1976**, 13, 5188–5192. [Google Scholar] [CrossRef] - Pack, J.D.; Monkhorst, H.J. “Special Points for Brillouin-Zone Integrations”—A Reply. Phys. Rev. B
**1977**, 16, 1748–1749. [Google Scholar] [CrossRef] - Painter, G.S. Improved Correlation Corrections to the Local-Spin-Density Approximation. Phys. Rev. B
**1981**, 24, 4264–4270. [Google Scholar] [CrossRef] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett.
**1996**, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dudarev, S.L.; Botton, G.A.; Savrasov, S.Y.; Humphreys, C.J.; Sutton, A.P. Electron-Energy-Loss Spectra and the Structural Stability of Nickel Oxide: An LSDA + U Study. Phys. Rev. B
**1998**, 57, 1505–1509. [Google Scholar] [CrossRef] - Samarth, N.; Kłosowski, P.; Luo, H.; Giebułtowicz, T.M.; Furdyna, J.K.; Rhyne, J.J.; Larson, B.E.; Otsuka, N. Antiferromagnetic Ordering in MnSe/Znse Multilayers. J. Appl. Phys.
**1991**, 69, 6109. [Google Scholar] [CrossRef] - Baroni, S.; de Gironcoli, S.; Dal Corso, A.; Giannozzi, P. Phonons and Related Crystal Properties from Density-Functional Perturbation Theory. Rev. Mod. Phys.
**2001**, 73, 515–562. [Google Scholar] [CrossRef] [Green Version] - Gonze, X.; Lee, C. Dynamical Matrices, Born Effective Charges, Dielectric Permittivity Tensors, and Interatomic Force Constants from Density-Functional Perturbation Theory. Phys. Rev. B
**1997**, 55, 10355–10368. [Google Scholar] [CrossRef] - Wang, Y.; Lv, J.; Zhu, L.; Ma, Y. Crystal Structure Prediction Via Particle Swarm Optimization. Phys. Rev. B
**2010**, 82, 094116. [Google Scholar] [CrossRef] [Green Version] - Wang, Y.; Jian, L.; Zhu, L.; Ma, Y. Calypso: A Method for Crystal Structure Prediction. Comput. Phys. Commun.
**2012**, 183, 2063–2070. [Google Scholar] [CrossRef] [Green Version] - Giannozzi, P.; Baroni, S.; Bonini, N.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Chiarotti, G.L.; Cococcioni, M.; Dabo, I.; et al. Quantum Espresso: A Modular and Open-Source Software Project for Quantum Simulations of Materials. J. Phys. Condens. Matter
**2009**, 21, 395502. [Google Scholar] [CrossRef] [PubMed] - Bardeen, J.; Cooper, L.N.; Schrieffer, J.R. Theory of Superconductivity. Phys. Rev.
**1957**, 108, 1175–1204. [Google Scholar] [CrossRef] [Green Version] - Prandini, G.; Marrazzo, A.; Castelli, I.E.; Mounet, N.; Marzari, N. Precision and Efficiency in Solid-State Pseudopotential Calculations. NPJ Comput. Mater.
**2018**, 4, 72. [Google Scholar] [CrossRef] - Vanderbilt, D. Soft Self-Consistent Pseudopotentials in a Generalized Eigenvalue Formalism. Phys. Rev. B
**1990**, 41, 7892–7895. [Google Scholar] [CrossRef] - Perdew, J.P.; Ruzsinszky, A.; Csonka, G.I.; Vydrov, O.A.; Scuseria, G.E.; Constantin, L.A.; Zhou, X.; Burke, K. Restoring the Density-Gradient Expansion for Exchange in Solids and Surfaces. Phys. Rev. Lett.
**2008**, 100, 136406. [Google Scholar] [CrossRef] [Green Version] - Mouhat, F.; Coudert, F.X. Necessary and Sufficient Elastic Stability Conditions in Various Crystal Systems. Phys. Rev. B
**2014**, 90, 224104. [Google Scholar] [CrossRef] [Green Version] - Pickart, S.J.; Nathans, R.; Shirane, G. Magnetic Structure Transitions in Li
_{x}Mn_{1−x}Se. Phys. Rev.**1961**, 121, 707–714. [Google Scholar] [CrossRef] - McMillan, W.L. Transition Temperature of Strong-Coupled Superconductors. Phys. Rev.
**1968**, 167, 331–344. [Google Scholar] [CrossRef] - Dynes, R.C. Mcmillan’s Equation and the Tc of Superconductors. Solid State Commun.
**1972**, 10, 615–618. [Google Scholar] [CrossRef]

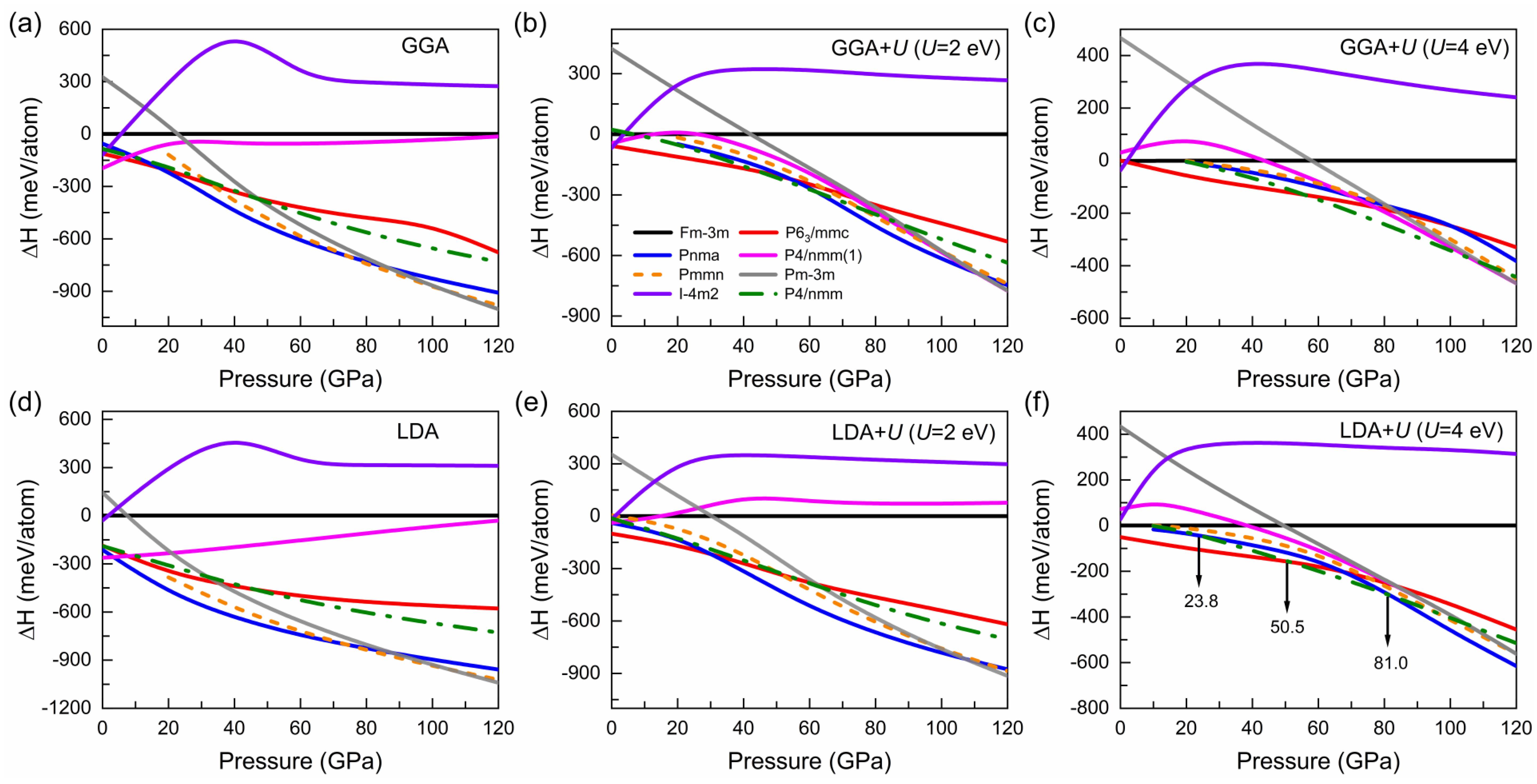

**Figure 1.**Enthalpies difference (ΔH) using generalized gradient approximation (GGA), GGA with the Hubbard U correction (GGA + U) (U = 2 eV) and GGA + U (U = 4 eV) are shown in (

**a**–

**c**), respectively, as a function of pressure. Counterparts using local density approximation (LDA), LDA + U (U = 2 eV) and LDA + U (U = 4 eV) are shown in (

**d**–

**f**), respectively.

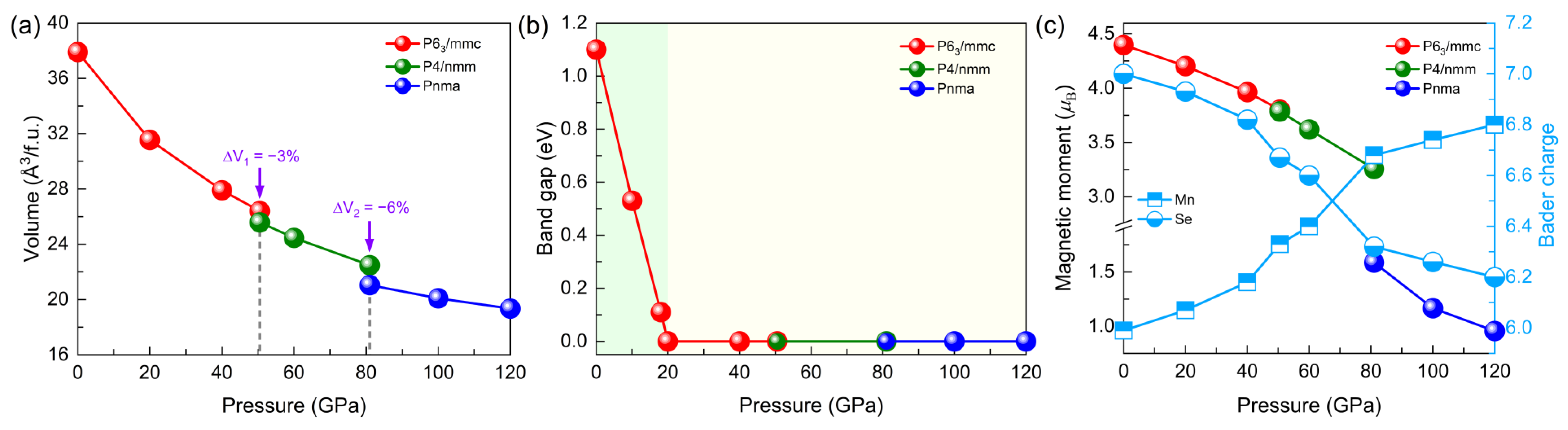

**Figure 2.**Evolution of (

**a**) volume and (

**b**) band gap based on the LDA + U (U = 4 eV) functional are shown as a function of pressure. In (

**c**), magnetic moments (black, left Y-axis) and Bader charge (blue, right Y-axis) are presented. In (

**a**), the vertical gray dashed lines indicate the pressure positions of the two-phase transitions in turn. In (

**b**), green and yellow areas represent the stable ranges of the insulator and the metal, respectively.

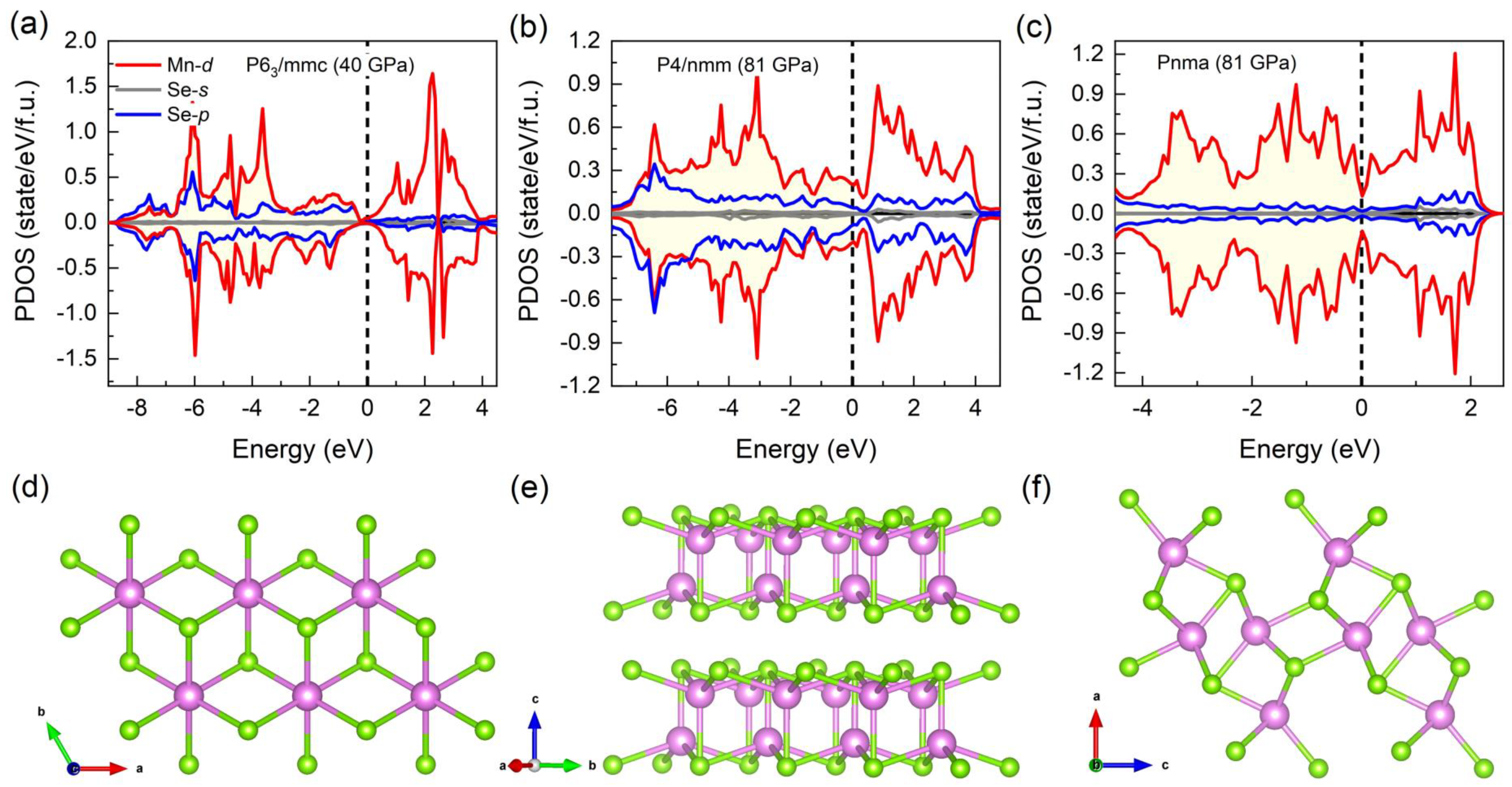

**Figure 3.**(

**a**) Partial density of states (PDOS) of MnSe with P6

_{3}/mmc symmetry at 40 GPa. (

**b**) PDOS of MnSe with P4/nmm symmetry at 81 GPa. (

**c**) PDOS of MnSe with Pnma symmetry at 81 GPa. The ground-state structures of the P6

_{3}/mmc phase (

**d**), the P4/nmm phase (

**e**) and the Pnma phase (

**f**), in which the Mn and Se atoms are represented by pink and green spheres, respectively. In (

**a**–

**c**), the dashed vertical lines show the Fermi energy level, and the yellow shadow area represents the occupied state of Mn-d electrons.

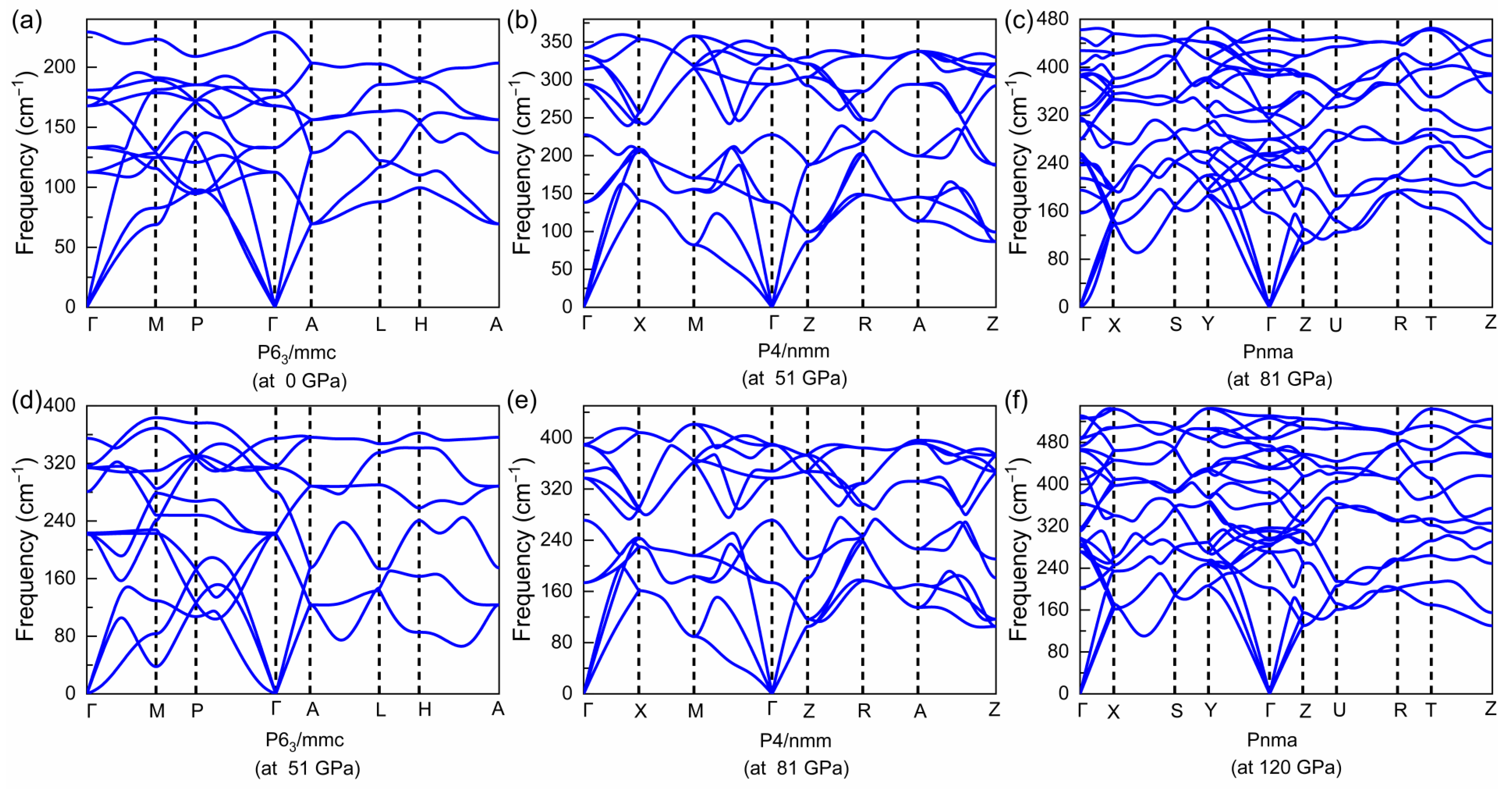

**Figure 4.**Phonon dispersions calculated using the LDA + U (U = 4 eV) functional with (

**a**) P6

_{3}/mmc symmetry at 0 GPa, with (

**b**) P4/nmm symmetry at 51 GPa, with (

**c**) Pnma symmetry at 81 GPa, with (

**d**) P6

_{3}/mmc phase at 51 GPa, with (

**e**) P4/nmm phase at 81 GPa and with (

**f**) Pnma phase at 120 GPa.

**Figure 5.**Evolution of enthalpy difference (ΔH) between the anti-ferromagnetism (AFM) and ferromagnetism (FM) of (

**a**) the Fm-3m phase, (

**b**) the P6

_{3}/mmc phase, (

**c**) the P4/nmm phase and (

**d**) the Pnma phase. In (

**b**–

**d**), the yellow region indicates the stable range of MnSe with P6

_{3}/mmc symmetry, with P4/nmm symmetry and with Pnma symmetry, respectively.

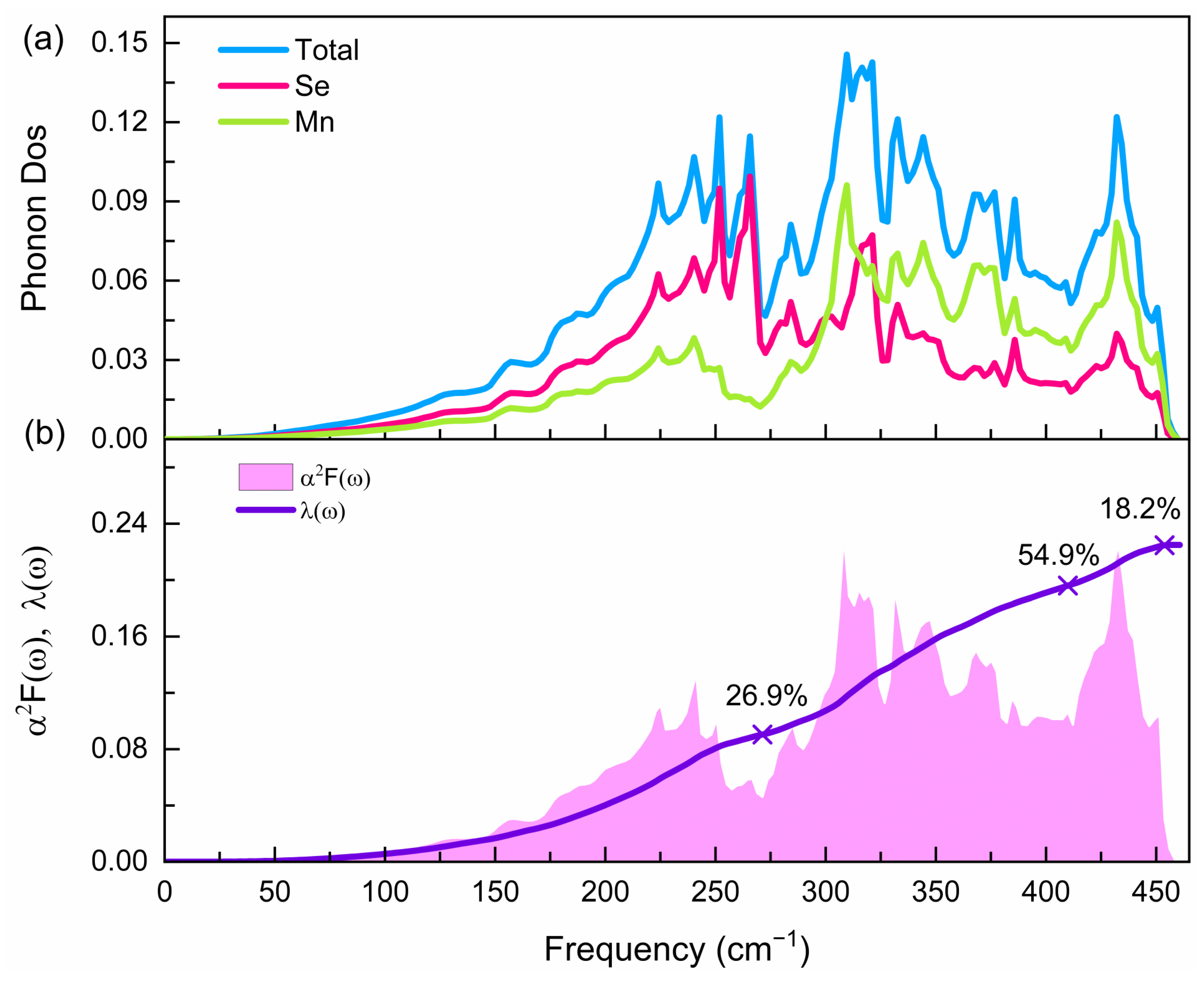

**Figure 6.**(

**a**) Partial phonon density of states (Phonon Dos) of the Pnma phase at 81 GPa. (

**b**) Eliashberg phonon spectral function ${\mathsf{\alpha}}^{2}\mathrm{F}\left(\mathsf{\omega}\right)$ and electron—phonon coupling (EPC) parameter λ.

**Table 1.**The calculated crystal structure parameters (space group (SG), number of formula units in unit cell Z, lattice parameters (a, b and c), Wyckoff site and the corresponding coordinates (x, y and z)) of MnSe with P6

_{3}/mmc symmetry at 0 GPa, with P4/nmm symmetry at 60 GPa and with Pnma symmetry at 100 GPa.

P (GPa) | SG | Z | a (Å) | b (Å) | c (Å) | WP | x | y | z |
---|---|---|---|---|---|---|---|---|---|

0 | P6_{3}/mmc | 2 | 3.761 | 3.761 | 6.188 | Mn(2a) | 0.0000 | 0.0000 | 0.0000 |

Se(2c) | 0.3333 | 0.6667 | 0.2500 | ||||||

60 | P4/nmm | 2 | 3.160 | 3.160 | 4.898 | Mn(2c) | 0.0000 | 0.5000 | 0.1553 |

Se(2c) | 0.5000 | −0.000 | 0.3134 | ||||||

100 | Pnma | 4 | 5.265 | 2.891 | 5.280 | Mn(4c) | −0.015 | 0.7500 | 0.3065 |

Se(4c) | −0.197 | 0.7500 | 0.9281 |

**Table 2.**C

_{ij}elastic constants (in GPa) of MnSe with the P6

_{3}/mmc phase at 0 GPa, with the P4/nmm phase at 50.5 GPa and with the Pnma phase at 81 GPa.

Space Group | P6_{3}/mmc | P4/nmm | Pnma |
---|---|---|---|

(0 GPa) | (50.5 GPa) | (81 GPa) | |

C_{11} | 122.8 | 178.0 | 361.7 |

C_{12} | 54.1 | 97.9 | 261.2 |

C_{13} | 49.7 | 89.3 | 180.3 |

C_{22} | 122.8 | 178.0 | 426.6 |

C_{23} | 49.7 | 89.3 | 200.1 |

C_{33} | 142.4 | 385.5 | 449.1 |

C_{44} | 36.9 | 72.8 | 171.5 |

C_{55} | 36.9 | 72.8 | 234.7 |

C_{66} | 34.4 | 169.4 | 271.5 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zhao, J.; Zhang, H.; Niu, C.; Wang, X.
Investigations of Structural, Electronic and Magnetic Properties of MnSe under High Pressure. *Materials* **2022**, *15*, 1109.
https://doi.org/10.3390/ma15031109

**AMA Style**

Zhao J, Zhang H, Niu C, Wang X.
Investigations of Structural, Electronic and Magnetic Properties of MnSe under High Pressure. *Materials*. 2022; 15(3):1109.
https://doi.org/10.3390/ma15031109

**Chicago/Turabian Style**

Zhao, Jing, Hanxing Zhang, Caoping Niu, and Xianlong Wang.
2022. "Investigations of Structural, Electronic and Magnetic Properties of MnSe under High Pressure" *Materials* 15, no. 3: 1109.
https://doi.org/10.3390/ma15031109
