Paramagnetic Defects and Thermoluminescence in Irradiated Nanostructured Monoclinic Zirconium Dioxide

by
Daria V. Ananchenko
1,
Sergey V. Nikiforov
1,
Konstantin V. Sobyanin
1,
Sergey F. Konev
1,
Alma K. Dauletbekova
2,
Gulzhanat Akhmetova-Abdik
2,
Abdirash T. Akilbekov
2 and
Anatoli I. Popov
3,*
1
Department of Physics and Technology, Ural Federal University, Ekaterinburg 620002, Russia
2
Department of Technical Physics, L. N. Gumilyov Eurasian National University, Astana 010000, Kazakhstan
3
Institute of Solid State Physics, University of Latvia, 8 Kengaraga Str., LV-1063 Riga, Latvia
*
Author to whom correspondence should be addressed.
Materials 2022, 15(23), 8624; https://doi.org/10.3390/ma15238624
Submission received: 4 October 2022 / Revised: 23 November 2022 / Accepted: 30 November 2022 / Published: 2 December 2022
Browse Figures
Versions Notes

Abstract

:
The ESR spectra of nanostructured samples of monoclinic ZrO2 irradiated by electrons with energies of 130 keV, 10 MeV, and by a beam of Xe ions (220 MeV) have been studied. It has been established that irradiation of samples with electrons (10 MeV) and ions leads to the formation of radiation-induced F+ centers in them. Thermal destruction of these centers is observed in the temperature range of 375–550 K for electron-irradiated and 500–700 K for ion-irradiated samples. It is shown that the decrease in the concentration of F+ centers is associated with the emptying of traps responsible for thermoluminescence (TL) peaks in the specified temperature range. In the samples irradiated with an ion beam, previously unidentified paramagnetic centers with g = 1.963 and 1.986 were found, the formation of which is likely to involve Zr3+ ions and oxygen vacancies. Thermal destruction of these centers occurs in the temperature range from 500 to 873 K.

1. Introduction

Zirconium dioxide is a wide-gap dielectric (Eg = 5–7 eV), which has high mechanical (strength, refractoriness, corrosion resistance), as well as functional (transparency in a wide range of wavelengths, high refractive index, high ionic conductivity) properties. These properties determine the wide possibilities of using ZrO2 in industry as a material for electrochemical devices, and oxygen sensors [1,2,3,4], as well as materials for photocatalysis [5,6,7,8,9] and optical devices [10,11,12,13,14,15,16,17]. The optical and luminescent properties of this material are largely determined by the presence of structural defects, which is especially important when it is used in conditions of harsh radiation environments (nuclear power plants, space electronics). Corpuscular radiation with a particle energy above the threshold (>0.3 MeV for electrons) causes the formation of F-type centers (oxygen vacancies with trapped electrons) in ZrO2 and similar compounds by the impact mechanism [18,19,20,21]. It is known that these defects have a significant effect on the optical and luminescent properties of binary and complex wide-band gap oxide dielectrics [20,21,22,23,24,25,26].
One of the most sensitive methods for studying radiation-induced defects in materials is electron spin resonance (ESR) spectroscopy. The main paramagnetic defects in ZrO2 are centers associated with Zr3+ ions (surface and bulk Zr3+, T-center) [27,28,29,30,31], oxygen hole-centers or OHCs (O− centers) [28,32], and F-type (singly ionized oxygen vacancies (F+) and divacancies (F2+)) [27,28,30,33].
Despite the sufficient number of publications on the topic of paramagnetic radiation defects in ZrO2, their thermal properties remain insufficiently studied. The study of the thermal stability of radiation defects is an important problem, since thermal annealing is a way to eliminate defects and restore the performance characteristics of devices based on ZrO2. The thermal decay of paramagnetic centers can be accompanied by the emission of TL peaks. It is known that the TL curve of ZrO2 irradiated with electrons contains two peaks at 400 and 500 K [34,35]. However, the relationship between these TL peaks and the decay of radiation-induced paramagnetic defects in ZrO2 remains unclear.
The study of the relationship between paramagnetic defects and TL properties of the nanostructural modification of zirconium dioxide is of particular interest. It is known that nanostructured materials have an increased resistance to the formation of radiation defects in comparison with single-crystal analogs, and therefore they are promising materials for high-dose (more than 10 Gy) luminescent dosimetry.
The purpose of this work is to identify paramagnetic defects in samples of monoclinic nanostructured ZrO2 irradiated with heavy ions and electrons of various energies and to evaluate their thermal stability. It is important to note here that the thermal stability of paramagnetic defects and their relationship to TL properties in monoclinic ZrO2 have not been previously studied.

2. Materials and Methods

Samples in the form of tablets with a diameter of 5 mm and a thickness of 1 mm were prepared by cold uniaxial pressing from a nanopowder with a nanoparticle size of 30–50 nm provided by the Plasmotherm Company ((Moscow, Russia). The nanopowder was produced by plasma synthesis; ZrCl4 was used as a raw material for its production. Characterization of the pellets was carried out by the SEM method. The SEM image (Figure S1) and particle size distribution (Figure S2) for ZrO2 pellets are given in the Supplementary Materials. The average particle size in the pellets, determined by the SEM method, corresponds to the one declared by the manufacturer. The proportion of monoclinic ZrO2 in the powder under study, according to X-ray fluorescence data, was at least 99.02%; HfO2 (0.331%), Cl (0.458%), K2O (0.110%), TiO2 (0.069%), PdO (0.009%), and Rb2O (0.006%) compounds were present as impurities [36].
The studied samples were irradiated with three different types of radiation: (1) xenon ions with an energy of 220 MeV at the DC-60 heavy ion accelerator (Nur-Sultan, Kazakhstan); (2) electrons with an energy of 130 keV from the pulsed electron accelerator RADAN (pulse duration 2 ns, current density 60 A/cm2); (3) electrons with an energy of 10 MeV from the linear electron accelerator UELR (Yekaterinburg, Russia). Two types of electron beams with different electron energies were used, since one of them (10 MeV) is capable of leading to the formation of new F-type radiation centers by the impact mechanism, and the second (130 keV) only changes the charge states of existing defects or impurities. The displacement energies for ZrO2 under ion irradiation were estimated using the method presented in [37,38]. Damage was modeled using the SRIM Pro 2013 software code [39] with threshold displacement energies of 40 eV for both zirconium and oxygen atoms. For fluences from 109 to 1013 ion/cm2, the corresponding dpa values ranged from 0.5 × 10−7 to 0.5 × 10−3 dpa. Evaluation of dpa upon irradiation with 10 MeV electrons is carried out according to the formula presented in [40]. The corresponding value of the atomic displacement cross section was taken from [41]. According to the calculated value of the displacements, the fluence of 1015 electrons/cm2 is 1.3 × 10−6 dpa.
TL was measured with a photomultiplier tube with a spectral sensitivity maximum at 400–420 nm under a linear heating rate of 2 °C/s.
ESR measurements were performed on a Bruker ELEXSYS 580 device with a resonant frequency of 9.78 GHz in the range of the magnetic flux density change from 50 to 600 mT. ESR spectra were recorded at room temperature after heating the samples in the range of 323–873 K with a step of 20 K. When studying the thermal stability of paramagnetic centers, the samples were heated in the same mode as in the measurement of TL.

3. Results

To identify radiation-induced defects in ZrO2, the ESR spectra of the initial ZrO2 pellets irradiated with various radiation sources were measured (Figure 1). The ESR spectrum of unirradiated ZrO2 pellets contains a signal at a magnetic field B = 356.0 mT with g = 1.965 and a peak-to-peak width 3.7 mT. This signal is associated with paramagnetic Zr3+ ions, which were probably formed during the synthesis of the initial ZrO2 nanopowders. The ESR signal of Zr3+ ions has already been detected earlier in unirradiated ZrO2 [27,42] and ZrO2:Er [28] nanopowders. The signal with g⊥ = 1.975 and gII = 1.957–1.958 was identified in them as bulk Zr3+. In [28,29], an ESR signal with identical g⊥ but different gII = 1.905–1.928 was assigned to surface Zr3+ ions. The g factor of the paramagnetic Zr3+ found by us in the initial pellets makes it possible to identify it as bulk Zr3+.
In the ESR spectra of the samples irradiated with electrons with an energy of 130 keV (a dose of 15 kGy), as in the initial pellets, there is a signal from Zr3+ with g = 1.965 and a peak-to-peak width of 3.2 mT. In addition, a low-intensity signal with g = 1.999 appears. This signal indicates the presence of a trace concentration of F+ centers in the irradiated samples. Previously, the F+-center was detected in ZrO2 after electron and ion irradiation and represented a line with a small g-factor anisotropy (g⊥ = 1.972 and gII = 1.996) [40]. Some authors report that the F+ center is characterized by an isotropic signal with a g-factor near the free electron value (ge = 2.0023) [27,28]. Previously, the formation of F+ centers upon irradiation with an electron beam with an energy of 130 keV can occur because of the capture of electrons by oxygen vacancies present in the initial samples, and in the photoluminescence (PL) and pulsed cathodoluminescence (PCL) spectra of the samples studied in this work. A luminescence band was observed at 480 nm, in which the formation of oxygen vacancies participate [35].
Irradiation of the pellets with electrons with an energy of 10 MeV (Figure 1) leads to an increase in the intensity of the ESR signal with g = 1.999 (peak-to-peak width 2.7 mT) from F+-centers. This indicates intensive processes of generation of these centers in ZrO2 by the impact mechanism. It is known that the threshold energy for the formation of F-type defects in ZrO2 is about 1 MeV [18]; therefore, an electron energy of 10 MeV is sufficient to displace oxygen atoms from the lattice sites. The intensity of the ESR signal of Zr3+ in samples irradiated with electrons with an energy of 10 MeV is lower than in the initial samples. Additional studies are required to elucidate the cause of this effect.
Irradiation of the investigated ZrO2 samples with xenon ions with a fluence of up to 1013 ions/cm2 did not lead to a change in the ESR spectrum compared to the initial sample. The spectra of these pellets contain a Zr3+ signal with g = 1.963 (peak-to-peak width 3.5 mT). In samples irradiated with an ion beam with a fluence of 1013 ions/cm2, the ESR spectrum is significantly transformed, and the signal from Zr3+ ions is no longer observed in it (Figure 1). Instead, signals appear at 356.8 mT (g = 1.963), 350.0 mT (g = 1.998), and 352.5 mT (g = 1.986). The signal with g = 1.998 (peak-to-peak width 1.2 mT) is probably associated with the presence F+ centers in samples irradiated with ions. Signals with g = 1.986 and 1.963 (peak-to-peak width 1.5 mT) can be attributed to a new previously unidentified radiation-induced center.
It is well known that ion irradiation can quite often lead to material amorphization. Previously, the authors of [43] found that the amorphization of nanocrystalline monoclinic ZrO2 is possible upon irradiation with uranium 238U and Au ions with energies above 1 GeV, when the energy losses exceed 40.2 keV/nm. It was shown in [44] that amorphization of ZrO2 irradiated with xenon ions with energies of 300–400 keV occurs at a peak displacement damage level of about 680 dpa. We have estimated the appearance of an amorphous phase in the studied ZrO2 pellets upon irradiation with Xe ions of 220 MeV energy. To do this, using the SRIM program, the values of electronic energy losses and displacement per atom were calculated. The calculated value of electronic energy losses were found to be 19.8 keV/nm, which is less than the energy losses at which ZrO2 amorphization begins. The value of displacements for fluences from 109 to 1013 ions/cm2 was from 0.5 × 10−7 to 0.5 × 10−3 dpa, respectively, which is also significantly less than dpa, at which ZrO2 amorphization was observed in [44]. Considering the above, we can conclude that in the samples we studied, the formation of an amorphous phase is negligible.
The thermal stability of paramagnetic F+ centers (g = 1.999) and Zr3+ ions (g = 1.965) in pellets irradiated with 10 MeV electrons was studied. Let us consider the temperature dependence of the ESR intensity for the F+-center (Figure 2). The intensity of this signal decreases at temperatures above 375 K. A sharp drop in intensity is observed in the temperature range from 375 to 550 K. This temperature range coincides with the temperatures at which TL is observed in the samples under study. Figure 2 shows that the TL curve of samples irradiated with 10 MeV electrons contains two TL peaks at 410 and 500 K. Since the heating of the samples in the study of the thermal stability of paramagnetic centers and the measurement of TL was carried out in the same mode, it can be concluded that the change in the concentration of F+ centers during heating can be associated with a change in their charge state due to the capture of electrons released from the traps responsible for TL. Previously, in [35], based on the results of studying the processes of TL quenching in monoclinic ZrO2, the electronic nature of the TL peaks at 390 and 485 K was assumed.
The thermal stability of radiation-induced F+ centers was studied in [45,46,47]. In a parallel study of TL and ESR, the authors suggested that the monotonic decrease in the concentration of F+-centers to 550–600 K may be due to its transition to the diamagnetic state (F center) as the result of the capture of an electron released from the trap. However, two results contradicted this assumption. First, the temperature of the maximum found on the TL curve (550 K) exceeded the temperature at which 50% of the F+-centers disappear (450 K). Second, the calculated value of the trap depth responsible for the TL peak at 550 K, obtained by the initial rise method, was 0.7–1.1 eV, which is somewhat larger than the defect annealing activation energy of 0.3–0.7 eV calculated from ESR data. The results obtained by us (Figure 2) clearly indicate the relationship between the decrease in the intensity of the ESR signal of F+-centers at T = 375–550 K and the emission of TL peaks in the indicated temperature range, which confirms the assumption made by the authors of [45,46,47]. It is well known that an alternative mechanism for annealing radiation-induced F-type defects in oxides is the recombination of oxygen vacancies with interstitial oxygen, the diffusion of which becomes possible when the crystal is heated [48,49,50]. Previously, the authors of [51] showed that in zirconium oxide irradiated with neutrons (E > 0.1 MeV), the diffusion of interstitial oxygen becomes possible at temperatures above 500–600 K. In the samples studied by us, a decrease in the concentration of F+ centers is observed at lower temperatures of 375–550 K, which testifies in favor of the proposed mechanism for the destruction of F+ centers associated with their ability to capture the charge carriers released from traps that cause TL peaks.
It should also be noted that at temperatures of 550–700 K, the decrease in the concentration of F+ centers slows down and a change in the shape of the ESR signal is observed (Figure 3). More detailed studies have shown that at T = 525–700 K, the g-factor of the F+-center shifts from 1.998 to 1.995 (Figure 3 inset). The shift of the g-factor of the F+ center may indicate a change in its local crystalline environment. This assumption can be supported by an increase in the ESR intensity of Zr3+ ions in the same temperature range. In this case, the Zr3+ and ions can change the local environment of the F+ centers.
The thermal stability of Zr3+ ions has also been studied. Figure 2 shows that in the temperature range of 280–525 K, the intensity of the ESR signal associated with Zr3+ does not change. With a further increase in temperature to 750 K, it increases by a factor of 8.7. At temperatures above 750 K, the signal intensity drops, but does not return to the value characteristic of the irradiated sample. The change in the ESR intensity of Zr3+ is not associated with the emptying of traps in the material under study, since, according to our experiments, no TL peaks were observed in the temperature range of 600–850 K. At the same time, the values of its intensity did not exceed the background values caused by the thermal radiation of the heating element.
An increase in the Zr3+ concentration with an increase in the annealing temperature was observed earlier in [52]. The authors associated it with the transformation of Zr4+ ions into Zr3+ caused by electron capture. In this case, the electron donors can be oxygen vacancies that have captured one or two electrons, as well as O− ions if there is a deficiency of positive charge in the cationic sites located near these ions. These processes can also take place in the samples studied in this work, since they contain defects associated with oxygen vacancies.
Next, we studied the thermal stability of ESR signals in samples irradiated with ions. Figure 4 shows the dependence of the intensity of the ESR signal of F+ centers (g = 1.998) on the heating temperature in ZrO2 samples irradiated with a xenon ion beam with a fluence of 1013 ions/cm2. The intensity of this signal begins to decrease at temperatures above 500 K, which is 125 K more than in the samples irradiated with electrons. Further, the ESR intensity of the F+-centers monotonically drops to 675 K. In contrast to samples irradiated with electrons, the TL peak at 410 K in ion-irradiated samples has a low intensity. The difference in the temperature at which the annealing of F+ centers begins in the samples irradiated with ions and electrons can be due to the difference in the intensity of this peak. Thermal emptying of the trap responsible for the low-intensity TL peak in ion-irradiated samples does not significantly affect the concentration of F+ centers. The decrease in the concentration of F+-centers in ion-irradiated samples begins when the trap responsible for the intense TL peak at 500 K is empty. This fact confirms the assumption that the thermal decay of F+ centers is related to the TL properties of ZrO2.
The data in Figure 4 show that the decrease in concentration F+ centers in the temperature range of 500–700 K is replaced by its growth at higher heating temperatures, which was not observed in the samples irradiated with electrons. The interval of increase in the concentration of F+ centers can also be related to the emptying of traps. The TL curve of samples irradiated with ions, in addition to the peaks at 410 and 500 K observed after electron irradiation, contains an additional peak of a complex shape at 550–750 K, which can contain both electronic and hole components. In this case, the emptying of electron traps will contribute to a decrease in the concentration of F+ centers, while the emptying of hole traps will contribute to their growth, which is observed at T > 700 K. An increase in the concentration of F+ centers upon the emptying of hole traps occurs as a result of the capture of holes by F centers. A more thorough study of the TL properties at temperatures above 725 K is required to prove this assumption; however, the measurement of TL at such temperatures is hampered by instrumental limitations, as well as by the presence of an intense thermal background of the heating element.
The thermal stability of paramagnetic signals of an unidentified nature with g = 1.986 and 1.963 (Figure 1) was also studied in pellets irradiated with xenon ions (Figure 5). The temperature dependence of the ESR intensity of these two signals is identical and decreases monotonically to an undetectable level in the temperature range from 500 to 873 K. The identity of the behavior of the signal intensities with g = 1.986 and 1.963 with a change in the heating temperature shows that these signals refer to one paramagnetic center. The nature of this center is probably associated with a complex defect, which includes paramagnetic Zr3+ ions and oxygen vacancies. The participation of Zr3+ ions in defect formation is indicated by the simultaneous disappearance of the ESR signal of these ions and the appearance of signals with g = 1.986 and 1.963 in ZrO2 in pellets irradiated with an ion beam with a fluence of 1013 ions/cm2. It is also known that when ZrO2 is irradiated with ions with an energy above the threshold, an intense generation of anion vacancies occurs in it, which can also contribute to the formation of complex defects [40,53,54]. In the past few years, a large number of such complex defects have been studied in detail in MgO, Al2O3, and Gd3Ga5O12 crystals [55,56,57,58,59,60].

4. Conclusions

  • The formation of radiation-induced F+ centers in nanostructured monoclinic ZrO2 pellets under irradiation with fast electrons (10 MeV, fluence 1015 ion/cm2) and Xe ions (220 MeV, fluence 1013 ion/cm2) has been observed.
  • It was found that the decrease in the concentration of F+ centers upon thermal annealing is due to the emptying of traps responsible for TL.
  • However, the change in the ESR intensity of Zr3+ centers during thermal annealing does not correlate with the TL of the studied material.
  • Furthermore, irradiation of ZrO2 with Xe ions with a fluence of 1013 ions/cm2 leads to the appearance of new EPR signals with g = 1.963 and 1.986 being of an unknown nature and stable up to T = 873 K.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15238624/s1, Figures S1 and S2: SEM and particle size distribution data.

Author Contributions

Conceptualization, S.V.N. and A.K.D.; methodology, D.V.A. and S.V.N.; software, S.F.K.; validation, D.V.A., S.V.N. and A.K.D.; formal analysis, D.V.A. and K.V.S.; investigation, D.V.A., S.V.N., K.V.S. and S.F.K.; resources, A.T.A.; data curation, G.A.-A.; writing—original draft preparation, S.V.N. and A.K.D.; writing—review and editing, D.V.A., S.V.N., A.K.D. and A.I.P.; visualization, D.V.A.; supervision, S.V.N. and A.K.D.; project administration, A.K.D.; funding acquisition, A.I.P. All authors have read and agreed to the published version of the manuscript.

Funding

The work was carried out under the grant of the Ministry of Education and Science of the Republic of Kazakhstan AP09260057, “Luminescence and radiation resistance of synthesized under different conditions micro- and nanostructured compacts and ceramics based on ZrO2”. The research was partly (A.I.P.) performed at the Center of Excellence of the Institute of Solid State Physics, University of Latvia, supported through European Union Horizon 2020 Framework Programme H2020-WIDESPREAD-01-2016-2017-TeamingPhase2, under grant agreement No. 739508, project CAMART2.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to the ongoing research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qi, S.; Porotnikova, N.M.; Ananyev, M.V.; Kuzmin, A.V.; Eremin, V.A.; Pankratov, A.A.; Molchanova, N.G.; Reznitskikh, O.G.; Farlenkov, A.S.; Vovkotrub, E.G.; et al. High-temperature glassy-ceramic sealants SiO2–Al2O3–BaO–MgO and SiO2–Al2O3–ZrO2–CaO–Na2O for solid oxide electrochemical devices. Trans. Nonferr. Met. Soc. China 2016, 26, 2916–2924. [Google Scholar] [CrossRef]
  2. Farlenkov, A.S.; Ananyev, M.V.; Eremin, V.A.; Porotnikova, N.M.; Kurumchin, E.K.; Melekh, B.T. Oxygen isotope exchange in doped calcium and barium zirconates. Solid State Ion. 2016, 290, 108–115. [Google Scholar] [CrossRef]
  3. Farlenkov, A.S.; Ananyev, M.V.; Eremin, V.A.; Porotnikova, N.M.; Kurumchin, E.K. Particle coarsening influence on oxygen reduction in LSM–YSZ composite materials. Fuel Cells 2015, 15, 131–139. [Google Scholar] [CrossRef]
  4. Anan’ev, M.V.; Bershitskaya, N.M.; Plaksin, S.V.; Kurumchin, E.K. Phase equilibriums, oxygen exchange kinetics and diffusion in oxides CaZr1− x ScxO3− x/2− δ. Russ. J. Electrochem. 2012, 48, 879–886. [Google Scholar] [CrossRef]
  5. Alotaibi, M.R.M.; Mahmoud, M.H.H. Photocatalytic remediation of ciprofloxacin based on Fe2O3@ZrO2 nanocomposites under visible-light. Opt. Mater. 2022, 124, 112041. [Google Scholar] [CrossRef]
  6. Alotaibi, M.R.; Mahmoud, M.H.H. Promptness of tetracycline pollutant degradation via CuCo2O4@ZrO2 nanocomposites photocatalyst. Opt. Mater. 2022, 126, 112200. [Google Scholar] [CrossRef]
  7. Helmiyati, H.; Fitriana, N.; Chaerani, M.L.; Dini, F.W. Green hybrid photocatalyst containing cellulose and γ–Fe2O3–ZrO2 heterojunction for improved visible-light driven degradation of Congo red. Opt. Mater. 2022, 124, 111982. [Google Scholar] [CrossRef]
  8. Majnis, M.F.; Yee, O.C.; Adnan, M.A.M.; Hamid, M.R.Y.; Shaari, K.Z.K.; Julkapli, N.M. Photoactive of Chitosan-ZrO2/TiO2 thin film in catalytic degradation of malachite green dyes by solar light. Opt. Mater. 2022, 124, 111967. [Google Scholar] [CrossRef]
  9. Mekala, R.; Rajendran, V. Aqueous and organic media assisted Ce: ZrO2 nanoparticles by precipitation and its structural, morphological, optical, and catalytic activities. Opt. Mater. 2021, 122, 111718. [Google Scholar] [CrossRef]
  10. Ma, C.G.; Brik, M.G.; Kiisk, V.; Kangur, T.; Sildos, I. Spectroscopic and crystal-field analysis of energy levels of Eu3+ in SnO2 in comparison with ZrO2 and TiO2. J. Alloys Compd. 2011, 509, 3441–3451. [Google Scholar] [CrossRef]
  11. Ćirić, A.; Stojadinović, S.; Dramićanin, M.D. Custom-built thermometry apparatus and luminescence intensity ratio thermometry of ZrO2: Eu3+ and Nb2O5: Eu3+. Meas. Sci. Technol. 2019, 30, 045001. [Google Scholar] [CrossRef]
  12. Sudhakar, P.; Reddy, A.S.S.; Zhydachevskyy, Y.; Suchocki, A.; Brik, M.G.; Kumar, V.R.; Piasecki, M.; Veeraiah, N. Luminescence characteristics of Er3+ ions in ZnO-Ta2O5/Nb2O5/ZrO2-B2O3 glass system-A case study of energy transfer from ZnO to Er3+ ions. Opt. Mater. 2018, 86, 87–94. [Google Scholar] [CrossRef]
  13. Nashivochnikov, A.A.; Kostyukov, A.I.; Zhuzhgov, A.V.; Rakhmanova, M.I.; Cherepanova, S.V.; Snytnikov, V.N. Shaping the photoluminescence spectrum of ZrO2: Eu3+ phosphor in dependence on the Eu concentration. Opt. Mater. 2021, 121, 111620. [Google Scholar] [CrossRef]
  14. Lauer, P.E.; Watson, B.H., III; Rai, A.K.; Qian, Z.; Wolfe, D.E. Material properties of IR-to-IR down-converting Er and Nd-Doped ZrO2 nanopowders. Opt. Mater. 2021, 119, 111299. [Google Scholar] [CrossRef]
  15. Borik, M.; Kulebyakin, A.; Larina, N.; Lomonova, E.; Morozov, D.; Myzina, V.; Ryabochkina, P.; Tabachkova, N. Spectral-Luminescent Properties of ZrO2-Y2O3-Pr2O3 Crystals. Crystals 2022, 12, 1103. [Google Scholar] [CrossRef]
  16. Yang, Y.; Xu, S.; Li, S.; Wu, W.; Pan, Y.; Wang, D.; Hong, X.; Cheng, Z.; Deng, W. Luminescence Properties of Ho2O3-Doped Y2O3 Stabilized ZrO2 Single Crystals. Crystals 2022, 12, 415. [Google Scholar] [CrossRef]
  17. Hayakawa, T.; Ikeshita, R.; Duclère, J.R.; Lecomte, A. Simple Method to Estimate Fractional Numbers of Eu3+ Ions in Different Phases in Highly Luminescent ZrO2–SiO2 Nanocomposites. Phys. Status Solidi B 2022, 259, 2100560. [Google Scholar] [CrossRef]
  18. Costantini, J.M.; Beuneu, F. Threshold displacement energy in yttria-stabilized zirconia. Phys. Status Solidi C 2007, 4, 1258–1263. [Google Scholar] [CrossRef]
  19. Smith, K.L.; Colella, M.; Cooper, R.; Vance, E.R. Measured displacement energies of oxygen ions in titanates and zirconates. J. Nucl. Mater. 2003, 321, 19–28. [Google Scholar] [CrossRef]
  20. Popov, A.I.; Kotomin, E.A.; Maier, J. Basic properties of the F-type centers in halides, oxides and perovskites. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2010, 268, 3084–3089. [Google Scholar] [CrossRef]
  21. Kotomin, E.A.; Popov, A.I. Radiation-induced point defects in simple oxides. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 1998, 141, 1–15. [Google Scholar] [CrossRef]
  22. Zhukovskii, Y.F.; Pugno, N.; Popov, A.I.; Balasubramanian, C.; Bellucci, S. Influence of F centres on structural and electronic properties of AlN single-walled nanotubes. J. Phys. Condens. Matter 2007, 19, 395021. [Google Scholar] [CrossRef] [Green Version]
  23. González, R.; Monge, M.A.; Santiuste, J.M.; Pareja, R.; Chen, Y.; Kotomin, E.; Kukla, M.M.; Popov, A.I. Photoconversion of F-type centers in thermochemically reduced MgO single crystals. Phys. Rev. B 1999, 59, 4786. [Google Scholar] [CrossRef] [Green Version]
  24. Luchechko, A.; Vasyltsiv, V.; Kostyk, L.; Tsvetkova, O.; Popov, A.I. Shallow and deep trap levels in X-ray irradiated β-Ga2O3: Mg. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2019, 441, 12–17. [Google Scholar] [CrossRef]
  25. Popov, A.I.; Lushchik, A.; Shablonin, E.; Vasil’chenko, E.; Kotomin, E.A.; Moskina, A.M.; Kuzovkov, V.N. Comparison of the F-type center thermal annealing in heavy-ion and neutron irradiated Al2O3 single crystals. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2018, 433, 93–97. [Google Scholar] [CrossRef]
  26. Ananchenko, D.V.; Nikiforov, S.V.; Kuzovkov, V.N.; Popov, A.I.; Ramazanova, G.R.; Batalov, R.I.; Bayazitov, R.M.; Novikov, H.A. Radiation-induced defects in sapphire single crystals irradiated by a pulsed ion beam. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2020, 466, 1–7. [Google Scholar] [CrossRef]
  27. Zhao, Q.; Wang, X.; Cai, T. The study of surface properties of ZrO2. Appl. Surf. Sci. 2004, 225, 7–13. [Google Scholar] [CrossRef]
  28. Lokesha, H.S.; Chithambo, M. A combined study of the thermoluminescence and electron paramagnetic resonance of point defects in ZrO2: Er3+. Radiat. Phys. Chem. 2020, 172, 108767. [Google Scholar] [CrossRef]
  29. Gionco, C.; Paganini, M.C.; Giamello, E.; Burgess, R.; Di Valentin, C.; Pacchioni, G. Paramagnetic defects in polycrystalline zirconia: An EPR and DFT study. Chem. Mater. 2013, 25, 2243–2253. [Google Scholar] [CrossRef] [Green Version]
  30. Costantini, J.M.; Beuneu, F.; Gourier, D.; Trautmann, C.; Calas, G.; Toulemonde, M. Colour centre production in yttria-stabilized zirconia by swift charged particle irradiations. J. Phys. Condens. Matter 2004, 16, 3957. [Google Scholar] [CrossRef]
  31. Costantini, J.M.; Cavani, O.; Boizot, B. On-line optical absorption of electron-irradiated yttria-stabilized zirconia. J. Phys. Chem. Solids 2022, 169, 110853. [Google Scholar] [CrossRef]
  32. Orera, V.M.; Merino, R.I.; Chen, Y.; Cases, R.; Alonso, P.J. Intrinsic electron and hole defects in stabilized zirconia single crystals. Phys. Rev. B 1990, 42, 9782. [Google Scholar] [CrossRef] [PubMed]
  33. Costantini, J.M.; Ogawa, T.; Bhuian, A.S.I.; Yasuda, K. Cathodoluminescence induced in oxides by high-energy electrons: Effects of beam flux, electron energy, and temperature. J. Lumin. 2019, 208, 108–118. [Google Scholar] [CrossRef]
  34. Nikiforov, S.V.; Kortov, V.S.; Kazantseva, M.G.; Petrovykh, K.A. Luminescent properties of monoclinic zirconium oxide. J. Lumin. 2015, 166, 111–116. [Google Scholar] [CrossRef]
  35. Nikiforov, S.V.; Kortov, V.S.; Savushkin, D.L.; Vokhmintsev, A.S.; Weinstein, I.A. Thermal quenching of luminescence in nanostructured monoclinic zirconium dioxide. Radiat. Meas. 2017, 106, 155–160. [Google Scholar] [CrossRef]
  36. Marfin, A.Y.; Nikiforov, S.V.; Ananchenko, D.V.; Zyryanov, S.S.; Yakovlev, G.A.; Denisov, E.I. Thermoluminescence of monoclinic ZrO2 after electron irradiation. AIP Conf. Proc. 2022, 2466, 030012. [Google Scholar]
  37. Egeland, G.W.; Valdez, J.A.; Maloy, S.A.; McClellan, K.J.; Sickafus, K.E.; Bond, G.M. Heavy-ion irradiation defect accumulation in ZrN characterized by TEM, GIXRD, nanoindentation, and helium desorption. J. Nucl. Mater. 2013, 435, 77–87. [Google Scholar] [CrossRef]
  38. Stoller, R.E.; Toloczko, M.B.; Was, G.S.; Certain, A.G.; Dwaraknath, S.; Garner, F.A. On the use of SRIM for computing radiation damage exposure. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2013, 310, 75–80. [Google Scholar] [CrossRef]
  39. Ziegler, J.F. SRIM. Available online: http://www.SRIM.org (accessed on 19 October 2022).
  40. Costantini, J.-M.; Beuneu, F.; Weber, W.J. Radiation damage in cubic-stabilized zirconia (ZrO2-X) and ceria (CeO2-X). In Properties of Fluorite Structure Materials; Oak Ridge National Laboratory: Oak Ridge, TN, USA, 2013; pp. 127–151. [Google Scholar]
  41. Oen, O.S. Cross Sections for Atomic Displacements in Solids by Fast Electrons; No. ORNL-4897; Oak Ridge National Laboartory: Oak Ridge, TN, USA, 1973. [Google Scholar]
  42. Nikiforov, S.V.; Menshenina, A.A.; Konev, S.F. The influence of intrinsic and impurity defects on the luminescent properties of zirconia. J. Lumin. 2019, 212, 219–226. [Google Scholar] [CrossRef]
  43. Lu, F.; Wang, J.; Lang, M.; Toulemonde, M.; Namavar, F.; Trautmann, C.; Zhang, J.; Ewing, R.C.; Lian, J. Amorphization of nanocrystalline monoclinic ZrO2 by swift heavy ion irradiation. Phys. Chem. Chem. Phys. 2012, 14, 12295–12300. [Google Scholar] [CrossRef]
  44. Sickafus, K.E.; Matzke, H.; Yasuda, K.; Chodak, P., III; Verrall, R.A.; Lucuta, P.G.; Andrews, H.R.; Turos, A.; Fromknecht, R.; Baker, N.P. Radiation damage effects in cubic-stabilized zirconia irradiated with 72 MeV I+ ions. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 1998, 141, 358–365. [Google Scholar] [CrossRef]
  45. Costantini, J.M.; Beuneu, F. Color center annealing and ageing in electron and ion-irradiated yttria-stabilized zirconia. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2005, 230, 251–256. [Google Scholar] [CrossRef]
  46. Costantini, J.M.; Beuneu, F. Thermal recovery of colour centres induced in cubic yttria-stabilized zirconia by charged particle irradiations. J. Phys. Condens. Matter 2006, 18, 3671. [Google Scholar] [CrossRef]
  47. Costantini, J.M.; Beuneu, F.; Fasoli, M.; Galli, A.; Vedda, A.; Martini, M. Thermo-stimulated luminescence of ion-irradiated yttria-stabilized zirconia. J. Phys. Condens. Matter 2011, 23, 115901. [Google Scholar] [CrossRef] [PubMed]
  48. Kotomin, E.; Kuzovkov, V.; Popov, A.I.; Maier, J.; Vila, R. Anomalous kinetics of diffusion-controlled defect annealing in irradiated ionic solids. J. Phys. Chem. A 2018, 122, 28–32. [Google Scholar] [CrossRef] [PubMed]
  49. Lushchik, A.; Kuzovkov, V.N.; Kotomin, E.A.; Prieditis, G.; Seeman, V.; Shablonin, E.; Vasil’chenko, E.; Popov, A.I. Evidence for the formation of two types of oxygen interstitials in neutron-irradiated α-Al2O3 single crystals. Sci. Rep. 2021, 11, 20909. [Google Scholar] [CrossRef] [PubMed]
  50. Lushchik, A.; Seeman, V.; Shablonin, E.; Vasil’chenko, E.; Kuzovkov, V.N.; Kotomin, E.A.; Popov, A.I. Detection of hidden oxygen interstitials in neutron-irradiated corundum crystals. Opt. Mater. X 2022, 14, 100151. [Google Scholar] [CrossRef]
  51. Lushchik, A.; Kuzovkov, V.N.; Kudryavtseva, I.; Popov, A.I.; Seeman, V.; Shablonin, E.; Vasil’chenko, E.; Kotomin, E.A. The Two Types of Oxygen Interstitials in Neutron-Irradiated Corundum Single Crystals: Joint Experimental and Theoretical Study. Phys. Status Solidi B 2022, 259, 2100317. [Google Scholar] [CrossRef]
  52. Savoini, B.; Caceres, D.; Vergara, I.; Gonzalez, R.; Santiuste, J.M. Radiation damage in neutron-irradiated yttria-stabilized-zirconia single crystals. J. Nucl. Mater. 2000, 277, 199–203. [Google Scholar] [CrossRef]
  53. Bykov, I.P.; Brik, A.B.; Bagmut, N.N.; Kalinichenko, A.M.; Bevz, V.V.; Vereshchak, V.G.; Yastrabik, L. Effect of annealing on ESR characteristics of zirconia nanopowders with different impurity compositions. Phys. Solid State 2009, 51, 1248–1253. [Google Scholar] [CrossRef]
  54. Costantini, J.M.; Trautmann, C.; Thome, L.; Jagielski, J.; Beuneu, F. Swift heavy ion-induced swelling and damage in yttria-stabilized zirconia. J. Appl. Phys. 2007, 101, 073501. [Google Scholar] [CrossRef]
  55. Shablonin, E.; Popov, A.I.; Prieditis, G.; Vasil’chenko, E.; Lushchik, A. Thermal annealing and transformation of dimer F centers in neutron-irradiated Al2O3 single crystals. J. Nucl. Mater. 2021, 543, 152600. [Google Scholar] [CrossRef]
  56. Seeman, V.; Popov, A.I.; Shablonin, E.; Vasil’chenko, E.; Lushchik, A. EPR-active dimer centers with S=1 in α-Al2O3 single crystals irradiated by fast neutrons. J. Nucl. Mater. 2022, 569, 153933. [Google Scholar] [CrossRef]
  57. Baubekova, G.; Akilbekov, A.; Popov, A.I.; Shablonin, E.; Vasil’chenko, E.; Zdorovets, M.; Lushchik, A. About complexity of the 2.16-eV absorption band in MgO crystals irradiated with swift Xe ions. Radiat. Meas. 2020, 135, 106379. [Google Scholar] [CrossRef]
  58. Mironova-Ulmane, N.; Popov, A.I.; Antuzevics, A.; Krieke, G.; Elsts, E.; Vasil’chenko, E.; Sildos, I.; Puust, L.; Ubizskii, S.B.; Sugak, D.; et al. EPR and optical spectroscopy of neutron-irradiated Gd3Ga5O12 single crystals. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2020, 480, 22–26. [Google Scholar] [CrossRef]
  59. Mironova-Ulmane, N.; Sildos, I.; Vasil’chenko, E.; Chikvaidze, G.; Skvortsova, V.; Kareiva, A.; Muñoz-Santiuste, J.E.; Pareja, R.; Elsts, E.; Popov, A.I. Optical absorption and Raman studies of neutron-irradiated Gd3Ga5O12 single crystals. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2018, 435, 306–312. [Google Scholar] [CrossRef]
  60. Karipbayev, Z.T.; Kumarbekov, K.; Manika, I.; Dauletbekova, A.; Kozlovskiy, A.L.; Sugak, D.; Ubizskii, S.B.; Akilbekov, A.; Suchikova, Y.; Popov, A.I. Optical, Structural, and Mechanical Properties of Gd3Ga5O12 Single Crystals Irradiated with 84Kr+ Ions. Phys. Status Dolidi B 2022, 259, 2100415. [Google Scholar] [CrossRef]
Materials 15 08624 g001 550

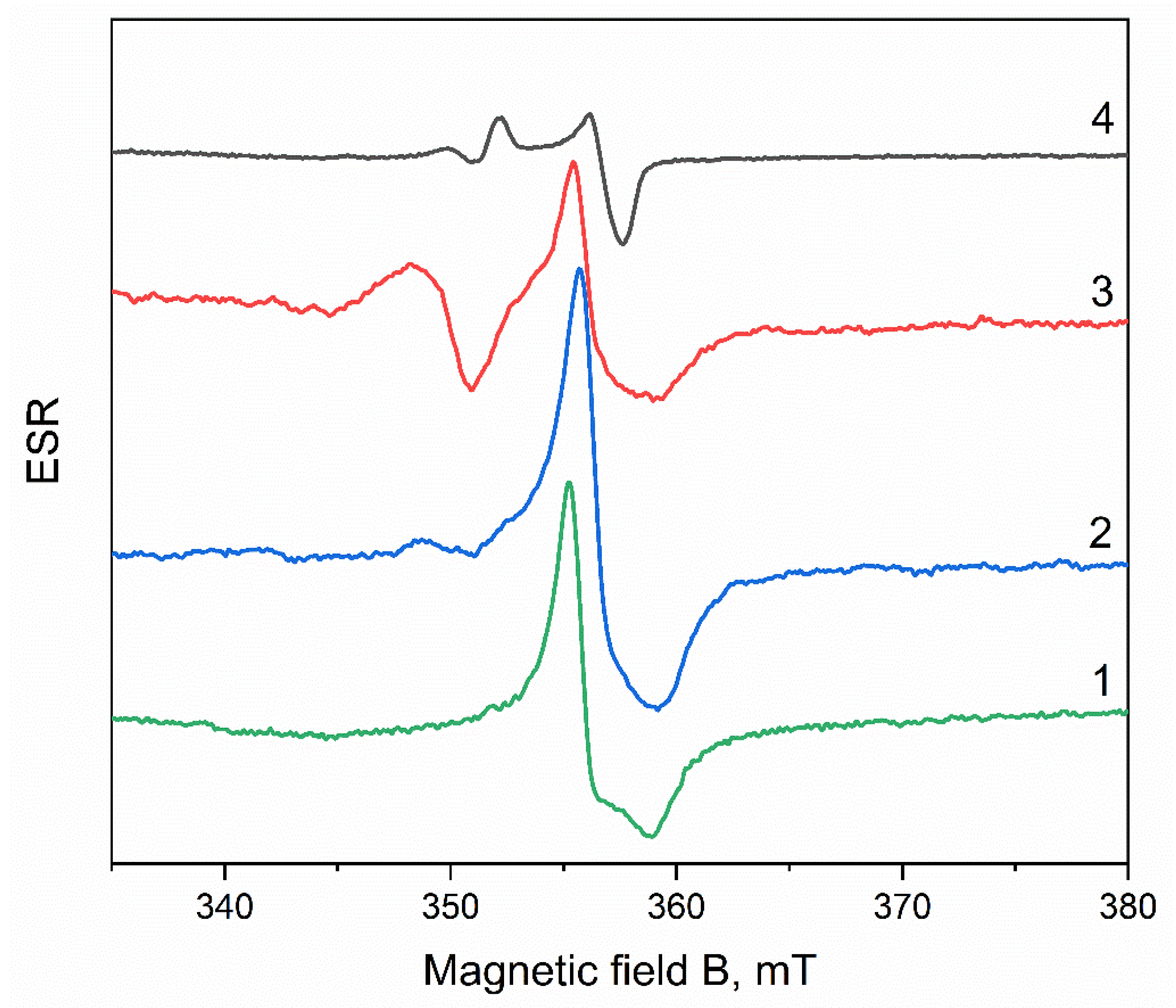

Figure 1. ESR spectra of unirradiated ZrO2 (1) and irradiated with an electron beam with an energy of 130 keV (dose 15 kGy) (2), 10 MeV (fluence 1015 electrons/cm2) (3), and Xe ions with an energy of 220 MeV (fluence 1013 ions/cm2) (4).
Figure 1. ESR spectra of unirradiated ZrO2 (1) and irradiated with an electron beam with an energy of 130 keV (dose 15 kGy) (2), 10 MeV (fluence 1015 electrons/cm2) (3), and Xe ions with an energy of 220 MeV (fluence 1013 ions/cm2) (4).
Materials 15 08624 g001
Materials 15 08624 g002 550

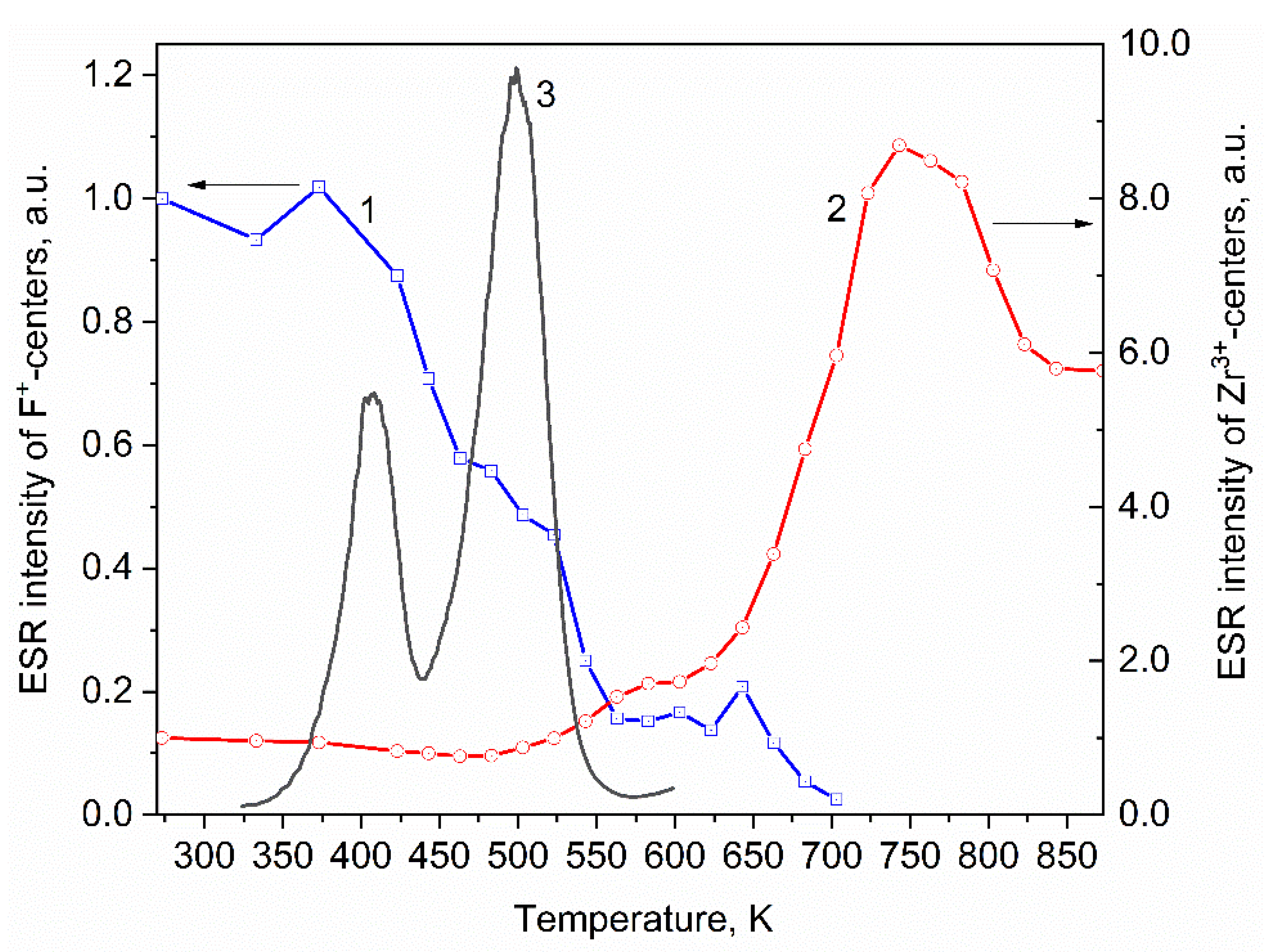

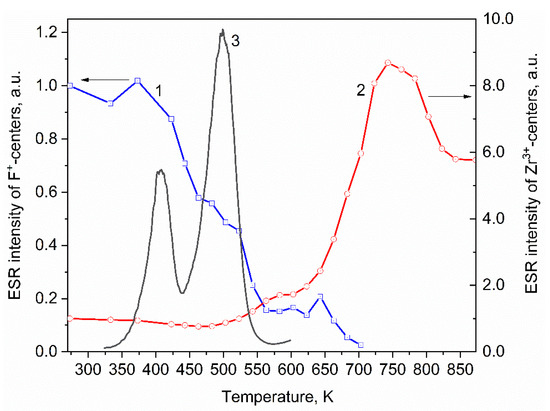

Figure 2. Dependence of the intensity of the ESR signal of F+-centers (1), Zr3+ ions (2) on the heating temperature and TL (3) of ZrO2 irradiated with an electron beam with an energy of 10 MeV.
Figure 2. Dependence of the intensity of the ESR signal of F+-centers (1), Zr3+ ions (2) on the heating temperature and TL (3) of ZrO2 irradiated with an electron beam with an energy of 10 MeV.
Materials 15 08624 g002
Materials 15 08624 g003 550

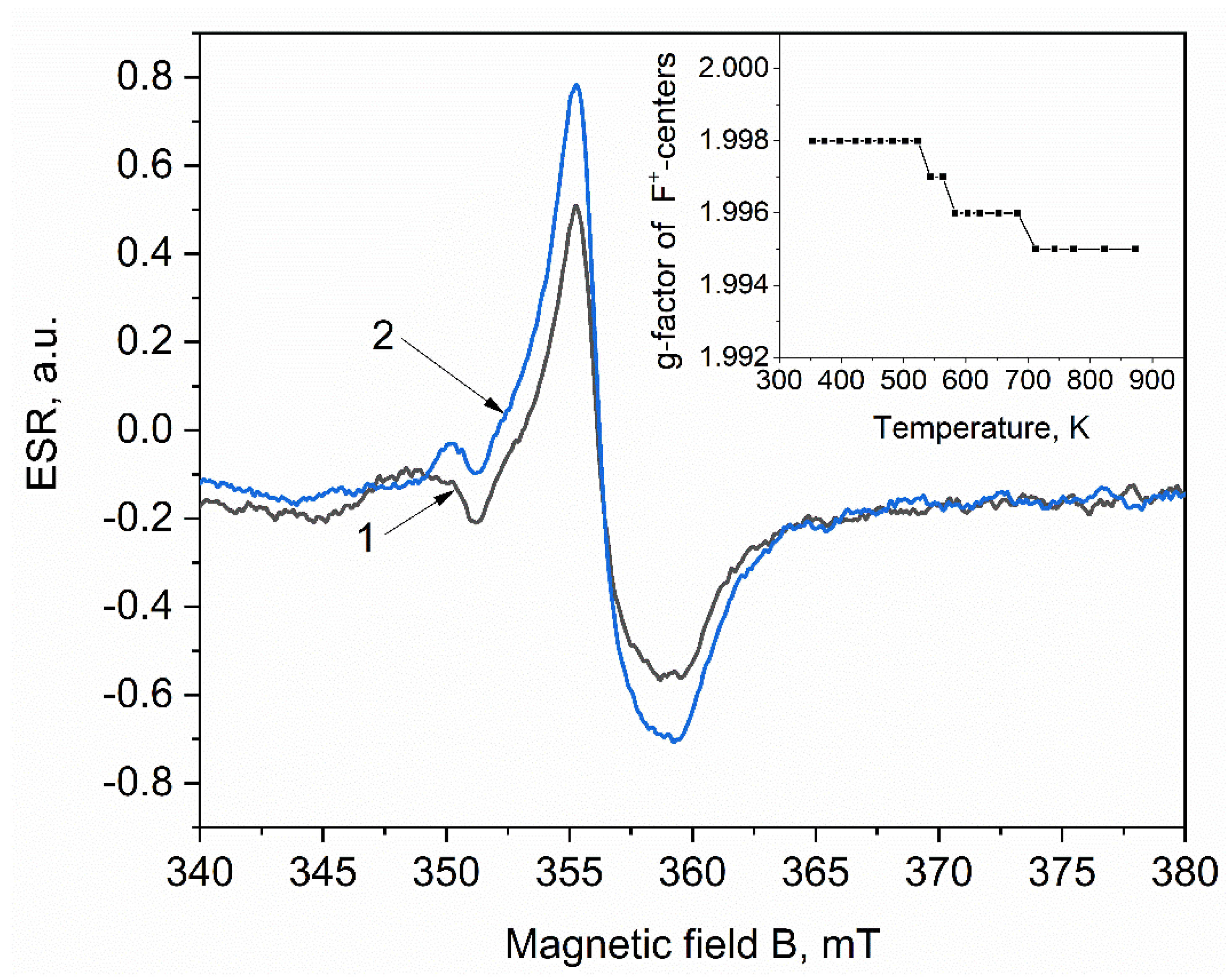

Figure 3. ESR spectra of a ZrO2 pellet irradiated with electrons with an energy of 10 MeV, and then annealed at temperatures of 540 K (1) and 580 K (2).
Figure 3. ESR spectra of a ZrO2 pellet irradiated with electrons with an energy of 10 MeV, and then annealed at temperatures of 540 K (1) and 580 K (2).
Materials 15 08624 g003
Materials 15 08624 g004 550

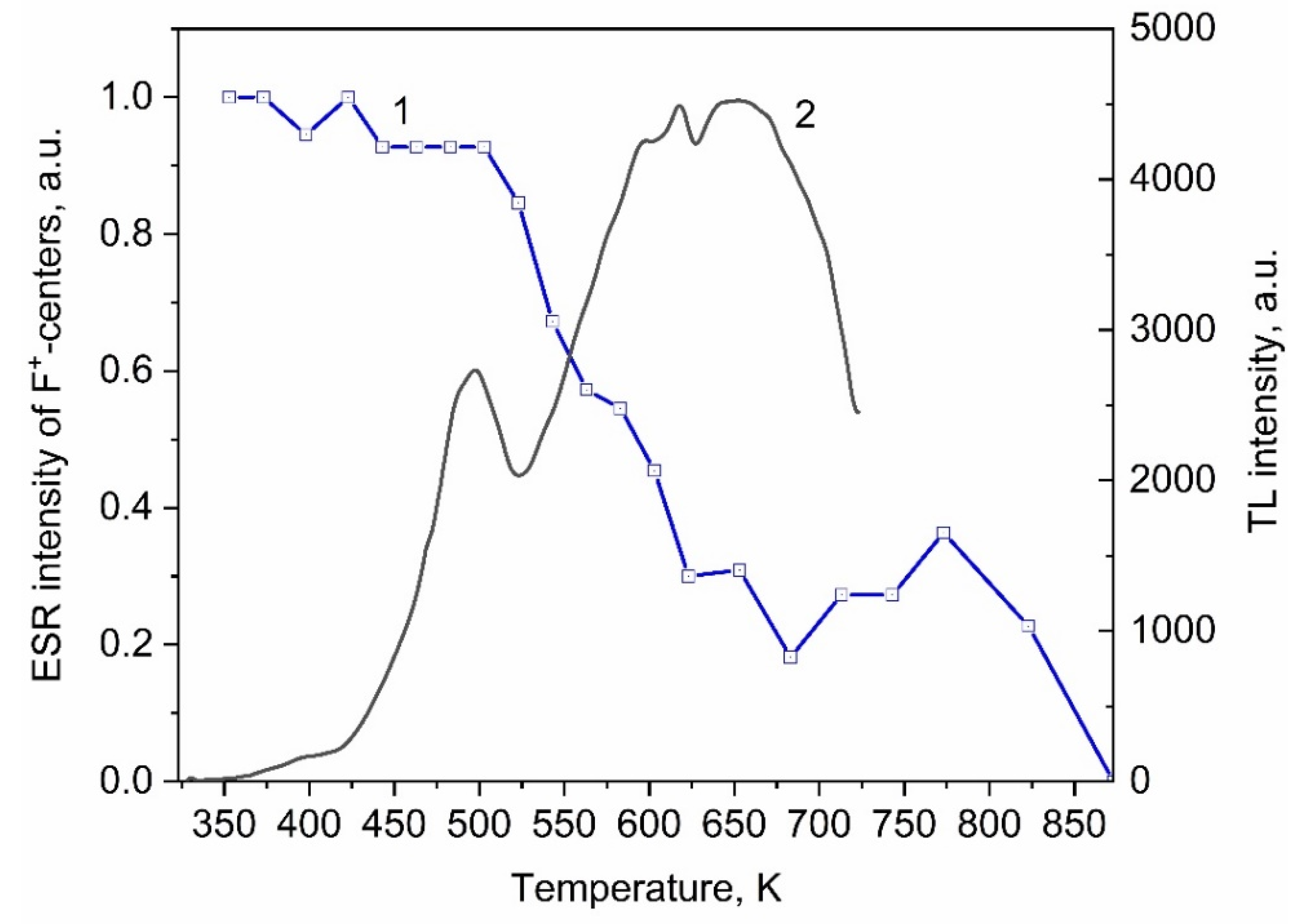

Figure 4. Dependence of the intensity of the ESR signal of F+-centers on the heating temperature (1) and TL (2) of ZrO2 samples irradiated with xenon ions.
Figure 4. Dependence of the intensity of the ESR signal of F+-centers on the heating temperature (1) and TL (2) of ZrO2 samples irradiated with xenon ions.
Materials 15 08624 g004
Materials 15 08624 g005 550

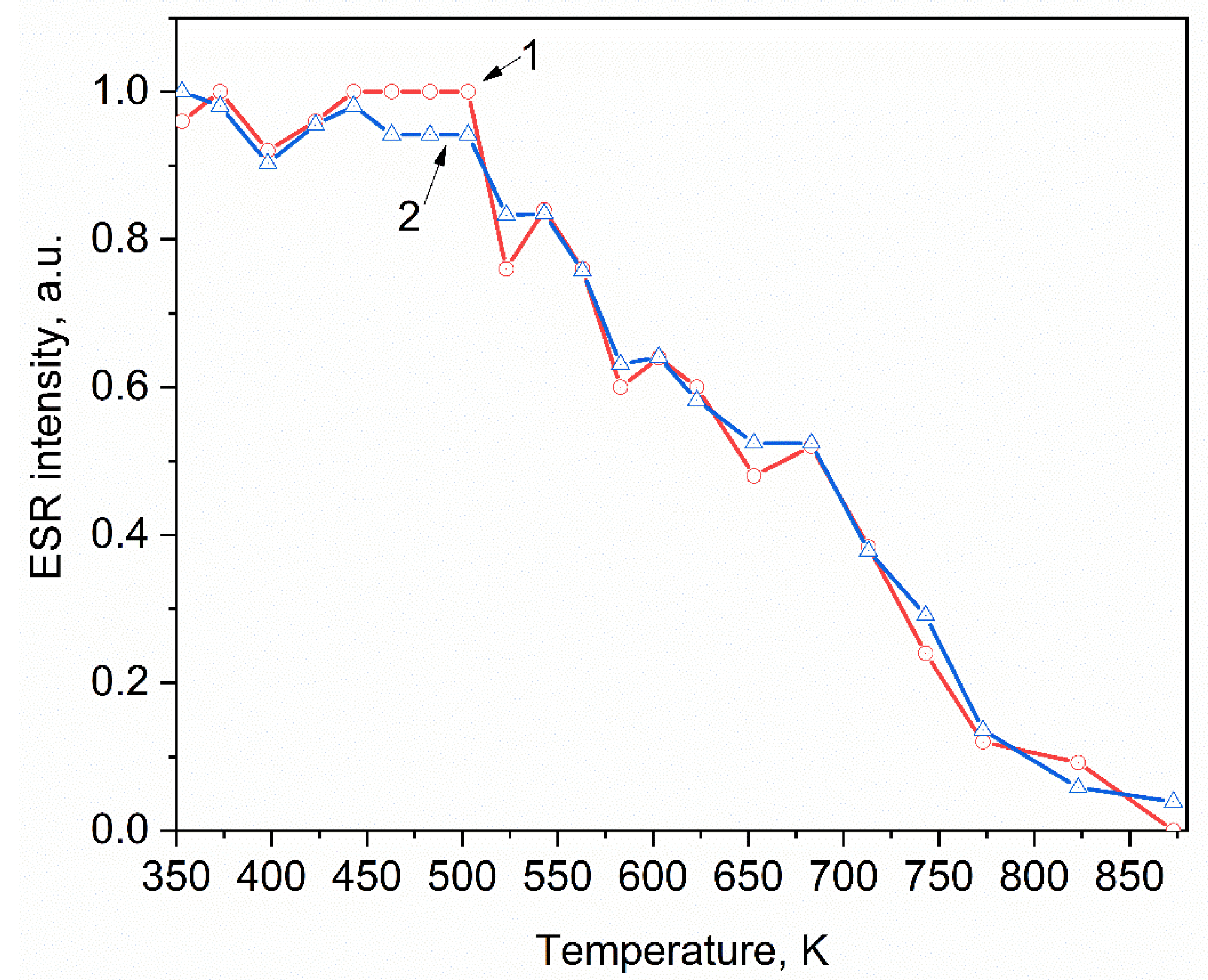

Figure 5. Dependence of the intensity of ESR signals with g = 1.986 (1) and g = 1.963 (2) on the heating temperature of ZrO2 samples irradiated with xenon ions.
Figure 5. Dependence of the intensity of ESR signals with g = 1.986 (1) and g = 1.963 (2) on the heating temperature of ZrO2 samples irradiated with xenon ions.
Materials 15 08624 g005
