Article

Engineering the Optical Properties of CsPbBr3 Nanoplatelets through Cd2+ Doping

by
Ivan D. Skurlov
1,
Anastasiia V. Sokolova
1,
Danila A. Tatarinov
1,
Peter S. Parfenov
1,
Danil A. Kurshanov
1,
Azat O. Ismagilov
2,
Aleksandra V. Koroleva
3,
Denis V. Danilov
3,
Evgeniy V. Zhizhin
3,
Sergey V. Mikushev
3,
Anton N. Tcypkin
2,
Anatoly V. Fedorov
1 and
Aleksandr P. Litvin
1,2,*
1
PhysNano Department, ITMO University, 197101 Saint Petersburg, Russia
2
Laboratory of Quantum Processes and Measurements, ITMO University, 197101 Saint Petersburg, Russia
3
Research Park, Saint Petersburg State University, 199034 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Materials 2022, 15(21), 7676; https://doi.org/10.3390/ma15217676
Submission received: 14 October 2022 / Revised: 29 October 2022 / Accepted: 30 October 2022 / Published: 1 November 2022
(This article belongs to the Special Issue Optical Characterization of Novel Photonic Nanocomposite and Optically Active Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
Lead halide perovskite nanoplatelets (NPls) attract significant attention due to their exceptional and tunable optical properties. Doping is a versatile strategy for modifying and improving the optical properties of colloidal nanostructures. However, the protocols for B-site doping have been rarely reported for 2D perovskite NPls. In this work, we investigated the post-synthetic treatment of CsPbBr3 NPls with different Cd2+ sources. We show that the interplay between Cd2+ precursor, NPl concentrations, and ligands determines the kinetics of the doping process. Optimization of the treatment allows for the boosting of linear and nonlinear optical properties of CsPbBr3 NPls via doping or/and surface passivation. At a moderate doping level, both the photoluminescence quantum yield and two-photon absorption cross section increase dramatically. The developed protocols of post-synthetic treatment with Cd2+ facilitate further utilization of perovskite NPls in nonlinear optics, photonics, and lightning.

1. Introduction

Lead halide perovskite nanoplatelets (NPls) are an emerging class of highly absorbing and strongly emitting optoelectronic nanomaterials [1,2]. Thanks to the quantum confinement effect, the ultranarrow photoluminescence (PL) band may be easily tuned by precise control of NPl thickness [3,4]. Different synthetic approaches were developed to synthesize both organic–inorganic hybrid and all-inorganic lead halide perovskite NPls, including hot-injection, ligand-assisted reprecipitation (LARP), ultrasonication, microwave-assisted, and solvothermal methods [5,6,7,8,9,10]. Pure emission color, high exciton binding energy, and uniform morphology make these nanostructures promising for light-emitting diodes (LEDs) [2,11,12]. It should be noted that 2D perovskite nanostructures attract much attention as candidates for numerous applications in the field of nonlinear optics and photonics [13,14].
B-site doping is a promising tool to improve both the optical properties and stability of lead halide perovskites. For instance, a partial substitution of Pb2+ atoms in CsPbI3 nanocrystals (NCs) with Sr2+ and Zn2+ aimed for the stabilization of a cubic α-phase [15,16]. Thermal and air stability of perovskite NCs were recently improved through Mn2+ and Cu2+ doping [17,18]. Interestingly, doping (alloying) the lead-free CsSnI3 perovskite with Pb2+ brings similar results [19]. Targeted doping has the most noticeable effect on the perovskite NCs photoluminescent (PL) properties. Particularly, the improvement of PL quantum yield and NC stability is essential for utilization of perovskite emitters in the ultraviolet-blue spectral range [20,21]. Another unique opportunity provided by B-site doping is a realization of a fundamentally different emission spectrum due to the introduction of such atoms as Mn2+, Yb3+, Er3+, etc. [22,23,24]. This strategy is useful both for obtaining NIR emitters and nanomaterials with a broad PL spectrum or with multiple emission bands. The numerous listed improvements that can be obtained through B-site doping have made this strategy widely researched. As a result, many effective strategies and protocols have emerged for obtaining doped NCs, both during synthesis and through post-synthetic processing [25,26,27].
In striking contrast, B-site doping has been rarely reported for 2D perovskite NPls and has been mainly focused on the introduction of manganese ions [28,29,30,31]. The peculiarities of the NPls’ growth, their ultrathin nature, and the increasing impact of a surface put forward fundamentally new requirements for the doping protocols development. Interestingly, it has been recently shown that doping may be utilized to control the CsPbBr3 NPls’ growth kinetics [32]. CsPbBr3 NPls can be considered as a perspective nanomaterial that may fill the perovskite-based LEDs low efficiency gap in the blue spectral region [33,34]. Therefore, the issues of improving their PL quantum yield, stability, and further PL band shift to the UV region of the spectrum are relevant. In the example of CsPbBr3 NCs, it was shown that the listed issues can be solved by doping with cadmium ions. Van der Stam et al. showed for the first time that post-synthetic treatment of CsPbBr3 NCs with Cd2+ precursor induces a blue shift of their absorption and PL bands due to the lattice contraction [35]. Xie et al. later revealed that treatment of CsPbBr3 NCs with CdX2 salts enhances their PL quantum yield [36]. We have recently presented that Cd2+ doping carried out during NCs synthesis leads not only to a change in the linear optical properties but also to a significant increase in the nonlinear optical response [37]. Zhao et al. demonstrated the performance of a white LED utilizing Cd2+-doped CsPbBr3 NCs grown inside a borosilicate glass as a green emitter [38].
These achievements motivated us to develop Cd2+ doping methods for CsPbBr3 NPls, aiming for their further utilization in nonlinear optics, optoelectronics, and lightning. In the current study, we demonstrate that the treatment of CsPbBr3 NPls with different Cd2+ precursors is an efficient tool to boost their linear and nonlinear optical properties via doping or/and surface passivation. We show that the interplay between the Cd2+ precursor, NPl concentrations, and ligands determines the doping process kinetics. We also show that the ultrathin nature of the NPls imposes restrictions on the doping level, and the highest quantum yield and the strongest nonlinear optical response can be achieved with a small number of inserted Cd2+ ions.

2. Materials and Methods

1-Octadecene (ODE, 90%, Merck, Rahway, NJ, USA), oleic acid (OA, 90%, Sigma-Aldrich), oleylamine (OlAm, 70%, Sigma-Aldrich, Burlington, MA, USA), octylamine (OctAm, 99%, Sigma-Aldrich), lead(II) bromide (PbBr2, ≥99.999%, Sigma-Aldrich), cesium carbonate (Cs2CO3, 99.9%, Sigma-Aldrich), cadmium(II) bromide tetrahydrate (CdBr2·H2O, 98%, Sigma-Aldrich), cadmium(II) acetate (Cd(OCOCH3)2, anhydrous, 99.995%, Sigma-Aldrich), and toluene (Vekton, Saint-Petersburg, Russia) were used as received without further purification.
CsPbBr3 NPls were synthesized and purified according to [31,39]. To obtain CdBr2 precursor, we added 18 mg CdBr2 to 2 mL of toluene with 15 µL of OlAm, degassed for 3 h at 80 °C, and then left stirred at 70 °C overnight. To obtain Cd(OCOCH3)2 precursor, we added 23 mg Cd(OCOCH3)2 to 2 mL of toluene with 15 µL of OlAm, stirred for 3 h at 100 °C, and then left stirred at 70 °C overnight.
Absorption and PL spectra were obtained by Shimadzu UV-3600 (Shimadzu Corporation, Kyoto, Japan) and Jasco FP-8200 (JASCO Deutschland GmbH, Pfungstadt, Germany), respectively. MicroTime 100 microscope (PicoQuant, Berlin, Germany) was used to record PL kinetics. 2PA-excited PL was investigated by a Coherent Astrella-USP ultrafast Ti:Sapphire amplifier (Coherent, Inc., Santa Clara, CA, USA) with a peak center at 800 nm, a pulse width of ~35 fs, 1 kHz repetition rate, and M266-IV (Standa Ltd., Vilnius, Lithuania) automated spectrograph. Escalab 250Xi (Thermo Fisher Scientific, Waltham, MA, USA) was used for XPS analysis. Zeiss Libra 200FE (Zeiss, Oberkochen, Germany) microscope and Solver Pro-M (NT-MDT, Moscow, Russia) microscope were used for transmission electron and atomic force microscopies, respectively.

3. Results

3.1. CsPbBr3 Nanoplatelets

Figure 1a demonstrates the absorption and PL spectra of the synthesized CsPbBr3 NPls. The spectra show typical features of the NPls caused by 2D confinement, namely strong exciton absorption and a very narrow (FWHM = 16 nm) PL band. The PL quantum yield (PL QY) reached 19% after the synthesis and gradually decreased over time of storage (see Figure S1, Supplementary Materials). The morphology of the CsPbBr3 NPls was revealed using atomic force microscopy (AFM) and high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM). An AFM image of the NPls deposited onto a mica substrate is demonstrated in Figure 1b, while Figure 1c shows a corresponding height profile. The thickness of the NPLs was determined to be 2.8 nm, which was further confirmed by the analysis of vertically stacked NPls in HAADF-STEM images (Figure 1d and Figure S2, Supplementary Materials). The analysis of the lateral dimensions of ~150 NPls allowed us to estimate the average size of their side length, which is 17.5 ± 5.0 nm (see Figure S3, Supplementary Materials). Chemical composition of the synthesized NPls was confirmed by X-ray photoelectron spectroscopy (XPS). The XPS survey spectrum is demonstrated in Figure S4, and Figure 1e reveals the high-resolution XPS spectra for the Cs, Pb, and Br elements. The estimated positions of the corresponding peaks agree well with the literature data [40].

3.2. Doping with CdBr2

In the case of using cadmium bromide as a Cd2+ precursor, the doping efficiency depends on the amount of added precursor, the amount and concentration of perovskite NPls, and the ligand density. The gradual process of doping can be directly observed over time for nonconcentrated solutions, with the doping rate being determined by the amount of precursor. Figure 2a,b shows the evolution of absorption and PL spectra of the NPls when 25 µL of CdBr2 precursor was added to 3 mL of NPl toluene solution with 0.15 optical density at 400 nm (NPl concentration is ~10−8 M). The dynamics of the PL and absorption peak positions over time are shown in Figure 2c. The absorption spectra reveal gradual blue shifts, indicating the bandgap increase. This widening of the bandgap is due to a lattice contraction induced by the progressive replacement of a Pb2+ cation with a Cd2+ cation with a smaller ionic radius [35]. In general, the PL peak position follows this trend. Figure S5 shows the evolution of PL peak position (in eV) and FWHM under Cd2+ doping. The PL maximum gradually shifts by 117 meV to the high-energy region of the spectrum, indicating a significant increase in the PL energy. It is worth noting that the insertion of Cd2+ ions is accompanied by a slight increase in Stokes shift, which originates from a stronger shift of an absorption band as compared to a PL band. We may speculate that the increase in Stokes shift is attributed to the lattice contraction, since an absorption spectrum is more sensitive to compression [41].
Blue circles in Figure 2c show the evolution of relative PL intensity (determined as an integrated PL intensity divided by an optical density at the excitation wavelength and normalized to the value obtained for the initial solution). Immediately after the addition of the Cd2+ precursor, a significant growth in PL efficiency occurs, which may be attributed to the efficient surface passivation. It has recently been proven that the passivation of CsPbX3 perovskite NCs with CdX2 leads to the PL QY enhancement due to the filling of the Pb−X vacancies with Cd2+ and X− ions [36]. During further Cd2+ doping, relative PL intensity decreases gradually and reaches a plateau at about 0.5 from its original value. In order to confirm that cadmium ions are incorporated into the NPls, we performed an XPS analysis for a sample with a PL peak position at a wavelength of 445 nm. Figure 3a shows the spectrum for Cd 3d peaks, and the estimated peak positions of 405.3 ± 0.1 eV and 412.1 ± 0.1 eV for the Cd 3d5/2 and Cd 3d3/2, respectively, are in good agreement with data obtained in [37,38]. The NPls’ chemical composition CsPb0.84Cd0.16Br3 was calculated using the Cd 3d5/2 spectrum.
It was found that the ligand concentration in the precursor solution significantly affects the NPl doping. Increasing the OlAm amount in the precursor by a factor of 15 considerably inhibits doping; however, the PL QY significantly grows in this case. Figure 3b shows the PL spectra of NPls after adding various amounts of the cadmium precursor with the increased OlAm amount. The PL QY reaches an impressive value of 56%, which, however, is accompanied by only a slight shift of the PL band. A similar situation is observed when OlAm is replaced by octylamine in the precursor. Figure 3c demonstrates the NPls’ PL spectra after adding 20 µL of the precursor with octylamine. Similarly to the procedure with OlAm, we observe a significant increase in the PL intensity, which persists for at least seven days’ storage.
Alternatively, the doping was tested on the solutions with NPl concentration increased by ten times (See Figure S6, Supplementary Materials). In this case, a growth in the PL QY is also observed, while there is no deterioration in the PL properties of the NPls with an increase in the Cd2+ amount, as was observed for diluted solutions (Figure 2c). It should also be noted that in this case, it is possible to achieve a smaller shift of the PL band position, indicating less Cd2+ doping. The interpretation of the results obtained under various doping regimes is in agreement with existing hypotheses, according to which doping occurs due to the introduction of cadmium bromide as a whole unit [35]. Upon dilution, the decrease in PL QY and distortion of the PL spectrum are observed (see Figure S7, Supplementary Materials). Dilution of the NPl solution promotes the formation of a larger number of surface defects, including halide vacancies, which can be filled then with cadmium bromide, followed by the possible migration of cations. Moreover, the NPls’ ultrathin nature significantly contributes to doping. The introduction of a large number of ions with a smaller ionic radius adds to the destabilization of the NPl structure and, as a consequence, to a decrease in PL efficiency. On the contrary, at a low doping level surface passivation occurs at the same time, leading to a significant increase in PL QY.

3.3. Doping with Cd(OCOCH3)2

Doping was additionally realized using Cd(OCOCH3)2 as a Cd2+ source. In this case, 1 µL of Cd(OCOCH3)2 was mixed with 1 µL of OA, 1 µL OlAm, and 10 µL of toluene for the further use. Then, a specified amount (1–13 µL) of this precursor was added to the colloidal solution of NPls. As shown in Figure 4a, increasing the amount of an added precursor causes a smooth shift of the PL band to the blue region of the spectrum, which indicates a gradual increase in the number of introduced cadmium ions. The shift is accompanied by growth in relative PL intensity, as shown in the inset of Figure 4a.
It seems important to notice that the NPls doped with the use of Cd(OCOCH3)2 can be further passivated with CdBr2. As an example, Cd2+-doped NPls with a PL peak position at 452 nm were treated with a successively increasing amount of CdBr2 precursor. Figure 4b demonstrates the dependence of the NPl solution’s relative PL intensity on the amount of CdBr2 precursor. Additional treatment of the Cd2+-doped NPls with CdBr2 allows for further improvement of their luminescent properties due to the extra passivation of their surface, which is confirmed by studying the PL kinetics (see Figure 4c). While doping with Cd(OCOCH3)2 has a little effect on PL kinetics (intensity-weighted average PL lifetime increases from 3.5 ns to 3.6 ns), further treatment with CdBr2 changes the shape of the PL decay curve and induces a pronounced growth of an average PL lifetime up to 4.6 ns. Thus, a double-step treatment with different Cd2+ precursors allows for both PL wavelength tuning and surface passivation.
We may underline the following observations to summarize the results of the proposed CsPbBr3 NPls doping protocols with Cd2+ ions. Too high a rate of doping is harmful to NPls’ structural stability and can be achieved through the use of CdBr2 in diluted solution. Using highly concentrated NPl solutions or introducing additional ligands allows for slowing down the doping rate and keeping a strong surface passivation effect. In this case, however, the wavelength tunability is insufficient. The doping with Cd(OCOCH3)2 is a more suitable choice for tuning the position of the NPls emission. Further passivation may be achieved via a second stage with CdBr2, providing a spectral shift, a high PL quantum yield, and stability, as listed in Table 1.

3.4. Two-Photon-Induced Photoluminescence

To investigate the influence of doping with Cd(OCOCH3)2 on the NPls’ nonlinear optical responses, we studied their PL when excited via the two-photon absorption (2PA) process. Figure 5a demonstrates the log–log plots of the integrated PL intensity vs. excitation power. The dependences obtained for both the doped and the parent samples are well-described by a linear function with a slope close to 2, which corresponds to a 2PA-excited emission. The 2PA absorption cross section is an important figure of merit to compare the nonlinear optical processes in different materials. 2PA cross sections for the parent and Cd2+-doped NPls were calculated using fluorescein as a standard [42]. Figure 5b shows the dependence of the 2PA absorption cross section on the emission peak position for two batches of samples. One can see that NPls possessing the PL maximum in the range 455–460 nm demonstrate the strongest nonlinear absorption. Assuming a linear dependence of the PL peak position on the doping ratio [35], we can conclude that the replacement of 4−8% of the Pb2+ ions with Cd2+ ions in a B-site position allows for the achievement of superior nonlinear optical properties. Such a small fraction of doped Cd2+ ions induces a strong enhancement (more than 2.5 times) of nonlinear absorption. This observation is in a good agreement with experimental and theoretical studies of doped perovskite nanocrystals [35,37,43]. Ahmed et al. recently concluded that the insertion of even a small fraction of doping ions results in the local lattice periodicity breaking, which leads to a charge carrier localization [43]. At a higher level of doping, 2PA starts to decline, which may be attributed to the structural instability of the doped NPls under the intense laser radiation. Indeed, the 2PA-excited PL spectrum of the slightly doped NPls is well-superimposed on the one-photon-excited PL spectrum (see Figure S8, Supplementary Materials). On the contrary, for heavily doped NPls, a shoulder appears on the low-energy side in the spectrum of 2PA-excited PL, which can be associated with the relaxation through the emerging surface and structural defects.

4. Conclusions

To sum up, we have developed the methods for the CsPbBr3 NPls post-synthetic doping with Cd2+ ions. We found that the interplay between Cd2+ precursor, NPl concentrations, and ligands determines the kinetics of the doping process. We showed that a careful choice of doping conditions allows for the achievement of significant improvement in NPl optical properties. Additionally, we developed a two-step doping protocol that allows for fine emission wavelength tuning, boosts PL quantum yield, and preserves the NPls’ stability. We also demonstrated that the replacement of 4–8% of the Pb2+ ions with Cd2+ ions in a B-site position induces a strong enhancement of the nonlinear optical response; particularly, the two-photon absorption cross section is increased by 2.5 times. We showed that the doping level is limited by the structural instability of ultrathin NPls occurring due to the introduction of a large number of dopants with a smaller ionic radius. These findings reveal more opportunities for the use of lead halide NPls in optoelectronic devices, as well as for the development of methods for doping perovskite nanostructures.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15217676/s1, Figure S1: CsPbBr3 NPls PL QY shift over time of storage; Figure S2: HAADF-STEM images of the CsPbBr3 NPls; Figure S3: An analysis of lateral dimensions of the CsPbBr3 NPls; Figure S4: The XPS survey obtained for the CsPbBr3 NPls; Figure S5: Evolution of PL peak position and FWHM under Cd2+ doping. Figure S6: The shift of PL spectra of CsPbBr3 NPls upon Cd2+ doping in concentrated solutions. The inset shows the relative PL intensity of the solutions obtained using different CdBr2 precursor amount; Figure S7: PL spectra of CsPbBr3 NPl solutions with optical densities of 0.15 and 0.03 (at 400 nm). The inset shows the normalized dependence of PL QY on the optical density of the NPl solution; Figure S8: PL spectra for two Cd2+-doped samples with a different Cd2+ amount (emission wavelengths are 447 nm and 45 nm, respectively) obtained under one-photon absorption (1PA) and two-photon absorption (2PA) excitation.

Author Contributions

Conceptualization, A.P.L.; methodology, A.P.L.; validation, E.V.Z., A.N.T. and A.V.F.; formal analysis, I.D.S. and A.P.L.; investigation, I.D.S., A.V.S., D.A.T., P.S.P., D.A.K., A.O.I., A.V.K., D.V.D., S.V.M. and A.P.L.; data curation, A.P.L.; writing—original draft preparation, A.P.L.; visualization, A.P.L.; supervision, A.P.L.; project administration, A.V.F.; funding acquisition, A.V.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Russian Science Foundation (19-13-00332-Π).

Data Availability Statement

Not applicable.

Acknowledgments

A.P.L. thanks the Ministry of Education of the Russian Federation for the financial support (SP-149.2021.1). XPS studies were performed on equipment of the Resource Centre “Physical Methods of Surface Investigation” of the St. Petersburg State University Research Park. 2PA-PL studies were performed on equipment of the Resource Centre “Centre for Optical and Laser Materials Research” of the St. Petersburg State University Research Park. TEM studies were performed on equipment of the “Interdisciplinary Resource Centre for Nanotechnology” of the St. Petersburg State University Research Park.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Weidman, M.C.; Goodman, A.J.; Tisdale, W.A. Colloidal Halide Perovskite Nanoplatelets: An Exciting New Class of Semiconductor Nanomaterials. Chem. Mater. 2017, 29, 5019–5030. [Google Scholar] [CrossRef]
  2. Otero-Martínez, C.; Ye, J.; Sung, J.; Pastoriza-Santos, I.; Pérez-Juste, J.; Xia, Z.; Rao, A.; Hoye, R.L.Z.; Polavarapu, L. Colloidal Metal-Halide Perovskite Nanoplatelets: Thickness-Controlled Synthesis, Properties, and Application in Light-Emitting Diodes. Adv. Mater. 2022, 34, e2107105. [Google Scholar] [CrossRef] [PubMed]
  3. Tyagi, P.; Arveson, S.M.; Tisdale, W.A. Colloidal Organohalide Perovskite Nanoplatelets Exhibiting Quantum Confinement. J. Phys. Chem. Lett. 2015, 6, 1911–1916. [Google Scholar] [CrossRef] [PubMed]
  4. Sichert, J.A.; Tong, Y.; Mutz, N.; Vollmer, M.; Fischer, S.; Milowska, K.Z.; García Cortadella, R.; Nickel, B.; Cardenas-Daw, C.; Stolarczyk, J.K.; et al. Quantum Size Effect in Organometal Halide Perovskite Nanoplatelets. Nano Lett. 2015, 15, 6521–6527. [Google Scholar] [CrossRef]
  5. Bekenstein, Y.; Koscher, B.A.; Eaton, S.W.; Yang, P.; Alivisatos, A.P. Highly Luminescent Colloidal Nanoplates of Perovskite Cesium Lead Halide and Their Oriented Assemblies. J. Am. Chem. Soc. 2015, 137, 16008–16011. [Google Scholar] [CrossRef] [Green Version]
  6. Akkerman, Q.A.; Motti, S.G.; Srimath Kandada, A.R.; Mosconi, E.; D’Innocenzo, V.; Bertoni, G.; Marras, S.; Kamino, B.A.; Miranda, L.; De Angelis, F.; et al. Solution Synthesis Approach to Colloidal Cesium Lead Halide Perovskite Nanoplatelets with Monolayer-Level Thickness Control. J. Am. Chem. Soc. 2016, 138, 1010–1016. [Google Scholar] [CrossRef] [Green Version]
  7. Levchuk, I.; Osvet, A.; Tang, X.; Brandl, M.; Perea, J.D.; Hoegl, F.; Matt, G.J.; Hock, R.; Batentschuk, M.; Brabec, C.J. Brightly Luminescent and Color-Tunable Formamidinium Lead Halide Perovskite FAPbX3 (X = Cl, Br, I) Colloidal Nanocrystals. Nano Lett. 2017, 17, 2765–2770. [Google Scholar] [CrossRef]
  8. Zhai, W.; Lin, J.; Li, Q.; Zheng, K.; Huang, Y.; Yao, Y.; He, X.; Li, L.; Yu, C.; Liu, C.; et al. Solvothermal Synthesis of Ultrathin Cesium Lead Halide Perovskite Nanoplatelets with Tunable Lateral Sizes and Their Reversible Transformation into Cs4PbBr6 Nanocrystals. Chem. Mater. 2018, 30, 3714–3721. [Google Scholar] [CrossRef]
  9. Tong, Y.; Bladt, E.; Aygüler, M.F.; Manzi, A.; Milowska, K.Z.; Hintermayr, V.A.; Docampo, P.; Bals, S.; Urban, A.S.; Polavarapu, L.; et al. Highly Luminescent Cesium Lead Halide Perovskite Nanocrystals with Tunable Composition and Thickness by Ultrasonication. Angew. Chemie-Int. Ed. 2016, 55, 13887–13892. [Google Scholar] [CrossRef]
  10. Pan, Q.; Hu, H.; Zou, Y.; Chen, M.; Wu, L.; Yang, D.; Yuan, X.; Fan, J.; Sun, B.; Zhang, Q. Microwave-assisted synthesis of high-quality “all-inorganic” CsPbX3 (X = Cl, Br, I) perovskite nanocrystals and their application in light emitting diodes. J. Mater. Chem. C 2017, 5, 10947–10954. [Google Scholar] [CrossRef]
  11. Chen, S.; Shi, G.; Chen, S.; Shi, G.Q. Two-Dimensional Materials for Halide Perovskite-Based Optoelectronic Devices. Adv. Mater. 2017, 29, 1605448. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, L.; Liu, Y.; Yang, Z.; Liu, S. Two dimensional metal halide perovskites: Promising candidates for light-emitting diodes. J. Energy Chem. 2019, 37, 97–110. [Google Scholar] [CrossRef] [Green Version]
  13. Zhou, F.; Ran, X.; Fan, D.; Lu, S.; Ji, W. Perovskites: Multiphoton Absorption and Applications. Adv. Opt. Mater. 2021, 9, 2100292. [Google Scholar] [CrossRef]
  14. Shen, W.; Chen, J.; Wu, J.; Li, X.; Zeng, H. Nonlinear Optics in Lead Halide Perovskites: Mechanisms and Applications. ACS Photonics 2021, 8, 113–124. [Google Scholar] [CrossRef]
  15. Yao, J.; Ge, J.; Wang, K.; Zhang, G.; Zhu, B.; Chen, C.; Zhang, Q.; Luo, Y.; Yu, S.; Yao, H. Few-Nanometer-Sized α—CsPbI 3 Quantum Dots Enabled by Strontium Substitution and Iodide Passivation for Efficient Red-Light Emitting Diodes. J. Am. Chem. Soc. 2019, 141, 2069–2079. [Google Scholar] [CrossRef]
  16. Shen, X.; Zhang, Y.; Kershaw, S.V.; Li, T.; Wang, C.; Zhang, X.; Wang, W.; Li, D.; Wang, Y.; Lu, M.; et al. Zn-Alloyed CsPbI 3 Nanocrystals for Highly Efficient Perovskite Light-Emitting Devices. Nano Lett. 2019, 19, 1552–1559. [Google Scholar] [CrossRef]
  17. Zou, S.; Liu, Y.; Li, J.; Liu, C.; Feng, R.; Jiang, F.; Li, Y.; Song, J.; Zeng, H.; Hong, M.; et al. Stabilizing Cesium Lead Halide Perovskite Lattice through Mn(II) Substitution for Air-Stable Light-Emitting Diodes. J. Am. Chem. Soc. 2017, 139, 11443–11450. [Google Scholar] [CrossRef]
  18. Xu, K.; Lin, C.C.; Xie, X.; Meijerink, A. Efficient and Stable Luminescence from Mn2+ in Core and Core-Isocrystalline Shell CsPbCl3 Perovskite Nanocrystals. Chem. Mater. 2017, 29, 4265–4272. [Google Scholar] [CrossRef] [Green Version]
  19. Liu, F.; Ding, C.; Zhang, Y.; Ripolles, T.S.; Kamisaka, T.; Toyoda, T.; Hayase, S.; Minemoto, T.; Yoshino, K.; Dai, S.; et al. Colloidal Synthesis of Air-Stable Alloyed CsSn1-xPbxI3 Perovskite Nanocrystals for Use in Solar Cells. J. Am. Chem. Soc. 2017, 139, 16708–16719. [Google Scholar] [CrossRef]
  20. Mondal, N.; De, A.; Samanta, A. Achieving Near-Unity Photoluminescence Efficiency for Blue-Violet-Emitting Perovskite Nanocrystals. ACS Energy Lett. 2019, 4, 32–39. [Google Scholar] [CrossRef]
  21. Zhang, Y.; Cheng, X.; Tu, D.; Gong, Z.; Li, R.; Yang, Y.; Zheng, W.; Xu, J.; Deng, S.; Chen, X. Engineering the Bandgap and Surface Structure of CsPbCl 3 Nanocrystals to Achieve Efficient Ultraviolet Luminescence. Angew. Chemie Int. Ed. 2021, 60, 9693–9698. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, W.; Lin, Q.; Li, H.; Wu, K.; Robel, I.; Pietryga, J.M.; Klimov, V.I. Mn2+-Doped Lead Halide Perovskite Nanocrystals with Dual-Color Emission Controlled by Halide Content. J. Am. Chem. Soc. 2016, 138, 14954–14961. [Google Scholar] [CrossRef] [PubMed]
  23. Cohen, T.A.; Milstein, T.J.; Kroupa, D.M.; Mackenzie, J.D.; Luscombe, C.K.; Gamelin, D.R. Quantum-cutting Yb3+-doped perovskite nanocrystals for monolithic bilayer luminescent solar concentrators. J. Mater. Chem. A 2019, 7, 9279–9288. [Google Scholar] [CrossRef]
  24. Zhou, D.; Liu, D.; Pan, G.; Chen, X.; Li, D.; Xu, W.; Bai, X.; Song, H. Cerium and Ytterbium Codoped Halide Perovskite Quantum Dots: A Novel and Efficient Downconverter for Improving the Performance of Silicon Solar Cells. Adv. Mater. 2017, 29, 1704149. [Google Scholar] [CrossRef] [PubMed]
  25. Lu, C.H.; Biesold-McGee, G.V.; Liu, Y.; Kang, Z.; Lin, Z. Doping and ion substitution in colloidal metal halide perovskite nanocrystals. Chem. Soc. Rev. 2020, 49, 4953–5007. [Google Scholar] [CrossRef]
  26. Chen, Y.; Liu, Y.; Hong, M. Cation-doping matters in caesium lead halide perovskite nanocrystals: From physicochemical fundamentals to optoelectronic applications. Nanoscale 2020, 12, 12228–12248. [Google Scholar] [CrossRef]
  27. Liu, M.; Grandhi, G.K.; Matta, S.; Mokurala, K.; Litvin, A.; Russo, S.; Vivo, P. Halide Perovskite Nanocrystal Emitters. Adv. Photonics Res. 2021, 2, 2000118. [Google Scholar] [CrossRef]
  28. Mir, W.J.; Jagadeeswararao, M.; Das, S.; Nag, A. Colloidal Mn-doped cesium lead halide perovskite nanoplatelets. ACS Energy Lett. 2017, 2, 537–543. [Google Scholar] [CrossRef] [Green Version]
  29. Li, Z.J.; Hofman, E.; Davis, A.H.; Khammang, A.; Wright, J.T.; Dzikovski, B.; Meulenberg, R.W.; Zheng, W. Complete Dopant Substitution by Spinodal Decomposition in Mn-Doped Two-Dimensional CsPbCl3 Nanoplatelets. Chem. Mater. 2018, 30, 6400–6409. [Google Scholar] [CrossRef]
  30. He, T.; Li, J.; Qiu, X.; Xiao, S.; Lin, X. Superior multiphoton absorption properties in nanoplatelets. Photonics Res. 2018, 6, 1021–1027. [Google Scholar] [CrossRef]
  31. Wu, L.; Wang, Y.; Kurashvili, M.; Dey, A.; Cao, M.; Döblinger, M.; Zhang, Q.; Feldmann, J.; Huang, H.; Debnath, T. Interfacial Manganese-Doping in CsPbBr 3 Nanoplatelets by Employing a Molecular Shuttle. Angew. Chemie Int. Ed. 2022, 61, e202115852. [Google Scholar]
  32. Cao, Q.; Ilyas, A.; Zhang, S.; Ju, Z.; Sun, F.; Liu, T.; Yang, Y.; Lu, Y.; Liu, X.; Deng, R. Lanthanide-doping enables kinetically controlled growth of deep-blue two-monolayer halide perovskite nanoplatelets. Nanoscale 2021, 13, 11552–11560. [Google Scholar] [CrossRef]
  33. Wang, H.; Ye, F.; Sun, J.; Wang, Z.; Zhang, C.; Qian, J.; Zhang, X.; Choy, W.C.H.; Sun, X.W.; Wang, K.; et al. Efficient CsPbBr 3 Nanoplatelet-Based Blue Light-Emitting Diodes Enabled by Engineered Surface Ligands. ACS Energy Lett. 2022, 7, 1137–1145. [Google Scholar] [CrossRef]
  34. Liu, H.; Worku, M.; Mondal, A.; Shonde, T.B.; Chaaban, M.; Ben-Akacha, A.; Lee, S.; Gonzalez, F.; Olasupo, O.; Lin, X.; et al. Efficient and Stable Blue Light Emitting Diodes Based on CsPbBr 3 Nanoplatelets with Surface Passivation by a Multifunctional Organic Sulfate. Adv. Energy Mater. 2022, 2201605. [Google Scholar] [CrossRef]
  35. Van der Stam, W.; Geuchies, J.J.; Altantzis, T.; Van Den Bos, K.H.W.; Meeldijk, J.D.; Van Aert, S.; Bals, S.; Vanmaekelbergh, D.; De Mello Donega, C. Highly Emissive Divalent-Ion-Doped Colloidal CsPb1-xMxBr3 Perovskite Nanocrystals through Cation Exchange. J. Am. Chem. Soc. 2017, 139, 4087–4097. [Google Scholar] [CrossRef] [PubMed]
  36. Xie, C.; Zhao, Y.; Shi, W.; Yang, P. Postsynthetic Surface-Treatment of CsPbX3(X = Cl, Br, or I) Nanocrystals via CdX2Precursor Solution toward High Photoluminescence Quantum Yield. Langmuir 2021, 37, 1183–1193. [Google Scholar] [CrossRef]
  37. Skurlov, I.D.; Yin, W.; Ismagilov, A.O.; Tcypkin, A.N.; Hua, H.; Wang, H.; Zhang, X.; Litvin, A.P.; Zheng, W. Improved one-and multiple-photon excited photoluminescence from cd2+-doped cspbbr3 perovskite ncs. Nanomaterials 2022, 12, 151. [Google Scholar] [CrossRef]
  38. Zhao, Y.; Shen, C.; Ding, L.; Liu, J.; Xiang, W.; Liang, X. Novel B-site Cd2+ doped CsPbBr3 quantum dot glass toward strong fluorescence and high stability for wLED. Opt. Mater. 2020, 107, 110046. [Google Scholar] [CrossRef]
  39. Yang, D.; Zou, Y.; Li, P.; Liu, Q.; Wu, L.; Hu, H.; Xu, Y.; Sun, B.; Zhang, Q.; Lee, S. Nano Energy Large-scale synthesis of ultrathin cesium lead bromide perovskite nanoplates with precisely tunable dimensions and their application in blue light- emitting diodes. Nano Energy 2018, 47, 235–242. [Google Scholar] [CrossRef]
  40. Borri, C.; Calisi, N.; Galvanetto, E.; Falsini, N.; Biccari, F.; Vinattieri, A.; Cucinotta, G.; Caporali, S. First Proof-of-Principle of Inorganic Lead Halide Perovskites Deposition by Magnetron-Sputtering. Nanomaterials 2019, 10, 60. [Google Scholar] [CrossRef] [Green Version]
  41. Jaffe, A.; Lin, Y.; Karunadasa, H.I. Halide Perovskites under Pressure: Accessing New Properties through Lattice Compression. ACS Energy Lett. 2017, 2, 1549–1555. [Google Scholar] [CrossRef]
  42. Melnikov, A.S.; Serdobintsev, P.Y.; Vedyaykin, A.D.; Khodorkovskii, M.A. Two-photon absorption cross section for Coumarins 102, 153 and 307. J. Phys. Conf. Ser. 2017, 917, 062029. [Google Scholar] [CrossRef]
  43. Ahmed, G.H.; Liu, Y.; Bravić, I.; Ng, X.; Heckelmann, I.; Narayanan, P.; Fernández, M.S.; Monserrat, B.; Congreve, D.N.; Feldmann, S. Luminescence Enhancement Due to Symmetry Breaking in Doped Halide Perovskite Nanocrystals. J. Am. Chem. Soc. 2022, 144, 15862–15870. [Google Scholar] [CrossRef]
Materials 15 07676 g001 550

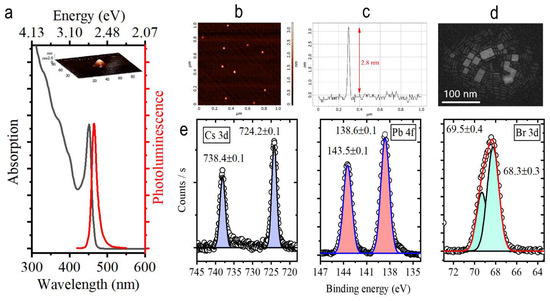

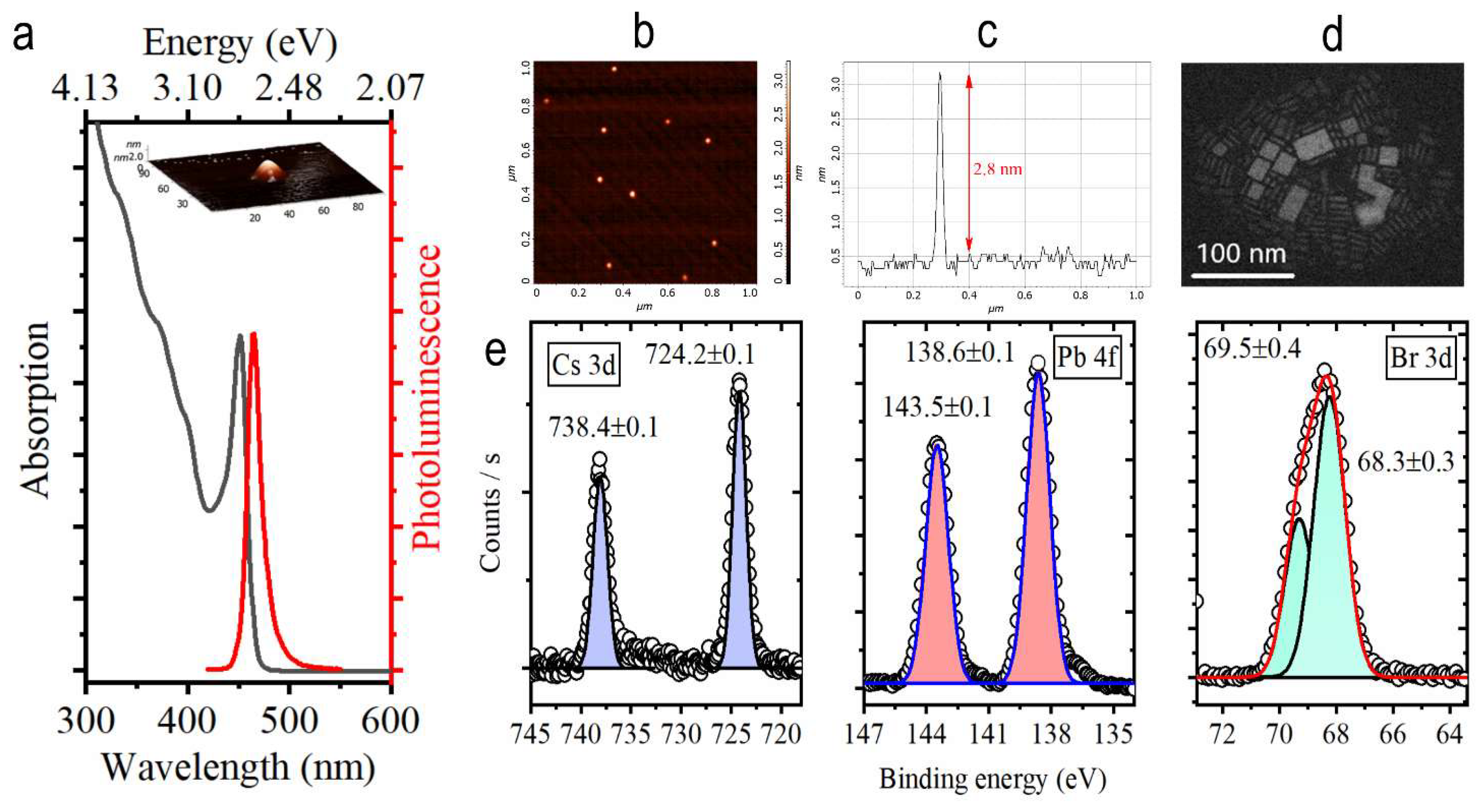

Figure 1. (a) Absorption and PL spectra of CsPbBr3 NPls. The inset shows a 3D AFM image. (b) AFM image of CsPbBr3 NPls and (c) the corresponding height profile. (d) HAADF-STEM image of CsPbBr3 NPls. (e) XPS spectra for Cs, Pb, and Br elements.
Figure 1. (a) Absorption and PL spectra of CsPbBr3 NPls. The inset shows a 3D AFM image. (b) AFM image of CsPbBr3 NPls and (c) the corresponding height profile. (d) HAADF-STEM image of CsPbBr3 NPls. (e) XPS spectra for Cs, Pb, and Br elements.
Materials 15 07676 g001
Materials 15 07676 g002 550

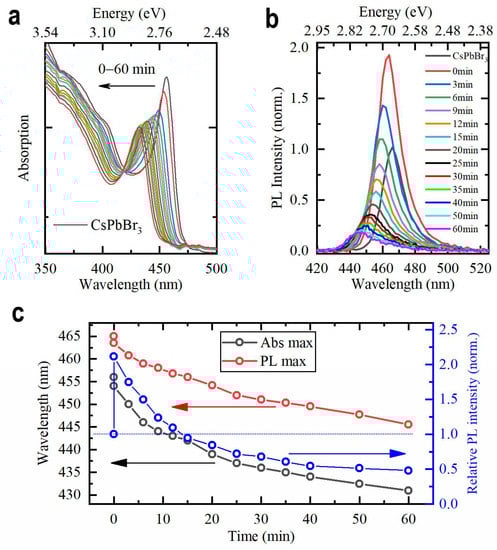

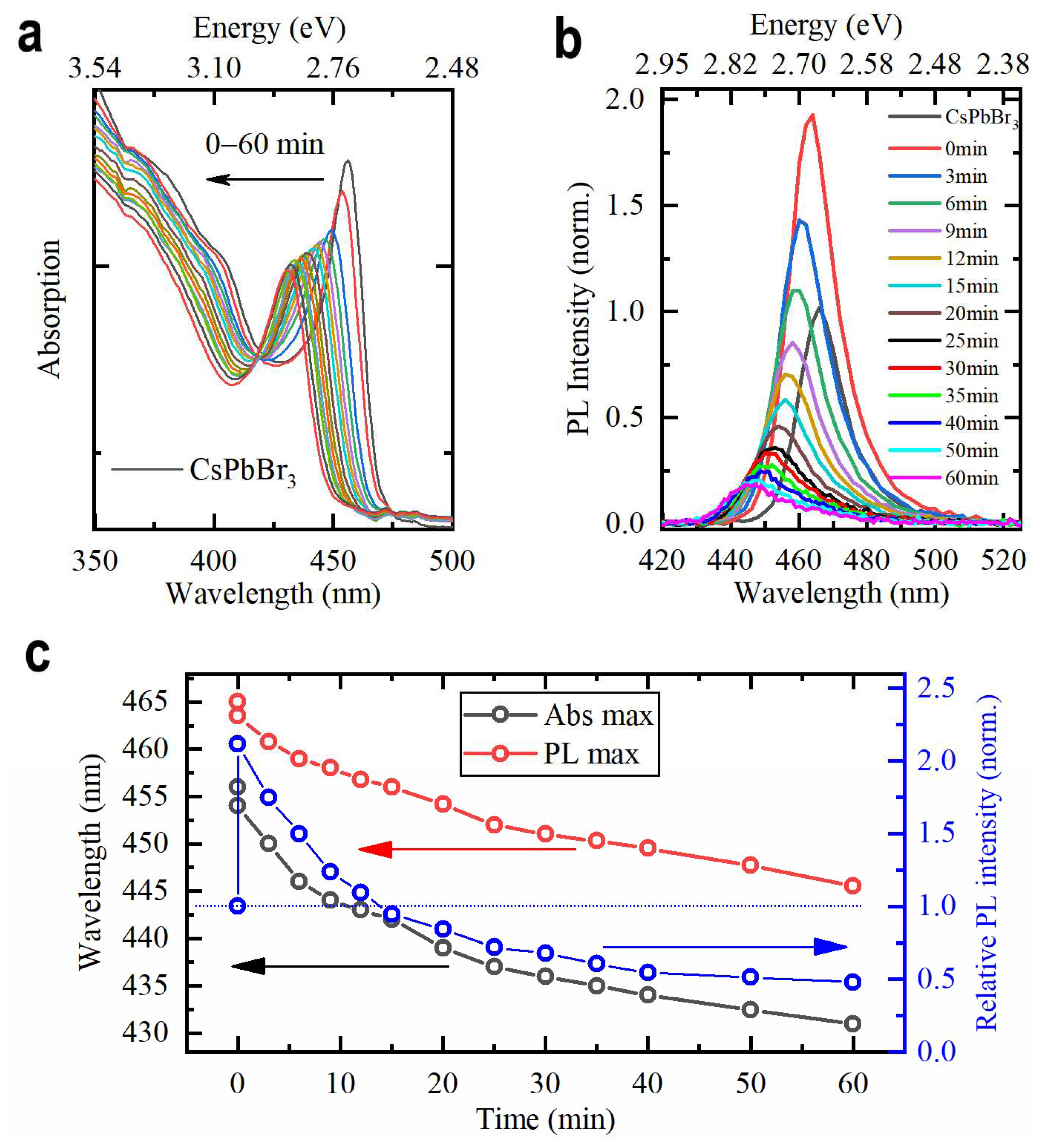

Figure 2. Evolution of (a) absorption and (b) PL spectrum under Cd2+ doping. (c) Evolution of absorption and PL peak positions and relative PL intensity.
Figure 2. Evolution of (a) absorption and (b) PL spectrum under Cd2+ doping. (c) Evolution of absorption and PL peak positions and relative PL intensity.
Materials 15 07676 g002
Materials 15 07676 g003 550

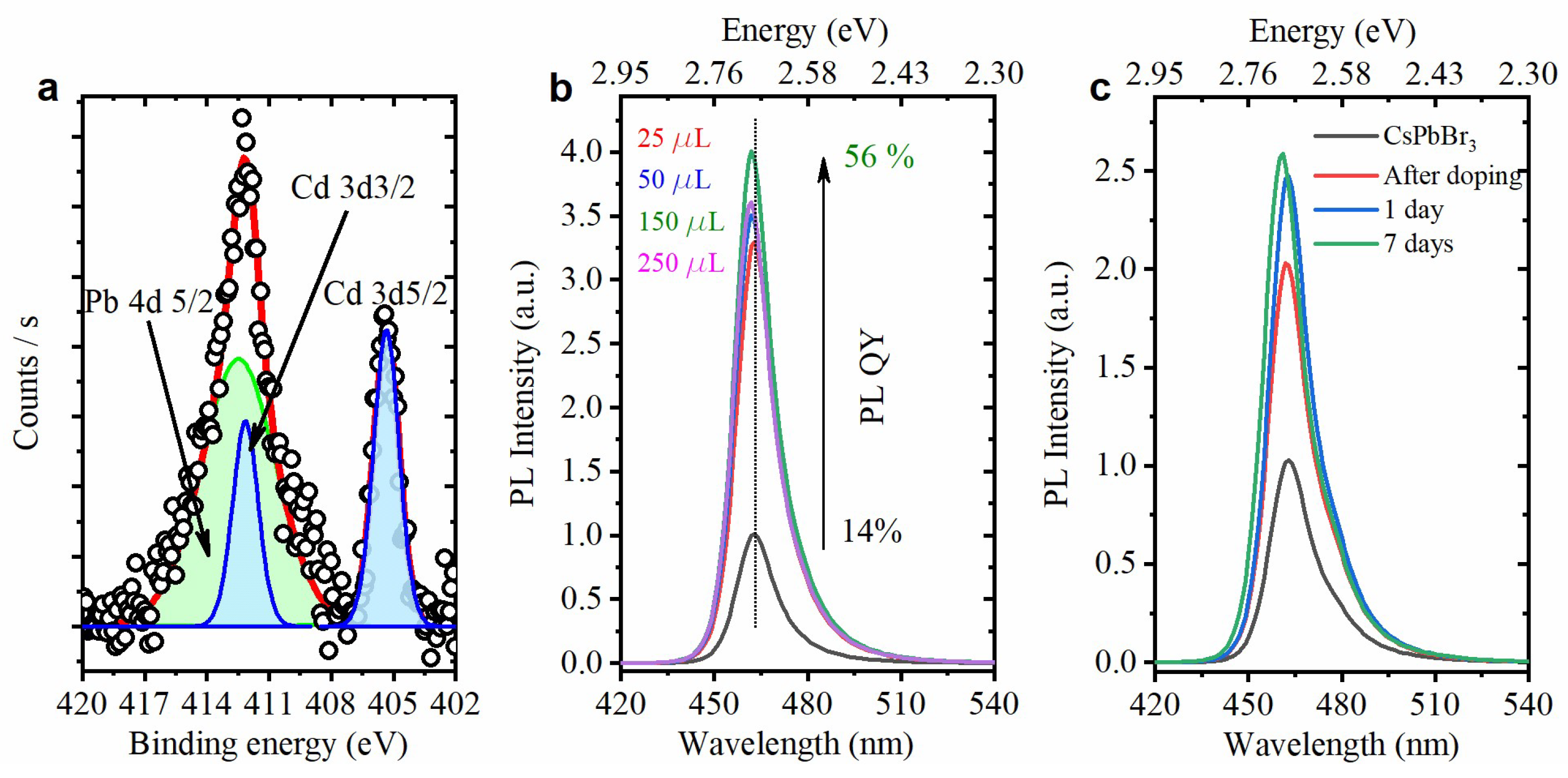

Figure 3. (a) XPS spectrum of Cd 3d peaks taken for the Cd2+-doped NPls with PL peak position at 445 nm. (b) PL spectra of NPls after adding various amounts of CdBr2 with the increased amount of OlAm. (c) PL spectra of NPls after adding 20 µL of the precursor with octylamine before and after doping, as well as during seven days’ storage.
Figure 3. (a) XPS spectrum of Cd 3d peaks taken for the Cd2+-doped NPls with PL peak position at 445 nm. (b) PL spectra of NPls after adding various amounts of CdBr2 with the increased amount of OlAm. (c) PL spectra of NPls after adding 20 µL of the precursor with octylamine before and after doping, as well as during seven days’ storage.
Materials 15 07676 g003
Materials 15 07676 g004 550

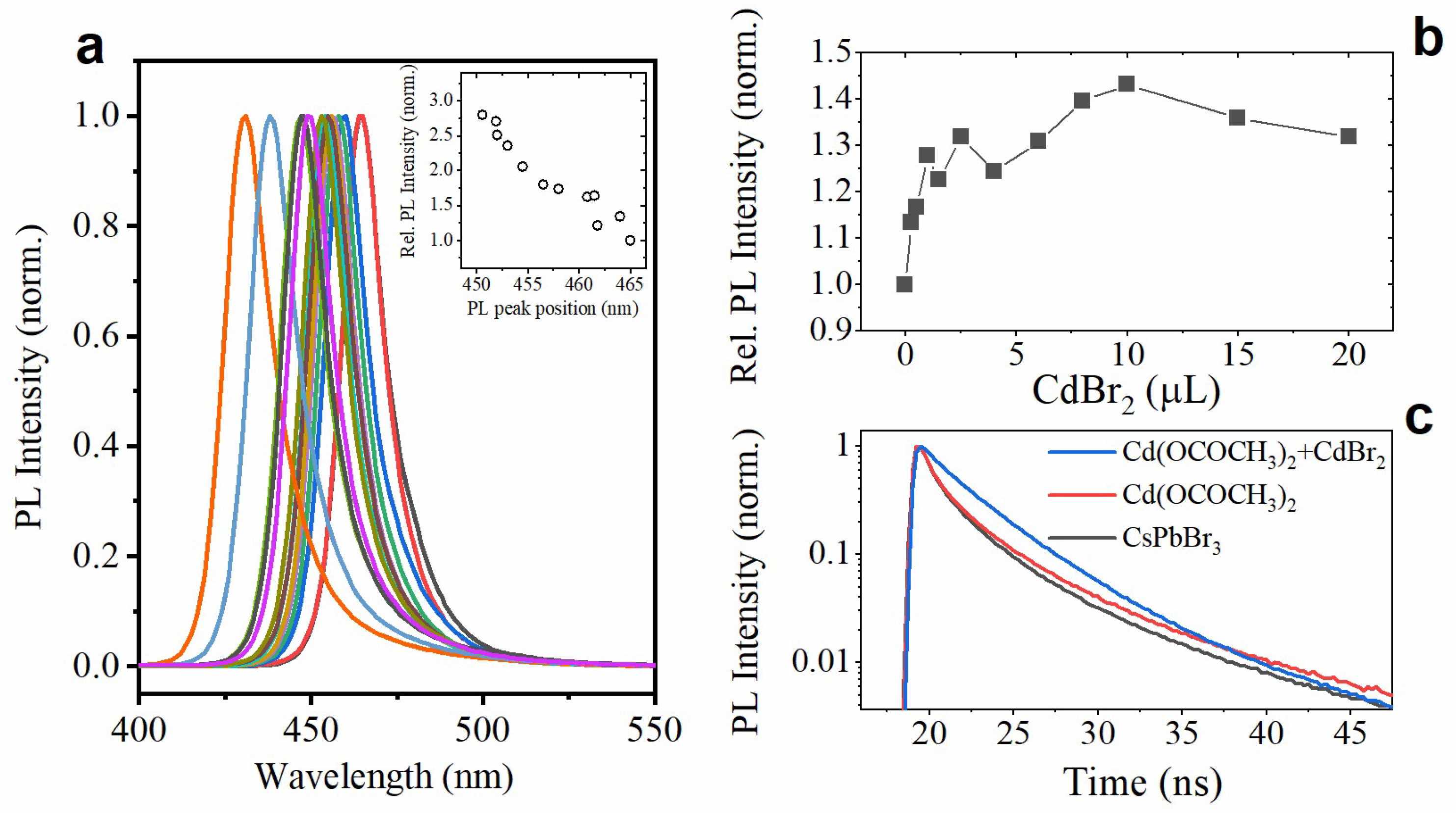

Figure 4. (a) PL spectra of Cd2+-doped NPls with various amounts of Cd(OCOCH3)2 precursor solution. The inset shows the dependence of PL QY on the PL peak position. (b) Relative PL intensity of the NPls doped with Cd(OCOCH3)2 (PL peak position at 455 nm) after the addition of various amounts of CdBr2. (c) PL decay curves taken for the undoped NPls (black line), doped with Cd(OCOCH3)2 (red line), and CdBr2 treated after Cd(OCOCH3)2 doping (blue line).
Figure 4. (a) PL spectra of Cd2+-doped NPls with various amounts of Cd(OCOCH3)2 precursor solution. The inset shows the dependence of PL QY on the PL peak position. (b) Relative PL intensity of the NPls doped with Cd(OCOCH3)2 (PL peak position at 455 nm) after the addition of various amounts of CdBr2. (c) PL decay curves taken for the undoped NPls (black line), doped with Cd(OCOCH3)2 (red line), and CdBr2 treated after Cd(OCOCH3)2 doping (blue line).
Materials 15 07676 g004
Materials 15 07676 g005 550

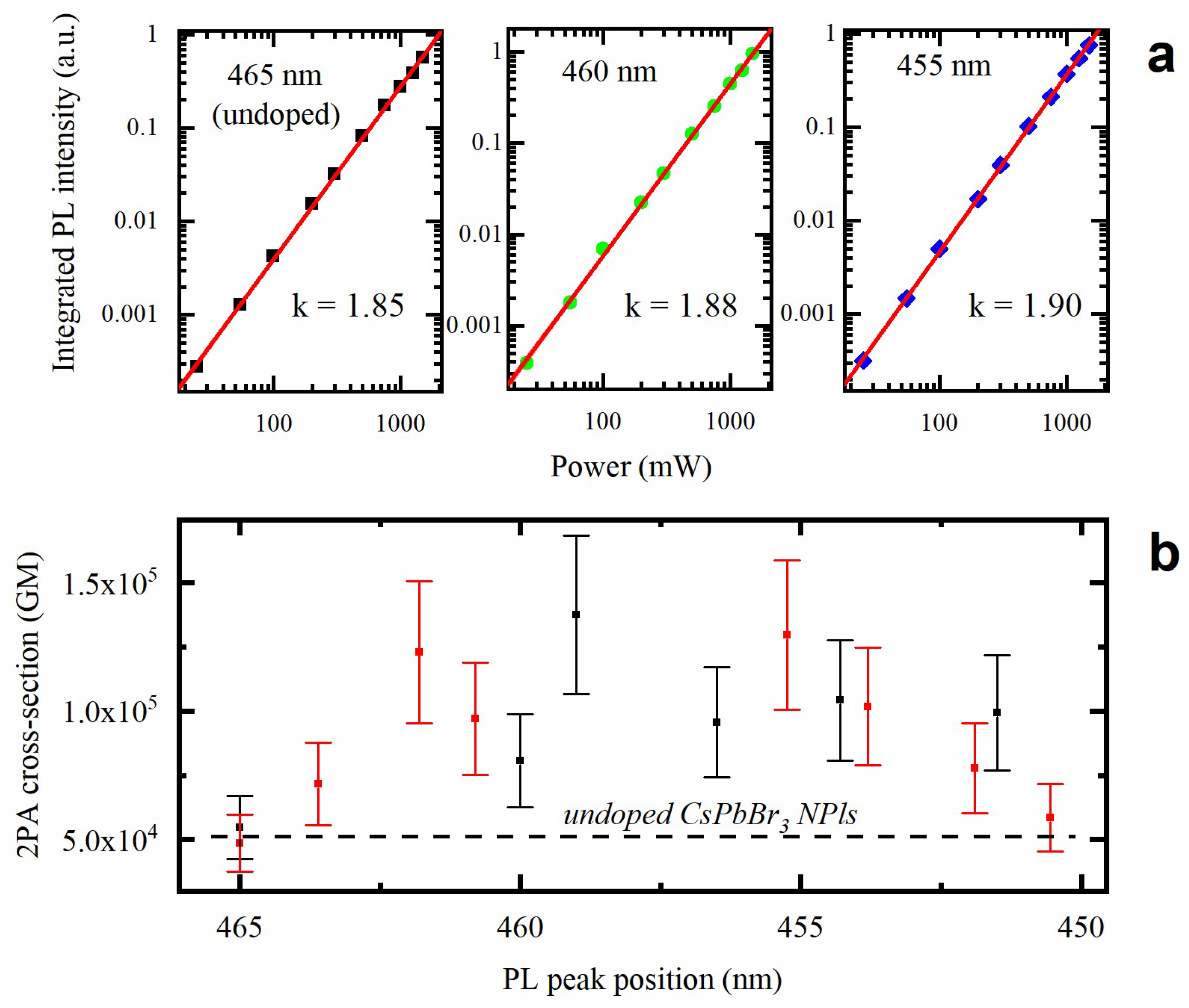

Figure 5. (a) The log–log plots of the integrated PL intensity vs. excitation power obtained for the parent and Cd2+-doped samples. (b) The dependence of the 2PA absorption cross section on emission peak position for two batches of Cd2+-doped samples. The dashed line indicates the value obtained for the undoped sample.
Figure 5. (a) The log–log plots of the integrated PL intensity vs. excitation power obtained for the parent and Cd2+-doped samples. (b) The dependence of the 2PA absorption cross section on emission peak position for two batches of Cd2+-doped samples. The dashed line indicates the value obtained for the undoped sample.
Materials 15 07676 g005
Table
Table 1. The summary of CsPbBr3 NPls doping with Cd2+.
Table 1. The summary of CsPbBr3 NPls doping with Cd2+.
Doping TypeDoping RatePL Peak Position TuningStabilityPassivation
CdBr2, dilutedHighYesLowModerate
CdBr2, concentratedLowNoHighHigh
CdBr2, ligandsLowNoHighHigh
Cd(OCOCH3)2ModerateYesModerateModerate
Double-stepModerateYesHighHigh
