Next Article in Journal
Prediction of Undrained Shear Strength by the GMDH-Type Neural Network Using SPT-Value and Soil Physical Properties
Next Article in Special Issue
Seagrass Leaves: An Alternative Resource for the Production of Insulation Materials
Previous Article in Journal
Piezoelectric Properties of 0-3 Composite Films Based on Novel Molecular Piezoelectric Material (ATHP)2PbBr4
Previous Article in Special Issue
Fungi in Mycelium-Based Composites: Usage and Recommendations


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Materials
Volume 15
Issue 18
10.3390/ma15186384
materials-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Lignocellulosic Biomass of C3 and C4 Perennial Grasses as a Valuable Feedstock for Particleboard Manufacture

by
Dominika Janiszewska
1,*,†,
Grzegorz Żurek
2,†,
Danuta Martyniak
2 and
Wojciech Bałęczny
1
1
Łukasiewicz Research Network, Poznań Institute of Technology, Center of Wood Technology, Winiarska St.1, 60-654 Poznan, Poland
2
Plant Breeding and Acclimatization Institute, National Research Institute, Radzików, 05-870 Błonie, Poland
*
Author to whom correspondence should be addressed.
†
Co-first authors.
Materials 2022, 15(18), 6384; https://doi.org/10.3390/ma15186384
Submission received: 23 June 2022 / Revised: 1 August 2022 / Accepted: 1 September 2022 / Published: 14 September 2022
(This article belongs to the Special Issue Bio-Based Materials from Wood and Non-wood Fibers: Development, Properties and Design)
Browse Figures
Versions Notes

Abstract

:
Looking for new alternative raw materials is one of the key issues in line with a bioeconomy approach, particularly for particleboard manufacturing. In this framework, this paper presents a comparison of some physico-mechanical properties and the formaldehyde contents of particleboards made with 30% substitution of grass biomass from six perennial grass species. Our studies indicate relatively high values of mechanical properties for particleboards made with the addition of biomass from grasses with the C4 photosynthetic pathway: Miscanthus x giganteus and switchgrass (Panicum virgatum). Boards made with the addition of biomass from grasses with the C3 photosynthetic pathway—tall wheatgrass (Elymus elongatus), tall fescue (Festuca arundinacea), and perennial ryegrass (Lolium perenne)—gave lower values of mechanical properties. The opposite results were obtained in the case of the formaldehyde content: the lowest value was measured for particleboards made with the addition of tall fescue biomass (0.1% less than the control), and the highest for switchgrass (0.9% greater than the control) and cordgrass (3.2% greater than the control). Future research should address the optimization of the manufacturing process of particleboards from perennial grasses, taking into account the needs and technical possibilities of the wood industry sector.

1. Introduction

Particleboards are panels produced by combining wooden particles with a proper glue and they are among the most important value-added products in the wood sector [1,2].
On the one hand, global consumption of wood is expected to increase in the near future [3,4,5,6], but on the other hand, it is also important to safeguard forests, in order to allow them to play their crucial role in the context of climate change mitigation by storing atmospheric CO2 [7,8,9].
To avoid conflict between environmental requirements and the production of wood for energy, paper, furniture and construction materials, new biomass sources have to be found, evaluated, and converted to value-added products [10,11,12,13,14]. Moreover, the timber market is subject to continuously increasing demand from both the construction and energy industries, leading to a shortage of wood particles and higher prices [15,16].
Therefore, particleboard producers need to look for new, cheap, and available sources of raw material in order to ensure the sustainability of the manufacturing process without compromising the quality of the obtained boards [2,17,18,19].
Apart from wood there are many possible feedstocks for producing particleboards, including post-consumer wood, forest, and agricultural residues [1,20].
The first attempts to produce particleboards from cereal straw revealed the low suitability of such feedstock, due to its large capillaries, which cause the collection of an excessive amount of resin, and to poor adhesion, an effect of the high content of mineral substances [21]. The low mechanical quality of panels containing wheat (Triticum spp.) and rapeseed (Brassica napus L.) straw was confirmed more recently, with internal bond strength values in the low range of 61–99 mN mm−2, notwithstanding the application of enzymes to increase particle surface energy [22].
Other lignocellulose raw materials utilized for particleboard manufacture include bagasse and flax shives [17,23,24]. In particular, Pozzer et al. reported bending properties similar to those of commercial particleboards for trapezoidal core sandwich panels based on sugarcane (Saccharum officinarum L.) bagasse agglomerated with castor (Ricinus communis L.) oil-based polyurethane resin [24]. A study by a group of Japanese and Indonesian scientists showed that particleboards produced from the inner part of oil palm (Elaeis guineensis L.) trunk attained acceptable physical and mechanical properties, even if this required the addition of ammonium dihydrogen phosphate [25].
Among the different sources of biomass, perennial grasses are used increasingly worldwide, and many of them can be grown with minimal maintenance on marginal soils [26], which is a fundamental criterion for the sustainability of industrial crop cultivation [27].
In this study, among many grass species, focus was placed on certain species with relatively high biomass potential in different soil quality conditions: miscanthus (Miscanthus x giganteus Greef & Deuter), switchgrass (Panicum virgatum L.) and prairie cordgrass (Spartina pectinata Bosc ex Link), these being warm-season grasses with the C4 photosynthetic pathway (hereafter referred to as C4 grasses); and tall wheatgrass (Elymus elongatus (Host.) Runemark), tall fescue (Festuca arundinacea Schreb.) and perennial ryegrass (Lolium perenne L.), these being cool-season grasses with the C3 photosynthetic pathway (hereafter referred to as C3 grasses).
Perennial grass biomass has been successfully tested for different applications, including as a supplement to wood in the production of medium-density fiberboard (MDF) [28], fiber-reinforced composites [29], and insulation and composite boards [30,31]. However, few studies have been carried out to evaluate the suitability of perennial grass biomass for particleboard production.
One such species which has been briefly evaluated in that regard is miscanthus [32,33,34,35]. Miscanthus has been investigated in Europe as a potential source of fiber for composite materials such as MDF and chipboard, pulp for paper and packaging, biodegradable geotextiles (e.g., for temporary protection of slopes and banks), filters and sorbents, and insulation [32,34,35,36,37]. Moderate mechanical performance has been reported, mostly due to the low density [34,35].
Switchgrass may be a fiber source requiring fewer inputs for growth and may be economically more viable than traditional fiber crops such as jute and flax. In addition, about 25–30% of switchgrass can be obtained as long fibers for high-value applications, and another 20–25% consisting of short fibers and hemicellulose can still be used for ethanol production [38]. A single plant producing two types of fibers with such distinct characteristics is a unique phenomenon [38]. Low growing costs, high fiber yield (20–25%), and distinct fiber properties make switchgrass a crop with high potential for use in construction materials and fiber production.
Tall wheatgrass biomass can be used to produce certain kinds of paper, cardboard products, MDF, and particleboards [39]. It has also been tested for renewable energy production and paper-making [40,41].
Perennial ryegrass clippings have been incorporated into particleboards together with eucalyptus [42]. Boards manufactured with 100% grass clippings exhibited the lowest quality. The overall panel properties improved when a lower percentage of grass clippings was added. Based on initial results, it appears that grass should make up no more than 13% to achieve acceptable panel properties for interior fitments and general uses.
No sufficient information is available on the evaluation of cordgrass and tall fescue biomass for particleboard production.
Taking the above into account, there is a need to improve existing knowledge on the possibility of using perennial grass biomass for particleboard production. An additional argument supporting the intensification of research on the use of grass biomass in the particleboards production is the relatively low (compared to other types of agricultural crops) impact of these crops on the natural environment. It results from their perennially, low expenditure on fertilization and chemicals, and most importantly, the possibility of growing on marginal lands unsuitable for food production.
The objective of this study was to investigate some physical and mechanical properties, as well as formaldehyde contents of particleboards made using biomass from six perennial grass species with different photosynthetic pathways.
The novelty of our work lies in the comparison of two groups of grass species defined on the basis of their photosynthetic pathways, which may be one of the main factors determining a plant’s development, and therefore its final applications. Moreover, grass species as Spartina pectinata, Festuca arundinacea, and Lolium perenne have not so far been widely tested for their suitability for particleboard manufacture.

2. Materials and Methods

2.1. Plant Establishment and Raw Material Collection

Seed accessions of tall wheatgrass cv BAMAR, perennial ryegrass cv BARONKA, and tall fescue cv BAROLEX were kindly provided by breeders (Table 1). Seed of switchgrass cv MARDAN originated from the Department of Grasses, Legumes, and Energy Plants of PB&AI, NRI.
To produce new planting material of miscanthus and cordgrass, three-year-old plants were split whilst dormant (late April 2014) and the rhizome pieces were collected for re-planting. At the end of February 2014, seeds of switchgrass cv MARDAN were sown on a germination tank, and after a few days, emerging seedlings were transplanted to plastic pots filled with a sand–soil–peat mixture. After 3 months of vegetation in an unheated glasshouse, plants were transferred to a field. Seed, seedlings, and rhizomes of all grass species selected for our experiment were placed in a field in Radzików, Central Poland (52°12′44″ N, 20°38′14″ E) in sandy clay soil (alfisol) with the following parameters: pHKCl—5.17; Corg—0.35%; clay—12.7%, silt—40.0%, sand—47.3%; macronutrients (in mg·kg−1 of soil): NH4—8.0, P—63.0, K—80.0, Ca—330.0, Mg—58.5, Cl—14.5. Establishment details are given in Table 1. For each species, a 100 m2 plot was established.
The plants were grown for the next three years to determine their yield potential. Weeds were hand-removed, and mineral fertilizers were applied in spring each year in the following amounts (in kg·ha−1): 40 N, 60 P, and 60 K. No additional chemicals (herbicides or pesticides) were used. Each year, biomass was mechanically cut and removed: in autumn at seed maturity for the C3 species and at the end of winter for the C4 species. For particleboard testing, the biomass of C3 species was collected in 2016, and that of C4 species in 2017. Each plot was divided into three sub-plots. From each sub-plot, ca. 10 m2 was selected for biomass cutting for use in the experiment. The biomass collected from the sub-plots was further mixed together to produce a representative sample for each species. For each species, ca. 20 kg of air-dried biomass was used for particleboard testing. Biomass was harvested using an ALKO 5001 R-II reel lawn mower (ALKO, Sachsen, Germany) and then dried to a humidity of 10% and chopped into pieces of 1.5 to 2.0 cm using an MTD 475 petrol-powered shredder (Briggs and Stratton, Viernheim, Germany) dedicated for the disintegration of tree branches.

2.2. Particleboard Production

Particleboards were produced using industrial wood particles from a leading Polish manufacturer of particleboards, and particles of alternative lignocellulosic raw material shredded in a laboratory knife ring flaker. The particles obtained from the lignocellulosic raw material were passed through sieves with a mesh size of 0.5 mm, and the fractions remaining on the sieve were used in the production of panels. Wood particles and alternative raw materials were dried at 100 °C to a moisture content of 2%. Single-layer particleboards with an average density of 670 kg·m−3 and dimensions 700 mm × 500 mm × 16 mm were produced under laboratory conditions. Detailed parameters of particleboard production are given in Table 2.
Melamine–urea formaldehyde (MUF) adhesive was used in the production of the particleboards; its properties are given in Table 3.

2.3. Experimental Design and Data Analysis

Wood particles from a manufacturer of particleboards and six alternative raw materials were used in the research. With each alternative raw material, a slab was produced in which the grass particles accounted for 30% by weight of the lignocellulosic raw material. For purposes of comparison, a reference board was produced, which was made only of wood particles. The compositions of the boards produced are given in Table 4.

2.4. Determination of Standard Properties of Particleboards

Standard chemical, physical, and mechanical properties of the manufactured boards were evaluated, including:
  • Modulus of rupture (MOR) and modulus of elasticity (MOE) according to EN 310:1994,
  • Internal bond strength (IB) according to EN 319:1999,
  • Thickness swelling (TS) and water absorption (WA) after 24 h based on EN 317:1999,
  • Formaldehyde content (FC) according to EN ISO 12460-5:2016-02, and
  • Density according to EN 323:1999.

2.4.1. Mechanical Properties

Three-point bending tests (EN 310) and internal bond strength (IB) tests were performed on a Zwick testing machine using testXpert software (Genova, Italy). Samples with dimensions (L × W × T) 370 mm × 50 mm × 16 mm were used to determine modulus of rupture (MOR) and modulus of elasticity (MOE), being subjected to a loading rate of 7 mm·min−1 until failure. Square samples with a side length of 50 mm were used to determine the internal bond strength (IB). The samples were sanded and glued between stainless steel blocks. Blocks were positioned in holders and preloaded at a tension of 5 N, and then a loading rate of 1 mm·min−1 was applied until failure.
The following standards were used: EN 312 Particleboards and fiberboards—determination of swelling in thickness after immersion in water, 1993; EN 310 Wood-based panels—determination of modulus of elasticity in bending and bending strength; EN 319 Particleboards and fiberboards—determination of tensile strength perpendicular to the plane of the board, 1993; and EN 312 Particleboards—Specifications.

2.4.2. Water Absorption and Thickness Swelling

Thickness swelling (TS) and water absorption (WA) were determined based on EN 317. Square samples with a side length of 50 mm and thickness 16 mm were fully immersed in water at 20 °C. After an immersion time of 24 h, the samples were taken out of the water and excess water was removed. TS was measured using a thickness gauge, positioned in the center of the samples (with a precision of 0.01 mm). WA was determined by weighing the samples using laboratory scales before and after immersion (with a precision of 0.001 g).

2.4.3. Density of Finished Particleboards

Three square samples with side length 50 mm and thickness 16 mm were used to determine density profiles. An X-ray scanning device (GreCon, Alfeld/Hannover, Germany) was used to determine the density profile. Density measurements were made every 0.02 mm at a measurement speed of 0.4 mm·s−1.

2.4.4. Formaldehyde Content

Formaldehyde content was determined by means of extraction in a perforator, according to EN 12460-5. Approximately 110 g of 25 mm × 25 mm specimens were placed for 2 h in boiling toluene (600 mL). The refluxing toluene was bubbled through distilled water to extract any dissolved formaldehyde. The formaldehyde content of aqueous solution was determined photometrically and was expressed as milligrams of free formaldehyde per 100 g of dry board.

2.5. Statistical Analysis

All calculations were performed using STATISTICA 12 ® for Windows (StatSoft, Inc., 2300 East 14th St. Tulsa, OK 74104, USA). Differences were regarded as significant at a level of 95% probability. Least significant differences (LSD) were calculated according to the Tukey test.

3. Results and Discussion

3.1. Yield Potential

Biomass yields of C4 grass species increased from the second year after establishment and reached their peak after 4 years (Figure 1). The estimated duration of C4 grass species plantations is from 10 up to 20 years, depending on species and growing conditions (climate, soil, management) [43,44]. The C4 species gave no yields in the year of establishment, as they were harvested at the end of winter in the following year. However, C3 grass species gave high biomass yields in the year of establishment, with decreasing yields after 2–3 years of cultivation. The generally high yields obtained from all the investigated species further confirmed the suitability of perennial grasses to provide high amount of biomass in a short-time span in the context of Central European Agriculture [45,46,47].

3.2. Properties of Particleboards

The statistical analysis showed that in the case of MOR, MOE, and IB there were significant differences between particleboards made with the addition of C4 and C3 grass biomass. In the case of the aforementioned traits as well as TS and WA, significant differences were also identified between grass species within the C3 and C4 groups.

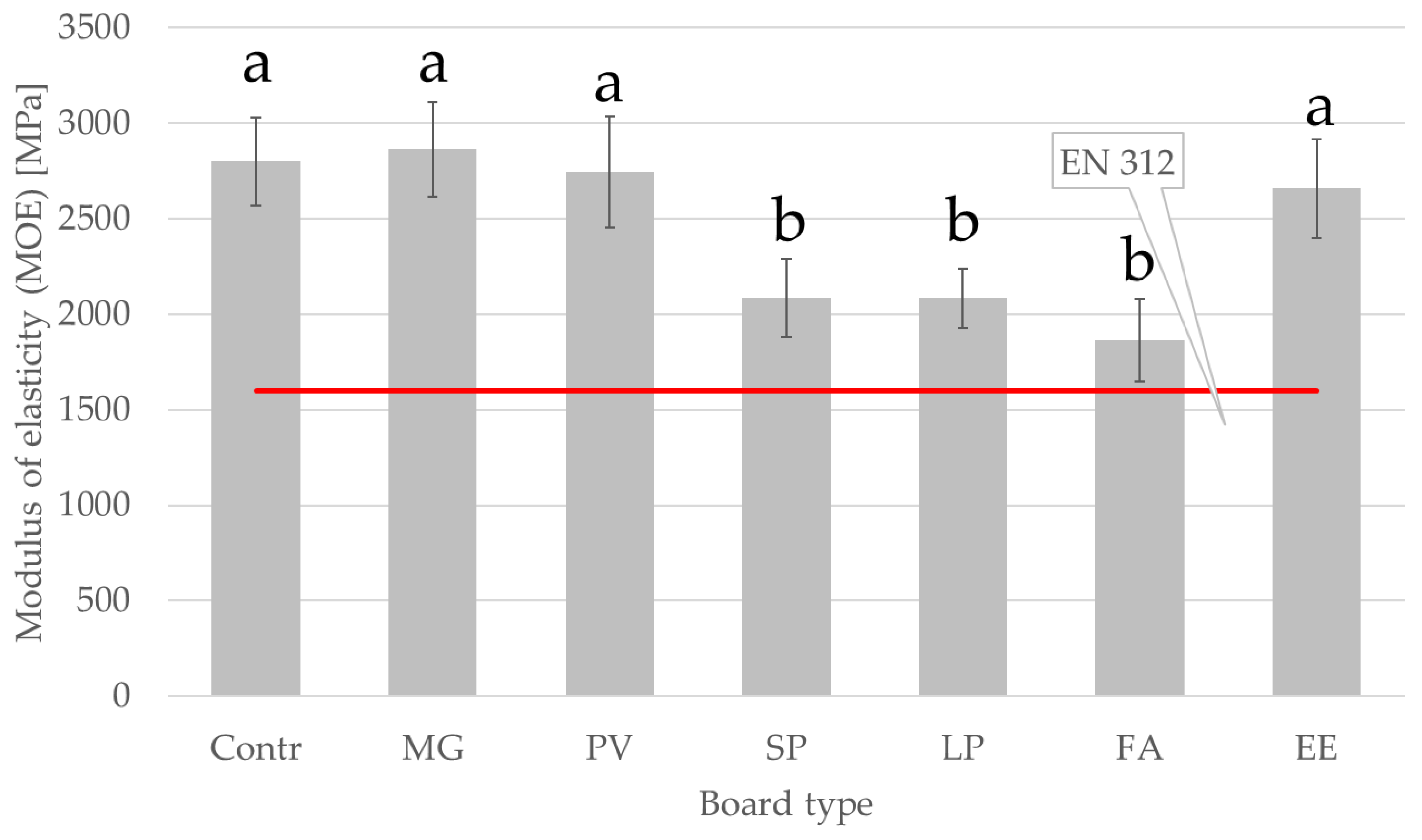

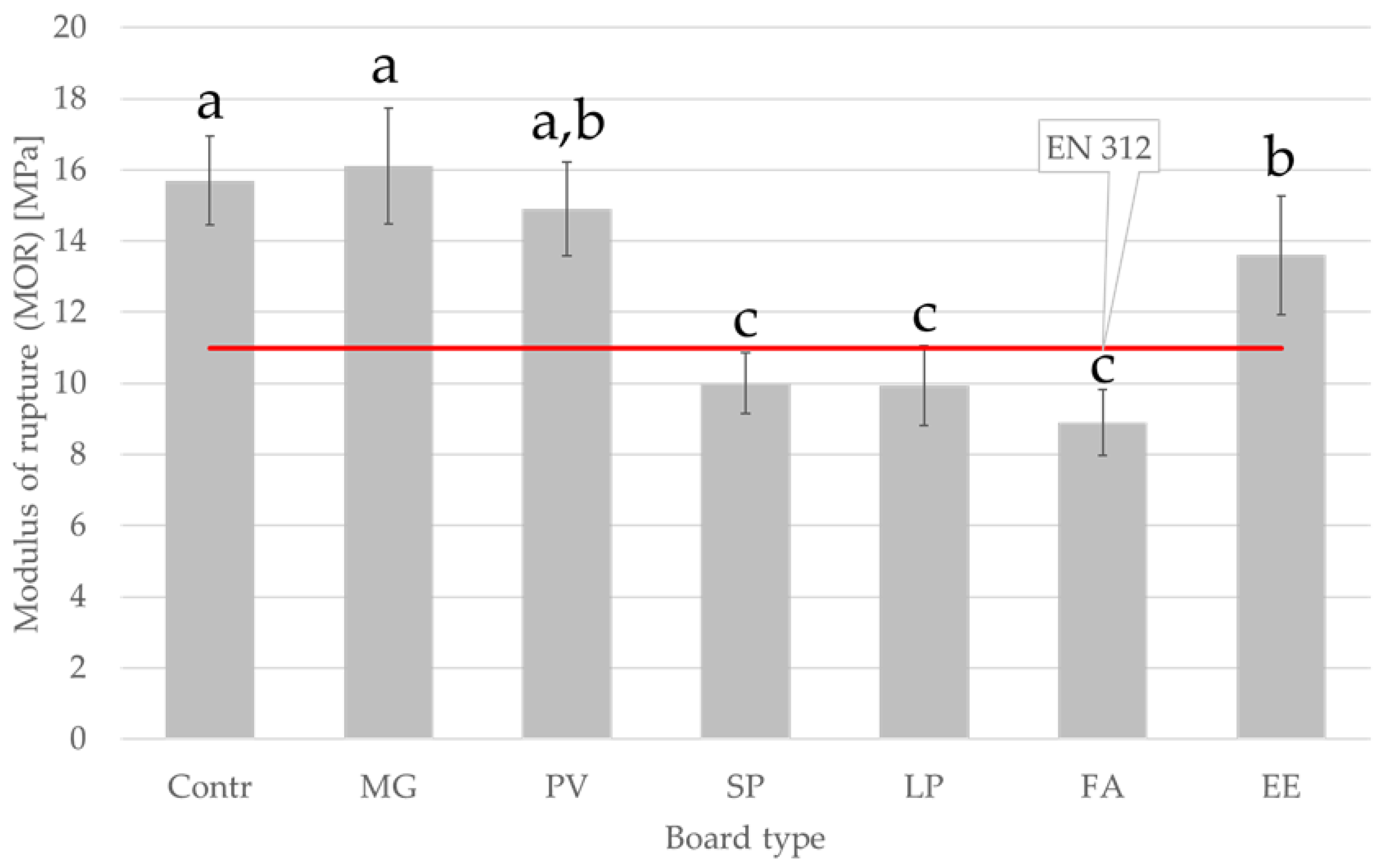

Figure 2 and Figure 3 show MOR and MOE values for the manufactured panels. The highest values of MOR (16.1 MPa) and MOE (2861 MPa) were determined for MG board, which contained 30% miscanthus particles, resulting much higher than the values reported for pure miscanthus particleboards, i.e., about 14 MPa for MOR and about 1600 MPa for MOE [35]. On the other hand, obtained data for switchgrass particleboards are consistent with current literature [39]. The lowest values of MOR (8.9 MPa) and MOE (1863 MPa) were obtained for FA particleboard, which was produced using industrial wood particles with a 30% addition of tall fescue particles. The average MOR value for C4 grass species (13.7 MPa) differed significantly from the value obtained for C3 grass species (10.9 MPa). The results indicate that the addition of selected alternative lignocellulosic raw materials to particleboards may reduce the MOR and MOE values, except in the case of the board with the addition of miscanthus particles. The SP, LP, and FA boards do not meet the minimum bending strength requirements for P2 boards (boards for interior fitments, including furniture) according to EN 312.
Based on the EN 312 standard, the minimum MOR and MOE values of particleboards for interior fitments including furniture are 11 MPa and 1600 MPa, respectively. For the SP, LP, and FA boards, these parameters are lower than for the other boards but the obtained values are above the minimum requirements.
The lower MOR and MOE values may be due to the smaller specific surface area and less slender particles of the alternative raw materials added to the particleboards. Consequently, the SP, LP, and FA boards exhibited lower strength after the addition of 30% particles from alternative raw materials. The particle geometry used in particleboard production has a much greater influence on the board properties than the mechanical properties of the particles. The strength and stiffness of particleboards are affected by the quality of the bonds between the particles, which in turn are significantly influenced by their dimensions. In addition to differences in the size and shape of particles, the parameters of the board are also affected by their moisture content [48]. The size of the obtained particles is influenced by the specific weight of the raw material—during the grinding process (flaking), the specific weight and hardness of the raw material determine the ability of the blade to penetrate the lignocellulosic material. Other parameters that may affect the size of the obtained particles include the moisture content of the raw material, knife angle, feeding and cutting speed, and temperature conditions [49].

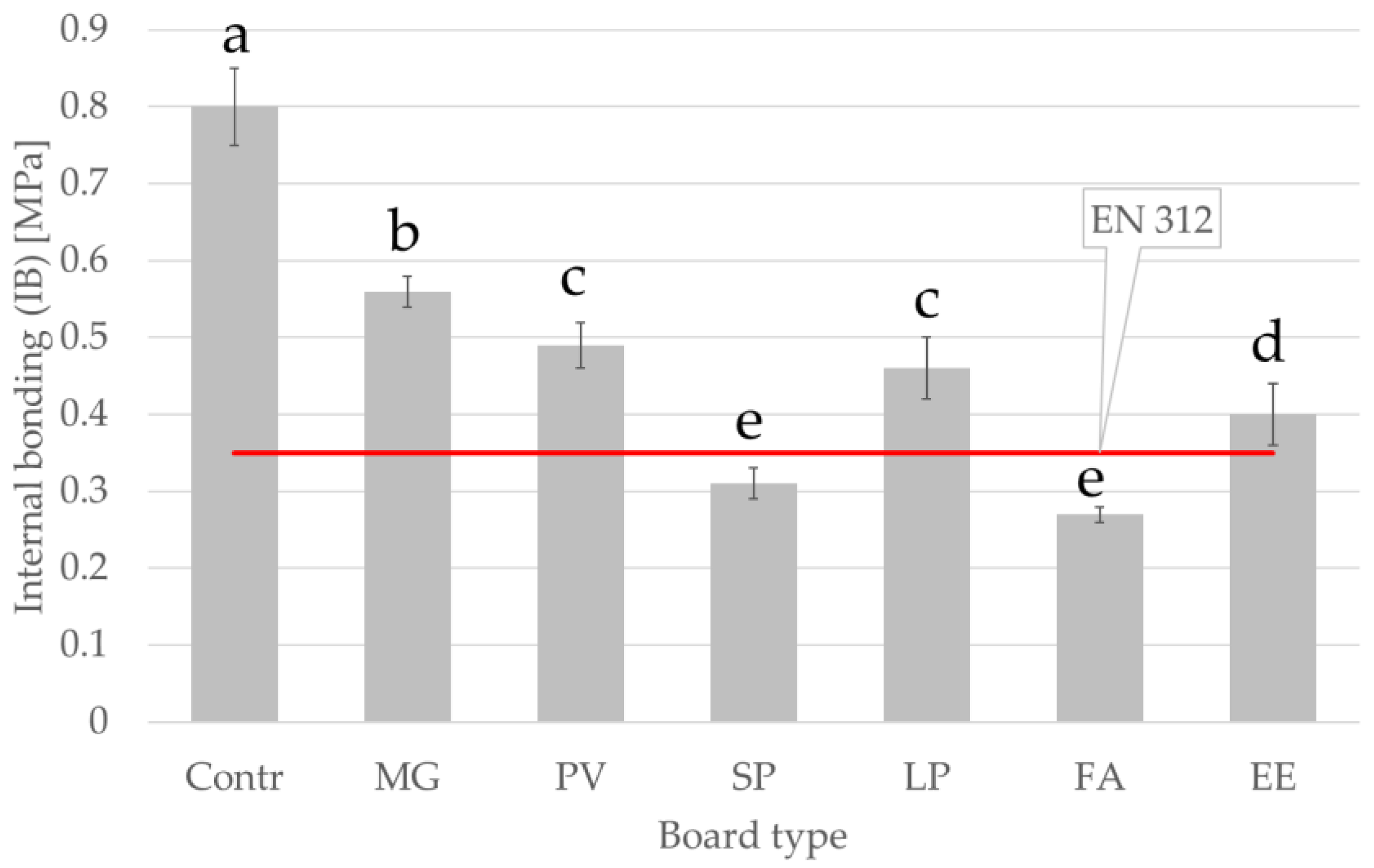

The obtained internal bond strength (IB) values are shown in Figure 4. Significant differences in the IB values of boards with the addition of grasses were identified within the C3 and C4 groups. Significant differences were also observed between the mean IB values of the C3 and C4 boards. The highest IB value for particleboards with added alternative particles was observed for MG board (0.56 MPa) and the lowest for FA board (0.28 MPa). The addition of 30% alternative particles reduced the IB value compared with the control board. The SP and FA boards did not reach the minimum internal bond strength value for boards for interior fitments including furniture, which should be at least 0.35 MPa according to EN 312.
The lower IB values for boards with the addition of alternative raw materials may be due to the larger particle surface area per unit mass compared with wood particles, which means that less adhesive is deposited on the surfaces of the particles from alternative raw materials [50]. It is predicted that increasing the resination ratio will increase the IB value.
In the current literature, different studies presented trials to increase the mechanical properties of particleboards from alternative biomasses [51], for instance by surface layer treatment [52], carbonization treatment [53] or, when dealing with agro-wastes such as corn stalks, biomass fermentation [54].
Comparing the obtained data with current literature, it is possible to notice that the presented value of IB for miscanthus-based particleboards were almost 45% higher than the values found by Klímek et al. (2018) [35]. However, there is the need to highlight that the study from Klímek et al. (2018) applied different manufacturing parameters, methylene diphenyl diioscyanate as adhesive, and the panels were based on pure miscanthus particles.

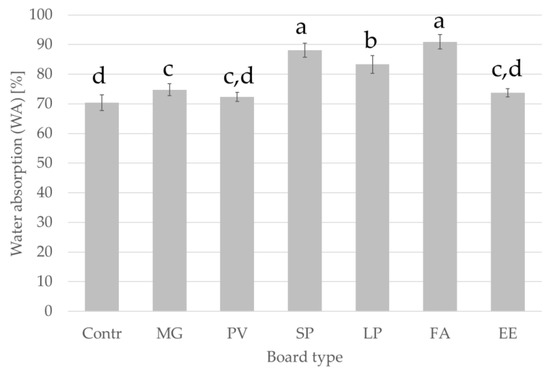

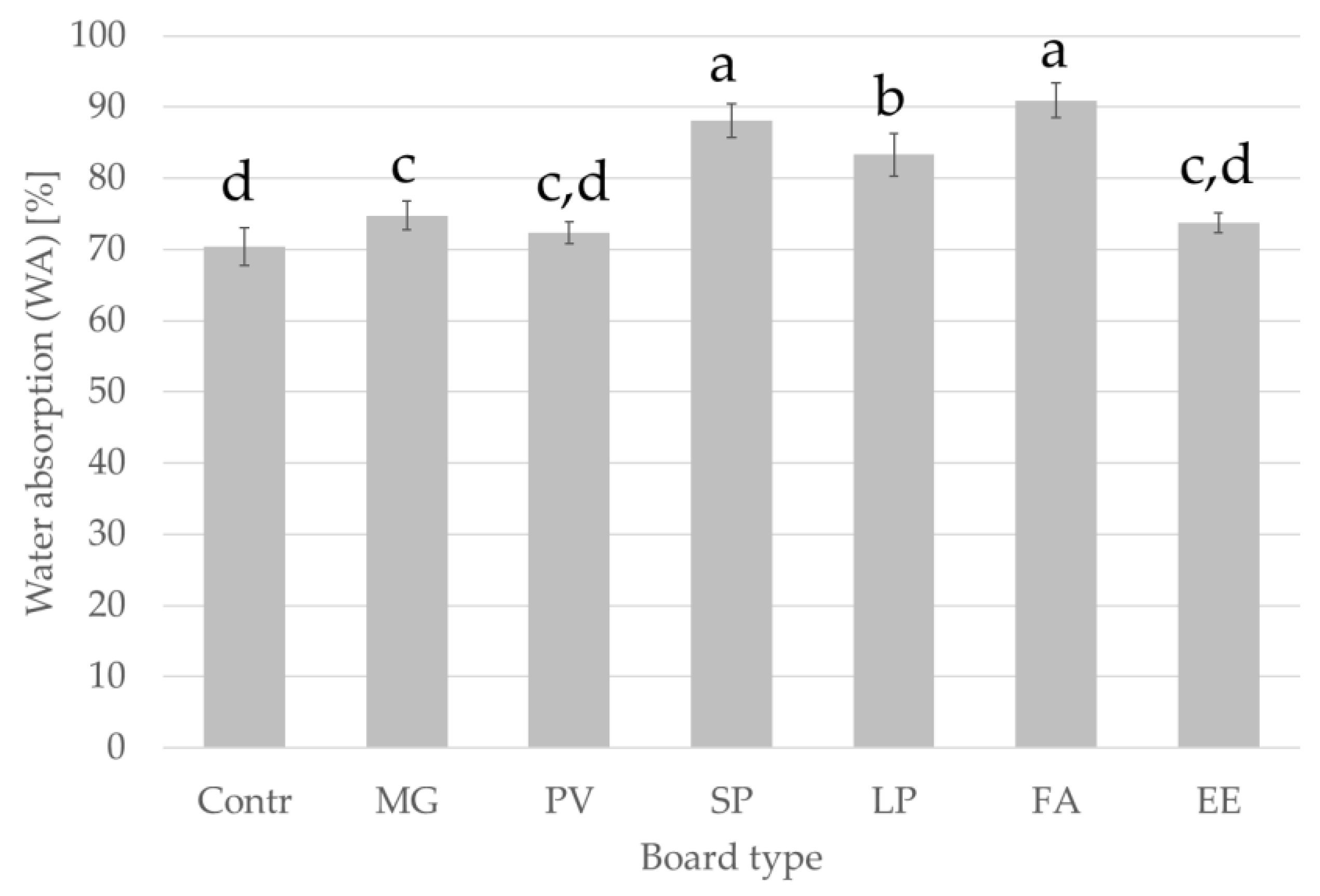

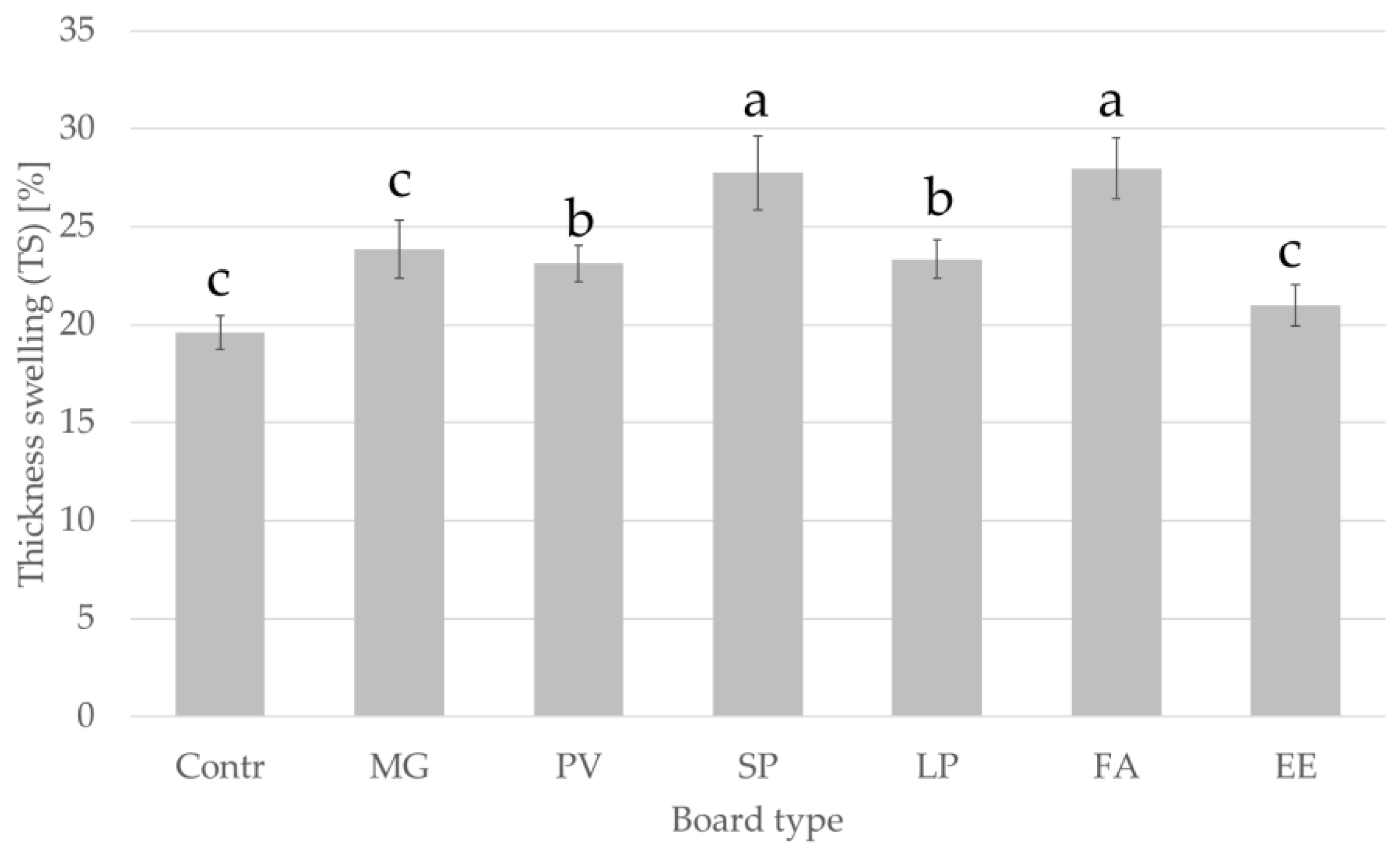

Figure 5 and Figure 6 show the thickness swelling and water absorption of the boards after soaking in water for 24 h. The measured values of thickness swelling (TS) and water absorption (WA) of the boards in groups C3 and C4 indicate that the boards differ significantly in terms of the tested properties. Based on statistical analysis of the mean values of TS and WA for boards from the C3 and C4 groups, it was found that there were also significant differences between the groups. For particleboards with added alternative particles, the lowest TS value was observed for MG board (21.5%) and the lowest WA for PV board (72.1%). The highest values of TS (29.6%) and WA (92.1%) were recorded for FA board. The EN 312 standard does not define a maximum value of swelling in thickness after soaking in water for boards for interior fitments including furniture.
The higher thickness swelling and water absorption of boards with the addition of alternative lignocellulosic raw materials may be caused by the presence of parenchyma cells in the pith of these plants. The high hygroscopicity of the parenchyma and its spongy structure compared with other cells means that it has high capacity for water absorption and storage in the tissue cell [50].

3.3. Density of Particleboards

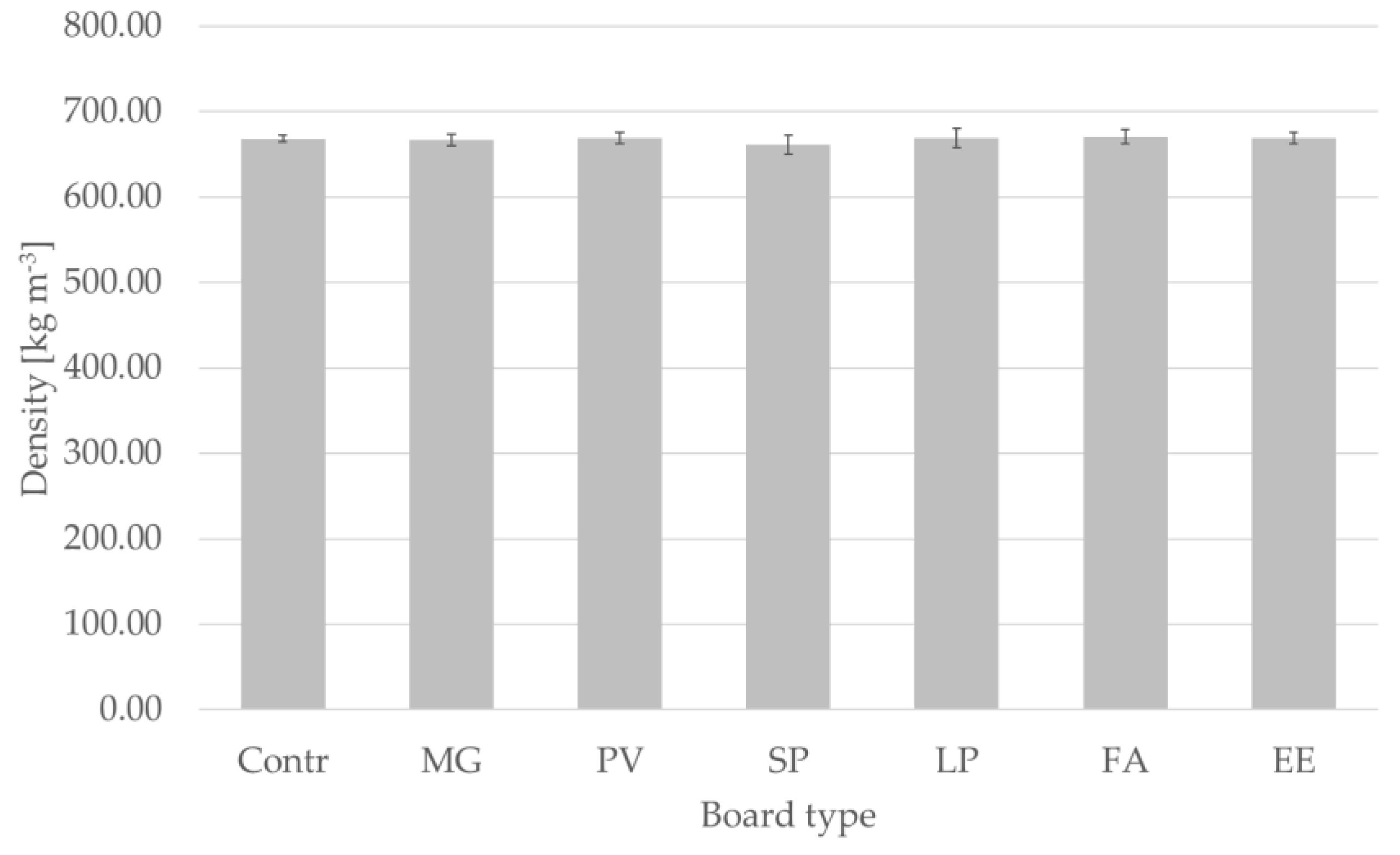

No significant differences in mean density were found between the six tested species or between the two groups of species (C3 vs. C4) (Figure 7). This suggests that the applied pressure in the manufacturing process is a more important influencing factor for particleboard density than the feedstock itself, confirming the findings of Klímek et al. (2018) who reported no difference of density in particleboards produced with miscanthus and spruce [35]. However, this is true when the grinded particles have similar particle size distribution; indeed, coarser particles imply lower density of the obtained panel [55]. The average density of the tested particleboards was 667.8 ± 8.8 kg·m−3, while for the control board it was 668.5 ± 4.2 kg·m−3.

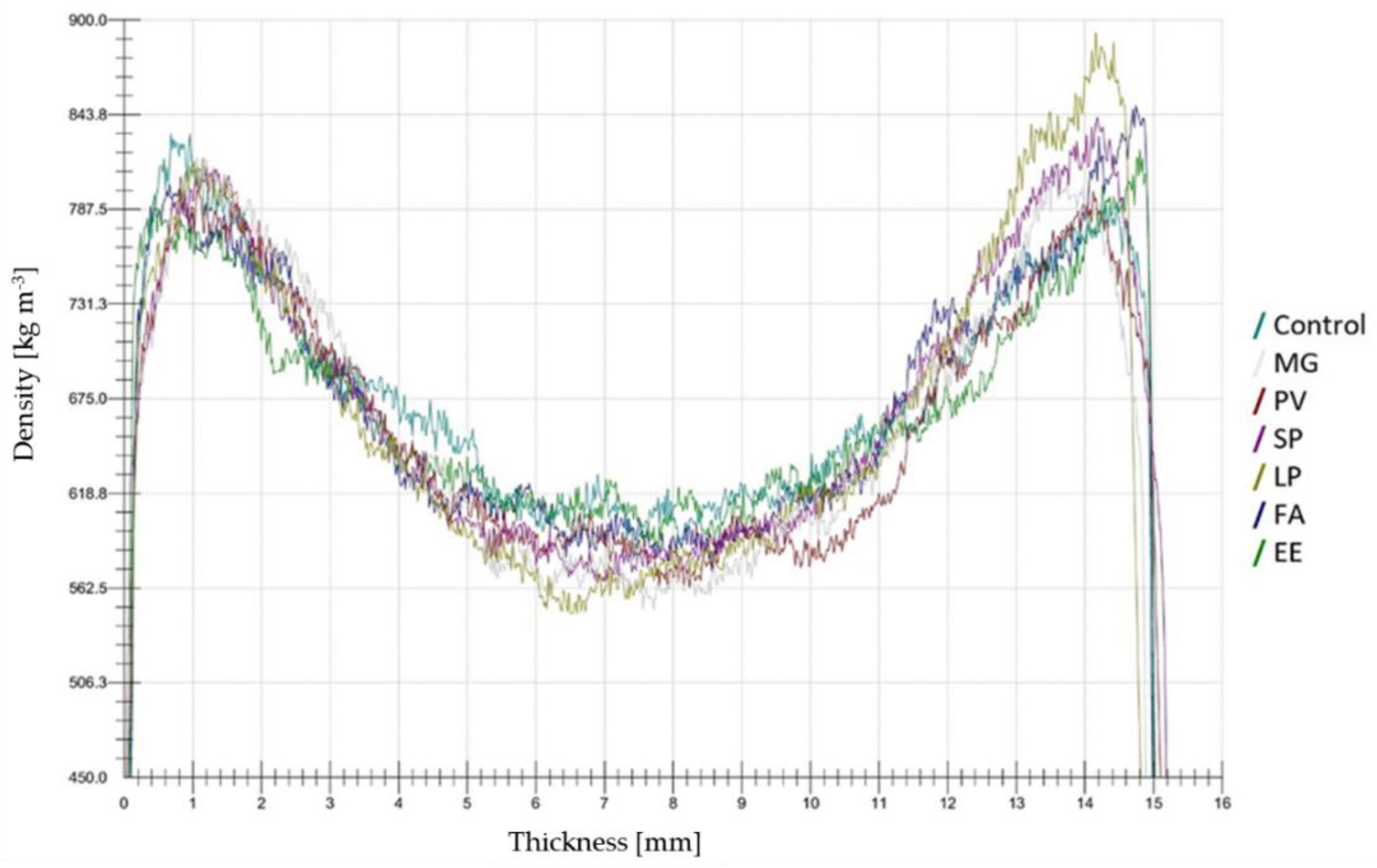

The density profiles of the tested boards (Figure 8) were found to be nearly symmetrical on both sides along the central board thickness, which is typical in the case of such experiments [21,56,57]. The density was very low at the surface of each board but increased to reach the highest density at 1–2 mm from the surface. It then reduced to a constant value along the core layer and reached the next peak close to the bottom of the board. The higher density in the surface layers results in correspondingly higher bending strength, closer and more even surfaces for veneering, laminating, or painting, higher resistance to absorption and swelling, and higher resistance to ignition and the spread of flame [21].

3.4. Formaldehyde Content

Mean values of formaldehyde content were significantly different between the tested grass species and between the groups of species (Figure 9). The lowest values were found for boards made with biomass from tall fescue and tall wheatgrass (5.0 and 5.1 mg·100g−1 oven-dry board, respectively), being comparable to the value for the control board (5.1 mg·100g−1 over-dry board). The highest concentrations of formaldehyde were obtained for cordgrass and switchgrass (8.3 and 6.0 mg·100g−1 over-dry board, respectively). The mean value for C4 grass species (6.7 mg·100g−1 over-dry board) was significantly higher than the value for C3 grass species (5.3 mg·100g−1 over-dry board). It is worth highlighting that only the values for cordgrass were higher than the threshold for the E1 class according to EN 312.
The formaldehyde issue should be further investigated in future research analyzing more samples, considering that there is no sufficient literature data of formaldehyde content of particleboards produced starting from biomass of perennial grass species available.
There are multiple factors that can affect the formaldehyde content of particleboards. Among these, it is possible to list pressing parameters, type and amount of the hardener, feedstock, type of resin, and molar ratio (of urea and formaldehyde), as well as the content of free formaldehyde in the resin [58]. However, in the presented study, the process parameters were fixed; therefore it is possible to suggest that the shown differences in formaldehyde content are related to the intrinsic characteristics of the various investigated lignocellulosic biomasses.

3.5. Future Research Directions

The presented results confirmed the hypothesis that perennial grasses biomass can be a relevant feedstock for particleboards production. However, some drawbacks are still evident. Poorer wettability and reduced mechanical properties in comparison to control panel were highlighted, confirming what is reported in the current literature [59]. One of the main challenges for the application of alternative lignocellulosic biomass in particleboards manufacturing is the fact that these alternative raw materials including grasses, straw, etc. are generally characterized by lower bulk density in comparison to wood raw material [60,61]. Lower bulk density of alternative raw materials, especially in the case of increasing share of them in the board, can cause some technical limitations in the manufacturing process at the industrial scale. Moreover, some logistic issues in terms of developing optimal and sustainable transport mechanism could appear.
Therefore, the future directions related to application of alternative lignocellulosic raw materials including perennial grasses to the production of particleboards should be focused on optimization of manufacturing parameters taking into account technical possibilities of the wood-based panels companies.
Furthermore, agronomic studies are needed to further test and implement the possibility of cultivating such species in marginal conditions, thus avoiding the competition with food and feed crops.

4. Conclusions

In the framework of looking for alternative feedstocks for particleboards’ production, the present study aimed to substitute 30% of wood particles with six perennial grass biomasses in particleboard production.
The following species: miscanthus, switch prairie, and cordgrass, being warm-season grasses with the C4 photosynthetic pathway; and tall wheatgrass, tall fescue, and perennial ryegrass, being cool-season grasses with the C3 photosynthetic pathway, were tested.
This research represents the first assessment of comparison between the quality of the particleboards of perennial grass species of different photosynthetic pathways.
As demonstrated, it is possible to state that C4 grasses particleboards achieved sufficient mechanical properties, even if the formaldehyde content was higher than that of the control panel. On the other hand, particleboards made with C3 grasses exhibited not as high mechanical properties, but demonstrated lower formaldehyde content. The obtained results demonstrated that it is possible to obtain particleboards partially based on perennial grasses biomass that meet the standard requirements for boards’ quality.
Future studies should be addressed to improve the overall quality of particleboards produced with perennial grasses biomass, including the application of alternative adhesives or pre-treatments, as well as to optimize the manufacturing parameters for the production of particleboards from perennial grasses biomass. Moreover, further agronomic studies regarding the cultivation of these grass species are needed to enable successful growing in marginal land conditions, in order to avoid competition with food crops, which is currently the main obstacle to the cultivation of many industrial crops.

Author Contributions

D.J.: conceptualization, methodology, validation, writing—original draft, writing—review and editing, supervision, funding acquisition. G.Ż.: conceptualization, methodology, validation, formal analysis, writing—original draft, writing—review and editing, supervision. D.M.: conceptualization, methodology, resources, investigation. W.B.: methodology, investigation, writing—original draft, formal analysis. All authors have read and agreed to the published version of the manuscript.

Funding

The research was partly carried out within project no. LIDER/14/0174/L-7/15/NCBR/2016: New biopolymer adhesives modified with silanes and ionic liquids for application in wood-based materials technology, funded by the National Center for Research and Development in Poland under the LIDER VII program.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Owodunni, A.A.; Lamaming, J.; Hashim, R.; Taiwo, O.F.A.; Hussin, M.H.; Mohamad Kassim, M.H.; Bustami, Y.; Sulaiman, O.; Amini, M.H.M.; Hiziroglu, S. Adhesive application on particleboard from natural fibers: A review. Polym. Compos. 2020, 41, 4448–4460. [Google Scholar] [CrossRef]
  2. Bekhta, P.; Noshchenko, G.; Réh, R.; Kristak, L.; Sedliačik, J.; Antov, P.; Mirski, R.; Savov, V. Properties of Eco-Friendly Particleboards Bonded with Lignosulfonate-Urea-Formaldehyde Adhesives and pMDI as a Crosslinker. Materials 2021, 14, 4875. [Google Scholar] [CrossRef] [PubMed]
  3. Oliver, C.D.; Nassar, N.T.; Lippke, B.R.; McCarter, J.B. Carbon, fossil fuel, and biodiversity mitigation with wood and forests. J. Sustain. For. 2014, 33, 248–275. [Google Scholar] [CrossRef]
  4. Kayo, C.; Oka, H.; Hashimoto, S.; Mizukami, M.; Takagi, S. Socioeconomic development and wood consumption. J. For. Res. 2015, 20, 309–320. [Google Scholar] [CrossRef]
  5. Robson, D.; Sadler, P.; Newman, G. Carbon sequestered in UK forest products and wood based panels in construction: Helping to meet UK’s greenhouse gas emission reduction targets. Int. Wood Prod. J. 2014, 5, 139–145. [Google Scholar] [CrossRef]
  6. Grzegorzewska, E. Assessment of the Competitiveness of the Furniture Industry—A Lesson from the Largest Exporting EU Countries. Drewno 2021, 64, 149–168. [Google Scholar] [CrossRef]
  7. Wang, S.; Zhang, Y.; Ju, W.; Qiu, B.; Zhang, Z. Tracking the seasonal and inter-annual variations of global gross primary production during last four decades using satellite near-infrared reflectance data. Sci. Total Environ. 2021, 755, 142569. [Google Scholar] [CrossRef]
  8. Marais, B.N.; Brischke, C.; Militz, H. Wood durability in terrestrial and aquatic environments—A review of biotic and abiotic influence factors. Wood Mater. Sci. Eng. 2022, 17, 82–105. [Google Scholar] [CrossRef]
  9. Saez de Bikuña, K.; Garcia, R.; Dias, A.C.; Freire, F. Global warming implications from increased forest biomass utilization for bioenergy in a supply-constrained context. J. Environ. Manag. 2020, 263, 110292. [Google Scholar] [CrossRef]
  10. Wong, M.C.; Hendrikse, S.I.S.; Sherrell, P.C.; Ellis, A.V. Grapevine waste in sustainable hybrid particleboard production. Waste Manag. 2020, 118, 501–509. [Google Scholar] [CrossRef]
  11. Janiszewska, D.; Olchowski, R.; Nowicka, A.; Zborowska, M.; Marszałkiewicz, K.; Shams, M.; Giannakoudakis, D.A.; Anastopoulos, I.; Barczak, M. Activated biochars derived from wood biomass liquefaction residues for effective removal of hazardous hexavalent chromium from aquatic environments. GCB Bioenergy 2021, 13, 1247–1259. [Google Scholar] [CrossRef]
  12. Bonfiglio, F.; Cagno, M.; Yamakawa, C.K.; Mussatto, S.I. Production of xylitol and carotenoids from switchgrass and Eucalyptus globulus hydrolysates obtained by intensified steam explosion pretreatment. Ind. Crops Prod. 2021, 170, 113800. [Google Scholar] [CrossRef]
  13. Filipova, I.; Irbe, I.; Spade, M.; Skute, M.; Dāboliņa, I.; Baltiņa, I.; Vecbiskena, L. Mechanical and air permeability performance of novel biobased materials from fungal hyphae and cellulose fibers. Materials 2020, 14, 136. [Google Scholar] [CrossRef] [PubMed]
  14. Külçe, T.; Ateş, S.; Olgun, Ç. Evaluation of some plastic wastes as an additive to reinforcing the high density fiberboard (Hdf). Drewno 2021, 2021, 80–93. [Google Scholar] [CrossRef]
  15. Lesar, B.; Humar, M.; Hora, G.; Hachmeister, P.; Schmiedl, D.; Pindel, E.; Siika-Aho, M.; Liitiä, T. Utilization of recycled wood in biorefineries: Preliminary results of steam explosion and ethanol/water organosolv pulping without a catalyst. Eur. J. Wood Wood Prod. 2016, 74, 711–723. [Google Scholar] [CrossRef]
  16. Attribution, C.C.; License, I.; Sciences, L. A comparison of prediction efficiency for timber prices in Poland in times of economic crisis with the application of the linear approximation method and Brown’s exponential smoothing model. Drewno 2021, 64, 135–147. [Google Scholar] [CrossRef]
  17. Mahieu, A.; Alix, S.; Leblanc, N. Properties of particleboards made of agricultural by-products with a classical binder or self-bound. Ind. Crops Prod. 2019, 130, 371–379. [Google Scholar] [CrossRef]
  18. Réh, R.; Krišťák, Ľ.; Sedliačik, J.; Bekhta, P.; Božiková, M.; Kunecová, D.; Vozárová, V.; Tudor, E.M.; Antov, P.; Savov, V. Utilization of Birch Bark as an Eco-Friendly Filler in Urea-Formaldehyde Adhesives for Plywood Manufacturing. Polymers 2021, 13, 511. [Google Scholar] [CrossRef]
  19. Sandak, A.; Sandak, J.; Janiszewska, D.; Hiziroglu, S.; Petrillo, M.; Grossi, P. Prototype of the near-infrared spectroscopy expert system for particleboard identification. J. Spectrosc. 2018, 2018, 6025163. [Google Scholar] [CrossRef]
  20. Pędzik, M.; Janiszewska, D.; Rogoziński, T. Alternative lignocellulosic raw materials in particleboard production: A review. Ind. Crops Prod. 2021, 174, 114162. [Google Scholar] [CrossRef]
  21. Kuenzi, E.W.; Stamm, A.J.; Kollmann, F.F. Principles of Wood Science and Technology. 2. Wood Based Materials; Springer: Berlin/Heidelberg, Germany, 1975; ISBN 3540064672. [Google Scholar]
  22. Hýsková, P.; Hýsek, Š.; Schönfelder, O.; Šedivka, P.; Lexa, M.; Jarský, V. Utilization of agricultural rests: Straw-based composite panels made from enzymatic modified wheat and rapeseed straw. Ind. Crops Prod. 2020, 144, 112067. [Google Scholar] [CrossRef]
  23. Kusumah, S.S.; Umemura, K.; Yoshioka, K.; Miyafuji, H.; Kanayama, K. Utilization of sweet sorghum bagasse and citric acid for manufacturing of particleboard I: Effects of pre-drying treatment and citric acid content on the board properties. Ind. Crops Prod. 2016, 84, 34–42. [Google Scholar] [CrossRef]
  24. Pozzer, T.; Gauss, C.; Ament Barbirato, G.H.; Fiorelli, J. Trapezoidal core sandwich panel produced with sugarcane bagasse. Constr. Build. Mater. 2020, 264, 120718. [Google Scholar] [CrossRef]
  25. Komariah, R.N.; Miyamoto, T.; Tanaka, S.; Prasetiyo, K.W.; Syamani, F.A.; Subyakto; Umezawa, T.; Kanayama, K.; Umemura, K. High-performance binderless particleboard from the inner part of oil palm trunk by addition of ammonium dihydrogen phosphate. Ind. Crops Prod. 2019, 141, 111761. [Google Scholar] [CrossRef]
  26. Gibson, D.J. Grasses and Grassland Ecology; Oxford University Press: Oxford, UK, 2009; ISBN 019852918X. [Google Scholar]
  27. Reinhardt, J.; Hilgert, P.; Von Cossel, M. A review of industrial crop yield performances on unfavorable soil types. Agronomy 2021, 11, 2382. [Google Scholar] [CrossRef]
  28. Alpár, T.L.; Markó, G. Energy Grass as Raw Material for MDF Production. Acta Silv. Lignaria Hung. 2017, 13, 69–79. [Google Scholar] [CrossRef]
  29. Eschenhagen, A.; Raj, M.; Rodrigo, N.; Zamora, A.; Labonne, L.; Evon, P.; Welemane, H. Investigation of Miscanthus and Sunflower Stalk Fiber-Reinforced Composites for Insulation Applications. Adv. Civ. Eng. 2019, 2019, 9328087. [Google Scholar] [CrossRef]
  30. Ajiwe, V.I.E.; Okeke, C.A.; Ekwuozor, S.C.; Uba, I.C. A pilot plant for production of ceiling boards from rice husks. Bioresour. Technol. 1998, 66, 41–43. [Google Scholar] [CrossRef]
  31. Yang, H.-S.; Kim, D.-J.; Kim, H.-J. Rice straw–wood particle composite for sound absorbing wooden construction materials. Bioresour. Technol. 2003, 86, 117–121. [Google Scholar] [CrossRef]
  32. Tröger, F.; Wegener, G.; Seemann, C. Miscanthus and flax as raw material for reinforced particleboards. Ind. Crops Prod. 1998, 8, 113–121. [Google Scholar] [CrossRef]
  33. Kaack, K.; Schwarz, K.-U.; Brander, P.E. Variation in morphology, anatomy and chemistry of stems of Miscanthus genotypes differing in mechanical properties. Ind. Crops Prod. 2003, 17, 131–142. [Google Scholar] [CrossRef]
  34. Balducci, F.; Harper, C.; Meinlschmidt, P.; Dix, B.; Sanasi, A. Development of innovative particleboard panels. Drv. Ind. Znan. Časopis Pitanja Drv. Tehnol. 2008, 59, 131–136. [Google Scholar]
  35. Klímek, P.; Wimmer, R.; Meinlschmidt, P.; Kúdela, J. Utilizing Miscanthus stalks as raw material for particleboards. Ind. Crops Prod. 2018, 111, 270–276. [Google Scholar] [CrossRef]
  36. Park, H.-J.; Oh, S.-W.; Wen, M.-Y. Manufacture and properties of Miscanthus–wood particle composite boards. J. Wood Sci. 2012, 58, 459–464. [Google Scholar] [CrossRef]
  37. Tajuddin, M.; Ahmad, Z.; Ismail, H. A review of natural fibers and processing operations for the production of binderless boards. BioResources 2016, 11, 5600–5617. [Google Scholar]
  38. Reddy, N.; Yang, Y. Innovative Bio Fibers from Renewable Resources; Springer: Berlin/Heidelberg, Germany, 2015. [Google Scholar]
  39. Zheng, Y.; Pan, Z.; Zhang, R.; Jenkins, B.M.; Blunk, S. Particleboard quality characteristics of saline jose tall wheatgrass and chemical treatment effect. Bioresour. Technol. 2007, 98, 1304–1310. [Google Scholar] [CrossRef]
  40. Danielewicz, D.; Surma-Ślusarska, B.; Żurek, G.; Martyniak, D.; Kmiotek, M.; Dybka, K. Selected grass plants as biomass fuels and raw materials for papermaking, part II. Pulp and paper properties. BioResources 2015, 10, 8552–8564. [Google Scholar] [CrossRef]
  41. Danielewicz, D.; Surma-Ślusarska, B.; Żurek, G.; Martyniak, D. Selected grass plants as biomass fuels and raw materials for papermaking. Part I. Calorific value and chemical composition. BioResources 2015, 10, 8539–8551. [Google Scholar] [CrossRef]
  42. Nemli, G.; Demirel, S.; Gümüşkaya, E.; Aslan, M.; Acar, C. Feasibility of incorporating waste grass clippings (Lolium perenne L.) in particleboard composites. Waste Manag. 2009, 29, 1129–1131. [Google Scholar] [CrossRef]
  43. Lewandowski, I.; Clifton-Brown, J.C.; Scurlock, J.M.O.; Huisman, W. Miscanthus: European experience with a novel energy crop. Biomass Bioenergy 2000, 19, 209–227. [Google Scholar] [CrossRef]
  44. Lewandowski, I.; Scurlock, J.M.O.; Lindvall, E.; Christou, M. The development and current status of perennial rhizomatous grasses as energy crops in the US and Europe. Biomass Bioenergy 2003, 25, 335–361. [Google Scholar] [CrossRef]
  45. Babicka, M.; Woźniak, M.; Bartkowiak, M.; Peplińska, B.; Waliszewska, H.; Zborowska, M.; Borysiak, S.; Ratajczak, I. Miscanthus and Sorghum as sustainable biomass sources for nanocellulose production. Ind. Crops Prod. 2022, 186, 115177. [Google Scholar] [CrossRef]
  46. Stolarski, M.J.; Krzyżaniak, M.; Olba-Zięty, E. Biomass yield and quality of perennial herbaceous crops in a double harvest in a continental environment. Ind. Crops Prod. 2022, 180, 114752. [Google Scholar] [CrossRef]
  47. Abreu, M.; Silva, L.; Ribeiro, B.; Ferreira, A.; Alves, L.; Paixão, S.M.; Gouveia, L.; Moura, P.; Carvalheiro, F.; Duarte, L.C. Low Indirect Land Use Change (ILUC) Energy Crops to Bioenergy and Biofuels—A Review. Energies 2022, 15, 4348. [Google Scholar] [CrossRef]
  48. Dukarska, D.; Pędzik, M.; Rogozińska, W.; Rogoziński, T.; Czarnecki, R. Characteristics of straw particles of selected grain species purposed for the production of lignocellulose particleboards. Part. Sci. Technol. 2019, 39, 213–222. [Google Scholar] [CrossRef]
  49. Juliana, A.H.; Paridah, M.T.; Rahim, S.; Nor Azowa, I.; Anwar, U.M.K. Properties of particleboard made from kenaf (Hibiscus cannabinus L.) as function of particle geometry. Mater. Des. 2012, 34, 406–411. [Google Scholar] [CrossRef]
  50. Kord, B.; Zare, H.; Hosseinzadeh, A. Evaluation of the mechanical and physical properties of particleboard manufactured from canola (Brassica napus) straws. Maderas Cienc. Tecnol. 2016, 18, 9–18. [Google Scholar] [CrossRef]
  51. Neitzel, N.; Hosseinpourpia, R.; Walther, T.; Adamopoulos, S. Alternative Materials from Agro-Industry for Wood Panel Manufacturing—A Review. Materials 2022, 15, 4542. [Google Scholar] [CrossRef]
  52. Iswanto, A.H.; Aritonang, W.; Azhar, I.; Supriyanto; Fatriasari, W. The physical, mechanical and durability properties of sorghum bagasse particleboard by layering surface treatment. J. Indian Acad. Wood Sci. 2017, 14, 1–8. [Google Scholar] [CrossRef]
  53. Si, S.; Zheng, X.; Li, X. Effect of carbonization treatment on the physicochemical properties of bamboo particleboard. Constr. Build. Mater. 2022, 344, 128204. [Google Scholar] [CrossRef]
  54. Ren, H.; Richard, T.L.; Chen, Z.; Kuo, M.; Bian, Y.; Moore, K.J.; Patrick, P. Ensiling corn stover: Effect of feedstock preservation on particleboard performance. Biotechnol. Prog. 2006, 22, 78–85. [Google Scholar] [CrossRef] [PubMed]
  55. Ferrández-García, A.; Ferrández-Villena, M.; Ferrández-García, C.E.; García-Ortuño, T.; Ferrández-García, M.T. Potential use of Phoenix canariensis biomass in binderless particleboards at low temperature and pressure. BioResources 2017, 12, 6698–6712. [Google Scholar] [CrossRef] [Green Version]
  56. Wong, E.D. Effects of density profile on the mechanical properties of particleboard and fiberboard. Wood Res. Bull. Wood Res. Inst. Kyoto Univ. 1999, 86, 19–33. [Google Scholar]
  57. Nirdosha, G.; Setunge, S.; Jollands, M.; Hague, J. Properties of hardwood saw mill residue-based particleboards as affected by processing parameters. Ind. Crops Prod. 2009, 29, 248–254. [Google Scholar] [CrossRef]
  58. Nelis, P.A.; Michaelis, F.; Krause, K.C.; Mai, C. Kiri wood (Paulownia tomentosa): Can it improve the performance of particleboards? Eur. J. Wood Wood Prod. 2018, 76, 445–453. [Google Scholar] [CrossRef]
  59. Trischler, J.; Sandberg, D. Monocotyledons in particleboard production: Adhesives, additives and surface modification of Reed canary grass. BioResources 2014, 9, 3919–3938. [Google Scholar] [CrossRef]
  60. Sultana, A.; Kumar, A. Optimal configuration and combination of multiple lignocellulosic biomass feedstocks delivery to a biorefinery. Bioresour. Technol. 2011, 102, 9947–9956. [Google Scholar] [CrossRef]
  61. Cai, J.; He, Y.; Yu, X.; Banks, S.W.; Yang, Y.; Zhang, X.; Yu, Y.; Liu, R.; Bridgwater, A.V. Review of physicochemical properties and analytical characterization of lignocellulosic biomass. Renew. Sustain. Energy Rev. 2017, 76, 309–322. [Google Scholar] [CrossRef] [Green Version]
Materials 15 06384 g001 550

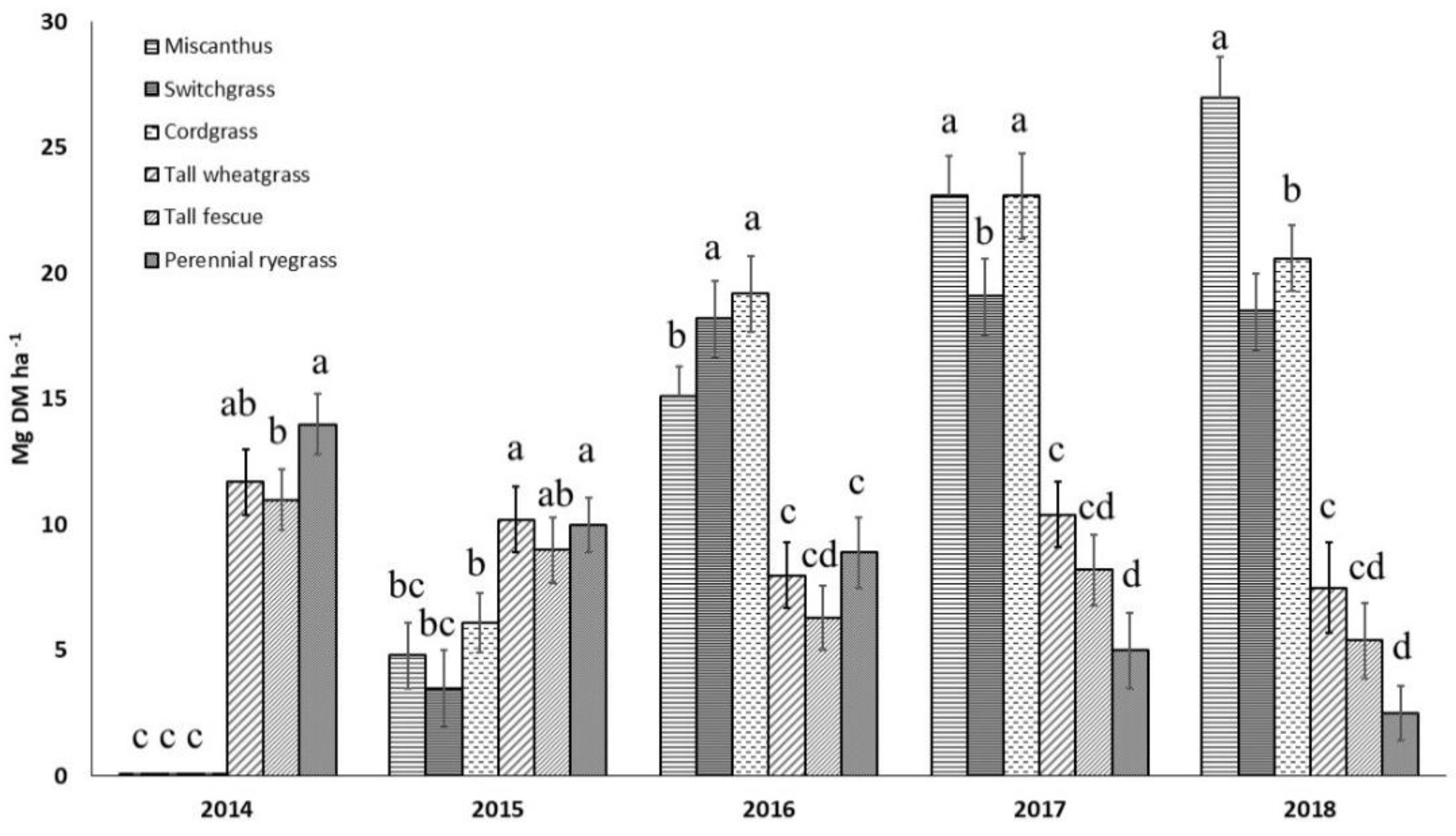

Figure 1. Biomass yields (in Mg DM ha−1) of six perennial grasses from the year of establishment of plots. Vertical bars indicate standard deviations. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Figure 1. Biomass yields (in Mg DM ha−1) of six perennial grasses from the year of establishment of plots. Vertical bars indicate standard deviations. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Materials 15 06384 g001
Materials 15 06384 g002 550
Figure 2. Modulus of rupture of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Figure 2. Modulus of rupture of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Materials 15 06384 g002
Materials 15 06384 g003 550
Figure 3. Modulus of elasticity of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Figure 3. Modulus of elasticity of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Materials 15 06384 g003
Materials 15 06384 g004 550
Figure 4. Internal bond strength of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Figure 4. Internal bond strength of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Materials 15 06384 g004
Materials 15 06384 g005 550
Figure 5. Thickness swelling of manufactured panels after 24 h. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Figure 5. Thickness swelling of manufactured panels after 24 h. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Materials 15 06384 g005
Materials 15 06384 g006 550
Figure 6. Water absorption of manufactured panels after 24 h. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Figure 6. Water absorption of manufactured panels after 24 h. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Materials 15 06384 g006
Materials 15 06384 g007 550
Figure 7. Density of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. No statistically significant difference among the various boards was detected by one-way ANOVA.
Figure 7. Density of manufactured panels. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. No statistically significant difference among the various boards was detected by one-way ANOVA.
Materials 15 06384 g007
Materials 15 06384 g008 550
Figure 8. Density profiles of tested boards. FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate.
Figure 8. Density profiles of tested boards. FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate.
Materials 15 06384 g008
Materials 15 06384 g009 550

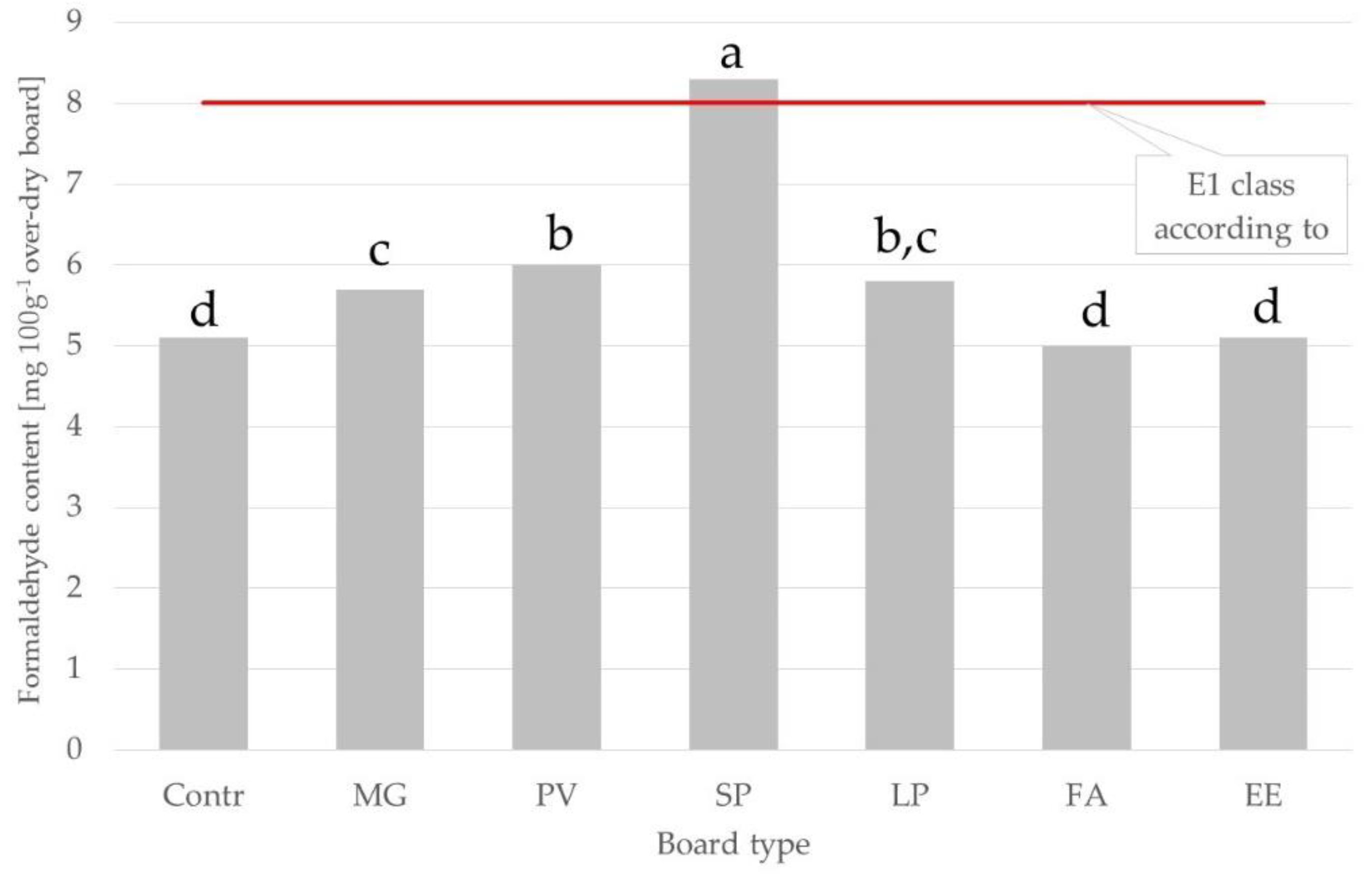

Figure 9. Formaldehyde content in tested particle boards made with the addition of biomass from different grass species. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Figure 9. Formaldehyde content in tested particle boards made with the addition of biomass from different grass species. Abbreviations used: contr.—control (100% wood); FA—Festuca arundinacea, EE—Elymus elongatus, LP—Lolium perenne, MG—Miscanthus x giganteus, PV—Panicum virgatum, SP—Spartina pectinate. Different letters indicate the presence of statistically significant differences at p < 0.05 according to one-way ANOVA and Tukey test.
Materials 15 06384 g009
Table
Table 1. Details of the establishment of field plots with perennial grasses for biomass collection.
Table 1. Details of the establishment of field plots with perennial grasses for biomass collection.
Species NameCultivar Name/BreederPlots Established from:Plants or Seed per m2Distance in Rows/between Rows (m)
C4 species:
Miscanthus (MG)unknownrhizomes11/1
Switchgrass (SG)MARDAN/PBAI *, POLseedlings2
Cordgrass (SP)unknownrhizomes2
C3 species:
Tall wheatgrass (EE)BAMAR/BS ** Bartążek, POLseed10 g0.5/0.3
Tall fescue (FA)BAROLEX/BERENBRUG, NLD10 g0.5/0.3
Perennial ryegrass (LP)BARONKA/BS Bartążek, POL20 g0.3/0.3
* PBAI—Plant Breeding and Acclimatization Institute, ** BS—Breeding Station.
Table
Table 2. Parameters of particleboard production.
Table 2. Parameters of particleboard production.
ParameterValue/Units
Board density670 kg·m−3
Board thickness16 mm
Resination ratio10%
Paraffin emulsion content0.3%
Press temperature200 °C
Pressing pressure20.5 MPa
Pressing time8 s·mm−1
Hardener ratio3%
Hardener40% solution of NH4NO3
Table
Table 3. Properties of the adhesive.
Table 3. Properties of the adhesive.
PropertiesMUF
Solid68.3%
Viscosity257 mPa·s
pH8.6
Gel point (100 °C) *95 s
* with 3% hardener added.
Table
Table 4. Raw materials used in board production.
Table 4. Raw materials used in board production.
Board TypeLignocellulosic Raw Material (Percentage Share)
ControlWood particles (100%)
C4 group
MGWood particles (70%), miscanthus particles (30%)
PVWood particles (70%), switchgrass particles (30%)
SPWood particles (70%), cordgrass particles (30%)
C3 group
LPWood particles (70%), perennial ryegrass particles (30%)
FAWood particles (70%), tall fescue particles (30%)
EEWood particles (70%), tall wheatgrass particles (30%)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Janiszewska, D.; Żurek, G.; Martyniak, D.; Bałęczny, W. Lignocellulosic Biomass of C3 and C4 Perennial Grasses as a Valuable Feedstock for Particleboard Manufacture. Materials 2022, 15, 6384. https://doi.org/10.3390/ma15186384

AMA Style

Janiszewska D, Żurek G, Martyniak D, Bałęczny W. Lignocellulosic Biomass of C3 and C4 Perennial Grasses as a Valuable Feedstock for Particleboard Manufacture. Materials. 2022; 15(18):6384. https://doi.org/10.3390/ma15186384

Chicago/Turabian Style

Janiszewska, Dominika, Grzegorz Żurek, Danuta Martyniak, and Wojciech Bałęczny. 2022. "Lignocellulosic Biomass of C3 and C4 Perennial Grasses as a Valuable Feedstock for Particleboard Manufacture" Materials 15, no. 18: 6384. https://doi.org/10.3390/ma15186384

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
