Communication

Synthesis of Pyrochlore Oxides Containing Ir and Ru for Efficient Oxygen Evolution Reaction

by
Aika Matsumoto
,
Ze-Xing Cai
and
Takeshi Fujita
*
School of Environmental Science and Engineering, Kochi University of Technology, 185 Miyanokuchi, Tosayamada, Kami, Kochi 782-8502, Japan
*
Author to whom correspondence should be addressed.
Materials 2022, 15(17), 6107; https://doi.org/10.3390/ma15176107
Submission received: 8 August 2022 / Revised: 29 August 2022 / Accepted: 30 August 2022 / Published: 2 September 2022
(This article belongs to the Section Electronic Materials)
Browse Figures
Versions Notes

Abstract

:
A versatile synthesis method for pyrochlore oxides containing Ir and Ru with lanthanides Pr, Nd, Eu, Gd, Tb, and Ho is herein presented. Based on the systematic synthesis and Rietveld refinement results, the lattice constants were tunable depending on the ionic radius of the lanthanide used. Subsequently, Pr-based pyrochlore oxides containing Ru and Ir in different ratios were fabricated for the oxygen evolution reaction (OER) in alkaline media, and the OER activity of these catalysts increased when the content of Ir and Ru was the same. Thus, the co-substitution of Ir and Ru in pyrochlore oxides is a novel synthesis strategy for electrocatalysts, which provides great potential for the fabrication of other pyrochlore oxides with various architectures and compositions for application in electrocatalysis.

1. Introduction

Global energy consumption increases by 2.5% (in oil equivalent) annually. To realize a sustainable society, water-splitting technology using renewable energy is attractive for the production of hydrogen as an alternative to oil [1,2,3]. Electrochemical water splitting involves two reactions: the hydrogen evolution reaction (HER) and the oxygen evolution reaction (OER). Based on systematic studies, the relationship between surface-molecule interactions and performance (known as the “volcano plot”) is a useful indicator to predict activity [4,5]. Considering the active materials from the volcano plot of the OER, IrO2 and RuO2 are the active oxides. Moreover, multiple studies have reported the improved OER activities of IrxRu1−xOy under full-cell testing conditions [6,7,8,9,10,11,12,13,14]. The electrochemical stability related to Ir/Ru dissolution is an essential mechanism for further improvement and optimization of the process [15].
Recently, pyrochlore-type oxides (A2B2O7) have been reported as a promising new class of OER catalysts [16]. These oxides possess a crystal framework that is capable of simultaneously accommodating Ir and Ru at the B sites, which strengthens the interaction between local RuO6 and IrO6 via shared oxygen and O–A–O bonds [17]. Furthermore, recent studies have reported the elemental feasibility of forming high-entropy pyrochore oxides by heavy doping of lanthanides on the A site and transition metals on the B site [18,19,20,21]. In this study, A2Ru2O7 and A2Ir2O7, where A is a lanthanide (Pr, Nd, Eu, Gd, Tb, and Ho), are synthesized systematically to confirm the feasibility of synthesis and obtain crystal information. Subsequently, Pr2(RuxIr1−x)2O7 with different x values is synthesized for application as OER catalysts because Pr-based pyrochore oxides exhibit good conductivity and are suitable as an electrode catalyst among the lanthanides [22]. Pr2(Ru0.5Ir0.5)2O7 with an identical Ir and Ru same atomic percentage and uniform element distribution exhibited good OER activity and stability compared with the benchmark IrO2 catalyst. Pyrochore oxide with Ir and Ru has controllable and flexible compositions, which is important for its potential application in various fields.

2. Materials and Methods

2.1. Chemicals

Ruthenium (III) nitrosylnitrate, iridium acetate, praseodymium (III) acetate, neodymium acetate monohydrate, europium (III) acetate n-hydrate, gadolinium (III) acetate tetrahydrate, terbium (III) acetate tetrahydrate, holimium (III) acetate monohydrate (99.9%), L-aspartic acid (L-AA), hydrochloric acid, iridium (IV) oxide, 2-propanol, a 5 wt% Nafion dispersion solution, potassium hydroxide, and potassium chloride were purchased from FUJIFILM Wako Pure Chemical Corporation. All the chemicals were used without further purification. Ultrapure deionized water, which was prepared using a Millipore system (Milli-Q), was used in the measurements.

2.2. Synthesis of A2Ru2O7

Using Pr2Ru2O7 as an example, a precursor was prepared using an amino acid-facilitated method [23]. Subsequently, (CH3COO)3Pr·nH2O (107.6 mg, 0.315 mmol), RuN4O10 (100 mg, 0.315 mmol), and L-AA (125.8 mg, 0.945 mmol) were dissolved in 50 mL of deionized water. The resulting solution was stirred at 60 °C for 3 h and then heated in an oven at 150 °C for 12 h to obtain the solid precursor. The solid was then ground using a mortar and pestle (1–2 min) to obtain a fine powder. Subsequently, the powdered sample was transferred to an alumina boat, calcined in air at 1050 °C for 3 h, and cooled to room temperature. For the other solid-solution perovskites, the amount of A sites was changed, but the other synthesis conditions were not. The samples were obtained using (CH3COO)3Nd·H2O (106.9 mg, 0.315 mmol), (CH3COO)3 Eu·nH2O (126.3 mg, 0.315 mmol), (CH3COO)3Gd·4H2O (128.0 mg, 0.315 mmol), (CH3COO)3Tb·4H2O (128.6 mg, 0.315 mmol), and (CH3COO)3Ho·H2O (107.9 mg, 0.315 mmol) in the synthesis mixtures.

2.3. Synthesis of A2Ir2O7

Similarly, (CH3COO)3Pr·nH2O (96.6 mg, 0.283 mmol), Ir(OCOCH3)n (100 mg, 0.283 mmol), and L-AA (113 mg, 0.849 mmol) were dissolved in 50 mL of deionized water. The resulting solution was stirred at 60 °C for 3 h and heated in an oven at 150 °C for 12 h to obtain the solid precursor. Subsequently, the solid was ground using a mortar and pestle (1–2 min) to obtain a fine powder. The powdered sample was then transferred to an alumina boat, calcined in air at 1050 °C for 3 h, and cooled to room temperature. For the other solid-solution perovskites, the samples were obtained using (CH3COO)3Nd·H2O (96.0 mg, 0.283 mmol), (CH3COO)3 Eu·nH2O (113.5 mg, 0.283 mmol), (CH3COO)3Gd·4H2O (115 mg, 0.283 mmol), (CH3COO)3Tb·4H2O (115.5 mg, 0.283 mmol), and (CH3COO)3Ho·H2O (96.8 mg, 0.283 mmol) in the synthesis mixtures.

2.4. Synthesis of Pr2(RuxIr1−x)2O7

The synthesis of Pr2(Ru0.5Ir0.5)2O7 (x = 0.5) is presented as an example. (CH3COO)3Pr·nH2O (150 mg, 0.440 mmol), RuN4O10 (69.6 mg, 0.220 mmol), Ir(OCOCH3)n (77.8 mg, 0.220 mmol), and L-AA (175.4 mg, 1.317 mmol) were dissolved in 50 mL of deionized water. The resulting solution was stirred at 60 °C for 3 h and heated in an oven at 150 °C for 12 h to obtain the solid precursor. Subsequently, the solid was ground using a mortar and pestle (1–2 min) to obtain a fine powder. The powdered sample was then transferred to an alumina boat, calcined in air at 1050 °C for 3 h, and cooled to room temperature. For the other solid-solution pyrochlores, Pr2(RuxIr1−x)2O7 with different molar ratios of Ru and Ir were used.

2.5. Electrochemical Characterization

Electrochemical experiments were conducted using an IviumStat electrochemical workstation (IVIUM Technologies B.V., Eindhoven, The Netherlands) with a typical three-electrode cell setup. Pt wire and Ag/AgCl (in saturated KCl) were used as the counter and reference electrodes, respectively. Glassy carbon (5 mm in diameter) was prepared using a catalyst ink suspension and served as the working electrode. Catalyst ink suspensions were prepared using 5 mg of the pyrochlore catalyst, 100 μL of deionized water, 900 μL of isopropyl alcohol, and 40 µL of 5 wt% Nafion solution. The catalyst ink suspensions were sonicated for 30 min before depositing 5 µL onto a polished glassy carbon disk electrode (0.19625 cm2) to obtain a total catalyst loading of ~127.4 μg/cm2. The electrolyte (1.0 M KOH) was prepared using potassium hydroxide and saturated with synthetic air for all measurements.
Linear sweep voltammetry (LSV) was performed at a potential scan rate of 5 mV/s for all electrolytes. Tafel plots were obtained from the LSV curve using the formula η = b × log j + a, where η is the overpotential, j is the current density, and b is the Tafel slope. For the stability test by chronoamperometry, a carbon sheet with a catalyst loading of 0.5 mg/cm2 was used as the working electrode for improved adhesion compared with the flat carbon electrode.

2.6. Structural Characterization

The X-ray diffraction (XRD) patterns of the samples were obtained using a Rigaku RINT 2000 X-ray diffractometer equipped with a monochromatic Cu Kα radiation unit (40 kV, 40 mA). The microstructure of the samples was analyzed by scanning electron microscopy (SEM) using a Hitachi S-8020 scanning electron microscope operated at an accelerating voltage of 10 kV. The microstructure of the samples was further characterized by transmission electron microscopy (TEM) using a transmission electron microscope (JEM-ARM200F “NEO ARM,” JEOL) equipped with aberration correctors for the image- and probe-forming lens systems (CEOS GmbH) and an energy-dispersive X-ray spectrometer (EDS; JED-2300T, JEOL). The TEM and scanning TEM (STEM) observations were conducted at an accelerating voltage of 200 kV.

3. Results and Discussion

Figure 1a,b shows a series of XRD profiles confirming the synthesis of pyrochlore-type A2Ru2O7 and A2Ir2O7 with lanthanides Pr, Nd, Eu, Gd, Tb, and Ho, using Nd2Ru2O7 and Nd2Ir2O7 as reference samples. The Rietveld refinement of the diffraction data revealed that the lattice constant a increased with increasing ionic radius R, as shown in Figure 1c,d. In pyrochlore oxides, the expansion of the lattice with R is usually attributed to an increase in the O–A–O bond angle via the chemical pressure effect [22].
Conductivity is an important parameter in electrocatalysis. For oxygen-evolving catalysts, high conductivity facilitates charge transfer between the catalyst–electrolyte and catalyst–support electrode interfaces. According to theoretical calculations, Pr-based pyrochore oxides exhibit the highest metallic conductivity among the lanthanides because of the disappearance of the band gap [22]. Based on the successful synthesis of Pr2Ru2O7 and Pr2Ir2O7, Pr2(RuxIr1−x)2O7 was systematically synthesized using different x values, as shown in Figure 2a. The Rietveld refinement of the diffraction data shows a linear relationship between a and the Ir/(Ir + Rr) molar ratio, as shown in Figure 2b.
The microstructures of Pr2Ru2O7, Pr2Ir2O7, and Pr2(Ru0.5Ir0.5)2O7 were characterized using SEM, as shown in Figure 3. Large particles with an average size of 400–500 nm were observed in the three samples. As expected from the high annealing temperature (1050 °C, 3 h), the nanosized character of the pyrochlore catalysts was reduced, yielding particle sizes ranging from the nano to micron scale. As shown in Figure 4a, the TEM observations along the [110] direction indicate high crystallinity owing to high-temperature annealing. As shown in Figure 4b, the high-angle annular dark field (HAADF)-STEM images indicate that no distinct local structural defects were observed. Furthermore, the atomic-scale homogeneity of each element was observed by EDS mapping shown in Figure 4c.
The electrocatalytic OER activity of Pr2(RuxIr1−x)2O7 with different x values was investigated in a N2-saturated 1.0 M KOH solution at room temperature using a three-electrode electrolysis system and compared with that of commercial IrO2. Figure 5a shows the representative LSV curves of the electrocatalysts measured at a scan rate of 5 mV s−1 (with ohmic drop correction). The OER activity of the catalysts increased when the Ir and Ru contents were identical (x = 0.5). Moreover, the excellent OER performance of Pr2(Ru0.5Ir0.5)2O7 was further confirmed by its lower Tafel slope (47.7 mV dec−1) compared with the others (Figure 5b), indicating that Pr2(Ru0.5Ir0.5)2O7 promoted efficient OER kinetics. Comparison of some representative pyrochlore OER catalysts reported under alkaline conditions is listed in Table 1. As shown in Figure 5c, the chronopotentiometric measurements of Pr2(Ru0.5Ir0.5)2O7 and IrO2 were performed at a current density of 10 mA cm−2. A minor increase in the potential (versus a reversible hydrogen electrode) was observed in the V–t curves, further confirming the good stability of Pr2(Ru0.5Ir0.5)2O7. In contrast, the activity of IrO2 gradually decreased. Additionally, the structure of Pr2(Ru0.5Ir0.5)2O7 after the durability test was characterized by XRD (Figure 5d), which indicated that variations in the phase and lattice were negligible compared with the as-synthesized powdered samples. These results suggest that Pr2(Ru0.5Ir0.5)2O7 is a highly active and stable electrocatalyst for the OER in alkaline media.
Regarding to the outperformance of the Pr2(Ru0.5Ir0.5)2O7 catalyst, co-substitution of Ir and Ru strengthened the interaction between RuO6 and IrO6 via shared oxygen atoms and O–A–O bonds. Moreover, recent experimental and theoretical results have demonstrated that the elongated Ru–O and Ir–O bonds in the pyrochlore possesses ruthenium and iridium at a low oxidation state when their contents are similar, which contributes to a moderate binding energy for the oxygen intermediate and leads to good OER stability [17]. Further improvements are expected when the particle size is reduced to the nanometer range. Moreover, the inhibition of radical coarsening during high-temperature annealing should be investigated in future studies.

4. Conclusions

In this study, A2Ru2O7 and A2Ir2O7 (where A was lanthanide Pr, Nd, Eu, Gd, Tb, or Ho) were synthesized systematically to verify the synthesis route. Subsequently, Pr2(RuxIr1−x)2O7 was synthesized with different x values for application as OER catalysts. This study demonstrated that Pr2(Ru0.5Ir0.5)2O7 with the same Ir and Ru atomic percentages have good OER activity and stability compared with the benchmark IrO2 catalyst. Although the nanosized character of the pyrochlore catalysts were significantly reduced owing to high-temperature annealing during synthesis, the co-substitution of Ir and Ru in pyrochlore oxides should be applied to other material systems for achieving enhanced OER activity and stability in electrocatalytic applications.

Author Contributions

Data curation, A.M. and Z.-X.C.; Formal analysis, A.M. and T.F.; Funding acquisition, T.F.; Investigation, A.M. and T.F.; Supervision, Z.-X.C. and T.F.; Validation, Z.-X.C.; Writing—original draft, T.F.; Writing—review and editing, T.F. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by KAKENHI (Grant No. JP21H00153) and a cooperative program (Proposal No. 202012-CRKEQ-0214 and 202205-CRKEQ-005) of CRDAM-IMR, Tohoku University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from corresponding author.

Acknowledgments

The authors thank Kazuyo Omura of the Institute for Material Research at Tohoku University for performing chemical measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. You, B.; Sun, Y. Innovative Strategies for Electrocatalytic Water Splitting. Acc. Chem. Res. 2018, 51, 1571–1580. [Google Scholar] [CrossRef] [PubMed]
  2. Li, Y.; Sun, Y.; Qin, Y.; Zhang, W.; Wang, L.; Luo, M.; Yang, H.; Guo, S. Recent Advances on Water-Splitting Electrocatalysis Mediated by Noble-Metal-Based Nanostructured Materials. Adv. Energy Mater. 2020, 10, 1903120. [Google Scholar] [CrossRef]
  3. Li, X.; Zhao, L.; Yu, J.; Liu, X.; Zhang, X.; Liu, H.; Zhou, W. Water Splitting: From Electrode to Green Energy System. Nanomicro Lett. 2020, 12, 131. [Google Scholar] [CrossRef] [PubMed]
  4. Yan, Y.; Xia, B.Y.; Zhao, B.; Wang, X. A review on noble-metal-free bifunctional heterogeneous catalysts for overall electrochemical water splitting. J. Mater. Chem. A 2016, 4, 17587–17603. [Google Scholar] [CrossRef]
  5. Cook, T.R.; Dogutan, D.K.; Reece, S.Y.; Surendranath, Y.; Teets, T.S.; Nocera, D.G. Solar Energy Supply and Storage for the Legacy and Nonlegacy Worlds. Chem. Rev. 2010, 110, 6474–6502. [Google Scholar] [CrossRef] [PubMed]
  6. Marshall, A.T.; Sunde, S.; Tsypkin, M.; Tunold, R. Performance of a PEM water electrolysis cell using IrxRuyTazO2 electrocatalysts for the oxygen evolution electrode. Int. J. Hydrogen Energy 2007, 32, 2320–2324. [Google Scholar] [CrossRef]
  7. Cheng, J.; Zhang, H.; Chen, G.; Zhang, Y. Study of IrxRu1−xO2 oxides as anodic electrocatalysts for solid polymer electrolyte water electrolysis. Electrochim. Acta 2009, 54, 6250–6256. [Google Scholar] [CrossRef]
  8. Audichon, T.; Mayousse, E.; Morisset, S.; Morais, C.; Comminges, C.; Napporn, T.W.; Kokoh, K.B. Electroactivity of RuO2–IrO2 mixed nanocatalysts toward the oxygen evolution reaction in a water electrolyzer supplied by a solar profile. Int. J. Hydrogen Energy 2014, 39, 16785–16796. [Google Scholar] [CrossRef]
  9. Kokoh, K.B.; Mayousse, E.; Napporn, T.W.; Servat, K.; Guillet, N.; Soyez, E.; Grosjean, A.; Rakotondrainibé, A.; Paul-Joseph, J. Efficient multi-metallic anode catalysts in a PEM water electrolyzer. Int. J. Hydrogen Energy 2014, 39, 1924–1931. [Google Scholar] [CrossRef]
  10. Siracusano, S.; Van Dijk, N.; Payne-Johnson, E.; Baglio, V.; Aricò, A.S. Nanosized IrOx and IrRuOx electrocatalysts for the O2 evolution reaction in PEM water electrolysers. Appl. Catal. B Environ. 2015, 164, 488–495. [Google Scholar] [CrossRef]
  11. Siracusano, S.; Baglio, V.; Moukheiber, E.; Merlo, L.; Aricò, A.S. Performance of a PEM water electrolyser combining an IrRu-oxide anode electrocatalyst and a short-side chain Aquivion membrane. Int. J. Hydrogen Energy 2015, 40, 14430–14435. [Google Scholar] [CrossRef]
  12. Siracusano, S.; Baglio, V.; Van Dijk, N.; Merlo, L.; Aricò, A.S. Enhanced performance and durability of low catalyst loading PEM water electrolyser based on a short-side chain perfluorosulfonic ionomer. Appl. Energy 2017, 192, 477–489. [Google Scholar] [CrossRef]
  13. Wang, L.; Saveleva, V.A.; Zafeiratos, S.; Savinova, E.R.; Lettenmeier, P.; Gazdzicki, P.; Gago, A.S.; Friedrich, K.A. Highly active anode electrocatalysts derived from electrochemical leaching of Ru from metallic Ir0.7Ru0.3 for proton exchange membrane electrolyzers. Nano Energy 2017, 34, 385–391. [Google Scholar] [CrossRef]
  14. Siracusano, S.; Trocino, S.; Briguglio, N.; Pantò, F.; Aricò, A.S. Analysis of performance degradation during steady-state and load-thermal cycles of proton exchange membrane water electrolysis cells. J. Power Source 2020, 468, 228390. [Google Scholar] [CrossRef]
  15. Escalera-López, D.; Czioska, S.; Geppert, J.; Boubnov, A.; Röse, P.; Saraçi, E.; Krewer, U.; Grunwaldt, J.-D.; Cherevko, S. Phase- and Surface Composition-Dependent Electrochemical Stability of Ir-Ru Nanoparticles during Oxygen Evolution Reaction. ACS Catal. 2021, 11, 9300–9316. [Google Scholar] [CrossRef]
  16. Parrondo, J.; George, M.; Capuano, C.; Ayers, K.E.; Ramani, V. Pyrochlore electrocatalysts for efficient alkaline water electrolysis. J. Mater. Chem. A 2015, 3, 10819–10828. [Google Scholar] [CrossRef]
  17. Liu, H.; Zhang, Z.; Li, M.; Wang, Z.; Zhang, X.; Li, T.; Li, Y.; Tian, S.; Kuang, Y.; Sun, X. Iridium Doped Pyrochlore Ruthenates for Efficient and Durable Electrocatalytic Oxygen Evolution in Acidic Media. Small 2022, 18, 2202513. [Google Scholar] [CrossRef]
  18. Pitike, K.C.; Macias, A.; Eisenbach, M.; Bridges, C.A.; Cooper, V.R. Computationally Accelerated Discovery of High Entropy Pyrochlore Oxides. Chem. Mater. 2022, 34, 1459–1472. [Google Scholar] [CrossRef]
  19. Jiang, B.; Bridges, C.A.; Unocic, R.R.; Pitike, K.C.; Cooper, V.R.; Zhang, Y.; Lin, D.-Y.; Page, K. Probing the Local Site Disorder and Distortion in Pyrochlore High-Entropy Oxides. J. Am. Chem. Soc. 2021, 143, 4193–4204. [Google Scholar] [CrossRef]
  20. Kinsler-Fedon, C.; Zheng, Q.; Huang, Q.; Choi, E.S.; Yan, J.; Zhou, H.; Mandrus, D.; Keppens, V. Synthesis, characterization, and single-crystal growth of a high-entropy rare-earth pyrochlore oxide. Phys. Rev. Mater. 2020, 4, 104411. [Google Scholar] [CrossRef]
  21. Teng, Z.; Zhu, L.; Tan, Y.; Zeng, S.; Xia, Y.; Wang, Y.; Zhang, H. Synthesis and structures of high-entropy pyrochlore oxides. J. Eur. Ceram. Soc. 2020, 40, 1639–1643. [Google Scholar] [CrossRef]
  22. Shang, C.; Cao, C.; Yu, D.; Yan, Y.; Lin, Y.; Li, H.; Zheng, T.; Yan, X.; Yu, W.; Zhou, S.; et al. Electron Correlations Engineer Catalytic Activity of Pyrochlore Iridates for Acidic Water Oxidation. Adv. Mater. 2019, 31, 1805104. [Google Scholar] [CrossRef]
  23. Sugahara, K.; Kamata, K.; Muratsugu, S.; Hara, M. Amino Acid-Aided Synthesis of a Hexagonal SrMnO3 Nanoperovskite Catalyst for Aerobic Oxidation. ACS Omega 2017, 2, 1608–1616. [Google Scholar] [CrossRef] [PubMed]
  24. Park, J.; Risch, M.; Nam, G.; Park, M.; Shin, T.J.; Park, S.; Kim, M.G.; Shao-Horn, Y.; Cho, J. Single crystalline pyrochlore nanoparticles with metallic conduction as efficient bi-functional oxygen electrocatalysts for Zn–air batteries. Energy Environ. Sci. 2017, 10, 129–136. [Google Scholar] [CrossRef]
  25. Park, J.; Park, M.; Nam, G.; Kim, M.G.; Cho, J. Unveiling the Catalytic Origin of Nanocrystalline Yttrium Ruthenate Pyrochlore as a Bifunctional Electrocatalyst for Zn–Air Batteries. Nano Lett. 2017, 17, 3974–3981. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, M.; Ju, H.; Kim, J. Dihydrogen phosphate ion functionalized nanocrystalline thallium ruthenium oxide pyrochlore as a bifunctional electrocatalyst for aqueous Na-air batteries. Appl. Catal. B Environ. 2019, 245, 29–39. [Google Scholar] [CrossRef]
  27. Kim, M.; Ju, H.; Kim, J. Single crystalline Bi2Ru2O7 pyrochlore oxide nanoparticles as efficient bifunctional oxygen electrocatalyst for hybrid Na-air batteries. Chem. Eng. J. 2019, 358, 11–19. [Google Scholar] [CrossRef]
  28. Kim, M.; Ju, H.; Kim, J. Highly efficient bifunctional catalytic activity of bismuth rhodium oxide pyrochlore through tuning the covalent character for rechargeable aqueous Na–air batteries. J. Mater. Chem. A 2018, 6, 8523–8530. [Google Scholar] [CrossRef]
  29. Kim, M.; Ju, H.; Kim, J. Single crystalline thallium rhodium oxide pyrochlore for highly improved round trip efficiency of hybrid Na–air batteries. Dalton Trans. 2018, 47, 15217–15225. [Google Scholar] [CrossRef]
Materials 15 06107 g001 550
Figure 1. (a,b) Experimental XRD patterns of A2Ru2O7 and A2Ir2O7 where A = Pr, Nd, Eu, Gd, Tb, and Ho, using cubic Nd2Ru2O7 (ICSD #79327) and Nd2Ir2O7 (#239644) as reference samples. (c,d) Lattice constants a of A2Ru2O7 and A2Ir2O7 plotted against the ionic radii of R3+. The dotted lines serve as a visual guide.
Figure 1. (a,b) Experimental XRD patterns of A2Ru2O7 and A2Ir2O7 where A = Pr, Nd, Eu, Gd, Tb, and Ho, using cubic Nd2Ru2O7 (ICSD #79327) and Nd2Ir2O7 (#239644) as reference samples. (c,d) Lattice constants a of A2Ru2O7 and A2Ir2O7 plotted against the ionic radii of R3+. The dotted lines serve as a visual guide.
Materials 15 06107 g001
Materials 15 06107 g002 550

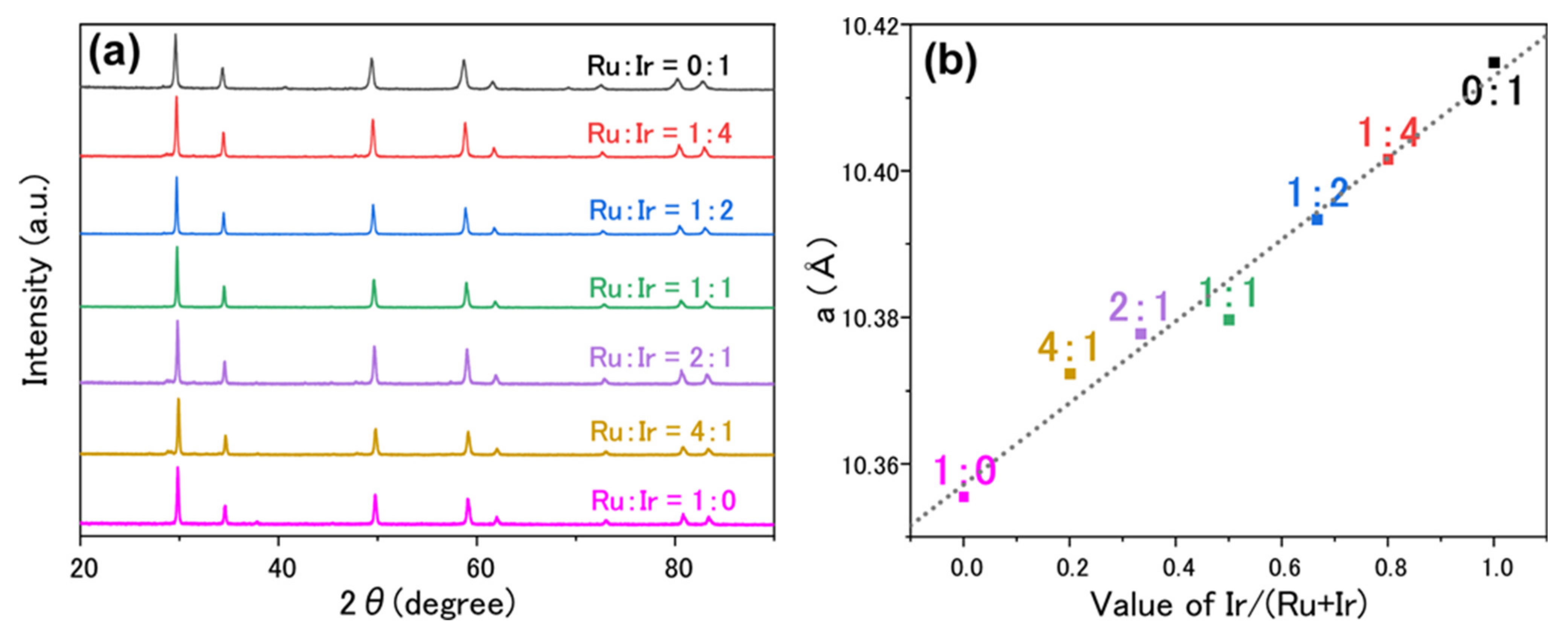

Figure 2. (a) Experimental XRD patterns of Pr2(RuxIr1−x)2O7 with different ratios of Ru and Ir. (b) Lattice constant a of Pr2(RuxIr1−x)2O7 plotted against the Ir/(Ir + Ru) molar ratio. The dotted lines serve as a visual guide.
Figure 2. (a) Experimental XRD patterns of Pr2(RuxIr1−x)2O7 with different ratios of Ru and Ir. (b) Lattice constant a of Pr2(RuxIr1−x)2O7 plotted against the Ir/(Ir + Ru) molar ratio. The dotted lines serve as a visual guide.
Materials 15 06107 g002
Materials 15 06107 g003 550

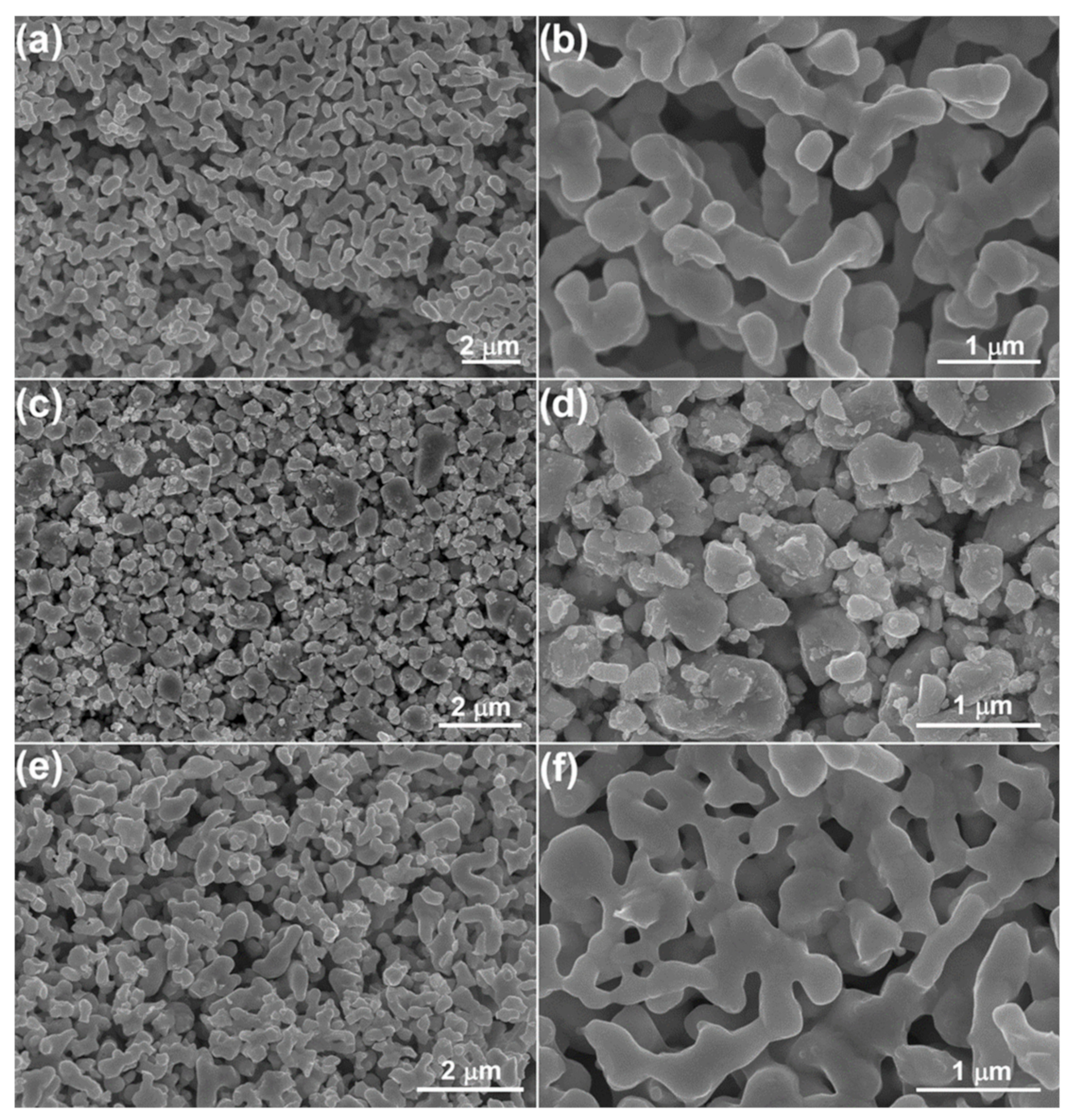

Figure 3. Low- and high-magnification SEM micrographs of the products. (a,b) Pr2Ru2O7, (c,d) Pr2Ir2O7, and (e,f) Pr2(Ru0.5Ir0.5)2O7.
Figure 3. Low- and high-magnification SEM micrographs of the products. (a,b) Pr2Ru2O7, (c,d) Pr2Ir2O7, and (e,f) Pr2(Ru0.5Ir0.5)2O7.
Materials 15 06107 g003
Materials 15 06107 g004 550

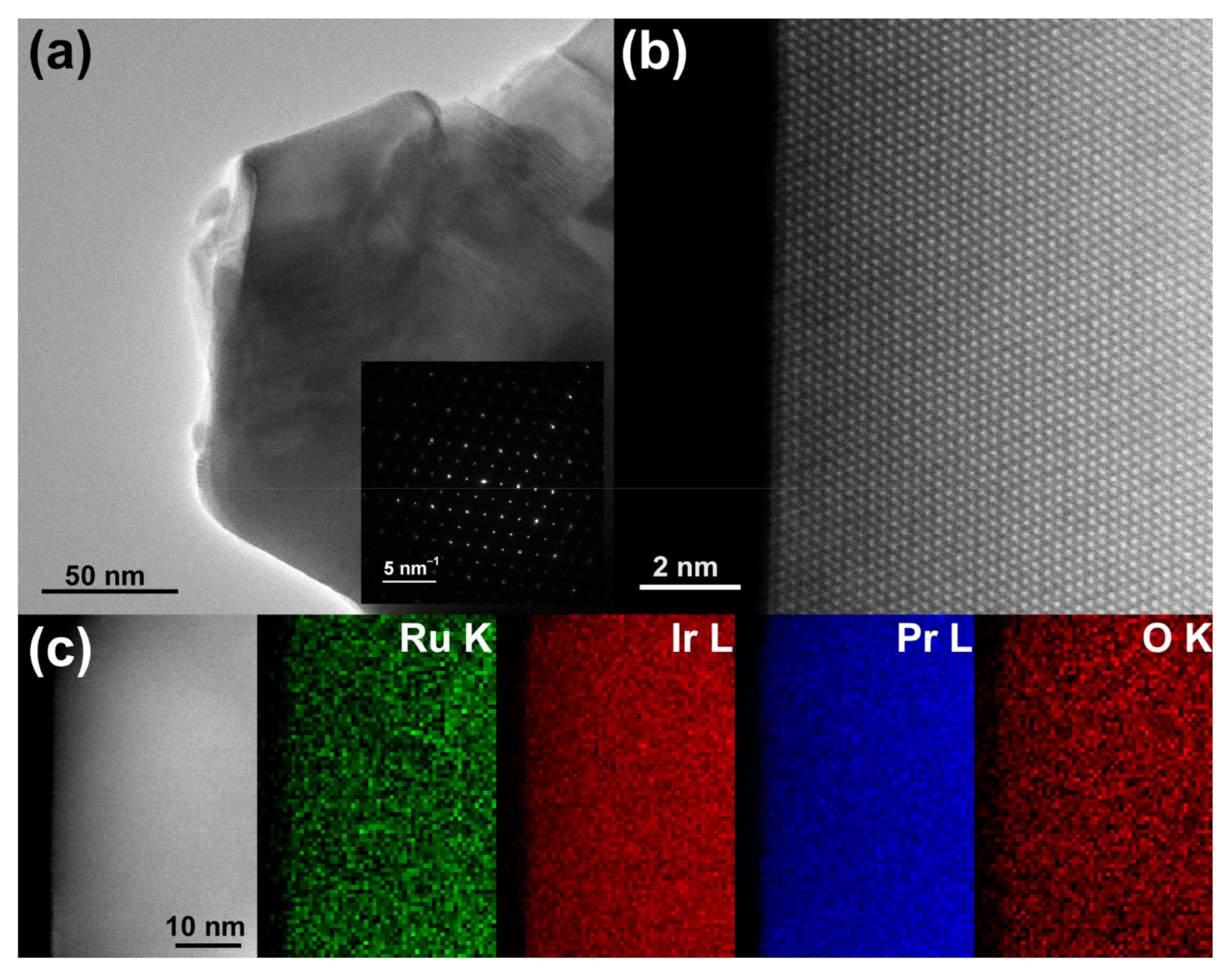

Figure 4. A TEM characterization of as-synthesized Pr2(Ru0.5Ir0.5)2O7. (a) Low-magnification TEM micrograph with the corresponding selected area electron diffraction (SAED) pattern along the [011] direction (inset). (b) HAADF-STEM image with uniform atom distribution. (c) EDS mappings of the Ru-K, Ir-L, Pr-L, and O-K edges.
Figure 4. A TEM characterization of as-synthesized Pr2(Ru0.5Ir0.5)2O7. (a) Low-magnification TEM micrograph with the corresponding selected area electron diffraction (SAED) pattern along the [011] direction (inset). (b) HAADF-STEM image with uniform atom distribution. (c) EDS mappings of the Ru-K, Ir-L, Pr-L, and O-K edges.
Materials 15 06107 g004
Materials 15 06107 g005 550

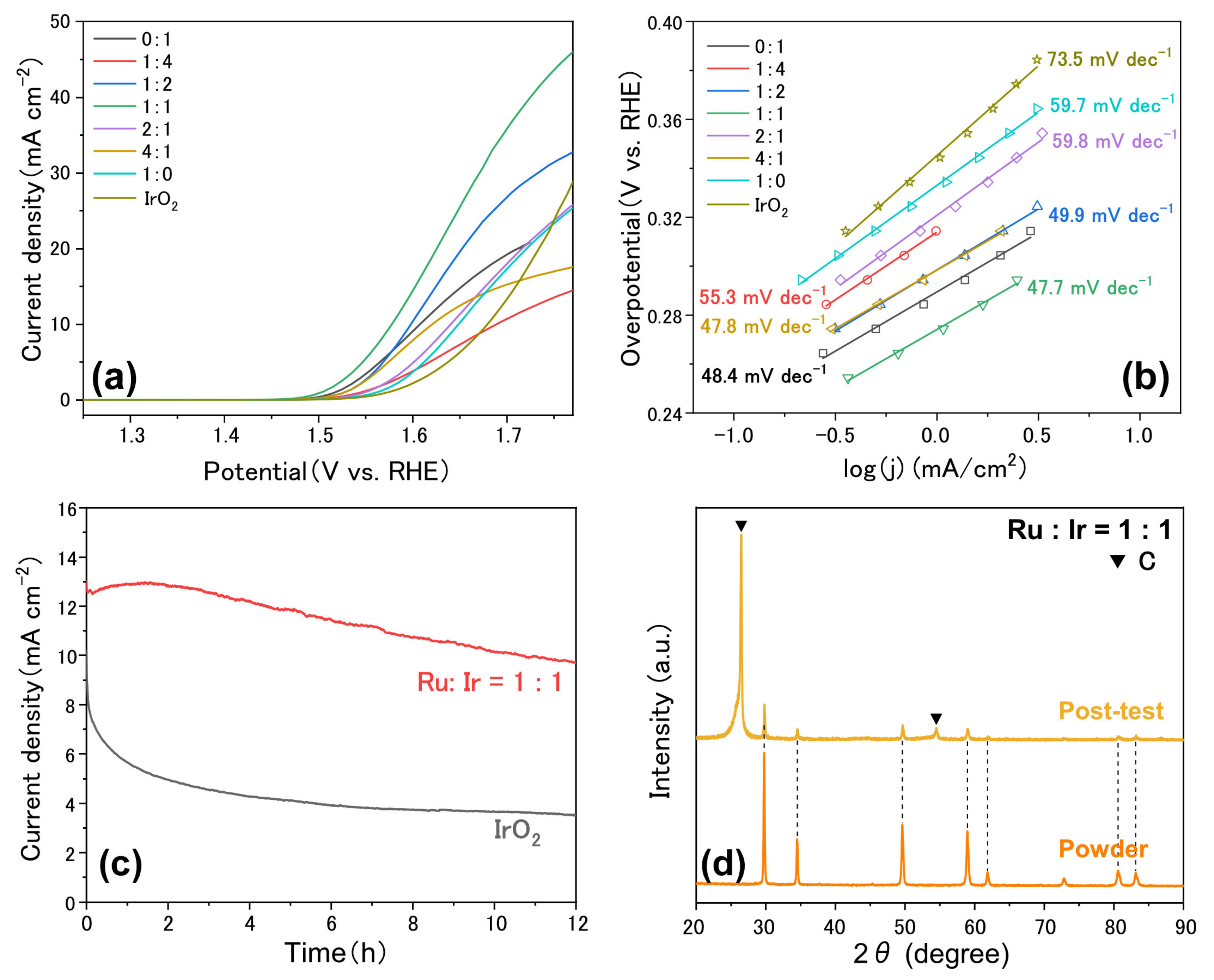

Figure 5. An electrocatalytic OER performance test of catalysts. (a) OER polarization curves of Pr2(RuxIr1−x)2O7 catalysts with different molar ratio of Ru and Ir. (b) Tafel plots obtained from the polarization curves in (a). (c) Chronoamperometric measurement o Pr2(Ru0.5Ir0.5)2O7 and commercial IrO2 at 10 mA/cm2. All the tests were performed in N2-saturated 1.0 M KOH solution. (d) Comparison of XRD profiles of post-test and as-made power samples, indicating the good phase stability. The carbon signal comes from the attached carbon paper.
Figure 5. An electrocatalytic OER performance test of catalysts. (a) OER polarization curves of Pr2(RuxIr1−x)2O7 catalysts with different molar ratio of Ru and Ir. (b) Tafel plots obtained from the polarization curves in (a). (c) Chronoamperometric measurement o Pr2(Ru0.5Ir0.5)2O7 and commercial IrO2 at 10 mA/cm2. All the tests were performed in N2-saturated 1.0 M KOH solution. (d) Comparison of XRD profiles of post-test and as-made power samples, indicating the good phase stability. The carbon signal comes from the attached carbon paper.
Materials 15 06107 g005
Table
Table 1. A comparison of some representative pyrochlore OER catalysts reported under alkaline conditions.
Table 1. A comparison of some representative pyrochlore OER catalysts reported under alkaline conditions.
CatalystsElectrolyteOverpotential (mV)Reference
Pr2Ru1Ir1O71 M KOH350@10 mA cm−2This work
Bi2.4Ru1.6O70.1 M KOH370[16]
Pb2Ru2O6.50.1 M KOH418[24]
Sm2Ru2O70.1 M KOH[email protected] mA cm–2
Y2Ru2-XYXO70.1 M KOH490[25]
P-Tl2Ru2O70.1 M KOH274[26]
Bi2Ru2O70.1 M KOH448[27]
P-Bi2Rh2O6.80.1 M KOH290[28]
Tl2Rh2O70.1 M KOH423[29]
