Effects of Mono- and Bifunctional Surface Ligands of Cu–In–Se Quantum Dots on Photoelectrochemical Hydrogen Production

by
Soo Ik Park
1,†,
Sung-Mok Jung
2,†,
Jae-Yup Kim
2,* and
Jiwoong Yang
1,3,*
1
Department of Energy Science and Engineering, Daegu Gyeongbuk Institute of Science and Technology (DGIST), Daegu 42988, Korea
2
Department of Chemical Engineering, Dankook University, Yongin 16890, Korea
3
Energy Science and Engineering Research Center, Daegu Gyeongbuk Institute of Science and Technology (DGIST), Daegu 42988, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2022, 15(17), 6010; https://doi.org/10.3390/ma15176010
Submission received: 15 July 2022 / Revised: 20 August 2022 / Accepted: 23 August 2022 / Published: 31 August 2022
(This article belongs to the Special Issue Advances in Nanostructured Catalysts)
Browse Figures
Versions Notes

Abstract

:
Semiconductor nanocrystal quantum dots (QDs) are promising materials for solar energy conversion because of their bandgap tunability, high absorption coefficient, and improved hot-carrier generation. CuInSe2 (CISe)-based QDs have attracted attention because of their low toxicity and wide light-absorption range, spanning visible to near-infrared light. In this work, we study the effects of the surface ligands of colloidal CISe QDs on the photoelectrochemical characteristics of QD-photoanodes. Colloidal CISe QDs with mono- and bifunctional surface ligands are prepared and used in the fabrication of type-II heterojunction photoanodes by adsorbing QDs on mesoporous TiO2. QDs with monofunctional ligands are directly attached on TiO2 through partial ligand detachment, which is beneficial for electron transfer between QDs and TiO2. In contrast, bifunctional ligands bridge QDs and TiO2, increasing the amount of QD adsorption. Finally, photoanodes fabricated with oleylamine-passivated QDs show a current density of ~8.2 mA/cm2, while those fabricated with mercaptopropionic-acid-passivated QDs demonstrate a current density of ~6.7 mA/cm2 (at 0.6 VRHE under one sun illumination). Our study provides important information for the preparation of QD photoelectrodes for efficient photoelectrochemical hydrogen generation.

1. Introduction

Solar energy is a promising sustainable energy resource owing to its infinite supply and low environmental impact. Specifically, the Sun continuously delivers an enormous energy of 1.7 × 105 TW to Earth, which is several orders of magnitude larger than that produced by human civilization. It is highly desirable to develop efficient methods to convert photons into electricity, chemicals, and heat, and this has inspired tremendous interest in research on solar cells [1,2], photocatalysts [3,4,5,6], and photoelectrochemical (PEC) devices [7,8,9,10,11,12,13]. Among these various techniques, PEC hydrogen production provides sustainable and cost-effective methods for direct solar-to-chemical energy conversion to produce clean solar fuels. Previous studies on PEC hydrogen production typically used metal oxide materials such as TiO2, BiVO4, Fe2O3, and WO3 because of their low cost and high stability during water splitting. However, their wide bandgaps (e.g., 3.2 eV for TiO2:) inhibit the effective utilization of the full solar spectrum.
Additional light absorbers with narrower bandgaps have been introduced to solve the problems of wide-bandgap oxide semiconductors [14,15,16,17,18,19,20,21,22]. These absorbers can use the light that cannot be absorbed by wide-bandgap oxide materials to generate more photoexcited electrons, which are then transferred to the oxide materials for further photocatalytic reactions. Semiconductor nanocrystal quantum dots (QDs) have been regarded as promising absorbers because of their unique properties such as size- and shape-dependent bandgap tunability [23,24,25,26], high absorption coefficient [27], and multiple exciton carrier generations [28,29]. Among these, heavy-metal-free I–III–VI QDs, such as CuInSe2 (CISe) QDs, are environmentally benign and can effectively absorb visible and near-infrared spectral regions, making them one of the ideal candidates for solar-to-chemical conversion [30,31,32,33,34,35,36]. Studies on PEC hydrogen production using these QDs are recent [37,38,39], implying that extensive research is necessary before they can be used in practical applications.
Colloidal QDs are generally synthesized in colloidal solutions [40] and are composed of inorganic crystalline nanoparticles and organic surfactants that passivate the surface of the nanoparticles. These surface ligands have multiple functions, including controlling the synthesis process, stabilizing the QDs, regulating the solution dispersibility, and controlling the optical and electrical properties of the QDs [41,42,43]. Because of their significant impact on the properties of QDs, surface ligands are carefully controlled to fully exploit the unique properties of QDs. Surface ligands should be selected by considering the role of the QDs and the fabrication process for the target applications. For example, to enhance charge transport between QDs, the use of short-chain ligands is generally preferred for QD solar cells [44,45]. However, despite their importance, the effect of the surface ligands of QDs on their PEC applications has been less studied.
In this study, we investigated the effects of the surface ligands of colloidal CISe QDs on the fabrication of PEC photoanodes and the resulting PEC characteristics. CISe QDs passivated with monofunctional oleylamine (OAm) were synthesized by colloidal synthesis. Through a post-ligand exchange process, QDs passivated with mercaptopropionic acid (MPA, bifunctional surface ligands) were prepared for comparison. Photoanodes for PEC hydrogen production were prepared by adsorbing QDs on a mesoporous TiO2 film, which had two different QD adsorption mechanisms according to the choice of surface ligands. Monofunctional ligand-passivated QDs were directly attached on TiO2 by partial ligand detachment, enhancing electron transport between the QDs and TiO2. Bifunctional ligands acted as linkers by bridging QDs and TiO2, and the amount of QD adsorption was higher for MPA-passivated QDs than for OAm-passivated ones. With this trade-off, photoanodes fabricated with OAm-passivated QDs and those with MPA-passivated QDs demonstrated photocurrent densities of ~8.2 and ~6.7 mA/cm2, respectively (at 0.6 VRHE, one sun illumination). We believe that our results will contribute to the development of systems with effective PEC hydrogen generation using colloidal QDs.

2. Materials and Methods

2.1. Materials

Copper(I) iodide (CuI, 99.998%), indium(III) iodide (InI3, 99.999%), and 3-mercaptopropionic acid (MPA, 99%) were purchased from Alfa-Aesar. Dichloromethane (99.8%), oleylamine (OAm, technical grade), oleic acid (OAc, technical grade), trioctylphosphine (TOP, 97%), selenium (99.99%), 1-dodecanethiol (DDT, 98%), 1-octylamine (OcAm, 99%), zinc nitrate hexahydrate (Zn(NO3)2·6H2O, 98%), sodium sulfide (Na2S), and sodium sulfite (Na2SO3, ≥98.0%) were purchased from Sigma-Aldrich. Ethanol (99.5% anhydrous), methanol (99.5%), chloroform (99.95%), and sodium hydroxide (NaOH, 99.8%) were purchased from Samchun Chemicals. n-Butanol (99%) was purchased from Daejung Chemicals & Metals. The OAm was dried under a vacuum before use.

2.2. Synthesis of CISe QDs

Uniform-sized CISe QDs were synthesized according to our previously reported method [31,33]. In a typical synthesis, a metal-OAm complex precursor solution was prepared by heating 0.5 mmol of CuI and 0.5 mmol of InI3 in 15.0 mL of OAm at 120 °C under a vacuum for 30 min. An oleylammonium selenocarbamate precursor solution was prepared by heating 5.0 mmol of Se in OAm (10.0 mL) under a CO atmosphere at 80 °C. The metal–OAm complex solution was cooled to 70 °C, and 2.0 mL of the oleylammonium selenocarbamate solution was quickly injected into the solution with Ar flow. The reaction temperature was gradually increased to 180 °C and was maintained for 20 min. After the reaction, the QDs were precipitated via centrifugation using ethanol containing TOP to remove the remaining Se precursors. Finally, the QDs were dispersed in 4.0 mL of dichloromethane for further use.

2.3. Ligand Exchange Treatment of CISe QDs

For the ligand exchange of QDs from OAm to MPA, the phase-transfer ligand exchange process was used [46]. In a typical process, 1.3 mL of MPA was mixed with 4.0 mL of methanol and 40 wt% NaOH aqueous solution of the controlled amount. The total volume of the mixture was adjusted to 8.0 mL. The pH of the solution was controlled by adjusting the amount of aqueous NaOH solution. The QD solution was mixed with the MPA solution and stirred for 10 min. To remove the detached OAm, the mixture was washed several times with chloroform. Finally, the MPA-passivated QDs were dispersed in water.
For the ligand exchange of QDs from OAm to other monofunctional ligands such as OcAm, OA, and DDT, the single-phase ligand exchange process was used. In a typical process to prepare OcAm-passivated CISe QDs, 2.0 mL of OcAm was mixed with 1.0 mL of QD solution (40 mg/mL in dichloromethane). The mixture was vigorously stirred for ~2 h at 25 °C. The products were precipitated via centrifugation using ethanol and re-dispersed in dichloromethane for further use. Instead of OcAm, DDT and OAc were used, respectively, for the preparation of DDT- and OAc-passivated CISe QDs.

2.4. Fabrication of CISe QD-Sensitized TiO2 Photoanodes

Fluorine-doped tin oxide (FTO) glass (TEC-A7, Pilkington) was washed in ethanol under ultrasonication for 20 min, followed by treatment with UV/O3 (Yuil Ultraviolet System) for 15 min to remove any contaminants. Titanium diisopropoxide-bis(acetylacetonate) (7.5 wt%, Aldrich) in n-butanol was spin-coated on the surface of the washed FTO glass and subsequently annealed at 475 °C for 10 min in air. A nanocrystalline TiO2 paste (Ti-Nanoxide T/SP, Solaronix) was coated on the pretreated FTO glass using the doctor-blade method, followed by annealing at 525 °C for 30 min in air. Finally, the annealed FTO/mesoporous TiO2 film was immersed in a colloidal CISe QD solution (4.0 mg/mL) for 3 h for sensitization and then rinsed with dichloromethane. The ZnS overlayers were coated on the surface of the QD-sensitized TiO2 film by successive ionic layer adsorption and reaction (SILAR) processes, consisting of immersing the QD-sensitized TiO2 film in a 0.05 M Zn(NO3)2·6H2O ethanol solution and 0.05 M Na2S in a mixed solvent of deionized water/methanol (volume ratio = 1:1) for 1 min each. The SILAR process was repeated thrice.

2.5. Material Characterization

The absorption spectra of the CISe QDs were measured using a PerkinElmer Lambda 465 instrument. Time-resolved photoluminescence measurements were performed with a Horiba Fluoromax plus a time-correlated single-photon counting system using a DeltaDiode DD-375L laser diode (peak wavelength: 371 nm). The X-ray diffraction (XRD) patterns were acquired on a Horiba Miniflex 600 X-ray diffractometer. Transmission electron microscopy (TEM) images were obtained using an FEI Tecnai G2 F20 Twin TMP microscope. Fourier-transform infrared (FT-IR) spectroscopy analysis was performed using an Agilent Cary 660 FT-IR spectrometer in attenuated total reflectance measurement mode. X-ray photoelectron spectroscopy (XPS) was performed using a Thermo Scientific ESCALAB 250XI instrument.

2.6. Photoelectrochemical Measurements

All of the PEC measurements were carried out in a quartz reactor using a potentiostat (Multi Autolab M204, Metrohm) with a three-electrode system consisting of a QD-sensitized TiO2 film as the photoanode, a platinum mesh as the counter electrode, and a Hg/HgO (saturated calomel electrode, SCE) as the reference electrode. The electrolyte was composed of 0.25 M Na2S and 0.35 M Na2SO3 (pH ~12.9) in deionized water. Linear sweep voltammetry (LSV) measurements were performed at a scan rate of 20 mV/s under simulated light with one sun intensity (100 mW/cm2) using a solar simulator (PEC-L01, Peccell) with an AM 1.5G filter. Incident photon-to-current conversion efficiency (IPCE) spectra were obtained using a xenon lamp (300 W, Oriel), monochromator (TracQBasic 6.5, Oriel), and NIST-certified Si diode. Electrochemical impedance spectroscopy (EIS) measurements were performed using a frequency-response detector in the potentiostat under a sinusoidal perturbation of ± 10 mV in the frequency range of 0.1 Hz to 100 kHz.

3. Results and Discussion

3.1. Preparation of CISe QDs with Different Surface Ligands

To understand the effect of the surface ligand molecules of QDs on PEC hydrogen production, the CISe QDs were prepared by colloidal synthesis following our previous study [31,33] using the reaction between metal–ammine complexes and oleylammonium selenocarbamate (Materials and Method 2.2). As shown in the TEM image (Figure 1a), the synthesized QDs had an average size of ~4 nm with a narrow size distribution (standard deviation: 0.5 nm). From our previous work on solar cells using CISe QDs, ~4 nm was the optimum size for light absorption and electron transfer to TiO2, which was the main reason that 4-nm CISe QDs were used for this study. The XRD results confirm the tetragonal chalcopyrite crystal structure of the QDs (Figure 1b). The absorption spectrum (Figure 1c) and corresponding Tauc plot (Figure S1, Supplementary Materials) of the CISe QD solution show that the optical bandgap of the QDs was ~1.4 eV, which is appropriate for absorption of the full solar spectrum.
These QDs had a composition of CuIn1.5Se3, as revealed by inductively coupled plasma-atomic emission spectrometry (ICP-AES) analysis. It is known that smaller CISe QDs usually have higher In/Cu ratios because the surfaces of these nanocrystals preferably have In-rich states [30,31]. The electronic state of the CISe QDs was further investigated by XPS. The main peaks of the Cu 2p3/2 and Cu 2p1/2 XPS spectra of these QDs are located at 932.3 and 952.1 eV, respectively (Figure 1d), corresponding to the Cu+ oxidation state [47]. The estimated binding energies of In 3d5/2 and In 3d3/2 are 445.0 and 452.6 eV, respectively (Figure 1e), implying the In3+ oxidation state [48]. In addition, the XPS spectrum of Se shows that the main peaks of Se 3d5/2 and Se 3d3/2 were located at binding energies of 54.1 and 55.0 eV, respectively, which match well with those of Se2- anions, while it does not have peaks corresponding to SeOx that can be formed by surface oxidation. These data support the successful synthesis of high-quality chalcopyrite-structured CISe QDs without severe surface oxidation.
A post-ligand-exchange treatment was carried out to obtain CISe QDs with controlled surface ligand molecules. The as-synthesized CISe QDs were solely passivated by OAm because only OAm was used as a coordinating solvent for the synthesis without adding other organic surfactants. To obtain QDs passivated by bifunctional ligands, a two-phase ligand-exchange reaction was used to replace OAm with MPA, which contains thiol and carboxyl groups (Figure 2a). The thiol group can strongly bind to the surface of QDs, and the additional carboxyl group can make QDs dispersible in polar solvents [46,49,50,51]. As shown in Figure 2a, the ligand-exchanged QDs were dispersible in water, supporting the successful replacement of surface ligands. The absorption spectra of the OAm- and MPA-passivated QDs were almost identical in terms of their energetic positions and shapes (Figure 2b). Furthermore, the TEM images (Figure S2, Supplementary Materials) and XRD pattern (Figure S3, Supplementary Materials) of the CISe QDs after the ligand exchange are very similar to those of the as-synthesized QDs. All of the data verified that the ligand exchange process does not degrade the QDs.
The successful preparation of CISe QDs with controlled ligand molecules was further verified by XPS. The binding energy of the C 1s XPS main peak of OAm-passivated QDs is ~285 eV (Figure 2c), originating from the hydrocarbon chain [52]. In contrast, the C 1s XPS spectrum of the MPA-passivated QDs has an additional peak located at 288.4 eV, which is attributed to the presence of the carboxylic group in MPA. In addition, the S 2p3/2 XPS spectrum of the MPA-passivated QDs has a clear main peak corresponding to the thiol group, whereas that of the OAm-passivated QDs does not have a peak at the corresponding binding energy (Figure 2d) [53]. These results support the successful preparation of OAm- and MPA-passivated QDs for further studies. To gain a better understanding of the effects of surface ligands, we also prepared various monofunctional ligand-passivated QDs, including OcAm-, DDT-, and OAc-passivated QDs (Figure S4, Supplementary Materials).

3.2. Properties of TiO2–CISe QD Photoanodes

To fabricate TiO2–CISe QD photoanodes, a mesoporous TiO2 film was dipped into a solution containing CISe QDs with controlled surface ligands (Materials and Methods 2.4). For both MPA- and OAm-passivated QDs, a dipping time of ~3 h in the QD solution resulted in the dense adsorption of QDs onto TiO2. A comparison between the absorption spectra of bare and CISe QD-sensitized TiO2 films suggests a significant enhancement of absorbance after dipping (Figure 3a), implying the successful adsorption of CISe QDs onto the TiO2 films. Cross-sectional scanning electron microscopy (SEM) images and elemental analysis results also support the sensitization of TiO2 by CISe QDs (Figures S5 and S6, Supplementary Materials). The absorbance in the ultraviolet range was higher after QD-sensitization, and the absorption wavelength was extended to the near-infrared range, suggesting the absorption of the full solar spectrum. Photographs of the TiO2–CISe QD photoanodes showed their deep brown and black colors, further supporting the strong adsorption of visible light by the QDs (Figure 3b).
We additionally tested various monofunctional ligand-passivated QDs, including OcAm-, OAc-, and DDT-passivated QDs (Figure S4, Supplementary Materials). However, for the reasons listed below, these QDs were not suitable for making PEC electrodes. The colloidal stability of the QDs was decreased by surface passivation with short-chain monofunctional ligands such as OcAm (C8) (Figure S4, Supplementary Materials). Furthermore, thiol or carboxylic groups adhere to the QD surface too strongly compared to the amine groups [54]. These factors prevented the effective sensitization of TiO2 films with these QDs (Figure 3a,b). Thus, OAm- and MPA-passivated QDs were mainly studied in this work. In addition, as shown by the cyclic voltammetry of OAm-QD-photoanodes and MPA-QD-photoanodes (Figure S7, Supplementary Materials), the energy levels of the OAm- and MPA-passivated QDs were similar [55]. This enables a simple comparison of their PEC characteristics by mainly focusing on the adsorption mechanism of QDs to TiO2.
We suggest two different adsorption mechanisms for the QDs with different surface ligands (Figure 3c). For QDs passivated with monofunctional ligands (e.g., OAm-passivated QDs), the functional groups of the ligands bind to the QD surface. For these QDs, some surface ligands should be detached from the QD surface before the adsorption of QDs onto the TiO2. The QDs in the QD sensitized-TiO2 films were not washed away by the original QD solvents (e.g., dichloromethane for the OAm-passivated QDs), implying strong binding between the QDs and TiO2 (Figure S8, Supplementary Materials). If the surface of the QDs was fully covered by monofunctional ligands, the QDs could not be tightly bound to the TiO2, and they were easily removed by non-polar organic solvents. Indeed, the suggested adsorption mechanism is consistent with the results of a previous study of the adsorption mechanism of monofunctional ligand-passivated CdSe QDs on TiO2 for QD-sensitized solar cells [56]. The fact that QDs with strongly binding monofunctional ligands could not be efficiently adsorbed on TiO2 is also consistent with the proposed adsorption mechanism of monofunctional ligand-passivated QDs.
For QDs passivated with bifunctional ligands (i.e., MPA-passivated QDs in this study), one group of ligands (thiol group in this study) strongly binds to the QD surfaces, and the other group (carboxyl group in this study) can bind to the TiO2 surfaces [46,49,50,51]. Thus, MPA acts as a linker that bridges the QDs and TiO2. Owing to this adsorption mechanism, the amount of QDs adsorbed on TiO2 can be controlled by controlling the pH of the solution. The pH of the QD solution affects the state of the carboxyl groups. When the solution pH decreases, the proportion of ionized carboxyl groups increases. This makes MPA-passivated QDs more dispersible in polar solvents but prevents their binding to TiO2 surfaces. As a result, MPA-passivated QDs were more densely adsorbed on the TiO2 films at higher pH (Figure 3b, bottom). In a pH 14 solution, the TiO2–CISe QD photoanodes showed the highest adsorption density of QDs, as confirmed by their color in photographs. With this optimization, TiO2–CISe QD photoanodes with MPA-passivated QDs had higher QD adsorption densities than those with OAm-passivated QDs, which was verified by both the absorption spectra (Figure 3a) and photographs (Figure 3b).
The prepared TiO2–CISe QD photoanodes were used for PEC hydrogen generation. The cell was composed of a conventional three-electrode system with an SCE reference electrode and a Pt rod counter electrode in an electrolyte containing 0.25 M Na2S and 0.35 M Na2SO3 at a controlled pH of 12.9 (Materials and Method 2.4), which is known to be an effective system for PEC hydrogen generation [39]. Anodic LSV scans were obtained to understand the PEC properties of the CISe QD-based photoanodes containing QDs with mono- and bifunctional ligands (Figure 4a). The bare TiO2 anodes were also measured as the control sample. The current-density–voltage curves show that all electrodes produced an anodic photocurrent from −0.2 VRHE with a plateau from 0.2 VRHE. Both photoanodes made using MPA-passivated QDs (denoted as MPA-QD-photoanodes), and OAm-passivated QDs (denoted as OAm-QD-photoanodes) produced much higher photocurrent densities than bare TiO2 photoanodes. The significant enhancement in the photocurrent density demonstrates that both QDs can effectively act as additional light absorbers. The introduction of QDs greatly extended the light absorption range and intensity of TiO2 (Figure 3a), and the photoexcited electrons produced by QDs were transferred from the QDs to TiO2. For photoanodes made with OcAm-, OAc-, and DDT-passivated QDs, the photocurrents were lower than those of MPA-QD-photoanodes or OAm-QD-photoanodes (Figure S9, Supplementary Information). This was attributed to the poor sensitization of the photoanodes because of either poor colloidal stability or too strong passivation of these ligands.
The stability of the photoanodes was also tested at 0.6 VRHE under light irradiation (Figure S10, Supplementary Information). About 36% of the initial photocurrent was maintained after 1 h of operation. It should be noted that increasing the stability of the QD-photoanode is usually related to the structural engineering of QDs or photoanodes rather than surface ligands, which is beyond the scope of the current study. Although the stability of the photoanodes is not as high as those using conventional CdSe QDs with structural optimization [57], we anticipate that this will be improved with future research.
Unexpectedly, the photocurrent density of an OAm-QD-photoanode (~8.2 mA/cm2 at 0.6 VRHE) is clearly higher than that of an MPA-QD-photoanode (~6.7 mA/cm2 at 0.6 VRHE) despite the high QD adsorption of the latter (Figure 4a and Table 1). Generally, the photocurrent density is approximately proportional to the adsorption density of the absorbers because more absorbers can produce more photoexcited electrons. The results suggest that electron transfer between QDs and TiO2 is not as effective for MPA-QD-photoanodes compared to OAm-QD-photoanodes. This is attributed to the different binding mechanisms of the QDs according to the surface ligands. The direct adsorption of Oam-QDs by partial ligand detachment was beneficial for electron transfer between QDs and TiO2. However, although bifunctional ligands were helpful in increasing QD adsorption, they can prevent the effective charge transfer between QDs and TiO2.
To gain a better understanding of the effects of surface ligands on the PEC performance, EIS analysis was performed using the TiO2–QD photoanodes (at 0.6 VRHE in the dark state and under simulated one sun illumination). Nyquist plots (Figure 4b) were fitted using the equivalent circuit model shown in the inset, where RS is the solution resistance, and the RC circuit represents the charge-transfer characteristics of the TiO2–CISe QD photoanodes and the interface between the photoanodes and electrolyte [18,58]. Consequently, Rct is the resistance related to the charge transfer between the photoanodes and the electrolyte. As listed in Table 1, our results show that the Rct of the MPA-QD-photoanodes was higher than that of the OAm-QD-photoanodes despite the high QD adsorption density of the MPA-QD-photoanodes. This was attributed to the presence of organic linkers between the MPA-QDs and TiO2, leading to the poor charge transfer between the QDs and redox couples in the electrolyte. We can expect that the resistance between the QDs and TiO2 is smaller in OAm-QD-photoanodes because of the direct attachment between the inorganic parts of the QDs and TiO2. These results imply that the better charge separation in the OAm-QD-photoanodes compared to that in the MPA-QD-photoanodes results in enhanced hole transfer from the QDs to the redox couples in the electrolyte [18,58]. In addition, the behavior of the resistance at the interface of TiO2–QDs is consistent with a previous spectroscopy study on electron transfer between TiO2 and QDs with controlled surface ligands [59]. In the literature, it was demonstrated that MPA linkers between QDs and TiO2 can inhibit effective electron transfer.
We also analyzed the electron recombination kinetics in the TiO2–QD photoanodes with open-circuit voltage decay (OCVD) analysis, observing the decay of the open circuit voltage (VOC) after turning off the illumination. The OCVD curves showed decay after 20 s in the dark because of charge recombination between the charges from photoanodes and redox couples in the electrolyte (Figure 5a). The VOC of the MPA-QD-photoanodes decayed more rapidly than that of OAm-QD-photoanodes. The electron lifetimes of the photoanodes were calculated from the OCVD data, and the electron lifetime versus voltage curves [60,61] are shown in Figure 5b. It is clear that the electron lifetime of the OAm-QD-photoanodes is longer (i.e., the charge recombination rate is higher) than that of MPA-QD-photoanodes. It is proposed that the organic linker molecules between the QDs and TiO2 in MPA-QD-photoanodes acted as defects [62], while the inorganic cores of QDs and TiO2 formed a direct junction in the OAm-QD-photoanodes. Considering that the major pathway of charge recombination is electron transfer from the TiO2 conduction band to the redox couples in the electrolyte [33,49], these defects at the interface of OAm-QDs and TiO2 can act as recombination centers, leading to inferior PEC performance.
The EIS and OCVD data were consistent with the proposed QD adsorption mechanism of each photoanode: (i) A direct contact was formed between the QDs and TiO2 in OAm-QD-photoanodes, and (ii) the QDs and TiO2 were connected by linker molecules in the MPA-QD-photoanodes. The direct contact between the QDs and TiO2 results in efficient electron transfer between them, which is also consistent with the results of a previous spectroscopy study on electron transfer between TiO2 and QDs with controlled surface ligands [59]. This also leads to enhanced hole transfer between the QDs and redox couples in the electrolyte and an increase in the electron lifetime in the photoanode. These results explain why the OAm-QD-photoanodes produced a high photocurrent despite the lower QD adsorption density. It should also be noted that OAm may not be the optimal surface ligand for PEC using QDs. Our findings imply that electron transfer between the QDs and TiO2 is important for PEC hydrogen production, which requires the careful design of the surface states of QDs.

4. Conclusions

This work studied the effects of the surface ligands of colloidal CISe QDs on the fabrication of PEC photoelectrodes and their resulting PEC characteristics. In particular, OAm- and MPA-passivated CISe QDs were carefully chosen for this investigation to comprehend the effects of mono- and bifunctional ligands on PEC hydrogen production employing CISe QDs. TiO2–QDs photoanodes were prepared by adsorbing QDs onto mesoporous TiO2, and the surface ligands affected the QD adsorption process. Inorganic cores of OAm-passivated QDs were directly adsorbed on TiO2 by partial ligand detachment, which is beneficial for electron transfer from QDs to TiO2. Bifunctional ligands can act as linkers by bridging QDs and TiO2, and the amount of QD adsorption was higher for MPA-passivated QDs than for OAm-passivated QDs. With this tradeoff, OAm-QD-photoanodes and MPA-QD-photoanodes showed current densities of ~8.2 mA/cm2 and ~6.7 mA/cm2, respectively, at 0.6 VRHE under one sun illumination. These findings suggest that not only the QD adsorption density but also the electron transfer between QDs and TiO2 are critical for PEC hydrogen production. Our results highlight the importance of surface-ligand engineering of QDs for effective PEC hydrogen production.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15176010/s1, Figure S1: Tauc Plot. Figure S2: TEM images of CISe QDs. Figure S3: XRD patterns of CISe QDs. Figure S4: Absorption spectra and photographs of QD solutions with various surface ligands. Figure S5: Cross-sectional SEM analysis of OAm-QD-photoanodes. Figure S6: Cross-sectional SEM analysis of MPA-QD-photoanodes. Figure S7: Cyclic voltammograms. Figure S8: Washing tests. Figure S9: Additional J-V curves of QD-photoanodes. Figure S10: J-t plot.

Author Contributions

Conceptualization, J.-Y.K. and J.Y.; methodology, S.I.P. and S.-M.J.; validation, J.-Y.K. and J.Y.; formal analysis, S.I.P. and S.-M.J.; investigation, S.I.P. and S.-M.J.; resources, J.-Y.K. and J.Y.; data curation, S.I.P.; writing—original draft preparation, J.-Y.K. and J.Y.; writing—review and editing, J.-Y.K. and J.Y.; visualization, S.I.P.; supervision, J.-Y.K. and J.Y.; project administration, J.-Y.K. and J.Y.; funding acquisition, J.-Y.K. and J.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (grant no. 2021M3I3A1085039, 2021R1C1C1007844, 2020R1C1C1012014). This work was also supported by the POSCO Science Fellowship of POSCO TJ Park Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nayak, P.K.; Mahesh, S.; Snaith, H.J.; Cahen, D. Photovoltaic Solar Cell Technologies: Analysing the State of the Art. Nat. Rev. Mater. 2019, 4, 269–285. [Google Scholar] [CrossRef]
  2. Wang, H.; Wang, Y.; Xuan, Z.; Chen, T.; Zhang, J.; Hao, X.; Wu, L.; Constantinou, I.; Zhao, D. Progress in Perovskite Solar Cells Towards Commercialization—A Review. Materials 2021, 14, 6569. [Google Scholar] [CrossRef] [PubMed]
  3. Gong, E.; Ali, S.; Hiragond, C.B.; Kim, H.S.; Powar, N.S.; Kim, D.; Kim, H.; In, S.-I. Solar fuels: Research and Development Strategies to Accelerate Photocatalytic CO2 Conversion into Hydrocarbon Fuels. Energy Environ. Sci. 2022, 15, 880–937. [Google Scholar] [CrossRef]
  4. Lee, H.; Kim, S.-S.; Bhang, S.H.; Yu, T. Facile Aqueous-Phase Synthesis of Stabilizer-Free Photocatalytic Nanoparticles. Catalysts 2021, 11, 111. [Google Scholar] [CrossRef]
  5. Hiremath, V.; Deonikar, V.G.; Kim, H.; Seo, J.G. Hierarchically Assembled Porous TiO2 Nanoparticles with Enhanced Photocatalytic Activity Towards Rhodamine-B Degradation. Colloids Surf. A Physicochem. Eng. Asp. 2020, 586, 124199. [Google Scholar] [CrossRef]
  6. Shuai, H.; Wang, J.; Wang, X.; Du, G. Black Talc-Based TiO2/ZnO Composite for Enhanced UV-Vis Photocatalysis Performance. Materials 2021, 14, 6474. [Google Scholar] [CrossRef]
  7. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  8. Jang, Y.J.; Park, Y.B.; Kim, H.E.; Choi, Y.H.; Choi, S.H.; Lee, J.S. Oxygen-Intercalated CuFeO2 Photocathode Fabricated by Hybrid Microwave Annealing for Efficient Solar Hydrogen Production. Chem. Mater. 2016, 28, 6054–6061. [Google Scholar] [CrossRef]
  9. Sivula, K.; van de Krol, R. Semiconducting Materials for Photoelectrochemical Energy Conversion. Nat. Rev. Mater. 2016, 1, 15010. [Google Scholar] [CrossRef]
  10. Kim, J.H.; Hansora, D.; Sharma, P.; Jang, J.-W.; Lee, J.S. Toward Practical Solar Hydrogen Production—An Artificial Photosynthetic Leaf-to-Farm Challenge. Chem. Soc. Rev. 2019, 48, 1908–1971. [Google Scholar] [CrossRef]
  11. Jang, Y.J.; Lee, C.; Moon, Y.H.; Choe, S. Solar-Driven Syngas Production Using Al-Doped ZnTe Nanorod Photocathodes. Materials 2022, 15, 3102. [Google Scholar] [CrossRef] [PubMed]
  12. Shi, X.; Jeong, H.; Oh, S.J.; Ma, M.; Zhang, K.; Kwon, J.; Choi, I.T.; Choi, I.Y.; Kim, H.K.; Kim, J.K.; et al. Unassisted Photoelectrochemical Water Splitting Exceeding 7% Solar-to-Hydrogen Conversion Efficiency Using Photon Recycling. Nat. Commun. 2016, 7, 11943. [Google Scholar] [CrossRef]
  13. Sivasankaran, R.P.; Das, P.K.; Arunachalam, M.; Kanase, R.S.; Park, Y.I.; Seo, J.; Kang, S.H. TiO2 Nanotube Arrays Decorated with Reduced Graphene Oxide and Cu–Tetracyanoquinodimethane as Anode Materials for Photoelectrochemical Water Oxidation. ACS Appl. Nano Mater. 2021, 4, 13218–13233. [Google Scholar] [CrossRef]
  14. Xin, Y.; Li, Z.; Wu, W.; Fu, B.; Zhang, Z. Pyrite FeS2 Sensitized TiO2 Nanotube Photoanode for Boosting Near-Infrared Light Photoelectrochemical Water Splitting. ACS Sustain. Chem. Eng. 2016, 4, 6659–6667. [Google Scholar] [CrossRef]
  15. Gao, X.; Liu, X.; Zhu, Z.; Gao, Y.; Wang, Q.; Zhu, F.; Xie, Z. Enhanced Visible Light Photocatalytic Performance of CdS Sensitized TiO2 Nanorod Arrays Decorated with Au Nanoparticles as Electron Sinks. Sci. Rep. 2017, 7, 973. [Google Scholar] [CrossRef] [PubMed]
  16. Lan, Y.; Liu, Z.; Guo, Z.; Ruan, M.; Li, X. A Promising p-type Co–ZnFe2O4 Nanorod Film as a Photocathode for Photoelectrochemical Water Splitting. Chem. Commun. 2020, 56, 5279–5282. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, G.; Yang, X.; Qian, F.; Zhang, J.Z.; Li, Y. Double-Sided CdS and CdSe Quantum Dot Co-Sensitized ZnO Nnowire Arrays for Photoelectrochemical Hydrogen Generation. Nano Lett. 2010, 10, 1088–1092. [Google Scholar] [CrossRef]
  18. Kim, J.-Y.; Jang, Y.J.; Park, J.; Kim, J.; Kang, J.S.; Chung, D.Y.; Sung, Y.E.; Lee, C.; Lee, J.S.; Ko, M.J. Highly Loaded PbS/Mn-Doped CdS Quantum Dots for Dual Application in Solar-to-Electrical and Solar-to-Chemical Energy Conversion. Appl. Catal. B 2018, 227, 409–417. [Google Scholar] [CrossRef]
  19. Kim, J.H.; Jang, Y.J.; Choi, S.H.; Lee, B.J.; Kim, J.H.; Park, Y.B.; Nam, C.-M.; Kim, H.G.; Lee, J.S. A Multitude of Modifications Strategy of ZnFe2O4 Nanorod Photoanodes for Enhanced Photoelectrochemical Water Splitting Activity. J. Mater. Chem. A 2018, 6, 12693–12700. [Google Scholar] [CrossRef]
  20. Lim, Y.; Lee, S.Y.; Kim, D.; Han, M.-K.; Han, H.S.; Kang, S.H.; Kim, J.K.; Sim, U.; Park, Y.I. Expanded Solar Absorption Spectrum to Improve Photoelectrochemical Oxygen Evolution Reaction: Synergistic Effect of Upconversion Nanoparticles and ZnFe2O4/TiO2. Chem. Eng. J. 2022, 438, 135503. [Google Scholar] [CrossRef]
  21. Ali, A.M.; Sayed, M.A.; Algarni, H.; Ganesh, V.; Aslam, M.; Ismail, A.A.; El-Bery, H.M. Synthesis, Characterization and Photoelectric Properties of Fe2O3 Incorporated TiO2 Photocatalyst Nanocomposites. Catalysts 2021, 11, 1062. [Google Scholar] [CrossRef]
  22. Gawlak, K.; Popiołek, D.; Pisarek, M.; Sulka, G.D.; Zaraska, L. CdS-Decorated Porous Anodic SnOx Photoanodes with Enhanced Performance under Visible Light. Materials 2022, 15, 3848. [Google Scholar] [CrossRef] [PubMed]
  23. Murray, C.B.; Norris, D.J.; Bawendi, M.G. Synthesis and Characterization of Nearly Monodisperse CdE (E = sulfur, selenium, tellurium) Semiconductor Nanocrystallites. J. Am. Chem. Soc. 1993, 115, 8706–8715. [Google Scholar] [CrossRef]
  24. Son, J.S.; Park, K.; Kwon, S.G.; Yang, J.; Choi, M.K.; Kim, J.; Yu, J.H.; Joo, J.; Hyeon, T. Dimension-Controlled Synthesis of CdS Nanocrystals: From 0D Quantum Dots to 2D Nanoplates. Small 2012, 8, 2394–2402. [Google Scholar] [CrossRef] [PubMed]
  25. Yang, J.; Choi, M.K.; Yang, U.J.; Kim, S.Y.; Kim, Y.S.; Kim, J.H.; Kim, D.-H.; Hyeon, T. Toward Full-Color Electroluminescent Quantum Dot Displays. Nano Lett. 2021, 21, 26–33. [Google Scholar] [CrossRef]
  26. Yang, J.; Muckel, F.; Choi, B.K.; Lorenz, S.; Kim, I.Y.; Ackermann, J.; Chang, H.; Czerney, T.; Kale, V.S.; Hwang, S.-J.; et al. Co2+-Doping of Magic-Sized CdSe Clusters: Structural Insights via Ligand Field Transitions. Nano Lett. 2018, 18, 7350–7357. [Google Scholar] [CrossRef]
  27. Xia, C.; Wu, W.; Yu, T.; Xie, X.; van Oversteeg, C.; Gerritsen, H.C.; de Mello Donega, C. Size-Dependent Band-Gap and Molar Absorption Coefficients of Colloidal CuInS2 Quantum Dots. ACS Nano 2018, 12, 8350–8361. [Google Scholar] [CrossRef]
  28. McGuire, J.A.; Joo, J.; Pietryga, J.M.; Schaller, R.D.; Klimov, V.I. New Aspects of Carrier Multiplication in Semiconductor Nanocrystals. Acc. Chem. Res. 2008, 41, 1810–1819. [Google Scholar] [CrossRef]
  29. Semonin, O.E.; Luther, J.M.; Choi, S.; Chen, H.-Y.; Gao, J.; Nozik, A.J.; Beard, M.C. Peak External Photocurrent Quantum Efficiency Exceeding 100% via MEG in a Quantum Dot Solar Cell. Science 2011, 334, 1530–1533. [Google Scholar] [CrossRef]
  30. Panthani, M.G.; Stolle, C.J.; Reid, D.K.; Rhee, D.J.; Harvey, T.B.; Akhavan, V.A.; Yu, Y.; Korgel, B.A. CuInSe2 Quantum Dot Solar Cells with High Open-Circuit Voltage. J. Phys. Chem. Lett. 2013, 4, 2030–2034. [Google Scholar] [CrossRef]
  31. Yang, J.; Kim, J.-Y.; Yu, J.H.; Ahn, T.Y.; Lee, H.; Choi, T.S.; Kim, Y.W.; Joo, J.; Ko, M.J.; Hyeon, T. Copper-Indium-Selenide Quantum Dot-Sensitized Solar Cells. Phys. Chem. Chem. Phys. 2013, 15, 20517–20525. [Google Scholar] [CrossRef] [PubMed]
  32. Draguta, S.; McDaniel, H.; Klimov, V.I. Tuning Carrier Mobilities and Polarity of Charge Transport in Films of CuInSexS2-x Quantum Dots. Adv. Mater. 2015, 27, 1701–1705. [Google Scholar] [CrossRef] [PubMed]
  33. Kim, J.-Y.; Yang, J.; Yu, J.H.; Baek, W.; Lee, C.H.; Son, H.J.; Hyeon, T.; Ko, M.J. Highly Efficient Copper-Indium-Selenide Quantum Dot Solar Cells: Suppression of Carrier Recombination by Controlled ZnS Overlayers. ACS Nano 2015, 9, 11286–11295. [Google Scholar] [CrossRef]
  34. Du, J.; Du, Z.; Hu, J.-S.; Pan, Z.; Shen, Q.; Sun, J.; Long, D.; Dong, H.; Sun, L.; Zhong, X.; et al. Zn–Cu–In–Se Quantum Dot Solar Cells with a Certified Power Conversion Efficiency of 11.6%. J. Am. Chem. Soc. 2016, 138, 4201–4209. [Google Scholar] [CrossRef] [PubMed]
  35. Yoon, S.-Y.; Kim, J.-H.; Jang, E.-P.; Lee, S.-H.; Jo, D.-Y.; Kim, Y.; Do, Y.R.; Yang, H. Systematic and Extensive Emission Tuning of Highly Efficient Cu–In–S-Based Quantum Dots from Visible to Near Infrared. Chem. Mater. 2019, 31, 2627–2634. [Google Scholar] [CrossRef]
  36. Yarema, O.; Yarema, M.; Wood, V. Tuning the Composition of Multicomponent Semiconductor Nanocrystals: The Case of I–III–VI Materials. Chem. Mater. 2018, 30, 1446–1461. [Google Scholar] [CrossRef]
  37. Tong, X.; Kong, X.T.; Zhou, Y.F.; Navarro-Pardo, F.; Selopal, G.S.; Sun, S.H.; Govorov, A.O.; Zhao, H.G.; Wang, Z.M.M.; Rosei, F. Near-Infrared, Heavy Metal-Free Colloidal “Giant” Core/Shell Quantum Dots. Adv. Energy Mater. 2018, 8, 1701432. [Google Scholar] [CrossRef]
  38. Chen, Y.-C.; Chang, H.-H.; Hsu, Y.-K. Synthesis of CuInS2 Quantum Dots/In2S3/ZnO Nanowire Arrays with High Photoelectrochemical Activity. ACS Sustain. Chem. Eng. 2018, 6, 10861–10868. [Google Scholar] [CrossRef]
  39. Kim, J.; Jang, Y.J.; Baek, W.; Lee, A.R.; Kim, J.-Y.; Hyeon, T.; Lee, J.S. Highly Efficient Photoelectrochemical Hydrogen Production Using Nontoxic CuIn1.5Se3 Quantum Dots with ZnS/SiO2 Double Overlayers. ACS Appl. Mater. Interfaces 2022, 14, 603–610. [Google Scholar] [CrossRef]
  40. Lee, J.; Yang, J.; Kwon, S.G.; Hyeon, T. Nonclassical Nucleation and Growth of Inorganic Nanoparticles. Nat. Rev. Mater. 2016, 1, 16034. [Google Scholar] [CrossRef]
  41. Ban, H.W.; Park, S.; Jeong, H.; Gu, D.H.; Jo, S.; Park, S.H.; Park, J.; Son, J.S. Molybdenum and Tungsten Sulfide Ligands for Versatile Functionalization of All-Inorganic Nanocrystals. J. Phys. Chem. Lett. 2016, 7, 3627–3635. [Google Scholar] [CrossRef] [PubMed]
  42. Yang, J.; Fainblat, R.; Kwon, S.G.; Muckel, F.; Yu, J.H.; Terlinden, H.; Kim, B.H.; Iavarone, D.; Choi, M.K.; Kim, I.Y.; et al. Route to the Smallest Doped Semiconductor: Mn2+-Doped (CdSe)13 Clusters. J. Am. Chem. Soc. 2015, 137, 12776–12779. [Google Scholar] [CrossRef] [PubMed]
  43. Pu, C.; Dai, X.; Shu, Y.; Zhu, M.; Deng, Y.; Jin, Y.; Peng, X. Electrochemically-Stable Ligands Bridge the Photoluminescence-Electroluminescence Gap of Quantum Dots. Nat. Commun. 2020, 11, 937. [Google Scholar] [CrossRef] [PubMed]
  44. Kagan, C.R.; Lifshitz, E.; Sargent, E.H.; Talapin, D.V. Building Devices from Colloidal Quantum Dots. Science 2016, 353, aac5523. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, J.; Choi, M.K.; Kim, D.-H.; Hyeon, T. Designed Assembly and Integration of Colloidal Nanocrystals for Device Applications. Adv. Mater. 2016, 28, 1176–1207. [Google Scholar] [CrossRef]
  46. Zhang, H.; Cheng, K.; Hou, Y.M.; Fang, Z.; Pan, Z.X.; Wu, W.J.; Hua, J.L.; Zhong, X.H. Efficient CdSe Quantum Dot-Sensitized Solar Cells Prepared by Postsynthesis Assembly Approach. Chem. Commun. 2012, 48, 11235–11237. [Google Scholar] [CrossRef]
  47. Kazmerski, L.L.; Jamjoum, O.; Ireland, P.J.; Deb, S.K.; Mickelsen, R.A.; Chen, W. Initial Oxidation of CuInSe2. J. Vac. Sci. Technol. 1981, 19, 467–471. [Google Scholar] [CrossRef]
  48. Kuznetsov, M.V.; Shalaeva, E.V.; Yakushev, M.V.; Tomlinson, R.D. Evolution of CuInSe2 (112) Surface Due to Annealing: XPS study. Surf. Sci. 2003, 530, L297–L301. [Google Scholar] [CrossRef]
  49. Mora-Sero, I.; Gimenez, S.; Fabregat-Santiago, F.; Gomez, R.; Shen, Q.; Toyoda, T.; Bisquert, J. Recombination in Quantum Dot Sensitized Solar Cells. Acc. Chem. Res. 2009, 42, 1848–1857. [Google Scholar] [CrossRef]
  50. Guijarro, N.; Lana-Villarreal, T.; Mora-Sero, I.; Bisquert, J.; Gomez, R. CdSe Quantum Dot-Sensitized TiO2 Electrodes: Effect of Quantum Dot Coverage and Mode of Attachment. J. Phys. Chem. C 2009, 113, 4208–4214. [Google Scholar] [CrossRef]
  51. Du, J.; Singh, R.; Fedin, I.; Fuhr, A.S.; Klimov, V.I. Spectroscopic Insights into High Defect Tolerance of Zn: CuInSe2 Quantum-Dot-Sensitized Solar Cells. Nat. Energy 2020, 5, 409–417. [Google Scholar] [CrossRef]
  52. Biesinger, M.C. Accessing the Robustness of Adventitious Carbon for Charge Referencing (Correction) Purposes in XPS Analysis: Insights from a Multi-User Facility Data Review. Appl. Surf. Sci. 2022, 597, 153681. [Google Scholar] [CrossRef]
  53. Chang, S.-H.; Chiang, M.-Y.; Chiang, C.-C.; Yuan, F.-W.; Chen, C.-Y.; Chiu, B.-C.; Kao, T.-L.; Lai, C.-H.; Tuan, H.-Y. Facile Colloidal Synthesis of Quinary CuIn1−xGax(SySe1−y)2 (CIGSSe) Nanocrystal Inks with Tunable Band Gaps for Use in Low-Cost Photovoltaics. Energy Environ. Sci. 2011, 4, 4929–4932. [Google Scholar] [CrossRef]
  54. Pan, Z.; Mora-Seró, I.; Shen, Q.; Zhang, H.; Li, Y.; Zhao, K.; Wang, J.; Zhong, X.; Bisquert, J. High-Efficiency “Green” Quantum Dot Solar Cells. J. Am. Chem. Soc. 2014, 136, 9203–9210. [Google Scholar] [CrossRef] [PubMed]
  55. Brown, P.R.; Kim, D.; Lunt, R.R.; Zhao, N.; Bawendi, M.G.; Grossman, J.C.; Bulović, V. Energy Level Modification in Lead Sulfide Quantum Dot Thin Films Through Ligand Exchange. ACS Nano 2014, 8, 5863–5872. [Google Scholar] [CrossRef] [PubMed]
  56. Wang, W.; Jiang, G.; Yu, J.; Wang, W.; Pan, Z.; Nakazawa, N.; Shen, Q.; Zhong, X. High Efficiency Quantum Dot Sensitized Solar Cells Based on Direct Adsorption of Quantum Dots on Photoanodes. ACS Appl. Mater. Interfaces 2017, 9, 22549–22559. [Google Scholar] [CrossRef]
  57. Wang, K.; Tong, X.; Zhou, Y.F.; Zhang, H.; Navarro-Pardo, F.; Selopal, G.S.; Liu, G.J.; Tang, J.; Wang, Y.Q.; Sun, S.H.; et al. Efficient Solar-Driven Hydrogen Generation Using Colloidal Heterostructured Quantum Dots. J. Mater. Chem. A 2019, 7, 14079–14088. [Google Scholar] [CrossRef]
  58. Li, F.; Zhang, M.; Benetti, D.; Shi, L.; Besteiro, L.V.; Zhang, H.; Liu, J.; Selopal, G.S.; Sun, S.; Wang, Z.; et al. “Green”, Gradient Multi-Shell CuInSe2/(CuInSexS1-x)5/CuInS2 Quantum Dots for Photo-Electrochemical Hydrogen Generation. Appl. Catal. B 2021, 280, 119402. [Google Scholar] [CrossRef]
  59. Hines, D.A.; Kamat, P.V. Quantum Dot Surface Chemistry: Ligand Effects and Electron Transfer Reactions. J. Phys. Chem. C 2013, 117, 14418–14426. [Google Scholar] [CrossRef]
  60. Liu, D.; Liu, J.-C.; Cai, W.; Ma, J.; Yang, H.B.; Xiao, H.; Li, J.; Xiong, Y.; Huang, Y.; Liu, B. Selective Photoelectrochemical Oxidation of Glycerol to High Value-Added Dihydroxyacetone. Nat. Commun. 2019, 10, 1779. [Google Scholar] [CrossRef] [Green Version]
  61. Kang, S.H.; Kim, J.-Y.; Kim, Y.; Kim, H.S.; Sung, Y.-E. Surface Modification of Stretched TiO2 Nanotubes for Sold-State Dye-Sensitized Solar Cells. J. Phys. Chem. C 2007, 111, 9614–9623. [Google Scholar] [CrossRef]
  62. Nevins, J.S.; Coughlin, K.M.; Watson, D.F. Attachment of CdSe Nanoparticles to TiO2 via Aqueous Linker-Assisted Assembly: Influence of Molecular Linkers on Electronic Properties and Interfacial Electron Transfer. ACS Appl. Mater. Interfaces 2011, 3, 4242–4253. [Google Scholar] [CrossRef] [PubMed]
Materials 15 06010 g001 550
Figure 1. (a) TEM image of 4 nm-sized CISe QDs. Inset: histogram of the size distribution of the QDs (n = 100). (b) XRD pattern of CISe QDs. The reference XRD data of bulk chalcopyrite CuInSe2 crystals are also shown (JCPDS No.: 00-040-1487). (c) Absorption spectrum of CISe QDs. XPS spectra of (d) Cu, (e) In, and (f) Se from the CISe QDs.
Figure 1. (a) TEM image of 4 nm-sized CISe QDs. Inset: histogram of the size distribution of the QDs (n = 100). (b) XRD pattern of CISe QDs. The reference XRD data of bulk chalcopyrite CuInSe2 crystals are also shown (JCPDS No.: 00-040-1487). (c) Absorption spectrum of CISe QDs. XPS spectra of (d) Cu, (e) In, and (f) Se from the CISe QDs.
Materials 15 06010 g001
Materials 15 06010 g002 550

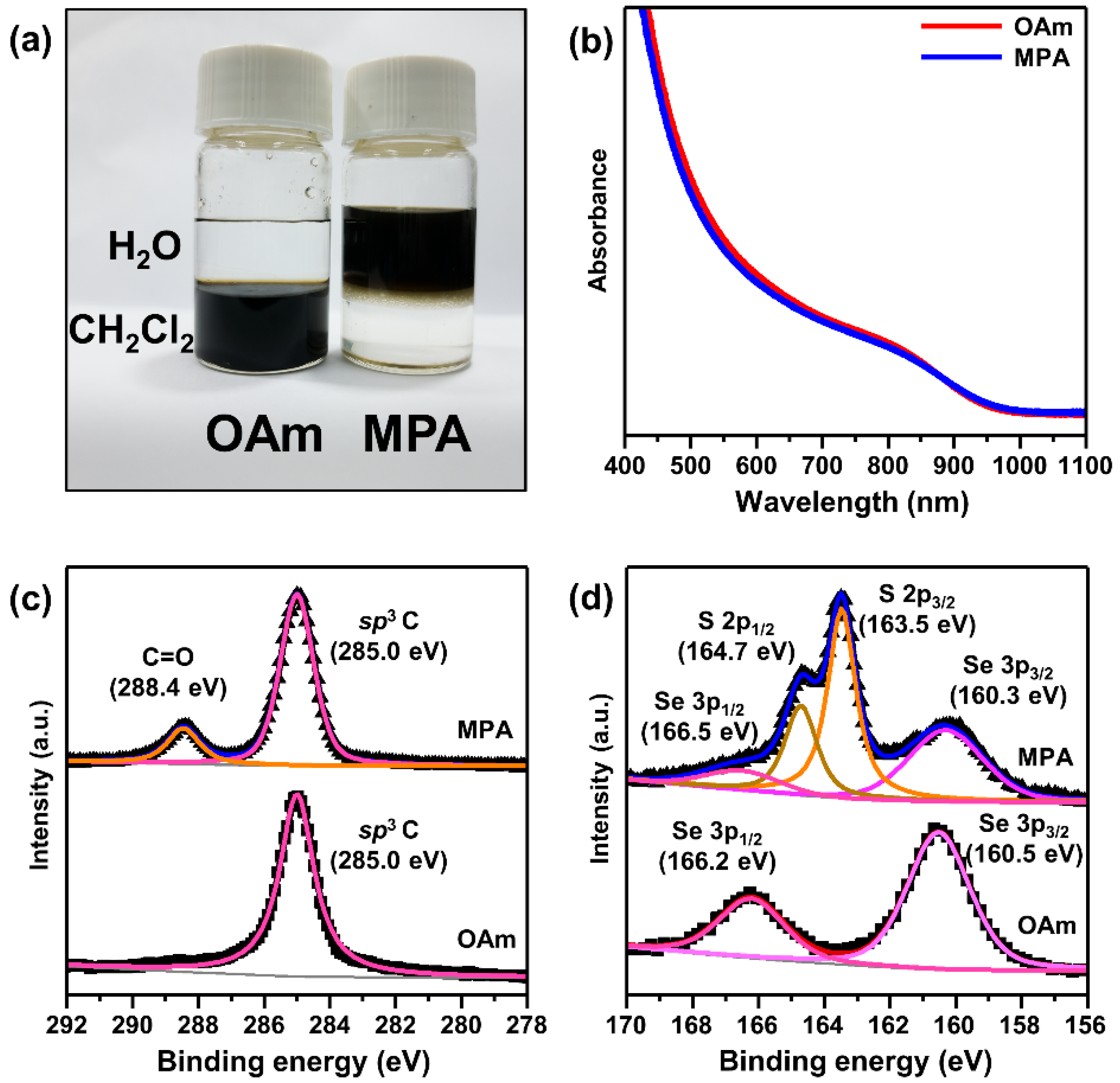

Figure 2. (a) Photograph of the two-phase ligand-exchange process. The bottom and top liquid layers are dichloromethane and water, respectively. OAm- and MPA-passivated QDs can be dispersed in dichloromethane and water, respectively. (b) Comparison of the absorption spectra of OAm- and MPA-passivated CISe QDs. XPS data for (c) C 1s and (d) S 2p, showing comparison between OAm- and MPA-passivated CISe QDs.
Figure 2. (a) Photograph of the two-phase ligand-exchange process. The bottom and top liquid layers are dichloromethane and water, respectively. OAm- and MPA-passivated QDs can be dispersed in dichloromethane and water, respectively. (b) Comparison of the absorption spectra of OAm- and MPA-passivated CISe QDs. XPS data for (c) C 1s and (d) S 2p, showing comparison between OAm- and MPA-passivated CISe QDs.
Materials 15 06010 g002
Materials 15 06010 g003 550
Figure 3. (a) Absorption spectra of bare and QD-sensitized TiO2 films using CISe QDs with various surface ligands. (b) Photographs of (top) bare, OAm-, MPA-, (middle) DDT-, OAc-, OcAm-passivated CISe QD-sensitized TiO2 films, and (bottom) CISe QD-sensitized TiO2 films made from MPA-passivated QDs as a function of the pH of the QD solution. (c) Schematic illustration showing the CISe QD-sensitized TiO2 film and the two different adsorption mechanisms of QDs.
Figure 3. (a) Absorption spectra of bare and QD-sensitized TiO2 films using CISe QDs with various surface ligands. (b) Photographs of (top) bare, OAm-, MPA-, (middle) DDT-, OAc-, OcAm-passivated CISe QD-sensitized TiO2 films, and (bottom) CISe QD-sensitized TiO2 films made from MPA-passivated QDs as a function of the pH of the QD solution. (c) Schematic illustration showing the CISe QD-sensitized TiO2 film and the two different adsorption mechanisms of QDs.
Materials 15 06010 g003
Materials 15 06010 g004 550

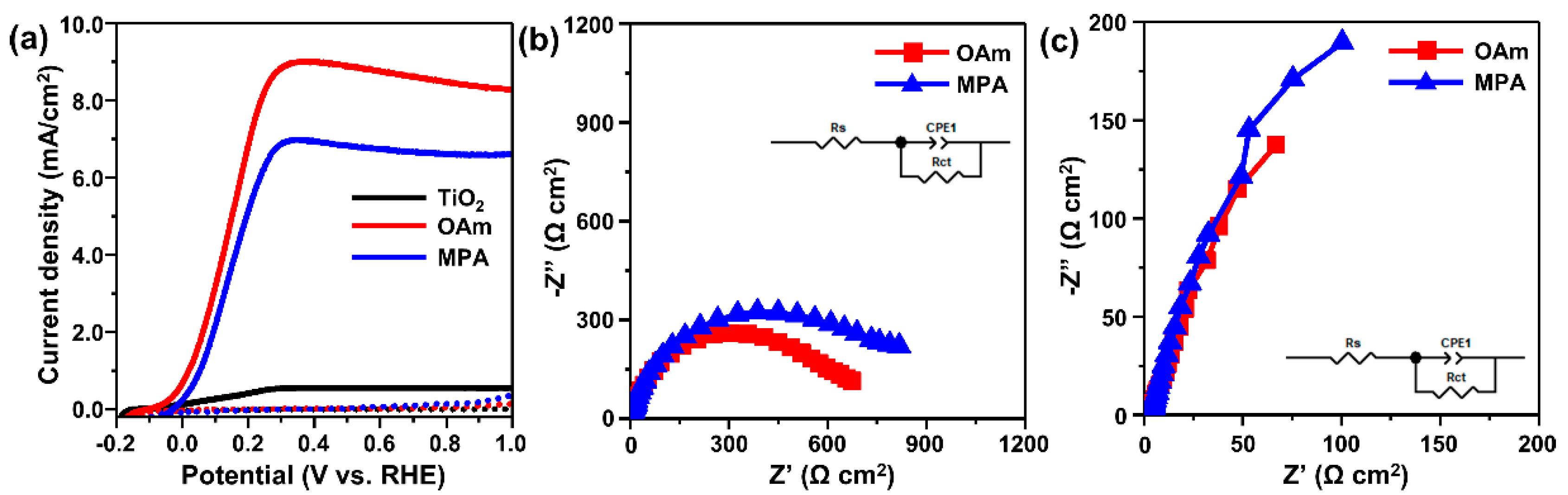

Figure 4. (a) J-V curves of an OAm-QD-photoanode, MPA-QD-photoanode, and TiO2 control under continuous one sun illumination (solid lines) and in the dark (dashed lines). Nyquist plots of TiO2–CISe QD photoanodes (b) in the dark and (c) under one sun illumination. The insets show the equivalent circuit model.
Figure 4. (a) J-V curves of an OAm-QD-photoanode, MPA-QD-photoanode, and TiO2 control under continuous one sun illumination (solid lines) and in the dark (dashed lines). Nyquist plots of TiO2–CISe QD photoanodes (b) in the dark and (c) under one sun illumination. The insets show the equivalent circuit model.
Materials 15 06010 g004
Materials 15 06010 g005 550
Figure 5. (a) OCVD curves and (b) electron lifetime as a function of VOC for OAm-QD-photoanode and MPA-QD-photoanode.
Figure 5. (a) OCVD curves and (b) electron lifetime as a function of VOC for OAm-QD-photoanode and MPA-QD-photoanode.
Materials 15 06010 g005
Table
Table 1. Summary of J–V characteristics and impedance analysis for TiO2—QDs photoanodes.
Table 1. Summary of J–V characteristics and impedance analysis for TiO2—QDs photoanodes.
SampleCurrent Density (mA/cm2)Dark Rs
(Ω cm2)		Dark Rct
(Ω cm2)		Light Rs
(Ω cm2)		Light Rct
(Ω cm2)
OAm-QD-photoanode8.2364.25660.83.211041
MPA-QD-photoanode6.7403.37857.23.231180
All data were measured at 0.6 VRHE.
