Lattice Distortion, Amorphization and Wear Resistance of Carbon-Doped SUS304 by Laser Ablation

by
Seonghoon Kim
1,
Taewoo Kim
2,
Eunpyo Hong
3 and
Heesoo Lee
1,*
1
School of Materials Science and Engineering, Pusan National University, Busan 46241, Korea
2
System & Energy Division Material Technology Center, Korea Testing Laboratory, Seoul 08389, Korea
3
Mechanical & Material Technology Center, Korea Testing Laboratory, Jinju 52852, Korea
*
Author to whom correspondence should be addressed.
Materials 2022, 15(16), 5764; https://doi.org/10.3390/ma15165764
Submission received: 26 July 2022 / Revised: 6 August 2022 / Accepted: 13 August 2022 / Published: 20 August 2022
(This article belongs to the Topic Laser Surface Modification of Cemented Carbides, Superalloys, Composites, and Alloys)
Browse Figures
Review Reports Versions Notes

Abstract

:
Lattice distortion and amorphization of carbon-doped SUS304 by variation of the laser output were investigated in terms of phase formation and the bonding state. The laser output was changed by 10% in the range of 60% to 100% after covering the SUS304 with carbon paste. A graphite peak and expanded austenite (S-phase) peak were observed in the carbon-doped SUS304, and Rietveld refinement was performed to identify the lattice distortion. The lattice constant of SUS304 was initially 3.612 Å, but expansion lattice distortion occurred in the carbon-doped SUS304 as a result of the S phase formation and carbon doping, and the lattice constant increased to 3.964 Å (100% laser output). X-ray photoelectron spectroscopy analysis for the bonding state of the carbon-doped SUS304 showed that the sp2/sp3 ratio decreased from 3.21 (70% laser output) to 2.52 (100% laser output). The residual stress in the lattice was accumulated due to carbon doping by high thermal energy, which resulted in the formation of amorphous carbon. The bonding environment was represented by the ID/IG ratio using Raman analysis, and it increased from 0.55 (70% laser output) to 1.68 (100% laser output). During microstructure analysis of the carbon-doped SUS304, disordered structures by amorphization were observed in the carbon-doped SUS304 by the greater than 90% laser output. The amorphous carbon filled the lattice grains or voids to lubricate the surface, which improved the friction coefficient and wear rate from 0.23 and 7.63 mm3(Nm)−110−6 to 0.09 and 1.43 mm3(Nm)−110−6, respectively.

1. Introduction

SUS304, an austenitic stainless steel alloy containing Ni and Cr, has excellent corrosion resistance and thermal stability. It has been used in various industries such as automobile, aerospace, and chemical plants. However, its relatively low surface hardness is susceptible to wear, and pitting corrosion occurs in a seawater atmosphere [1,2]. Some studies have been conducted on surface-hardening mechanisms, such as carburization, nitriding, and carbonitriding. [3,4]. Baranowska et al. discussed microstructural and morphological changes in low-temperature gas carbonitrided layers on austenitic stainless steel depending on the process parameters. [5]. You et al. adjusted mechanical properties by setting the atomistic diffusion mechanism of rare earth carburizing and nitriding on iron-based alloy [6].
Carbon diffuses on the surface of low-carbon steel and forms a high-carbon alloy layer during carburization in SUS304, improving the mechanical properties of the surface [7,8]. Low-temperature plasma carburizing is a representative metal carburizing process that enhances its hardness and fatigue properties by over-dissolving carbon in the austenite lattice without precipitation of CrN and CrC [9,10,11]. However, when the low-temperature plasma carburizing process is performed, the improvement of the friction coefficient is insufficient. Therefore, methods for improving the wear resistance of austenitic stainless steel have been actively studied [12,13].
Laser carburization is a surface modification process used in various fields to improve the mechanical properties of materials. The thermal energy of the laser is the energy source for carbon diffusion when the carbon is doped by the laser [14,15]. When the laser power is increased, amorphous carbon is formed in the austenite lattice due to the accumulation of heat and stress, along with carbon doping by diffusion [16,17]. Amorphous carbon (a-C) is chemically inert and can act as solid lubricant, preventing crack propagation due to hybridization in the austenite lattice and an improved hardness. Some studies on the amorphization of steel containing unusual alloying elements such as Y, Zr, and B have been conducted. Research on the amorphization of stainless steel has been also spotlighted in terms of friction, wear, and corrosion [18,19,20]. Yang et al. discussed the mechanical and tribological properties of the catalytic growth of diamond-like carbon on Fe3C containing a carburized layer. [21]. Dalibón et al. confirmed the chemical microstructure and tribological properties of thick and soft DLC coatings deposited on plasma-nitrided austenitic stainless steel. [22].
We investigated the lattice distortion and amorphization of carbon-doped SUS304 by variation of laser output. The phase formation and lattice constant were analyzed using X-ray diffraction analysis and the Rietveld refinement method. X-ray photoelectron spectroscopy, Raman spectroscopy, and transmission electron microscopy were performed to confirm the bonding environment of carbon by laser output. The variation in the wear resistance was identified by measuring the friction coefficient and the wear rate of carbon-doped SUS304 using the ball-on-disc test.

2. Materials and Methods

The surface of SUS304 was cleaned using ultrasonification and ethanol to improve the adhesion of the carbon paste by removing any contamination before deposition. Carbon paste was mixed with graphite powder (20 µm) and polyvinylidene fluoride (PVDF) at a wt% ratio of 9:1, and the mixed powder and solvent (1-Methyl-2-pyrrolidinone) were mixed in a ratio of 1:2 wt% to control the viscosity of the carbon paste. The carbon paste was covered on SUS304 using screen printing and dried at 80 °C to the improve adhesion. Carburization on the surface of SUS304 was performed using an Nd:YAG pulsed laser ablation system (LSX-213) (Figure 1). The laser was irradiated 10 times with a wavelength of 213 nm, a frequency of 10 Hz, and spot distance of 200 µm and 250 µm. The laser output was changed to 60% (2.81 mJ), 70% (3.26 mJ), 80% (3.71 mJ), 90% (4.14 mJ), and 100% (4.61 mJ), and the carbon paste remaining on the surface was removed with an ultrasonic wave, acetone, and ethanol after laser carburization.
The crystallographic change was analyzed using an X-ray diffractometer (Rigaku, Ultima-IV, Tokyo, Japan) with a Cu target at 0.02°/2θ step from 20° to 80° at 1° per minute. The gradient of diagram (variation in 2θ as a function of sin2Ψ) required for the calculation of the residual stress was obtained by varying the stress on a specific plane by changing the Ψ angle from 0° to 50°. The lattice constant was calculated by Rietveld refinement through X’pert High Score (Panalytical, Almelo, The Netherlands). X-ray photoelectron spectroscopy (ESCALAB250, VG Scientific, Waltham, MA, USA) was carried out for the chemical characterization of the samples with an MXR1 gun 400 µm-15 kV spectrometer with an Al Kα source at the KBSi Busan Center. The bonding configuration analysis was performed by Raman spectroscopy (Vertex 80 V, Bruker, Billerica, MA, USA). For the microstructure analysis, the specimens were prepared using a Focused Ion Beam (FIB, Helios G4 UC, Thermo Fisher Scientific, Waltham, MA, USA), and the cross-section of the coatings was observed with TEM (Cs-TEM, Titan Themis Z, Thermo Fisher Scientific, Waltham, MA, USA). The friction coefficients and wear rate were measured by the ISO 20808 standard test method using a ball-on-disc system (NEO-Tribo Multi-Purpose Wear Test System, Neoplus Inc., Dajeon, Korea) [23].

3. Results and Discussion

Figure 2 shows the structure analysis of the carbon-doped SUS304 by variation of laser output. At 60% laser output, the phase formation and peak shift could not be observed by low thermal energy. From 70% laser output, the formation of the expanded austenite (S-phase) by carburization was confirmed through the shift in the austenite (111) peak to a low angle with the graphite peak. Table 1 compared the lattice distortion after carbon doping by Rietveld refinement, and the lattice constant increased with the laser output. It is considered that the expansion of the lattice distortion occurred due to carbon doping in the faced-centered cubic (FCC) structure of SUS304 and the formation of metastable supersaturated expanded austenite [24,25].
Figure 3 shows the result of the XPS C 1s diffraction pattern, with the variation in the bonding state of carbon-doped SUS304. The lowest energy peak (283.0 eV) corresponded to the carbide (Fe-C or Cr-C) peak, and 284.5 eV and 286.2 eV represented sp2 and sp3 bonds, respectively [26,27]. The 290.4 eV revealed a CF bond with fluorine in the carbon paste. At a low laser output, the sp2 bond with a low bonding strength was dominant, so carbide formation continued to increase corresponding to the increase in laser output. The solid solution limit of carbon was exceeded after reaching 90% laser output, and amorphous carbon started to form in the vacancy or gain of the carbon-doped SUS304. As a result of calculating the sp2/sp3 ratio, it showed 3.21 at 70% laser output, while it gradually decreased as the laser output increased, representing 2.67 and 2.52 at 90 and 100% laser output, respectively. It was revealed that amorphous carbon was formed due to the accumulation of residual stress forming inside the lattice by high thermal energy and carbon doping [28,29]. However, in 100% laser output, carbon hydroxides were observed by the inflow of excessive thermal energy, and deterioration occurred in the SUS304 (Table 2).
The bonding environment of the carbon-doped SUS304 was analyzed using Raman spectroscopy. The D band (1320 to 1350 cm−1) in the Raman spectrum indicates a defect or disorder and corresponds to atoms moving in radial directions in the lattice. The G band (1500 to 1600 cm−1) means in-plane vibration of sp2 hybridized bonds and corresponds to neighboring atoms moving in opposite directions perpendicular to the plane of the lattice [30,31]. In Figure 4, the peak intensity of the D band increased with the variation in laser output, but the peak intensity of the G band showed the opposite flow, which decreased with the laser output. Table 3 reveals the result of calculating the ID/IG ratio of carbon-doped SUS304, and it was increased from 0.68 (70% laser output) with carbon doping and indicated a maximum value of 1.68 at 100% laser output. It was represented that the sp2 configuration predominated at the low laser output and was preferred for bond formation as it was more stable. When the laser output was changed from 80% to 90%, the ID/IG ratio increased by 45%. Amorphization of carbon-doped SUS304 occurred due to the graphitization and the increase in defects with disordering.
Figure 5 represents a cross-section in TEM images to understand the microstructure of the SUS304 and carbon-doped SUS304 by laser carburization. Figure 5b–e show the microstructure of carbon-doped SUS304 at 70%, 80%, 90%, and 100% laser output, respectively. In Figure 5b,c, the carbon-doped SUS304 has an ordered lattice structure due to the low laser output. However, in Figure 5d,e, a disordered lattice structure appeared due to high laser output, and it was confirmed that amorphization occurred in the carbon-doped SUS304 corresponding the Raman analysis.
Figure 6 reveals the results of the friction coefficient and wear rate of the carbon-doped SUS304 using a ball-on-disc tester to confirm the variation in wear resistance before and after laser carburization. The friction coefficient decreased from 0.23 (60%) to 0.2 (80%), 0.09 (90%), and 0.12 (100%) respectively, and the wear rate was 7.63 mm3(Nm)−110−6 (70%), 6.76 mm3(Nm)−110−6 (80%), 2.07 mm3(Nm)−110−6 (90%), and 2.45 mm3(Nm)−110−6 (100%). In the low range of the laser output (70, 80%), it is judged that the tribological properties decreased due to the distortion of the lattice due to the formation of S-phase in carbon-doped SUS304 and the improvement in the residual stress and hardness. However, in the high range of the laser output (90, 100%), it is considered that the tribological properties were reduced because the formed amorphous carbon filled the grains or voids in the lattice, and the surface was lubricated. The decrease in wear resistance at 100% laser output compared to 90% laser output is due to the formation of carbon hydroxides by the inflow of excessive thermal energy [32,33].

4. Conclusions

We investigated the lattice distortion, amorphization, and wear resistance of carbon-doped SUS304 by varying the laser output. The laser output was increased by 10% in the range from 60% to 100%. The diffraction peaks of graphite and the S-phase were formed after carburization, and the lattice constant increased from 3.612 Å to 3.964 Å, indicating the expansion lattice distortion. At a low laser output, the sp2 bond with low bonding strength was dominant, but the solid solution limit of carbon was exceeded after reaching 90% laser output, and amorphous carbon began to form in the vacancy or grain of the carbon-doped SUS304. The ID/IG ratio calculated with Raman analysis increased from 0.68 (70% laser output) to 1.68 (100% laser output), which indicated that amorphization of carbon occurred due to the accumulation of the thermal energy and residual stress formed in the carbon-doped SUS304. For TEM analysis, the microstructure of the carbon-doped SUS304 became disordered as the laser output increased. The friction coefficient and wear rate were measured to confirm the wear resistance and improved from 0.23 and 7.63 mm3(Nm)−110−6 to 0.09 and 1.43 mm3(Nm)−110−6, respectively.

Author Contributions

Conceptualization, S.K., E.H. and H.L.; Formal analysis, S.K.; Funding acquisition, H.L.; Investigation, S.K.; Methodology, S.K. and T.K.; Project administration, H.L.; Resources, H.L.; Writing—original draft, S.K., T.K. and E.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Institute for Advancement of Technology (KIAT) grant funded by the Korea Government (MOTIE) (P0008335, The Competency Development Program for Industry specialist). This research was supported by the BK21 FOUR Program (NO.4120200513801) funded by the Ministry of Education (MOE, Korea) and National Research Foundation of Korea (NRF).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

This work was supported by Korea Institute for Advancement of Technology (KIAT) grant funded by the Korea Government (MOTIE) (P0008335, The Competency Development Program for Industry specialist). This research was supported by the BK21 FOUR Program (NO.4120200513801) funded by the Ministry of Education (MOE, Korea) and National Research Foundation of Korea (NRF).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Choi, J.Y.; Fukuda, T.; Kakeshita, T. Effect of magnetic field on isothermal martensitic transformation in a sensitized SUS304 austenitic stainless steel. J Alloys Compd. 2019, 577, S605–S608. [Google Scholar] [CrossRef]
  2. Chan, J.W.; Chu, D.; Sunwoo, A.J.; Morris, J.W. Metastable austenites in cryogenic high magnetic field environments. Materials 1992, 55–59. [Google Scholar] [CrossRef] [Green Version]
  3. Egawa, M.; Ueda, N.; Nakata, K.; Tsujikawa, M.; Tanaka, M. Effect of additive alloying element on plasma nitriding and carburizing behavior for austenitic stainless steels. Surf. Coat. Technol. 2010, 205, S246–S251. [Google Scholar] [CrossRef]
  4. Bell, T.; Li, C.X. Stainless steel low temperature nitriding and carburizing: Low-temperature nitriding and carburizing of austenitic stainless steels have been developed and are rapidly gaining acceptance for improving resistance to wear and corrosion. Adv. Mater. Process. 2002, 160, 49–52. [Google Scholar]
  5. Kochmański, P.; Baranowska, J.; Fryska, S. Microstructure of low-temperature gas-carbonitrided layers on austenitic stainless steel. Metals 2019, 9, 817. [Google Scholar] [CrossRef] [Green Version]
  6. You, Y.; Yan, J.; Yan, M. Atomistic diffusion mechanism of rare earth carburizing/nitriding on iron-based alloy. Appl. Surf. Sci. 2019, 484, 710–715. [Google Scholar] [CrossRef]
  7. Tsujikawa, M.; Egawa, M.; Ueda, N.; Okamoto, A.; Sone, T.; Nakata, K. Effect of molybdenum and copper on S-phase layer thickness of low-temperature carburized austenitic stainless steel. Surf. Coat. Technol. 2008, 202, 5488–5492. [Google Scholar] [CrossRef]
  8. Liu, B.X.; Yin, F.X.; Dai, X.L.; He, J.N.; Fang, W.; Chen, C.X.; Dong, Y.C. The tensile behaviors and fracture characteristics of stainless steel clad plates with different interfacial status. J. Mater. Sci. Eng. A 2017, 679, 172–182. [Google Scholar] [CrossRef]
  9. Souza, R.M.D.; Ignat, M.; Pinedo, C.E.; Tschiptschin, A.P. Structure and properties of low temperature plasma carburized austenitic stainless steels. Surf. Coat. Technol. 2009, 204, 1102–1105. [Google Scholar] [CrossRef]
  10. Scheuer, C.J.; Cardoso, R.P.; Pereira, R.; Mafra, M.; Brunatto, S.F. Low temperature plasma carburizing of martensitic stainless steel. J. Mater. Sci. Eng. A 2012, 539, 369–372. [Google Scholar] [CrossRef]
  11. Tsujikawa, M.; Noguchi, S.; Yamauchi, N.; Ueda, N.; Sone, T. Effect of molybdenum on hardness of low-temperature plasma carburized austenitic stainless steel. Surf. Coat. Technol. 2007, 201, 5102–5107. [Google Scholar] [CrossRef]
  12. Rovani, A.C.; Breganon, R.; de Souza, G.S.; Brunatto, S.F.; Pintaúde, G. Scratch resistance of low-temperature plasma nitrided and carburized martensitic stainless steel. Wear 2017, 376, 70–76. [Google Scholar] [CrossRef]
  13. Ren, Z.; Eppell, S.; Collins, S.; Ernst, F. Co–Cr–Mo alloys: Improved wear resistance through low-temperature gas-phase nitro-carburization. Surf. Coat. Technol. 2019, 378, 124943. [Google Scholar] [CrossRef]
  14. Courant, B.; Hantzpergue, J.J.; Avril, L.; Benayoun, S. Structure and hardness of titanium surfaces carburized by pulsed laser melting with graphite addition. J. Mater. Process. Technol. 2005, 160, 374–381. [Google Scholar] [CrossRef] [Green Version]
  15. Kim, T.; Lee, J.; Kim, S.; Hong, E.; Lee, H. Hydrogen permeation barrier of carbon-doped TiZrN coatings by laser carburization. Corros. Sci. 2021, 190, 109700. [Google Scholar] [CrossRef]
  16. Valentini, L.; Di Schino, A.; Kenny, J.M.; Gerbig, Y.; Haefke, H. Influence of grain size and film composition on wear resistance of ultra fine grained AISI 304 stainless steel coated with amorphous carbon films. Wear 2002, 253, 458–464. [Google Scholar] [CrossRef]
  17. Alentini, L.; Di Schino, A.; Kenny, J.M.; La Rosa, S.; Lozzi, L.; Santucci, S.; Bregliozzi, G.; Gerbig, Y.; Haefke, H. Wear resistance of fine-grained high nitrogen austenitic stainless steel coated with amorphous carbon films: The soft X-ray spectroscopy approach. Tribol. Lett. 2004, 16, 51–58. [Google Scholar] [CrossRef]
  18. Yang, Y.; Yan, M.F.; Zhang, Y.X.; Zhang, C.S.; Wang, X.A. Self-lubricating and anti-corrosion amorphous carbon/Fe3C composite coating on M50NiL steel by low temperature plasma carburizing. Surf. Coat. Technol. 2016, 304, 142–149. [Google Scholar] [CrossRef]
  19. Rotundo, F.; Ceschini, L.; Martini, C.; Montanari, R.; Varone, A. High temperature tribological behavior and microstructural modifications of the low-temperature carburized AISI 316L austenitic stainless steel. Surf. Coat. Technol. 2014, 258, 772–781. [Google Scholar] [CrossRef]
  20. Angelini, V.; Boromei, I.; Martini, C.; Scheuer, C.J.; Cardoso, R.P.; Brunatto, S.F.; Ceschini, L. Dry sliding behavior (block-on-ring tests) of AISI 420 martensitic stainless steel, surface hardened by low temperature plasma-assisted carburizing. Tribol. Inter. 2019, 103, 555–565. [Google Scholar] [CrossRef]
  21. Yang, Y.; Yan, M.F.; Zhang, Y.X.; Li, D.Y.; Zhang, C.S.; Zhu, Y.D.; Wang, Y.X. Catalytic growth of diamond-like carbon on Fe3C-containing carburized layer through a single-step plasma-assisted carburizing process. Carbon 2017, 122, 1–8. [Google Scholar] [CrossRef]
  22. Dalibón, E.L.; Heim, D.; Forsich, C.; Rosenkranz, A.; Guitar, M.A.; Brühl, S.P. Characterization of thick and soft DLC coatings deposited on plasma nitrided austenitic stainless steel. Diam. Relat. Mater. 2015, 59, 73–79. [Google Scholar] [CrossRef]
  23. ISO 20808; ISO Standard, Fine Ceramics (Advanced ceramics, Advanced Technical Ceramics)—Determination of Friction and Wear Characteristics of Monolithic Ceramics by Ball-on-Disc Method. ISO: Geneva, Switzerland, 2016.
  24. Wu, W.; Li, X.; Chen, J.; Dong, H. Design and characterisation of an advanced duplex system based on carbon S-phase case and GiC coatings for 316LVM austenitic stainless steel. Surf. Coat. Technol. 2009, 203, 1273–1280. [Google Scholar] [CrossRef]
  25. Borgioli, F. From austenitic stainless steel to expanded austenite-S phase: Formation, characteristics and properties of an elusive metastable phase. Metals 2020, 10, 187. [Google Scholar] [CrossRef] [Green Version]
  26. Roy, A.; Mukhopadhyay, A.K.; Das, S.C.; Bhattacharjee, G.; Majumdar, A.; Hippler, R. Surface Stoichiometry and Optical Properties of Cu x–Ti y C z Thin Films Deposited by Magnetron Sputtering. Coatings 2019, 9, 551. [Google Scholar] [CrossRef] [Green Version]
  27. Dwivedi, N.; Yeo, R.J.; Satyanarayana, N.; Kundu, S.; Tripathy, S.; Bhatia, C.S. Understanding the role of nitrogen in plasma-assisted surface modification of magnetic recording media with and without ultrathin carbon overcoats. Sci. Rep. 2015, 5, 7772. [Google Scholar] [CrossRef] [Green Version]
  28. Li, X.; Zhang, N.; Lee, K.-R.; Wang, A. Effect of metal doping on structural characteristics of amorphous carbon system: A first-principles study. Thin Solid Films 2016, 607, 67–72. [Google Scholar] [CrossRef]
  29. Liu, D.; Zheng, L.; Liu, J.; Luo, L.; Wu, Y. Residual stress relief of hard a-C films though buckling. Ceram. Int. 2018, 44, 3644–3648. [Google Scholar] [CrossRef]
  30. Przybylska, N.; Śliwińska-Bartkowiak, M.; Kościński, M.; Rotnicki, K.; Bartkowiak, M.; Jurga, S. Confined effect of water solution of ciprofloxacin in carbon nanotubes studied by Raman and Fourier Transform Infrared Spectroscopy methods. J. Mol. Liq. 2021, 336, 115938. [Google Scholar] [CrossRef]
  31. Szybowicz, M.; Nowicka, A.B.; Dychalska, A. Characterization of carbon nanomaterials by Raman spectroscopy. In Characterization of Nanomaterials; Woodhead Publishing: Poznan, Poland, 2018; pp. 1–36. [Google Scholar] [CrossRef]
  32. Sudha, C.; Bharasi, N.S.; Anand, R.; Shaikh, H.; Dayal, R.K.; Vijayalakshmi, M. Carburization behavior of AISI 316LN austenitic stainless steel–Experimental studies and modeling. J. Nucl. Mater. 2010, 402, 186–195. [Google Scholar] [CrossRef]
  33. Cusenza, S.; Schaaf, P. Amorphous stainless steel coatings prepared by reactive magnetron-sputtering from austenitic stainless steel targets. Appl. Phys. A 2009, 94, 139–154. [Google Scholar] [CrossRef] [Green Version]
Materials 15 05764 g001 550
Figure 1. Schematic of laser carburization on SUS304.
Figure 1. Schematic of laser carburization on SUS304.
Materials 15 05764 g001
Materials 15 05764 g002 550

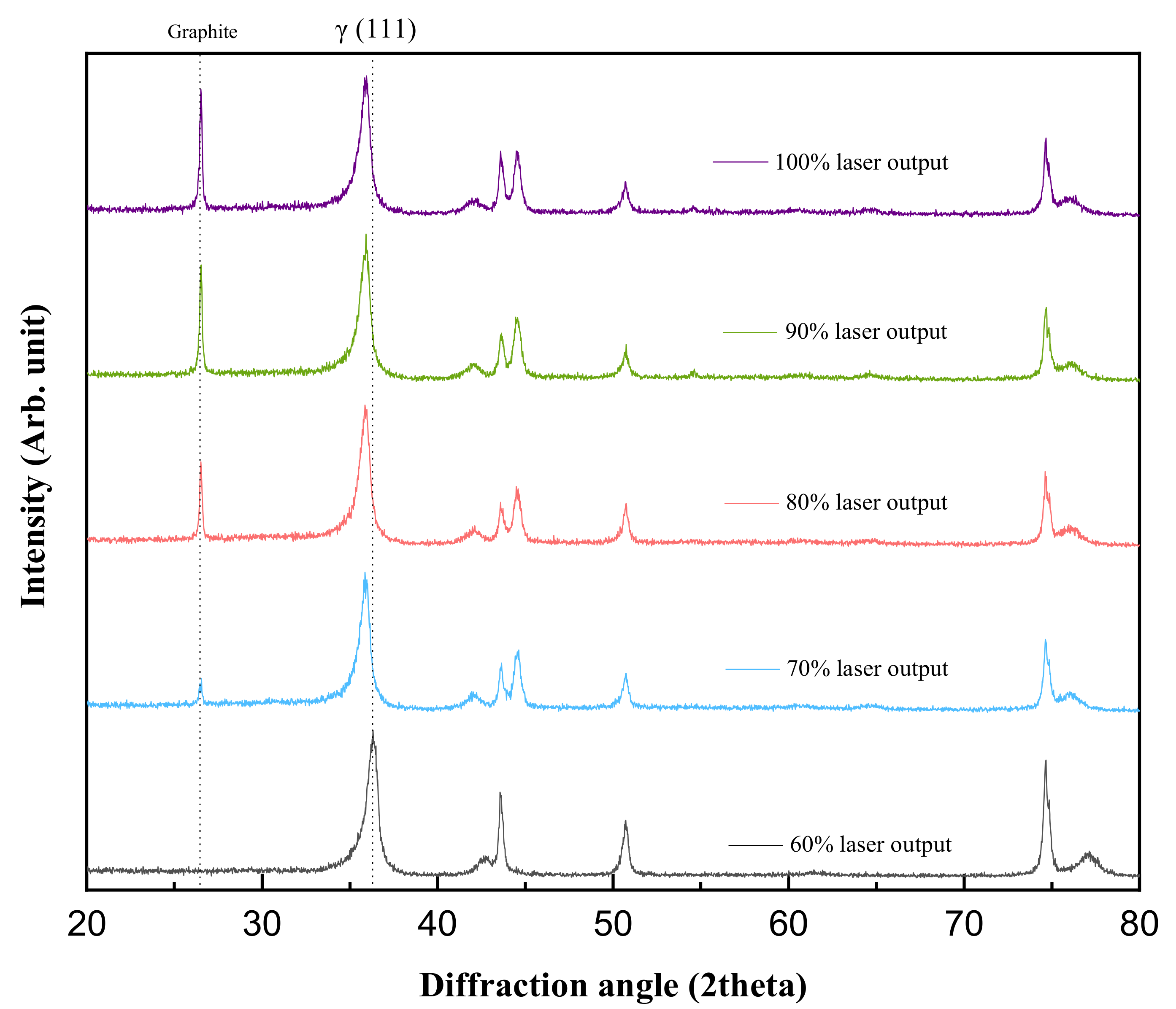

Figure 2. XRD patterns of carbon-doped SUS304 peaks by laser output.
Figure 2. XRD patterns of carbon-doped SUS304 peaks by laser output.
Materials 15 05764 g002
Materials 15 05764 g003 550

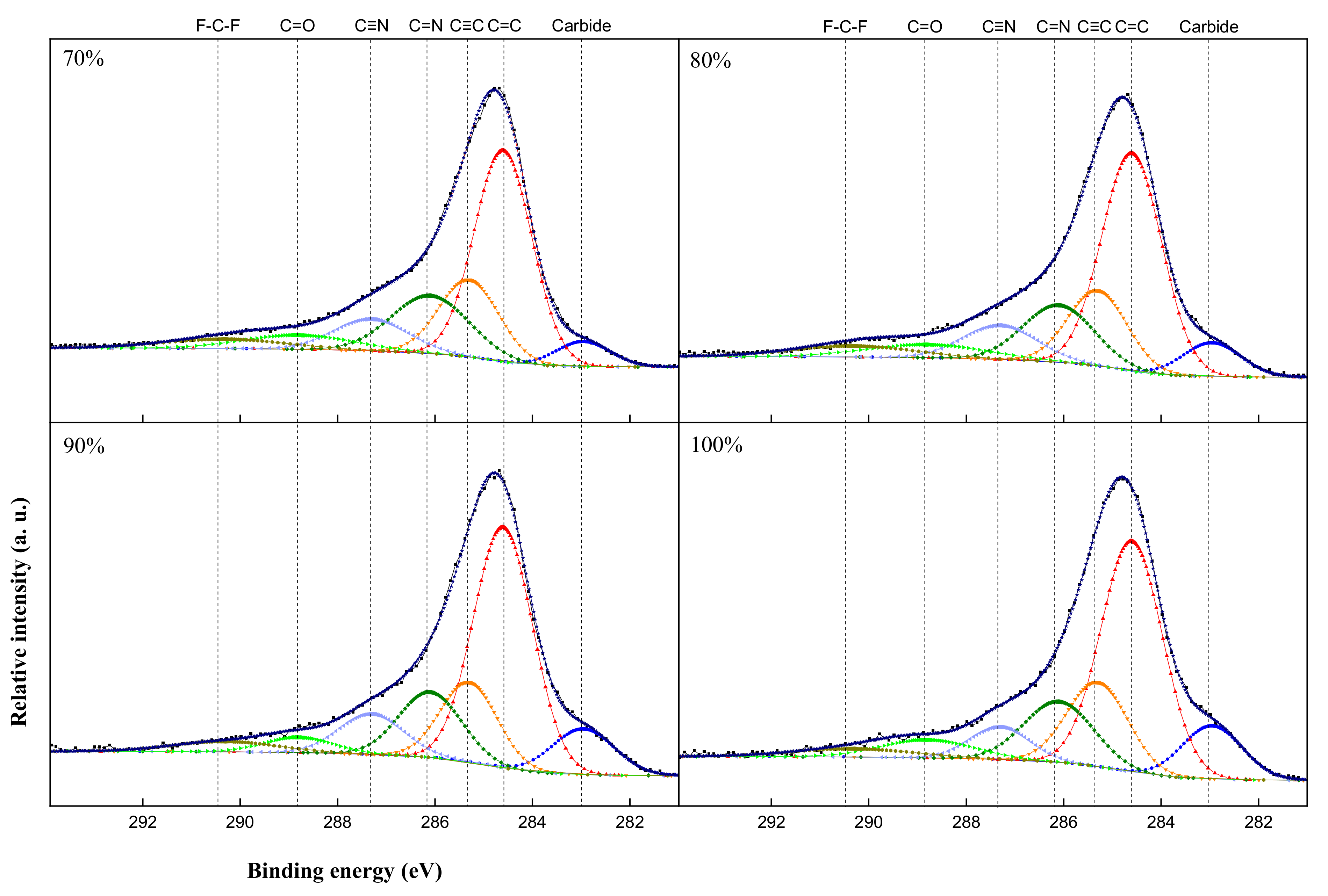

Figure 3. XPS C 1s spectra of carbon-doped SUS304 by laser output.
Figure 3. XPS C 1s spectra of carbon-doped SUS304 by laser output.
Materials 15 05764 g003
Materials 15 05764 g004 550
Figure 4. Raman spectra of carbon-doped SUS304 by laser output.
Figure 4. Raman spectra of carbon-doped SUS304 by laser output.
Materials 15 05764 g004
Materials 15 05764 g005 550
Figure 5. Cross-section TEM images of SUS304 and carbon-doped SUS304: (a) as-deposited, (b) 70% laser output, (c) 80% laser output, (d) 90% laser output, and (e) 100% laser output.
Figure 5. Cross-section TEM images of SUS304 and carbon-doped SUS304: (a) as-deposited, (b) 70% laser output, (c) 80% laser output, (d) 90% laser output, and (e) 100% laser output.
Materials 15 05764 g005
Materials 15 05764 g006 550
Figure 6. Friction coefficient and wear rate of as-deposited SUS304 and carbon-doped SUS304 by laser output.
Figure 6. Friction coefficient and wear rate of as-deposited SUS304 and carbon-doped SUS304 by laser output.
Materials 15 05764 g006
Table
Table 1. Lattice constant before and after the carbon doping through the Rietveld refinement.
Table 1. Lattice constant before and after the carbon doping through the Rietveld refinement.
Laser OutputLattice Constant
As-deposited3.612 Å
60%3.612 Å
70%3.674 Å
80%3.749 Å
90%3.915 Å
100%3.964 Å
Table
Table 2. sp2/sp3 ratio of carbon-doped SUS304 by laser output.
Table 2. sp2/sp3 ratio of carbon-doped SUS304 by laser output.
Laser Outputsp2/sp3 Ratio
70%3.21
80%3.14
90%2.67
100%2.52
Table
Table 3. ID/IG of carbon-doped SUS304 by laser output.
Table 3. ID/IG of carbon-doped SUS304 by laser output.
LASER OutputID/IG
70%0.68
80%0.85
90%1.24
100%1.68
