Optimized XGBoost Model with Small Dataset for Predicting Relative Density of Ti-6Al-4V Parts Manufactured by Selective Laser Melting
Abstract
:1. Introduction
2. Method
2.1. Experimental Dataset
2.2. XGBoost Model

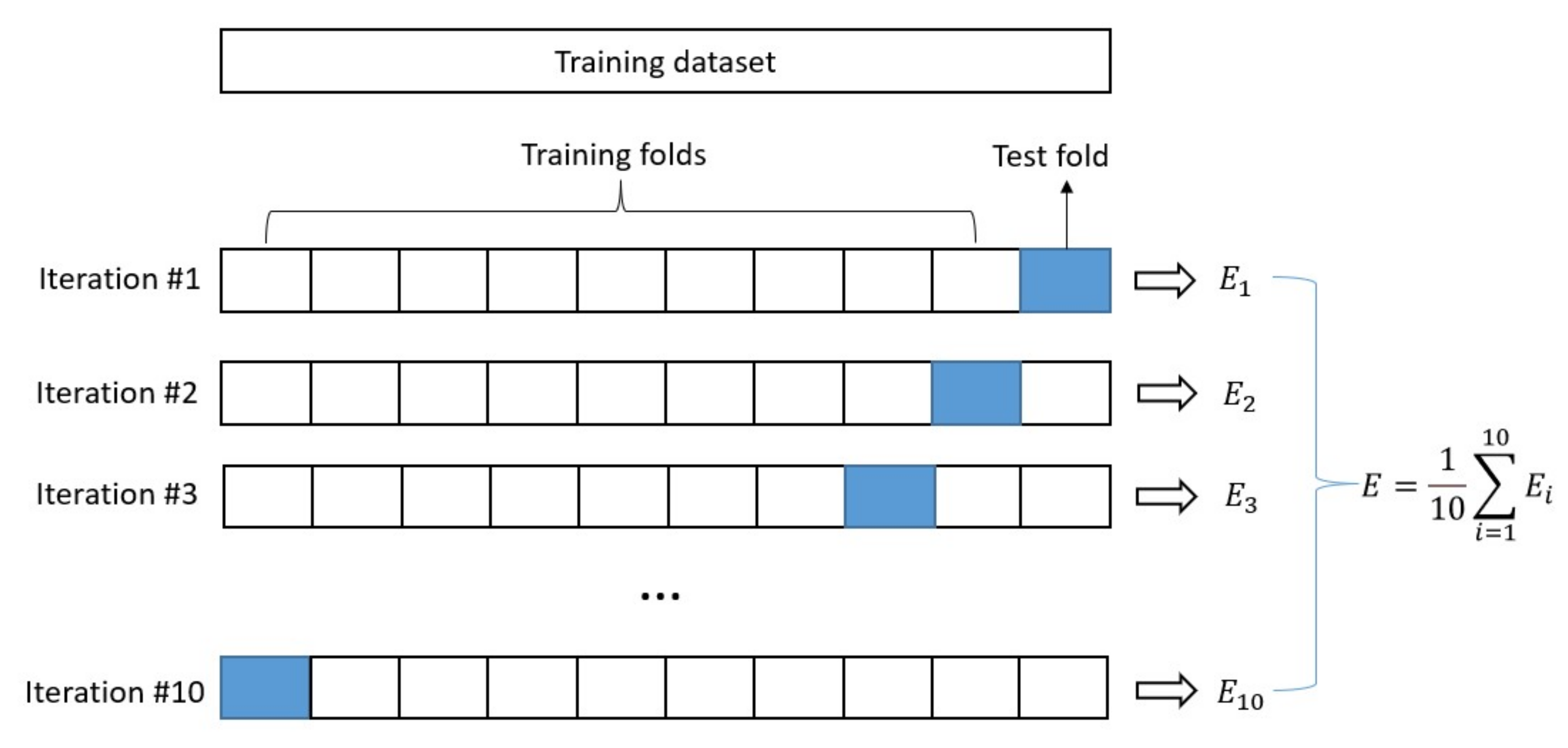

2.3. Hyperparameter Optimization with GridsearchCV Method
3. Results and Discussion

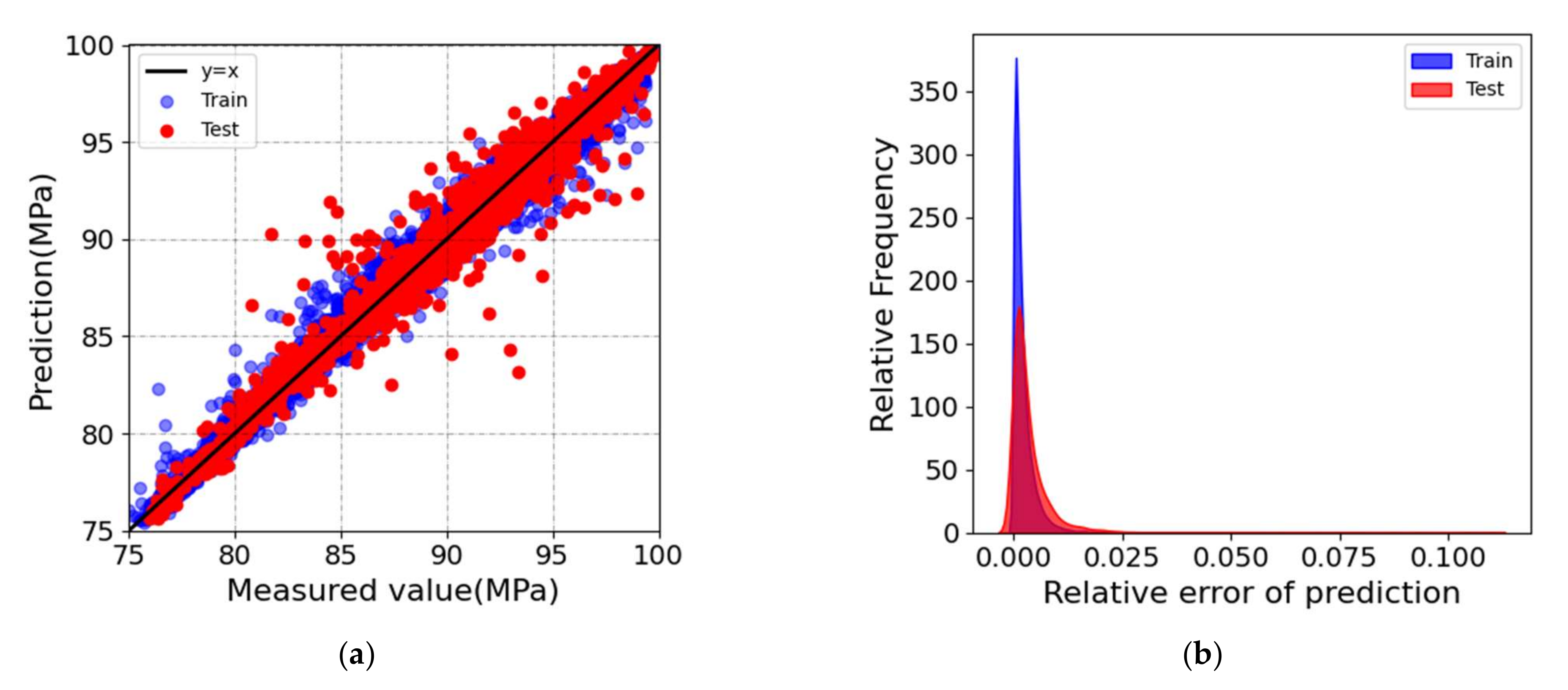

3.1. Performance of the Optimized XGBoost Model
3.2. Influence of Dataset Sizes
3.3. Comparing the Predictive Ability with That of Other ML Models under Small Dataset
4. Conclusions
- (1)
- The trained optimized XGBoost model can effectively provide accurate correspondence between the relative density of the SLMed Ti-6Al-4V parts by SLM and the processing parameters.
- (2)
- As the dataset size decreases, when the size of the test dataset is larger than 541, the prediction accuracy changes slightly, but when the size of the test dataset is smaller than 541, the prediction accuracy drops sharply, at which point the model has lost its predictive ability.
- (3)
- The present optimized XGBoost model outperforms the ANN and SVR models with respect to the accuracy and generality in predicting the relative density of the SLMed Ti-6Al-4V parts under a small dataset.
- (4)
- The optimized XGBoost model has strong practicability under a small dataset. Using this method, the SLM operators can accurately estimate the relative density of the products based on the input processing parameters before printing, without spending a great deal of experience and time.
