# The Heat Partition Ratio during Braking in a Functionally Graded Friction Couple

^{*}

## Abstract

**:**

_{2}O

_{3}–Cu (first body) and ZrO

_{2}–Ti–6Al–4V (second body), under the conditions corresponding to a single braking with a constant deceleration. It was established that the vast majority (almost 90%) of heat that was generated by friction was absorbed by the first body in the selected couple. The possibilities of using the obtained results were discussed herein.

## 1. Introduction

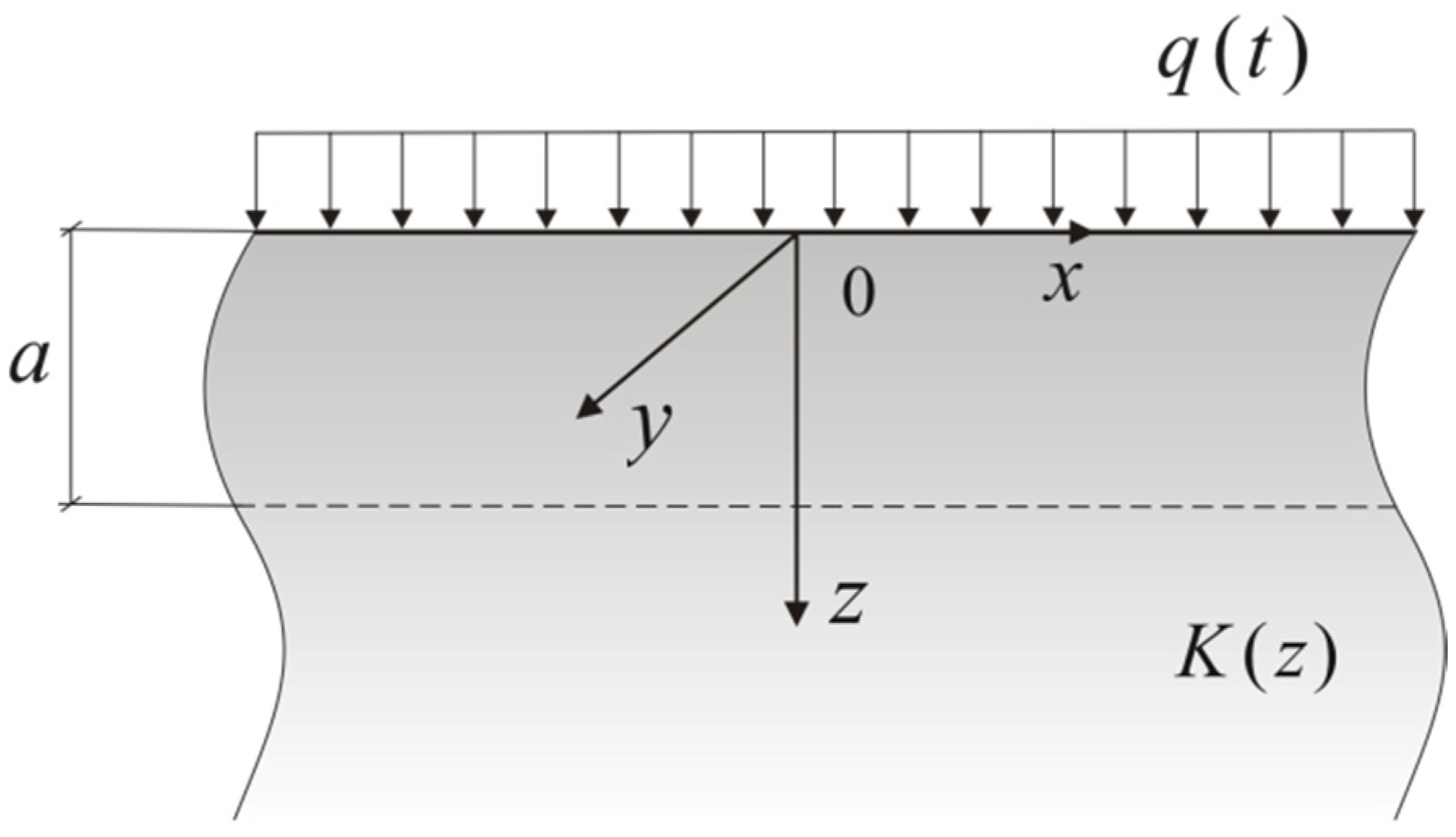

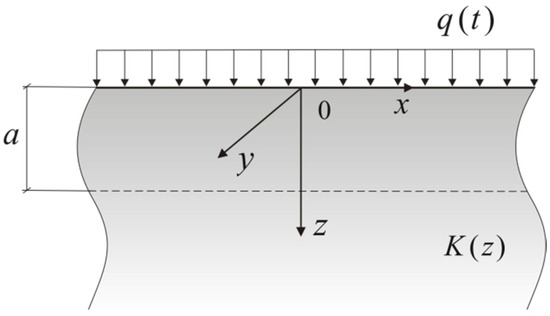

## 2. Heating of the FGM Semi-Space by the Heat Flux with Constant Intensity

^{2}components of the series on the left-hand side of Equation (32) is equal to 0.248985.

## 3. Heating of the FGM Semi-Space by Heat Flux with the Intensity Linearly Decreasing in Time

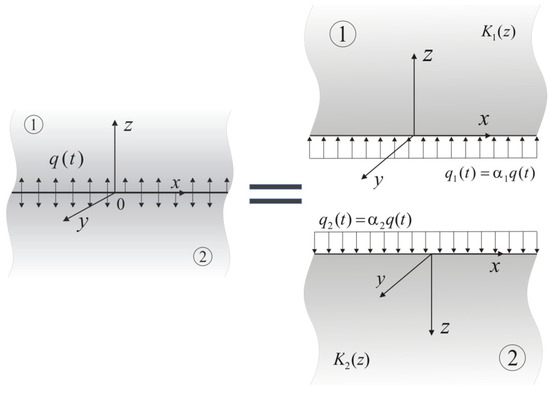

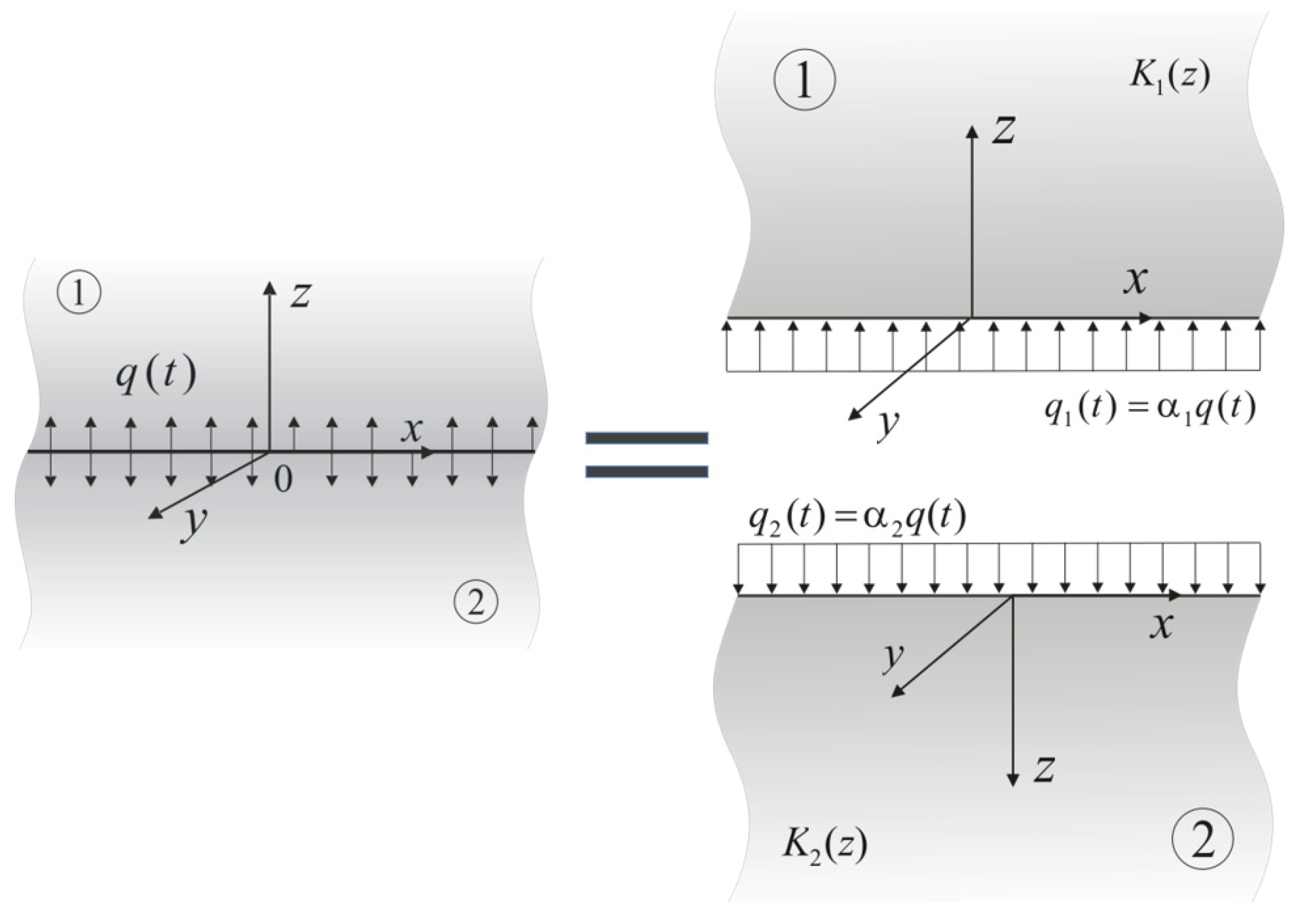

## 4. The Heat Partition Ratio

## 5. Example of Calculation of the Heat Partition Ratio for an FGM Couple

_{2}O

_{3}(base, $m=0$) and copper Cu (core, $m=1$), and the other ($l=2$) contains zircon dioxide ZrO

_{2}(base, $m=0$) and titanium alloy Ti-6Al-4V (core, $m=1$). The thermo-physical properties of these materials are demonstrated in Table 1.

_{2}O

_{3}–Cu) is typical for the evolution of the friction surface temperature during braking with a constant deceleration—a rapid increase in the temperature at the beginning of braking, reaching its maximum value in the middle of the process, followed by a temperature reduction until the standstill. However, in the second element ($l=2$, ZrO

_{2}–Ti–6Al–4V) a rise of temperature on the heated surface is monotonic during the whole process. Such temperature behavior is decisively influenced by the thermo-physical properties of the component materials of each element. In the functionally graded friction couple under consideration, the materials of both of the components of the first element have a significantly greater ability to dissipate the heat from the heated surface than the materials of the second element (Table 1). Moreover, this is confirmed, by the values of the coefficients ${\alpha}_{1}=0.896$, ${\alpha}_{2}=0.104$, which prove that the first element absorbs almost $90\%$, and the second only slightly more than $10\%$ of the entire heat flux intensity $q$ (42). Due to the low thermal conductivity of the component materials of the second element, in particular the zircon dioxide, the temperature of the heated surface of this element continues to rise during heating, even with a linearly decreasing intensity of the heat flux.

_{l}, l = 1, 2 [2]. In general, for the determination of the temperature mode at the design stage of the brake, the Fourier numbers ${\tau}_{l,s},l=1,2$ are given, and the effective heating depths based on the relation (54) are calculated in the following form:

## 6. Conclusions

_{2}O

_{3}–Cu and ZrO

_{2}–Ti–6Al–4V. It was established that element Al

_{2}O

_{3}–Cu absorbs most of the heat that is generated due to friction (almost 90%). The maximum temperature on the friction surface of the Al

_{2}O

_{3}–Cu element is about 820 °C and is achieved in the middle of the braking time. However, the highest temperature of the friction surface of the ZrO

_{2}–Ti–6Al–4V element is achieved at the stop moment and amounts to 970 °C. Thus, the crucial influence on the evolution of the temperature in the functionally graded friction couple have the thermo-physical properties of the component materials.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

$a$ | Effective depth of heat penetration ($\mathrm{m}$) |

$c$ | Specific heat capacity ($\mathrm{J}\hspace{0.17em}{\mathrm{kg}}^{-1}{\mathrm{K}}^{-1}$) |

${f}_{0}$ | Coefficient of friction |

${I}_{k}(\cdot )$ | Modified Bessel functions of the first kind of the kth order |

${J}_{k}(\cdot )$ | Bessel functions of the first kind of the kth order |

$k$ | Thermal diffusivity (${\mathrm{m}}^{2}{\mathrm{s}}^{-1}$) |

$K$ | Thermal conductivity ($\mathrm{W}{\mathrm{m}}^{-1}{\mathrm{K}}^{-1}$) |

${K}_{\epsilon}$ | Dimensionless coefficient of thermal activity of friction couple |

$p$ | Dimensionless parameter of the Laplace integral transform |

$q$ | Intensity of heat flux ($\mathrm{W}{\mathrm{m}}^{-2}$) |

${q}_{0}$ | Nominal intensity of the heat flux ($\mathrm{W}{\mathrm{m}}^{-2}$) |

$t$ | Time ($\mathrm{s}$) |

${t}_{s}$ | Braking time ($\mathrm{s}$) |

$T$ | Temperature (${}^{\circ}\mathrm{C}$) |

${T}_{0}$ | Initial temperature (${}^{\circ}\mathrm{C}$) |

$v$ | Volume fraction of the material phases (dimensionless) |

$z$ | Spatial coordinate in axial direction ($\mathrm{m}$) |

$\alpha $ | Heat partition ratio |

$\gamma $ | Parameter of material gradient (${\mathrm{m}}^{-1}$) |

${\gamma}^{\ast}$ | FGMs gradient ratio |

$\Theta $ | Temperature rise (${}^{\circ}\mathrm{C}$) |

${\Theta}^{\ast}$ | Dimensionless temperature rise |

${\Theta}_{0}$ | Scaling factor of temperature rise (${}^{\circ}\mathrm{C}$) |

$\rho $ | Density ($\mathrm{kg}{\mathrm{m}}^{-3}$) |

${\tau}^{*}$ | Dimensionless time |

${\tau}_{s}$ | Dimensionless braking time |

$\zeta $ | Dimensionless spatial coordinate in axial direction |

## References

- Padture, N.P.; Gell, M.; Jordan, E.H. Thermal Barrier Coatings for Gas-Turbine Engine Applications. Science
**2002**, 296, 280–284. [Google Scholar] [CrossRef] [PubMed] - Mahamood, R.M.; Akinlabi, E.T. Functionally Graded Materials; Springer: Cham, Switzerland, 2017. [Google Scholar]
- Zhou, W.; Ai, S.; Chen, M.; Zhang, R.; He, R.; Pei, Y.; Fang, D. Preparation and thermodynamic analysis of the porous ZrO
_{2}/(ZrO_{2}+ Ni) functionally graded bolted joint. Compos. Part B Eng.**2015**, 82, 13–22. [Google Scholar] [CrossRef] - Zhou, W.; Zhang, R.; Ai, S.; He, R.; Pei, Y.; Fang, D. Load distribution in trends of porous metal-ceramic functionally graded composite joints subjected to thermomechanical loading. Compos. Struct.
**2015**, 134, 680–688. [Google Scholar] [CrossRef] [Green Version] - Mahmoud, D.; Elbestawi, M. Lattice Structures and Functionally Graded Materials. Applications in Additive Manufacturing of Orthopedic Implants: A Review. J. Manuf. Mater. Process.
**2017**, 1, 13. [Google Scholar] [CrossRef] - Hovorun, T.P.; Berladir, K.V.; Pererva, V.I.; Rudenko, S.G.; Martynov, A.I. Modern Materials for Automotive Industry. J. Eng. Sci.
**2017**, 4, 8–18. [Google Scholar] [CrossRef] [Green Version] - Strojny-Nędza, A.; Pietrzak, K.; Gili, F.; Chmielewski, M. FGM based on copper-alumina composites for brake disc applications. Arch. Civ. Mech. Eng.
**2020**, 20, 83. [Google Scholar] [CrossRef] - Newcomb, T.P. Temperatures reached in disc brakes. J. Mech. Eng. Sci.
**1960**, 2, 167–177. [Google Scholar] [CrossRef] - Chichinadze, A.V. Polymers in Friction Assembles of Machines and Devices: A Handbook; Allerton Press Inc.: New York, NY, USA, 1984. [Google Scholar]
- Day, A.J. Braking of Road Vehicles; Butterworth-Heinemann: Oxford, UK, 2014. [Google Scholar]
- Ling, F.F. Surface Mechanics; John Wiley & Sons: New York, NY, USA, 1973. [Google Scholar]
- Barber, J.R.; Comninou, M. Thermoelastic contact problems. In Thermal Stresses, 3rd ed.; Hetnarsky, R.R., Ed.; Elsevier: Amsterdam, The Netherlands, 1989. [Google Scholar]
- Awrejcewicz, J.; Pyryev, Y. Nonsmooth Dynamics of Contacting Thermoelastic Bodies; Springer: New York, NY, USA, 2009. [Google Scholar]
- Yevtushenko, A.A.; Kuciej, M. One-dimensional thermal problem of friction during braking: The history of development and actual state. Int. J. Heat Mass Transf.
**2012**, 55, 4148–4153. [Google Scholar] [CrossRef] - Evtushenko, O.; Kuciej, M.; Topczewska, K. Determination of the maximal temperature of a pad-disk tribosystem during one-time braking. Mater. Sci.
**2020**, 56, 152–159. [Google Scholar] [CrossRef] - Pyryev, Y.; Yevtushenko, A. The influence of the brakes friction elements thickness on the contact temperature and wear. Heat Mass Transf.
**2000**, 36, 319–323. [Google Scholar] [CrossRef] - Yevtushenko, A.A.; Grześ, P. The FEM-modeling of the frictional heating phenomen in the pad/disc tribosystem (a review). Num. Heat Trans. Part A-Appl.
**2010**, 58, 207–226. [Google Scholar] [CrossRef] - Wasilewski, P. Frictional heating in railway brakes: A review of numerical models. Arch. Computat. Methods Eng.
**2020**, 27, 45–58. [Google Scholar] [CrossRef] - Deressa, K.T.; Ambie, D.A. Thermal load simulations in railway disc brake: A systematic review of modelling temperature, stress and fatigue. Arch. Computat. Methods Eng.
**2022**, 29, 2271–2283. [Google Scholar] [CrossRef] - Blok, H. Theoretical field study of temperature rise at surfaces of actual contact under oiliness lubricating conditions. Proc. Instn. Mech. Engrs. (Gen. Discuss. Lubr. Lubr.)
**1937**, 45, 222–235. [Google Scholar] - Day, A.J.; Newcomb, T.P. Dissipation of frictional energy from the interface of an annular disc brake. Proc. Inst. Mech. Eng. Part D J. Automob. Eng.
**1984**, 198, 201–209. [Google Scholar] [CrossRef] - Grześ, P. Partition of heat in 2D finite element model of a disc brake. Acta Mech. Autom.
**2011**, 5, 35–41. [Google Scholar] - Yevtushenko, A.A.; Grześ, P. Finite element analysis of heat partition ratio in a pad/disc brake system. Num. Heat Trans. Part A-Appl.
**2011**, 58, 521–542. [Google Scholar] [CrossRef] - Qiu, L.Q.; Qi, H.S.; Wood, A. Two-dimensional finite element analysis of the heat partition ratio of a friction brake. Proc. Inst. Mech. Eng. Part J J. Eng. Trib.
**2018**, 232, 1489–1501. [Google Scholar] [CrossRef] [Green Version] - Afzal, A.; Abdul Mujeebu, M. Thermo-Mechanical and Structural Performances of Automobile Disc Brakes: A Review of Numerical and Experimental Studies. Arch. Comput. Methods Eng.
**2019**, 26, 1489–1513. [Google Scholar] [CrossRef] - Carslaw, H.C.; Jaeger, J.C. Conduction of Heat in Solids, 2nd ed.; Clarendon Press: Oxford, UK, 1959. [Google Scholar]
- Hasselgruber, H. Der Schaltvorgang einer Trockenreibung Kupplung bei kleinster Erwärmung. Konstruction
**1963**, 15, 41–45. [Google Scholar] - Ginzburg, A.G. Coefficient of distribution of the heat flows during braking. In Calculation and Testing of Friction Couples; Mechanical Engineering: Moscow, Russia, 1974. (In Russian) [Google Scholar]
- Yevtushenko, A.; Kuciej, M.; Topczewska, K. Effect of the Temporal Profile of the Friction Power on Temperature of a Pad-Disc Brake System. J. Theoret. Appl. Mech.
**2019**, 57, 461–473. [Google Scholar] [CrossRef] - Xiong, C.; Chen, M.; Yu, L. Analytical model and material equivalent methods for steady state heat partition coefficient between two contact discs in multi-disc clutch. Proc. J. Mech. Eng. J. Automob. Eng.
**2019**, 234, 857–871. [Google Scholar] [CrossRef] - Xia, Y.; Yano, A.; Hayashi, N.; Noraguchi, N.; Xie, G. Analysis of temperature and heat partitioning coefficient during friction between polymer and steel. Tribol. Int.
**2022**, 171, 107561. [Google Scholar] [CrossRef] - Yevtushenko, A.; Topczewska, K.; Zamojski, P. Influence of Thermal Sensitivity of Functionally Graded Materials on Temperature during Braking. Materials
**2022**, 15, 963. [Google Scholar] [CrossRef] - Yevtushenko, A.; Topczewska, K.; Kuciej, M. Analytical Determination of the Brake Temperature Mode during Repetitive Short-Term Braking. Materials
**2021**, 14, 1912. [Google Scholar] [CrossRef] - Sneddon, I.N. The Use of Integral Transforms; McGraw-Hill: New York, NY, USA, 1972. [Google Scholar]
- Abramowitz, M.; Stegun, I. Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables; United States Department of Commerce, National Bureau of Standards (NBS): Washington, DC, USA, 1964. [Google Scholar]
- Vashchenko-Zakharchenko, M.E. Symbolic Calculus and Its Application to Integration of Linear Differential Equations; University Press: Kiev, Ukraine, 1862. [Google Scholar]
- Yevtushenko, A.; Topczewska, K.; Zamojski, P. The Effect of Functionally Graded Materials on Temperature during Frictional Heating: Under Uniform Sliding. Materials
**2021**, 14, 4285. [Google Scholar] [CrossRef] - Bateman, H.; Erdélyi, A. Tables of Integral Transforms; McGraw-Hill: New York, NY, USA, 1954; Volume 1. [Google Scholar]
- Yevtushenko, A.; Topczewska, K.; Zamojski, P. The Effect of Functionally Graded Materials on Temperature during Frictional Heating at Single Braking. Materials
**2021**, 14, 6241. [Google Scholar] [CrossRef] - Özişik, N.M. Heat Conduction; John Wiley & Sons: New York, NY, USA, 1993. [Google Scholar]
- Charron, F. Partage de la Chaleur Entre Deux Corps Frottants; Publications Scientifiques et Techniques; Blondel La Rougery: Paris, France, 1943; 182p. [Google Scholar]
- Talati, F.; Jalalifar, S. Analysis of heat conduction in a disk brake system. Heat Mass Transf.
**2009**, 45, 1047–1059. [Google Scholar] [CrossRef] - Adamowicz, A.; Grześ, P. Analysis of disc brake temperature distribution during single braking under non-axisymmetric load. Appl. Therm. Eng.
**2011**, 31, 1003–1012. [Google Scholar] [CrossRef] [Green Version] - Loizou, A.; Qi, H.S.; Day, A.J. A fundamental study on the heat partition ratio of vehicle disk brakes. J. Heat Transf.
**2013**, 135, 121302. [Google Scholar] [CrossRef] - Yevtushenko, A.; Kuciej, M.; Topczewska, K. Analytical model for investigation of the effect of friction power on temperature in the disk brake. Adv. Mech. Eng.
**2017**, 9, 1–12. [Google Scholar] [CrossRef] - Topczewska, K. Influence of the Time of Increase in Contact Pressure in the Course of Braking on the Temperature of a Pad–Disc Tribosystem. Mater. Sci.
**2018**, 54, 250–259. [Google Scholar] [CrossRef] - Mao, J.J.; Ke, L.L.; Yang, J.; Kitipornchai, S.; Wang, Y.S. The coupled thermoelastic instability of FGM coatings with arbitrarily varying properties: In-plane sliding. Acta Mech.
**2018**, 229, 2979–2995. [Google Scholar] [CrossRef]

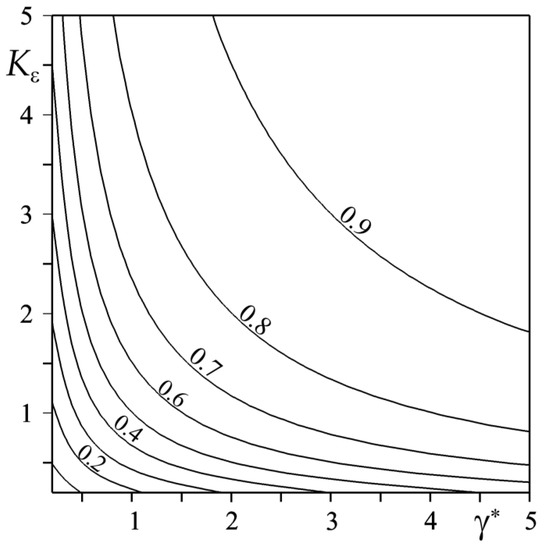

**Figure 3.**Isolines of the heat partition ratio $\alpha $ (69) in the coordinate system (${\gamma}^{\ast}$, ${K}_{\epsilon}$).

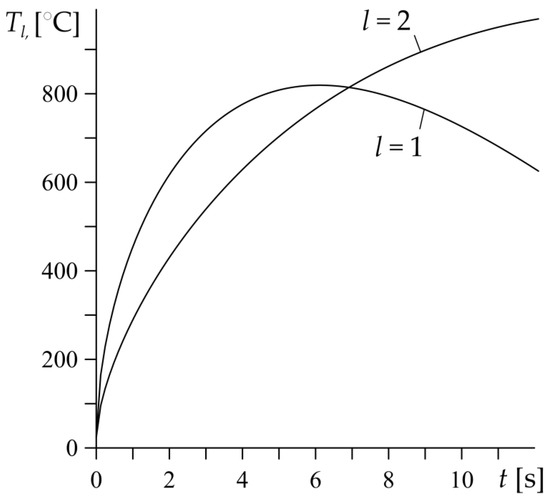

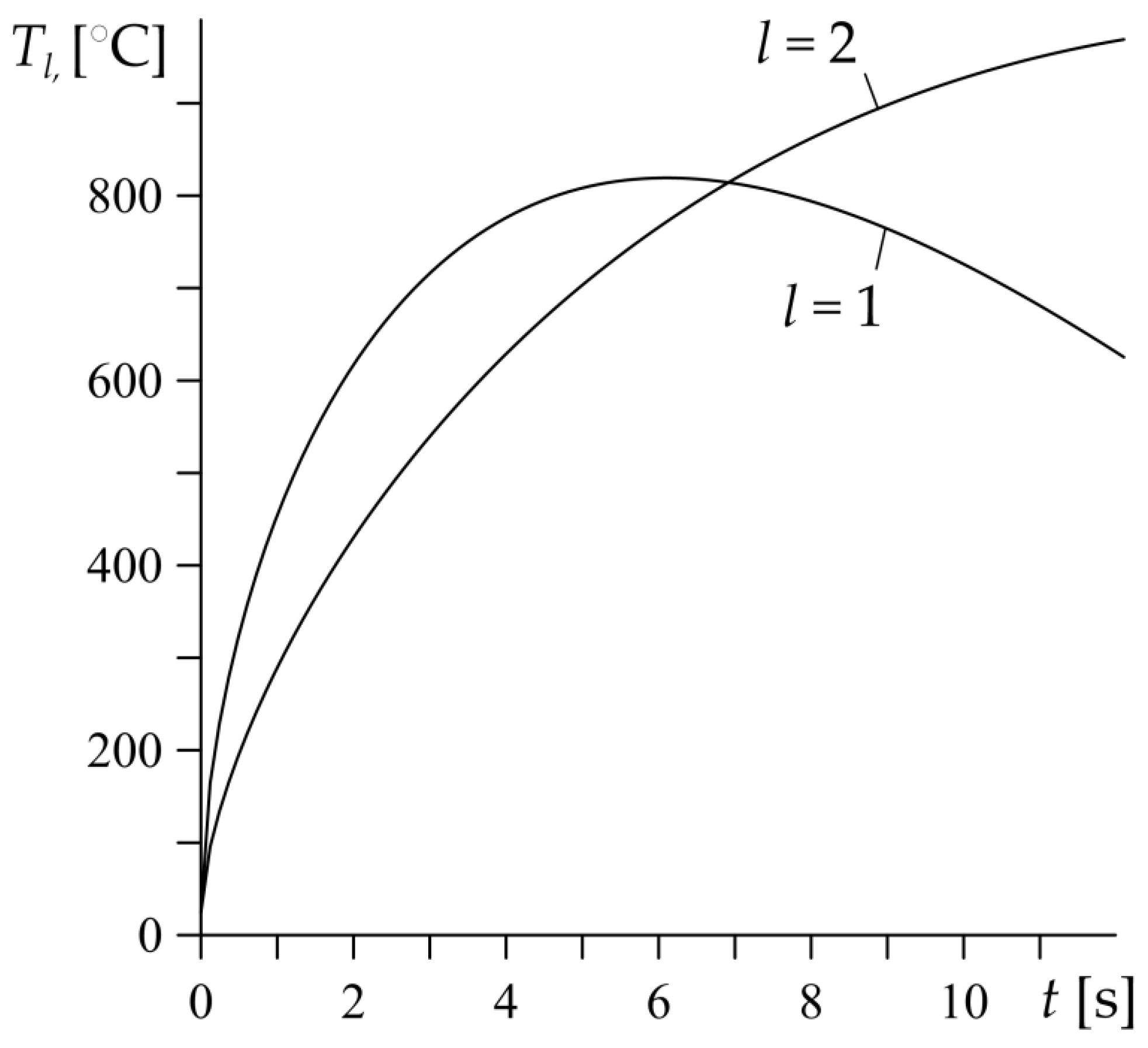

**Figure 4.**Evolutions of temperature ${T}_{l}$, $l=1,2$ (55) and (56) on the heated surfaces $z=0$ of the considered semi-spaces made of FGMs.

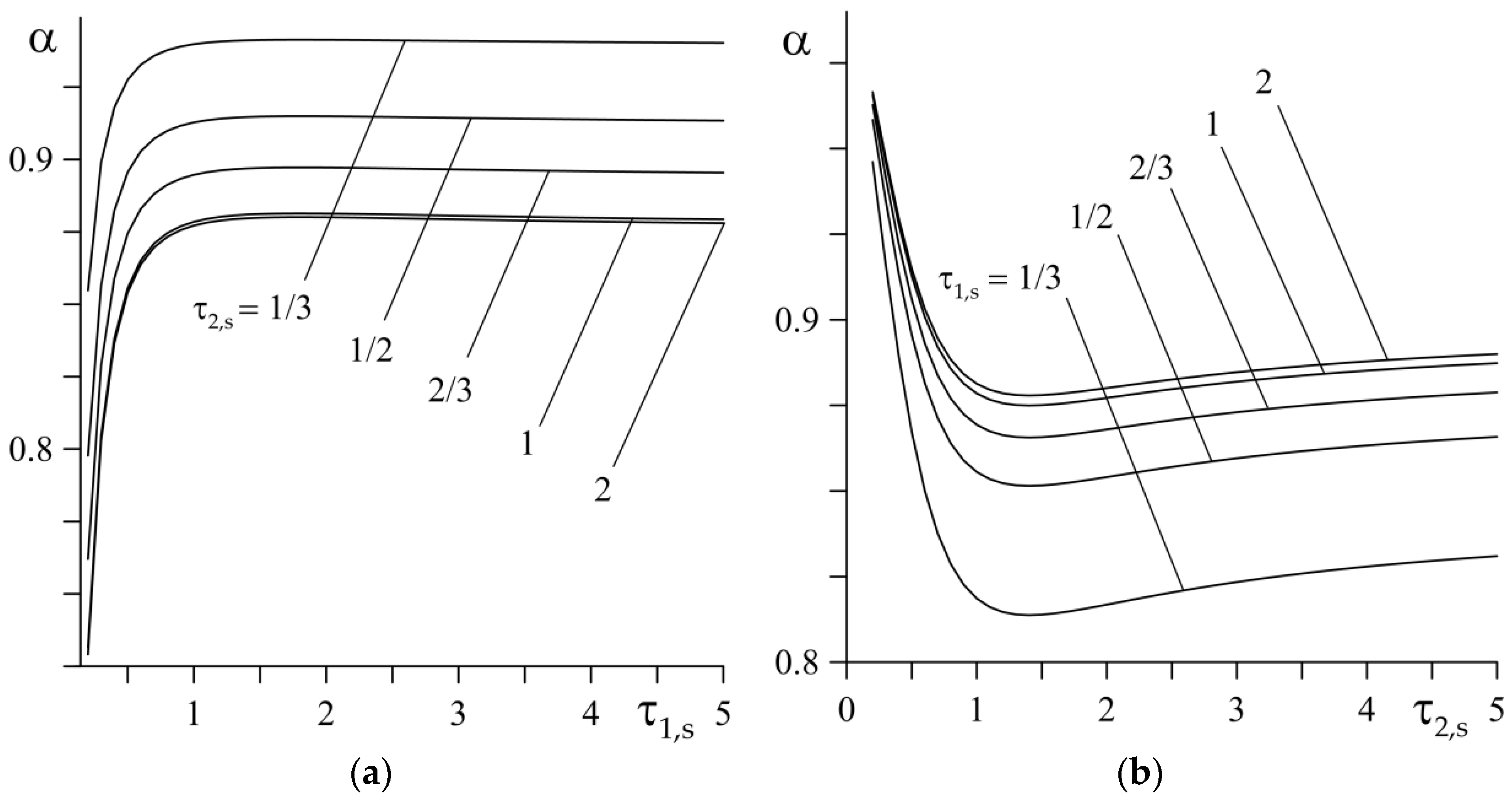

**Figure 5.**Dependences of the heat partition ratio $\alpha $ (62) on: (

**a**) Fourier number ${\tau}_{1,s}$ for different values of ${\tau}_{2,s}$; (

**b**) Fourier number ${\tau}_{2,s}$ for different values of ${\tau}_{1,s}$.

**Table 1.**Thermo-physical properties of FGM components [32].

Element Subscript | Material Subscript, m | Material | Thermal Conductivity ${\mathit{K}}_{\mathit{l},\mathit{m}}^{(\mathbf{0})}\mathbf{,}\hspace{0.17em}{\mathbf{Wm}}^{\mathbf{-}\mathbf{1}}{\mathbf{K}}^{\mathbf{-}\mathbf{1}}$ | Specific Heat Capacity ${\mathit{c}}_{\mathit{l},\mathit{m}}^{(\mathbf{0})}\mathbf{,}\hspace{0.17em}\mathbf{J}\hspace{0.17em}{\mathbf{kg}}^{\mathbf{-}\mathbf{1}}{\mathbf{K}}^{\mathbf{-}\mathbf{1}}$ | $\mathbf{Density}{\mathit{\rho}}_{\mathit{l},\mathit{m}}^{(0)}\mathbf{,}\hspace{0.17em}{\mathbf{kgm}}^{\mathbf{-}\mathbf{3}}$ |
---|---|---|---|---|---|

$l=1$ | base, 0 | Al_{2}O_{3} | 37.24 | 727.29 | 3990.92 |

core, 1 | Cu | 402.65 | 147.35 | 8947.92 | |

$l=2$ | base, 0 | ZrO_{2} | 1.94 | 452.83 | 6102.16 |

core, 1 | Ti-6Al-4V | 6.87 | 538.08 | 4431.79 |
