Genipin-Crosslinked Gelatin/Chitosan-Based Functional Films Incorporated with Rosemary Essential Oil and Quercetin

by
Swarup Roy
1,2 and
Jong-Whan Rhim
1,*
1
Department of Food and Nutrition, BioNanocomposite Research Institute, Kyung Hee University, 26 Kyungheedae-ro, Dongdaemun-gu, Seoul 02447, Korea
2
School of Bioengineering and Food Technology, Shoolini University, Solan 173229, Himachal Pradesh, India
*
Author to whom correspondence should be addressed.
Materials 2022, 15(11), 3769; https://doi.org/10.3390/ma15113769
Submission received: 22 April 2022 / Revised: 18 May 2022 / Accepted: 23 May 2022 / Published: 25 May 2022
(This article belongs to the Special Issue Feature Paper in Section Materials Chemistry)
Browse Figures
Versions Notes

Abstract

:
Functional food packaging films were prepared using a binary mixture of chitosan and gelatin through crosslinking with genipin and hybridization with rosemary essential oil and quercetin. The mixture of chitosan and gelatin produced the compatible film, and the added fillers also showed good compatibility. The physical properties of the chitosan/gelatin film were not greatly affected by crosslinking with genipin, and the functionality of the composite film was increased by the addition of rosemary essential oil and quercetin. The bioactive additives did not significantly affect the hydrophobicity and water vapor barrier properties of the chitosan/gelatin film but significantly changed the color, while the mechanical and thermal properties were slightly affected. The addition of these functional fillers significantly improved the UV protection, antioxidant, and antibacterial properties of the chitosan/gelatin film. Therefore, the novel chitosan/gelatin film with genipin crosslinking and the integration of rosemary essential oil and quercetin is considered to have high potential for applications in active food packaging.

1. Introduction

In today’s food packaging field, there is an increasing trend to replace non-degradable plastic packaging materials using annually renewable natural biopolymers to solve the problems of environmental pollution and resource depletion caused by the use of synthetic plastics [1,2]. Biopolymer-based food packaging materials are environmentally friendly, biocompatible, and even edible without any safety concerns [3,4]. The edible films are palatable, protect the packed food, and prolong the shelf-life [3,5,6]. Animal and plant-derived carbohydrates and proteins are mainly used as edible biopolymer packaging materials [7,8,9].
It has recently been shown that polysaccharide-protein mixtures are useful for making biodegradable active packaging films [10,11,12,13,14,15]. For this purpose, chitosan and gelatin are ideal choices for producing binary blends of biopolymer films. Several reports have already been published with promising blends of chitosan and gelatin [16,17,18,19,20]. However, the physical properties of the chitosan/gelatin-based films can be improved through crosslinking between biopolymers.
Polymer intermolecular crosslinking improves a film’s mechanical and hydrophobic properties and creates integrated complex networks by forming chemical bonds (intramolecular or intermolecular) with molecular polymer chains [21,22,23]. As a low-toxic natural crosslinking agent for both chitosan and gelatin, genipin could be an ideal choice for making crosslinked chitosan/gelatin-based films [24,25]. Genipin is a water-soluble crosslinking agent isolated from gardenia, which reacts with the -NH2 group of the polymer to give it a dark blue color [26]. Another interesting fact is that genipin has ~104 times less toxicity than glutaraldehyde [27].
Although the chitosan/gelatin-based film has some functional properties (antimicrobial and antioxidant properties) [28,29], it is not sufficient for application in active packaging, and thus it is necessary to enhance the functionality of the film by adding other functional substances. Recently, essential oils of natural origin have emerged as promising functional materials in active food packaging.
Rosemary essential oil (RO) is well known for its many beneficial properties, such as anti-inflammatory, antioxidant, antibacterial, analgesic, and detoxifying properties, and is also on the FDA’s GRAS rating [30,31]. RO contains many bioactive functional ingredients, such as terpenes, camphenes, limonene, camphor, borneol, cineol, and linalool. [32]. Rosemary essential oil is commonly used as a food flavoring agent [33]. Thus, RO is an ideal choice for making biopolymer-based functional packaging films. Previously, there were already some reports of RO-containing films for active packaging applications [31,34,35].
On the other hand, the most commonly found dietary bioactive compound quercetin can be another useful biomaterial for active packaging due to its good antioxidant and antibacterial activity [36,37]. Quercetin is a polyphenolic compound commonly found in many fruits and vegetables [38]. Quercetin has been commonly used in the food industry to prevent the oxidation of foods [39]. Due to its excellent functional properties, quercetin has also been used to manufacture various biopolymer-based packaging films [20,36,38,39,40].
It is expected that the functional properties of the film will be improved by mixing RO and quercetin in a genipin-crosslinked chitosan/gelatin-based blend film. Therefore, this study aimed to prepare a functional genipin-crosslinked chitosan/gelatin-based film by adding rosemary essential oil and quercetin.

2. Materials and Methods

Preparation of Films

Chitosan/gelatin-based binary composite films were prepared by mixing chitosan and gelatin at a 1:1 ratio [41]. Chitosan solution (2 wt%) was prepared by dissolving 2 g chitosan in 100 mL of 1% acetic acid solution, and gelatin solution (2 wt%) was prepared by dissolving 2 g gelatin in 90 mL of distilled water with vigorous stirring at 60 °C for 20 min. The chitosan and gelatin solutions were combined, and we added 40 mg (1 wt% of polymers) of genipin as a crosslinker. Three different functional films were prepared by adding quercetin (QCT) and rosemary essential oil (RO) to the genipin-added chitosan/gelatin film solution.
To prepare the QCT-added film solution, 5 mL (1 wt% of polymer) of quercetin solution prepared in a 1:1 ethanol and water mixture was added to the chitosan/gelatin film solution. To prepare the RO-added film solution, 5 mL (2 wt% of polymer) of rosemary essential oil emulsified using Tween 80 was added to the chitosan/gelatin film solution. For the preparation of the QCT and RO-added film solution, we added 5 mL of quercetin solution and 5 mL of RO solution sequentially to the chitosan/gelatin film solution. The film-forming solution was then cast on a flat Teflon film-coated glass plate and dried at room temperature for 48 h.
In addition, the neat chitosan/gelatin film without additives and only rosemary oil and quercetin were also prepared using the same procedure. The prepared films were designated CTS/GTN (chitosan/gelatin), CTS/GTNGen, CTS/GTNGen/QCT, CTS/GTNGen/RO, and CTS/GTNGen/QCT/RO films, respectively, depending on their components. CTS, GTN, Gen, QCT, and RO are abbreviations for chitosan, gelatin, genipin, quercetin, and rosemary essential oil. The film fabrication and interactions among the polymer-polymer and fillers and polymers are pictorially shown in Scheme 1. The methods for the film characterization and properties determination are shown in Supplementary Materials.

3. Results and Discussion

3.1. Properties of the Film

3.1.1. Optical Properties

The visual appearance of the fabricated films is shown in Figure 1a. The control chitosan/gelatin film was transparent without any color tint; however, the other films were translucent and colored. The addition of genipin made the film blue, while the addition of quercetin to the genipin-crosslinked film developed green color. Although the color of quercetin is yellow, when quercetin is added to the genipin-added chitosan/gelatin film, it is combined with the blue color of the film to give it a green color. However, when rosemary oil was added, the blue color of the film was maintained, and the brightness was slightly increased.
The light transmission spectra of the films are shown in Figure 1b. The neat chitosan/gelatin film did not show any characteristic absorption in the 200–800 nm range. On the other hand, the genipin-added films completely blocked UV light below 300 nm and showed the maximum and minimum light transmittance at 507–517 nm and 600–606 nm, respectively, which were due to the UV blocking properties of genipin and green-blue light absorption at ~510 nm and orange-yellow light absorption at ~600 nm by genipin and quercetin, respectively [25].
A similar effect of genipin on UV-visible light absorption properties was observed in the genipin-added sodium caseinate film [24]. The transparency and UV-light barrier of the chitosan/gelatin-based films were evaluated by determining the light transmittance at 660 and 280 nm, respectively, and the results are shown in Table 1. The neat chitosan/gelatin film showed some UV-barrier (T280) properties (~21%) with high transparency (T660) over 90%. The UV-blocking property of the neat chitosan/gelatin film was attributed to UV absorption by chitosan and gelatin. The addition of the crosslinking agent, genipin, had a great effect on the light transmission of the film, and completely blocked UV-light. When genipin was added, the UV protection effect was greatly improved; however, the transparency of the film was also reduced from 90% to 60%.
When quercetin was added, the transparency of the film decreased more, whereas when rosemary oil was added, there was no significant effect. The UV-light blocking effect of genipin is consistent with previously reported results [24,25].
The film surface color values are also shown in Table 1. The neat chitosan/gelatin film exhibited high lightness (L-value) and slight yellowness (b-value) due to the chitosan solution having a yellowish color. The film’s brightness was greatly reduced by adding genipin and further decreased with the addition of rosemary oil and quercetin. The addition of genipin significantly changed the b-value due to the development of the blue color in the film.
Interestingly, the film containing quercetin became green by mixing the blue caused by genipin and the yellow of quercetin, and thus the a-value of the film decreased. As expected from the changes in the L, a, and b values of the films, the ΔE of all composite films was significantly increased compared to the neat chitosan/gelatin films. Similar color changes were observed in the genipin-added sodium caseinate film [24].

3.1.2. Morphology of the Film

The microstructure of the chitosan/gelatin-based films was observed using a field emission scanning microscope (FE-SEM), and the results are shown in Figure 2. The surface image of all films showed the intact and smooth-surfaced, and the added filler materials were homogeneously mixed in the binary polymer film matrix. The cross-section image showed some layer-by-layer structure in the neat chitosan/gelatin film. At the same time, the addition of the crosslinker and bioactive fillers made clear structural modifications with a reduced layer structure in the films.
It is believed that the mixing of quercetin and rosemary oil created a coating on the layers of the film, possibly as a result of the reduced structured layer. Overall, the SEM images showed that the added filler was compatible with the matrix polymer. Similar results were reported for graphene-oxide-reinforced gelatin films crosslinked with genipin [25].

3.1.3. Thermal Stability of the Film

The thermal stability of the chitosan/gelatin-based films was evaluated using TGA analysis, and the results are shown in Figure 3. All films showed a two-stage thermal decomposition pattern. The initial weight loss observed at 40–125 °C was due to the evaporation of physisorbed moisture. The major weight change of the film occurred in the range of 150–420 °C, with the highest weight change at around 300 °C, which was due to the decomposition of polymers (chitosan and gelatin) [19,42].
Crosslinking the chitosan/gelatin film with genipin increased the maximum degradation temperature (~10 °C). However, the addition of the bioactive functional fillers (quercetin and rosemary essential oil) did not significantly affect the thermal stability of the film. The increased thermal stability of the chitosan/gelatin film by crosslinking with genipin was consistent with the previous findings in the genipin-crosslinked graphene oxide mixed gelatin-based films [25]. As with the present results, it was previously reported that the addition of bioactive ingredients and essential oils did not significantly affect the thermal stability of biopolymer films, such as chitosan/gelatin-based films [19].
Table S1 (Supplementary Materials) shows more detailed TGA analysis results. The Tonset/Tend temperature did not change, while theT0.5 (50% decomposition) temperatures changed slightly (5–10 °C) in the functional composite films. The residual charcoal content of chitosan/gelatin-based films was about 36–38%, and it was not significantly affected by the addition of crosslinking agent and bioactive fillers. The developed biopolymer-based film had excellent thermal stability; however, its thermal stability is much lower than that of synthetic plastic films, such as LDPE, which have a maximum thermal decomposition temperature of about 450 °C [43].

3.1.4. Mechanical Properties of the Films

The mechanical properties of the chitosan/gelatin-based films are shown in Table 2. The thickness of the films was not significantly changed by adding the crosslinker and bioactive fillers. The chitosan/gelatin film was strong, showing a high tensile strength (TS) of 77.3 MPa. Yadav et al. also found that chitosan blended with gelatin formed a strong film with a maximum breaking strength of 16.1 N; however, we could not compare the TS of the film directly since they did not measure the film thickness [20].
The TS of the chitosan/gelatin film was significantly increased through the crosslinking by genipin, and it further increased slightly by the addition of functional fillers (quercetin and rosemary essential oil); however, the increase was not statistically significant. Similar to the case of TS, the stiffness of the films evaluated by elastic modulus (EM) was significantly increased by adding crosslinking agent and functional fillers.
On the other hand, the elongation at break (EB) of the chitosan/gelatin decreased significantly when the crosslinker and functional fillers were added. The observed mechanical behavior agrees with previously reported genipin-crosslinked sodium casein edible films and chitosan/astaxanthin films [24,26]. Yadav et al. also found that the addition of quercetin to chitosan/gelatin film increased the strength and flexibility of the film [20].
The mechanical strength of the fabricated biopolymer-based film is much higher than a commonly used synthetic plastic film like polyethylene (24 MPa) [44], LDPE (22 MPa) [43], and HDPE (45 MPa) [45]. On the other hand, the flexibility of the biopolymer-based film is much lower than the commercial plastic films, such as polyethylene (785%) [44], LDPE (806%) [43], and HDPE (255%) [45]. Therefore, it is necessary to improve the flexibility of the biopolymer-based film. Biopolymer-based polymers with functional properties can be a promising alternative to solve these problems. Although the trend of replacing plastic packaging materials with biodegradable materials is increasing, many studies are still needed for practical use.

3.1.5. Water Vapor Permeability (WVP) and Water Contact Angle (WCA) of the Film

The water vapor barrier and surface wettability of the chitosan/gelatin-based films were evaluated using WVP and WCA, respectively, and the results are shown in Table 2. The WCA of the film was slightly increased by the addition of crosslinking agent and functional fillers; however, the increase was not significantly different. Although the strength was increased by forming a dense structure of the film by forming crosslinks in the film by genipin, the water vapor barrier properties of the film did not change significantly.
Previously, similar results were observed in the genipin-crosslinked casein sodium-based film and the chitosan/astaxanthin film [24,26]. The WVP of the film further increased, although it was not significant, by the addition of the functional fillers, which are most likely due to the poor interactions between the fillers and polymer matrix. Similar results were reported for chitosan/gelatin-based films with added essential oils [19].
The water vapor barrier properties of the fabricated biopolymer-based film are significantly lower than the commonly used synthetic plastic films, such as polyethylene (1.91  × 10−12 g∙m/m2∙s∙Pa) [44] and LDPE (0.91 × 10−12 g∙m/m2∙s∙Pa) [46]. Therefore, although biopolymer-based films may be a promising choice, there is still room for improving the water vapor barrier properties of the films to meet the properties of commercial plastic films.
The WCA of the chitosan/gelatin film was 60.5°, indicating it has a hydrophilic surface. The addition of crosslinking agent and functional fillers did not significantly change the surface hydrophilicity of the film. A similar effect of WCA has been observed in the rutin-added chitosan/poly(vinyl alcohol) and genipin-crosslinked sericin/poly(vinyl alcohol) films [47,48].

3.2. Antimicrobial Activity

The antimicrobial activity of the chitosan/gelatin-based films was tested against E. coli and L. monocytogenes, and the results are shown in Figure 4. The neat chitosan/gelatin film showed significant antibacterial activity against both Gram-negative and Gram-positive bacteria due to the antimicrobial functions of chitosan [49]. The antibacterial action of chitosan is thought to be due to the interaction between chitosan with polycations and bacterial cell membranes with polyanions [50].
Rosemary essential oil is also known for antimicrobial action, and the addition of rosemary oil in a packaging system showed significantly increased antimicrobial activity [34]. The addition of a crosslinker (genipin) did not affect the antibacterial function of the film. On the other hand, the antibacterial activity of the film was significantly increased by adding the functional fillers. However, the effect of the increase in the antibacterial activity depended on the type of functional fillers. The addition of quercetin slightly increased the antibacterial activity; however, the addition of rosemary essential oil increased the antibacterial activity more significantly.
A slight antimicrobial activity of quercetin was noted in biopolymer films [20]. The combined addition of the functional fillers showed higher antimicrobial activity. Although the functional films showed significant antibacterial activity, they could not stop the growth of E. coli and L. monocytogenes completely. However, the functional films reduced the growth of E. coli and L. monocytogenes by 7.3–7.6 log CFU/mL and 6.8–7.7 log CFU/mL compared with the control group at 12 h of incubation.
The antibacterial activity of rosemary essential oil is attributed to its bioactive components, including rosemanol, epirosmanol, and rosmarinic acid [19]. Although there is no clear mechanism for antibacterial action, the bioactive components of essential oils have the effect of damaging cell membranes through the interaction between membrane proteins and essential oils [34]. In the case of quercetin, polyphenol flavonoids are mainly responsible for its antibacterial action [38]. The main target sites for flavonoid compounds are cell membranes, and their interaction is most likely to impair microbial growth by damaging the phospholipid bilayer [40].

3.3. Antioxidant Activity

The antioxidant activity of the chitosan/gelatin-based films was also tested using the DPPH and ABTS methods, and the results are shown in Figure 5. The neat chitosan/gelatin film exhibited significant antioxidant activity derived from chitosan and gelatin. The antioxidant activity of chitosan is well known, and its function depends on functional groups, such as OH (C6) and NH2 (C2) [51]. Gelatin is also known to have antioxidant activity, which originates from the peptide bonds [52]. It is worth mentioning that the antioxidant action is superior against ABTS compared with DPPH due to the variable solubility of the hygroscopic biopolymers.
Crosslinking by genipin did not significantly affect the antioxidant performance of the film. However, the addition of the functional fillers (quercetin and rosemary essential oil) significantly increased the antioxidant activity of the film. The combined addition of quercetin and rosemary essential oils increased the antioxidant further. The increment in antioxidant action is presumably owing to the antioxidant active materials, quercetin and rosemary essential oils.
Previously, Yeddeds et al. also found that the antioxidant activity of gelatin-based films increased significantly with the addition of rosemary essential oil [31]. The antioxidant activity of rosemary essential oil comes primarily from polyphenols, such as rosemanol, epirosmanol, and rosmarinic acid. Quercetin is also known to have excellent antioxidant action due to the existence of polyphenolic flavonoid components. Yadav et al. also reported on the antioxidant activity of quercetin added to chitosan/gelatin films [20].

4. Conclusions

Genipin-crosslinked chitosan/gelatin-based functional films were prepared by adding quercetin (QR) and rosemary essential oil (RO). The blending of gelatin and chitosan resulted in highly transparent (light transmittance at 660 nm over 90%) and compatible films. The genipin-crosslinked chitosan/gelatin film completely blocked UV light, and the film’s strength was increased (10% increase in TS). The film’s water vapor barrier and surface wettability were not significantly affected by the addition of crosslinking agent and functional fillers. The addition of the functional fillers significantly increased the antioxidant and antimicrobial activity of the film. Therefore, the manufactured multifunctional chitosan/gelatin-based film has good prospects in active food packaging applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15113769/s1, Figure S1: FTIR spectral patterns of the chitosan/gelatin-based films; Table S1: Thermogravimetric analyzed data of the chitosan/gelatin-based films. References [53,54,55,56] are cited in the Supplementary Materials.

Author Contributions

Data curation, S.R.; Formal analysis, S.R.; Investigation, S.R.; Methodology, S.R.; Project administration, J.-W.R.; Resources, J.-W.R.; Supervision, J.-W.R.; Writing—original draft, S.R.; Writing—review & editing, J.-W.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT, grant number: 2022R1A2B02001422).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare there is no conflict of interest.

References

  1. Trajkovska Petkoska, A.; Daniloski, D.; D’Cunha, N.M.; Naumovski, N.; Broach, A.T. Edible packaging: Sustainable solutions and novel trends in food packaging. Food Res. Int. 2021, 140, 109981. [Google Scholar] [CrossRef] [PubMed]
  2. Luo, X.; Zaitoon, A.; Lim, L.-T. A review on colorimetric indicators for monitoring product freshness in intelligent food packaging: Indicator dyes, preparation methods, and applications. Compr. Rev. Food Sci. Food Saf. 2022, 21, 2489–2519. [Google Scholar] [CrossRef] [PubMed]
  3. Kumar, L.; Ramakanth, D.; Akhila, K.; Gaikwad, K.K. Edible films and coatings for food packaging applications: A review. Environ. Chem. Lett. 2022, 20, 875–900. [Google Scholar] [CrossRef]
  4. Kim, W.; Han, T.; Gwon, Y.; Park, S.; Kim, H.; Kim, J. Biodegradable and flexible nanoporous films for design and fabrication of active food packaging systems. Nano Lett. 2022, 22, 3480–3487. [Google Scholar] [CrossRef]
  5. Chen, W.; Ma, S.; Wang, Q.; McClements, D.J.; Liu, X.; Ngai, T.; Liu, F. Fortification of edible films with bioactive agents: A review of their formation, properties, and application in food preservation. Crit. Rev. Food Sci. Nutr. 2021, 1–27. [Google Scholar] [CrossRef]
  6. Roy, S.; Priyadarshi, R.; Ezati, P.; Rhim, J.-W. Curcumin and its uses in active and smart food packaging applications—A comprehensive review. Food Chem. 2022, 375, 131885. [Google Scholar] [CrossRef]
  7. Yong, H.; Liu, J. Recent advances in the preparation, physical and functional properties, and applications of anthocyanins-based active and intelligent packaging films. Food Packag. Shelf Life 2020, 26, 100550. [Google Scholar] [CrossRef]
  8. Roy, S.; Rhim, J.-W. New insight into melanin for food packaging and biotechnology applications. Crit. Rev. Food Sci. Nutr. 2021. [Google Scholar] [CrossRef]
  9. Jamróz, E.; Kopel, P. Polysaccharide and protein films with antimicrobial/antioxidant activity in the food industry: A review. Polymers 2020, 12, 1289. [Google Scholar] [CrossRef]
  10. Jridi, M.; Abdelhedi, O.; Salem, A.; Kechaou, H.; Nasri, M.; Menchari, Y. Physicochemical, antioxidant and antibacterial properties of fish gelatin-based edible films enriched with orange peel pectin: Wrapping application. Food Hydrocoll. 2020, 103, 105688. [Google Scholar] [CrossRef]
  11. Mohajer, S.; Rezaei, M.; Hosseini, S.F. Physico-chemical and microstructural properties of fish gelatin/agar bio-based blend films. Carbohydr. Polym. 2017, 157, 784–793. [Google Scholar] [CrossRef] [Green Version]
  12. Narasagoudr, S.S.; Hegde, V.G.; Vanjeri, V.N.; Chougale, R.B.; Masti, S.P. Ethyl vanillin incorporated chitosan/poly(vinyl alcohol) active films for food packaging applications. Carbohydr. Polym. 2020, 236, 116049. [Google Scholar] [CrossRef]
  13. Ma, Q.; Cao, L.; Liang, T.; Li, J.; Lucia, L.A.; Wang, L. Active Tara gum/PVA blend films with curcumin-loaded CTAC brush-TEMPO-oxidized cellulose nanocrystals. ACS Sustain. Chem. Eng. 2018, 6, 8926–8934. [Google Scholar] [CrossRef]
  14. Roy, S.; Rhim, J.-W. Fabrication of carboxymethyl cellulose/agar-based functional films hybridized with alizarin and grapefruit seed extract. ACS Appl. Bio Mater. 2021, 4, 4470–4478. [Google Scholar] [CrossRef]
  15. Roy, S.; Kim, H.-J.; Rhim, J.-W. Effect of blended colorants of anthocyanin and shikonin on carboxymethyl cellulose/agar-based smart packaging film. Int. J. Biol. Macromol. 2021, 183, 305–315. [Google Scholar] [CrossRef]
  16. Uranga, J.; Puertas, A.I.; Etxabide, A.; Dueñas, M.T.; Guerrero, P.; de la Caba, K. Citric acid-incorporated fish gelatin/chitosan composite films. Food Hydrocoll. 2019, 86, 95–103. [Google Scholar] [CrossRef]
  17. Kakaei, S.; Shahbazi, Y. Effect of chitosan-gelatin film incorporated with ethanolic red grape seed extract and Ziziphora clinopodioides essential oil on survival of Listeria monocytogenes and chemical, microbial and sensory properties of minced trout fillet. LWT Food Sci. Technol. 2016, 72, 432–438. [Google Scholar] [CrossRef]
  18. Baygar, T. Bioactivity potentials of biodegradable chitosan/gelatin film forming solutions combined with monoterpenoid compounds. J. Polym. Environ. 2019, 27, 1686–1692. [Google Scholar] [CrossRef]
  19. Roy, S.; Rhim, J.-W. Fabrication of bioactive binary composite film based on gelatin/chitosan incorporated with cinnamon essential oil and rutin. Colloids Surf. B Biointerfaces 2021, 204, 111830. [Google Scholar] [CrossRef]
  20. Yadav, S.; Mehrotra, G.K.; Bhartiya, P.; Singh, A.; Dutta, P.K. Preparation, physicochemical and biological evaluation of quercetin based chitosan-gelatin film for food packaging. Carbohydr. Polym. 2020, 227, 115348. [Google Scholar] [CrossRef]
  21. Giz, A.S.; Berberoglu, M.; Bener, S.; Aydelik-Ayazoglu, S.; Bayraktar, H.; Alaca, B.E.; Catalgil-Giz, H. A detailed investigation of the effect of calcium crosslinking and glycerol plasticizing on the physical properties of alginate films. Int. J. Biol. Macromol. 2020, 148, 49–55. [Google Scholar] [CrossRef]
  22. Deng, L.; Li, X.; Miao, K.; Mao, X.; Han, M.; Li, D.; Mu, C.; Ge, L. Development of disulfide bond crosslinked gelatin/ε-polylysine active edible film with antibacterial and antioxidant activities. Food Bioprocess Technol. 2020, 13, 577–588. [Google Scholar] [CrossRef]
  23. Roy, S.; Zhai, L.; Kim, H.C.; Pham, D.H.; Alrobei, H.; Kim, J. Tannic acid crosslinked and TiO2-nanoparticle-reinforced chitosan-based nanocomposite film. Polymers 2021, 13, 228. [Google Scholar] [CrossRef]
  24. Qiu, Y.T.; Wang, B.J.; Weng, Y.M. Preparation and characterization of genipin crosslinked and lysozyme incorporated antimicrobial sodium caseinate edible films. Food Packag. Shelf Life 2020, 26, 100601. [Google Scholar] [CrossRef]
  25. Wang, W.; Wang, Z.; Liu, Y.; Li, N.; Wang, W.; Gao, J. Preparation of reduced graphene oxide/gelatin composite films with reinforced mechanical strength. Mater. Res. Bull. 2012, 47, 2245–2251. [Google Scholar] [CrossRef]
  26. Inthamat, P.; Boonsiriwit, A.; Lee, Y.S.; Siripatrawan, U. Effects of genipin as natural crosslinker on barrier and mechanical properties of chitosan-astaxanthin film. J. Food Process. Preserv. 2021, e15707. [Google Scholar] [CrossRef]
  27. Zeng, S.; Ye, M.; Qiu, J.; Fang, W.; Rong, M.; Guo, Z.; Gao, W. Preparation and characterization of genipin crosslinked silk fibroin/chitosan sustained-release microspheres. Drug Des. Devel. Ther. 2015, 9, 2501–2514. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Haghighi, H.; Biard, S.; Bigi, F.; De Leo, R.; Bedin, E.; Pfeifer, F.; Siesler, H.W.; Licciardello, F.; Pulvirenti, A. Comprehensive characterization of active chitosan-gelatin blend films enriched with different essential oils. Food Hydrocoll. 2019, 95, 33–42. [Google Scholar] [CrossRef]
  29. Roy, S.; Rhim, J.-W. Effect of chitosan modified halloysite on the physical and functional properties of pullulan/chitosan biofilm integrated with rutin. Appl. Clay Sci. 2021, 211, 106205. [Google Scholar] [CrossRef]
  30. Amjadi, S.; Almasi, H.; Ghorbani, M.; Ramazani, S. Reinforced ZnONPs/ rosemary essential oil-incorporated zein electrospun nanofibers by κ-carrageenan. Carbohydr. Polym. 2020, 232, 115800. [Google Scholar] [CrossRef] [PubMed]
  31. Yeddes, W.; Nowacka, M.; Rybak, K.; Younes, I.; Hammami, M.; Saidani-Tounsi, M.; Witrowa-Rajchert, D. Evaluation of the antioxidant and antimicrobial activity of rosemary essential oils as gelatin edible film component. Food Sci. Technol. Res. 2019, 25, 321–329. [Google Scholar] [CrossRef]
  32. Estevez-Areco, S.; Guz, L.; Famá, L.; Candal, R.; Goyanes, S. Bioactive starch nanocomposite films with antioxidant activity and enhanced mechanical properties obtained by extrusion followed by thermo-compression. Food Hydrocoll. 2019, 96, 518–528. [Google Scholar] [CrossRef]
  33. Mustafa, P.; Niazi, M.B.K.; Jahan, Z.; Samin, G.; Hussain, A.; Ahmed, T.; Naqvi, S.R. PVA/starch/propolis/anthocyanins rosemary extract composite films as active and intelligent food packaging materials. J. Food Saf. 2020, 40, e12725. [Google Scholar] [CrossRef]
  34. Abdollahi, M.; Rezaei, M.; Farzi, G. A novel active bionanocomposite film incorporating rosemary essential oil and nanoclay into chitosan. J. Food Eng. 2012, 111, 343–350. [Google Scholar] [CrossRef]
  35. Sarıcaoglu, F.T.; Turhan, S. Physicochemical, antioxidant and antimicrobial properties of mechanically deboned chicken meat protein films enriched with various essential oils. Food Packag. Shelf Life 2020, 25, 100527. [Google Scholar] [CrossRef]
  36. Łopusiewicz, Ł.; Zdanowicz, M.; Macieja, S.; Kowalczyk, K.; Bartkowiak, A. Development and characterization of bioactive poly(butylene-succinate) films modified with quercetin for food packaging applications. Polymers 2021, 13, 1798. [Google Scholar] [CrossRef]
  37. Ezati, P.; Rhim, J.-W. Fabrication of quercetin-loaded biopolymer films as functional packaging materials. ACS Appl. Polym. Mater. 2021, 3, 2131–2137. [Google Scholar] [CrossRef]
  38. Roy, S.; Rhim, J.-W. Fabrication of chitosan-based functional nanocomposite films: Effect of quercetin-loaded chitosan nanoparticles. Food Hydrocoll. 2021, 121, 107065. [Google Scholar] [CrossRef]
  39. Huang, T.; Lin, J.; Fang, Z.; Yu, W.; Li, Z.; Xu, D.; Yang, W.; Zhang, J. Preparation and characterization of irradiated kafirin-quercetin film for packaging cod (Gadus morhua) during cold storage at 4 °C. Food Bioprocess Technol. 2020, 13, 522–532. [Google Scholar] [CrossRef]
  40. Rubini, K.; Boanini, E.; Menichetti, A.; Bonvicini, F.; Gentilomi, G.A.; Montalti, M.; Bigi, A. Quercetin-loaded gelatin films with modulated release and tailored antioxidant, mechanical and swelling properties. Food Hydrocoll. 2020, 109, 106089. [Google Scholar] [CrossRef]
  41. Roy, S.; Rhim, J.-W. Carboxymethyl cellulose-based antioxidant and antimicrobial active packaging film incorporated with curcumin and zinc oxide. Int. J. Biol. Macromol. 2020, 148, 666–676. [Google Scholar] [CrossRef]
  42. Kumar, S.; Mudai, A.; Roy, B.; Basumatary, I.B.; Mukherjee, A.; Dutta, J. Biodegradable hybrid nanocomposite of chitosan/gelatin and green synthesized zinc oxide nanoparticles for food packaging. Foods 2020, 9, 1143. [Google Scholar] [CrossRef]
  43. Shankar, S.; Bang, Y.J.; Rhim, J.-W. Antibacterial LDPE/GSE/Mel/ZnONP composite film-coated wrapping paper for convenience food packaging application. Food Packag. Shelf Life 2019, 22, 100421. [Google Scholar] [CrossRef]
  44. Hong, S.I.; Wang, L.F.; Rhim, J.-W. Preparation and characterization of nanoclays-incorporated polyethylene/thermoplastic starch composite films with antimicrobial activity. Food Packag. Shelf Life 2022, 31, 100784. [Google Scholar] [CrossRef]
  45. Madhu, G.; Bhunia, H.; Bajpai, P.K.; Chaudhary, V. Mechanical and morphological properties of high density polyethylene and polylactide blends. J. Polym. Eng. 2014, 34, 813–821. [Google Scholar] [CrossRef]
  46. Wang, L.F.; Rhim, J.-W. Grapefruit seed extract incorporated antimicrobial LDPE and PLA films: Effect of type of polymer matrix. LWT Food Sci. Technol. 2016, 74, 338–345. [Google Scholar] [CrossRef]
  47. Narasagoudr, S.S.; Hegde, V.G.; Chougale, R.B.; Masti, S.P.; Vootla, S.; Malabadi, R.B. Physico-chemical and functional properties of rutin induced chitosan/poly(vinyl alcohol) bioactive films for food packaging applications. Food Hydrocoll. 2020, 109, 106096. [Google Scholar] [CrossRef]
  48. Siritientong, T.; Ratanavaraporn, J.; Srichana, T.; Aramwit, P. Preliminary characterization of genipin crosslinked silk sericin/poly(vinyl alcohol) films as two-dimensional wound dressings for the healing of superficial wounds. BioMed Res. Int. 2013, 2013, 904314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Díaz-Montes, E.; Castro-Muñoz, R. Trends in chitosan as a primary biopolymer for functional films and coatings manufacture for food and natural products. Polymers 2021, 13, 767. [Google Scholar] [CrossRef] [PubMed]
  50. Bonilla, J.; Fortunati, E.; Atarés, L.; Chiralt, A.; Kenny, J.M. Physical, structural and antimicrobial properties of polyvinyl alcohol-chitosan biodegradable films. Food Hydrocoll. 2014, 35, 463–470. [Google Scholar] [CrossRef]
  51. Xie, W.; Xu, P.; Liu, Q. Antioxidant activity of water-soluble chitosan derivatives. Bioorg. Med. Chem. Lett. 2001, 11, 1699–1701. [Google Scholar] [CrossRef]
  52. Roy, S.; Rhim, J.-W. Preparation of gelatin/carrageenan-based color-indicator film integrated with shikonin and propolis for smart food packaging applications. ACS Appl. Bio Mater. 2020, 4, 770–779. [Google Scholar] [CrossRef]
  53. Roy, S.; Rhim, J.-W. Fabrication of cellulose nanofiber-based functional color indicator film incorporated with shikonin extracted from Lithospermum erythrorhizon root. Food Hydrocoll. 2021, 114, 106566. [Google Scholar] [CrossRef]
  54. Roy, S.; Kim, H.-J.; Rhim, J.-W. Synthesis of carboxymethyl cellulose and agar-based multifunctional films reinforced with cellulose nanocrystals and shikonin. ACS Appl. Polym. Mater. 2021, 3, 1060–1069. [Google Scholar] [CrossRef]
  55. Zhao, J.; Wei, F.; Xu, W.; Han, X. Enhanced antibacterial performance of gelatin/chitosan film containing capsaicin loaded MOFs for food packaging. Appl. Surf. Sci. 2020, 510, 145418. [Google Scholar] [CrossRef]
  56. Roy, S.; Van Hai, L.; Kim, H.C.; Zhai, L.; Kim, J. Preparation and characterization of synthetic melanin-like nanoparticles reinforced chitosan nanocomposite films. Carbohydr. Polym. 2020, 231, 115729. [Google Scholar] [CrossRef]
Materials 15 03769 sch001 550

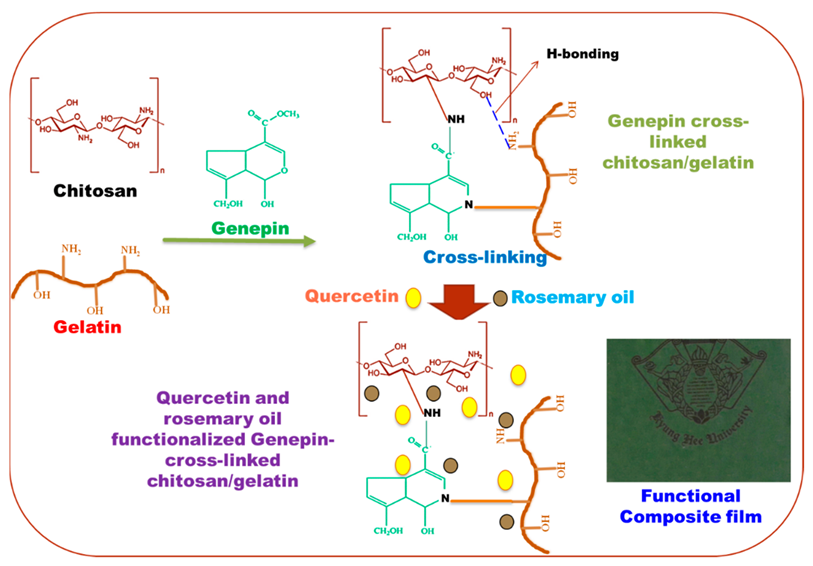

Scheme 1. Schematic diagram of the biocomposite film fabrication and interactions between polymers and fillers.
Scheme 1. Schematic diagram of the biocomposite film fabrication and interactions between polymers and fillers.
Materials 15 03769 sch001
Materials 15 03769 g001a 550Materials 15 03769 g001b 550

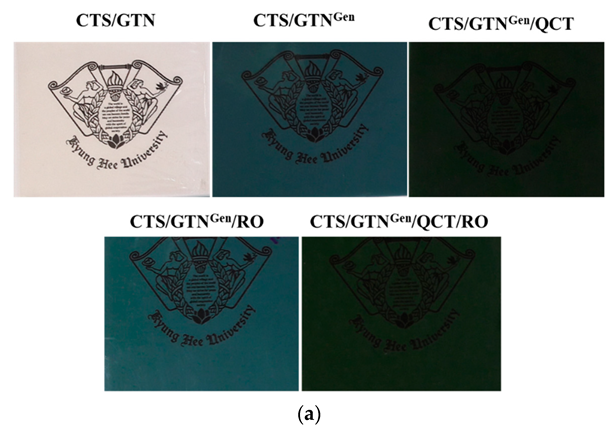

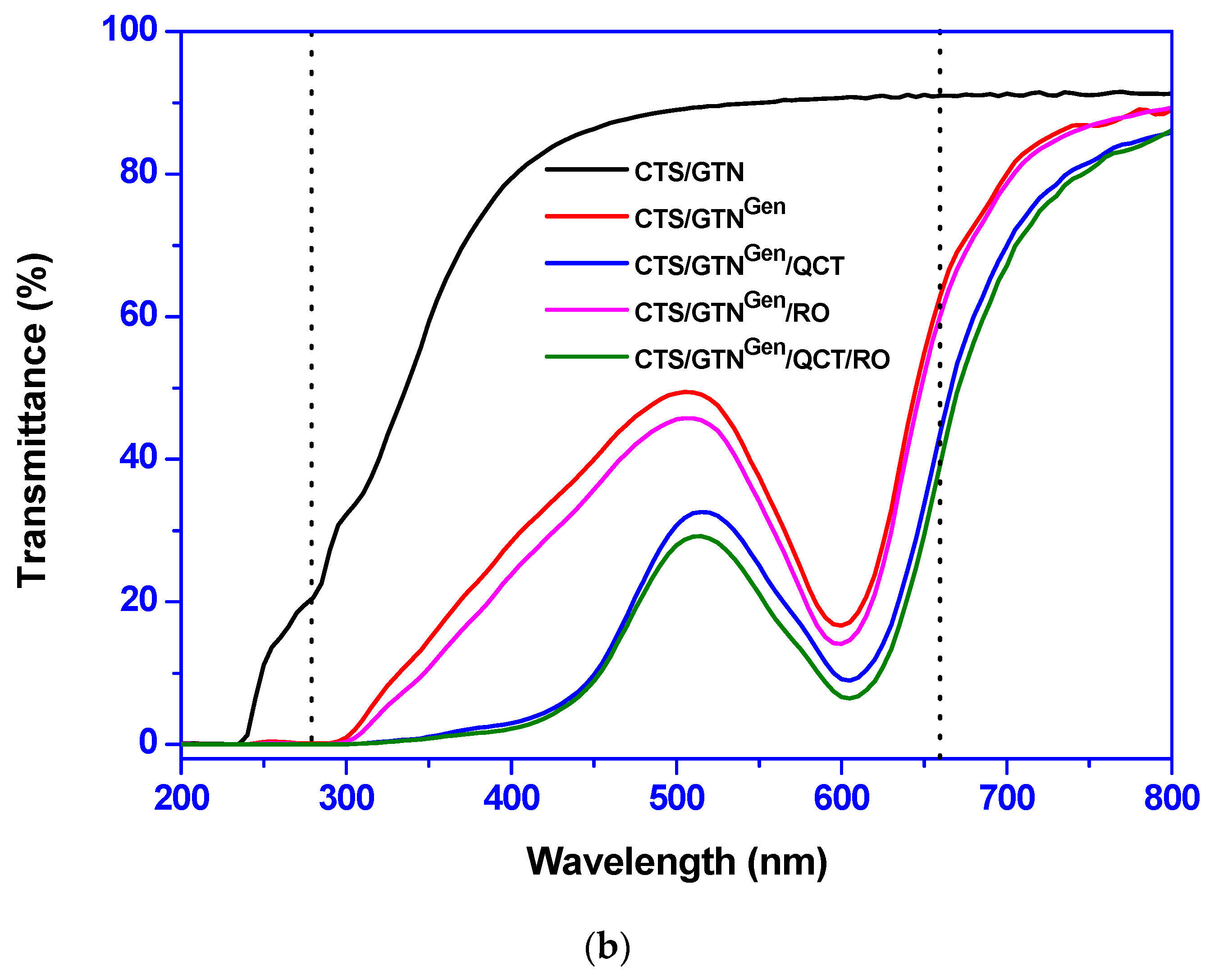

Figure 1. The appearance (a) and light transmission spectra (b) of the chitosan/gelatin-based films.
Figure 1. The appearance (a) and light transmission spectra (b) of the chitosan/gelatin-based films.
Materials 15 03769 g001aMaterials 15 03769 g001b
Materials 15 03769 g002 550

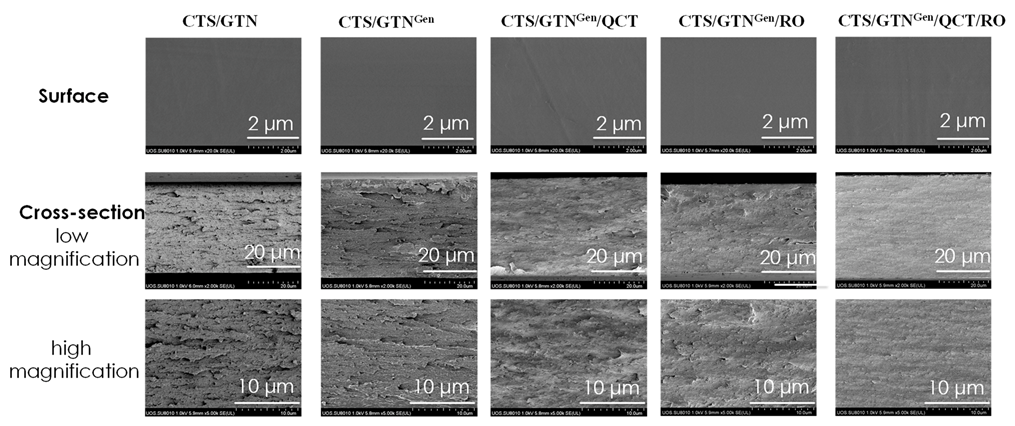

Figure 2. Morphology (surface and cross-section) of the chitosan/gelatin-based films.
Figure 2. Morphology (surface and cross-section) of the chitosan/gelatin-based films.
Materials 15 03769 g002
Materials 15 03769 g003 550
Figure 3. TGA and DTG thermograms of chitosan/gelatin-based films.
Figure 3. TGA and DTG thermograms of chitosan/gelatin-based films.
Materials 15 03769 g003
Materials 15 03769 g004a 550Materials 15 03769 g004b 550

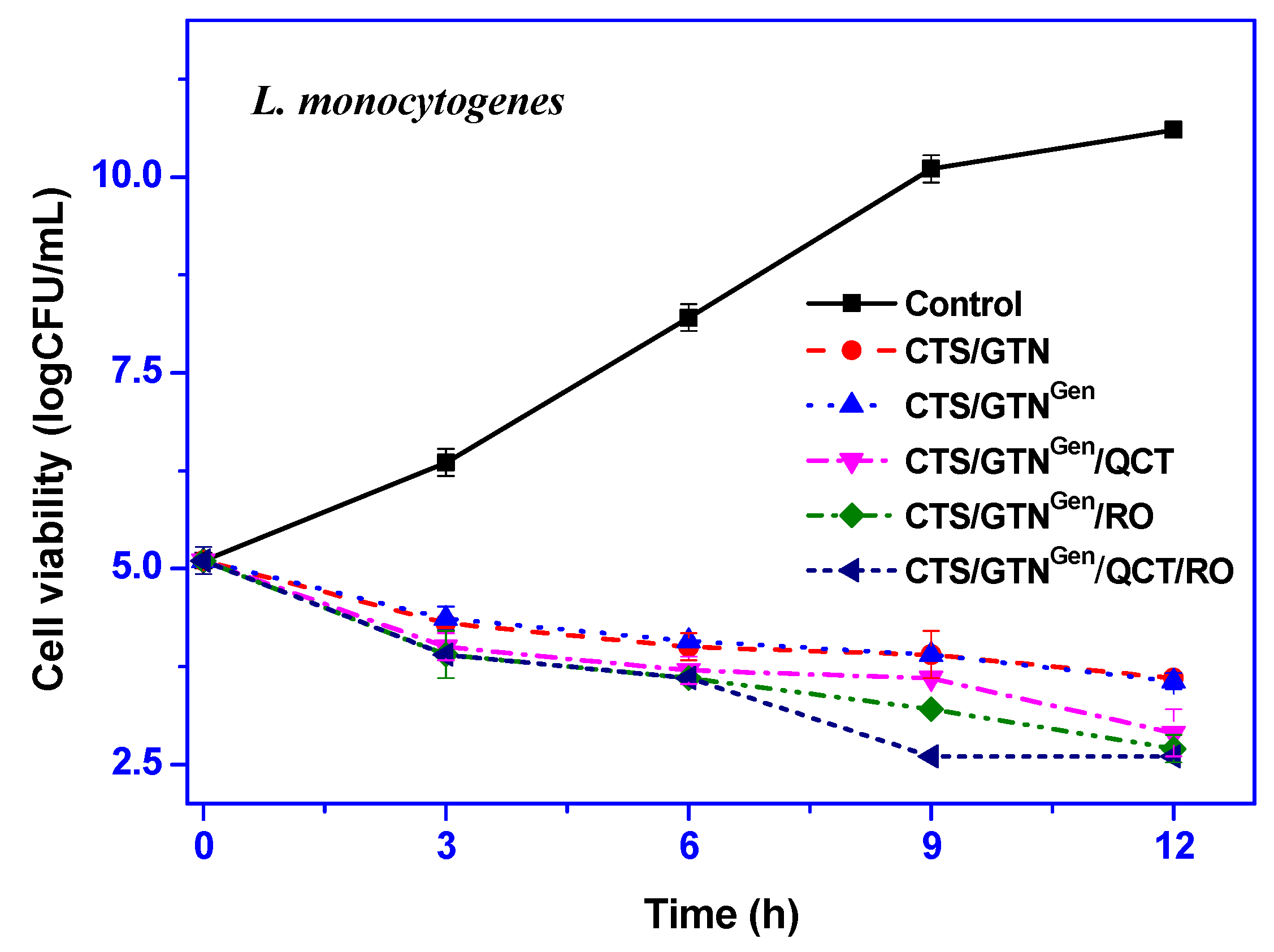

Figure 4. Antimicrobial activity of the chitosan/gelatin-based films against E. coli and L. monocytogenes.
Figure 4. Antimicrobial activity of the chitosan/gelatin-based films against E. coli and L. monocytogenes.
Materials 15 03769 g004aMaterials 15 03769 g004b
Materials 15 03769 g005 550

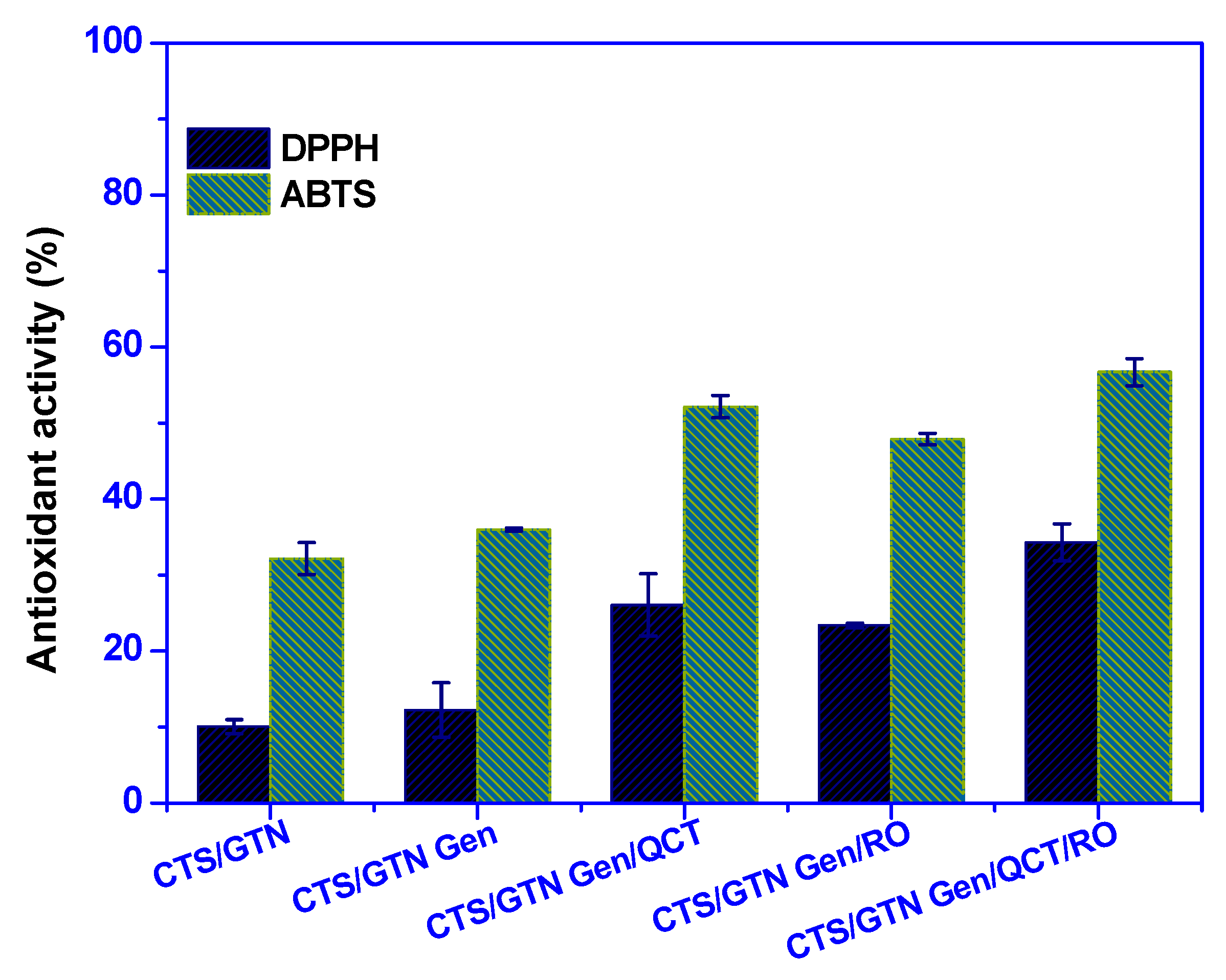

Figure 5. Antioxidant activity of the chitosan/gelatin-based films.
Figure 5. Antioxidant activity of the chitosan/gelatin-based films.
Materials 15 03769 g005
Table
Table 1. Surface color and light transmittance of the chitosan/gelatin-based films.
Table 1. Surface color and light transmittance of the chitosan/gelatin-based films.
FilmsLabΔET280 (%)T660 (%)
CTS/GTN90.6 ± 0.2 b−1.1 ± 0.1 c8.1 ± 0.4 b4.0 ± 0.4 a21.00 ± 3.2 b91.0 ± 0.3 c
CTS/GTNGen41.8 ± 2.7 b−5.1 ± 1.3 b−6.7 ± 0.7 a52.2 ± 2.5 b0.05 ± 0.0 b61.9 ± 2.3 b
CTS/GTNGen/QCT31.3 ± 0.8 a−8.9 ± 0.7 a8.7 ± 0.7 b61.9 ± 0.6 c0.01 ± 0.0 a44.4 ± 1.0 a
CTS/GTNGen/RO39.7 ± 1.3 a−4.1 ± 0.7 b−5.6 ± 0.3 a54.0 ± 1.2 b0.02 ± 0.0 a59.8 ± 1.3 b
CTS/GTNGen/QCT/RO28.8 ± 0.7 a−6.5 ± 0.6 b7.4 ± 0.5 b64.1 ± 0.7 c0.01 ± 0.0 a39.2 ± 0.8 a
Any two means in the same column followed by the same letter are not significantly (p > 0.05) different by Duncan’s multiple range test.
Table
Table 2. The mechanical properties, water vapor permeability, and water contact angle of the chitosan/gelatin-based films.
Table 2. The mechanical properties, water vapor permeability, and water contact angle of the chitosan/gelatin-based films.
FilmsThickness (μm)TS (MPa)EB (%)EM (GPa)WVP (×10−9 g·m/m2·Pa·s)WCA
(deg.)
CTS/GTN44.3 ± 2.8 b77.3 ± 5.1 a6.3 ± 1.4 b3.2 ± 0.3 a0.65 ± 0.10 a60.5 ± 2.5 a
CTS/GTNGen42.8 ± 2.5 a83.7 ± 3.9 b5.4 ± 0.6 a3.4 ± 0.2 b0.66 ± 0.06 a61.8 ± 2.6 a
CTS/GTNGen/QCT42.5 ± 2.4 b84.8 ± 5.0 b5.4 ± 0.4 a3.4 ± 0.2 b0.69 ± 0.03 a60.9 ± 1.5 a
CTS/GTNGen/RO43.8 ± 3.7 b84.8 ± 4.3 b5.5 ± 0.6 a3.4 ± 0.2 b0.67 ± 0.07 a60.3 ± 1.5 a
CTS/GTNGen/QCT/RO44.7 ± 2.8 b86.7 ± 5.0 c5.7 ± 0.4 a3.4 ± 0.2 b0.71 ± 0.09 b61.5 ± 1.6 a
Any two means in the same column followed by the same letter are not significantly (p > 0.05) different by Duncan’s multiple range test.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Roy, S.; Rhim, J.-W. Genipin-Crosslinked Gelatin/Chitosan-Based Functional Films Incorporated with Rosemary Essential Oil and Quercetin. Materials 2022, 15, 3769. https://doi.org/10.3390/ma15113769

AMA Style

Roy S, Rhim J-W. Genipin-Crosslinked Gelatin/Chitosan-Based Functional Films Incorporated with Rosemary Essential Oil and Quercetin. Materials. 2022; 15(11):3769. https://doi.org/10.3390/ma15113769

Chicago/Turabian Style

Roy, Swarup, and Jong-Whan Rhim. 2022. "Genipin-Crosslinked Gelatin/Chitosan-Based Functional Films Incorporated with Rosemary Essential Oil and Quercetin" Materials 15, no. 11: 3769. https://doi.org/10.3390/ma15113769

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
