Environmental Impact of Geosynthetics in Coastal Protection

BAM Bundesanstalt für Materialforschung und-prüfung, 12200 Berlin, Germany
Latvian Institute of Aquatic Ecology, 1007 Riga, Latvia
Shirshov Institute of Oceanology, Russian Academy of Sciences, 117997 Moscow, Russia
Immanuel Kant Baltic Federal University, 236041 Kaliningrad, Russia
Author to whom correspondence should be addressed.
Materials 2021, 14(3), 634;
Submission received: 4 January 2021 / Revised: 22 January 2021 / Accepted: 25 January 2021 / Published: 29 January 2021
(This article belongs to the Special Issue Measurement of the Environmental Impact of Materials)


Geosynthetic materials are applied in measures for coastal protection. Weathering or any damage of constructions, as shown by a field study in Kaliningrad Oblast (Russia), could lead to the littering of the beach or the sea (marine littering) and the discharge of possibly harmful additives into the marine environment. The ageing behavior of a widely used geotextile made of polypropylene was studied by artificial accelerated ageing in water-filled autoclaves at temperatures of 30 to 80 °C and pressures of 10 to 50 bar. Tensile strength tests were used to evaluate the progress of ageing, concluding that temperature rather than pressure was the main factor influencing the ageing of geotextiles. Using a modified Arrhenius equation, it was possible to calculate the half-life for the loss of 50% of the strain, which corresponds to approximately 330 years. Dynamic surface leaching and ecotoxicological tests were performed to determine the possible release of contaminants. No harmful effects on the test organisms were observed.

1. Introduction

Geosynthetics are widely used in coastal protection. Their application areas are soil reinforcement, the stabilization of ballast layers, filtration, the waterproofing of dams and canals, and scour protection (e.g., for piles of offshore wind energy plants). The application of geosynthetics in coastal protection has huge economic benefits, such as savings via substitutions of or reductions in selected soil materials, ease of installation, increased speed of construction, life cycle cost savings through improved performance (by increased longevity or reduction in maintenance), and improved sustainability in terms of conserving natural environments as compared to alternative designs [1,2]. It is commonly accepted that geosynthetics which are adequately stabilized with antioxidants (e.g., sterically hindered amines) will last in underwater constructions with limited oxygen supply and temperatures at constantly low levels for at least 100 years.
However, after the end of service lifetime, geosynthetics could be a source of plastic debris in aquatic systems if the construction which the geosynthetic is a part of is not dismantled. Further, additives which are needed as plasticizers or antioxidants could be emitted, with detrimental influence on the environment [3]. The loss of additives is intimately related to the aging of the geosynthetic products. These are the reasons that public authorities are concerned about the approvability of engineering projects using geosynthetics in aquatic systems.
The long-term stability of geotextiles is usually investigated with relation to mechanical stability, which must fulfill certain requirements after aging. Various methodologies are available (e.g., elevated temperatures or increase in oxygen pressure) to accelerate aging in the laboratory [4]. Mechanical properties, such as tensile strength, investigation of chemical oxidation reactions by infrared spectroscopy, and the residual content of stabilizers are typical parameters tested on aged samples [5]. The investigation of the possible environmental impact of the application of geosynthetics in aquatic systems is therefore hardly possible with virgin polymer material. Consequently, polymers must be artificially aged, which is best accomplished with environmental simulation chambers enabling accelerated ageing. In the case of geosynthetics in hydraulic engineering besides oxidation, mechanical stress (e.g., by tidal and wave action, abrasion by sand) and microbiological interactions (the formation of biofilms, etc.) [6] play significant roles and must be considered.
There are only a few investigations on the degradation behavior of geotextiles in marine environments [7,8]. According to these, exposure to UV light has a higher impact on the material properties in comparison to seawater immersion and tidal action. The importance of the stabilization of the polymers was strengthened. It can be expected that the degradation processes of geotextiles are similar to the processes of other plastics reaching the marine environment because they are made from the same types of polymers. Plastic waste exposed to environmental conditions begins to degrade slowly under the impact of temperature and UV radiation [9], generating a large number of macro-, micro­, and nano-particles. These particles are freely transported by water flows and have adverse effects on the environment [10,11]. One of the key factors which determines the fate of microplastics in the environment is the density of polymers. The specific density of microplastic can vary significantly depending on the polymer type, technological processes of its production, additives, weathering, and biofouling [12,13]. With time, most floating plastics become negatively buoyant due to both biofouling and the adherence of denser particles and sink to the sea floor [13,14]. Thus, the seabed becomes the ultimate repository for microplastic particles and fibers [15,16]. The evaluation of the contamination level is complicated, not only because of the difficulty of the sampling of sea bottom sediment, but also due to the difficulty of the extraction of small plastic particles from marine deposits.
The project Environmental Impact of Geosynthetics in Aquatic Systems (EI-GEO) [17] aims at the investigation of whether geosynthetics in hydraulic engineering applications could be a source of microplastic or other contaminants in the aquatic environment. Whereas the behavior of geosynthetics in landfill engineering has been well studied and documented for decades [18], little is known regarding applications such as coastal protection or scour protection for off-shore wind energy plants. However, due to the rapid expansion of offshore wind energy, rising water levels, and more extreme weather conditions as a result of climate change, more and more hydraulic engineering projects will be realized in the future.
Construction with geosynthetics boasts various advantages, but it has to be ensured that there is no negative environmental impact from the application of geosynthetics in hydraulic engineering. It is expected that any effect will be visible only in the long term because the virgin raw material used for the production of geosynthetics has almost no release of particles or substances relevant to the environment [19].
Partly from improper material selection and partly from non-professional handling, debris from geosynthetic material can be found on the shore today. Therefore, a field study with sampling and monitoring was performed and the magnitude of this pollution was evaluated (objective 1). Further, an accelerated ageing method was performed to derive the requirements for geosynthetics in hydraulic engineering. The testing of mechanical properties was performed with virgin and artificially aged geosynthetics (objective 2). Finally, leachates of artificially aged geosynthetics were used in ecotoxicological tests, which are essential tools to evaluate the environmental impacts of the pollutants released by geosynthetics during ageing (objective 3).

2. Materials and Methods

The applications of geosynthetics in hydraulic and coastal engineering such as revetments, dyke constructions, or geotextile containers for scour prevention are described in detail elsewhere [1]. For the present study, a multifunctional geotextile for separation, filtration, and protection made of white polypropylene was selected as a test material for the investigations. The mass per unit area was 600 g m−2, the thickness was 5 mm, and the water permeability was 3 × 10−2 m s−1. The material, produced in Germany, is commercially available and widely used for geomembrane protection or for the production of sand container bags.

2.1. Accelerated Ageing Using Autoclave Test

Autoclave tests following DIN EN ISO 13438:2005 (method C) [19] were performed under a pure oxygen atmosphere with pressures between 10 and 50 bar, at temperatures between 30 and 80 °C, and with durations in the range of 14 to 143 days. An overview on the performed ageing experiment is given in Table 1. It is important to notice that the test specimens were completely immersed in tap water and the exposure of autoclaves was carried out based on the time-dependent degradation of the mechanical properties of the polypropylene geotextiles. Five PP specimens (250 × 50 mm2) were placed in the autoclaves in tap water. The use of artificial seawater was not possible due to the risk of chlorine-induced corrosion at high oxygen pressures. In order to reach thermal equilibrium, the autoclaves were left for 48 h in electronically controlled heating systems before the start of the tests. Hence, single specimens were removed in succession after different ageing periods. Then, the tensile strength was determined accordingly. Two measurements were carried out for each duration of aging. All the tensile test measurements were performed with a Zwick tensile testing machine (Zwick-Roell, Ulm, Germany) (ZPM Model 1464 with testXpert II software (Version 3.31, Zwick, Ulm, Germany)) with a 5 kN force sensor. The tensile tests were performed in an air-conditioned environment at 23 °C and a relative humidity of 50%. For the tensile test measurements, a clamping length of 50 mm and a test speed of 50 mm/min were chosen. Each sample was attached to a sandpaper to avoid sliding during the tensile test.
Figure 1 shows a sketch of the autoclave test equipment along with all the instruments and monitoring devices used. The temperature and the pressure were observed and recorded every 15 min using an electronic data recorder (Eurotherm 6100) (Eurotherm, Limburg, Germany). The temperature of the autoclave was controlled by an external heating jacket with a separate PT100 temperature sensor connected to a PID temperature controller (Eurotherm 2216E) (Eurotherm). The heating power line was equipped with an electrical contact controlled by the internal temperature monitoring to prevent overheating of the system. The safe and reliable operation of the autoclaves requires the control and monitoring of the relevant parameters, especially for long-term experiments. All the relevant instruments and transducers were calibrated in order to obtain reliable and reproducible results.

2.2. Dynamic Surface Leaching Test

Dynamic surface leaching tests (DSLT) were performed on the geosynthetic materials according to the CEN/TS 16637-2 leaching method [20]. The DSLT corresponds to a tank test for the assessment of the surface-dependent release of dangerous substances and is suitable for monolithic construction products. The test specimens were eluted using demineralized water at a defined water/surface ratio (L/A) and a water exchange at several fixed time intervals (6 h, 1 d, 36 d). The L/A ratio was set to 80 L/m2 in CEN TS 16637-2, but can be reduced to 25 L/m2 for plate-like products. Tests were performed at 23 ± 2 °C, room humidity 50 ± 5%, in the darkness. Two plates were eluted per coating system to obtain enough eluate volume for all the ecotoxicological tests. Each plate was individually placed in a tank and the eluates of the same fraction were combined and well mixed before aliquoting them for ecotoxicological analysis.

2.3. Ecotoxicological Testing

Internationally agreed and accepted ecotoxicity test methods have been performed to demonstrate the impact of chemicals and other pollutants on the environment and determine the potential damage to organisms and the function of ecosystems [21,22,23]. Ecotoxicity tests consisted of two acute and one chronic test with organisms from different levels of aquatic food chains. The ecotoxicity test conditions, growth media, dilutions, and replication are summarized in Table 2. The test eligibility criteria for the Daphnia magna test is ≤10% immobile organisms in the control treatment and an ≥80% survival for the Hyalella Azteca test. For the Desmodesmus subspicatus test, control batch absorption measurements should indicate the exponential growth of algal cells, the variation coefficient (CV) of the growth rate in the control replicates should not exceed 5%, and the pH in the control should not increase during the test by more than 1.5 relative to the pH of the growth medium.

2.4. Continuous Visual Scanning (Field Study)

Since the fragments of plastics and geosynthetic materials were unevenly distributed on the beach, the use of a selective area technique for their search—such as, for example, for anthropogenic debris [24] and microplastics [25]—will not yield results. To analyze the pollution of the beaches at the Southeastern Baltic within the Kaliningrad Oblast (Russia), a continuous visual scanning technique [26] was applied which assumes a continuous passage of a group of several people along the entire coastline, covering the entire width of the beach from the shoreline to the foredune (or cliff).
The width of the beaches of the Kaliningrad Oblast ranges from almost 0 to 188 m and the average value is 30 m, so the group usually included three people. The beach was divided into three control strips, each member of the group controls his strip and even tries to capture the edge of the neighboring zone for a complete scan of the entire beach. During the day, the group could walk 7–10 km, and such monitoring surveys were carried out in 2018.
Each detected plastic or geosynthetic fragment with a size larger than 3–5 cm was attributed to the different type of origin (see Results section), dimension scale (length and area), number of the coastal subsection where this sample was found, and position on the beach (in % of the beach width). Next, photographs were taken and, if necessary, the sample was saved for further laboratory analysis.

3. Results

3.1. Field Study on Kaliningrad Oblast Shore (Russia)

During the surveys of the beaches of the Kaliningrad Oblast (Figure 2) in 2018, a large amount of remnants of geosynthetic materials that are used in coastal protection structures [27] were found. In addition, there was extensive contamination from other building support materials—e.g., geotextile FIBC (Flexible Intermediate Bulk Container) bags (“big bags”) and the remains of fishing nets, ropes, and car tires.
In 2018, 3485 samples were collected from the beaches which, by origin, belonged to several types of materials: geotextiles, geocells, geogrids, plastic coating from gabions, and geotextile big bags. The integral amount of remnants of geotextile objects was more than 190 m2 and the integral length of the geotextile braids from gabions coating was about 100 m [28].
The occurrence of geosynthetic remnants varies greatly along the entire shore of the Kaliningrad Oblast. The northern shore of the Sambia Peninsula accounts for 66% of the remains found, 31% for the beaches of the Curonian Spit National Park, and only 3% was found on the beaches of the western shore of the Sambia Peninsula and the Vistula Spit. Among the remains of geosynthetic materials found, the largest number was braid from gabions (44%) and geocontainers (43%), pieces of geotextile accounted for only 12%, and the remaining 1% was made up of remnants of geocells and geogrids.
The performed primary statistical analysis on the occurrence of the number of pieces per 1 kilometer for various morphodynamic segments of the coast of the Kaliningrad Oblast (Vistula Spit, western and northern shores of the Sambia Peninsula, Curonian Spit) showed that the main pollution occurs on the northern shore (see Table 3). Considering the average size of one piece of geotextile (0.9 m2), gabion coating (7.4 cm), big bag (0.3 m2), and geocell (0.06 m2), it is obvious that the remnants of geotextile and “big bags” were the mostly visible litter on the beach.
This fact that the northern shore of the Sambian Peninsula is mostly littered correlates well with the location of engineering structures using geosynthetic materials, most of which are located on the northern shore of the Sambian Peninsula [27]. In addition, the main accumulation of residues of geosynthetic materials is observed in the areas adjacent to these engineering structures. On the Curonian Spit (north from the Sambian Peninsula), a large amount of geosynthetic remnants was also found, which were probably brought here by alongshore currents [29]. The occurrence of residues on the Vistula Spit (south from the Sambian Peninsula) and on the western coast of the Sambia Peninsula is low due to the current structure in the eastern part of the Gulf of Gdansk [30].
Gabion coating was found quite often (see Table 3). This came from the plastic coating of the wire used for the gabion’s support structure. Obviously, this coating is not weatherproof. A support structure made of stainless steel or Zn-plated wires would not need a plastic coating but is, however, more expensive. Geotextile remnants came from partly destroyed coastal protection structures which stay without proper maintenance during long time. Geocells were found rarely, they were from several locations, where storm events destroyed lawn on the slopes of foredune wall prepared using geocells. Debris from big bags was found often as well. However, these woven geotextiles are rather used for transport of building materials or short-term applications than for coastal protection systems. Occurrence can therefore be attributed to improper waste management.

3.2. Tensile Tests after Accelerated Ageing Using Autoclave Test

The elongation and force of break of the test specimens were measured on a tensile testing machine. The retained elongation Rε at break is measured as a function of time (and temperature and oxygen pressure) and is expected to be influenced by the ductile–brittle change which is a service lifetime criterion for the geotextile. The retained elongation Rε is defined as follows:
Rε = 100% εec,
with εe then initial elongation at break and εc the elongation of the exposed specimen.
The results are displayed in Figure 4. It is clearly visible that increasing temperature leads to a more pronounced decay of the mechanical properties. The loss of retained elongation proceeds with the duration of the exposure, which is visualized in Figure 4 by different gray scales of the respective symbols (bright to dark). The influence of pressure is lower. Experiments performed at 40 and 50 bar show higher values for retained elongation because the temperature was 30 °C and 40 °C, respectively.
The aging of polymers is caused by oxidation. The thermo-oxidation of PP can be defined as an in-chain radical mechanism. The latter generates hydroperoxides more rapidly than they decompose, which strengthen its strong auto-accelerating character. A detailed description of the oxidative aging of polymers is given by Verdu [31]. The accelerated ageing in the autoclaves is a function of temperature and pressure with a (pseudo-)first-order rate constant k (s−1). The temperature and pressure dependence of the oxidation reaction can be approximated by an modified Arrhenius equation (consideration of pressure dependence) [32,33]:
ln ε e ε c ~ ln c 0 c = A   exp ( E a + C   p R   T ) = k   ( T ,   p )   t ,
with frequency factor A (s−1), activation energy Ea (J mol−1), pressure factor C (J mol−1 bar−1), universal gas constant R, and temperature T (K).
The term ln c0/c is usually related to the fate of a substance in a chemical reaction. Here, it is approximated by the loss of mechanical properties and describes the progress of the oxidation and thus degradation of the material without knowing exact concentration of oxidized and non-oxidized polymer material. The experimental data displayed in Figure 4 were fitted with the Solver module in Microsoft Excel (solver method GRG non-linear) (Office 365 for Enterprise). Starting values for activation energy Ea (80,000 J mol−1) and frequency factor A (6 × 108 s−1) were taken from the literature [34]. As a result, k (T, p) was fitted to 0.5 s−1 at T = 298 K and pO2 = 0.21 bar. The half-life τ at 298 K and 0.21 bar oxygen pressure, i.e., the time were 50% of the mechanical properties are lost under ambient conditions, can be calculated from ln2/k.
τ = ln2/k = 330 years
This result is in the same order of magnitude as the results from Hausmann et al. for woven polypropylene geotextiles [34] (483–795 years). Fitted pressure factor C was 146 J mol−1 bar−1, so the activation energy Ea in the exponential tern in Equation (2) is reduced by 7300 J mol−1 (<10%) at 50 bar oxygen pressure in the autoclave experiment. As stated above, temperature has the strongest influence on the accelerated ageing in the autoclaves, even at highest possible pressure of 50 bar. However, it must be mentioned at this point that the samples are immersed in tap water so that the samples are exposed to the dissolved oxygen in water which is proportional to the partial pressure of oxygen above the liquid (Henry’s law). Henry’s law solubility constant is substance specific and a function of temperature. An equation to calculate the concentration of dissolved oxygen caq in water between 273 and 616 K and pressures up to 60 bar was presented by Tromans [35] and reviewed by Sander [36]. For 50 bar and 353 K, the caq is 3.97 × 10−2 mol kg−1.

3.3. Ecotoxicity Tests

To evaluate the geosynthetic leachate ecotoxicity, a combination of bioassays was applied—both acute and chronic tests and organisms representing two trophic levels were used. Such an approach has advantages over individual component analysis and testing because it can disclose mixture effects.
The algae growth inhibition test was conducted at five volume/volume percent concentrations—5.9%, 11.8%, 23.6%, 47.2%, and 94.3%. Inhibition is evaluated by the reduction in specific growth rate relative to the cultures of the control. Samples Fraction 1 + 2 and Fraction 7 after 72 h exposures did not indicate algae growth inhibition even at the highest test concentration (Figure 5).
The results of an acute Daphnia magna test showed the toxicity of Fraction 1 + 2 only at 100% concentration, causing 7.1% daphnia mortality after 24 h and 54% of cladocera mortality after 48 h exposure (Figure 6). However, there was no toxic effect observed when ADaM media microelements were added to the highest concentration. Fraction 7 did not cause any effects on D. magna survival during the test.
Although the acute ecotoxicity test results of amphipod Hyalella azteca showed the higher toxicity of Fraction 1 + 2 than Fraction 7, no significant differences in toxicity between both samples after 14 days exposure were detected (Figure 5). In the 100% concentrate samples, an 88% mortality of amphipods was detected in Fraction 1 + 2 after 48 h exposure, while toxicity of Sample 7 increased only after one-week exposure. LC50 for Fraction 1 + 2 was 83%, while Fraction 7—LC50 was at 89%.
Measurements of pH showed an increase by 0.5 units after the 14-day test period, while the oxygen concentration stayed uniform more than 8.00 mg/L all test period. Ammonium concentration during the test did not reach higher than 20 mg/L (ISO 16303:2013 standard mentioned 96 h LC50 ammonium could be 20 mg/L to >200 mg/L [21]).

4. Discussion

The loss of additives, such as plasticizers and antioxidants, during the ageing of geotextiles potentially can add to the concentrations of hazardous substances in the water. This is discussed in a study from South Korea, where more than 200 different chemicals were identified in plastic marine debris and respective new products [37]. Another consideration is that base structure forming polymers gradually degrades to microplastic particles, and as such can be ingested by heterotrophs or interfere with algal photosynthesis [3]. However, ecotoxicological test results in this research did not show significant toxicity of geotextile leachates to water organisms. In case of microalgae, the test samples showed even nutritive properties, as an increase in microalgae concentration was observed during the 72 h of the test. Currently, there is limited research in the field of geosynthetic ecotoxicity, but a study evaluating the environmental safety of construction products also found that geosynthetic PET multifilament yarns and polyamide monofilament with PP fleece coating, have low toxicity [38]. Results indicate that the algae species Desmodesmus subspicatus that were also used in our study are slightly less sensitive than the algae Raphidocelis subcapitata and daphnia [39].
A concentrated sample of Fraction 1 + 2 (100%) caused mortality of Daphnia magna. However, if test sample was spiked with minerals from ADaM growth media, no mortality was observed. No mortality was observed in other test sample dilutions, neither in Fraction 1 + 2, nor Fraction 7. The results indicate that deionized water used in DSL tests might bias the ecotoxicity tests by adding hypoosmotic stress to low toxicity of test media. Concentrated samples (100%) of Fraction 7 did not caused mortality of organisms. These results suggest that the toxicity of additives is decreasing with time and dilution, also indicating that osmotic stress alone does not cause mortality [40].
A lethal concentration (LC50) was calculated only for amphipods Hyallela Azteca. However, the LC50 at 83% and 89% concentrations can be considered as very low toxicity [41]. As geotextiles in hydraulic engineering are exposed to intensive water exchange, no toxic effects in the environment will be observed. However, even though within the tests with Daphnia magna, Hyalella aztecal and Desmodesmus subspicatus negative effects were not detected, the risk that long-term harsh climate conditions pose an impact on the release and migration of particles as well as hazardous substances cannot be excluded completely (referring to objective 3).
Service lifetime of geotextiles with state-of-the-art stabilization is far above 100 years, which was shown in the present study with accelerated ageing at elevated temperatures and oxygen pressures. The improper installation of the geotextiles and the lack of service and maintenance after extreme weather events could cause the failure of the engineered structures and, as a result, the pollution of the environment by remnants of geosynthetic materials [42]. The successful application of geotextiles in coastal protection depends on the selection of a suitable material and proper installation and maintenance (referring objective 2).
The field study performed at the shore of Kaliningrad Oblast (Russia) demonstrated that debris from plastic and geotextile materials is found in the environment [27,42]. The remnants of the geosynthetic materials are found not only at the beaches of the Kaliningrad Oblast, but at the neighboring beaches of Lithuania [43]. Some of the found objects could be attributed to unsuitable material selection (gabion coating) or improper waste management. Considering that any damage, even partial, of the coastal protective constructions using geosynthetic material could lead to the littering of the beach or the sea, specific attention is needed for the maintenance of such constructions (referring objective 1).

Author Contributions

Conceptualization, F.-G.S. and B.C.; Writing Original Draft, F.-G.S.; Data Acquisition, P.S., A.K., I.P.-N., E.E., I.B., I.L.-L. and E.S.; Visualization, Data Interpretation, Writing—Review & Editing P.S., B.C., I.P.-N. and I.P.; methodology, F.-G.S., B.C. and I.P.; Funding Acquisition, F.-G.S., B.C. and I.P. All authors have read and agreed to the published version of the manuscript.


This research was funded within the ERANET-RUS plus joint project EI-GEO, ID 212 (RFBR 18-55-76002 ERA_a, BMBF 01DJ18005, ES RTD/2018/21 VIAA Latvia) and supported by ERDF post-doctoral project No. and theme 0149-2019-0013 of the Shirshov Institute of Oceanology (instrumental support of the field study).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Müller, W.W.; Saathoff, F. Geosynthetics in geoenvironmental engineering. Sci. Technol. Adv. Mater. 2015, 16, 034605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wu, H.; Yao, C.; Li, C.; Miao, M.; Zhong, Y.; Lu, Y.; Liu, T. Review of Application and Innovation of Geotextiles in Geotechnical Engineering. Materials 2020, 13, 1774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Wiewel, B.V.; Lamoree, M.H. Geotextile composition, application and ecotoxicology—A review. J. Hazard. Mater. 2016, 317, 640–655. [Google Scholar] [CrossRef] [PubMed]
  4. Bandow, N.; Aitken, M.D.; Geburtig, A.; Kalbe, U.; Piechotta, C.; Schoknecht, U.; Simon, F.-G.; Stephan, I. Using Environmental Simulations to Test the Release of Hazardous Substances from Polymer-Based Products: Are Realism and Pragmatism Mutually Exclusive Objectives? Materials 2020, 13, 2709. [Google Scholar] [CrossRef] [PubMed]
  5. Simon, F.G.; Wachtendorf, V.; Geburtig, A.; Trubiroha, P. Materials and the environment, Environmental Impact of Materials. In Springer Handbook of Metrology and Testing; Czichos, H., Saito, T., Smith, L., Eds.; Springer: Heidelberg, Germany, 2011; pp. 845–860. [Google Scholar]
  6. Oberbeckmann, S.; Löder, M.G.J.; Labrenz, M. Marine microplastic-associated biofilms—A review. Environ. Chem. 2015, 12, 551–562. [Google Scholar] [CrossRef]
  7. Carneiro, J.R.; Morais, M.; Lopes, M.D.L. Degradation of polypropylene geotextiles with different chemical stabilisations in marine environments. Constr. Build. Mater. 2018, 165, 877–886. [Google Scholar] [CrossRef]
  8. Hsieh, C.; Chiu, Y.-F.; Wang, J.-B. Weathering properties of geotextiles in ocean environments. Geosynth. Int. 2006, 13, 210–217. [Google Scholar] [CrossRef]
  9. Tosin, M.; Weber, M.; Esiotto, M.; Lott, C.; Degli-Innocenti, F. Laboratory Test Methods to Determine the Degradation of Plastics in Marine Environmental Conditions. Front. Microbiol. 2012, 3, 225. [Google Scholar] [CrossRef] [Green Version]
  10. Andrady, A.L. Microplastics in the marine environment. Mar. Pollut. Bull. 2011, 62, 1596–1605. [Google Scholar] [CrossRef]
  11. Kershaw, R.P. Biodegradable Plastics and Marine Litter. Misconceptions, Concerns and Impacts on Marine Environments; United Nations Environment Programme (UNEP): Nairobi, Kenya, 2015; ISBN 978-92-807-3494-2. [Google Scholar]
  12. Chubarenko, I.P.; Bagaev, A.; Zobkova, M.; Esiukova, E.E. On some physical and dynamical properties of microplastic particles in marine environment. Mar. Pollut. Bull. 2016, 108, 105–112. [Google Scholar] [CrossRef]
  13. Morét-Ferguson, S.; Law, K.L.; Proskurowski, G.; Murphy, E.K.; Peacock, E.E.; Reddy, C.M. The size, mass, and composition of plastic debris in the western North Atlantic Ocean. Mar. Pollut. Bull. 2010, 60, 1873–1878. [Google Scholar] [CrossRef] [PubMed]
  14. Lobelle, D.; Cunliffe, M. Early microbial biofilm formation on marine plastic debris. Mar. Pollut. Bull. 2011, 62, 197–200. [Google Scholar] [CrossRef] [PubMed]
  15. Barnes, D.K.A.; Galgani, F.; Thompson, R.C.; Barlaz, M. Accumulation and fragmentation of plastic debris in global environments. Philos. Trans. R. Soc. B Biol. Sci. 2009, 364, 1985–1998. [Google Scholar] [CrossRef] [Green Version]
  16. Woodall, L.C.; Sanchez-Vidal, A.; Canals, M.; Paterson, G.L.J.; Coppock, R.; Sleight, V.; Calafat, A.; Rogers, A.D.; Narayanaswamy, B.E.; Thompson, R.C. The deep sea is a major sink for microplastic debris. R. Soc. Open Sci. 2014, 1, 140317. [Google Scholar] [CrossRef] [Green Version]
  17. Simon, F.G.; Barqawi, H.; Chubarenko, B.; Esiukova, E.; Putna-Nimane, I.; Barda, I.; Strode, E.; Purina, I. EI-GEO Environmental Impact of Geosynthetics in aquatic systems. In 3rd Baltic Earth Conference, Earth System Changes and Baltic Sea Coasts, International Baltic Earth Secretariat Publications; Köppen, S., Reckermann, M., Eds.; International Baltic Earth Secretariat Publications: Geesthacht, Germany, 2020; pp. 151–152. [Google Scholar]
  18. Müller, W.W.; Simon, F.; Wöhlecke, A. 30 Jahre BAM-Zulassung (in der Deponietechnik): Material- und prüftechnische Entwicklungen. Bautechnik 2019, 96, 912–918. [Google Scholar] [CrossRef]
  19. Holmes, L.A.; Turner, A.; Thompson, R.C. Interactions between trace metals and plastic production pellets under estuarine conditions. Mar. Chem. 2014, 167, 25–32. [Google Scholar] [CrossRef]
  20. DIN CEN/TS 16637-2. Construction Products—Assessment of Release of Dangerous Substances—Part 2: Horizontal Dynamic Surface Leaching Test; German Institute for Standardization, Beuth-Verlag: Berlin, Germany, 2014. [Google Scholar]
  21. ISO 6341. Water quality–Determination of the Inhibition of the Mobility of Daphnia Magna Straus (Cladocera, Crustacea)–Acute Toxicity Test; International Standardization Organization: Geneva, Switzerland, 2012. [Google Scholar]
  22. ISO 16303. Water quality–Determination of Toxicity of Fresh Water Sediments Using Hyalella Azteca; International Standardization Organization: Geneva, Switzreland, 2013. [Google Scholar]
  23. ISO 8692. Water quality–Fresh Water Algal Growth Inhibition Test with Unicellular Green Algae; International Standardization Organization: Geneva, Switzerland, 2012. [Google Scholar]
  24. Haseler, M.; Balciunas, A.; Hauk, R.; Sabaliauskaite, V.; Chubarenko, I.; Ershova, A.; Schernewski, G. Marine Litter Pollution in Baltic Sea Beaches–Application of the Sand Rake Method. Front. Environ. Sci. 2020, 8, 599978. [Google Scholar] [CrossRef]
  25. Chubarenko, I.P.; Esiukova, E.; Khatmullina, L.; Lobchuk, O.; Grave, A.; Kileso, A.; Haseler, M. From macro to micro, from patchy to uniform: Analyzing plastic contamination along and across a sandy tide-less coast. Mar. Pollut. Bull. 2020, 156, 111198. [Google Scholar] [CrossRef]
  26. Esiukova, E.E.; Chubarenko, B.V.; Chubarenko, I.P.; Kileso, A.V.; Zhelezova, E.V.; Grave, A.V.; Cukanova, E.S.; Sobaeva, D.A.; Tanurkov, A.G.; Yushmanova, A.V.; et al. Method of selection and accounting of fragments of geosynthetic materials and its testing at the beaches of the South-Eastern Baltic. In XXVII International Shore Conference Arctic Coast: The Path to Sustainability; MAGU Publisher: Murmansk, Russia, 2018. [Google Scholar]
  27. Esiukova, E.E.; Chubarenko, B.V.; Simon, F.-G. Debris of geosynthetic materials on the shore of the South-Eastern Baltic (Kaliningrad Oblast, the Russian Federation). In Proceedings of the 2018 IEEE/OES Baltic International Symposium (BALTIC), Klaipeda, Lithuania, 12–15 June 2018; pp. 1–6. [Google Scholar] [CrossRef]
  28. Esiukova, E.E.; Kileso, A.V.; Chubarenko, B.V.; Pinchuk, V.S. Geosynthetic debris on the beaches of Kaliningrad Oblast –result of systematic assessment of 2018. In Proceedings of the Baltic Sea Science Congress (BSSC), Stockholm, Sweden, 23 August 2019. [Google Scholar]
  29. Sokolov, A.; Chubarenko, B.V.; Umgiesser, G. Hydrodynamic conditions near the northern shore of Sambian Peninsula (the Baltic Sea) as a basis of geotextile debris transport analysis. In Proceedings of the 2018 IEEE/OES Baltic International Symposium (BALTIC); Williams, A.J., Ed.; IEEE Xplore: New York, NY, USA, 2018; pp. 1–6. [Google Scholar] [CrossRef]
  30. Babakov, A.N.; Chubarenko, B.V. The Structure of the Net Alongshore Sediment Transport in the Eastern Gulf of Gdansk. Water Resour. 2019, 46, 515–529. [Google Scholar] [CrossRef]
  31. Verdu, J. Oxidative Ageing of Polymers; ISTE Ltd.: London, UK, 2012. [Google Scholar]
  32. Robertson, D. The oxidative resistance of polymeric geosynthetic barriers (GBR-P) used for road and railway tunnels. Polym. Test. 2013, 32, 1594–1602. [Google Scholar] [CrossRef]
  33. Schröder, H.F.; Munz, M.; Böhning, M. A New Method for Testing and Evaluating the Long-Time Resistance to Oxidation of Polyolefinic Products. Polym. Polym. Compos. 2008, 16, 71–79. [Google Scholar] [CrossRef]
  34. Hausmann, S.; Zanzinger, H.; Armani, A. Oxidative lifetime prediction of a polypropylene woven geotextile by applying high temperature and moderately increased oxygen pressure. Geotext. Geomembr. 2020, 48, 479–490. [Google Scholar] [CrossRef]
  35. Tromans, D. Temperature and pressure dependent solubility of oxygen in water: A thermodynamic analysis. Hydrometallurgy 1998, 48, 327–342. [Google Scholar] [CrossRef]
  36. Sander, R. Compilation of Henry’s law constants (version 4.0) for water as solvent. Atmos. Chem. Phys. Discuss. 2015, 15, 4399–4981. [Google Scholar] [CrossRef] [Green Version]
  37. Rani, M.; Shim, W.J.; Han, G.M.; Jang, M.; Al-Odaini, N.A.; Song, Y.K.; Hong, S.H. Qualitative Analysis of Additives in Plastic Marine Debris and Its New Products. Arch. Environ. Contam. Toxicol. 2015, 69, 352–366. [Google Scholar] [CrossRef]
  38. Gartiser, S.; Heisterkamp, I.; Schoknecht, U.; Bandow, N.; Burkhardt, N.M.; Ratte, M.; Ilvonen, O. Recommendation for a test battery for the ecotoxicological evaluation of the environmental safety of construction products. Chemosphere 2017, 171, 580–587. [Google Scholar] [CrossRef]
  39. Hsuan, Y.G.; Olson, M.S.; Spatari, S.; Cairncross, R.; Kilham, S. The roles of geomembranes in algae production at landifills. Geosynthetics 2012, 30, 34–41. [Google Scholar]
  40. Sachs, F.; Sivaselvan, M.V. Cell volume control in three dimensions: Water movement without solute movement. J. Gen. Physiol. 2015, 145, 373–380. [Google Scholar] [CrossRef] [Green Version]
  41. US EPA. Method Guidance and Recommendations for Whole Effluent Toxicity (WET) Testing (40 CFR Part 136), Guidance Document, EPA 821-B-00-004; United States Environmental Protection Agency, Office of Water: Washington, DC, USA, 2000.
  42. Esiukova, E.E.; Chubarenko, B.V. Geosynthetic debris–new pollutant as a result of coastal protection. In Proceedings of the XX International Environmental Forum “Baltic Sea Day”, St. Petersburg, Russia, 21–23 March 2019; pp. 80–82. [Google Scholar]
  43. Kileso, A.V.; Esiukova, E.E.; Pinchuk, V.S. Traces of the transboundary pollution of the shore of the Southeastern Baltic by the debris of geosynthetic materials. In Proceedings of the IV International Scientific and Practical Conference (Dedicated to the 1000th Anniversary of the City of Brest), Current Problems of Earth Sciences Research of Cross-Border Regions, Brest, Belarus, 5–6 December 2019; pp. 215–216. [Google Scholar]

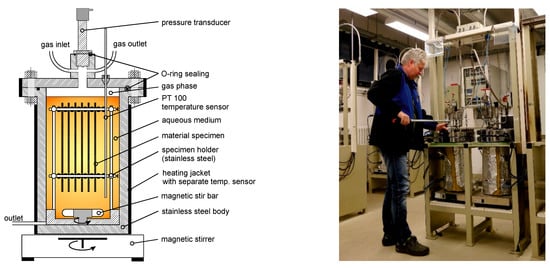

Figure 1. Schematic view of autoclave test equipment (left), closing the cover plate of the autoclaves (test rig with two autoclaves).
Figure 1. Schematic view of autoclave test equipment (left), closing the cover plate of the autoclaves (test rig with two autoclaves).
Materials 14 00634 g001

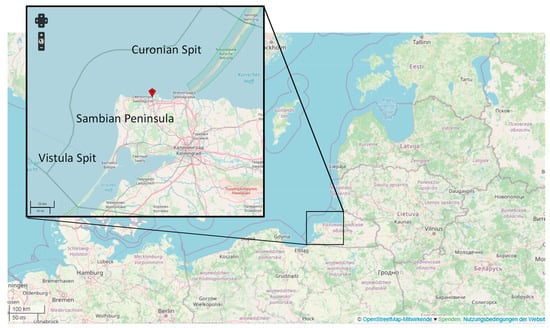

Figure 2. Shoreline of the Kaliningrad Oblast (Russia) in the Baltic Sea including the Sambian Peninsula (quadrangle). Source: OpenStreetMap.
Figure 2. Shoreline of the Kaliningrad Oblast (Russia) in the Baltic Sea including the Sambian Peninsula (quadrangle). Source: OpenStreetMap.
Materials 14 00634 g002

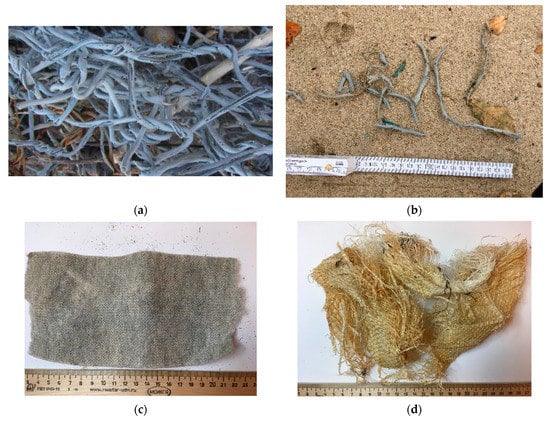

Figure 3. Photographs of samples collected during the field study: (a) + (b): aged plastic coating of wires in gabions’ (c) debris from geocell; (d): debris from big bag.
Figure 3. Photographs of samples collected during the field study: (a) + (b): aged plastic coating of wires in gabions’ (c) debris from geocell; (d): debris from big bag.
Materials 14 00634 g003
Figure 4. Retained elongation Rε measured after exposure in autoclaves as a function of temperature (left) and pressure (right). The duration of exposure is visualized by the gray scale of the symbols. Note that at 80 °C experiments at three different pressures (10, 20, and 30 bar, different symbols) were performed.
Figure 4. Retained elongation Rε measured after exposure in autoclaves as a function of temperature (left) and pressure (right). The duration of exposure is visualized by the gray scale of the symbols. Note that at 80 °C experiments at three different pressures (10, 20, and 30 bar, different symbols) were performed.
Materials 14 00634 g004

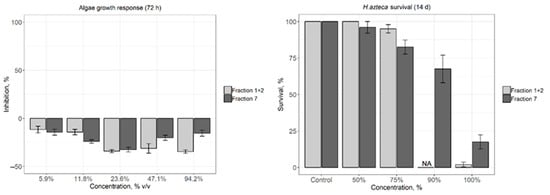

Figure 5. Algae growth response after 72 h (optical density measurements at 680 nm, left), Hyalella. azteca survival after 14 days (right). (NA: not analyzed, right).
Figure 5. Algae growth response after 72 h (optical density measurements at 680 nm, left), Hyalella. azteca survival after 14 days (right). (NA: not analyzed, right).
Materials 14 00634 g005
Figure 6. Survival of Daphnia magna after 24 h and 48 h.
Figure 6. Survival of Daphnia magna after 24 h and 48 h.
Materials 14 00634 g006
Table 1. Duration of accelerated ageing in autoclaves in days at 5 different temperatures and pressures.
Table 1. Duration of accelerated ageing in autoclaves in days at 5 different temperatures and pressures.
p (bar)Temperature (K)
10----14, 44, 61
20----27, 54, 82, 140
30--70, 102, 144-28, 38, 48, 77
40-70, 101, 143---
5070, 101, 143--70, 101, 143-
Table 2. Ecotoxicity test conditions summary.
Table 2. Ecotoxicity test conditions summary.
StandardISO 6341:2012 [21]ISO 16303:2013 [22]ISO 8692:2012 [23]
Test organismsDaphnia magnaHyalella aztecaDesmodesmus subspicatus
Test duration48 h14 days72 h
Temperature20 ± 1 °C23 ± 1 °C23 ± 2 °C
Growth mediaADaM *ADaMBG-11
Test chamber size6 vial plates400 mL low form beakers300 µL
Test volume15 mL250 mL265 µL
Age of test organismsLess than 24 h old11 days old at test initiation (1 to 2 day range in age)Algae culture in exponencial growth phase
Organisms per test chamber7105 µL (104 cells)
Replicates per treatment446
Test concentrations(100%; 50%; 25%; 12.5%; 6.3%100%; 75%; 50%; 25%; 12.5%; 6.3%; 3.1%5.9%, 11.8%, 23.6%, 47.2%, 94.3%
Feeding regimeNoYCT food, fed 0.5 mL daily/chamberConcentrated BG11 (10 µL)/vial in beginning of test
EndpointsMortalitySurvival (optional, growth by dry weight or length)Growth inhibition
Reference toxicantK2Cr2O7 24 h LC 50 0.81 mg/LCdCl2 (Cd 96 h LC50 = 0.007 mg/L), CuSO4 (Cu 96 h LC 50 = 0.24–0.33 mg/L)ISO mentioned intercalibration K2Cr2O7 72 h EC 50 = 0.84 mg/L
* ADaM: Aachener Daphnia Medium.
Table 3. Occurrence of residues of geosynthetic materials and other large debris in pieces per 1 running kilometer of the coastline in various morphodynamic segments of the Baltic shore of the Kaliningrad Oblast by surveys in 2018.
Table 3. Occurrence of residues of geosynthetic materials and other large debris in pieces per 1 running kilometer of the coastline in various morphodynamic segments of the Baltic shore of the Kaliningrad Oblast by surveys in 2018.
Morphodynamic Segments of the ShoreGeotextileGabion Coating“Big Bags”Geocell
Vistula Spit0.010.130.250
Western shore of the Sambian Peninsula00.180.150
Northern shore of the Sambian Peninsula2.909.385.980.13
Curonian Spit0.241.974.260.09
Note: Numbers are given in pieces/km, while pieces have very different linear sizes (see Figure 3 for examples).
