Next Article in Journal
The Friction of Structurally Modified Isotactic Polypropylene
Previous Article in Journal
Study on Strength, Water Stability, Shrinkage, and Microstructure of CFB Slag Modified Cement Stabilized Clay


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Materials
Volume 14
Issue 23
10.3390/ma14237461
materials-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Strengthening Mechanism and Carbide Precipitation Behavior of Nb-Mo Microalloy Medium Mn Steel

by
Chunquan Liu
1,*,
Fen Xiong
1,
Yong Wang
1,
Yuxin Cao
1,
Xinbin Liu
1,
Zhengliang Xue
2,*,
Qichun Peng
2 and
Longsheng Peng
3
1
Hunan Institute of Technology, Hengyang 421002, China
2
The State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology, Wuhan 430081, China
3
Hunan Lifang Roll Co., Ltd., Hengyang 421600, China
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(23), 7461; https://doi.org/10.3390/ma14237461
Submission received: 1 November 2021 / Revised: 26 November 2021 / Accepted: 1 December 2021 / Published: 5 December 2021
Browse Figures
Versions Notes

Abstract

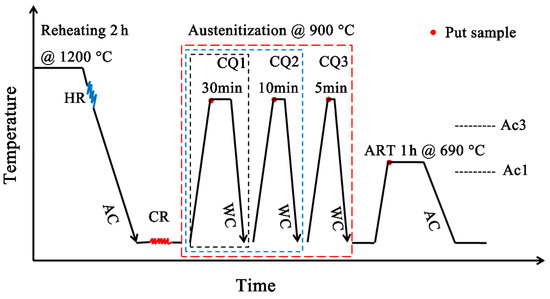

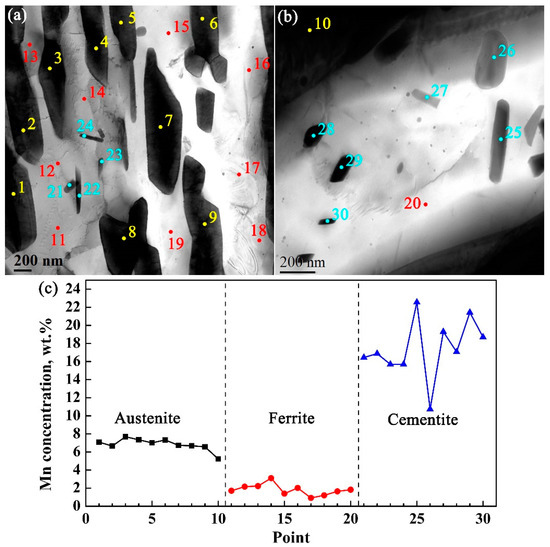

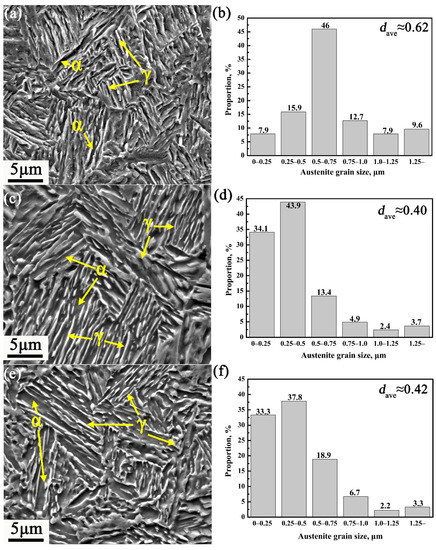

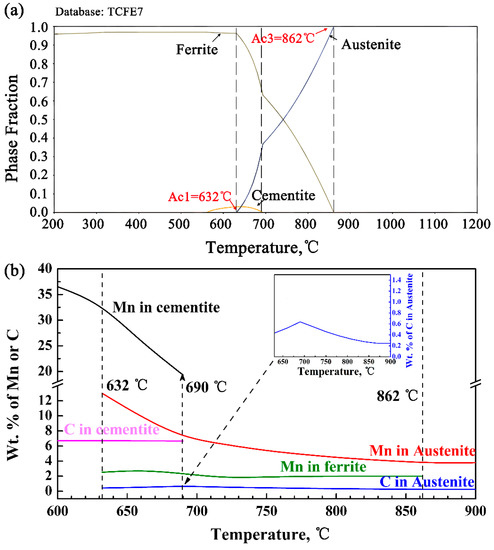

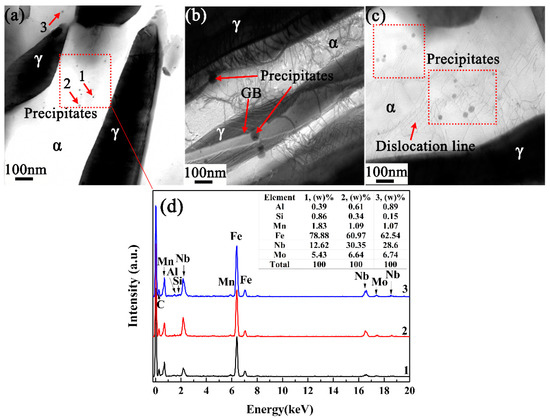

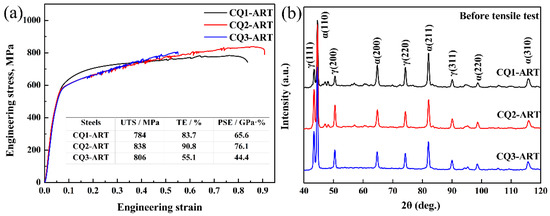

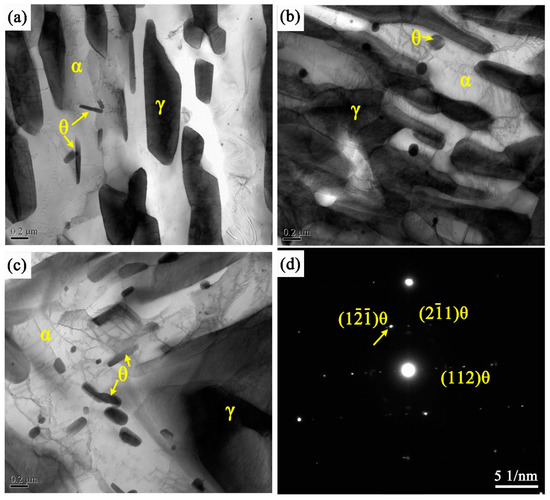

This study investigates the strengthening mechanism and carbide precipitation behavior of medium Mn steel with Nb-Mo microalloy after cyclic quenching and austenite reverse transformation treatment. The results show that the Nb/Mo element not only precipitates (Nb,Mo)C in the grains, hindering the movement of dislocations and increases the strength, but also segregates at the austenite/ferrite grain boundary, thus delaying the transformation from austenite to ferrite. In addition, a large amount of nano-scale cementite is retained after cyclic quenching and austenite reverse transformation, which has a positive effect on the proportion of retained austenite in medium Mn steel. Moreover, the carbides with small size and low Mn content are dissolved, and the decomposed C and Mn content are beneficial to the nucleation of austenite during the intercritical annealing process at a temperature of 690 °C.
Keywords: medium Mn steel; strength mechanism; nanometer-sized carbide; precipitation medium Mn steel; strength mechanism; nanometer-sized carbide; precipitation

Share and Cite

MDPI and ACS Style

Liu, C.; Xiong, F.; Wang, Y.; Cao, Y.; Liu, X.; Xue, Z.; Peng, Q.; Peng, L. Strengthening Mechanism and Carbide Precipitation Behavior of Nb-Mo Microalloy Medium Mn Steel. Materials 2021, 14, 7461. https://doi.org/10.3390/ma14237461

AMA Style

Liu C, Xiong F, Wang Y, Cao Y, Liu X, Xue Z, Peng Q, Peng L. Strengthening Mechanism and Carbide Precipitation Behavior of Nb-Mo Microalloy Medium Mn Steel. Materials. 2021; 14(23):7461. https://doi.org/10.3390/ma14237461

Chicago/Turabian Style

Liu, Chunquan, Fen Xiong, Yong Wang, Yuxin Cao, Xinbin Liu, Zhengliang Xue, Qichun Peng, and Longsheng Peng. 2021. "Strengthening Mechanism and Carbide Precipitation Behavior of Nb-Mo Microalloy Medium Mn Steel" Materials 14, no. 23: 7461. https://doi.org/10.3390/ma14237461

APA Style

Liu, C., Xiong, F., Wang, Y., Cao, Y., Liu, X., Xue, Z., Peng, Q., & Peng, L. (2021). Strengthening Mechanism and Carbide Precipitation Behavior of Nb-Mo Microalloy Medium Mn Steel. Materials, 14(23), 7461. https://doi.org/10.3390/ma14237461

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
