Article

Buckling Analysis of a Large Shelter with Composites

by 1,* and 2
1
McCoy School of Engineering, Midwestern State University, 3410 Taft Blvd., Wichita Falls, TX 76310, USA
2
CRYOPAK/TCP RELIABLE, 551 Raritan Center Parkway, Edison, NJ 08837, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Aleksander Muc
Materials 2021, 14(23), 7196; https://doi.org/10.3390/ma14237196
Received: 19 October 2021 / Revised: 19 November 2021 / Accepted: 22 November 2021 / Published: 25 November 2021
(This article belongs to the Special Issue Research on Mechanical Properties of Construction Materials)

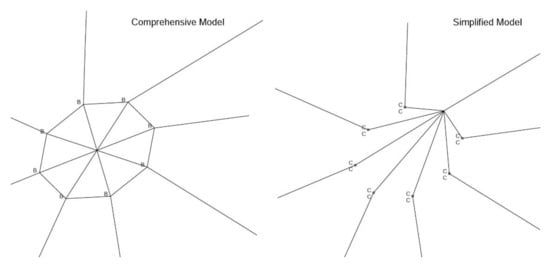

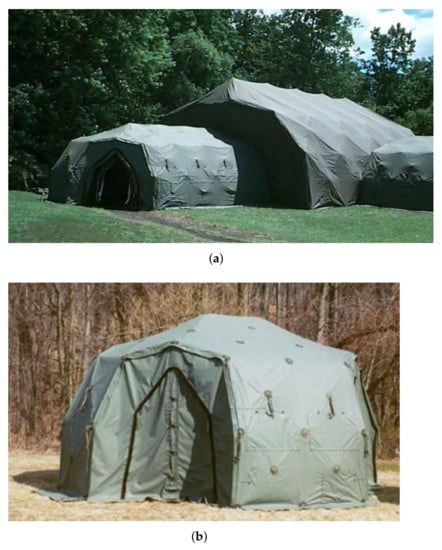

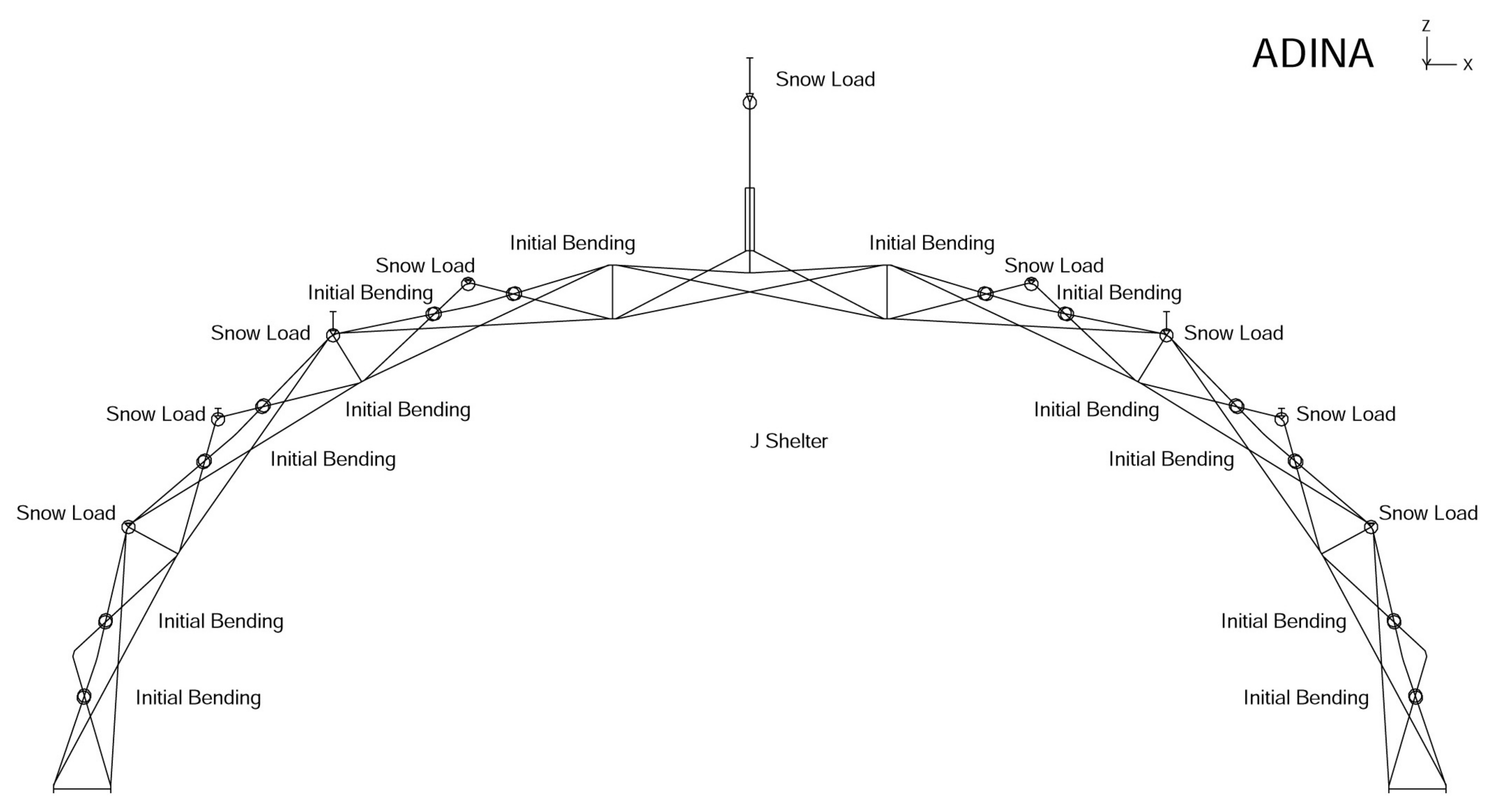

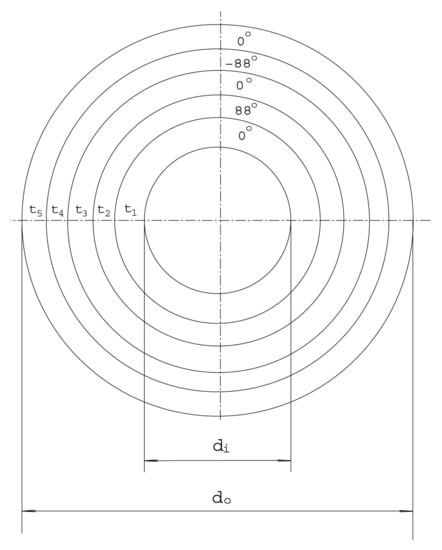

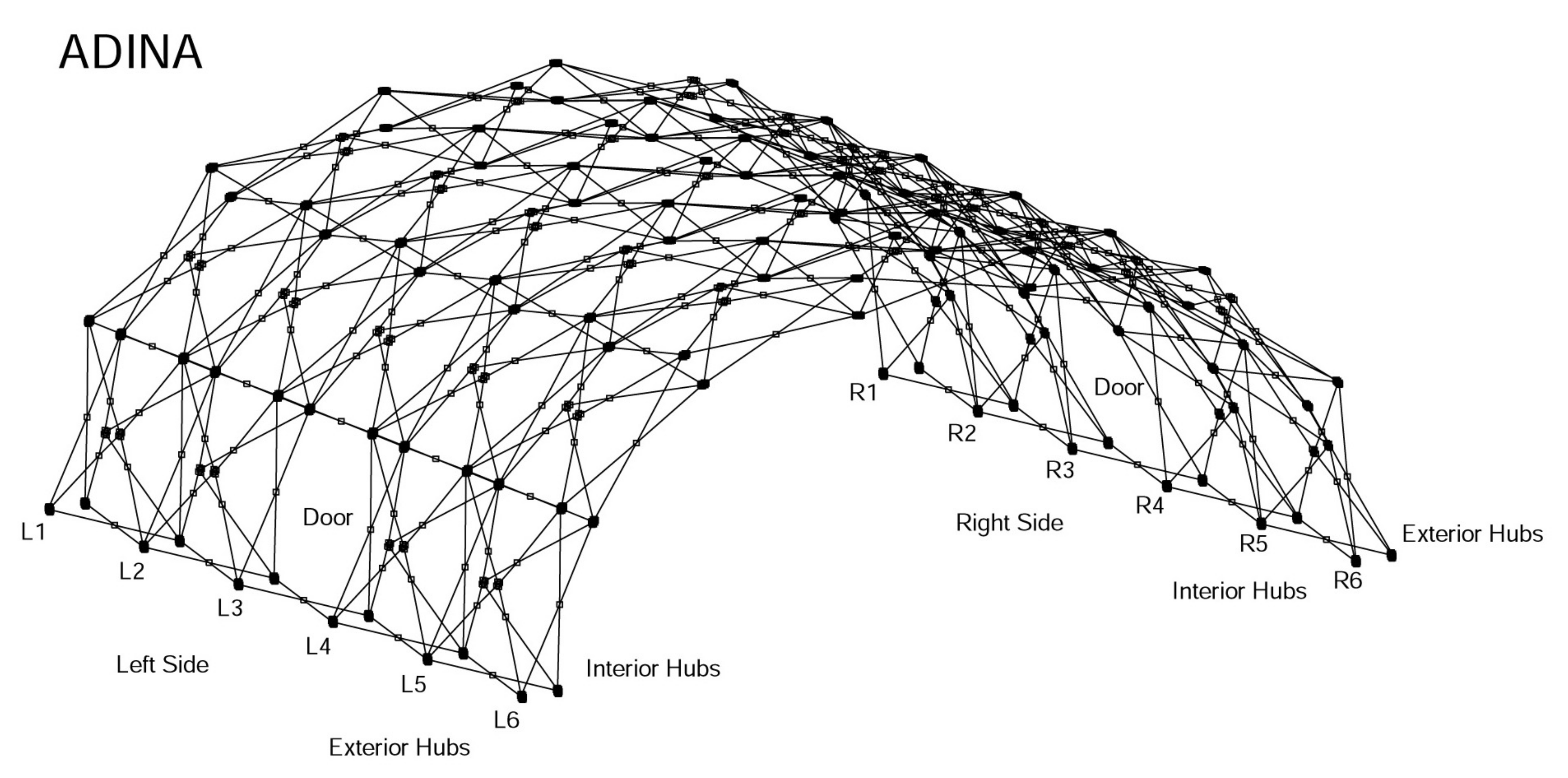

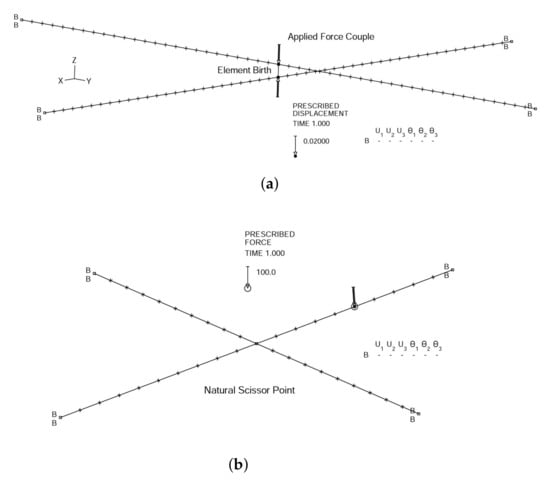

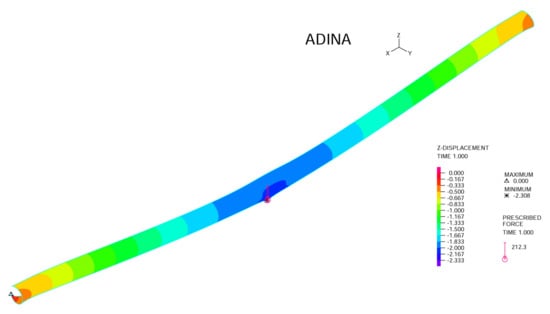

We present here linear and nonlinear finite element analyses of a newly designed deployable rapid assembly shelter (DRASH J) manufactured by DHS Systems. The structural analysis is carried out in three stages. Firstly, single composite tubes (struts) under three-point bending are modeled with five layers of orthotropic materials in three different orientations and the simulation results are compared with the actual test data for validation. Secondly, a comprehensive structural model for the entire shelter is constructed with the consideration of two types of strut scissor points, namely natural and forced scissor (crossing) points, as well as partial-fixed hub joints, which allow rotations along individual hub slots (grooves). Finally, a simplified structural model is created by introducing fixed joints for the scissor points as well as rigid links for the hubs. With sufficient verifications with experiments and different modeling methods, linear and nonlinear finite element analyses are then carried out for both the comprehensive and simplified shelter models. Based on the simulation results, we are able to identify a few critical issues pertaining to proper design and modifications of such shelter systems, such as various end wall supports pertaining to the overall structural stability. View Full-Text
Keywords: finite element analysis; collapse; nonlinear analysis; buckling; deployable shelter finite element analysis; collapse; nonlinear analysis; buckling; deployable shelter
