Article

Reliability Analysis for Unrepairable Automotive Components

1
Faculty of Transport and Civil Engineering, Institute of Machines and Motor Vehicles, Poznan University of Technology, Piotrowo 3, 60-965 Poznan, Poland
2
Solaris Bus & Coach S.A., Obornicka 46, 62-005 Owinska, Poland
3
Department of Biosystems Engineering, Faculty of Environmental and Mechanical Engineering, Poznan University of Life Sciences, Wojska Polskiego 50, 60-627 Poznan, Poland
4
Department of Mechanics and Machine Building, University of Economics and Innovations in Lublin, Projektowa 4, 20-209 Lublin, Poland
5
The Main School of Fire Service, Faculty of Safety Engineering and Civil Protection, Slowackiego 52/54, 01-629 Warsaw, Poland
6
Department of Automation, Lublin University of Technology, Nadbystrzycka 36, 20-618 Lublin, Poland
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(22), 7014; https://doi.org/10.3390/ma14227014
Received: 29 September 2021 / Revised: 4 November 2021 / Accepted: 16 November 2021 / Published: 19 November 2021

Abstract

:
The analysis of the reliability parameters of a technical object and the determination of the change in the reliability of the object over time, requires the knowledge of the functional characteristics and reliability parameters of the elements included in a system. On the basis of the failure data of the selected element of the object, in this case the vehicle, it is possible to determine the average working time to failure of the element and the appropriate form of distribution that characterizes the reliability and durability parameters of the tested element. The main purpose of the research presented in the article was to develop a method of assessing the reliability of an electronic component of a vehicle-a boot lid contactor. This paper also presents three possible methods of repairing the boot lid contactor (sealing the housing with adhesive with better way, replacing the element with a new one or the most time-consuming solution, changing the shape of the boot lid). The authors also decided to determine the reliability and cost parameters that will allow preventive replacement of this element. The tests were carried out on a fleet of 61 vehicles of the same model, but with different body structures. Contactor failures were reported in 41 cases, of which 29 were in the hatchback construction and 12 in the estate type. The analysis of the distribution selection for the tested part of the passenger car-the boot lid contactor-was performed using the Likelihood Value (LKV) test to determine the rank of distributions. Also the maximum likelihood (MLE) method was used to estimate the distribution parameters. The three-parameter Weibull distribution was the best-fitted distribution in both cases. It was clearly defined that one model of car with two different types of body have vastly different reliability characteristic. Based on the reliability characteristic and parameters, the appropriate preventive actions can be taken, minimizing the risk of damage, thus avoiding financial losses and guaranteeing an appropriate level of vehicle safety.

1. Introduction

In the reliability analysis of technical objects, various probability distributions can be used for modeling damage data [1,2,3]. Nevertheless, the most commonly used probability distributions are the normal, exponential, Weibull or gamma ones [4,5,6]. In the research results presented in this paper, for the reliability analysis of the boot lid contactor, apart from the above distributions, other, less frequently used distributions were used, the quality of which, for the analyzed case, is better than the usually used distributions. Less frequently used distributions include the log-normal distribution, the generalized gamma distribution, the logistic distribution, the log-logistic distribution, and the Gumbel distribution. The parameters of these distributions can be estimated using analytical methods as well as numerically using specialized IT tools [7,8].
Evaluation of the parameters of a distribution includes data modeling that requires the determination of the best-fit distribution and the estimation of the parameters of this distribution (shape, scale, position). Various methods of parameter estimation are used, including both numerical and graphical methods [9,10,11]. The most frequently used methods include the method of moments, the method of maximum likelihood, the method of least squares, fitting in distribution grids, the method of correlation coefficient of the probability plot (PPCC) and others [12,13,14].
Based on the damage data and the assumed estimation method, the parameters are estimated (shape, scale, location) for selected families of probability distributions [15,16,17]. Based on estimated different distributions, it is possible to indicate among them the best suited to empirical data in terms of the least squared sum of deviations [18,19].
The main purpose of the research presented in the article was to develop a method for assessing the reliability and costs related to corrective maintenance of the boot lid contactor of a motor vehicle. The tests were carried out on a fleet of 61 vehicles of the same model but with a different body structure. The analysis used three factors the modified Kolmogorov-Smirnov (K-S) statistics, the statistics of the mean absolute deviation of the hypothetical from the empirical distribution (rho) and the statistics calculated on the basis of the logarithmic likelihood function (LKV) to determine the best fitted distribution.
The proposed methodology for identifying the contactor’s lifetime takes into account all available data on vehicle operating times, expressed in kilometers (km) according EN50126-1 Standard. This includes the case where a given item is fit at the time the research is discontinued, and the lifetime of such an item is called right-censored. Right-censored data was used in the research. Right-censored data also called suspended data, is composed of units that did not fail during the test. They are considered “still alive” as their failure time has not yet occurred, though it is expected to occur at some point in the future. The method of preparing statistical data on the basis of the operational data was developed in the works [20,21,22]. All vehicles were operated by drivers, representatives of one company. Therefore, it can be assumed that the conditions of use were similar (ca. several dozen km per day).
However, before the examination of the compatibility of distributions is carried out, the distribution function or the reliability function of the empirical distribution is determined using the Kaplan-Meier method and then the parameters of the hypothetical distributions are estimated using the maximum likelihood estimation (MLE) method [2,23,24,25]. After estimating the hypothetical distributions, the statistics of compliance of the fit of individual hypothetical distributors to the empirical distribution are determined. Based on this the distributions are ranked. If only the assumptions are met, then the rankings of the consistency of distributions are made independently according to three criteria, using the modified Kolmogorov-Smirnov statistics, mean absolute deviation and the value of the logarithmic likelihood function [11,26,27]. The proposed methodology for testing the compliance of distributions is described in detail in [28].
The rest of the paper is organized as follows: in Section 2, the construction, application, causes of damage of the boot lid contactor, as well as the characteristics of the research group are presented. In Section 3, probability distribution of fitting of failure data was determined. Section 4 shows the main results contains data interpretation of boot lid contactor, optimal maintenance strategy, as well as own solution to the problem, which may be used in the future by the vehicle manufacturer. Finally, Section 5 concludes the paper and presents our final remarks.

2. Subject of Research

The damage analysis was carried out on a boot lid contactor located in the trunk lid of a medium-class vehicle, marked symbolically D. Its task is to send an electric impulse by pressing it, on the basis of which the boot lock is unlocked and the boot can be opened. The research was carried out on a fleet of 61 segment D passenger cars, produced by one of the leading passenger car manufacturers and used by one of the operators. The tested vehicles were produced in 2009–2015, while all the damages occurred between 2016 and 2018. The tested contactors were mounted in two different types of body configuration of the same vehicle model, i.e., hatchback and estate car.
The data used for the analysis was expressed as mileage in kilometers of vehicles. All vehicles were used in similar conditions, i.e., the same road infrastructure, similar weather conditions and the same schedule and scope of servicing (scheduled maintenance), in accordance with the vehicle manual. Figure 1 shows a view of the tested element, and the contactor system is marked with a red line. In the studied two-year period of vehicle operation, 41 contactor failures were recorded in the group of 61 and one of all used vehicles.
The vehicle manufacturer installed a chrome strip in the boot lid (Figure 2), which was to serve as a decorative element and to prevent scratches formed on the paintwork during vehicle operation.
During the use of vehicles, a problem with opening the boot lid was found, regardless of the mileage. The boot lid did not open when the button was pressed to actuate the contactor. At the preliminary stage of the study, the analysis of the causes of damage to the boot lid contactor led to the conclusion that the main factor causing the damage is water entering the contactor. During rain or snowfall, the water penetrated under the decorative strip on the boot lid, under which the contactor was directly located. This was due to a design defect. The manufacturer, at the stage of designing and manufacturing the vehicle, did not provide an adequate seal both between the chrome strip and the vehicle body, and between the strip and the contactor responsible for opening the boot lid. The described damage was included as a design error, because at the design stage, the contactor was not adequately protected against moisture penetrating from the outside. During the warranty period of the vehicle, the costs of corrective maintenance were incurred by the supplier of the vehicle fleet and the repair was performed at an authorized service center. However, after the warranty period, because the described element is not responsible for active or passive safety in the vehicle, the repair was carried out at the cost of the vehicle owner and amounted to 53.73 EUR, which included replacement of the contactor with a new one and the cost of replacement. When the contactor was not damaged, additional security of the contactor was carried out by applying an appropriate sealing in the form of a tape, which wraps the wires entering the contactor. This resulted in effective sealing of the connection and no possibility of water getting onto the contactor control board. The cost of preventive maintenance was 22.02 EUR.

3. Failure Data and Probability Distribution Fitting

As example of life data for 2 years of operation for contactor is shown in the Table 1, includes exact failure time (in kilometers) and suspension time (in kilometers). Suspension time is right censored data that did not fail by the end of the test and in all the studied cases, the suspected failure mechanism is design error. Data are divided into two type of body car H–hatchback and E–estate.
The Reliasoft software (HBM Prenscia, London, UK) used in calculation can provide guidance in selecting a distribution based on statistical tests which was calculated for every body type car (hatchback and estate) independently [29,30]. It uses three factors in order to rank distributions: the Kolmogorov-Smirnov (K-S) test, a normalized correlation coefficient (rho) and the likelihood value (LKV).The first factor is a modified Kolmogorov-Smirnov (K-S) test, which is only used to determine the fit of a continuous distribution with known parameters [28,31]. It measures statistical difference between the expected and obtained results and can be performed such that the null and alternative hypotheses are:
-
H0: the distribution represents the data,
-
H1: the distribution does not represent the data.
The K-S test statistic ( D m a x ) is the maximum difference between the observed and predicted probability:
D m a x = m a x 1 i n | S i Q i |
where D m a x —value of the statistic, n —number of observations, Q i —observed probability and S i —predicted probability based on the distribution
It should be pointed that observed probability is calculated using median ranks and the difference between those two values is calculated and the largest absolute difference is D m a x .
The modified K-S test determines the probability that the limit value of the D C R I T —taken from the tables is smaller than the maximum D m a x obtained from the calculations:
P ( D C R I T < D m a x )
A large D m a x statistic indicates that there is a significant difference between the theoretical and empirical distributions. The null hypothesis is rejected when the calculated D m a x value is greater than or equal to critical value D c r i t at the previously selected significance level. Critical values D c r i t for the K-S test for different distributions is tabulated in statistical textbooks. The greater the value of the D m a x , the more important is the difference between the hypothetical distribution expressed by the distributor S i and the empirical distribution expressed by the distributor Q i . For the final estimate of the critical value of D c r i t , the arithmetic mean denoted as D C R I T ^ is taken. Finally, the value of the K-S criterion for assessing the compliance of distributions takes the form:
K - S = 100 · P ( D C R I T ^ < D m a x )
Large values of K-S test close to 1, indicate that there is a significant difference between the theoretical distribution and the data set. Hence, the hypothetical distribution is the better the smaller the value of the K-S test.
Second factor is the correlation coefficient test denote rho measures how well the plotted points fit a straight line [31,32]. In this statistic test, the mean absolute deviation of the hypothetical from the empirical distribution is tested, and the statistics used to conformity assessment are determined according to the following formula:
r h o = 100 1 n i = 1 n | S i Q i |
where n —number of observations, Q i —observed probability and S i —predicted probability based on the distribution.
Third factor called Likelihood value test (LKV) computes the value of the log-likelihood function, given the parameters of the distribution [28,31,32]. The basic idea of this method is to obtain the most likely values of the parameters, for a given distribution, that will best describe the data. The likelihood function L depends on continuous random variables T 1 , T 2 , , T n ,   S 1 , S 2 S m which represents the data (observed failures and suspension respectively) and unknown parameters which need to be estimated θ 1 , θ 2 , , θ k . Because in this case, the likelihood function needs to be expanded to take into account the suspended contactors, the likelihood function is given by:
L ( θ 1 , θ 2 , , θ k | T 1 , T 2 , , T n ,   S 1 , S 2 S m ) = i = 1 n f ( T i ; θ 1 , θ 2 , , θ k ) · j = 1 m [ 1 F ( S j ; θ 1 , θ 2 , , θ k ) ]
where L —the likelihood function, n —observed failures at T1,T2,...,Tn, m—number of suspended data points at S1,S2,...,Sm, k —the number of estimated parameters, T i —failure time of the i-th component, Sj—suspension of the j-th component, θ 1 , θ 2 , , θ k k unknown parameters which need to be estimated, f ( T i ; θ 1 , θ 2 , , θ k ) —probability density function pdf and F ( S j ; θ 1 , θ 2 , , θ k ) —cumulative density function cdf.
It is often mathematically easier to manipulate this function by first taking the logarithm of it. This log-likelihood function Λ then has the form for right censored data:
L Λ = ln L = i = 1 n ln f ( T i ; θ 1 , θ 2 , , θ k ) + j = 1 m ln [ 1 F ( S j ; θ 1 , θ 2 , , θ k ) ]
In the equation above, the first summation is for complete data, the second summation is for right censored data. The maximum likelihood estimators (or parameter values) of θ 1 , θ 2 , , θ k are obtained by maximizing L or Λ . To define the estimators of the unknown parameters, partial derivatives of the function Λ are determined with respect to the parameters θ e , e = 1 ,   2 , , k . This is done by taking the partial derivative of the log-linear equation for each parameter and setting it equal to zero:
Λ θ e = 0 ,   e = 1 , 2 , ,   k
Next it ranks the selected distributions in terms of the fit to the data entered. In order to determine the ranking, the three tests are used in conjunction with weights assigned to each test. In the Table 2 and Table 3, the second column, contains values obtained using the Kolmogorov-Smirnov test (K-S). The third column, provides the results of the second test, which is a normalized correlation coefficient (rho). The fourth column contains the likelihood values (LKV).
Next received factors obtained from the test (Table 2 and Table 3) are weighted and then summed into one overall WDV (weighted decision variable) value which is given by [15]:
WDV = (K-S Rank × K-S Weight) + (rho Rank × rho Weight) + (LKV Rank × LKV Weight)
In Table 4 and Table 5 the fifth column contains WDV values and the sixth column contains the ranks of the distribution.
The distribution with the lowest WDV value is considered to be the best fit for the data. Software allows user-specified different weights depending on whether the parameter estimation method is rank regression or MLE [31]. In these studies the MLE method was used and the weights assigned to each test were K-S–40%, rho–10% and LKV–50%. The assigned weights for each test are based on engineering practice resulting from the advantages and disadvantages of each of them. The first factor Kolmogorov-Smirnov test has the advantages that the distribution of statistic does not depend on cumulative distribution function being tested and the test is exact. It has the disadvantage that it is more sensitive to deviations near the centre of the distribution than at the tails. The second factor rho test is not sensitive to local deviations but takes into account the global diversity of distributions and is a good supplement to the K-S test. The likelihood function for the suspended data helps demonstrate some of the advantages that MLE analysis has over other parameter estimation techniques. First of all, it takes into account the values of the suspension times, as was showed in the Equation (5). Other tests only take into account the relative location of the suspensions, not the actual time-to-suspension values. This makes MLE a much more powerful tool when dealing with data sets that contain a relatively large number of suspensions.
Details of the weight calculation and choice have been taken from [32] in the reference list. The sum of the three weights for each parameter estimation method must equal 100%. More detailed information about the procedure algorithm and the calculation methods used can be found in the paper [28]. The sixth column in Table 4 and Table 5 contains the model distribution rankings which are ranked according to how well they fit the data, with rank 1 being the best fit; in some cases more than one choice is proposed (Table 4 and Table 5).
For the data contained in Table 1 regarding two types of body (estate and hatchback) during nine years of operation of the vehicles fleet, the 3-P Weibull distribution was identified as the best-fitting for both of them. This is reflected in the last column of Table 4 for hatchback and 5 for estate body type.
The 3-parameter Weibull pdf is given by [3]:
f ( t ; β , η , γ ) = β η ( t γ η ) β 1 e ( t γ η ) β ,   t γ ,   β > 0 ,   η > 0 ,   γ
where f(t)—density function, η—scale parameter, β—shape parameter and γ—location parameter.
For both types body cars 3-Weibull goodness of fit distribution test p value is greater than significance level α = 0.05 and is equal 0.9999 for hatchback and 0.9708 for estate and it can also be noticed that K-S = 1 p value.

4. Results Analysis

The analysis method uses the maximum likelihood estimation (MLE) for estimating the parameters of the chosen distribution. Rank method uses the median ranks (MED), Confidence bounds method uses the Fisher matrix (FM) [32]. In this case for analyzed contactor, the 3P-Weibull distribution is the suggested model because is highest ranked both for estate and hatchback type car. The following figures compare the fit of the distributions to the probability grids, the curves of the probability distribution function and the probability distribution density function for the tested contactor, divided into two types of car body (estate and hatchback). The calculated parameters for the selected distributions are also given.

4.1. Data Interpretation

The following graphs show blue colour for estate car type and green colour data for the hatchback. The probability plot (Figure 3) shows the trend in the probability of failure over time (expressed in kilometers) and it determines the statistical difference between two populations (estate and hatchback). This allows to compare life distributions from two alternate back body designs (estate and hatchback), in order determine whether the contactor in the first group (estate) will outlast the units in the second (hatchback). Based on this analysis, it was also determine that they have different MDBF parameter (mean distance between failures). For these analysed contactors, most of the failures in the hatchback body type occurred between 85,000 and 272,000 km. In the case of the estate body type the failure was recorded between 140,000 km and 330,000 km.
The mean time to failure for hatchbacks is MDBF = 133,487 km and for the estate case it is MDBF = 161,181 km. It also can be noticed that both the beta and eta parameters are different for both car types. For estate body cars the slope is 6197, which is relatively high and for hatchbacks it is 1473, and the eta parameters are η = 155,594 km and η = 333,074 km, respectively. Failure rate for estate body cars is h = 0.0000165/km and for hatchbacks h = 0.0000198/km. The reliability values are quite different at different times (Figure 4), at the MDBF of 200,000 km for the hatchback type body over 77% of the contactors are expected to fail, while for estate type body only 4% of the contactors are expected to fail.
The probability density function plot (PDF) is shown in Figure 5 and it is observed that the probability of a contactor failure for estate cars is greater than in the case of hatchback type. In both cases the shape parameter β is greater than one and the positively skewed Weibull PDF for hatchback explains that the probability of failure rate increases with time. Location parameter γ provides an estimate of the earliest time-to-failure of the units under test and it equals 74.050 km for hatchback and −50.153 km for estate car type. This parameter represents a period without failures, it represents a period of time for which the reliability is 100%. Negative scale parameter in case of estate car type means that the distribution starts at the location γ to the left of the origin, it means that the unadjusted line for gamma is concave up.
Contour plot (Figure 6) is used to investigate the probability of occurrence of one failure mode with respect to another failure mode at different percentage of confidence level. Contour plot can be best used to study the inter-dependency of the two types of failures [33]. It is observed that the estate and hatchback type body car failure data do not overlap at 90% confidence level. Hatchbacks (green color plot) show drastically different Weibull characteristics then estate type cars, indicative of an entirely different failure mode. This confirms that the failures of the two components are not dependent at these confidence levels. Separation between contours signifies the populations are statistically different at the specified level of confidence.

4.2. Optimal Maintenance Strategy

Trying to determine preventive replacement time maintenance, it must be taken into account that replacing a component before it fails (preventive action) may, under certain circumstances, make better economic sense than replacing the component after it fails (corrective action). Two requirements must be met in order for the preventive replacement of a contactor to be appropriate. First, the total cost of the replacement must be greater after failure than before and second, the failure rate of the contactors must be increasing [1]. Both of them are met, as the cost of planned maintenance is 22.02 EUR and for corrective maintenance it is 57.73 EUR. The price of the corrective maintenance of the boot lid contactor was estimated on the basis of data from several authorized car repair workshops. The amount of 57.73 EUR consists of the price of the purchased contactor 22.02 EUR and the remaining cost of the replacement. In second case, the shape parameter β is greater than one for both type of body car and for estate β = 6197 and for hatchback β = 0.473, thus it means that the failure rate increases with time [34]. To determine the optimum time for such a preventive maintenance action (replacement), we need to mathematically formulate a model that describes the associated costs and risks. In developing the model, it is assumed that if the unit fails before time t, a corrective action will occur and if it does not fail by time t, a preventive action will occur. In other words, the unit is replaced upon failure or after a time of operation, t, whichever occurs first. Thus, the optimum replacement time can be found by minimizing the cost per unit time, C(t) is given by [35,36]:
C ( t p ) = T o t a l   E x p e c t e d   R e p l a c e m e n t   C o s t   p e r   C y c l e E x p e c t e d   C y c l e   L e n g h t = C p · R ( t p ) + C f · [ 1 R ( t p ) ] 0 t p R ( s ) d s
where: C ( t p ) —is the total cost per unit time, C p —is the cost of a planned (preventive) replacement, C f —is the cost of an unplanned (corrective) replacement, R ( t p ) —is the reliability of the component at time t p and t p —optimal time interval for preventive replacement once the item has reached a specific age.
The optimum replacement time interval, t p , is the time that minimizes C ( t p ) . Hence, the optimum replacement time can be obtained by solving for t p :
[ C ( t p ) ] t p = 0
The optimum preventive maintenance time and corresponding cost per unit time are shown graphically for both car body types in Figure 7 and Figure 8. These plots show the optimal replacement interval schedule for minimizing the cost in the long term. The results show that the optimal replacement interval is about 202,000 km for the estate car type and the minimal cost is about 0.000139 EUR per kilometer, while for the hatchback body type the optimal replacement interval 157,000 km, and minimal cost is about 0.000223 EUR per kilometer.
In both plots (Figure 7 and Figure 8) it can be seen that the corrective replacement costs will increase as time increases. The preventive replacement costs will decrease as the time interval increases because as more time passes, fewer preventive replacement actions will need to be performed. The total cost is the sum of these two costs. At one point (time t), a minimum cost point exists that determines the optimum preventive replacement time for the component.
In the analyzed period, i.e., from 2009–2015, 14,971 hatchbacks and 8336 station wagons were registered in Poland, which gives a total of 23,307 cars (Table 6) of all registered cars in this period.
Assuming, in a very simplified manner, that the tested sample (approximately 66.7% of damaged vehicles) reflects the amount of damage in the entire vehicle population, it can be assumed that the cost of unplanned maintenance, in line with the optimal time interval of hatchback cars, would be 349,540 EUR, while for the estate version it is 155,998 EUR. The total cost of unscheduled service of all tested cars registered in the years 2009–2015 is 505,538 EUR (Table 7).
In the absence of any action and failure to comply with optimal cost replacement, assuming that the corrective maintenance takes place after the contactor breaks down and amounts to 5373 EUR the cost of repairing the hatchbacks would be 536,249 EUR and for the estate cars 298,589 EUR??? it would be 834,839 EUR. Thus, the total difference (savings) between the sum of repair costs calculated in accordance with the minimum cost maintenance and without it, amounts to 329,510 EUR.

4.3. The Method of Solving the Problem

Because the main cause of damage to the boot lid contactors was water penetrating under the decorative strip, the design of the trunk lid had to be modified in relation to the original version. The chrome strip was removed from the boot lid. This modification in order to eliminate the cause of the damage is schematically shown in Figure 9. This solution was also used by the manufacturer. As a result, it was impossible for water to enter the contactor, i.e., the main factor causing the damage to this element was eliminated.

5. Conclusions

The analysis of the selection of the distribution for the boot lid contactor presented in the paper, carried out with the use of the likelihood value (LKV) test to determine the rank of distributions, is an important argument for the possibility of using the proposed method of forecasting vehicle damage times in the automotive industry. The performed forecasts confirmed that there are methods and technical possibilities helping to accurately forecast the reliability of components of complex technical objects, i.e., motor vehicles. Correct determination of the times to failure may reduce the costs associated with the operation of the vehicle fleet, because by predicting the moment of failure, appropriate preventive measures can be taken. On the other hand, the identification of the causes of the damage may lead to the introduction of appropriate design changes in order to eliminate the damage in the future. It is also possible to give appropriate countermeasures to prevent damage, i.e., to apply a better seal between the top cover of the contactor and the body element to which it is attached.
As the data on which the forecast is built come directly from the actual operating system, the obtained forecasting results take into account the conditions and methods of use prevailing in a specific system of vehicle operation. The benefits resulting from the analysis may be significant both for the fleet operator and the vehicle manufacturer, due to the possibility of determining the costs generated by not using the real durability of the tested component (taking preventive actions too early) as well as losses due to damage and downtime resulting from the repair (no preventive measures are taken).
The obtained results of the selection of the distribution were intended to indicate possible procedures useful for forecasting reliability in the automotive industry. They can be used to assess the accuracy of forecasting and the applicability of the tested procedures in real vehicle operation systems. Forecasting the reliability processes during operation allows for a better understanding of the causes of deterioration of the reliability condition of vehicles, and at a further stage of the research enables to estimate the costs associated with corrective service.

Author Contributions

Conceptualization, D.U. and J.S.; methodology, D.U. and K.D.; software, J.J. and L.G.; validation, K.D. and L.G.; formal analysis, D.U., J.S. and D.P.; investigation, L.G. and M.P.; resources, J.K. and M.P.; data curation, J.J. and K.D.; writing—original draft preparation, D.P. and M.P.; writing—review and editing, J.J. and D.P.; visualization, J.K. and K.P.; supervision, J.S. and K.P.; project administration, J.K. and K.P.; funding acquisition, D.U. and J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Poznan University of Technology, grant number 0414/SBAD/3610. This work was financed within the framework of the project Lublin University of Technology—Regional Excellence Initiative, funded by the Polish Ministry of Science and Higher Education (contract no. 030/RID/2018/19).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lewis, M. Designing reliability-durability testing for automotive electronics—A commonsense approach. In Proceedings of the 46th Annual Technical Meeting-Institute of Environmental Sciences and Technology, Providence, RI, USA, 30 April–4 May 2000; Volume 46, pp. 175–179. [Google Scholar]
  2. Krolo, A.; Bertsche, B. An approach for the advanced planning of a reliability demonstration test based on a Bayes procedure. In Proceedings of the Annual Reliability and Maintainability Symposium Conference, Tampa, FL, USA, 27–30 January 2003; pp. 288–294. [Google Scholar]
  3. Kleyner, A. Reliability demonstration in product validation testing. In Handbook of Performability Engineering; Misra, K.B., Ed.; Springer: London, UK, 2008. [Google Scholar] [CrossRef]
  4. Ascher, H.; Feingold, H. Repairable Systems Reliability—Modeling, Inference, Misconceptions, and Their Causes; Marcel. Dekker: New York, NY, USA, 1984. [Google Scholar]
  5. Elmahdy, E.E. Modelling reliability data with finite weibull or lognormal mixture distributions. Appl. Math. Inf. Sci. 2017, 11, 1081–1089. [Google Scholar] [CrossRef]
  6. Patra, A.P.; Söderholm, P.; Kumar, U. Uncertainty estimation in railway track lifecycle cost: A case study from Swedish national Rail Administration. Proc. Inst. Mech. Eng. Part F J. Rail Rapid Transit 2009, 223, 285–293. [Google Scholar] [CrossRef]
  7. Lewis, E.E. Introduction to Reliability Engineering, 2nd ed.; McGraw-Hill: New York, NY, USA, 1994. [Google Scholar]
  8. Przystupa, K. Reliability assessment method of device under incomplete observation of failure. In Proceedings of the 18th International Conference on Mechatronics-Mechatronika (ME), Brno, Czech Republic, 5–7 December 2018; pp. 1–6. [Google Scholar]
  9. Power Law Model-Goodness of Fit Tests and Estimation Methods; IEC 61710; IEC Standards: Geneva, Switzerland, 2013.
  10. Kozieł, J.; Przystupa, K. Using the FTA method to analyse the quality of an uninterruptible power supply unitreparation UPS. Przegląd Elektrotechniczny 2019, 95, 77–80. [Google Scholar]
  11. Lawless, J.F. Statistical Models and Methods for Lifetime Data; John Wiley & Sons, Inc.: New York, NY, USA, 1982. [Google Scholar]
  12. Fuc, P.; Rymaniak, L.; Ziolkowski, A. The correlation of distribution of PM number emitted under actual conditions of operation by PC and HDV vehicles. In WIT Transactions on Ecology and the Environment; WIT Press: Billerica, MA, USA, 2013; Volume 174, pp. 207–2019. ISBN 978-1-84564-718-6. [Google Scholar]
  13. Gill, A. Optimisation of the technical object maintenance system taking account of risk analysis results. Maint. Reliab. 2017, 19, 420–431. [Google Scholar] [CrossRef]
  14. Hajkowski, J.; Popielarski, P.; Sika, R. Prediction of HPDC casting properties made of AlSi9Cu3 alloy. In Advances in Manufacturing; Springer: Cham, Germany, 2017; pp. 621–631. [Google Scholar] [CrossRef]
  15. Dolce, J.E. Analytical Fleet Maintenance Management; SAE International: Warrendale, PA, USA, 1994. [Google Scholar]
  16. Młyńczak, M. Analiza Danych Eksploatacyjnych w Badaniach Niezawodności Obiektów Technicznych. Zesz. Nauk. Wyższej Szkoły Oficer. Wojsk Lądowych Im. Gen. T. Kościuszki 2011, 1, 159, 177–184. Available online: http://yadda.icm.edu.pl/baztech/element/bwmeta1.element.baztech-article-BATA-0010-0015 (accessed on 1 September 2021).
  17. Trojanowska, J.; Dostatni, E. Application of the theory of constraints for project management. Manag. Prod. Eng. Rev. 2017, 8, 87–95. [Google Scholar] [CrossRef][Green Version]
  18. Żurek, J.; Ziółkowski, J. Method of formulating the required number of vehicles for delivery aircrafts in aviation fuel. J. KONBiN 2017, 44, 347–358. [Google Scholar] [CrossRef][Green Version]
  19. Rogalewicz, M.; Sika, R.; Popielarski, P.; Wytyk, G. Forecasting of steel consumption with use of nearest neighbours method. In Proceedings of the MATEC Web of Conferences, Malacca, Malaysia, 25–27 February 2017. [Google Scholar] [CrossRef]
  20. Andrzejczak, K.; Młyńczak, M.; Selech, J. Computerization of operation process in municipal transport. In Contemporary Complex Systems and Their Dependability; Zamojski, W., Mazurkiewicz, J., Sugier, J., Walkowiak, T., Kacprzyk, J., Eds.; Advances in Intelligent Systems and Computing; Springer: Cham, Germany, 2018; pp. 13–22. [Google Scholar] [CrossRef]
  21. Andrzejczak, K.; Selech, J. Quantile analysis of the operating costs of the public transport fleet. Transp. Probl. 2017, 12, 103–111. [Google Scholar] [CrossRef][Green Version]
  22. Żurek, J.; Ziółkowski, J.; Borucka, A. Application of Markov processes to the method for analysis of combat vehicle operation in the aspect of their availability and readiness, safety and reliability. In Theory and Applications; Cepin, M., Briš, R., Eds.; Taylor & Francis Group: London, UK, 2017; pp. 2343–2352. ISBN 978-1-138-62937-0. [Google Scholar]
  23. Genschel, U.; Meeker, W.Q. A comparison of maximum likelihood and median rank regression for weibull estimation. In Proceedings of the Joint Statistical Meetings, Salt Lake City, UT, USA, 30 July 2007. [Google Scholar]
  24. Genschel, U.; Meeker, W.Q. A Comparison of maximum likelihood and median-rank regression for weibull estimation. Qual. Eng. 2010, 22, 236–255. [Google Scholar] [CrossRef][Green Version]
  25. Nelson, W. Weibull analysis of reliability data with few or no failures. J. Qual. Technol. 1985, 17, 140–146. [Google Scholar] [CrossRef]
  26. Gertsbakh, L. Reliability Theory with Applications to Preventive Maintenance; Springer: Cham, Germany, 2000. [Google Scholar]
  27. Hirose, H. Bias correction for the maximum likelihood estimation in two-parameter weibull distribution. IEEE Trans. Dielectr. Electr. Insul. 1999, 6, 66–68. [Google Scholar] [CrossRef]
  28. Selech, J.; Andrzejczak, K. An aggregate criterion for selecting a distribution for times to failure of components of rail vehicles. Maint. Reliab. 2020, 22, 102–111. [Google Scholar] [CrossRef]
  29. Cox, S.; Tait, R. Safety, Reliability and Risk Management: An Integrated Approach, 2nd ed.; Butterworth Heinemann: Oxford, UK, 1998. [Google Scholar]
  30. Wang, N.; Chang, Y.-C.; El-Sheikh, A.A. Monte Carlo simulation approach to life cycle cost management. Struct. Infrastruct. Eng. 2002, 8, 739–746. [Google Scholar] [CrossRef]
  31. ReliaSoft Corporation. Life Data (Weibull) Analysis Reference; ReliaSoft Publishing: Tucson, AZ, USA, 2008. [Google Scholar]
  32. Kececioglu, D. Reliability and Life Testing Handbook; Prentice Hall: Hoboken, NJ, USA, 1993; Volume 1. [Google Scholar]
  33. Pulido, J. Life data analysis using the competing failure modes technique. In Proceedings of the 2015 Annual Reliability and Maintainability Symposium (RAMS), Palm Harbor, FL, USA, 26–29 January 2015. [Google Scholar] [CrossRef]
  34. Maintenance, Replacement, and Reliability: Theory and Applications, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2013. [CrossRef]
  35. Dhillon, B.S. Maintainability, Maintenance and Reliability for Engineers; Taylor & Francis Group, LLC: Boca Raton, FL, USA, 2006. [Google Scholar]
  36. Frangopol, D.; Tsompanakis, Y. Maintenance and Safety of Aging Infrastructure: Structures and Infrastructures Book Series, 1st ed.; CRC Press: Boca Raton, FL, USA, 2014; Volume 10. [Google Scholar] [CrossRef]

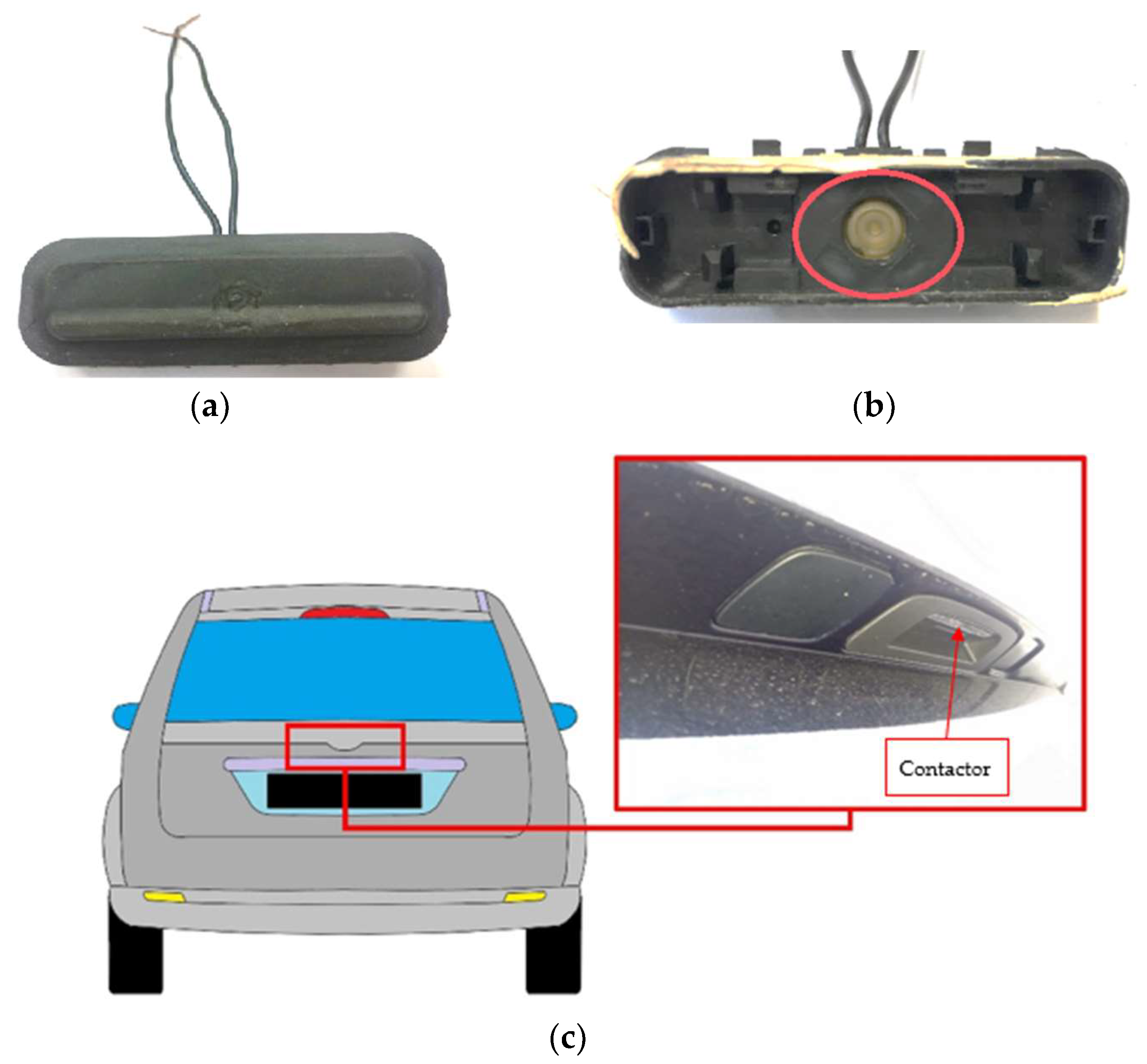

Figure 1. Boot lid contactor; (a) front site view, (b) front site with an open cover-electronic switch system-button, (c) the place where the contactor is located.
Figure 1. Boot lid contactor; (a) front site view, (b) front site with an open cover-electronic switch system-button, (c) the place where the contactor is located.
Materials 14 07014 g001

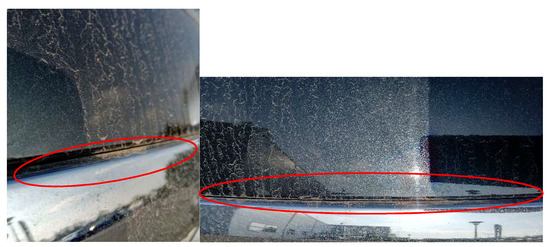

Figure 2. View of the gap between the chrome strip and the vehicle body, through the water entered, causing damage to the boot lid contactor.
Figure 2. View of the gap between the chrome strip and the vehicle body, through the water entered, causing damage to the boot lid contactor.
Materials 14 07014 g002

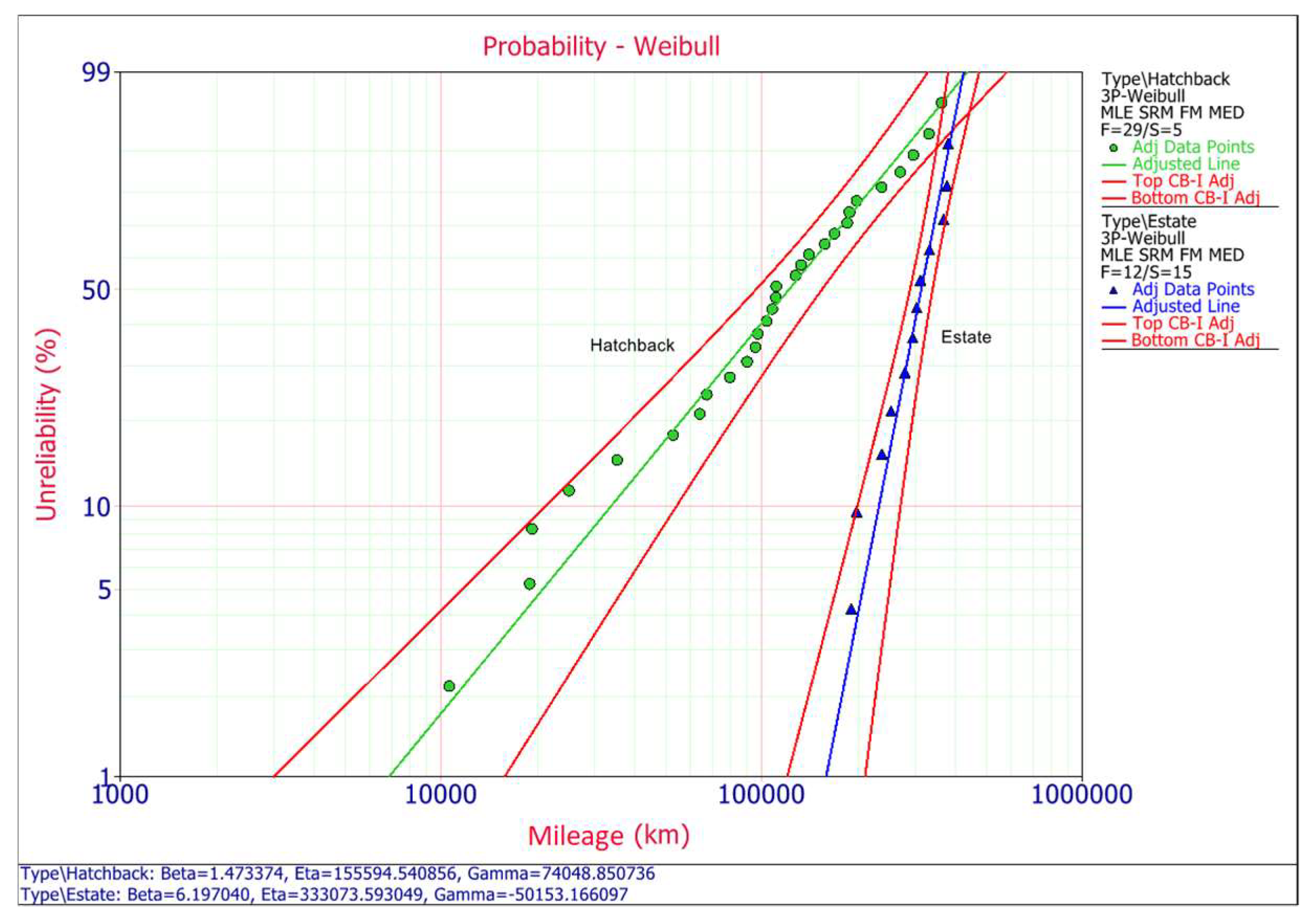

Figure 3. Comparison of 3P-Weibull probability.
Figure 3. Comparison of 3P-Weibull probability.
Materials 14 07014 g003

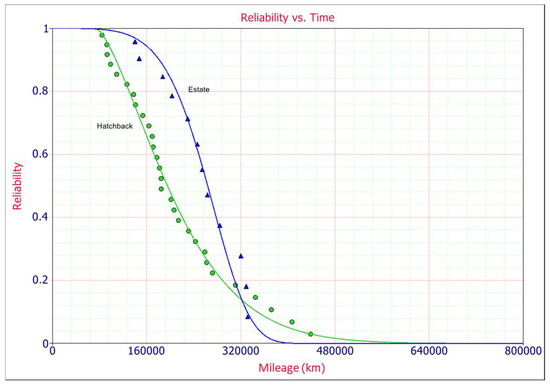

Figure 4. Comparison of 3P-Weibull reliability.
Figure 4. Comparison of 3P-Weibull reliability.
Materials 14 07014 g004

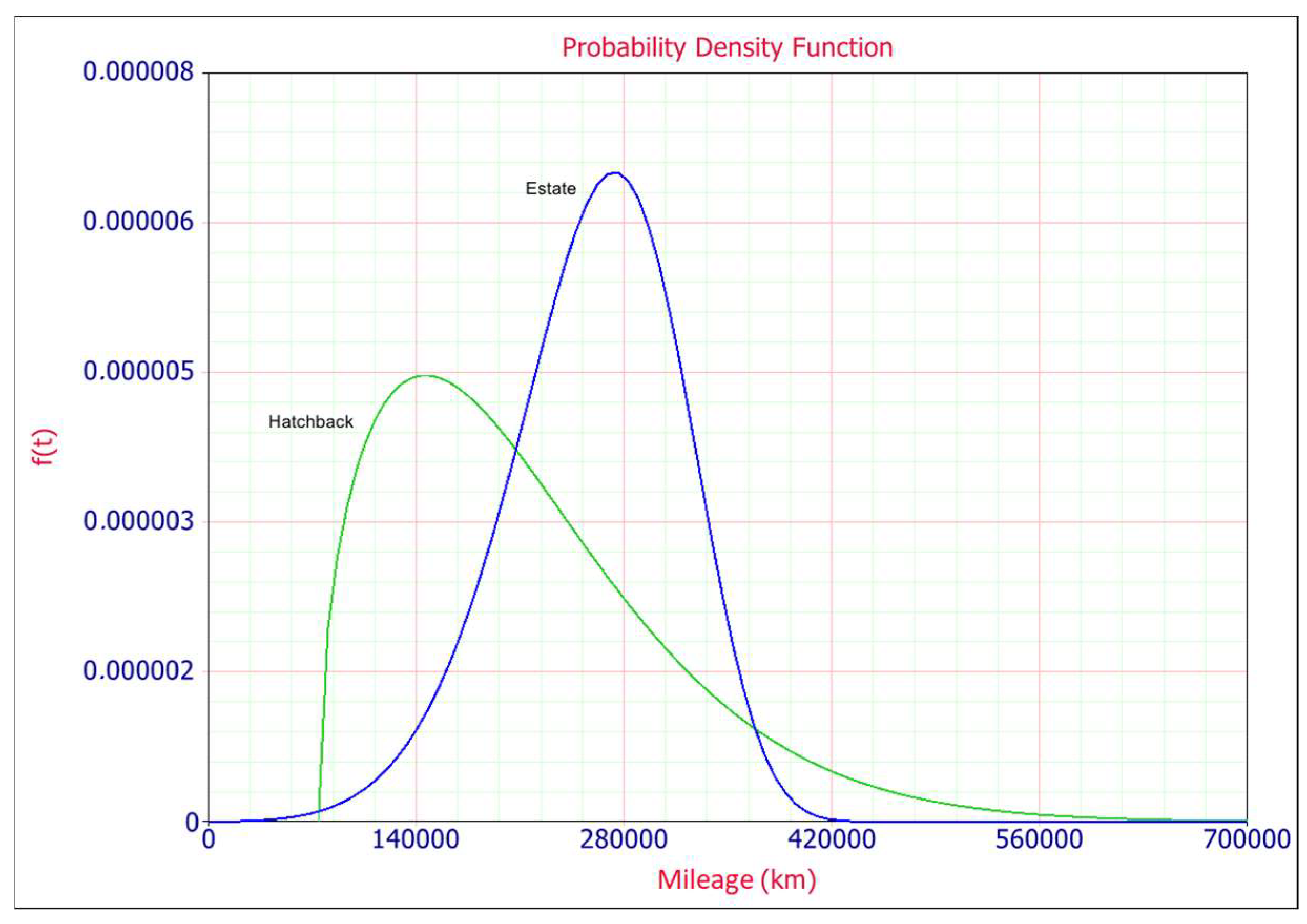

Figure 5. Probability density plot.
Figure 5. Probability density plot.
Materials 14 07014 g005

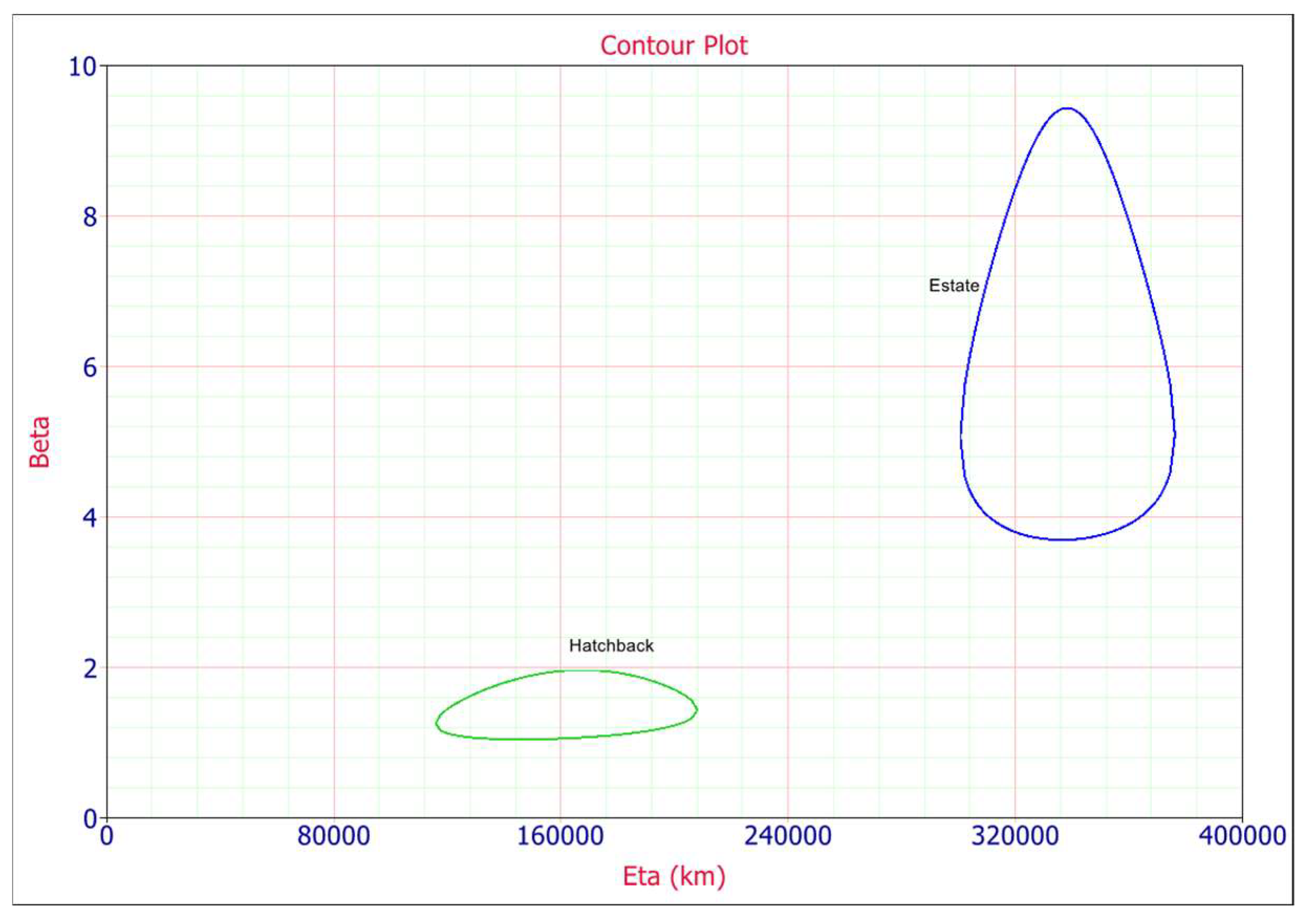

Figure 6. Contour plot at the 90% confidence level.
Figure 6. Contour plot at the 90% confidence level.
Materials 14 07014 g006

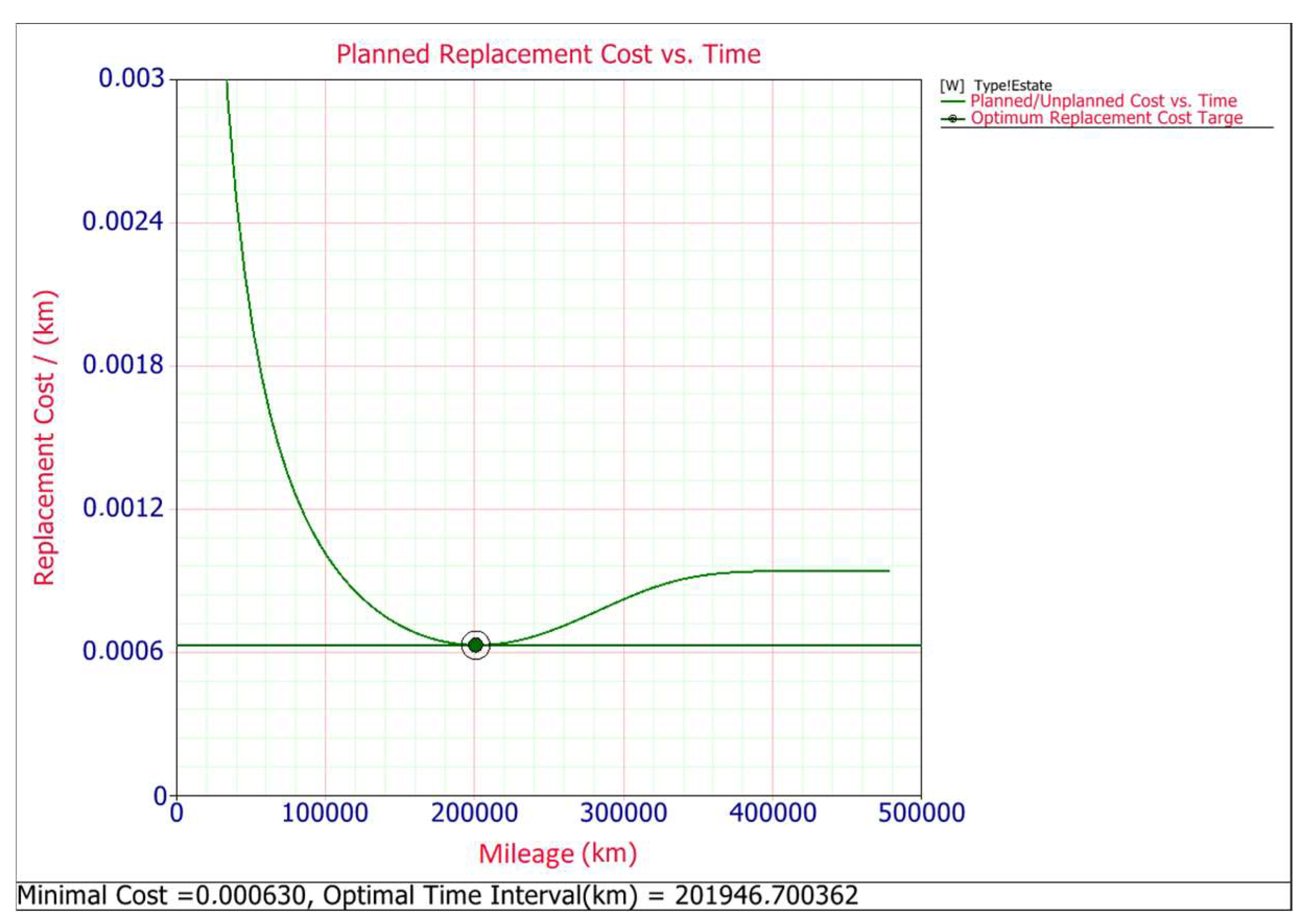

Figure 7. Planned replacement cost for estate.
Figure 7. Planned replacement cost for estate.
Materials 14 07014 g007

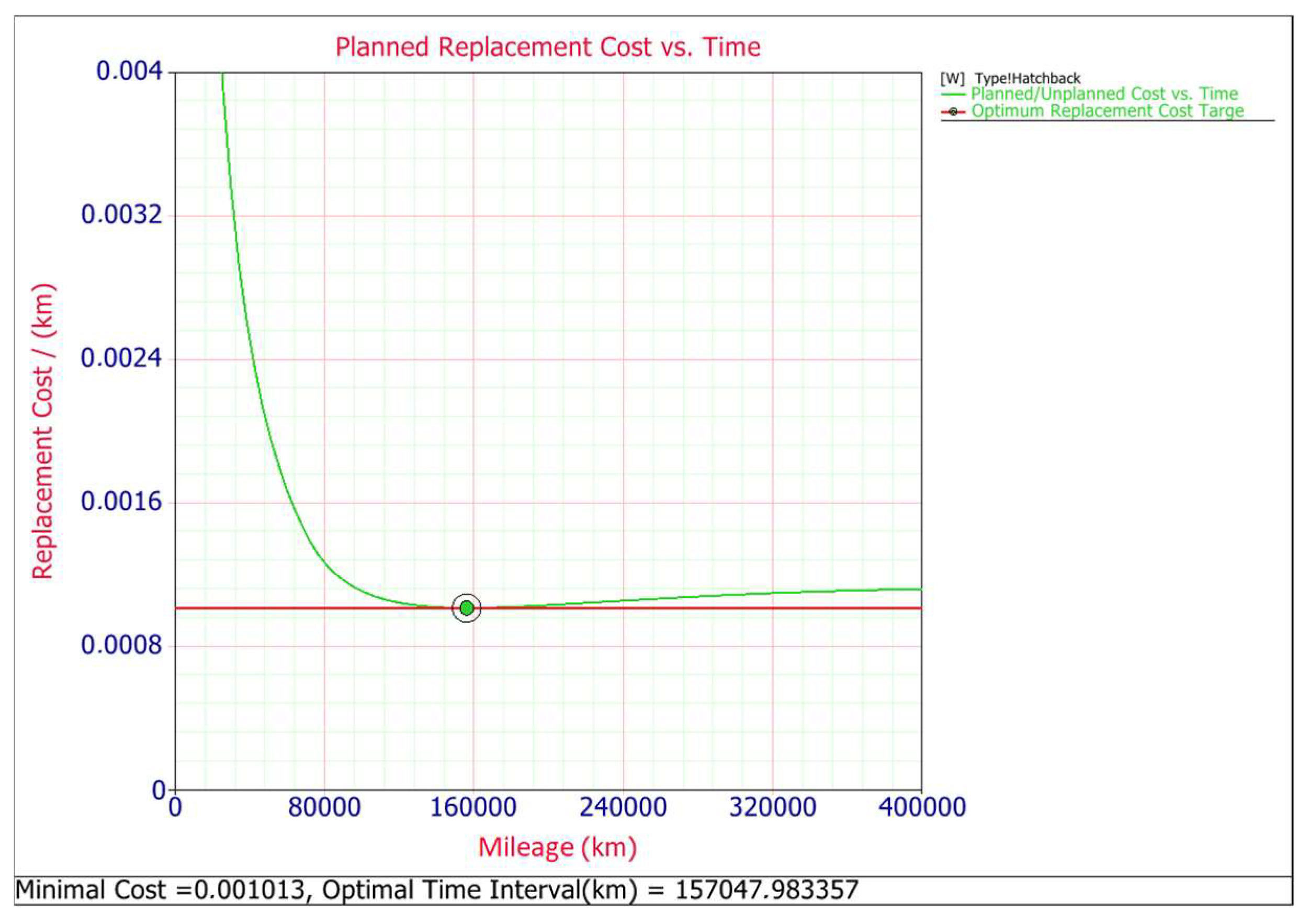

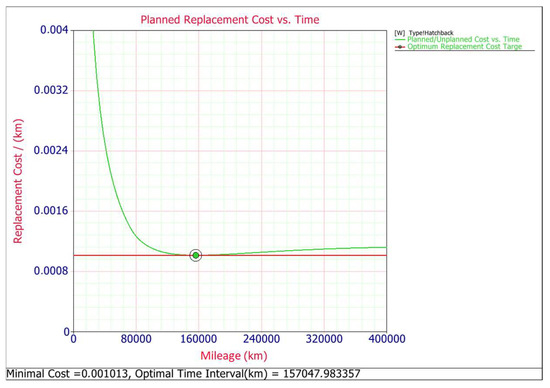

Figure 8. Planned replacement cost for hatchback.
Figure 8. Planned replacement cost for hatchback.
Materials 14 07014 g008

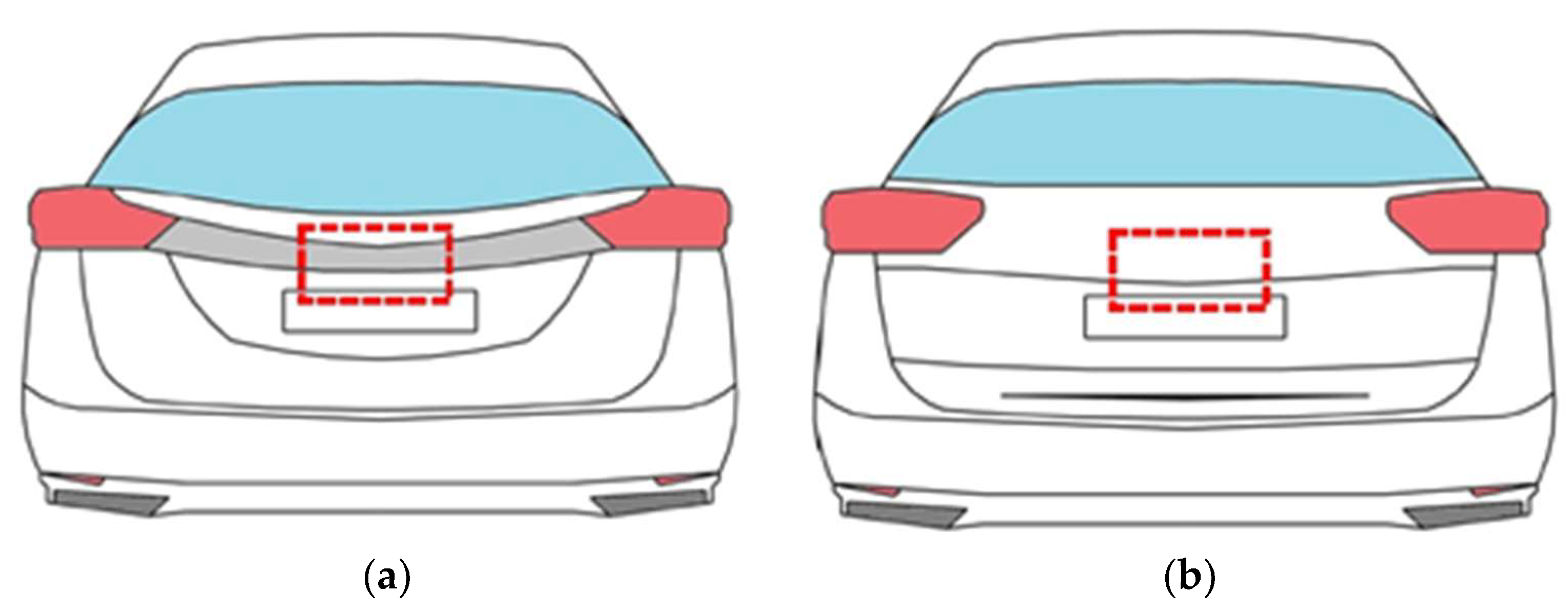

Figure 9. Diagram showing the place of installation of the boot lid contactor (marked with a red line); (a) vehicle before modification (has a chrome strip), (b) vehicle after modification (without the strip).
Figure 9. Diagram showing the place of installation of the boot lid contactor (marked with a red line); (a) vehicle before modification (has a chrome strip), (b) vehicle after modification (without the strip).
Materials 14 07014 g009
Table 1. Failure/suspension date of contactor (F/S–failure, suspension, car body type: H–hatchback, E–Estate).
Table 1. Failure/suspension date of contactor (F/S–failure, suspension, car body type: H–hatchback, E–Estate).
F/SMileage [km]Car Body TypeF/SMileage [km]Car Body TypeF/SMileage [km]Car Body Type
F52,621HF126,639EF272,945H
F57,801HF128,676HS21,147E
F58,001HF133,390HS21,169E
F61,628HF143,159ES21,772E
F68,100HF144,041HS23,071E
F79,051HF151,230HS27,165H
F85,974HF153,345ES36,019E
F87,451EF158,420ES40,208E
F88,050HF161,200HS44,374H
F92,003EF163,141HS45,895E
F95,636HF163,952ES49,990E
F102,178HF169,230HS63,422E
F105,600HF176,965ES63,519H
F106,639HF193,500HS86,527H
F110,558HF199,263ES99,784E
F113,359HF204,898ES120,111E
F115,000HF206,460ES128,523E
F115,210HF214,521HS142,302E
F116,762EF231,403HS151,209E
F125,489HF253,241HS164,287E
S171,356H
Table 2. Values of factors for hatchback body type.
Table 2. Values of factors for hatchback body type.
Distribution(K-S)(rho)LKV
1P-Exponential98.634413.157−373.271
2P-Exponential46.72585.121−357.329
Normal36.35045.114−360.985
Lognormal0.001362.168−357.914
2P-Weibull13.36733.803−359.422
3P-Weibull0.00042.316−356.841
Gamma1.65262.682−358.212
G-Gamma0.00182.170−357.914
Logistic10.33643.544−361.249
Loglogistic0.006972.172−358.661
Gumbel58.80107.855−366.116
Table 3. Values of factors for estate body type.
Table 3. Values of factors for estate body type.
Distribution(K-S)(rho)LKV
1P-Exponential91.56917.371−160.982
2P-Exponential95.99420.586−151.111
Normal0.5944.003−146.373
Lognormal0.0204.846−147.220
2P-Weibull2.3793.807−146.021
3P-Weibull2.9183.758−146.001
Gamma0.0164.626−146.840
G-Gamma9.2916.338−143.857
Logistic0.3283.580−146.749
Loglogistic0.0023.919−147.255
Gumbel5.0404.615−146.121
Table 4. Ranks of distributions for hatchback body type.
Table 4. Ranks of distributions for hatchback body type.
DistributionK-SrhoLKVWDVRanking
3P-Weibull1411301
Lognormal2142902
G-Gamma3232902
Loglogistic4364903
Gamma5555004
2P-Exponential9925505
2P-Weibull7777006
Logistic6697507
Normal8888008
Gumbel10101010009
1P-Exponential111111110010
Table 5. Ranks of distributions for estate body type.
Table 5. Ranks of distributions for estate body type.
DistributionK-SrhoLKVWDVRanking
3P-Weibull7224001
2P-Weibull6334202
Logistic4164703
Normal5555004
Gamma2775004
G-Gamma9915004
Loglogistic1495305
Gumbel8645806
Lognormal3886007
1P-Exponential10101110508
2P-Exponential11111010508
Table 6. Number of registered cars in 2009–2015 in Poland.
Table 6. Number of registered cars in 2009–2015 in Poland.
Body TypeYear of RegistrationSum
2009201020112012201320142015
Hatchback240238762418170512071766159714,971
Estate5381379133811311084181710498336
Table 7. Minimal cost replacement.
Table 7. Minimal cost replacement.
Type of Body CarMinimal Replacement Cost [EUR]Optimal Time Interval [km]Cost/Per Car [EUR]Cost for all Cars
(2009–2015) [EUR]
Hatchback0.000223157,047.9835.02349,540
Estate0.000139201,946.7028.07155,998
Total cost505,538
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ulbrich, D.; Selech, J.; Kowalczyk, J.; Jóźwiak, J.; Durczak, K.; Gil, L.; Pieniak, D.; Paczkowska, M.; Przystupa, K. Reliability Analysis for Unrepairable Automotive Components. Materials 2021, 14, 7014. https://doi.org/10.3390/ma14227014

AMA Style

Ulbrich D, Selech J, Kowalczyk J, Jóźwiak J, Durczak K, Gil L, Pieniak D, Paczkowska M, Przystupa K. Reliability Analysis for Unrepairable Automotive Components. Materials. 2021; 14(22):7014. https://doi.org/10.3390/ma14227014

Chicago/Turabian Style

Ulbrich, Dariusz, Jaroslaw Selech, Jakub Kowalczyk, Jakub Jóźwiak, Karol Durczak, Leszek Gil, Daniel Pieniak, Marta Paczkowska, and Krzysztof Przystupa. 2021. "Reliability Analysis for Unrepairable Automotive Components" Materials 14, no. 22: 7014. https://doi.org/10.3390/ma14227014

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
