Effect of Process Parameters and Build Orientation on Microstructure and Impact Energy of Electron Beam Powder Bed Fused Ti-6Al-4V
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

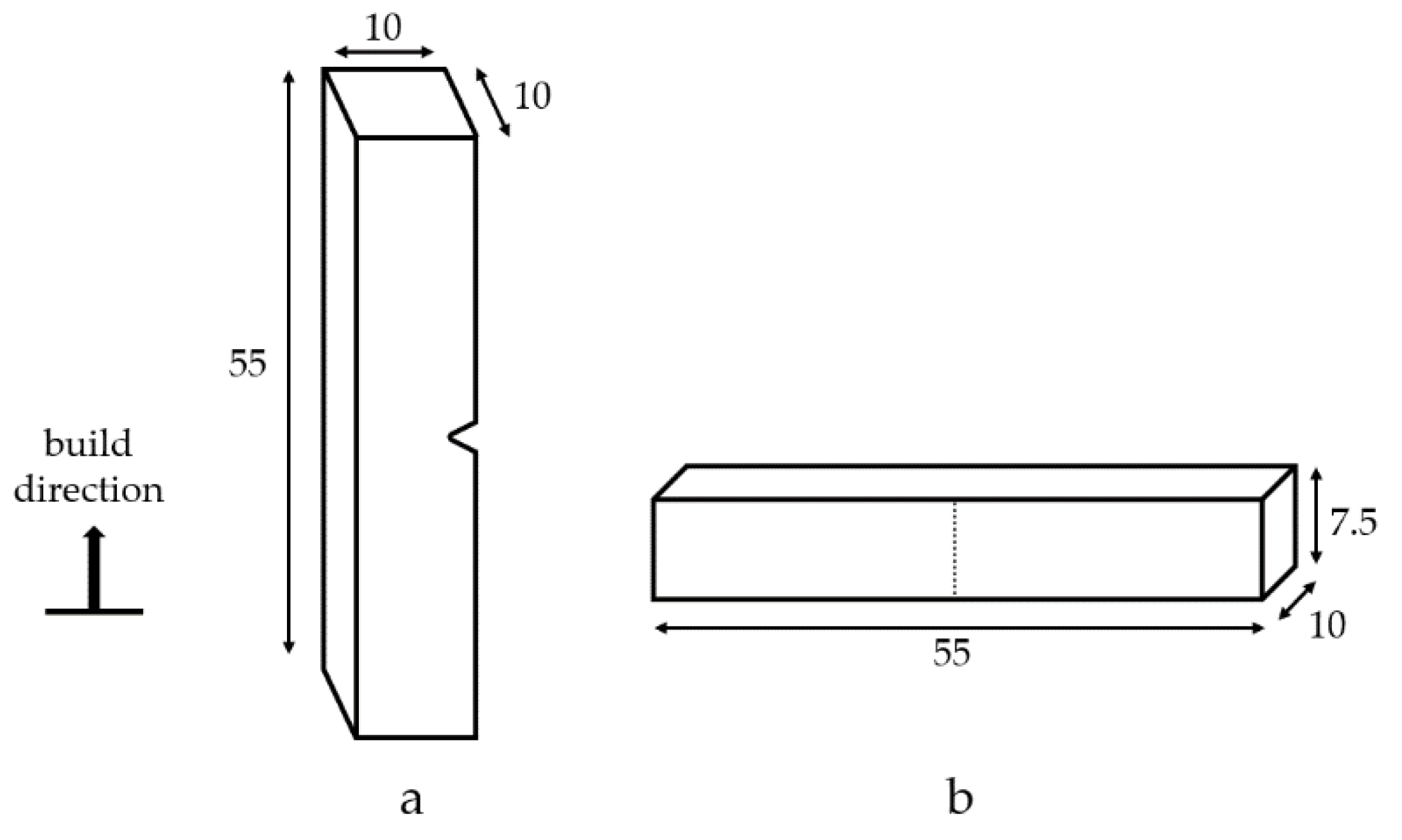

2.2. Experimental Methods
3. Results and Discussion
3.1. Mechanical Properties
3.2. Microstructure

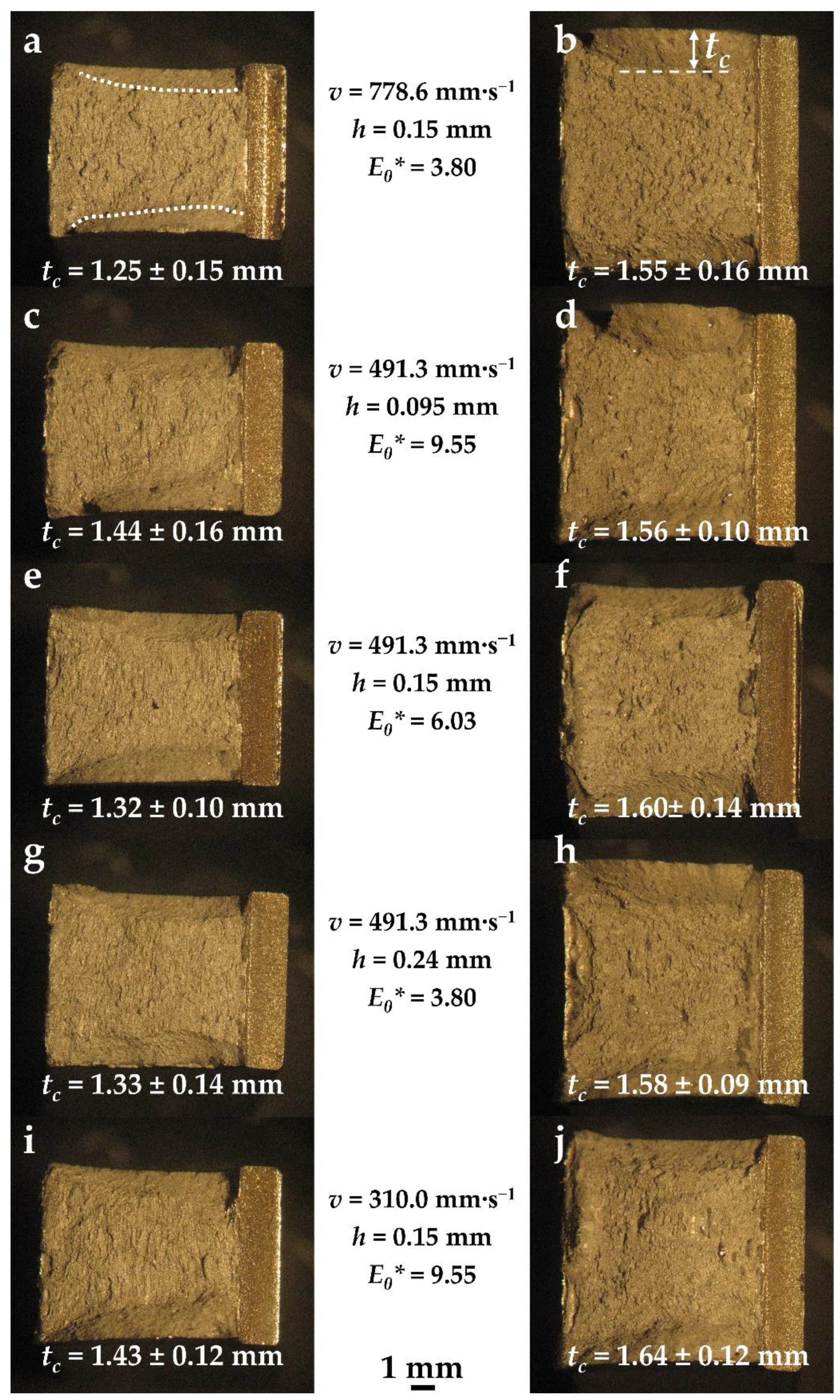

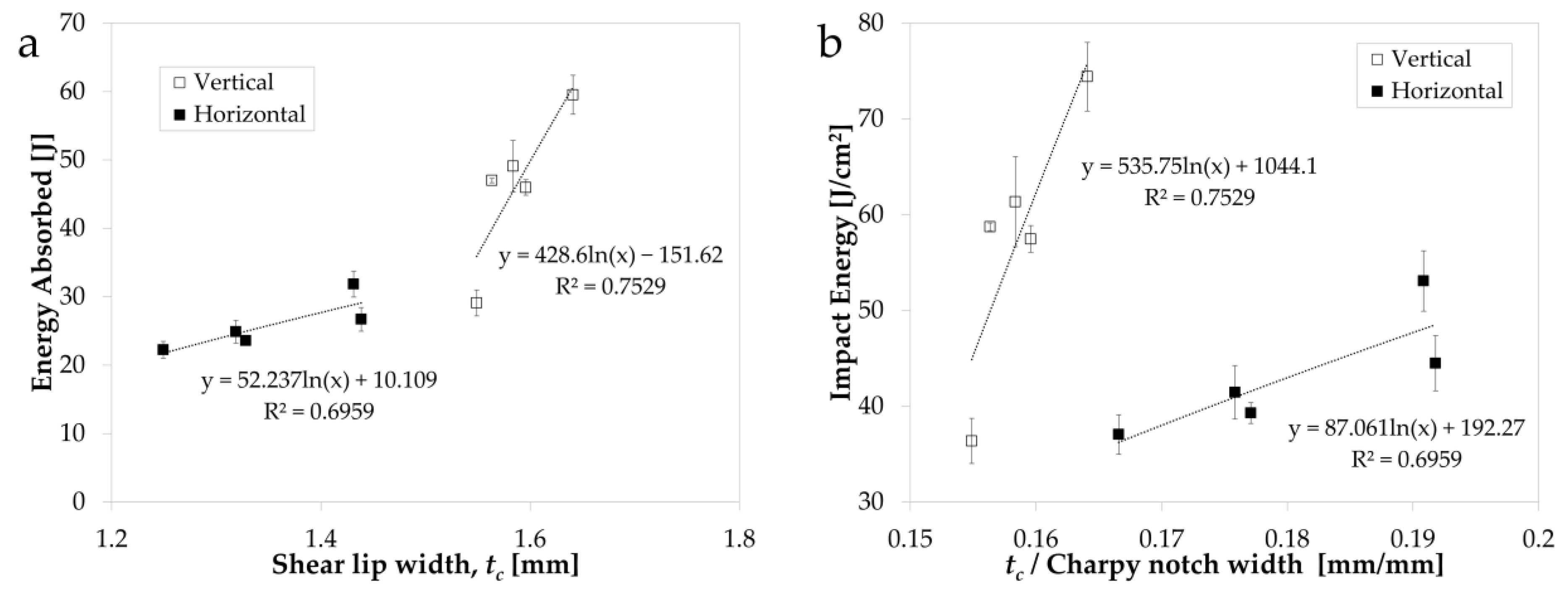

3.3. Fractography
4. Conclusions
- A series of five EBPBF Ti-6Al-4V process parameter sets were investigated in terms of their resulting microstructure and impact energy across the vertical and horizontal build orientations.
- Vertically oriented specimens revealed an average increase in impact energy of 34% compared to the horizontally oriented specimens when beam velocity was less than 500 mm∙s−1, attributed to the epitaxial grain structure and its alignment to the Charpy test crack plane.
- Beam velocity was the parameter shown to have the most significant influence on impact energy, which reduced by 69% and 36% for the vertical and horizontal oriented specimens, respectively, when beam velocity was increased from 310.0 to 778.6 mm∙s−1.
- Microstructural characteristics of α lath width, prior β grain width, and prior β grain area were determined and related to process parameters and impact energy.
