Review on the Integration of Microelectronics for E-Textile

Abdella Ahmmed Simegnaw
Benny Malengier
Gideon Rotich
Melkie Getnet Tadesse
2 and
Lieva Van Langenhove
Department of Materials, Textiles and Chemical Engineering, Ghent University, 9000 Gent, Belgium
Ethiopian Institute of Textile and Fashion Technologies, Bahir Dar University, Bahir Dar 6000, Ethiopia
Clothing and Textile, School of Engineering and Technology, South Eastern Kenya University, Kwa Vonza 90215, Kenya
Author to whom correspondence should be addressed.
Materials 2021, 14(17), 5113;
Submission received: 14 July 2021 / Revised: 25 August 2021 / Accepted: 30 August 2021 / Published: 6 September 2021
(This article belongs to the Special Issue Smart Textile Materials and Fabric-Based Wearable Devices)


Modern electronic textiles are moving towards flexible wearable textiles, so-called e-textiles that have micro-electronic elements embedded onto the textile fabric that can be used for varied classes of functionalities. There are different methods of integrating rigid microelectronic components into/onto textiles for the development of smart textiles, which include, but are not limited to, physical, mechanical, and chemical approaches. The integration systems must satisfy being flexible, lightweight, stretchable, and washable to offer a superior usability, comfortability, and non-intrusiveness. Furthermore, the resulting wearable garment needs to be breathable. In this review work, three levels of integration of the microelectronics into/onto the textile structures are discussed, the textile-adapted, the textile-integrated, and the textile-based integration. The textile-integrated and the textile-adapted e-textiles have failed to efficiently meet being flexible and washable. To overcome the above problems, researchers studied the integration of microelectronics into/onto textile at fiber or yarn level applying various mechanisms. Hence, a new method of integration, textile-based, has risen to the challenge due to the flexibility and washability advantages of the ultimate product. In general, the aim of this review is to provide a complete overview of the different interconnection methods of electronic components into/onto textile substrate.

1. Introduction

The term “smart textiles” is coined to designate an intelligent textile material and it covers a broad range of textiles. Smart textiles can be expressed as textile materials that are able to sense and respond to changes in their environment. Broadly, smart textiles are divided into passive and active smart textiles. Passive only observes, while active senses and reacts to the environmental changes [1,2].
Smart and wearable textiles are complete body-borne electronic systems with various functionalities of sensors which detect pressure [3,4], temperature and humidity [5,6], strain [7], chemical and bio-sensors [8,9], data processing and networking [10], mechanical actuation based on shape memory materials or electro-active polymers [11], thermal and energy generation [12,13], as well as energy storage [14,15] and smart fashion [16,17]. These textiles also contribute to help communication such as health surveillance, safety, comfort, and leisure [18].
Scholars have tried to develop wearable computers to simplify our lives, however, the challenge was how to incorporate computer hardware unobtrusively into/onto clothing materials [19]. Common hardware is not comfortable enough during wearing due to its rigidity, high weight, and other discomfort qualities. Thorp [20] stated that the first wearable electronic computer was developed in 1955 by Claude Shannon to calculate roulette probabilities. Then, Thorp and his co-workers developed wearable computers in 1961 by using switches in the shoe for input, acoustic output through a tiny earplug, and a small handmade computing unit worn on the belt to calculate roulette probabilities [21]. The first wearable computer systematically produced came out in 1968, when Ivan Sutherland presented a head-mounted display using small cathode ray tube (CRT) displays placed in front of the user’s eyes [22]. One of the pioneers in this field, Steve Mann, developed several prototypes using a near-eye display, an on-body computer, and a one-handed input devices [23].
Ojuroye [24] studied the design of a novel classification chart that measures the extent of electronic integration within textiles and this chart indicated how the level of electronic integration in textile impacts the degree of functionality, commercial viability, and industrial compatibility. Rambausek et al. [25] discussed the five different levels of textile integration and its technical challenges per integration level. Bosowski et al. [26] generally studied the three category levels of the integration of electronic components and circuits into/onto textiles which can be distinguished as textile-adapted, textile-integrated, and textile-based, as shown in Figure 1.
The first type, the textile-adapted, refers to the manufacturing of special clothing accessories or extensions to contain electronic devices, so the electronic function is integrated by adding the actual rigid electronic device onto or into the garment (e.g., ICD+, communication devices for firemen and MP3 players) [27,28,29]. The clothing and electronics are processed separately and merged at a later stage. Typically, the electronics can again be removed to allow washing and maintenance of the clothes, as shown in Figure 1a. However, the textile being subjected to multiple mechanical deformations such as stretching and related characters. This puts lots of tension on any present interconnections via the textile between components and leads to lower reliability of the interconnection part of electronic device.
In the second type, the textile-integrated, the integration of the electronic components is done through the creation of an interconnection between the electronic elements and textile substrate, and often the textile material performs selected functionalities (e.g., a metal push buttons as on/off switch). Integration is at the fabric level, with circuits that can be partially fixed on the surface of/or inside the fabric [30]. Here, conductive fiber interconnections have been sewn, stitched, printed, embroidered, and soldered into the fabric as shown in Figure 1b. This kind of integration attains some level of flexibility and even stretchability, and is already more user friendly than textile-adapted solutions.
The last type of integration of electronic components is the textile-based which uses the textile structure itself to provide higher end electrical components within an electrical circuit embedded within the yarn or fiber. At the moment, these are mainly evidenced in research and in patents. No commercial products are out yet, but examples include in reference [30] (e.g., electro-conductive or metallic-coated multifilament yarns forming an antenna, or a thermopile couple from nickel-coated carbon fibers to generate electricity [31] (see Figure 1c), and an electrochemical transistor (ECT) integrated into silk fiber) [32].
In addition, a the European committee of standardization, within the technical committee working group of 31(WG31) was [33] summaries the level of integration of electronics components or device into or onto a textile product by four different level as described below.
The first level of integration is level 1 (removable): electronic device is added in a way that it is removable without destroying the product, e.g., by means of a pocket, touch-and-close fastener, push button. Second level of interconnection of electronics (Integration level 2 also called attached), in which an electronic device is attached to textile in a way that it is not removable without destroying the product, e.g., by means of stitching, welding, or gluing the device onto the textile. The third level of interconnection (or integration level 3) is known as mixed solution. Electronic device consists of one or more components made of textiles or through textile finishing and combined with permanently or non-permanently attached electronic components, e.g., an LED lamp attached to a conductive track woven into a fabric. In addition, the last level of interconnection (or integration level 4) is known as full textile solution. All components of the electronic device are made of textile or textile finishing.
The higher the degree of integration, the more standard manufacturing processes of textiles and electronics are used, to be revisited and adapted. Development of the integration technologies is crucial for wearable systems to meet the required comfort and reliability. Flexibility, comfort, and lightweight properties are maintained at its highest level with textile-based integration.
Smart textile encompasses any fiber, yarn, flat, or 3D textile product that changes its properties under a change of functional value in some physical quantity or stimulus. In this way, smart textile allows us to achieve an active realization of textile functions i.e., protection or integrated lighting intended for interior decoration [34]. By integrating programmable wearable electronics into/onto textiles substrate, the textile material became an intelligent textile and could fulfil more and more complex functions such as active protection and monitoring of human health [35]. The limitation on user comfort and the low flexibility of this increasing number of portable electronic systems must, however, be kept to a minimum. Preferably, these systems should be quasi-invisible and non-noticeable to the user [36].
At the end of the 20th century, further adaptation of the electronic-textiles was a fundamental step towards growth. Most parts of the wearable electronics are replaced by textile-based electronics. That means there are textiles containing electronic components and parts of the textile are conductive, with the aim of keeping a textile aspect or feel as much as possible. Parallel to this development, a large minimization of electronic component size occurred due to joint advances in material science and electronics, which led to expansion of the potential of embedding electronics within clothing. A main breakthrough regarding the development of e-textiles was the discovery of conductive polymers. Conductive polymers invented by Shirakawa et al. [37] turned out to be a key innovation for conductive textiles. Many inventions, innovations, and patents on the development of wearable technology, for the application of wearable textiles, build upon conductive polymers [38,39] such as smart nanotechnology and integration of interactive electronics onto textile substrate [40,41].
The integration of electronic devices onto textile materials has its limitations. For instance, attaching or detaching electronic components to or from conductors embedded onto the textile is difficult to achieve. The textile material will undergo manipulation such as stretching, therefore the conductors must move and stretch with the material [42,43]. In addition, the integration of conductive material leads static electricity due to tribo-phenomenon or due to induction charging [44]. Static electricity arises when surfaces that were in contact are separated. The rubbing of two insulating materials against each other can give rise to a static buildup of up to several thousand volts. The build-up charge is then suddenly released, either by a spark or a surge, when a certain voltage is reached; the latter is influenced by several factors such as the conductivity of the charged body or the humidity of the environment [45,46,47]. In addition, humidity can play a role as well: humidity is relatively high when clothes are worn. This can destroy sensitive components of the electronics. Insulating conductive trucks and electronic components with nonconductive polymeric material are able to dissipate static charges even without grounding [48]. Anti-static properties can be conferred by coating fibers with metallized films, intrinsically conductive polymers, polyelectrolytes, or by low molecular weight anti-statics in solution [49].
The integration of electronics into textile must take this into account. Diverse technologies have been developed and investigated to create the interconnections of electronics with textile substrates. Each one of them has its benefits and disadvantages. The integration of electronics into textile is supposed to have limited or no effect on the comfort, flexibility, fashion statement, wearability, and ergonomics of the garment [50,51,52,53].
According to De Mulatier et al. [54] there are four different development stages to smart textile fabrication: flexible circuits, hybrid stretchable circuits, textile circuits, and functionalized fibers. At the early-stage development of e-textile, basic textile circuit technologies are involved by attaching standard electronic components directly onto fabric to create the textile circuits. As the next stages, textile integrated flexible circuits and hybrid stretchable circuits were the emerging technologies, the fabric serves as a substrate for the electronic circuit to maintain essential textile properties. While in the future, all the electronics might be embedded as functionalized fibers. In this fourth development stage, the functionalized fibers will have replaced the rigid electronic parts. To make the electronics even more integrated, functionality shall be diffused inside the core of the fiber material. However, the recent development is limited to basic logic circuitry and quasi-static applications.
According to Li et al. [55] three dimensional deformable, highly stretchable, permeable, durable and washable fabric circuit boards embedded in textile have the advantage to rely on more established process technologies with a dedicated substrate separately processed from the garment. The substrate can be a mixture of rigid, flexible, and stretchable parts and must later be integrated into the garment substrate. In this review, the various types of integrating microelectronic devices into/onto wearable e-textile are discussed in detail. Special focus is on the level of the textile-integrated smart textiles, to obtain flexible circuits or hybrid stretchable circuits in the textile through the combination of a textile-based circuit and a common microelectronic part as found on rigid circuit boards.

2. Integration Techniques

At the early-stage developments of smart textile, technologies involved integration of electronics directly into/onto textile materials, this by applying different connection approaches between the rigid electronic components and soft textiles. In order to interconnect different electronics components such as conductive yarns, sensors, batteries, and processing circuits, the conductive tracks have to embed directly into/onto the textile. The most basic function of the chip-level interconnections is to provide electrical paths to and from the substrate for power and signal distribution.
The integration of electronics into/onto the textiles requires two straightforward connection steps. The first one is the mechanical connection to a textile material, while the second step is the electrical connection integrated on the conductive structures. Both connections must be functional and reliable.

2.1. Mechanical Connectors

In 1964, the first scientific paper concerning the mechanics of pressure connections was published by Whitley [56]. The author gave a good overview and described the fundamental processes involved in crimping and force fit. In 1995, Mroczkowsk [57] proposed a cold welding process for crimped connectors from Ag and Cu wire with a barrel (brass) surface that had large-area metal-to-metal contact, and would hold it there under any desired environmental condition for a long lifetime. To detect the extensive deformation of the conductors, the surface has been analyzed using SEM. Bernardoni et al. [58] developed a low profile mechanical interconnect system having metalized loops and hoops for the creation of electronic connections. These crimp connections, as well as a good overview of crimping in general, has been published by Mroczkowski [59].
A study on the reliability of crimp connections was published in 1978 containing a mathematical model and the factors which affect the reliability of crimp connections [60] Optimization of the tool design, determination of parameters, effect of friction and comparison of implicit and explicit finite element methods to model crimp connections have been further investigated by different scholars [61,62]. Simon et al. [63] worked on the development of a multi-terminal crimp package for smart textile integration based on Crimp Flat Pack (CFP) which is a lead-frame-based electronic package that features crimp terminals for integrating electronics into textiles.
In addition to crimp beads, Kalhnayer et al. [64] developed a mechanism of connection for antennas on textile substrates by the integration of the transponder through an interposer between chip and fabric. Although the processes seem suitable, it was not possible to achieve a permanent electrical contact and higher deformation of the antenna occurred.
Researchers in [65,66,67,68,69,70] described various approaches of physical attachments for electronic PCB (Printable Circuit Board) and wire with a textile by using different methods such as snap buttons, socket buttons, bolt connection, and ribbon cable connector, as shown in Figure 2.
In 2014, Seager and Chauraya [71], studied the use of conductive hook and loop flexible and detachable connectors as the connector between the traditional electronics and a fabric system, and demonstrated how the electronics can be removed from a fabric system for security or other reasons such as washing. In 2015, Berglund and Duvall [72], and Molla et al. [73], introduced a novel technique for assembling surface-mount fabric PCBs using stitched traces and reflow soldering techniques. The results showed that all configurations were sufficiently durable for low-intensity wear, while, for high intensity wear, larger components and traces are needed to improve the durability.
Rubacha and Zięba [74], developed and studied multifunctional magnetic fiber which were manufactured by introducing ferromagnetic nano-particle powders into the fiber matter during fiber production for use in Textronic products where the magnetic fibers may be used for the construction of textile magnetic coils. Scheulen et al. [75] used adhesive bonded neodymium magnets for contacts in smart textiles. The electrical contact resistance between two magnets was found to be less than 0.01 Ohm. The magnets were glued to the textile using a conductive epoxy adhesive.
Righetti et al. [76] integrated electronics onto fabric through gold-coated neodymium magnets which then bonded to the fabric through a commercial cyanoacrylate adhesive (CA). In this way, the authors developed a modular I2C-based wearable architecture where the garment provides the I2C bus made of four conductive wires. At different positions, modules were attached to the bus via magnetic connectors.

2.2. Soldering

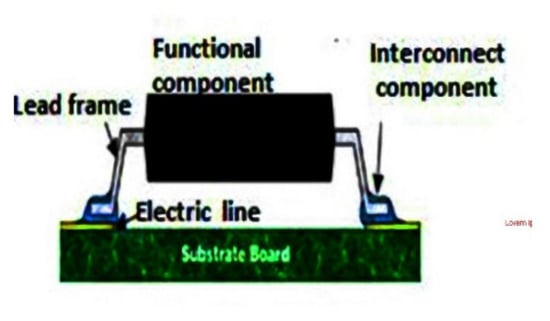

Soldering interconnections between microelectronics and conductive textile material is a process in which two or more items are joined by melting a filler metal or solder and putting it into the joint [77]. To be functional, the filler metal must have a lower melting point than the conductive thread or fabric and the microelectronics [78]. Soldering is normally done above 200 °C, although low-temperature solder, with melting points as low as 150 °C [79] or below, exist [80,81] and start to be common for textile integration.
Soldering involves mounting the components directly onto the textiles surface. It is necessary to transfer thermal energy from a heat source to the soldering point to melt and flow the solder between terminals of the microelectronic component (known as solder pads) and conductive thread(s) in order to create good connections. In the soldering process, heat can be transferred either by conduction, convection, or radiation [82]. In soldering, an additional material, called solder is used. The solders are soft alloys of lead (Pb), tin (Sn), or sometimes silver (Ag) that are used to join the metallic electrical components with the textile substrate, with Sn42Bi 58, a suitable alloy for textiles with melting point at 138 °C [83]. Soldering achieves good electrical contact [84]. The integration of the electronics on to textile substrate by soldering can usually be achieved by direct contact or frictional soldering [85], hot air or thermal soldering [86], ultrasonic soldering [87,88], laser soldering [89], and infrared soldering [90] as shown in Figure 3 [91].
Mostly, for textile materials, thermal bonding and ultrasonic soldering have been used. The advantage of friction bonding compared to thermal bonding is that the heat is generated directly at the joint. Localized heating reduces the risk of burning the surrounding nonconductive fabric material [92].

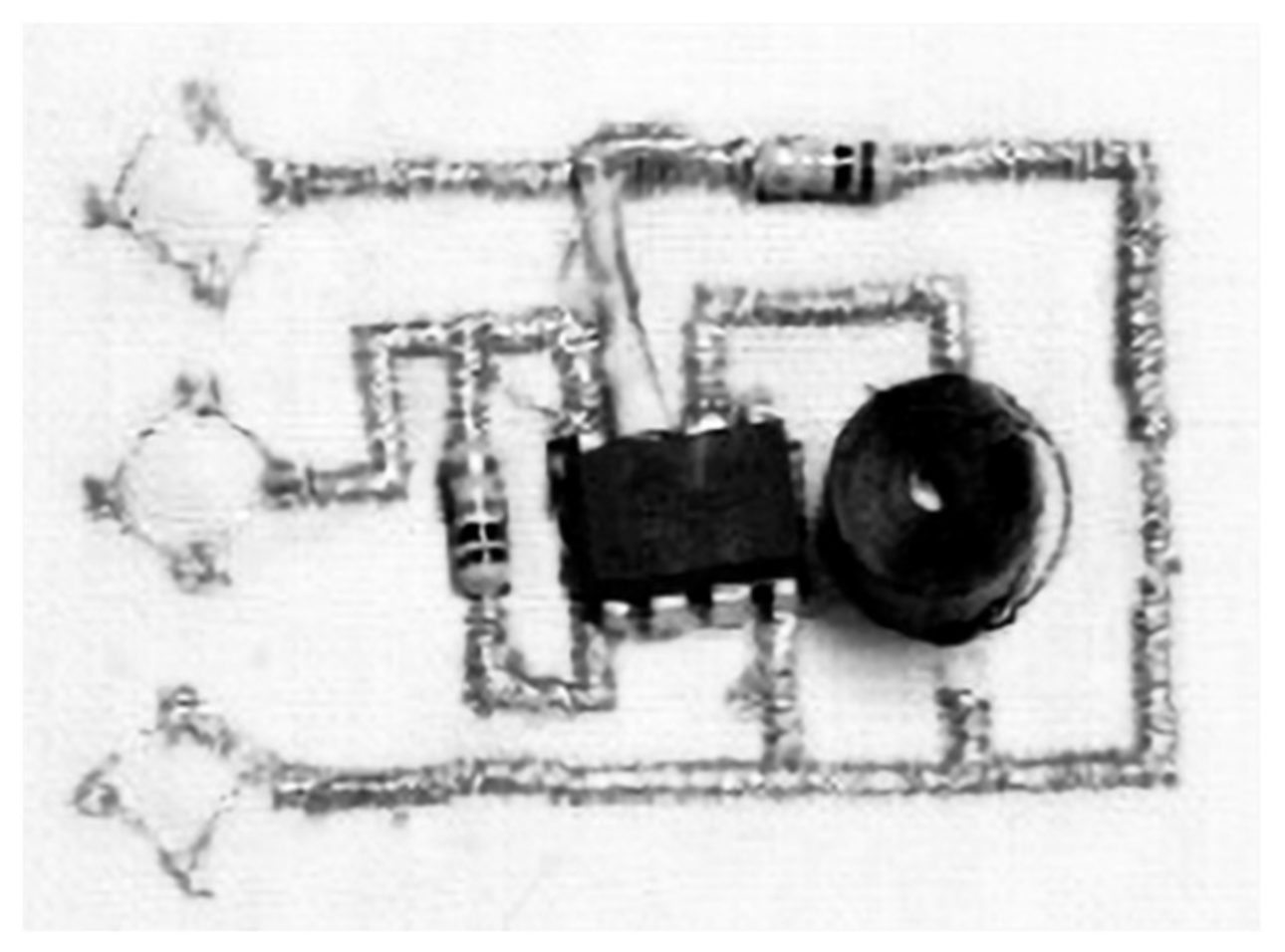

Additionally, the soldering of smart textiles was investigated by different researchers such as Molla et al. [73] who integrated LEDs into textile structures by soldering conductive uninsulated yarns. The LEDs were soldered to the exposed conductors, but in particular, the solder wicking along the multi-filament affected the durability of the joint and added stiffness to the textile. In addition, Mikkonen and Pouta [93] studied the integration of electronics onto conductive wire by direct soldering and insertion into two layer weaving fabric. The distinct effect of the solder, especially, has an impact on the stiffness of the textile. All work steps were performed manually and were not fast enough. Overall, the contacting processes, manually and automatically, were still too slow and the conductors were not stretchable.
The developments of woven electrical circuits on to fabric using several microchips connected after copper conductors have been woven into a fabric connected by using resistive welding (using top-bottom probes and parallel gap welding) were formed at the cross-over points of orthogonal conductive yarns was studied by Dhawan [94]. Furthermore, Atalay [95] developed textile-based transmission lines using stainless steel and silver-plated conductive yarns, which were inserted between two layers of navy blue colored polyester fabric structure, without any undulation in a straight line via applying ultrasonic welding technology for e-textile applications. The results show that stainless steel yarns were simply affected in terms of conductivity change. The silver-plated yarns were found to be less suitable for ultrasonic welding technology. However, silver-plated yarns with higher linear density showed satisfactory results at moderate working conditions.

2.3. Sewing and Embroidering

Sewing and embroidery technologies are methods for interconnection of electronic components by attaching them on top of a textile fabric with yarn. T. Linz et al. [96] stated that these methods are conventional techniques which consists of chip elements, PCB, and sensors that are placed on the substrate and attached by sewing to provide a rigid mechanical connection between the chip elements and conductive fabrics.
Temporary contacts and embroidered circuitry with conductive yarn has been demonstrated by Linz [97]. The work focused on the interconnection process and studied machine embroidered electrical contacts. They suggested a solution to improve the reliability by using a conductive yarn embroidered through a metalized contact area on a flexible substrate which produced an electrical and mechanical connection.
Different authors, such as Linz and Christine [98] and Hamdan and Voelker [99], showed that common stitch embroidery technology can be used to integrate electronics on to textile in a light and cost efficient way. Embroidering mechanisms were used for flexible electronic modules using flexible conductive yarn interconnection with sensors, batteries, textile keyboards, and electrochemical biosensors [100,101].
Sahta et al. [102] developed textile-based sewn switches by using commercially available conductive thread based on silver-coated multifilament polyamide thread and often used to connect devices within e-textile structures. Silver-coated multifilament polyamide yarns are elastic, flexible, and with respect to their textile properties, correspond to the “conventional” textile yarns. They are suitable for integration into the fabric structure by sewing. However, the thread used with a sewing machine as needle thread suitable are only 110dtex/f34x2-ply twisted yarns. Furthermore, the effects of washing on electrical conductivity of silver coated polyamide yarn was highly intensive [103].

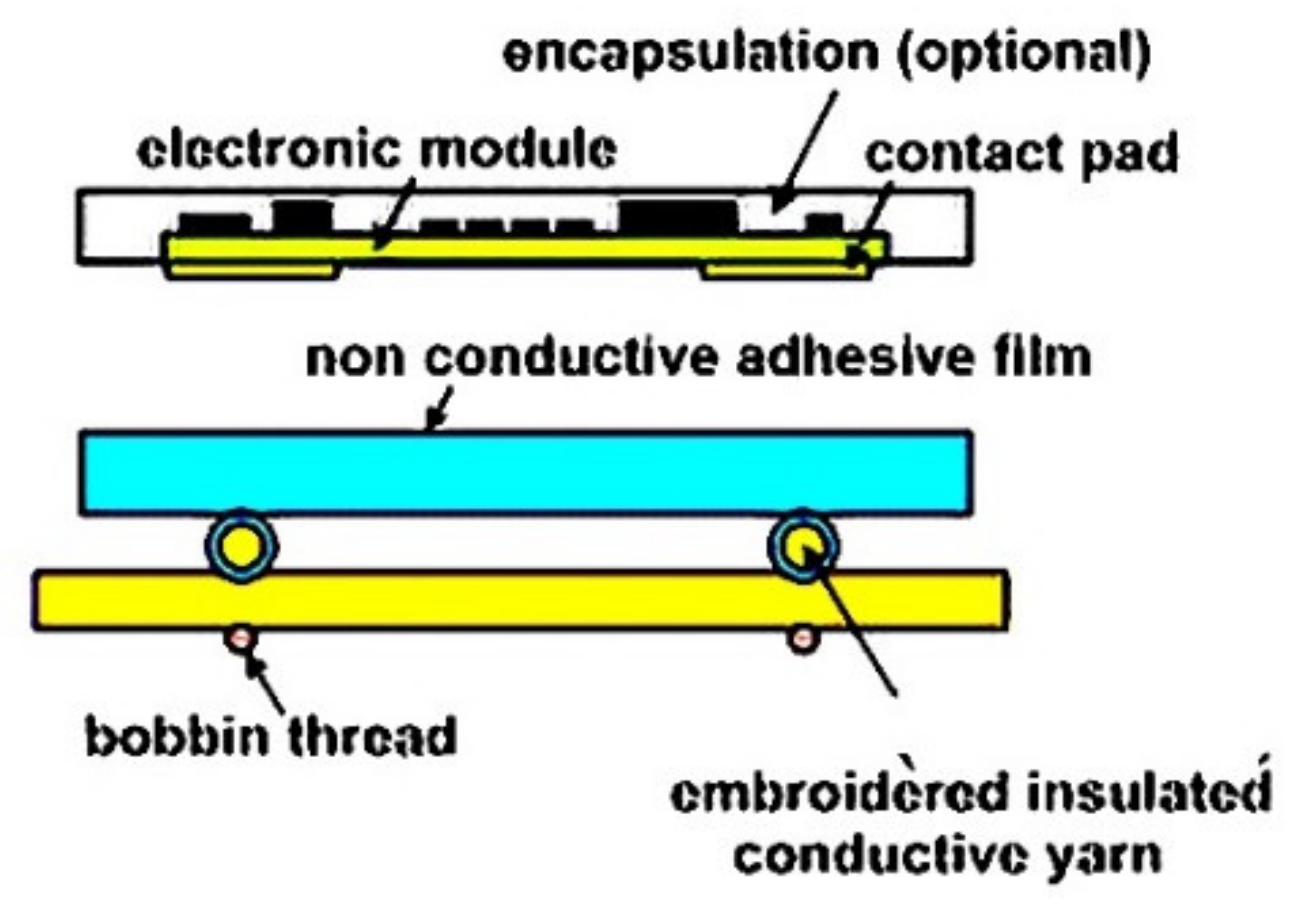

Post and Orth [104] developed e-broidery (electronic embroidery in which the patterning of the conductive textiles is controlled by numerical sewing or weaving processes) as a means of creating computationally active textiles. The embroidery needle stitched through metalized contact areas of the substrate thereby making a mechanical and electrical interconnection with the conductive thread. The analysis of embroidery contacts for electronics in textile and investigation of ways to improve reliability of the embroidery contact on the textile have also been studied in [105]. Christine et al. [106] developed a fully integrated electrocardiogram shirt based on embroidered electrical interconnections with conductive yarn and miniaturized flexible electronics. Sewn electrode onto textile substrate using conductive stainless steel and polyester composite threads is shown in Figure 4 [107].
Today, researchers have developed advanced embroidery machines to integrate electronics into the textile substrate. Advancements of Textile Research Facility TITV, from Greiz in Germany [26], invented an embroidery technology using luminous sequins embroidered to conducting yarn, which is available on embroidery machine stich file (ZSK) embroidery machines with a ZSK sequin device. The sequin feeder apparatus includes at least two sequin feed units, each including a sequin feed mechanism, for feeding a continuous sequin strip toward a predetermined cutting position and a sequin-cutting cutter section located in the predetermined cutting position as shown in Figure 5. One of the sequin feed units is selected and positioned in a predetermined sewing operation position, and the driving force of a feeding drive mechanism is transmitted to the sequin feed mechanism to feed out and integrate the sensor, LED sequins, and antenna on textile fabric. However, when embroidery is used, especially in near-body applications, the electronic and conductive paths have to be placed on the outside of the fabric, as they generally should be shielded from naturally occurring conductive substances such as sweat [108]. Furthermore, the electronic components and conductive truck must not be damaged or lose efficiency by any external interruption such as abrasion and cyclic washing. Thermoplastic polyurethane was laminated over the embroidered conductive yarn to successfully protect it during washing. Applying encapsulation by using epoxy compound transfer, molding, adhesive film protection, and hot melt encapsulation to protect electric contacts is very common practice. It protects against mechanical stress, including temperature and induced mechanical stress. It also protects against chemicals such as moisture, salts, and atmospheric contaminants such as sulfur oxides (SO2) [97].
The main attention point with embroidery and sewing is that special yarn, and even needles, must be used, which allow embroidering without yarn breakage. Special yarns have been developed, e.g., Madeira high conductive thread (HC12) [109], though further improvement in these yarns is still needed to obtain a wider range of conductivity, strength, and abrasion resistance. In addition, Silver-Tech 50 [110], Nickel Conductive yarn [111], Volt Smart Yarns, or CleverTex® [112] threads are also suitable for high resolution embroidery and have high resistance to washing cycle, which were used as a smart solution for wearable applications.

2.4. Hybrid Solder and Sewing Integration

In 2015, Bergluned et al. [72] integrated microelectronics in the fabric by using a Brother PR650e embroidery machine in a hybrid solder and sewing technique. Three surface-mount LED packages (sizes 1 mm, 3 mm, and 5 mm) were attached to stitched conductive traces on 100% cotton fabric with a plain weave structure in two configurations, parallel with, and perpendicular to, the package axis, as shown in Figure 6. The conductive traces were created using Syscom Liberator 40 silver coated Kururay® Vectran conductive yarn, stitched in a lockstitch structure, using the embroidery machine and components, were attached manually using a reflow soldering process, with low-melt solder paste (Chip Quik).
The durability test was performed, using simulated every day wear testing, and showed that the surface-mount soldering of components to stitch conductors was a viable method of fabricating e-textile circuits. However, a challenge was excessive backstitching over the traces, extraneous or redundant stitched and thread trimming. These problems led to risk of electrical shorts, and the washing of the e-textile was found to be unsatisfactory.

2.5. Electrical Conductive Adhesive

Bonding involves applying conductive adhesives to embed components into/onto textile substrates. Conductive adhesives may be developed according to the end use application. Non-toxic, highly conductive, highly durable, and moderately flexible conductive adhesives can potentially be used to bond rigid components with flexible textile substrates [113]. Joining also involves attaching an electronic component to a fabric by cyanoacrylate adhesive and applying (magnetic) force or heat on the fabric [114,115], as shown Figure 7.
Conductive adhesives are widely used in the electronic packaging applications, such as die attach and solderless interconnections. For this purpose, different types of conductive adhesives for electronics packaging have been developed [116,117,118]. Snacaktar et al. [119] and Mehmann et al. [120] have studied epoxy-based adhesives used for joining electronics parts to fabric circuits. Krshiwoblozki et al. [115] described electronic circuits connected with fabric by using thermoplastic polyurethanes nonconductive adhesive bonding. The thermoplastic adhesive bonding technology for bonding of electronic modules onto the textile substrates uses a thermoplastic nonconductive adhesive (NCA) film. The modules are placed onto textile circuits, with an NCA film in between, by applying pressure and heat. The adhesive melts and contact partners touch, as shown in Figure 7 and Figure 8.
Unlike other types of adhesives, electrically conductive adhesives perform two primary functions. First, conductive adhesives form joints with sufficient strength so that they can bind two surfaces, and secondly, an electrical interconnection was formed between the two bonded surfaces. This dual functionality is usually achieved in composite form by dispersion of particles in an insulating adhesive matrix [116] by controlling the process parameter such as temperature, pressure, cure time, pot and shelf life, which are critical to the success of making reliable electrical and mechanical interconnections [121]. Li and Wong [122] applied conductive adhesives as a lead-free alternative in electronic packaging and interconnecting electronic material and in flip-chip assembly, chip scale package (CSP), and ball grid array (BGA) applications in replacement of solder. The recognized advantages of using electrical conductive adhesive ECA are improved environmental impact, gentler processing conditions (allowing the use of heat-sensitive and low-cost components and substrates), and fewer processing steps (reducing processing cost). However, this type of technology is not available easily and has challenging issues such as lower electrical conductivity, low conductivity fatigue resistance, limited current-carrying capability, and poor impact strength.
The conductive adhesive methods of joining electronics to conductive textiles is confronted with limitations including lower conductivity than solder methods, sensitivity to the type and quality of component and board metallization, requiring longer time to cure, and possessing lower durability in various climatic environments [123]. One issue is thermal stress caused by coefficient of thermal expansion mismatch between the conductive textile and electrical component, while other attention points are mismatched between the adhesive and adherent during temperature cycling, oxidation of the bonding surfaces and of the filler, and degradation by UV-light or corrosive gases [124,125,126].

2.6. Inkjet and 2D Screen-Printing

Another method for practical integration of electronics onto textiles substrate is printing textile-based electronics onto the surface of the substrate. This can be performed by primary printing techniques, such as screen printing or inkjet printing [127]. Examples of smart textiles achieved by printing techniques are piezo resistive layers [128], a textile transmission line [129], heating device [130,131], a frequency selective surface [132], a secured traceability tag [133], an auto touch pad [134,135], highly deformable electro chromic device and electrochromic e-skin [136,137,138], organic light-emitting diodes [139,140,141], microchips such as RFID tags [142,143,144], resistors and capacitor [145] flexible heated circuits [146,147], antenna [148,149,150], and piezo sensitive materials [151].
Today, various electro active functional inks allow the manufacturing of textile based electronic devices. Several researchers have developed printable conductive inks for screen printing that can form interconnections [152,153,154,155]. They showed that these wearable electronics were rigid and inflexible electronic technologies that offer limited skin-compatibility and are damaged under washing. The resultant e-textiles were too uncomfortable to wear because they were not breathable.
In 2017, Carey et al. [156] developed an ink based on graphene and other two-dimensional materials that enable the printing of washable and biocompatible electronics on textiles such as cotton and polyester. Cao et al. [157] also developed washable, breathable, and designable electrodes through screen-print carbon nanotube (CNT) ink, which not only had excellent flexibility and stability but also relatively low surface resistivity (0.2 kΩ/sq.) and air permeability (88.2 mm/s).
Paul et al. [158] developed an innovative washable screen-printed network of electrodes associated with conductive tracks on textiles for medical applications as shown in Figure 9. A polyurethane paste was screen printed onto a woven textile to create a smooth and high surface energy interface layer. Subsequently, a silver paste was printed on top of this interface layer to provide a conductive track and a final polyurethane encapsulation layer was placed to protect the conductive track from abrasion and creasing.
Researchers [159,160] have also overcome the limitations of washability by developing low-boiling point inks based on nano scale platelets of graphene and hexagonal boron nitride (h-BN) suspended in organic solvents that were compatible with inkjet printers. The researchers printed stacks of inks based on different two-dimensional materials onto cotton and polyester fabrics to create electronic components such as amplifiers, programmable memories, logic circuits, and integrated circuits, as illustrated in Figure 10. The papers showed that one of the problems with current approaches to inkjet printing onto a two-dimensional material is that commonly used solvents have a low-boiling point and are toxic.

2.7. Three-Dimensional (3D) Printing

Additive Manufacturing (such as 3D printing) is a form of manufacturing in which a Computer Aided Design (CAD) model is captured and then subsequently fabricated in a layer-by-layer manner [161]. The first printer to print electronic elements was sold in 1936. It was an incredible revolution that brought change in the way we conceive electronic materials [162].
An advanced example of using 3D printing for the integration of electronic components has been given by Grimmelsmann et al. [163]. For the 3D printing, an Orcabot XXL 3D printer was employed, which works with the principle of the fused deposition method (FDM) technology. In this technique, a filament was melted in a heated extruder nozzle. Afterwards, the liquefied material was deposited on the printer bed line by line where it cooled down and hardened. After lowering the printing plate, the second layer was printed on top of the first one. The printer was not modified before use.

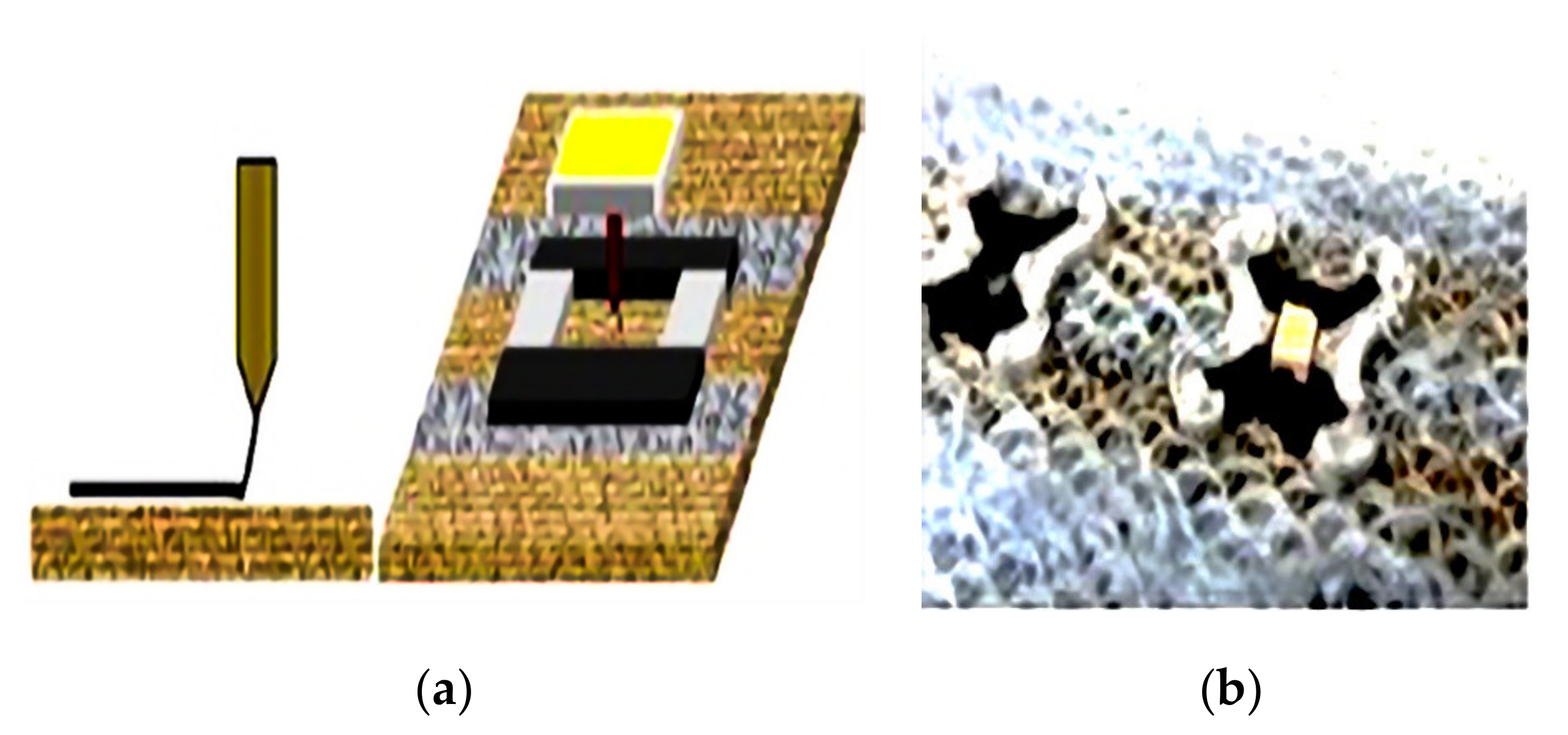

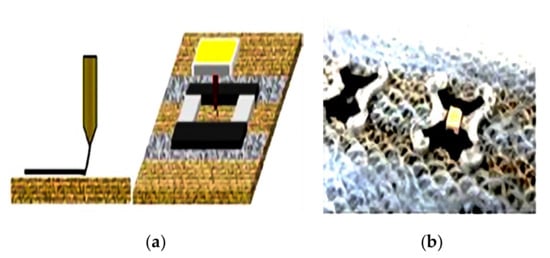

As illustrated in Figure 11, the positions of the LED holders of the conductive parts of the knitted fabrics were defined using a line laser, which showed the printing positions. In this way, the textile fabrics were fixed onto the heated printing bed in the desired positions. The laser was mounted mechanically on the printer frame and moved to specify the printing positions. The knitted fabric was glued on the printing bed, and the printing process was started. Alternatively, the coordinate system of the printer software can be easily transferred onto the glass printing bed using a fine permanent marker. The height of the printer nozzle is selected based on the highest adhesion between textile and 3D printed polymer. Then, the LEDs are placed in the 3D printed holders after printing finished, as illustrated in Figure 11. The shape of the selected LEDs has been used to prepare the correct holder shape in the CAD program.
Researchers [164,165] studied and investigate the adhesion properties of direct 3D printing of polymers and nanocomposites on textiles, as well as the effect of FDM printing process parameters. The adhesion forces were quantified using the innovative sample preparing method combined with the peeling standard method. The results showed that different variables of 3D printing process such as extruder temperature, platform temperature, and printing speed can have significant effects on adhesion force of polymers to fabrics during direct 3D printing.
A flexible and functional sequins developed using subtractive technology and 3D printing for embroidered wearable textile applications by Nolden [166]. The existing acrylic adhesive of the copper adhesive tape required etching and could be free from acrylic adhesive residues. This additional cleaning is complex and slightly damages the conductor structure. It can lead to defects and peeling of the copper in places, especially of fine conductor lines and angular conductor areas. Furthermore, in the additive manufacturing process, gluing with copper tape has done manually with very complex steps which automation is not possible. Moreover, for the application of wearable textile, the electronic circuit for functional sequins was attached onto fabric by stitching or embroidering via using conductive thread. The conductive thread was also sensitive to mechanical abrasion.
Zhang et al. [167] studied the direct printing of e-textile composed of core-sheath fibers by employing a 3D printer equipped with a coaxial spinneret CNTs@SF, which spun as core sheath carbon nanotubes (CNTs) (conductive core) and silk fibroin (SF) as a dielectric sheath. The resulting component was used as a triboelectric nano-generator for the harvesting of biomechanical energy from human motion and achieved a power density as high as 18 mW/m2. In addition, researchers [168,169,170,171,172,173,174], studied the performance, application, and effects of 3D printer electronic integrated in the textile substrate. Additionally, 3D printing was used for the integration of electronics with high performance. They developed an electrical interconnection. The design was based on wires that create the interconnections between the multiple layers by having these traces interconnected within additive manufactured structures.
Akbari [175] presented the fabrication and performance evaluation of 3D printed and embroidered textile-integrated passive ultra-high frequency radio frequency identification (RFID) platforms. The antenna was manufactured by 3D printing of a stretchable silver conductor directly on an elastic band. This type of 3D printed interconnection showed suitable electric performance. Recently, Ferri et al. [176] developed textile capacitive touch sensors for a successful hand gesture recognition device. The device is equipped with microchip technologies of MGC3130, which is a three-dimensional (3D) gesture recognition, motion tracking, and approach detection controller, based on integrating Gest I C.D microchips into textile by using 3D printing.

2.8. Stretchable Electronics

Stretchable and flexible electronic devices have attracted a significant amount of attention in recent years due to their potential applications in modern human lives. The development of flexible devices is moving forward rapidly, as the innovation of methods and manufacturing processes has greatly encouraged the research on flexible devices [177]. As a newly developed technology, flexible and stretchable electronics are emerging and achieving a great variety of applications. Because the material can be compressed, stretched, twisted, and have the flexibility to allow complex patterns, there is a high demand for application in e-textiles.
Researchers continue to develop stretchable and flexible electronic circuits by depositing stretchable electronic devices and circuits onto stretchable substrates, or by embedding them completely, in a stretchable material such as sheets of plastic or stretchable steel foil and silicones. For example, by using carbon nanotube sheets and a thermochromics silicone elastomeric, a flexible, stretchable, and breathable soft strip-shaped thermochromics resistive heater (STRH), for use in woven textile was developed by Yiming Li [178]. However, fragments of carbon nanotube are not biodegradable and poses a major health problem if it is inhaled into windpipe or lungs [179,180].
Stretchable solar cells have also been developed and used for energy harvesting [181]. Furthermore, a soft gel and textile mesh electrode was developed to create a rechargeable alkaline manganese battery with an average cell capacity of 6.5 m Ah [182]. A multiple-force sensing woven textile, used as artificial skin, was developed as coaxial structure of stretchable sensor electrodes. Although the stretchable functional textile uses only one kind of sensing unit, it can simultaneously map and quantify the mechanical deformations generated by conventional pressures, lateral strains, and flexion [183]. De Sousa Pesse et al. [184] studied and developed flexible, stretchable, washable, and wearable electronic interconnects, which had additional track on the upper and inner side of a meander shaped copper track and was encapsulated by a TPU layer to protect the electrical conducting track from mechanical abrasion.
Macdonald [185] used the latest advances in plastic-based substrates for flexible OLED (organic light-emitting diodes) integrated electronics and coupled these with recent developments in solution deposition and ink-jet printing for laying down materials and active-matrix thin-film-transistor (TFT) for the application of e-textile.
The design of metal interconnects for stretchable electronics and fabrication of elastic interconnections for stretchable electronic circuits have been conducted by different researchers [186,187,188,189,190]. They were developed by applying different fabrication technologies to embed sinuous electroplated metallic wires in the stretchable substrate or by construction of elastic point-to-point interconnections, based on 2-D spring-shaped metallic tracks.
The Center for Microelectronics Technology (CMST) at Ghent University, developed a technology to make elastic electronic devices, mainly for application onto textiles [191]. An electronic circuit was divided into functional islands encapsulated in an elastic polymer polydimethylsiloxane (PDMS, silicone), fabricated with standard technologies as shown in Figure 12.
In references [192,193,194,195], the design, development, and integration of stretchable and flexible high conductivity electronic circuits and power sources for wearable applications was studied. The physical, performance, and electromechanical characteristics of stretchable and flexible high conductivity electronic circuits was measured and analyzed. The result showed that, the research needs an improvement in mechanical durability, reliability, electrical conductivity. The improvement of stretchable electronics and fabrication by manufacturing with low cost e-textile applications has also been studied by researchers [196,197,198,199,200,201,202,203]
Cao et al. [157] fabricated a flexible, stretchable, highly conductive, and washable e-textile from conductive carbon nanotubes (CNTs) through screen-printing technology that addresses all of the concerns. They showed its application as a self-powered touch or gesture tribo-sensor for intelligent human-machine interfacing. The fabrication method is illustrated in Figure 13.
Generally, there are several critical challenges that remain for wide-scale adoption of flexible and stretchable electronics [204]. The limitation of flexible and stretchable electronics is that the device performance may be lower than conventional rigid electronics. Flexible and stretchable electronics may not be able to compete with rigid electronics device performances because when the substrate is changed from rigid silicon wafer to plastics, the device reliability would be decreased significantly. Other concerns are that there have not yet been many long-term endurance and safety tests. In addition, the effects of electrical resistance property of stretchable electronics, the capacity, and inductance behavior of stretchable electronics also changed due to the stretchable property [205]. Furthermore, the lack of coherent manufacturing technology serves as a severe challenge, specifically when the overall activity is predominantly led by the academic community

2.9. Electronic Connections on Threads (E-Threads)

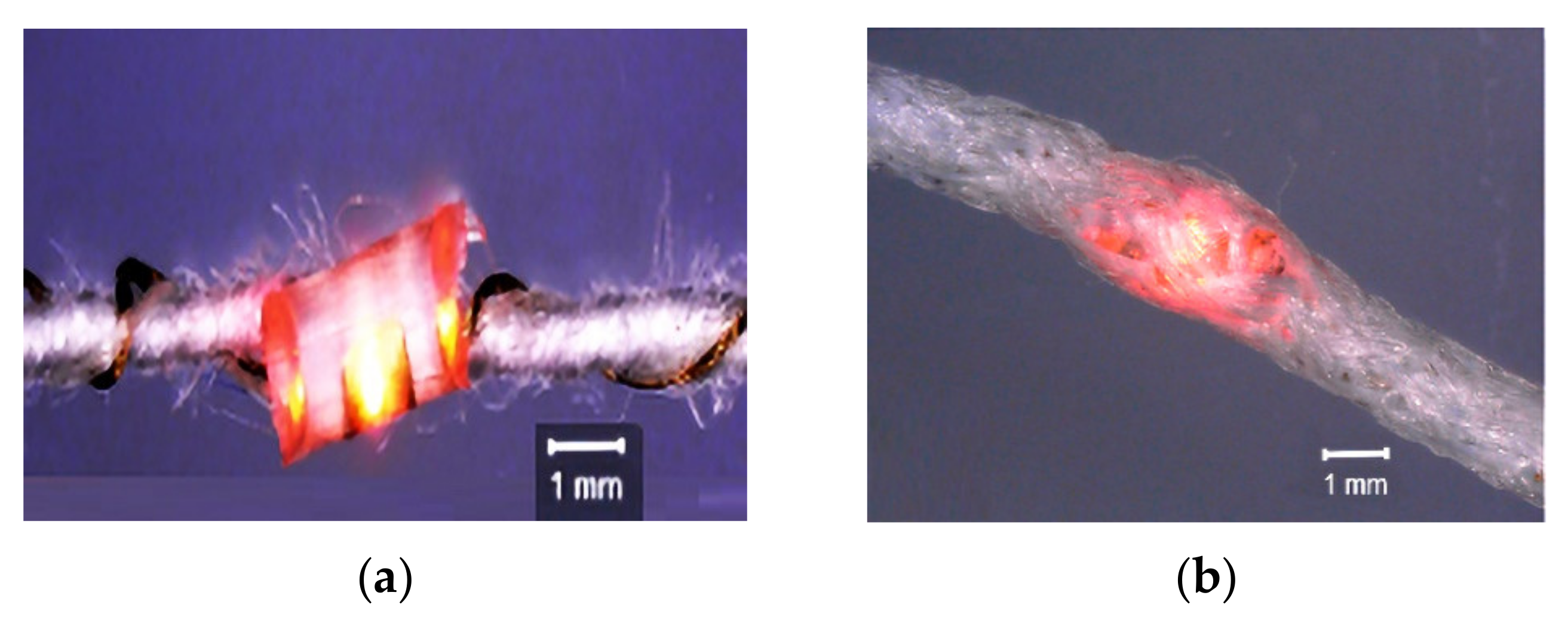

Studies by Vicard et al. [206], showed how a thread connection called the Diabolo process was developed. It comprises 10 stages at the wafer level and connects a die directly to external connection wires without going through a classical regular package. The die itself was protected by applying cover glue on the chips using a wafer-scale process. The connection has been established at the edge of the chip; the cover insures mechanical stability. The result was a string of chips mechanically and electrically connected to a set of wires, which is suited for further roll-to-roll processing and use in industrial processes such as weaving or extrusion. Komolafe et al. [207] also studied the integration of flexible filament circuits for e-textile applications by using copper wire, as shown in Figure 14. These processes are typically used for the applications of a LED or RFID into textile safety garments, home decoration textiles, or into composite materials.

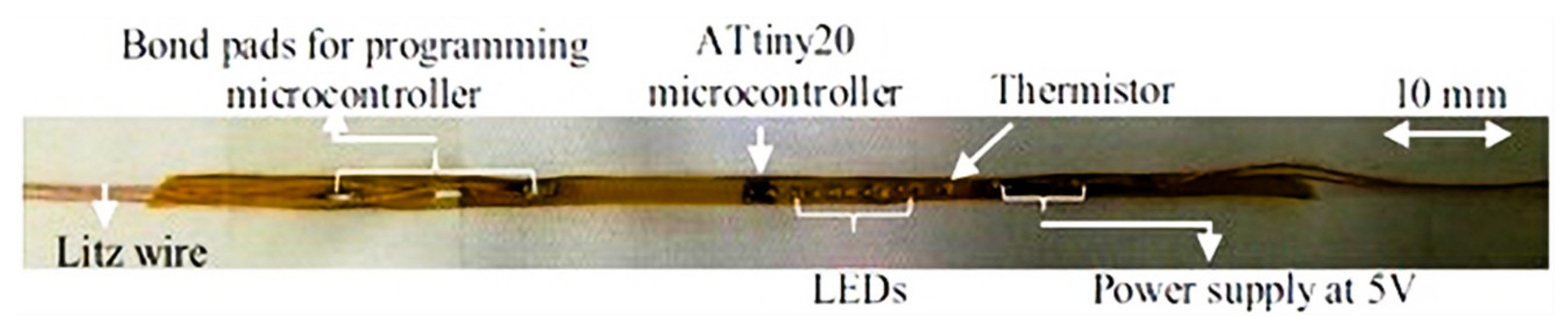

Rein et al. [208] successfully developed integration of semiconductor diodes into textile fiber for the application of modern computation, communication, physiological monitoring, light-emitting, as well as high-bandwidth photo detecting fiber. As such, incorporating them into textile fibers can increase fabric capabilities and functions; the first soft fabric-based OLEDs encapsulated by polyurethane (PU) and poly (vinyl alcohol) (PVA) layers, via spin coating and thermal evaporation, was demonstrated. The result shows high-performance OLEDs without degrading the mechanical characteristics of the fabric itself, such as the flex stiffness and the presence of multidirectional creases. PU and PVA layers, which only slightly degrade the flex stiffness of bare fabrics due to their ductile characteristics were investigated in references [209].
Zhang et al. [210], Hsienwei Hu [211], and Qiu et al. [212] studied the integration of perovskite solar cells with a flexible fiber structure prepared, for the first time, by continuously winding an aligned multiwall carbon nano-tube sheet electrode onto a fiber electrode as illustrated in Figure 15. The result showed that the fiber-shaped perovskite solar cell exhibits an energy conversion efficiency of 3.3%, which persisted on bending. The perovskite solar cell fibers have been woven into an electronic textile to demonstrate large-scale application and further woven into flexible textile. Lee et al. [213] conductive fiber based highly sensitive textile pressure sensor are developed by employing conductive fibers manufactured by coating poly styrene block butadiene styrene (SBS) polymer on the surface of poly-phenylene tere phthalamide (Kevlar) fiber with rubber dielectric materials.
Dhawn [214] developed fiber optical systems that have been constructed by fusing different fiber optic elements together into a continuous fiber with uniform diameter. Using this approach, the light has been transmitted to the sensor efficiently by a single mode optical fiber. These showed incorporation of metallic and semiconducting nano-particles into the core of the fiber optic in-line sensors that were fabricated by coating the tip of the optical fiber with vanadium oxide and coating the tip with a protective layer of silicon dioxide.
Wang [200] studied the impact of washing on the performance of electronic integrated e-yarns, which consist of passive UHF RFID tags based on dipole antennas fabricated from copper fabric and coated with protective epoxy coating. Despite the reliability challenges related to mechanical stress, the applied epoxy coating was found to be a promising method for electro textile tags in moist conditions. Tao [91] also investigated e-yarn encapsulated with TPU (Thermoplastic polyurethane) films that were deposited by pressure under controlled temperature and pressure parameters in order to protect the conductive thread and electrical contacts, as shown in Figure 16. The reliability and washability of conductive threads and contact resistances between flexible PCB and conductive threads were found to be promising.
Ouyang et al. [88] have described washable NWF (non-woven fabric) e-textile prepared by ultrasonic nano-soldering of carbon nanotubes onto polypropylene and viscose polymer fibers, which can be used for wearable health care, as well as strain and pressure sensors. The result showed that CNT e-textiles fabricated by this method have good washability. The CNTs remain on the fiber surface even after vigorous mechanical washing in water for 40 h. The conductivity of the textile decreases slightly, and the change arises from the damage of NWF fibers rather than the rinsing away of the CNTs. The wearable computing Lab at ETH Zurich [215,216] developed a process for mounting small surface mount devices (SMD) on flexible 2-mm wide plastic strips, which contain the metal bond pads and interconnect to link components. They were woven into a textile in the weft direction in place of standard yarns. These integration methods did not meet the physical and mechanical requirements of textiles in terms of stretchability, bendability, and washability. Furthermore, the comfort was not acceptable during skin contact. The components and interconnects were left exposed at the surface of the textile and failed rapidly after washing.
Claire [217] and Paret [218] claimed the integration of chips into/onto textile material by a method known as e-thread technology. Microelectronic chips are connected to a set of two conductors behaving as an antenna, a power, or a data bus. They are encapsulated and integrated in a yarn, as shown in Figure 17. These chips can be embedded in smart packaging and allow high throughput on an assembly line. They have been integrated into textile material by a textile spool.
Recently, e-threads technology became available in three versions: firstly, with a wired sensor to track parameters such as temperature or motion, the second one with a built-in light-emitting diode (LED), and a third with an UHF (ultra-high frequency) passive RFID (Radio-frequency identification) chip and antenna to store and transmit data when interrogated. The LED version is intended for cosmetic purposes; when sewn into a garment, a car-seat cover, or some other object, it could illuminate when wired to a power source. Direct die to wire achieves a direct connection of a chip hooked onto conductor textile threads. However, the technology still has problems with washing, and the costs of e-thread is still high.
To overcome the problem [219,220,221,222,223], microelectronics was integrated into multi filament copper wire by soldering. The electronic yarns (e-yarns) contain electronics, which are fully incorporated into textile or garment production. Then, the authors have developed a semi-automated encapsulation unit to fabricate the micro-pods, since the manufacturing of e-yarn requires the creation of resin micro-pods, which protect the die and solder joints against abrasion and moisture ingress. In 2019, a prototype was made by an automated encapsulation unit and its electromechanical behavior was studied [219], as shown in Figure 18.

3. Outlook, Future Perspectives and Conclusions

The rapid development of functional textiles needs further creation of advanced materials, as well as new smart textiles, by integrating electronic devices in/onto the textiles substrate. Currently, several companies are working on e-textile products. Grandview research projects show that, the compound annual growth rate for E-textiles will soar over the next few years. As technology advances, there has been a growing demand for more sophisticated and e-textile products. Design and production of wearable textile issues across the industry, such as creating simple and reliable connectors for integrating electronic components or creating a washable, flexible and highly stretchable, durable, and reliable electronic component have often been resolved with proprietary solutions developed by several researchers. Early e-textile researchers, developers, and inventors have various patents in these areas, which have studied and developed a considerable barrier to entry for newcomers and has equally frustrated cost-reduction and product-improvement efforts by the existing research.
This review has clearly shown the techniques of integrating electronics into/onto textile substrates. The approaches of integrating electronics offer different advantages and disadvantages. Overall, the different approaches discussed above led to the development of a broad range of flexible, stretchable, and conformal, wearable e-textile structures with fully performance. Current challenges remain in ensuring consistent performance, while withstanding the mechanical and chemical stresses endured during wear and fabric care. For instance, resistance to washing is considered one of the primary challenges to the marketability of e-textiles [224]. In particular, the electrical performances of textile-based wearable sensors can be degraded during washing because of the mechanical deformations induced during the washing. Therefore, the durability of the washing process should be required to be further developed for use as a wearable e-textile in daily life. In addition, one of the problems discussed by Rotzler et al. [225] is the absence of standardized methods and regulation of e-textile for testing the washability of e-textiles.
The most applicable stages of integrating microelectronics into the textile are the textile adapted and textile integrated stage, but these two mechanisms have big drawbacks in flexibility and washability of the resulting e-textile material. To overcome this problem, researchers need to study the integration of ultra-thin microelectronics with or into highly flexible, stretchable textile conductive fibers or yarns. After the integration performed the conductive truck will have encapsulated by thermoplastic resins for protection of conductive truck subjected to harsh operating environments. Research has confirmed the major limitations caused by the inherent hysteresis of textile structures, which limits their application to comparative measurements and evaluations only. Therefore, researchers have taken a major step forward by proposing a third generation of electronic textiles where integrated a flexible, durable, reliable, and washable circuits are fully incorporated into yarns prior to fabric or garment production i.e. the textile based approach. It is expected that in the future the integration of electronics into textile substrate will be done by auto-mated insertion with in the textile fiber and yarn level for producing e- textile. In addition, the connection parts of the electronics into textile substrate will be fully conductive, light-weight, have high flexibility and good stretchability behavior, have chronophysiological comfort, are washable, breathable, easily wearable and can be manufactured with low cost, leading to an innovative generation of e-textile applications. At this moment several of these requirements pose challenges, with the need to be washable one of the most difficult challenge to be overcome.
In general, the integration of electronics into textile for the application of wearable e- textile shall be done in the future without affecting or influencing the final design and characteristics of the textile substrate.

Author Contributions

For this review conceptualization, A.A.S., B.M. and L.V.L.; Resources, A.A.S., B.M. and L.V.L.; Writing—Original draft preparation, A.A.S.; Writing—Review and editing, A.A.S., B.M., G.R. and M.G.T.; Visualization, A.A.S., B.M. and G.R.; Supervision, B.M., M.G.T. and L.V.L.; Project Administration, L.V.L.; Funding Acquisition, L.V.L. All authors contributed to the work reported. All authors have read and agreed to the published version of the manuscript.


This research work was carried out in the frame of the HGPP project (International University Partnership Services for the Establishment of Postgraduate Programs in Ethiopia) funded through GIZ GmbH under a grant number 11.2216.7/002.01. In addition, the collaboration with Ghent University and Ethiopian institute of textile and fashion technology with project in Erasmus+ project Skills4Smartex, Project PE 479 Higher education and KFW project No.51235 MBZ201166305, respectively.

Conflicts of Interest

All authors declare no conflict of interest.


  1. Van Langenhove, L.; Hertleer, C. Smart clothing: A new life. Int. J. Cloth. Sci. Technol. 2004, 16, 63–72. [Google Scholar] [CrossRef]
  2. Koncar, V. Introduction to Smart Textiles and Their Applications; Elsevier: Amsterdam, The Netherlands, 2016; ISBN 9780081005835. [Google Scholar]
  3. Krajewski, A.S.; Magniez, K.; Helmer, R.J.N.; Schrank, V. Piezoelectric force response of novel 2d textile based pvdf sensors. IEEE Sens. J. 2013, 13, 4743–4748. [Google Scholar] [CrossRef]
  4. Gomes, P.; Tama, D.; Yao, Y.; Abreu, M.J.; Souto, A.P.; Carvalho, H. Development of pressure sensors for smart textiles. IOP Conf. Ser. Mater. Sci. Eng. 2018, 460, 012024. [Google Scholar] [CrossRef] [Green Version]
  5. Su, P.G.; Chang, C.F. Fabrication and electrical and humidity-sensing properties of a flexible and stretchable textile humidity sensor. J. Taiwan Inst. Chem. Eng. 2018, 87, 36–43. [Google Scholar] [CrossRef]
  6. Soukup, R.; Hamacek, A.; Mracek, L.; Reboun, J. Textile based temperature and humidity sensor elements for healthcare applications. In Proceedings of the 2014 37th International Spring Seminar on Electronics Technology (ISSE), Dresden, Germany, 7–11 May 2014; pp. 407–411. [Google Scholar] [CrossRef]
  7. Seyedin, S.; Zhang, P.; Naebe, M.; Qin, S.; Chen, J.; Wang, X.; Razal, J.M. Textile strain sensors: A review of the fabrication technologies, performance evaluation and applications. Mater. Horizons 2019, 6, 219–249. [Google Scholar] [CrossRef]
  8. Tessarolo, M.; Gualandi, I.; Fraboni, B. Recent progress in wearable fully textile chemical sensors. Adv. Mater. Technol. 2018, 3, 1700310. [Google Scholar] [CrossRef]
  9. Windmiller, J.R.; Wang, J. Wearable Electrochemical Sensors and Biosensors: A Review. Electroanalysis 2013, 25, 29–46. [Google Scholar] [CrossRef]
  10. Schwarz, A.; Van Langenhove, L.; Guermonprez, P.; Deguillemont, D. A roadmap on smart textiles. Text. Prog. 2010, 42, 99–180. [Google Scholar] [CrossRef]
  11. Stylios, G.K.; Wan, T. Shape memory training for smart fabrics. Trans. Inst. Meas. Control 2007, 29, 321–336. [Google Scholar] [CrossRef]
  12. Li, L. The Application Wearable Thermal Textile Technology in Thermal-Protection Applications. Latest Trends Text. Fash. Des. 2018, 1, 22–30. [Google Scholar] [CrossRef]
  13. Maity, S.; Chatterjee, A.; Singh, B.; Pal Singh, A. Polypyrrole based electro-conductive textiles for heat generation. J. Text. Inst. 2014, 105, 887–893. [Google Scholar] [CrossRef]
  14. Zhai, S.; Karahan, H.E.; Wei, L.; Qian, Q.; Harris, A.T.; Minett, A.I.; Ramakrishna, S.; Ng, A.K.; Chen, Y. Textile energy storage: Structural design concepts, material selection and future perspectives. Energy Storage Mater. 2016, 3, 123–139. [Google Scholar] [CrossRef]
  15. Jost, K.; Dion, G.; Gogotsi, Y. Textile energy storage in perspective. J. Mater. Chem. A 2014, 2, 10776–10787. [Google Scholar] [CrossRef]
  16. Schneegas, S. Smart Textiles Fundamentals, Design, and Interaction; Springer: New York, NY, USA, 2017; ISBN 978-3-319-50123-9. [Google Scholar]
  17. Suh, M.W.; Woo, J.L.; Koo, H. Smart Fashion and Wearable Technology: Opportunities and Challenges for Future Growth. JTSFT 2018, 1, 691–696. [Google Scholar]
  18. Köhler, A. End-of-life implications of electronic textiles Assessment of a converging technology. Master’s Thesis, The International Institute for Industrial Environmental Economics—IIIEE, Lund University, Lund, Sweden, October 2008; pp. 1–88. [Google Scholar]
  19. Ghahremani Honarvar, M.; Latifi, M. Overview of wearable electronics and smart textiles. J. Text. Inst. 2017, 108, 631–652. [Google Scholar] [CrossRef]
  20. Thorp, E.O.; Thorp, E.O. The Invention of the First Wearable Computer. In Proceedings of the Second International Symposium on Wearable Computers (Cat. No.98EX215), Pittsburgh, PA, USA, 19–20 October 1998; pp. 1–14. [Google Scholar]
  21. Klein, R.G. The relevance of Old World archeology to the first entry of man into the New World. Quat. Res. 1975, 5, 391–394. [Google Scholar] [CrossRef]
  22. Sutherland, I.E. Head-Mounted Three Dimensional Display. In Proceedings of the Fall Joint Computer Conference, Part I, San Francisco, CA, USA, 9–11 December 1968; ACM: New York, NY, USA, 1968. [Google Scholar] [CrossRef] [Green Version]
  23. Mann, S. Wearable computing: A first step toward personal imaging. Computer 1997, 30, 25–32. [Google Scholar] [CrossRef]
  24. Ojuroye, O. ‘Levels of Electronic Integration within Textiles’ Chart. Univ. Southampt. Inst. Repos. 2017, 12, 104758. [Google Scholar]
  25. Rambausek, L. Textronics Defination, Development and Characterization of Fibrous Organic Field Effect Transistors. J. Chem. Inf. Model. 2014, 53. [Google Scholar]
  26. Bosowski, P. Electronic Textiles Smart Fabrics and Wearable Technology. In Electronic Textiles; Dias, T., Ed.; Elsevier Ltd.: Amsterdam, The Netherlands, 2015; pp. 75–110. ISBN 9780857093424. [Google Scholar]
  27. Kim, K.; Joo, D.; Lee, K.P. Wearable-object-based interaction for a mobile audio device. In Proceedings of the Conference on Human Factors in Computing Systems, Atlanta, GA, USA, 10–15 April 2010; ACM Press: New York, NY, USA, 2010; pp. 3865–3870. [Google Scholar]
  28. Rantanen, J.; Impiö, J.; Karinsalo, T.; Malmivaara, M.; Reho, A.; Tasanen, M.; Vanhala, J. Smart Clothing Prototype for the Arctic Environment; Springer: London, UK, 2002; Volume 6, pp. 3–16. [Google Scholar]
  29. Suh, M.; Carroll, K.; Cassill, N. Critical Review on Smart Clothing Product Development. JTATM 2010, 6, 1–18. [Google Scholar]
  30. Hughes-Riley, T.; Dias, T.; Cork, C. A Historical Review of the Development of Electronic Textiles. Fibers 2018, 6, 34. [Google Scholar] [CrossRef] [Green Version]
  31. Hardianto, H.; De Mey, G.; Ciesielska-Wróbel, I.; Hertleer, C.; Van Langenhove, L. Seebeck coefficient of thermocouples from nickel-coated carbon fibers: Theory and experiment. Materials 2018, 11, 922. [Google Scholar] [CrossRef] [Green Version]
  32. Müller, C.; Hamedi, M.; Karlsson, R.; Jansson, R.; Marcilla, R.; Hedhammar, M. Woven electrochemical transistors on silk fibers. Adv. Mater. 2011, 23, 898–901. [Google Scholar] [CrossRef]
  33. ISO—ISO/TR 16298:2011—Textiles and Textile Products—Smart (Intelligent) Textiles—Definitions, Categorisation, Applications and Standardization Needs. 2011. Available online: (accessed on 18 August 2021).
  34. Cherenack, K.; Van Pieterson, L. Smart textiles: Challenges and opportunities. J. Appl. Phys. 2016, 121, 091301. [Google Scholar] [CrossRef] [Green Version]
  35. Gniotek, K.; Krucińska, I. The basic problems of textronics. Fibres Text. East. Eur. 2004, 12, 13–16. [Google Scholar]
  36. Stoppa, M.; Chiolerio, A. Wearable Electronics and Smart Textiles: A Critical Review. Sensors 2014, 14, 11957–11992. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Shirakawa, H.; Louis, E.J.; MacDiarmid, A.G.; Chiang, C.K.; Heeger, A.J. Synthesis of electrically conducting organic polymers: Halogen derivatives of polyacetylene, (CH)x. J. Chem. Soc. Chem. Commun. 1977, 16, 578–580. [Google Scholar] [CrossRef]
  38. Petry, W. Electrically Conductive Textile Fabric Having Conductivity Gradient. U.S. Patent 5,102,727, 1 April 1992. [Google Scholar]
  39. George, A. Integral, Electrically-Conductive Textile Filament. U.S. Patent 5,102,727, 6 September 1977. [Google Scholar]
  40. Singha, K.; Kumar, J.; Pandit, P. Recent Advancements in Wearable & Smart Textiles: An Overview. Mater. Today Proc. 2019, 16, 1518–1523. [Google Scholar]
  41. Meoli, D.; May-Plumlee, T. Interactive electronic textile development: A review of technologies. J. Text. Appar. Technol. Manag. 2002, 2, 1–12. [Google Scholar]
  42. Viswanathan, S. E-Textile and its Applications. IJESC 2019, 9, 20173–20176. [Google Scholar]
  43. Augusto, J.C.; Nakashima, H.; Aghajan, H. Handbook of Ambient Intelligence and Smart Environment; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2010; pp. 3–31. ISBN 9780387938080. [Google Scholar]
  44. Salme, N. Protection Against Electrostatic and Electromagnetic Phenomena; Duquesne, S., Ed.; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar]
  45. Onogi, Y.; Sugiura, N.; Nakaoka, Y. Dissipation of Triboelectric Charge into Air from Textile Surfaces. Text. Res. J. 1996, 66, 337–342. [Google Scholar] [CrossRef]
  46. Marchini, F. Advanced Applications of Metallized Radiation Shielding. J. Ind. Text. 1991, 20, 153–166. [Google Scholar]
  47. Varnaitė-Žuravliova, S.; Baltušnikaitė-guzaitienė, J.; Valasevičiūtė, L.; Verbienė, R. Assessment of Electrical Characteristics of Conductive Woven Fabrics. Am. J. Mech. Ind. Eng. 2016, 1, 38–49. [Google Scholar] [CrossRef]
  48. Varnaitė-Žuravliova, S. The Types, Properties, and Applications of Conductive Textiles; Cambridge Scholars Publishing: Cambridge, UK, 2019. [Google Scholar]
  49. Zhang, X. Antistatic and Conductive Textiles; Woodhead Publishing Limited: Sawston, UK, 2011; pp. 27–144. ISBN 9781845697235. [Google Scholar]
  50. Berglin, L. Interactive Textile Structures Creating Multifunctional Textiles based on Smart Materials. Ph.D. Thesis, Chalmers University of Technology, Gothenburg, Sweden.
  51. Tyler, D.; Wood, J.; Sabir, T.; McDonnell, C.; Sayem, A.S.M.; Whittaker, N. Wearable electronic textiles. Text. Prog. 2019, 51, 299–384. [Google Scholar] [CrossRef]
  52. Cho, G. Smart Clothing Technology and Applications, Human Factors and Ergonomics; Taylor & Francis Group: New York, 2009; ISBN 9781420088526. [Google Scholar]
  53. Suh, M. E-Textiles For Wearability: Review Of Integration Technologies. Text. World 2010. [Google Scholar]
  54. De Mulatier, S.; Nasreldin, M.; Delattre, R.; Ramuz, M.; Djenizian, T. Electronic Circuits Integration in Textiles for Data Processing in Wearable Technologies. Adv. Mater. Technol. 2018, 3, 1700320. [Google Scholar] [CrossRef]
  55. Li, Q.; Tao, X.M. Three-dimensionally deformable, highly stretchable, permeable, durable and washable fabric circuit boards. Proc. R. Soc. A Math. Phys. Eng. Sci. 2014, 470, 20140472. [Google Scholar] [CrossRef]
  56. Whitley, J.H. The Mechanics of Pressure Connections. In Proceedings of the EDN Regional Engineers Meeting, New York, NY, USA, 3 December 1964; pp. 3–8. [Google Scholar]
  57. Mroczkowski, R.S.; Geckle, R.J. Concerning “cold welding” in crimped connections. In Proceedings of the Electrical Contacts—1995 Proceedings of the Forty-First IEEE Holm Conference on Electrical Contacts, Montreal, QC, Canada, 2–4 October 1995; pp. 154–164. [Google Scholar]
  58. Bernardoni, L.L.; Swirbel, T.J. Low Profle Mechancal Interconnect System Having Metalzed Loop and Hoop Area. U.S. Patent 5,457,610, 10 October 1995. [Google Scholar]
  59. Mroczkowski, R.S. Electronic Connector Handbook Theory and Application. McGraw-Hill: New York, NY, USA, 1998; ISBN 0070414017. [Google Scholar]
  60. Cottrell, D.F.; Kirejczyk, T.E. Crimp Connection Reliablity; Martin Marietta Aerospace: Oelando, FL, USA, 1978. [Google Scholar]
  61. Zhmurkin, D.V.; Corman, N.E.; Copper, C.D.; Hilty, R.D. 3-Dimensional numerical simulation of open-Barrel crimping process. In Proceedings of the 54th IEEE Holm Conference on Electrical Contacts, Orlando, FL, USA, 27–29 October 2008; IEEE: New York, NY, USA, 2008; pp. 178–184. [Google Scholar]
  62. Zhmurkin, D.V. 3-D simulation of open-barrel crimping process: Study of the effect of serrations. In Proceedings of the 55th IEEE Holm Conference on Electrical Contacts, Vancouver, BC, Canada, 14–16 September 2009; pp. 112–118. [Google Scholar] [CrossRef]
  63. Simon, E.P.; Kallmayer, C.; Schneider-Ramelow, M.; Lang, K.D. Development of a multi-terminal crimp package for smart textile integration. In Proceedings of the 2012 4th Electronic System-Integration Technology Conference, Amsterdam, The Netherlands, 17–20 September 2012; pp. 1–6. [Google Scholar] [CrossRef]
  64. Tunde, T.K. Multidisciplinary Know How for Smart Textiles Dveloper; Elisiver: Cambridge, UK, 2013. [Google Scholar]
  65. Antonio, C. connectors for connecting electronics embedded in garments to external devices. U.S. Patent 9,837,760, 5 December 2017. [Google Scholar]
  66. Lehn, D.I.; Neely, C.W.; Schoonover, K.; Martin, T.L.; Jones, M.T. Ettachments for e-Textiles. In Proceedings of the 7th IEEE International Symposium, White Plains, NY, USA, 21–23 October 2003; pp. 21–23. [Google Scholar]
  67. Buechley, L.; Eisenberg, M. Fabric PCBs, electronic sequins, and socket buttons: Techniques for e-textile craft. Pers. Ubiquitous Comput. 2009, 13, 133–150. [Google Scholar] [CrossRef]
  68. Mecnika, V.; Scheulen, K.; Anderson, C.F.; Hörr, M.; Breckenfelder, C. Joining technologies for electronic textiles. In Electronic Textiles: Smart Fabrics and Wearable Technology; Woodhead Publishing: Cambridge, UK, 2015; pp. 133–153. [Google Scholar] [CrossRef]
  69. Ngai, G.; Chan, S.C.F.; Cheung, J.C.Y.; Lau, W.W.Y. The teeboard: An education-friendly construction platform for e-textiles and wearable computing. In Proceedings of the Conference on Human Factors in Computing Systems, Boston, MA, USA, 6 April 2009; pp. 249–258. [Google Scholar]
  70. Chen, S.J.; Kaufmann, T.; Ranasinghe, D.C.; Fumeaux, C. A Modular Textile Antenna Design Using Snap-on Buttons for Wearable Applications. IEEE Trans. Antennas Propag. 2016, 64, 894–903. [Google Scholar] [CrossRef] [Green Version]
  71. Seager, R.D. Flexible radio frequency connectors for textile electronics. Electron. Lett. 2013, 49, 1371–1373. [Google Scholar] [CrossRef] [Green Version]
  72. Berglund, M.E.; Duvall, J.; Dunne, L.E. Surface-Mount Component Attachment for E-Textiles. In Proceedings of the 2015 ACM International Symposium on Wearable Computers, Osaka, Japan, 7–11 September 2015; pp. 65–66. [Google Scholar]
  73. Molla, M.T.I.; Goodman, S.; Schleif, N.; Berglund, M.E.; Zacharias, C.; Compton, C.; Dunne, L.E. Surface-mount manufacturing for E-textile circuits. In Proceedings of the 2017 ACM International Symposium on Wearable Computers, Maui HI, USA , 11–15 September 2017; pp. 18–25. [Google Scholar] [CrossRef]
  74. Zięba, J. Magnetic Textile Elements. Fibres Text. East. Eur. 2013, 14, 49–53. [Google Scholar]
  75. Scheulen, K.; Schwarz, A.; Jockenhoevel, S. Reversible contacting of smart textiles with adhesive bonded magnets. In Proceedings of the 2013 International Symposium on Wearable Computers, Zurich, Switzerland, 8–12 September 2013; pp. 131–132. [Google Scholar] [CrossRef]
  76. Righetti, X.; Thalmann, D. Proposition of a modular I2C-based wearable architecture. Proc. Mediterr. Electrotech. Conf. Melecon 2010, 15, 802–805. [Google Scholar] [CrossRef]
  77. Tobias, R.H. Joining Methods in Electronics Packaging: Sintered Silver and Eutectic Bonding; Department of Mechanical Engineering, Thomas J. Watson School of Engineering and Applied Science, University of New York at Binghamton: New York, NY, USA, 2015. [Google Scholar]
  78. Gehrke, I.; Tenner, V.; Lutz, V.; Schmelzeisen, D.; Gries, T. Smart Textiles Production: Overview of Materials, Sensor and Production Technologies for Industrial Smart Textiles; RWTH Aachen University: Aachen, Germany, 2019; ISBN 9783038974970. [Google Scholar]
  79. Kim, S.-C.; Kim, Y.-H. Low Temperature bonding Technology for Electronic Packaging. J. Microelectron. Packag. Soc. 2012, 19, 17–24. [Google Scholar] [CrossRef]
  80. Mei, Z.; Hua, F.; Glazer, J.; Key, C.C. Low temperature soldering. Proc. IEEE/CPMT Int. Electron. Manuf. Technol. Symp. 1997, 19, 463–469. [Google Scholar]
  81. Choi, J.Y.; Park, D.H.; Oh, T.S. Chip Interconnection Process for Smart Fabrics Using Flip-Chip Bonding of SnBi Solder. J. Microelectron. Packag. Soc. 2012, 19, 71–76. [Google Scholar] [CrossRef] [Green Version]
  82. Athnayake, A. Development of the Core Technology for the Creation of Electronically-Active, Smart Yarn; Nottingham Trent University: Nottingham, UK, 2015. [Google Scholar]
  83. Kang, H.; Rajendran, S.H.; Jung, J.P. Low Melting Temperature Sn-Bi Solder: Effect of Alloying and Nanoparticle Addition on the Microstructural, Thermal, Interfacial Bonding, and Mechanical Characteristics. Metals 2021, 11, 364. [Google Scholar] [CrossRef]
  84. Harman, G.G. Wire Bonding in Microelectronics; McGraw-Hill: New York, 2010; ISBN 9780071476232. [Google Scholar]
  85. Koshi, T.; Nomura, K.I.; Yoshida, M. Electronic component mounting for durable e-textiles: Direct soldering of components onto textile-based deeply permeated conductive patterns. Micromachines 2020, 11, 209. [Google Scholar] [CrossRef] [Green Version]
  86. Bahadir, S.K.; Kalaoğlu, F.; Jevšnik, S. The use of hot air welding technologies for manufacturing e-textile trasmission lines. Fibers Polym. 2015, 16, 1384–1394. [Google Scholar] [CrossRef] [Green Version]
  87. Senders, F.; van Beurden, M.; Palardy, G.; Villegas, I.F. Zero-flow: A novel approach to continuous ultrasonic welding of CF/PPS thermoplastic composite plates. Adv. Manuf. Polym. Compos. Sci. 2016, 2, 83–92. [Google Scholar] [CrossRef] [Green Version]
  88. Du, D.; Tang, Z.; Ouyang, J. Highly washable e-textile prepared by ultrasonic nanosoldering of carbon nanotubes onto polymer fibers. J. Mater. Chem. C 2018, 6, 883–889. [Google Scholar] [CrossRef]
  89. Micus, S.; Haupt, M.; Gresser, G.T. Soldering electronics to smart textiles by pulsed Nd:YAG laser. Materials 2020, 13, 2429. [Google Scholar] [CrossRef]
  90. Lanin, V.L. Infrared heating in the technology of soldering components in electronics. Surf. Eng. Appl. Electrochem. 2007, 43, 381–386. [Google Scholar] [CrossRef]
  91. Tao, X.; Koncar, V.; Huang, T.H.; Shen, C.L.; Ko, Y.C.; Jou, G.T. How to make reliable, washable, and wearable textronic devices. Sensors 2017, 17, 673. [Google Scholar] [CrossRef] [Green Version]
  92. Kallmayer, C.; Pisarek, R.; Neudeck, A.; Cichos, S.; Gimpel, S.; Aschenbrenner, R.; Reichl, H. New assembly technologies for textile transponder systems. In Electronic Components and Technology Conference; IEEE: New York, NY, USA, 2003; pp. 1123–1126. [Google Scholar] [CrossRef]
  93. Mikkonen, J.; Pouta, E. Weaving Electronic Circuit into Two-layer Fabric. In Proceedings of the 2015 ACM International Joint Conference on Pervasive and Ubiquitous Computing and Proceedings of the 2015 ACM International Symposium on Wearable Computers, Osaka, Japan, 7–11 September 2015; pp. 245–248. [Google Scholar] [CrossRef]
  94. Dhawan, A.; Ghosh, T.K.; Seyam, A.M.; Muth, J. Development of woven fabric-based electrical circuits. Mater. Res. Soc. Symp.-Proc. 2002, 736, 67–72. [Google Scholar] [CrossRef]
  95. Atalay, O.; Kalaoglu, F.; Kursun Bahadir, S. Development of textile-based transmission lines using conductive yarns and ultrasonic welding technology for e-textile applications. J. Eng. Fiber. Fabr. 2019, 14, 1–8. [Google Scholar] [CrossRef]
  96. Linz, T.; Kallmayer, C.; Aschenbrenner, R.; Reichl, H. Embroidering electrical interconnects with conductive yarn for the integration of flexible electronic modules into fabric. Proc. Int. Symp. Wearable Comput. ISWC 2005, 2005, 86–89. [Google Scholar] [CrossRef]
  97. Linz, T. Analysis of Failure Mechanisms of Machine Embroidered Electrical Contacts and Solutions for Improved. Ph.D. Thesis, Ghent University, Ghent, Belgium, 2011. [Google Scholar]
  98. Linz, T.; Simon, E.; Walter, H. Fundamental analysis of embroidered contacts for electronics in textiles. In Proceedings of the 3rd Electronics System Integration Technology Conference ESTC, Berlin, Germany, 13–16 September 2010; IEEE: New York, NY, USA, 2010; pp. 1–5. [Google Scholar] [CrossRef]
  99. Hamdan, N.A.H.; Voelker, S.; Borchers, J. Sketch&Stitch: Interactive embroidery for E-Textiles. In Proceedings of the 2018 CHI Conference on Human Factors in Computing Systems, Montreal, QC, Canada, 21–26 April 2018; 2018; pp. 1–13. [Google Scholar] [CrossRef]
  100. Donneaud, M.; Honnet, C.; Strohmeier, P. Designing a Multi-Touch eTextile for Music Performances. In Proceedings of the International Conference, New Interfaces Music, Baton Rouge, LA, USA, 31 May–3 June 2015; 2017; pp. 7–12. [Google Scholar]
  101. Liu, X.; Lillehoj, P.B. Embroidered electrochemical sensors for biomolecular detection. R. Soc. Chem. 2016, 16, 2093–2098. [Google Scholar] [CrossRef]
  102. Šahta, I.; Vališevskis, A.; Baltiņa, I.; Ozola, S. Development of Textile Based Sewn Switches for Smart Textile. Adv. Mater. Res. 2015, 1117, 235–238. [Google Scholar] [CrossRef]
  103. Ismar, E.; Zaman, S.U.Z.; Tao, X.; Cochrane, C.; Koncar, V. Effect of Water and Chemical Stresses on the Silver Coated Polyamide Yarns. Fibers Polym. 2019, 20, 2604–2610. [Google Scholar] [CrossRef]
  104. Post, E.R.; Orth, M.; Russo, R.R.; Gershenfeld, N. E-broîdery: Design and fabrication of textile-based computing. IBM Syst. J. 2000, 39, 840–860. [Google Scholar] [CrossRef]
  105. Linz, T.; Kallmayer, C.; Aschenbrenner, R.; Reichl, H. New Interconnection Technologies for the Integration of Electronics on Textile Substrates. Ambience. 2005. Available online: (accessed on 10 September 2019).
  106. Linz, T.; Kallmayer, C.; Aschenbrenner, R.; Reichl, H. Fully integrated EKG shirt based on embroidered electrical interconnections with conductive yarn and miniaturized flexible electronics. In Proceedings of the International Workshop on Wearable and Implantable Body Sensor Networks (BSN’06), Cambridge, MA, USA, 3–5 April 2006; pp. 23–26. [Google Scholar] [CrossRef]
  107. Briedis, U.; Valisevskis, A.; Grecka, M. Development of a Smart Garment Prototype with Enuresis Alarm Using an Embroidery-machine-based Technique for the Integration of Electronic Components. Procedia Comput. Sci. 2016, 104, 369–374. [Google Scholar] [CrossRef]
  108. Bilir, M.Z.; Gök, M.O. The Effect of Perspiring on Conductivity in Electronic Textile Design. Marmara Fen Bilim. Derg. 2017, 48–53. [Google Scholar] [CrossRef] [Green Version]
  109. Stavrakis, A.K.; Simić, M.; Stojanović, G.M. Electrical characterization of conductive threads for textile electronics. Electronics 2021, 10, 967. [Google Scholar] [CrossRef]
  110. Conductive Sewing & Embroidery Thread: Silver-Tech. Available online: (accessed on 8 August 2021).
  111. Swielam, E.M.; Eltopshy, S.M.; Sobhy, S.K.; Elgory, Z.M.; Labeeb, A.M. Embroidery on Textiles as a Smart Solution for Wearable Applications. Int. Des. J. 2019, 9, 53–58. [Google Scholar]
  112. Van Langenhove, L. Development of a Strategic Master Plan for the Transformation of the Traditional Textile and Clothing Into a Knowledge Driven Industrial Sector by 2015; Center of Textile Scince and Engineering, Ghent University Clevertex: Ghent, Belgium, 2015; pp. 1–141. [Google Scholar]
  113. Liu, J. an Overview of advances in conductive adhesive joining technology for electronics applications. Mater. Technol. 1995, 10, 247–252. [Google Scholar] [CrossRef]
  114. Von Krshiwoblozki, M.; Linz, T.; Neudeck, A.; Kallmayer, C. Electronics in Textiles—Adhesive Bonding Technology for Reliably Embedding Electronic Modules into Textile Circuits. Adv. Sci. Technol. 2012, 85, 1–10. [Google Scholar] [CrossRef]
  115. Linz, T.; von Krshiwoblozki, M.; Walter, H.; Foerster, P. Contacting electronics to fabric circuits with nonconductive adhesive bonding. J. Text. Inst. 2012, 103, 1139–1150. [Google Scholar] [CrossRef]
  116. Rabilloud, G. Adhesives and Sealants—General Knowledge, Application Techniques; New Curing Techniques—Handbook of Adhesives and Sealants; Elsevier Inc.: Oxford, UK, 2006; Volume 2. [Google Scholar]
  117. Petrie, E.M. Adhesive Bonding of Textiles: Principles, Types of Adhesive and Methods of Use; Joining Textiles; Elsevier: Amsterdam, The Netherlands, 2013; pp. 225–274. [Google Scholar]
  118. Choi, J.Y.; Oh, T.S. Contact resistance comparison of flip-chip joints produced with anisotropic conductive adhesive and nonconductive adhesive for smart textile applications. Mater. Trans. 2015, 56, 1711–1718. [Google Scholar] [CrossRef] [Green Version]
  119. Sancaktar, E.; Bai, L. Electrically Conductive Epoxy Adhesives. Polymers 2011, 3, 427–466. [Google Scholar] [CrossRef] [Green Version]
  120. Mehmann, A.; Varga, M.; Gönner, K.; Troster, G. A ball-grid-array-like electronics-to-textile pocket connector for wearable electronics. In Proceedings of the 2015 ACM International Symposium on Wearable Computers, Osaka, Japan, 7–11 September 2015; pp. 57–60. [Google Scholar] [CrossRef]
  121. Gould, J. Mini Briefing: Adhesives in Electronics (Prime Faraday Partnership). Polym. Electron. 2004, 1–6. Available online: (accessed on 5 August 2020).
  122. Li, Y.; Wong, C.P. Recent advances of conductive adhesives as a lead-free alternative in electronic packaging: Materials, processing, reliability and applications. Mater. Sci. Eng. 2006, 51, 1–35. [Google Scholar] [CrossRef]
  123. Gomatam, R.R.; Sancaktar, E. A novel cumulative fatigue damage model for electronically-conductive adhesive joints under variable loading. J. Adhes. Sci. Technol. 2006, 20, 69–86. [Google Scholar] [CrossRef]
  124. Gomatam, R.R.; Sancaktar, E. Effects of various adherend surface treatments on fatigue behavior of joints bonded with a silver-filled electronically conductive adhesive. J. Adhes. Sci. Technol. 2005, 19, 659–678. [Google Scholar] [CrossRef]
  125. Gomatam, R.R.; Sancaktar, E. The effects of stress state, loading frequency and cyclic waveforms on the fatigue behavior of silver-filled electronically-conductive adhesive joints. J. Adhes. Sci. Technol. 2006, 20, 53–68. [Google Scholar] [CrossRef]
  126. Gomatam, R.R.; Sancaktar, E. A comprehensive fatigue life predictive model for electronically conductive adhesive joints under constant-cycle loading. J. Adhes. Sci. Technol. 2006, 20, 87–104. [Google Scholar] [CrossRef]
  127. De Vos, M.; Torah, R.; Tudor, J. Dispenser printed electroluminescent lamps on textiles for smart fabric applications. Smart Mater. Struct. 2016, 25, 1–8. [Google Scholar] [CrossRef] [Green Version]
  128. Wei, Y.; Torah, R.; Yang, K.; Beeby, S.; Tudor, J. Screen printing of a capacitive cantilever-based motion sensor on fabric using a novel sacrificial layer process for smart fabric applications. Meas. Sci. Technol. 2013, 24, 075104. [Google Scholar] [CrossRef]
  129. Locher, I.; Tröster, G. Screen-printed Textile Transmission Lines. Text. Res. J. 2007, 77, 837–842. [Google Scholar] [CrossRef]
  130. Torah, R.; Yang, K.; Beeby, S.; Tudor, J. Screen-printed multilayer meander heater on polyester cotton. In Proceedings of the 88th Textile Institute World Conference, Selangor, Malaysia, 14–16 May 2012. [Google Scholar]
  131. Zeng, P.; Tian, B.; Tian, Q.; Yao, W.; Li, M.; Wang, H.; Feng, Y.; Liu, L.; Wu, W. Screen-Printed, Low-Cost, and Patterned Flexible Heater Based on Ag Fractal Dendrites for Human Wearable Application. Adv. Mater. Technol. 2019, 4, 4–11. [Google Scholar] [CrossRef]
  132. Whittow, W.G.; Li, Y.; Torah, R.; Yang, K.; Beeby, S.; Tudor, J. Printed frequency selective surfaces on textiles. Electron. Lett. 2014, 50, 916–917. [Google Scholar] [CrossRef] [Green Version]
  133. Agrawal, T.K.; Campagne, C.; Koehl, L. Development and characterisation of secured traceability tag for textile products by printing process. Int. J. Adv. Manuf. Technol. 2019, 101, 2907–2922. [Google Scholar] [CrossRef] [Green Version]
  134. Ferri, J.; Fuster, C.P.; Llopis, R.L.; Moreno, J.; Garcia-Breijo, E. Integration of a 2D touch sensor with an electroluminescent display by using a screen-printing technology on textile substrate. Sensors 2018, 18, 3313. [Google Scholar] [CrossRef] [Green Version]
  135. Ferri, J.; Lidón-Roger, J.V.; Moreno, J.; Martinez, G.; Garcia-Breijo, E. A wearable textile 2D touchpad sensor based on screen-printing technology. Materials 2017, 10, 1450. [Google Scholar] [CrossRef] [Green Version]
  136. Shahid, M.; Adivarekar, R. Advances in Functional Finishing of Textiles; Springer: Singapore, 2020; ISBN 978-981-15-3668-7. [Google Scholar]
  137. Cai, G.; Wang, J.; Lee, P.S. Next-Generation Multifunctional Electrochromic Devices. Acc. Chem. Res. 2016, 49, 1469–1476. [Google Scholar] [CrossRef]
  138. Christie, R.; Robertson, S.T.S. Colour: Design & Creativity. Colour Des. Creat. 2007, 1, 1–9. [Google Scholar]
  139. Hu, B.; Li, D.; Ala, O.; Manandhar, P.; Fan, Q.; Kasilingam, D.; Calvert, P.D. Textile-based flexible electroluminescent devices. Adv. Funct. Mater. 2011, 21, 305–311. [Google Scholar] [CrossRef]
  140. Verboven, I.; Stryckers, J.; Mecnika, V.; Vandevenne, G.; Jose, M.; Deferme, W. Printing smart designs of light emitting devices with maintained textile properties. Materials 2018, 11, 290. [Google Scholar] [CrossRef] [Green Version]
  141. Ivanov, A.; Wurzer, M. Integration of screen-printed electroluminescent matrix displays in smart textile items - Implementation and evaluation. EMPC 2017 - 21st Eur. Microelectron. Packag. Conf. Exhib. 2018, 2018, 1–6. [Google Scholar] [CrossRef]
  142. Hong, H.; Hu, J.; Yan, X. UV Curable Conductive Ink for the Fabrication of Textile-Based Conductive Circuits and Wearable UHF RFID Tags. ACS Appl. Mater. Interfaces 2019, 11, 27318–27326. [Google Scholar] [CrossRef]
  143. Virkki, J.; Björninen, T.; Kellomäki, T.; Merilampi, S.; Shafiq, I.; Ukkonen, L.; Sydänheimo, L.; Chan, Y.C. Reliability of washable wearable screen printed UHF RFID tags. Microelectron. Reliab. 2014, 54, 840–846. [Google Scholar] [CrossRef]
  144. Zhong, T.; Jin, N.; Yuan, W.; Zhou, C.; Gu, W.; Cui, Z. Printable stretchable silver ink and application to printed RFID tags for wearable electronics. Materials 2019, 12, 3036. [Google Scholar] [CrossRef] [Green Version]
  145. Li, Y.; Torah, R.; Beeby, S.; Tudor, J. An all-inkjet printed flexible capacitor on a textile using a new poly(4-vinylphenol) dielectric ink for wearable applications. In Proceedings of the IEEE SENSORS, Taipei, Taiwan, 28–31 October 2012; pp. 5–8. [Google Scholar]
  146. Castano, L.M.; Flatau, A.B. Smart fabric sensors and e-textile technologies: A review. Smart Mater. Struct. 2014, 23, 1–27. [Google Scholar] [CrossRef]
  147. Zschieschang, U.; Klauk, H.; Halik, M.; Schmid, G.; Dehm, C. Flexible organic circuits with printed gate electrodes. Adv. Mater. 2003, 15, 1147–1151. [Google Scholar] [CrossRef]
  148. Wang, D.; Zhang, Y.J.; Tong, M.S. A wearable UHF RFID tag antenna with archimedean spiral strips. In Proceedings of the 2017 Progress in Electromagnetics Research Symposium—Fall (PIERS—FALL), Singapore, 19–22 November 2017; pp. 1849–1852. [Google Scholar]
  149. Chauraya, A.; Whittow, W.G.; Vardaxoglou, Y.C.; Li, Y.; Torah, R.; Yang, K.; Beeby, S.; Tudor, J. Inkjet printed dipole antennas on textiles for wearable communications. IET Microw. Antennas Propag. 2013, 7, 760–767. [Google Scholar] [CrossRef] [Green Version]
  150. Blecha, T.; Linhart, R.; Reboun, J. Screen printed antennas on textile substrate. In Proceedings of the 5th Electronics System-Integration Technology Conference, ESTC, Helsinki, Finland, 16–18 September 2014; pp. 4–7. [Google Scholar]
  151. Tuukkanen, S.; Rajala, S. A survey of printable piezoelectric sensors. In Proceedings of the 2015 IEEE SENSORS, Busan, Korea, 1–4 November 2015. [Google Scholar]
  152. Matsuhisa, N.; Kaltenbrunner, M.; Yokota, T.; Jinno, H.; Kuribara, K.; Sekitani, T.; Someya, T. Printable elastic conductors with a high conductivity for electronic textile applications. Nat. Commun. 2015, 6, 1–11. [Google Scholar] [CrossRef]
  153. Liu, J.; Li, Y.; Arumugam, S.; Tudor, J.; Beeby, S. Screen Printed Dye-Sensitized Solar Cells (DSSCs) on Woven Polyester Cotton Fabric for Wearable Energy Harvesting Applications. Mater. Today Proc. 2018, 5, 13753–13758. [Google Scholar] [CrossRef]
  154. Kazani, I.; Hertleer, C.; De Mey, G.; Schwarz, A.; Guxho, G.; Van Langenhove, L. Electrical conductive textiles obtained by screen printing. Fibres Text. East. Eur. 2012, 90, 57–63. [Google Scholar]
  155. Krykpayev, B.; Farooqui, M.F.; Bilal, R.M.; Vaseem, M.; Shamim, A. A wearable tracking device inkjet-printed on textile. Microelectronics J. 2017, 65, 40–48. [Google Scholar] [CrossRef]
  156. Carey, T.; Cacovich, S.; Divitini, G.; Ren, J.; Mansouri, A.; Kim, J.M.; Wang, C.; Ducati, C.; Sordan, R.; Torrisi, F. Fully inkjet-printed two-dimensional material field-effect heterojunctions for wearable and textile electronics. Nat. Commun. 2017, 8, 1–11. [Google Scholar] [CrossRef] [Green Version]
  157. Cao, R.; Pu, X.; Du, X.; Yang, W.; Wang, J.; Guo, H.; Zhao, S.; Yuan, Z.; Zhang, C.; Li, C.; et al. Screen-Printed Washable Electronic Textiles as Self-Powered Touch/Gesture Tribo-Sensors for Intelligent Human-Machine Interaction. ACS Nano 2018, 12, 5190–5196. [Google Scholar] [CrossRef] [PubMed]
  158. Paul, G.; Torah, R.; Beeby, S.; Tudor, J. The development of screen printed conductive networks on textiles for biopotential monitoring applications. Sensors Actuators, A Phys. 2014, 206, 35–41. [Google Scholar] [CrossRef]
  159. Sealy, C. 2D materials hold key to printing wearable electronics. Nano Today 2018, 18, 4–5. [Google Scholar] [CrossRef]
  160. Chen, J.H.; Ishigami, M.; Jang, C.; Hines, D.R.; Fuhrer, M.S.; Williams, E.D. Printed graphene circuits. Adv. Mater. 2007, 19, 3623–3627. [Google Scholar] [CrossRef] [Green Version]
  161. Berman, B. 3-D printing: The new industrial revolution. Bus. Horiz. 2012, 55, 155–162. [Google Scholar] [CrossRef]
  162. Johnson, D. 3D Printing for Electronicsthe Next Revolution of Industrial Manufacturing. 2015. Available online: (accessed on 12 March 2021).
  163. Grimmelsmann, N.; Martens, Y.; Schäl, P.; Meissner, H.; Ehrmann, A. Mechanical and Electrical Contacting of Electronic Components on Textiles by 3D Printing. Procedia Technol. 2016, 26, 66–71. [Google Scholar] [CrossRef] [Green Version]
  164. Hashemi Sanatgar, R.; Campagne, C.; Nierstrasz, V. Investigation of the adhesion properties of direct 3D printing of polymers and nanocomposites on textiles: Effect of FDM printing process parameters. Appl. Surf. Sci. 2017, 403, 551–563. [Google Scholar] [CrossRef]
  165. Grimmelsmann, N.; Kreuziger, M.; Korger, M.; Meissner, H.; Ehrmann, A. Adhesion of 3D printed material on textile substrates. Rapid Prototyp. J. 2004, 10, 1–11. [Google Scholar] [CrossRef]
  166. Nolden, R.; Zöll, K.; Schwarz-Pfeiffer, A. Development of flexible and functional sequins using subtractive technology and 3d printing for embroidered wearable textile applications. Materials 2021, 14, 2633. [Google Scholar] [CrossRef]
  167. Zhang, M.; Zhao, M.; Jian, M.; Wang, C.; Yu, A.; Yin, Z.; Liang, X.; Wang, H.; Xia, K.; Liang, X.; et al. Printable Smart Pattern for Multifunctional Energy-Management E-Textile. Matter 2019, 1, 168–179. [Google Scholar] [CrossRef] [Green Version]
  168. Sipilä, E. Additive Manufacturing of Antennas from Copper Oxide Nanoparticle Ink: Toward Low-Cost RFID Tags on Paper- and Textile-Based Platforms. In Proceedings of the 2016 10th European Conference on Antennas and Propagation (EuCAP), Davos, Switzerland, 10–15 April 2016. [Google Scholar]
  169. Toni, B. Possibilities of 3D direct write dispensing for textile UHF RFID tag manufacturing|Semantic Scholar. In Proceedings of the n 2015 IEEE International Symposium on Antennas and Propagation & USNC/URSI National Radio, San Diego, CA, USA, 5–12 July 2020; pp. 1316–1317. [Google Scholar]
  170. Kim, C.; Espalin, D.; Liang, M.; Xin, H.; Cuaron, A.; Varela, I.; Macdonald, E.; Wicker, R.B. 3D printed electronics with high performance, multi-layered electrical interconnect. IEEE Access 2017, 5, 25286–25294. [Google Scholar] [CrossRef]
  171. Mežinska, S.; Kangro, I.; Zaicevs, E.; Salmane, G. The Effect of 3D Printing on a Textile Fabric. Proc. Int. Sci. Conf. 2017, 5, 1–7. [Google Scholar]
  172. He, H.; Akbari, M.; Sydanheimo, L.; Ukkonen, L.; Virkki, J. 3D-printed graphene and stretchable antennas for wearable RFID applications. In Proceedings of the 2017 International Symposium on Antennas and Propagation (ISAP), Phuket, Thailand, 30 October–2 November 2017; pp. 1–2. [Google Scholar] [CrossRef]
  173. Akbari, M.; He, H.; Juuti, J.; Tentzeris, M.M.; Virkki, J.; Ukkonen, L. 3D Printed and Photonically Cured Graphene UHF RFID Tags on Textile, Wood, and Cardboard Substrates. Int. J. Antennas Propag. 2017, 2017, 7327398. [Google Scholar] [CrossRef]
  174. He, H.; Chen, X.; Ukkonen, L.; Virkki, J. Textile-integrated three-dimensional printed and embroidered structures for wearable wireless platforms. Text. Res. J. 2019, 89, 541–550. [Google Scholar] [CrossRef]
  175. Akbari, M. 3D-Printed Graphene Antennas and Interconnections for Textile RFID Tags: Fabrication and Reliability towards Humidity. Int. J. Antennas Propag. 2017, 2017, 7327398. [Google Scholar] [CrossRef]
  176. Ferri, J.; Llopis, R.L.; Moreno, J.; Civera, J.I.; Garcia-Breijo, E. A wearable textile 3D gesture recognition sensor based on screen-printing technology. Sensors 2019, 19, 5068. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  177. Zou, M.; Ma, Y.; Yuan, X.; Hu, Y.; Liu, J.; Jin, Z. Flexible devices: From materials, architectures to applications. J. Semicond. 2018, 39, 1–19. [Google Scholar] [CrossRef]
  178. Li, Y.; Zhang, Z.; Li, X.; Zhang, J.; Lou, H.; Shi, X.; Cheng, X.; Peng, H. A smart, stretchable resistive heater textile. J. Mater. Chem. C 2017, 5, 41–46. [Google Scholar] [CrossRef]
  179. Tejral, G.; Panyala, N.R.; Havel, J. Carbon nanotubes: Toxicological impact on human health and environment. J. Appl. Biomed. 2009, 7, 1–13. [Google Scholar] [CrossRef] [Green Version]
  180. Francis, A.P.; Devasena, T. Toxicity of carbon nanotubes: A review. Toxicol. Ind. Health 2018, 34, 200–210. [Google Scholar] [CrossRef] [PubMed]
  181. Kumar Sequential Electronic and Structural Transitions in VO2 Observed Using X-ray Absorption Spectromicroscopy. Adv. Mater. 2014, 26, 7505–7509. [CrossRef] [Green Version]
  182. Kettlgruber, G.; Kaltenbrunner, M.; Siket, C.M.; Moser, R.; Graz, I.M.; Schwödiauer, R.; Bauer, S. Intrinsically stretchable and rechargeable batteries for self-powered stretchable electronics. J. Mater. Chem. A 2013, 1, 5505–5508. [Google Scholar] [CrossRef] [Green Version]
  183. Ge, J.; Sun, L.; Zhang, F.R.; Zhang, Y.; Shi, L.A.; Zhao, H.Y.; Zhu, H.W.; Jiang, H.L.; Yu, S.H. A Stretchable Electronic Fabric Artificial Skin with Pressure-, Lateral Strain-, and Flexion-Sensitive Properties. Adv. Mater. 2016, 28, 722–728. [Google Scholar] [CrossRef]
  184. De Sousa Pesse, K.L.; Bossuyt, F.; Van Langenhove, L. Washing Reliability of Wearable Electronic Systems. Master’s Thesis, Department Of Materials, Textiles And Chemical Engineering Ghent University, Ghent, Belgium, 2018; pp. 1–124. [Google Scholar]
  185. Macdonald, W.A. Latest Advances in Substrates for Flexible Electronics. Large Area Flex. Electron. 2015, 15, 291–314. [Google Scholar] [CrossRef]
  186. Brosteaux, D.; Axisa, F.; Gonzalez, M.; Vanfleteren, J. Design and fabrication of elastic interconnections for stretchable electronic circuits. IEEE Electron Device Lett. 2007, 28, 552–554. [Google Scholar] [CrossRef]
  187. De Mulatier, S.; Ramuz, M.; Coulon, D.; Blayac, S.; Delattre, R. Mechanical characterization of soft substrates for wearable and washable electronic systems. APL Mater. 2019, 7, 1–8. [Google Scholar] [CrossRef] [Green Version]
  188. Gonzalez, M. Design and performance of metal conductors for stretchable electronic circuits. Circuit World 2009, 35, 22–29. [Google Scholar] [CrossRef]
  189. Li, Q.; Tao, X. A stretchable knitted interconnect for three-dimensional curvilinear surfaces. Text. Res. J. 2011, 81, 1171–1182. [Google Scholar] [CrossRef]
  190. Van Den Brand, J.; De Kok, M.; Koetse, M.; Cauwe, M.; Verplancke, R.; Bossuyt, F.; Jablonski, M.; Vanfleteren, J. Flexible and stretchable electronics for wearable health devices. Solid. State. Electron. 2015, 113, 116–120. [Google Scholar] [CrossRef]
  191. Vervust, T.; Buyle, G.; Bossuyt, F.; Vanfleteren, J. Integration of stretchable and washable electronic modules for smart textile applications. J. Text. Inst. 2012, 103, 1127–1138. [Google Scholar] [CrossRef]
  192. Ren, J.; Zhang, Y.; Bai, W.; Chen, X.; Zhang, Z.; Fang, X.; Weng, W.; Wang, Y.; Peng, H. Elastic and wearable wire-shaped lithium-ion battery with high electrochemical performance. Angew. Chemie-Int. Ed. 2014, 53, 7864–7869. [Google Scholar] [CrossRef]
  193. Agcayazi, T.; Chatterjee, K.; Bozkurt, A.; Ghosh, T.K. Flexible Interconnects for Electronic Textiles. Adv. Mater. Technol. 2018, 10, 1–32. [Google Scholar] [CrossRef]
  194. Kayacan, O.; Kayacan, Ö.; Bulgun, E.; Eser, B.; Pamuk, M. Design methodology and performance studies of a flexible electrotextile surface. Autex Res. J. 2015, 15, 153–157. [Google Scholar] [CrossRef] [Green Version]
  195. Gray, D.S.; Tien, J.; Chen, C.S. High-Conductivity Elastomeric Electronics. Adv. Mater. 2004, 16, 393–397. [Google Scholar] [CrossRef]
  196. Mackanic, D.G.; Yan, X.; Zhang, Q.; Matsuhisa, N.; Yu, Z.; Jiang, Y.; Manika, T.; Lopez, J.; Yan, H.; Liu, K.; et al. Decoupling of mechanical properties and ionic conductivity in supramolecular lithium ion conductors. Nat. Commun. 2019, 10, 1–11. [Google Scholar] [CrossRef] [Green Version]
  197. Zamarayeva, A.M.; Ostfeld, A.E.; Wang, M.; Duey, J.K.; Deckman, I.; Lechêne, B.P.; Davies, G.; Steingart, D.A.; Arias, A.C. Flexible and stretchable power sources for wearable electronics. Sci. Adv. 2017, 3, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  198. Kim, D.H.; Rogers, J.A. Stretchable electronics: Materials strategies and devices. Adv. Mater. 2008, 20, 4887–4892. [Google Scholar] [CrossRef]
  199. Wu, W. Stretchable electronics: Functional materials, fabrication strategies and applications. Sci. Technol. Adv. Mater. 2019, 20, 187–224. [Google Scholar] [CrossRef] [Green Version]
  200. Wang, S. Towards Washable Electrotextile UHF RFID Tags: Reliability Study of Epoxy-Coated Copper Fabric Antennas. Int. J. Antennas Propag. 2015, 2015, 424150. [Google Scholar] [CrossRef] [Green Version]
  201. Hussain, M.M.; Ma, Z.J.; Shaikh, S.F. Flexible and Stretchable Electronics—Progress, Challenges, and Prospects. Flex. Stretchable Electron. 2018, 27, 65–69. [Google Scholar] [CrossRef]
  202. Shen, G.; Fan, Z. Flexible Electronics from Material to Device; World Scintific: London, UK, 2016; pp. 319–463. [Google Scholar]
  203. Wang, B.; Facchetti, A. Mechanically Flexible Conductors for Stretchable and Wearable E-Skin and E-Textile Devices. Adv. Mater. 2019, 31, 1–53. [Google Scholar] [CrossRef]
  204. Majumder, S.; Mondal, T.; Deen, M.J. Challenges in Design and Fabrication of Flexible/Stretchable Carbon- and Textile-Based Wearable Sensors for Health Monitoring. Sensors 2020, 3927, 1–29. [Google Scholar]
  205. Lan, Y.; Zhang, H.; Min, S.; Kim, D.; Gong, S.; Katehi, L.; Xu, Y.; Ma, Z. S- To X-Band Stretchable Inductors and Filters for Gigahertz Soft and Epidermal Electronics. ACS Appl. Mater. Interfaces 2021, 31, 1–33. [Google Scholar] [CrossRef]
  206. Vicard, D.; Brun, J.; Mourey, B.; Lépine, B.; Verrun, S. Packaging and Wired interconnections for insertion of miniaturized chips in smart fabrics. In Proceedings of the 2009 European Microelectronics and Packaging Conference, Rimini, Italy, 15–18 June 2009; IEEE: New York, NY, USA, 2009; pp. 243–248. [Google Scholar]
  207. Komolafe, A.; Torah, R.; Wei, Y.; Nunes-Matos, H.; Li, M.; Hardy, D.; Dias, T.; Tudor, M.; Beeby, S. Integrating Flexible Filament Circuits for E-Textile Applications. Adv. Mater. Technol. 2019, 4, 7. [Google Scholar] [CrossRef] [Green Version]
  208. Rein, M.; Favrod, V.D.; Hou, C.; Khudiyev, T.; Stolyarov, A.; Cox, J.; Chung, C.C.; Chhav, C.; Ellis, M.; Joannopoulos, J.; et al. Diode fibres for fabric-based optical communications. Nature 2018, 560, 214–218. [Google Scholar] [CrossRef]
  209. Kim, W.; Kwon, S.; Lee, S.M.; Kim, J.Y.; Han, Y.; Kim, E.; Choi, K.C.; Park, S.; Park, B.C. Soft fabric-based flexible organic light-emitting diodes. Org. Electron. 2013, 14, 3007–3013. [Google Scholar] [CrossRef]
  210. Zhang, Z.; Chen, X.; Chen, P.; Guan, G.; Qiu, L.; Lin, H.; Yang, Z.; Bai, W.; Luo, Y.; Peng, H. Integrated polymer solar cell and electrochemical supercapacitor in a flexible and stable fiber format. Adv. Mater. 2014, 26, 466–470. [Google Scholar] [CrossRef] [PubMed]
  211. Hu, H.; Yan, K.; Peng, M.; Yu, X.; Chen, S.; Chen, B.; Dong, B.; Gao, X.; Zou, D. Fiber-shaped perovskite solar cells with 5.3% efficiency. J. Mater. Chem. A 2016, 4, 3901–3906. [Google Scholar] [CrossRef]
  212. Qiu, L.; Deng, J.; Lu, X.; Yang, Z.; Peng, H. Integrating Perovskite Solar Cells into a Flexible Fiber. Angew. Chemie Int. Ed. 2014, 53, 10425–10428. [Google Scholar] [CrossRef] [PubMed]
  213. Lee, J.; Kwon, H.; Seo, J.; Shin, S.; Koo, J.H.; Pang, C.; Son, S.; Kim, J.H.; Jang, Y.H.; Kim, D.E.; et al. Conductive fiber-based ultrasensitive textile pressure sensor for wearable electronics. Adv. Mater. 2015, 27, 2433–2439. [Google Scholar] [CrossRef]
  214. Dhawan, A. Development of Robust Fiber Optic Sensors Suitable for Incorporation into Textiles, and a Mechanical Analysis of Electronic Textile Circuits. Ph.D. Thesis, North Carolina State University, Raleigh, NC, USA, 2007; pp. 80–224. [Google Scholar]
  215. Zysset, C. Integrating Electronics on Flexible Plastic Strips Into Woven Textiles. Ph.D. Thesis, ETH Zürich, Zürich, Switzerland, 2013; pp. 1–244. [Google Scholar] [CrossRef]
  216. Zysset, C.; Cherenack, K.; Kinkeldei, T.; Tröster, G. Weaving integrated circuits into textiles. In Proceedings of the International Symposium on Wearable Computers, ISWC, Seoul, Korea, 10–13 October 2010; pp. 1–8. [Google Scholar]
  217. Claire, S. E-Thread Provides Discrete Anti-Counterfeiting or Tracking Solutions. RFID J. 2014, 1–2. [Google Scholar]
  218. Paret, D.; Crégo, P. Examples of Smart Fibers and Smart Textiles. In Wearables, Smart Textiles and Smart Apparel; Elsevier: London, UK, 2019; pp. 133–152. [Google Scholar] [CrossRef]
  219. Nashed, M.; Hardy, D.A.; Hughes-Riley, T. A Novel Method for Embedding Semiconductor Dies within Textile Yarn to Create Electronic Textiles. Fibers 2019, 7, 12. [Google Scholar] [CrossRef] [Green Version]
  220. Dias, T.; Ratnayake, A. Integration of Micro-Electronics with Yarns for Smart Textiles; Elsevier Ltd.: London, UK, 2015. [Google Scholar]
  221. Anne, D.; Ioannis, H.; Nashed, A.M.; Oliveira, C.; Abiodun, T.H.; John, K.; Russel, T.; Steve, T.; Hardy, D.A. Automated insertion of package dies onto wire and into a textile yarn sheath. Microsyst. Technol. 2019, 2019, 12. [Google Scholar]
  222. Hughes-Riley, T.; Dias, T. Developing an acoustic sensing yarn for health surveillance in a military setting. Sensors 2018, 18, 1590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  223. Hardy, D.A.; Rahemtulla, Z.; Satharasinghe, A.; Shahidi, A.; Oliveira, C.; Anastasopoulos, I.; Nashed, M.N.; Kgatuke, M.; Komolafe, A.; Torah, R.; et al. Wash testing of electronic yarn. Materials 2020, 13, 1228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  224. Niu, B.; Yang, S.; Hua, T.; Tian, X.; Koo, M.K. Facile fabrication of highly conductive, waterproof, and washable e-textiles for wearable applications. Nano Res. 2021, 14, 1043–1052. [Google Scholar] [CrossRef]
  225. Rotzler, S.; Schneider-Ramelow, M. Washability of E-Textiles: Failure Modes and Influences on Washing Reliability. Textiles 2021, 1, 4. [Google Scholar] [CrossRef]

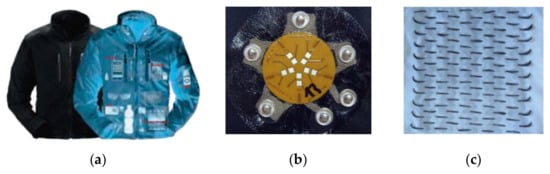

Figure 1. Level of electronics integration in textile: (a) textile-adapted, reprinted with permission from ref. [26]. Copyright Elsevier license no. 5107701406893. (b) textile-integrated, reprinted with permission from Taylor & Francis copy right license no. 501666551. (c) textile-based, reprinted with permission from [31]. Ghent University Textiles and Chemical Engineering.
Figure 1. Level of electronics integration in textile: (a) textile-adapted, reprinted with permission from ref. [26]. Copyright Elsevier license no. 5107701406893. (b) textile-integrated, reprinted with permission from Taylor & Francis copy right license no. 501666551. (c) textile-based, reprinted with permission from [31]. Ghent University Textiles and Chemical Engineering.
Materials 14 05113 g001

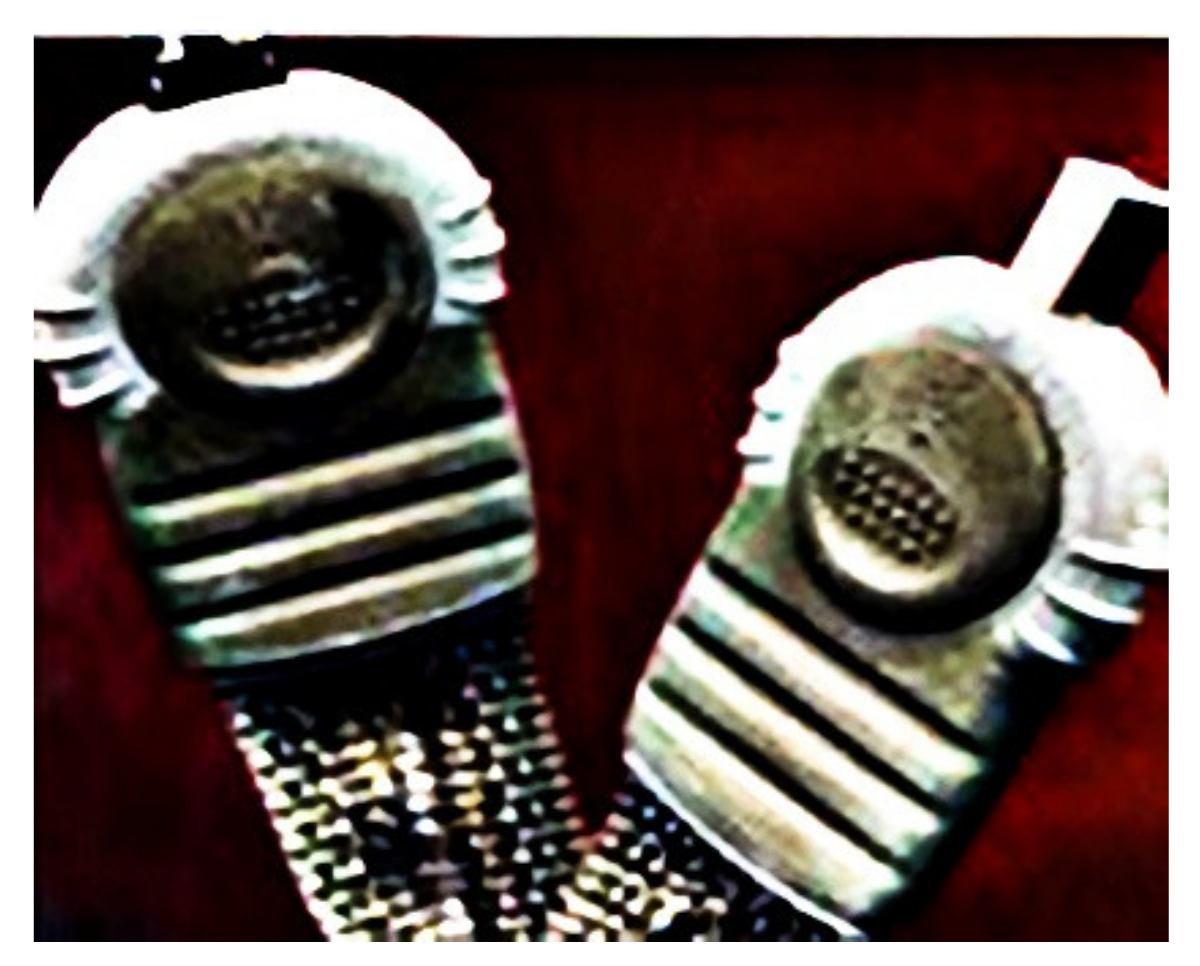

Figure 2. Physical attachments for electronic PCB fabric USB connector, reprinted with permission from ref. [19]. Taylor & Francis with license no. 501667190.
Figure 2. Physical attachments for electronic PCB fabric USB connector, reprinted with permission from ref. [19]. Taylor & Francis with license no. 501667190.
Materials 14 05113 g002

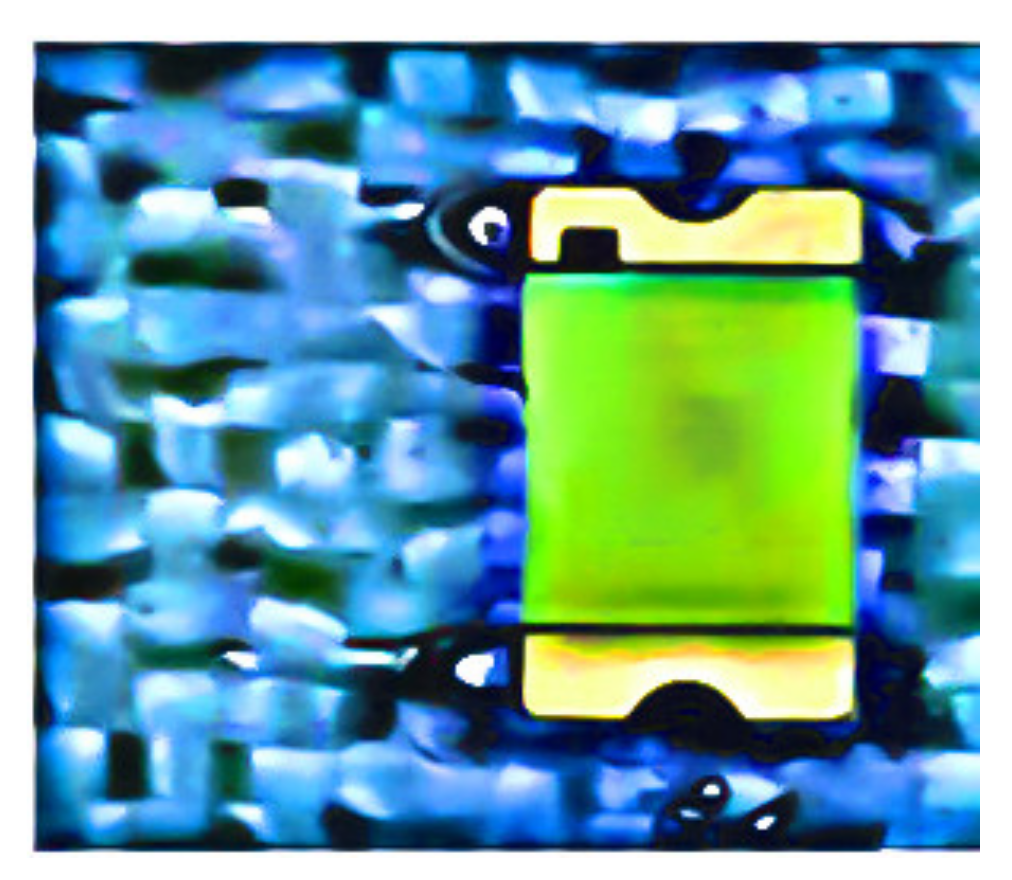

Figure 3. Soldering of electronics and conductive wires on textile substrate, reproduced with permission from MDPI with creative common CC by license,, accessed on 13 July 2021 [91].
Figure 3. Soldering of electronics and conductive wires on textile substrate, reproduced with permission from MDPI with creative common CC by license,, accessed on 13 July 2021 [91].
Materials 14 05113 g003
Figure 4. Integration and connection of microelectronics on textile substrate by embroidery, Reprinted with permission from ref. [107]. Taylor & Francis with order no. 5107740253619.
Figure 4. Integration and connection of microelectronics on textile substrate by embroidery, Reprinted with permission from ref. [107]. Taylor & Francis with order no. 5107740253619.
Materials 14 05113 g004

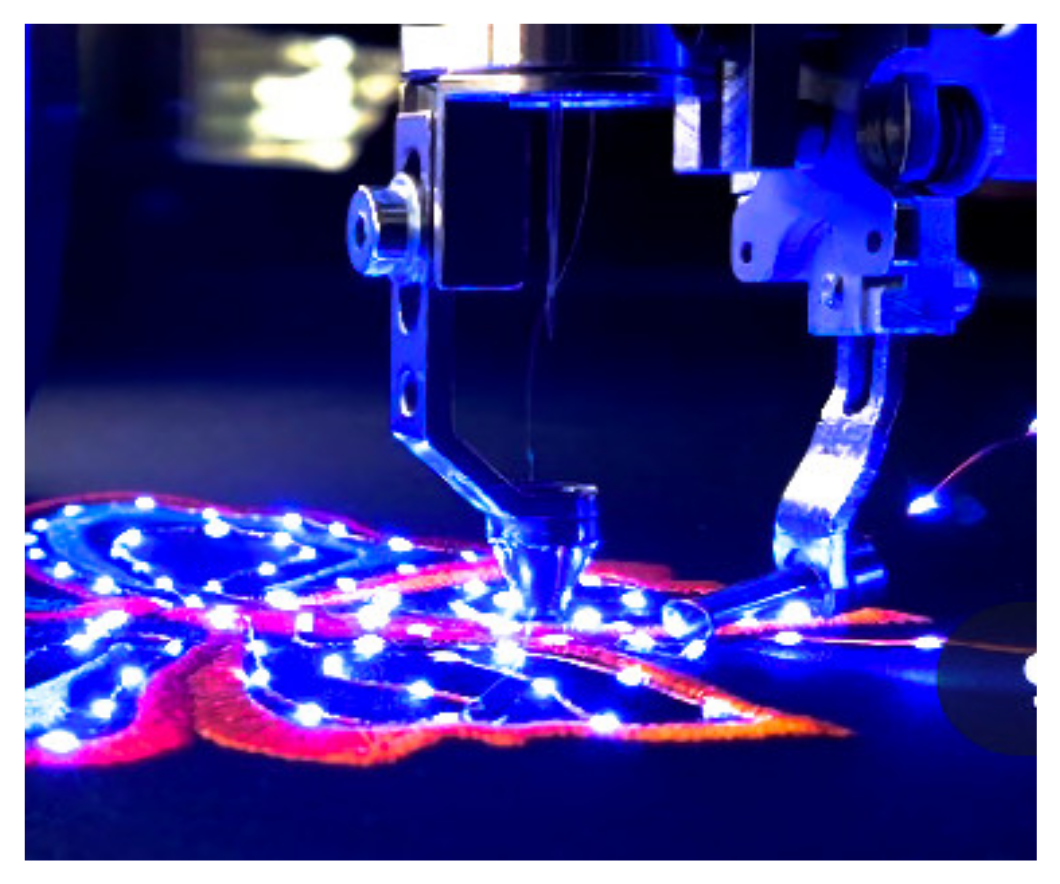

Figure 5. ZSK automated LEDs sequin attachment device.
Figure 5. ZSK automated LEDs sequin attachment device.
Materials 14 05113 g005

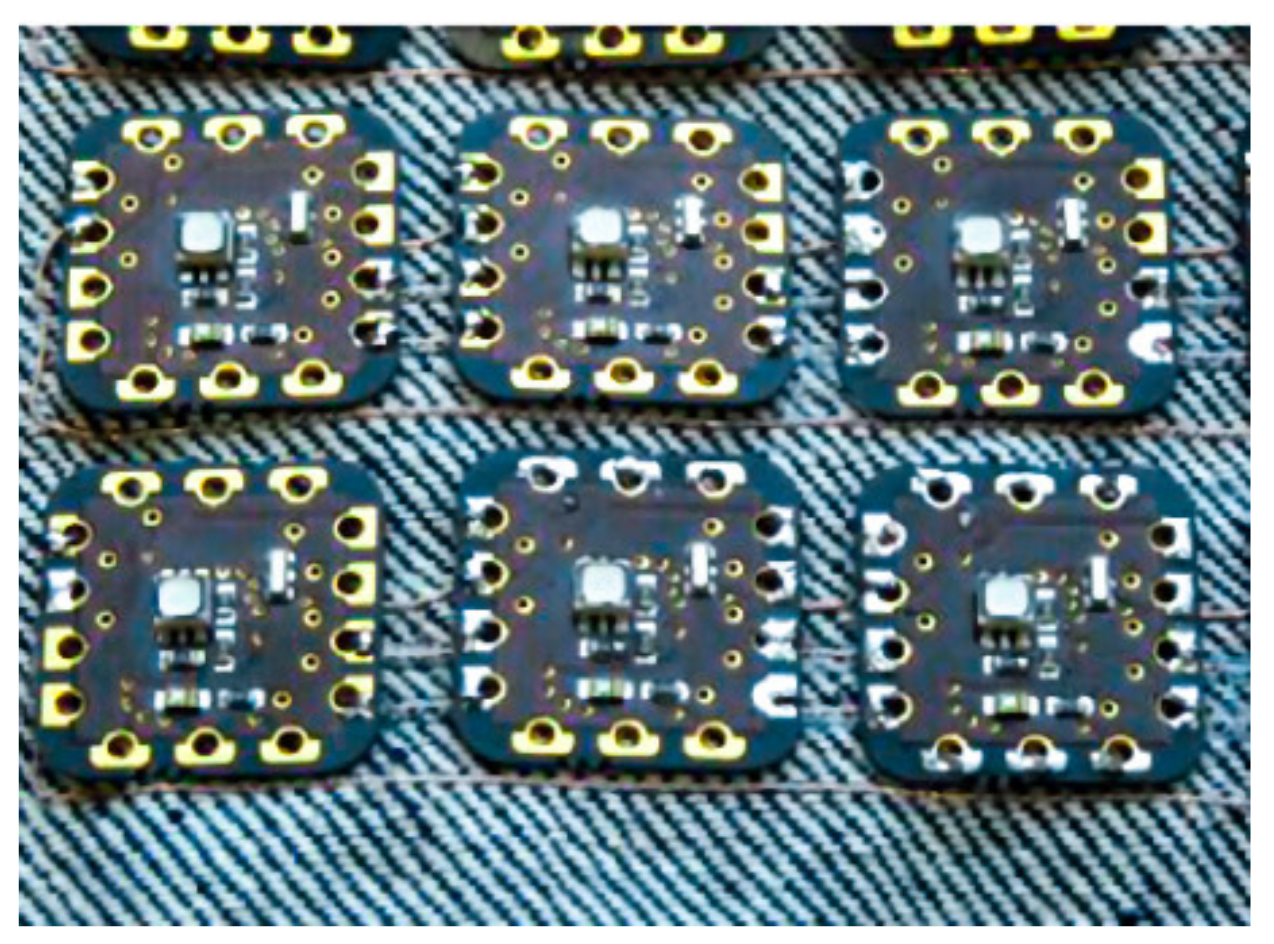

Figure 6. Hybrid solder and stiches of electronics on to textile, reprinted with permission from ref. [62]. Elsevier, with license no. 501667201.
Figure 6. Hybrid solder and stiches of electronics on to textile, reprinted with permission from ref. [62]. Elsevier, with license no. 501667201.
Materials 14 05113 g006
Figure 7. Connection of electronics by non-conductive adhesive onto textile reprinted with permission from ref. [114]. Taylor & Francis order no. 501667217.
Figure 7. Connection of electronics by non-conductive adhesive onto textile reprinted with permission from ref. [114]. Taylor & Francis order no. 501667217.
Materials 14 05113 g007
Figure 8. Thermoplastic bonding electronics on to textile, Reprinted with permission from ref. [122]. Elsevier, license no. 5107731320873.
Figure 8. Thermoplastic bonding electronics on to textile, Reprinted with permission from ref. [122]. Elsevier, license no. 5107731320873.
Materials 14 05113 g008

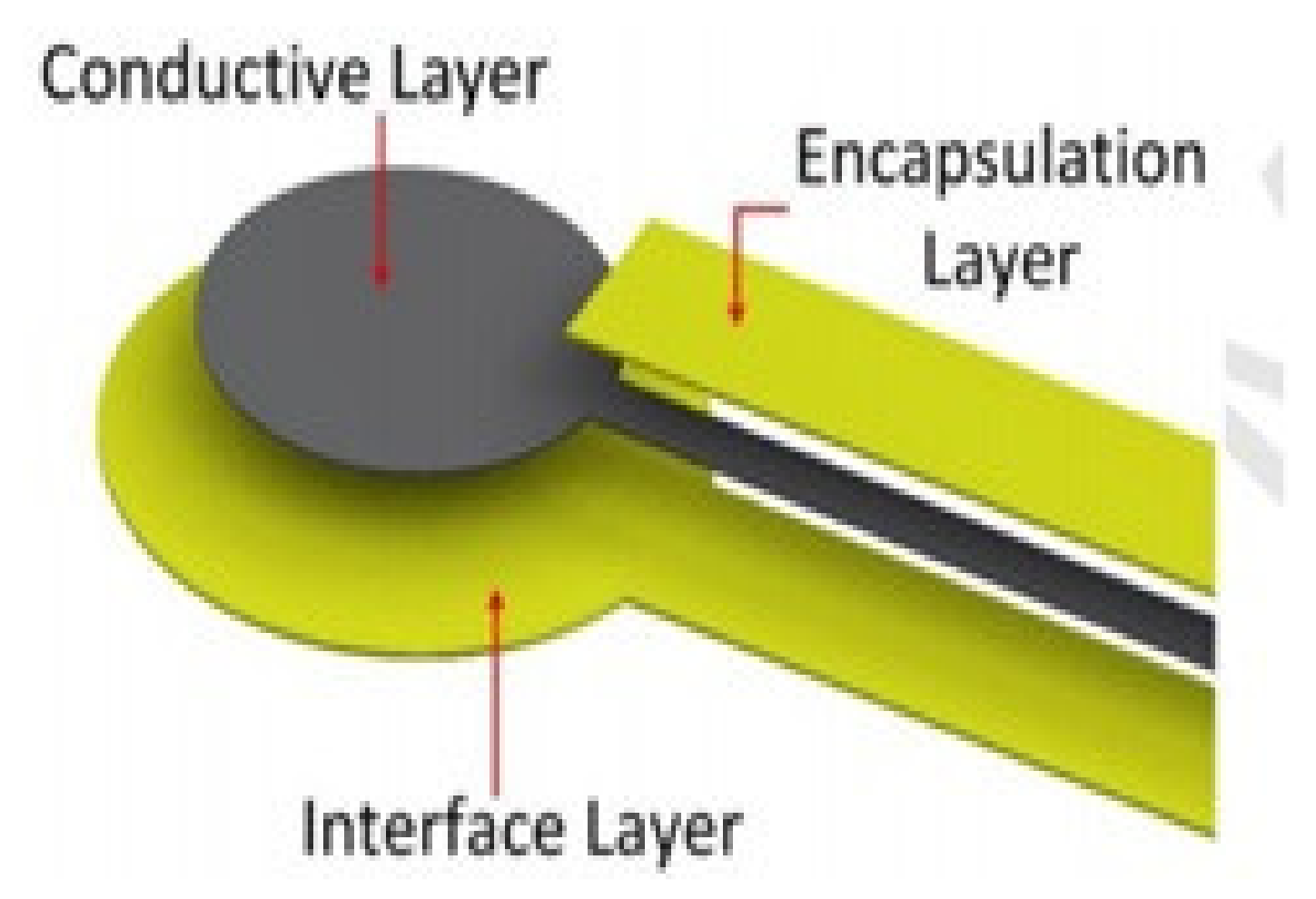

Figure 9. Screen printing fabrication for conductive tracks, reprinted with permission from ref. [158]. Elsevier with license no. 5107681074985.
Figure 9. Screen printing fabrication for conductive tracks, reprinted with permission from ref. [158]. Elsevier with license no. 5107681074985.
Materials 14 05113 g009

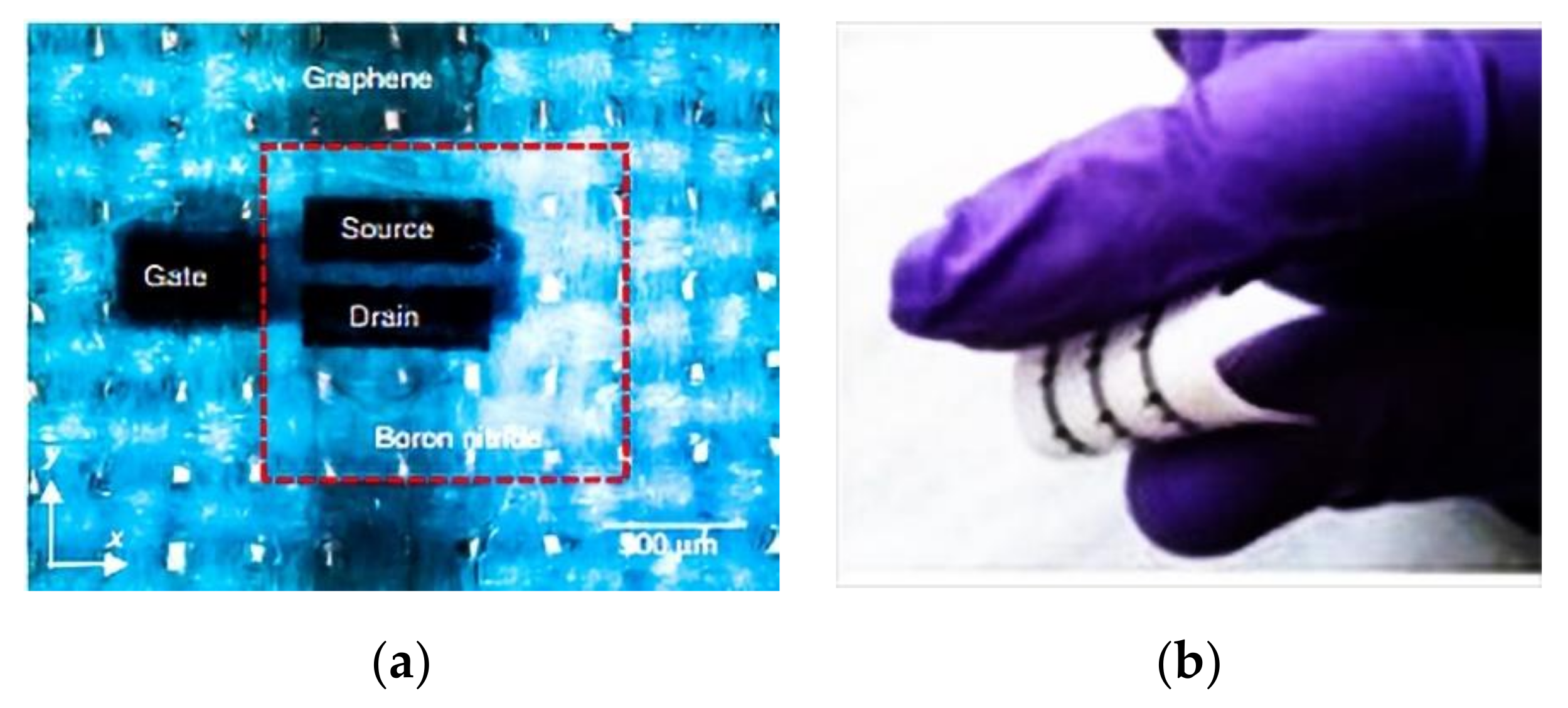

Figure 10. Graphene based biocompatible electronics. Optical microscopy image of the inverted FET on polyester (a). Image of an array of FETs on textile (b), reprinted with permission from ref. [156]. Springer Nature accessed on 13 July 2021.
Figure 10. Graphene based biocompatible electronics. Optical microscopy image of the inverted FET on polyester (a). Image of an array of FETs on textile (b), reprinted with permission from ref. [156]. Springer Nature accessed on 13 July 2021.
Materials 14 05113 g010
Figure 11. 3D Printing with conductive and non-conductive polymer on knitting fabric with conductive (black) and nonconductive (grey) areas (left panel) (a), placing the SMD-LED in the printed holder afterwards (afterwards) (b), reprinted with permission from ref. [163]. Elsevier License no. 5107681074985.
Figure 11. 3D Printing with conductive and non-conductive polymer on knitting fabric with conductive (black) and nonconductive (grey) areas (left panel) (a), placing the SMD-LED in the printed holder afterwards (afterwards) (b), reprinted with permission from ref. [163]. Elsevier License no. 5107681074985.
Materials 14 05113 g011

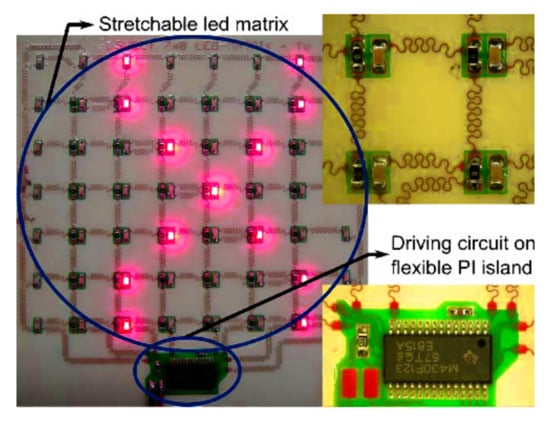

Figure 12. Stretchable polymer encapsulation microelectronics on textile, Reprinted with permission from ref. [191]. Taylor & Francis with order no. 501617105.
Figure 12. Stretchable polymer encapsulation microelectronics on textile, Reprinted with permission from ref. [191]. Taylor & Francis with order no. 501617105.
Materials 14 05113 g012

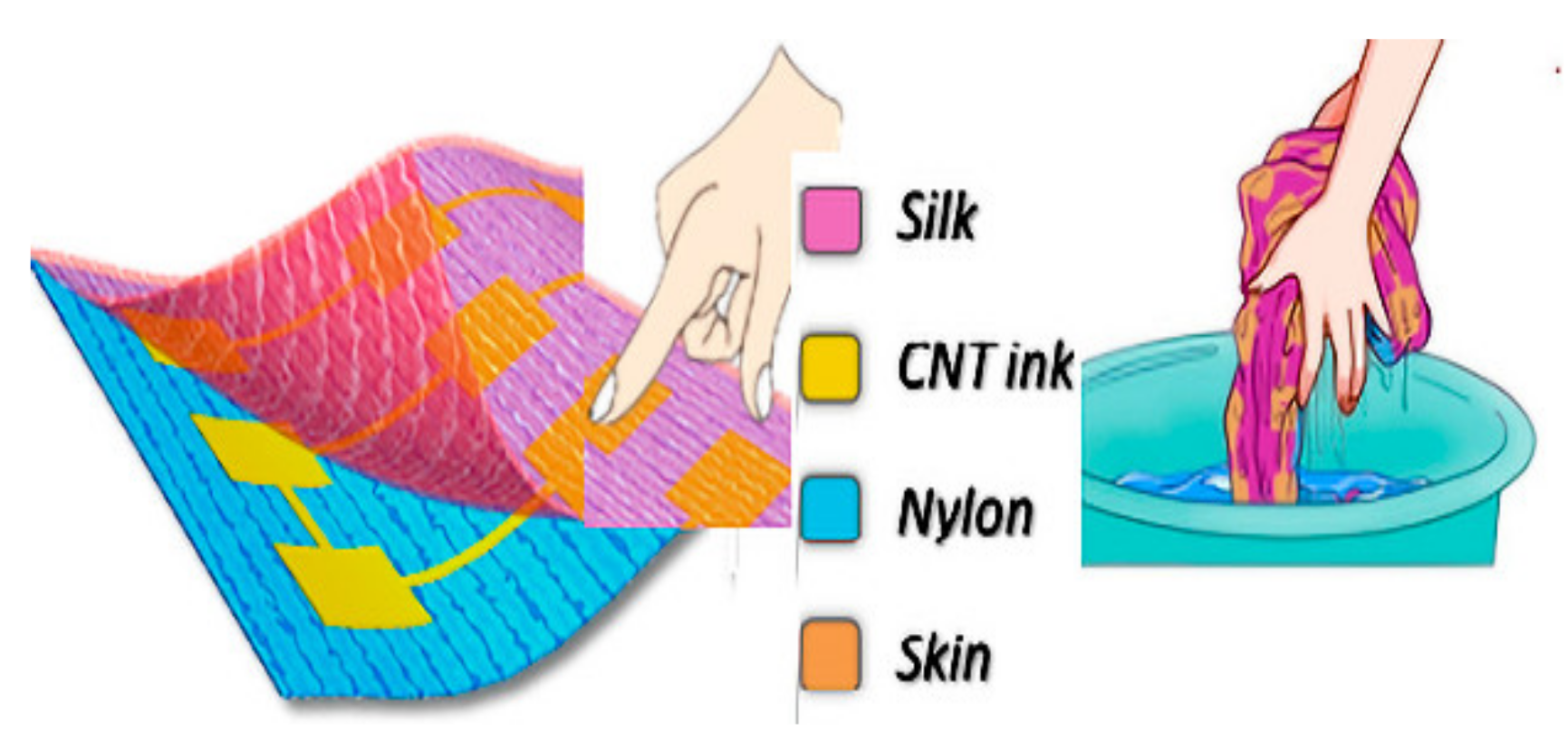

Figure 13. Washable flexible and stretchable electronics, reprinted with permission from ref. [157]. ACS, Copyright © 2018, American Chemical Society.
Figure 13. Washable flexible and stretchable electronics, reprinted with permission from ref. [157]. ACS, Copyright © 2018, American Chemical Society.
Materials 14 05113 g013
Figure 14. Direct die to wire connection, reprinted with permission from ref. [207]. Advanced material technology, creative common attributes, accessed on 13 July 2021.
Figure 14. Direct die to wire connection, reprinted with permission from ref. [207]. Advanced material technology, creative common attributes, accessed on 13 July 2021.
Materials 14 05113 g014

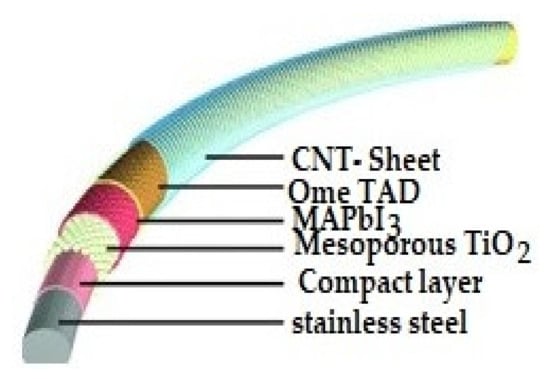

Figure 15. Integrating perovskite solar cells with a flexible fiber, reprinted with permission from ref. [211]. Advanced material technology, creative common attributes, htpps://creative licenses /by/4.0/ accessed on 13 July 2021.
Figure 15. Integrating perovskite solar cells with a flexible fiber, reprinted with permission from ref. [211]. Advanced material technology, creative common attributes, htpps://creative licenses /by/4.0/ accessed on 13 July 2021.
Materials 14 05113 g015

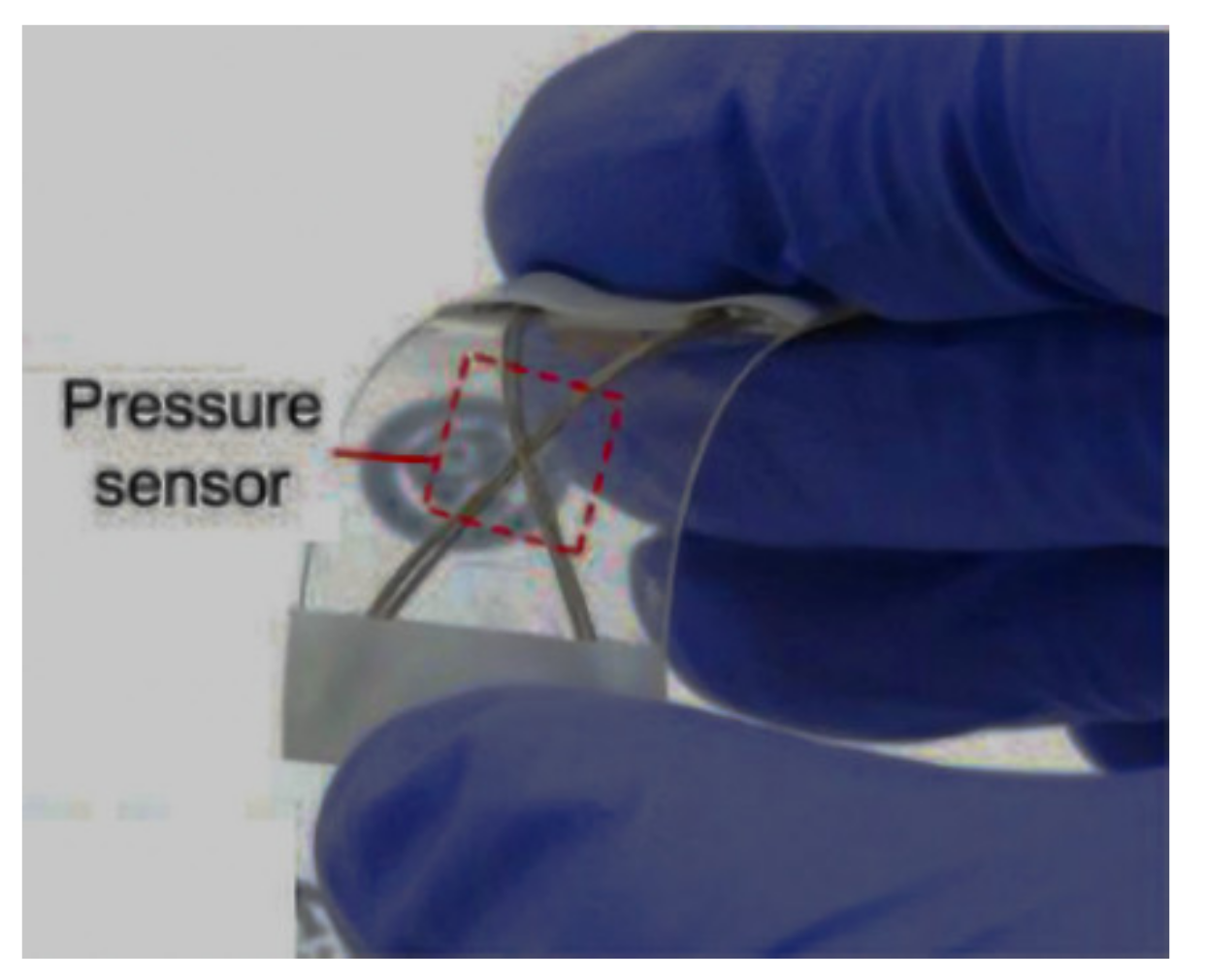

Figure 16. RFID chips in to flexible thread and plastic substrate, reprinted with permission from ref. [213]. Advanced material technology, creative common attributes, htpps://creative licenses /by/4.0/ accessed on 13 July 2021.
Figure 16. RFID chips in to flexible thread and plastic substrate, reprinted with permission from ref. [213]. Advanced material technology, creative common attributes, htpps://creative licenses /by/4.0/ accessed on 13 July 2021.
Materials 14 05113 g016
Figure 17. Primo1D integrate with LED [217].
Figure 17. Primo1D integrate with LED [217].
Materials 14 05113 g017
Figure 18. Textile yarn twisted around LED integrated coper wire (a). Encapsulation of microelectronics and conductive threads by polymers (b), reprinted with permission from ref. [219]. MDPI,, accessed on 13 July 2021.
Figure 18. Textile yarn twisted around LED integrated coper wire (a). Encapsulation of microelectronics and conductive threads by polymers (b), reprinted with permission from ref. [219]. MDPI,, accessed on 13 July 2021.
Materials 14 05113 g018
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Simegnaw, A.A.; Malengier, B.; Rotich, G.; Tadesse, M.G.; Van Langenhove, L. Review on the Integration of Microelectronics for E-Textile. Materials 2021, 14, 5113.

AMA Style

Simegnaw AA, Malengier B, Rotich G, Tadesse MG, Van Langenhove L. Review on the Integration of Microelectronics for E-Textile. Materials. 2021; 14(17):5113.

Chicago/Turabian Style

Simegnaw, Abdella Ahmmed, Benny Malengier, Gideon Rotich, Melkie Getnet Tadesse, and Lieva Van Langenhove. 2021. "Review on the Integration of Microelectronics for E-Textile" Materials 14, no. 17: 5113.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
