Oxidative Synthesis of Acid Blue 7 Dye Catalyzed by CuO/Silicotungstic Acid in Water-Phase

Abstract

A catalytic oxidation reaction for Acid Blue 7 dye synthesis was evaluated in water. Without lead oxide or manganese oxide derivatives as oxidants, polyoxometalate catalysts were investigated to reduce the usage of harmful heavy metal. A catalyst was prepared by mixing silicotungstic acid with copper oxide, and aqueous hydrogen peroxide (30%) was used as an oxidizing agent. This reaction proceeded to produce Acid Blue 7 from the corresponding leuco acid after 45 min at 95 °C and was viable for a 10 g-scale synthesis.

1. Introduction

In the synthesis of dyes, oxidation is one of the most important processes for organic synthesis and industrial chemistry. Interest in triarylmethane dyes, such as crystal violet and malachite green, has grown in recent years [1,2,3]. In addition to conventional dyeing applications, the demand for color filters for liquid crystal displays or bio-probes has increased substantially [4,5,6,7].

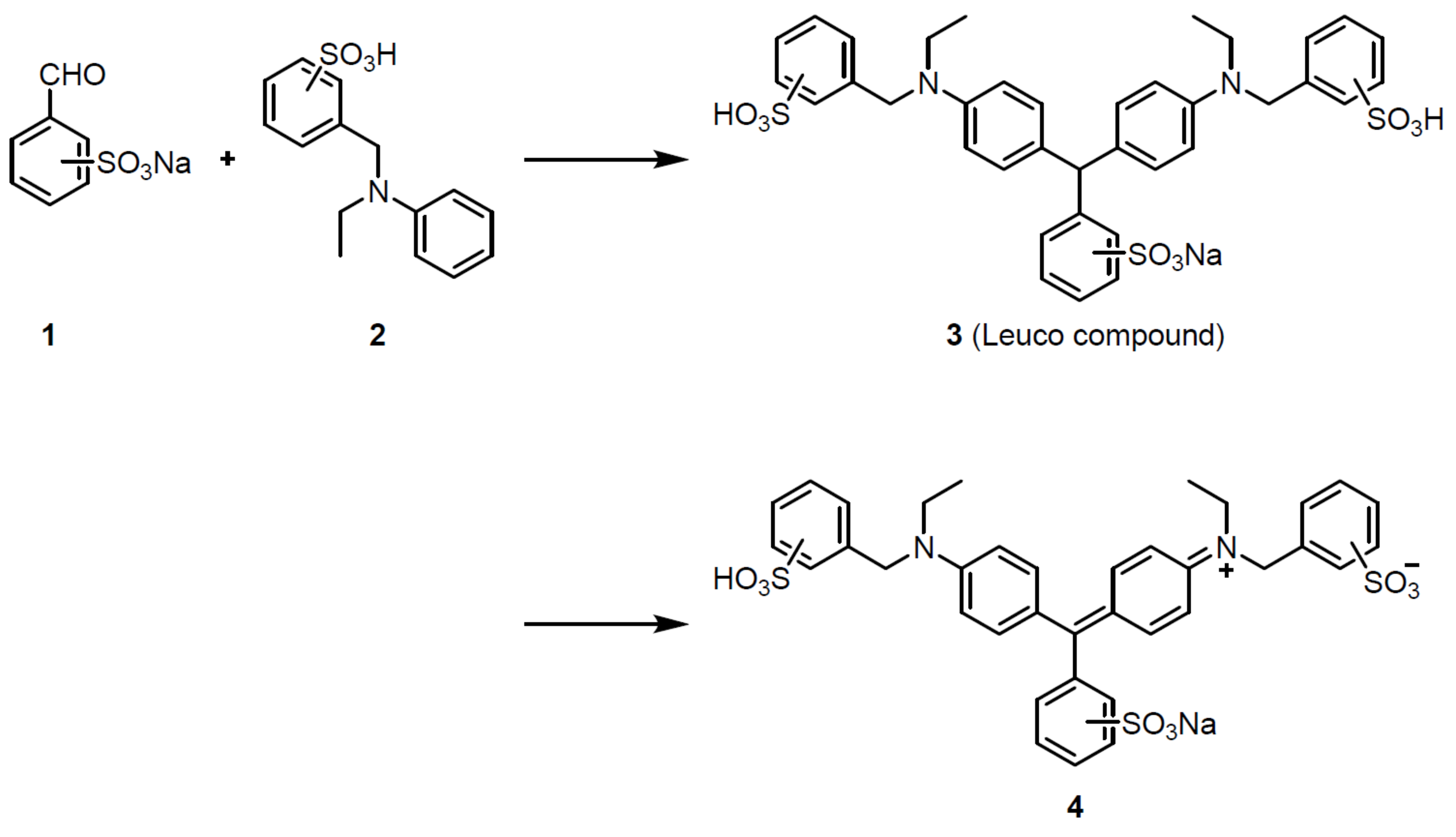

As shown in Scheme 1, triarylmethane dyes (4) are produced by condensing benzaldehydes (1) with N-ethyl-N-phenylbenzylamine (2) to form the corresponding leuco compounds (3), followed by oxidation with dichromate, lead peroxide, or manganese oxide in water. [8,9,10,11,12,13,14,15]. Fluorinated analogs of malachite green were synthesized and their toxicity was investigated. The toxicity of malachite green was reduced by fluorination. In this synthesis, 0.5 mmol of the corresponding leuco acid was oxidized by 0.65 mmol of PbO₂ [16]. The oxidation reactivity was also studied [17]. Comparing K₂S₂O₈, KMnO₄, and MnO₂, MnO₂ was the best oxidant for the synthesis of malachite green. In this report, while it contains sulfur, K₂S₂O₈ seems to be an attractive candidate as an oxidant. Although it has been used industrially as an oxidant, it is highly harmful and affects the environment and human body. Accordingly, environmentally benign oxidation methods are required [18,19]. Acid Blue 9 has been previously synthesized from the corresponding leuco acid by clean oxidation using a metal-complex catalyst [19]. Accordingly, an iron phthalocyanine derivative catalyzed this oxidation reaction and diluted H₂O₂ (10%) was used as an oxidant. Although this catalyst ligand must be prepared from ferric phthalocyanine chloride in two steps, this reaction was viable for pilot scale production and, thus, these results are notable from a green chemistry perspective.

In our laboratory, we have previously developed an organocatalytic or metal-free oxidation method [20,21,22]. We reported on the synthesis of triarylmethanes from benzylamines via an organocatalytic oxidative C–N bond cleavage and subsequent double C–C bond formation, followed by conversion into a series of triarylmethane blue dyes by organic oxidants, such as chloranil or DDQ [23].

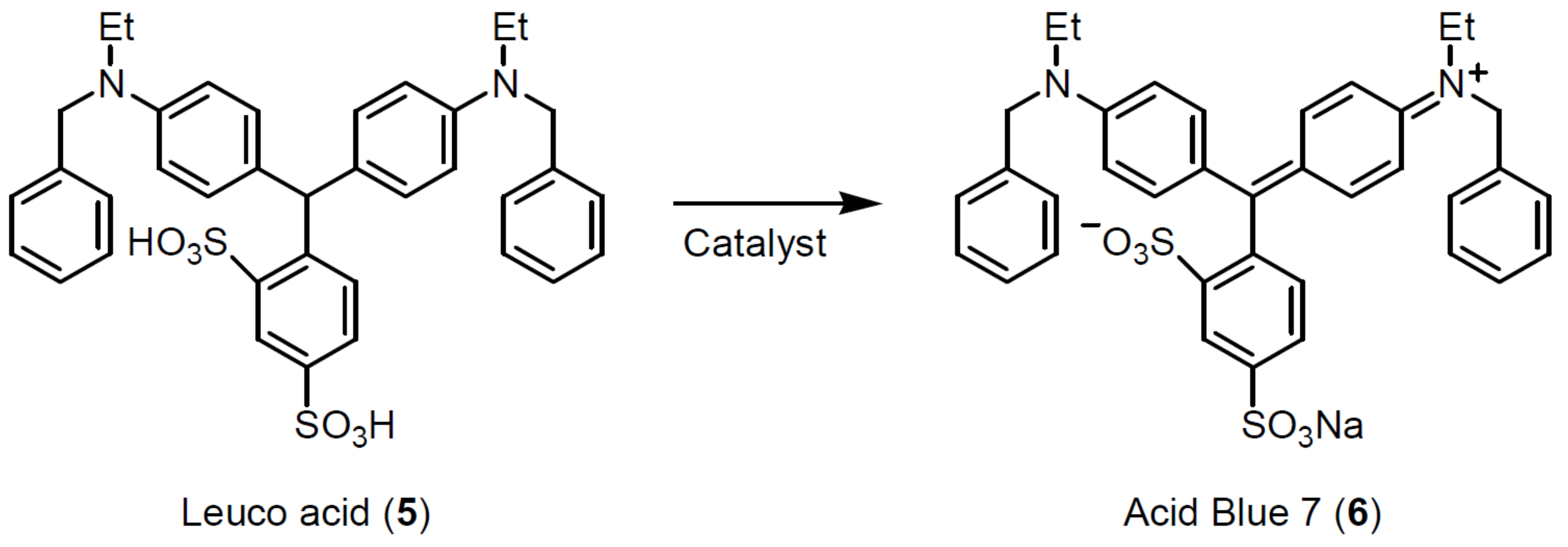

However, this system has been established only in the organic phase and is difficult to carry out in the water phase. Therefore, it is so limited to synthesize this type of dyes via leuco acids in spite of ease with which their derivatives are obtained. In this study, we thus established a novel catalytic oxidation reaction for the synthesis of triarylmethane blue dyes in water by using commercially available aqueous 30% hydrogen peroxide (H₂O₂). As shown in Scheme 2, we selected leuco acid (5) as a typical substrate and attempted to transform this compound into N-[4-[(2,4-disulfophenyl)[4-[ethyl(phenylmethyl)amino]phenyl]methylene]-2,5-cyclohexadien-1-ylidene]-N-ethyl-benzenemethanaminium sodium salt (Acid Blue 7) (6).

From this viewpoint, the work aimed to find an efficient catalytic oxidation using H₂O₂ as an oxidant for preparing Acid Blue 7 as a model compound, hopefully reducing the use of heavy metal oxidants. To establish this oxidation system, an accessible ligand should be used. Although we have previously studied vanadium-catalyzed oxidation with H₂O₂ or oxygen as an oxidant [24,25,26,27], these catalysts are very hard to prepare. Therefore, we used commercially available polyoxometalate catalysts coordinated with metal ions [28,29,30,31,32].

2. Materials and Methods

2.1. General and Material

¹H-NMR spectra were recorded on a JEOL JNM-AL-400 (Tokyo, Japan) spectrometer using CD₃OD as the solvent and tetramethylsilane as an internal standard. High resolution ESI mass spectra were measured on WATERS Synapt G2 (Waters Japan, Tokyo, Japan) instruments. All materials were obtained from commercial suppliers and were used without further purification.

High-performance liquid chromatography (HPLC) measurements were performed with an EXTREMA instrument (JKASCO, Tokyo, Japan). Leuco acid was obtained from Kobata Sangyo (Wakayama, Japan). Silicotungstic acid and other polyoxometalates were obtained from Japan New Metals (Osaka, Japan), and all other chemicals and solvents were purchased from FUJIFILM Wako Chemicals (Tokyo, Japan) and used without further purification. Acid Blue 7 (Alphazurine A) was purchased from Santa Cruz (Dallas, USA), and purified by COSMOSIL 140C₁₈-OPN (Nacarai, Kyoto, Japan) for column chromatography with methanol as an HPLC standard. ¹H-NMR (400 MHz) δ 8.61 (d, J = 1.4 Hz, 1H), 7.95 (dd, J = 7.8, 1.4 Hz, 1H), 7.41-7.21 (m, 14H), 7.16 (d, J = 7.8 Hz, 1H), 6.97 (d, J = 9.2 Hz, 4H), 4.86 (overlapped, 4H), 3.75 (td, J = 15.2, 7.5 Hz, 4H), 1.34-1.27 (m, 6H).

2.2. Oxidation Reaction on a Small Scale

The oxidation reaction was carried out as follows: briefly, to prepare the leuco solution, the leuco acid and sodium carbonate were stirred until dissolved in water at room temperature for half a day. Next, as a catalyst solution, metal ions (or metal oxides) and polyoxometalates were mixed by stirring in an ordinary manner. Initially, metal oxides were used, and the catalyst solution was suspended in water. After stirring for half a day, the catalyst solution was clearly dissolved. The catalyst solutions and leuco solutions were mixed in a two-necked flask as a starting mixture. The oxidation reaction was carried out by adding 30% H₂O₂ aq. dropwise over 5 min to this starting mixture at an appropriate temperature. The oxidation process was monitored by HPLC. HPLC measurements were carried out in the conventional manner (λ = 254 nm, eluent = CH₃CN:0.05% H₃PO₄ aq. = 7:3, 1 mL/min). Yields were calculated from the calibration curve of purified Acid Blue 7.

2.3. 10 G-Scale Synthesis

The oxidation reaction was almost the same in the small scale-synthesis. The leuco acid and sodium carbonate were dissolved in 250 mL of water and a catalyst solution was prepared in 250 mL of water. These solutions were mixed in a 1 L two-necked flask and the oxidation reaction was carried out by adding 30% H₂O₂ aq. in the same way. However, it took a longer time to add H₂O₂ aq. dropwise and 45 min was needed to complete the process. After 45 min, the reaction mixture was divided into small portions, poured into Petri plates and air-dried. At this point, 12.9 g of crude compounds was obtained containing undefined byproducts and water. A purified compound was obtained by reversed-phase column chromatography (Cosmosil 140C₁₈-OPN) in 69%. M.p. 205 °C (decomp.); ¹H-NMR (400 MHz) δ 8.63 (s, 1H), 7.95 (d, J = 6.9 Hz, 1H), 7.41-7.21 (m, 14H), 7.16 (d, J = 6.9 Hz, 1H), 6.97 (d, J = 8.7 Hz, 4H), 4.86 (overlapped, 4H), 3.77-3.70 (m, 4H), 1.29 (t, J = 3.7 Hz, 6H); ¹³C-NMR (100 MHz) δ 167.5, 164.5, 148.5, 132.8, 128.3, 123.8, 120.8, 119.5, 119.5, 118.8, 118.4, 117.8, 105.7, 45.9, 45.7, 38.7, 38.6, 3.5; ESI-HRMS (M/z) [M+] calcd for C₃₇H₃₆N₂O₆S₂ 668.2015, found 668.1968.

3. Results

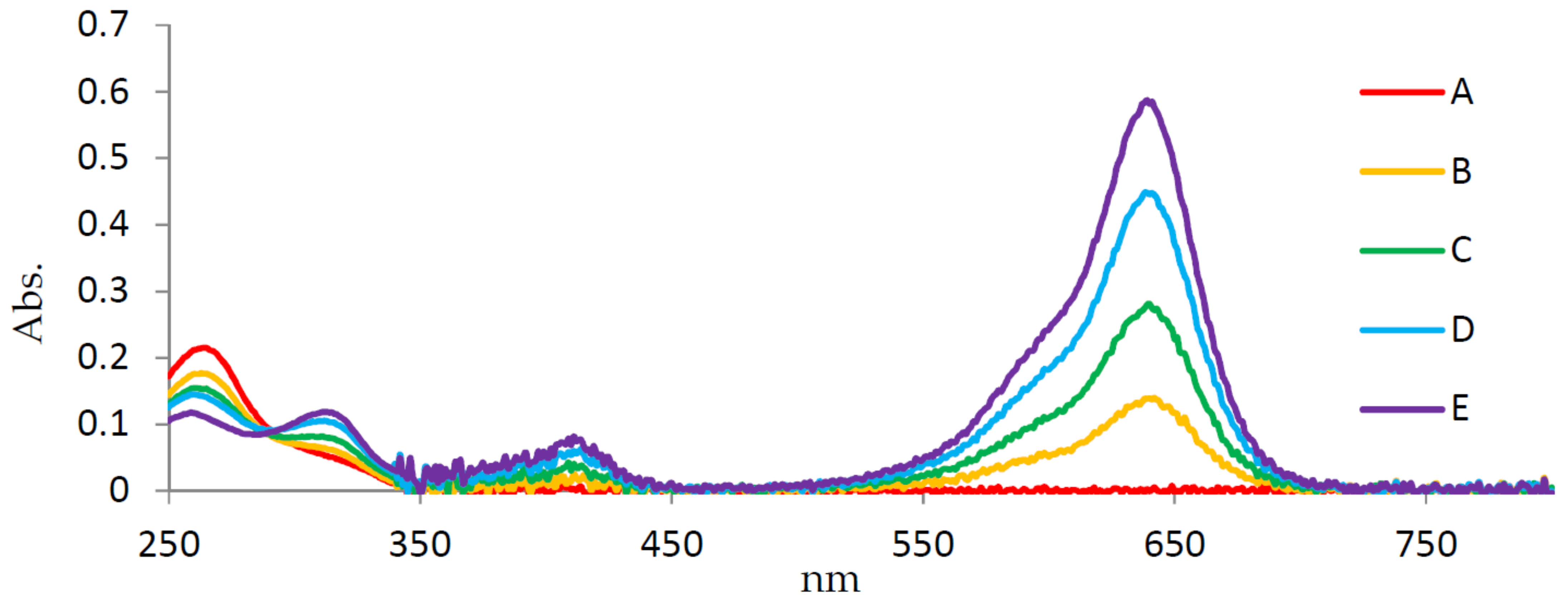

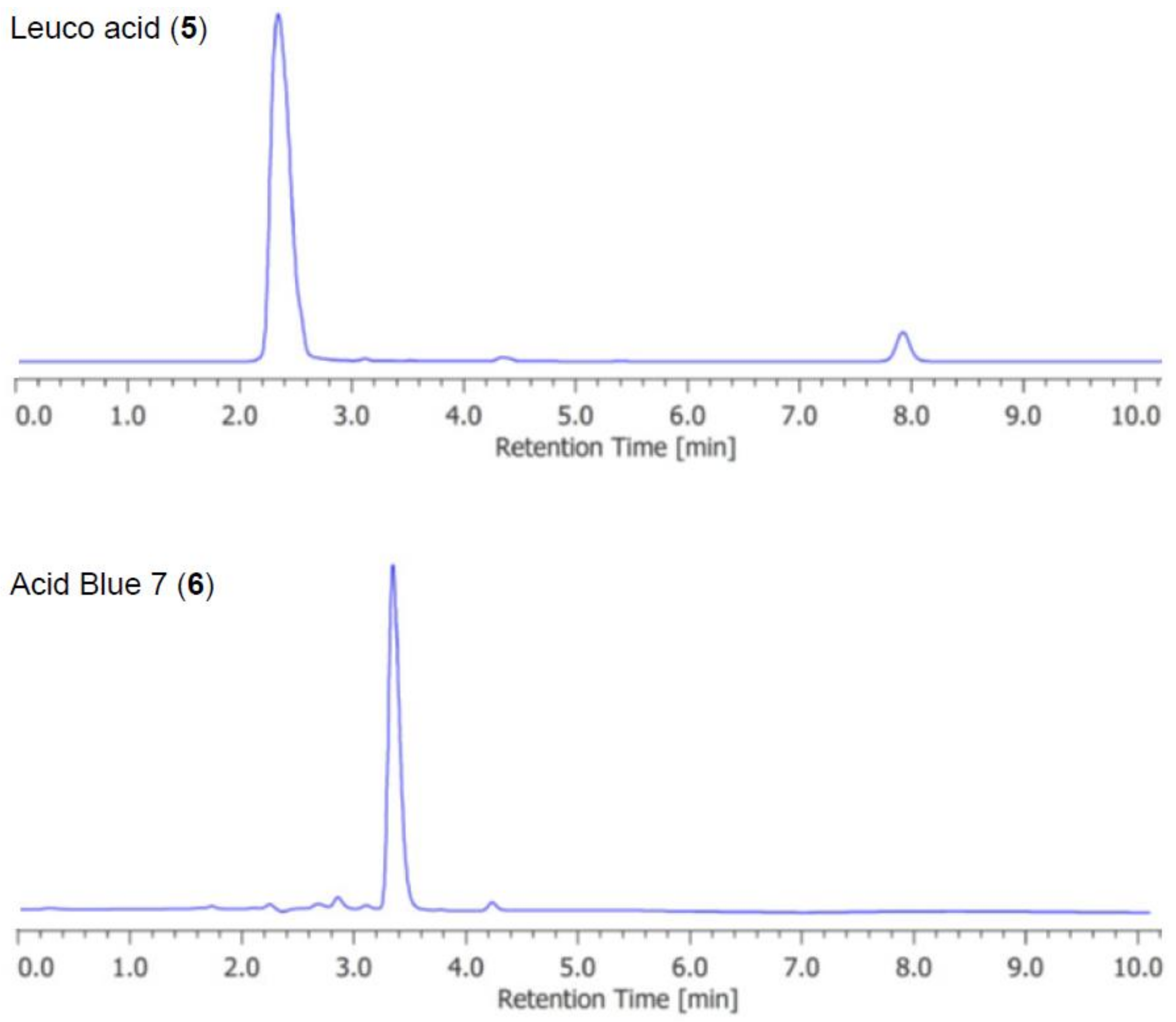

First, we checked the spectra of both leuco acid and the desired product, Acid Blue 7. The total amount of substance was adjusted to 1.0 × 10⁻⁵ M, and each solution was measured by ultraviolet–visible spectroscopy. The spectra are shown in Figure 1. From these results, the desired Acid Blue 7 was detected easily; however, the disappearance of the starting leuco acid was difficult to detect. Thus, we next used HPLC measurements to monitor the oxidation process. By HPLC measurements (Figure 2), both leuco acid and Acid Blue 7 were easily identified.

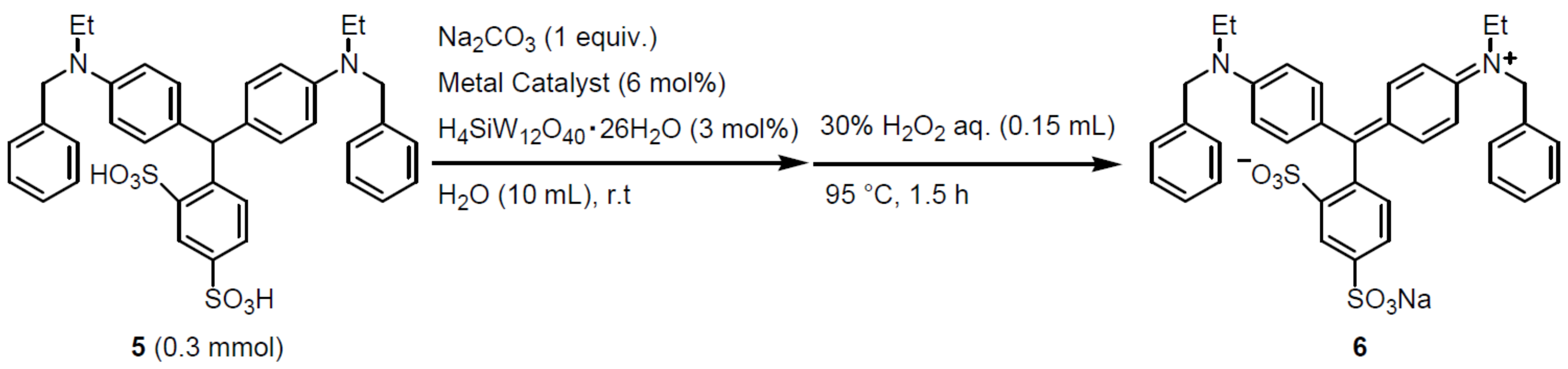

Catalyst screening was performed using several metal species with silicotungstic ac-id as a typical polyoxometalate for 1.5 h at 95 °C (Scheme 3), and the results are summarized in

Table 1. Catalyst screening.

Entry	Metal Catalyst	Yield (%) a
entry 1	BaSO4	n.d.
entry 2	MgI2	trace
entry 3	MgO	n.d.
entry 4	MgCl2	10
entry 5	MgCl2·6H2O	n.d.
entry 6	(CH3COO)2·4H2O	n.d.
entry 7	FeSO4·7H2O	30
entry 8	FeCl3·6H2O	13
entry 9	FeCl2	13
entry 10	FeO	12
entry 11	CuO	78

^a Determined by HPLC (λ = 254 nm, CH₃CN:0.05% H₃PO₄ aq. = 7:3).

. Although some metal oxides failed to form a clear catalyst solution, iron and copper oxide were efficient catalysts (entries 7–11). In particular, when CuO was used as the metal catalyst, a 78% yield of Acid Blue 7 was obtained (entry 11). We also examined this oxidation with copper(II) acetate without silicotungstic acid as a water-soluble catalyst, but the desired product was not obtained (Scheme 4), and polyphosphoric acid, phosphotungstic acid, or phosphomolybdic acid were not effective for this oxidation. These results suggested that coordination with silicotungstic acid was essential for this oxidation catalyst.

Based on these results, the reaction conditions were optimized (Scheme 5). The oxidation conditions were achieved by changing the amounts of CuO (X₁ mol%) and silicotungstic acid (X₂ mol%) as well as the reaction temperature and reaction time (

Table 2. Optimization of reaction conditions.

Entry	X1/X2	Y (mL)	Temp. (°C) c	Time (min)	Yield (%) a
entry 1	12/6	0.15	95	90	79
entry 2	6/3	0.30	95	90	62
entry 3	6/3	0.15	80	90	26
entry 4	6/3	0.15	110	90	64 b
entry 5	6/3	0.15	95	45	74

^a Determined by HPLC (λ = 254 nm, CH₃CN:0.05% H₃PO₄ aq. = 7:3). ^b Under reflux condition. ^c Oil bath temperature.

).

Even if the amount of catalyst and H₂O₂ solution was doubled, the yield did not change significantly (entries 1 and 2). The yield also decreased when the reaction temperature (in an oil bath) was lowered to 80 °C (entry 3), and the reaction mixture became a complex mixture under reflux conditions (entry 4). The reaction proceeded sufficiently evenly when the reaction time was shortened to 45 min (entry 5).

4. Discussion

Acid blue dyes have low heat resistance, so the elongation of the reaction time or an increase in the amount of H₂O₂ causes decomposition and leads to a decrease in the reaction yield. Contrarily, a lower reaction temperature also decreased the reaction yield. An appropriate reaction time and temperature are thus essential for this oxidation.

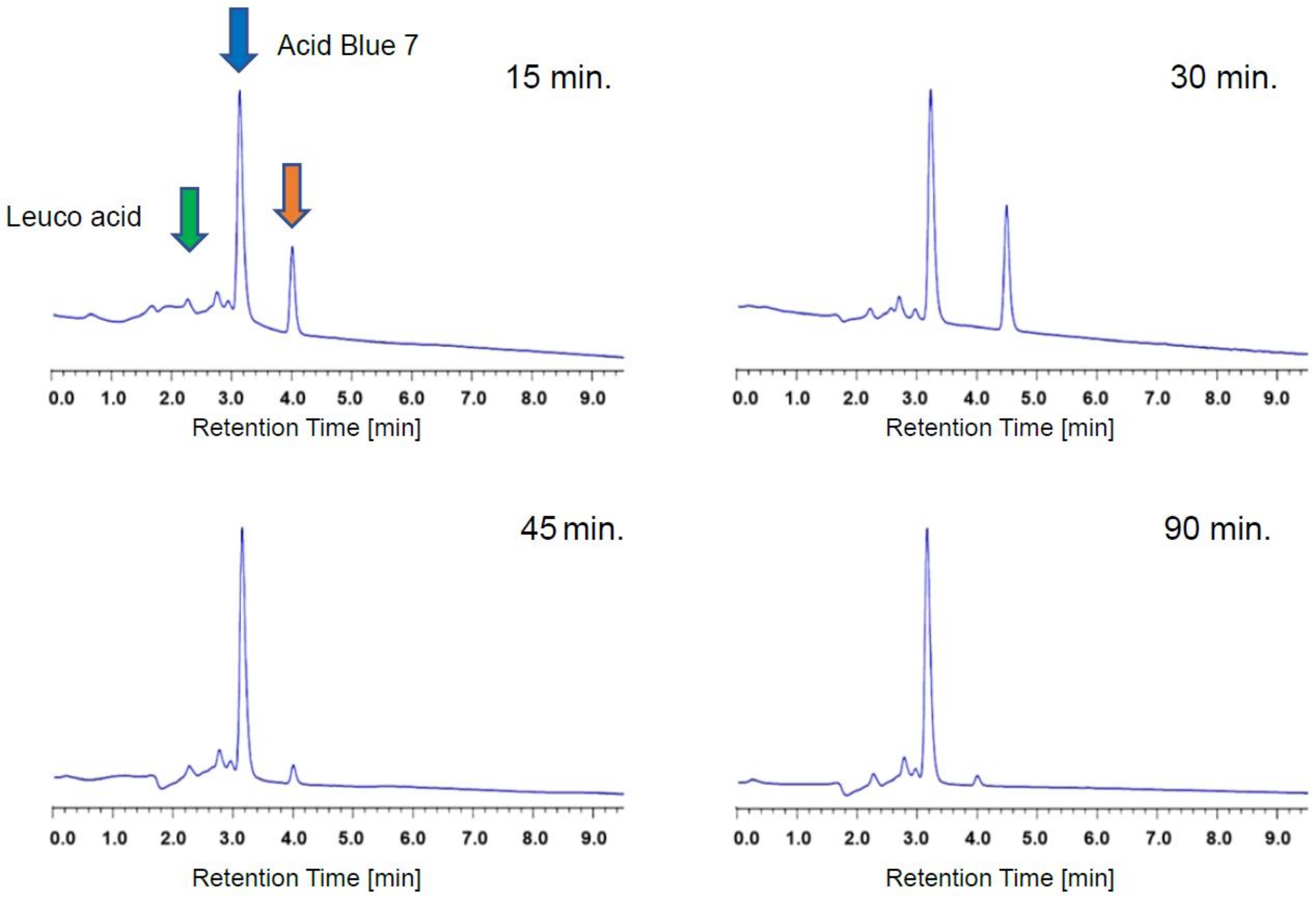

We monitored this reaction using HPLC (Figure 3). In the early stage (15 min) of oxidation, the initial leuco acid disappeared, and another compound was detected after around 4 min (see the HPLC chart, orange arrow). As the reaction proceeded, this compound disappeared after 45 min.

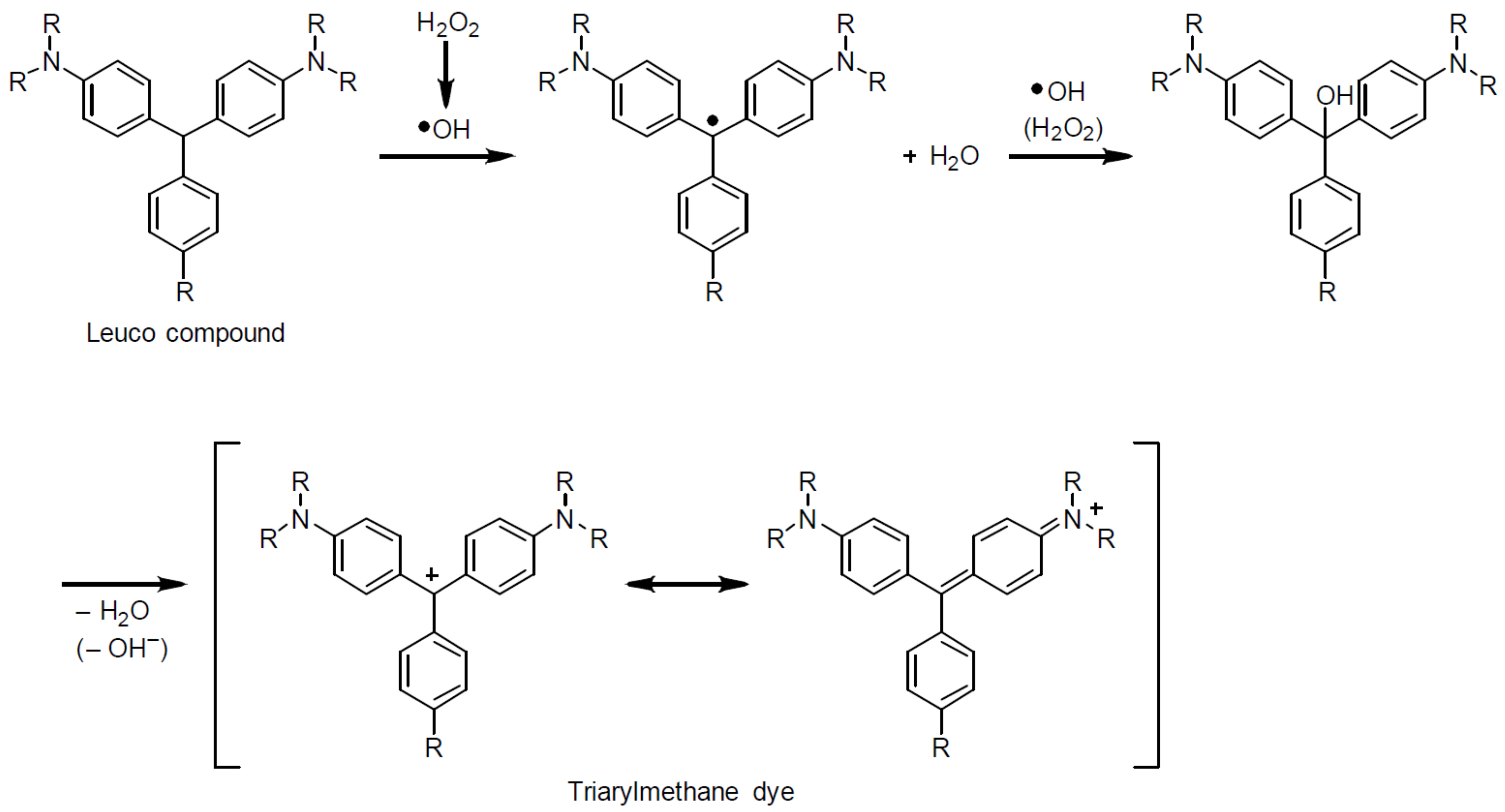

According to the predicted reaction mechanisms [33,34,35,36,37] and the results of the present HPLC measurements, the oxidation reaction proceeded in two steps (Scheme 6).

The hydroxyl radical generated from H₂O₂ attacked the tertiary hydrogen of the leuco acid to form a tertiary radical and water. This tertiary radical reacted with hydrogen peroxide (15–30 min). Dehydroxylation then occurred to produce the desired product. We have not yet been able to detect the intermediate and the details of the reaction mechanism are under investigation.

This catalytic system was also applied to a 10 g-scale synthesis. A 15 mmol portion of leuco acid (10.07 g) was subjected to oxidation. After the addition of H₂O₂, while it takes 60 min by scale-up, the reaction mixture was stirred for more 45 min. After the reaction, the reaction mixture was divided into small portions, and poured into Petri plates, and air-dried. At this point, 12.9 g of crude compounds were obtained, containing undefined by products and water. Although small amounts of impurity were observed from HPLC measurement (Supplementary Materials, Figure S5), a purified compound was obtained by reversed-phase column chromatography (Cosmosil 140C₁₈-OPN) in 69%.

5. Conclusions

The catalytic oxidation of triarylmethane can be used to form a blue dye. The coordination of silicotungstic acid with CuO has been found to be an efficient catalyst for water-phase oxidation. However, environmentally benign processes have recently attracted considerable attention from a sustainable-manufacturing perspective. In this report, Acid Blue 7 was prepared from the corresponding leuco acid with commercially available aqueous 30% H₂O₂ without toxic Cr or Pb species as oxidants. Although our ability to scale the reaction was limited by the use of common laboratory apparatus and it took a long time for addition of H₂O₂ dropwise, this reaction was demonstrated to be applicable to at least a 10 g-scale synthesis. This oxidation system may lead to the development of ecofriendly dye production methods in the future.
