Effect of Nanocellulose on the Properties of Cottonseed Protein Isolate as a Paper Strength Agent
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Preparation of Nanocellulose
2.2.1. Preparation of Cellulose Nanocrystals
2.2.2. Preparation of Cellulose Nanofibers
2.3. Paper Analysis
2.4. Fourier Transform Infrared Spectroscopy (FTIR)
2.5. Scanning Electron Microscopy (SEM)
2.6. Thermogravimetric Analysis (TGA)
2.7. Differential Scanning Calorimetry (DSC)
3. Results & Discussion

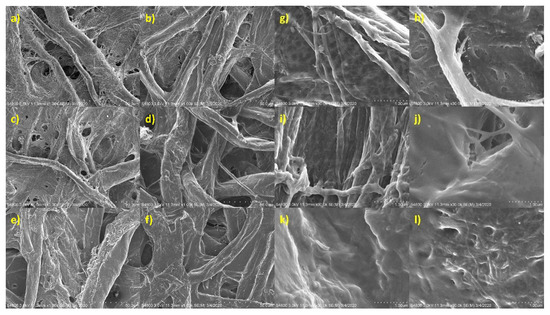

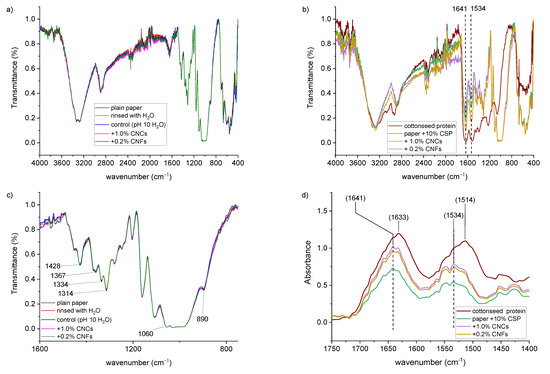

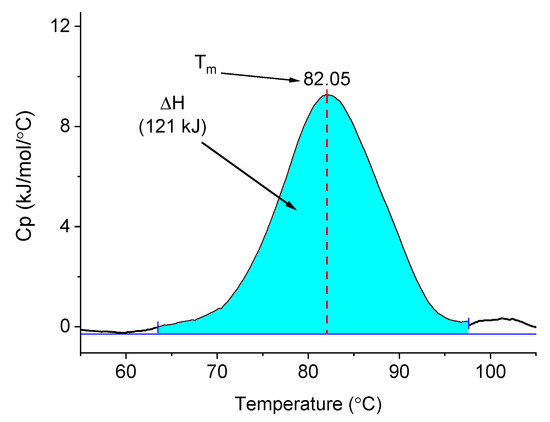

3.1. Characterization of Paper Samples
3.2. Paper Analysis
3.2.1. Paper Dry Strength Analysis
3.2.2. Paper Wet Strength Analysis
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Roberts, J.C. Paper Chemistry, 1st ed.; Springer: Berlin/Heidelberg, Germany, 1991; p. 248. [Google Scholar] [CrossRef]
- Ek, M.; Gellerstedt, G.; Henriksson, G. Paper Chemistry and Technology; De Gruyter: Vienna, Austria, 2009. [Google Scholar] [CrossRef]
- Basu, S.; Malik, S.; Joshi, G.; Gupta, P.K.; Rana, V. Utilization of bio-polymeric additives for a sustainable production strategy in pulp and paper manufacturing: A comprehensive review. Carbohydr. Polym. Technol. Appl. 2021, 2, 100050. [Google Scholar] [CrossRef]
- Hubbe, M.A. Dry Strength Additives. Available online: http://www4.ncsu.edu/~hubbe/DSR.htm (accessed on 3 July 2021).
- Hubbe, M.A. Wet Strength. Available online: https://projects.ncsu.edu/project/hubbepaperchem/TShoot/G_WStren.htm (accessed on 3 July 2021).
- Kargarzadeh, H.; Mariano, M.; Gopakumar, D.; Ahmad, I.; Thomas, S.; Dufresne, A.; Huang, J.; Lin, N. Advances in cellulose nanomaterials. Cellulose 2018, 25, 2151–2189. [Google Scholar] [CrossRef]
- Foster, E.J.; Moon, R.J.; Agarwal, U.P.; Bortner, M.J.; Bras, J.; Camarero-Espinosa, S.; Chan, K.J.; Clift, M.J.D.; Cranston, E.D.; Eichhorn, S.J.; et al. Current characterization methods for cellulose nanomaterials. Chem. Soc. Rev. 2018, 47, 2609–2679. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Grishkewich, N.; Mohammed, N.; Tang, J.; Tam, K.C. Recent advances in the application of cellulose nanocrystals. Curr. Opin. Colloid Interface Sci. 2017, 29, 32–45. [Google Scholar] [CrossRef]
- Nascimento, D.M.; Nunes, Y.L.; Figueiredo, M.C.B.; de Azeredo, H.M.C.; Aouada, F.A.; Feitosa, J.P.A.; Rosa, M.F.; Dufresne, A. Nanocellulose nanocomposite hydrogels: Technological and environmental issues. Green Chem. 2018, 20, 2428–2448. [Google Scholar] [CrossRef] [Green Version]
- Wohlhauser, S.; Delepierre, G.; Labet, M.; Morandi, G.; Thielemans, W.; Weder, C.; Zoppe, J.O. Grafting Polymers from Cellulose Nanocrystals: Synthesis, Properties, and Applications. Macromolecules 2018, 51, 6157–6189. [Google Scholar] [CrossRef] [Green Version]
- Kargarzadeh, H.; Mariano, M.; Huang, J.; Lin, N.; Ahmad, I.; Dufresne, A.; Thomas, S. Recent developments on nanocellulose reinforced polymer nanocomposites: A review. Polymer 2017, 132, 368–393. [Google Scholar] [CrossRef]
- De France, K.J.; Hoare, T.; Cranston, E.D. Review of Hydrogels and Aerogels Containing Nanocellulose. Chem. Mater. 2017, 29, 4609–4631. [Google Scholar] [CrossRef]
- Moon, R.J.; Martini, A.; Nairn, J.; Simonsen, J.; Youngblood, J. Cellulose nanomaterials review: Structure, properties and nanocomposites. Chem. Soc. Rev. 2011, 40, 3941–3994. [Google Scholar] [CrossRef]
- Peng, B.L.; Dhar, N.; Liu, H.L.; Tam, K.C. Chemistry and applications of nanocrystalline cellulose and its derivatives: A nanotechnology perspective. Can. J. Chem. Eng. 2011, 89, 1191–1206. [Google Scholar] [CrossRef]
- Ahola, S.; Österberg, M.; Laine, J. Cellulose nanofibrils—Adsorption with poly(amideamine) epichlorohydrin studied by QCM-D and application as a paper strength additive. Cellulose 2008, 15, 303–314. [Google Scholar] [CrossRef]
- Sun, B.; Hou, Q.; Liu, Z.; Ni, Y. Sodium periodate oxidation of cellulose nanocrystal and its application as a paper wet strength additive. Cellulose 2015, 22, 1135–1146. [Google Scholar] [CrossRef]
- Campano, C.; Merayo, N.; Balea, A.; Tarrés, Q.; Delgado-Aguilar, M.; Mutjé, P.; Negro, C.; Blanco, Á. Mechanical and chemical dispersion of nanocelluloses to improve their reinforcing effect on recycled paper. Cellulose 2017, 25, 269–280. [Google Scholar] [CrossRef]
- Cheng, H.N.; Rau, M.; Dowd, M.K.; Easson, M.W.; Condon, B.D. Hydrogenated Cottonseed Oil as Raw Material for Biobased Materials. In Green Polymer Chemistry: Biocatalysis and Materials II; American Chemical Society: Washington, DC, USA, 2013; Volume 1144, pp. 359–371. [Google Scholar]
- Cheng, H.N.; He, Z.; Ford, C.; Wyckoff, W.; Wu, Q. A Review of Cottonseed Protein Chemistry and Non-Food Applications. Sustain. Chem. 2020, 1, 17. [Google Scholar] [CrossRef]
- Cheng, H.N.; He, Z.; Dowd, M.K.; Klasson, K.T. Polymer blends involving cottonseed protein and cottonseed meal. In Proceedings of the Beltwide Cotton Conferences, New Orleans, LA, USA, 10 May 2021; pp. 63–68. [Google Scholar]
- Arieli, A. Whole cottonseed in dairy cattle feeding: A review. Anim. Feed. Sci. Technol. 1998, 72, 97–110. [Google Scholar] [CrossRef]
- Coppock, C.E.; Lanham, J.K.; Horner, J.L. A review of the nutritive value and utilization of whole cottonseed, cottonseed meal and associated by-products by dairy cattle. Anim. Feed. Sci. Technol. 1987, 18, 89–129. [Google Scholar] [CrossRef]
- Park, H.J.; Kim, S.H.; Lim, S.T.; Shin, D.H.; Choi, S.Y.; Hwang, K.T. Grease resistance and mechanical properties of isolated soy protein-coated paper. J. Am. Oil Chem. Soc. 2000, 77, 269–273. [Google Scholar] [CrossRef]
- Jin, H.; Lucia, L.A.; Rojas, O.J.; Hubbe, M.A.; Pawlak, J.J. Survey of Soy Protein Flour as a Novel Dry Strength Agent for Papermaking Furnishes. J. Agric. Food Chem. 2012, 60, 9828–9833. [Google Scholar] [CrossRef]
- Arboleda, J.C.; Niemi, N.; Kumpunen, J.; Lucia, L.A.; Rojas, O.J. Soy Protein-Based Polyelectrolyte Complexes as Biobased Wood Fiber Dry Strength Agents. ACS Sustain. Chem. Eng. 2014, 2, 2267–2274. [Google Scholar] [CrossRef]
- Salam, A.; Lucia, L.A.; Jameel, H. A New Class of Biobased Paper Dry Strength Agents: Synthesis and Characterization of Soy-Based Polymers. ACS Sustain. Chem. Eng. 2015, 3, 524–532. [Google Scholar] [CrossRef]
- Tayeb, A.H.; Hubbe, M.A.; Tayeb, P.; Pal, L.; Rojas, O.J. Soy Proteins As a Sustainable Solution to Strengthen Recycled Paper and Reduce Deposition of Hydrophobic Contaminants in Papermaking: A Bench and Pilot-Plant Study. ACS Sustain. Chem. Eng. 2017, 5, 7211–7219. [Google Scholar] [CrossRef]
- Flory, A.R.; Requesens, D.V.; Devaiah, S.P.; Teoh, K.T.; Mansfield, S.D.; Hood, E.E. Development of a green binder system for paper products. BMC Biotechnol. 2013, 13, 1–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cheng, H.N.; Villalpando, A.; Easson, M.W.; Dowd, M.K. Characterization of cottonseed protein isolate as a paper additive. Int. J. Polym. Anal. Charact. 2017, 22, 699–708. [Google Scholar] [CrossRef]
- Villalpando, A.; Easson, M.; Cheng, H.N.; Condon, B. Use of cottonseed protein as a strength additive for nonwoven cotton. Text. Res. J. 2019, 89, 1725–1733. [Google Scholar] [CrossRef]
- Cheng, H.N.; Kilgore, K.; Ford, C.; Fortier, C.; Dowd, M.K.; He, Z. Cottonseed protein-based wood adhesive reinforced with nanocellulose. J. Adhes. Sci. Technol. 2019, 33, 1357–1368. [Google Scholar] [CrossRef]
- Cheng, H.N.; Dowd, M.K.; He, Z. Investigation of modified cottonseed protein adhesives for wood composites. Ind. Crop. Prod. 2013, 46, 399–403. [Google Scholar] [CrossRef]
- Cheng, H.N.; Ford, C.; Dowd, M.K.; He, Z. Use of additives to enhance the properties of cottonseed protein as wood adhesives. Int. J. Adhes. Adhes. 2016, 68, 156–160. [Google Scholar] [CrossRef] [Green Version]
- Jordan, J.H.; Easson, M.W.; Dien, B.; Thompson, S.; Condon, B.D. Extraction and characterization of nanocellulose crystals from cotton gin motes and cotton gin waste. Cellulose 2019, 26, 5959–5979. [Google Scholar] [CrossRef]
- Jordan, J.H.; Easson, M.W.; Condon, B.D. Cellulose hydrolysis using ionic liquids and inorganic acids under dilute conditions: Morphological comparison of nanocellulose. RSC Adv. 2020, 10, 39413–39424. [Google Scholar] [CrossRef]
- Jordan, J.H.; Easson, M.W.; Thompson, S.; Wu, Q.; Condon, B.D. Lignin-containing cellulose nanofibers with gradient lignin content obtained from cotton gin motes and cotton gin trash. Cellulose 2021, 28, 757–773. [Google Scholar] [CrossRef]
- Standard Test Methods for Wet Tensile Breaking Strength of Paper and Paper Products. In ASTM D829-97; ASTM International: West Conshohocken, PA, USA, 2002. [CrossRef]
- He, Z.; Cheng, H.N.; Nam, S. Comparison of the wood bonding performance of water- and alkali-soluble cottonseed protein fractions. J. Adhes. Sci. Technol. 2021, 35, 1500–1517. [Google Scholar] [CrossRef]
- Calahorra, M.E.; Cortázar, M.; Eguiazábal, J.I.; Guzmán, G.M. Thermogravimetric analysis of cellulose: Effect of the molecular weight on thermal decomposition. J. Appl. Polym. Sci. 1989, 37, 3305–3314. [Google Scholar] [CrossRef]
- Ramiah, M.V. Thermogravimetric and differential thermal analysis of cellulose, hemicellulose, and lignin. J. Appl. Polym. Sci. 1970, 14, 1323–1337. [Google Scholar] [CrossRef]
- Hospodarova, V.; Singovszka, E.; Stevulova, N. Characterization of cellulosic fibers by FTIR spectroscopy for their further implementation to building materials. Am. J. Anal. Chem. 2018, 9, 303–310. [Google Scholar] [CrossRef] [Green Version]
- Poletto, M.; Ornaghi, H.L.; Zattera, A.J. Native Cellulose: Structure, Characterization and Thermal Properties. Materials 2014, 7, 6105–6119. [Google Scholar] [CrossRef] [Green Version]
- Krimm, S.; Bandekar, J. Vibrational Spectroscopy and Conformation of Peptides, Polypeptides, and Proteins. In Advances in Protein Chemistry; Anfinsen, C.B., Edsall, J.T., Richards, F.M., Eds.; Academic Press: Cambridge, MA, USA, 1986; Volume 38, pp. 181–364. [Google Scholar]
- Barth, A. Infrared spectroscopy of proteins. Biochim. Biophys. Acta Bioenerg. 2007, 1767, 1073–1101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jalsovszky, G.; Holly, S.; Hollósi, M. Identification of amide bands in the FTIR spectra of protected amino acids and dipeptides. II. Solution spectra. J. Mol. Struct. 1995, 348, 329–332. [Google Scholar] [CrossRef]
- Kurihara, T.; Isogai, A. Mechanism of TEMPO-oxidized cellulose nanofibril film reinforcement with poly(acrylamide). Cellulose 2015, 22, 2607–2617. [Google Scholar] [CrossRef]
Sample | Thickness (µm) | Weight Pick-Up (%) |
---|---|---|
Paper | 184.56 ± 14.02 a | 1.2 ± 2.0 a |
Paper & 0.2% CNF | 193.24 ± 13.59 a | 2.8 ± 1.7 a |
Paper & 1.0% CNC | 192.89 ± 18.69 a | 3.4 ± 2.5 a |
Paper & 10% CSP | 209.97 ± 23.89 b | 22.4 ± 6.2 b |
+0.2% CNF | 206.34 ± 18.51 b | 26.1 ± 4.6 b |
+1.0% CNC | 212.49 ± 20.92 b | 25.6 ± 7.5 b |

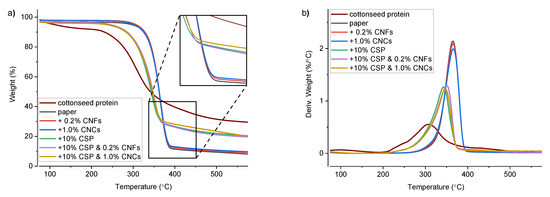

Sample | Tonset | Tmax | Char |
---|---|---|---|
CSP | 262.5 ± 0.5 | 307.2 ± 0.3 | 31.50 ± 0.41 |
Paper | 340.7 ± 0.7 b | 364.9 ± 1.2 b | 9.39 ± 0.31 b |
Paper & 0.2% CNF | 339.8 ± 0.1 b | 365.5 ± 1.0 b | 10.07 ± 0.54 b,c |
Paper & 1.0% CNC | 338.7 ± 0.1 b | 366.0 ± 0.0 b | 10.73 ± 0.02 c |
Paper & 10% CSP | 314.0 ± 2.1 c | 351.6 ± 1.6 c | 20.18 ± 0.69 |
+0.2% CNF | 311.7 ± 2.0 c,d | 350.3 ± 1.4 c,d | 22.20 ± 0.13 |
+1.0% CNC | 309.3 ± 2.5 d | 347.6 ± 2.5 d | 23.40 ± 0.80 |
Sample | Tensile Modulus | Tensile Strength | Elongation @ Break |
---|---|---|---|
(GPa) | (MPa) | (%) | |
Paper | 0.76 ± 0.15 a | 9.70 ± 2.13 a | 2.67 ± 0.20 a |
Paper & 0.2% CNF | 0.74 ± 0.14 a | 9.70 ± 1.56 a | 2.57 ± 0.52 a,b |
Paper & 1.0% CNC | 0.77 ± 0.13 a | 9.39 ± 1.21 a | 2.41 ± 0.22 a,c |
Paper & 10% CSP | 1.42 ± 0.27 b | 19.10 ± 1.47 bb | 2.30 ± 0.55 b,c,d |
+1.0% CNC | 1.69 ± 0.21 c | 22.06 ± 2.16 c | 2.13 ± 0.18 c |
+0.2% CNF | 1.65 ± 0.28 c | 23.34 ± 3.53 c | 2.57 ± 0.37 a,d |
Sample | Tensile Modulus (MPa) | Yield Strength (MPa) | Yield Strain (%) |
---|---|---|---|
Paper | 20.77 ± 3.81 a | 0.34 ± 0.10 a | 2.51 ± 0.87 a |
Paper & 0.2% CNF | 18.58 ± 3.36 a | 0.28 ± 0.12 a | 2.21 ± 0.89 a |
Paper & 1.0% CNC | 21.02 ± 4.46 a | 0.29 ± 0.10 a | 2.11 ± 0.99 a |
Paper & 10% CSP | 9.80 ± 1.95 b | 0.20 ± 0.04 b | 3.91 ± 1.00 b |
+0.2% CNF | 10.98 ± 1.35 b | 0.20 ± 0.04 b | 4.01 ± 1.06 b |
+1.0% CNC | 9.95 ± 1.42 b | 0.19 ± 0.05 b | 3.46 ± 0.91 b |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Jordan, J.H.; Cheng, H.N.; Easson, M.W.; Yao, W.; Condon, B.D.; Gibb, B.C. Effect of Nanocellulose on the Properties of Cottonseed Protein Isolate as a Paper Strength Agent. Materials 2021, 14, 4128. https://doi.org/10.3390/ma14154128
Jordan JH, Cheng HN, Easson MW, Yao W, Condon BD, Gibb BC. Effect of Nanocellulose on the Properties of Cottonseed Protein Isolate as a Paper Strength Agent. Materials. 2021; 14(15):4128. https://doi.org/10.3390/ma14154128
Chicago/Turabian StyleJordan, Jacobs H., Huai N. Cheng, Michael W. Easson, Wei Yao, Brian D. Condon, and Bruce C. Gibb. 2021. "Effect of Nanocellulose on the Properties of Cottonseed Protein Isolate as a Paper Strength Agent" Materials 14, no. 15: 4128. https://doi.org/10.3390/ma14154128
