# Development of 3D Models of Knits from Multi-Filament Ultra-Strong Yarns for Theoretical Modelling of Air Permeability

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

- through the pressure drop coefficient, where the overpressure gradient can be determined using the Expression (1):$$\frac{\partial p}{\partial {X}_{i}}={K}_{i}\frac{\rho {V}_{i}^{2}}{2}$$
- through the friction index [14]. In such case, the gradient of additional pressure can be expressed by the Equation (2):$$\frac{\partial p}{\partial {X}_{i}}=\frac{f}{{D}_{h}}\frac{\rho {V}_{i}^{2}}{2}$$
_{h}is the hydraulic diameter in mm. - through the Darcy ratio (3):$$\frac{\partial p}{\partial {X}_{i}}=C\mu Vi$$

**V**(m/s) can be calculated using the Expression (4):

_{h}is the hydraulic diameter of the pore in mm; L is the thickness of the porous material in mm.

^{2}; P is perimeter of the pore in mm.

^{3}) that passes through 1 m

^{2}of textile fabric in 1 second at a certain pressure difference on both sides of the fabric. The air permeability of knitted fabrics was determined in accordance with DSTU ISO 9237: 2003. Ten experimental tests were performed for each sample variant. All measurements were carried out in a standard atmosphere according to Standard EN ISO 139:2005 (20 °C ± 2 °C temperature and 65% ± 4% humidity).

## 3. Results and Discussions

#### 3.1. Modelling of the Knitted Loop

**w**, course spacing

**c**, thickness of the knitted fabric

**M**, yarn diameter

**D**, and the tangent angle at the interlacing point

**γ**, as well as the angle of inclination of the loop legs

**α**(as shown in Figure 9b). These initial data can be obtained experimentally or calculated according to well-known methods, for example, those presented in [21]. For the model of the knitted structure, maximally stretched along wales,

**w = w**and

_{max}**c = c**, while for the model of knitted structure, maximally stretched along courses,

_{min}**w = w**and

_{min}**c = c**. The effective radius

_{max}**R**of a multifilament yarn [31] can be determined by the formula (6):

_{0}_{0}:

_{0}= 0.534 mm.

**w**takes the value

**w**when the yarn is redistributed and pulled from the loops’ heads and feet into the loop legs. In this case w

_{min}_{min}= 4·D

_{0}, id est, the minimum wale spacing is equal to four minimum yarn diameters (because the yarn is in a compressed state). If we accept the assumption of a circular cross-section of the yarn, then the value of the minimum wale spacing, considering Expression (6), will be equal to 2.14 mm, which significantly exceeds the experimentally obtained value for the stretched knitted fabric, which is 1.58 mm (see in Table 1). However, if the bundle of filaments has an elliptical cross-section, and the position of the major and minor axes of the ellipse changes along the axial line of the yarn as shown in Figure 8b, the ratio of the values of the major and minor semiaxes of the ellipse can be selected, at which the area of the ellipse is equal to the area of the circle of the radius determined by Equation (6), and their projection onto the plane of the fabric is equal to the width of the projection of the yarn onto the plane of the fabric, determined experimentally, as shown in Figure 8a.

_{0}, P

_{1}, P

_{2}, P

_{3}, which lie at the intersection of tangents to the axial line drawn at points K, B and T, are shown accordingly in Figure 9a,b. To describe the axes of the ellipse, the following notation is used: P

_{max}is the large, and P

_{min}is the minor axis of the ellipse. The axial line equation is built on the basis of the coordinates of the control points, and those, in turn, can be calculated based on traditional ideas about the geometry of the knitted loop, taking into account certain assumptions.

_{k}, Y

_{k}, Z

_{k}), A (X

_{a}, Y

_{a}, Z

_{a}), B (X

_{b}, Y

_{b}, Z

_{b}), C (X

_{c}, Y

_{c}, Z

_{c}), T (X

_{t}, Y

_{t}, Z

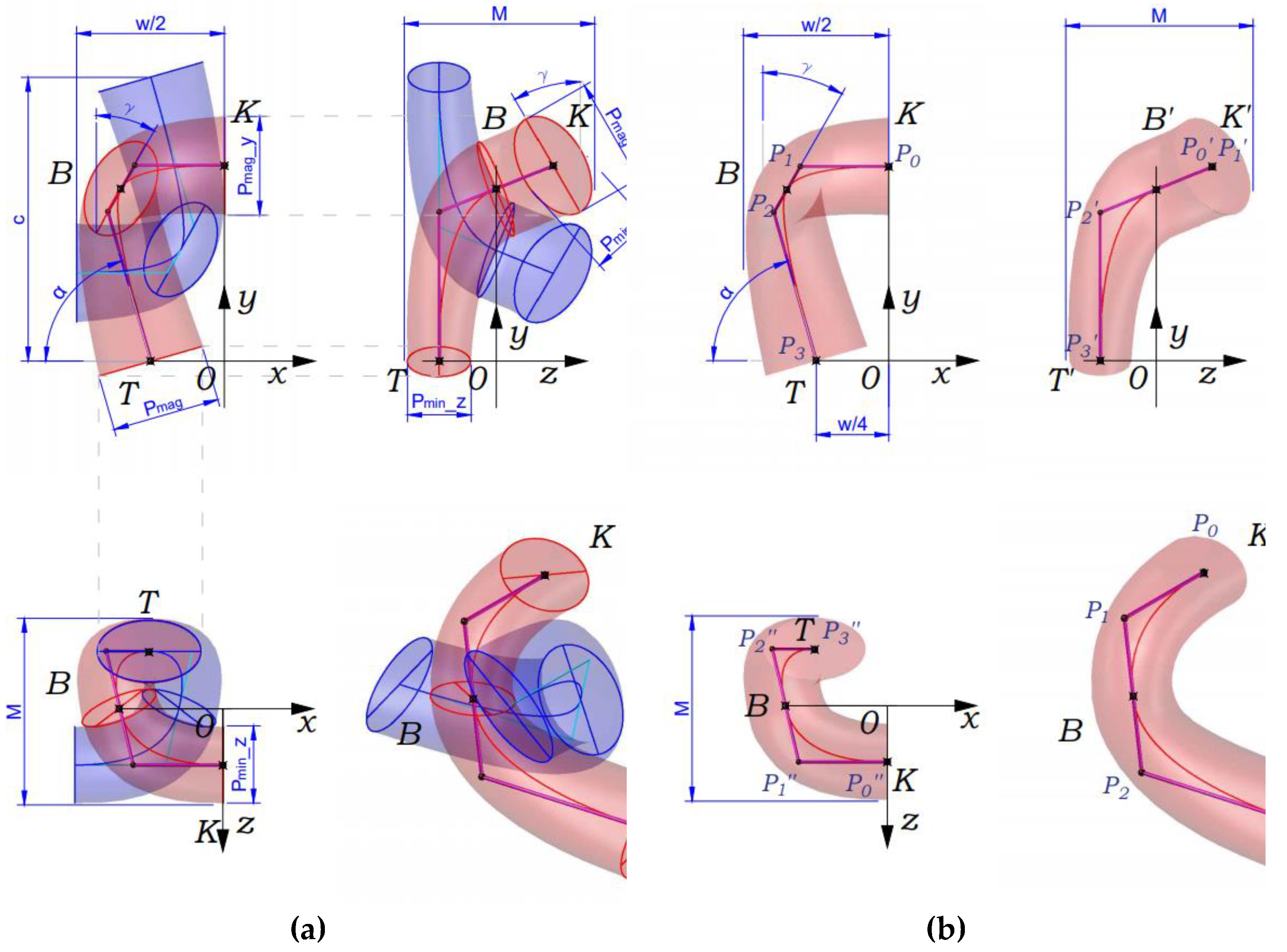

_{t}) can be calculated taking into account the accepted assumptions about the symmetric shape of the loop and the known characteristics of the structure: w, c, P

_{max}, P

_{min}, M. Mathematical expressions for determining the coordinates of the characteristic points of the loop in the selected coordinate system are presented in Table 2.

_{0}P

_{1}) is parallel to the OX axis and the XOY plane (plane of the fabric). In the projection onto the YOZ plane, the segment P

_{0}P

_{1}is expressed to a point that coincides with the point K. The tangent at point T (segment P

_{2}P

_{3}) is located at an angle (180 − α) to the X-axis. It is also parallel to the XOY plane but located on the opposite side of the XOY than the segment P

_{0}P

_{1}. This is clearly seen in the projection onto the XOZ plane (Figure 10b). The segment P

_{1}P

_{2}intersects with the plane of the fabric (XOY) at point B. Point P

_{1}belongs to the tangent line drawn through the point K, and point P

_{2}belongs to the tangent line drawn through the point T. In accordance with the previously accepted assumptions, the projection of the tangent at point B onto the plane of the fabric is located at an angle γ to the OY axis.

#### 3.2. Determination of Air Permeability and Its Simulation

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Acknowledgments

## Conflicts of Interest

## References

- Bakhvalov, N.S.; Panasenko, G.P. Homogenization: Averaging Processes in Periodic Media: Mathematical Problems in the Mechanics of Composite Materials; Springer: New York, NY, USA, 1989. Available online: https://doi.org/10.1007/978-94-009-2247-1 (accessed on 1 June 2021).
- Lomov, S.; Dufort, V.; Luca, P.D.; Verpoest, I. Meso-macro integration of modeling of stiffness of textile composites. In Proceedings of the 28th International Conference of SAMPE Europe, Porte de Versailles Expo., Paris, France, 2–4 April 2007; pp. 4003–4008. [Google Scholar]
- Loginov, A.; Grishanov, S.; Harwood, R. Modelling the load-extension behavior of plain-knitted fabric. Part I: A unit-cell approach towards knitted-fabric mechanics. J. Text. Inst.
**2002**, 93, 218–238. [Google Scholar] [CrossRef] - Carvelli, V.; Poggi, C. A homogenization procedure for the numerical analysis of woven fabric composites. Composites Part A
**2001**, 32, 1425–1432. [Google Scholar] [CrossRef] - Talebi, H.; Silani, M.; Bordos, S.P.A.; Kerfriden, P.; Rabczuk, T. A computational library for multiscale modeling of material failure. Comput. Mech.
**2014**, 53, 1047–1071. [Google Scholar] [CrossRef] [Green Version] - Khankhadjaeva, N.R. Role of Cotton Fiber in Knitting Industry. In Cotton Science and Processing Technology; Springer: Singapore, 2020; Available online: https://doi.org/10.1007/978-981-15-9169-3_11 (accessed on 1 June 2021).
- Mikučionienė, D.; Arbataitis, E. Comparative Analysis of the Influence of Bamboo and other Cellulose Fibres on Selected Structural Parameters and Physical Properties of Knitted Fabrics. Fibres Text. East. Eur.
**2013**, 21, 76–80. [Google Scholar] - Bivainyte, A.; Mikucioniene, D. Influence of Shrinkage on Air and Water Vapour Permeability of Double-Layered Weft Knitted Fabrics. Mater. Sci.
**2012**, 18, 271–274. [Google Scholar] [CrossRef] - Hyun, A.K.; Seung, J.K. Physical properties and wear comfort of bio-fiber-embedded yarns and their knitted fabrics according to yarn structures. Autex Res. J.
**2019**, 19, 279–287. [Google Scholar] [CrossRef] [Green Version] - Wilbik-Halgas, B.; Danych, R.; Wiecek, B.; Kowalski, K. Air and water vapour permeability in double-layered knitted fabrics with different raw materials. Fibres Text. East. Eur.
**2006**, 14, 77–80. [Google Scholar] - Muraliene, L.; Mikucioniene, D. Influence of structure and stretch on air permeability of compression knits. Int. J. Clothing Sci. Technol.
**2020**, 32, 825–835. [Google Scholar] [CrossRef] - Špelić, I.; Rogale, D.; Mihelić Bogdanić, A. The Study on Effects of Walking on the Thermal Properties of Clothing and Subjective Comfort. Autex Res. J.
**2020**, 20, 228–243. [Google Scholar] [CrossRef] - Kalendraite, B.; Krisciunaite, J.; Mikucioniene, D. Influence of sublimation process on air permeability and water absorption dynamics. Int. J. Clothing Sci. Technol. Available online: https://www.emerald.com/insight/content/doi/10.1108/IJCST-04-2020-0050/full/html (accessed on 1 June 2021). [CrossRef]
- Kukin, G.N.; Solovjov, A.N. Textile Materials Science. Chapter 3, Legkaya Industriya, Moscow Moskow. 1967, p. 226. (In Russian). Available online: https://scholar.google.com/scholar_lookup?title=Textile%20Materials%20Science&publication_year=1992&author (accessed on 1 June 2021).
- Kulichenko, A.V. Theoretical and Experimental Models for Prediction of Air –Permeability of Textile. In Proceedings of the 4th International Textile, Clothing & Design Conference, Dubrovnik, Croatia, 5–8 October 2008; pp. 799–802. [Google Scholar]
- Oğulata, R. Tugrul; Mavruz, S. Investigation of porosity and air permeability values of plain knitted fabrics. Fibres Text. East. Eur.
**2010**, 5, 71–75. [Google Scholar] - Mezarciöz, S.; Mezarcioz, S.; Oğulata, R. Tugrul. Prediction of air permeability of knitted fabrics by means of computational fluid dynamics. Tekstil ve Konfeksiyon
**2014**, 24, 202–211. [Google Scholar] - Xiao, X.; Zeng, X.; Long, A.; Lin, H.; Clifford, M.; Saldaeva, E. An Analytical model for through-thickness permeability of woven fabric. Textile Res. J.
**2012**, 82, 492–501. [Google Scholar] [CrossRef] - Kulichenko, A.V. Theoretical Analysis, Calculation, and Prediction of the Air Permeability of Textiles. Fibre Chemistry.
**2005**, 37, 371–380. [Google Scholar] [CrossRef] - Kyosev, Y.; Angelova, Y.; Kovar, R. 3D modeling of plain weft knitted structures of compressible yarn. Res J Text Appar.
**2005**, 9, 88–97. [Google Scholar] [CrossRef] - Trujevcev, A.V. The Stitch Model by of Dalidovich Loop in Context of Modern Theoretic Studies. (In Russian). 2002. Available online: https://ttp.ivgpu.com/wp-content/uploads/2021/04/268_29.pdf (accessed on 1 June 2021).
- Kaldor, J.M.; James, D.L.; Marschner, S. Simulating knitted cloth at the yarn level. ACM T Graphic
**2008**, 27, 65. [Google Scholar] - Wadekar, P.; Goel, P.; Amanatides, C.; Dion, G.; Kamien, R.D.; Breen, D.E. Geometric modeling of knitted fabrics using helicoid scaffolds. J. Eng. Fibers Fabr.
**2020**, 15, 1–15. [Google Scholar] [CrossRef] - Ielina, T.V.; Halavska, L.Y. Development of Algorithm of Data Analysis of Topological Model of Filament in the Knitted Fabric Structure. 2013. (In Ukrainian). Available online: http://journals.khnu.km.ua/vestnik/pdf/tech/2013_3/14eli.pdf (accessed on 1 June 2021).
- Kapllani, L.; Amanatides, C.E.; Dion, G.; Shapiro, V.; Breen, D. TopoKnit: A Process-Oriented Representation for Modeling the Topology of Yarns in Weft-Knitted Textiles. Available online: https://arxiv.org/abs/2101.04560 (accessed on 1 June 2021).
- Puszkarz, A.; Krucinska, I. Modelling of air permeability of knitted fabric using the computational fluid dynamics. AUTEX Res. J.
**2018**, 18, 364–376. [Google Scholar] [CrossRef] [Green Version] - Puszkarz, A.; Krucinska, I. The study of knitted fabric thermal insulation using thermography and finite volume method. Text. Res. J.
**2017**, 87, 643–656. [Google Scholar] [CrossRef] - Fluid Flow Definitions. Autodesk Knowledge Network. Available online: https://knowledge.autodesk.com/support/cfd/learn-explore/caas/CloudHelp/cloudhelp/2014/ENU/SimCFD/files/GUID-4DAF0D6D-F1F4-4E90-A9C8-5CACB85E79BE-htm.html (accessed on 1 June 2021).
- Bobrova, S.; Ielina, T.; Beskin, N.; Bezsmertna, V.; Halavska, L. The use of 3D geometric models in special purpose knitwear design and predicting of its properties. Vlákna a textil (Fibres Text.)
**2018**, 25, 19–26. [Google Scholar] - Ausheva, N.; Halavska, L.; Yelina, T. Geometric representation features of textile yarn in the 3D modeling systems. In Proceedings of the Scientific Conference “Unitech-13”, Gabrovo, Bulgaria, 22–23 November 2013; pp. 199–202. [Google Scholar]
- Cherous, D.A.; Shilko, S.V.; Charkovski, A.V. Prognozirovaniye effektivnykh mekhanicheskikh kharakteristik trikotazha. Fizicheskaya mekhanika
**2008**, 11, 107–114. (In Russian) [Google Scholar]

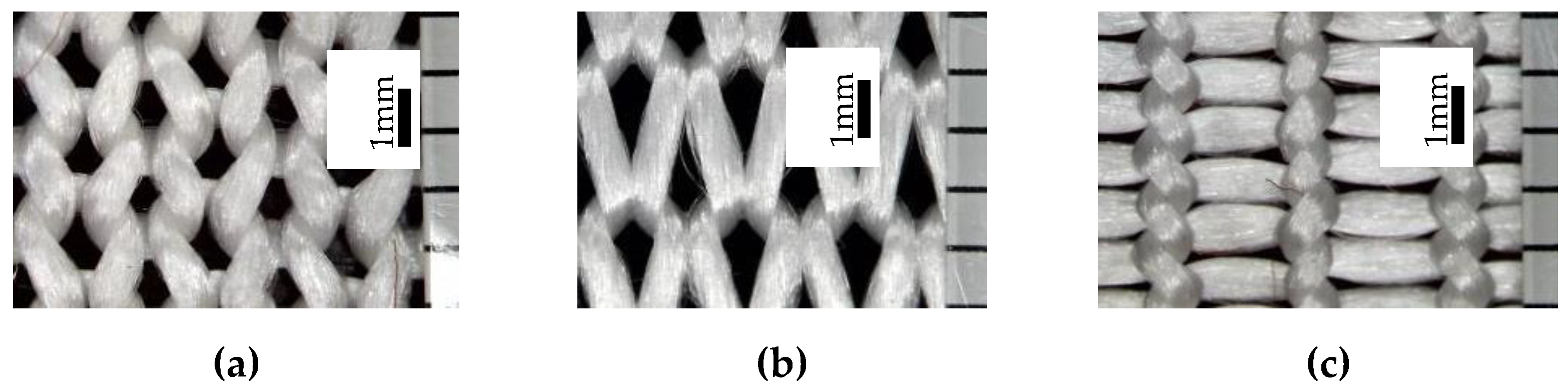

**Figure 2.**Images of knitted samples: (

**a**) in a relaxed state; (

**b**) after being stretched along wales; (

**c**) after being stretched along courses.

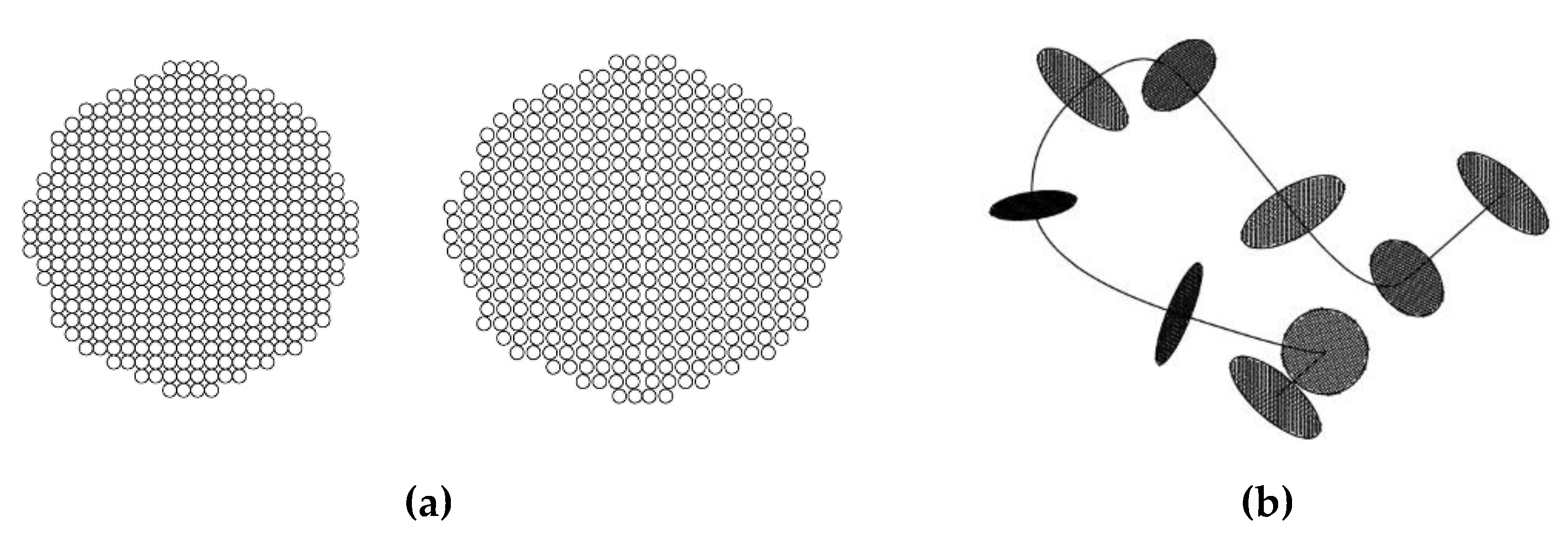

**Figure 3.**(

**a**) Principal arrangement of the cross-sections of individual filaments in the structure of the yarn and (

**b**) in the yarn bent into the loop.

**Figure 4.**Visualization of the knitted fabric structure with detailing at the level of individual filaments, built in the Autodesk AutoCAD software environment.

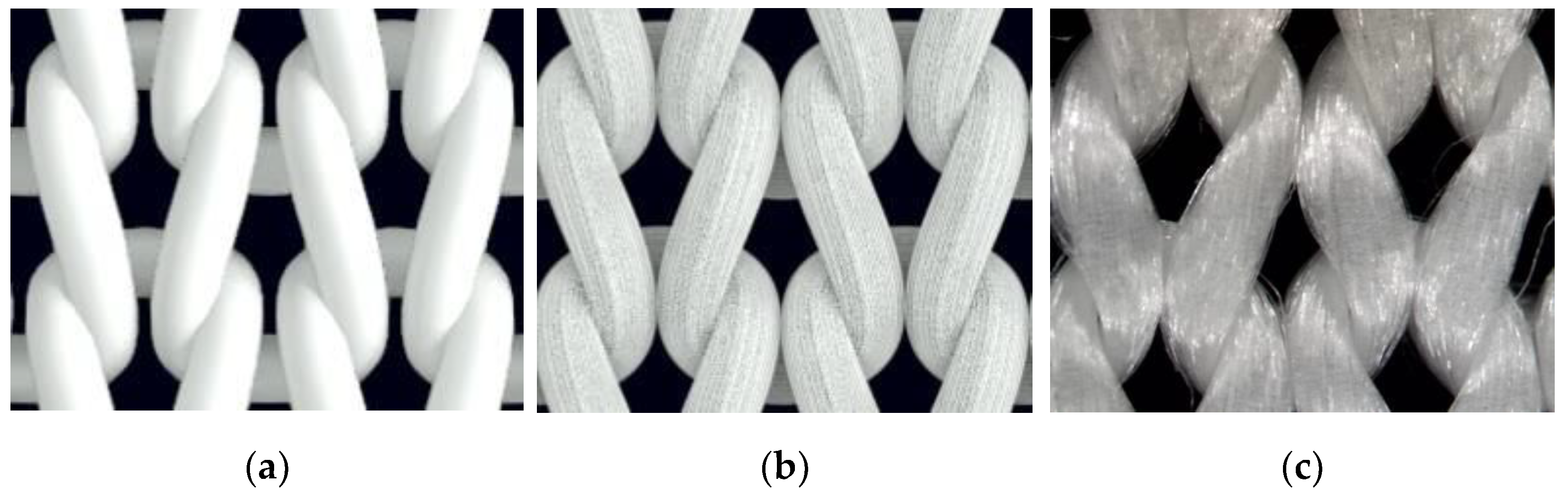

**Figure 5.**(

**a**) Model of a knitted sample in a free state detailed at the level of yarn; (

**b**) individual filaments; (

**c**) image of the knitted sample in a free state.

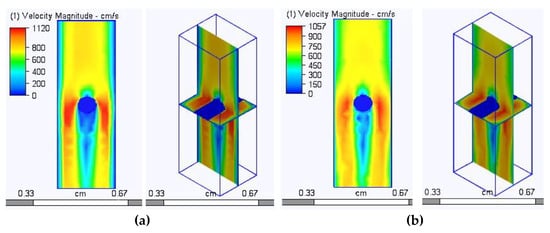

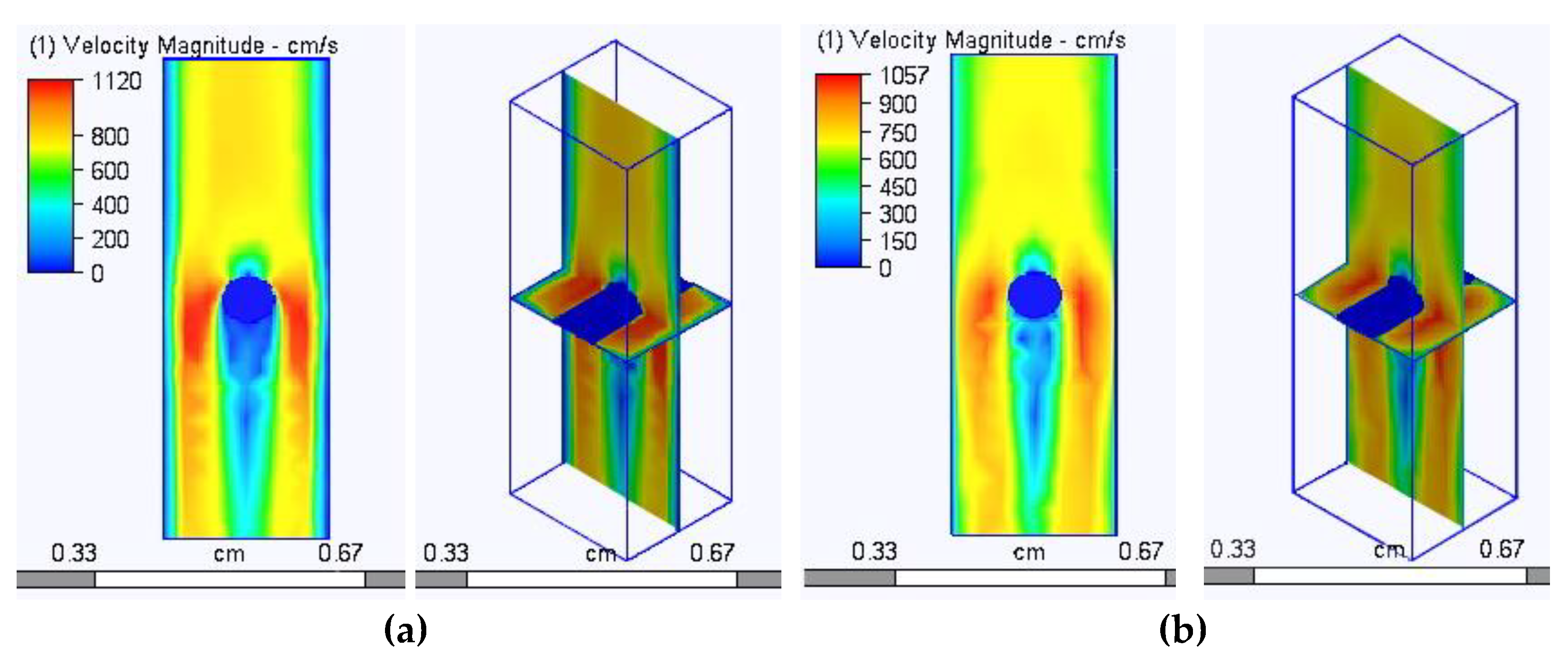

**Figure 7.**Graphical results of the analysis of the air flow through a tube with a linear yarn fragment made as multi-fiber (

**a**) and mono-fiber (

**b**).

**Figure 9.**Characteristic points K, B, T (

**a**) and the control points P0, P1, P2, P3 (

**b**) of the spline curve, which describes a quarter of the axial line of the yarn in the knitted loop of single jersey structure.

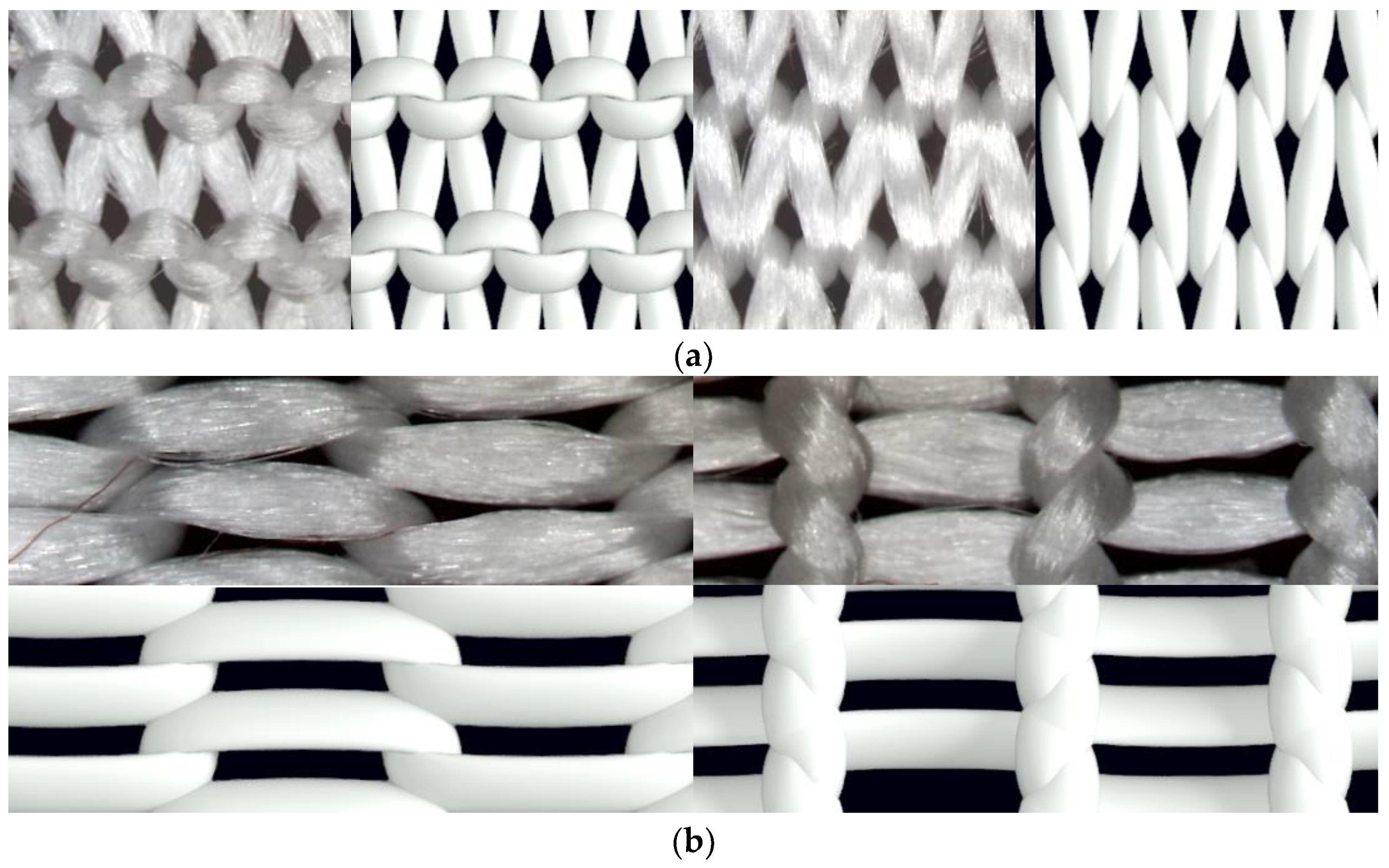

**Figure 10.**Meso-model and image of the single jersey knitted fabric made from high molecular weight polyethylene yarns at maximum stretching along wales (

**a**) and along courses (

**b**).

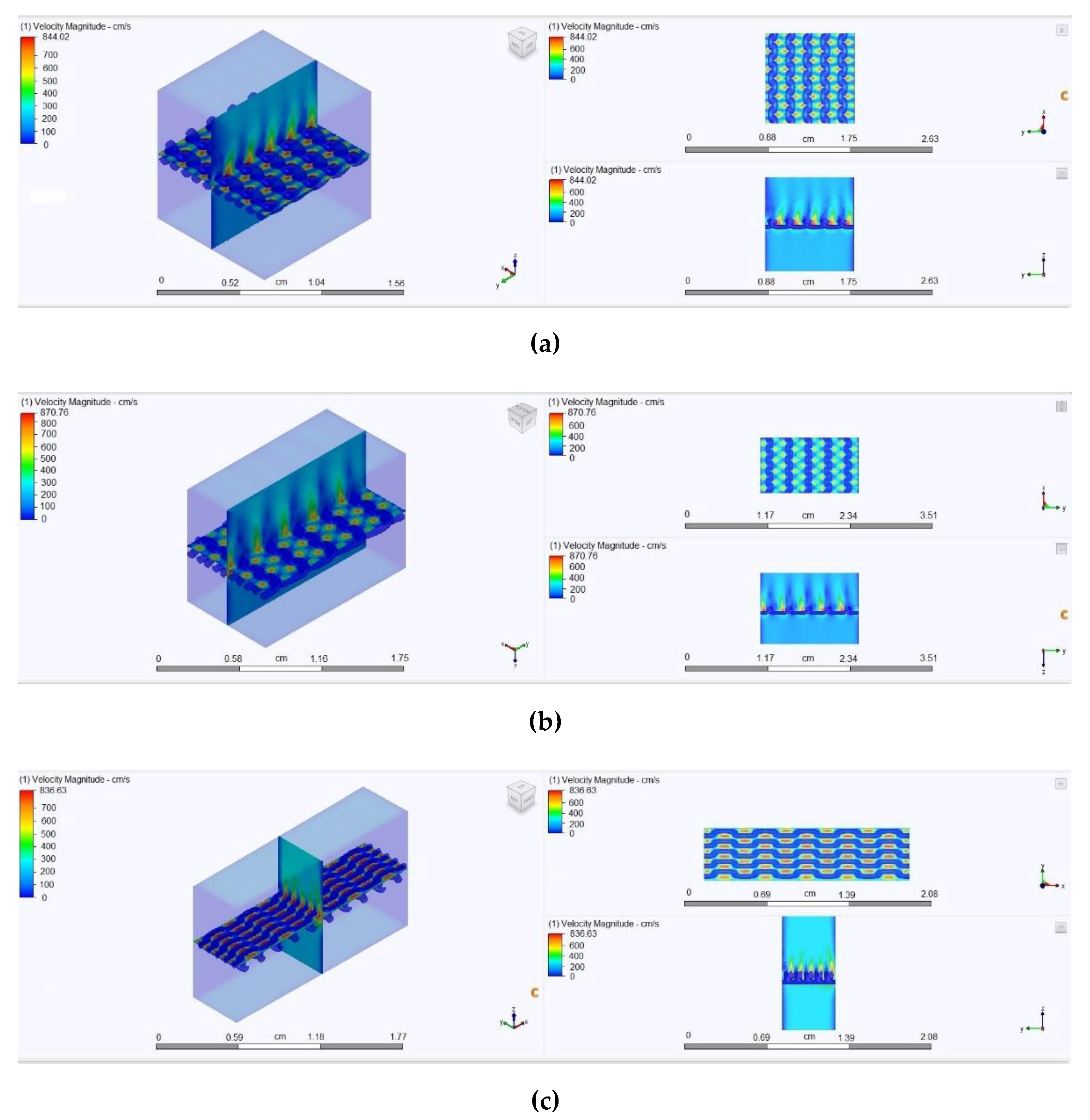

**Figure 11.**Illustration of the process of air passing through the knitted fabric under the condition of a pressure drop of 49 Pa: (

**a**) model of the knitted fabric in a free state, (

**b**) model of the knitted fabric in the state of uniaxial stretching along the wales, (

**c**) model of the knitted fabric in the state of uniaxial stretching along the courses.

Stretching Direction | Wale Spacing w, mm | Course Spacing c, mm | Yarn Diameter D, mm | Fabric Thickness M, mm | Loop Length l, mm |
---|---|---|---|---|---|

Before stretching | 1.92 ± 0.1 | 1.85 ± 0.1 | 0.7 ± 0.05 | 0.85 ± 0.05 | 7.95 ± 0.4 |

Stretched along wales | 1.58 ± 0.1 | 2.78 ± 0.15 | 0.75 ± 0.05 | ||

Stretched along courses | 3.46 ± 0.2 | 0.85 ± 0.05 | 0.82 ± 0.05 |

**Table 2.**Mathematical expressions for determining the coordinates of characteristic points in coordinate system of the loop.

Point | Abscissa | Ordinate | Applicata |
---|---|---|---|

K | ${X}_{k}=0$ | ${Y}_{k}=\frac{c+{P}_{mag}}{2}$ | ${Z}_{k}=\frac{M-{P}_{\mathit{min}}{\_}_{z}}{2}$ |

B | ${X}_{b}=\frac{w}{4}+\frac{{P}_{\mathit{min}}}{2}\mathrm{cos}\gamma $ | ${Y}_{b}=\frac{c}{2}+\frac{{D}_{y}}{2}\mathrm{sin}\gamma $ | ${Z}_{b}=0$ |

T | ${X}_{t}=\frac{A}{4}$ | ${Y}_{t}=0$ | ${Z}_{t}=-\frac{M-{P}_{\mathit{min}}}{2}$ |

Sample No | Experimental Value of Air Permeability, dm^{3}/(m^{2}s) | Simulated Value of Air Permeability, dm^{3}/(m^{2}s) | Discrepancy of the Simulated Value, % |
---|---|---|---|

1 | 1617 | 1687 | 0.04 |

2 | 2353 | 2301 | −0.02 |

3 | 1646 | 1645 | 0.00 |
