Tensile Strength Prediction of Short Fiber Reinforced Composites
Abstract
:1. Introduction
2. Homogenized Internal Stresses
3. True Internal Stresses

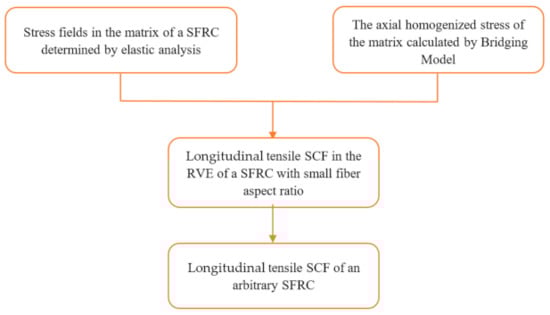

4. Longitudinal Tensile SCF

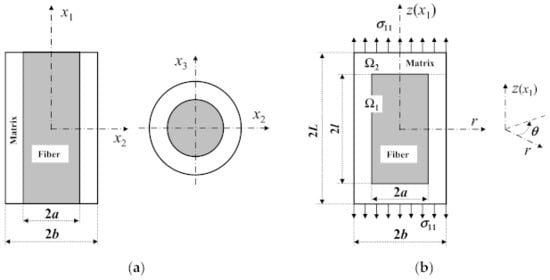

4.1. Displacements, Stresses and Strains of the Matrix
4.2. Determination of the Constants in Ω1
4.3. Determination of the Constants in Ω2

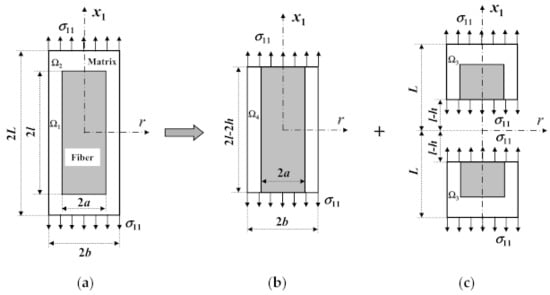

4.4. Continuity Conditions in between Ω1 and Ω2
4.5. Integration for Equation (17)

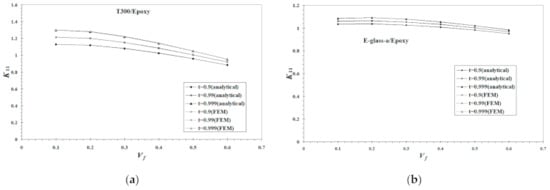

4.6. Derivation of K11
5. Failure Criterion and Strength Prediction
5.1. Failure Criterion
5.2. Strength of UA Short Fiber Composites
5.3. Strength of Randomly Oriented Short Fiber Composite
6. Numerical Examples
6.1. Fiber Length Ratio
6.2. Material Parameters
6.3. Results
6.3.1. K11

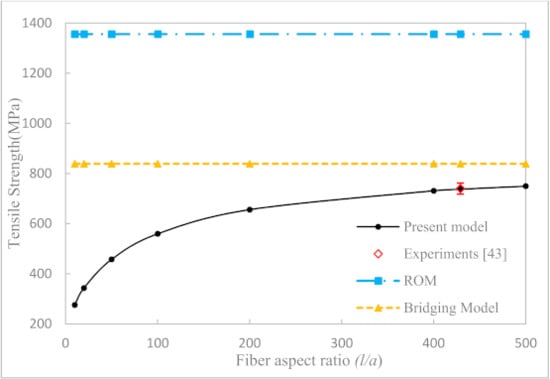

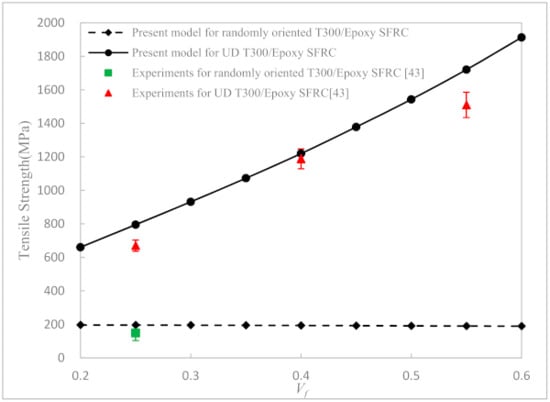

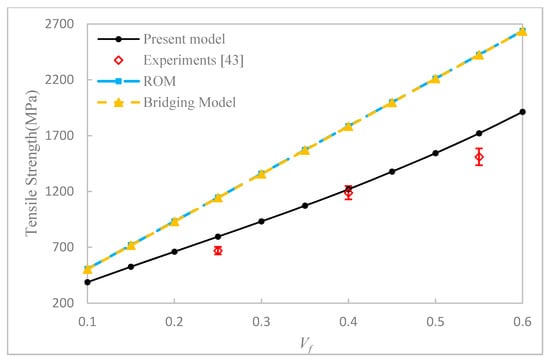

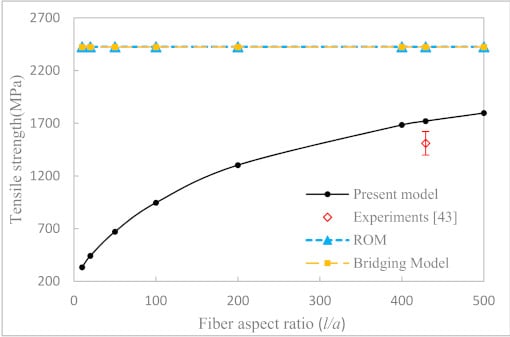

6.3.2. Strength Predictions
7. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A. Equations for Coefficients in a11
Appendix B. Coordinate Transformation Tensor
References
- Dai, H.L.; Mei, C.; Rao, Y.N. Anisotropy of the elastic modulus for hybrid composites reinforced by short fibers and particles with respect to material porosity. J. Appl. Polym. Sci. 2016, 133, 1–9. [Google Scholar] [CrossRef]
- Ravishankar, B.; Nayak, S.K.; Kader, M.A. Hybrid composites for automotive applications—A review. J. Reinf. Plast. Compos. 2019, 38, 835–845. [Google Scholar] [CrossRef]
- Zhang, Y.-Y.; Sun, Z.; Li, Y.-Q.; Huang, P.; Chen, Q.; Fu, S.-Y. Tensile creep behavior of short-carbon-fiber reinforced polyetherimide composites. Compos. Part B Eng. 2021, 212, 108717. [Google Scholar] [CrossRef]
- Lees, J.K. A study of the tensile strength of short fiber reinforced plastics. Polym. Eng. Sci. 1968, 8, 195–201. [Google Scholar] [CrossRef]
- Fu, S.; Lauke, B. Effects of Fiber Length and Fiber Orientation Distributions on the Tensile Strength of Short-Fiber-Reinforced Polymers. Compos. Sci. Technol. 1996, 56, 1179–1190. [Google Scholar] [CrossRef]
- Mortazavian, S.; Fatemi, A. Effects of fiber orientation and anisotropy on tensile strength and elastic modulus of short fiber reinforced polymer composites. Compos. Part B Eng. 2015, 72, 116–129. [Google Scholar] [CrossRef]
- Yang, Y.; Pang, J.; Dai, H.-L.; Xu, X.-M.; Li, X.-Q.; Mei, C. Prediction of the tensile strength of polymer composites filled with aligned short fibers. J. Reinf. Plast. Compos. 2019, 38, 658–668. [Google Scholar] [CrossRef]
- Taha, I.; El-Sabbagh, A.; Ziegmann, G. Modelling of Strength and Stiffness Behaviour of Natural Fibre Reinforced Polypropylene Composites. Polym. Polym. Compos. 2008, 16, 295–302. [Google Scholar] [CrossRef]
- Taha, I.; Abdin, Y.F. Modeling of strength and stiffness of short randomly oriented glass fiber—Polypropylene composites. J. Compos. Mater. 2011, 45, 1805–1821. [Google Scholar] [CrossRef]
- Espinach, F.X.; Granda, L.A.; Tarrés, Q.; Duran, J.; Fullana-I-Palmer, P.; Mutjé, P. Mechanical and micromechanical tensile strength of eucalyptus bleached fibers reinforced polyoxymethylene composites. Compos. Part B Eng. 2017, 116, 333–339. [Google Scholar] [CrossRef]
- Kelly, A.; Tyson, W.R. Tensile Properties of Fibre-Reinforced Metals: Copper/Tungsten and Copper/Molybdenum. J. Mech. Phys. Solids 1965, 13, 329–350. [Google Scholar] [CrossRef]
- Selezneva, M.; Roy, S.; Lessard, L.; Yousefpour, A. Analytical model for prediction of strength and fracture paths characteristic to randomly oriented strand (ROS) composites. Compos. Part B Eng. 2016, 96, 103–111. [Google Scholar] [CrossRef]
- Shokrieh, M.M.; Moshrefzadeh-Sani, H. A novel laminate analogy to calculate the strength of two-dimensional randomly oriented short-fiber composites. Compos. Sci. Technol. 2017, 147, 22–29. [Google Scholar] [CrossRef]
- Chen, P.E. Strength properties of discontinuous fiber composites. Polym. Eng. Sci. 1971, 11, 51–56. [Google Scholar] [CrossRef]
- Hahn, H.T. On Approximations for Strength of Random Fiber Composites. J. Compos. Mater. 1975, 9, 316–326. [Google Scholar] [CrossRef]
- Moshrefzadeh-Sani, H.; Shokrieh, M.M. Strength calculation of graphene/polymer nanocomposites using the combined laminate analogy and progressive damage model. Mech. Mater. 2018, 127, 48–54. [Google Scholar] [CrossRef]
- Van Hattum, F.W.J.; Bernardo, C.A. A model to predict the strength of short fiber composites. Polym. Compos. 1999, 20, 524–533. [Google Scholar] [CrossRef]
- Yan, H.; Yang, Y.; Hamada, H. Tensile Properties of Glass Fiber Reinforced Polypropylene Composite and Its Carbon Fiber Hybrid Composite Fabricated by Direct Fiber Feeding Injection Molding Process. Polym. Compos. 2017, 39, 3564–3574. [Google Scholar] [CrossRef]
- Cox, H.L. The elasticity and strength of paper and other fibrous materials. Br. J. Appl. Phys. 1952, 3, 72–79. [Google Scholar] [CrossRef]
- Ryu, H.J.; Cha, S.I.; Hong, S.H. Generalized shear-lag model for load transfer in SiC/Al metal-matrix composites. J. Mater. Res. 2003, 18, 2851–2858. [Google Scholar] [CrossRef] [Green Version]
- Mohandesi, J.A.; Sangghaleh, A.; Nazari, A.; Pourjavad, N. Analytical modeling of strength in randomly oriented PP and PPTA short fiber reinforced gypsum composites. Comput. Mater. Sci. 2011, 50, 1619–1624. [Google Scholar] [CrossRef]
- Zhang, L.Q.; Jin, R.G.; Geng, H.P.; Chen, S.; Zhou, Y.H. Study on the Theory of Strength of Short Fiber/Rubber Composites I: Prediction of Longitudinal Tensile Strength. J. Acta Mater. Compos. Sin. 1998, 15, 89–96. [Google Scholar]
- Goh, K.L.; Aspden, R.M.; Hukins, D.W.L. Review: Finite element analysis of stress transfer in short-fibre composite materials. Compos. Sci. Technol. 2004, 64, 1091–1100. [Google Scholar] [CrossRef]
- Hom, C.L. Three-Dimensional Finite Element Analysis of Plastic Deformation in a Whisker-Reinforced Metal Matrix Composite. J. Mech. Phys. Solids 1992, 40, 991–1008. [Google Scholar] [CrossRef]
- Levy, A.; Papazian, J.M. Tensile properties of short fiber-reinforced SiC/Al composites: Part II. Finite-element analysis. Met. Mater. Trans. A 1990, 21, 411–420. [Google Scholar] [CrossRef]
- Hashimoto, M.; Okabe, T.; Sasayama, T.; Matsutani, H.; Nishikawa, M. Prediction of tensile strength of discontinuous carbon fiber/polypropylene composite with fiber orientation distribution. Compos. Part A Appl. Sci. Manuf. 2012, 43, 1791–1799. [Google Scholar] [CrossRef]
- Ha, S.K.; Xu, L.; Zhao, C.; Demonte, M. Progressive failure prediction of short fiber reinforced composites using a multi-scale approach. J. Compos. Mater. 2018, 52, 3785–3801. [Google Scholar] [CrossRef]
- Zhou, Y.; Huang, Z.M.; Liu, L. Prediction of Interfacial Debonding in Fiber-Reinforced Composite Laminates. Polym. Compos. 2019, 40, 1828–1841. [Google Scholar] [CrossRef]
- Huang, Z.M.; Zhang, C.C.; Xue, Y.-D. Stiffness Prediction of Short Fiber Reinforced Composites. Int. J. Mech. Sci. 2019, 161, 161–162. [Google Scholar] [CrossRef]
- Huang, Z.-M.; Liu, L. Predicting strength of fibrous laminates under triaxial loads only upon independently measured constituent properties. Int. J. Mech. Sci. 2014, 79, 105–129. [Google Scholar] [CrossRef]
- Huang, Z.-M.; Xin, L.-M. In situ strengths of matrix in a composite. Acta Mech. Sin. Xuebao 2017, 33, 120–131. [Google Scholar] [CrossRef]
- Eshelby, J.D. The Determination of the Elastic Field of an Ellipsoidal Inclusion, and Related Problems. Proc. R. Soc. Lond. 1957, 241, 376–396. [Google Scholar]
- Chen, T.; Dvorak, G.J.; Benveniste, Y. Stress fields in composites reinforced by coated cylindrically orthotropic fibers. Mech. Mater. 1990, 9, 17–32. [Google Scholar] [CrossRef]
- Huang, Z.-M. Failure and Strength of Composite Materials; Beijing Science Press: Beijing, China, 2018. (In Chinese) [Google Scholar]
- Huang, H.B.; Huang, Z.M. Tensile failure prediction of a short fiber or particle composite. Polym. Compos. 2021, 42, 774–790. [Google Scholar] [CrossRef]
- Huang, Z.-M. Simulation of the mechanical properties of fibrous composites by the bridging micromechanics model. Compos. Part A Appl. Sci. Manuf. 2001, 32, 143–172. [Google Scholar] [CrossRef]
- Soden, P.D.; Hinton, M.J.; Kaddour, A.S. Lamina properties, lay-up configurations and loading conditions for a range of fibre-reinforced composite laminates. Compos. Sci. Technol. 1998, 58, 1011–1022. [Google Scholar] [CrossRef]
- Jiang, Z.; Liu, X.; Li, G.; Lian, J. A new analytical model for three-dimensional elastic stress field distribution in short fibre composite. Mater. Sci. Eng. A 2004, 366, 381–396. [Google Scholar] [CrossRef]
- Chin, W.-K.; Liu, H.-T.; Lee, Y.-D. Effects of Fiber Length and Orientation Distribution on the Elastic Modulus of Short Fiber Reinforced Thermoplastics. Polym. Compos. 1988, 9, 27–35. [Google Scholar] [CrossRef]
- Huang, H.-B.; Huang, Z.-M. Micromechanical prediction of elastic-plastic behavior of a short fiber or particle reinforced composite. Compos. Part A Appl. Sci. Manuf. 2020, 134, 105889. [Google Scholar] [CrossRef]
- Yu, H.; Potter, K.D.; Wisnom, M.R. A novel manufacturing method for aligned discontinuous fibre composites (High Performance-Discontinuous Fibre method). Compos. Part A Appl. Sci. Manuf. 2014, 65, 175–185. [Google Scholar] [CrossRef]
- Yu, H.N.; Longana, M.L.; Grail, G.; Pimenta, S.; Robinson, P.; Wisnom, M.R.; Potter, K.D. Aligned Short Fibre Composites with Nonlinear Behaviour. ICCM Int. Conf. Compos. Mater. 2015, 19–24. [Google Scholar]
- Longana, M.L.; Yu, H.; Lee, J.; Pozegic, T.R.; Huntley, S.; Rendall, T.; Potter, K.D.; Hamerton, I. Quasi-Isotropic and Pseudo-Ductile Highly Aligned Discontinuous Fibre Composites Manufactured with the HiPerDiF (High Performance Discontinuous Fibre) Technology. Materials 2019, 12, 1794. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Material | E11 (GPa) | E22 (GPa) | ν12 | G12 (GPa) | G23 (GPa) | σu,t (MPa) | σu,c (MPa) |
---|---|---|---|---|---|---|---|
E-Glass fiber [37] | 80 | 80 | 0.2 | 33.33 | 33.33 | 2150 | 1450 |
LY556 matrix [37] | 3.35 | 3.35 | 0.35 | 1.24 | 1.24 | 80 | 120 |
Material | E11 (GPa) | E22 (GPa) | ν12 | G12 (GPa) | G23 (GPa) | σu,t (MPa) | σu,c (MPa) |
---|---|---|---|---|---|---|---|
T300 fiber [41] | 225 | 15 | 0.2 | 15 | 7 | 4344 | - |
E-glass-a fiber [41] | 73 | 73 | 0.2 | 30.42 | 30.42 | 2400 | - |
E-glass-b fiber [27] | 72 | 72 | 0.22 | 29.51 | 29.51 | 1500 | - |
Epoxy matrix [41] | 4 | 4 | 0.35 | 1.48 | 1.48 | 80 | 150 |
PA6.6 matrix [27] | 3.3 | 3.3 | 0.35 | 1.22 | 1.22 | 80 | 145 |
Material System | a (μm) | ξ | h/a | Vf | γ | ||||
---|---|---|---|---|---|---|---|---|---|
T300/Epoxy [41] | 3.5 | 429 | 5.19 2.60 1.26 | 0.25 0.40 0.55 | 1.0248 1.0181 1.0126 | 1.18 1.08 0.96 | 1.60 1.85 2.07 | 0.91 0.96 1.03 | 1.48 1.65 1.81 |
E-glass-a /Epoxy [41] | 3.5 | 429 | 1.35 | 0.55 | 1.0126 | 0.99 | 3.04 | 1.02 | 2.39 |
E-glass-b /PA6.6 [27] | 5 | 25 | 10.93 5.16 | 0.074 0.194 | 1.4461 1.3005 | 1.61 1.52 | 1.43 1.9 | 0.88 0.88 | 1.39 1.67 |
Vf | Predicted (All SCFs Incorporated) | Error (%) | Predicted (No SCF Considered) | Error (%) | Predicted (Only K11 Considered) | Error (%) | Measured |
---|---|---|---|---|---|---|---|
0.074 | 148.9 | 25.7% | 184.8 | 56.1% | 153 | 29.3% | 118.4 |
0.194 | 162.5 | 6.7% | 213.9 | 22.9% | 189.2 | 8.7% | 174.1 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Huang, Z.-M.; Guo, W.-J.; Huang, H.-B.; Zhang, C.-C. Tensile Strength Prediction of Short Fiber Reinforced Composites. Materials 2021, 14, 2708. https://doi.org/10.3390/ma14112708
Huang Z-M, Guo W-J, Huang H-B, Zhang C-C. Tensile Strength Prediction of Short Fiber Reinforced Composites. Materials. 2021; 14(11):2708. https://doi.org/10.3390/ma14112708
Chicago/Turabian StyleHuang, Zheng-Ming, Wei-Jing Guo, Hong-Bo Huang, and Chun-Chun Zhang. 2021. "Tensile Strength Prediction of Short Fiber Reinforced Composites" Materials 14, no. 11: 2708. https://doi.org/10.3390/ma14112708
