Rotary Friction Welding of Molybdenum without Upset Forging
Abstract
1. Introduction

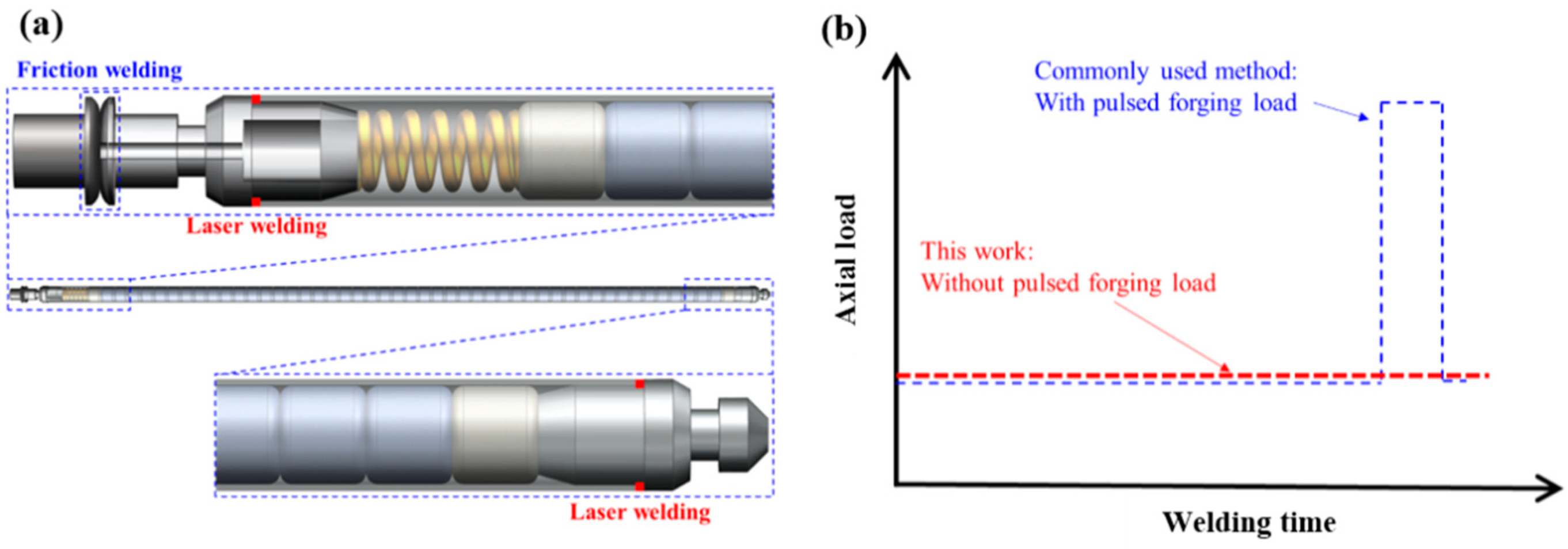

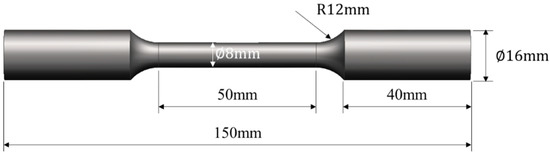

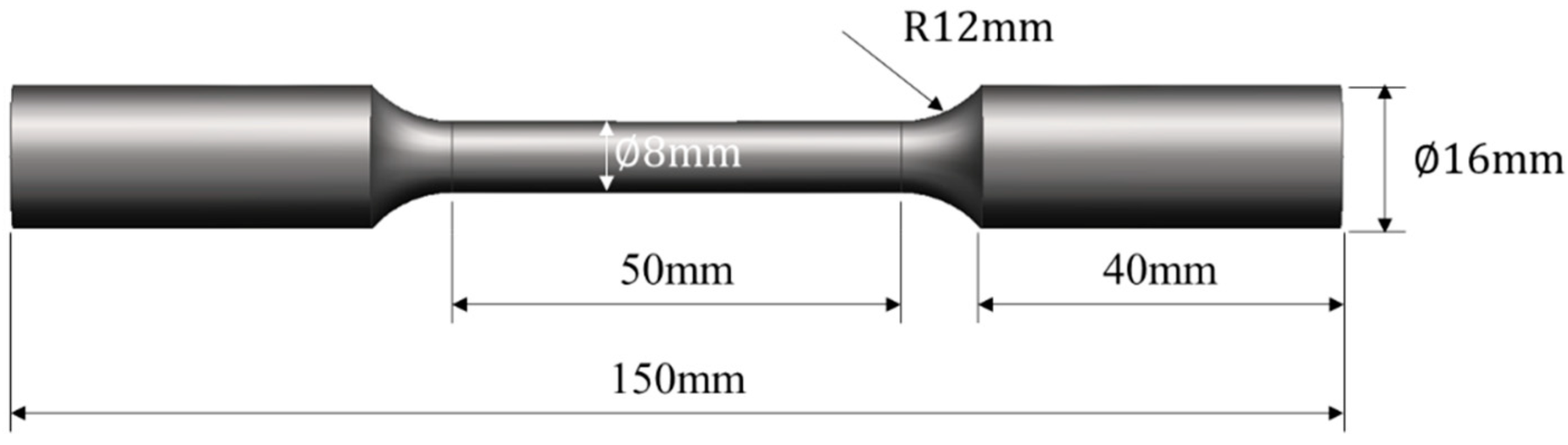

2. Test Materials and Methods
3. Results and Discussion

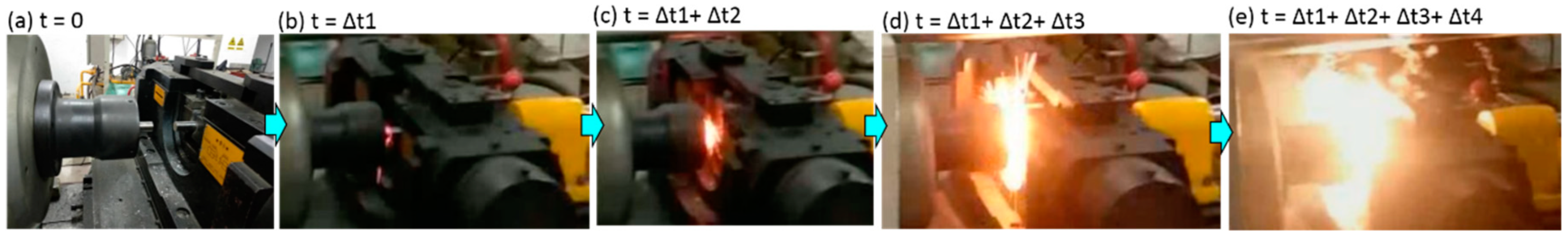

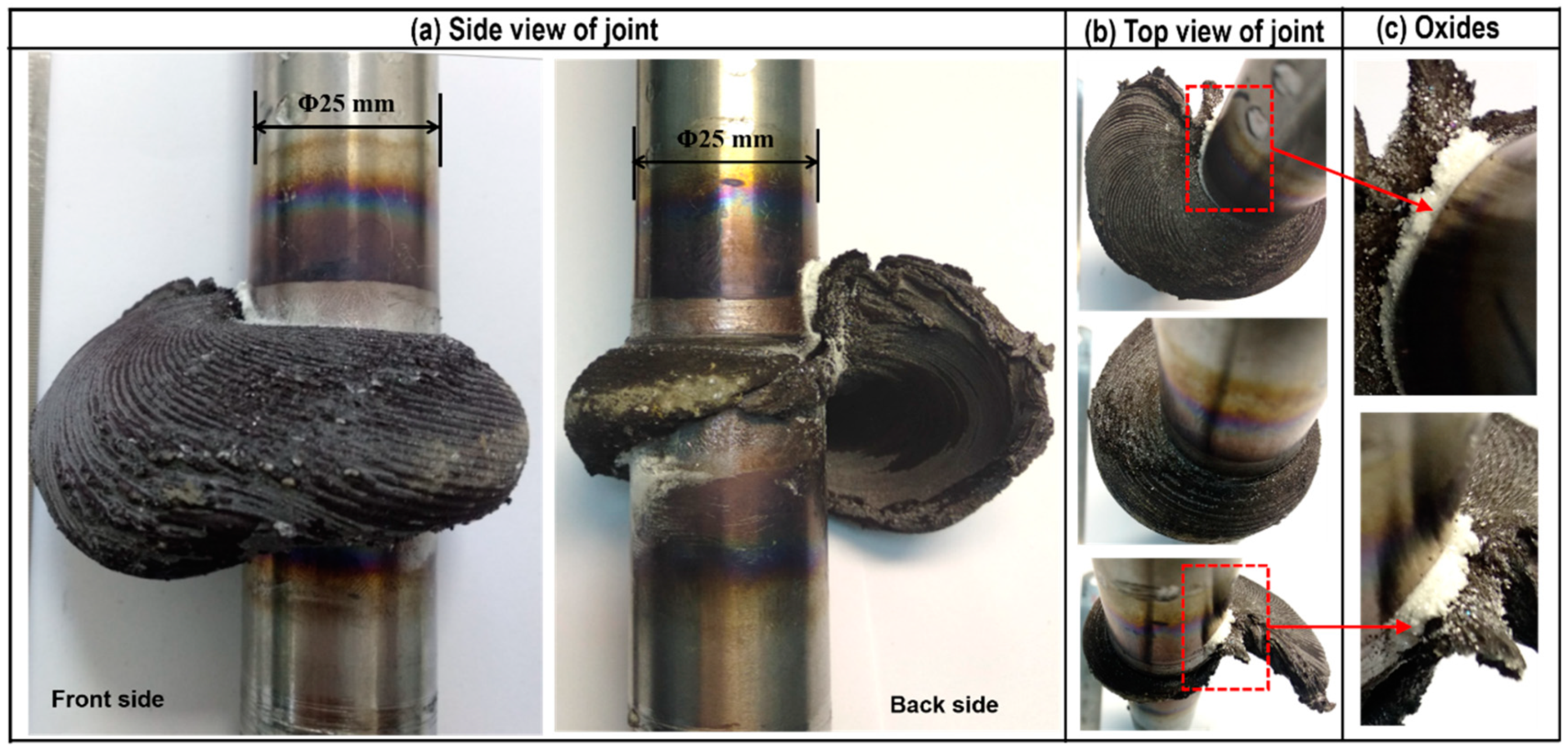

3.1. Excessive and Abrupt Burning and Instability of Flashes during Welding

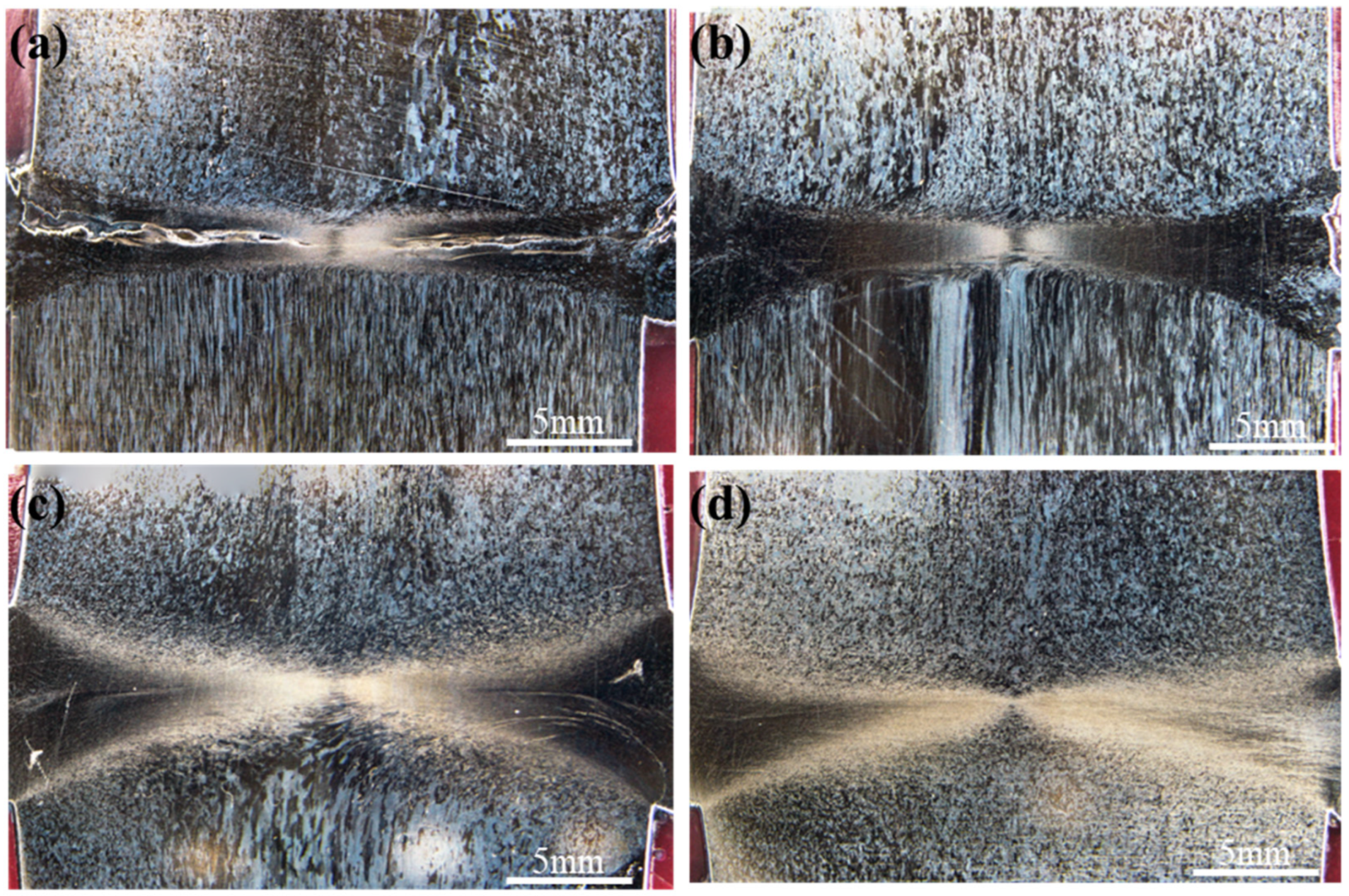

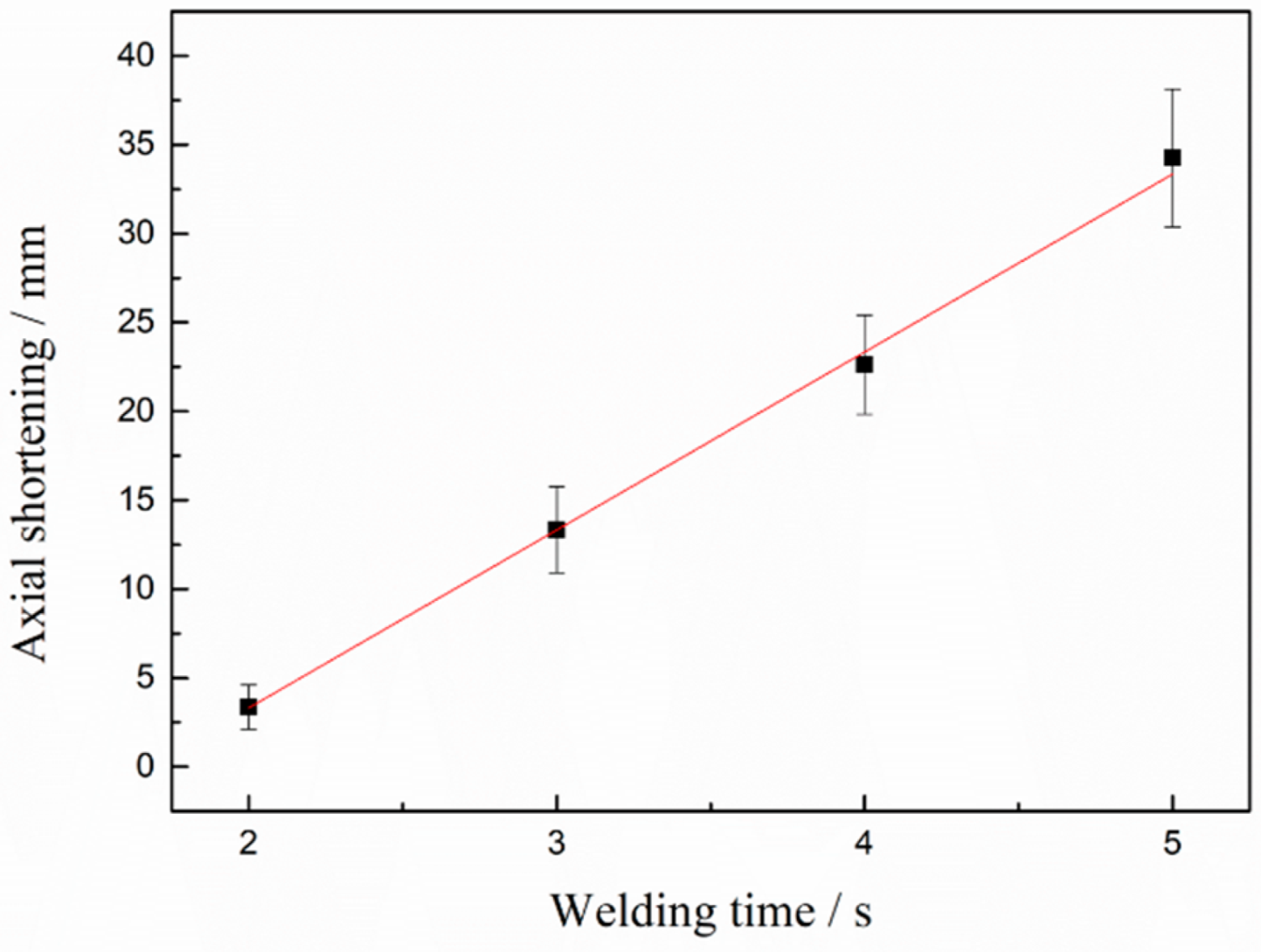

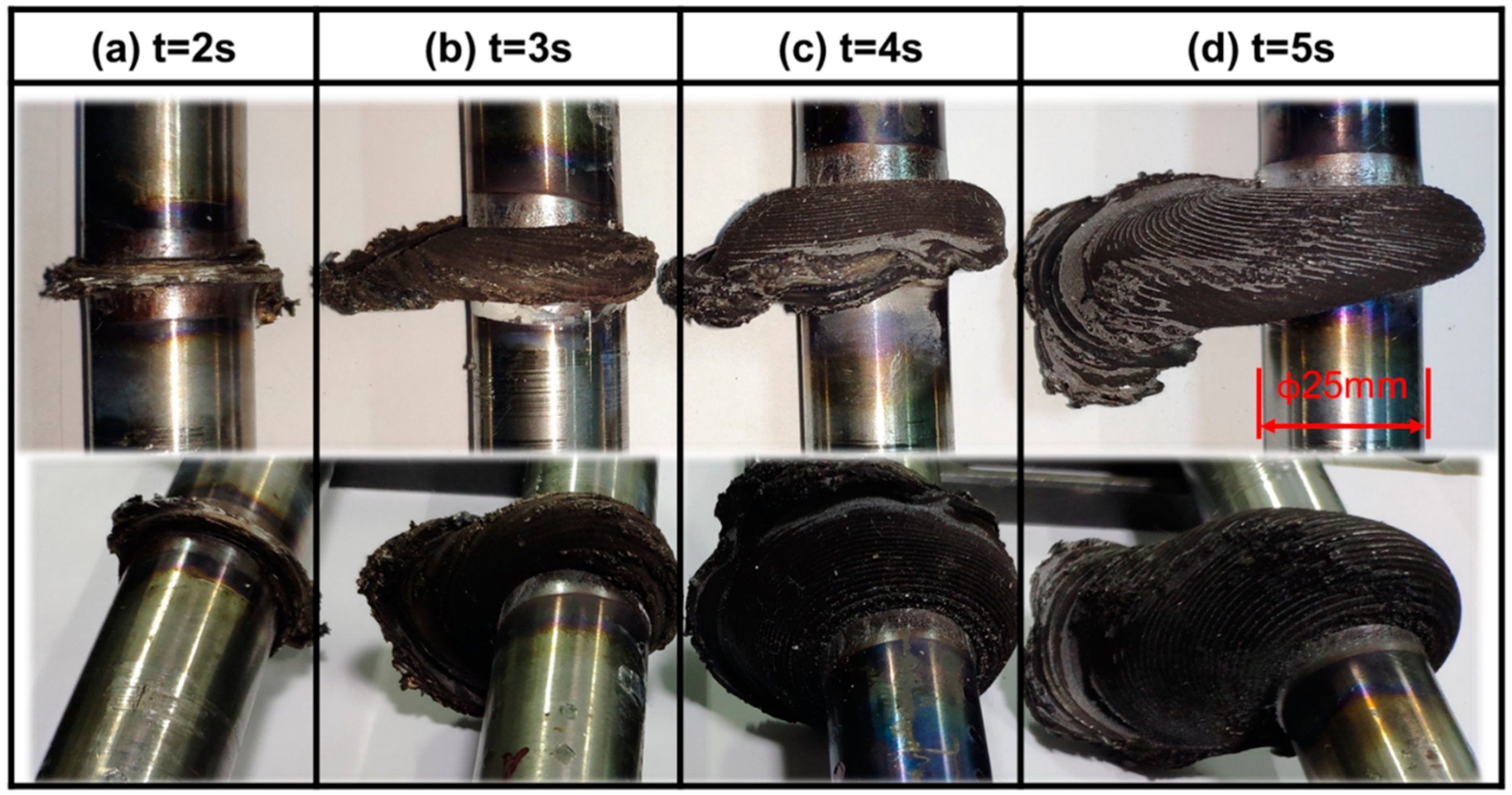

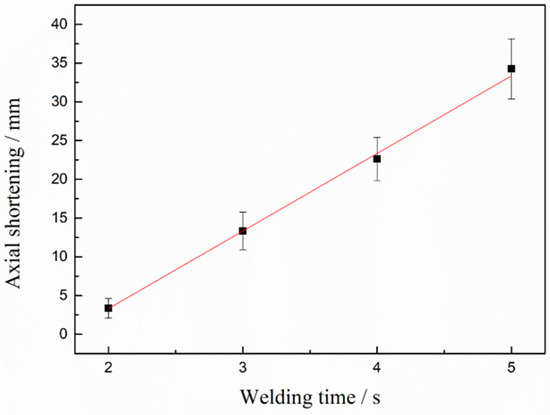

3.2. Effects of Welding Time on Macro-Morphology and Axial Shortening of the RFW-Mo Joints

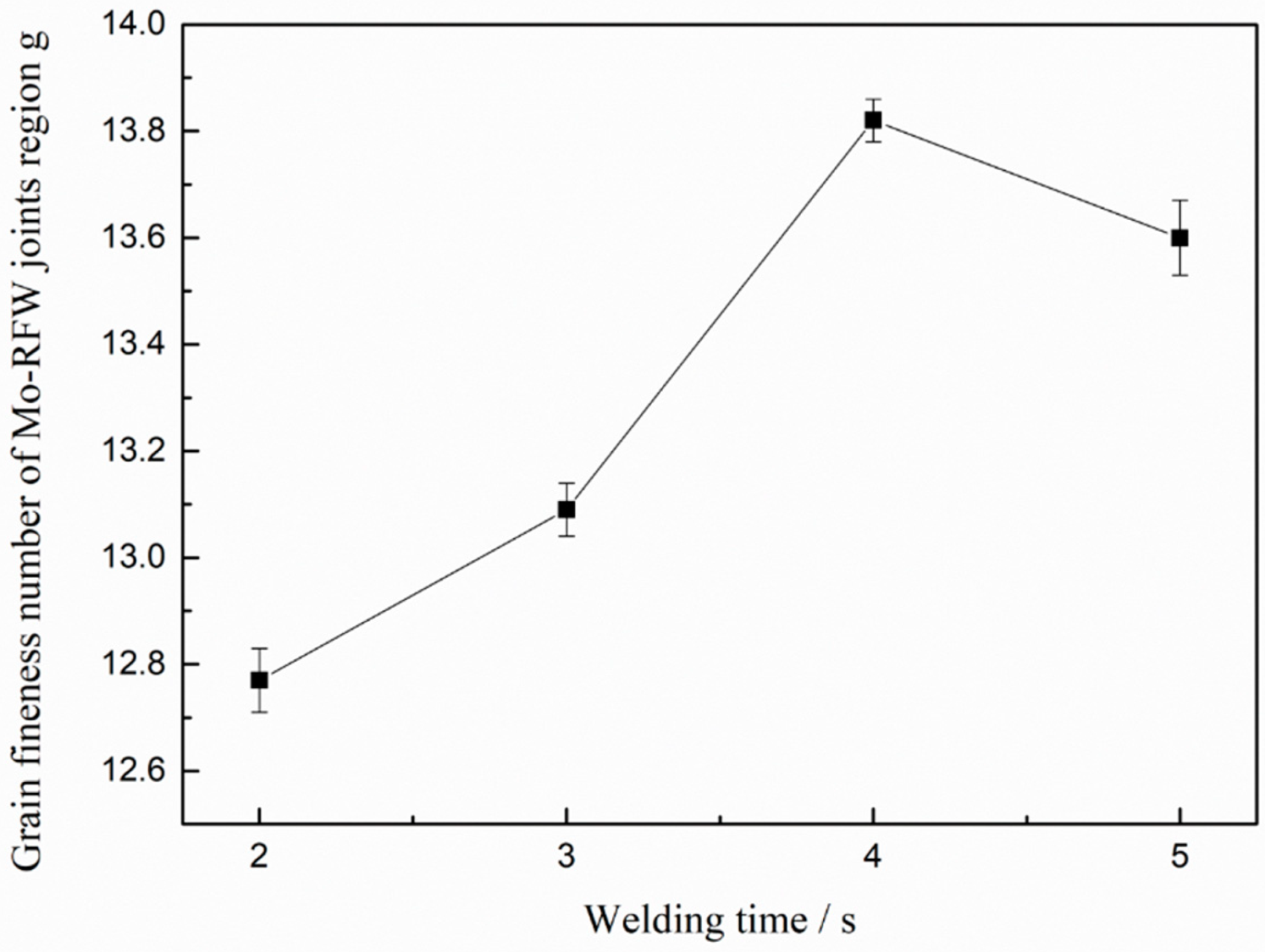

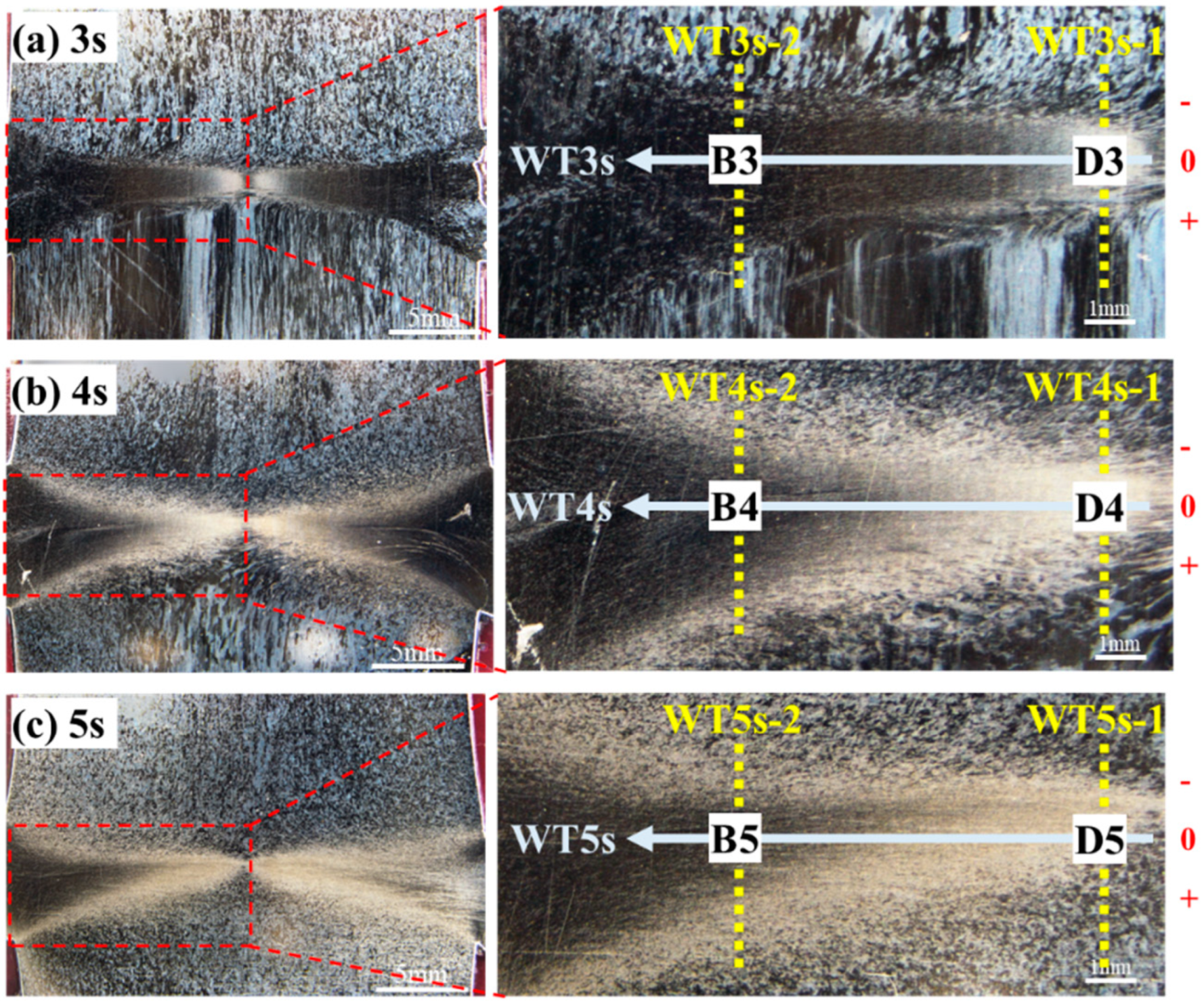

3.3. Influences of Welding Time on Structural Morphologies of Cross-Sections of the RFW-Mo Joints

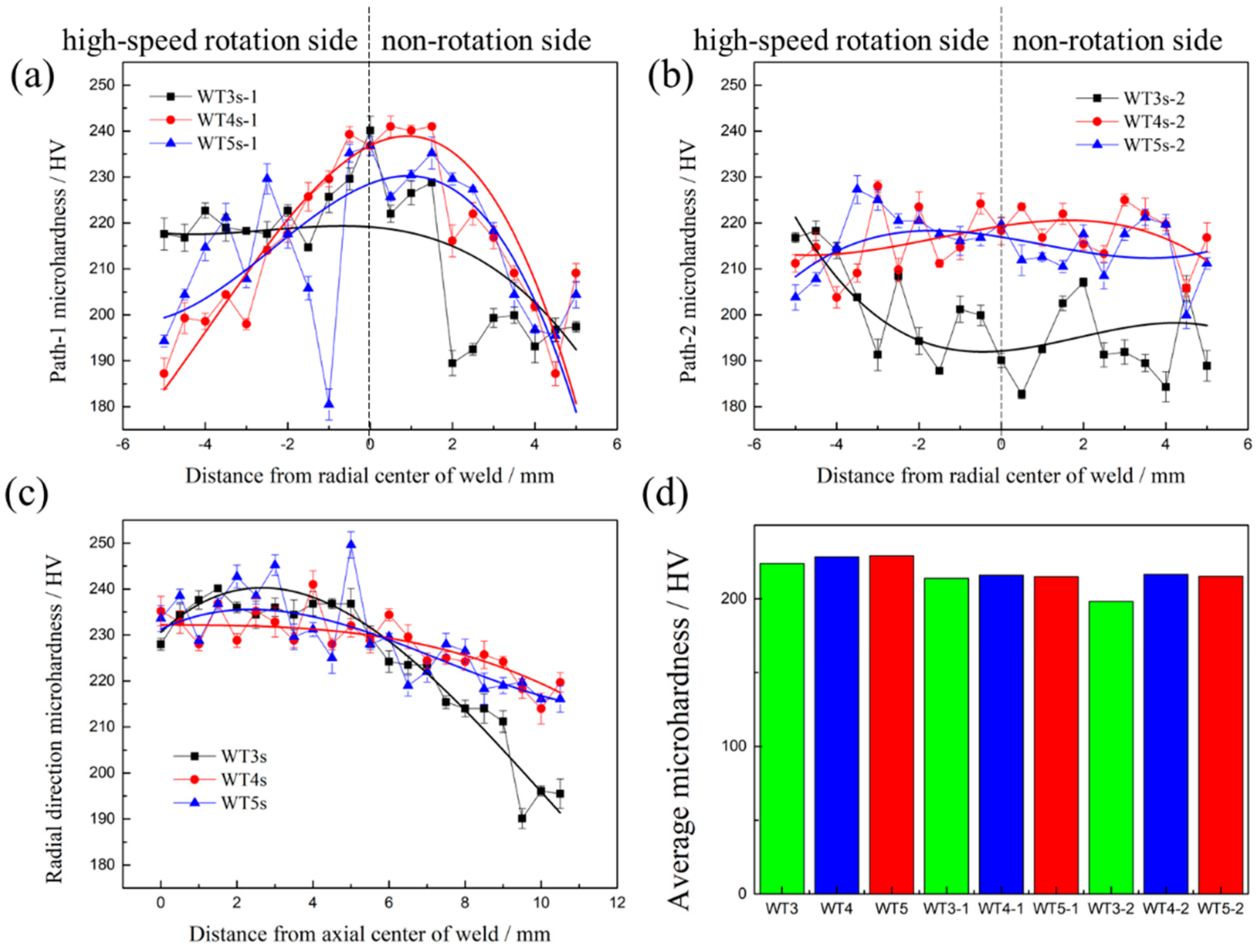

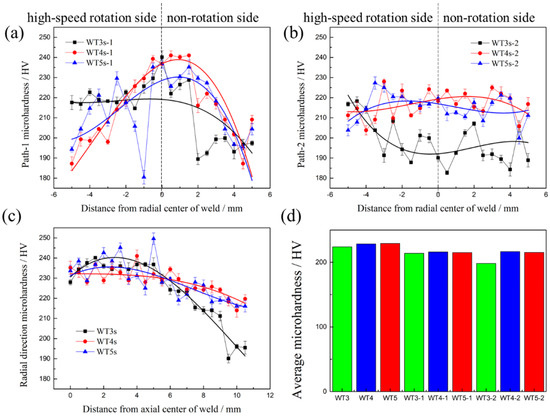

3.4. Impacts of Welding Time on Microhardness of Cross-Sections of the Mo-RFW Joints

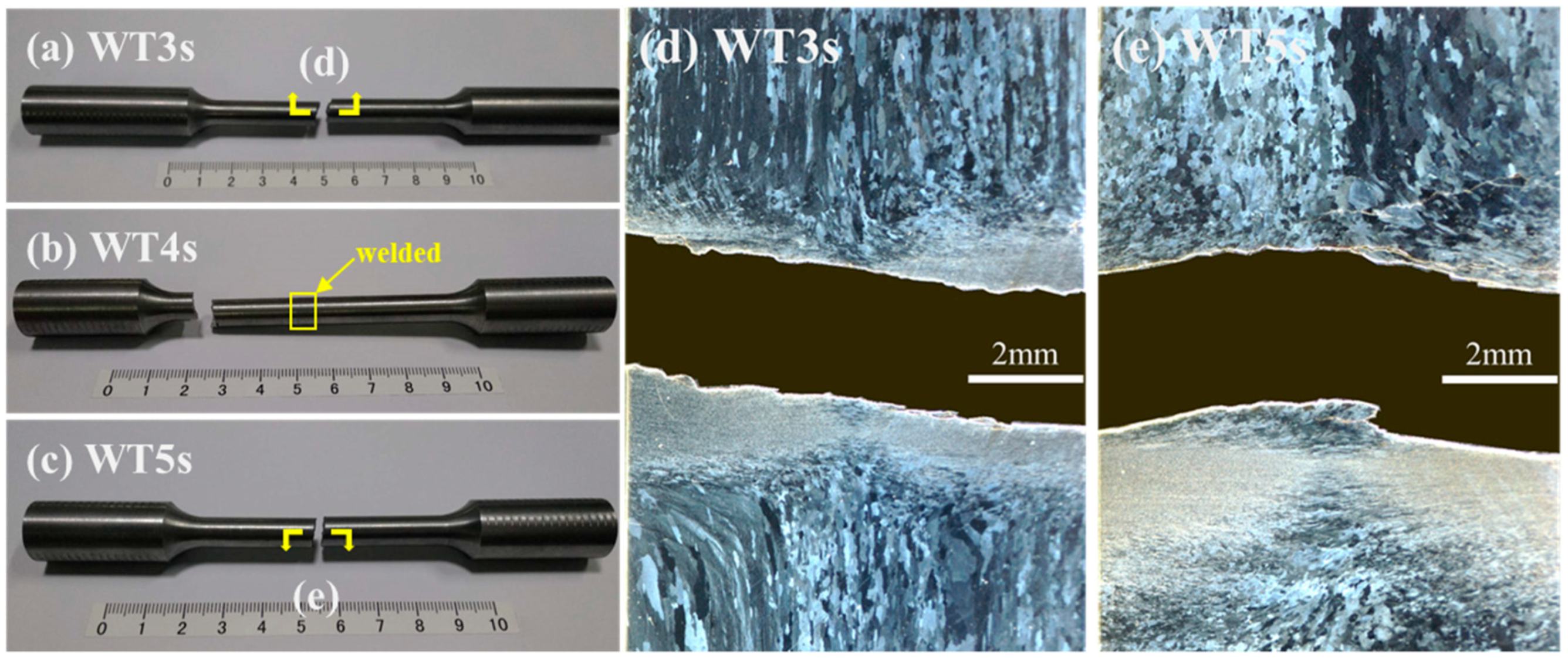

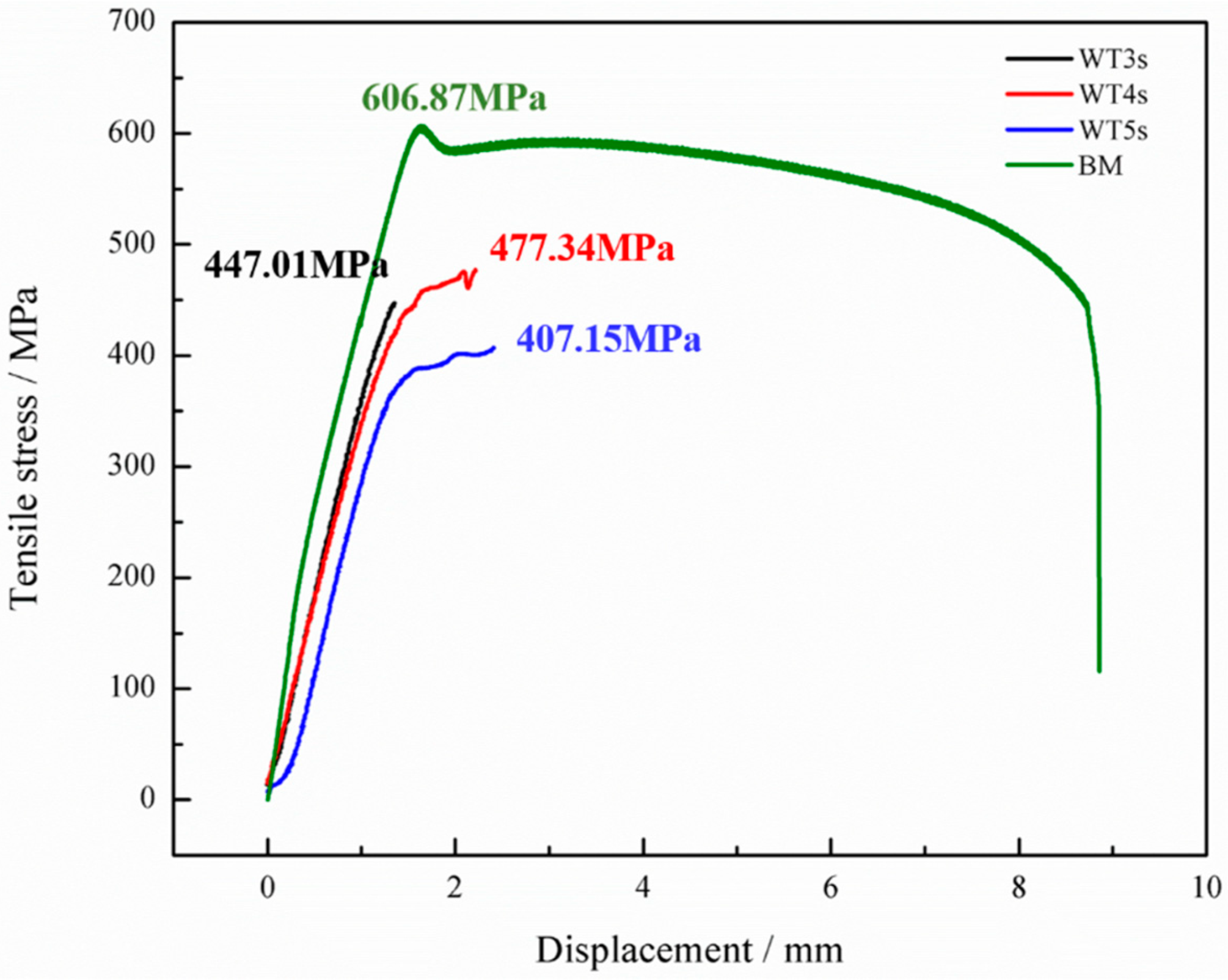

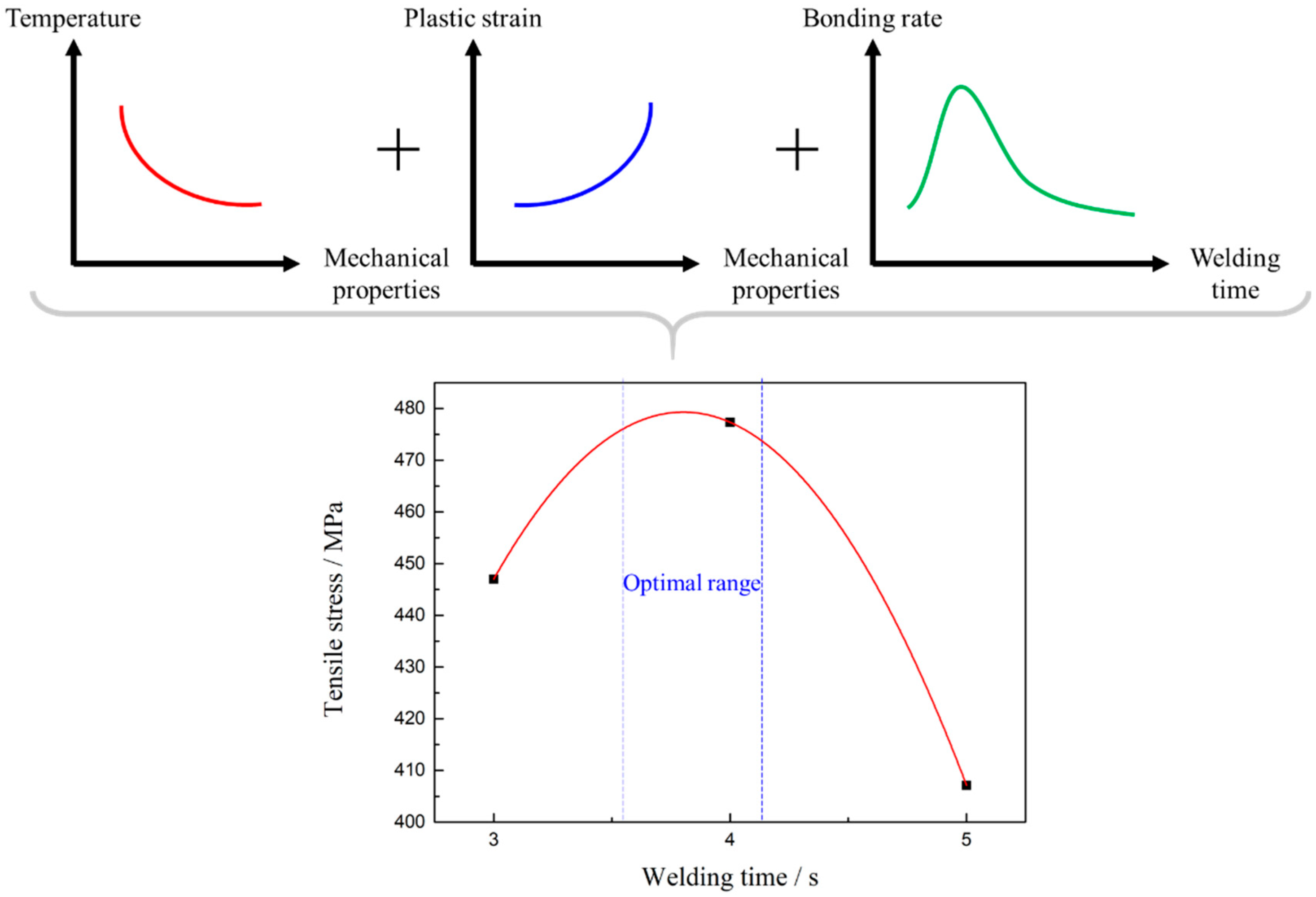

3.5. Effects of Welding Time on Mechanical Properties of the Mo-RFW Joints

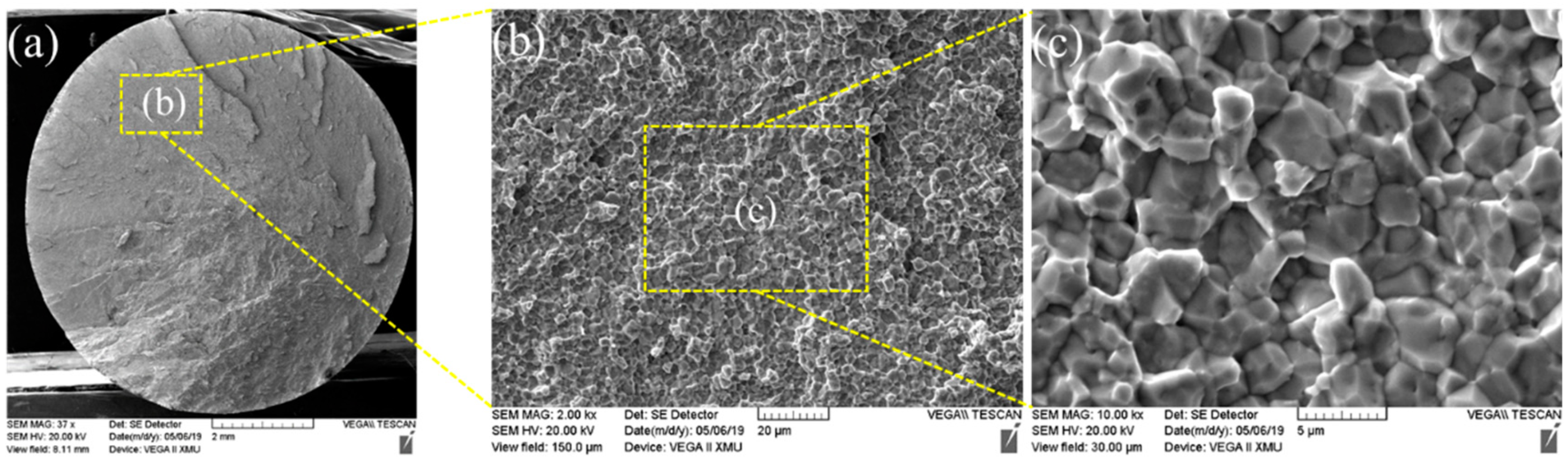

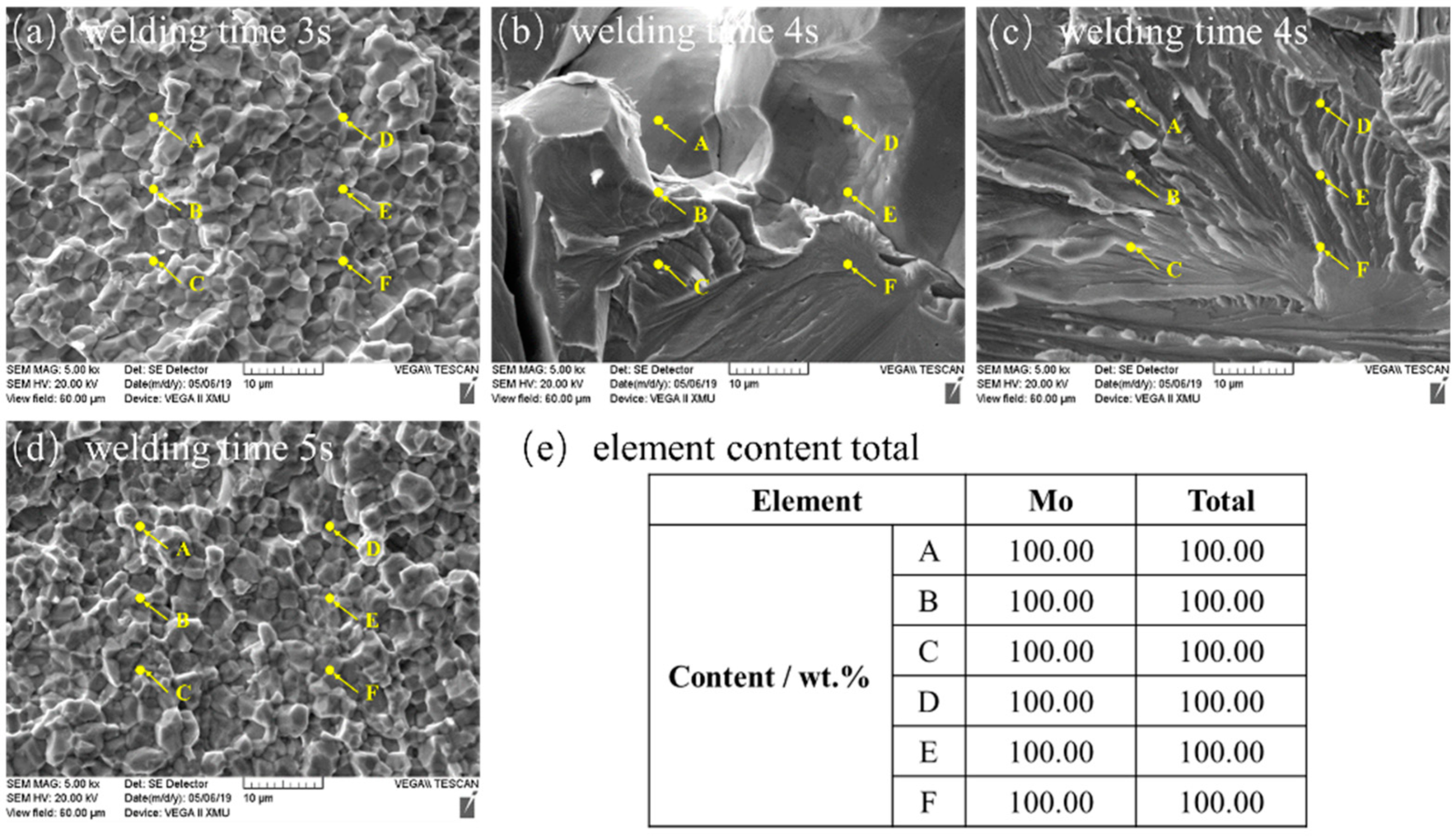

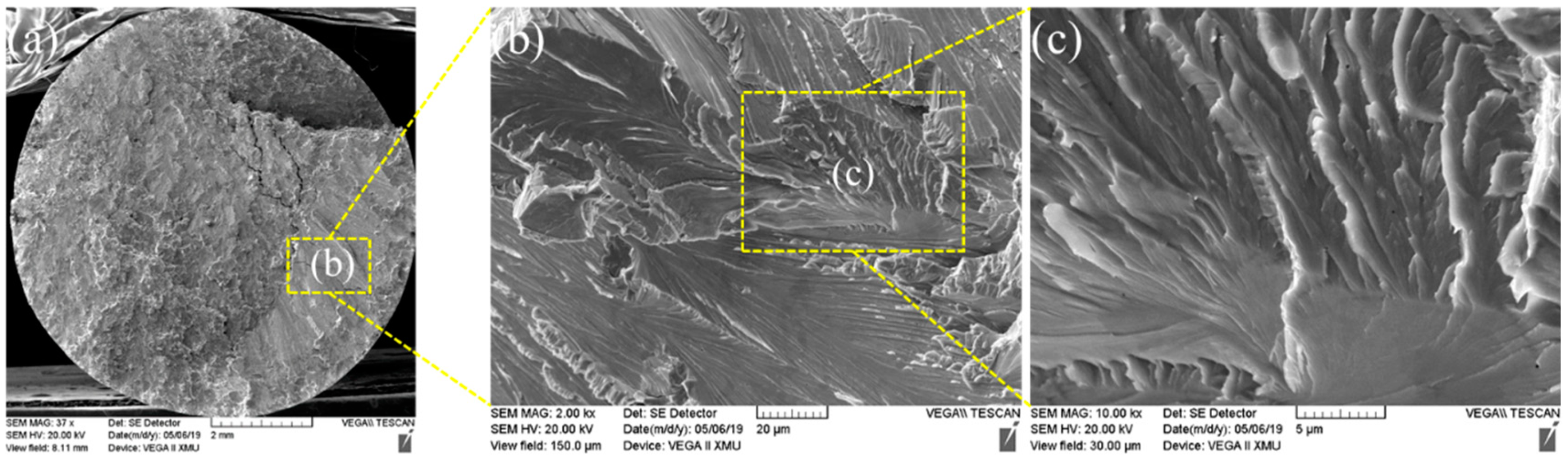

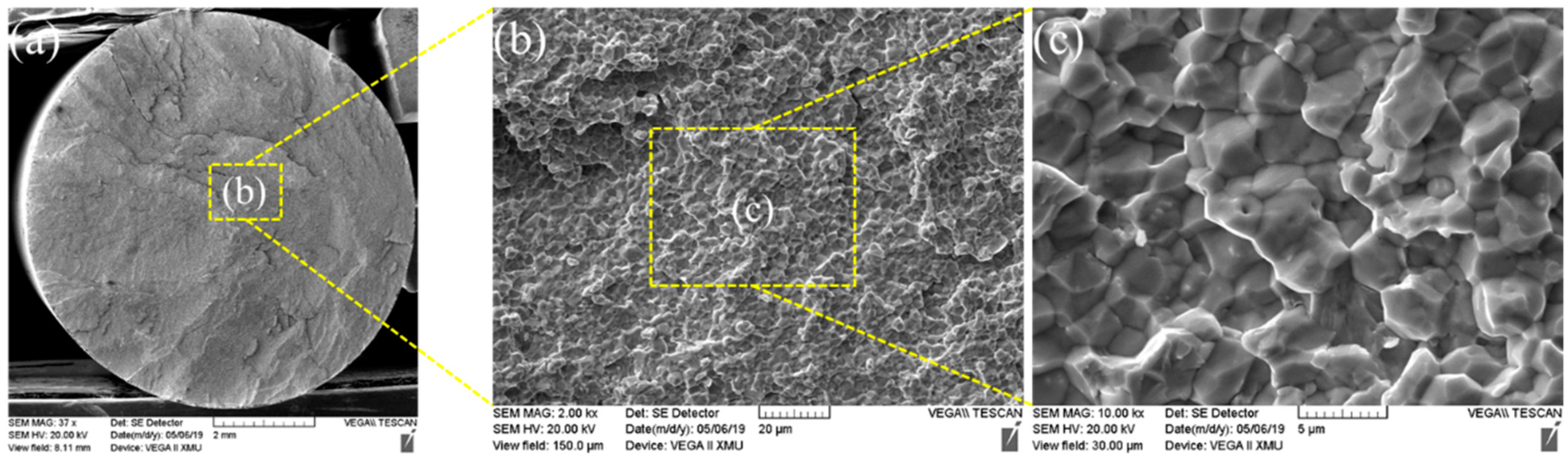

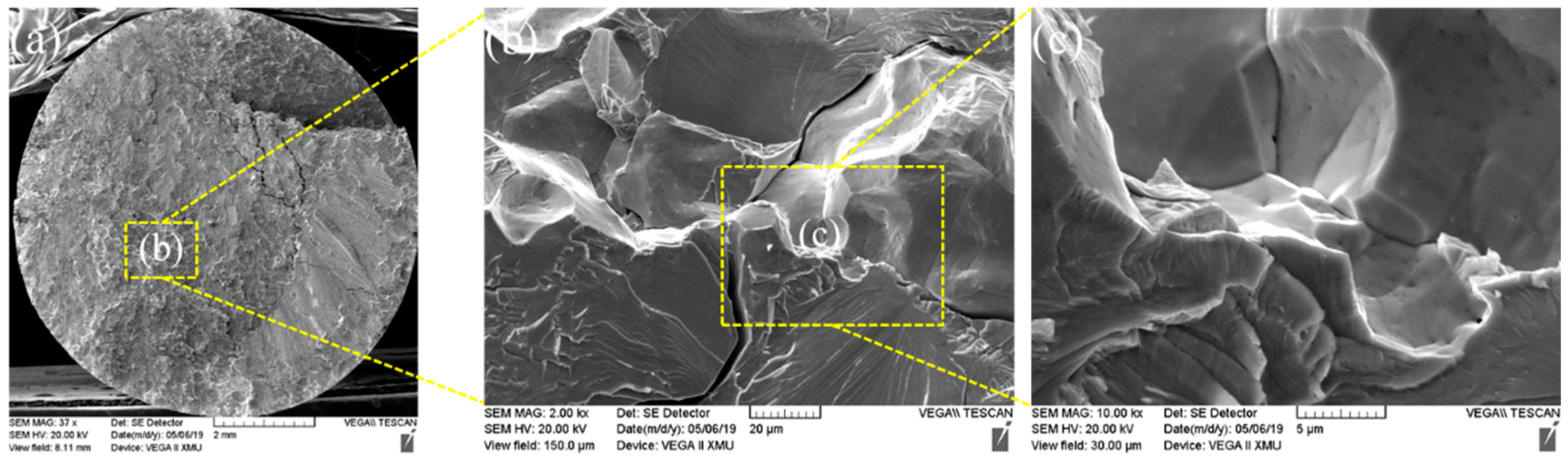

3.6. Influences of Welding Time on Micro-Morphologies of Tensile Fractures of the RFW-Mo Joints
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
