Article

Uniaxial Tensile Strain Induced the Enhancement of Thermoelectric Properties in n-Type BiCuOCh (Ch = Se, S): A First Principles Study

by
Chunpeng Zou
1,
Chihou Lei
2,
Daifeng Zou
3,4,* and
Yunya Liu
1,*
1
Key laboratory of Low Dimensional Materials and Application Technology of Ministry of Education, School of Materials Science and Engineering, Xiangtan University, Xiangtan 411105, China
2
Department of Aerospace and Mechanical Engineering, Saint Louis University, Saint Louis, MO 63103, USA
3
School of Physics and Electronic Science, Hunan University of Science and Technology, Xiangtan 411201, China
4
Shenzhen Key Laboratory of Nanobiomechanics, Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(7), 1755; https://doi.org/10.3390/ma13071755
Submission received: 9 February 2020 / Revised: 26 February 2020 / Accepted: 10 March 2020 / Published: 9 April 2020
(This article belongs to the Section Materials Simulation and Design)
Browse Figures
Versions Notes

Abstract

:
It is well known that the performance of thermoelectric measured by figure of merit ZT linearly depends on electrical conductivity, while it is quadratic related to the Seebeck coefficient, and the improvement of Seebeck coefficient may reduce electrical conductivity. As a promising thermoelectric material, BiCuOCh (Ch = Se, S) possesses intrinsically low thermal conductivity, and comparing with its p-type counterpart, n-type BiCuOCh has superior electrical conductivity. Thus, a strategy for increasing Seebeck coefficient while almost maintaining electrical conductivity for enhancing thermoelectric properties of n-type BiCuOCh is highly desired. In this work, the effects of uniaxial tensile strain on the electronic structures and thermoelectric properties of n-type BiCuOCh are examined by using first-principles calculations combined with semiclassical Boltzmann transport theory. The results indicate that the Seebeck coefficient can be enhanced under uniaxial tensile strain, and the reduction of electrical conductivity is negligible. The enhancement is attributed to the increase in the slope of total density of states and the effective mass of electron, accompanied with the conduction band near Fermi level flatter along the Γ to Z direction under strain. Comparing with the unstrained counterpart, the power factor can be improved by 54% for n-type BiCuOSe, and 74% for n-type BiCuOS under a strain of 6% at 800 K with electron concentration 3 × 1020 cm−3. Furthermore, the optimal carrier concentrations at different strains are determined. These insights point to an alternative strategy for superior thermoelectric properties.

1. Introduction

The development of new energy materials is on the rise in recent decades and attracts more and more attention owing to the impact on the environment [1,2]. As a newly promising material, thermoelectric material possesses a prominent advantage for being able to directly convert heat energy into electricity [3,4,5,6,7]. The performance of thermoelectric materials is quantified by a dimensionless constant known as the figure of merit ZT = S2σT/κ, with S being the Seebeck coefficient, σ being the electrical conductivity, κ being the thermal conductivity, and T being the absolute temperature. To achieve a higher ZT, it is necessary to enhance the power factor S2σ or reduce the thermal conductivity.
Newly discovered thermoelectric materials BiCuOSe and BiCuOS [BiCuOCh (Ch = Se, S)] have attracted attentions due to their intrinsically low thermal conductivity [8,9,10,11], whose conductive layers (Cu2Se2)2− or (Cu2S2)2− are alternately stacked with an insulating layer (Bi2O2)2+, composing of the ZrSiCuAs structure type, and this layered structure may be an important factor affording its low thermal conductivity [12,13]. Because of the low lattice thermal conductivity, efforts to improve thermoelectric performance ZT of these compounds have mainly focused on enhancing their power factor S2σ. To obtain high power factor, several approaches to increase the electrical conductivity of BiCuOCh, such as doping [14,15], pressure [16], and strain [17], have been attempted. As the electrical conductivity, σ, and Seebeck coefficient, S, are coupled, improving electrical conductivity will reduce Seebeck coefficient [1]. Compared with p-type BiCuOSe, n-type BiCuOSe possesses higher electrical conductivity [16]. On the other hand, it is also noticed that the power factor, S2σ, depends linearly on electrical conductivity, σ, but quadratically on Seebeck coefficient S. Thus, it is an alternative pathway to achieve the enhancement of power factor for n-type BiCuOCh via enhancing Seebeck coefficient while keeping electrical conductivity with only slight reduction.
Recently, band engineering has proved to be an effective method to improve the electronic transport properties of thermoelectric materials [18]. Some works have verified that the transport properties can be tuned by strain, including both in-plane biaxial strains and out-of-plane uniaxial compressive strain [17,19,20]. It is also well known that materials with micro/nanopillar array structures are always subjected to out-of-plane uniaxial strain imposed by surrounding matrix [21,22], and thus applying uniaxial tensile strain to thermoelectric materials can be easily realized in pillar array structures in experiments by using appropriate matrix. As uniaxial tensile strain can also tune the electronic structures of thermoelectric materials, it may provide a possible pathway to enhance thermoelectric performance. Thus, it is necessary to explore how uniaxial tensile strain affects the electronic structures and transport properties of n-type BiCuOCh, and it is expected that the present work will offer a useful pathway to tune the electronic structures leading to the enhancement of the thermoelectric performances of n-type BiCuOCh. In this work, we study the effects of uniaxial tensile strain along c axis on the electronic structures of n-type BiCuOCh by using first-principles calculations, and investigate the thermoelectric properties of n-type BiCuOCh under uniaxial tensile by semiclassical Boltzmann transport theory. We find that uniaxial tensile strain can be utilized as an alternative pathway to enhance the thermoelectric properties of n-type BiCuOCh.

2. Computational Details

Density function theory (DFT) has been adopted to calculate the lattice constants and electronic structures of BiCuOCh (Ch = Se, S) under strain constraint, which are implemented in the Vienna ab initio Simulation Package (VASP) [23,24,25,26]. The projector augmented wave (PAW) method is chosen with Perdew–Burke–Ernzerhof (PBE) generalized gradient approximation (GGA) exchange-correlation potential [27]. The plane-wave basis sets with a kinetic energy cut-off of 550 eV are used in the calculations. The relaxing force is set to be 10−3 eV Å−1. The convergence energy criterion is set to be 10−6 eV per unit cell. The generalized gradient approximation (GGA) always underestimates the exchange-correlation effect of the strongly localized Cu 3d electrons. To resolve this issue, DFT + U is adopted to adjust the on-site Coulomb interactions [28,29], and it is an effective solution to deal with the band gaps of semiconductors with Cu [30,31]. In this work, we set U = 4 eV for Cu 3d state based on our previous investigations on BiCuOSe [13]. BiCuOCh includes heavy metal element Bi, thus the spin-orbit coupling (SOC) is considered in our calculations, which takes into account of their relativistic effect.
Based on the simulated electronic structures, the thermoelectric transport properties of n-type BiCuOCh are calculated by the semiclassical Boltzmann theory via the BoltzTraP package [32,33]. Similar to treatments employed in literature [13], constant relaxation time approximation is used in the calculations of thermoelectric transport properties, because the scattering time of most semiconductors is insensitive to energy [34]. A Monkhost–Pack mesh of 31 × 31 × 13 k-point is used to obtain the accurate thermoelectric transport properties of BiCuOCh [35,36].

3. Results and Discussion

3.1. Crystal Structures

The typical crystal structure of BiCuOSe is shown in Figure 1a, in which the (Cu2Se2)2− layers and the (Bi2O2)2+ layers are alternatively stacked together along the c axis direction. BiCuOS, whose crystal structure is similar to that BiCuOSe, is not shown here. As we can see from Figure 1a, it belongs to the layered structure, and can exhibit unique thermoelectric properties: the (Cu2Ch2)2− layers can be considered as the conductive layers that are responsible for electrical conductivity, and the (Bi2O2)2+ layers can be treated as charge reservoir layers that are expected to have a large Seebeck coefficient. In addition, such layered structure also can lead to a low thermal conductivity [16,32]. In this work, the effects of uniaxial strain on the electronic structures, and thus the thermoelectric properties of n-type BiCuOCh, are studied, with the uniaxial strain imposed along the c axis defined by Δ c = ( c − c 0 ) / c 0 . Notice that c and c 0 are the optimized lattice constants for BiCuOCh under strained and unstrained states.
The optimized lattice constants are determined according to energy minimization. For example, the variations of energy with respect to volume for unstrained BiCuOCh (Ch = Se, S) are plotted in Figure 1b,d, where the optimized lattice constants with energy minimization are a = b = 3.9641 Å and c = 9.0371 Å for unstrained BiCuOSe, and a = b = 3.8987 Å and c = 8.6546 Å for unstrained BiCuOS, as tabulated in Table 1. These theoretical calculations agree well with the corresponding experimentally measured values [37] listed in Table 1. Notice that BiCuOSe has larger lattice constants than BiCuOS due to the larger atomic radius of Se. The optimized lattice constants under different uniaxial tensile strains are plotted in Figure 1c,e. It is observed that an increase in uniaxial tensile strain leads to an increase in the out-of-plane lattice constant c of BiCuOSe but a decrease in the in-plane lattice constant a. Similar trends with respect to uniaxial tensile strain can also be observed for the lattice constants of BiCuOS. Thus, the parameters of the crystal structures of both BiCuOSe and BiCuOS can be tuned via uniaxial tensile strain, which may affect the electronic structures and the thermoelectric properties.

3.2. Electronic Structures

The characteristics of the band structure are relevant to the thermoelectric transport properties. To gain insight into the band structures tuned by uniaxial tensile strain, the band structures of BiCuOSe and BiCuOS with and without strain are plotted along several high symmetry points in the Brillion zone in Figure 2. The calculation results indicate that both the conduction band minimum and the valence band maximum are located at the Z point, meaning that BiCuOSe has a direct band gap. BiCuOS shows an indirect band gap, whose conduction band minimum is located at the Z point, but whose valence band maximum is located between the M point and Γ point. Of particular interest to us is n-type BiCuOCh, whose thermoelectric transport properties rely on conduction bands of band structures, allowing us to focus on the changes in conduction bands under uniaxial tensile strain. In Figure 2a, as the uniaxial tensile strain is increasing, the conduction band near Fermi level of BiCuOSe becomes flatter from Γ to Z direction, and the energy at M point is significantly decreased. It has been reported that variations in the conduction band may affect the transport properties of n-type BiCuOSe [38]. The changes in band structure of BiCuOS under tensile strain are similar to those of BiCuOSe under tensile strain. Note that the energy variations of conduction band at M point and Z point under strain have significant differences. The energy decreases more obviously at M point, whereas the energy increases mildly at Z point. Considering thermoelectric transport properties closely related to band structures, those changes in the conduction band near the Fermi level may influence the thermoelectric properties of n-type BiCuOSe and BiCuOS.
In Figure 3, the density of states (DOS) of both BiCuOSe and BiCuOS under different uniaxial tensile strains are plotted, and it is observed that the DOS curves in conduction bands close to the Fermi level have steeper slopes when uniaxial tensile strain increases, which is consistent with the energy variations around conduction band minimum. Larger slope of DOS near Fermi level is beneficial for promoting Seebeck coefficient [16], suggesting that the Seebeck coefficients of BiCuSeO and BiCuOS may be enhanced under uniaxial tensile strain.
To examine the impact of uniaxial tensile strain on the DOS in detail, the projected density of states (PDOS) are calculated in Figure 4 to show the density of states in different orbitals for each atom. In both BiCuOSe and BiCuOS, Figure 4a,d indicates that the p orbital of Bi atoms contributes to the major part of the DOS around the conduction band minimums near Fermi level, whereas the contributions of O atoms, Se atoms, and Cu atoms are relatively small. In Figure 4b, when BiCuOSe is imposed by uniaxial tensile strain, PDOS of each atom is shifted to lower energy, where a dashed line at 1.2 eV is marked as a guide for distinguishing the shifts. For the case of BiCuOS, PDOS is also shifted to lower energy with the increase in the uniaxial tensile strain.
To further illustrate the influences of uniaxial tensile strain on the electrical conductivity of n-type BiCuOCh, the partial charge density near Fermi level of BiCuOSe and BiCuOS under different strain states are calculated and shown in Figure 5. The partial charge density distribution is usually used to explore the nature of electrical conductivity as reported in the references [39,40]. As the electronic transport properties of n-type BiCuOCh are determined by the conduction bands near Fermi level, only the distributions of charge of Bi atoms and O atoms of conduction bands near Fermi level (0 to 2 eV) are shown. From the partial charge density without strain in Figure 5a, we can see the obvious antibonding characteristics between Bi and Bi atoms due to the lack of charge density between them, which determines the electrical conductivity of n-type BiCuOCh, consistent with previous reports [16]. As the strain increases from 0 to 6%, as shown in Figure 5a–c, the charge densities around the Bi atoms slightly increases, suggesting that the antibonding of Bi–Bi becomes weakened slightly under strain, which can lead to a slight decreasing trend in electrical conductivity of n-type BiCuOSe under increasing uniaxial tensile strain. The trends of changes in partial charge density in n-type BiCuOS under strains are shown in Figure 5d–f. The scenarios for BiCuOS are similar and we will not discuss them in detail.

3.3. Thermoelectric Properties

Thermoelectric properties are correlated with electronic structures. After examining the effects of uniaxial tensile strain on the electronic structures of BiCuOCh, we further investigate the effects of uniaxial tensile strain on the thermoelectric properties, which are estimated by solving the Boltzmann transport equation. Notice that the relaxation time τ cannot be determined via the Boltzmann theory. Similar to previous work [32], the electrical conductivity derived with respect to the relaxation time is obtained under the assumption of constant relaxation time. The thermoelectric properties of n-type BiCuOSe and BiCuOS as a function of electron concentration under different uniaxial tensile strains are shown in Figure 6, where the temperature is chosen at 800 K as BiCuOSe and BiCuOS belong to medium temperature thermoelectric materials [17,37].
For the unstrained state, both n-type BiCuOSe and BiCuOS have negative Seebeck coefficients, and the absolute values of the Seebeck coefficients decrease with the increase in electron concentration (Figure 6a,d), whereas the electrical conductivities increase (Figure 6b,e), as expected. Opposite trends in the variations of Seebeck coefficients and electrical conductivities with respect to electron concentration result in a peak with maximum value in power factor, as shown in Figure 6c,f. Comparing with n-type BiCuOS, n-type BiCuOSe possesses a lower Seebeck coefficient but a higher electrical conductivity. It is well known that the electronic conductivity of n-type thermoelectric materials is mainly dominated by the conduction band near Fermi level. Combining with the DOS curves in the conduction bands close to Fermi level shown in Figure 3, the slope of DOS curves of BiCuOS is steeper than that of BiCuOSe, suggesting that n-type BiCuOS has higher Seebeck coefficient than n-type BiCuOSe, whereas the trend in electrical conductivity is just opposite [39].
In Figure 6a,d, when uniaxial tensile strain is applied to n-type BiCuOSe and BiCuOS, an obvious enhancement of Seebeck coefficient can be observed over a wide range of concentration, except possibly at high concentration. Quite encouragingly, the decrease of electrical conductivity is negligible, as shown Figure 6b,e. Thus, uniaxial tensile strain can be utilized to promote Seebeck coefficient while almost maintaining electrical conductivity, which significantly enhances the power factors of n-type BiCuOSe and BiCuOS, as evidenced in Figure 6c,f. To understand the enhancement of Seebeck coefficient under strain, we resort to changes of electronic structures under uniaxial tensile strain. According to the results of Figure 2 described above, the conduction band near Fermi level of BiCuOCh becomes flatter along the Γ to Z direction under strain, suggesting that the effective mass of electron increases when strain is imposed. It is noticed that Seebeck coefficient is correlated to the effective mass according to S = 8 π 2 k B 2 3 e h 2 m ∗ T ( π 3 n ) 2 / 3 [4], where m* is the carrier effective mass, and kB, e, h, and n are the Boltzmann constant, charge per electron, the Planck constant, and carrier concentration, respectively, suggesting that large effective mass results in high Seebeck coefficient. Thus, an increase in effective mass of electron under uniaxial tensile strain induces an enhancement in Seebeck coefficient. It is also noticed that the slope of DOS near Fermi level becomes steeper under uniaxial tensile strain (Figure 3), which is beneficial for increasing Seebeck coefficient [16], again implying that uniaxial tensile strain can enhance the Seebeck coefficients of n-type BiCuOSe and BiCuOS.
To exhibit the effects of uniaxial tensile strain on the thermoelectric properties more clearly, the power factors of n-type BiCuOSe and BiCuOS as functions of uniaxial tensile strain at fixed electron concentration are shown in Figure 7. It is seen that the power factor increases rapidly when the uniaxial tensile strain increases initially, before it reaches a plateau after a uniaxial tensile strain of approximately 5% for both n-type BiCuOSe and BiCuOS. Comparing with the unstrained counterpart, the power factor of n-type BiCuOSe is enhanced by 54% at a uniaxial tensile strain of 6%, whereas an enhancement of 74% is reached for the n-type BiCuOS under a uniaxial tensile strain of 6%. Furthermore, according to the curve of power factor plotted in Figure 6c,e, the optimal electron concentration, located where the power factor shows a peak value, can be determined for each uniaxial tensile strain, as shown in Figure 8. It can be seen that the n-type BiCuOS has a higher power factor than that of the n-type BiCuOSe, as the n-type BiCuOS possesses a higher Seebeck coefficient (Figure 6a,d). In Figure 8, it can be observed that the power factors of both n-type BiCuOSe and BiCuOS can be enhanced by uniaxial tensile strain, however they have different optimal electron concentrations, suggesting that uniaxial tensile strain is an alternative pathway to induce superior thermoelectric properties.

4. Conclusions

In summary, the electronic structures of BiCuOCh under uniaxial tensile strain have been investigated based on first-principles calculations, and the strain-dependent thermoelectric properties of n-type BiCuOCh were then estimated by semiclassical Boltzmann transport theory. The electrical transport property results show that the Seebeck coefficient can be increased under uniaxial tensile strain, while the decrease of electrical conductivity is negligible. The calculations of electronic structures indicate that the conduction band near Fermi level becomes flatter along Γ to Z direction under strain, leading to an increase in the slope of the total density of states and the effective mass of electron, resulting in the enhancement of Seebeck coefficient. Comparing with its unstrained counterpart, the power factor is improved by 54% for n-type BiCuOSe and 74% for n-type BiCuOS under a strain of 6% at 800 K with electron concentration 3 × 1020 cm−3. The optimal carrier concentrations at different strains have been also determined. These insights offer an alternative strategy for enhancing the thermoelectric properties of n-type BiCuOCh.

Author Contributions

Conceptualization, D.Z. and Y.L.; methodology, D.Z.; investigation, C.Z., C.L., D.Z., and Y.L.; data curation, C.Z.; writing—original draft preparation, C.Z.; writing—review and editing, C.L., D.Z., and Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (11772286, 11572276, 51772254, and 11627801), the National Key Research and Development Program of China (2016YFA0201001), the Huxiang Young Talents Plan Project of Hunan Province (2019RS2037), the Scientific Research Fund of Hunan Provincial Education Department (16A202, 18A205), and the Hunan Provincial Natural Science Foundation of China (2018JJ2111). Chihou Lei is grateful for the start-up funding supported jointly from the Office of Provost and the Dean of Parks College of Engineering, Aviation and Technology at Saint Louis University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bhattacharyya, S.; Pandey, T.; Singh, A.K. Effect of strain on electronic and thermoelectric properties of few layers to bulk MoS2. Nanotechnology 2014, 25, 465701. [Google Scholar] [CrossRef] [Green Version]
  2. Botton, G.A.; Savrasov, S.Y.; Humphreys, C.J.; Sutton, A.P.; Dudarev, S.L. Electron-energy-loss spectra and the structural stability of nickel oxide: An LSDA+U study. Phys. Rev. B 1998, 57, 1505–1509. [Google Scholar]
  3. Chen, X.; Cui, T.; Niu, Y.L.; Wang, Y.C.; Wang, M.; Ma, Y.M.; Zou, G.T.; Wang, Y. Enhanced thermoelectric performance of PbTe within the orthorhombic Pnma phase. Phys. Rev. B 2007, 76, 155127. [Google Scholar]
  4. Côté, M.; Pesant, S. DFT +U study of magnetic order in doped La2CuO4 crystals. Phys. Rev. B 2011, 84, 085104. [Google Scholar]
  5. Ding, J.X.; Xu, B.; Lin, Y.H.; Nan, C.W.; Liu, W. Lattice vibration modes of the layered material BiCuSeO and first principles study of its thermoelectric properties. New J. Phys. 2015, 17, 83012. [Google Scholar] [CrossRef]
  6. Dong, X.; Yu, H.L.; Li, W.; Pei, Y.Z.; Chen, Y. First-principles study on band structures and electrical transports of doped-SnTe. J. Mater. 2016, 2, 158–164. [Google Scholar] [CrossRef] [Green Version]
  7. Guo, S.D. Biaxial strain tuned thermoelectric properties in monolayer PtSe2. J. Mater. Chem. C 2016, 4, 9366–9374. [Google Scholar] [CrossRef]
  8. He, J.; Tritt, T.M. Advances in thermoelectric materials research: Looking back and moving forward. Science 2017, 357, eaak9997. [Google Scholar] [CrossRef] [Green Version]
  9. Shao, H.; Tan, X.; Liu, G.; Jiang, J.; Jiang, H. A first-principles study on the phonon transport in layered BiCuOSe. Sci. Rep. 2016, 6, 21035. [Google Scholar] [CrossRef] [Green Version]
  10. Togo, A.; Kaviany, M.; Tanaka, I.; Shim, J.H.; Ji, H.S. Low phonon conductivity of layered BiCuOS, BiCuOSe, and BiCuOTe from first principles. Phys. Rev. B 2016, 94, 115203. [Google Scholar]
  11. Hiramatsu, H.; Yanagi, H.; Kamiya, T.; Ueda, K.; Hirano, M.; Hosono, H. Crystal structures, optoelectronic properties, and electronic structures of layered oxychalcogenides MCuOCh (M = Bi, La; Ch = S, Se, Te): Effects of electronic configurations of M 3+ ions. Chem. Mater. 2008, 20, 326–334. [Google Scholar] [CrossRef]
  12. Hu, Z.P.; Li, B.; Sun, X.Y.; Metiu, H. Chemistry of doped oxides: The activation of surface oxygen and the chemical compensation effect. J. Phys. Chem. C 2011, 115, 3065–3074. [Google Scholar] [CrossRef]
  13. Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169. [Google Scholar] [CrossRef] [PubMed]
  14. Lan, J.L.; Liu, Y.C.; Zhan, B.; Lin, Y.H.; Zhang, B.P.; Yuan, X.; Zhang, W.Q.; Xu, W.; Nan, C.W. Enhanced thermoelectric properties of Pb-doped BiCuSeO ceramics. Adv. Mater. 2013, 25, 5086–5090. [Google Scholar] [CrossRef] [PubMed]
  15. Lan, Y.S.; Lu, Q.; Hu, C.; Chen, X.R.; Chen, Q.F. Strain-modulated mechanical, electronic, and thermal transport properties of two-dimensional PdS2 from first-principles investigations. Appl. Phys. A 2018, 125, 33. [Google Scholar] [CrossRef]
  16. Li, F.; Li, J.F.; Zhao, L.D.; Xiang, K.; Liu, Y.; Zhang, B.P.; Lin, Y.H.; Nan, C.W.; Zhu, H.M. Polycrystalline BiCuSeO oxide as a potential thermoelectric material. Energy Environ. Sci. 2012, 5, 7188–7195. [Google Scholar] [CrossRef]
  17. Li, J.; Ma, Z.J.; Wu, K.C. Thermoelectric enhancement in sliver tantalate via strain-induced band modification and chemical bond softening. RSC Adv. 2017, 7, 846–8466. [Google Scholar] [CrossRef] [Green Version]
  18. Li, J.; Sui, J.H.; Pei, Y.L.; Barreteau, C.; Berardan, D.; Dragoe, N.; Cai, W.; He, J.Q.; Zhao, L.D. A high thermoelectric figure of merit ZT > 1 in Ba heavily doped BiCuSeO oxyselenides. Energy Environ. Sci. 2012, 5, 8543. [Google Scholar] [CrossRef]
  19. Li, J.; Sui, J.H.; Pei, Y.L.; Meng, X.F.; Berardan, D.; Dragoe, N.; Cai, W.; Zhao, L.D. The roles of Na doping in BiCuSeO oxyselenides as a thermoelectric material. J. Mater. Chem. A 2014, 2, 4903–4906. [Google Scholar] [CrossRef]
  20. Liu, Y.Y.; Chen, L.Q.; Li, J.Y. Precipitate morphologies of pseudobinary Sb2Te3-PbTe thermoelectric compounds. Acta Mater. 2014, 65, 308–315. [Google Scholar] [CrossRef]
  21. Madsen, G.K.H.; Singh, D.J. BoltzTraP. A code for calculating band-structure dependent quantities. Comput. Phys. Commun. 2006, 175, 67–71. [Google Scholar] [CrossRef] [Green Version]
  22. Mazin, I.I.; Singh, D.J. Calculated thermoelectric properties of La-filled skutterudites. Phys. Rev. B 1997, 56, R1650–R1653. [Google Scholar]
  23. Pei, Y.Z.; Wang, H.; Snyder, G.J. Band engineering of thermoelectric materials. Adv. Mater. 2012, 24, 6125–6135. [Google Scholar] [CrossRef] [PubMed]
  24. Rosa, A.L.; Ahuja, R.; Huang, L.M. Ferromagnetism in Cu-doped ZnO from first-principles theory. Phys. Rev. B 2006, 74, 075206. [Google Scholar]
  25. Su, N.; Guo, S.; Li, F.; Liu, D.W.; Li, B. Electrodeposition of p-type Sb2Te3 films and micro-pillar arrays in a multi-channel glass template. Materials 2018, 11, 1194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Tan, R.; Zou, C.P.; Pan, K.; Zou, D.F.; Liu, Y.Y. Enhancing thermoelectric properties of BiCuSeO via uniaxial compressive strain: First-principles calculations. J. Alloy. Compd. 2018, 743, 610–617. [Google Scholar] [CrossRef]
  27. Tanusilp, S.; Kurosaki, K. Si-based materials for thermoelectric applications. Materials 2019, 12, 1943. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Wu, H.; Huang, H.; Zhong, J.; Yu, S.; Zhang, Q.B.; Zeng, X.C. Monolayer triphosphates MP3 (M = Sn, Ge) with excellent basal catalytic activity for hydrogen evolution reaction. Nanoscale 2019, 11, 12210–12219. [Google Scholar] [CrossRef] [Green Version]
  29. Wu, H.H.; Meng, Q.Q.; Huang, H.; Liu, C.T.; Wang, X.L. Tuning the indirect–direct band gap transition in the MoS2-xSex armchair nanotube by diameter modulation. Phys. Chem. Chem. Phys. 2018, 20, 3608–3613. [Google Scholar] [CrossRef]
  30. Xie, G.F.; Ju, Z.F.; Zhou, K.K.; Wei, X.L.; Guo, Z.X.; Cai, Y.Q.; Zhang, G. Ultra-low thermal conductivity of two-dimensional phononic crystals in the incoherent regime. Npj Comput. Mater. 2018, 4, 21. [Google Scholar] [CrossRef] [Green Version]
  31. Yang, H.; Wang, H.Y.; Yoon, J.; Wang, Y.Q.; Jain, M.; Feldmann, D.M.; Dowden, P.C.; MacManus-Driscoll, J.L.; Jia, Q. Vertical interface effect on the physical properties of self-assembled nanocomposite epitaxial films. Adv. Mater. 2009, 21, 3794–3798. [Google Scholar] [CrossRef]
  32. Yang, J.M.; Yang, G.; Zhang, G.B.; Wang, Y.X. Low effective mass leading to an improved ZT value by 32% for n-type BiCuSeO: A first-principles study. J. Mater. Chem. A 2014, 2, 13923. [Google Scholar] [CrossRef]
  33. Yavorsky, B.Y.; Mertig, I.; Zahn, P.; Hinsche, N.F. Influence of strain on anisotropic thermoelectric transport in Bi2Te3 and Sb2Te3. Phys. Rev. B 2011, 84, 165214. [Google Scholar]
  34. Zavjalov, A.; Tikhonov, S.; Kosyanov, D. TiO2-SrTiO3 biphase nanoceramics as advanced thermoelectric materials. Materials 2019, 12, 5895. [Google Scholar] [CrossRef] [Green Version]
  35. Zhang, R.Z.; Hu, X.Y.; Guo, P.; Wang, C.L. Thermoelectric transport coefficients of n-doped CaTiO3, SrTiO3 and BaTiO3: A theoretical study. Phys. B 2012, 407, 1114–1118. [Google Scholar] [CrossRef]
  36. Zhang, X.; Zhao, L.D. Thermoelectric materials: Energy conversion between heat and electricity. J. Mater. 2015, 1, 92–105. [Google Scholar] [CrossRef] [Green Version]
  37. Zhao, L.D.; Berardan, D.; Pei, Y.L.; Byl, C.; Pinsard-Gaudart, L.; Dragoe, N. Bi1-xSrxCuSeO oxyselenides as promising thermoelectric materials. Appl. Phys. Lett. 2010, 97, 092118. [Google Scholar] [CrossRef]
  38. Zou, D.F.; Liu, Y.Y.; Xie, S.H.; Lin, J.G.; Zheng, H.R.; Li, J.Y. High pressure effect on the electronic structure and thermoelectric properties of BiCuSeO: First-principles calculations. RSC Adv. 2014, 4, 54819–54825. [Google Scholar] [CrossRef]
  39. Zou, D.F.; Xie, S.H.; Liu, Y.Y.; Lin, J.G.; Li, J.Y. Electronic structures and thermoelectric properties of layered BiCuOCh oxychalcogenides (Ch = S, Se and Te): First-principles calculations. J. Mater. Chem. A 2013, 1, 8888–8896. [Google Scholar] [CrossRef]
  40. Zhang, Y.B.; Shi, X.Y.; Yang, J.; Shi, X.; Chen, L.D.; Zhang, W.; Yang, J.; Singh, D.J.; Xi, L. Chemical bonding, conductive network, and thermoelectric performance of the ternary semiconductors Cu2SnX3 (X = Se, S) from first principles. Phys. Rev. B 2012, 86, 155201. [Google Scholar]
Materials 13 01755 g001 550

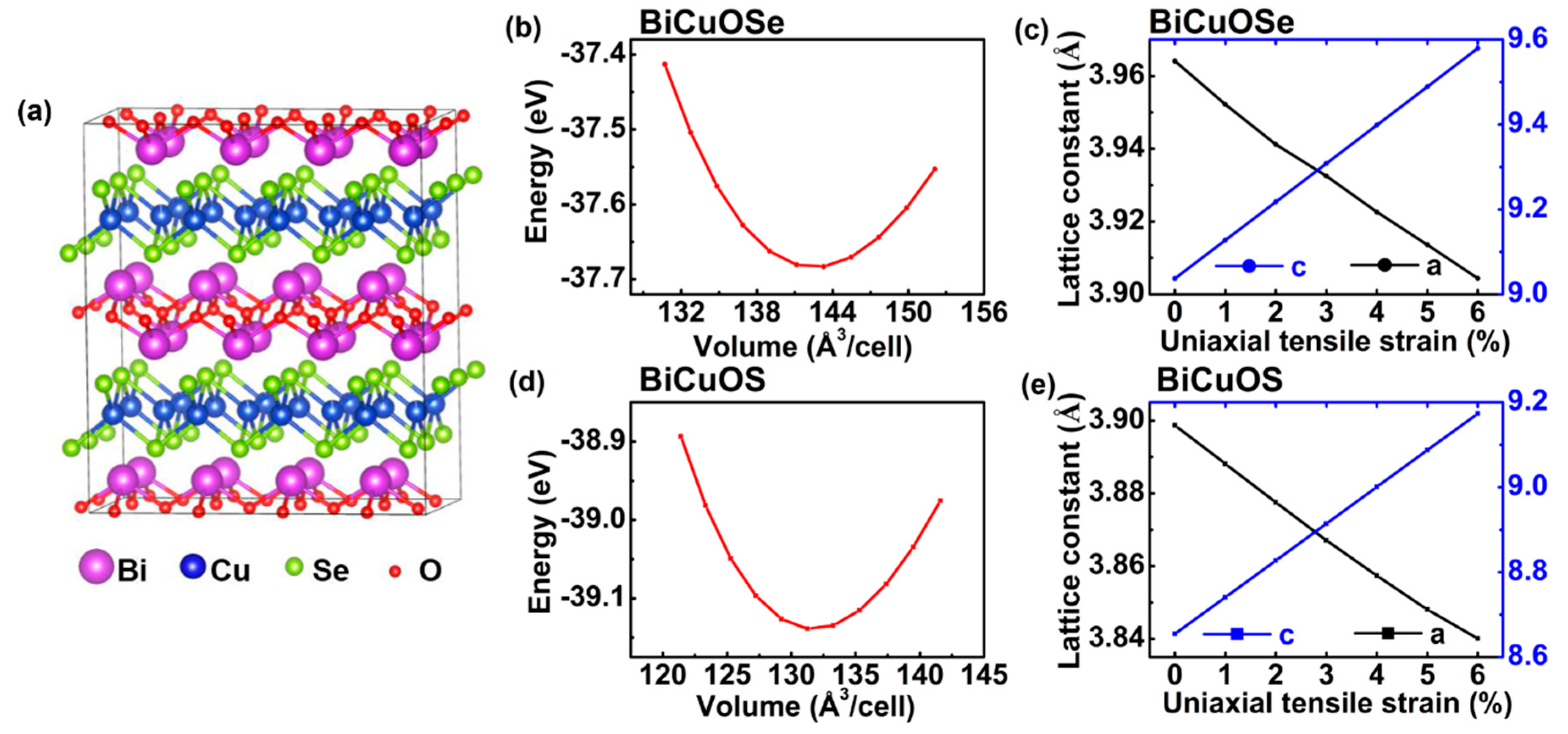

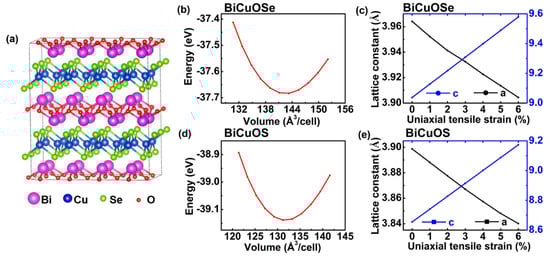

Figure 1. (a) Crystal structure of BiCuOSe. Variation of energy with respect to volume during optimizing structures of unstrained (b) BiCuOSe and (d) BiCuOS. The optimized lattice constants of (c) BiCuOSe and (e) BiCuOS as function of uniaxial tensile strain.
Figure 1. (a) Crystal structure of BiCuOSe. Variation of energy with respect to volume during optimizing structures of unstrained (b) BiCuOSe and (d) BiCuOS. The optimized lattice constants of (c) BiCuOSe and (e) BiCuOS as function of uniaxial tensile strain.
Materials 13 01755 g001
Materials 13 01755 g002 550

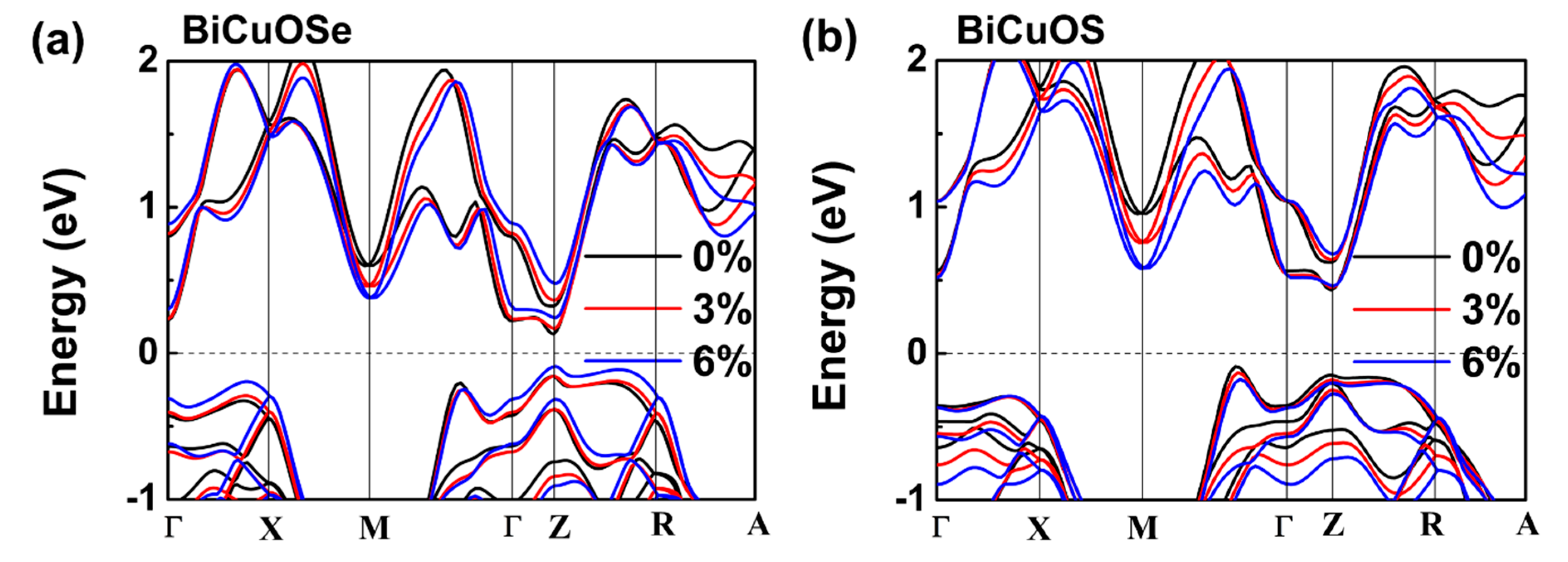

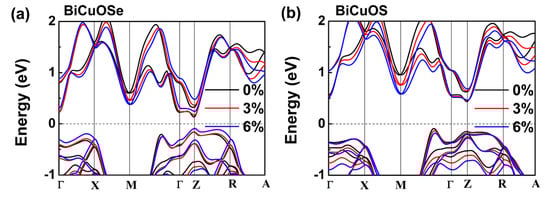

Figure 2. Band structures of (a) BiCuOSe and (b) BiCuOS at different uniaxial tensile strains.
Figure 2. Band structures of (a) BiCuOSe and (b) BiCuOS at different uniaxial tensile strains.
Materials 13 01755 g002
Materials 13 01755 g003 550

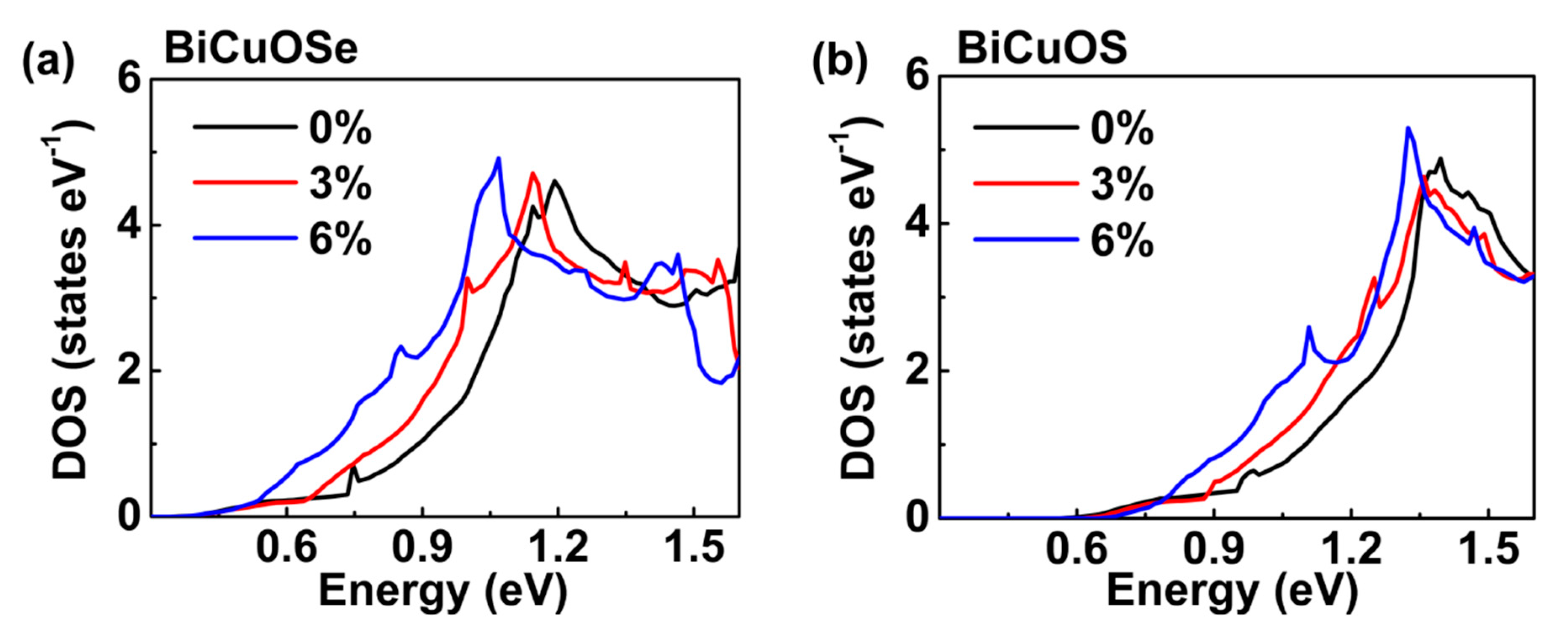

Figure 3. Total density of states (DOS) of (a) BiCuOSe and (b) BiCuOS under different uniaxial tensile strains.
Figure 3. Total density of states (DOS) of (a) BiCuOSe and (b) BiCuOS under different uniaxial tensile strains.
Materials 13 01755 g003
Materials 13 01755 g004 550

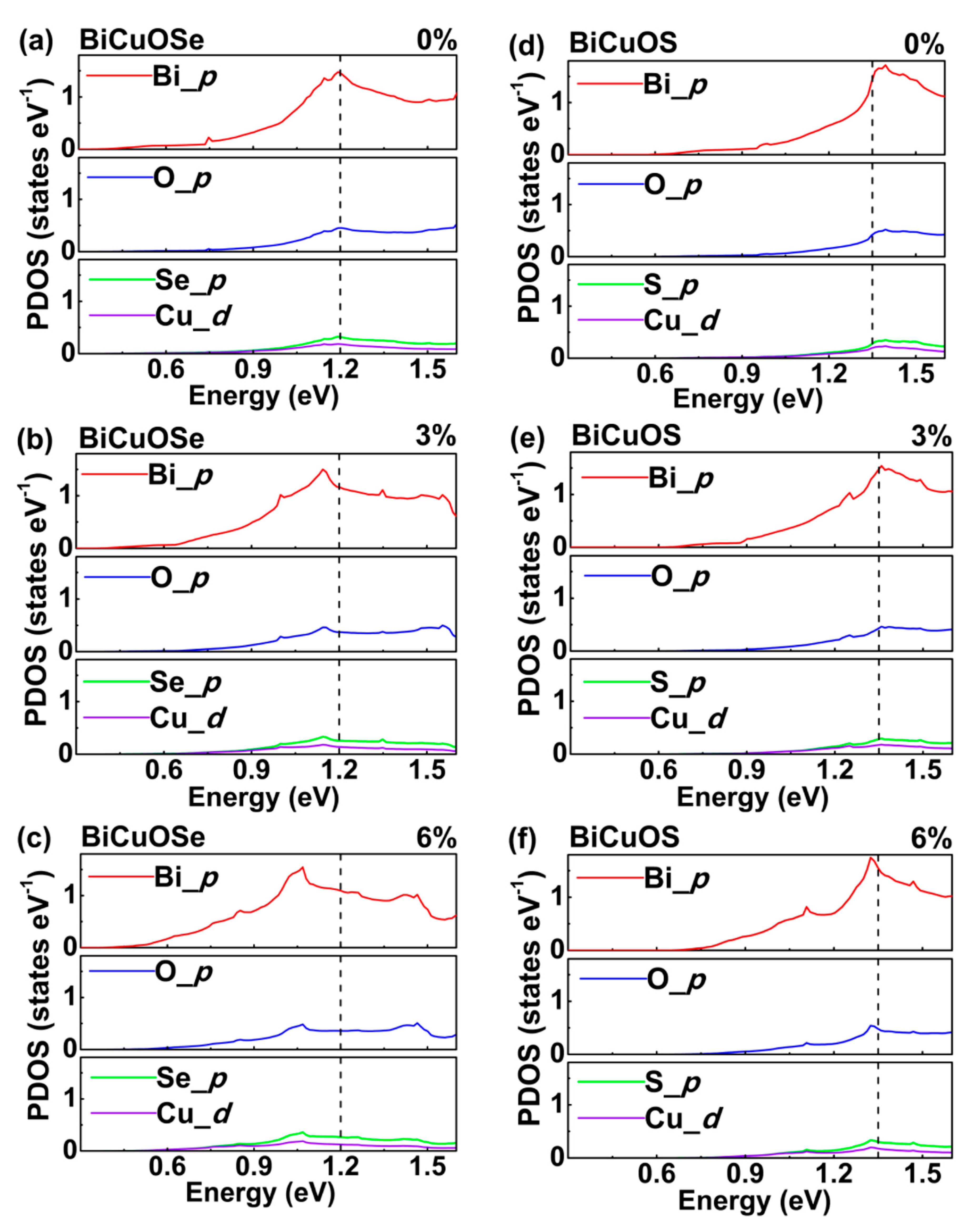

Figure 4. Projected density of states (PDOS) of (a–c) BiCuOSe and (d–f) BiCuOS subjected to different uniaxial tensile strains: (a,d) 0%, (b,e) 3%, and (c,f) 6%. The dash lines located at 1.2 eV for BiCuOSe and 1.35 eV for BiCuOS marked as guides for distinguishing the shifts of PDOS.
Figure 4. Projected density of states (PDOS) of (a–c) BiCuOSe and (d–f) BiCuOS subjected to different uniaxial tensile strains: (a,d) 0%, (b,e) 3%, and (c,f) 6%. The dash lines located at 1.2 eV for BiCuOSe and 1.35 eV for BiCuOS marked as guides for distinguishing the shifts of PDOS.
Materials 13 01755 g004
Materials 13 01755 g005 550

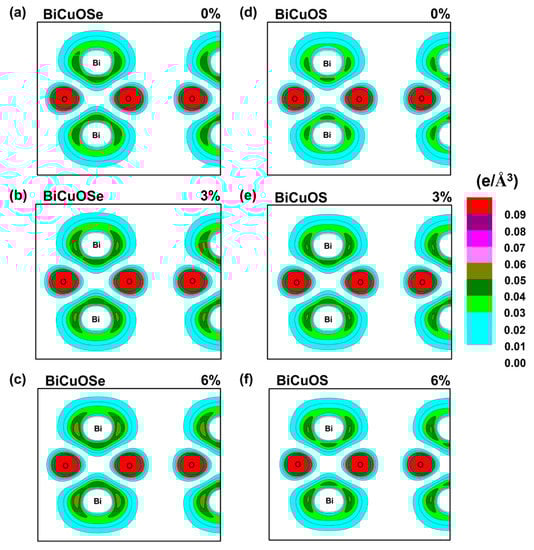

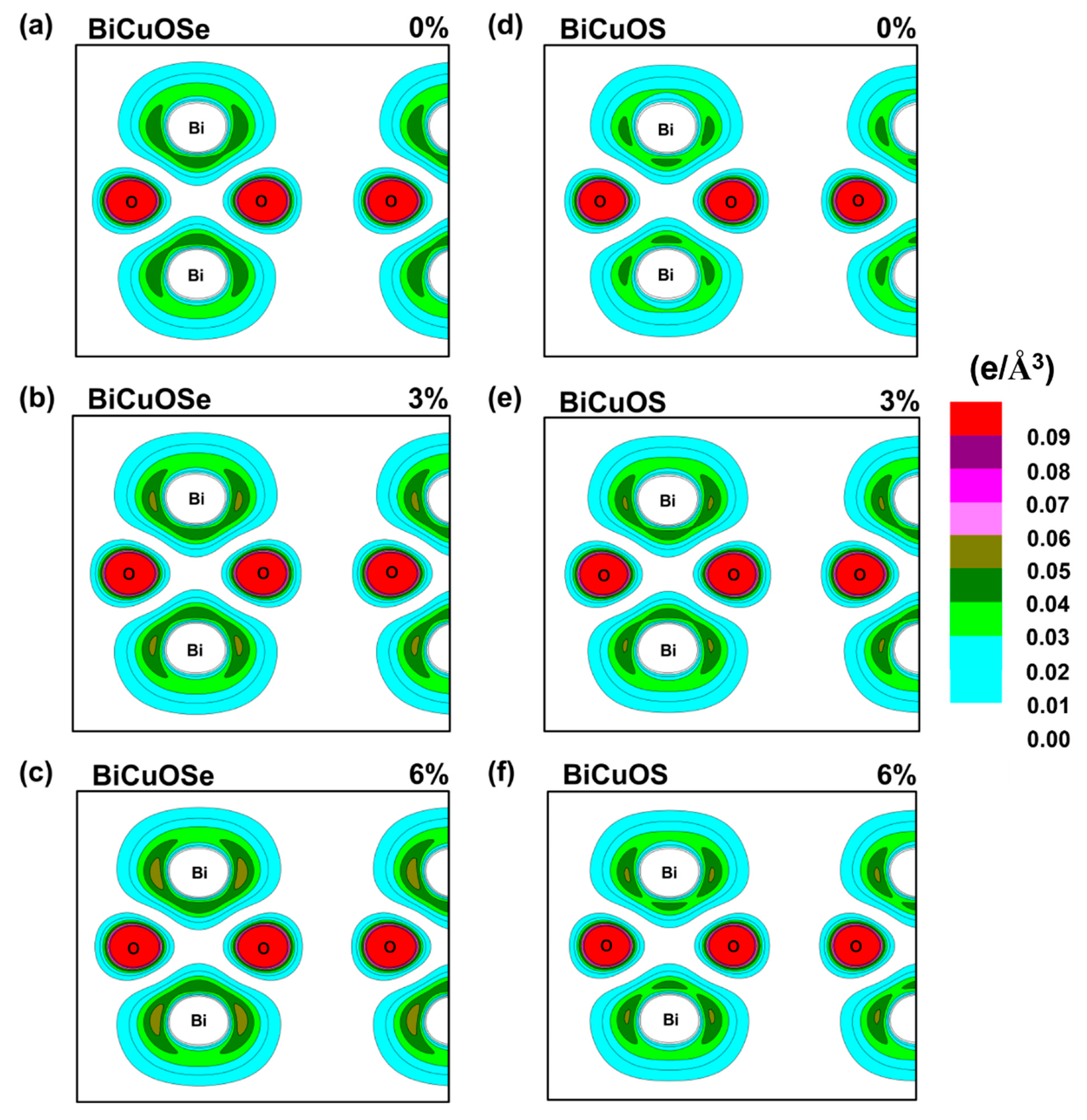

Figure 5. Contour plots of partial charge density of the conduction bands near Fermi level (0–2 eV) on the Bi-O-Bi plane subjected to different strains. (a–c) BiCuOSe and (d–f) BiCuOS. (a,d) 0%, (b,e) 3%, and (c,f) 6%.
Figure 5. Contour plots of partial charge density of the conduction bands near Fermi level (0–2 eV) on the Bi-O-Bi plane subjected to different strains. (a–c) BiCuOSe and (d–f) BiCuOS. (a,d) 0%, (b,e) 3%, and (c,f) 6%.
Materials 13 01755 g005
Materials 13 01755 g006 550

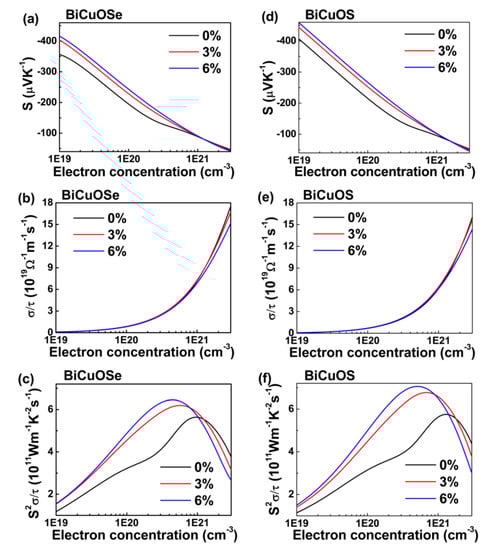

Figure 6. Thermoelectric properties of n-type (a–c) BiCuOSe and (d–f) BiCuOS as a function of electron concentration subject to different uniaxial tensile strains at 800 K. (a,d) Seebeck coefficient S, (b,e) electrical conductivity with respect to relaxation time σ/τ, and (c,f) power factors with respect to relaxation time S2σ/τ.
Figure 6. Thermoelectric properties of n-type (a–c) BiCuOSe and (d–f) BiCuOS as a function of electron concentration subject to different uniaxial tensile strains at 800 K. (a,d) Seebeck coefficient S, (b,e) electrical conductivity with respect to relaxation time σ/τ, and (c,f) power factors with respect to relaxation time S2σ/τ.
Materials 13 01755 g006
Materials 13 01755 g007 550

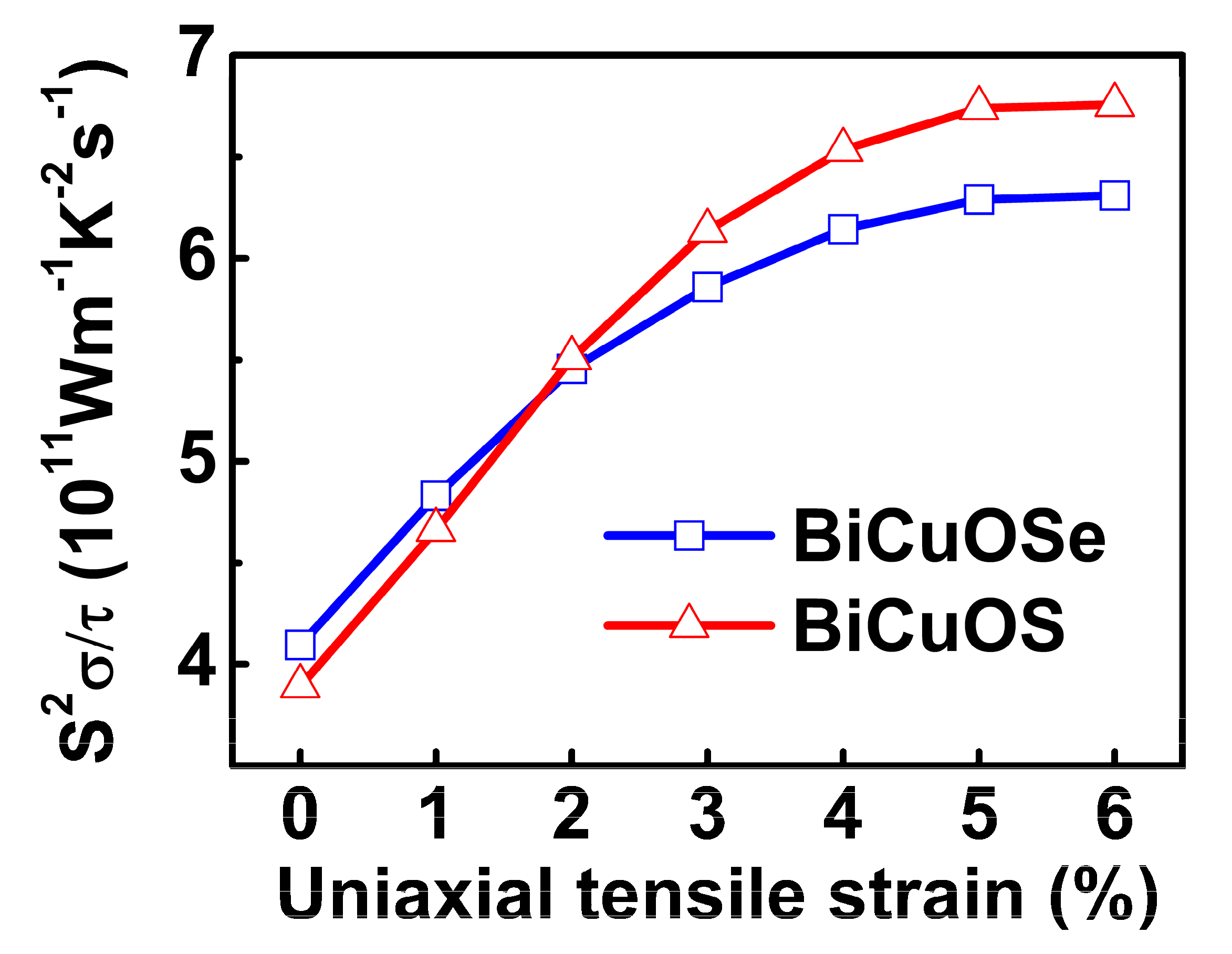

Figure 7. Power factors with respect to relaxation time S2σ/τ of n-type BiCuOSe and BiCuOS as a function of uniaxial tensile strain at 800 K with electron concentration being 3 × 1020 cm−3.
Figure 7. Power factors with respect to relaxation time S2σ/τ of n-type BiCuOSe and BiCuOS as a function of uniaxial tensile strain at 800 K with electron concentration being 3 × 1020 cm−3.
Materials 13 01755 g007
Materials 13 01755 g008 550

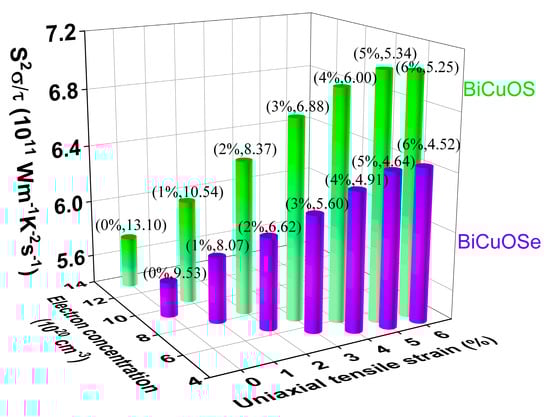

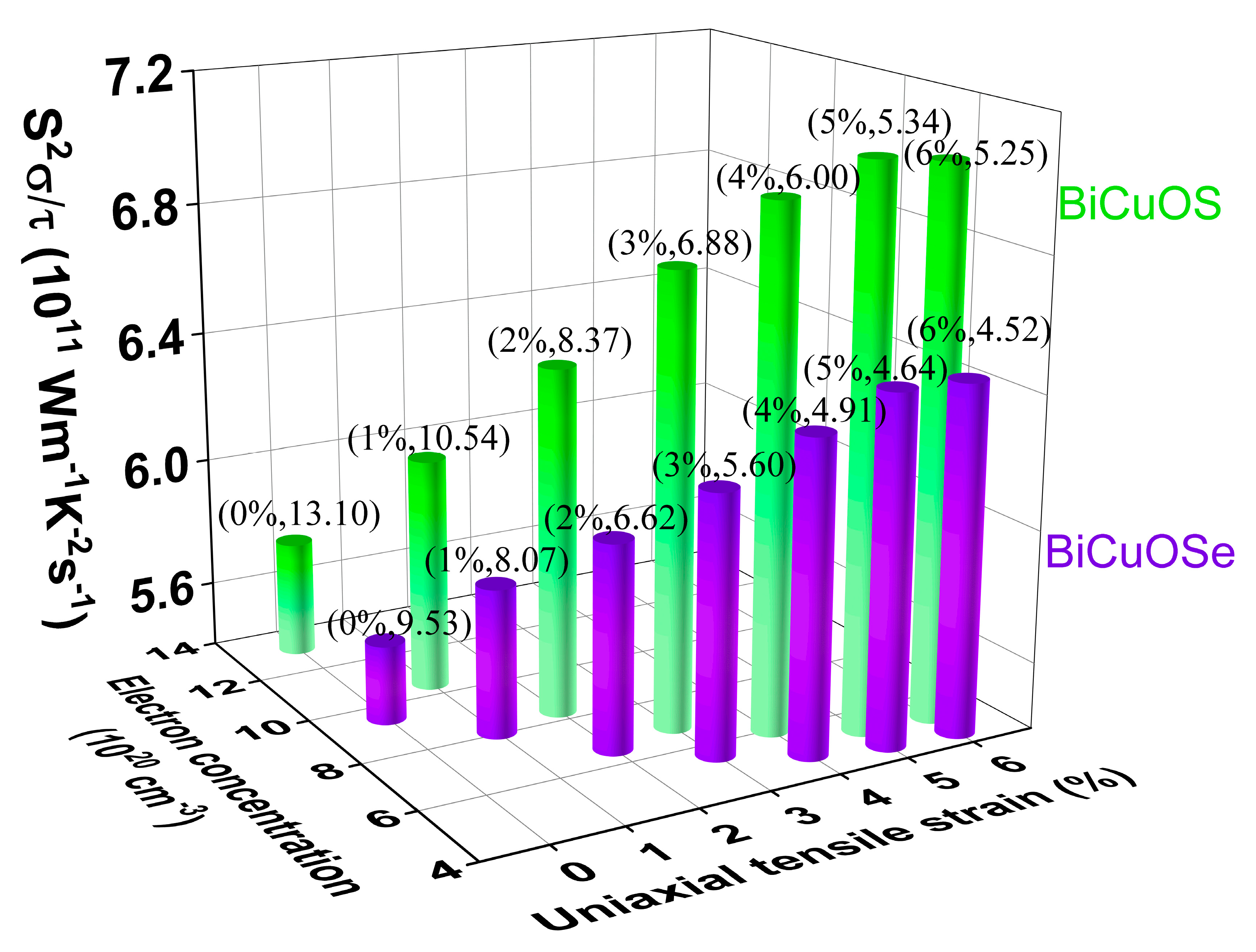

Figure 8. Power factors of n-type BiCuOSe and BiCuOS versus the optimal electron concentration for different uniaxial tensile strains at 800 K. Note that the data of (strain, optimal electron concentration) are marked on the pillars.
Figure 8. Power factors of n-type BiCuOSe and BiCuOS versus the optimal electron concentration for different uniaxial tensile strains at 800 K. Note that the data of (strain, optimal electron concentration) are marked on the pillars.
Materials 13 01755 g008
Table
Table 1. Comparison of lattice constants of unstrained BiCuOCh (Ch = Se, S) between calculations and experiments.
Table 1. Comparison of lattice constants of unstrained BiCuOCh (Ch = Se, S) between calculations and experiments.
Our WorkExperiment [37]
BiCuOSea (Å)
c (Å)		3.9641
9.0371		3.9287
8.9291
BiCuOSa (Å)
c (Å)		3.8987
8.6546		3.8691
8.5602
