Article

Corrosion Resistance of Heat-Treated Ni-W Alloy Coatings

by
Magdalena Popczyk
1,
Julian Kubisztal
1,
Andrzej Szymon Swinarew
1,2,
Zbigniew Waśkiewicz
2,3,
Arkadiusz Stanula
2 and
Beat Knechtle
4,*
1
Faculty of Science and Technology, University of Silesia in Katowice, 41-500 Chorzów, Poland
2
Institute of Sport Science, The Jerzy Kukuczka Academy of Physical Education, 40-065 Katowice, Poland
3
Department of Sports Medicine and Medical Rehabilitation, Sechenov University, 119991 Moscow, Russia
4
Institute of Primary Care, University of Zurich, 8091 Zurich, Switzerland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(5), 1172; https://doi.org/10.3390/ma13051172
Submission received: 30 January 2020 / Revised: 2 March 2020 / Accepted: 3 March 2020 / Published: 6 March 2020
(This article belongs to the Special Issue Corrosion and Protection of Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
The paper presents research on evaluation of corrosion resistance of Ni-W alloy coatings subjected to heat treatment. The corrosion resistance was tested in 5% NaCl solution by the use of potentiodynamic polarization technique and electrochemical impedance spectroscopy. Characteristics of the Ni-W coatings after heat treatment were carried out using scanning electron microscopy, scanning Kelvin probe technique and X-ray diffraction. Suggested reasons for the improvement of properties of the heat treated Ni-W coating, obtained at the lowest current density value (125 mA∙cm−2), are the highest tungsten content (c.a. 25 at.%) as well as the smallest and the most homogeneous electrochemically active surface area.

1. Introduction

The electroplating technique is increasingly used to obtain new materials with specific functional properties. This is due to the fact that by controlling the deposition parameters, i.e. voltage, current, bath composition, temperature, it is possible to influence the structure of the obtained material, and hence its properties. The advantage of this method is the possibility of simultaneously co-depositing several metals as well as incorporation powders of metals, non-metals or chemical compounds into the coating [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44]. Thus, the electroplating technique allows obtaining alloy and composite coatings (amorphous or crystalline) with a specific chemical and phase composition, as well as modelled surface morphology. Many metals are currently used as electrode materials in various electrochemical processes. Among them are the metals from the group of irons, especially nickel, which is characterized by good corrosion resistance and high catalytic activity in the process of hydrogen evolution. In order to improve the utilization of nickel coatings, various methods of their modifications could be applied, such as the use of alloys instead of pure elements. The interest in electrodeposited nickel - tungsten alloys is due to their specific magnetic, electrical, mechanical, thermal and corrosion properties [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,44]. These alloy coatings are widely used in the elements of machines operating under high mechanical load, at high temperatures, as well as in aggressive environments. Ni-W coatings are also used as electrode materials for hydrogen evolution reaction (HER) [2,19,40]. It should be noted that nickel - tungsten alloys can only be obtained from aqueous solutions through an induced code position, that is, tungsten is code posited with nickel. Sulphate, sulfamine and citrate baths with the addition of sodium tungstate are usually used [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,44].
Generally, heat treatment of electrolytic coatings should increase their corrosion resistance what was confirmed in earlier studies e.q. in [10,13,15,17,41]. The formation of new phases and the reduction of the active surface after heat treatment are the main reasons for improving the corrosion resistance of these materials. Thus, we expect that heat treatment of investigated Ni-W alloy coatings can also significantly slow down corrosion processes occurring on its surface.
According to our knowledge there is lack of information about corrosion resistance of Ni-W coatings subjected to heat treatment in the air. Thus, the aim of this work is to study corrosion properties of heat-treated Ni-W coatings in 5% NaCl solution especially with respect to surface morphology, chemical and phase composition. The Ni-W coatings were deposited under galvanostatic conditions at the following cathodic current densities: 125, 150, 175 and 200 mA∙cm−2. The heat treatment of all coatings was carried out at a temperature of 1173 K. Therefore, the coatings discussed in the article were marked as follows: C125/1173, C150/1173, C175/1173 and C200/1173.

2. Materials and Methods

The Ni-W alloy coatings were obtained by electroplating from the electrolyte of the following composition (concentrations in g∙dm−3): NiSO4∙7H2O–13, Na2WO4∙2H2O–68, C6H5O7Na3∙2H2O–200 and NH4Cl–50. For preparation of the bath ultrapure water (Millipore, 18.2 MΩ cm) and ‘analytical grade’ reagents (Avantor Performance Materials Poland S.A.) were used. The coatings were deposited galvanostatically at the current densities 125, 150, 175 and 200 mA∙cm−2 and temperature of 343 K. The coatings were deposited on the steel (S235) plate of 1.0 cm2 geometric surface area. A platinum mesh served as an auxiliary electrode. The chemical composition of the as-deposited Ni-W alloy coatings is presented in Table 1.
Heat treatment of Ni-W alloy coatings was carried out in a muffle stove of the type FCF 2.5 SHMgO (Czylok Company, Jastrzębie-Zdrój, Poland) at 1173 K for 1 h in the air.
The surface morphology and chemical composition of the heat-treated coatings was studied using a scanning electron microscope (SEM, JEOL JSM–6480, JEOL Ltd., Tokyo, Japan) equipped with an energy dispersive spectroscopy (EDS) detector (JEOL Ltd., Tokyo, Japan). The phase composition was determined by means of X-ray diffraction method using Philips X’Pert PW 3040/60 X-ray diffractometer (U = 40 kV, I = 30 mA, Panalytical, Almelo, Netherlands) with copper radiation (λ (Cu Kα) = 1.54178 Å). The data collection was over the 2-theta range of 20° to 120° in steps of 0.02°.
Corrosion resistance of the heat-treated coatings was determined, using potentiodynamic polarization technique and electrochemical impedance spectroscopy (EIS). These measurements were carried out in a 5 wt.% NaCl solution, using three-electrode cell and an AUTOLAB® electrochemical system (PGSTAT30, Metrohm Autolab B.V., Utrecht, Netherlands). The auxiliary electrode was a platinum mesh and the reference electrode was a saturated calomel electrode (SCE). Potentiodynamic curves were recorded in the potential range ± 100 mV versus open circuit potential with rate v = 1 mV∙s−1.
The electrochemical impedance spectroscopy was performed at the corrosion potential. In these measurements, the amplitude of the ac signal was 10 mV. A frequency range from 10 kHz to 0.1 Hz was covered with 10 points per decade. All electrochemical investigations were made at 298 K.
Contact potential difference (CPD) maps and surface topography maps of the heat-treated coatings were recorded by means of Scanning Kelvin Probe (SKP) technique using PAR Model 370 Scanning Electrochemical Workstation (Princeton Applied Research, Oak Ridge, USA) equipped with a tungsten Kelvin probe (KP). The scanning area was 4000 × 4000 μm2 and the distance between the probe and the sample was ca. 100 μm.

3. Results and Discussion

The heat-treated Ni-W coatings are characterized by grey, smooth and uniform surface. The surface morphology of the coatings differs, which means it depends on the deposition current density (Figure 1). The surface of C125/1173 coating shows small, separately located globules changing into larger ones with increasing of deposition current density. Coatings obtained at low current density values have a poorly developed surface. It can be explained by that low current densities favor the slow discharge of ions at electrodes, and therefore the growth rate of the resulting grains exceeds the speed of forming of new ones. As the current density increases, the rate of formation of new grains also increases what result in more developed surface. The increase in the density of the deposition current causes intense hydrogen evolution, which in turn can cause the formation of porous coatings.
The phase composition of the as-deposited Ni-W alloy coatings is independent of applied current conditions. All X-ray diffraction patterns show the presence of reflexes coming from solid solution of W in Ni. An example of X-ray diffraction pattern obtained for Ni-W coating deposited at current density of 175 mA∙cm−2 is shown in the Figure 2a. The phase composition of the Ni-W alloy coatings after heat treatment is also independent of applied current conditions. During the heat treatment in the air the solid solution of tungsten in nickel breaks down and chemical reaction with oxygen proceeds leading to a formation of new phases. X-ray diffraction patterns shown in Figure 2b–e indicate that the C125/1173, C150/1173, C175/1173 and C200/1173 coatings consist of three phases, i.e., Ni4W, WO2 and WO3.
Values of the corrosion parameters i.e. corrosion potential Ecorr and corrosion current density jcorr were determined from measured dependencies j = f (E). It was found that the value of the corrosion potential for the C125/1173 coating is the highest compared to the Ecorr obtained for the coatings deposited at larger current densities i.e. C150/1173, C175/1173 and C200/1173 (Figure 3, Table 2). It was also noted that, for the C125/1173 coating, the value of corrosion current density is lower compared to the other coatings (Table 2). This suggests that the C125/1173 coating, is more corrosion resistant in 5 wt.% NaCl solution than the other investigated coatings. It should be added that all heat-treated Ni-W coatings are characterized by the definitely higher corrosion resistance compared to the substrate (corrosion potential of S235 steel is −739 mV) [4].
The results of the EIS investigations presented in the form of Nyquist plots (−Z″ = f (Z′)) were shown in Figure 4. For all investigated coatings one semicircle in the whole range of frequencies is observed. It has been found that this behavior of the heat-treated Ni-W coatings could be described by one-CPE electrode model (Figure 5). This is typical model for rough or porous materials. Such equivalent circuit is characteristic for materials composed of cylindrical pores of radius r and length l. As was shown in a paper [45] for short and wide pores l2/r is very small and only one semicircle on the complex plane plot (Nyquist plot) was observed. The one-CPE model consists of the solution resistance Rs in series with a parallel connection of the CPE element (ZCPE = 1/[(jω)ϕ T] where T is the capacitive parameter, ϕ is a dimensionless parameter and ω is the angular frequency of ac voltage) and the polarization resistance Rp [42].
Approximations of the experimental impedances using the one-CPE model allowed to determine the following parameters: Rp, Rs, T, ϕ (Table 3). Note that lower values of polarization resistance Rp indicate that a material is more susceptible to corrosion.
The double-layer capacitance, Cdl, was calculated according to [43]:
T = Cdl ϕ (1/Rs + 1/Rp)1-ϕ
The ratio of capacitances Cdl determined for Ni-W coating and ideally smooth nickel electrode (20 μF∙cm−2 [43]) gives factor of electrochemically active surface area, Rf (Table 3). Larger values of this parameter indicate larger interfacial surface, and hence deterioration of material corrosion resistance. The smallest electrochemically active surface area and the highest polarization resistance obtained for C125/1173 sample clearly indicate that this coating exhibit the best anticorrosion properties compared with the other coatings.
Figure 6 shows CPD maps registered for the studied Ni-W coatings. Statistical analysis of the obtained maps allows determining parameters describing quantitatively the surface properties i.e. average (CPDav) and root mean square (CPDq) of contact potential difference [46,47,48]. It was stated that the C125/1173 coating (Figure 6a, Table 4) is characterized by the highest value of CPDav which equals c.a. −1060 mVKP (mVKP is the voltage measured in relation to the Kelvin probe). Increasing of the deposition current density to 200 mA∙cm–2 (Figure 6d, Table 4) causes that the CPDav decreases by about 140 mVKP. Deviation of the CPD values from the mean (represented by CPDq) is the smallest for C125/1173 and equals c.a. 16 mVKP. It means that this coating shows the most homogeneous surface of all the coatings tested. It should be noted that in the case of C200/1173 coating, obtained at the highest current density, CPDq increases more than two times in comparison with C125/1173. Figure 7 shows the tungsten content (at.%) and corrosion current density (jcorr) plotted versus the average contact potential difference (CPDav). It has been found that the increase of tungsten content in the Ni-W coating causes linear increase of CPDav. What is more, the corrosion rate (represented by jcorr) of Ni-W coatings linearly decreases with increasing CPDav. Thus, CPDav value allows estimating the corrosion rate of Ni-W coatings after heat treatment in air.
Figure 8 shows surface topography maps of the heat-treated Ni-W coatings obtained at deposition current density 125 mA∙cm−2 (a) and 200 mA∙cm−2 (b). Maps allow determining parameters describing quantitatively the surface roughness i.e. root mean square roughness (Sq), maximum peak height (Sp) and maximum pit depth (Sv). It was found that for the C125/1173 coating Sq = 0.8 μm, Sp = 2.9 μm, Sv = 2.6 μm and for C200/1173 coating Sq = 9.8 μm, Sp = 20.9 μm, Sv = 21.1 μm. It can be concluded that both coatings are characterized by a uniform distribution of peaks and valleys heights around the mean. However, it should be noted that for C200/1173 coating Sp and Sv parameters are 7-8 times higher in comparison with C125/1173. This fact can be explained by that as the deposition current density increases, the small globules visible on the C125/1173 surface (see Figure 1) change into larger ones. It was also stated that the deviation of peaks and valleys heights around the mean (Sq parameter) for C200/1173 is higher. This is due to the fact that the Sq parameter is directly related to the heights of peaks and valleys on the material surface.

4. Conclusions

It was found that C125/1173 coating is the most resistant to corrosion in 5 wt.% NaCl solution of all the coatings tested. This is evidenced by the highest values of the corrosion potential, average contact potential difference and polarization resistance as well as the lowest value of the corrosion current density. The reason for this is the highest tungsten content in C125/1173 and the smallest surface area of this coating. Analysis of contact potential difference distribution shows also that the C125/1173 coating is characterized by the most homogeneous surface of all the coatings tested.

Author Contributions

Conceptualization, M.P. and J.K.; Methodology, M.P., J.K. and A.S.S.; Investigation, M.P. and J.K.; Resources, M.P. and J.K.; Formal Analysis, M.P., J.K. and A.S.S.; Writing—Original Draft Preparation, M.P., J.K. and A.S.S.; Data Curation, M.P., J.K., Z.W. and A.S.; writing—review and editing, Z.W., B.K. and A.S.; visualization, Z.W. and A.S.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, Y.; Zhou, Q.; Li, K.; Zhong, Q.; Bui, Q.B. Preparation of Ni-W-SiO2 nanocomposite coating and evaluation of its hardness and corrosion resistance. Ceram. Int. 2015, 41, 79–84. [Google Scholar] [CrossRef]
  2. Popczyk, M. The influence of molybdenum and silicon on activity of Ni+W composite coatings in the hydrogen evolution reaction. Surf. Interface Anal. 2008, 40, 246–249. [Google Scholar] [CrossRef]
  3. Allahyarzadeh, M.H.; Aliofkhazraei, M.; Sabour Rouhaghdam, A.R.; Torabinejad, V. Electrodeposition of Ni-W-Al2O3 nanocomposite coating with functionally graded microstructure. J. Alloys Compd. 2016, 666, 217–226. [Google Scholar] [CrossRef]
  4. Popczyk, M.; Zacharz, M.; Osak, P.; Dercz, G.; Łosiewicz, B. Structure and corrosion resistance of nickel-molybdenum alloy coatings. Acta Phys. Pol. A 2016, 130, 1072–1074. [Google Scholar] [CrossRef]
  5. Beltowska-Lehman, E.; Indyka, P.; Bigos, A.; Szczerba, M.; Kot, M. Ni-W/ZrO2 nanocomposites obtained by ultrasonic DC electrodeposition. Mater. Des. 2015, 80, 1–11. [Google Scholar] [CrossRef] [Green Version]
  6. Hou, K.-H.; Sheu, H.-H.; Ger, M.-D. Preparation and wear resistance of electrodeposited Ni-W/diamond composite coatings. Appl. Surf. Sci. 2014, 308, 372–379. [Google Scholar] [CrossRef]
  7. Hosseini, M.; Teymorinia, H.; Farzaneh, A.; Khameneh-asl, S. Evaluation of corrosion, mechanical and structural properties of new Ni-W-PCTFE nanocomposite coating. Surf. Coat. Technol. 2016, 298, 114–120. [Google Scholar] [CrossRef]
  8. Popczyk, M. The hydrogen evolution reaction on electrolytic nickel - based coatings containing metallic molybdenum. Mater. Sci. Forum 2010, 636–637, 1036–1041. [Google Scholar] [CrossRef]
  9. Beltowska-Lehman, E.; Indyka, P.; Bigos, A.; Kot, M.; Tarkowski, L. Electrodeposition of nanocrystalline Ni-W coatings strengthened by ultrafine alumina particles. Surf. Coat. Technol. 2012, 211, 62–66. [Google Scholar] [CrossRef]
  10. Popczyk, M.; Kubisztal, J.; Budniok, A. Structure and electrochemical characterization of electrolytic Ni+Mo+Si composite coatings in an alkaline solution. Electrochim. Acta 2006, 51, 6140–6144. [Google Scholar] [CrossRef]
  11. Wykpis, K.; Popczyk, M.; Budniok, A. Electrolytic deposition and corrosion resistance of Zn-Ni coatings obtained from sulphate-chloride bath. Bull. Mater. Sci. 2011, 34, 997–1001. [Google Scholar] [CrossRef]
  12. Wykpis, K.; Popczyk, M.; Niedbała, J.; Budniok, A.; Łągiewka, E. Influence of the current density of deposition on the properties of Zn-Ni coatings. Mater. Sci. 2012, 47, 838–847. [Google Scholar] [CrossRef]
  13. Wykpis, K.; Popczyk, M.; Niedbała, J.; Budniok, A.; Łągiewka, E.; Bierska-Piech, B. Influence of thermal treatment on the corrosion resistance of electrolytic Zn-Ni coatings. Mater. Sci.-Poland 2012, 29, 177–183. [Google Scholar] [CrossRef]
  14. Hashemi, M.; Mirdamadi, S.; Rezaie, H. Effect of SiC nanoparticles on microstructure and wear behavior of Cu-Ni-W nanocrystalline coating. Electrochim. Acta 2014, 138, 224–231. [Google Scholar] [CrossRef]
  15. Popczyk, M.; Budniok, A.; Łągiewka, E. Structure and corrosion resistance of nickel coatings containing tungsten and silicon powders. Mater. Charact. 2007, 58, 371–375. [Google Scholar] [CrossRef]
  16. Wykpis, K.; Niedbała, J.; Popczyk, M.; Budniok, A.; Łągiewka, E. The electrodeposition and properties of Zn-Ni+Ni composite coatings. Russ. J. Electrochem. 2012, 48, 1123–1129. [Google Scholar] [CrossRef]
  17. Wykpis, K.; Popczyk, M.; Niedbała, J.; Bierska-Piech, B.; Budniok, A.; Łągiewka, E. Influence of thermal treatment on the corrosion resistance of electrolytic Zn-Ni+Ni composite coatings. Adv. Compos. Mater. 2015, 24, 431–438. [Google Scholar] [CrossRef]
  18. Popczyk, M.; Serek, A.; Budniok, A. Production and properties of composite layers based on an Ni-P amorphous matrix. Nanotechnology 2003, 14, 341–346. [Google Scholar] [CrossRef]
  19. Zemanová, M.; Druga, J.; Szúnyogh, J.; Dobročka, E. Ni-W alloys for hydrogen evolution. Mater. Sci. Forum 2016, 844, 167–171. [Google Scholar] [CrossRef]
  20. Yang, F.-Z.; Guo, Y.F.; Huang, L.; Xu, S.K.; Zhou, S.M. Electrodeposition, structure and corrosion resistance of nanocrystalline Ni-W alloy. Chinese J. Chem. 2004, 22, 228–231. [Google Scholar]
  21. Obradović, M.; Stevanović, J.; Despić, A.; Stevanović, R.; Stoch, J. Characterization and corrosion properties of electrodeposited Ni-W alloys. J. Serb. Chem. Soc. 2001, 66, 899–912. [Google Scholar] [CrossRef]
  22. Allahyarzadeh, M.H.; Aliofkhazraei, M.; Rezvanian, A.R.; Torabinejad, V.; Sabour Rouhaghdam, A.R. Ni-W electrodeposited coatings: Characterization, properties and applications. Surf. Coat. Tech. 2016, 307, 978–1010. [Google Scholar] [CrossRef]
  23. Quiroga Argañaraz, M.P.; Ribotta, S.B.; Folquer, M.E.; Gassa, L.M.; Benítez, G.; Vela, M.E.; Salvarezza, R.C. Ni-W coatings electrodeposited on carbon steel: Chemical composition, mechanical properties and corrosion resistance. Electrochim. Acta 2011, 56, 5898–5903. [Google Scholar] [CrossRef]
  24. Alimadadi, H.; Ahmadi, M.; Aliofkhazraei, M.; Younesi, S.R. Corrosion properties of electrodeposited nanocrystalline and amorphous patterned Ni-W alloy. Mater. Des. 2009, 30, 1356–1361. [Google Scholar] [CrossRef]
  25. Mroz, K.P.; Bigos, A.; Kucharski, S.; Dolinski, K.; Bełtowska-Lehman, E. Ni-W electrodeposited coatings on low carbon steel substrate: Fatigue observations. J. Mater. Eng. Perform. 2014, 23, 3459–3466. [Google Scholar] [CrossRef] [Green Version]
  26. Indyka, P.; Bełtowska-Lehman, E.; Tarkowski, L.; Bigos, A.; García-Lecina, E. Structure characterization of nanocrystalline Ni-W alloys obtained by electrodeposition. J. Alloy Compd. 2014, 590, 75–79. [Google Scholar] [CrossRef]
  27. Kirihara, S.; Umeda, Y.; Tashiro, K.; Honma, H.; Takai, O. Development of Ni-W alloy plating as a substitution of hard chromium plating. Trans. Mater. Res. Soc. Jpn. 2016, 41, 35–39. [Google Scholar] [CrossRef] [Green Version]
  28. Jones, A.R.; Hamann, J.; Lund, A.C.; Schuh, C.A. Nanocrystalline Ni-W alloys coating for engineering applications. Plat. Surf. Finish. 2010, 97, 52–60. [Google Scholar]
  29. Wasekar, N.P.; Sundararajan, G. Sliding wear behavior of electrodeposited Ni-W alloy and hard chrome coatings. Wear 2015, 342–343, 340–348. [Google Scholar] [CrossRef]
  30. Lee, H.B. Synergy between corrosion and wear of electrodeposited Ni-W coating. Tribol. Lett. 2013, 50, 407–419. [Google Scholar] [CrossRef]
  31. Chianpairot, A.; Lothongkum, G.; Schuh, C.A.; Boonyongmaneerat, Y. Corrosion of nanocrystalline Ni-W alloys in alkaline and acidic 3.5 wt.% NaCl solutions. Corros. Sci. 2011, 53, 1066–1071. [Google Scholar] [CrossRef]
  32. Chen, H.; Ren, X.R.; Zhang, X.H.; Li, J.H. Wear and corrosion properties of crystalline Ni-W alloy coatings prepared by electrodeposition. Mater. Sci. Forum 2016, 849, 671–676. [Google Scholar] [CrossRef]
  33. de Lima-Neto, P.; Correia, A.N.; Santana, R.A.C.; Colares, R.P.; Barros, E.B.; Casciano, P.N.S.; Vaz, G.L. Morphological, structural, microhardness and electrochemical characterizations of electrodeposited Cr and Ni-W coatings. Electrochim. Acta 2010, 55, 2078–2086. [Google Scholar] [CrossRef]
  34. Kaninski, M.P.M.; Saponjic, D.P.; Perovic, I.M.; Maksic, A.D.; Nikolic, V.M. Electrochemical characterization of the Ni-W catalyst formed in situ during alkaline electrolytic hydrogen production—Part II. Appl. Catal. A Gen. 2011, 405, 29–35. [Google Scholar] [CrossRef]
  35. Tasić, G.S.; Lačnjevac, U.; Tasić, M.M.; Kaninski, M.M.; Nikolić, V.M.; Žugić, D.L.; Jović, V.D. Influence of electrodeposition parameters of Ni-W on Ni cathode for alkaline water electrolyser. Int. J. Hydrog. Energy 2013, 38, 4291–4297. [Google Scholar]
  36. Chen, S.H.; Lai, J.H.; Wu, M.Y.; Lee, H.B.; Lee, C.Y. A study on the corrosion and wear behavior of electrodeposited Ni-W coatings. J. Chin. Corros. Eng. 2012, 26, 1–8. [Google Scholar]
  37. Sriraman, K.; Raman, S.G.S.; Seshadri, S. Corrosion behaviour of electrodeposited nanocrystalline Ni-W and Ni-Fe-W alloys. Mater. Sci. Eng. A 2007, 460, 39–45. [Google Scholar] [CrossRef]
  38. Sunwang, N.; Wangyao, P.; Boonyongmaneerat, Y. The effects of heat treatments on hardness and wear resistance in Ni- W alloy coatings. Surf. Coat. Technol. 2011, 206, 1096–1101. [Google Scholar] [CrossRef]
  39. Ko, Y.-K.; Chang, G.-H.; Lee, J.-H. Nickel tungsten alloy electroplating for the high wear resistant materials applications. Solid State Phenom. 2007, 124–126, 1589–1592. [Google Scholar]
  40. Popczyk, M.; Łosiewicz, B. Influence of surface development of Ni/W coatings on the kinetics of the electrolytic hydrogen evolution. Solid State Phenom. 2015, 228, 293–298. [Google Scholar] [CrossRef]
  41. Popczyk, M.; Łosiewicz, B.; Łągiewka, E.; Budniok, A. Influence of thermal treatment on the electrochemical properties of Ni+Mo composite coatings in an alkaline solution. Solid State Phenom. 2015, 228, 231–236. [Google Scholar] [CrossRef]
  42. Karimi-Shervedani, R.; Lasia, A. Studies of the hydrogen evolution reaction on Ni-P electrodes. J. Electrochem. Soc. 1997, 144, 511–519. [Google Scholar] [CrossRef]
  43. Karimi-Shervedani, R.; Lasia, A. Evaluation of the surface roughness of microporous Ni-Zn-P electrodes by in situ methods. J. Appl. Electrochem. 1999, 29, 979–986. [Google Scholar] [CrossRef]
  44. Hou, K.-H.; Chang, Y.-F.; Chang, S.-M.; Chang, C.-H. The heat treatment effect on the structure and mechanical properties of electrodeposited nano grain size Ni-W alloy coatings. Thin Solid Films 2010, 518, 7535–7540. [Google Scholar] [CrossRef]
  45. Lasia, A. Nature of the two semi-circles observed on the complex plane plots on porous electrodes in the presence of a concentration gradient. J. Electroanal. Chem. 2001, 500, 30–35. [Google Scholar] [CrossRef]
  46. Kubisztal, J.; Kubisztal, M.; Haneczok, G. Quantitative characterization of material surface–application to Ni + Mo electrolytic composite coatings. Mater. Charact. 2016, 122, 45–53. [Google Scholar] [CrossRef]
  47. Kubisztal, J.; Kubisztal, M.; Stach, S.; Haneczok, G. Corrosion resistance of anodic coatings studied by scanning microscopy and electrochemical methods. Surf. Coat. Tech. 2018, 350, 419–427. [Google Scholar] [CrossRef]
  48. Bak, A.; Losiewicz, B.; Kozik, V.; Kubisztal, J.; Dybal, P.; Swietlicka, A.; Barbusinski, K.; Kus, S.; Howaniec, N.; Jampilek, J. Real-time corrosion monitoring of AISI 1010 carbon steel with metal surface mapping in sulfolane. Materials 2019, 12, 3276. [Google Scholar] [CrossRef] [Green Version]
Materials 13 01172 g001 550

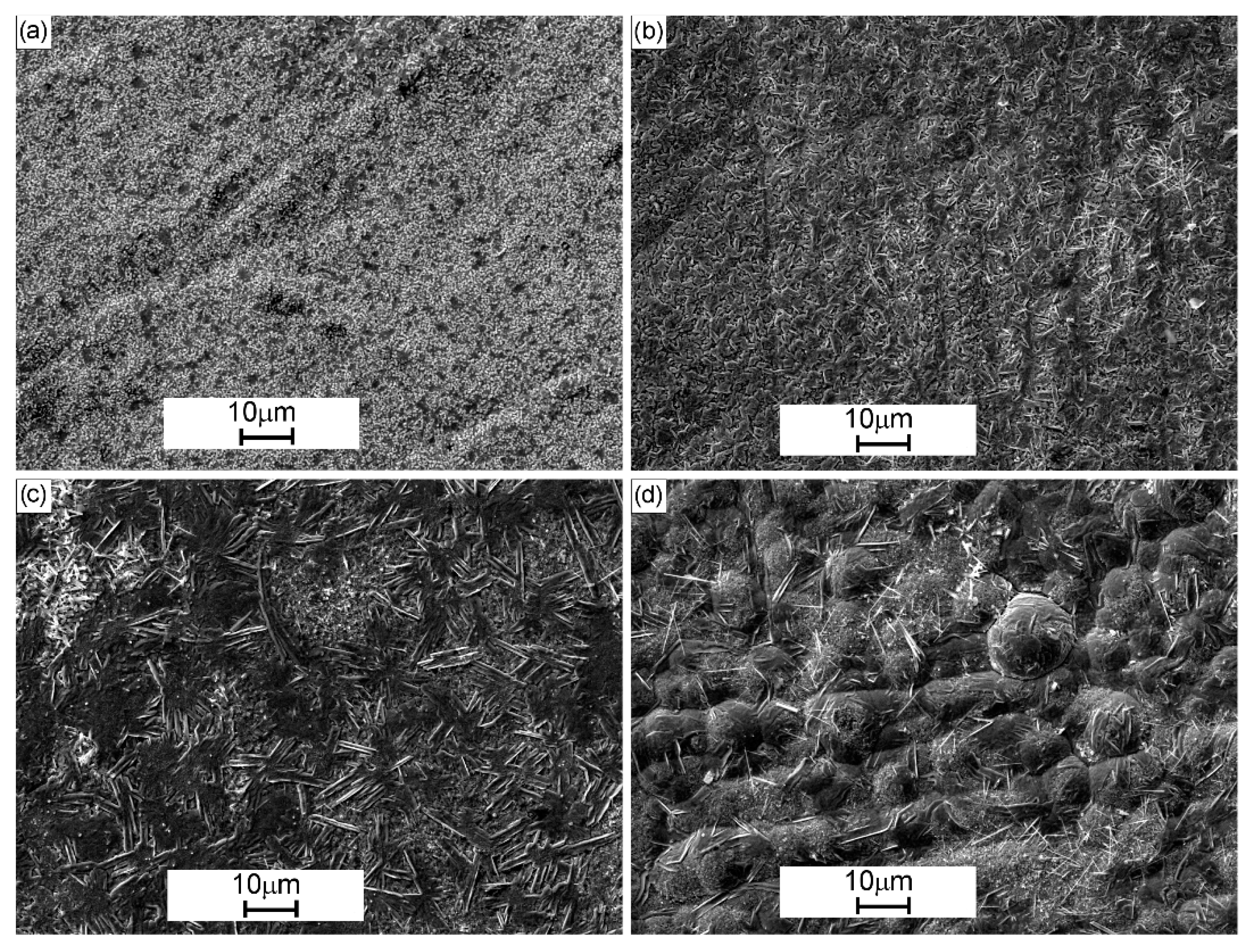

Figure 1. Surface morphology of Ni-W coatings after heat treatment in the air, in dependence on deposition current density: (a) C125/1173, (b) C150/1173, (c) C175/1173 and (d) C200/1173.
Figure 1. Surface morphology of Ni-W coatings after heat treatment in the air, in dependence on deposition current density: (a) C125/1173, (b) C150/1173, (c) C175/1173 and (d) C200/1173.
Materials 13 01172 g001
Materials 13 01172 g002 550

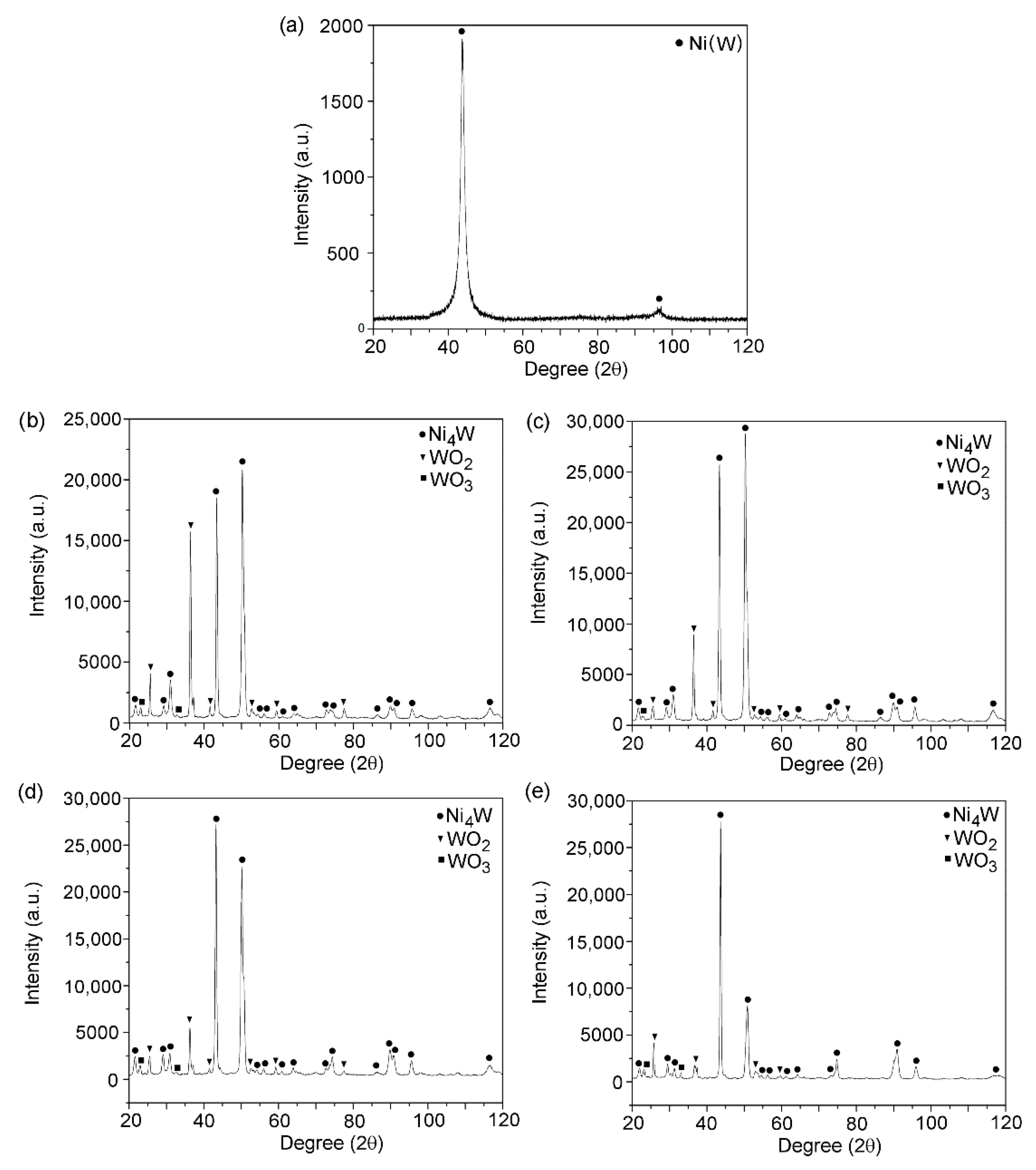

Figure 2. X-ray diffraction patterns for the as-deposited (a) C175/- and after heat treatment (b) C125/1173, (c) C150/1173, (d) C175/1173, (e) C200/1173 Ni-W coatings.
Figure 2. X-ray diffraction patterns for the as-deposited (a) C175/- and after heat treatment (b) C125/1173, (c) C150/1173, (d) C175/1173, (e) C200/1173 Ni-W coatings.
Materials 13 01172 g002
Materials 13 01172 g003 550

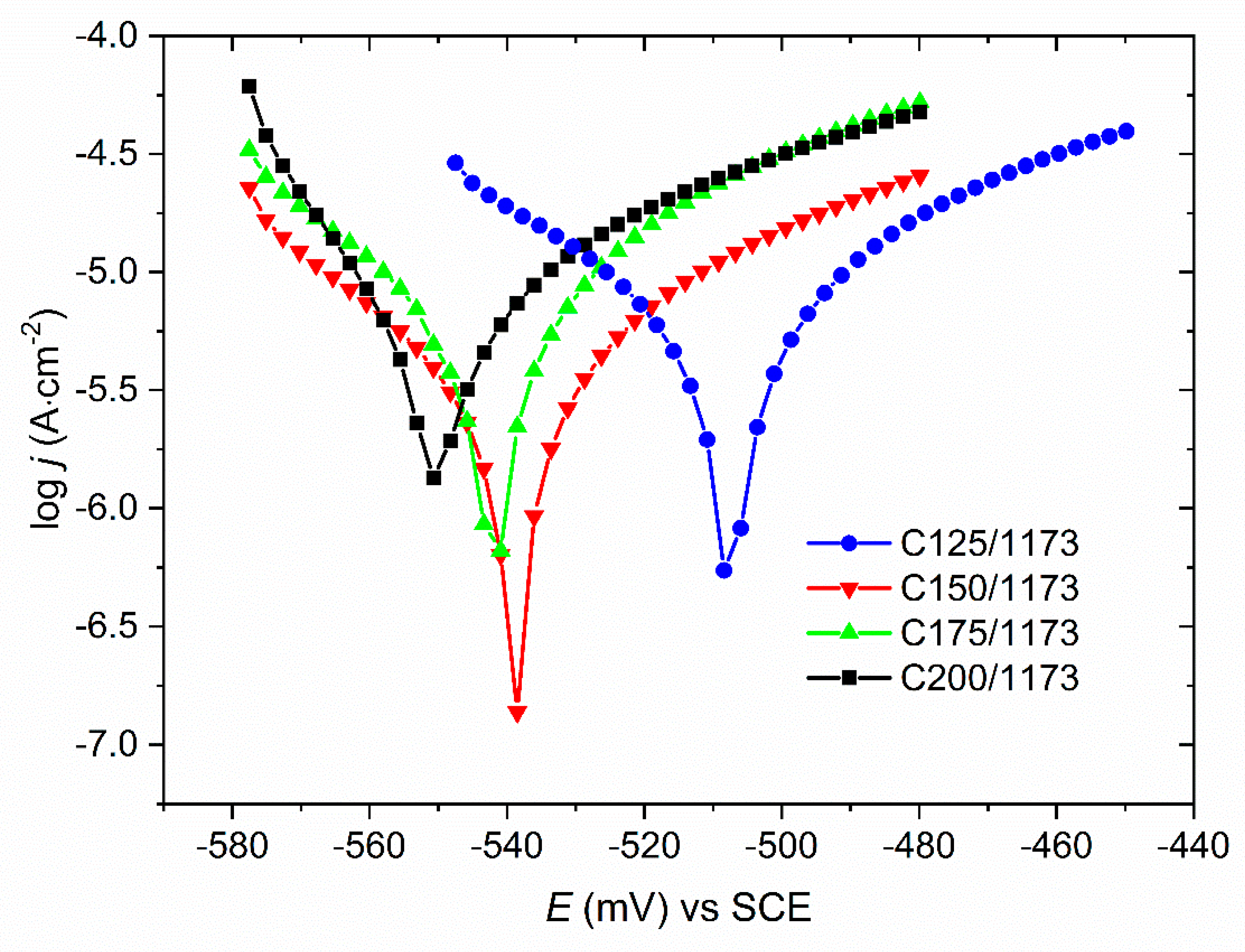

Figure 3. Potentiodynamic curves registered in 5 wt.% NaCl solution for the Ni-W coatings after heat treatment in the air, in dependence on deposition current density.
Figure 3. Potentiodynamic curves registered in 5 wt.% NaCl solution for the Ni-W coatings after heat treatment in the air, in dependence on deposition current density.
Materials 13 01172 g003
Materials 13 01172 g004 550

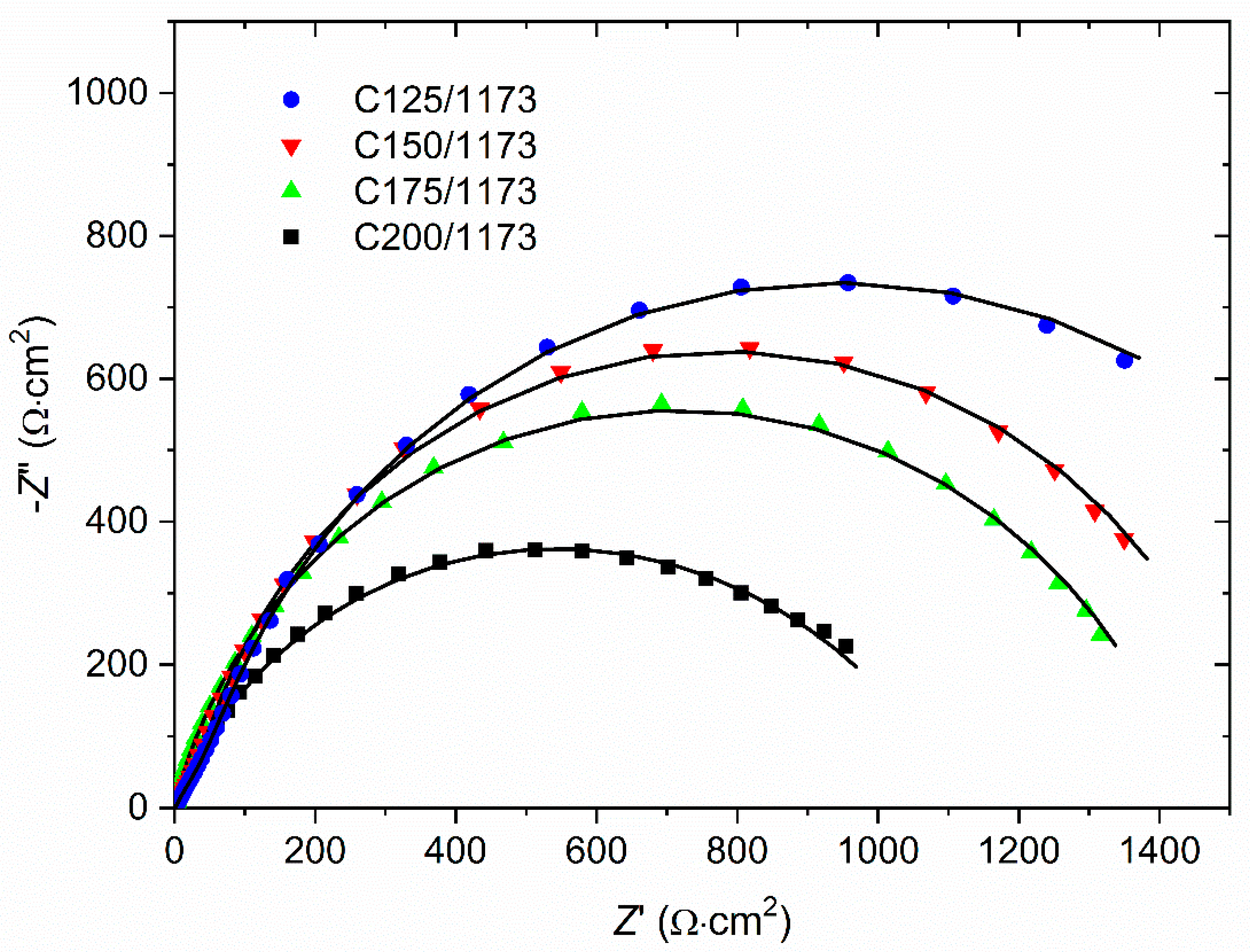

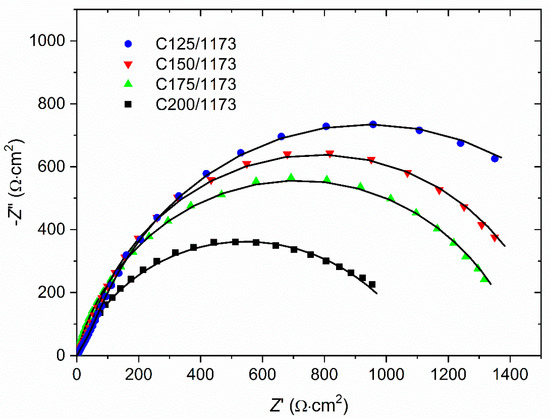

Figure 4. Nyquist plots registered in 5 wt.% NaCl solution for the Ni-W coatings after heat treatment in the air, in dependence on deposition current density; symbols–experimental points, solid lines–approximations using the one-CPE model.
Figure 4. Nyquist plots registered in 5 wt.% NaCl solution for the Ni-W coatings after heat treatment in the air, in dependence on deposition current density; symbols–experimental points, solid lines–approximations using the one-CPE model.
Materials 13 01172 g004
Materials 13 01172 g005 550

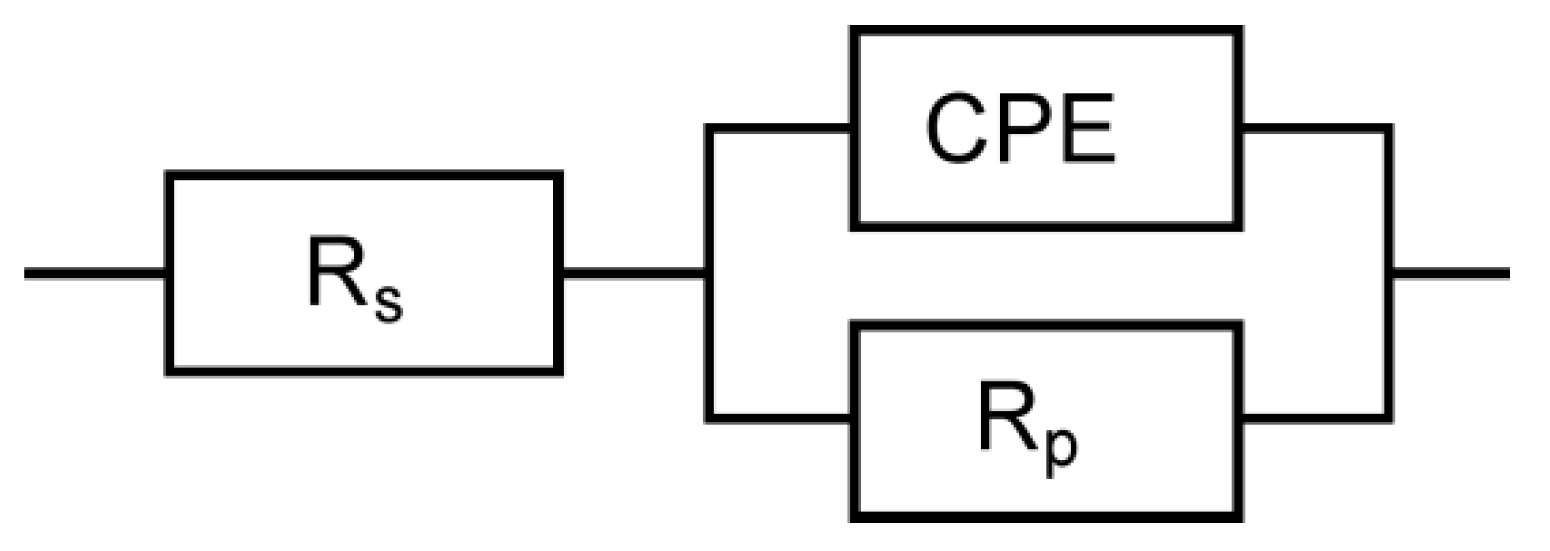

Figure 5. Equivalent circuit scheme, Rs–solution resistance, CPE–constant phase element, Rp–polarization resistance.
Figure 5. Equivalent circuit scheme, Rs–solution resistance, CPE–constant phase element, Rp–polarization resistance.
Materials 13 01172 g005
Materials 13 01172 g006 550

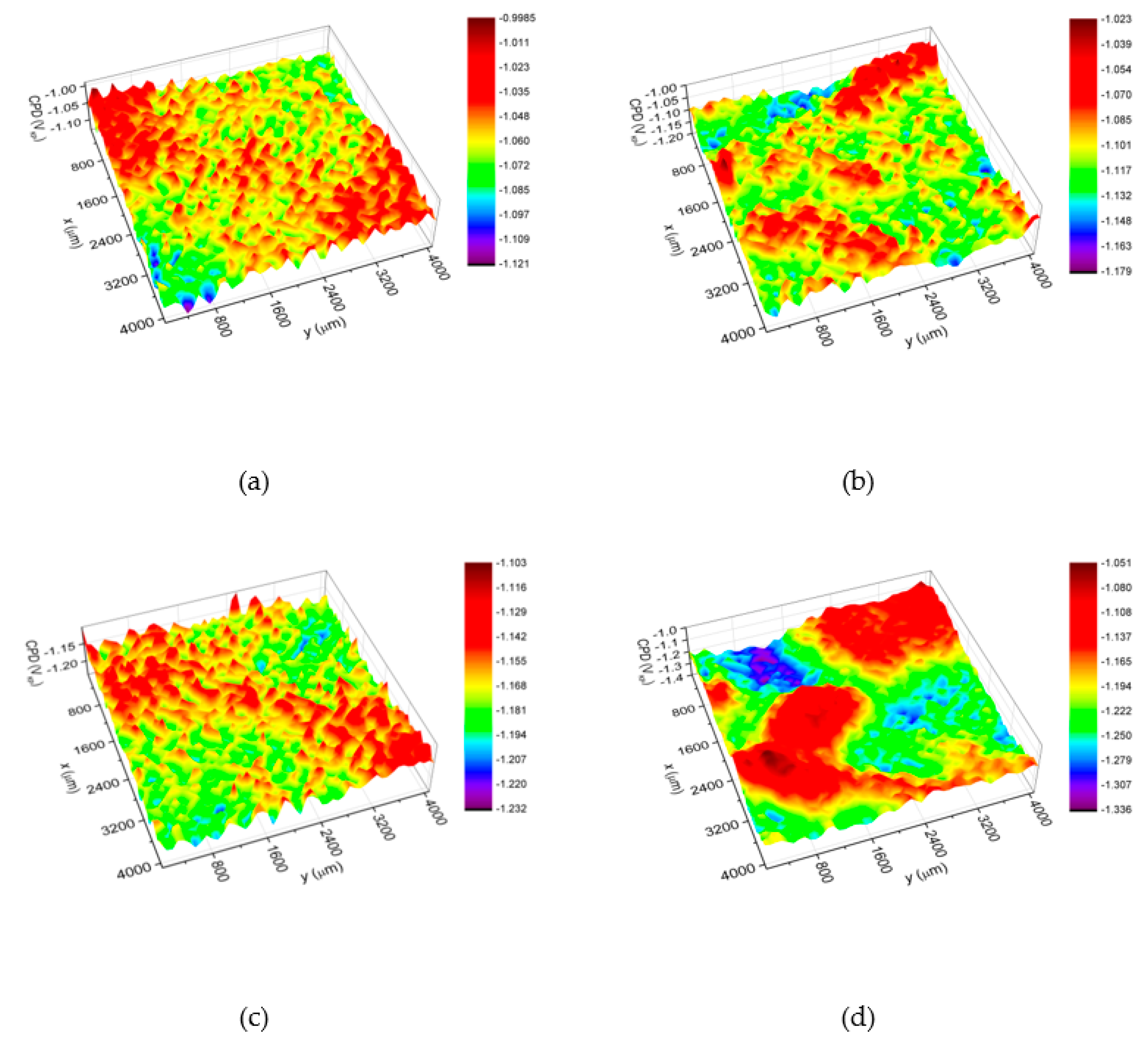

Figure 6. CPD maps determined for the Ni-W coatings after heat treatment in the air: (a) C125/1173, (b) C150/1173, (c) C175/1173 and (d) C200/1173.
Figure 6. CPD maps determined for the Ni-W coatings after heat treatment in the air: (a) C125/1173, (b) C150/1173, (c) C175/1173 and (d) C200/1173.
Materials 13 01172 g006
Materials 13 01172 g007 550

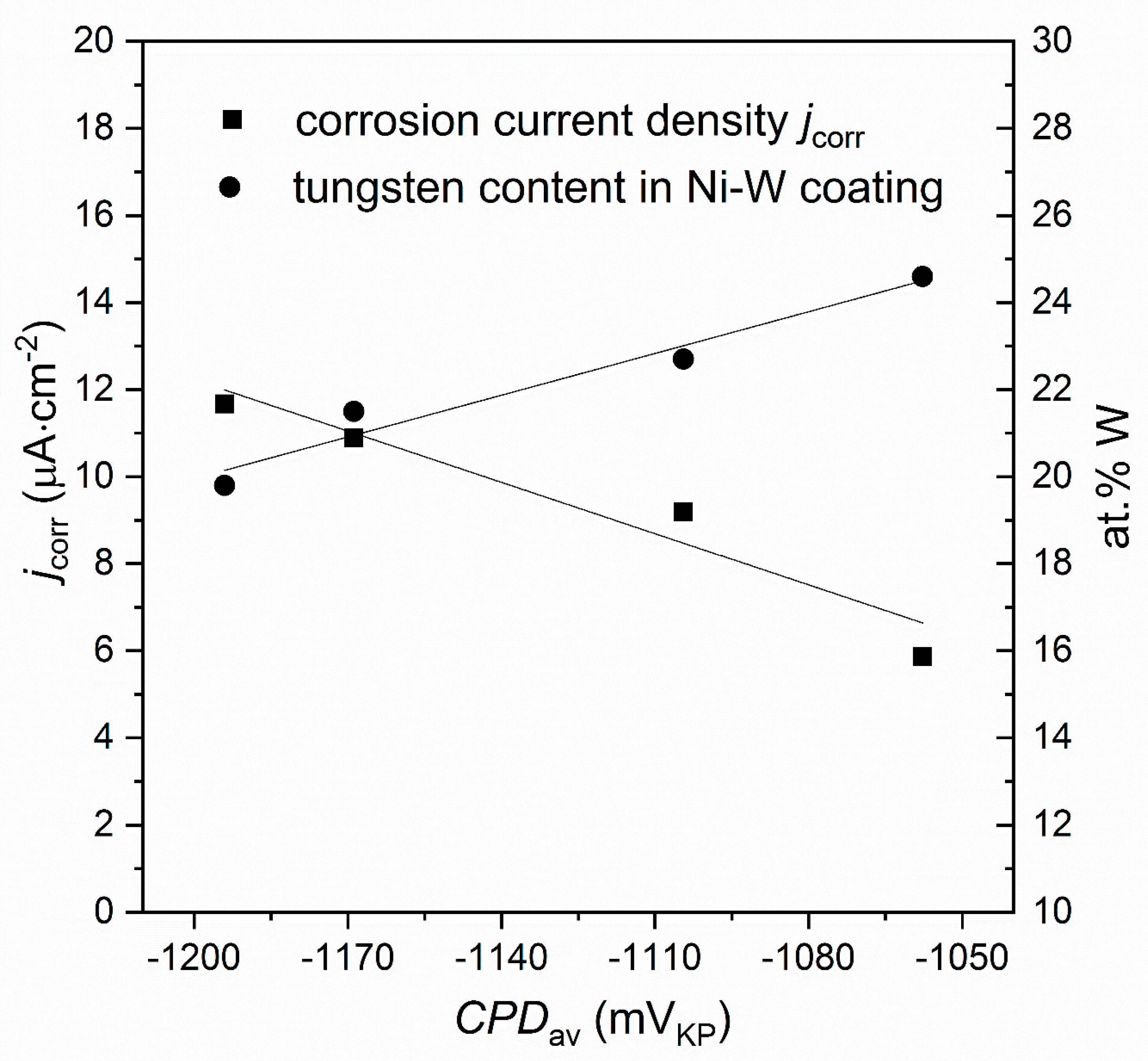

Figure 7. Tungsten content (at.%) and corrosion current density (jcorr) versus average contact potential difference (CPDav) determined for the Ni-W coatings; mVKP is the voltage measured in relation to the Kelvin probe.
Figure 7. Tungsten content (at.%) and corrosion current density (jcorr) versus average contact potential difference (CPDav) determined for the Ni-W coatings; mVKP is the voltage measured in relation to the Kelvin probe.
Materials 13 01172 g007
Materials 13 01172 g008 550

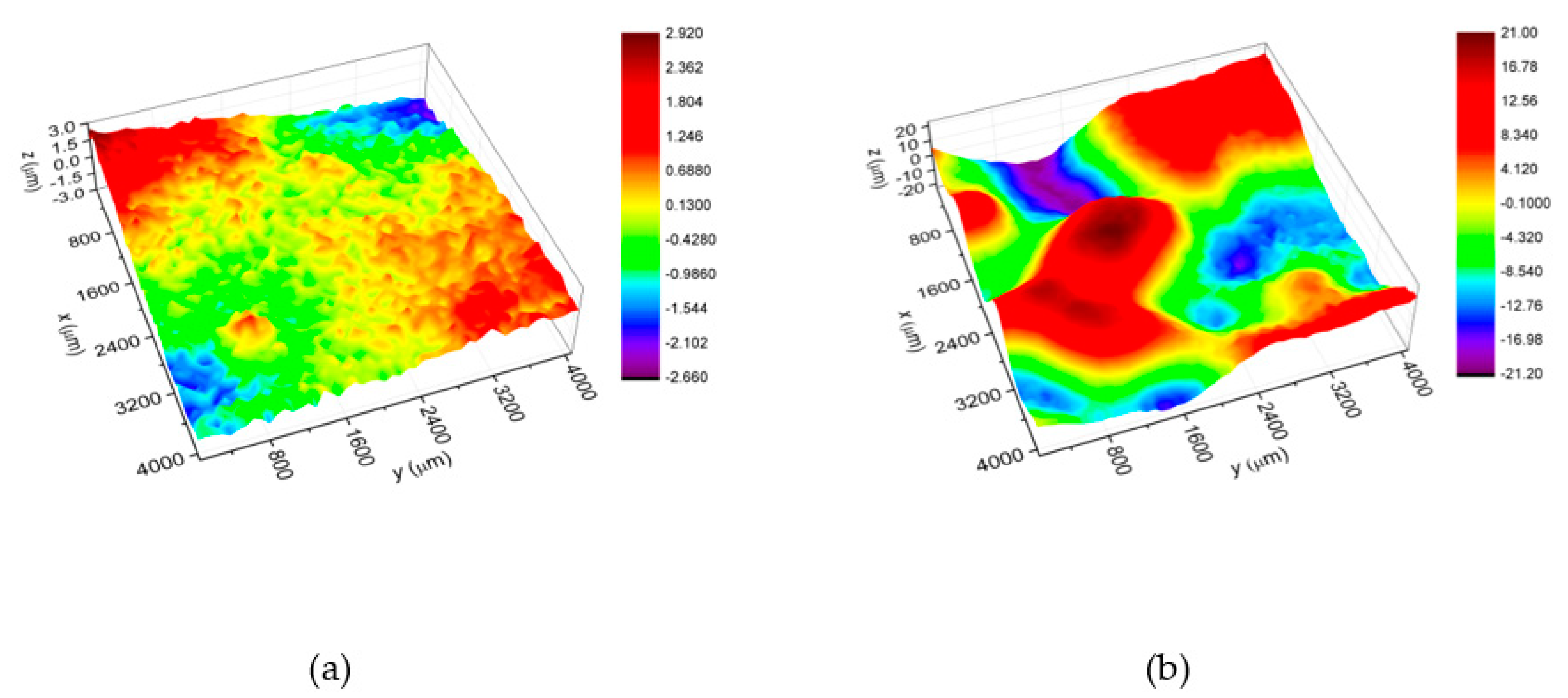

Figure 8. Topography maps determined for the heat-treated Ni-W coatings: (a) C125/1173 and (b) C200/1173.
Figure 8. Topography maps determined for the heat-treated Ni-W coatings: (a) C125/1173 and (b) C200/1173.
Materials 13 01172 g008
Table
Table 1. Chemical composition of the as-deposited Ni-W alloy coatings determined by energy dispersive spectroscopy, in dependence on deposition current density.
Table 1. Chemical composition of the as-deposited Ni-W alloy coatings determined by energy dispersive spectroscopy, in dependence on deposition current density.
Type of As-Deposited CoatingsAt.% NiAt.% W
Ni-W (jdep = 125 mA∙cm−2)75.4 ± 0.4%24.6 ± 0.4%
Ni-W (jdep = 150 mA∙cm−2)77.3 ± 0.2%22.7 ± 0.2%
Ni-W (jdep = 175 mA∙cm−2)78.5 ± 0.7%21.5 ± 0.7%
Ni-W (jdep = 200 mA∙cm−2)80.2 ± 0.1%19.8 ± 0.1%
Table
Table 2. Corrosion potential Ecorr and corrosion current density jcorr determined for Ni-W coatings after heat treatment in the air, in dependence on deposition current density.
Table 2. Corrosion potential Ecorr and corrosion current density jcorr determined for Ni-W coatings after heat treatment in the air, in dependence on deposition current density.
Ni-W CoatingEcorr (mV)jcorr (μA∙cm−2)
C125/1173−5085.9
C150/1173−5389.2
C175/1173−53910.9
C200/1173−55011.7
Table
Table 3. EIS parameters determined for Ni-W coatings after heat treatment in the air, in dependence on deposition current density.
Table 3. EIS parameters determined for Ni-W coatings after heat treatment in the air, in dependence on deposition current density.
Ni-W CoatingRp
(kΩ∙cm2)		TϕRs
(Ω∙cm2)		Rf
C125/11731.8450.0001460.871.192.00
C150/11731.5350.0002740.891.795.33
C175/11731.4510.0003280.891.516.39
C200/11731.1220.0004880.861.277.33
Rp is the polarization resistance, T is the capacitive parameter, ϕ is the parameter related to the rotation of the complex plane plot, Rs is the solution resistance, Rf is the factor of electrochemically active surface area.
Table
Table 4. Statistical parameters obtained using CPD maps of the heat-treated Ni-W coatings.
Table 4. Statistical parameters obtained using CPD maps of the heat-treated Ni-W coatings.
Ni-W CoatingC125/1173C150/1173C175/1173C200/1173
CPDav
(mVKP)		−1058−1104−1169−1194
CPDq
(mVKP)		16221755
CPDav—average value, CPDq—root mean square, mVKP is the voltage measured in relation to the Kelvin probe.
