Next Article in Journal
Profile of CO2, CO, and H2 Emissions from Thermal Oxidation of Polish Coals
Previous Article in Journal
The Magnetisation Process of Bulk Amorphous Alloys: Fe36+xCo36−xY8B20, Where: x = 0, 3, 7, or 12
Open AccessArticle

Tribological Properties of Ni/Cu/Ni Coating on the Ti-6Al-4V Alloy after Annealing at Various Temperatures

1
CNPC Tubular Goods Research Institute, Xi’an 710017, China
2
CNPC Key Laboratory for PetroChina Tubular Goods Engineering, Xi’an 710077, China
3
School of Materials Science and Engineering, Chang’an University, Xi’an 710064, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(4), 847; https://doi.org/10.3390/ma13040847
Received: 6 January 2020 / Revised: 22 January 2020 / Accepted: 11 February 2020 / Published: 13 February 2020

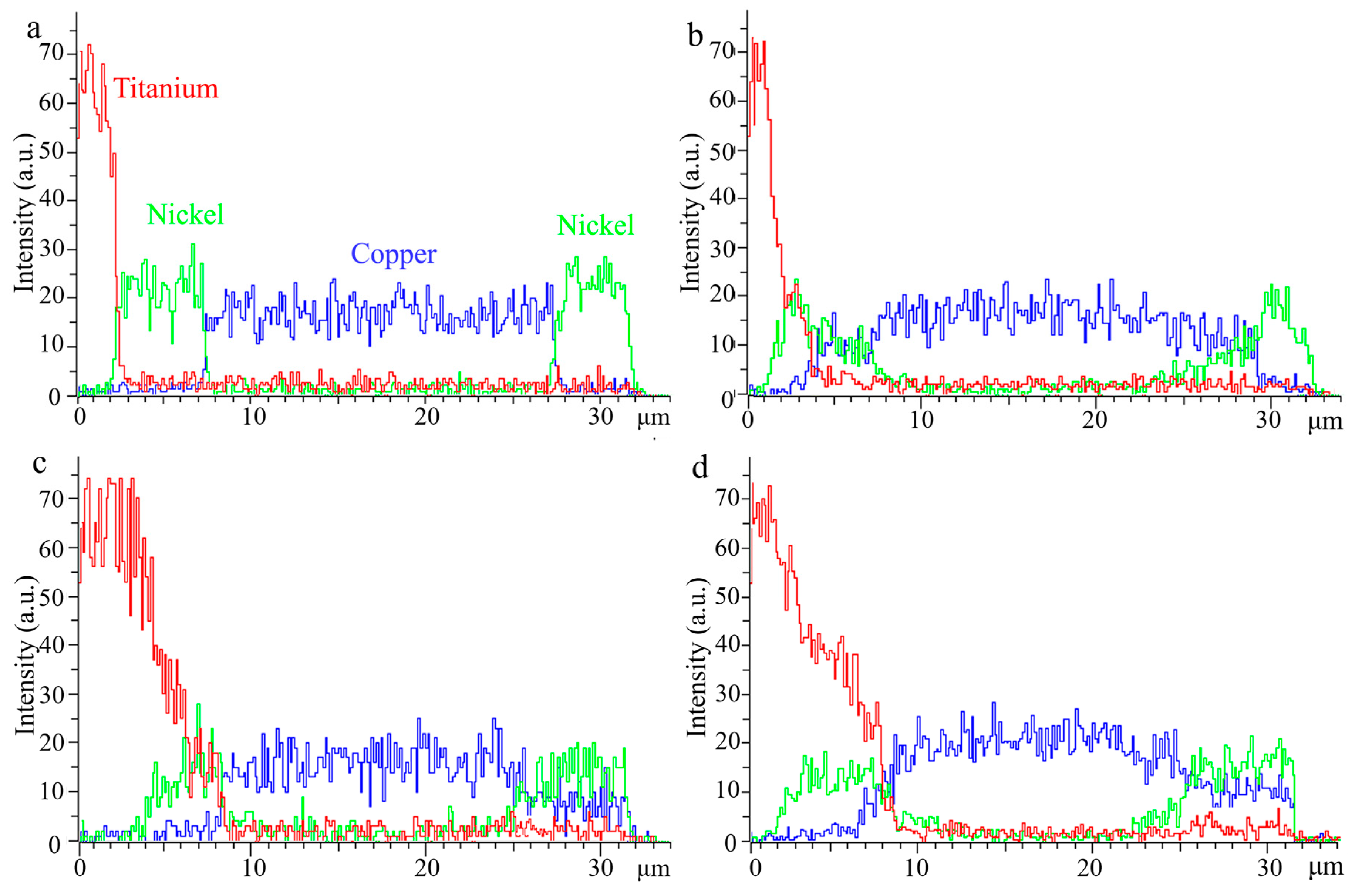

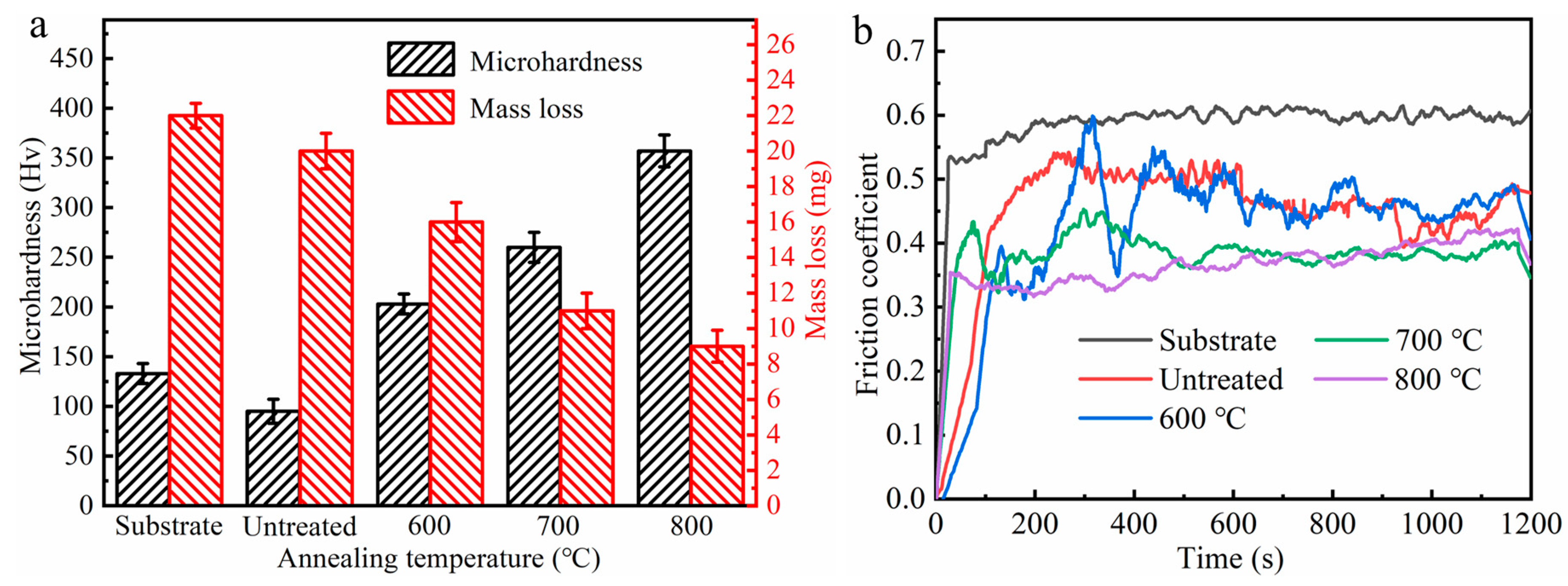

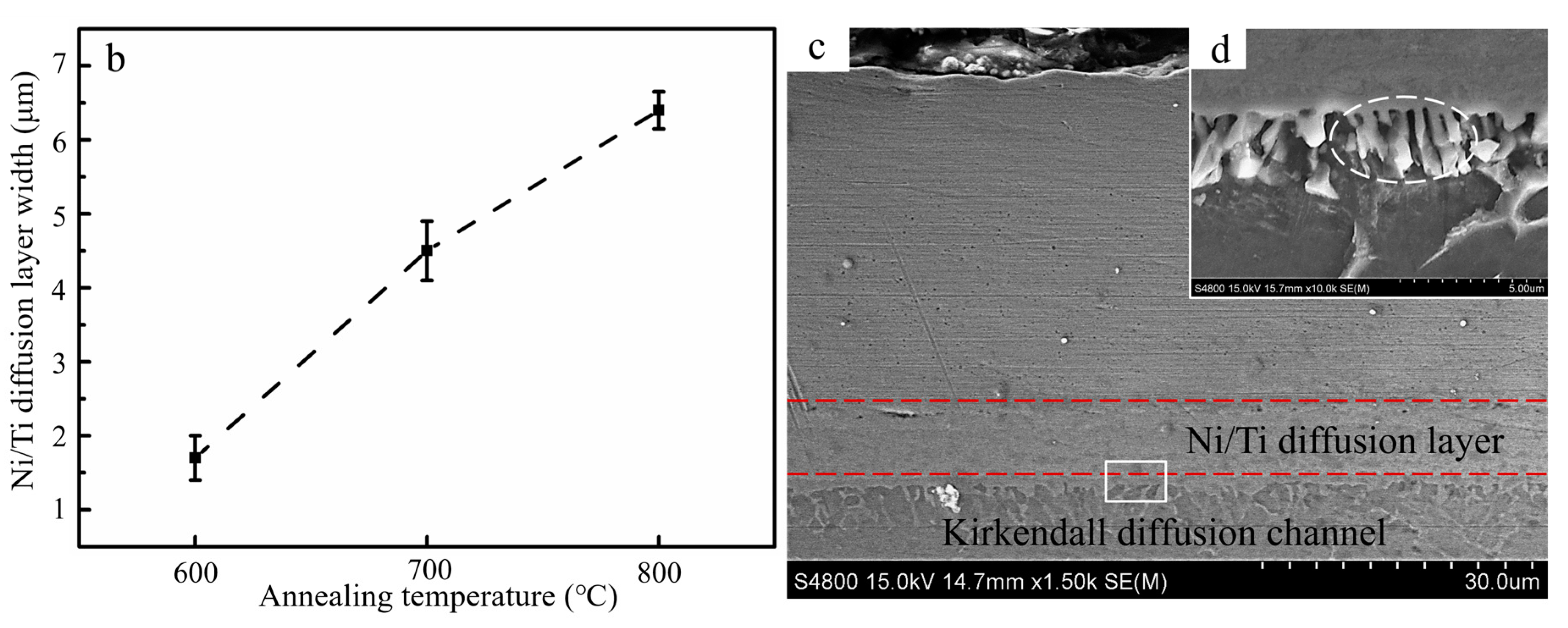

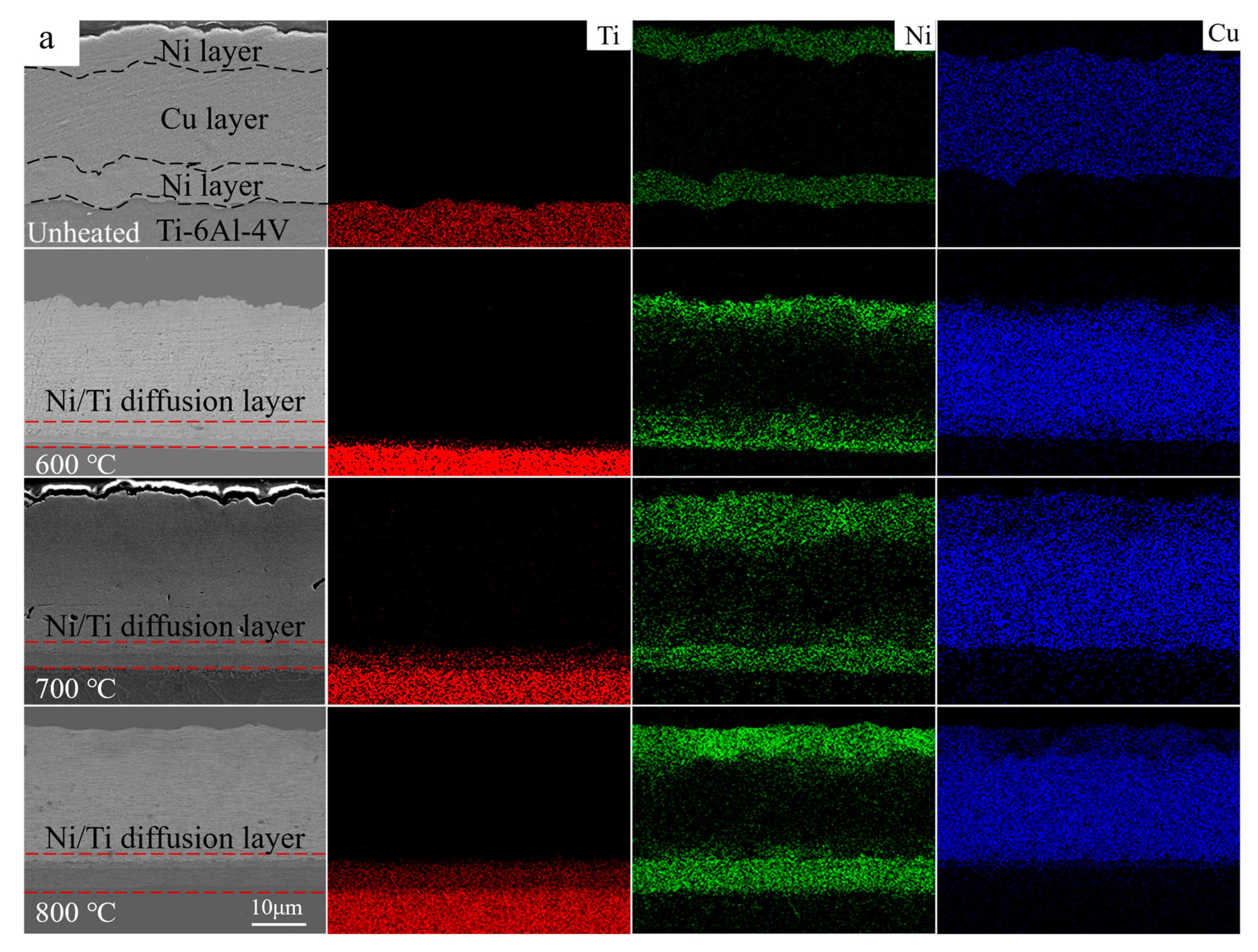

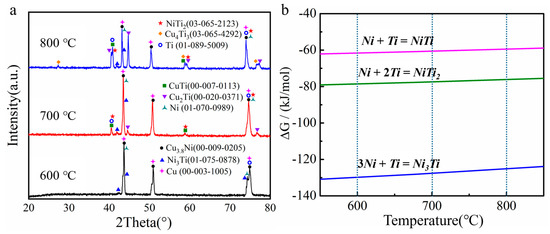

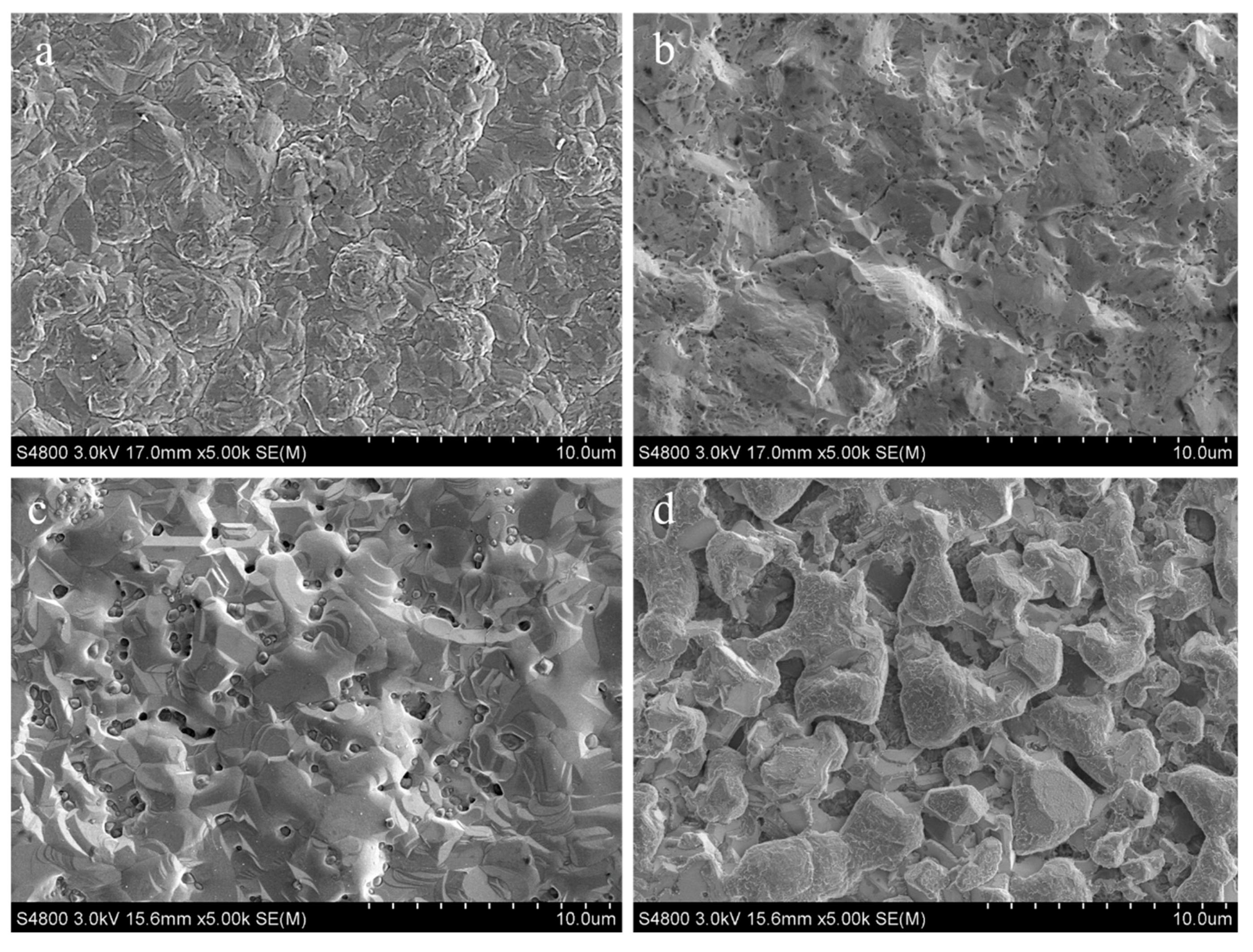

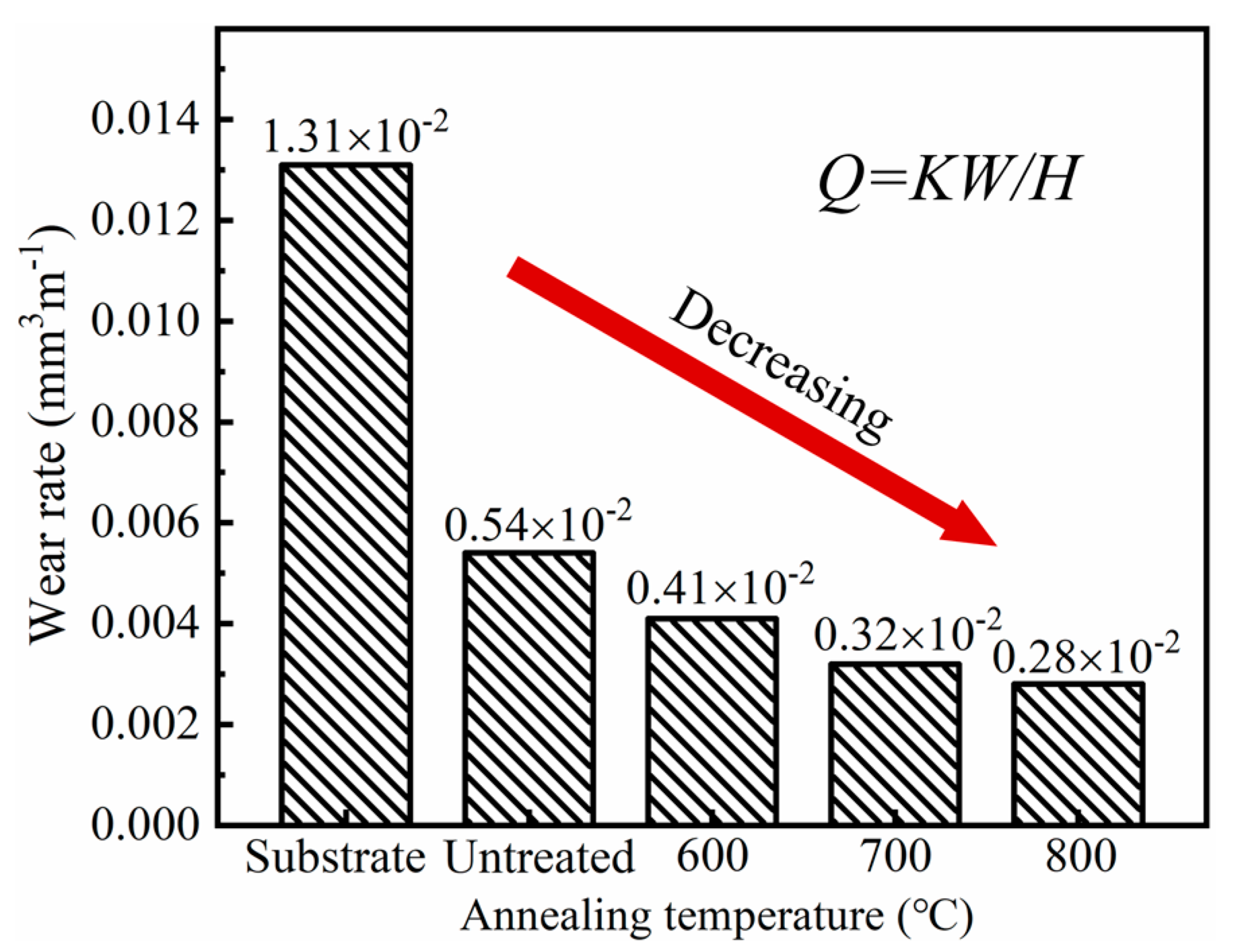

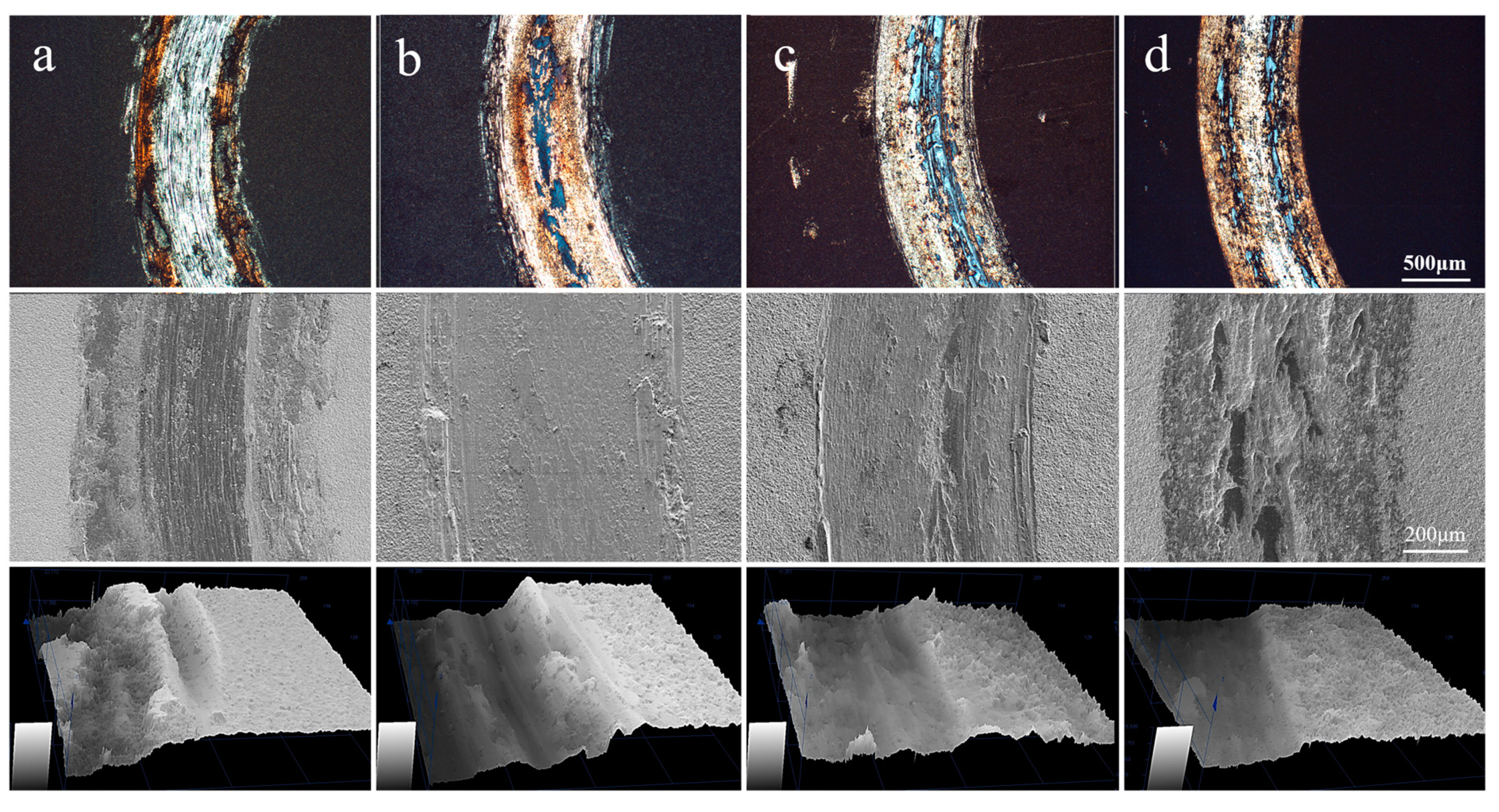

Diffusion reaction was a crucial route to enhance the wear resistance of Ti-6Al-4V alloys surface. In this work, the Ni/Cu/Ni composite layers were fabricated on the surface of Ti-6Al-4V alloy by electroplate craft, and then different annealing temperatures were applied to further optimize its tribological properties. The diffusion behaviors at various temperatures were systematically analyzed to reveal the physical mechanism of the enhanced tribological properties of the coatings. It was demonstrated that CuxTiy and NixTiy intermetallic compounds with high hardness and strength were produced in the Ni/Cu/Ni coating, which acted as the reinforcing phases and improved the microhardness, reduced the friction coefficient, and lessened the wear rate. Specially, this effect reached the maximum when the annealing temperature was 800 °C, showing excellent wear resistance. This work revealed the relationship between annealing temperatures and tribological properties of the Ni/Cu/Ni coating, and proposed wear mechanism, aiming to improve the surface performance of Ti-6Al-4V alloy by appropriate diffusion behavior. View Full-Text
Keywords: Ti-6Al-4V alloy; Ni/Cu/Ni coating; phases transitions; tribological properties; wear mechanism Ti-6Al-4V alloy; Ni/Cu/Ni coating; phases transitions; tribological properties; wear mechanism
Show Figures

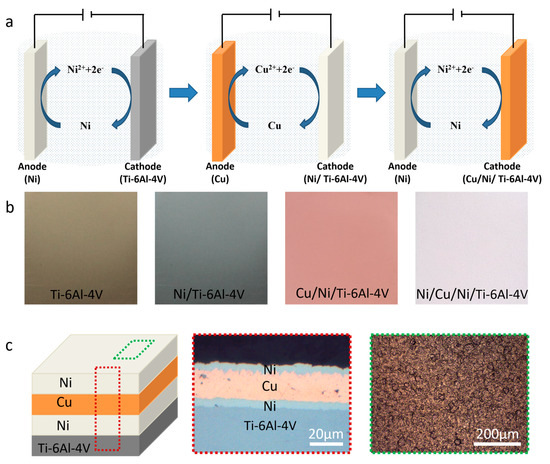

Figure 1

MDPI and ACS Style

Luo, J.; Wang, N.; Zhu, L.; Wu, G.; Li, L.; Yang, M.; Zhang, L.; Chen, Y. Tribological Properties of Ni/Cu/Ni Coating on the Ti-6Al-4V Alloy after Annealing at Various Temperatures. Materials 2020, 13, 847.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
