Abstract

The treatment of goaf subsidence is important for sustainable development. Geopolymer is a new type of cementing material with excellent mechanical properties, durability, corrosion resistance, and other advantages owing to its unique three-dimensional spatial aggregation structure. Herein, a type of preparation technology of fly-ash-based foamed geopolymer suitable for goaf filling was developed by adding a chemical foaming agent to the matrix of fly-ash-based geopolymer. The mechanical properties, chemical composition, and pore structure characteristics of the samples were discussed. When the samples with different contents of fly ash, sodium metasilicate, sodium stearate, H2O2, and NaOH were prepared, a uniaxial compression test was performed to analyze the uniaxial compression failure characteristics and compression strength of the samples. The mineralogical composition of each sample was analyzed by X-ray diffraction (XRD) test, and the microstructure images of different samples were observed using scanning electron microscopy (SEM). The effects of the content of each component on the properties of the samples were discussed. Finally, the CO2 emission, energy consumption, and cost of producing fly-ash-based foamed geopolymer were analyzed. Overall, the material had the advantages of low energy consumption, low CO2 emission, environmental-protection ability, and waste utilization and thus has a broad application prospect in treating subsidence.
Keywords: foamed geopolymer; fly ash; uniaxial compression; microstructure; stress-strain curve foamed geopolymer; fly ash; uniaxial compression; microstructure; stress-strain curve

1. Introduction

With the large-scale exploitation of mineral resources, the problem of goaf subsidence has increasingly become prominent [1,2]. If untreated, then it causes instability of the mountain as well as tilting of the surrounding buildings, crack, and other damages, thereby resulting in large-scale security risks. At the same time, the collapse of the mined out area causes serious damage to the surface ecological environment and a series of geological environmental problems, such as large-scale water accumulation and surface cracking, thereby resulting in great difficulty to the subsequent geological environmental treatment and ecological restoration [3]. This finding is contrary to the introduction of the basic strategy of “insisting on the harmonious coexistence of human and nature” by the Chinese government. In addition, this result does not conform to the Chinese government’s concept of sustainable development and green production. Therefore, developing a green and low carbon filling material for goaf filling is urgent.
At present, researchers tend to use foamed concrete as filling material [4,5,6,7,8,9]. Although this material is feasible from the perspective of bearing capacity, the cement production process needs to go through a high-temperature calcining procedure that consumes substantial resources and energy and requires limestone raw materials, resulting in a large amount of CO2 emissions [10,11,12]. Thus, using foamed concrete as goaf filling material is harmful to the ecological environment [13,14]. Geopolymer is a new type of cementitious material, which has the advantages of fast condensation and hardening, low hydration heat, small shrinkage, good impermeability and frost resistance, corrosion resistance, and high temperature resistance. Most importantly, its production process is pollution-free and belongs to low CO2 emission materials [15,16,17,18,19,20,21]. Apart from being used as civil engineering materials, they can be used to seal toxic and harmful heavy metals and produce high-temperature fireproof materials and new light insulation materials [22,23,24,25,26,27,28].
At the same time, with the development of the power industry, the fly ash emission of coal-fired power plants annually increases and has become one of the most widespread industrial wastes with large emissions in China [29,30,31,32,33,34,35,36]. If a large amount of fly ash remains untreated, then dust and pollution become serious; if it is discharged into the water system, then it causes river silting, and the toxic chemicals it possesses harm the human body and organism [37,38,39]. With the development of the country, the demand for electric power continues to grow. Therefore, the output of fly ash in China is predicted to continuously grow in the future, reaching 925 million tons by 2024. However, compared with developed countries, the comprehensive utilization rate of fly ash in China is still relatively low [40,41].
Recently, fly ash has been used to synthesize geopolymer at room temperature after mechanical activation for 120 min [42]. The relationship among the grinding process of fly ash, the characteristics of ground material and the characteristics of geopolymer has been established [43]. The effects of the fly ash fineness on the rheology of geopolymer paste and the foam properties have also been investigated [44]. This study aimed to develop a type of foamed geopolymer material for goaf filling. Samples with different contents of sodium metasilicate, NaOH, H2O2, and sodium stearate were prepared, and their physical properties, mechanical properties, mineral composition, microstructure, cost, and energy consumption were analyzed and discussed.

2. Experiment

2.1. Material

The class F fly ash collected by the electrostatic sedimentation method in Fuxin thermal power plant (Fuxin, China) is used. According to the classification of fly ash in ASTM C618-17 [45], the CaO content in the fly ash is 1.84%, less than 5%; it belongs to low calcium fly ash, i.e., class F fly ash. P·O42.5 ordinary Portland cement produced by Fuxin Daying Cement Manufacturing Co., Ltd (Fuxin, China) is selected. Strong alkaline activator is used to activate the activity of fly ash, which primarily including NaOH and sodium metasilicate, analytically pure NaOH produced by Shenyang Huadong reagent factory (Shenyang, China), and analytically pure sodium metasilicate (white powder) produced by Shenyang Huadong reagent factory. Hydrogen peroxide with volume concentration of 30% is used as foaming agent. The analytical pure sodium stearate produced by Tianjin Zhiyuan Chemical Reagent Co., Ltd. (Tianjin, China) is used as foam stabilizer, which is white fine powder. The water used in the experiment is ordinary tap water.

2.2. Experimental Design

On the basis of previous results [11], the dry density of foamed material used for goaf filling was approximately 200–600 kg/m3. In this experiment, the foamed geopolymer samples with the target dry density of 420 kg/m3, cement content of 0–30%, and liquid–solid ratio of 0.43 were prepared. To study the influence of the content of different components on the properties of foamed geopolymers, samples with different mix proportions are designed according to Table 1.

2.3. Manufacturing Process of Foamed Geopolymer

The cement, fly ash, sodium metasilicate, water, NaOH, and sodium stearate are weighed in accordance with the experimental design ratio. The entire preparation process is divided into four steps, namely, dry material mixing, activator configuration, foaming, pouring into the mold and curing (Figure 1).
Dry material mixing, fly ash and cement should be pre-treated prior to use and placed into the oven for drying at 80 °C for 2 h to avoid moisture of raw materials. Fly ash and cement are poured into a cement mortar mixer and stirred for 5 min to mix evenly.
Activator configuration, sodium metasilicate, NaOH, and sodium stearate are poured into 40 °C water, stirred for 2 min to fully dissolve, and then mixed evenly and set for 20 min.
Foaming: the activator solution is poured into the cement mortar mixer and mixed with the dry materials, stirred for 3 min, mixed evenly, and set for 20 min, thereby allowing the activator solution to fully react with the fly ash in the dry materials.
Pouring into the mold and curing: the hydrogen peroxide solution is poured into the mixer and rapidly stirred for 5 s. Then, the mixed slurry is poured into the 100 mm × 100 mm × 100 mm mold prepared in advance, set for 24 h prior to removing the mold, and finally placed into the constant temperature and humidity curing box for 28 d to obtain the required fly-ash-based foamed geopolymer cube sample. Then, the performance test is conducted.

2.4. Characterization of Fly-Ash-Based Foamed Geopolymer

2.4.1. X-ray Diffraction (XRD)

The phase composition of the sample was analyzed with a D8 advance X-ray diffractometer of Bruker Company. The X-ray diffractometer was D/max-γ B X-ray diffractometer, the radiation source was Cu Target Kα, the working voltage was 40 kV, current is 30 mA, and the wavelength was 1.5406 Å. The crystal structure and relative content were analyzed by scanning from 5° to 80° at 10°/min.

2.4.2. Microscopy Appearance

The micro-morphology of the foamed geopolymer was observed using a FEI Quanta 250 FEG scanning electron microscope. The magnification was between 25 and 4000.

2.4.3. Compression Performance

WDW-300E electronic universal testing machine of Jinan Times Gold Testing Machine Co., Ltd. (Jinan, China) was used to test the uniaxial compression performance of the samples to compare the uniaxial compressive strength of the samples with different mix proportions. The loading mode is strain controlled, and the loading rate is 0.2 mm/min. The compressive strength of the sample is obtained as follows:
σ c = F max A
where σ c is the compressive strength of the material, F max is the maximum load during the loading process, and A is the area of the sample.

2.4.4. Density

The average density of the three samples of the same mix proportion is obtained using the following calculation formula:
ρ = M V
where ρ is the density of the sample, M is the mass of the sample, and V is the volume of the sample.

3. Results and Discussion

The foamed geopolymer samples are rough, lusterless, and gray. The pore size of the sample surface is different, the distribution is irregular, and the pore size range is 1–8 mm. Figure 2a shows the sample in this experiment.

3.1. Physical and Mechanical Properties

Uniaxial compression test was carried out to obtain the compressive strength and stress–strain curve of each sample.

3.1.1. Characteristics of Compression Failure

During the uniaxial compression experiment, the failure characteristics of the samples were observed (Figure 2a). The findings indicate that one or more cracks appear at the end of the sample in the loading process. The crack gradually expands with increased load, and the propagation direction differs for each sample, primarily including vertical crack (Figure 2b) and oblique crack (Figure 2c). Some samples have several cracks in the beginning (Figure 2c). As the cracks expand, the oblique cracks gradually intersect with the vertical cracks and merge into a main crack. Then, the main crack gradually penetrates along the direction of the compression load, and the sample is split into several parts. Some samples show several vertical cracks in the beginning (Figure 2b). The cracks gradually expand with increased load. After penetrating along the direction of the load, the samples are divided into several vertical cracks.
The internal section of the sample after failure was observed. The findings indicate that most internal pore structures of the sample are closed, with different pore sizes, irregular distribution of pore structures, and have no orientation (Figure 3). Part of the large hole is fused with the surrounding holes in the manufacturing process, forming a “local large hole.” The vertical bar after the failure of the test piece shows that a fracture surface exists in the part, where the large hole is concentrated. The vertical bar after the sample is damaged shows that a continuous fracture surface exists at the place, where the large hole is concentrated. Some pore structures have initial defects, such as holes in the hole wall, cracks on the hole edge or hole wall, and defects on the hole wall. These initial defects form an invisible “weak zone” or “weak surface” in the inner part of the test sample, which provides a rapid channel for the penetration of external cracks and accelerates the failure process of the test block.
This analysis shows that the failure of fly-ash-based foamed geopolymer is primarily related to the “local large hole” in the sample and the bearing “weak zone” or “weak surface” formed by various initial defects.

3.1.2. Stress-Strain Curve of Uniaxial Compression

The uniaxial compressive strength of each sample is shown in Table 2, and the stress–strain curve of some samples is shown in Figure 4. According to the data in the table, the uniaxial compressive strength of the foamed geopolymer materials of different components prepared by this process varies greatly, with compression strength ranging from 0.221–2.221 MPa. The changes in components greatly influence the compressive strength of the materials.
Figure 4 shows that the uniaxial compression stress–strain curve of the sample has two major trends. The first type of curve is shown in Figure 4a–c. The peak strength of this type of stress–strain curve is evident, and only one peak appears in the entire compression process. The sample corresponding to this type of curve is elastic deformation at the initial stage of loading. The sample gradually enters the plastic deformation stage with increased load. In this stage, cracks begin to appear in the sample and gradually penetrate until the peak strength is reached. After the peak strength is exceeded, the deformation of the sample continues to increase, and a certain residual strength, which can continue to bear part of the load, is obtained.
The second type of curve is shown in Figure 4d,e. The peak strength is not evident, and multiple peaks exist. The load borne by the sample fluctuates within a certain range with increased deformation. In the initial stage of loading, the peak value of compressive strength is low, and the first peak value appears in place of the small deformation. This phenomenon is due to the many initial defects in the sample. Once loaded, the cracks rapidly penetrate along the initial defects, leading to sample failure. After the first peak value appeared under small strain, multiple peaks appeared with gradually increased deformation, and the average stress level in the sample remained basically unchanged within a relatively long deformation range. In this process, the pore structure in the sample is gradually destroyed. In addition, the sample continues to deform under constant stress level, and a long stress platform section appears. In this stress platform section, the sample can continuously undergo plastic deformation to absorb energy under the constant stress level. This property is crucial to the material’s resistance to dynamic impact, thereby enabling the material to absorb energy through its own deformation under external load; thus, the internal structure is protected from impact stress.
Figure 4f shows the combination of the first and second type curves, with a clear stress peak at approximately 1.6% of the strain, i.e., 0.34 MPa. After the peak value, the stress decreased rapidly and then the stress gradually increased at the point of approximately 2% strain until the strain was approximately 4%. Then, the stress recovered to 0.2 MPa. With further increased deformation, the stress platform stage appeared, until the strain was approximately 9.3%. The average stress remained unchanged at 0.2 MPa, and when the strain reached 10%, the sample was completely destroyed. The stress level is maintained at approximately 0.2 MPa within the strain range of 2–10%, which is the continuous energy absorption section of the sample.

3.2. Mineral Composition Characteristics of Foamed Geopolymer

The reaction process of geopolymers is a process of repolymerization after depolymerization. During this process, the fly ash spherical particles are dissolved, the Al-O and Si-O bonds are destroyed, and new non-crystalline gelatinous substances are formed [46,47,48,49,50,51,52,53,54].
Figure 5 shows that the mineralogical compositions of fly-ash-based foamed geopolymers of different components are slightly different, primarily Quartz, Aluminum Phosphate, Calcium Silicate, and Metahewettite. Quartz is the residue of fly ash and has low reactivity. Aluminum Phosphate is the crystal in the hydration products of cement hydration, and Calcium Silicate hydrates are the hydration products of Portland cement clinker during cement hydration reaction. Metahewettite is the product of the impurity in fly ash (MgO, Fe2O3) and Si-O bond in fly ash under the action of alkali activator.
The XRD patterns showed that the main components of the polymerization products were amorphous structures. It needs to be explained that obvious diffraction peaks appeared near 27 degrees in the spectrum, but this product was not the result of the polymerization reaction, but the quartz phase existing in the raw material fly ash, which is introduced by fly ash. There was a small amount of phosphate in the tap water for the test, and the aluminum phosphate produced by the ordinary Portland cement particles after absorbing the phosphate in the water. Metahewettite was formed by Cao in fly ash and cement under strong alkali environment.

3.3. Pore structure Characteristics

To further understand the pore structure characteristics and chemical reactions of the materials, the SEM images of the samples were compared and analyzed.
The pore structure graphs and micrographs of group A samples are shown in Figure 6a. Figure 6a shows that the A2 sample has agglomeration of fly ash spherical particles.
The agglomeration of fly ash easily occurs after moisture absorption, which prevents the external alkali solution from entering and reduces the polymerization degree of fly ash. Few gelled polymers exist between spherical particles in Samples A1, A2, and A3, which cannot form an effective and firm connection, resulting in low density and compressive strength of foamed polymers.
Figure 6b shows that when the content of H2O2 is different, the degree of polymerization of the obtained samples is also different. Relatively few gelatinous substances exist between fly ash particles of B1 samples, but the fly ash particles of B2 and B3 samples are almost filled with amorphous gelatinous substances. Correspondingly, according to the analysis in Section 3.1.2, the compressive strength of B2 and B3 samples is also greater than that of B1 samples. According to the analysis, with increased H2O2 content, the mixed slurry continuously has bubbles and move in the grout prior to the initial setting, thereby promoting the full flow contact of each component in the slurry and increasing the reaction degree of fly ash ball particles. On the contrary, when the H2O2 content is relatively small, the mixed slurry produces few bubbles prior to the initial setting, resulting in almost static slurry. The gelatinous substance produced by the first reaction is wrapped around the fly ash, preventing the ion exchange between the inside and outside of the coating. Moreover, the polymerization reaction cannot further enter the interior, resulting in a small quantity of polymerization material, which reduces the strength of the sample.
Figure 6c shows that with gradually increased foam-stabilizer content, the pore diameter in the polymer transforms from extremely uneven to uniform. The pore diameter becomes uniform, and the solid parts, such as pore wall and pore ridge, become thin. With increased content of the foam-stabilizing agent, the degree of destruction of fly ash spherical particles gradually increases. Only parts of the fly ash particles in the C1 sample are surrounded by gelation, most fly ash particles in the C2 sample are surrounded by gelation, and almost all fly ash particles in the C3 sample are surrounded by gelation. The addition of foam-stabilizing agent contributes to the uniform distribution of pore diameter, but at the same time, the pore wall becomes thin, thereby leading to decreased sample strength.
Figure 6d shows that with increased content of sodium silicate, the reaction degree and compressive strength of the obtained sample increase. D1 sample has many defects in the pore structure and has serious hole wall defects. From the microscopic point of view, the surface integrity of fly ash spherical particles is relatively high, indicating that the reaction degree of Al-O and Si-O bonds in fly ash was relatively low and few gelling substances surrounding the particles. The pore structure integrity of D2 sample was improved, the small particles were surrounded by gelatinous substances, and the gel material between the large particles was insufficient. The pore diameter of the D3 sample is smaller than that of the D1 and D2 samples, and the large and small particles of the sample are surrounded by the gelling substances. The degree of participation of fly ash in the polymerization reaction is high; thus, the strength of the geopolymer formed is also high.
Figure 6e shows that with increased NaOH content, the pore structure integrity of the sample is gradually improved, and the degree of fly ash participating in the polymerization reaction increases. The pore wall defects of E1 sample are serious, holes exist on the pore wall, and pore edges are limited. The microscopic figure shows that the surface of the large fly ash particles is relatively smooth and not seriously damaged, and a small amount of gelatinous substance is generated on the surface. The fly ash spherical particles of the E2 sample are almost bonded by the gelatinous substance, and the surface of the globular particles is gray and lusterless, indicating that it is corroded by alkaline activator and that the reaction degree is improved. The hole structure of the E3 sample is a regular circular closed hole structure, which is conducive to bear the load. More gelatinous substances exist between the fly ash particles, and the sample formed has good integrity.

3.4. Analyses of Emissions Reduction and Cost, Energy Savings

Under the overall strategic layout of sustainable development implemented by the Chinese government, the greenhouse effect and global warming have prompted the people to actively develop low-carbon cement to replace ordinary Portland cement. In the 1990s, the world produced 1 billion tons of cement, resulting in 1 billion tons of CO2, which account for 7% of the world’s total CO2 emissions. Every 1 t of cement produced results in 1 t CO2 [55]. For fly-ash-based foamed geopolymer, the CO2 emission from the production of 1 t of fly-ash-based foamed geopolymer is approximately 0.09 t given that no high-temperature treatment is required in the production process. Compared with ordinary Portland cement, producing the same quality of foamed geopolymer produces only 9% of the CO2 emissions of cement, thereby greatly reducing greenhouse gas emissions [56,57,58].
Most industrial wastes contain aluminosilicate, such as kaolin, rock, fly ash, and other industrial wastes, which have been successfully used in the preparation of geopolymers. Therefore, the preparation materials of foamed geopolymers are widely available and low-cost. According to statistics, the ex-factory price of Portland cement is $1200–3200/t, and the production price of fly-ash-based foamed geopolymers is $200–700/t [59]. Here is one thing that needs to be made clear, the cost of activators in the experiment has not been taken into account. This is also one of the shortcomings in the current geopolymer manufacturing process, so further exploration of cheaper activators is needed in the future.
In addition, as the production process of cement requires high temperature treatment process of “two grinding and one burning,” the energy consumption of cement production is extremely high, at approximately 3200–3500 MJ/t, but the energy consumption of fly-ash-based foamed geopolymer is only 800–1000 MJ/t.

4. Conclusions

A type of fly-ash-based foamed geopolymer, which is suitable for goaf filling is prepared. This material showed good bearing capacity, environmental friendliness, energy saving, and low CO2 emission. Foamed geopolymer based on fly ash, H2O2, sodium stearate, sodium metasilicate, and NaOH was prepared. Uniaxial compression test results showed that the fly-ash-based foamed geopolymer prepared by this process presented brittle failure under uniaxial compression condition. Cracks appeared in the sample at the early loading stage, and cracks gradually broke through with increased load. The sample was also divided into several vertical bar shapes. The failure of foamed geopolymer was primarily related to the “local large pore” in the sample and the bearing “weak zone” or “weak surface” formed by various initial defects. The compressive strength of the samples with different component contents was significantly different. The test results showed that the compressive strength of the sample was between 0.221 and 2.221 MPa.
The analysis of XRD experiment indicates that quartz was the residue of fly ash in the reaction product, Aluminum Phosphate is the crystal in the hydration products of cement hydration, and Calcium Silicate hydrates were the hydration products of Portland cement clinker during the cement hydration reaction.
When the contents of each component differed, the reaction degree of the obtained geopolymer also differed. Relatively few gelatinous substances exist between the spherical particles of the fly ash of some samples, but the gaps around the fly ash particles of the other samples were almost filled with amorphous gelatinous substances, thereby resulting in high density of foamed geopolymer and corresponding high compressive strength.
Finally, the CO2 emission, energy consumption, and economy in the production of fly-ash-based foaming geopolymer were analyzed in detail. Compared with traditional foamed concrete, foamed geopolymer had the advantages of low carbon emission, low energy consumption, and low cost. In the future, it will have a wide application potential in goaf filling.

Author Contributions

Conceptualization, L.S.; experimental design, G.F., J.Z. and X.X.; data curation, Y.W. and X.X.; writing—original draft preparation, L.S., G.F. and G.Y.; writing—review and editing, Y.W., J.Z. and B.J.; visualization, L.S., G.F., Y.W. and X.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 51774166, 51774173; Youth fund of Liaoning Provincial Department of Educationand, grant number LJ2017QL036 and The APC was funded by fund of Liaoning Technical University, grant number 18-1032.

Acknowledgments

Thanks to Professor Ma Zhijun for his advice and guidance on the XRD experimental scheme. Acknowledgements are provided here.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Li, P.; Wu, H.; Liu, Y.; Yang, J.; Fang, Z.; Lin, B. Preparation and optimization of ultra-light and thermal insulative aerogel foam concrete. Constr. Build. Mater. 2019, 205, 529–542. [Google Scholar] [CrossRef]
  2. Li, H.; Zha, J.; Guo, G. A new dynamic prediction method for surface subsidence based on numerical model parameter sensitivity. J. Clean. Prod. 2019, 233, 1418–1424. [Google Scholar] [CrossRef]
  3. Wang, Y.; Zheng, G.; Wang, X. Development and application of a goaf-safety monitoring system using multi-sensor information fusion. Tunn. Undergr. Space Technol. 2019, 94, 103112. [Google Scholar] [CrossRef]
  4. Yoon, H.S.; Lim, T.K.; Jeong, S.M.; Yang, K.H. Thermal transfer and moisture resistances of nano-aerogel-embedded foam concrete. Constr. Build. Mater. 2020, 236, 117575. [Google Scholar] [CrossRef]
  5. Li, T.; Huang, F.; Zhu, J.; Tang, J.; Liu, J. Effect of foaming gas and cement type on the thermal conductivity of foamed concrete. Constr. Build. Mater. 2020, 231, 117197. [Google Scholar] [CrossRef]
  6. Qu, Y.; Chen, J.; Liu, L.; Xu, T.; Wu, H.; Zhou, X. Study on properties of phase change foam concrete block mixed with paraffin/fumed silica composite phase change material. Renew. Energy 2019. [Google Scholar] [CrossRef]
  7. Liu, C.; Luo, J.; Li, Q.; Gao, S.; Su, D.; Zhang, J.; Chen, S. Calcination of green high-belite sulphoaluminate cement (GHSC) and performance optimizations of GHSC-based foamed concrete. Mater. Des. 2019, 182, 107986. [Google Scholar] [CrossRef]
  8. Falliano, D.; De Domenico, D.; Sciarrone, A.; Ricciardi, G.; Restuccia, L.; Tulliani, J.M.C.; Gugliandolo, E. Fracture behavior of lightweight foamed concrete: The crucial role of curing conditions. Theor. Appl. Fract. Mech. 2019, 103, 102297. [Google Scholar] [CrossRef]
  9. Ma, S.; Chen, W.; Zhao, W. Mechanical properties and associated seismic isolation effects of foamed concrete layer in rock tunnel. J. Rock Mech. Geotech. Eng. 2019, 11, 159–171. [Google Scholar] [CrossRef]
  10. Ahmad, M.R.; Chen, B. Experimental research on the performance of lightweight concrete containing foam and expanded clay aggregate. Compos. Part B Eng. 2019, 171, 46–60. [Google Scholar] [CrossRef]
  11. Chandni, T.J.; Anand, K.B. Utilization of recycled waste as filler in foam concrete. J. Build. Eng. 2018, 19, 154–160. [Google Scholar] [CrossRef]
  12. Youssef, M.B.; Lavergne, F.; Sab, K.; Miled, K.; Neji, J. Upscaling the elastic stiffness of foam concrete as a three-phase composite material. Cem. Concr. Res. 2018, 110, 13–23. [Google Scholar] [CrossRef]
  13. Furet, B.; Poullain, P.; Garnier, S. 3D printing for construction based on a complex wall of polymer-foam and concrete. Addit. Manuf. 2019, 28, 58–64. [Google Scholar] [CrossRef]
  14. Hajimohammadi, A.; Ngo, T.; Mendis, P. Enhancing the strength of pre-made foams for foam concrete applications. Cem. Concr. Compos. 2018, 87, 164–171. [Google Scholar] [CrossRef]
  15. Maddalena, R.; Roberts, J.J.; Hamilton, A. Can Portland cement be replaced by low-carbon alternative materials? A study on the thermal properties and carbon emissions of innovative cements. J. Clean. Prod. 2018, 186, 933–942. [Google Scholar] [CrossRef]
  16. Rincón, A.; Desideri, D.; Bernardo, E. Functional glass-ceramic foams from ‘inorganic gel casting’and sintering of glass/slag mixtures. J. Clean. Prod. 2018, 187, 250–256. [Google Scholar] [CrossRef]
  17. Ascensao, G.; Seabra, M.P.; Aguiar, J.B.; Labrincha, J.A. Red mud-based geopolymers with tailored alkali diffusion properties and pH buffering ability. J. Clean. Prod. 2017, 148, 23–30. [Google Scholar] [CrossRef]
  18. Yan, S.; Zhang, F.; Liu, J.; Ren, B.; He, P.; Jia, D.; Yang, J. Green synthesis of high porosity waste gangue microsphere/geopolymer composite foams via hydrogen peroxide modification. J. Clean. Prod. 2019, 227, 483–494. [Google Scholar] [CrossRef]
  19. Thakur, A.K.; Pappu, A.; Thakur, V.K. Synthesis and characterization of new class of geopolymer hybrid composite materials from industrial wastes. J. Clean. Prod. 2019, 230, 11–20. [Google Scholar] [CrossRef]
  20. Nawab, L.; Ghani, U. Synthesis and characterization of chloride resistant cement from industrial waste through geopolymerization. J. Clean. Prod. 2017, 156, 577–580. [Google Scholar]
  21. Novais, R.M.; Buruberri, L.H.; Ascensão, G.; Seabra, M.P.; Labrincha, J.A. Porous biomass fly ash-based geopolymers with tailored thermal conductivity. J. Clean. Prod. 2016, 119, 99–107. [Google Scholar] [CrossRef]
  22. Tang, N.; Deng, Z.; Dai, J.G.; Yang, K.; Chen, C.; Wang, Q. Geopolymer as an additive of warm mix asphalt: Preparation and properties. J. Clean. Prod. 2018, 192, 906–915. [Google Scholar] [CrossRef]
  23. Zhuang, X.Y.; Chen, L.; Komarneni, S.; Zhou, C.H.; Tong, D.S.; Yang, H.M.; Wang, H. Fly ash-based geopolymer: Clean production, properties and applications. J. Clean. Prod. 2016, 125, 253–267. [Google Scholar] [CrossRef]
  24. Gao, K.; Lin, K.-L.; Wang, D.; Hwang, C.-L.; Anh Tuan, B.L.; Shiu, H.-S.; Cheng, T.-W. Effect of nano-SiO2 on the alkali-activated characteristics of metakaolin based geopolymers. Constr. Build. Mater. 2013, 48, 441–447. [Google Scholar] [CrossRef]
  25. Nie, Q.; Hu, W.; Ai, T.; Huang, B.; Shu, X.; He, Q. Strength properties of geopolymers derived from original and desulfurized red mud cured at ambient temperature. Constr. Build. Mater. 2016, 125, 905–911. [Google Scholar] [CrossRef]
  26. Stafford, F.N.; Dias, A.C.; Arroja, L.; Labrincha, J.A.; Hotza, D. Life cycle assessment of the production of Portland cement: A Southern Europe case study. J. Clean. Prod. 2016, 126, 159–165. [Google Scholar] [CrossRef]
  27. Wu, Y.; Wang, J.Y.; Monteiro, P.J.M.; Zhang, M.H. Development of ultra-lightweight cement composites with low thermal conductivity and high specific strength for energy efficient buildings. Constr. Build. Mater. 2015, 87, 100–112. [Google Scholar] [CrossRef]
  28. Cyr, M.; Idir, R.; Poinot, T. Properties of inorganic polymer (geopolymer) mortars made of glass cullet. J. Mater. Sci. 2012, 6, 2782–2797. [Google Scholar] [CrossRef]
  29. Woszuk, A.; Bandura, L.; Franus, W. Fly ash as low cost and environmentally friendly filler and its effect on the properties of mix asphalt. J. Clean. Prod. 2019, 235, 493–502. [Google Scholar] [CrossRef]
  30. Brooks, A.L.; Shen, Z.; Zhou, H. Development of a high-temperature inorganic synthetic foam with recycled fly-ash cenospheres for thermal insulation brick manufacturing. J. Clean. Prod. 2019, 246, 118748. [Google Scholar] [CrossRef]
  31. Valeev, D.; Kunilova, I.; Alpatov, A.; Mikhailova, A.; Goldberg, M.; Kondratiev, A. Complex utilisation of ekibastuz brown coal fly ash: Iron & carbon separation and aluminum extraction. J. Clean. Prod. 2019, 218, 192–201. [Google Scholar]
  32. Song, H.; Cao, Z.; Xie, W.; Cheng, F.; Gasem, K.A.; Fan, M. Improvement of dispersion stability of filler based on fly ash by adding sodium hexametaphosphate in gas-sealing coating. J. Clean. Prod. 2019, 235, 259–271. [Google Scholar] [CrossRef]
  33. Tosti, L.; van Zomeren, A.; Pels, J.R.; Damgaard, A.; Comans, R.N. Life cycle assessment of the reuse of fly ash from biomass combustion as secondary cementitious material in cement products. J. Clean. Prod. 2019, 245, 118937. [Google Scholar] [CrossRef]
  34. Liu, G.; Florea, M.V.A.; Brouwers, H.J.H. Characterization and performance of high volume recycled waste glass and ground granulated blast furnace slag or fly ash blended mortars. J. Clean. Prod. 2019, 235, 461–472. [Google Scholar] [CrossRef]
  35. Teixeira, E.R.; Camões, A.; Branco, F.G.; Aguiar, J.B.; Fangueiro, R. Recycling of biomass and coal fly ash as cement replacement material and its effect on hydration and carbonation of concrete. Waste Manag. 2019, 94, 39–48. [Google Scholar] [CrossRef] [PubMed]
  36. Ibrahim, W.M.W.; Abdullah, M.A.B.; Sandu, A.V.; Hussin, K.; Sandu, I.G.; Ismail, K.N.; Binhussain, M. Processing and characterization of fly ash-based geopolymer bricks. Rev. Chim. 2014, 65, 1340–1345. [Google Scholar]
  37. Franus, M.; Panek, R.; Madej, J.; Franus, W. The properties of fly ash derived lightweight aggregates obtained using microwave radiation. Constr. Build. Mater. 2019, 227, 116677. [Google Scholar] [CrossRef]
  38. De Matos, P.R.; Junckes, R.; Graeff, E.; Prudêncio, L.R., Jr. Effectiveness of fly ash in reducing the hydration heat release of mass concrete. J. Build. Eng. 2019, 28, 101063. [Google Scholar] [CrossRef]
  39. Acisli, O.; Acar, I.; Khataee, A. Preparation of a fly ash-based geopolymer for removal of a cationic dye: Isothermal, kinetic and thermodynamic studies. J. Ind. Eng. Chem. 2019, 83, 53–63. [Google Scholar] [CrossRef]
  40. Zhang, R.; Guo, F.; Xia, Y.; Tan, J.; Xing, Y.; Gui, X. Recovering unburned carbon from gasification fly ash using saline water. Waste Manag. 2019, 98, 29–36. [Google Scholar] [CrossRef]
  41. Sanalkumar, K.U.A.; Lahoti, M.; Yang, E.H. Investigating the potential reactivity of fly ash for geopolymerization. Constr. Build. Mater. 2019, 225, 283–291. [Google Scholar] [CrossRef]
  42. Mucsi, G.; Kumar, S.; Csőke, B.; Kumar, R.; Molnár, Z.; Rácz, Á.; Mádai, F.; Debreczeni, Á. Control of geopolymer properties by grinding of land filled fly ash. Int. J. Miner. Process. 2015, 143, 50–58. [Google Scholar] [CrossRef]
  43. Kumar, S.; Mucsi, G.; Kristaly, F.; Pekker, P. Mechanical activation of fly ash and its influence on micro and nano-structural behaviour of resulting geopolymers. Adv. Powder Technol. 2017, 28, 805–813. [Google Scholar] [CrossRef]
  44. Szabó, R.; Gombkötő, I.; Svéda, M.; Mucsi, G. Effect of grinding fineness of fly ash on the properties of geopolymer foam. Arch. Metall. Mater. 2017, 62, 1257–1261. [Google Scholar] [CrossRef]
  45. ASTM C618-17 Standard Specification for Coal Fly Ash and Raw or Calcined Natural Pozzolan for Use in Concrete; ASTM: West Conshohocken, PA, USA, 2017.
  46. Kambham, K.; Sangameswaran, S.; Datar, S.R.; Kura, B. Copper slag: Optimization of productivity and consumption for cleaner production in dry abrasive blasting. J. Clean. Prod. 2007, 5, 465–473. [Google Scholar] [CrossRef]
  47. Najimi, M.; Sobhani, J.; Pourkhorshidi, A.R. Durability of copper slag contained concrete exposed to sulfate attack. Constr. Build. Mater. 2011, 4, 1895–1905. [Google Scholar] [CrossRef]
  48. Ponsot, I.; Bernardo, E. Self-glazed glass ceramic foams from metallurgical slag and recycled glass. J. Clean. Prod. 2013, 59, 245–250. [Google Scholar] [CrossRef]
  49. Rawlings, R.D.; Wu, J.P.; Boccaccini, A.R. Glass-ceramics: Their production from wastes—A review. J. Mater. Sci. 2006, 41, 733–761. [Google Scholar] [CrossRef]
  50. Chen, C.; Gong, W.; Lutze, W.; Pegg, I.L.; Zhai, J. Kinetics of fly ash leaching in strongly alkaline solutions. J. Mater. Sci. 2011, 46, 590–597. [Google Scholar] [CrossRef]
  51. Guo, H.; Zhang, Y.; Huang, R.; Su, R.; Qi, W.; He, Z. Interactions of fly ash particles with mucin and serum albumin. Langmuir 2018, 34, 12251–12258. [Google Scholar] [CrossRef]
  52. Liu, Y.; Yan, C.; Zhang, Z.; Gong, Y.; Wang, H.; Qiu, X. A facile method for preparation of floatable and permeable fly ash-based geopolymer block. Mater. Lett. 2016, 185, 370–373. [Google Scholar] [CrossRef]
  53. Okoye, F.N.; Prakash, S.; Singh, N.B. Durability of fly ash based geopolymer concrete in the presence of silica fume. J. Clean. Prod. 2017, 149, 1062–1067. [Google Scholar] [CrossRef]
  54. Thakur, A.K.; Pappu, A.; Thakur, V.K. Resource efficiency impact on marblewaste recycling towards sustainable green construction materials. Curr. Opin. Green Sustain. Chem. 2018, 13, 91–101. [Google Scholar] [CrossRef]
  55. Bolaños-Vásquez, I.; Trauchessec, R.; Tobón, J.I.; Lecomte, A. Influence of the ye’elimite/anhydrite ratio on PC-CSA hybrid cements. Mater. Today Commun. 2019, 100778. [Google Scholar] [CrossRef]
  56. Ledesma, R.B.; Lopes, N.F.; Bacca, K.G.; de Moraes, M.K.; dos Santos Batista, G.; Pires, M.R.; da Costa, E.M. Zeolite and fly ash in the composition of oil well cement: Evaluation of degradation by CO2 under geological storage condition. J. Pet. Sci. Eng. 2019, 185, 106656. [Google Scholar] [CrossRef]
  57. Singh, G.B.; Subramaniam, K.V. Production and characterization of low-energy Portland composite cement from post-industrial waste. J. Clean. Prod. 2019, 239, 118024. [Google Scholar] [CrossRef]
  58. Pichler, C.; Lackner, R. Post-peak decelerating reaction of Portland cement: Monitoring by heat flow calorimetry, modelling by Elovich-Landsberg model and reaction-order model. Constr. Build. Mater. 2020, 231, 117107. [Google Scholar] [CrossRef]
  59. Lippiatt, N.; Ling, T.C.; Eggermont, S. Combining hydration and carbonation of cement using super-saturated aqueous CO2 solution. Constr. Build. Mater. 2019, 229, 116825. [Google Scholar] [CrossRef]

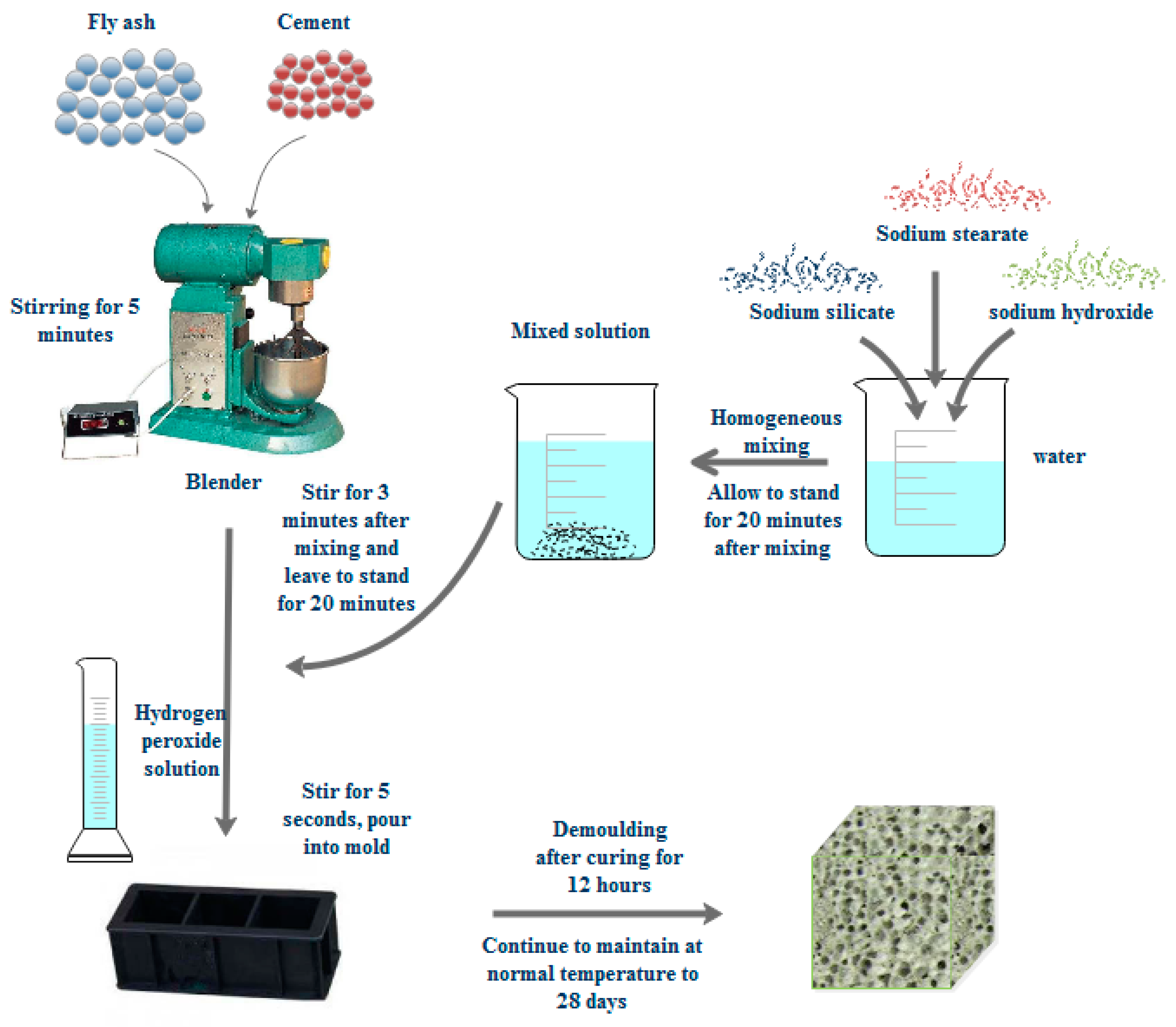

Figure 1. Manufacturing process of fly-ash-based foamed geopolymer.
Figure 1. Manufacturing process of fly-ash-based foamed geopolymer.
Materials 13 00841 g001

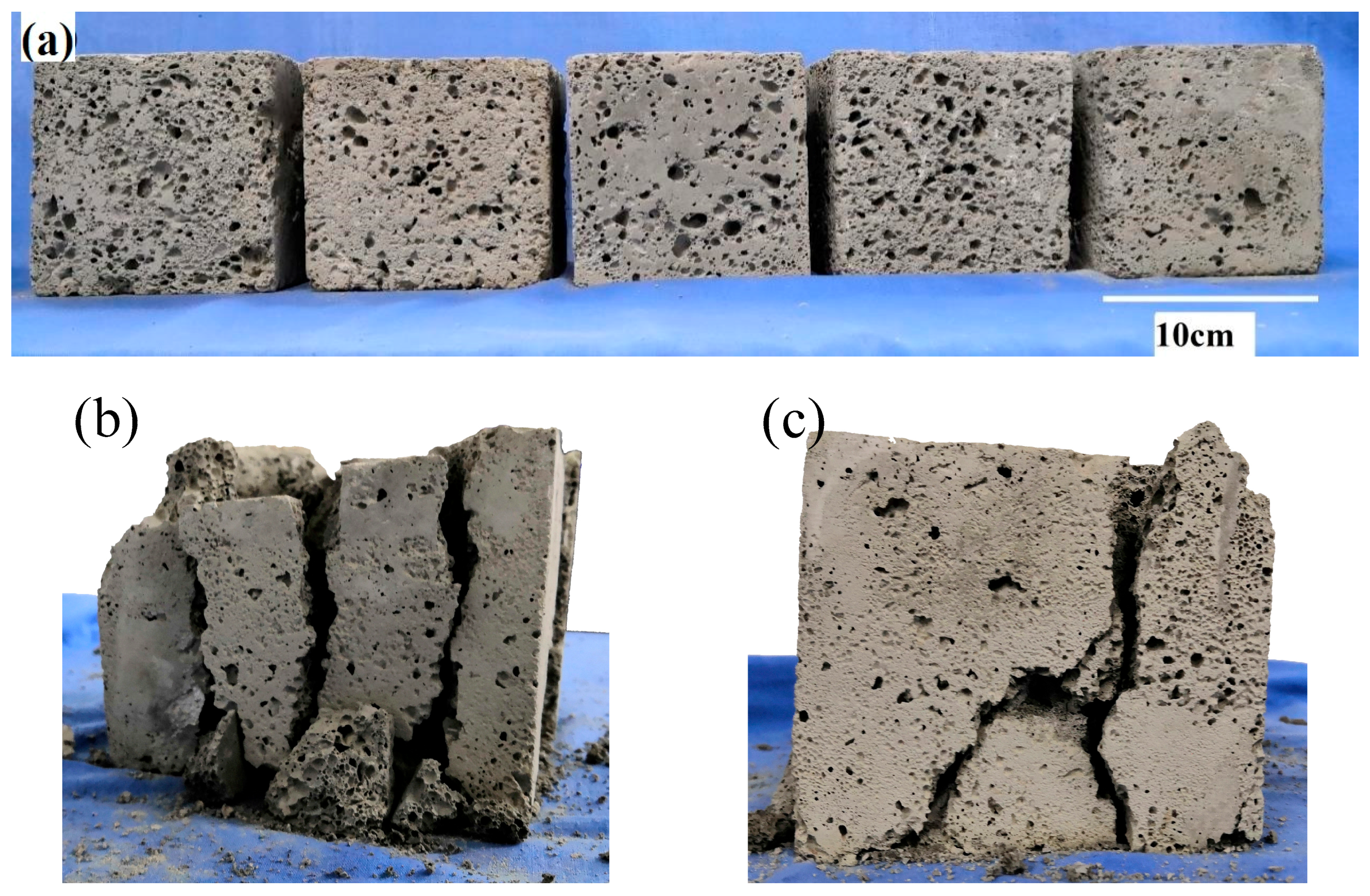

Figure 2. Samples of fly-ash-based foamed geopolymer, (a) samples before experiment, (b) sample with vertical cracks and (c) sample with oblique cracks.
Figure 2. Samples of fly-ash-based foamed geopolymer, (a) samples before experiment, (b) sample with vertical cracks and (c) sample with oblique cracks.
Materials 13 00841 g002

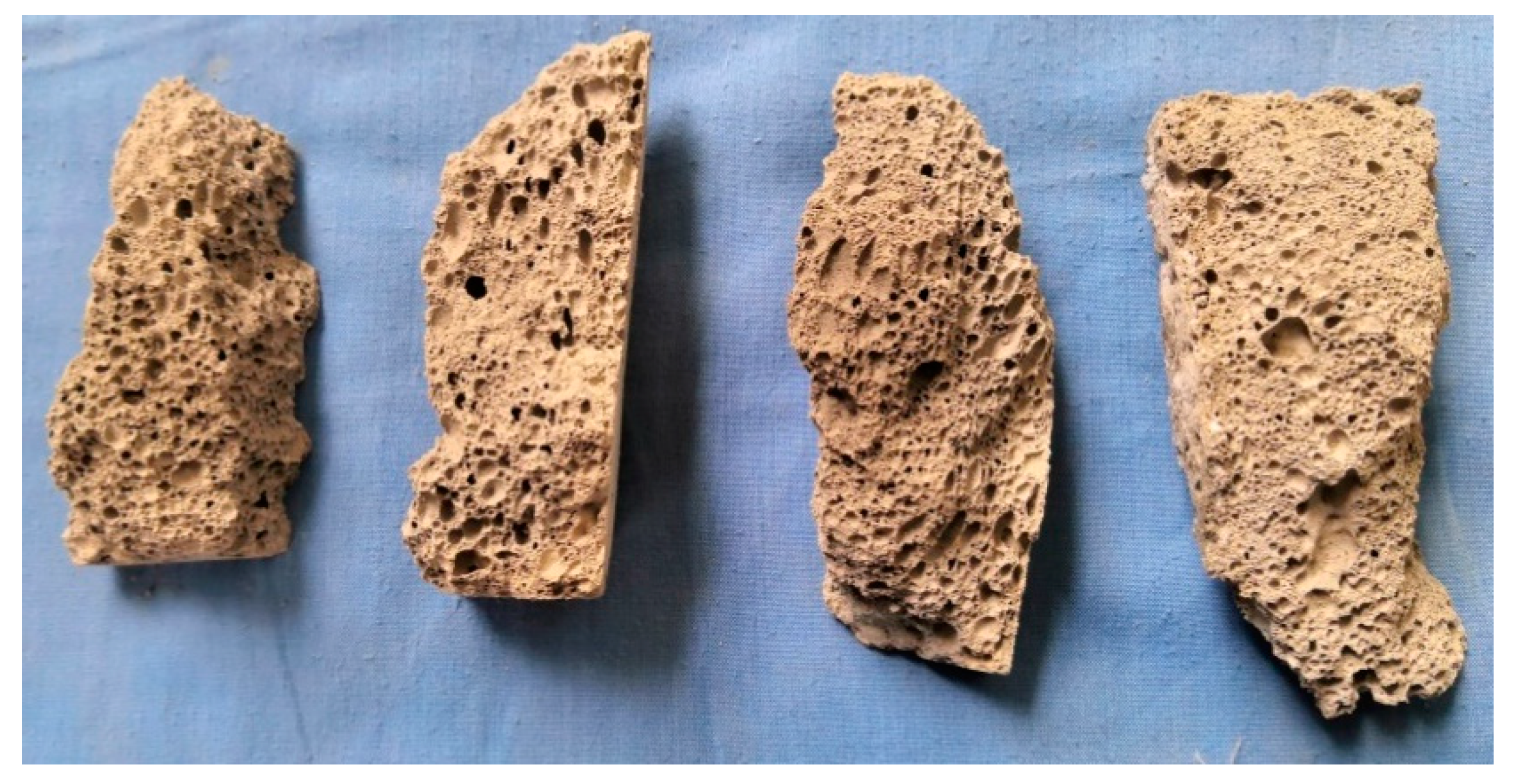

Figure 3. Compression failure characteristics of fly-ash-based foamed geopolymer.
Figure 3. Compression failure characteristics of fly-ash-based foamed geopolymer.
Materials 13 00841 g003

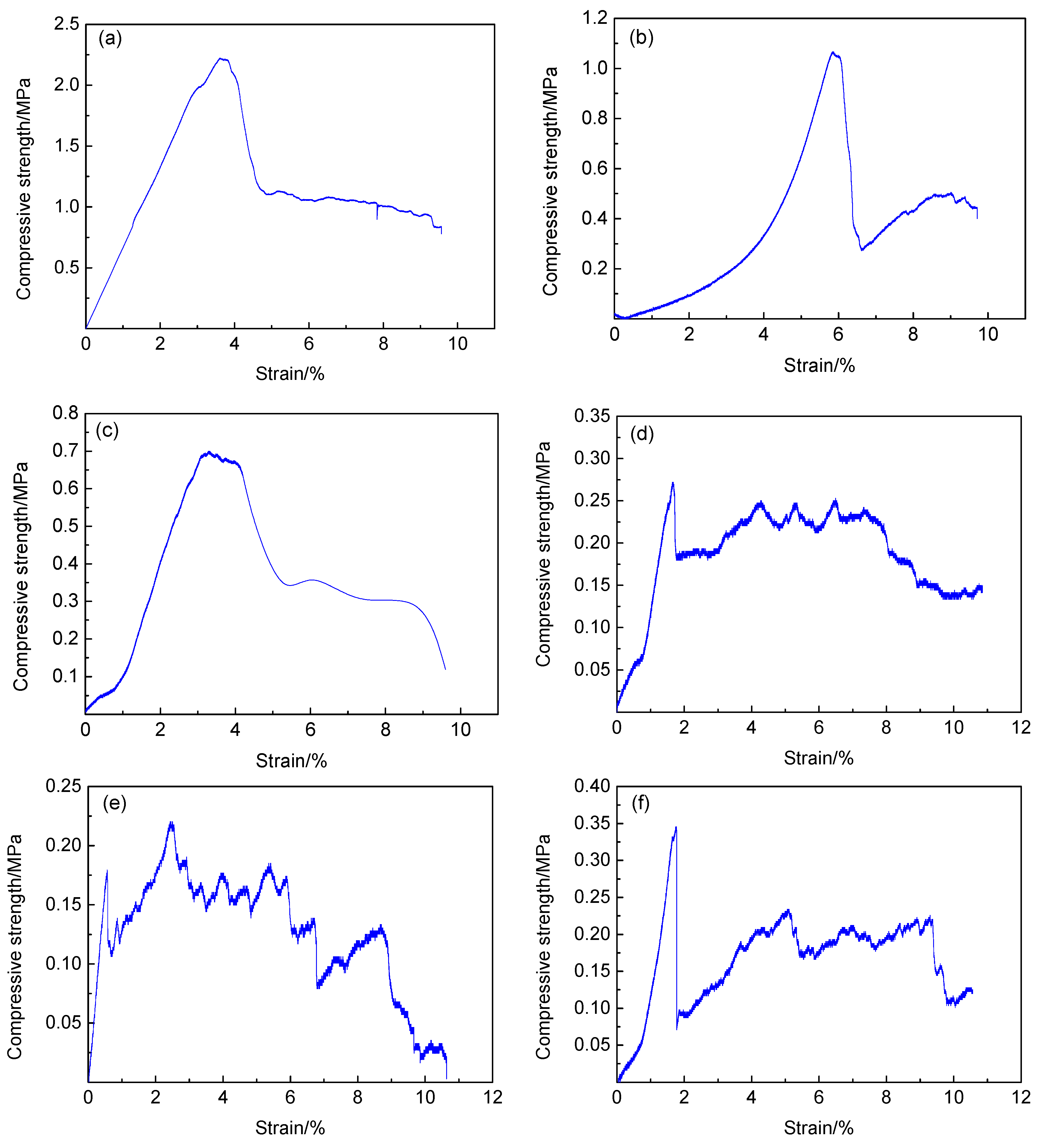

Figure 4. Stress-strain curves of samples under uniaxial compression, (a) stress-strain curve of sample B3, (b) stress-strain curve of sample B1, (c) stress-strain curve of sample D1, (d) stress-strain curve of sample A2, (e) stress-strain curve of sample A3 and (f) stress-strain curve of sample A1.
Figure 4. Stress-strain curves of samples under uniaxial compression, (a) stress-strain curve of sample B3, (b) stress-strain curve of sample B1, (c) stress-strain curve of sample D1, (d) stress-strain curve of sample A2, (e) stress-strain curve of sample A3 and (f) stress-strain curve of sample A1.
Materials 13 00841 g004

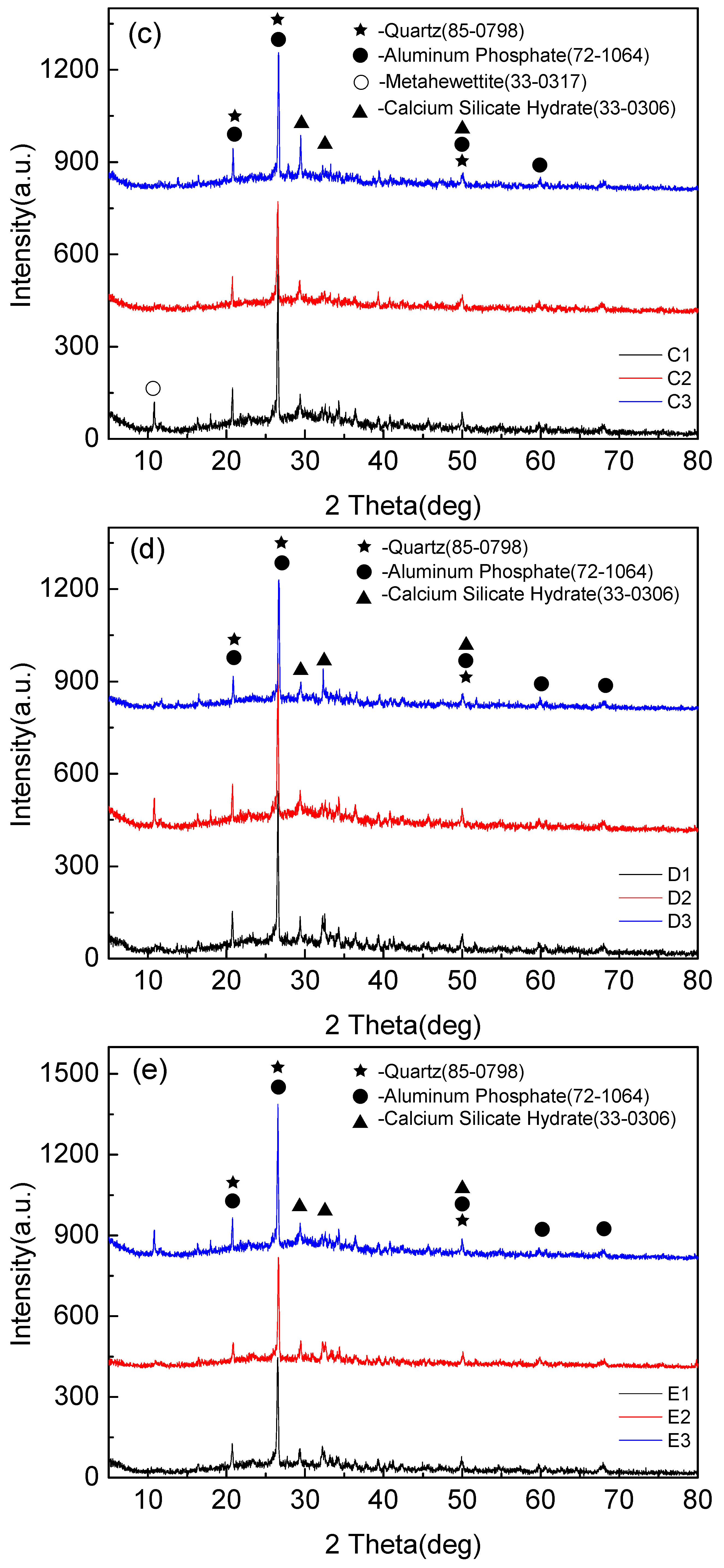

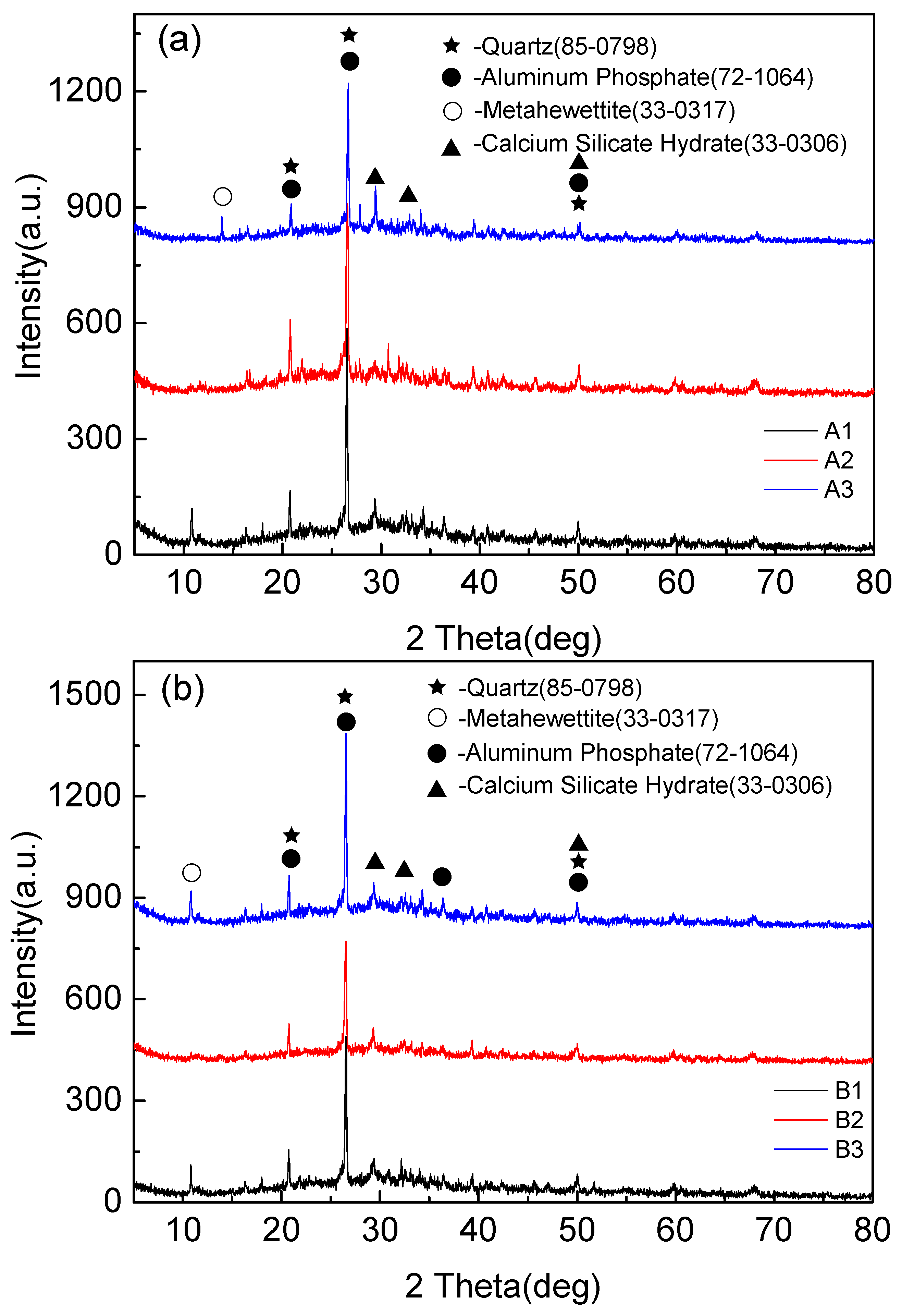

Figure 5. XRD diffraction pattern of foamed geopolymer based on fly ash. (a) XRD patterns of samples A1, A2, A3, (b) XRD patterns of samples B1, B2, B3, (c) XRD patterns of samples C1, C2, C3, (d) XRD patterns of samples D1, D2, D3, and (e) XRD patterns of samples E1, E2, E3.
Figure 5. XRD diffraction pattern of foamed geopolymer based on fly ash. (a) XRD patterns of samples A1, A2, A3, (b) XRD patterns of samples B1, B2, B3, (c) XRD patterns of samples C1, C2, C3, (d) XRD patterns of samples D1, D2, D3, and (e) XRD patterns of samples E1, E2, E3.
Materials 13 00841 g005aMaterials 13 00841 g005b

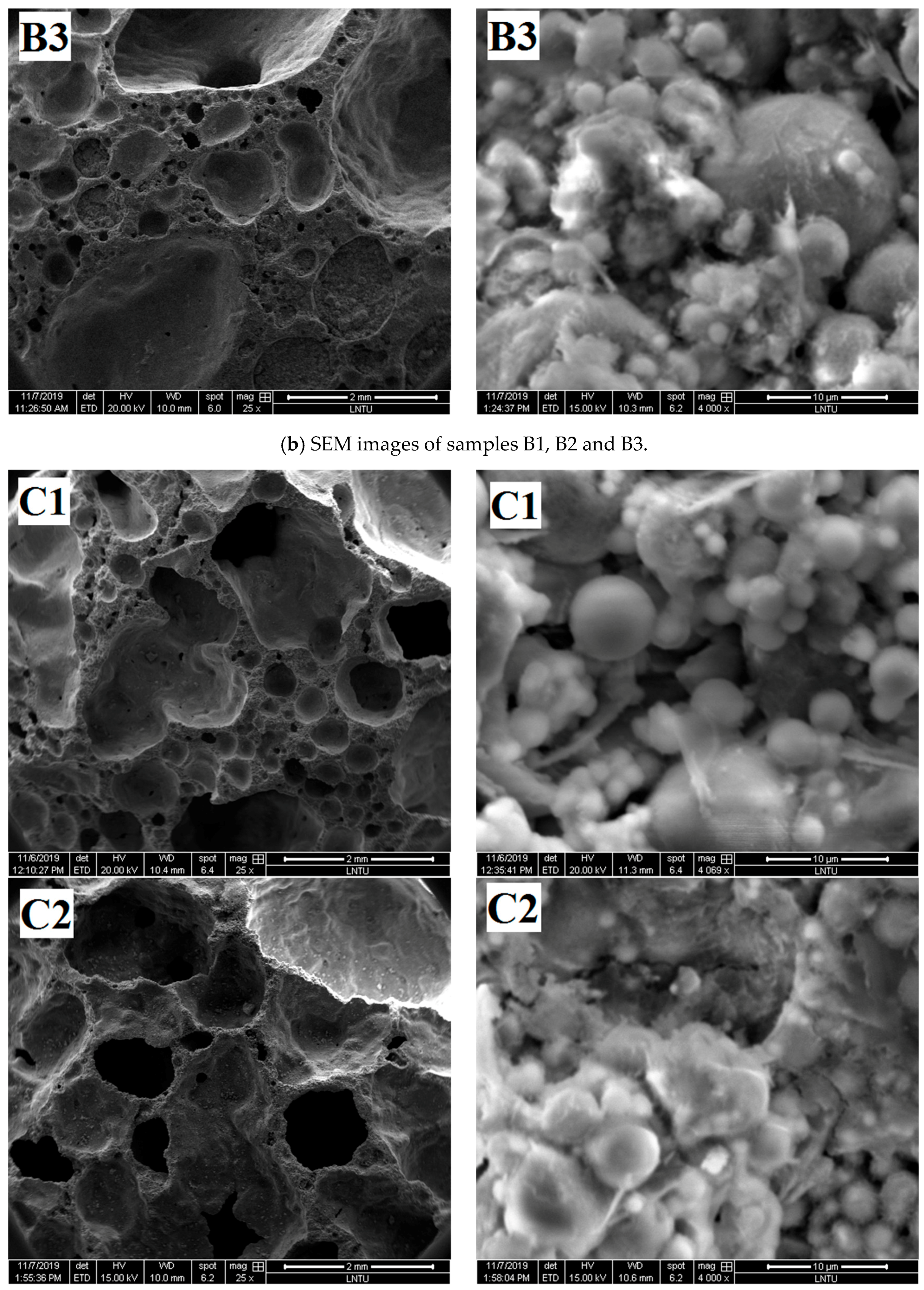

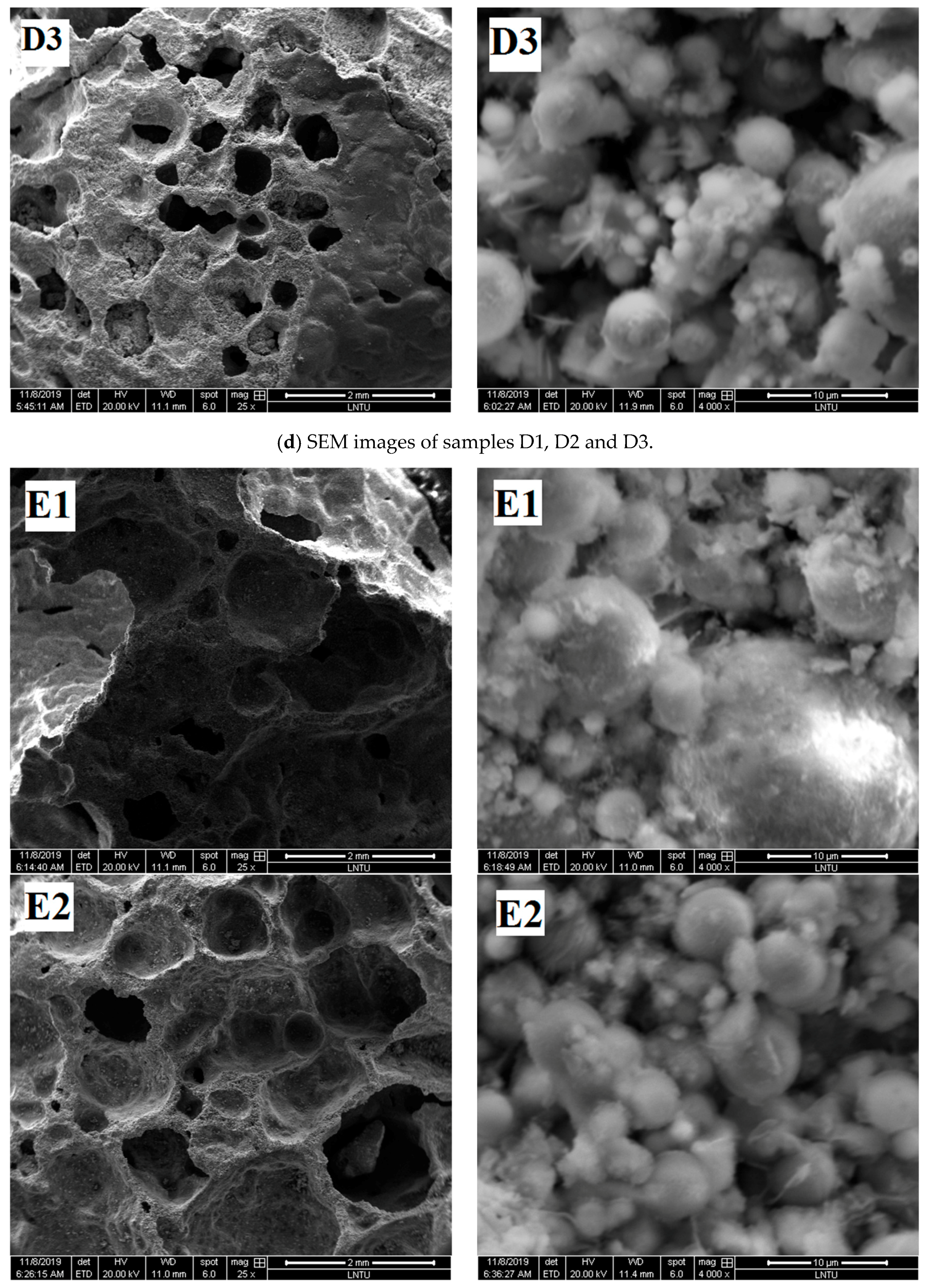

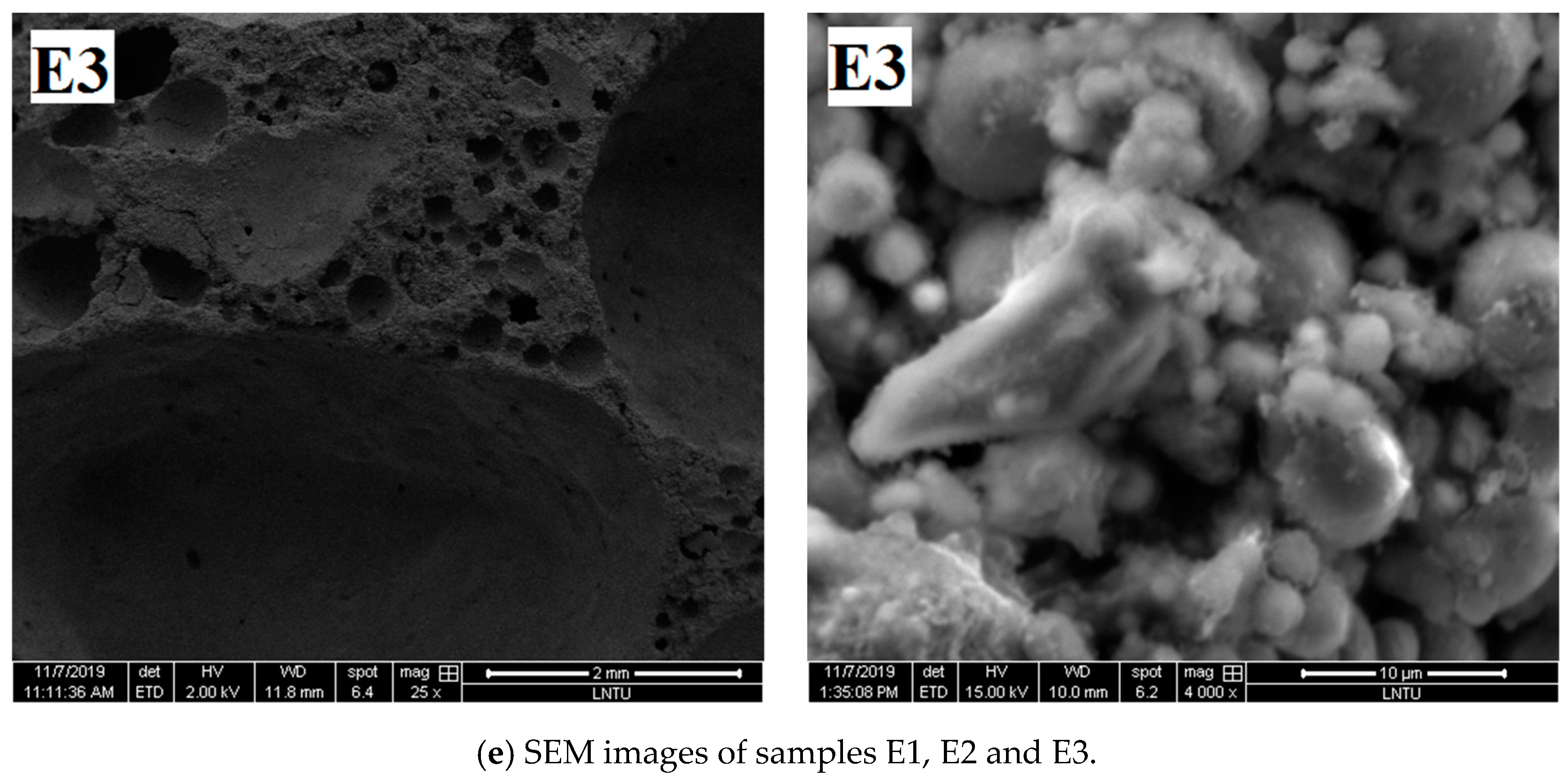

Figure 6. SEM images of samples.
