H3PMo12O40 Immobilized on Amine Functionalized SBA-15 as a Catalyst for Aldose Epimerization

by
Hui Wang
,
Meiyin Wang
,
Jining Shang
,
Yuanhang Ren
,
Bin Yue
* and
Heyong He
*
Department of Chemistry and Shanghai key Laboratory of Molecular Catalysis and Innovative Materials, Collaborative Innovation Center of Chemistry for Energy Materials, Fudan University, Shanghai 200438, China
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(3), 507; https://doi.org/10.3390/ma13030507
Submission received: 16 December 2019 / Revised: 15 January 2020 / Accepted: 17 January 2020 / Published: 21 January 2020
(This article belongs to the Special Issue Molybdenum-, Vanadium-, and Tungsten-Containing Materials for Catalytic Applications)
Browse Figures
Versions Notes

Abstract

In this work various amount of phosphomolybdic acid (PMo) were immobilized on amine functionalized SBA-15 and used as heterogeneous catalysts in the epimerization of glucose in aqueous solution. 13.3PMo/NH2-SBA-15 exhibited the best catalytic performance with a glucose conversion of 34.8% and mannose selectivity of 85.6% within two hours at 120 °C. The activation energy of 80.1 ± 0.1 kJ·mol−1 was lower than that of 96 kJ·mol−1 over the homogeneous H3PMo12O40 catalyst. The catalytic activities of 13.3PMo/NH2-SBA-15 for the transformation of some other aldoses including mannose, arabinose and xylose were also investigated.

Graphical Abstract

1. Introduction

As a renewable carbon resource, biomass is considered to be an ideal substitute for traditional fossil resources [1,2]. Carbohydrates are easily available in the utilization of plant biomass and glucose obviously prevails as the main building block [3,4]. As the most abundant C6 monosaccharide in nature, glucose can be easily extracted in large volumes from cellulose and hemicellulose, so many efforts have been put into valorizing glucose [5]. Among the various chemical transformations of glucose, epimerization is a carbon-efficient pathway for the production of chiral counterparts (Scheme 1) [6,7,8].
Epimerization is widely used to produce some rare sugars with valuable properties since these sugars could not be largely obtained from biopolymers. For example, sugars like D-lyxose and L-ribose, which are produced based on their abundant C-2 epimers, can be employed to synthesize antitumor agents and hepatitis B virus resistance drugs, respectively [9,10]. Currently, the large-scale production of these rare monosaccharides mainly relies on enzyme catalytic process, which suffers from the strict operating conditions such as specific temperature and pH value [11]. In addition, epimerases are only active on the monosaccharides pretreated by phosphate or nucleotide and difficult to be separated from the reaction system, so developing inorganic catalysts is becoming desirable to overcome some of these difficulties [11,12].
Lobry de Bruyn−Alberda van Ekenstein (LdB−AvE) reaction is a classic transformation for aldose epimerization with soluble alkalis as catalysts, such as NaOH and Ca(OH)2 [13,14]. Aldose converts into an enediol anion in a basic media and the C-2 epimer forms through the rotation of the C2-C3 bond of the intermediate [15]. Since the reorganization of the enol intermediate into isomeric ketose is faster than transformation into epimeric aldose and numerous side reactions exist in basic system, the selectivity of the epimeric aldose is extremely low. For a heterogeneous Lewis acid catalyst, Sn-β zeolite was found to simultaneously catalyze the isomerization and the epimerization of aldose in aqueous solution, but the former was always dominant [16]. Gunther et al. [17] showed that the epimeric aldose was the main product when sodium tetraborate was introduced into the catalytic system of Sn-β. Later on, Bermejo-Deval et al. [18] reported that Na+ exchanged Sn-β could also catalyze the epimerization of glucose in aqueous solvent. However, Na+ cations in the active sites could not be well preserved under the reaction condition. With increasing reaction time, the selectivity of epimerization to mannose gradually shifted to isomerization to fructose. In a word, no matter the reaction occurs in a base-catalyzed or a Lewis acid-catalyzed system, there is a competition between the isomerization and epimerization of aldose. Therefore, it is a big challenge to obtain the C-2 epimer with high selectivity. In 1970s, Bilik et al. [19,20,21] found that the epimerization reaction of aldose reached the thermodynamic equilibrium in 2–6 h at 70–90 °C with molybdate as a catalyst in acid solution, and no isomeric ketose formed during the reaction. The intramolecular 1,2 carbon shift mechanism or called as “Bilik mechanism” was then proposed, in which the C2–C3 bond of the aldose cleaves while the C1–C3 bond forms [22]. However, the epimerization reaction only proceeds rapidly when the pH value of the system is in the region of 2.5–3.5. Hence additional inorganic acid is always needed [23]. Chethana et al. [24] calculated the activation barrier and proposed that the molybdenum species are mainly in the form of dimers in the pH range of 2.5–3.5. The di-molybdate-glucose complex of great flexibility could facilitate the rearrangement of carbon skeleton. Inspired by the pioneer work of Bilik et al. [19,20,21], considerable efforts have been made to develop effective Mo-catalysts for aldose epimerization [25,26,27,28]. In 2014, Ju et al. [29] reported that H3PMo12O40 exhibited high activity in the epimerization of glucose, and the Bilik reaction mechanism was confirmed by 13C NMR spectroscopy. Polyoxometalates (POMs) can provide the active sites without utilizing additional inorganic acid and exhibit great potential in the aldose epimerization reaction. However, it is not an easy task to separate homogeneous H3PMo12O40 from the aqueous solution for recycling. In this case, Ju et al. [29] also tried to exchange the protons with Ag+ to solidify H3PMo12O40 catalyst. Lari et al. [30] reported that Ag3PMo12O40 is not a stable heterogeneous catalyst in hot aqueous solution. Even under a quite mild condition (60 °C, 0.5 h), the leaching of Mo species in Ag3PMo12O40 reached up to 21%. As for heterogenization of POMs, dispersing POMs on an amine functionalized support with high specific surface area is also a typical strategy [31]. On account of the acid-base interaction between –NH2 and heteropoly acids, it is anticipated that the leaching of active Mo species could be effectively restrained in glucose epimerization reaction.
In this work, a series of phosphomolybdic acid (PMo) immobilized on amine functionalized SBA-15 catalysts (xPMo/NH2-SBA-15) with different PMo contents were prepared. The catalytic performance of xPMo/NH2-SBA-15 was tested in the glucose epimerization in the aqueous solution. The leaching of Mo species during the transformation of glucose and the reusability of the optimal catalyst were investigated. The transformation of other aldoses such as mannose, arabinose, and xylose were also studied over the catalyst.

2. Materials and Methods

2.1. Materials

Poly(ethylene glycol)-block poly(propylene glycol)-block-poly(ethylene glycol) (P123, molecular weight ~ 5800) and D-(+)-glucose (ACS reagent) were purchased from Sigma-Aldrich, Co. (St. Louis, MO, USA). Tetraethyl orthosilicate (TEOS, SiO2 ≥ 28%) was purchased from Shanghai Lingfeng Chemical Reagent Co., Ltd. (Shanghai, China). Ethanol (anhydrous, ≥99.7%) was purchased from Shanghai Titan Scientific Co., Ltd. (Shanghai, China). Hydrochloric acid (36.0%~38.0%), sulfuric acid (95.0%~98.0%) and toluene (≥99.5%) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). (3-Aminopropyl)triethoxysilane (APTES, 99%), phosphomolybdic acid hydrate (H3PMo12O40·nH2O, AR), D-fructose (99%), D-(+)-mannose (99%), L-(+)-arabinose (≥99%), L-(+)-ribose (98%) and D-(+)-xylose (≥99%) were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). D-(-)-lyxose (99%) was purchased from Shanghai Macklin Biochemical Technology Co., Ltd. (Shanghai, China). All the chemicals were used without further purification.

2.2. Preparation of Catalysts

Preparation of mesoporous SBA-15 was carried out according to the literature method [32]. Typically, P123 (4.0 g), deionized water (30 g) and 2.9 mol·L−1 HCl (120 g) were added into a round bottom flask, and the mixture was kept stirring for 4 h at 35 °C. TEOS (8.5 g) was added into the system, then the mixture was kept stirring for 20 h. The resulting mixture was transferred into a Teflon-lined autoclave and was then aged at 100 °C for 24 h. After that, the white product was filtered, washed three times with deionized water and dried at 60 °C overnight. Mesoporous SBA-15 was obtained after the dried sample was calcined at 550 °C for 5 h in a muffle furnace with 1 °C·min−1 of the heating rate.
The amine functionalized SBA-15 was prepared via a post-grafting method following the reported procedure [33]. In a typical process, SBA-15 (3.0 g) was dried overnight at 110 °C under vacuum and quickly dispersed in toluene (75 mL). The mixture was refluxed at 120 °C for 4 h to remove residual water molecules in the system. APTES (1.5 g) was dissolved in toluene (15 mL) and the solution was added dropwise to the suspension with stirring for another 4 h at 120 °C. After cooling to room temperature, the product was filtered, washed with warm ethanol three times and then dried at 60 °C. The resulting material was denoted as NH2-SBA-15.
The immobilization of PMo on the surface of NH2-SBA-15 was performed as follows. Different amount of PMo (10, 20, 30, 40, and 50 mg) were dissolved in deionized water (30 mL) to obtain a clear solution and then NH2-SBA-15 (0.3 g) was dispersed in the solution. The mixture was stirred at room temperature for 24 h. After centrifugation, washing three times with water and drying at 60 °C overnight, xPMo/NH2-SBA-15 catalyst was obtained, where x represents the weight percentage of PMo (3.3, 6.7, 10, 13.3, and 16.7 wt%) anchored on NH2-SBA-15 in the experimental preparation process.

2.3. Catalyst Characterization

Fourier transform infrared (FT-IR) spectra were measured on a ThermoFisher Nicolet iS10 infrared instrument (Waltham, MA, USA) using KBr discs. X-ray powder diffraction (XRD) patterns were recorded on a Bruker D8 Advance X-ray diffractometer (Karlsruhe, Germany) using Cu-Kα radiation with a voltage of 40 kV and a current of 40 mA. The nitrogen content of catalysts was determined with a Vario EL elemental analyzer (Analysemsysteme GmbH, Langenselbold, Germany) and the molybdenum content was measured on a Perkin Elmer 8000 inductively coupled plasma atomic emission spectrometer (ICP-AES, Waltham, MA, USA). N2 adsorption-desorption measurements were performed at 77 K on a Micromeritic Tristar II 3020 apparatus (Norcross, GA, USA). SBA-15 was outgassed at 200 °C for 3 h and the other samples were outgassed at 100 °C for 3 h before the measurements. The specific surface area was calculated with the BET equation. The pore size and pore volume were calculated from the desorption branch of the isotherm based on the BJH model. 31P magic-angle spinning nuclear magnetic resonance (MAS NMR) studies were carried out on a Bruker 400 WB AVANCE III solid-state nuclear magnetic resonance instrument (Karlsruhe, Germany), and the chemical shift was determined using 85 wt% H3PO4 as a standard.

2.4. Catalytic Tests

The catalytic reaction of glucose epimerization was conducted as follows: catalyst (40 mg) and 5 mL of 5 wt% aqueous solution of aldose (glucose, mannose, arabinose or xylose) were added into a 50 mL autoclave and the reactor was placed in a 120 °C oil bath with magnetic stirring. After reaction with a desired time, the reactor was cooled to room temperature with flowing cold water and the solid catalyst was separated by a 0.22 μm filter. Then the reaction solution was diluted 10 times with deionized water and analyzed on an Agilent 1100 high-performance liquid chromatography (HPLC, Santa Clara, CA, USA) with a refractive index detector. A Biorad©Aminex HPX-87 sugar column was employed at 35 °C and 5 mmol·L−1 H2SO4 solution was used as the mobile phase at a flow rate of 0.6 mL·min−1. The conversion of aldose, the yield and selectivity of the corresponding epimer were calculated as follows:
Aldose   conversion   =   moles   of   converted   aldose moles   of   initial   aldose Epimer   yield   =   moles   of   formed   epimer moles   of   initial   aldose Epimer   selectivity   =   moles   of   formed   epimer moles   of   converted   aldose

3. Results and Discussion

3.1. Catalyst Characterization

3.1.1. FT-IR Spectroscopy

Figure 1 shows the FT-IR spectra of SBA-15, NH2-SBA-15 and xPMo/NH2-SBA-15 catalysts. A broad band ranging from 3000 to 3600 cm−1 and a band around 1620 cm−1 observed for all samples is attributed to the vibration of O–H of physisorbed water [34,35]. Compared with SBA-15, NH2-SBA-15 had two new peaks at 2950 and 1520 cm−1, which were assigned to the stretching mode of C–H and bending mode of N–H, respectively, indicating that the aminopropyl groups were successfully grafted on the surface of SBA-15 [34,36]. The decreased intensity of Si–OH band around 965 cm−1 also implies the successful amine functionalization [37]. As for SBA-15 or NH2-SBA-15, the bands at 1080 and 798 cm−1 were attributed to the symmetric and asymmetric stretching vibration of Si–O–Si, respectively [38]. The typical Keggin structure of PMo was identified by four characteristic bands in the range of 1300–600 cm−1. The band at 1064 cm−1 was attributed to the asymmetric stretching vibration of P–Ot, and the bands at 965, 870, and 784 cm−1 were attributed to the stretching modes of terminal Mo=Ot, edge sharing of Mo–Ob–Mo, and corner sharing of Mo–Oc–Mo, respectively [39]. For xPMo/NH2-SBA-15 catalysts, the four characteristic bands of PMo were overlapped by the strong bands of Si–O–Si and Si–OH of NH2-SBA-15. However, the peak width of the band ranging from 1000 to 860 cm−1 increased with the increase of amount of PMo, indicating the successful immobilization of PMo on the surface of NH2-SBA-15.

3.1.2. XRD

The small-angle XRD patterns of SBA-15, NH2-SBA-15 and xPMo/NH2-SBA-15 catalysts are depicted in Figure 2A. Three diffraction peaks, one strong peak around 1° attributed to (100) plane and two weak peaks around 1.7° and 1.9° attributed to (110) and (200) planes, respectively, are shown for all the samples [32]. It suggests that the primary two-dimensional hexagonal structure of SBA-15 was maintained after the modification with APTES and the further immobilization of PMo. Compared with SBA-15 and NH2-SBA-15, no diffraction peak of PMo was detected in the wide-angle XRD patterns of xPMo/NH2-SBA-15, indicating the high dispersion of PMo species on the support [36].

3.1.3. Nitrogen Adsorption–Desorption

N2 adsorption–desorption isotherms of SBA-15, NH2-SBA-15 and xPMo/NH2-SBA-15 samples are shown in Figure S1 and the textural properties are listed in Table 1. All the samples had typical type IV isotherms and H1 type hysteresis loops, indicating the uniform mesoporous structures [40]. After the modification with APTES, the BET surface area decreased from 599 to 343 m2·g−1, and the pore volume declined from 0.80 to 0.54 cm3·g−1. The pore size calculated from the isotherm also reduced from 5.5 to 5.1 nm. When PMo was immobilized on NH2-SBA-15, the surface area showed a gradually decreased trend with increased amount of PMo. A similar phenomenon was observed for pore volume. However, the introduction of PMo had little effect on the pore size due to low loading of phosphomolybdic acid.

3.1.4. 31P MAS NMR Spectroscopy

As displayed in Figure 3, 31P MAS NMR spectrum of HPMo showed a strong resonance at −5.7 ppm and a weak resonance at −5.3 ppm. In the case of 13.3PMo/NH2-SBA-15 catalyst, there was a single resonance at 0.1 ppm, further confirming the successful immobilization of PMo species. The broadening of NMR peak and shifting to down-field of 0.1 ppm were related to the decrease of physisorbed and structural water during immobilization [41]. Also, the strong interaction between PMo and NH2-SBA-15 may also have been responsible for the shift of NMR peak [42].

3.2. Catalytic Epimerization of Aldoses

3.2.1. Catalytic Activity of xPMo/NH2-SBA-15 for Glucose Epimerization

The catalytic activity of various catalysts was investigated in the glucose epimerization. As shown in Table 2, no glucose conversion could be found in the blank experiment without catalyst or only with the bare SBA-15. When NH2-SBA-15 was used as a catalyst, the conversion of glucose was 8.9%, and the selectivity of fructose and mannose were 38.2% and 5.6%, respectively. According to the research of Carraher et al. [43], OH- generated from the hydrolysis of –NH2 group can simultaneously catalyze the isomerization and epimerization of glucose, with the isomeric fructose being the main product [43]. As a result, a little fructose was observed when NH2-SBA-15 was used as the catalyst. In addition, a large number of side reactions existed in the base catalyst system, and these products could not be precisely analyzed by HPLC. The color of the solid catalysts changed from white to dark brown after the reaction, indicating that Maillard reaction occurred in the system [44]. When the PMo polyanions were introduced to NH2-SBA-15 via the neutralization of –NH2 groups with H+ of HPMo during the preparation process [45], no fructose was observed for the xPMo/NH2-SBA-15 catalysts. The glucose conversion increased from 6.8% over 3.3PMo/NH2-SBA-15 to 34.8% over 13.3PMo/NH2-SBA-15 and the selectivity of mannose increased dramatically from 29.4% to 85.6%. The mannose yield of 29.8% is close to the theoretical equilibrium yield reported in the literature [28,46]. The glucose conversion continuously increased with the decrease of mannose selectivity over 16.7PMo/NH2-SBA-15, attributing to the enhanced side reactions. These results reveal that the PMo is of great significance for the epimerization of glucose. The catalytic performance of 13.3PMo/NH2-SBA-15 was superior to that of Sn-β zeolite or porous tin-organic frameworks and comparable to that of layered niobium molybdates in the aqueous reaction system [16,17,18,28,47].

3.2.2. Calculation of the Activation Energy

Experiments with controlled reaction temperature were conducted to determine the activation energy (Table S1 in the Supplementary Information). Based on the assumption that the epimerization of glucose is a first order reaction, the apparent activation energy (Ea) of the reaction over 13.3PMo/NH2-SBA-15 was calculated to be 80.1 ± 0.1 kJ·mol−1 (Figure 4), which is lower than the 96 kJ·mol−1 over homogeneous PMo catalyst [29]. Rellan-Pineiro et al. [48] reported that the reducibility of Mo atoms on the surface Mo-based catalysts plays an important role in the process of 1,2 carbon shift. The strong interaction between PMo species and the support in 13.3PMo/NH2-SBA-15 may influence the reducibility of the Mo atom, so that the glucose molecule is more easily be transformed into a transition state.

3.2.3. Catalytic Activity of 13.3PMo/NH2-SBA-15 for the Reverse Reaction

13.3PMo/NH2-SBA-15 catalyst may not only catalyze the epimerization reaction of glucose, but also catalyze its reverse reaction. Figure 5 shows the time courses of mannose concentration in epimerization reaction of glucose and its reverse reaction of mannose epimerization. It is clearly shown that mannose concentration in the glucose epimerization reached theoretical equilibrium at a shorter time than that in the reverse reaction. This phenomenon is consistent with the research of Ju et al. [29] over HPMo catalyst. Hayes et al. [49] reported that some unreactive complexes could be formed in the system of mannose, which did not epimerize to glucose.

3.2.4. Reusability of the Catalyst for Glucose Epimerization

In order to investigate the reusability of the catalyst, 13.3PMo/NH2-SBA-15 catalyst with the best catalytic activity was chosen for recovery experiments. After each reaction, the catalyst was separated by centrifugation, washed three times with water and dried at 60 °C, and then used again for the glucose epimerization. As shown in Figure 6, the 13.3PMo/NH2-SBA-15 exhibited no significant decrease of the catalytic activity after three cycles in glucose epimerization. As anticipated, no apparent leaching of PMo species (<0.1%) occurred during the reaction as confirmed by ICP-AES tests, which is much less than that in the reported system catalyzed by Ag3PMo12O40. These results may be related to the strong interaction between PMo and NH2-SBA-15. Compared with insoluble salts of PMo, immobilization of the PMo on amine functionalized support may have been more beneficial for heterogenization of HPMo in the epimerization of glucose.

3.2.5. Catalytic Activity of 13.3PMo/NH2-SBA-15 for Other Aldoses Epimerization

We also investigated the catalytic activity of the 13.3PMo/NH2-SBA-15 catalyst for the epimerization of other aldoses at the C-2 position (Scheme 2). As shown in Table 3, the arabinose conversion and ribose yield were 27.7% and 15.9%, respectively. The xylose conversion and the lyxose yield were 44.6% and 33.3%, respectively. Similar to glucose epimerization, these two reactions were also limited by thermodynamics, with arabinose/ribose and xylose/lyxose theoretical equilibrium ratios being 69:31, 67:33, respectively, according to the Gibbs free energy calculations [28]. The yield of lyxose was close to the equilibrium yield, but the selectivities of the epimeric aldoses in the both reaction systems were lower than mannose due to the presence of more side reactions. As a result, besides C6 aldoses, the C5 aldoses, like arabinose and xylose could also be effectively transformed into their C-2 epimers over the 13.3PMo/NH2-SBA-15 catalyst.

4. Conclusions

A series of xPMo/NH2-SBA-15 heterogeneous catalysts were prepared and tested in the glucose epimerization. The reaction over 13.3PMo/NH2-SBA-15 reached almost equilibrium within 2 h with a glucose conversion of 34.8% and mannose yield of 29.8%. The activation energy of the reaction over 13.3PMo/NH2-SBA-15 was lower than that over the homogeneous HPMo catalyst. The leaching of PMo was negligible in the reaction system. Mannose, arabinose and xylose could also be transformed to their corresponding C-2 epimeric aldoses successfully over the catalyst. Our work provides a promising heterogeneous catalyst for the epimerization of aldoses in aqueous solution.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/3/507/s1, Figure S1. N2 adsorption-desorption isotherms of (a) SBA-15, (b) NH2-SBA-15, (c) 3.3PMo/NH2-SBA-15, (d) 6.7PMo/NH2-SBA-15, (e) 10PMo/NH2-SBA-15, (f) 13.3PMo/NH2-SBA-15, and (g) 16.7PMo/NH2-SBA-15, Table S1: Catalytic performance of 13.3PMo/NH2-SBA-15 for glucose epimerization.

Author Contributions

Conceptualization, B.Y. and H.H.; methodology, H.W., B.Y., and H.H.; investigation, H.W., M.W., and J.S.; resources, B.Y. and H.H.; writing—original draft preparation, H.W.; writing—review and editing, M.W., J.S., Y.R., B.Y., and H.H.; visualization, H.W. and Y.R.; supervision, B.Y. and H.H.; project administration, H.H.; funding acquisition, B.Y. and H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (91645201 and 21673046) and the Ministry of Science and Technology (2017YFB0602204).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, Y.L.; Pan, J.M.; Shen, Y.T.; Shi, W.D.; Liu, C.B.; Yu, L.B. Bronsted acidic polymer nanotubes with tunable wettability toward efficient conversion of one-pot cellulose to 5-hydroxymethylfurfural. ACS Sustain. Chem. Eng. 2015, 3, 871–879. [Google Scholar] [CrossRef]
  2. Yi, X.H.; Delidovich, I.; Sun, Z.; Wang, S.T.; Wang, X.H.; Palkovits, R. A heteropoly acid ionic crystal containing Cr as an active catalyst for dehydration of monosaccharides to produce 5-HMF in water. Catal. Sci. Technol. 2015, 5, 2496–2502. [Google Scholar] [CrossRef]
  3. Jimenez-Morales, I.; Moreno-Recio, M.; Santamaria-Gonzalez, J.; Maireles-Torres, P.; Jimenez-Lopez, A. Production of 5-hydroxymethylfurfural from glucose using aluminium doped MCM-41 silica as acid catalyst. Appl. Catal. B Environ. 2015, 164, 70–76. [Google Scholar] [CrossRef]
  4. Delidovich, I.; Palkovits, R. Catalytic isomerization of biomass-derived aldoses: A review. ChemSusChem 2016, 9, 547–561. [Google Scholar] [CrossRef] [PubMed]
  5. Marianou, A.A.; Michailof, C.M.; Ipsakis, D.K.; Karakoulia, S.A.; Kalogiannis, K.G.; Yiannoulakis, H.; Triantafyllidis, K.S.; Lappas, A.A. Isomerization of glucose into fructose over natural and synthetic MgO catalysts. ACS Sustain. Chem. Eng. 2018, 6, 16459–16470. [Google Scholar] [CrossRef]
  6. Ohara, M.; Takagaki, A.; Nishimura, S.; Ebitani, K. Syntheses of 5-hydroxymethylfurfural and levoglucosan by selective dehydration of glucose using solid acid and base catalysts. Appl. Catal. A Gen. 2010, 383, 149–155. [Google Scholar] [CrossRef]
  7. Jiao, H.F.; Zhao, X.L.; Lv, C.X.; Wang, Y.J.; Yang, D.J.; Li, Z.H.; Yao, X.D. Nb2O5-γ-Al2O3 nanofibers as heterogeneous catalysts for efficient conversion of glucose to 5-hydroxymethylfurfural. Sci. Rep. 2016, 6, 1–9. [Google Scholar] [CrossRef]
  8. Yue, C.C.; Li, G.N.; Pidko, E.A.; Wiesfeld, J.J.; Rigutto, M.; Hensen, E.J.M. Dehydration of glucose to 5-hydroxymethylfurfural using Nb-doped tungstite. ChemSusChem 2016, 9, 2421–2429. [Google Scholar] [CrossRef]
  9. Ma, T.W.; Pai, S.B.; Zhu, Y.L.; Lin, J.S.; Shanmuganathan, K.; Du, J.F.; Wang, C.G.; Kim, H.; Newton, M.G.; Cheng, Y.C.; et al. Structure-activity relationships of 1-(2-deoxy-2-fluoro-beta-L-arabinofuranosyl)pyrimidine nucleosides as anti-hepatitis B virus agents. J. Med. Chem. 1996, 39, 2835–2843. [Google Scholar] [CrossRef]
  10. Takagi, Y.; Nakai, K.; Tsuchiya, T.; Takeuchi, T. A 5’-(trifluoromethyl)anthracycline glycoside: Synthesis of antitumor-active 7-O-(2,6-dideoxy-6,6,6-trifluoro-alpha-L-lyxo-hexopyranosyl)adriamycinone. J. Med. Chem. 1996, 39, 1582–1588. [Google Scholar] [CrossRef]
  11. Cleland, W.W. What limits the rate of an enzyme-catalyzed reaction? Acc. Chem. Res. 1975, 8, 145–151. [Google Scholar] [CrossRef]
  12. Samuel, J.; Tanner, M.E. Mechanistic aspects of enzymatic carbohydrate epimerization. Nat. Prod. Rep. 2002, 19, 261–277. [Google Scholar] [CrossRef] [PubMed]
  13. Angyal, S.J. A short note on the epimerization of aldoses. Carbohydr. Res. 1997, 300, 279–281. [Google Scholar] [CrossRef]
  14. Li, H.; Yang, S.; Saravanamurugan, S.; Riisager, A. Glucose isomerization by enzymes and chemo-catalysts: Status and current advances. ACS Catal. 2017, 7, 3010–3029. [Google Scholar] [CrossRef]
  15. Dewit, G.; Kieboom, A.P.G.; Vanbekkum, H. Enolization and isomerization of monosaccharides in aqueous, alkaline-solution. Carbohydr. Res. 1979, 74, 157–175. [Google Scholar] [CrossRef]
  16. Moliner, M.; Roman-Leshkov, Y.; Davis, M.E. Tin-containing zeolites are highly active catalysts for the isomerization of glucose in water. Proc. Natl. Acad. Sci. USA 2010, 107, 6164–6168. [Google Scholar] [CrossRef]
  17. Gunther, W.R.; Wang, Y.R.; Ji, Y.W.; Michaelis, V.K.; Hunt, S.T.; Griffin, R.G.; Roman-Leshkov, Y. Sn-Beta zeolites with borate salts catalyse the epimerization of carbohydrates via an intramolecular carbon shift. Nat. Commun. 2012, 3, 1–8. [Google Scholar] [CrossRef]
  18. Bermejo-Deval, R.; Orazov, M.; Gounder, R.; Hwang, S.J.; Davis, M.E. Active sites in Sn-Beta for glucose isomerization to fructose and epimerization to mannose. ACS Catal. 2014, 4, 2288–2297. [Google Scholar] [CrossRef]
  19. Bilik, V. Reactions of saccharides catalyzed by molybdate ions. 2. Epimerization of D-glucose and D-mannose. Chem. Zvesti 1972, 26, 183–186. [Google Scholar]
  20. Bilik, V. Reactions of saccharides catalyzed by molybdate ions. 4. Epimerization of aldopentose. Chem. Zvesti 1972, 26, 372–375. [Google Scholar]
  21. Bilik, V.; Caplovic, J. Reactions of saccharides catalyzed by molybdate ions. 7. Preparation of L-ribose, D- and L-lyxose. Chem. Zvesti 1973, 27, 547–550. [Google Scholar]
  22. Bilik, V.; Matulova, M. Reactions of saccharides catalyzed by molybdate ions. 42. Epimerization and the molybdate complex of the aldoses. Chem. Pap. 1990, 44, 257–265. [Google Scholar]
  23. Petrus, L.; Petrusova, M.; Hricoviniova, Z. The Bilik reaction. Glycoscience 2001, 215, 15–41. [Google Scholar] [CrossRef]
  24. Chethana, B.K.; Lee, D.; Mushrif, S.H. First principles investigation into the metal catalysed 1,2 carbon shift reaction for the epimerization of sugars. J. Mol. Catal. A Chem. 2015, 410, 66–73. [Google Scholar] [CrossRef]
  25. Clark, E.L.; Hayes, M.L.; Barker, R. Paramolybdate anion-exchange resin, an improved catalyst for the C-1-C-2 rearangement and 2-epimerization of aldoses. Carbohydr. Res. 1986, 153, 263–270. [Google Scholar] [CrossRef]
  26. Stockman, R.; Dekoninck, J.; Sels, B.F.; Jacobs, P.A. The catalytic epimerization of sugars over immobilized heptamolybdate: Comparison of resins, layered double hydroxides and mesoporous silica as support. Stud. Surf. Sci. Catal. 2005, 156, 843–850. [Google Scholar] [CrossRef]
  27. Kockritz, A.; Kant, M.; Walter, M.; Martin, A. Rearrangement of glucose to mannose catalysed by polymer-supported Mo catalysts in the liquid phase. Appl. Catal. A Gen. 2008, 334, 112–118. [Google Scholar] [CrossRef]
  28. Takagaki, A.; Furusato, S.; Kikuchi, R.; Oyama, S.T. Efficient epimerization of aldoses using layered niobium molybdates. ChemSusChem 2015, 8, 3769–3772. [Google Scholar] [CrossRef]
  29. Ju, F.; VanderVelde, D.; Nikolla, E. Molybdenum-based polyoxometalates as highly active and selective catalysts for the epimerization of aldoses. ACS Catal. 2014, 4, 1358–1364. [Google Scholar] [CrossRef]
  30. Lari, G.M.; Groninger, O.G.; Mondelli, C.; Perez-Ramirez, J.; Li, Q.; Lopez, N. Catalyst and process design for the continuous manufacture of rare sugar alcohols by epimerization-hydrogenation of aldoses. ChemSusChem 2016, 9, 3373. [Google Scholar] [CrossRef]
  31. Rafiee, E.; Eavani, S. Heterogenization of heteropoly compounds: A review of their structure and synthesis. RSC Adv. 2016, 6, 46433–46466. [Google Scholar] [CrossRef]
  32. Zhao, D.Y.; Huo, Q.S.; Feng, J.L.; Chmelka, B.F.; Stucky, G.D. Nonionic triblock and star diblock copolymer and oligomeric surfactant syntheses of highly ordered, hydrothermally stable, mesoporous silica structures. J. Am. Chem. Soc. 1998, 120, 6024–6036. [Google Scholar] [CrossRef]
  33. Sutra, P.; Brunel, D. Preparation of MCM-41 type silica-bound manganese(III) Schiff-base complexes. Chem. Commun. 1996, 2485–2486. [Google Scholar] [CrossRef]
  34. Kim, H.; Jung, J.C.; Yeom, S.H.; Lee, K.Y.; Yi, J.; Song, I.K. Immobilization of a heteropolyacid catalyst on the aminopropyl-functionalized mesostructured cellular foam (MCF) silica. Mater. Res. Bull. 2007, 42, 2132–2142. [Google Scholar] [CrossRef]
  35. Wang, M.Y.; Wang, H.; Ren, Y.H.; Wang, C.; Weng, Z.W.; Yue, B.; He, H.Y. Construction of g-C3N4-mNb2O5 composites with enhanced visible light photocatalytic activity. Nanomaterials 2018, 8, 427. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, L.X.; Jin, Q.Z.; Shan, L.; Liu, Y.F.; Wang, X.G.; Huang, J.H. H3PW12O40 immobilized on silylated palygorskite and catalytic activity in esterification reactions. Appl. Clay. Sci. 2010, 47, 229–234. [Google Scholar] [CrossRef]
  37. Chen, C.; Xu, J.; Zhang, Q.H.; Ma, H.; Miao, H.; Zhou, L.P. Direct synthesis of bifunctionalized hexagonal mesoporous silicas and its catalytic performance for aerobic oxidation of cyclohexane. J. Phys. Chem. C 2009, 113, 2855–2860. [Google Scholar] [CrossRef]
  38. Villanneau, R.; Marzouk, A.; Wang, Y.; Ben Djamaa, A.; Laugel, G.; Proust, A.; Launay, F. Covalent grafting of organic-inorganic polyoxometalates hybrids onto mesoporous SBA-15: A key step for new anchored homogeneous catalysts. Inorg. Chem. 2013, 52, 2958–2965. [Google Scholar] [CrossRef]
  39. Kharat, A.N.; Moosavikia, S.; Jahromi, B.T.; Badiei, A. Liquid phase hydroxylation of benzene to phenol over vanadium substituted Keggin anion supported on amine functionalized SBA-15. J. Mol. Catal. A Chem. 2011, 348, 14–19. [Google Scholar] [CrossRef]
  40. Zhao, D.Y.; Feng, J.L.; Huo, Q.S.; Melosh, N.; Fredrickson, G.H.; Chmelka, B.F.; Stucky, G.D. Triblock copolymer syntheses of mesoporous silica with periodic 50 to 300 angstrom pores. Science 1998, 279, 548–552. [Google Scholar] [CrossRef]
  41. Ghanbari-Siahkali, A.; Philippou, A.; Dwyer, J.; Anderson, M.W. The acidity and catalytic activity of heteropoly acid on MCM-41 investigated by MAS NMR, FTIR and catalytic tests. Appl. Catal. A Gen. 2000, 192, 57–69. [Google Scholar] [CrossRef]
  42. Raj, N.K.K.; Deshpande, S.S.; Ingle, R.H.; Raja, T.; Manikandan, P. Heterogenized molybdovanadophosphoric acid on amine-functionalized SBA-15 for selective oxidation of alkenes. Catal. Lett. 2004, 98, 217–223. [Google Scholar] [CrossRef]
  43. Carraher, J.M.; Fleitman, C.N.; Tessonnier, J.P. Kinetic and Mechanistic Study of Glucose Isomerization Using Homogeneous Organic Bronsted Base Catalysts in Water. ACS Catal. 2015, 5, 3162–3173. [Google Scholar] [CrossRef]
  44. Liu, C.; Carraher, J.M.; Swedberg, J.L.; Herndon, C.R.; Fleitman, C.N.; Tessonnier, J.P. Selective base-catalyzed isomerization of glucose to fructose. ACS Catal. 2014, 4, 4295–4298. [Google Scholar] [CrossRef]
  45. Kamada, M.; Kominami, H.; Kera, Y. Deposition and interaction of phosphododecatungstate on a silica gel surface modified with a silane coupling agent having anilino groups. J. Colloid. Interface Sci. 1996, 182, 297–300. [Google Scholar] [CrossRef]
  46. Angyal, S.J. The composition and conformation of sugars in solution. Angew. Chem. Int. Ed. Engl. 1969, 8, 157–166. [Google Scholar] [CrossRef]
  47. Delidovich, I.; Hoffmann, A.; Willms, A.; Rose, M. Porous tin-organic frameworks as selective epimerization catalysts in aqueous solutions. ACS Catal. 2017, 7, 3792–3798. [Google Scholar] [CrossRef]
  48. Rellan-Pineiro, M.; Garcia-Rates, M.; Lopez, N. A mechanism for the selective epimerization of the glucose mannose pair by Mo-based compounds: Towards catalyst optimization. Green Chem. 2017, 19, 5932–5939. [Google Scholar] [CrossRef]
  49. Hayes, M.L.; Pennings, N.J.; Serianni, A.S.; Barker, R. Epimerization of aldoses by molybdate involving a novel rearrangement of the carbon skeleton. J. Am. Chem. Soc. 1982, 104, 6764–6769. [Google Scholar] [CrossRef]
Materials 13 00507 sch001

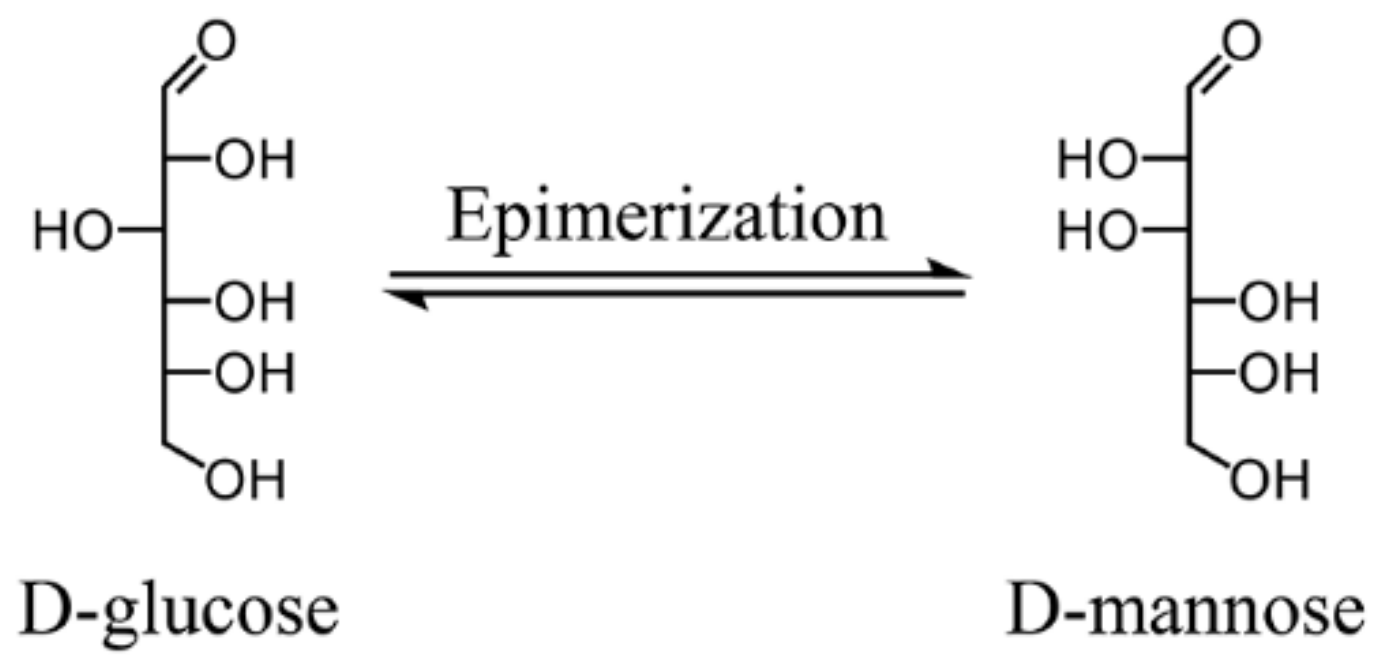

Scheme 1. The epimerization of glucose to mannose.
Scheme 1. The epimerization of glucose to mannose.
Materials 13 00507 sch001
Materials 13 00507 g001

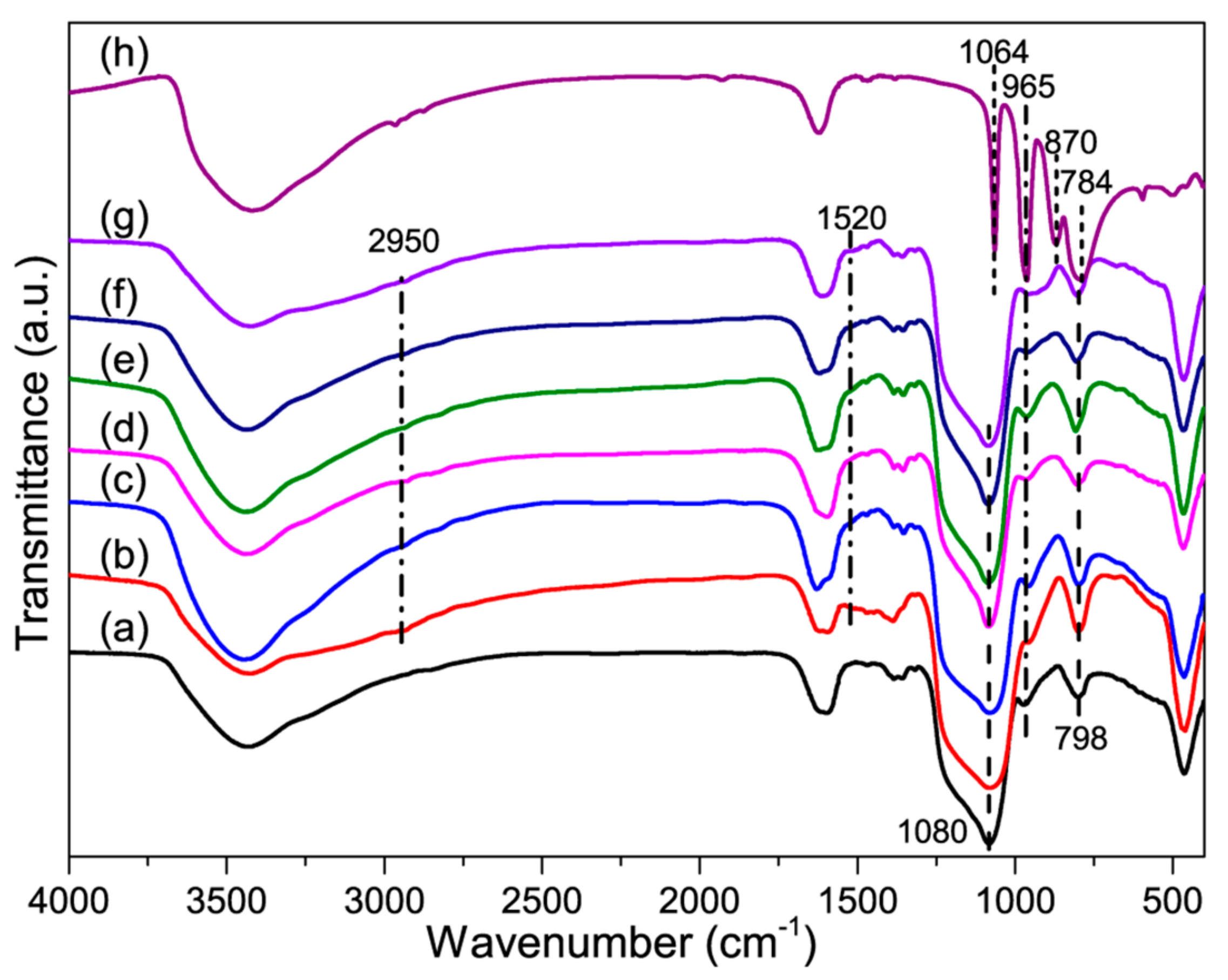

Figure 1. Fourier transform infrared (FT-IR) spectra of (a) SBA-15, (b) NH2-SBA-15, (c) 3.3PMo/NH2-SBA-15, (d) 6.7PMo/NH2-SBA-15, (e) 10PMo/NH2-SBA-15, (f) 13.3PMo/NH2-SBA-15, (g) 16.7PMo/NH2-SBA-15, and (h) H3PMo12O40·nH2O.
Figure 1. Fourier transform infrared (FT-IR) spectra of (a) SBA-15, (b) NH2-SBA-15, (c) 3.3PMo/NH2-SBA-15, (d) 6.7PMo/NH2-SBA-15, (e) 10PMo/NH2-SBA-15, (f) 13.3PMo/NH2-SBA-15, (g) 16.7PMo/NH2-SBA-15, and (h) H3PMo12O40·nH2O.
Materials 13 00507 g001
Materials 13 00507 g002

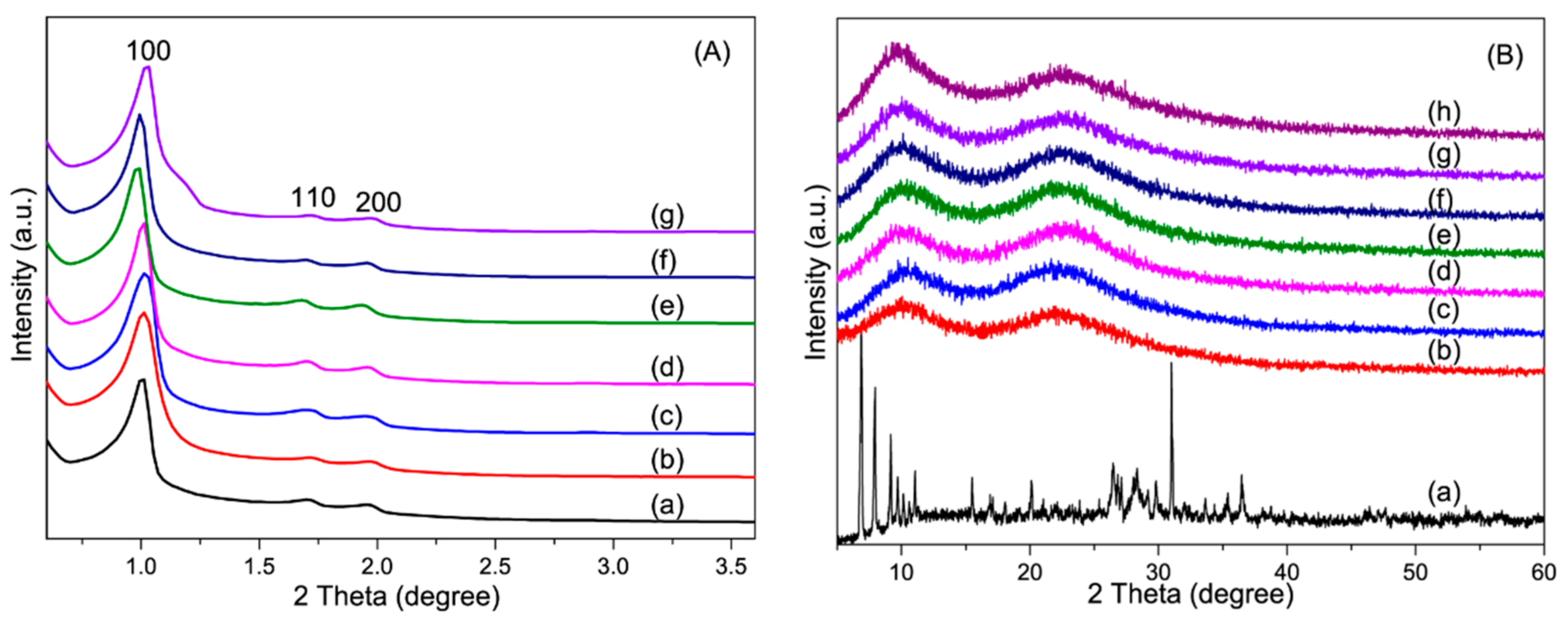

Figure 2. (A) Small-angle XRD patterns of (a) SBA-15, (b) NH2-SBA-15, (c) 3.3PMo/NH2-SBA-15, (d) 6.7PMo/NH2-SBA-15, (e) 10PMo/NH2-SBA-15, (f) 13.3PMo/NH2-SBA-15, and (g) 16.7PMo/NH2-SBA-15; (B) Wide-angle XRD patterns of (a) H3PMo12O40·nH2O, (b) SBA-15, (c) NH2-SBA-15, (d) 3.3PMo/NH2-SBA-15, (e) 6.7PMo/NH2-SBA-15, (f) 10PMo/NH2-SBA-15, (g) 13.3PMo/NH2-SBA-15, and (h) 16.7PMo/NH2-SBA-15.
Figure 2. (A) Small-angle XRD patterns of (a) SBA-15, (b) NH2-SBA-15, (c) 3.3PMo/NH2-SBA-15, (d) 6.7PMo/NH2-SBA-15, (e) 10PMo/NH2-SBA-15, (f) 13.3PMo/NH2-SBA-15, and (g) 16.7PMo/NH2-SBA-15; (B) Wide-angle XRD patterns of (a) H3PMo12O40·nH2O, (b) SBA-15, (c) NH2-SBA-15, (d) 3.3PMo/NH2-SBA-15, (e) 6.7PMo/NH2-SBA-15, (f) 10PMo/NH2-SBA-15, (g) 13.3PMo/NH2-SBA-15, and (h) 16.7PMo/NH2-SBA-15.
Materials 13 00507 g002
Materials 13 00507 g003

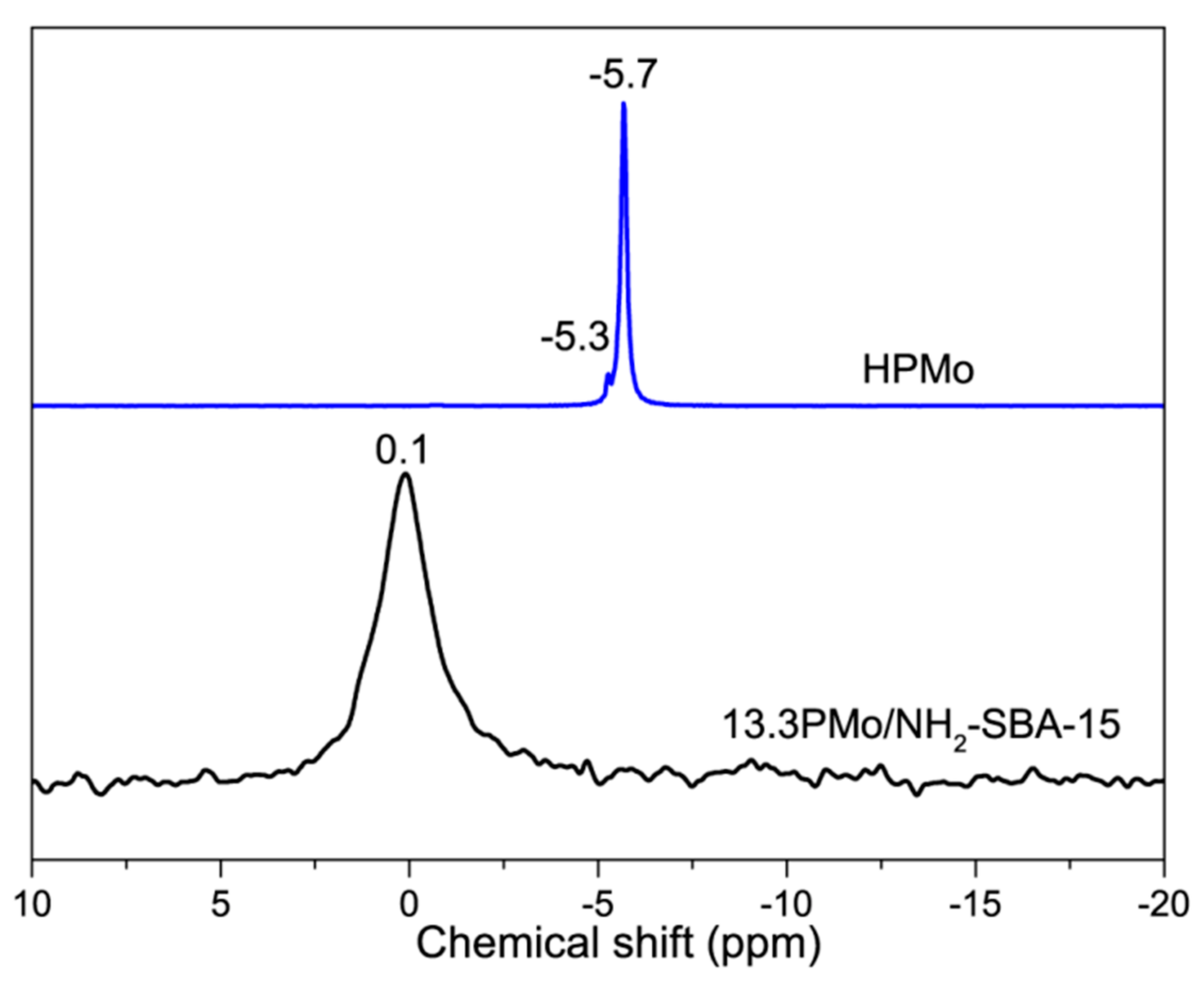

Figure 3. 31P MAS NMR spectra of H3PMo12O40·nH2O and 13.3PMo/NH2-SBA-15.
Figure 3. 31P MAS NMR spectra of H3PMo12O40·nH2O and 13.3PMo/NH2-SBA-15.
Materials 13 00507 g003
Materials 13 00507 g004

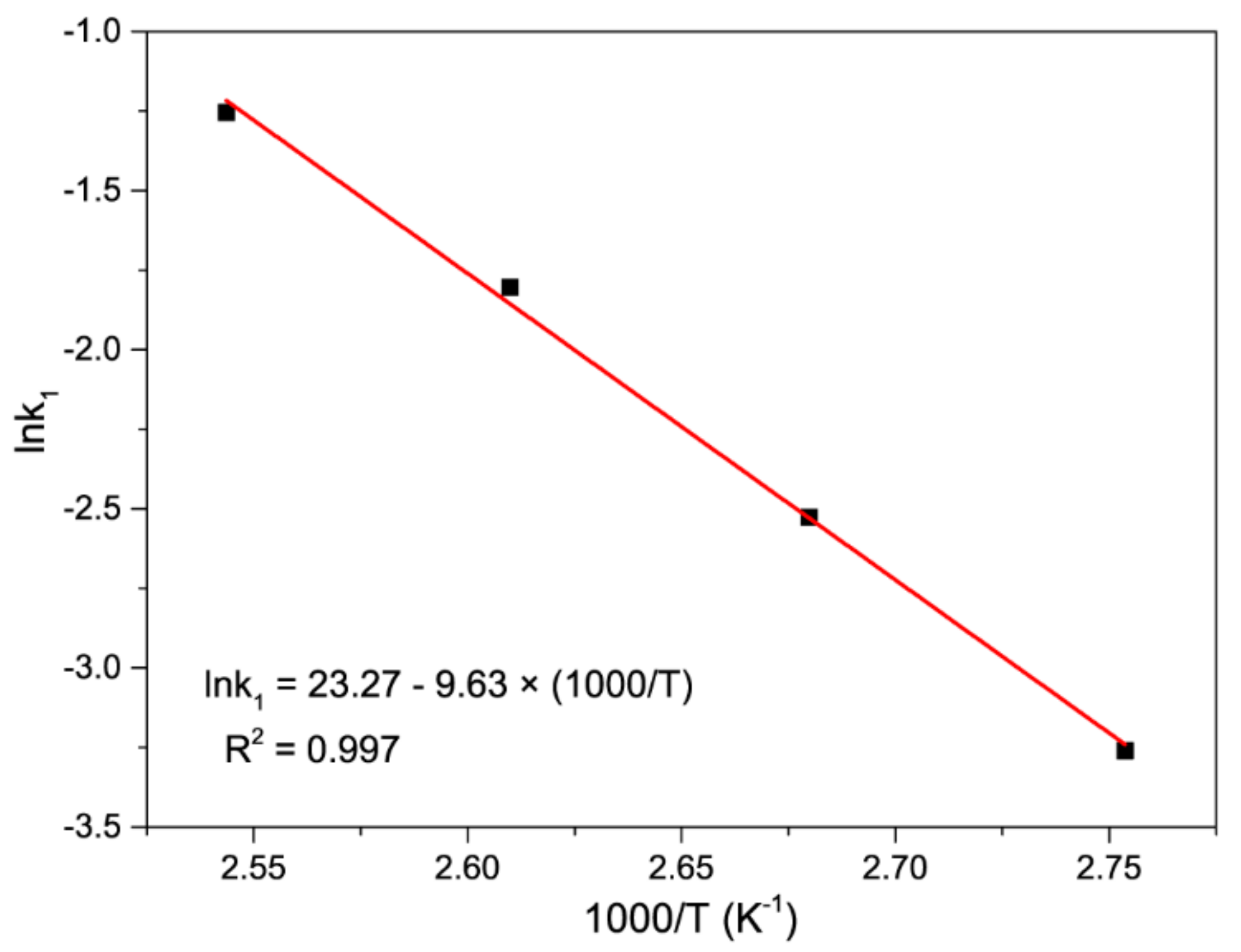

Figure 4. Arrhenius plot for epimerization of glucose over 13.3PMo/NH2-SBA-15.
Figure 4. Arrhenius plot for epimerization of glucose over 13.3PMo/NH2-SBA-15.
Materials 13 00507 g004
Materials 13 00507 g005

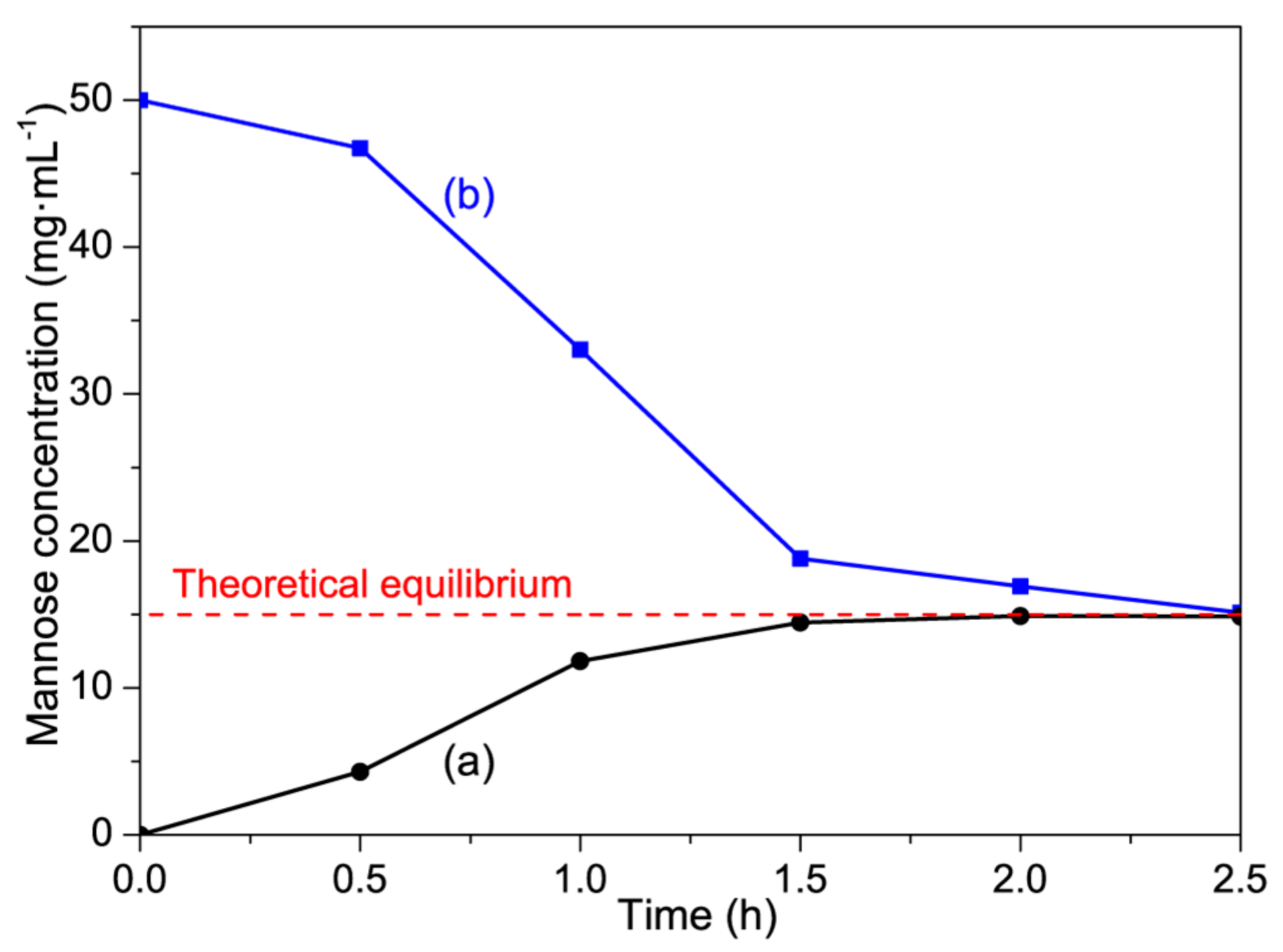

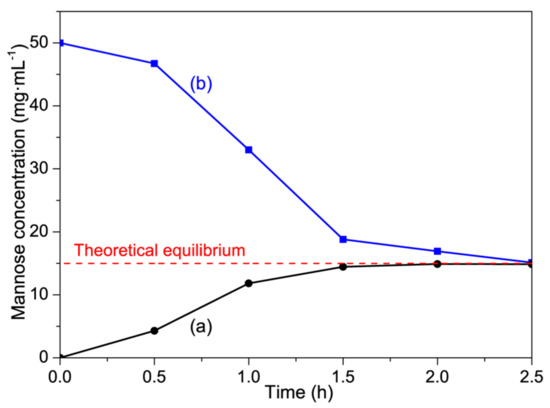

Figure 5. Time courses of epimerization of (a) glucose and (b) mannose over 13.3PMo/NH2-SBA-15. Reaction conditions: 40 mg of catalyst, 5 mL of 5 wt% aldose aqueous solution, 120 °C.
Figure 5. Time courses of epimerization of (a) glucose and (b) mannose over 13.3PMo/NH2-SBA-15. Reaction conditions: 40 mg of catalyst, 5 mL of 5 wt% aldose aqueous solution, 120 °C.
Materials 13 00507 g005
Materials 13 00507 g006

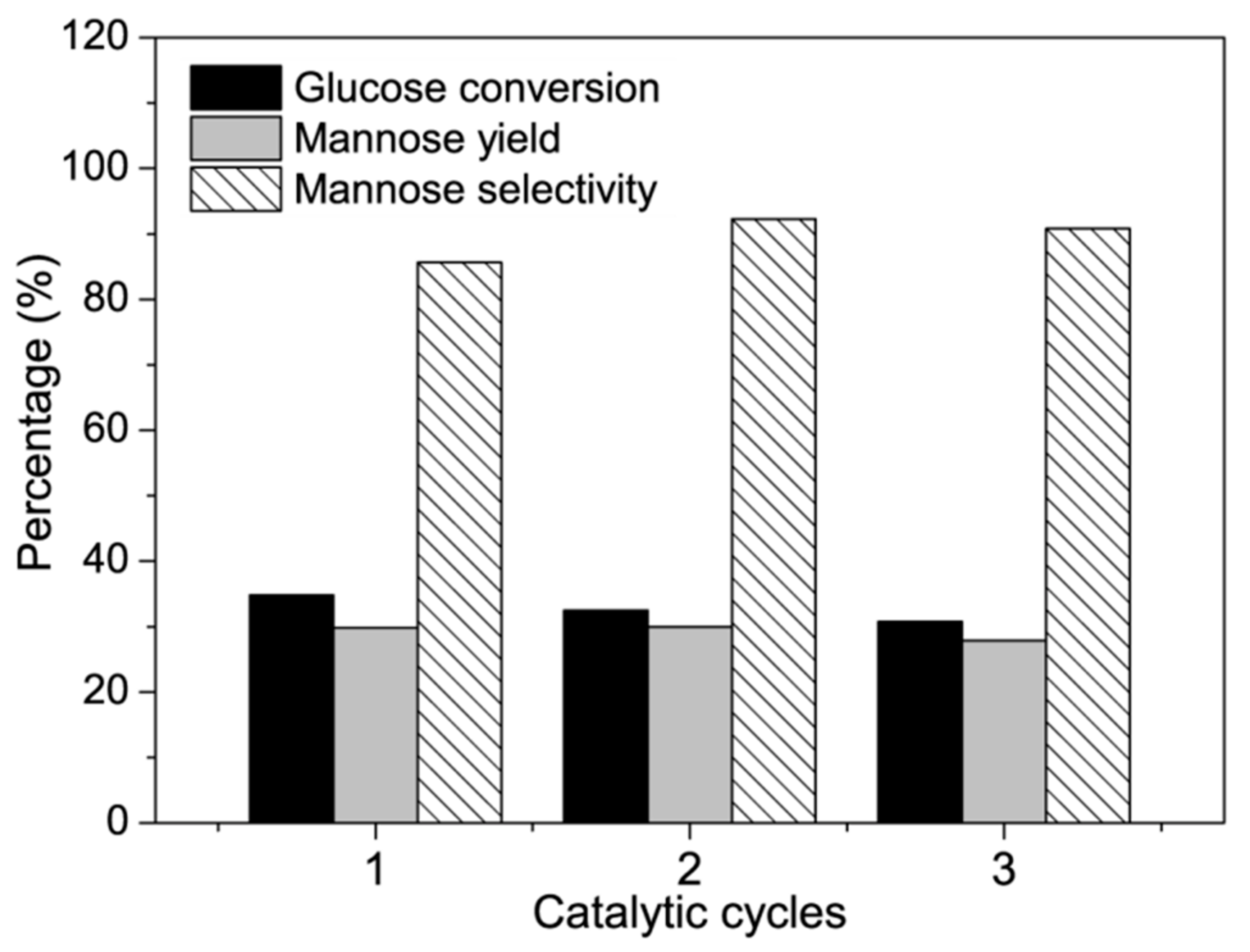

Figure 6. Recycling experiments over 13.3PMo/NH2-SBA-15. Reaction conditions: 40 mg of recycled catalyst, 5 mL of 5 wt% glucose solution, 120 °C, 2 h.
Figure 6. Recycling experiments over 13.3PMo/NH2-SBA-15. Reaction conditions: 40 mg of recycled catalyst, 5 mL of 5 wt% glucose solution, 120 °C, 2 h.
Materials 13 00507 g006
Materials 13 00507 sch002

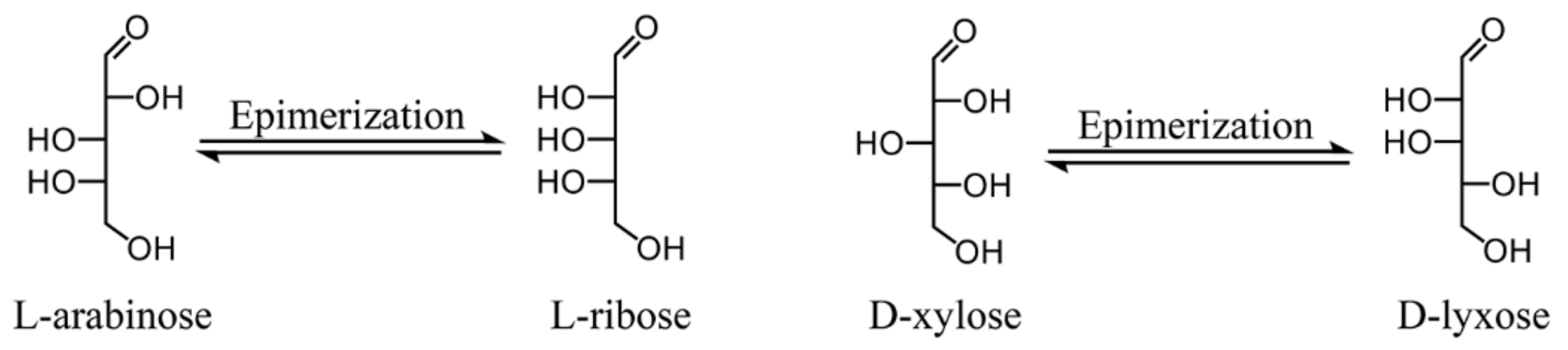

Scheme 2. The epimerization of arabinose and xylose.
Scheme 2. The epimerization of arabinose and xylose.
Materials 13 00507 sch002
Table 1. Textural properties of SBA-15, NH2-SBA-15 and xPMo/NH2-SBA-15.
Table 1. Textural properties of SBA-15, NH2-SBA-15 and xPMo/NH2-SBA-15.
SamplesNitrogen Content a
(wt%)		Molybdenum Content b
(wt%)		SBET
(m2·g−1)		Dpore
(nm)		Vpore
(cm3·g−1)
SBA-15--5995.50.80
NH2-SBA-151.6-3435.10.54
3.3PMo/NH2-SBA-151.10.63375.10.53
6.7PMo/NH2-SBA-151.11.43265.10.53
10PMo/NH2-SBA-151.13.03045.10.51
13.3PMo/NH2-SBA-151.25.42865.10.50
16.7PMo/NH2-SBA-151.16.32675.10.46
a Analyzed by elemental analyzer; b Analyzed by ICP-AES.
Table 2. Catalytic performance of the catalysts for glucose epimerization. a
Table 2. Catalytic performance of the catalysts for glucose epimerization. a
EntryCatalystGlucose
Conversion
(%)		Mannose
Yield b
(%)		Mannose
Selectivity
(%)		Fructose
Yield
(%)		Fructose
Selectivity
(%)
1−c00000
2SBA-1500000
3NH2-SBA-158.9 ± 0.10.5 ± 0.15.63.4 ± 0.138.2
43.3PMo/NH2-SBA-156.8 ± 0.22.0 ± 0.129.400
56.7PMo/NH2-SBA-157.4 ± 0.13.8 ± 0.151.400
610PMo/NH2-SBA-1527.2 ± 0.222.9 ± 0.384.200
713.3PMo/NH2-SBA-1534.8 ± 0.229.8 ± 0.185.600
816.7PMo/NH2-SBA-1535.3 ± 0.129.7 ± 0.184.100
a Reaction conditions: 40 mg of catalyst, 5 mL of 5 wt% glucose solution, 120 °C, 2 h; b Equilibrium yield of mannose is theoretically calculated to be 30%; c The blank experiment without catalyst.
Table 3. Catalytic performance of the catalysts for aldose epimerization. a
Table 3. Catalytic performance of the catalysts for aldose epimerization. a
EntrySugarConversion
(%)		Epimer Yield
(%)		Epimer Selectivity
(%)
1Glucose34.8 ± 0.229.8 ± 0.185.6
2Mannose66.2 ± 0.160.5 ± 0.191.4
3Arabinose27.7 ± 0.215.9 ± 0.357.4
4Xylose44.6 ± 0.133.3 ± 0.274.7
a Reaction conditions: 40 mg of catalyst, 5 mL of 5 wt% aldose solution, 120 °C, 2 h.
