Article

An Aqueous Exfoliation of WO3 as a Route for Counterions Fabrication—Improved Photocatalytic and Capacitive Properties of Polyaniline/WO3Composite

by
Mariusz Szkoda
*,
Zuzanna Zarach
,
Konrad Trzciński
and
Andrzej P. Nowak
Faculty of Chemistry, Department of Chemistry and Technology of Functional Materials, Gdansk University of Technology, Narutowicza 11/12, 80-233 Gdansk, Poland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(24), 5781; https://doi.org/10.3390/ma13245781
Submission received: 14 November 2020 / Revised: 10 December 2020 / Accepted: 15 December 2020 / Published: 17 December 2020
(This article belongs to the Special Issue Electrode Materials for Energy Storage Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this paper, we demonstrate a novel, electrochemical route of polyaniline/tungsten oxide (PANI)/WO3) film preparation. Polyaniline composite film was electrodeposited on the FTO (fluorine-doped tin oxide) substrate from the aqueous electrolyte that contained aniline (monomer) and exfoliated WO3 as a source of counter ions. The chemical nature of WO3 incorporated in the polyaniline matrix was investigated using X-ray photoelectron spectroscopy. SEM (scanning electron microscopy) showed the impact of WO3 presence on the morphology of polyaniline film. PANI/WO3 film was tested as an electrode material in an acidic electrolyte. Performed measurements showed the electroactivity of both components and enhanced electrochemical stability of PANI/WO3 in comparison with PANI/Cl. Thus, PANI/WO3 electrodes were utilized to construct the symmetric supercapacitors. The impact of capacitive and diffusion-controlled processes on the mechanism of electrical energy storage was quantitatively determined. Devices exhibited high electrochemical capacity of 135 mF cm−2 (180 F g−1) and satisfactory retention rate of 70% after 10,000 cycles. The electrochemical energy storage device exhibited 1075.6 W kg−1 of power density and 12.25 Wh kg−1 of energy density. We also investigated the photocatalytic performance of the deposited film. Photodegradation efficiencies of methylene blue and methyl orange using PANI/WO3 and PANI/Cl were compared. The mechanism of dye degradation using WO3-containing films was investigated in the presence of scavengers. Significantly higher efficiency of photodecomposition of dyes was achieved for composite films (84% and 86%) in comparison with PANI/Cl (32% and 39%) for methylene blue and methyl orange, respectively.

1. Introduction

Organic–inorganic composites have been widely researched, as they are able to combine benefits from the both components and simultaneously overcome their individual drawbacks. It makes them interesting for many possible applications [1,2,3,4,5]. As a result of the synergetic effects, enhancing of electrical, electrochemical, photocatalytic or mechanical properties can be observed, and therefore their utilization in various fields like supercapacitors, sensors, photocatalysis and rechargeable batteries is achievable [6,7,8,9,10,11]. In the case of such hybrids used as electrode materials, conductive polymers-based systems deserve close attention.
Conductive polymers are of great interest as potential electrode materials due to their high accessible surface area (high porosity), relatively high conductivity and high capacitance even at very high charge/discharge rates [12,13]. Polyaniline (PANI) is one of the most extensively used conducting polymer for supercapacitors. However, PANI is characterized by a relatively narrow potential window of electrochemical activity and low stability during multiple charge–discharge cycles [14,15]. An extended potential range of electroactivity and an improvement of specific capacitance can be achieved by the fabrication of organic–inorganic composites with metal oxides or composites with carbon nanomaterials [16,17,18]. Commonly, nanoscopic engineering or obtaining nanocomposites based on polyaniline (PANI) and another active materials remarkably improves PANI-based supercapacitors’ performance and PANI-based photocatalysts [16,19,20,21]. Nevertheless, many factors affect the working properties of the polyaniline-based devices: its oxidation and protonation state, and the doping level and the dopant’s character [22]. Recently, the topic of the counterions has gained much more attention and one can find a considerable amount of work on the study of its impact. Neoh et al. [23] reported that the extent of the anion penetration of the PANI’s film relied strongly on the anion size, showing the protonation of the ClO4− and TSA (toluene sulphonic acid) anions to a significant depth of the base film, while the SSA (sulphosalicylic acid) and DBSA (dodecylbenzenesulfonicacid) anions were limited to the surface areas only. Abd-Elwahed and Holze [24] observed that PANI properties were highly affected by the size of anions, but yet it was not the only factor responsible for regulating the process of dedoping and redoping. Other research stated that PANI has a “size memory effect”, indicating that during the electropolymerization of aniline in a protonic acid, PANI may retain the size of the doping anions being introduced, and can only be redoped by the same or smaller anions [24,25]. However, the impact that counter ions may have on the electrochemical properties of PANI has remained vague. One of the recent studies [26] showed that it was possible to improve the charge–discharge cycling stability of polypyrrole and polyaniline by depositing a carbonaceous shell on them. Moreover, the results indicated that the electrodes featured particularly high capacitance retention, though the mechanism was not entirely understood.
Carbonaceous material can be embedded into the conductive polymer matrix as a counterion, as it was shown for graphene oxide (GO) [27]. GO flakes suspended in water carry a negative surface charge that allows them to act as counter ions during PEDOT (poly(3,4-ethylenedioxythiophene)) and polypyrroleelectropolymerization [28]. On the other hand, we elaborated the method of WO3 aqueous exfoliation that leads to the formation of a negatively charged suspension of WO3−x, abundant with the surface groups [29]. Based on the idea of using GO as a counterion source, here we performed aniline electropolymerization in the presence of WO3−x, without the addition of other electrolytes. The developed method allowed the film of PANI/WO3 to be electrodeposited directly on the conductive substrate from an aqueous electrolyte. Since both materials, PANI and WO3−x, exhibit electrochemical activity and electric storage ability [30,31,32], PANI/WO3 composite was investigated here as an electrode material for supercapacitors. Furthermore, the combination of two photoactive semiconductors (p-type PANI and n-type WO3) was expected to be a way of improving the photocatalytic properties of the composite. Thus, the electrodeposited PANI/WO3 layer was investigated as a photoactive material for the decomposition of organic dyes (methylene blue and methyl orange).

2. Materials and Methods

2.1. Preparation of PANI/WO3 Film

All materials used in this work were purchased from Sigma Aldrich (Saint Louis, MI, USA). They were of analytical grade and used without further purification.
The procedure leading to formation of a transparent solution containing hydrated and amorphous WO3nanoflakes was described in our previous report [29]. To sum it up briefly, it is based on a one-stage, environmentally friendly and facile water-based strategy, which is described in the literature as exfoliation.
Polyaniline/WO3 film was electrodeposited onto FTO (fluorine-doped tin oxide) substrates using a chronoamperometry method. The 50 mL of aqueous solution used for the deposition of a composite film contained 0.2 mL of exfoliated tungsten oxide (WO3; 200 μL) and aniline (ANI) monomer (200 mM). For comparison, PANI was also deposited from an electrolyte containing 3 M HCl and ANI monomer. The reference and counter electrodes used for the electrodeposition were Ag/AgCl/3M KCl and platinum mesh, respectively. The potential of aniline polymerization was determined on the basis of linear sweep voltammograms, presented in Figure 1a. The onset potential of ANI oxidation was shifted (over 0.3 V) towards more cathodic potential for an electrolyte containing exfoliated WO3. Since the onset potential of aniline oxidation was lowered and the addition of acid is not necessary, the range of possible substrates for electroplating of polyaniline increased. These results show that the exfoliated WO3 facilitated the polymerization of ANI compared with Cl− as the counterion. A similar effect has been already observed for EDOT electrooxidation. Sakmeche et al. [33] observed a lowered polymerization potential for EDOT in the presence of sodium dodecyl sulfate, which was explained by strong electrostatic interactions between monomer radicals and dodecyl sulfate anions.
The mass loading of the investigated electrode materials was obtained using analytical balance RADWAG XA 82/220.4Y.A PLUS (Radwag, Radom, Poland). The values derived from the independent measurements were equal to 0.75 ± 0.12 mg cm−2 and 0.88 ± 0.15 mg cm−2 for PANI/Cl and PANI/WO3, respectively.
An exemplary chronoamperometry curve recorded during PANI/WO3 electropolymerization on a FTO is presented in Figure 1b. Charge consumed for electrodeposition of polyaniline (for both type of counterions) was equal to 1.0 C cm−2, unless otherwise stated. Thus, the preparation procedure of PANI/WO3 organic/inorganic composite consists of (i) WO3 aqueous exfoliation and (ii) PANI/WO3electrodeposition. The diagram depicting the strategy of a hybrid material preparation is presented in Figure 1c.

2.2. Physicochemical Characterization Techniques

The morphology of the electrode materials was investigated using scanning electron microscopy (FEI QUANTA FEG 250) (Quanta 3D FEG, Fei Company), equipped with secondary electron detector in the high vacuum mode (pressure 10−4 Pa).
The XPS analysis was performed using Argus Omicron NanoTechnology X-ray photoelectron spectrometer (Scienta Omicron GmbH, Limburger, Germany) with an Mg-Kα source. The measurements were conducted under ultra-high vacuum at room temperature, under a pressure below 1.1 × 10−8 mbar. The data was analyzed with CASA XPS software package using Shirley background subtraction and a least-squares Gaussian–Lorentzian curve fitting algorithm. The obtained spectra were calibrated to give a binding energy of 285.80 eV for C1s.

2.3. Electrochemical Studies

The electrode materials were tested using cyclic voltammetry (CV) and galvanostatic charge–discharge tests (CP) using the Bio-Logic VSP potentiostat–galvanostat (Biologic, Seyssinet-Pariset, France). In a three-electrode configuration, the Ag/AgCl/3.0 M KCl and Pt mesh served as the reference and the counter electrode, respectively. The electrochemical measurements were carried out under argon atmosphere in 1 M H2SO4 aqueous solution, which was purged with argon for 45 min before every measurement in order to remove oxygen. A symmetric supercapacitor was constructed by combining two FTO/PANI/WO3 electrodes and placing a fiberglass separator soaked in 1 M H2SO4 aqueous electrolyte between them. In the next step, the heat sealable foil was welded on three sides using a plastic foil welder and eventually it was sealed using a vacuum packing machine (Henkelman, Hertogenbosch, Netherlands). A sticky copper tape (3M) was used as an electric contact. The supercapacitor cells were tested using multiple galvanostatic charge/discharge cycles (ic = ia = 3 mA/cm2).

2.4. Measurements of Photocatalytic Activity

To evaluate the photocatalytic activity of the PANI/WO3 and PANI/Cl layers, the degradation rate of methylene blue (MB) and methyl orange (MO) dyes in an aqueous phase was monitored. A FTO glass covered by an active material with the surface area of 1 cm2 was placed at the bottom of the reactor, filled with 25 mL of an aqueous solution of MB and MO (initial concentration (C0) =10 μM). A xenon lamp, equipped with an AM 1.5 filter with a light intensity of 100 mW cm−2 was used as the light source. By holding the mixture for 30 min in the dark, the adsorption–desorption equilibrium was attained. Thereafter, 0.75 cm−3 of the dye solution was withdrawn at a regular time interval. The UV–VIS absorption spectra of the solution were analyzed using the UV–Vis spectrophotometer (Biosens, Warsaw, Poland) model UV5100 (Metash) in 1 cm (the length of the light path equals to 1 cm) quartz cuvettes to evaluate the efficiency of the photodegradation process.

3. Results and Discussion

3.1. Morphology and Chemical Structure

The morphology of the FTO/PANI/Cl and FTO/PANI/WO3 was investigated through SEM analysis. The electrodeposition of PANI/Cl onto FTO leads to the formation of an electrode material in the form of rather smooth nanofibers with a diameter of about 150 nm (Figure 2a). SEM micrographs suggest high microporosity of the deposited film. As it can be concluded on the basis of micrographs presented in Figure 2d,e, the presence of WO3 had a significant impact on the film’s morphology. Polyaniline fibers cannot be simply distinguished (see Figure 2d). A higher magnification allows one to observe the nanostructured nature of the obtained material, see Figure 2e. The WO3 part is well embedded and dispersed uniformly on the polymer matrix. The cross-sections presented in Figure 2b,c confirm that the materials layers, whose thickness is almost 9 µm thick for PANI/WO3 and 15 µm for PANI/Cl, are homogenous and spongy throughout its volume.
The EDX spectrum (Figure 2f) consists of peaks related to the presence of carbon, nitrogen, tungsten and oxygen atoms in the composite film. The weight content of elements in the material was found to be as follows: C (62.76 wt %), N (23.15 wt %), O (4.67 wt %), W (6.15 wt %) and Sn (3.27 wt %). The presence of tin is characteristic for FTO substrate. The results give insight into the quantitative ratio between polyaniline and WO3.
The high-resolution XPS spectra recorded for the PANI/WO3 film in the energy range characteristic for W4f, C1sand N1s are presented in Figure 3. Figure 3a shows the wide-scan XPS spectra of the as-prepared material. The spectrum consists of the bands characteristic for N and C from polyaniline and W from WO3−x. No other elements were detected, confirming that only exfoliated WO3 was incorporated as a counterion into the polymer structure during the electrodeposition. The C1s spectrum (Figure 3b) consists of two broad peaks, one at 284.8 eV and another peak at 286.3 eV [34,35]. The peak at 284.6 eV shows the presence of a quinoid structure and benzenoid rings. The N1s spectrum shows one broad asymmetric peak at 399.8 eV, which signifies the presence of more than one type of nitrogen, see Figure 3c. After deconvolution two peaks can be distinguished. The peak at 399.6 eV can be attributed to the benzenoid structure, while the peak appearing at 401.8 eV is probably due to the presence of quaternary ammonium salt structure [35]. The XPS spectrum of the W4f region is presented in Figure 3d. The doublet at 38.1 and 36.1 eV was recorded and ascribed to the binding energies of the W4f 5/2 and W4f 7/2 orbital electrons of W6+, respectively. According to our previous report about exfoliated WO3, exfoliation procedure leads to the formation of WO3−x enriched in surface groups, where tungsten occurs in mixed oxidation states (V and VI) [29]. Here, the reduced form of W was not detected, which is probably the effect of the preparation procedure. Anodic polarization of the substrate during electrodeposition results in the oxidation of the monomer, and the counterion. Since no other elements that could originate from impurities and act as a counterions were detected in the XPS wide-range spectrum (see Figure 3a) and aniline was successively polymerized during anodic polarization, it can be assumed that positive charges of oxidized polymer chains were neutralized by exfoliated WO3.

3.2. Electrochemical Properties

3.2.1. Three-Electrode Configuration

The cyclic voltammetry measurements of FTO/PANI/Cl and FTO/PANI/WO3 electrodes were carried out to investigate and compare their electrochemical properties (Figure 4a). The obtained materials exhibited characteristic peaks of redox couples of polyaniline [36]. Generally, the current density recorded for a PANI/WO3 electrode material was significantly larger than that of the PANI/Cl (both electroactive films were obtained using the same charge consumed for the electrodeposition). This effect may be observed due to the much more developed surface of WO3-containing film (see Figure 2d) and additional electroactivity that comes from an inorganic element of the composite. It may provide a larger number of active centers on the surface of a film. This could lead to a better contact with the electrolyte and thus to an enhanced charge transfer process.
The multiple charge/discharge cycles were performed in order to test the obtained electrodes as possible electrodes materials for energy storage devices, namely supercapacitors. The areal capacitance (CA) and volumetric capacitance (CV) were calculated using the discharge time from galvanostatic charge–discharge curves using the Equation (1):
C A   o r   V = I · d t d V · A   o r   V
where I is the applied discharge current, t is the discharge time, V is the range of electrode potential, A is the active area in cm2 and V is the volume of the electrode material. Areal and volumetric capacitance in the function of the cycle number is presented at Figure 4b,c, respectively. The largest decrease in capacity for both electrodes was observed in the first 1000 cycles. It was observed that the capacity value stabilizes in subsequent cycles. The areal capacitance (CA) was 215 mF cm−2 (CV= 302 F cm−3) and 84 mF cm−2 (CV = 64 F cm−3) at a current density of 2 mA cm−2 for FTO/PANI/WO3 and FTO/PANI/Cl, respectively (after 2500 cycles). The capacity retention is one of the most important factors in determining the supercapacitor performance. The values of 74% and 49% of CA and CV were reached after 4000 cycles for FTO/PANI/WO3 and FTO/PANI/Cl, respectively. In order to investigate the effect of a capacitance drop, the SEM image of the electrode surface after 1000 charge/discharge cycles was performed. As it is shown in Figure S1a (Supplementary Information), the PANI/WO3 electrode material retains its morphology. Thus, it is unlikely that the decrease of capacitance is related to the leach of components from the electrode material. According to the previous paper about electrochemical performance of exfoliated WO3, the capacitance retention of inorganic part should be high [29]. Additionally, when comparing CV curves recorded for PANI/WO3 electrode before and after 1000 cycles (see Figure S1b), the disappearance of the peaks related to the oxidation/reduction of polyaniline can be observed. Thus, it is very likely that the drop of capacitance is mainly related to the decrease of pseudofaradaic activity originating from PANI.
The decrease in performance of the PANI/WO3 composite was attributed to the degradation of PANI, as was evidenced by Wei et al. [37]. According to the obtained results, it may be concluded that the formation of an organic–inorganic composite had a positive influence on PANI electrochemical performance. The presence of WO3 not only increased the capacity of the electrode material, but also positively affected its cycling stability.
In order to investigate the mechanism of the energy storage using PANI-based electrodes, the cyclic voltammetry measurements at different scan rates were performed. The results of the CV measurements are shown in Figure 5a (for FTO/PANI/Cl) and Figure 5d (for FTO/PANI/WO3) for a potential window from 0 to 0.8 V with scan rates of 10, 20, 50, 75, 100 and 200 mV s−1. The shape of all CV curves at the different scan rates exhibited redox couple activity, possibly indicating the presence of pseudocapacitive characteristics of polyaniline electrodes. To determine the mechanism responsible for the charge transfer process, plots j = f(v) (Figure 5b,e) and j = f(v1/2) (Figure 5c,f) were performed at the defined potential value (E = 0.6 V) for both electrode materials. For PANI/Cl electrode material, obtained fitting results showed that both mechanisms wereequally responsible for charge accumulation process, while in the case of PANI/WO3 contribution of charge storage by pseudocapacitance is much greater in comparison with the diffusion controlled mechanism. Despite the fact that the basic analysis was performed, more detailed investigation was necessary to identify the mechanisms responsible for the charge storage.
In the next step, it was to distinguish whether the electrode process is capacitive (surface mechanism) or diffusion dependent in its nature. It is known that the total current response of an electrode material is a sum of these two mechanisms [38]:
i V =   k 1 · v + k 2 · v 1 / 2
where k 1 · v and k 2 · v 1 / 2 are attributed to the current contributions from capacitive effects and diffusion-controlled process, respectively. Thus, knowing k1 and k2 parameters, one is able to quantify, at a defined potential, the fraction of the current response regarding each of the contributions. For an analytical purpose, Equation (2) can be transformed to Equation (3):
i V / v 1 / 2 =   k 1 · v 1 / 2 + k 2
However, in a real system a mixed process is the most common and such an approach gives information that no simple mechanism occurs. It is due to the fact that charge storage is not only occurring on the electrode’s surface but also in the bulk material. Figure 6 shows the results of this analysis for three different scan rates: 10, 50 and 100 mV s−1 for PANI/WO3 and PANI/Cl electrode materials. The shaded regions are attributed to the capacitive currents, whereas the white regions are attributed to diffusion-controlled processes. In the case of PANI/Cl electrode material the fraction of the capacitive contribution is similar to the fraction of a diffusion-controlled process, especially for 50 mV s−1. It is very likely that conducting polymers with small mobile counterions store energy through fast and reversible redox reactions between an electrolyte and electrode material. This phenomenon causes that both capacitive and diffusion-controlled mechanisms seem to be rate-independent during the electrochemical process at higher scan rates.
For PANI/WO3 the charge stored at v = 10 mV s−1wasalmost equally divided between the surface mechanism and the diffusion-controlled mechanism, while for PANI/Cl one may see the dominant effect originating from diffusion-controlled process. At higher sweep rates the total charge was mostly stored utilizing a capacitive mechanism for PANI/WO3 and almost equally mixed process was observed for PANI/Cl. It was evidenced that the presence of WO3 affects the type of storage mechanism of the electrode material. For PANI/WO3 the contribution of the surface mechanism increased with the sweep rate increase, confirming that for higher sweep rates the kinetics were not diffusion-limited but were limited by surface processes. This was in agreement with the results shown in Figure 5e. Moreover, looking at Figure 6d, there was no shaded region at the current maxima. It evidences that for redox couple activities of polyaniline, the charge storage mechanism was controlled by the diffusion process for low sweep rates values.
The results of the analysis show that the implementation of WO3 in the polymer matrix increased the overall capacitance of the electrode material mainly using the surface mechanism, which is not so depended on the scan rate. Thus, PANI/WO3 electrode material that exhibits higher capacitance and stability than PANI/Cl can be a promising material for supercapacitors.

3.2.2. Two-Electrode Configuration

A symmetric supercapacitor was fabricated using two FTO/PANI/WO3 electrodes. The electrochemical characterization of the supercapacitor was performed using galvanostatic charge–discharge cycles. The device was fabricated using FTO/PANI/WO3 electrode material obtained using different charge consumed for electrodeposition. The charge/discharge experiment was performed using 1.0 mA charge/discharge current and 0.7 V voltage range. The highest value of specific capacity was achieved for the highest charge value at electropolymerization, due to the thicker film of PANI/WO3 (see Figure 7a). In the case of the film obtained using 0.05 C cm−2, after 1000 cycles, the capacity retention was equal to 83% (from 2.75 to 2.3 mF cm−2), for 0.5 C cm−2, the capacity retention was at the level of 62% (from 87.5 to 54 mF cm−2), whereas for 1 C cm−2 was equal to 77% (from 175.5 to 136 mF cm−2). Despite the fact that the stability of the electrode material was lower for 1.0 C cm−2 in comparison with 0.05 C cm−2, the value of the specific capacity was higher for the former. Therefore, the film electrodeposited using 1.0 C cm−2 was chosen for further investigations (multiple charge–discharge cycles). Before that, the most appropriate current density was chosen based on the results presented at Figure 7b. Additionally, charge/discharge profiles for a PANI/Cl symmetric supercapacitor are presented at Figure 7c. The curves have a typical capacitors triangular shape. The results indicate that higher capacitance values were obtained for a PANI/WO3 supercapacitor, as the discharge time was almost twice higher at the same current density value. Moreover, a PANI/Cl supercapacitor was not able to work at as high current rates as the PANI/WO3 due to the immediate discharge process, which is a limiting factor for the practical application.
Multiple charge–discharge cycles were performed in order to test the stability of the PANI/WO3-based supercapacitor. As it is shown in Figure 8a, after the capacitance drop after about 1000 cycles, very good stability up to 10,000 cycles was obtained. The total capacitance retention between the 1st and the 10,000th cycle was equal to 69%. It is noteworthy that the decrease of capacitance was the highest for the first 1000 cycles and then the capacitance stabilized, reaching 91% retention between the 1000th and the 10,000th cycle. The areal capacitance of PANI/WO3 symmetric supercapacitor was 135 mF cm−2 at a current density of 3 mA cm−2 and the gravimetric capacitance was 160 F g−1 at a current density of about 1.0 A g−1 (after 1000 cycles). For a comparison, the gravimetric, volumetric and areal capacitance obtained for a PANI/Cl symmetric supercapacitor (at a current density of 1 mA cm−2, for which the discharge time was similar as for the PANI/WO3 supercapacitor) are presented in Supplementary Information at Figure S2.
Additionally, the energy density (ED) and an average power density (PD) were calculated from the discharge curve according to the following Equations (4) and (5) [39]:
E D = C s · U 2 2 1000 3600 W h k g
P D = E D t W k g
where Cs is the specific capacitance, Δ U is the voltage range and t is the time of discharge. Hence, the energy density value of 12.25 Wh kg−1 and the power density 1075.6 W kg−1 were obtained for a PANI/WO3-based supercapacitor. The Ragone plot shows the power and energy densities, compared with the reference values (see Figure 8b) [40,41,42,43,44,45,46,47].

3.3. Photocatalytic Properties of the PANI/WO3 Composite

In addition to electrochemical measurements, the photocatalytic activity of the electrodeposited PANI/WO3 composite was investigated and compared with PANI/Cl film. The photocatalytic degradation of methylene blue (MB) and methyl orange (MO) using PANI/WO3 and PANI/Cl electrode materials as photocatalysts was performed and the results are presented at Figure 9a,b. In order to investigate the effect of irradiation on the catalyst/dye interaction, two sets of experiments were carried out. For the first one, based on the direct photodegradation of the dye, no significant changes of dyes concentration were observed. The decolorization efficiency of the MB achieved 9% after 2 h illumination, while the decolorization efficiency of MO was found to be less than 3%. The results showed that the photolysis of the dyes was rather low and MO was more stable under the illumination. Then, the photo decolorization of dyes was performed in the presence of PANI/WO3, and PANI/Cl and the photocatalytic effect of both material was confirmed. However, the PANI/WO3 exhibited significantly higher photoactivity towards organic compounds decomposition in comparison with PANI/Cl. The results are summarized in diagram in Figure 9c. One may see that the WO3 played an important role in increasing the photocatalytic activity of PANI, as the decolorization efficiency increased more than 2 times for both dyes in comparison with PANI/Cl. The enhancement of the photoactivity may result from the formation of the junction between the organic and inorganic component. Since the polyaniline exhibits p-type conductivity and WO3 is an n-type metal oxide semiconductor, it may be expected that the rate of e−/h+recombination on the interface will be significantly inhibited. Therefore, photoexcited charges can be more efficiently consumed for the organic dyes degradation. In order to investigate the role of WO3 more deeply, the dye decomposition was investigated in the presence of selective scavengers.
The results of the photocatalytic degradation of MB by FTO/PANI/WO3 in the presence of different scavengers are presented in Figure 10a. The obtained results indicated that the addition of ammonium oxalate (AO), whichwas used as a hole (h+) scavenger, significantly inhibited the photodegradation efficiency of MB decomposition. Thus, it is very likely that the degradation of MB was strictly related to direct photooxidation of dye adsorbed on the photocatalyst via holes from the valence band. PANI/Cl was not able to decompose MB directly using holes due to the location of the valence band [48]. It can be concluded, that the presence of n-type WO3 facilitated the degradation of the organic dye via direct oxidation using holes from the valence band of WO3. Moreover, after the addition of benzoquinone (BQ), which is commonly used as a superoxide radical scavenger, the MB photodecomposition efficiency was at the similar level as in the case of the experiment without the addition of scavengers. Thus, superoxide radicals did not participate in the photodegradation of the organic dye. Therefore, the main chemical individuals responsible for dye photodegradation were photoexcited holes from the WO3 valence band. Since the MB decomposition efficiency decreased in the presence of t-butyl alcohol (TBA), the hydroxyl radicals participated in the dye decomposition, as well. Thus, the presence of WO3 enhanced the oxidative properties of the inorganic–organic composite.
To evaluate the photocatalytic stability of the catalyst, PANI/WO3 was used in four photocatalytic experiments (on the example of MB degradation). The results in Figure 10b showed that the PANI/WO3 was reusable and that it could also maintain relatively high activity after several experiments. The negligible loss of activity could be observed after each test, and 65% MB degradation was still achieved after four repeats. The decrease of the photocatalytic activity after each experiment was probably due to the inactivation of the polyaniline surface. Two ways to reactivate a photocatalyst were performed. At the beginning, the photocatalyst was kept at 0.9 V for 5 min in order to remove the photodegradation products from the surface of the photocatalyst. Next, the recovered photocatalyst was utilized to the degradation process of MB again. The enhancement of the photodecomposition rate was not observed suggesting that the polyaniline should be reduced before another photocatalytic test. Thus, the FTO/PANI/WO3 electrode material was polarized at −0.4 V for 5 min followed by the photocatalytic test. It turned out that the photoactivity of the PANI/WO3 was recovered, suggesting that the organic part was responsible for the decrease of the material photoactivity.
The possible mechanism of the photocatalytic performance of PANI/WO3 composite film was summed up and presented in a form of a scheme, see Figure 11.Under simulated solar light irradiation, both parts of the composite can be photoexcited. PANI absorbs photons to induce HOMO–LUMO transition, transporting the excited-state electrons from the LUMO-orbital to WO3 (LUMO of p-type PANI is more negative than the CB of inorganic n-type exfoliated WO3). The energy band alignment enables the transfer of the photogenerated electrons. According to previous reports about PANI photocatalytic properties, holes rather do not participate in the direct oxidation of organic pollutants adsorbed on the photocatalyst, however, the photoexcitation may lead to the formation of hydroxyl radicals [48]. In the case of WO3, holes from the valence band are mostly consumed for direct oxidation of the adsorbed dye. However, their role is more complex. One can expect the formation of hydroxyl radicals on WO3, as well. On the other hand, holes can migrate to HOMO of polyaniline or simply oxidize it. Since the presence of benzoquinone during the photocatalytic degradation of the dye is almost negligible, photoexcited electrons do not participate efficiently in the formation of superoxides. Thus, the electrons can have the opposite effect to the holes, i.e., take part in the recombination with the holes of the HOMO PANI or reduce the polymeric part of the film. Probably, there is a dynamic equilibrium that shifts over time to the oxidized form of polyaniline. This phenomenon negatively affects the degradation efficiency of MB in the subsequent degradation cycles. Applying a cathodic potential to the electrode reverses this effect, regenerating the photocatalyst, while anodic polarization decreases the photocatalyst performance. Consequently, WO3 and PANI work synergistically for the generation of AOS (advanced oxidation species) by hampering the electron-hole recombination and boosting charge separation, which led to the formation of an effective photocatalyst for the enhanced degradation of MB.

4. Conclusions

This report is devoted to the design and investigation of a novel composite electrode material, consisting of PANI and an exfoliated WO3. PANI/WO3 was electrochemically deposited on FTO glass from a solution containing aniline and an exfoliated WO3. Electrochemical tests of the PANI/WO3 indicated that it may act as an electrode material for energy storage application, and the results were more satisfactory in comparison with PANI/Cl electrode material. Charging/discharging performance in a three-electrode configuration evidenced that the material was stable in over 10,000 cycles, giving areal capacitance of 215 mF cm−2 with capacity retention of 74%. Moreover, most of the charge was stored by a capacitive mechanism. The fraction of a capacitive contribution of the surface processes was over 70% and was mainly affected by the presence of an exfoliated WO3. The practical utilization of PANI/WO3 electrode material was determined by a construction of a symmetric supercapacitor. Such device after 10,000 cycles exhibited high capacitance retention of 69% and 12.25 Wh kg−1 and 1075 W kg−1 energy and power density, respectively.
Furthermore, PANI/WO3 electrode material served as a catalyst in a photodegradation of organic compounds and was able to degrade dyes with the efficiency of over 84%. The investigation confirmed that the addition of tungsten oxide played a crucial role in the degradation process due to the utilization of holes, originating from the valence band of the inorganic WO3. As a final remark one may conclude that PANI/WO3 electrode material exhibited broad spectrum of applications from energy storage devices to photodegradation of organic compounds.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/24/5781/s1, Figure S1. a) SEM images of the FTO/PANI/WO3 electrode after 1 000 cycles, b) Cyclic voltammetry curves (v = 50 mV s−1) before and after 1000 charge and discharge cycles., Figure S2: a) The areal capacitance, b) the volumetric capacitance and c) the gravimetric capacitance vs. number of cycle recorded for a symmetric supercapacitor (FTO/PANI/Cl and FTO/PANI/WO3).

Author Contributions

Conceptualization, M.S.; validation, Z.Z., K.T.; investigation, M.S., Z.Z. and A.P.N.; writing—original draft preparation, M.S., Z.Z., K.T. and A.P.N.; writing—review and editing, M.S. Z.Z. and K.T.; visualization, M.S.; supervision, M.S.; funding acquisition, M.S. All authors have read and agreed to the published version of the manuscript

Funding

This research was funded by the National Centre for Research and Development via Grant No. LIDER/15/0088/L-10/18/NCBR/2019 (Integrated prototype of a photo-supercapacitor for energy storage obtained as a result of solar radiation conversion).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wright, M.; Uddin, A. Organic—inorganic hybrid solar cells: A comparative review. Sol. Energy Mater. Sol. Cells 2012, 107, 87–111. [Google Scholar] [CrossRef]
  2. Wang, S.; Kang, Y.; Wang, L.; Zhang, H.; Wang, Y.; Wang, Y. Organic/inorganic hybrid sensors: A review. Sens. Actuators B Chem. 2013, 182, 467–481. [Google Scholar] [CrossRef]
  3. Figueira, R.B.; Silva, C.J.R.; Pereira, E.V. Organic–inorganic hybrid sol–gel coatings for metal corrosion protection: A review of recent progress. J. Coat. Technol. Res. 2015, 12, 1–35. [Google Scholar] [CrossRef]
  4. Szkoda, M.; Trzciński, K.; Rysz, J.; Gazda, M.; Siuzdak, K.; Lisowska-Oleksiak, A. Electrodes consisting of PEDOT modified by Prussian Blue analogues deposited onto titania nanotubes–their highly improved capacitance. Solid State Ion. 2017, 302, 197–201. [Google Scholar] [CrossRef]
  5. Won, D.-I.; Lee, J.-S.; Cheong, H.-Y.; Cho, M.; Jung, W.-J.; Son, H.-J.; Pac, C.; Kang, S.O. Organic–inorganic hybrid photocatalyst for carbon dioxide reduction. Faraday Discuss. 2017, 198, 337–351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Lin, H.-Y.; Li, C.-H.; Wang, D.-Y.; Chen, C.-C. Chemical doping of a core–shell silicon nanoparticles@polyaniline nanocomposite for the performance enhancement of a lithium ion battery anode. Nanoscale 2016, 8, 1280–1287. [Google Scholar] [CrossRef]
  7. Trzciński, K.; Lisowska-Oleksiak, A. Electrochemical characterization of a composite comprising PEDOT/PSS and N doped TiO2 performed in aqueous and non-aqueous electrolytes. Synth. Met. 2015, 209, 399–404. [Google Scholar] [CrossRef]
  8. Reddy, K.R.; Karthik, K.V.; Prasad, S.B.B.; Soni, S.K.; Jeong, H.M.; Raghu, A.V. Enhanced photocatalytic activity of nanostructured titanium dioxide/polyaniline hybrid photocatalysts. Polyhedron 2016, 120, 169–174. [Google Scholar] [CrossRef]
  9. Siuzdak, K.; Szkoda, M.; Karczewski, J.; Ryl, J.; Lisowska-Oleksiak, A. Titania nanotubes infiltrated with the conducting polymer PEDOT modified by Prussian blue–a novel type of organic–inorganic heterojunction characterised with enhanced photoactivity. RSC Adv. 2016, 6, 76246–76250. [Google Scholar] [CrossRef]
  10. Li, X.; Wang, D.; Cheng, G.; Luo, Q.; An, J.; Wang, Y. Preparation of polyaniline-modified TiO2 nanoparticles and their photocatalytic activity under visible light illumination. Appl. Catal. B Environ. 2008, 81, 267–273. [Google Scholar] [CrossRef]
  11. Bogdanowicz, R.; Dettlaff, A.; Skiba, F.; Trzciński, K.; Szkoda, M.T.; Sobaszek, M.; Ficek, M.; Dec, B.; Macewicz, L.; Wyrebski, K.; et al. Enhanced Charge Storage Mechanism and Long-Term Cycling Stability in Diamondized Titania Nanocomposite Supercapacitors Operating in Aqueous Electrolytes. J. Phys. Chem. C. 2020, 124, 15698–15712. [Google Scholar] [CrossRef]
  12. Chen, J.; Yan, W.; Townsend, E.J.; Feng, J.; Pan, L.; Del Angel Hernandez, V.; Faul, C.F. Porous Materials Tunable Surface Area, Porosity, and Function in Conjugated Microporous Polymers. Agnew. Chem. Int. Ed. 2019, 58, 11715–11719. [Google Scholar] [CrossRef] [Green Version]
  13. Shi, Y.; Peng, L.; Ding, Y.; Zhao, Y.; Yu, G. Nanostructured conductive polymers for advanced energy storage. Chem. Soc. Rev. 2015, 44, 6684–6696. [Google Scholar] [CrossRef] [Green Version]
  14. Patil, D.S.; Shaikh, J.S.; Dalavi, D.S.; Kalagi, S.S.; Patil, P.S. Chemical synthesis of highly stable PVA/PANI films for supercapacitor application. Mater. Chem. Phys. 2011, 128, 449–455. [Google Scholar] [CrossRef]
  15. Li, X.; Zhang, C.; Xin, S.; Yang, Z.; Li, Y.; Zhang, D.; Yao, P. Facile Synthesis of MoS2/Reduced Graphene Oxide@Polyaniline for High-Performance Supercapacitors. ACS Appl. Mater. Interfaces 2016, 8, 21373–21380. [Google Scholar] [CrossRef]
  16. Su, H.; Wang, T.; Zhang, S.; Song, J.; Mao, C.; Niu, H.; Jin, B.; Wu, J.; Tian, Y. Facile synthesis of polyaniline/TiO2/graphene oxide composite for high performance supercapacitors. Solid State Sci. 2012, 14, 677–681. [Google Scholar]
  17. Trzciński, K.; Szkoda, M.; Nowak, A.P.; Łapiński, M.; Lisowska-Oleksiak, A. Widening of the electroactivity potential range by composite formation–capacitive properties of TiO2/ BiVO4/PEDOT:PSS electrodes in contact with an aqueous electrolyte. Beilstein J. Nanotechnol. 2019, 10, 483–493. [Google Scholar] [CrossRef] [Green Version]
  18. Zhang, K.; Zhang, L.L.; Zhao, X.S.; Wu, J. Graphene/Polyaniline Nanofiber Composites as Supercapacitor Electrodes. Chem. Mater. 2010, 22, 1392–1401. [Google Scholar] [CrossRef]
  19. Xie, Y.; Xia, C.; Du, H.; Wang, W. Enhanced electrochemical performance of polyaniline/carbon/titanium nitride nanowire array for flexible supercapacitor. J. Power Sources 2015, 286, 561–570. [Google Scholar] [CrossRef]
  20. Frackowiak, E.; Khomenko, V.; Jurewicz, K.; Lota, K.; Béguin, F. Supercapacitors based on conducting polymers/nanotubes composites. J. Power Sources 2006, 153, 413–418. [Google Scholar] [CrossRef]
  21. Janáky, C.; Rajeshwar, K. The role of (photo)electrochemistry in the rational design of hybrid conducting polymer/semiconductor assemblies: From fundamental concepts to practical applications. Prog. Polym. Sci. 2015, 43, 96–135. [Google Scholar] [CrossRef]
  22. Low, K.; Chartuprayoon, N.; Echeverria, C.; Li, C.; Bosze, W.; Myung, N.V.; Nam, J. Polyaniline/poly(ε-caprolactone) composite electrospun nanofiber-based gas sensors: Optimization of sensing properties by dopants and doping concentration. Nanotechnology 2014, 25, 115501. [Google Scholar] [CrossRef]
  23. Neoh, K.G.; Pun, M.Y.; Kang, E.T.; Tan, K.L. Polyaniline treated with organic acids: Doping characteristics and stability. Synth. Met. 1995, 73, 209–215. [Google Scholar] [CrossRef]
  24. Abd-Elwahed, A.; Holze, R. Ion size and size memory effects with electropolymerized polyaniline. Synth. Met. 2002, 131, 61–70. [Google Scholar] [CrossRef]
  25. Łapkowski, M.; Vieil, E. Control of polyaniline electroactivity by ion size exclusion. Synth. Met. 2000, 109, 199–201. [Google Scholar] [CrossRef]
  26. Liu, T.; Finn, L.; Yu, M.; Wang, H.; Zhai, T.; Lu, X.; Tong, Y.; Li, Y. Polyaniline and Polypyrrole Pseudocapacitor Electrodes with Excellent Cycling Stability. Nano Lett. 2014, 14, 2522–2527. [Google Scholar] [CrossRef]
  27. Wilamowska, M.; Kujawa, M.; Michalska, M.; Lipińska, L.; Lisowska-Oleksiak, A. Electroactive polymer/graphene oxide nanostructured composites; evidence for direct chemical interactions between PEDOT and GOx. Synth. Met. 2016, 220, 334–346. [Google Scholar] [CrossRef]
  28. Österholm, A.; Lindfors, T.; Kauppila, J.; Damlin, P.; Kvarnström, C. Electrochemical incorporation of graphene oxide into conducting polymer films. Electrochim. Acta 2012, 83, 463–470. [Google Scholar] [CrossRef]
  29. Szkoda, M.; Zarach, Z.; Trzciński, K.; Trykowski, G.; Nowak, A. An Easy and Ecological Method of Obtaining Hydrated and Non-Crystalline WO3-x for Application in Supercapacitors. Materials 2020, 13, 1925. [Google Scholar] [CrossRef] [Green Version]
  30. Yuksel, R.; Durucan, C.; Unalan, H.E. Ternary nanocomposite SWNT/WO3/PANI thin film electrodes for supercapacitors. J. Alloys Compd. 2016, 658, 183–189. [Google Scholar] [CrossRef]
  31. Kadam, A.V.; Patil, S.B. Polyaniline globules as a catalyst for WO3 nanoparticles for supercapacitor application. Mater. Res. Express 2018, 5, 85036. [Google Scholar] [CrossRef]
  32. Zou, B.; Gong, S.; Wang, Y.; Liu, X. Tungsten Oxide and Polyaniline Composite Fabricated by Surfactant-Templated Electrodeposition and Its Use in Supercapacitors. J. Nanomater 2014, 2014, 813120. [Google Scholar] [CrossRef]
  33. Sakmeche, N.; Aeiyach, S.; Aaron, J.-J.; Jouini, M.; Lacroix, J.C.; Lacaze, P.-C. Improvement of the Electrosynthesis and Physicochemical Properties of Poly(3,4-ethylenedioxythiophene) Using a Sodium Dodecyl Sulfate Micellar Aqueous Medium. Langmuir 1999, 15, 2566–2574. [Google Scholar] [CrossRef]
  34. Golczak, S.; Kanciurzewska, A.; Fahlman, M.; Langer, K.; Langer, J.J. Comparative XPS surface study of polyaniline thin films. Solid State Ion. 2008, 179, 2234–2239. [Google Scholar] [CrossRef]
  35. Patil, S.H.; Gaikwad, A.P.; Sathaye, S.D.; Patil, K.R. To form layer by layer composite film in view of its application as supercapacitor electrode by exploiting the techniques of thin films formation just around the corner. Electrochim. Acta 2018, 265, 556–568. [Google Scholar] [CrossRef]
  36. Song, E.; Choi, J.-W. Conducting Polyaniline Nanowire and Its Applications in Chemiresistive Sensing. Nanomaterials 2013, 3, 498–523. [Google Scholar] [CrossRef]
  37. Wei, H.; Yan, X.; Wu, S.; Luo, Z.; Wei, S.; Guo, Z. Electropolymerized Polyaniline Stabilized Tungsten Oxide Nanocomposite Films: Electrochromic Behavior and Electrochemical Energy Storage. J. Phys. Chem. C 2012, 116, 25052–25064. [Google Scholar] [CrossRef]
  38. Liu, T.-C.; Pell, W.G.; Conway, B.E.; Roberson, S.L. Behavior of Molybdenum Nitrides as Materials for Electrochemical Capacitors: Comparison with Ruthenium Oxide. J. Electrochem. Soc. 1998, 145, 1882–1888. [Google Scholar] [CrossRef]
  39. Wang, W.; Guo, S.; Ozkan, M.; Ozkan, C.S. Chrysanthemum like carbon nanofiber foam architectures for supercapacitors. J. Mater. Res. 2013, 28, 912–917. [Google Scholar] [CrossRef]
  40. Navale, Y.H.; Navale, S.T.; Dhole, I.A.; Stadler, F.J.; Patil, V.B. Specific capacitance, energy and power density coherence in electrochemically synthesized polyaniline-nickel oxide hybrid electrode. Org. Electron. 2018, 57, 110–117. [Google Scholar] [CrossRef]
  41. Ren, X.; Fan, H.; Ma, J.; Wang, C.; Zhang, M.; Zhao, N. Hierarchical Co3O4/PANI hollow nanocages: Synthesis and application for electrode materials of supercapacitors. Appl. Surf. Sci. 2018, 441, 194–203. [Google Scholar] [CrossRef]
  42. Liu, X.; Wu, Z.; Yin, Y. Hierarchical NiCo2S4@PANI core/shell nanowires grown on carbon fiber with enhanced electrochemical performance for hybrid supercapacitors. Chem. Eng. J. 2017, 323, 330–339. [Google Scholar] [CrossRef]
  43. Thakur, A.K.; Deshmukh, A.B.; Choudhary, R.B.; Karbhal, I.; Majumder, M.; Shelke, M.V. Facile synthesis and electrochemical evaluation of PANI/CNT/MoS2 ternary composite as an electrode material for high performance supercapacitor. Mater. Sci. Eng. B 2017, 223, 24–34. [Google Scholar] [CrossRef]
  44. Zhou, S.-X.; Tao, X.-Y.; Ma, J.; Guo, L.-T.; Zhu, Y.-B.; Fan, H.-L.; Liu, Z.-S.; Wei, X.-Y. Synthesis of flower-like PANI/g-C3N4 nanocomposite as supercapacitor electrode. Vacuum 2018, 149, 175–179. [Google Scholar] [CrossRef]
  45. Jeyaranjan, A.; Sakthivel, T.S.; Neal, C.J.; Seal, S. Scalable ternary hierarchical microspheres composed of PANI/rGO/CeO2 for high performance supercapacitor applications. Carbon 2019, 151, 192–202. [Google Scholar] [CrossRef]
  46. Ren, L.; Zhang, G.; Lei, J.; Hu, D.; Dou, S.; Gu, H.; Li, H.; Zhang, X. Growth of PANI thin layer on MoS2 nanosheet with high electro-capacitive property for symmetric supercapacitor. J. Alloys Compd. 2019, 798, 227–234. [Google Scholar] [CrossRef]
  47. Das, A.K.; Bera, R.; Maitra, A.; Karan, S.K.; Paria, S.; Halder, L.; Si, S.K.; Bera, A.; Khatua, B.B. Fabrication of an advanced asymmetric supercapacitor based on a microcubical PB@MnO2 hybrid and PANI/GNP composite with excellent electrochemical behaviour. J. Mater. Chem. A 2017, 5, 22242–22254. [Google Scholar] [CrossRef]
  48. Sulowska, A.; Wysocka, I.; Pelczarski, D.; Karczewski, J.; Zielińska-Jurek, A. Hybrid TiO–Polyaniline Photocatalysts and their Application in Building Gypsum Plasters. Materials 2020, 13, 1516. [Google Scholar] [CrossRef] [Green Version]
Materials 13 05781 g001 550

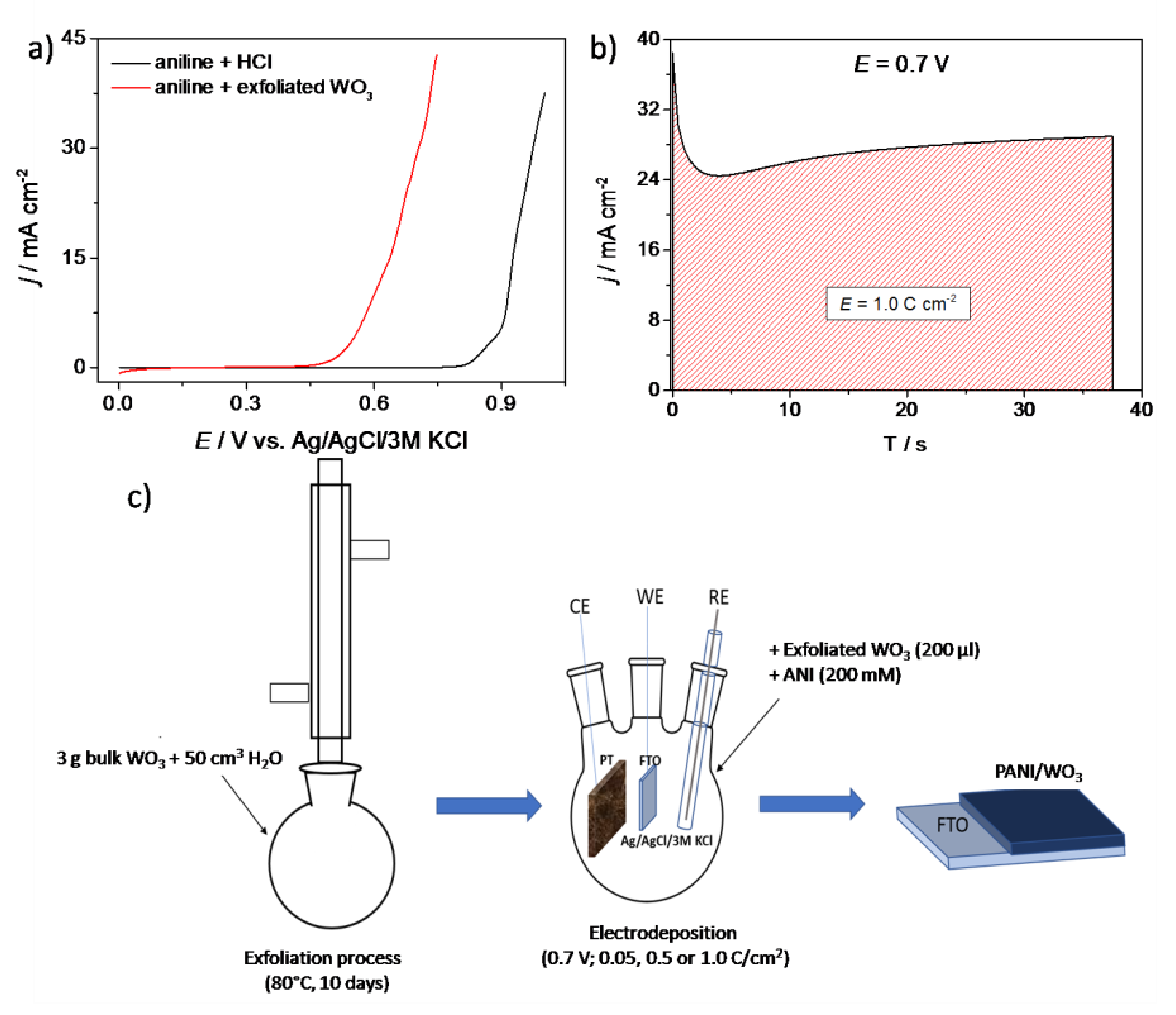

Figure 1. (a) The linear sweep voltammetry curves obtained during polarization of FTO electrodes in an aqueous electrolyte containing aniline/HCl (black curve) and aniline/exfoliated WO3 (red curve); (b) a chronoamperometry curve recorded during PANI/WO3electrodeposition and (c) the diagram depicting the preparation process of the FTO/PANI/WO3 composite.
Figure 1. (a) The linear sweep voltammetry curves obtained during polarization of FTO electrodes in an aqueous electrolyte containing aniline/HCl (black curve) and aniline/exfoliated WO3 (red curve); (b) a chronoamperometry curve recorded during PANI/WO3electrodeposition and (c) the diagram depicting the preparation process of the FTO/PANI/WO3 composite.
Materials 13 05781 g001
Materials 13 05781 g002 550
Figure 2. (a) SEM image of FTO/PANI/Cl; a cross-section SEM image of (b) FTO/PANI/Cl and (c) FTO/PANI/WO3; (d,e) SEM images of FTO/PANI/WO3 and (f) EDX spectrum of FTO/PANI/WO3 (inset: a table with listed elements content).
Figure 2. (a) SEM image of FTO/PANI/Cl; a cross-section SEM image of (b) FTO/PANI/Cl and (c) FTO/PANI/WO3; (d,e) SEM images of FTO/PANI/WO3 and (f) EDX spectrum of FTO/PANI/WO3 (inset: a table with listed elements content).
Materials 13 05781 g002
Materials 13 05781 g003 550

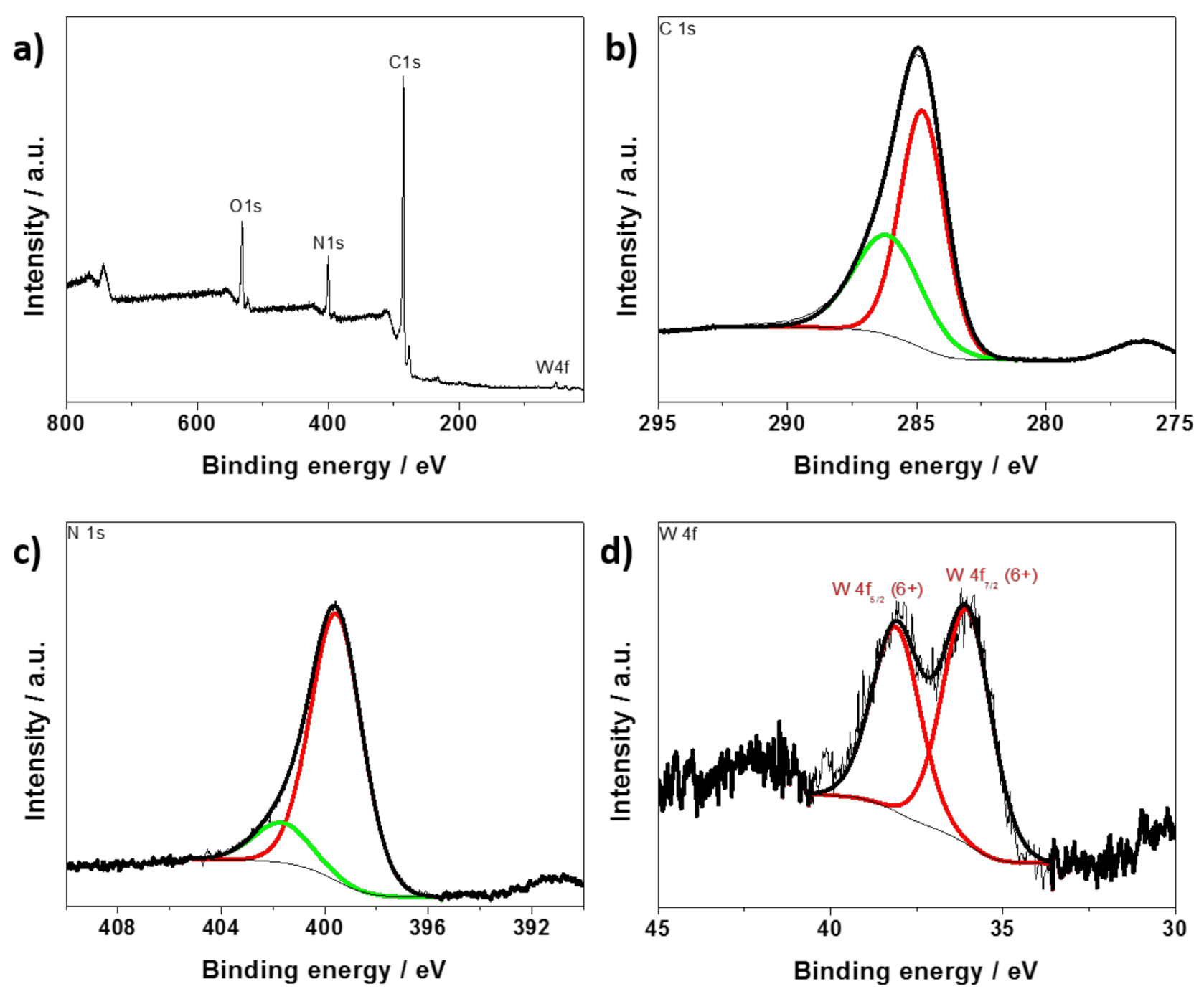

Figure 3. (a) XPS wide-scan spectrum of FTO/PANI/WO3; high-resolution XPS spectra recorded for (b) C1s, (c) N1s and (d) W4f region.
Figure 3. (a) XPS wide-scan spectrum of FTO/PANI/WO3; high-resolution XPS spectra recorded for (b) C1s, (c) N1s and (d) W4f region.
Materials 13 05781 g003
Materials 13 05781 g004 550

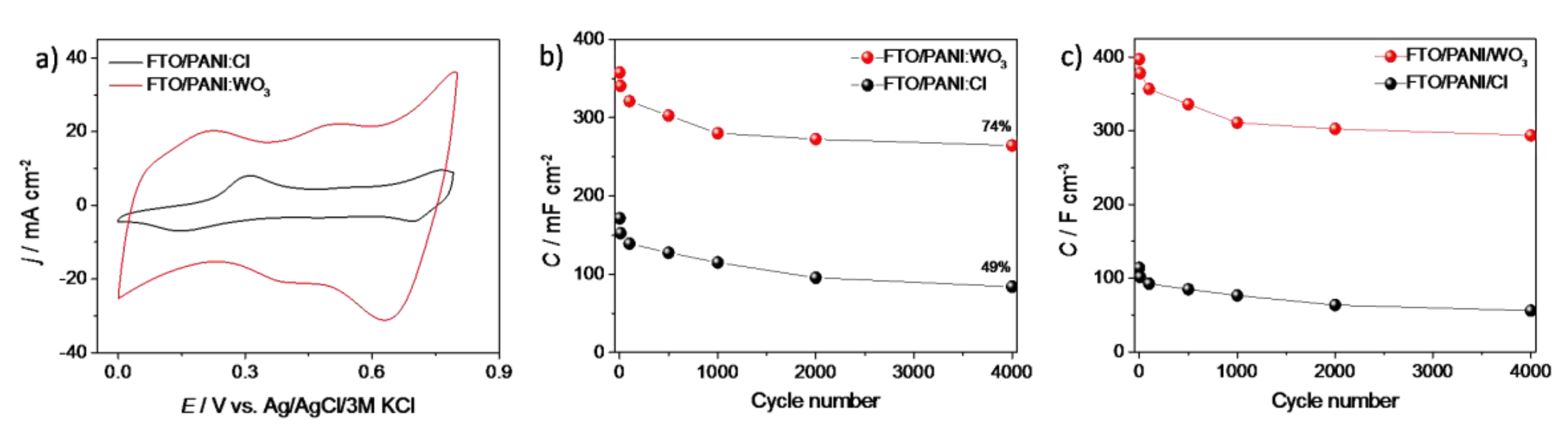

Figure 4. (a) The cyclic voltammetry curves of FTO/PANI/Cl and FTO/PANI/WO3 in 1 M H2SO4, scan rate 50 mV s−1; (b) the areal capacitance and (c) the volumetric capacitance vs. number of cycle plot for FTO/PANI/Cl and FTO/PANI/WO3 electrode materials (charge/discharge current density 2 mA cm−2, polarized from 0 to 0.8 V vs. Ag/AgCl/3 M KCl).
Figure 4. (a) The cyclic voltammetry curves of FTO/PANI/Cl and FTO/PANI/WO3 in 1 M H2SO4, scan rate 50 mV s−1; (b) the areal capacitance and (c) the volumetric capacitance vs. number of cycle plot for FTO/PANI/Cl and FTO/PANI/WO3 electrode materials (charge/discharge current density 2 mA cm−2, polarized from 0 to 0.8 V vs. Ag/AgCl/3 M KCl).
Materials 13 05781 g004
Materials 13 05781 g005 550

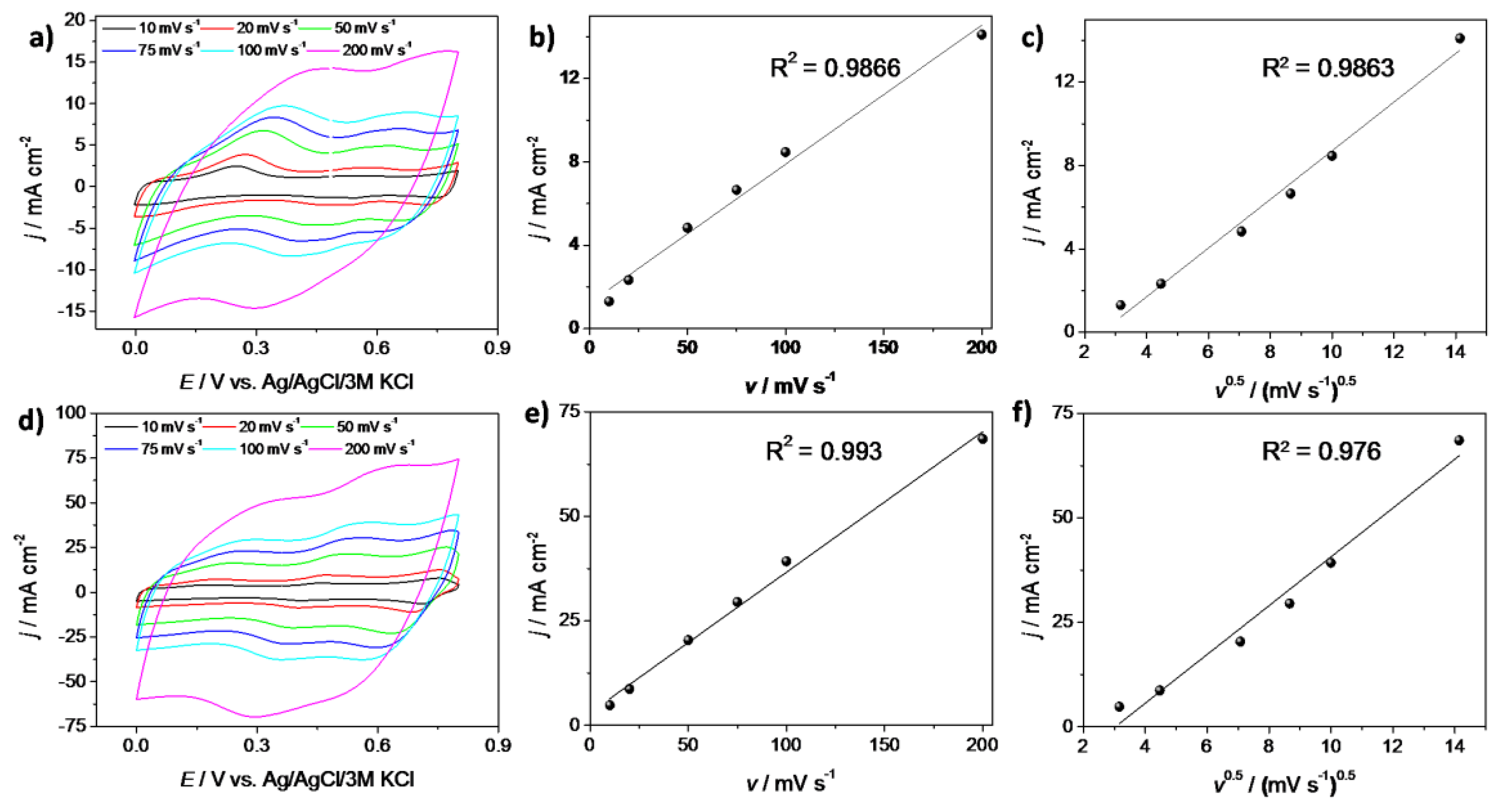

Figure 5. Cyclic voltammetry (CV) curves of (a) FTO/PANI/Cl and (d) FTO/PANI/WO3 electrodes in 1 M H2SO4 at different scan rates; (b,e) plots of j = f(v) and (c,f) j = f(v1/2) at E = 0.6 V for FTO/PANI/Cl and FTO/PANI/WO3, respectively.
Figure 5. Cyclic voltammetry (CV) curves of (a) FTO/PANI/Cl and (d) FTO/PANI/WO3 electrodes in 1 M H2SO4 at different scan rates; (b,e) plots of j = f(v) and (c,f) j = f(v1/2) at E = 0.6 V for FTO/PANI/Cl and FTO/PANI/WO3, respectively.
Materials 13 05781 g005
Materials 13 05781 g006 550

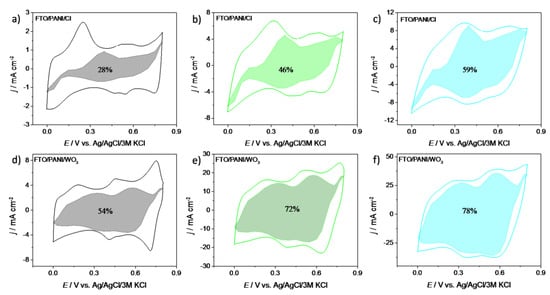

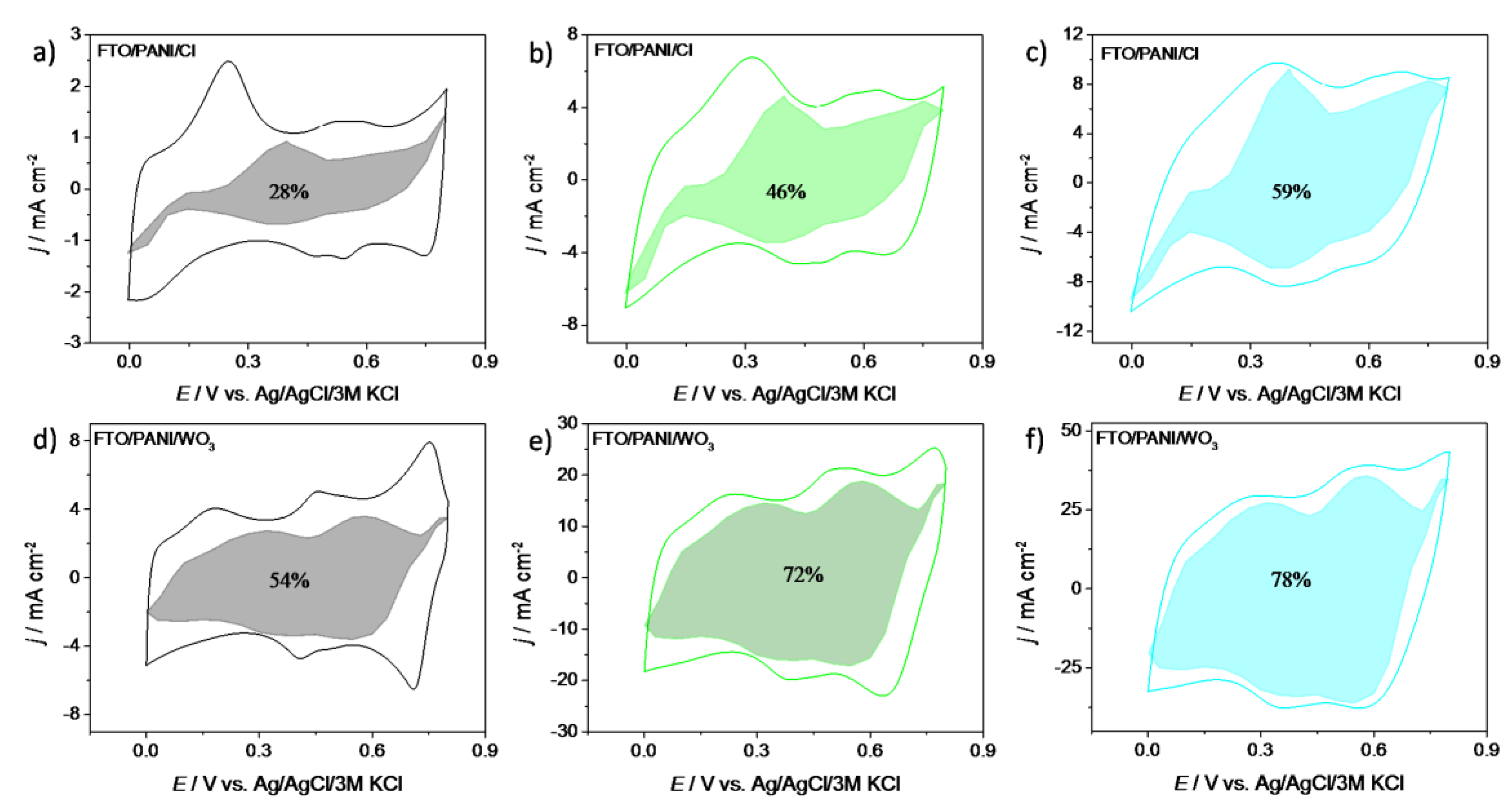

Figure 6. Charge storage contributions at (a) 10 mV s−1, (b) 50 mV s−1 and (c) 100 mV s−1 of FTO/PANI/Cl electrode material and at (d) 10 mV s−1, (e) 50 mV s−1 and (f) 100 mV s−1 of FTO/PANI/WO3 electrode material.
Figure 6. Charge storage contributions at (a) 10 mV s−1, (b) 50 mV s−1 and (c) 100 mV s−1 of FTO/PANI/Cl electrode material and at (d) 10 mV s−1, (e) 50 mV s−1 and (f) 100 mV s−1 of FTO/PANI/WO3 electrode material.
Materials 13 05781 g006
Materials 13 05781 g007 550

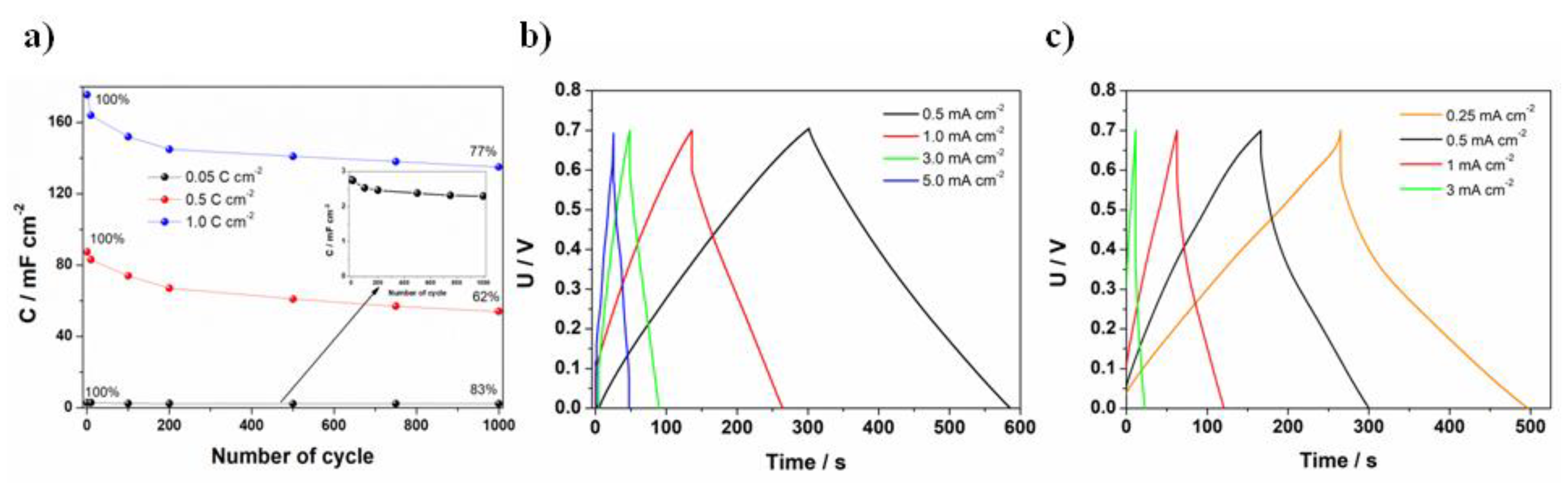

Figure 7. (a)The capacitance vs. number of the cycle plot recorded for a symmetric supercapacitor FTO/PANI/WO3; 0.05, 0.5 and 1 C cm−2 stands for charge consumed during electrodeposition of one electrode material; charge and discharge curves at different current densities applied for (b) PANI/WO3 symmetric supercapacitor and (c) PANI/Cl symmetric supercapacitor.
Figure 7. (a)The capacitance vs. number of the cycle plot recorded for a symmetric supercapacitor FTO/PANI/WO3; 0.05, 0.5 and 1 C cm−2 stands for charge consumed during electrodeposition of one electrode material; charge and discharge curves at different current densities applied for (b) PANI/WO3 symmetric supercapacitor and (c) PANI/Cl symmetric supercapacitor.
Materials 13 05781 g007
Materials 13 05781 g008 550

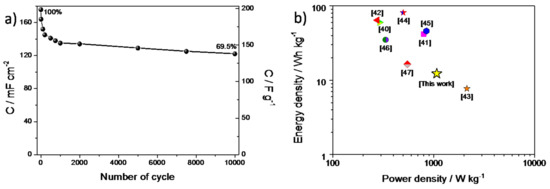

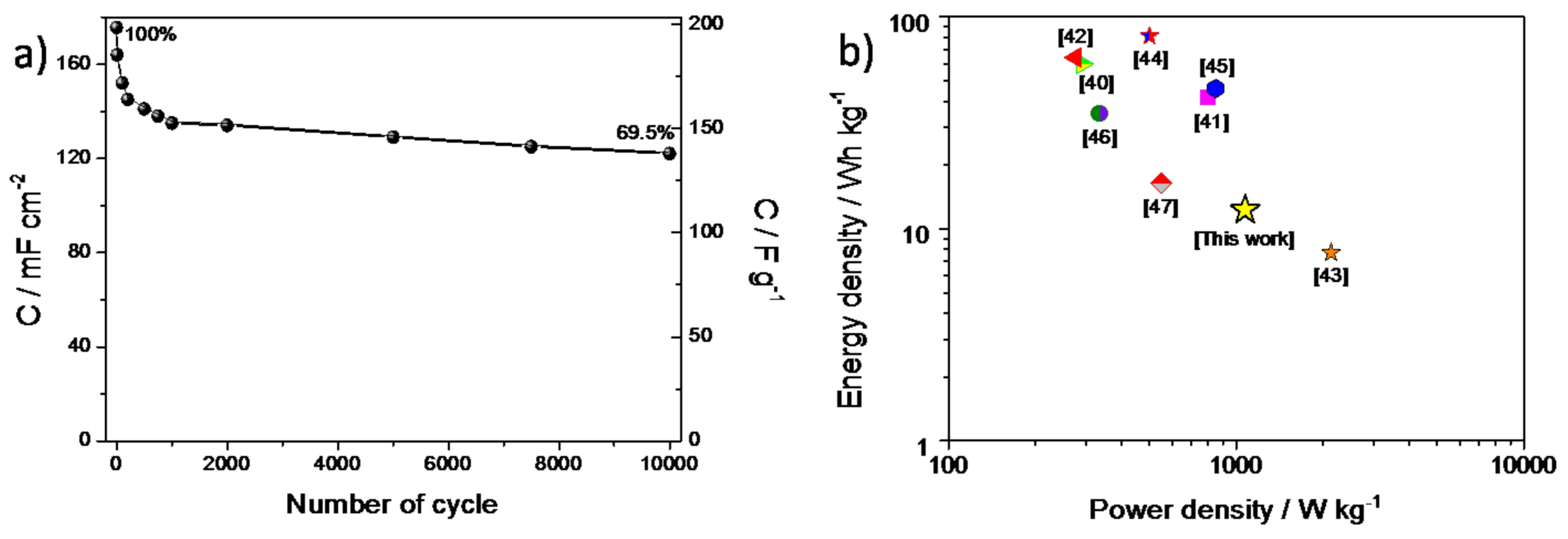

Figure 8. (a) The capacitance (areal and gravimetric) vs. number of cycle plot recorded for a PANI/WO3-based symmetric supercapacitor and (b) Ragone plot for a FTO/PANI/WO3 symmetric supercapacitor.
Figure 8. (a) The capacitance (areal and gravimetric) vs. number of cycle plot recorded for a PANI/WO3-based symmetric supercapacitor and (b) Ragone plot for a FTO/PANI/WO3 symmetric supercapacitor.
Materials 13 05781 g008
Materials 13 05781 g009 550

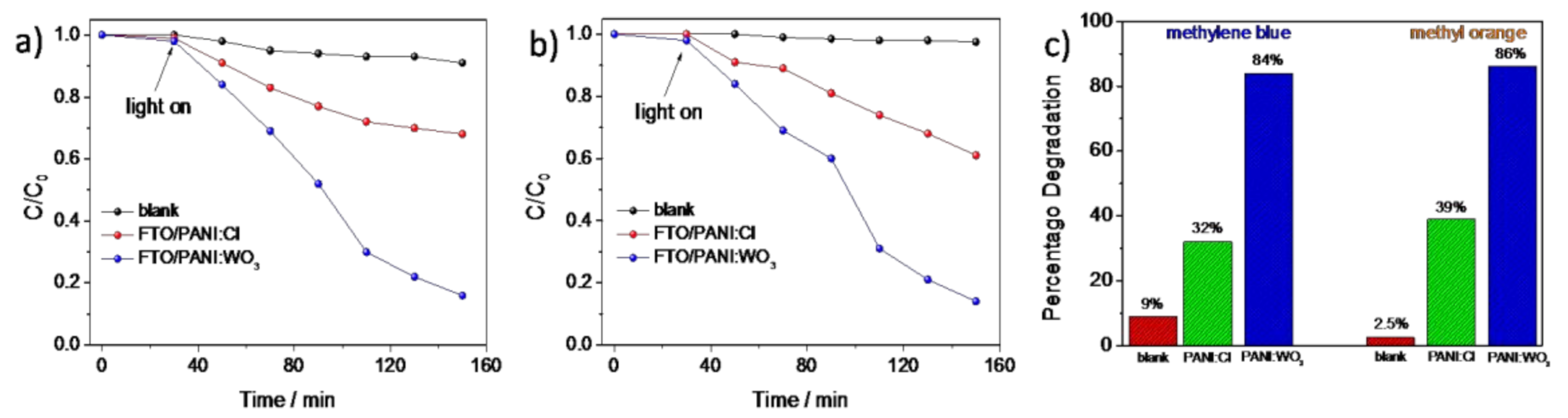

Figure 9. Comparison of the photocatalytic degradation of (a) MB and (b) MO in the presence ofPANI/Cl and PANI/WO3 composite photocatalysts under sunlight irradiation and (c) diagram showing the results of photodegradation.
Figure 9. Comparison of the photocatalytic degradation of (a) MB and (b) MO in the presence ofPANI/Cl and PANI/WO3 composite photocatalysts under sunlight irradiation and (c) diagram showing the results of photodegradation.
Materials 13 05781 g009
Materials 13 05781 g010 550

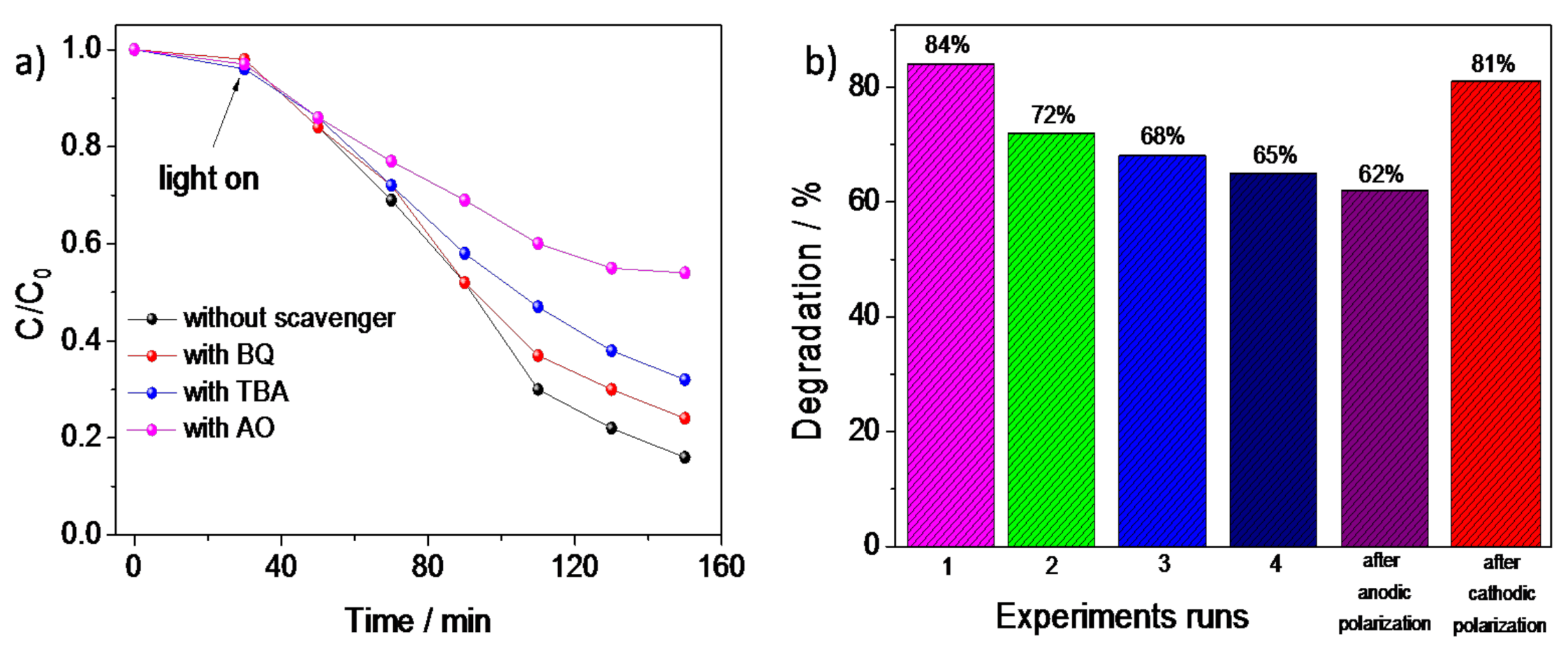

Figure 10. (a) The influence of different scavengers on photodegradation efficiency of MB and (b) the degradation efficiency of MB in the function of experimental repeats.
Figure 10. (a) The influence of different scavengers on photodegradation efficiency of MB and (b) the degradation efficiency of MB in the function of experimental repeats.
Materials 13 05781 g010
Materials 13 05781 g011 550

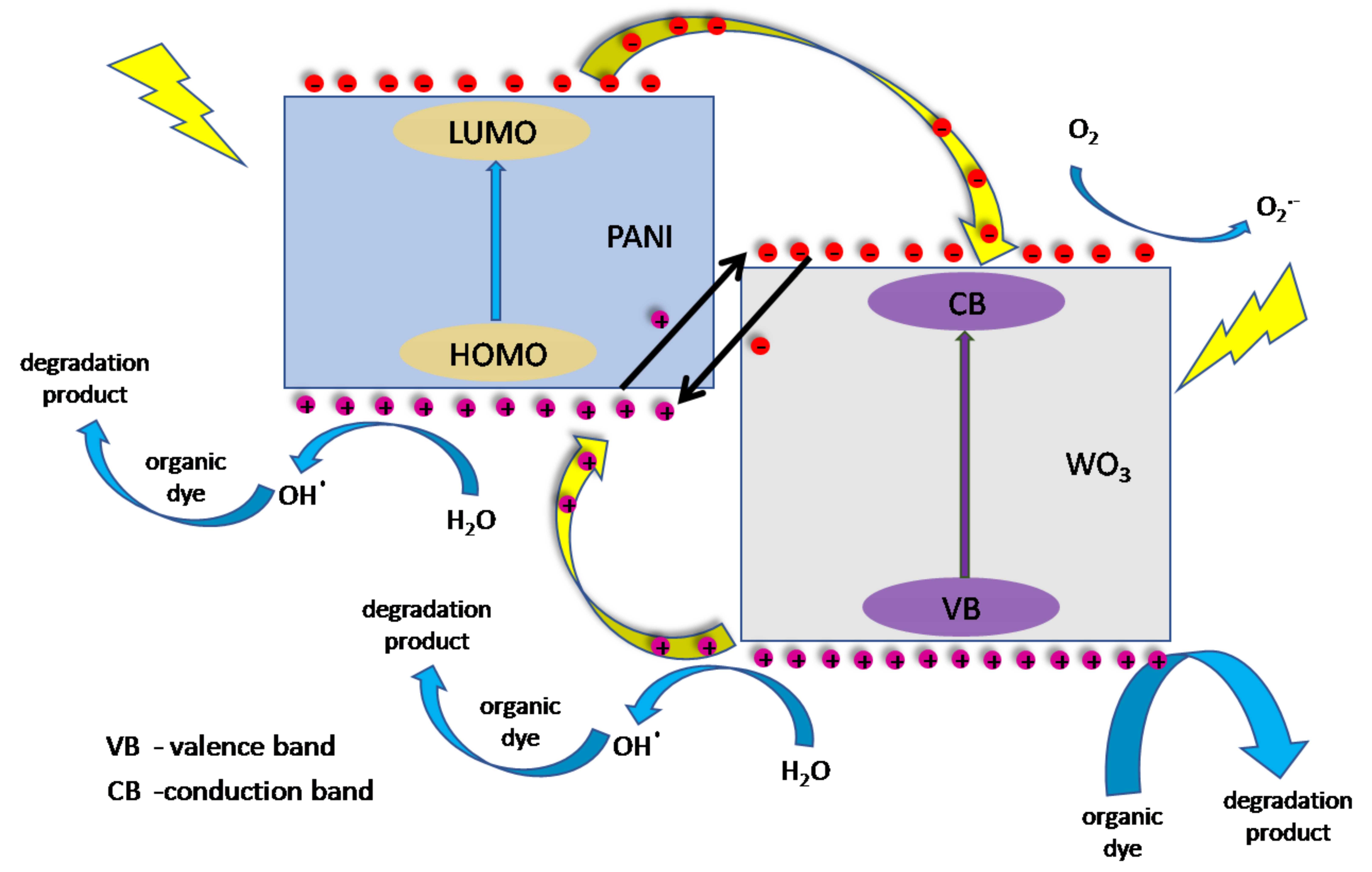

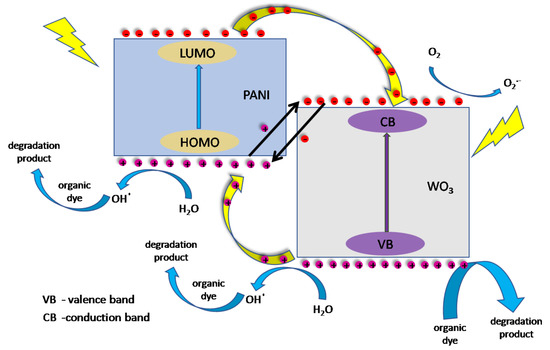

Figure 11. Schematic mechanism of a dye photodecomposition by the FTO/PANI/WO3 photocatalyst.
Figure 11. Schematic mechanism of a dye photodecomposition by the FTO/PANI/WO3 photocatalyst.
Materials 13 05781 g011
