Effect of Spraying Power on Oxidation Resistance of MoSi₂-ZrB₂ Coating for Nb-Si Based Alloy Prepared by Atmospheric Plasma

Abstract

The MoSi₂-ZrB₂ coatings were prepared on Nb-Si based alloy by atmospheric plasma spraying with the spraying power 40, 43 and 45 kW. The effect of spraying power on the microstructure and oxidation resistance of MoSi₂-ZrB₂ coating at 1250 °C were studied. The results showed that the main constituent phases of coatings were MoSi₂ at all spraying power. The coating became more compact as the spraying power increased. The coating prepared at 45 kW was dense and uniform, which exhibited the best oxidation resistance due to the formation of a dense and uniform glass layer consisting of SiO₂ and ZrSiO₄.

1. Introduction

Nb-Si based alloys are considered to be one of the most promising high-temperature structural material, owing to the high melting points (1750 °C), medium density and excellent high-temperature strength [1,2,3,4,5,6,7]. However, the high-temperature oxidation resistance of Nb-Si based alloys are poor, which limits their application [8,9,10]. Adding elements such as Cr, B, Ta, Ti, Si in Nb-Si based alloys or preparing coatings on the Nb-Si based alloys can improve the oxidation resistance; however, alloying would compromise mechanical properties of alloys [11,12]. Therefore, more attention is paid to preparing coatings on Nb-Si based alloys.

MoSi₂ is a promising coating material for Nb-Si based alloy [13,14,15,16]. It can produce SiO₂ oxide film with excellent oxidation resistance at high temperatures. Besides, its thermal expansion coefficient (8.1 × 10⁻⁶ °C⁻¹) is close to that of Nb-Si based alloys (8.4 × 10⁻⁶ °C⁻¹) [17]. However, MoSi₂ would suffer pest oxidation at 400–600 °C. The addition of B can effectively avoid this disadvantage [18]. The formation of borosilicate glass at high temperatures can effectively protect MoSi₂ against pest oxidation at 400–600 °C [18]. Furthermore, borosilicate glass coating has a better self-repair ability than SiO₂ due to its lower viscosity [19,20,21]. Fu et al. prepared B₂O₃ modified SiC-MoSi₂ coating on C/C composites by a two-step pack cementation [22]. The coating could protect C/C composites from oxidation at 1500 °C in air for more than 242 h. Pang et al. prepared a Mo-Si-B coating on Nb-Si-based alloys by spraying Mo first and then co-deposition of Si and B [23]. The mass gain was 0.92 mg/cm² after oxidation at 1250 °C for 100 h. However, stresses caused by CTE mismatch between the MoSi2 coating and silica can produce cracks in the oxide film if they exceed the strength of the SiO₂.

Atmospheric plasma spraying has attracted widespread attention due to the advantages such as high spraying temperature, high deposition efficiency and precise control of the composition and thickness of the coating [24,25]. Le et al. directly deposited the oxidation-resistant coating MoSi₂ on Nb alloy substrate by supersonic air plasma spraying with pure agglomerated MoSi₂ powder [25]. After oxidation at 1500 °C in air for 43 h, it showed excellent oxidation resistance with mass loss of 5.31 mg cm². Some of the literature has mentioned that the addition of Zr to Mo-Si-B coating could effectively improve the mechanical properties of MoSi₂ at a high temperature. Furthermore, the ZrSiO₄ produced by the reaction of dispersive ZrO₂ and SiO₂ could minimize the CTE difference between silica and MoSi₂, as well as the consumption of SiO₂ at a high temperature [26,27,28]. In this study, the MoSi₂-ZrB₂ coatings were prepared on Nb-Si based alloy by the atmospheric plasma spraying technology. The effects of spraying power on coating structure and the oxidation mechanism of MoSi₂-ZrB₂ coating were investigated.

2. Materials and Methods

2.1. Preparation of MoSi₂-ZrB₂ Coating

Substrates (Nb-15Si-24Ti-13Cr-2Al-2Hf (at.%) were fabricated by non-consumable arc-melting. The ingots were re-melted and inverted at least four times to guarantee the uniformity of the composition. Samples with a size of 10 × 10 × 8 mm³ were cut from the ingots. All surfaces were mechanically ground on wet SiC paper to 800 grit, then cleaned ultrasonically with ethanol and dried at about 80 °C for 1 h. Commercially available MoSi₂ with 95 wt.%, ZrB₂ with 5 wt.% powders were selected as raw materials with the purity of 99.9 wt.% and the particle size between 45 and 65 μm. The powders were ground in a planetary ball mill for 2 h, to ensure their uniformity. The MoSi₂-ZrB₂ coatings were prepared by atmospheric plasma spraying, at the power of 40, 43 and 45 kW, respectively. The samples were designated as mz40, mz43 and mz45, according to the spraying power. The spraying distance was set as 100 mm. Argon was used as primary gas and carrier gas, and hydrogen was used as secondary gas. The detailed parameters are listed in

Table 1. Detailed parameters of the sprayed MoSi₂-ZrB₂ coating.

Content	Parameters
Spraying power (kW)	40–45
Primary gas Ar (L/min)	58
Carrier gas Ar (L/min)	10
Second gas H2 (L/min)	9
Powder feed rate (g/min)	17
Spraying distance (mm)	100
Nozzle diameter (mm)	5.5

.

2.2. Isothermal Oxidation

An isothermal oxidation test was carried out in an open tube furnace, in air, at 1250 °C. Each sample was placed in a separate alumina crucible. Samples were taken from the furnace at intervals of 10, 20, 40 and 60 h, and weighed with a crucible, using a precision analytical balance (model CPA225D, Sartorius, Göttingen, Germany) with an accuracy of 0.00001 g.

2.3. Coating Characterization

Phase composition of the coating and oxidation specimens were analyzed by X-ray diffraction (XRD, CuKα-radiation, X’Pert Pro, Panalytical, Almelo, Holland) with Cu radiation. Morphology details and elemental distribution characteristics of the coated specimens were investigated by scanning electron microscope combined with energy dispersive spectroscopy (EDS) (Sigma 500, Zeiss, Oberkochen, Germany).

3. Results

3.1. Microstructure of MoSi₂-ZrB₂ Coating

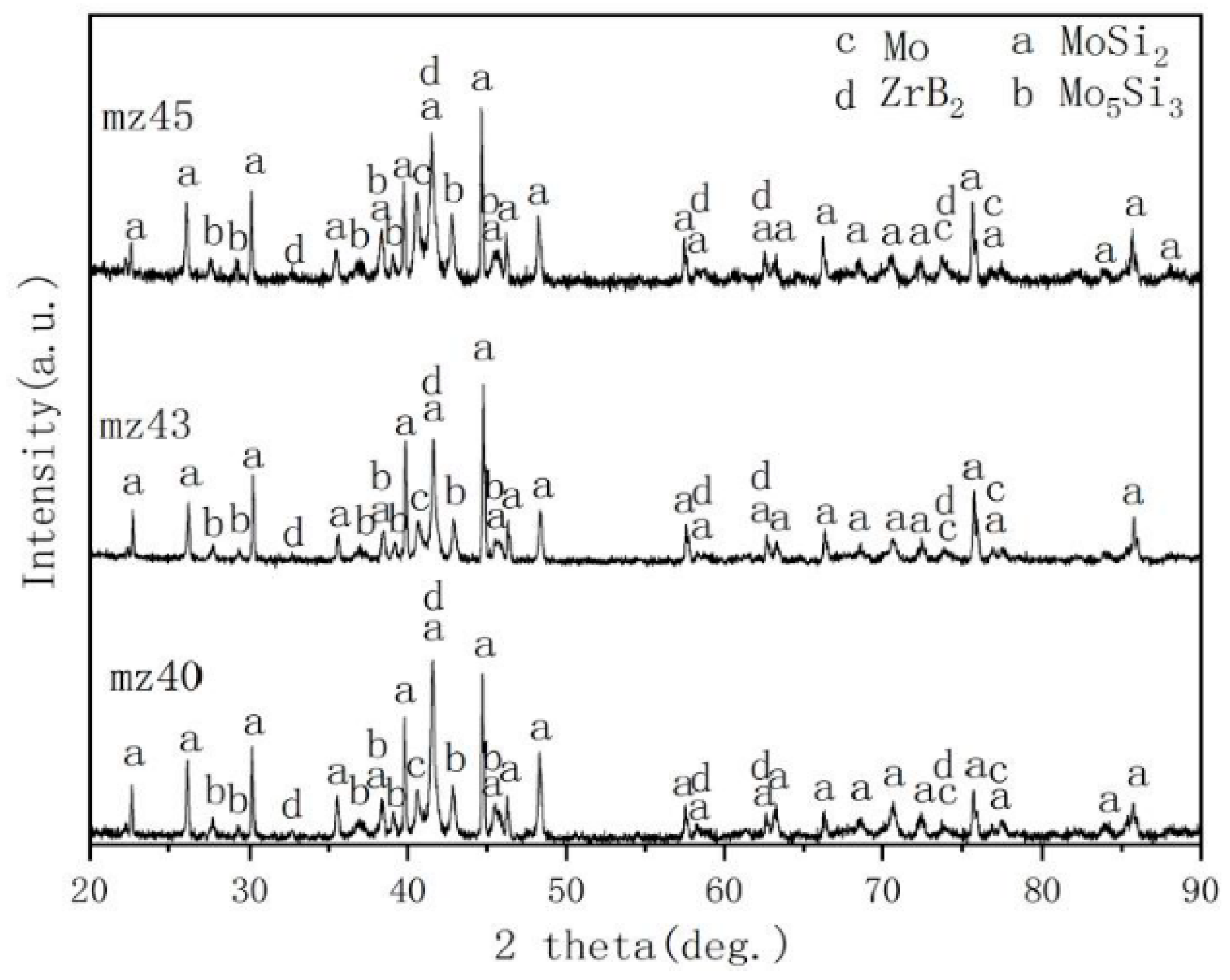

Figure 1 shows the XRD patterns of the surface of as-prepared MoSi₂-ZrB₂ coatings. It could be seen that the constituent phases of coating at different spraying powers are MoSi₂, Mo₅Si₃, Mo and ZrB₂. In the process of plasma spraying, the temperature of the plasma arc was about 10,000 °C [28], which is much higher than the oxidation temperature of MoSi₂. Therefore, the raw materials are oxidized to form Mo₅Si₃, SiO₂ and Mo according to the Equations (1) and (2) [29,30,31,32]. SiO₂ is an amorphous phase, and its amount is relatively small; therefore, no SiO₂ phase is detected in XRD patterns.

5MoSi₂ + 7O₂ → Mo₅Si₃ + 7SiO₂

(1)

MoSi₂ + 2O₂ → Mo + 2SiO₂

(2)

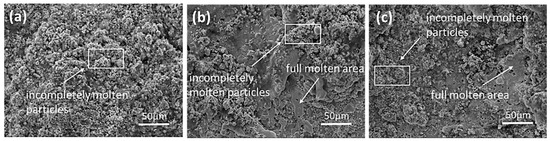

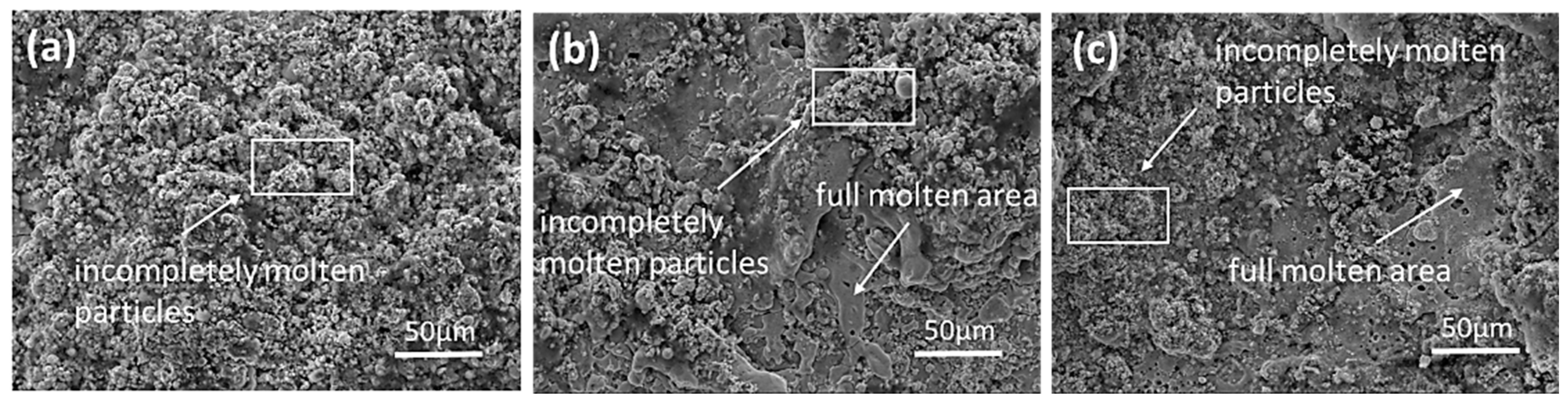

Figure 2 shows the surface morphology of MoSi₂-ZrB₂ coatings. The surfaces of all spraying samples are rough. In addition, the molten zone is interwoven with the incompletely molten particles, which is a typical structure feature of plasma sprayed coatings. In the process of coating preparation, high-speed particles are heated by plasma flame, and then the molten particles impinge on the substrate to form a flat structure. The temperature of the plasma arc elevates as the spraying power increases. Therefore, the full molten area of the mz43 sample is larger than that of the mz40 sample, leading to a much smoother surface of the mz43 sample. As for the mz45 sample, the completely molten area of the mz45 sample is the largest (as shown in Figure 2c). Therefore, the mz45 sample shows a more compact surface as compared with that of the mz40 and mz43 samples.

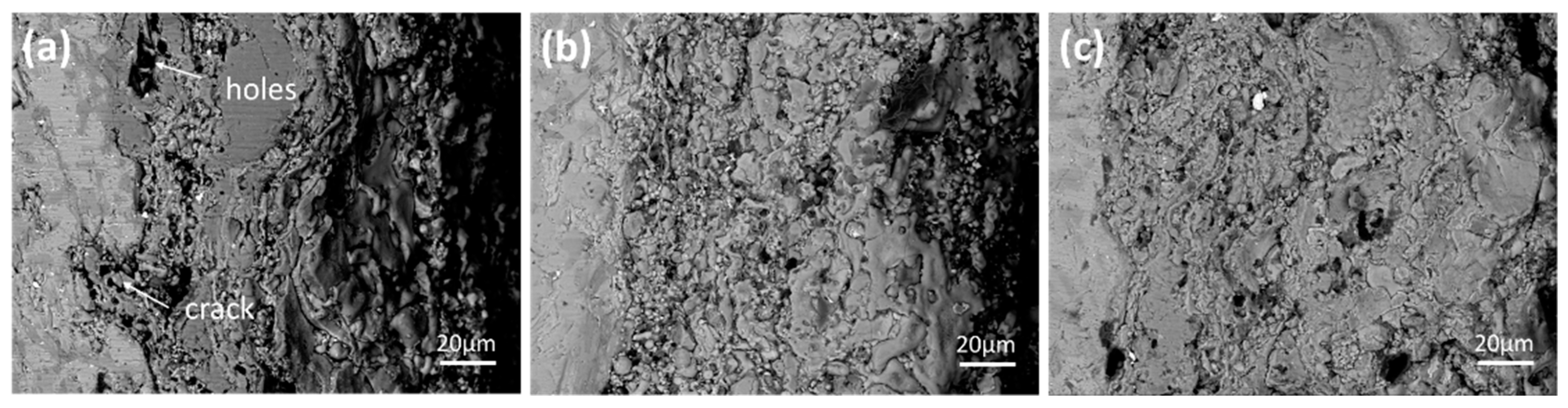

Figure 3 shows cross-sectional morphologies of MoSi₂-ZrB₂ coatings. The mean thickness of the coatings of the mz40, mz43 and mz45 samples are about 122, 138 and 158 μm, respectively. As shown in Figure 3, the interface between the coating and the substrate becomes denser and more uniform as the power increases. For the mz45 sample, the interface is more compact, indicating that the mz45 sample has a better combination of the coating and substrate as compared to that of the mz40 and mz43 samples. As shown in

Table 2. The EDS results of constituent phase of mz45 sample (at.%).

Elements	Mo	Si	O	B
MoSi2	34.29	65.71	0	0

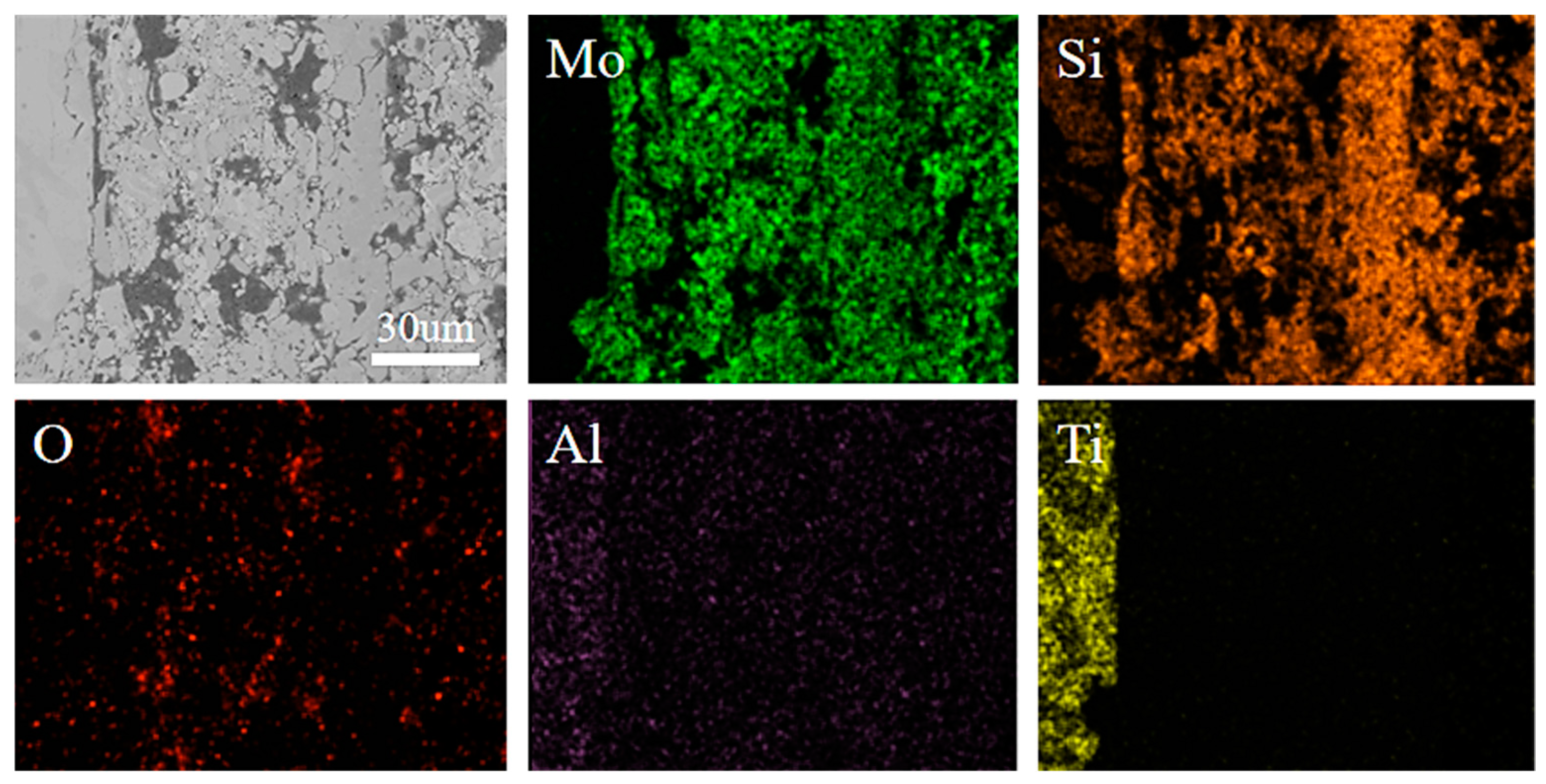

, the main constituent phase of the mz45 sample is confirmed to be MoSi₂. The elements mapping, as shown in Figure 4, reveals that the coating mainly consists of Mo, Si and O. The existence of O element may be induced from the spraying in oxygen atmosphere. Furthermore, the Vickers hardness of the coating prepared by 40, 43 and 45 Kw are measured to be 850, 924 and 979, respectively. This may be due to the better combination of the substrate and coating as the increase of the spraying power.

3.2. High Temperature Oxidation Resistance

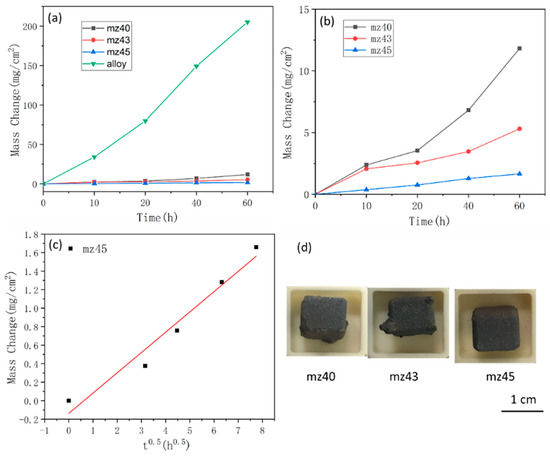

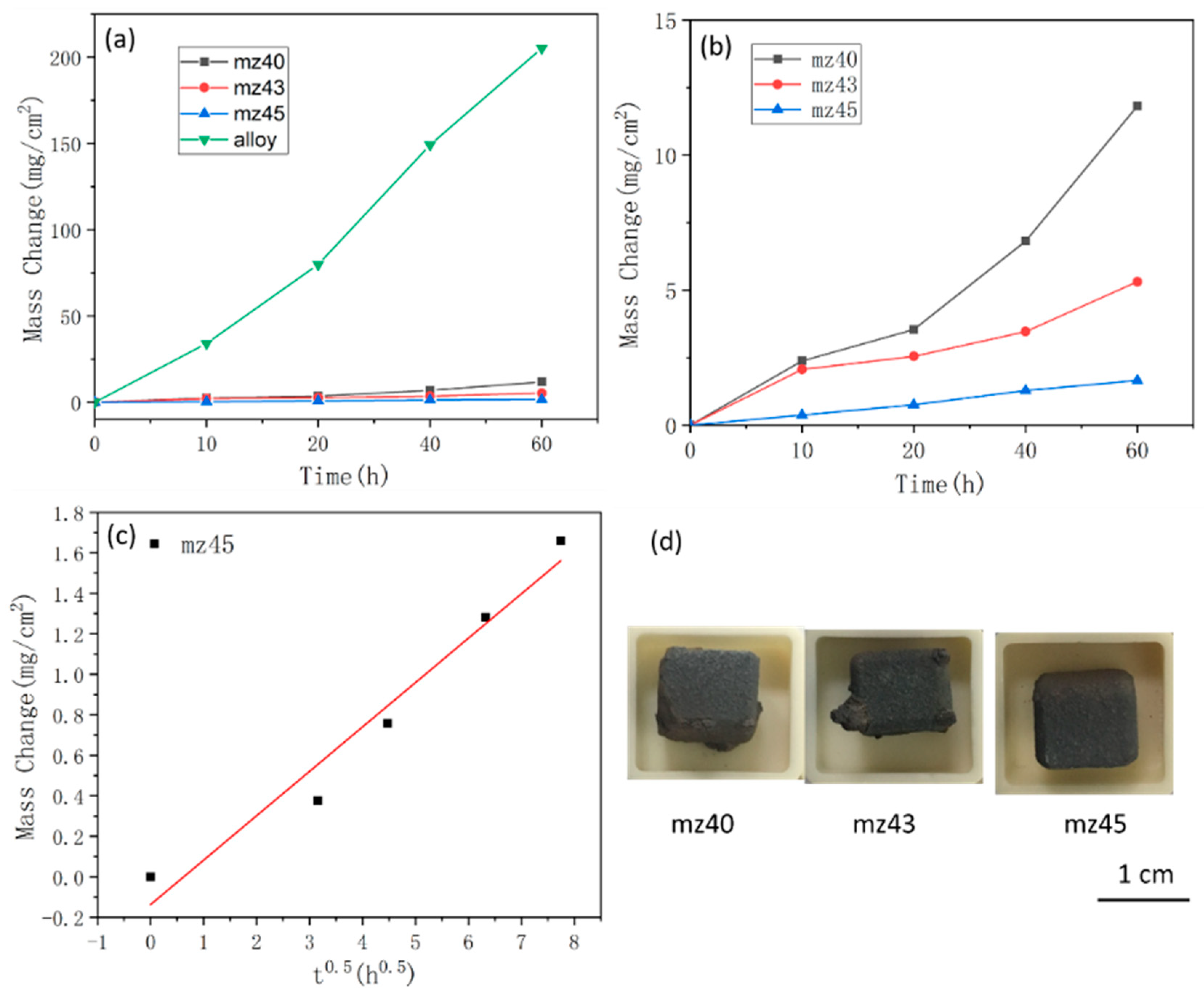

Figure 5a shows the weight gain per unit area as a function of the exposure time at 1250 °C. The Nb-Si based alloy suffers serious oxidation with the mass gain of 205.24 mg cm⁻² after oxidation at 1250 °C for 60 h and follows a linear oxidation behavior. The mass gains of the mz40, mz43 and mz45 samples were 11.81, 5.32 and 1.66 mg/cm², respectively. Therefore, MoSi₂-ZrB₂ coatings could effectively improve the oxidation resistance of Nb-Si based alloy. As shown in Figure 5b, the mz40 and mz43 samples follow linear oxidation behavior, and the linear kinetic constants (g²/cm⁴s) of the mz40 and mz43 sample are calculated to be 1.89 × 10⁻⁵ and 7.8 × 10⁻⁶, respectively, according to Equation (3) [4], where Δm is the weight change of the sample, A is the surface area and t is the exposure time. During oxidation, the edges of the coating are the place where stress is easily concentrated, leading to the failure of the coating. As shown in Figure 5d, the coating edges of the mz40 and mz43 samples have peeled off after oxidation, while the coating edge of mz45 sample is compact. The mz45 sample shows excellent high temperature oxidation resistance and conforms to the parabolic oxidation behavior. The parabolic kinetic constant (g²/cm⁴s) of the mz45 sample is calculated to be 1.27 × 10⁻¹¹ according to Equation (4) [17], where Δm is the weight change of the sample, and A is the surface area and t is the exposure time.

$$\frac{\Delta m}{A}=k_l\mathrm{t}$$

(3)

$${\left(\frac{\Delta m}{A}\right)}^2=k_p\mathrm{t}$$

(4)

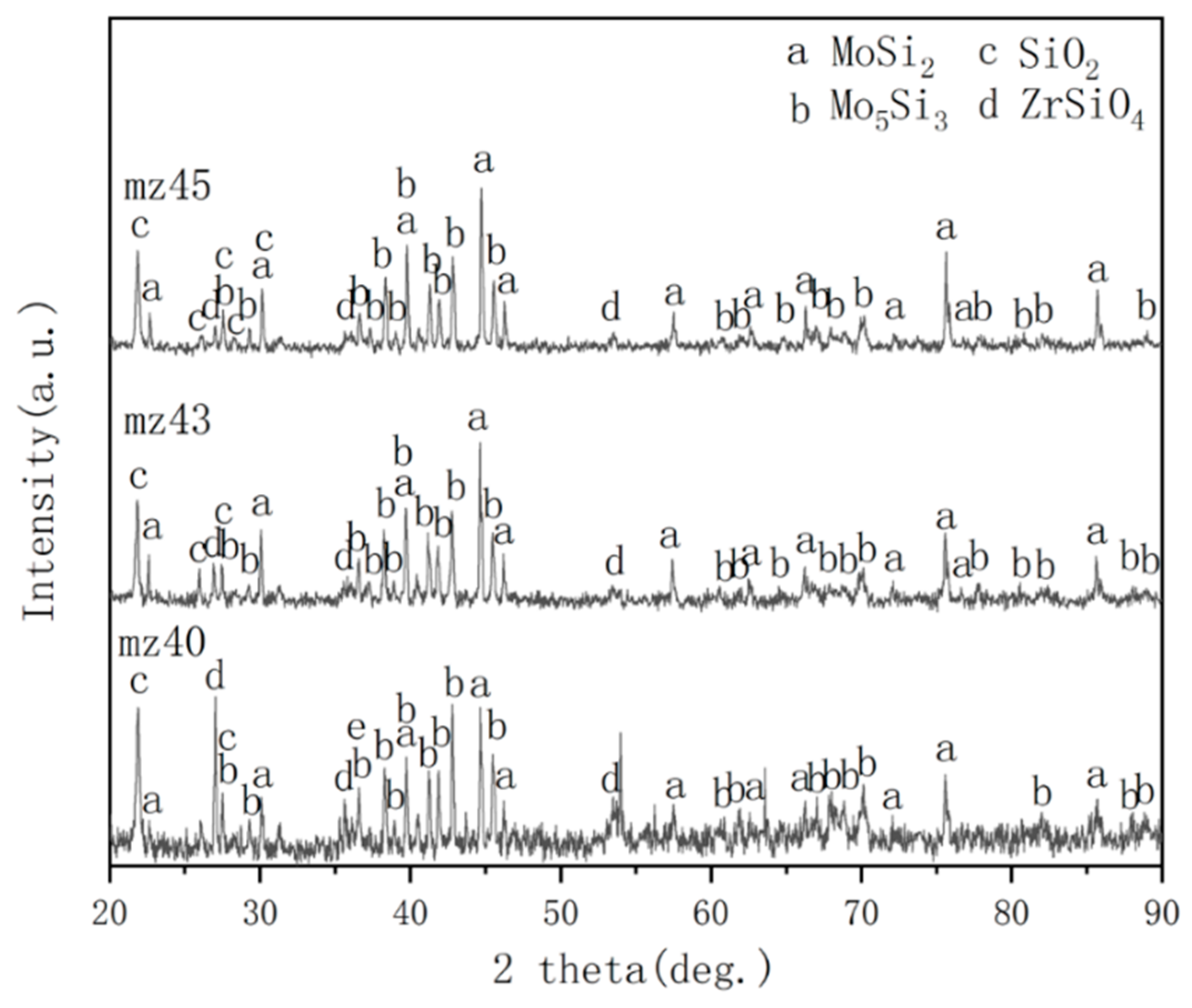

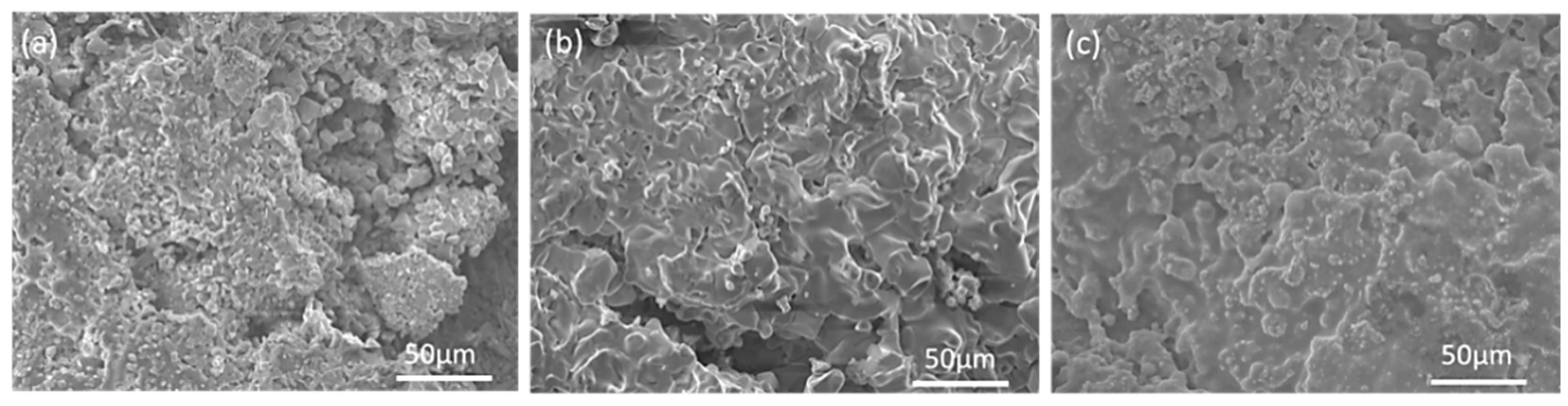

Figure 6 shows the XRD patterns of MoSi₂-ZrB₂ coatings after oxidation at 1250 °C for 60 h. As shown in Figure 6, the oxidized MoSi₂-ZrB₂ coatings mainly consist of MoSi₂, Mo₅Si₃, SiO₂ and ZrSiO₄. Figure 7 demonstrates the surface morphologies of MoSi₂-ZrB₂ coatings after oxidation at 1250 °C for 60 h. The surface of the mz40 sample is loose and undulate, as shown in Figure 7a. It can be observed from Figure 7b that the surface of mz43 sample is much denser. As shown in Figure 7c, the mz45 sample displays a uniform, dense and integrated surface.

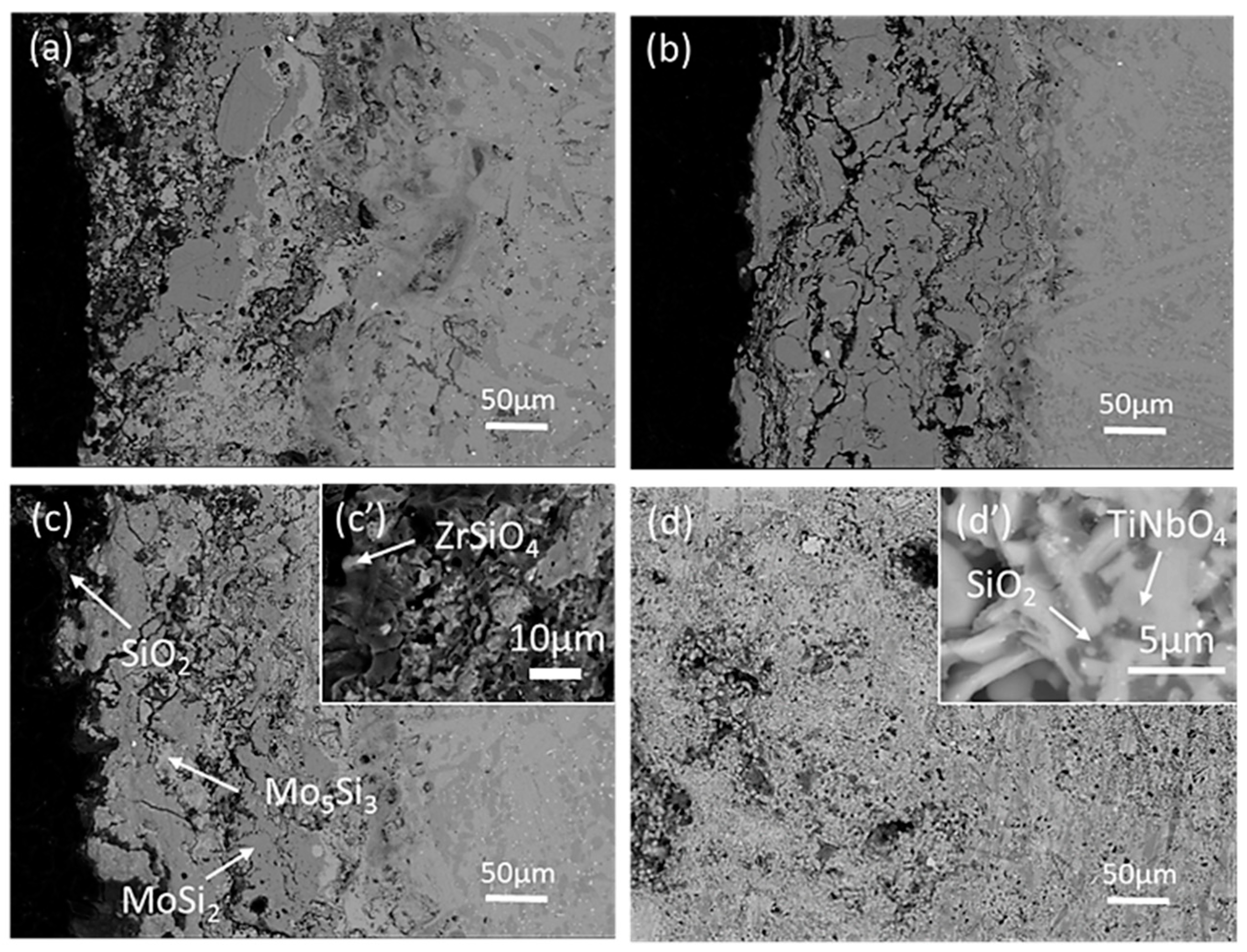

Figure 8 shows the cross-sectional morphologies of MoSi₂-ZrB₂ coatings after oxidation at 1250 °C for 60 h. According to the XRD results and EDS analysis (as listed in

Table 3. The EDS results of constituent phase of the oxidized mz45 sample (at.%).

Element	Mo	Si	Zr	B	Nb	O
SiO2	0	38.26	0	0	0	61.74
MoSi2	32.99	67.01	0	0	0	0
Mo5Si3	52.02	35.4	0	2.93	3.08	6.57
ZrSiO4	0	15.01	14.91	0	0	70.08

), the coating consists of the black SiO₂, the black-gray MoSi₂, the gray-white Mo₅Si₃ and the white ZrSiO₄. Moreover, some cracks and holes are observed in all coatings, and they are filled with black SiO₂ phase. As shown in Figure 5d, the coating edges of the mz40 and mz43 samples are peeling off during oxidation. Therefore, the edge of the substrate (Nb-Si based alloy) exposes to the oxygen environment, leading to the worse oxidation performance of these two samples. Figure 8d shows the microstructure of the failure edge of the mz40 sample after oxidation. The oxides of the edge of mz40 sample are confirmed to be TiNbO₄ and SiO₂ according to EDS analysis, which is the typical oxides of Nb-Si based alloy at high temperature [17].

4. Discussion

4.1. Effect of Spraying Powder on the Microstructure of Coatings

As shown in Figure 2, the surface of the mz45 sample is more compact due to the completely molten area of the mz45 sample is the largest. In the process of spraying, the temperature of the plasma arc elevates as the spraying power increases. The plasma arc of 40 kW possesses a lower temperature. Therefore, the surface of the mz40 sample is rough consisting of many incompletely molten particles and holes, which is mainly due to the accumulation of incompletely molten particles and the escape of gas by-products during the spraying process. In addition, the incompletely molten powders are difficult to adhere to the substrate surface, which reduces the spraying efficiency, resulting in the thinnest thickness of the coating.

When the spraying power increases to 43 kW, the increasing temperature increases the melting ratio of spraying powder. These spraying powders can be riveted together with the substrate when they hit the surface of the substrate. Thus, the completely molten area increases in this sample. However, a few holes still exist at the interface between the coating and the substrate, suggesting that the spraying powders cannot be fully spread at 43 kW. When the power increases to 45 kW, completely molten particles can be uniformly distributed on the surface of the substrate, and the thickness of the coating increases. In addition, no obvious cracks and holes were observed at the interface between the coating and the substrate, indicating the good bonding of the mz45 sample. It could be concluded that the higher spraying power could produce a much more compact coating.

4.2. Oxidation Mechanism of MoSi₂-ZrB₂ Coatings

As shown in Figure 8, the oxidized MoSi₂-ZrB₂ coatings mainly consist of MoSi₂, Mo₅Si₃, SiO₂ and ZrSiO₄. The excellent oxidation resistance of the mz45 sample is due to the formation of dense SiO₂ glass layer on the surface, leading to a lower diffusion rate of oxygen. The existence of Mo₅Si₃ phase is due to the oxidation of MoSi₂ phase according to the oxidation reaction (Equation (1)) [30,31]; the formation of SiO₂ phase is due to the oxidation of silicides, such as MoSi₂ and Mo₅Si₃ according to Equations (5) and (6) [30,31,32,33]; ZrB₂ are oxidized to form ZrO₂ and B₂O₃ according to Equation (7). The ZrSiO₄ phase is the result of reaction between the SiO₂ and ZrO₂ according to Equation (8). Owing to the volatilization of MoO₃ and B₂O₃ at high temperature, the MoO₃ phase and B₂O₃ phase cannot be observed in the coating. Although the oxidation protective phase SiO₂ is formed in the mz40 and mz43 samples, these two samples exhibit worse oxidation due to the bad combination between coating and substrate at lower spraying power.

MoSi₂ + 7O₂ → 2MoO₃ + 4SiO₂

(5)

2Mo₅Si₃ + 21O₂→10MoO₃ + 6SiO₂

(6)

ZrB₂ + 5O₂→2ZrO₂ + 2B₂O₃

(7)

ZrO₂ + SiO₂ → ZrSiO₄

(8)

Moreover, it can be found that ZrSiO₄ distributed in the coating, as shown in Figure 8c. Dissolving a certain amount of zirconium oxide in amorphous silica scale could enhance its oxidation resistance [27]. Zr-based oxides have higher melting temperature, of which ZrO₂ is 2715 °C, ZrSiO₄ is 2550 °C, and pure SiO₂ is 1650 °C [34,35,36]. Therefore, the dispersion of ZrSiO₄ in SiO₂ glass could increase the melting temperature of the silica. Furthermore, the CTEs of ZrO₂ (10.5 × 10⁻⁶ °C⁻¹) and ZrSiO₄ (4.9 × 10⁻⁶ °C⁻¹) are larger than that of SiO₂ (0.55 × 10⁻⁶ °C⁻¹) [37,38,39,40]. Therefore, the formation of ZrSiO₄ could increase the CTE of silica. As a result, the difference of CTE between silica and MoSi₂ could minimize, reducing the internal stress of the coating.

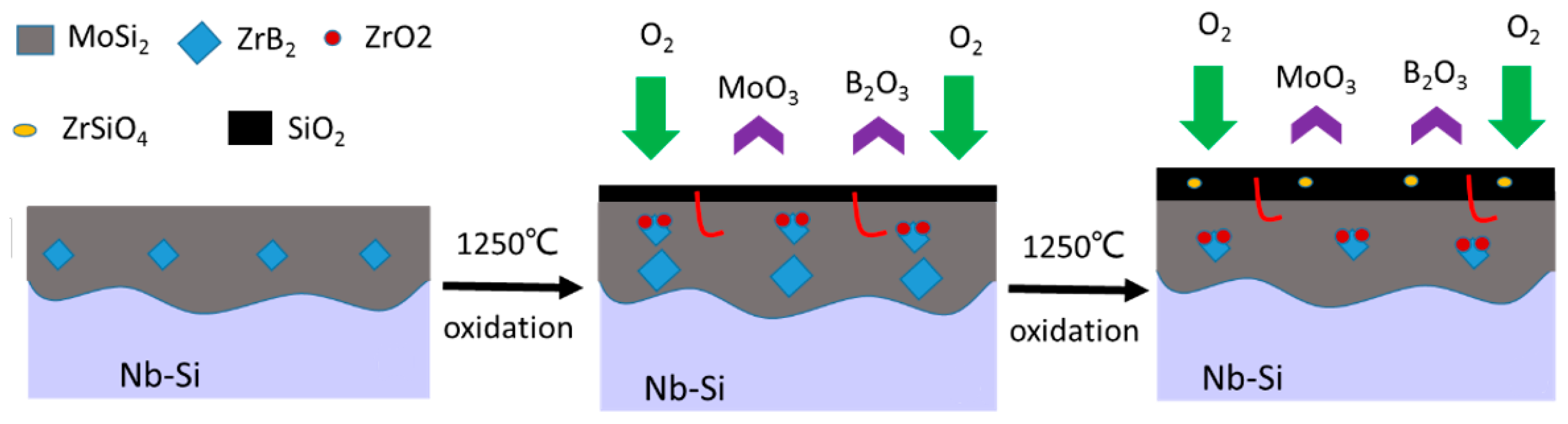

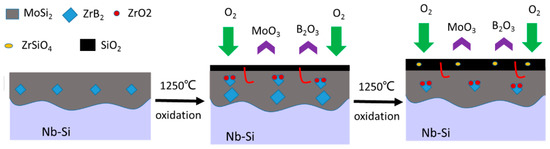

In order to explain the oxidation mechanism of MoSi₂-ZrB₂ coating, the oxidation process is shown in Figure 9, which is similar to that of MoSi₂-based composite coating on Nb alloy at 1500 °C [25]. MoSi₂ and ZrB₂ are oxidized to form SiO₂ and ZrO₂, respectively. After that, the silica glass covers the surface of the coating and heals the cracks and holes. As oxidation continued, the ZrSiO₄ is produced by the reaction of dispersive ZrO₂ and SiO₂, which could minimize the CTE difference between silica and MoSi₂.

5. Conclusions

The effect of different spraying power on the microstructure and oxidation resistance of the MoSi₂-ZrB₂ coatings was investigated.

• The microstructure of MoSi₂-ZrB₂ coatings prepared by atmospheric plasma spraying mainly consisted of MoSi₂. The higher spraying power could produce a much more compact coating.
• The MoSi₂-ZrB₂ coating prepared under 45 Kw showed the best oxidation resistance with the mass gain of 1.66 mg cm^-2 after oxidation at 1250 °C for 60 h. However, the MoSi₂-ZrB₂ coatings prepared under 40 and 43 Kw showed worse oxidation resistance, due to the bad combination between coating and substrate at the lower spraying power.
• The excellent anti-oxidation protection of mz45 sample was mainly due to the formation of a silica glass layer, leading to a low diffusion rate of oxygen.
