# Improved Determination of Q Quality Factor and Resonance Frequency in Sensors Based on the Magnetoelastic Resonance Through the Fitting to Analytical Expressions

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Magnetoelastic Material of the Sensor

#### 2.2. Precipitation Reaction Measurements

#### 2.3. Numerial Fitting of the Sensor Resonance Curves

^{©}software. The parameters ${\omega}_{r}$, ${\omega}_{a}$, and ${\chi}_{0}$, were allowed to vary around their experimental corresponding values (extracted from the experimental data), until the value of $Q$ that minimizes the norm between the fit and the experimental data was found. The norm (or residual) is defined as:

^{®}software and a nonlinear least-squares fitting. The parameters ${\omega}_{r}$, ${\omega}_{a}$, and A to be fitted are initially taken as their values obtained from the experimental curve. All parameters are fitted until those that best fit the experimental curve are found, in this case those that correspond to a local minimum of a function that is a sum of squared residuals (being the residual the difference between the experimental value of the dependent variable and the value predicted by the fitting model).

## 3. Results and Discussion

#### 3.1. Numerical Fitting of the Resonance Curves and Resonance Frequency

#### 3.2. Comparison of the Results Obtained with Both Numerical Fittings

#### 3.3. Determination of the Quality Factor

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Grimes, C.A.; Roy, S.C.; Rani, S.; Cai, Q. Theory, Instrumentation and Applications of Magnetoelastic Resonance Sensors: A Review. Sensors
**2011**, 11, 2809–2844. [Google Scholar] [CrossRef] [PubMed] - Grimes, C.A.; Mungle, C.S.; Zeng, K.; Jain, M.K.; Dreschel, W.R.; Paulose, M.; Ong, K.G. Wireless Magnetoelastic Resonance Sensors: A Critical Review. Sensors
**2002**, 2, 294–313. [Google Scholar] [CrossRef][Green Version] - Kouzoudis, D.; Grimes, C.A. The frequency response of magnetoelastic sensors to stress and atmospheric pressure. Smart Mater. Struct.
**2000**, 9, 885. [Google Scholar] [CrossRef] - Jain, M.K.; Schmidt, S.; Ong, K.G.; Mungle, C.; Grimes, C.A. Magnetoacoustic remote query temperature and humidity sensors. Smart Mater. Struct.
**2000**, 9, 502. [Google Scholar] [CrossRef] - Grimes, C.A.; Kouzoudis, D.; Mungle, C. Simultaneous measurement of liquid density and viscosity using remote query magnetoelastic sensors. Rev. Sci. Instrum.
**2000**, 71, 3822–3824. [Google Scholar] [CrossRef] - Bravo-Imaz, I.; García-Arribas, A.; Gorritxategi, E.; Arnaiz, A.; Barandiarán, J.M. Magnetoelastic Viscosity Sensor for On-Line Status Assessment of Lubricant Oils. IEEE Trans. Magn.
**2013**, 49, 113–116. [Google Scholar] [CrossRef] - Cai, Q.Y.; Cammers-Goodwin, A.; Grimes, C.A. A wireless, remote query magnetoelastic CO2 sensor. J. Env. Monit.
**2000**, 2, 556–560. [Google Scholar] [CrossRef] - Cai, Q.Y.; Grimes, C.A. A remote query magnetoelastic pH sensor. Sens. Actuators B Chem.
**2000**, 71, 112–117. [Google Scholar] [CrossRef] - Puckett, L.G.; Barrett, G.; Kouzoudis, D.; Grimes, C.; Bachas, L.G. Monitoring blood coagulation with magnetoelastic sensors. Biosens. Bioelectron.
**2003**, 18, 675–681. [Google Scholar] [CrossRef] - Lakshmanan, R.S.; Guntupalli, R.; Hu, J.; Kim, D.J.; Petrenko, V.A.; Barbaree, J.M.; Chin, B.A. Phage immobilized magnetoelastic sensor for the detection of Salmonella typhimurium. J. Microbiol. Methods
**2007**, 71, 55–60. [Google Scholar] [CrossRef] - Ruan, C.; Zeng, K.; Varghese, O.K.; Grimes, C.A. Magnetoelastic Immunosensors: Amplified Mass Immunosorbent Assay for Detection of Escherichia coli O157: H7. Anal. Chem.
**2003**, 75, 6494–6498. [Google Scholar] [CrossRef] [PubMed] - Zhang, K.; Zhang, L.; Fu, L.; Li, S.; Chen, H.; Cheng, Z.Y. Magnetostrictive resonators as sensors and actuators. Sens. Actuator A Phys.
**2013**, 200, 2–10. [Google Scholar] [CrossRef] - Petersan, P.J.; Anlage, S.M. Measurement of resonant frequency and quality factor of microwave resonators: Comparison of methods. J. Appl. Phys.
**1998**, 84, 3392–3402. [Google Scholar] [CrossRef][Green Version] - Kaczkowski, Z. Piezomagnetic parameters of the magnetostrictive materials. Arch. Acoust.
**2014**, 23, 307–329. [Google Scholar] - Miller, J.M.L.; Ansari, A.; Heinz, D.B.; Chen, Y.; Flader, I.B.; Shin, D.D.; Kenny, T.W. Effective quality factor tuning mechanisms in micromechanical resonators. Appl. Phys. Rev.
**2018**, 5, 041307. [Google Scholar] [CrossRef] - Lopes, A.C.; Sagasti, A.; Lasheras, A.; Muto, V.; Gutiérrez, J.; Kouzoudis, D.; Barandiarán, J.M. Accurate determination of the Q quality factor in magnetoelastic resonant platforms for advanced biological detection. Sensors
**2018**, 18, 887. [Google Scholar] [CrossRef] [PubMed][Green Version] - García-Arribas, A.; Gutiérrez, J.; Kurlyandskaya, G.V.; Barandiarán, J.M.; Svalov, A.; Fernández, E.; Lasheras, A.; de Cos, D.; Bravo-Imaz, I. Sensor applications of soft magnetic materials based on magneto-impedance, magneto-elastic resonance and magneto-electricity. Sensors
**2014**, 14, 7602–7624. [Google Scholar] [CrossRef][Green Version] - Bravo, I.; Arnaiz, A.; García-Arribas, A. Damping of Magnetoelastic Resonance for Oil Viscosity Sensing. IEEE Trans. Magn.
**2019**, 55, 1–5. [Google Scholar] [CrossRef] - Bouropoulos, N.; Kouzoudis, D.; Grimes, C. The real-time, in situ monitoring of calcium oxalate and brushite precipitation using magnetoelastic sensors. Sens. Actuators B Chem.
**2005**, 109, 227–232. [Google Scholar] [CrossRef] - Sisniega, B.; Sagasti Sedano, A.; Gutiérrez, J.; García-Arribas, A. Real Time Monitoring of Calcium Oxalate Precipitation Reaction by Using Corrosion Resistant Magnetoelastic Resonance Sensors. Sensors
**2020**, 20, 2802. [Google Scholar] [CrossRef] - Sagasti, A.; Palomares, V.; Porro, J.M.; Orúe, I.; Sánchez-Ilárduya, M.B.; Lopes, A.C.; Gutiérrez, J. Magnetic, Magnetoelastic and Corrosion Resistant Properties of (Fe–Ni)-Based Metallic Glasses for Structural Health Monitoring Applications. Materials
**2020**, 13, 57. [Google Scholar] [CrossRef] [PubMed][Green Version] - Savage, H.; Abbundi, R. Perpendicular susceptibility, magnetomechanical coupling and shear modulus in Tb.27Dy.73Fe2. IEEE Trans. Magn.
**1978**, 14, 545–547. [Google Scholar] [CrossRef]

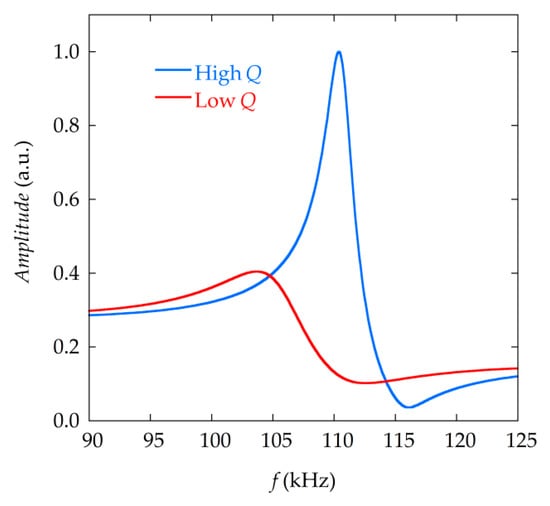

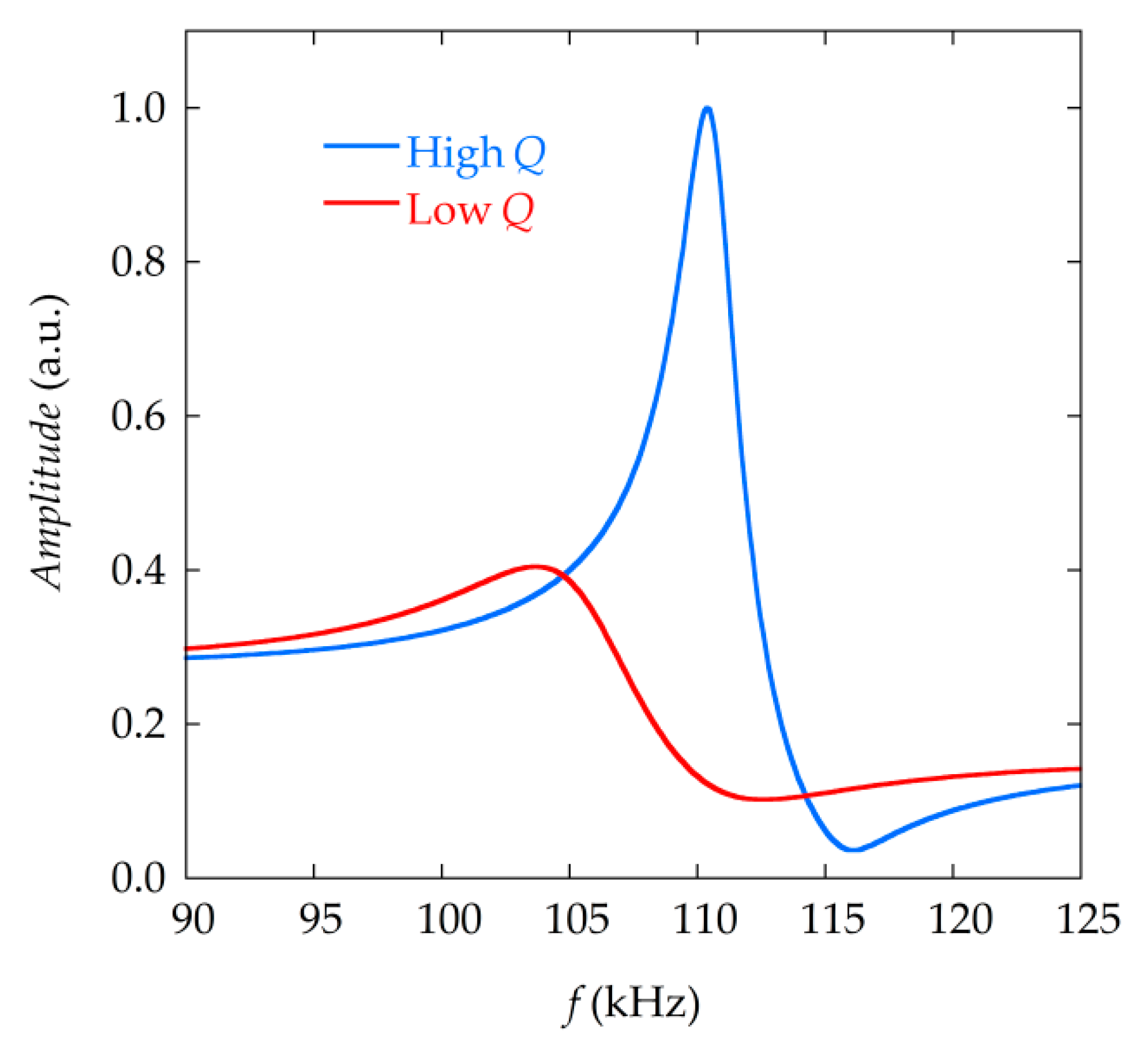

**Figure 1.**Two magnetoelastic resonance curves from the same resonator with different $Q$ values, caused by different amount of mass loading. The peak corresponding to the higher $Q$ (blue) is sharper and narrower, the resonance curve with a lower $Q$ is wider (red).

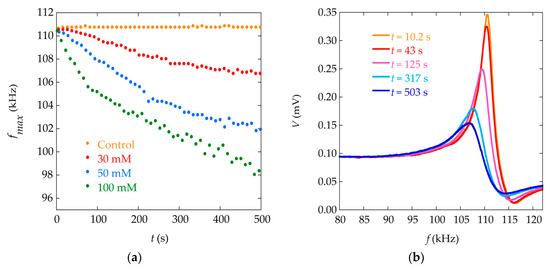

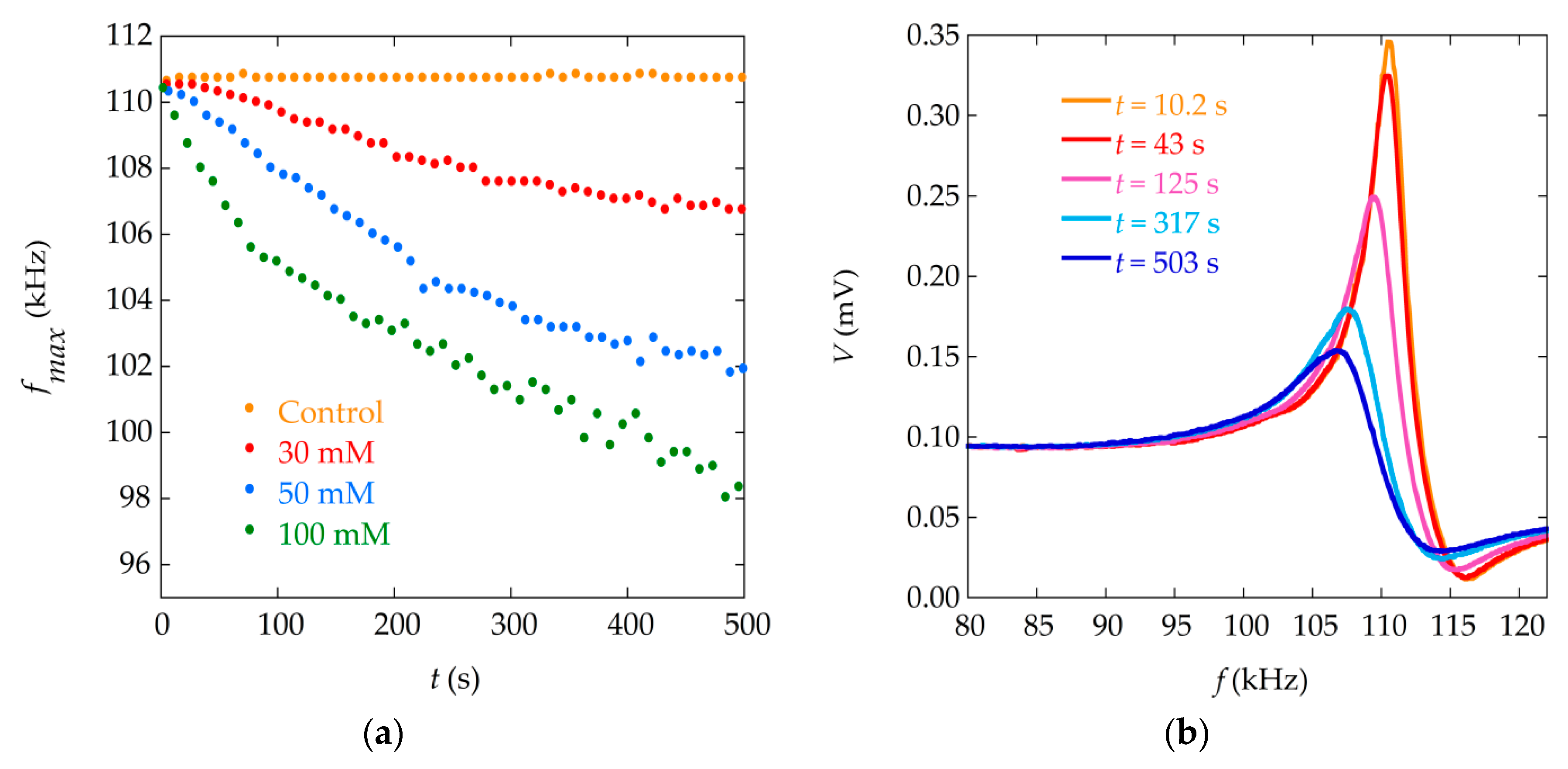

**Figure 2.**(

**a**) Temporal evolution of the magnetoelastic resonance frequency of the sensor during the reaction of precipitation for different concentrations (30 mM, 50 mM and 100 mM) and a control curve (sensor in a vial with distilled water). The value of the resonance frequency, ${f}_{max}$, is obtained as the frequency at the maximum amplitude of measured resonance curves (Figure 2b); (

**b**) Measured magnetoelastic resonance curve signals of the sensor at different times during the precipitation process for the concentration 30 mM. Data taken from Ref. [20].

**Figure 3.**Fit to Equation (6). (

**a**) Measured magnetoelastic resonance curves of the sensor at different times during the precipitation process for reactants of concentration 30 mM, and corresponding numerical fittings (in dashed lines) to Equation (6); (

**b**) Measured magnetoelastic resonance curve, fitting to Equation (6) (in dashed line), and corresponding error (in red) of the sensor at time t = 125 s for reactants of concentration 30 mM.

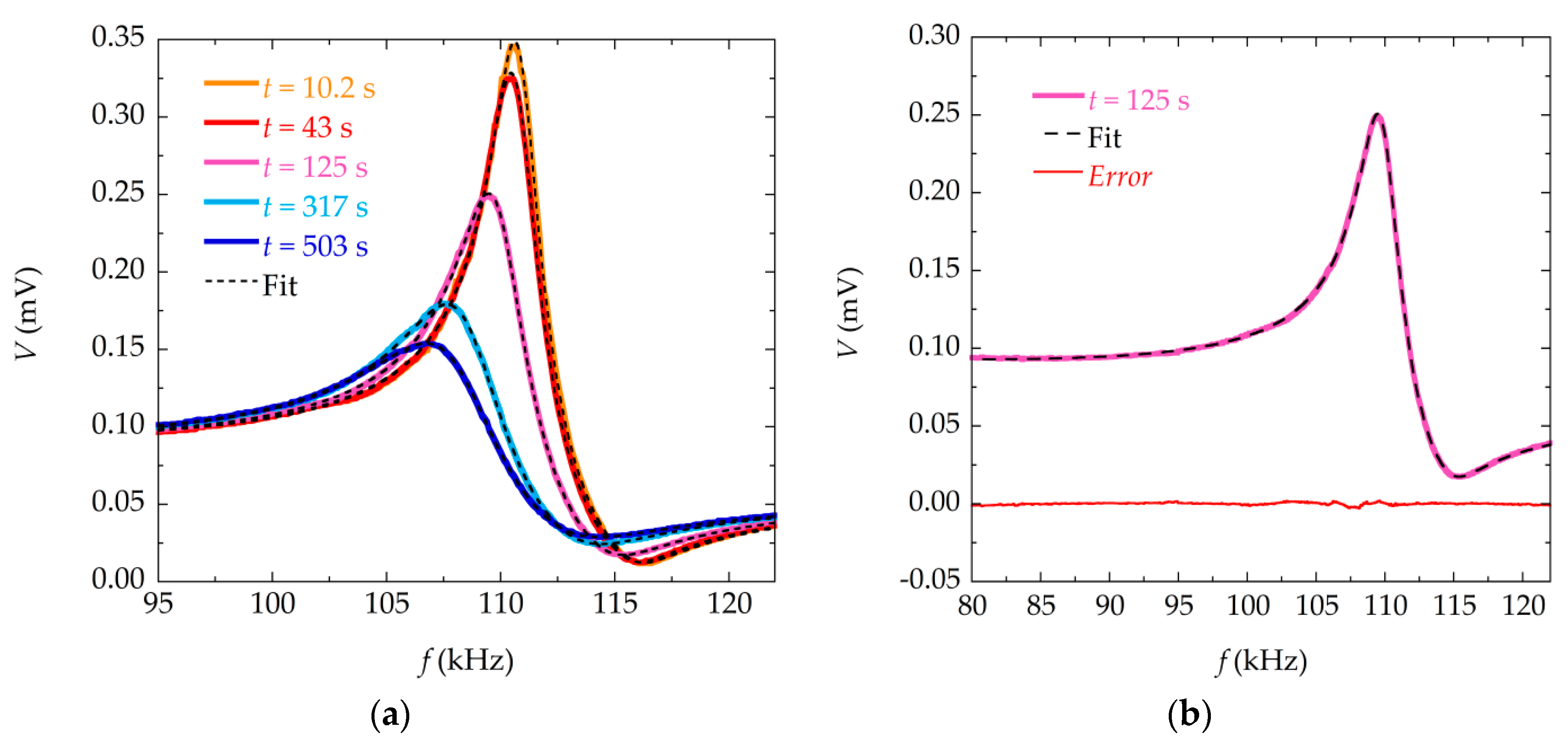

**Figure 4.**Fit to Equation (9). (

**a**) Measured magnetoelastic resonance curves of the sensor at different times during the precipitation process for reactants of concentration 30 mM, and corresponding numerical fittings (in dashed lines) to Equation (9); (

**b**) Measured magnetoelastic resonance curve, fitting to Equation (9) (in dashed line), and corresponding error (in red) of the sensor at time t = 125 s for reactants of concentration 30 mM.

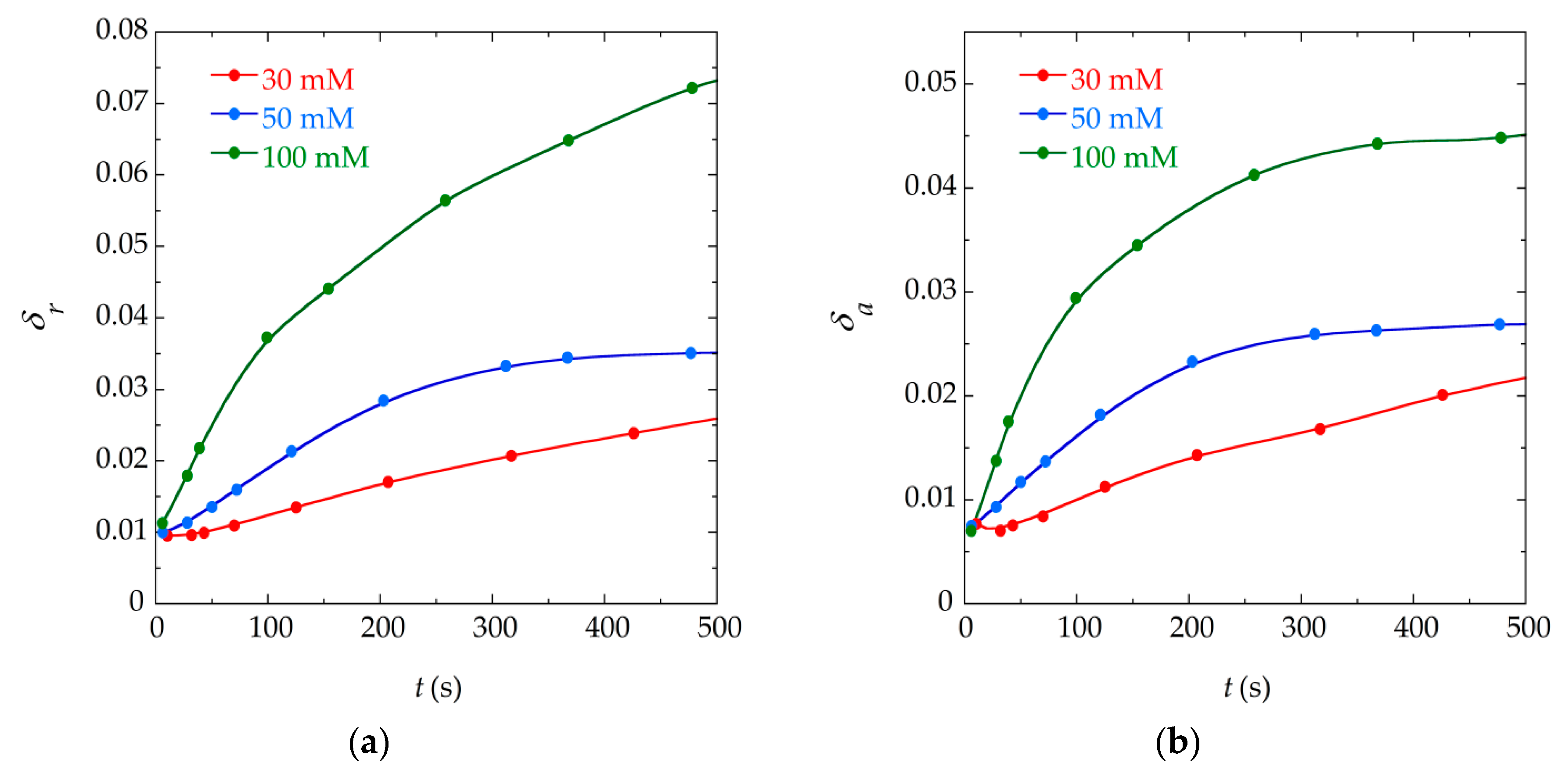

**Figure 5.**Evolution of the damping parameters obtained through the numerical fitting to Equation (9) of the resonance curves during the precipitation time for different concentration of reagents (30, 50, and 100 mM). (

**a**) Damping parameter ${\delta}_{r}$; (

**b**) Damping parameter ${\delta}_{a}$.

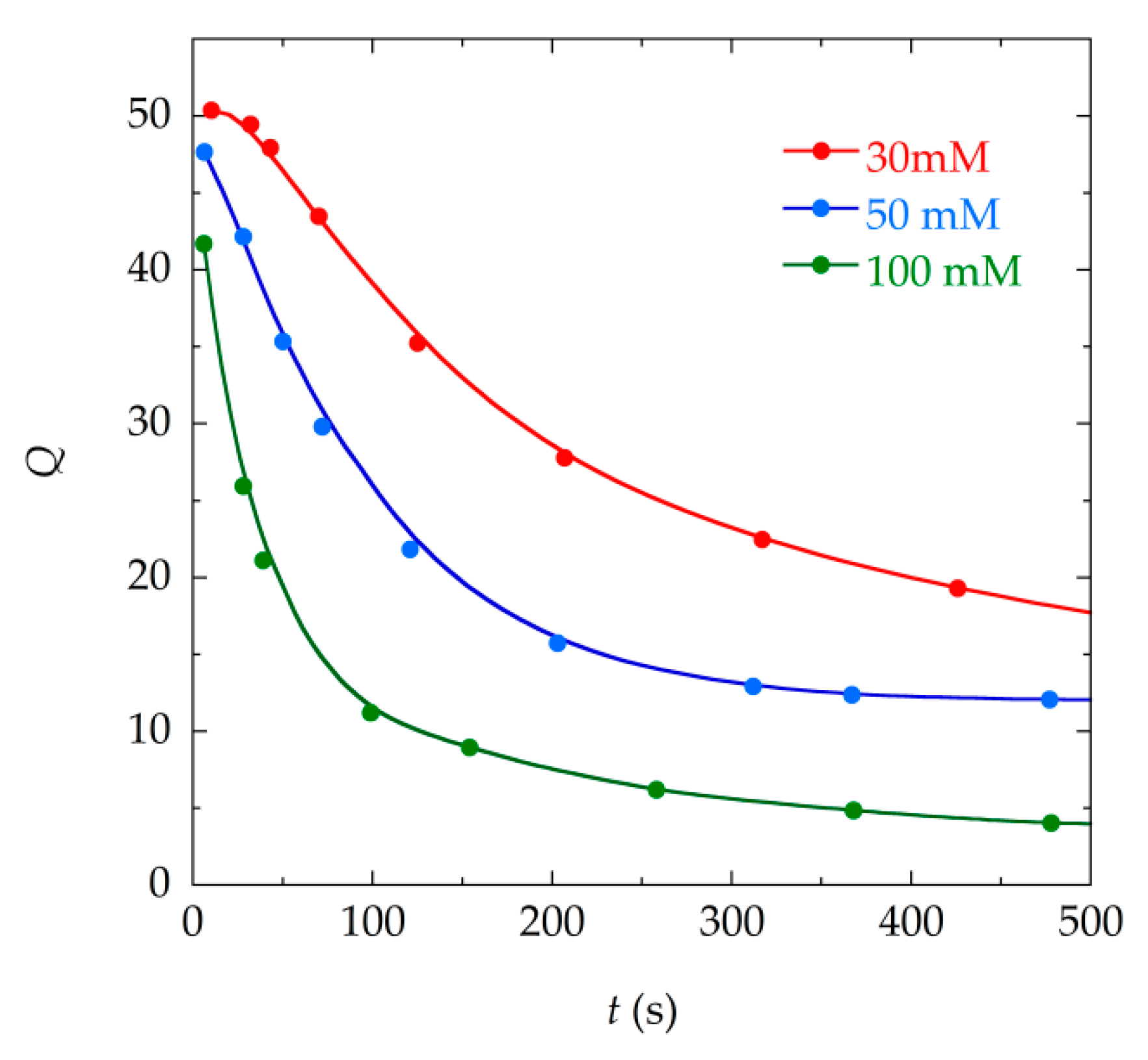

**Figure 6.**Evolution of the quality factor $Q$ of the resonator during the precipitation process for different reagents concentrations (30, 50, and 100 mM) obtained through the numerical fittings to Equation (6) of the resonance curves.

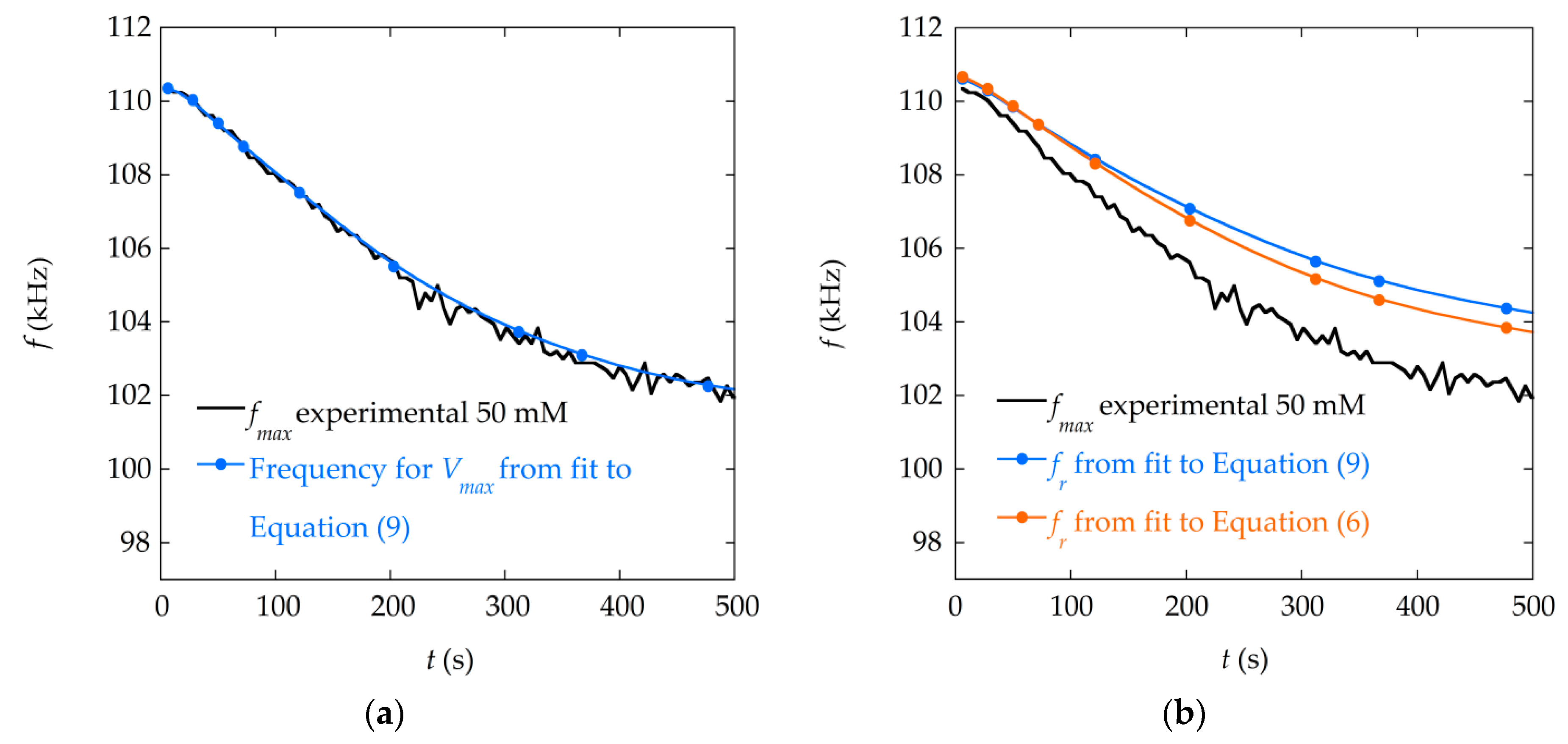

**Figure 7.**(

**a**) Evolution of the frequency corresponding to the maximum of the resonance curves resulting from the fitting to Equation (9) of the resonance curves measured during the precipitation, when the concentration of the reactants is 50 mM, compared to experimental data (${f}_{max}$); (

**b**) Evolution of the ${f}_{r}$ obtained in the numerical fitting to Equations (6) and (9) of the measured resonance curves, compared to experimental data (${f}_{max}$ ).

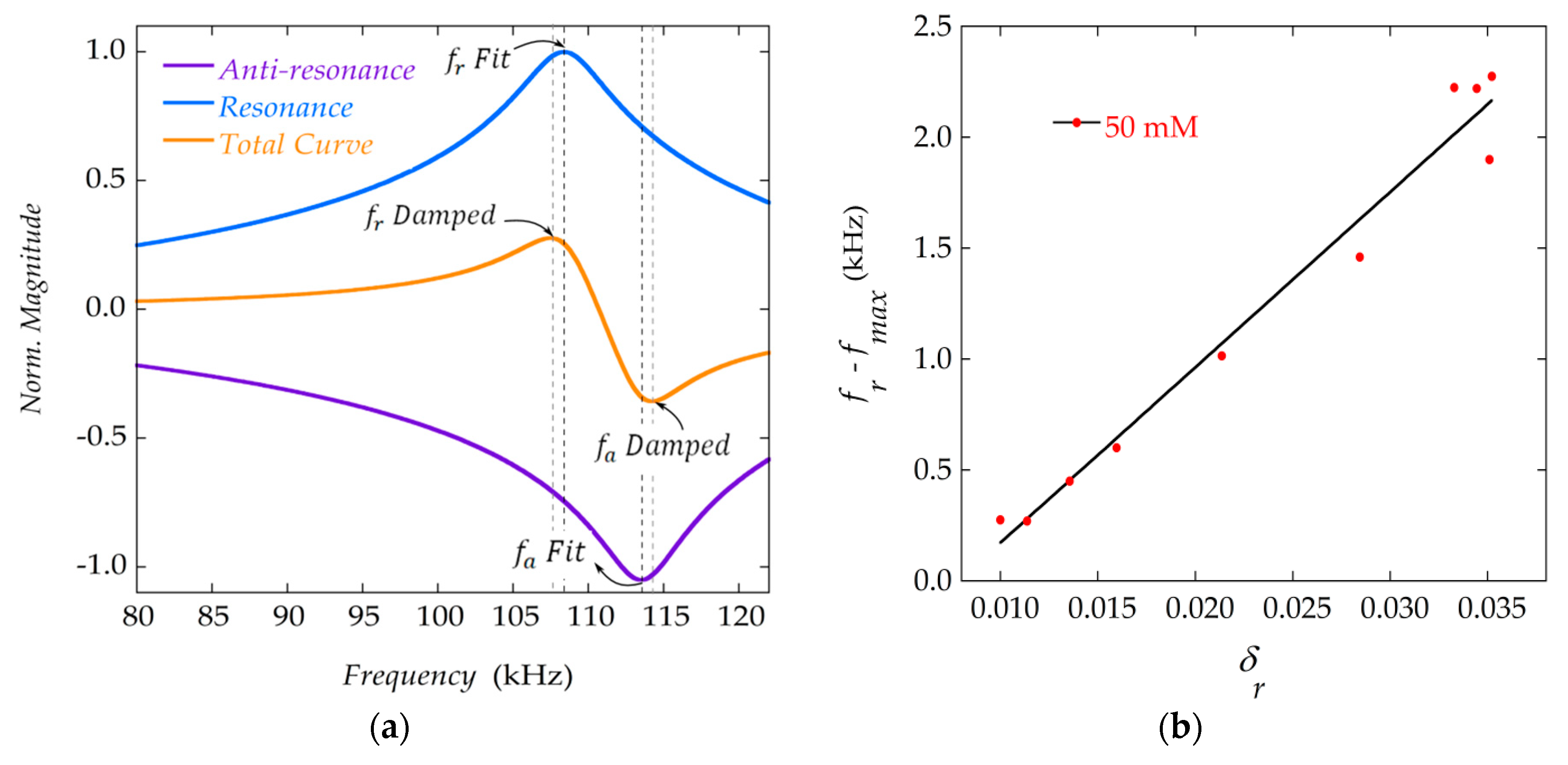

**Figure 8.**(

**a**) Frequency response of the system for resonance and anti-resonance behavior, and the total response affected by the damping. Corresponding resonance and anti-resonance frequencies are indicated; (

**b**) Evolution of the difference between the experimental resonance frequency ${f}_{max}$ and the resonance frequency obtained through the fitting to Equation (9) as the damping parameter ${\delta}_{r}$ increases, for the case of concentration 50 mM. The shift in the resonance frequency becomes greater as the damping increases.

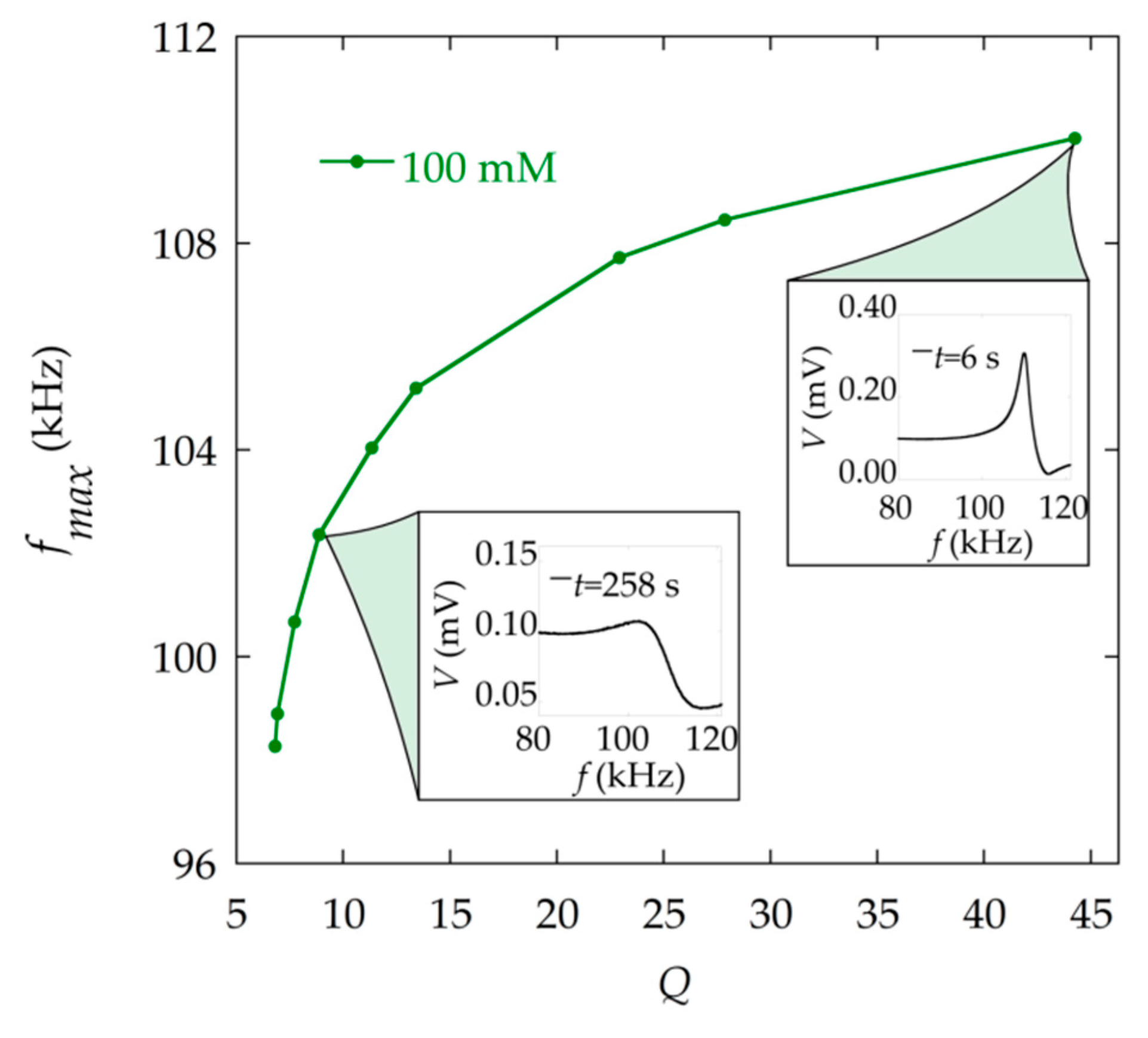

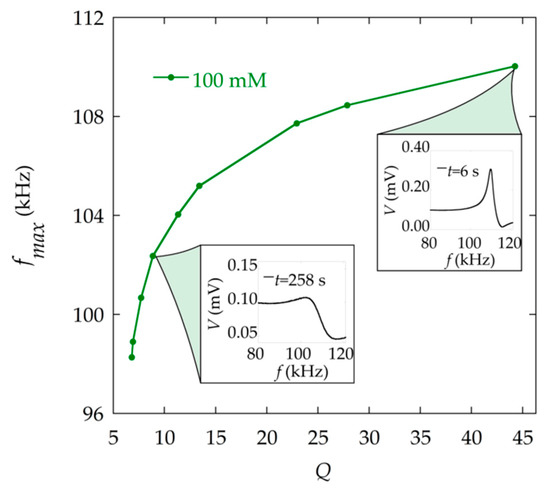

**Figure 9.**Relation between the resonance frequency ${f}_{max}$ obtained experimentally and the quality factor $Q$ obtained through the fitting to Equation (9) at different times during the precipitation reaction. The resonance curves corresponding to times t = 6 s (high $Q$ ) and t = 258 s (low $Q$ ) are shown.

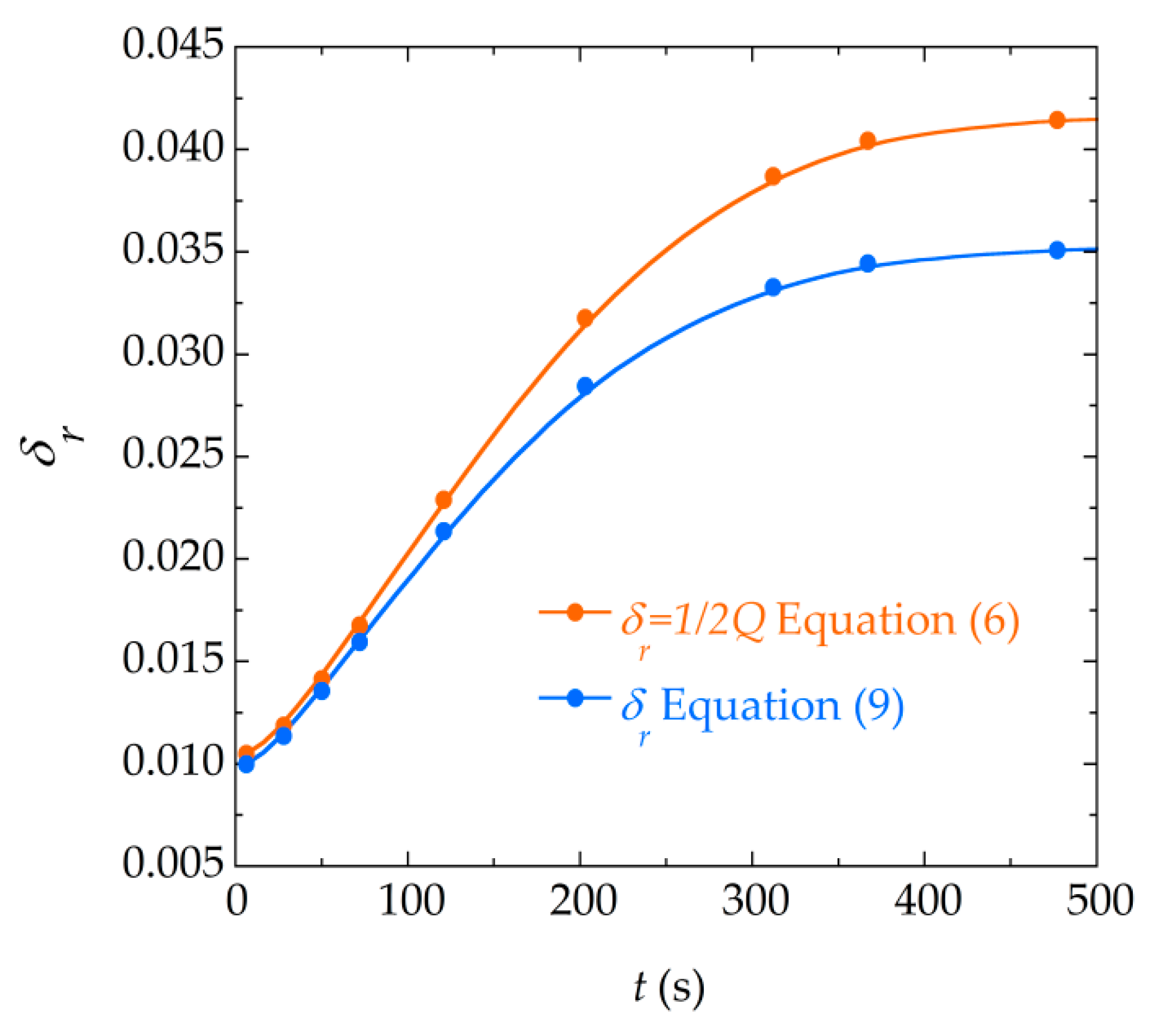

**Figure 10.**Comparison of the damping parameter ${\delta}_{r}$ obtained with both numerical fittings of the resonance curves (for reactants of concentration 50 mM) using the equivalences found between ${\delta}_{r}$ and $Q$, Equation (13).

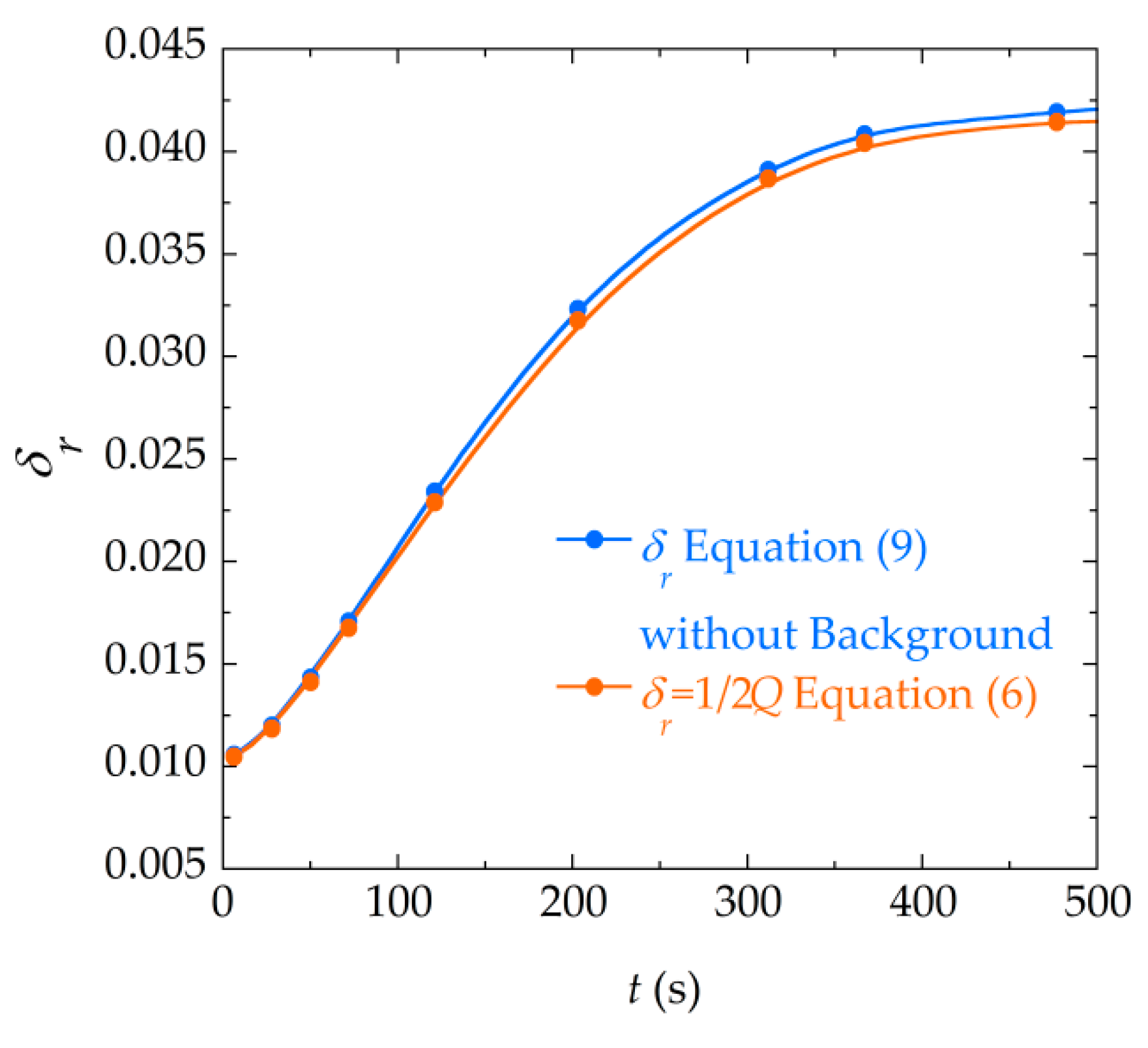

**Figure 11.**Comparison of the damping parameter ${\delta}_{r}$ obtained by the fitting to Equation (9) without taking into account the background parameters ($a$ and $b$ ), and the damping parameter ${\delta}_{r}$ obtained through the fitting to Equation (6).

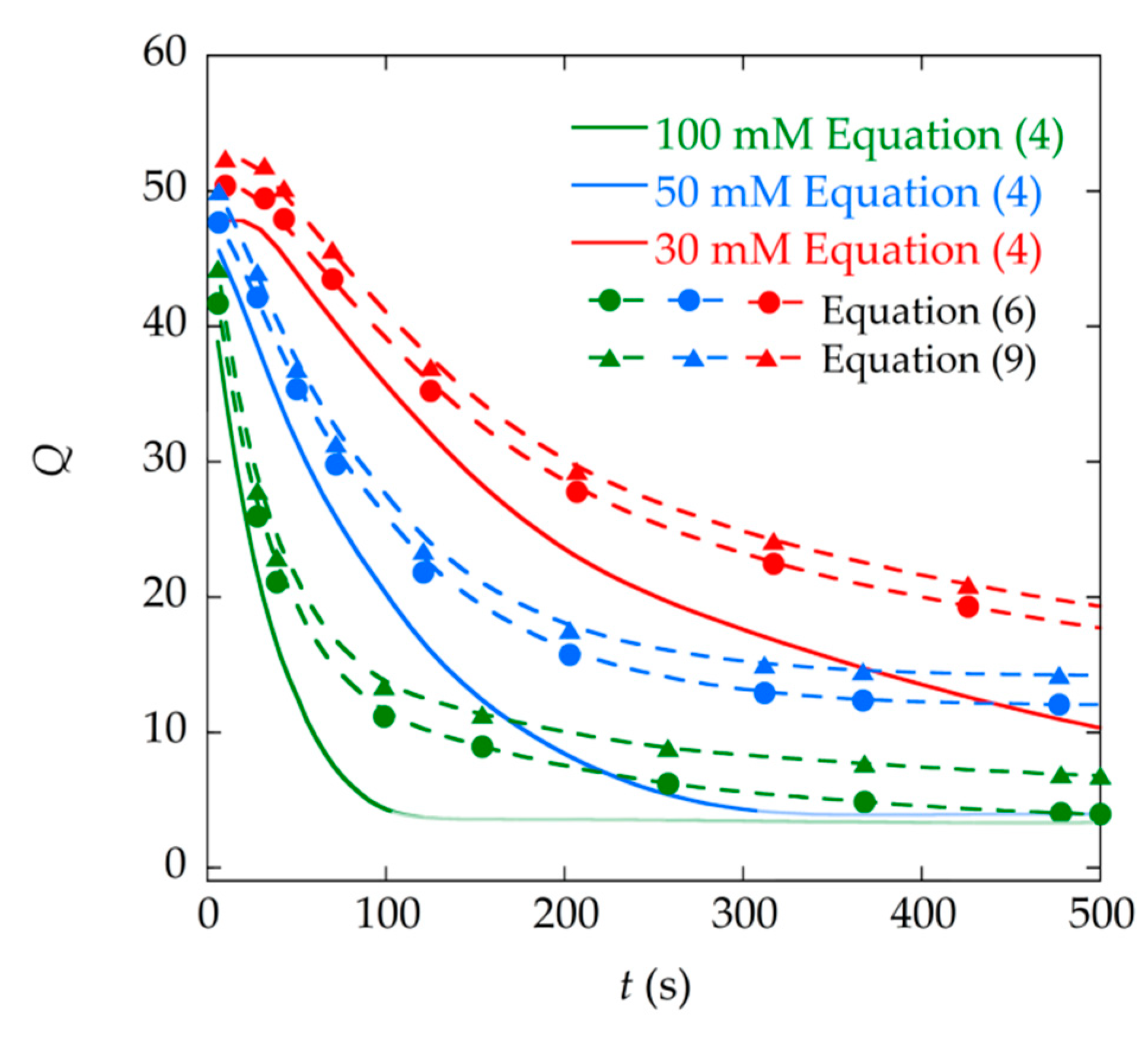

**Figure 12.**Comparison of the quality factor $Q$ obtained by the fitting to Equations (6) and (9), and the one obtained through Equation (4).

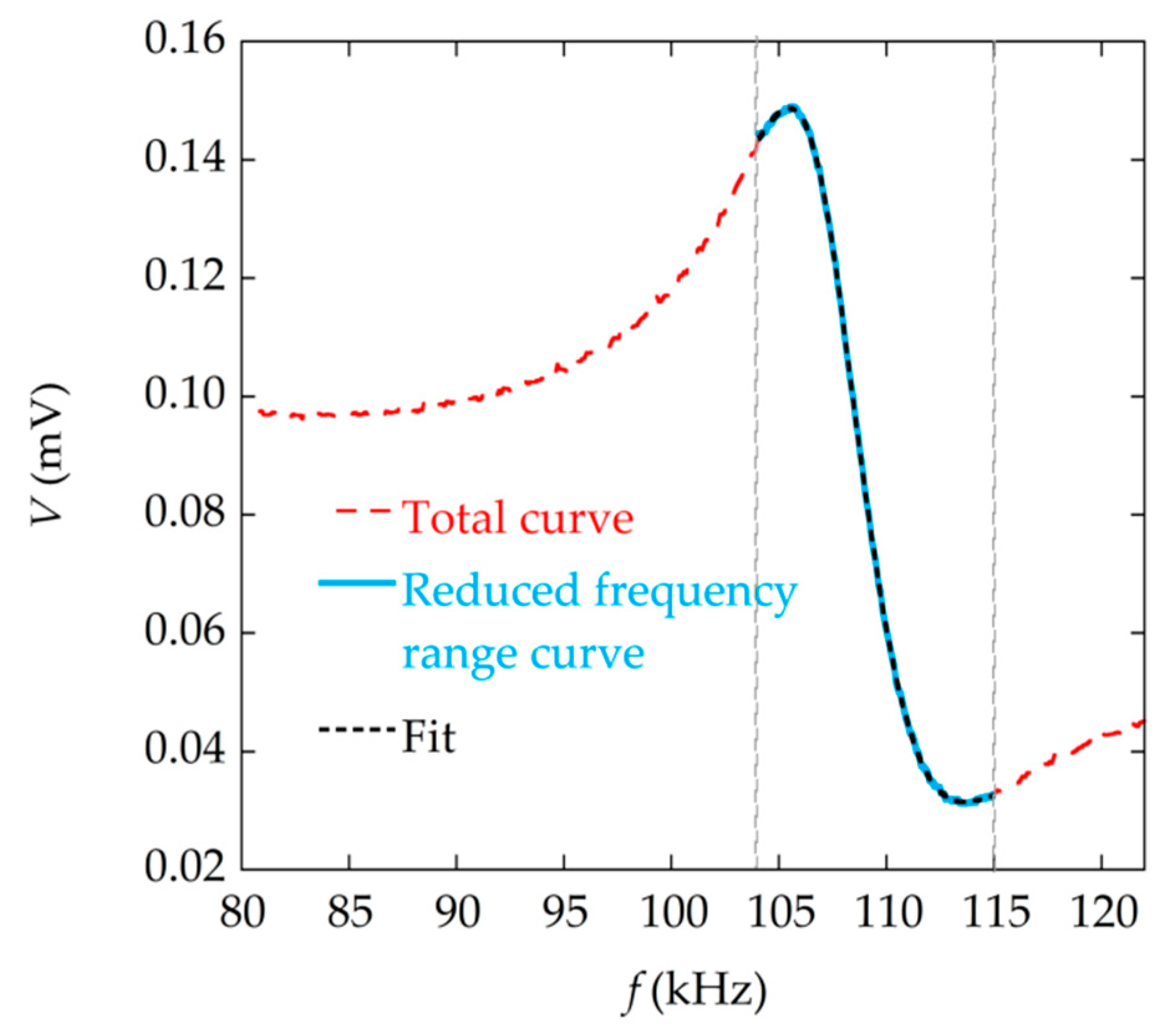

**Figure 13.**Magnetoelastic resonance curve measured at time t = 203 s during the precipitation reaction with 50 mM reactants (in dashed red line), and corresponding fitting to Equation (9) (in dashed black line) for a reduced range of frequencies (in blue). The value of the quality factor obtained with the reduced fitting is $Q$ = 17.4.

**Table 1.**Magnetic, magnetoelastic, and corrosion behaviour parameters of the ${\mathrm{Fe}}_{73}{\mathrm{Cr}}_{5}{\mathrm{Si}}_{10}{\mathrm{B}}_{12}$ sample [21]. ${M}_{s}$ is the spontaneous magnetization, ${\lambda}_{s}$ the saturation magnetostriction, $\mathsf{\Delta}E$ the change in the Young’s modulus with the applied magnetic field (or $\mathsf{\Delta}E$ effect), $k$ the magnetoelastic coupling coefficient and ${E}_{corr}$ the corrosion potential.

Composition | ${\mathit{\mu}}_{0}{\mathit{M}}_{\mathit{s}}\left(\mathit{T}\right)$ | ${\mathit{\lambda}}_{\mathit{s}}$ (ppm) | $\mathbf{\Delta}\mathit{E}(\mathit{\%})$ | $\mathit{k}$ | ${\mathit{E}}_{\mathit{c}\mathit{o}\mathit{r}\mathit{r}}$ (mV) | Corrosion Rate (μm/Year) |
---|---|---|---|---|---|---|

Fe_{73}Cr_{5}Si_{10}B_{12} | 1.12 | 14 | 17 | 0.41 | 47 | 0.035 |

**Table 2.**Comparison of the $Q$ values obtained through Equation (4) and the fitting to Equations (6) and (9) for each concentration of reactants and different times of reaction; and relative error between $Q$ obtained through Equation (4) and Equation (9).

Concentration (mM) | Time (s) | Q (Equation (4)) | Q (Equation (6)) | Q (Equation (9)) | Relative Error * (%) |
---|---|---|---|---|---|

30 | 10.2 | 47.8 | 50.4 | 52.4 | 8.7 |

43 | 45.8 | 47.9 | 50.2 | 8.7 | |

70 | 40.5 | 43.5 | 45.6 | 11.2 | |

125 | 31.5 | 35.2 | 37.0 | 14.8 | |

317 | 16.8 | 22.5 | 24.1 | 30.3 | |

426 | 12.6 | 19.3 | 20.9 | 39.7 | |

50 | 6.3 | 45.6 | 47.7 | 50.0 | 8.8 |

28 | 38.9 | 42.1 | 44.0 | 11.6 | |

72 | 24.6 | 29.8 | 31.3 | 21.4 | |

121 | 15.5 | 21.8 | 23.4 | 33.7 | |

312 | - | 12.9 | 15.0 | - | |

477 | - | 12.1 | 14.2 | - | |

100 | 6 | 38.9 | 41.7 | 44.2 | 12 |

39 | 14.6 | 21.1 | 22.9 | 36.2 | |

99 | 3.6 | 11.2 | 13.4 | 73.1 | |

154 | - | 8.9 | 11.3 | - | |

368 | - | 4.9 | 7.7 | - | |

478 | - | 4.1 | 6.9 | - |
