Facile Synthesis of the Amorphous Carbon Coated Fe-N-C Nanocatalyst with Efficient Activity for Oxygen Reduction Reaction in Acidic and Alkaline Media

by
Linglei Jin
1,†,
Baikang Zhu
1,2,†,
Xuesong Wang
1,
Le Zhang
2,
Debin Song
1,
Jian Guo
1,2 and
Hengcong Tao
1,*
1
School of Petrochemical Engineering & Environment, Zhejiang Ocean University, Zhoushan 316022, Zhejiang, China
2
United National-Local Engineering Laboratory of Oil & Gas Storage and Transportation Technology, Zhejiang Ocean University, Zhoushan 316022, Zhejiang, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2020, 13(20), 4551; https://doi.org/10.3390/ma13204551
Submission received: 3 September 2020 / Revised: 1 October 2020 / Accepted: 5 October 2020 / Published: 13 October 2020
(This article belongs to the Special Issue Electrocatalysts for Sustainable Energy and Chemical Synthesis Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
With the assistance of surfactant, Fe nanoparticles are supported on g-C3N4 nanosheets by a simple one-step calcination strategy. Meanwhile, a layer of amorphous carbon is coated on the surface of Fe nanoparticles during calcination. Transmission electron microscopy (TEM), scanning electron microscope (SEM), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and inductively coupled plasma (ICP) were used to characterize the morphology, structure, and composition of the catalysts. By electrochemical evaluate methods, such as linear sweep voltammetry (LSV) and cyclic voltammetry (CV), it can be found that Fe25-N-C-800 (calcinated in 800 °C, Fe loading content is 5.35 wt.%) exhibits excellent oxygen reduction reaction (ORR) activity and selectivity. In 0.1 M KOH (potassium hydroxide solution), compared with the 20 wt.% Pt/C, Fe25-N-C-800 performs larger onset potential (0.925 V versus the reversible hydrogen electrode (RHE)) and half-wave potential (0.864 V vs. RHE) and limits current density (2.90 mA cm−2, at 400 rpm). In 0.1 M HClO4, it also exhibits comparable activity. Furthermore, the Fe25-N-C-800 displays more excellent stability and methanol tolerance than Pt/C. Therefore, due to convenience synthesis strategy and excellent catalytic activity, the Fe25-N-C-800 will adapt to a suitable candidate for non-noble metal ORR catalyst in fuel cells.

1. Introduction

As a significant cathode reaction, oxygen reduction reaction (ORR) has received extensive attention in many sustainable energy storage and conversion fields [1,2,3]. Compared with the anode reaction, composed of the hydrogen oxidation reaction, the cathode reaction, composed of the oxygen reduction reaction, has slow reaction rate. Therefore, the development of an oxygen reduction electrode catalyst with high catalytic activity has promising prospects in scientific research and actual production applications. Among all oxygen reduction catalysts, platinum-based catalysts are generally regarded as the best due to their low overpotential, high current density, and the four-electron transfer process in the reaction. Currently, 20 wt.% Pt/C catalysts are used in various commercial fuel cells. However, platinum on earth is limited and expensive. In addition, platinum catalysts also have poor methanol tolerance and insufficient stability, which are the biggest barriers to the commercial application of fuel cells [4].
In order to break through these barriers, non-precious metal catalysts (NPMCs) have been developed over the last few decades [5]. The transition metal-nitrogen-carbon (M-N-C) composite catalyst has been considered to be a candidate catalyst due to its relatively low cost, high catalytic effect, and excellent stability and durability [6,7]. So far, compared with Pt-based catalysts, higher ORR catalytic activity and durability have been demonstrated by the advanced NPMCs in alkaline electrolyte. However, in acidic medium, the performance of NPMCs still needs to be improved [8,9,10]. Thus, it is of practical worth to develop an NPMC with superior ORR catalytic performance and durability no matter whether it is in alkaline or acidic electrolyte [11].
In the 1960s, for the first time, Jasinski et al. demonstrated that cobalt phthalocyanine containing a M-N4 structure has certain catalytic activity for ORR in alkaline solution [12]. Since then, various M-N-C catalysts have been studied and reported. Later, Bagotzky et al. found that, after calcining the transition metal coordinate macrocyclic compound in an inert atmosphere, the ORR catalytic activity and durability of the prepared samples were significantly improved [13]. Subsequently, this new method of calcining the precursor in a specific atmosphere began to be applied. Yeager et al. have since shown that more ordinary and cost-efficient small molecular precursors, consisting of transition metal, nitrogen-rich compounds, and carbon carriers, were able to replace expensive macrocyclic compounds in the process of synthesizing M-N-C catalysts [14]. The accurate properties of the active sites of NPMCs in electrocatalysis are not completely understood, and it is impossible to determine whether transition metals act as active sites or merely promote the formation of N-C active sites [15,16]. Notably, iron content, microporous-mesoporous structure, and nitrogen species on the catalyst surface are some of the key factors controlling ORR catalytic performance of Fe-N-C catalysts [17]. Thus, choosing appropriate precursors can adjust the ORR catalytic performance of NPMCs. Meanwhile, a lot of previous work has proved that pyrolysis can actually increase the graphitization of carbon materials, which can efficiently improve the conductivity of materials. However, high temperatures (possibly >1000 °C) may lead to the decomposition of nitrogen atoms in the carbon matrix. Therefore, in general, the ORR activity and durability of NPMCs depend largely on the pyrolysis process and the alternative for precursors.
Herein, we explore a surfactant-assisted method to synthesize the Fe-N-C catalyst supported on a g-C3N4 nanosheet by a simple one-step calcination strategy. Meanwhile, in the calcination process, the surface of iron nanoparticles is covered with amorphous carbon so as to prepare a stable catalyst with effective ORR activity and selectivity in both acidic and alkaline electrolyte. Graphite-like carbon nitride (g-C3N4) is a non-metallic semiconductor polymer material with a graphite structure [18]. It has attracted much attention due to its adjustable electronic structure, excellent chemical stability, and low manufacturing cost [19,20,21]. The g-C3N4 molecule contains a large number of “nitrogen spots” (consisting of six lone pairs of electrons in nitrogen), and these sites become ideal for binding metals [20]. Therefore, as an ideal nitrogen source, g-C3N4 with high nitrogen content can combine with iron ions to form abundant active sites. At the same time, these active sites will be integrated into the carbon carrier. Previous literature has reported that P-123 (a high molecular weight tri-block copolymer (polyethylene oxide-polypropylene oxide-polyethylene oxide (PEO-PPO-PEO))) can be used as a soft template to form a cambium structure, which contributes towards iron dispersion and expands the surface area [22]. However, there are rare reports on NPMCs that use g-C3N4 as the N source as the support and P-123 as the inducer (surfactant), with competitive ORR performance to Pt in the acidic medium. In this work, we focused on the effects of pyrolysis temperature and precursor content of Fe species on the ORR catalytic activity of the prepared catalyst. SEM, TEM, XRD, X-ray photoelectron spectroscopy (XPS), inductively coupled plasma (ICP), and other physical characterization means were adopted to manifest the composition, bulk phase structure, and surface morphology of the prepared catalyst in this work. Electrochemical analysis methods, such as cyclic voltammetry (CV), linear sweep voltammetry (LSV), and amperometric curve (i-t) have been used to detect the electrochemical activity of catalysts in detail. At the same time, combined with the experimental results, the possible active sites of ORR were also discussed.

2. Materials and Methods

2.1. Reagent and Materials

Pluronic®P-123 and platinum grid electrode were derived from Sigma-Aldrich (Merck, Madrid, Spain). Ferric acetylacetonate (Fe(acac)3) and KOH was purchased from Aladdin (Shanghai, China). Commercial 20 wt.% Pt/C was bought from Johnson Matthey Fuel Cells Ltd (London, UK). A total of 5 wt.% Nafion solution was derived from DuPont (Wilmington, DE, USA). Other chemicals were bought from Sinopharm Chemical Reagent Co., LTD (Beijing, China). All aqueous solutions used were prepared with deionized water from a Millipore system (Zhoushan, China). All chemical reagents were of analytical grade and used as received without further purification. All potentials in this work were versus the reversible hydrogen electrode (RHE).

2.2. Preparation of g-C3N4

The g-C3N4 were synthesized by using the previous reported methods [18]. Melamine was dried in an oven at 80 °C for 12 h. Dried melamine was then added in an alumina crucible and covered with the crucible lid with tin foil. The tightly wrapped crucible was calcined at 550 °C in the chamber electric furnace for 2 h. Eventually, g-C3N4 was obtained after fully grinding.

2.3. Preparation of FeX-N-C-Y Electrocatalysts

Fe25-N-C-800 was taken as a typical example of Fe-N-C catalyst synthesis. First, 300 mg prepared g-C3N4 and 600 mg P-123 were dissolved in 100 mL deionized water and sonicated for 2 h to form a homogenous dispersion. The well dispersed solution was then stirred vigorously by a magnetic stirrer for 2 h. Subsequently, 25 mg Fe(acac)3 was sonicated continuously for 2 h after being added into the dispersed solution. After continuous stirring for 12 h, the mixture was dried in an oven at 80 °C for 10 h, and then the dried solids were collected and put into a vacuum tube high-temperature sintering furnace. Under the protection of nitrogen (60 mL·min−1), the dried solids were calcined at 550 °C for 2 h and 800 °C for another 2 h. The product of pyrolysis was soaked in pre-prepared 2 M HCl for 24 h, washed with water, and dried to obtain Fe25-N-C-800. X in FeX-N-C-Y catalyst represents the amount of iron precursor added (X = 0, 5, 25, 50 mg). Y represents the calcination temperature during the preparation process (Y = 700, 800, 900 °C). All heating rates in this work were 5 °C·min−1.

2.4. Materials Characterization

The characterization of the catalyst mainly included crystal structure, microscopic morphology, element composition, and pore size distribution. The X-ray diffractometer model DX-2700 (Dandong Fangyuan Instrument Co. LTD, Dandong, China) was used for testing. The X-ray tube was copper palladium (λ = 1.5417 Å), the scanning step width was 0.02°, and the scanning angle was 10°~80°. The tube voltage and tube current were set to 40 kV and 30 mA, respectively. A scanning electron microscope (SEM, Zeiss SIGMA 300 field-emission, Oberkochen, Germany) characterized the microscopic morphology of the catalyst. Transmission electron microscopy (TEM) (FEI Tecnai G2 F20, FEI, Eindhoven, The Netherlands) collected information at a voltage of 200 kV. An inductively coupled plasma optical emission spectrometer (ICP-OES) measurement was performed with Agilent 720ES (Santa Clara, CA, USA), and the actual proportion of iron in the catalyst with different iron precursor content was determined. The K-Alpha type of Thermo Scientific (Waltham, MA, USA) was used to test the catalyst to obtain the valence state and surface energy state distribution of the catalyst by analyzing the X-ray photoelectron spectroscopy (XPS) (Thermo Scientific, Waltham, MA, USA).

2.5. Preparation of the Working Electrodes

All electrochemical characterization in this work was measured by a rotating disk electrode (RDE) with an electrode diameter of 5 mm. Before the electrochemical test, the glassy carbon electrode was polished with 0.5 μm and 0.05 μm alumina slurry, respectively. A 3 mg Fe-N-C catalyst was added into a mixed solution of 300 μL ethanol, 300 μL deionized water, and 300 μL 1 wt.% Nafion solution. The mixed solution was sonicated (KQ5200DE, 40 kHz, Kun Shan Ultrasonic Instruments Co., Ltd, Kunshan, China) for 0.5 h and then used as catalyst ink. Then, 7.95 μL catalyst ink was drip-evenly applied to the electrode surface of the RDE. The catalyst load was maintained at 0.135 mg cm−2.

2.6. Electrocatalytic Measurements

Electrochemical characterization was mainly carried out by CV, LSV, and i-t. Electrochemical characterization of the catalysts were measured by the CHI electrochemical station (CHI 660E, Shanghai Chenhua Instrument Co., Ltd., Shanghai, China) in a standard three-electrode electrochemical cell at room temperature. During the test, a platinum wire electrode was used as the counter electrode, Ag/AgCl electrode as the reference electrode, and glassy carbon electrode loaded with catalyst as the working electrode. The potential was converted to a potential versus RHE according to E: (vs. RHE) = E (vs. Ag/AgCl) + 0.197 + 0.0591 pH.
The ORR catalytic activity of the sample was researched in both alkaline (0.1 M KOH) and acidic (0.1 M HClO4) electrolyte. After an experimental device was set up, O2 was introduced until the O2 in the electrolyte was saturated. All electrochemical measurements were conducted in the O2-saturated media. For cyclic voltammetry (CV), 20 CV tests were scanned in the voltage range of 0 to 1.20 V (vs. RHE) at a sweep rate of 100 mV s−1. For linear sweep voltammetry (LSV), ORR, active at the as-prepared catalyst, was surveyed by sweeping the catalysts between 1.20 to 0 V (vs. RHE) at 5 mV s−1 under 0, 100, 400, 900, and 1600 rpm (increasing from low speed to high speed). In this work, the ORR performance of each catalyst was tested more than four times, and the repeatable data were selected in our results analysis.
The electron transfer number of oxygen molecules on the electrode during the ORR process was evaluated via the rotating disk electrode and following Koutecky–Levich equations.
1 J = 1 J L + 1 J k = 1 B ω 1 2 + 1 J k
B = 0.62 n F C 0 ( D 0 ) 2 3 v − 1 6
J k = n k F C 0
J , J L , and J k are the measured current density, diffusion-limiting current density, and kinetic-limiting current density at a specific potential, respectively. n is the overall number of electrons transferred during the reaction process. F is the Faraday constant ( 96485   C / mol ). C 0 is the solubility of oxygen in this electrolyte, in 0.1 M KOH, C 0 = 1.2 × 10 − 6   mol / cm 3 ; in 0.1 M HClO4, C 0 = 1.26 × 10 − 6   mol / cm 3 . v is the kinematic viscosity of the solution, in 0.1 M KOH, ν = 0.01   cm − 2 / s ; in 0.1 M HClO4, ν = 1.009 × 10 − 2   cm − 2 / s . D 0 is the diffusion coefficient of O2 in the solution, in 0.1 M KOH, D 0 = 1.9 × 10 − 5 cm − 2 / s , in 0.1 M HClO4, D 0 = 1.93 × 10 − 5 cm − 2 / s .

3. Results

3.1. Preparation and Physical Characterization of Fe-N-C

A brief synthesis method of the as-prepared catalyst in this work is illustrated schematically in Figure 1. First, the three precursors, g-C3N4, P-123, and Fe(acac)3), were mixed together (details of the experiment are shown in Section 2.3). Subsequently, the thoroughly mixed and dried mixture was pyrolyzed at 800 °C (under nitrogen protection).
The microscopic morphology of the Fe25-N-C-800 was examined by SEM (Figure 2a,b). Combining Figure 2a,b, a mixture of porous fold amorphous carbon and iron nanoparticles is displayed. In Figure 2b, it can be clearly observed that many nano-particle balls are evenly distributed on the carbon folds (bright white dots in Figure 2b), combined with XRD analysis, and it can be seen that the nanoparticles are formed by the agglomeration of iron elemental and Fe3C. Subsequently, the Fe25-N-C-800 catalyst was subjected to TEM testing (Figure 2c,d), which further confirmed that the catalyst was made of aggregated nanoparticles. The measurement found that the size of the nanoparticle ranged from 5 to 70 nm, and the average size was calculated to be 18.53 nm (Figure 2c, inset). Figure 2d is a high-resolution TEM image of the catalyst. It can be clearly seen that the iron nanoparticles were coated with amorphous carbon. Previous studies have shown that wrapping transition metal compounds in amorphous carbon enables them to interact strongly with each other, leading to synergistic effects that effectively enhance their electrochemical properties [23]. The lattice fringe spacing in Figure 2d was measured to be about 0.204 nm, which was consistent with the (110) crystal plane of elemental iron and the (220) crystal plane of Fe3C. This shows that the Fe25-N-C-800 catalyst formed elemental iron and Fe3C. For further research on the catalytic property of iron element in ORR, the elemental composition of the as-prepared catalyst in this work was evaluated by a high-angle annular dark-field scanning transmission electron microscope (HAADF-STEM). It is shown in Figure 2e,h that many uniformly scattered bright spots were on the atomic scale. We can see that these bright spots were assigned to iron atoms. In this case, they can prove the existence of the iron element [6].
Figure 3a shows the X-ray diffraction pattern of catalysts with a different iron content. The spectra of different samples were roughly similar and there was no significant difference. It can be clearly seen that an amorphous peak of C appeared at 26°. Each sample (except Fe0-N-C-800) had a set of apparent peaks at 44.67° and 65.02°. These peaks were consistent with the (110) and (200) crystal planes of Fe (Joint Committee on Powder Diffraction Standards, JCPDS No.06-0696), respectively. Meanwhile, each sample (except Fe0-N-C-800) had a set of peaks at 37.74°, 39.79°, 42.87°, 43.74°, 44.56°, 45.86°, and 49.11°. These peaks were for Fe3C (JCPDS No. 35- 0772) (210), (002), (211), (102), (220), (112), and (221) crystal planes. This also corresponded to the results obtained from the TEM characterization test. As displayed in Figure 3a, it can be seen that, with the difference of iron precursor content, the characteristic peaks of Fe and Fe3C were gradually obvious, from the inconspicuous “broad and relatively weak” peak to the clear “high and narrow” peak. Fe0-N-C-800 sample preparation process did not add iron precursor, so it does not contain iron element or iron characteristic peak. Combined with the XRD test data, according to the Scherer formula ( D = k λ β c o s θ ), we calculated that the size of the crystal grain of Fe25-N-C-800 was 17 nm, which was almost consistent with the data obtained by TEM. Meanwhile, ICP was used to determine the actual proportion of iron in the FeX-N-C-800 catalyst under different iron precursor contents. It is shown in the results indicated in Table 1 that the content of iron was positively correlated with the amount of iron precursor added during the preparation process. That is, the content of iron in the sample increased with the addition of the precursor.
An XPS test was carried out on the Fe25-N-C-Y catalyst. The spectrum was a rough sweep of the full spectrum, so the signal of some elements was not obvious. Figure 3b shows the measured spectra of the catalyst compounded at various pyrolysis temperatures. It is shown in Figure 3b that the Fe-N-C samples consisted of carbon, nitrogen, oxygen, and iron. As shown in Table 2, with the increase of calcining temperature, the nitrogen content decreased from 5.22% to 2.48%. Through comparison, it can be clearly seen that the signal intensity of the N element of the sample calcined at 700 °C was more obvious. The possible cause for this phenomenon was that the combination of Fe(acac)3 and g-C3N4 ha poor high-temperature resistance under the participation of the surfactant P-123, with which the N element in g-C3N4 was pyrolyzed and volatilized with the rise of pyrolysis temperature. According to previous studies, N-Fe sites are beneficial to increase the ORR catalytic activity of samples [6]. Therefore, it can be reasonably speculated that high pyrolysis temperature is conducive to forming N-Fe sites in the sample, but as the temperature rises, the nitrogen-containing sites will be decomposed at excessively high pyrolysis temperature. In consequence, the Fe25-N-C-800 catalyst manifests more excellent ORR performance than catalysts synthesised at other pyrolysis temperatures.
To obtain further information about the valence state of atom and surface energy distribution of the catalyst, XPS tests were carried out on the Fe25-N-C-800 catalyst (Figure 3c–e). In this experiment, the XPS spectrum data of all samples were corrected using the carbon–carbon double bond peak at C 1s 284.8 eV. It can be clearly seen in the C 1s XPS binding energy region of the typical sample that the signal was deconvoluted into five peaks (Figure 3c). The peaks at 283.3, 284.2, 285.5, 286.9, and 289.1 eV can correspond to Fe3C, C=C, C=N, C-N, and O-C=O, respectively [24,25]. Among them, Fe3C had a positive effect on ORR. Figure 3d reveales the N 1s binding energy region of the Fe25-N-C-800 catalyst. The signal is deconvolved into three peaks at 397.8, 399.5, and 400.4 eV, belonging to pyridinic N, pyrrolic N/Fe-NX, and graphitic N, respectively [5,26,27,28]. At the same time, we calculated the relative composition of the pyridinic N, pyrrolic N/ Fe-NX, and graphitic N species (atomic factions) in the samples (Figure 3f). The content of pyridinic N, pyrrolic N/Fe-NX, and graphitic N in Fe25-N-C-800 catalyst were 38.8%, 36.8%, and 24.4%, respectively. According to previous reports, ORR active sites in M-N-C catalysts may be located around the carbon phase [29]. Meanwhile, previous studies have demonstrated that pyridinic N and pyrrolic N are always located on the graphitic edge [30]. Therefore, pyridinic N and pyrrolic N are significant factors to enhance ORR catalytic reaction. Pyridinic N is a six-member heterocyclic compound, containing one nitrogen heterocyclic atom. Each N atom is bound to two carbon atoms and provides one p-electron to the aromatic π system [31]. Pyrrolic N is a five-member heterocyclic compound containing one azo atom, which binds to two carbon atoms and provides two p-electrons to the π-conjugated system [31]. Previous studies have demonstrated high proportions of pyridinic N and pyrrolic N boost O2 reduction by enhancing the current density, spin density, and π state density of C atoms near the Fermi level [32]. Meanwhile, the two-dimensional planar structure of pyridinic N and pyrrolic N can maintain the original planar large π bond structure on the surface of carbon materials and have good electrical conductivity, so they have excellent ORR catalytic activity. However, due to the uneven three-dimensional structure of graphite nitrogen, the original π-conjugated large bond on the carbon surface is destroyed and the conductivity of carbon materials is reduced. Therefore, the catalytic activity of ORR is relatively low. Since nitrogen doping can cause disorder of the structure, a greater number of active sites are provided by the type of N-active site, such as pyridinic N, pyrrolic N, and Fe-NX, thereby promoting the reaction process of ORR [31,32,33,34]. Consequently, the Fe25-N-C-800 catalyst with the total content of pyridinic N and pyrrolic N/Fe-NX up to 76% showed excellent ORR catalytic performance.
In addition, the signal of the Fe 2p shown in Figure 3e was deconvolved into two main peaks, attributing to Fe 2p3/2 and Fe 2p1/2, respectively. It can be found that the Fe 2p3/2 binding energy region showed various peaks (710.4, 714.0, 719.3 eV), indicating that there were many chemical states of iron species in Fe25-N-C-800. Based on previous studies, it can be seen that the peak of Fe 2p3/2, at about 710.4 eV, is attributed to Fe-NX, which can accelerate O2 adsorption and 4e-reduction and has electrocatalytic activity for ORR [11,35,36,37,38]. Meanwhile, the 706.7 eV peak can be attributed to zero-valent iron and Fe3C [39]. Consistent with previous reports, the remaining peak at about 723.9 eV is attributed to Fe 2p1/2 [6].
Iron is commonly believed to act as a crucial part in enhancing the ORR performance of electrocatalysts. It can improve the catalytic activity of electrocatalysts by promoting the formation of active sites or directly participating in catalyzing ORR [40]. The existence of Fe-NX was confirmed by the XPS spectra of the samples prepared in this work. Based on extensive literature reviews, it was found that Fe-N4 is the most effective free active site of metal in oxygen reduction reaction among cathode catalysts of fuel cells [41]. Therefore, in combination with the ORR activity assessment results of the catalyst prepared in this work, and considering that the single iron atom in the metallic state is very active and unstable under electrochemical conditions, we reasonably speculated that the iron atom in Fe25-N-C-800 coordinated with the N to form the Fe-N4 active site. Meanwhile, because Fe3C nanoparticles can enhance the active site in ORR, a sufficient number of Fe3C nanoparticles also have a certain impact on the activity of ORR. Considering all the above characteristics, we expect that Fe25-N-C-800 catalyst embracing Fe-N4 and Fe3C can reveal excellent ORR activity.

3.2. ORR Catalytic Activity Evaluation

As a series of previous studies revealed, pyrolysis temperature greatly affects the ORR catalytic performance of Fe-N-C catalyst [42]. To explore the impression of pyrolysis temperature and obtain the suitable temperature, the ORR performance of the Fe25-N-C catalyst at various temperatures (in the range of 700–900 °C) was investigated. ORR performance was tested in 0.1 M KOH, and the consequences proved that Fe25-N-C-800 exhibited the excellent ORR performance with larger onset potential and half-wave potential (Figure 4a). This may be due to the fact that the conductivity, porosity, and active site density of the catalyst prepared at the pyrolysis temperature of 800 °C reached an optimal balance.
Pt/C catalyst is recognized as an effective catalyst for commercial fuel cell cathode reaction (ORR). Therefore, researchers compared ORR catalytic activity evaluation with platinum-based catalysts [4]. The electrocatalytic activity of the as-prepared Fe-N-C catalyst for ORR was evaluated using RDE voltammetry and confronted with the Pt/C catalyst in this work. Previous studies have put forward diverse assumptions for active sites in Fe−N-C catalysts that can enhance ORR properties. In general, there are two main types: one is doped with carbon-based N atoms [11,43,44] and the other is the active site formed by iron species, including Fe-NX, Fe3C, etc. [45,46,47]. Figure 4b provides the LSV curves of the sample with various iron precursor content. It can be found that the onset potential of the sample with the iron precursor (0.887–0.925 V vs. RHE) was significantly better than the sample without the iron precursor (0.794 V vs. RHE), which also facilitated faster reaction kinetics and a higher electron transfer number. Therefore, we can confirm that the active site of iron speciation serves as a significant part in the process of promoting ORR electrocatalytic properties.
It is shown in Figure 5a that the onset potential of Fe25-N-C-800 (0.925 V vs. RHE) was mildly more negative than Pt/C (0.934 V vs. RHE), while its half-wave potential (0.864 V vs. RHE) was slightly more positive than Pt/C (0.858 V vs. RHE). Figure 5b displays the polarization curves of the Fe25-N-C-800 catalyst at various rotation rates (0~1600 rpm). With the enhancement of the rotating speed, the diffusion rate of O2 in the electrolyte gradually accelerated, which lead to the gradual increase of the limiting of current density of the catalyst.
According to the RDE dates of Fe25-N-C-800 at various rotating speeds, combined with the K-L equations, the overall number of electrons transferred during the oxygen reduction process can be calculated. The K-L curves of Fe25-N-C-800 reveal an obvious linear relationship, indicating that the reaction process is a first-order kinetic process [48]. After calculation, the average electron transfer number (n) of the oxygen molecules of Fe25-N-C-800, over the potential range from 0.2–0.7 V, was 3.86 (Figure 5c), which was approximate to 20 wt.% Pt/C (n = 3.93). Furthermore, as shown in Figure 5d, the Tafel slope is considered to be another crucial parameter for investigating ORR catalytic activity, which mainly investigates the reaction rate of the reaction. In 0.1 M KOH, Fe25-N-C-800 had the lowest Tafel slope (29 mV per decade) and lower overpotential compared with other iron precursor content catalysts and Pt/C catalysts.
Previous researchers have found that the Fe-N-C catalyst has a stable structure but unstable electrochemical performance when exposed to H2O2 (ORR by-product) in acidic electrolyte [49]. The catalytic active site of the Fe-N-C catalyst was not be affected, but its conversion frequency was reduced through the oxidation of the carbon surface, resulting in the weakening of the binding ability of the Fe-N-C catalyst to O2. Therefore, compared with the alkaline electrolyte, the ORR performance and durability of the Fe-based catalyst in the acidic electrolyte was significantly reduced. It is noteworthy that the Fe25-N-C-800 catalyst also had a certain performance for ORR in the harsh acidic medium. Compared with commercial 20 wt.% Pt/C, although the Fe25-N-C-800 catalyst’s onset potential and half-wave potential showed a certain degree of negative shift, its limiting current density was much bigger in 0.1 M HClO4 (Figure 6a). Figure 6b displays the LSV curves of the Fe25-N-C-800 catalyst at various rates (0~1600 rpm). We can see that, as the rotation speed increased, the O2 diffusion rate increased and the limiting current density of the catalyst gradually increased, which was the same as when the electrolyte was alkaline. Meanwhile, the K-L plots of the Fe25-N-C-800 catalyst presented an obvious linear relationship. Over the potential range from 0.1–0.4 V, the average number of electrons transferred from the oxygen molecules of Fe25-N-C-800 during the reaction process was 3.79 (Figure 6c), which was close to that of Pt/C (n = 3.85). This indicates that, even in harsh acidic solutions, there were nearly four electron transfer ORR pathways. It is shown in Figure 6d that the Tafel slopes of the Fe25-N-C-800 catalyst and 20 Wt. % Pt/C were approximately 34 and 45 mV per decade, respectively. The results demonstrated that, in the low overpotential region, Fe25-N-C-800 also had a similar oxygen reduction reaction mechanism to Pt/C.

3.3. ORR Durability Characterization

In practical applications, catalyst stability and methanol tolerance are also important parameters for direct methanol fuel cells. As shown in Figure 7a,c, either in a 0.1 M KOH or 0.1 M HClO4 media, after adding CH3OH (3 M), the current response of Pt/C dropped sharply, while the current response of Fe25-N-C-800 did not change significantly. The consequences prove that Fe25-N-C-800 takes on prominent resistance to the methanol crossover effect.
Figure 7b,d illustrates the electrocatalytic durability of the Fe25-N-C-800 catalyst and Pt/C catalyst. After 28,800 s chronocurrent electrolysis in 0.1 M KOH media, the current density of the Fe25-N-C-800 catalyst dropped to 91% of the initial current, whereas the current density of the Pt/C catalyst was only 82%. In 0.1 M HClO4 media, the current density of the Fe25-N-C-800 catalyst left about 83% of the initial current, while that of Pt/C sharply dropped, leaving only 71% of the initial current. According to previous studies, this is because Pt may dissolve in the electrolyte, aggregate into larger particles, and separate from the carrier, resulting in poor durability in acidic media [50].
Table 3 summarizes the comparison of ORR performance between Fe25-N-C-800 prepared in this work and the recently reported Fe-N-C catalyst in alkaline and acidic electrolyte. The electron transfer number of Fe25-N-C-800 at different potentials was close to 4. Therefore, the oxygen reduction reaction on the Fe25-N-C-800 catalyst followed the efficient four-electron path, that is, the oxygen was completely reduced to water, which proves that the catalyst of our vegetation had effective ORR catalytic activity. At the same time, Table 3 confirms that the durability of the catalyst prepared in this work was superior to other types of Fe-N-C to a certain extent, no matter whether it was under alkaline or acidic electrolyte.
The excellent stability and durability of the Fe25-N-C-800 catalyst perhaps contributed to the fact that Fe nanoparticles were wrapped by amorphous carbon to protect metals from being dissolved. A similar result was observed in previous reports, that is, the encapsulated iron nanoparticles cannot be dissolved in acid [56]. A series of results show that the Fe25-N-C-800 catalyst possesses a certain prospect in the application of fuel cells, according to its satisfactory methanol resistance and durability in both alkaline and acidic media.

4. Conclusions

To sum up, we used surfactants to support Fe nanoparticles on g-C3N4 nanosheets through one-step calcination. Meanwhile, a layer of amorphous carbon was formed on the surface of Fe nanoparticles, thereby preparing an iron-based nanocomposite catalyst. According to a series of physical characteristics, such as SEM, TEM, XRD, and XPS, we proposed that the iron atoms, Fe3C nanoparticles, and Fe-NX active sites produced during the pyrolysis process raised the ORR catalytic activity to some extent. The optimal pyrolysis temperature (800 °C) and iron precursor content (25 mg) were determined by preparing various catalysts. The Fe25-N-C-800 catalyst exhibited comparable catalytic activity to commercial 20 wt.% Pt/C in alkaline electrolyte. Via a series of electrochemical evaluations, it was detected that the initial potential of the Fe25-N-C-800 was 0.925 V vs. RHE, the half-wave potential was 0.864 V vs. RHE, and the number of electron transfers was 3.86. At the same time, its excellent stability and methanol resistance were manifested because of the amorphous carbon protection. In acidic electrolyte, the Fe25-N-C-800 catalyst also had a four-electron transfer ORR pathway and, at the same time, exhibits more excellent methanol tolerance and stability than Pt/C. Therefore, the catalyst prepared for this work can be used as a fuel cell cathode catalyst.

Author Contributions

Data curation, L.J.; formal analysis, X.W.; investigation, L.Z.; resources, B.Z.; validation, D.S. and J.G.; writing—original draft, L.J. and B.Z.; writing—review and editing, H.T.; supervision, H.T. The paper was written by L.J. and B.Z. with contributions from all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the NSFC-Zhejiang Joint Fund for Integration of Industrialization and Diversification (U1809214); the Special Project of Zhejiang Ocean University (2019C21024); the Basic Fund for Colleges and Universities in Zhejiang Province (2019J00005); the Industrial project of public technology research of ZheJiang province science and technology department (LGG18E040001).

Acknowledgments

We thank Liuye Mo, Yingtang Zhou, and Huiqiu Zhang for their help in field measurements and chemical analyses. Comments from Qinhong Wei significantly improved this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, G.; More, K.L.; Johnston, C.M.; Zelenay, P. High-performance electrocatalysts for oxygen reduction derived from polyaniline, iron, and cobalt. Science 2011, 332, 443–447. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Shao, M.; Chang, Q.; Dodelet, J.-P.; Chenitz, R. Recent advances in electrocatalysts for oxygen reduction reaction. Chem. Rev. 2016, 116, 3594–3657. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Cao, R.G.; Lee, J.S.; Liu, M.L. Recent progress in non-precious catalysts for mental-air batteries. Adv. Energy Mater. 2012, 2, 816–829. [Google Scholar] [CrossRef]
  4. Gong, K.; Du, F.; Xia, Z.; Durstock, M.; Dai, L. Nitrogen-doped carbon nanotube arrays with high electrocatalytic activity for oxygen reduction. Science 2009, 323, 760–764. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Yang, M.; Chen, H.; Yang, D.; Gao, Y.; Li, H. Using nitrogen-rich polymeric network and iron (II) acetate as precursors to synthesize highly efficient electrocatalyst for oxygen reduction reaction in alkaline media. J. Power Sources 2016, 307, 152–159. [Google Scholar] [CrossRef]
  6. Jiang, W.-J.; Gu, L.; Li, L.; Zhang, Y.; Zhang, X.; Zhang, L.-J.; Wang, J.-Q.; Hu, J.-S.; Wei, Z.; Wan, L.-J. Understanding the High Activity of Fe-N-C electrocatalysts in oxygen reduction: Fe/Fe3C nanoparticles boost the activity of Fe-Nx. J. Am. Chem. Soc. 2016, 138, 3570–3578. [Google Scholar] [CrossRef]
  7. Cui, X.; Yang, S.; Yan, X.; Leng, J.; Shuang, S.; Ajayan, P.M.; Zhang, Z. Pyridinic-nitrogen-dominated graphene aerogels with Fe-N-C coordination for highly efficient oxygen reduction reaction. Adv. Funct. Mater. 2016, 26, 5708–5717. [Google Scholar] [CrossRef]
  8. Wu, G.; Zelenay, P. Nanostructured nonprecious metal catalysts for oxygen reduction reaction. Accounts Chem. Res. 2013, 46, 1878–1889. [Google Scholar] [CrossRef]
  9. Wu, G.; Santandreu, A.; Kellogg, W.; Gupta, S.; Ogoke, O.; Zhang, H.; Wang, H.-L.; Dai, L. Carbon nanocomposite catalysts for oxygen reduction and evolution reactions: From nitrogen doping to transition-metal addition. Nano Energy 2016, 29, 83–110. [Google Scholar] [CrossRef] [Green Version]
  10. Bezerra, C.W.; Zhang, L.; Lee, K.; Liu, H.; Marques, A.L.; Marques, E.P.; Wang, H.; Zhang, J. A review of Fe-N/C and Co-N/C catalysts for the oxygen reduction reaction. Electrochim. Acta 2008, 53, 4937–4951. [Google Scholar] [CrossRef]
  11. Lin, L.; Zhu, Q.; Xu, A.-W. Noble-Metal-Free Fe-N/C Catalyst for highly efficient oxygen reduction reaction under both alkaline and acidic conditions. J. Am. Chem. Soc. 2014, 136, 11027–11033. [Google Scholar] [CrossRef] [PubMed]
  12. Jasinski, R. A New Fuel Cell Cathode Catalyst. Nat. Cell Biol. 1964, 201, 1212–1213. [Google Scholar] [CrossRef]
  13. Bagotzky, V.; Tarasevich, M.; Radyushkina, K.; Levina, O.; Andrusyova, S. Electrocatalysis of the oxygen reduction process on metal chelates in acid electrolyte. J. Power Sources 1978, 2, 233–240. [Google Scholar] [CrossRef]
  14. Yeager, E. Dioxygen electrocatalysis: Mechanisms in relation to catalyst structure. J. Mol. Catal. 1986, 38, 5–25. [Google Scholar] [CrossRef]
  15. Wu, G.; Johnston, C.M.; Mack, N.H.; Artyushkova, K.; Ferrandon, M.; Nelson, M.; Lezama-Pacheco, J.S.; Conradson, S.D.; More, K.L.; Myers, D.J.; et al. Synthesis-structure-performance correlation for polyaniline-Me-C non-precious metal cathode catalysts for oxygen reduction in fuel cells. J. Mater. Chem. 2011, 21, 11392–11405. [Google Scholar] [CrossRef]
  16. Zhu, Y.; Zhang, B.; Liu, X.; Wang, D.-W.; Su, D.S. Unravelling the Structure of Electrocatalytically Active Fe-N Complexes in Carbon for the Oxygen Reduction Reaction. Angew. Chem. Int. Ed. 2014, 53, 10673–10677. [Google Scholar] [CrossRef]
  17. Kramm, U.I.; Herranz, J.; Larouche, N.; Arruda, T.M.; Lefèvre, M.; Jaouen, F.; Bogdanoff, P.; Fiechter, S.; Abs-Wurmbach, I.; Mukerjee, S.; et al. Structure of the catalytic sites in Fe/N/C-catalysts for O2-reduction in PEM fuel cells. Phys. Chem. Chem. Phys. 2012, 14, 11673–11688. [Google Scholar] [CrossRef]
  18. Wang, X.; Maeda, K.; Thomas, A.; Takanabe, K.; Xin, G.; Carlsson, J.M.; Domen, K.; Antonietti, M. A metal-free polymeric photocatalyst for hydrogen production from water under visible light. Nat. Mater. 2008, 8, 76–80. [Google Scholar] [CrossRef]
  19. Yu, Q.; Guo, S.; Li, X.; Zhang, M. Template free fabrication of porous g-c3n4/graphene hybrid with enhanced photocatalytic capability under visible light. Mater. Technol. 2014, 29, 172–178. [Google Scholar] [CrossRef]
  20. Xu, J.; Wang, Y.; Zhu, Y. Nanoporous graphitic carbon nitride with enhanced photocatalytic performance. Langmuir 2013, 29, 10566–10572. [Google Scholar] [CrossRef]
  21. Yang, M.; Feng, J.; Huang, Q. Influence of mechanical milling on photocatalytic activity of g-C3N4 prepared by heating melamine. J. Wuhan Univ. Technol. Sci. Ed. 2010, 25, 914–918. [Google Scholar] [CrossRef]
  22. Guan, Y.B.; Zhang, S.L.; Lou, X.W. Realization of walnut-shaped particles with macro-/mesoporous open channels through pore architecture manipulation and their use in electrocatalytic oxygen reduction. Angew. Chem. Int. Ed. Engl. 2018, 57. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, D.; Sun, K.; Cheong, W.-C.; Zheng, L.; Zhang, C.; Liu, S.; Cao, X.; Wu, K.; Pan, Y.; Zhuang, Z.; et al. Synergistically interactive pyridinic-N-MoP sites: Identified active centers for enhanced hydrogen evolution in alkaline solution. Angew. Chem. Int. Ed. 2019, 59, 8982–8990. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, Z.; Yan, C.; Robertson, A.W.; Gao, Y.; Ding, J.; Zhang, Y.; Ma, T.; Sun, Z. N-Doping of graphene oxide at low temperature for the oxygen reduction reaction. Chem. Commun. 2017, 53, 873–876. [Google Scholar] [CrossRef] [Green Version]
  25. Hu, Y.; Jensen, J.O.; Zhang, W.; Cleemann, L.N.; Xing, W.; Bjerrum, N.J.; Li, Q. Hollow spheres of iron carbide nanoparticles encased in graphitic layers as oxygen reduction catalysts. Angew. Chem. Int. Ed. 2014, 53, 3675–3679. [Google Scholar] [CrossRef]
  26. Zhang, J.; Chen, J.; Jiang, Y.; Zhou, F.; Wang, G.; Wang, R. Tungsten carbide encapsulated in nitrogen-doped carbon with iron/cobalt carbides electrocatalyst for oxygen reduction reaction. Appl. Surf. Sci. 2016, 389, 157–164. [Google Scholar] [CrossRef]
  27. Zhang, J.; He, D.; Su, H.; Chen, X.; Pan, M.; Mud, S. Porous polyaniline-derived FeNxC/C catalysts with high activity and stability towards oxygen reduction reaction using ferric chloride both as an oxidant and iron source. J. Mater. Chem. A 2014, 2, 1242–1246. [Google Scholar] [CrossRef]
  28. Tian, G.-L.; Zhang, Q.; Zhang, B.; Jin, Y.-G.; Huang, J.; Su, D.S.; Wei, F. Toward full exposure of “Active Sites”: Nanocarbon electrocatalyst with surface enriched nitrogen for superior oxygen reduction and evolution reactivity. Adv. Funct. Mater. 2014, 24, 5956–5961. [Google Scholar] [CrossRef]
  29. He, Y.; Hwang, S.; Cullen, D.A.; Uddin, M.A.; Langhorst, L.; Li, B.; Karakalos, S.; Kropf, A.J.; Wegener, E.C.; Sokolowski, J.; et al. Highly active atomically dispersed CoN4 fuel cell cathode catalysts derived from surfactant-assisted MOFs: Carbon-shell confinement strategy. Energy Environ. Sci. 2019, 12, 250–260. [Google Scholar] [CrossRef]
  30. Lai, L.; Potts, J.R.; Zhan, D.; Wang, L.; Poh, C.K.; Tang, C.; Gong, H.; Shen, Z.; Lin, J.; Ruoff, R.S. Exploration of the active center structure of nitrogen-doped graphene-based catalysts for oxygen reduction reaction. Energy Environ. Sci. 2012, 5, 7936–7942. [Google Scholar] [CrossRef]
  31. Ratso, S.; Kruusenberg, I.; Vikkisk, M.; Joost, U.; Shulga, E.; Kink, I.; Kallio, T.; Tammeveski, K. Highly active nitrogen-doped few-layer graphene/carbon nanotube composite electrocatalyst for oxygen reduction reaction in alkaline media. Carbon 2014, 73, 361–370. [Google Scholar] [CrossRef]
  32. Yang, W.; Liu, X.; Yue, X.; Jia, J.; Guo, S. Bamboo-like carbon nanotube/Fe3C nanoparticle hybrids and their highly efficient catalysis for oxygen reduction. J. Am. Chem. Soc. 2015, 137, 1436–1439. [Google Scholar] [CrossRef] [PubMed]
  33. Rao, C.V.; Cabrera, C.R.; Ishikawa, Y. In search of the active site in nitrogen-doped carbon nanotube electrodes for the oxygen reduction reaction. J. Phys. Chem. Lett. 2010, 1, 2622–2627. [Google Scholar] [CrossRef]
  34. Zhu, C.; Fu, S.; Song, J.; Shi, Q.; Su, D.; Engelhard, M.H.; Li, X.; Xiao, D.; Li, D.; Estevez, L.; et al. Self-assembled Fe-N-doped carbon nanotube aerogels with single-atom catalyst feature as high-efficiency oxygen reduction electrocatalysts. Small 2017, 13, 1603407. [Google Scholar] [CrossRef] [PubMed]
  35. Serov, A.; Artyushkova, K.; Atanassov, P. Fe-N-C Oxygen reduction fuel cell catalyst derived from carbendazim: Synthesis, structure, and reactivity. Adv. Energy Mater. 2014, 4, 919–926. [Google Scholar] [CrossRef]
  36. Gupta, A.; Kumar, A.; Waghmare, U.V.; Hegde, M.S. Origin of activation of lattice oxygen and synergistic interaction in bimetal-ionic Ce0.89Fe0.1Pd0.01O2−δ Catalyst. Chem. Mater. 2009, 21, 4880–4891. [Google Scholar] [CrossRef]
  37. Cao, R.; Thapa, R.; Kim, H.; Xu, X.; Kim, M.G.; Li, Q.; Park, N.; Liu, M.; Cho, J. Promotion of oxygen reduction by a bio-inspired tethered iron phthalocyanine carbon nanotube-based catalyst. Nat. Commun. 2013, 4, 2076. [Google Scholar] [CrossRef] [Green Version]
  38. Kong, H.; Song, J.; Jang, J. One-step fabrication of magnetic γ-Fe2O3/polyrhodanine nanoparticles using in situ chemical oxidation polymerization and their antibacterial properties. Catal. Commun. 2010, 46, 6735–6737. [Google Scholar] [CrossRef]
  39. Maldonado, S.; Stevenson, K.J. Direct preparation of carbon nanofiber electrodes via pyrolysis of iron (II) phthalocyanine: Electrocatalytic aspects for oxygen reduction. J. Phys. Chem. B 2004, 108, 11375–11383. [Google Scholar] [CrossRef]
  40. Wang, Q.; Zhou, Z.-Y.; Lai, Y.-J.; You, Y.; Liu, J.; Wu, X.-L.; Terefe, E.; Chen, C.; Song, L.; Rauf, M.; et al. Phenylenediamine-based FeNx/C catalyst with high activity for oxygen reduction in acid medium and its active-site probing. J. Am. Chem. Soc. 2014, 136, 10882–10885. [Google Scholar] [CrossRef]
  41. Li, J.Z.; Zhang, H.G.; Samarakoon, W.; Shan, W.T.; Karakalos, S.; Chen, M.J.; Gu, D.M.; More, K.L.; Wang, G.F.; Feng, Z.X.; et al. Thermally driven structure and performance evolution of atomically dispersed fen4 sites for oxygen reduction. Angew. Chem. Int. Ed. 2019, 58. [Google Scholar] [CrossRef] [PubMed]
  42. Wu, Z.-Y.; Xu, X.-X.; Hu, B.-C.; Liang, H.-W.; Lin, Y.; Chen, L.-F.; Yu, S. Iron carbide nanoparticles encapsulated in mesoporous Fe-N-doped carbon nanofibers for efficient electrocatalysis. Angew. Chem. 2015, 127, 8297–8301. [Google Scholar] [CrossRef]
  43. Strickland, K.; Miner, E.; Jia, Q.; Tylus, U.; Ramaswamy, N.; Liang, W.; Sougrati, M.-T.; Jaouen, F.; Mukerjee, S. Highly active oxygen reduction non-platinum group metal electrocatalyst without direct metal–nitrogen coordination. Nat. Commun. 2015, 6, 7343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Varnell, J.A.; Tse, E.C.M.; Schulz, C.E.; Fister, T.T.; Haasch, R.T.; Timoshenko, J.; Frenkel, A.I.; Gewirth, A.A. Identification of carbon-encapsulated iron nanoparticles as active species in non-precious metal oxygen reduction catalysts. Nat. Commun. 2016, 7, 12582. [Google Scholar] [CrossRef]
  45. Zitolo, A.; Goellner, V.; Armel, V.; Sougrati, M.-T.; Mineva, T.; Stievano, L.; Fonda, E.; Jaouen, F. Identification of catalytic sites for oxygen reduction in iron-and nitrogen-doped graphene materials. Nat. Mater. 2015, 14, 937–942. [Google Scholar] [CrossRef]
  46. Chung, H.T.; Cullen, D.A.; Higgins, D.; Sneed, B.T.; Holby, E.F.; More, K.L.; Zelenay, P. Direct atomic-level insight into the active sites of a high-performance PGM-free ORR catalyst. Science 2017, 357, 479–484. [Google Scholar] [CrossRef] [Green Version]
  47. Ramaswamy, N.; Tylus, U.; Jia, Q.; Mukerjee, S. Activity descriptor identification for oxygen reduction on nonprecious electrocatalysts: Linking surface science to coordination chemistry. J. Am. Chem. Soc. 2013, 135, 15443–15449. [Google Scholar] [CrossRef]
  48. Lu, Z.; Liu, B.; Dai, W.; Ouyang, L.; Ye, J. Carbon network framework derived iron-nitrogen co-doped carbon nanotubes for enhanced oxygen reduction reaction through metal salt-assisted polymer blowing strategy. Appl. Surf. Sci. 2019, 463, 767–774. [Google Scholar] [CrossRef]
  49. Choi, C.H.; Lim, H.-K.; Chung, M.W.; Chon, G.; Sahraie, N.R.; Altin, A.; Sougrati, M.-T.; Stievano, L.; Oh, H.S.; Park, E.S.; et al. The Achilles’ heel of iron-based catalysts during oxygen reduction in an acidic medium. Energy Environ. Sci. 2018, 11, 3176–3182. [Google Scholar] [CrossRef] [Green Version]
  50. Wang, M.; Yang, W.-H.; Wang, H.-H.; Chen, C.; Zhou, Z.-Y.; Sun, S. Pyrolyzed Fe-N-C Composite as an Efficient Non-precious Metal Catalyst for Oxygen Reduction Reaction in Acidic Medium. ACS Catal. 2014, 4, 3928–3936. [Google Scholar] [CrossRef]
  51. Panomsuwan, G.; Saito, N.; Ishizaki, T. Fe-N-doped carbon-based composite as an efficient and durable electrocatalyst for the oxygen reduction reaction. RSC Adv. 2016, 6, 114553–114559. [Google Scholar] [CrossRef]
  52. Byon, H.R.; Suntivich, J.; Crumlin, E.J.; Shao-Horn, Y. Fe-N-modified multi-walled carbon nanotubes for oxygen reduction reaction in acid. Phys. Chem. Chem. Phys. 2011, 13, 21437–21445. [Google Scholar] [CrossRef] [PubMed]
  53. Liu, B.; Huang, B.; Lin, C.; Ye, J.; Ouyang, L. Porous carbon supported Fe-N-C composite as an efficient electrocatalyst for oxygen reduction reaction in alkaline and acidic media. Appl. Surf. Sci. 2017, 411, 487–493. [Google Scholar] [CrossRef]
  54. Hou, Y.; Huang, T.; Wen, Z.; Mao, S.; Cui, S.; Chen, J. Metal-organic framework-derived nitrogen-doped core-shell-structured porous Fe/Fe3C@C nanoboxes supported on graphene sheets for efficient oxygen reduction reactions. Adv. Energy Mater. 2014, 4, 1220–1225. [Google Scholar] [CrossRef]
  55. Liu, Y.; Li, S.; Li, X.; Mao, L.; Liu, F. Fe-N Co-doped porous carbon derived from ionic liquids as an efficient electrocatalyst for the oxygen reduction reaction. Ind. Eng. Chem. Res. 2018, 57, 15638–15646. [Google Scholar] [CrossRef]
  56. Deng, D.; Yu, L.; Chen, X.; Wang, G.; Jin, L.; Pan, X.; Deng, J.; Sun, G.; Bao, X. Iron encapsulated within pod-like carbon nanotubes for oxygen reduction reaction. Angew. Chem. 2012, 125, 389–393. [Google Scholar] [CrossRef]
Materials 13 04551 g001 550

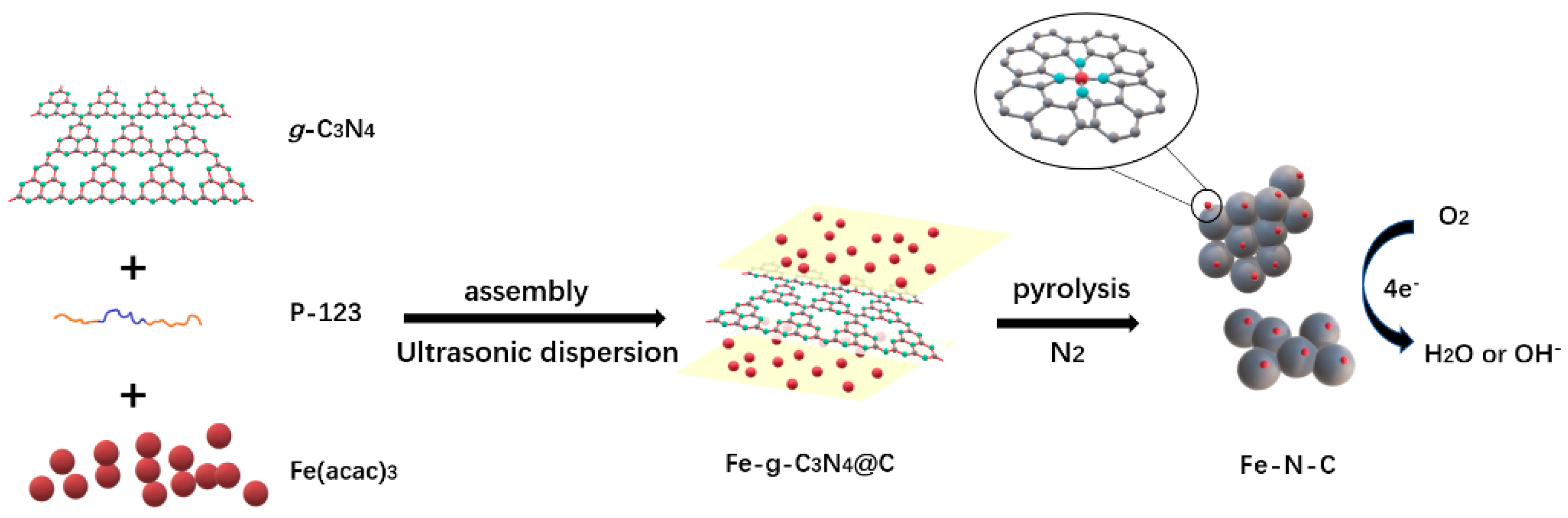

Figure 1. Schematic synthetic strategy.
Figure 1. Schematic synthetic strategy.
Materials 13 04551 g001
Materials 13 04551 g002 550
Figure 2. Characterizations of the Fe25-N-C-800 catalyst. (a,b) SEM images at different magnifications; (b–d) TEM images at different magnifications; (e–h) elemental-mapping images of high-angle annular dark-field (HAADF), iron, carbon, and nitrogen.
Figure 2. Characterizations of the Fe25-N-C-800 catalyst. (a,b) SEM images at different magnifications; (b–d) TEM images at different magnifications; (e–h) elemental-mapping images of high-angle annular dark-field (HAADF), iron, carbon, and nitrogen.
Materials 13 04551 g002
Materials 13 04551 g003 550
Figure 3. (a) XRD of FeX-N-C-800 (X = 0, 5, 25, 50 mg); (b) XPS spectra of Fe25-N-C-Y (Y = 700, 800, 900 °C); (c) XPS C 1s spectra of Fe25-N-C-800; (d) XPS N 1s spectra of Fe25-N-C-800; (e) XPS Fe 2p spectra of Fe25-N-C-800; (f) the relative contributions of the various N configurations estimated from the N 1s spectra of Fe25-N-C-Y catalysts (Y = 700, 800, 900 °C).
Figure 3. (a) XRD of FeX-N-C-800 (X = 0, 5, 25, 50 mg); (b) XPS spectra of Fe25-N-C-Y (Y = 700, 800, 900 °C); (c) XPS C 1s spectra of Fe25-N-C-800; (d) XPS N 1s spectra of Fe25-N-C-800; (e) XPS Fe 2p spectra of Fe25-N-C-800; (f) the relative contributions of the various N configurations estimated from the N 1s spectra of Fe25-N-C-Y catalysts (Y = 700, 800, 900 °C).
Materials 13 04551 g003
Materials 13 04551 g004 550

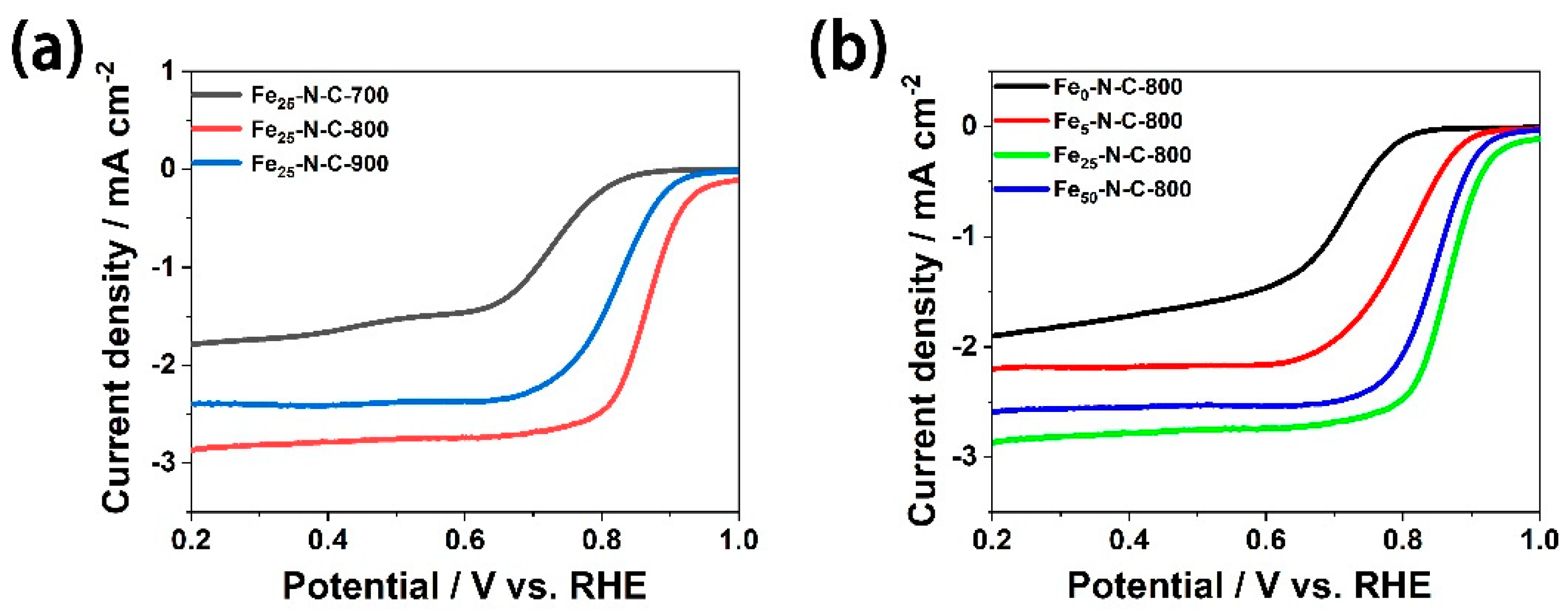

Figure 4. The electrocatalytic behavior in O2-saturated 0.1 M KOH (potassium hydroxide solution) at a scan rate of 10 mV s −1 and a rotation rate of 400 rpm. (a) LSVs of Fe25-N-C-Y (Y = 700, 800, 900 °C); (b) LSVs of FeX-N-C-800 (X = 0, 5, 25, 50 mg).
Figure 4. The electrocatalytic behavior in O2-saturated 0.1 M KOH (potassium hydroxide solution) at a scan rate of 10 mV s −1 and a rotation rate of 400 rpm. (a) LSVs of Fe25-N-C-Y (Y = 700, 800, 900 °C); (b) LSVs of FeX-N-C-800 (X = 0, 5, 25, 50 mg).
Materials 13 04551 g004
Materials 13 04551 g005 550
Figure 5. Characterizations of oxygen reduction reaction (ORR) activity in alkaline medium. (a) The rotating disk electrode (RDE) dates of Fe25-N-C-800 and Pt/C, rotation rate = 400 rpm. ((b) Polarization curves of Fe25-N-C-800 at various rotation rates (increasing from top to bottom); (c) Koutecky–Levich plots of Fe25-N-C-800 and number of electrons transferred (inset) at various potentials (0.2 –0.7 V vs. RHE); (d) Tafel slope plots of Pt/C and FeX-N-C-800 (X = 0, 5, 25, 50 mg) derived from the LSV results.
Figure 5. Characterizations of oxygen reduction reaction (ORR) activity in alkaline medium. (a) The rotating disk electrode (RDE) dates of Fe25-N-C-800 and Pt/C, rotation rate = 400 rpm. ((b) Polarization curves of Fe25-N-C-800 at various rotation rates (increasing from top to bottom); (c) Koutecky–Levich plots of Fe25-N-C-800 and number of electrons transferred (inset) at various potentials (0.2 –0.7 V vs. RHE); (d) Tafel slope plots of Pt/C and FeX-N-C-800 (X = 0, 5, 25, 50 mg) derived from the LSV results.
Materials 13 04551 g005
Materials 13 04551 g006 550

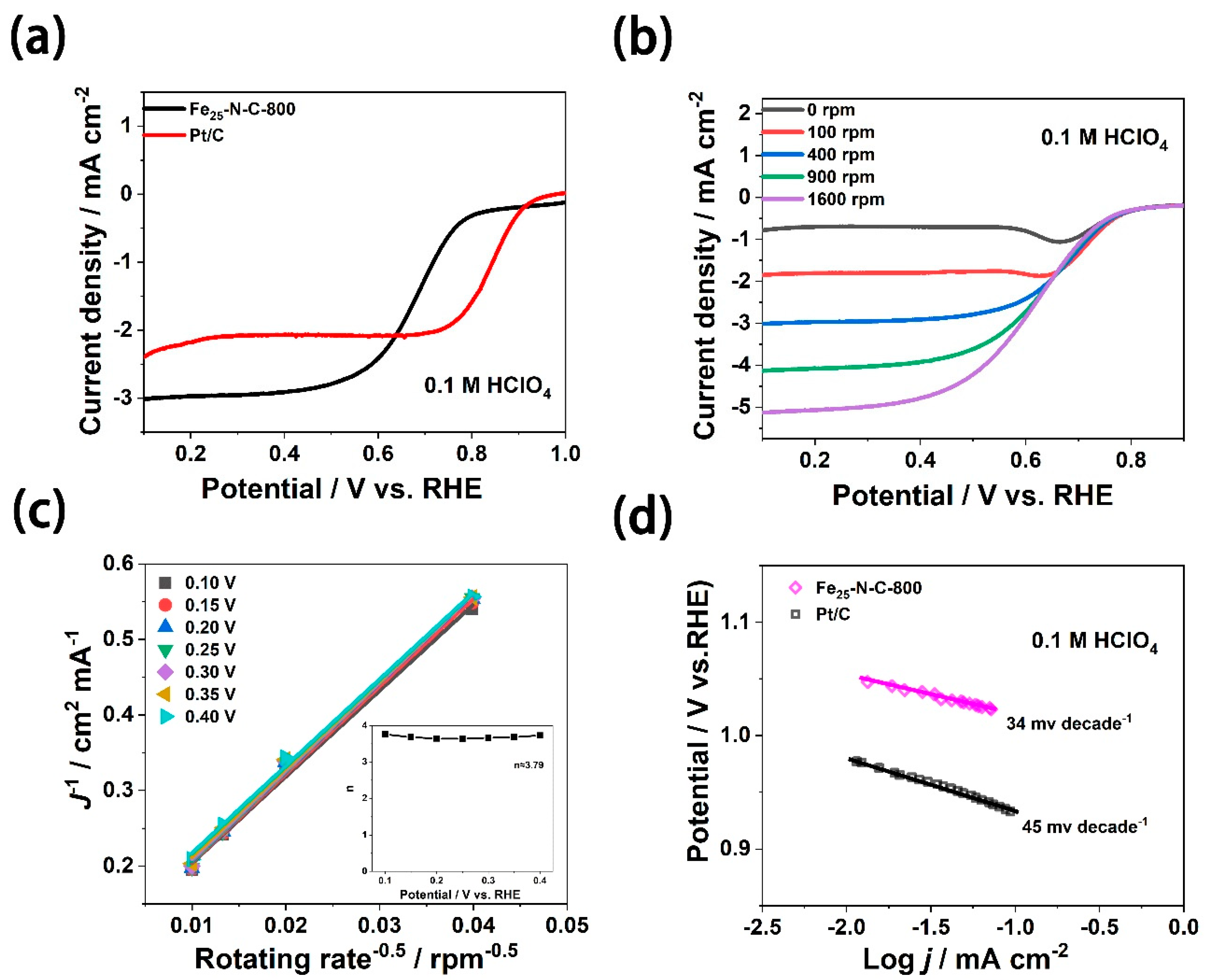

Figure 6. Characterizations of ORR activity in acidic medium. (a) RDE dates of Fe25-N-C-800 and Pt/C, rotation rate = 400 rpm. (b) Polarization curves of Fe25-N-C-800 at various rotation rates (increasing from top to bottom). (c) Koutecky–Levich plots of Fe25-N-C-800 and number of electrons transferred (inset) at various potentials (0.1–0.4 V vs. RHE). (d) Tafel slope plots of Fe25-N-C-800 and Pt/C derived from the LSV results.
Figure 6. Characterizations of ORR activity in acidic medium. (a) RDE dates of Fe25-N-C-800 and Pt/C, rotation rate = 400 rpm. (b) Polarization curves of Fe25-N-C-800 at various rotation rates (increasing from top to bottom). (c) Koutecky–Levich plots of Fe25-N-C-800 and number of electrons transferred (inset) at various potentials (0.1–0.4 V vs. RHE). (d) Tafel slope plots of Fe25-N-C-800 and Pt/C derived from the LSV results.
Materials 13 04551 g006
Materials 13 04551 g007 550

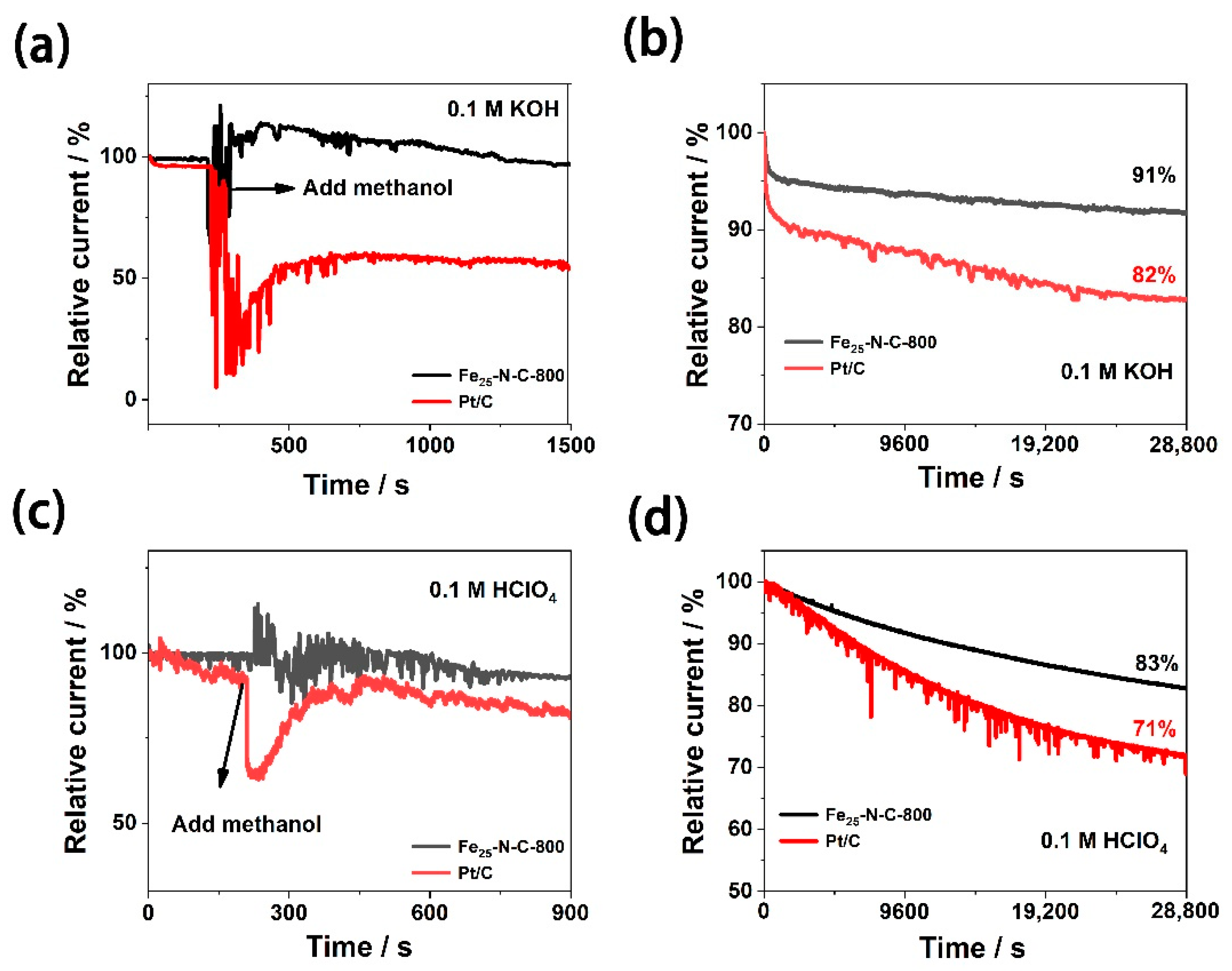

Figure 7. Chronoamperometric responses of Fe25-N-C-800 and commercial 20 wt.% Pt/C electrodes (100 rpm) upon the introduction of 3 M CH3OH (a) in 0.1 M KOH and (c) 0.1 M HClO4. Durability evaluation of Fe25-N-C-800 and Pt/C catalysts for 28,800 s (b) in 0.1 M KOH; (d) 0.1 M HClO4.
Figure 7. Chronoamperometric responses of Fe25-N-C-800 and commercial 20 wt.% Pt/C electrodes (100 rpm) upon the introduction of 3 M CH3OH (a) in 0.1 M KOH and (c) 0.1 M HClO4. Durability evaluation of Fe25-N-C-800 and Pt/C catalysts for 28,800 s (b) in 0.1 M KOH; (d) 0.1 M HClO4.
Materials 13 04551 g007
Table
Table 1. Elemental information of synthesized FeX-N-C-800, analyzed by inductively coupled plasma (ICP).
Table 1. Elemental information of synthesized FeX-N-C-800, analyzed by inductively coupled plasma (ICP).
SamplesWeight (g)Constant Volume (mL)Fe (wt.%)
Fe5-N-C-8000.0227101.18
Fe25-N-C-8000.0248105.35
Fe50-N-C-8000.03111012.65
Table
Table 2. X-ray photoelectron spectroscopy (XPS) element quantification of Fe25-N-C-Y catalysts (Y = 700, 800, 900 °C).
Table 2. X-ray photoelectron spectroscopy (XPS) element quantification of Fe25-N-C-Y catalysts (Y = 700, 800, 900 °C).
SamplesC%N%Fe%
Fe25-N-C-70094.365.220.42
Fe25-N-C-80094.784.590.63
Fe25-N-C-90096.512.481.01
Table
Table 3. Electrochemical performance of different electrocatalysts for ORR.
Table 3. Electrochemical performance of different electrocatalysts for ORR.
SamplesAlkaline ElectrolyteAcidic ElectrolyteReference
Electron Transfer NumberRelative Current (%)/Test TimeElectron Transfer NumberRelative Current (%)/Test Time
Fe25-N-C-8003.80–3.9391%/28,800 s3.74–3.8683%/28,800 sthis work
Fe-N-CNP-CNF3.9186.8%/20,000 s--[51]
Fe-N-MWCNTs--3.360%/86,400 s[52]
Fe-N-CNFs3.9383.3%/20,000 s--[42]
Fe-N-C3.8–3.990%/25,500 s-73%/25,500 s[53]
N-doped Fe/Fe3C@C/RGO3.08–3.5291%/6000 s--[54]
Fe-N/C8003.78–3.8975.64%/7000 s--[55]

Share and Cite

MDPI and ACS Style

Jin, L.; Zhu, B.; Wang, X.; Zhang, L.; Song, D.; Guo, J.; Tao, H. Facile Synthesis of the Amorphous Carbon Coated Fe-N-C Nanocatalyst with Efficient Activity for Oxygen Reduction Reaction in Acidic and Alkaline Media. Materials 2020, 13, 4551. https://doi.org/10.3390/ma13204551

AMA Style

Jin L, Zhu B, Wang X, Zhang L, Song D, Guo J, Tao H. Facile Synthesis of the Amorphous Carbon Coated Fe-N-C Nanocatalyst with Efficient Activity for Oxygen Reduction Reaction in Acidic and Alkaline Media. Materials. 2020; 13(20):4551. https://doi.org/10.3390/ma13204551

Chicago/Turabian Style

Jin, Linglei, Baikang Zhu, Xuesong Wang, Le Zhang, Debin Song, Jian Guo, and Hengcong Tao. 2020. "Facile Synthesis of the Amorphous Carbon Coated Fe-N-C Nanocatalyst with Efficient Activity for Oxygen Reduction Reaction in Acidic and Alkaline Media" Materials 13, no. 20: 4551. https://doi.org/10.3390/ma13204551

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
