Parameters Influencing the Outcome of Additive Manufacturing of Tiny Medical Devices Based on PEEK

Dental Materials and Biomaterial Research, Department of Prosthodontics, School of Dentistry, Charité-University Medicine Berlin, Aßmannshauser Str. 4–6, 14197 Berlin, Germany
Orion Additive Manufacturing GmbH, Gustav-Meyer-Allee 25, 13355 Berlin, Germany
Author to whom correspondence should be addressed.
Materials 2020, 13(2), 466;
Submission received: 1 December 2019 / Revised: 2 January 2020 / Accepted: 14 January 2020 / Published: 18 January 2020
(This article belongs to the Special Issue Biomaterials, Implants and Scaffolds in Additive Manufacturing)


In this review, we discuss the parameters of fused deposition modeling (FDM) technology used in finished parts made from polyether ether ketone (PEEK) and also the possibility of printing small PEEK parts. The published articles reporting on 3D printed PEEK implants were obtained using PubMed and search engines such as Google Scholar including references cited therein. The results indicate that although many have been experiments conducted on PEEK 3D printing, the consensus on a suitable printing parameter combination has not been reached and optimized parameters for printing worth pursuing. The printing of reproducible tiny-sized PEEK parts with high accuracy has proved to be possible in our experiments. Understanding the relationships among material properties, design parameters, and the ultimate performance of finished objects will be the basis for further improvement of the quality of 3D printed medical devices based on PEEK and to expand the polymers applications.

1. Introduction

Polyether ether ketone (PEEK) is one of the most important members of the polyaromatic ether ketone (PAEKs), which is a family of high-performance thermoplastic polymers, consisting of an aromatic backbone molecular chain, interconnected by ketone and ether functional groups [1,2]. The molecular structures of PAEKs contain rigid benzene rings, which makes them resistant to high temperature and chemical attacks. Meanwhile, the ether bonds in the molecular backbone of polyether ketones are responsible for the flexibility of the polymers, giving them the possibility to be processed [2,3]. PEEK owns a melting point (Tm) of 343 °C and the glass transition temperature (Tg) of 143 °C and shows excellent mechanical properties including high strength, elastic modulus, and fracture toughness. PEEK is generally considered a high-performance thermoplastic polymer [4], and is getting increasing attention in the medical field. PEEK was commercialized by the UK company Invibio as a biomaterial for implants in 1998 because it can resist degradation in vivo [5]. Being considered as the leading thermoplastic candidate for replacing metal implant components, PEEK parts such as spine cages and retaining rings for acetabular cup assembly especially have potential in orthopedics [3,6,7] and trauma [8] due to its cortical bone-like elastic modulus.
Many techniques are used for the production of porous PEEK for medical applications. Traditional manufacturing process methods include injection molding, extrusion, compression molding, machining, and so on [9]. Additionally, advancements in additive manufacturing (AM) continue to provide new opportunities for biomedical applications by enabling the creation of more complex architectures, e.g., for tissue engineering scaffolding and patient-personalized implants. The selective laser sintering (SLS) technique was used a decade ago in PEEK 3D printing, which is a type of powder-based AM technology. It is capable of fabricating porous PEEK-based composites with very complex architectures, permitting greater freedom of design [10]. Both 3D systems and EOS have commercialized PEEK in their SLS machines. However, the high cost and concentrated laser beam restrict it from sintering large areas or laminates. Another power-based technique is also applied in PEEK printing. In 2019, Lee et al. [11] reported their efforts toward 3D printing of PEEK by direct-ink writing technology at room temperature, which was enabled by a unique formulation comprised of commercial PEEK powder, soluble epoxy-functionalized PEEK (ePEEK), and fenchone. This combination formed a Bingham plastic that could be extruded using a readily available direct-ink write printer. Besides the techniques mentioned above, fused deposition modeling (FDM) is currently the most widely used 3D printing strategy and low-cost technology for thermoplastic materials [12]. In the FDM process, a filament is extruded from a nozzle continuously while heated to a semiliquid state, then the filament rapidly adheres with the surrounding material and solidifies, and the deposits follow a certain routine to form the desired shape [13]. The schematic of an FDM PEEK printer is showed in Figure 1. Despite a large number of publications on extrusion-based AM of porous structures using other materials than PEEK [14], there are few reports dealing with the AM of small PEEK parts, especially samples without defects such as warpage or delamination.
In this paper, we will discuss the parameters important for the AM applied to PEEK implants, based on current publications as well as our own research. We highlight the influence of process and design parameters on the performance and mechanical properties of small printed PEEK objects.

2. Literature Survey

Literature was obtained using PubMed and search engines such as Google Scholar including references cited therein. All articles included in this review were published within five years before October 2019. We searched for the following terms: “PEEK or Polyether ether ketone” and “3D printing or additive manufacturing” and “parameter”. We excluded review articles, case reports, and articles without detailed information on printing parameters. Only articles in English and that were highly related to PEEK processing parameters using extruded strategy were included.

3. Results

Thirteen articles from twelve different authors are included in our review. The detailed parameters applied in the experiments and mechanical properties of printed samples are summarized in Table 1 and Table 2.
Methods for the characterization of printed PEEK samples are mainly scanning electron microscope (SEM) [15,22,23], 3D scanner [15], differential scanning calorimetry (DSC) [13], and water contact angle measurements [23]. These methods mainly assess the dimensional accuracy, surface roughness, microstructure of interface, and crystalline ratio of printed PEEK objects.
The reviewed articles conducting mechanical tests of 3D printed PEEK show that temperature, raster angle, layer thickness, filling ratio, and printing speed are the main factors influencing the mechanical properties of printed PEEK. The maximal tensile, bending, and compression strength of 3D printed pure PEEK specimens are similar or even better than the reference as seen in Table 2. Carbon-fiber-reinforced PEEK performs as a substitute for traditionally processed PEEK [19,23,26].
According to the literature, understanding the properties of PEEK and the settings of the printer are most important to achieve satisfying results. To expand PEEK application in dentistry, more efforts in exploring parameters need to be made. Based on the theory of Agarwala et al. [27], as well as our own researches, the most concerned parameters for printing small PEEK parts are listed in Figure 2. In the special case of PEEK printing with FDM, the not highly related parameters are either not involved, such as power characteristics and binder characteristics, or of secondary priority for small parts, such as fill pattern and support structure.

4. Discussion

In this part, we talk about the parameter matters for small printed PEEK objects as summarized in the schematic diagram.

4.1. Review of Literature and Printing Parameter Settings

4.1.1. Viscosity and Specific Thermal Properties of PEEK

Some physical characteristics of PEEK related to 3D printing are shown in Table 3. PEEK, as a semi-crystalline polymer, has exceptional properties than other thermoplastic materials regarding its high Tm and Tg. PEEK has crystalline and amorphous domains: the macromolecular chains in the crystalline region align in better order and own stronger intermolecular forces, causing greater strength and rigidity. The macromolecular chains in the amorphous region prefer to intertwine loosely and are easy to be scattered and stretched, showing good extensibility [28]. Generally, thermoplastics need to be heated at least beyond the Tg to be processed. Since reaching glass transition temperature is not enough to break the crystal lattice, the FDM processing temperature used for PEEK printing is far above Tg, when both crystalline and non-crystalline phase are flexible. The detailed temperature for printing is explained in Section 4.1.2.
The coefficient of thermal expansion (CTE) is another factor that has an influence on PEEK printing quality. The CTE of PEEK is 5.5 × 10−5 K−1 below the temperature of 143 °C, and 14.0 × 10−5 K−1 above Tg. Assuming printing a PEEK part with a nozzle temperature of 380 °C, it is divided into two phases, above and below Tg. In the first phase when the material is extruded, it cools down rapidly from 380 °C to ambient temperature. During the first phase, the Δ L /L is 3.3%, which is the linear shrinkage deformation rate of the sample. During the second phase from Tg to room temperature (25 °C), the length deformation variance is 0.6%. Wu et al. [15] reported that the warping deformation using FDM is minimal with a chamber temperature of 130 °C and a nozzle temperature of 350 °C. In their single factor experiment, as the chamber temperature increases from 90 °C to 130 °C, the sample deformation is reduced significantly. Hu et al. [24] reported that they decreased the warpage of PEEK parts’ edge from 20.4% to 5.0% by applying higher chamber temperature, adding a heat collector module, a new heater to the nozzle, and using a PEEK substrate. Dimensional variance should be taken into consideration before printing when setting the dimension compensation parameters. This shrinkage may be tolerable when printing simple shapes, e.g., medical substitutes of mandibular or ribs, when preciseness is not an issue. Regarding small devices with an elaborate design, this imprecision is not acceptable. In conclusion, delicate control of the temperature field in the print area is an important way to reduce deformation and warpage.
Viscosity of the material should also be taken into consideration during the FDM procedure. Wang et al. [29] made a finite element analysis (FEA) of PEEK material in the flow channel of the nozzle to explore reasonable printing temperatures. According to their experiment, the heating temperature of the printing head, wire feeding speed, and diameter of the nozzle are the key parameters influencing the distribution of the temperature field, viscosity field, and pressure field. To summarize from their experiment, higher temperature and slower feeding speed guarantee a longer length of the liquid column in the nozzle (Figure 3), and therefore confirm better processing possibility of the material.

4.1.2. Temperature

Nozzle temperature, plate temperature, chamber/ambient temperature, and cooling methods during PEEK printing have a pronounced influence on the crystallization process and therefore affect the properties of finished objects to a large extent [13].
Suitable nozzle temperature can guarantee sufficient time to heat the PEEK filament. If the nozzle temperature is too low, the PEEK filament is not melted completely, which may lead to nozzle obstruction because of the high viscosity of the material. If the nozzle temperature is too high, chain cleavage might occur and possibly leading to decomposition [15]. Nozzle temperatures have been explored within a range from 340 °C to 480 °C [13,15,16,17,18,20,21,22,23]. Wu et al. [15] found when the nozzle temperature is 350 °C, the warping deformation of PEEK samples is minimal. Vaezi et al. [17] identified nozzle temperatures of 400–430 °C as an applicable range. Nozzle temperatures below 400 °C caused either nozzle clogging or delamination of the final product, and above 430 °C resulted in either considerable filament deformation or material degradation. Hu et al. [24] designed a new heater control nozzle module to improve the temperature uniformity in the printing area. They used 385 °C for nozzle temperature in the experiment and reported samples with less warpage and delamination. Wang et al. [29] came up with the conclusion that considering the printing head design and size of the heating block, the length of the nozzle is recommended to be less than 15 mm, and the applicable temperature for PEEK printing should be in the range between 380 °C to 440 °C. Yang et al. [13] applied 360 °C–480 °C in their experiments and used a gradient of 20 °C. Nozzle temperature was found to be a complicated factor for the PEEK’s crystallinity and mechanical properties. When the nozzle temperature increased from 360 °C to 380 °C, the crystallinity first was reduced from 19% to 16%, which can be explained as an incomplete melting of crystalline regions inside the nozzle with a lower and non-uniform temperature. Then, the crystallinity turned into a moderate growth until a relatively stable value (21%) as the nozzle temperature increased up to 480 °C. Higher crystallinity samples performed better mechanical strength, which is shown in Table 2. To sum up, the quality and characteristics of filaments from different companies may account for the difference between these results. The filaments vary from each other so the most suitable printing temperature needs to be explored before the experiment. Taking the two kinds of filaments we applied in our research as examples, filaments made by Evonik can be printed continuously when nozzle temperature is between 420 and 440 °C, while the suitable temperature range for the Apium filaments is 380–400 °C. The reason lies in the purity of the filament. Possible contamination is the filament could be wax, which is brought in during filament manufacture.
Platform temperature, chamber/ambient temperatures, and cooling methods have a direct or indirect impact on the cooling speed of the samples and sequentially affect the crystallinity of the products. Most of the authors used air cooling as cooling methods, while others also explored different cooling methods such as furnace cooling, quenching, annealing, and tempering. Wu et al. [15] came to the conclusion that 130 °C is the most suitable chamber temperature for PEEK printing, while Hu et al. [24] applied 135 °C as plate temperature. Vaezi et al. [17] identified a plate temperature of 130 °C and an ambient temperature of 80 °C as applicable conditions for an extrusion rate of 2.2 mg/s. Han et al. [23] kept the printed PEEK samples in a furnace for 2 h at 300 °C, and let them cool down at room temperature afterward. When the temperature rises above Tg, there will be a thermodynamic tendency for the polymer to continue to form crystals or to recrystallize [1]. This procedure increased the time for crystalline and may account for the better mechanical performance of the samples. Yang et al. [13] obtained similar results and concluded in their experiment that the higher ambient temperatures would provide more energy and time to improve the crystallinity of PEEK. Furnace and annealing cooling permit samples to stay in temperatures beyond Tg, causing an isothermal crystallization process, in which the amorphous polymer chains have sufficient energy to transform and crystallize to a degree of around 31%, but still less than the typical crystallinity (35%). In contrast, rapid cooling of PEEK samples, such as quenching and tempering methods, can cause warp distortion, caused by uneven crystallization, because the internal stress leads to significant deformation [13]. Basgul et al. [25] conducted experiments on annealing to seek a possible post-processing method for printed PEEK parts as lumbar spinal cages. They observed that the annealing effect increased the cages’ mechanical properties (14% increases in compression strength) printed with slower speed, indicating annealing might enhance the interlayer adhesion under certain printing conditions. They also concluded that annealing can change the structure of the pores but is not able to decrease the undesired porosity formed during the 3D printing process.

4.1.3. Layer Thickness and Printing Speed

The layer thickness plays key roles in determining the dimensional accuracy and the surface roughness of printed parts [30]. The surfaces of printed objects made by AM exhibit ridges caused inherently by the deposition process. Theoretically, if the layer height is small enough, the surface of the specimens will be smooth. However, the typical minimum feature size obtained with an extrusion AM process is in the order of 100 μm [12]. The authors in the reviewed literature applied different layer heights, which are between 0.1 mm and 0.4 mm. The work of Wu et al. [16] showed that optimal mechanical properties were found in samples with a layer thickness of 0.3 mm. Deng et al. [20] demonstrated that an optimal tensile strength and elongation rate can be achieved when the parameter of layer thickness is 0.25 mm, while the optimal elastic modulus is achieved when the layer thickness is 0.2 mm.
Printing speed is another important factor in 3D printing. If the extrusion speed does not match with the printing speed, there will be extra material sticking to the nozzle causing unstable dimensions of the printed specimens. Geng et al. [22] investigated the effects of the extrusion and printing speed on the microstructure and dimensions of an extruded PEEK filament. They performed the experiments with nozzle diameters of 0.4, 0.5, and 0.6 mm and printing speeds from 0.1 to 120 mm/min. They concluded that during the FDM of PEEK, the melt pressure directly affects the surface morphology and extrusion diameter of the filament, and higher melt pressure is beneficial for the reduction of surface defects on the extruded filament. Rahman et al. [18] took a printing speed of 50 mm/s in their experiments while Han et al. [23] applied a printing speed of 40 mm/s in theirs. Deng et al. [20] achieved optimal tensile properties for PEEK specimens when the printing speed was 60 mm/s. According to the results above, we can assume that a reasonable speed value for the printing of PEEK with a 0.4 mm diameter nozzle should lie in the range of 40–80 mm/s.
The fluctuating extrusion force is the main constraint on the stability of the extrusion process [22]. As shown in Figure 4, the effect of viscosity of the material on extrusion, retraction distance (which means the distance of retraction after printing each layer, usually between 1 and 5 mm), and extrusion multiplier should also be taken into consideration. In short, if the volume of the material extruded from the nozzle is not appropriately synchronized with the volume of material needed for deposition, then it would create either an overflow of polymers or defection of structure flaw of finished parts.

4.1.4. Nozzle Diameter and Nozzle Material

To improve the accuracy of the finished parts, reducing the nozzle diameter seems to be a possible way. Simply decreasing the nozzle diameter will more easily cause blocking of the nozzle and cannot solve the problem of low resolution completely. In the reported literature, nozzles with diameters between 0.2 mm and 0.8 mm are generally applied [18,20,22,23,29]. Wang et al. [29] observed that from the enlarged pressure field of the flow channel, extrusion pressure at the outlet of the nozzle is 10 percent of its original value, as it drops from 5.5 × 104 Pa to 0.45 × 104 Pa, and the diameter of nozzle varies from 0.4 mm to 0.8 mm. A larger diameter nozzle can therefore effectively reduce the wire feeding pressure of the extruder and enlarge the printing layer thickness, which may be favorable for the life of the extruder motor but disadvantageous for the surface quality of the finished part.
The key for accurate manipulation is controlling precisely the outflow of the material, which has to be explored as each individual printing depicts the design of finished objects. However, the principal resolution of the printer software is limited; there is no value to improve the file resolution beyond the recognition of achievable stepper motors in extruded AM systems [30].
Commercially, extrusion printing heads for PEEK printing are commonly made of brass or stainless steel [17]. They are widely used because of their excellent heat-conducting property and resistance to high temperatures. However, metals have a trend of thermal dissipation, which results in the inaccuracy of live temperature during the printing process. Therefore, ceramics might be a possible alternative material as nozzle heads. They have a lower coefficient of thermal expansion and maintain the heat within a certain zone better.

4.1.5. Starting Point and Software

The printing routine/toolpath is one of the key design variables in the production of parts via extrusion-based additive processes [30]. However, in all the reviewed literature concerning PEEK printing, this parameter was not been mentioned as one of the key parameters affecting the quality of samples.
To establish a uniform surface, the contour is typically printed around the perimeter of a part. In our experiment, we used two software; one was the printer implemented software and the other was Simplify 3D. When printing a cylinder, samples coded by Simplify 3D software are constructed with reciprocating lines, which means the nozzle is moving clockwise and anticlockwise for one round, and then the printing platform moves up and down to adjust itself for the next layer. On the contrary, software installed in the machine has a different routine. The nozzle moved in one direction all the time, with the platform adjusting its position in the Z-axis almost in the same position. When printing samples with relatively great dimensions—for example, hollow cylinders with an outer radius of 5 mm and a wall thickness of 0.5 mm—there was no significant difference between samples. However, when we reduced the diameter gradually, and approached a radius of 3 mm, the routine used reciprocating lines around one layer had a “V” split line along the starting point (Figure 5). We observed during the printing procedure that the semi-liquid extruded PEEK tended to retract for the starting point because of inner tension; suddenly, a veer of the nozzle dragged the extruded material away. This result may indicate that the back and forth routine has higher requirements for calibration than the mono-directional routine. What is more, we deduce that different slicers may account for this phenomenon, leading to some printing defects in the printing process.
Another interesting phenomenon found in our experiment is that the bottom layers in general have a greater diameter than the upper rim or disk, respectively, resembling an “elephant foot” (Figure 5). This is a popular problem that happened in the FDM strategy. If the bottom layer of the model does not have enough time to cool down during the printing process, then the bottom layer is pressed by the weight of the upper part of the model, which will cause the bottom layer to protrude outward. This situation is more likely to occur especially when the bed temperature setting of the 3D printer is too high. Possible solutions lie in the better calibration of the plate, the fitter distance between the nozzle and plate, as well as a nice setting of plate temperature and cooling fan.

5. Own Experiments

A dental implant made of PEEK has better advantages than titanium ones, as it can reduce the risk of allergy and its similar elastic modulus with bone, therefore it can decrease the stress-shielding phenomenon in the site of surgery. Based on the experiences from the literature survey, it was tried to print a dental implant with an inner and outer structure using a commercially available 3D printer for PEEK from Apium (Karlsruhe, Germany) as well as a printer from Orion (Berlin, Germany).

5.1. Implant Printed with an Apium HPP155 Printer

We printed a magnified dental implant that is almost three times in dimension of a real one, applying the optimal parameters we got from others’ experience as well as our own trials, to explore the possibility of producing a dental implant with the FDM strategy. As we can see from the image (Figure 6), both the inner and outer screw depth of the implant is not acceptable and the porosity of the sample is evident. The detailed parameters for printing are shown in Table 4. The elastic modulus of the sample is 0.89 GPa, which is 25% of Young’s modulus of the molded PEEK (3.6 GPa). Implants with smaller dimensions were also tried but all of them failed. Since there is no matching substitute nozzle with a smaller nozzle diameter for this printer, we tried to print the implant with another printer from Orion, which was more flexible in nozzle and heater settings.

5.2. Implants Printed with Orion Printer

We printed the same dental implant STL file with the second-generation printer of Orion and got better results, as shown in Figure 7. The smallest successfully printed implant is with a width of 3.6 mm and a length of 9.4 mm, which is a little crooked. We got the best specimens with the 0.15 mm nozzle when printing the ×1.2 scale implant, which is acceptable in both the reproducibility and surface quality. The parameters for printing are shown in Table 5. The elastic modulus of the implants is 2.3 ± 0.28 GPa. This value is within the range of the elastic modulus of cancellous bone suitable for implant surgery, which is between 1.5 GPa and 7.9 GPa [31]. However, smaller nozzles will inevitably lead to longer printing time and are easier to be clogged. This may be ignorable at the research phase, but will increase the cost of manufacturing in mass.

6. Conclusions

The patient-orientated therapy model is now drawing efforts to precisely manufactured dental devices and attachments in the dentistry field. Three-dimensional printing is with no doubt an alternative way to accomplish this goal. Considering the great mechanical properties and reliable biocompatibility of PEEK, it has great potential to be used as a substitute for medical devices, and 3D printing strategy offers a promising way of process production and manufacture.
Knowing that for these tests, the last developed machine was not used, we could demonstrate the limits, which drove us to the conclusion that it is necessary to adjust the following parameters. Fr the most widely applied brass nozzle with a diameter of 0.4 mm, its temperature should be maintained within 380 °C–420 °C, the purity of the filament should be taken into consideration, and pre-tests are recommended before the experiment. A constancy of nozzle temperature is better controlled in a range of ±1 degree. Printing speed and retraction speed should be considerately tested considering PEEK types and manufacturers, with the purpose to make the extruded material match with that desired for construction. Further improvement of samples with improved mechanical strength might count on the better solution of 3D printer technology and better manipulation of PEEK.
Until now, the printing of reproducible tiny-sized PEEK parts with high accuracy has proved to be possible in our experiments, which is achieved through optimization of the FDM printing parameters. There is still a long way to go to accomplish the transition from the research phase to 3D printed PEEK manufacturing, and finally to reach the goal of integrating the treatment within clinics. However, this trial might lay a basis for the patient-specialized treatment in the field of dental implantology. Considering the complexity of chewing forces, systematical mechanical tests are needed, and simulation based on finite element analysis is necessary for further research.

Author Contributions

Conceptualization, investigation, and writing—original draft preparation, Y.W.; conceptualization, funding acquisition, project administration, resources, writing—review and editing, and supervision, W.-D.M.; investigation and resources, A.R.; conceptualization, funding acquisition, project administration, writing—review and editing, and supervision, A.S. All authors have read and agreed to the published version of the manuscript.


This research was funded by the China Scholarship Council (CSC), grant number 201706240007.


Thank you for the generous donation of Apium company for the 3D PEEK printer HPP155 and also for the supports of Orion company. Thanks to Dr. Matthias Gabriel for reviewing and editing the manuscript.

Conflicts of Interest

We declare that we do not have any commercial or associative interest that represents a conflict of interest in connection with the work submitted.


  1. Kurtz, S.M. An Overview of PEEK Biomaterials; Elsevier Inc.: Amsterdam, The Netherlands, 2012. [Google Scholar]
  2. Mark, H.F. Encyclopedia of Polymer Science and Technology; John Wiley & Sons: Hoboken, NJ, USA, 2001. [Google Scholar]
  3. Kurtz, S.M.; Devine, J.N. PEEK biomaterials in trauma, orthopedic, and spinal implants. Biomaterials 2007, 28, 4845–4869. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Lu, S.X.; Cebe, P.; Capel, M. Thermal stability and thermal expansion studies of PEEK and related polyimides. Polymer 1996, 37, 2999–3009. [Google Scholar] [CrossRef]
  5. Green, S.; Schlegel, J. A polyaryletherketone biomaterial for use in medical implant applications. In Proceedings of the Polymers for the Medical Industry, Brussels, Belgium, 14–15 May 2001. [Google Scholar]
  6. Liao, K. Performance characterization and modeling of a composite hip prosthesis. Exp. Tech. 1994, 18, 33–38. [Google Scholar] [CrossRef]
  7. Maharaj, G.R.; Jamison, R.D. Intraoperative Impact: Characterization and Laboratory Simulation on Composite Hip Prostheses; Jamison, R.D., Gilbertson, L.N., Eds.; ASTM International: West Conshohocken, PA, USA, 1993. [Google Scholar]
  8. Kelsey, D.J.; Springer, G.S.; Goodman, S.B. Composite Implant for Bone Replacement. J. Compos. Mater. 1997, 31, 1593–1632. [Google Scholar] [CrossRef]
  9. Kurtz, S.M. Synthesis and Processing of PEEK for Surgical Implants; Elsevier Inc.: Amsterdam, The Netherlands, 2012. [Google Scholar]
  10. Schmidt, M.; Pohle, D.; Rechtenwald, T. Selective Laser Sintering of PEEK. CIRP Ann. 2007, 56, 205–208. [Google Scholar] [CrossRef]
  11. Lee, C.-U. Room Temperature Extrusion 3D Printing of Polyether Ether Ketone Using a Stimuli-Responsive Binder. Bull. Am. 2019, 28, 430–438. [Google Scholar] [CrossRef]
  12. Turner, B.N.; Strong, R.; Gold, S.A. A review of melt extrusion additive manufacturing processes: I. Process design and modeling. Rapid Prototyp. J. 2014, 20, 192–204. [Google Scholar] [CrossRef]
  13. Yang, C.; Tian, X.; Li, D.; Cao, Y.; Zhao, F.; Shi, C. Influence of thermal processing conditions in 3D printing on the crystallinity and mechanical properties of PEEK material. J. Mater. Process. Technol. 2017, 248, 1–7. [Google Scholar] [CrossRef]
  14. Dawood, A.; Marti, B.M.; Sauret-Jackson, V.; Darwood, A. 3D printing in dentistry. Br. Dent. J. 2015, 219, 521–529. [Google Scholar] [CrossRef]
  15. Wu, W.Z.; Geng, P.; Zhao, J.; Zhang, Y.; Rosen, D.W.; Zhang, H.B. Manufacture and thermal deformation analysis of semicrystalline polymer polyether ether ketone by 3D printing. Mater. Res. Innov. 2014, 18, S5-12–S5-16. [Google Scholar] [CrossRef]
  16. Wu, W.; Geng, P.; Li, G.; Zhao, D.; Zhang, H.; Zhao, J. Influence of layer thickness and raster angle on the mechanical properties of 3D-printed PEEK and a comparative mechanical study between PEEK and ABS. Materials 2015, 8, 5834–5846. [Google Scholar] [CrossRef] [PubMed]
  17. Vaezi, M.; Yang, S. Extrusion-based additive manufacturing of PEEK for biomedical applications. Virtual Phys. Prototyp. 2015, 10, 123–135. [Google Scholar] [CrossRef]
  18. Rahman, K.M.; Letcher, T.; Reese, R. Mechanical Properties of Additively Manufactured PEEK Components Using Fused Filament Fabrication; V02AT02A009; American Society of Mechanical Engineers: New York, NY, USA, 2016. [Google Scholar]
  19. Berretta, S.; Davies, R.; Shyng, Y.T.; Wang, Y.; Ghita, O. Fused Deposition Modelling of high temperature polymers: Exploring CNT PEEK composites. Polym. Test. 2017, 63, 251–262. [Google Scholar] [CrossRef]
  20. Deng, X.; Zeng, Z.; Peng, B.; Yan, S.; Ke, W. Mechanical properties optimization of poly-ether-ether-ketone via fused deposition modeling. Materials 2018, 11, 216. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Cicala, G.; Latteri, A.; Recca, G.; Lo Russo, A.; Farè, S.; Del Curto, B. Engineering Thermoplastics for Additive Manufacturing: A Critical Perspective with Experimental Evidence to Support Functional Applications. J. Appl. Biomater. Funct. Mater. 2018, 15, 10–18. [Google Scholar] [CrossRef] [Green Version]
  22. Geng, P.; Zhao, J.; Wu, W.; Ye, W.; Wang, Y.; Wang, S.; Zhang, S. Effects of extrusion speed and printing speed on the 3D printing stability of extruded PEEK filament. J. Manuf. Process. 2019, 37, 266–273. [Google Scholar] [CrossRef]
  23. Han, X.; Yang, D.; Yang, C.; Spintzyk, S.; Scheideler, L.; Li, P.; Li, D.; Geis-Gerstorfer, J.; Rupp, F. Carbon Fiber Reinforced PEEK Composites Based on 3D-Printing Technology for Orthopedic and Dental Applications. J. Clin. Med. 2019, 8, 240. [Google Scholar] [CrossRef] [Green Version]
  24. Hu, B.; Duan, X.; Xing, Z.; Xu, Z.; Du, C.; Zhou, H.; Chen, R.; Shan, B. Improved design of fused deposition modeling equipment for 3D printing of high-performance PEEK parts. Mech. Mater. 2019, 137, 103139. [Google Scholar] [CrossRef]
  25. Basgul, C.; Yu, T.; MacDonald, D.W.; Siskey, R.; Marcolongo, M.; Kurtz, S.M. Does annealing improve the interlayer adhesion and structural integrity of FFF 3D printed PEEK lumbar spinal cages? J. Mech. Behav. Biomed. Mater. 2020, 102, 103455. [Google Scholar] [CrossRef]
  26. Li, Q.; Zhao, W.; Li, Y.; Yang, W.; Wang, G. Flexural properties and fracture behavior of CF/PEEK in orthogonal building orientation by FDM: Microstructure and mechanism. Polymers 2019, 11, 656. [Google Scholar] [CrossRef] [Green Version]
  27. Agarwala, M.K.; Jamalabad, V.R.; Langrana, N.A.; Safari, A.; Whalen, P.J.; Danforth, S.C.; Agarwala, M.K.; Jamalabad, V.R.; Langrana, N.A.; Safari, A.; et al. Structural quality of parts processed by fused deposition. Rapid Prototyp. J. 1996, 2, 4–19. [Google Scholar] [CrossRef]
  28. Mark, J.E. Physical Properties of Polymers Handbook; Springer: New York, NY, USA, 2007. [Google Scholar]
  29. Wang, P.; Zou, B.; Xiao, H.; Ding, S.; Huang, C. Effects of printing parameters of fused deposition modeling on mechanical properties, surface quality, and microstructure of PEEK. J. Mater. Process. Technol. 2019, 271, 62–74. [Google Scholar] [CrossRef]
  30. Turner, B.N.; Gold, S.A. A review of melt extrusion additive manufacturing processes: II. Materials, dimensional accuracy, and surface roughness. Rapid Prototyp. J. 2015, 21, 250–261. [Google Scholar] [CrossRef]
  31. Cook, S.D.; Klawitter, J.J.; Weinstein, A.M. The influence of implant elastic modulus on the stress distribution around LTI carbon and aluminum oxide dental implants. J. Biomed. Mater. Res. 1981, 15, 879–887. [Google Scholar] [CrossRef]

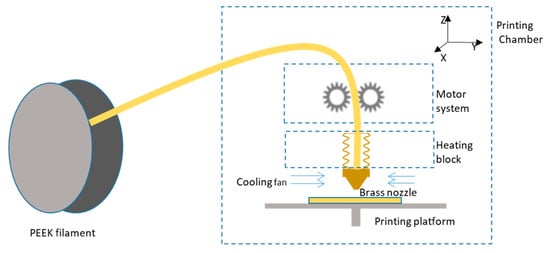

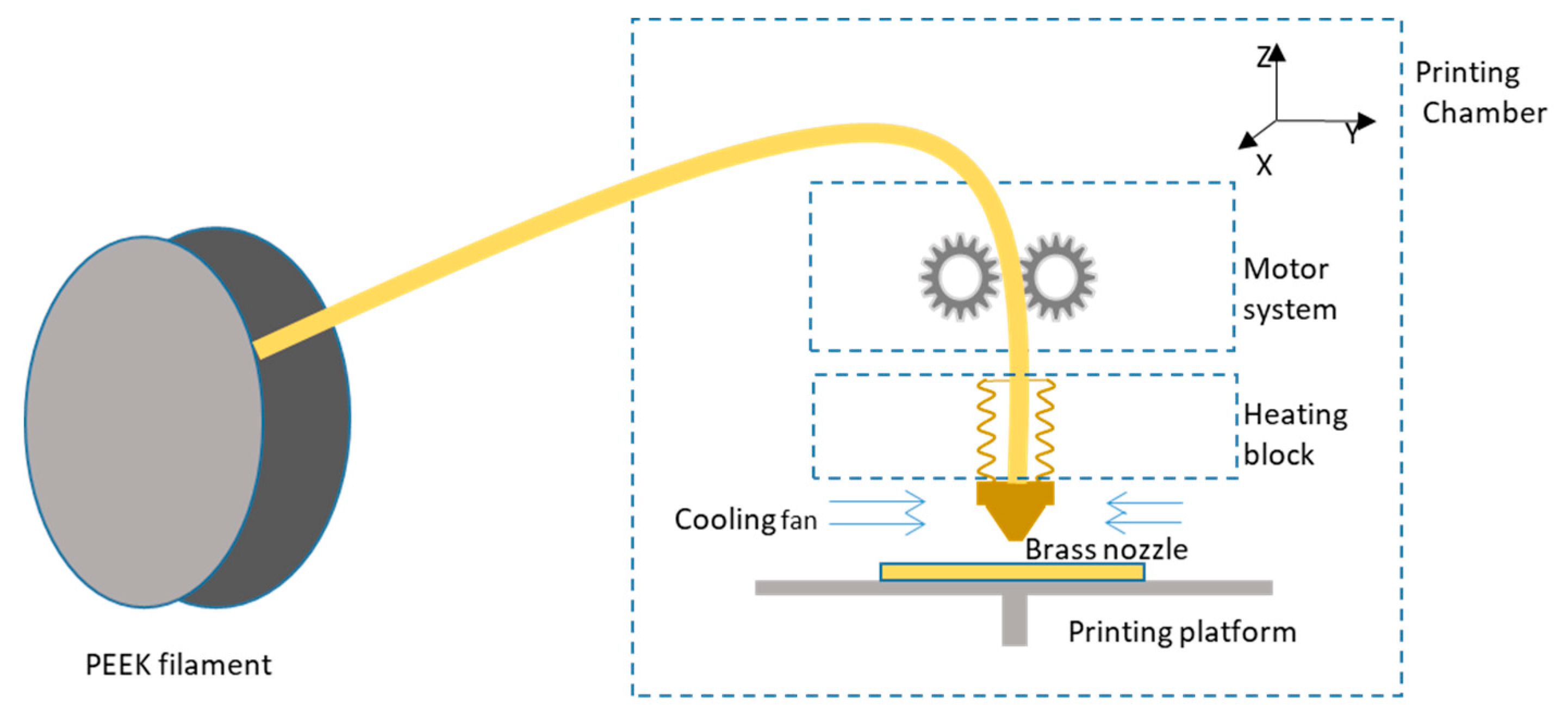

Figure 1. Schematic diagram of fused deposition modeling (FDM) 3D polyether ether ketone (PEEK) printer.
Figure 1. Schematic diagram of fused deposition modeling (FDM) 3D polyether ether ketone (PEEK) printer.
Materials 13 00466 g001

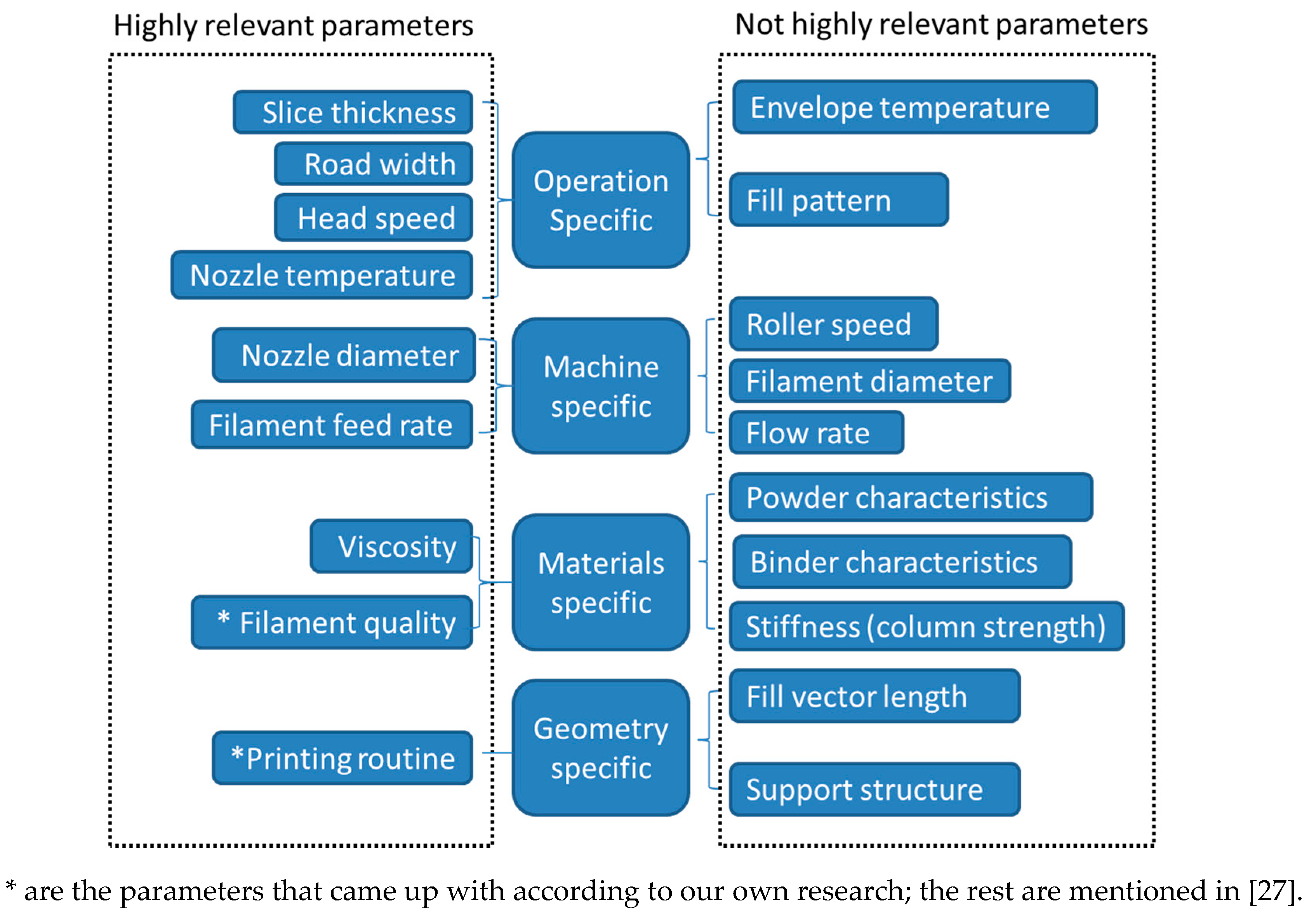

Figure 2. Schematic diagram of parameters that have effects on small PEEK parts made from FDM [27].
Figure 2. Schematic diagram of parameters that have effects on small PEEK parts made from FDM [27].
Materials 13 00466 g002

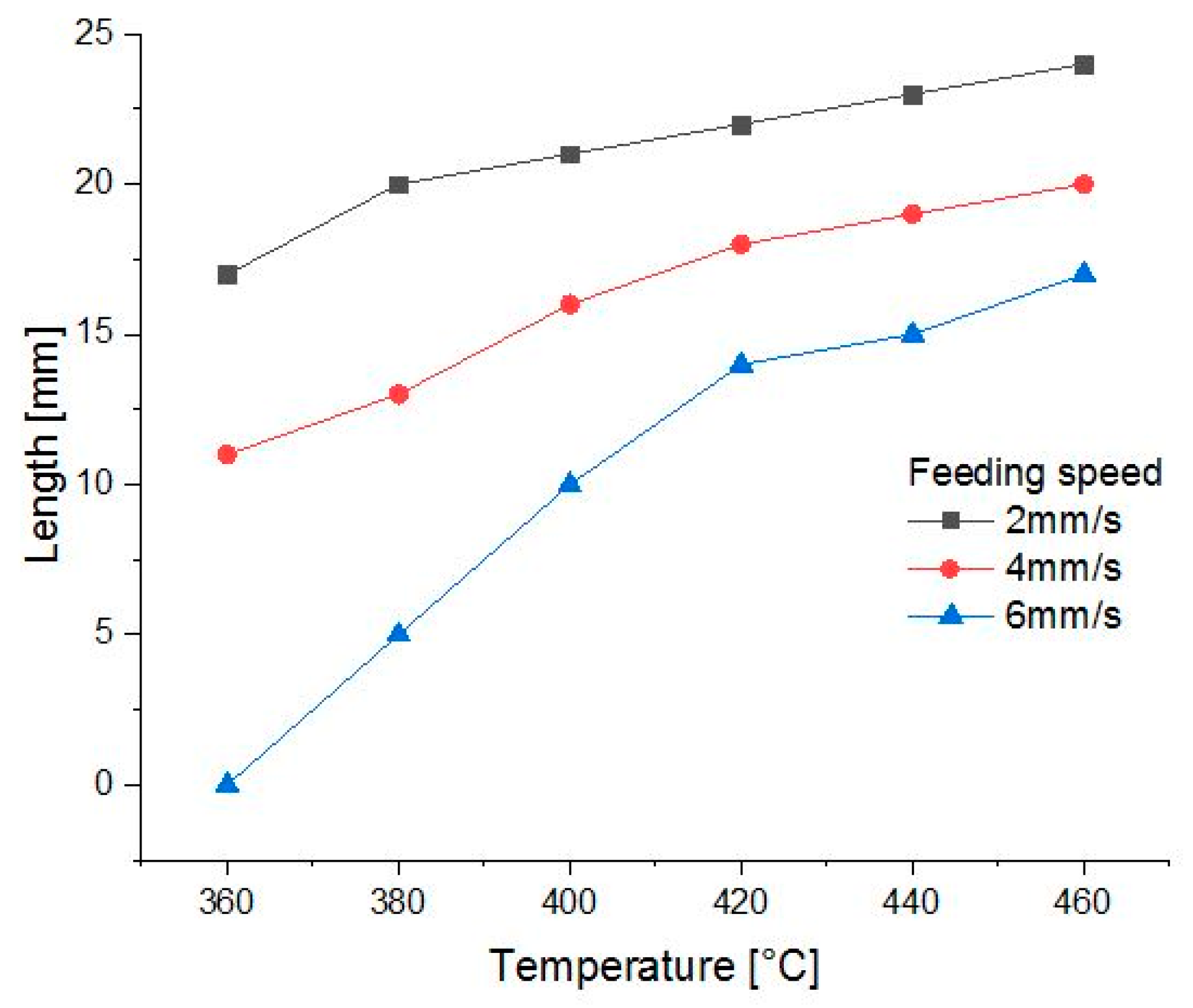

Figure 3. Length of the liquid column in the nozzle with diameter of 0.8 mm using the data from Wang et al. [29].
Figure 3. Length of the liquid column in the nozzle with diameter of 0.8 mm using the data from Wang et al. [29].
Materials 13 00466 g003

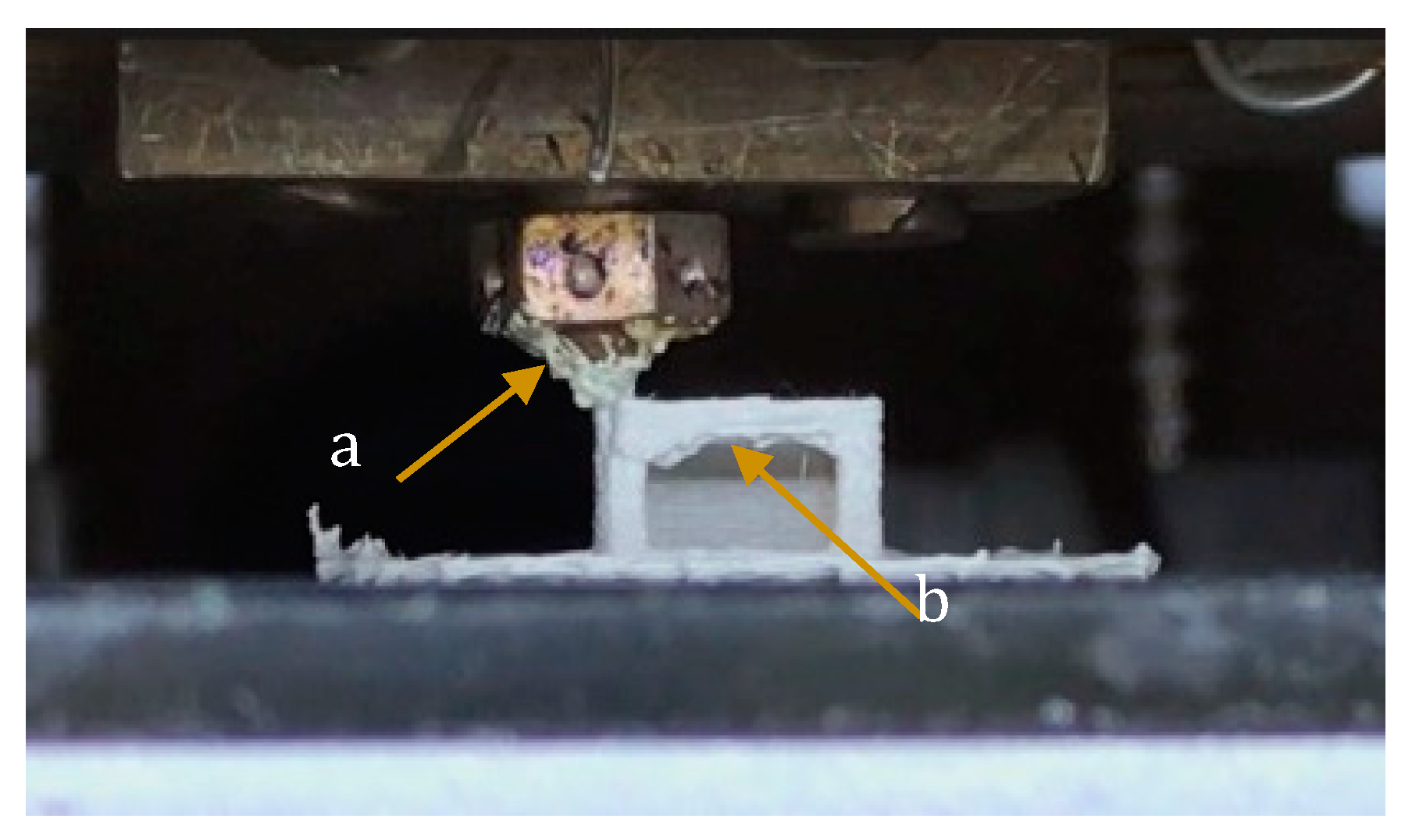

Figure 4. A shot of the 3D printer in the processing of DC4430 PEEK. (a) The residual material sticking to the nozzle. (b) The structure defect of sample.
Figure 4. A shot of the 3D printer in the processing of DC4430 PEEK. (a) The residual material sticking to the nozzle. (b) The structure defect of sample.
Materials 13 00466 g004

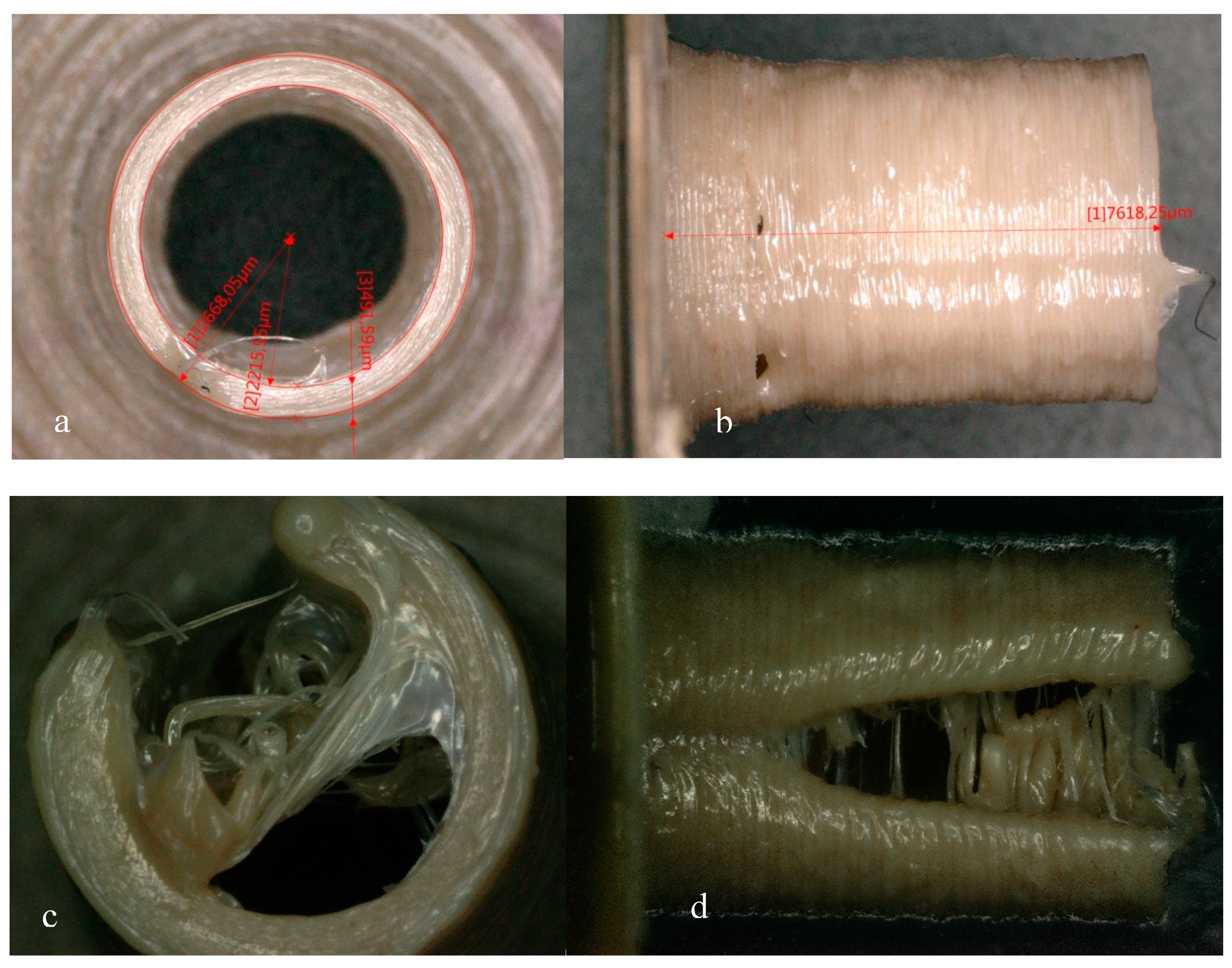

Figure 5. Barrels printed with radius of 3 mm and wall thickness of 0.5 mm by Apium HPP155 with two software. (a,b) Samples printed by software installed in the printer, and (c,d) are printed by Simplify 3D, respectively.
Figure 5. Barrels printed with radius of 3 mm and wall thickness of 0.5 mm by Apium HPP155 with two software. (a,b) Samples printed by software installed in the printer, and (c,d) are printed by Simplify 3D, respectively.
Materials 13 00466 g005

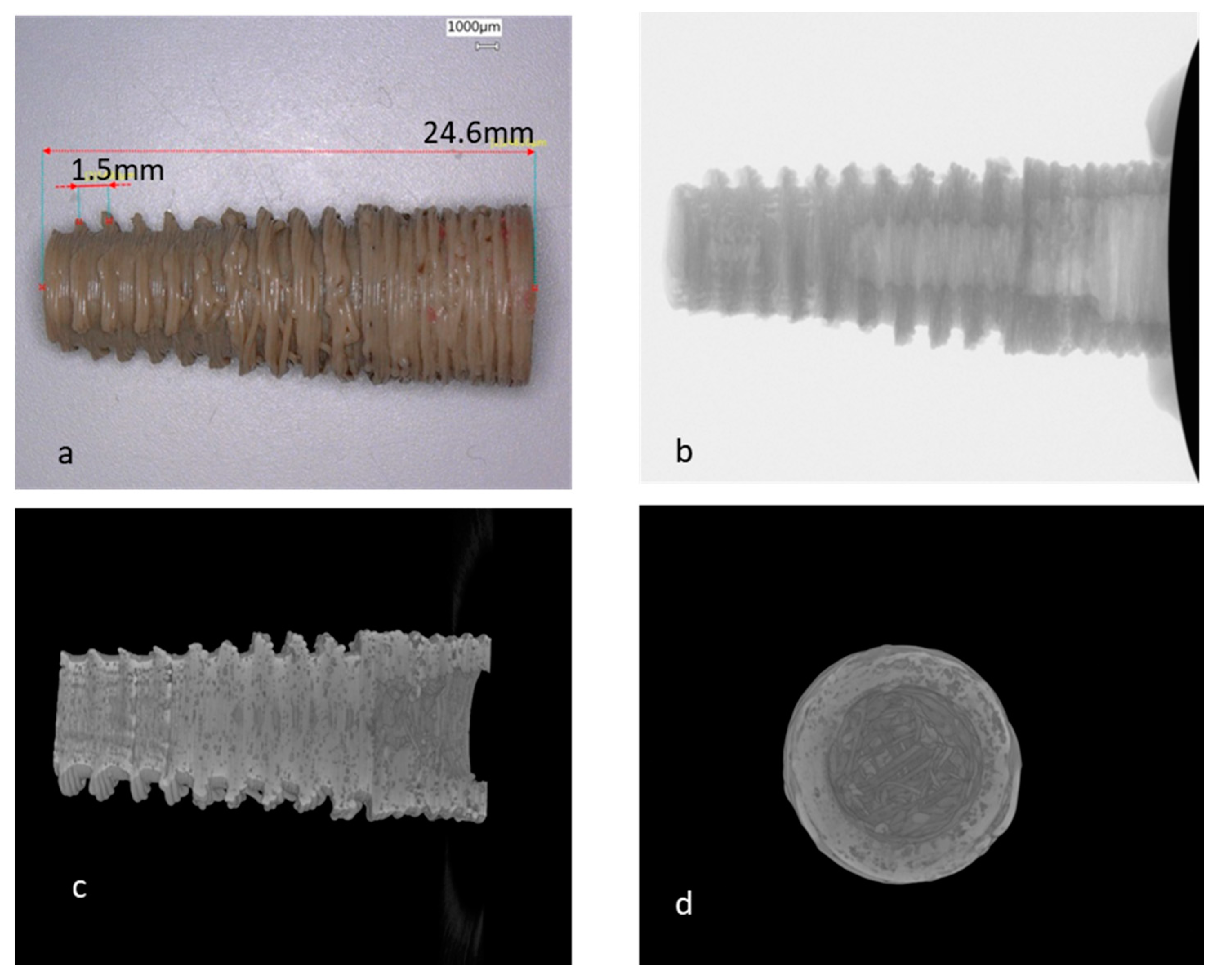

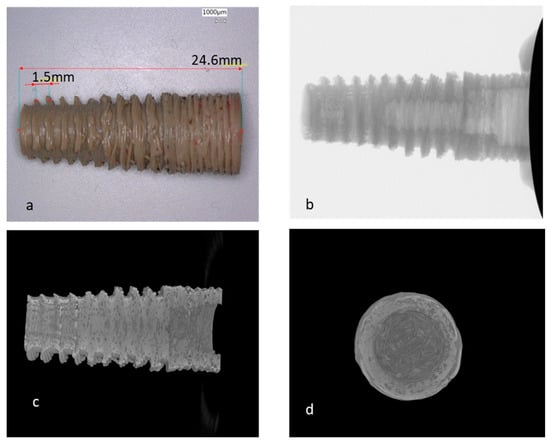

Figure 6. CT of a magnified dental implant produced with Apium HPP155 ((a) is the printed implant, (bd) are micro CTs of the sample).
Figure 6. CT of a magnified dental implant produced with Apium HPP155 ((a) is the printed implant, (bd) are micro CTs of the sample).
Materials 13 00466 g006

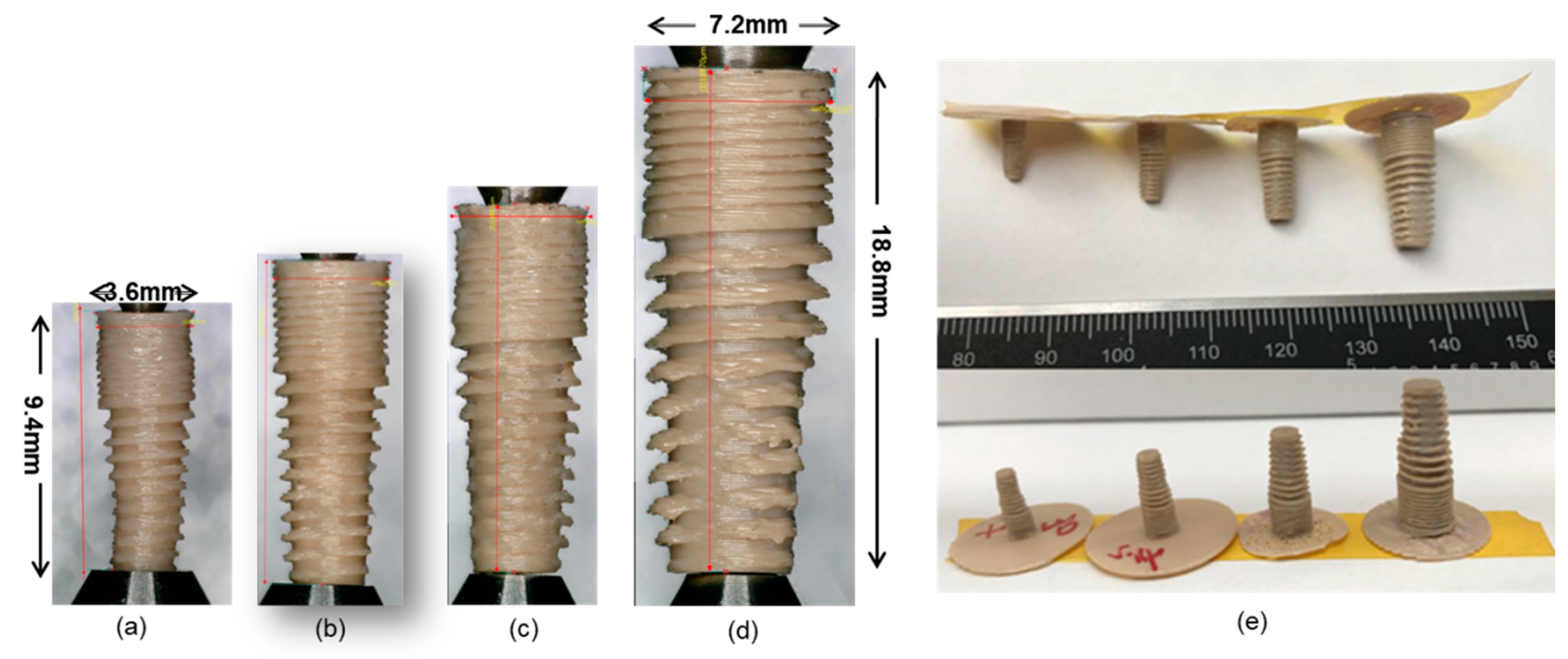

Figure 7. Dental implants printed with Orion Generation 2 ((bd) are ×1.2, ×1.5, and ×2 scale of a separately; (a,b) are printed with a 0.15 mm nozzle at the temperature of 405 °C; (c) is printed with a 0.2 mm nozzle at a temperature of 390 °C; (d) is printed with a 0.4 mm nozzle at a temperature of 390 °C, (e) is the group photo of the above samples).
Figure 7. Dental implants printed with Orion Generation 2 ((bd) are ×1.2, ×1.5, and ×2 scale of a separately; (a,b) are printed with a 0.15 mm nozzle at the temperature of 405 °C; (c) is printed with a 0.2 mm nozzle at a temperature of 390 °C; (d) is printed with a 0.4 mm nozzle at a temperature of 390 °C, (e) is the group photo of the above samples).
Materials 13 00466 g007
Table 1. Summary of articles discussing printing parameters and results.
Table 1. Summary of articles discussing printing parameters and results.
AuthorYear of PublicationMaterialsPrinting SystemParametersDetailsCharacterization Techniques
Wu et al. [15]2014Unfilled PEEKCustom-made PEEK 3D printing systemDesiccation130 °C for 8 hSEM; 3D scanner
Nozzle temperature340 °C–360 °C
Chamber temperature90 °C–130 °C
Wu et al. [16]2015Unfilled PEEK and ABS plusTM-P430Custom-made PEEK 3D printing systemLayer thickness0.2, 0.3, 0.4 mmTensile, bending, and compressive test
Raster angle0°, 30°, 45°
Vaezi et al. [17]2015PEEK OPTIMA LT3 power (Invibo) and Victrex® PEEK 450 G filamentSyringe-based and filament-based extrusion systemDesiccation150 °C for 3 hTensile test, three-point flexural test and compressive test
Nozzle materialBrass and stainless steel
Nozzle temperature350–450 °C
Plate temperature100 °C
Ambient temperature80 °C
Layer thickness0.2 mm
Rahman et al. [18]2016A proprietary PEEK formulation from Arevo LabsArevo Labs 3D printerNozzle temperature340 °CTensile, compression, flexural, and impact testing
Platform temperature230 °C
Nozzle diameterApprox. 0.2 mm
Printing speed50 mm/s
Infill ratio100%
Layer height0.25 mm
Raster orientation 0°, 90°
Yang et al. [13]2017PEEK filament reprocessed from the PEEK pellets (450 G, VICTREX Corp. in UK)Temperature-control 3D printing systemNozzle temperature360, 380, 400, 420, 440, 460, 480Tensile test, DSC
Ambient temperature25, 50, 100, 150, 200
Heat treatment methodsAir cooling, furnace cooling, quenching, annealing, tempering
Other parametersNozzle diameter = 0.4 mm; layer thickness = 0.2 mm; printing speed = 40 mm/s; raster angle—consistent with longest edge
Berretta et al. [19]2017PEEK 450, 1% CNT PEEK 450 and 5% CNT PEEK 450 (filaments diameter = 2.7 ± 0.3 mm)A MendleMax v2.0 (Maker’s Tool Works)Desiccation150 °C for 5 hTensile test, short beam shear stress test, SEM, TEM, CT, DSC
Nozzle temperature350, 365, 380 °C
Layer height0.2 mm
Deng et al. [20]2018PEEK-1000 barCustom-built FDM equipmentPrinting temperature350–370 °CTensile, impact, and three-point bending test
Layer thickness0.2, 0.25, 0.3 mm
Printing speed20, 40, 60 mm/s
Filling ratio20%, 40%, 60%
Cicala et al. [21]2018Industrial-grade PEEK (Luvocomm, Hamburg, Germany) and PCRoboze one 400+ (Roboze, Bari, Italy) Stratasys Fortus® 400 mcDesiccation140 °C for 48 h (pellet) Tensile test
Other parametersNozzle temperature = 420 °C; bed temperature = 110 °C; layer height = 0.1 mm; print speed = 20 mm/s; infill = 75%
Geng et al. [22]2019PEEK 450 G VICTREX®Self-made PEEK 3D printing systemDesiccation120 °C for 12 hSurface morphology
Nozzle diameter0.4, 0.5, 0.6 mm
Nozzle temperature360 °C
Extrusion speed0.1 to 120 mm/min
Han et al. [23]2019Pure PEEK and carbon-fiber-reinforced PEEK (CFR-PEEK)3D printer (Jugao-AM Tech. Corp, Xian, China)Surface modificationUntreated, polished, sandblasted① Mechanical characterization—tensile, bending, and compressive tests; ② Biological tests—cytotoxicity and cell adhesion test; ③ SEM, surface topography, water contact angle
Furnace cooling down300 °C for 2 h in furnace then under room temperature
Other parametersNozzle diameter = 0.4 mm; nozzle temperature = 420 °C; ambient temperature = 20 °C; layer thickness = 0.2 mm; printing speed = 40 mm/s; raster angle—consistent with the longest edge
Hu et al. [24]2019PEEK filament (Sting3D Technology Co. Ltd.)Modified printer from Speedy Maker CompanyRaster angleTensile and bending samples—consistent with longest edge; warpage sample—45°Warpage measurement, tensile test, and bending test
Other parametersNozzle temperature = 385 °C; nozzle diameter = 0.4 mm; layer thickness = 0.1 mm; printing speed = 25 mm/s; infill ratio = 100%
Basgul et al. [25]2019PEEK OPTIMA™ LT1 (Invibio Biomaterial Solutions Ltd., Thornton Cleveleys, UK) Indmatec HPP 155/Gen2: Apium Additive Technologies GmbH, Karhlsruhe, GermanyPrinting speed1500, 2000 mm/minCompression, compression-shear, and torsion tests
Annealing temperature200, 300 °C
Other parametersNozzle diameter = 0.4 mm; nozzle temperature = 390–410 °C; bed temperature = 100 °C; layer thickness = 0.1 mm; infill pattern-rectangle; infill ratio = 100%
Li et al. [26]2019PEEK (grade: ZYPEEK 550 G)FUNMAT HT FDM 3D printer (INTAMSYS, Shanghai, China)ParametersNozzle diameter = 0.4 mmFlexural and bending test, DSC, and X-ray μ-CT
Nozzle temperature = 400 °C
Ambient temperature = 90 °C
Platform temperature = 160 °C
Nozzle moving speed = 15 mm/s
Layer thickness = 0.1 mm
Raster angle = +45°/−45°
Air gap = 0.18 mm
Table 2. Influence of PEEK processing parameters on mechanical properties.
Table 2. Influence of PEEK processing parameters on mechanical properties.
AuthorYearMost Significant ParametersTensile TestBending TestCompression Test
Tensile StrengthTensile ModulusBending StrengthBending ModulusCompressive StrengthCompression Modulus
Wu et al. [16]2015Layer thickness = 300 μm, raster angle = 0/90°56.60 56.10 60.90
Vaezi et al. [17]2015100% infill rate PEEK75.06
/ 132.372.43102.38
Rahman et al. [18]2016Infill = 100%; layer height = 0.25 mm; extruder temperature = 340 °C; platform temperature = 230 °C; printing speed = 50 mm/s; raster angle = 0°73.002.6–2.8111.701.8–1.980.902.00
Yang et al. [13]2017Nozzle temperature = 420 °C59.003.10
Cooling method—annealing81.503.90
Ambient temperature = 150 °C85.003.90
Berretta et al. [19]2017PEEK 450 G (380 °C)90.00
1% CNT PEEK 450 G (365 °C)90.00
5% CNT PEEK 450 G (350 °C)94.00
Cicala et al. [21]2018/69.04 ± 7.013.53 ± 0.01
Deng et al. [20]2018Printing speed = 60 mm/s; layer thickness = 0.25 mm; printing temperature = 370 °C; filling rate = 60%40 ± 4.40.50
Han et al. [23]2019PEEK95.21 ± 1.863.79 ± 0.27140.83 ± 1.973.56 ± 0.13138.63 ± 2.692.79 ± 0.11
CFR-PEEK101.41 ± 4.237.37 ± 1.22159.25 ± 13.545.41 ± 0.51137.11 ± 3.433.51 ± 2.12
Li et al. [26]2019PEEK 146 ± 3.33.44 ± 0.05
CF-PEEK 146 ± 4.23.74 ± 0.09
Hu et al. [24]2019PEEK74.701.15120.201.15
Reference/VICTREX® PEEK 450 G molded PEEK98.004.00165.003.80125.003.80
Table 3. Some performance of unfilled PEEK important for 3D printing.
Table 3. Some performance of unfilled PEEK important for 3D printing.
Performance Testing Method/StandardValueReference
DensityCrystallineASTM D7921.32 g/cm−3[1]
Typical crystalline ratio N/A35%[13]
Melting temperature (Tm) DSC343 °C[1]
Glass transition temperature (Tg) DSC143 °C[1]
Coefficient of thermal expansion (CTE)<TgASTM D6965.5 × 10−5 K−1VICTREX®
>Tg14.0 × 10−5 K−1
Heat deflection temperature (HDT) ASTM D648152 °CVICTREX®
Table 4. The parameters used for dental implant printed with Apium HPP155 printer.
Table 4. The parameters used for dental implant printed with Apium HPP155 printer.
Filament diameter1.75 mm
Nozzle diameter0.4 mm
Nozzle temperature395 °C
Printing speed13 mm/s
Layer thickness0.1 mm
SlicerMachine-installed slicer
Table 5. The parameters used for a ×1.2 scale dental implant printed with the second-generation printer of Orion.
Table 5. The parameters used for a ×1.2 scale dental implant printed with the second-generation printer of Orion.
Filament diameter1.75 mm
Nozzle diameter0.15 mm
Nozzle temperature405 °C
Chamber temperature250 °C
Plate temperature250 °C
Layer heater200 °C
Printing speed400 mm/min
Layer thickness0.05 mm
SlicerSimplify 3D
Printing time49 m 12 s

Share and Cite

MDPI and ACS Style

Wang, Y.; Müller, W.-D.; Rumjahn, A.; Schwitalla, A. Parameters Influencing the Outcome of Additive Manufacturing of Tiny Medical Devices Based on PEEK. Materials 2020, 13, 466.

AMA Style

Wang Y, Müller W-D, Rumjahn A, Schwitalla A. Parameters Influencing the Outcome of Additive Manufacturing of Tiny Medical Devices Based on PEEK. Materials. 2020; 13(2):466.

Chicago/Turabian Style

Wang, Yiqiao, Wolf-Dieter Müller, Adam Rumjahn, and Andreas Schwitalla. 2020. "Parameters Influencing the Outcome of Additive Manufacturing of Tiny Medical Devices Based on PEEK" Materials 13, no. 2: 466.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
