In this study, uniform Fe3O4 magnetic nanorings (Fe3O4-MNRs) were prepared through a simple hydrothermal method. The morphology, magnetic properties, and structure of the product were characterized by transmission electron microscope (TEM), scanning electron microscope (SEM), high resolution transmission electron microscopy (HRTEM), vibrating sample magnetometer (VSM), X-ray powder diffraction (XRD), and X-ray photoelectron spectroscopy (XPS), respectively. The Fe3O4-MNRs were used as Fenton-like catalysts in the presence of hydrogen peroxide (H2O2) and showed excellent Fenton-catalytic activity for degradation of organic dyes such as Methylene blue (MB), Rhodamine B (RhB), and Bromophenol blue (BPB). Furthermore, the obtained Fe3O4-MNRs could be recycled after used for several times and still remained in a relative high activity and could rapidly be separated from the reaction medium using a magnet without considerable loss. All results reveal that Fe3O4-MNRs have potential for the treatment of dyes pollutants.

Graphical Abstract

1. Introduction

With the advancement of technology and society, dyes are extensively used in textiles, plastics, leather, pharmaceuticals, food, cosmetics, dyestuffs, tanning, and printing industries [1,2]. Considerable amount of colored wastewater is generated and may cause damage to aquatic ecosystems or even bring about serious risks to human health [3]. Therefore, there is an urgent and serious demand for efficient treatment of these discharged dyes. A great many physical and chemical methods have been exploited to remove/degrade those dyes from wastewater, such as physical adsorption, precipitation coagulation, flocculation, reverse osmosis, filtration, membrane separation, biological process, chemical oxidation, and catalytic degradation [4,5,6,7,8,9]. Nevertheless, some chemical and physical methods such as adsorption and coagulation only transfer pollutants and require more processing.
Since very recently, it has been more appropriate to utilize the advanced oxidation processes (AOPs) for organic pollutant treatment, including photolysis, photocatalysis [10], Fenton process [11,12], ozonation [13,14], and sonolysis [15]. Typically, the Fenton reaction is one of the most explored methods among AOPs for degradation of dyes to harmless products, which uses hydrogen peroxide as an oxidant. With the assistance of H2O2, the Fenton agents could generate hydroxyl radicals (•OH) automatically and thus degrade organic matters to CO2 and H2O ultimately [16]. To this end, tremendous efforts have been focused on using alternative catalysts for wastewater treatment such as titanium dioxide (TiO2) [17], cadmium sulphide (CdS) [18], zinc oxide (ZnO) [19], manganese dioxide (MnO2) [20], copper oxide [21], tungsten trioxide (WO3) [22], and iron oxides [23,24], which can effectively degrade organic contaminants by a typical Fenton procedure; the Fenton-like oxidation reactions have been commonly used to produce free radicals via catalyzing H2O2 with ferrous ions (Fe2+/Fe3+) in acidic media [25,26]. Typically, the iron oxides nanomaterials could be used as an oxidase to catalytically convert H2O2 to •OH. In many previous studies, the generally accepted mechanism of •OH generated in Fenton reaction includes a series of cyclic reactions, which can be described by the classical Haber–Weiss cycle (Equations (1)–(7)) [27].
Fe2+ + H2O2 → Fe3+ + •OH + OH
k = (63 − 70) mol−1∙L∙s−1
Fe3+ + H2O2 → Fe2+ + HO2• + H+
k = (0.001 − 0.01) mol−1∙L∙s−1
•OH + H2O2 → HO2• + H2O
k = 3.3 × 107 mol−1∙L∙s−1
•OH + Fe2+ → Fe3+ + OH
k = 3.2 × 108 mol−1∙L∙s−1
Fe2+ + HO2• + H+ → Fe3+ + H2O2
k = (1.2 − 1.3) × 106 mol−1∙L∙s−1
Fe3+ + HO2• → Fe2+ + O2 + H+
k = (1.3 − 2.0) × 103 mol−1∙L∙s−1
2HO2• → H2O2 + O2
k = 8.3 × 105 mol−1∙L∙s−1
However, for most commonly used Fenton catalysts, there are still some limitations due to low catalytic efficiency within inapposite pH ranges and difficulty in recycling usage. Meanwhile, the crystallization, morphology, and specific surface area of the catalyst are also the main factors that determine the Fenton reaction rate [28].
Herein, we processed a simple and feasible one-step hydrothermal method for synthesis of hollow Fe3O4 magnetic nanorings (Fe3O4-MNRs). Typically, Fe3O4-based nanomaterials have been shown to be a promising Fenton candidate for the dyes degradation due to the Fe2+/Fe3+ Fenton system with the assistance of H2O2. Meanwhile, the magnetic nanomaterials could be easily separated from the reaction medium by using an external magnetic field and for the recycling usage. Various characterizations indicate that Fe3O4-MNRs have extremely small size and high surface-area to volume ratio. In this study, three typical dyes, Methylene blue (MB), Rhodamine B (RhB), and Bromophenol blue (BPB), were selected as the model waste dyes to estimate the catalytic effect of the Fe3O4-MNRs Fenton-like agents on the decomposition of organic contaminants. The Fe3O4-MNRs present high catalytic efficiency for various dyes. Moreover, it can be easily recovered with an external magnet and reused after simple washing. The Scheme 1 shows the dyes degradation mechanism of Fe3O4-MNRs with assistance of H2O2.

2. Materials and Methods

2.1. Reagents and Materials

Iron chloride (FeCl3, 99%), ammonium dihydrogenophosphate (NH3H2PO4, 99%), Methylene blue (MB, 3,7-Bis(dimethylamino)-5-phenothiazinium chloride, dye content ≥98%), Rhodamine B (RhB, 9-(2-carboxyphenyl)-3,6-bis (diethylamino) xanthylium chloride, dye content ≥98%), Bromophenol blue (BPB, 4,4ʹ-(1,1-Dioxido-3H-2,1-benzoxathiol-3-ylidene) bis [2,6-dibromo-phenol], dye content ≥98%), anhydrous sodium sulfate (Na2SO4, 99%) and other conventional reagents were all bought from Aladdin Co., Ltd. (Shanghai, China) without any further purification.

2.2. Synthesis of Fe3O4-MNRs

Firstly, iron oxide nanorings (α-Fe2O3-NRs) were synthesized via a hydrothermal treatment [29]. FeCl3 (0.02 M), NH3H2PO4 (0.20 mM) and Na2SO4 (0.56 mM) were dissolved into 80 mL distilled water. The precursor solution was stirred at room temperature for 30 min. After the mixtures dissolved completely, the obtained solution was transferred into a Teflon-lined stainless-steel autoclave. The reaction was performed at 220 °C for 12 h. The resulting precipitate particles were separated by centrifugation and washed with ethanol for eight times. Then the brownish yellow products were dried in a vacuum drying oven at 60 °C for 8 h and noted as α-Fe2O3-NRs. Then, the Fe3O4-MNRs were prepared via a reduction process with α-Fe2O3-NRs. Typically, the dried α-Fe2O3-NRs were annealed in a furnace at 380 °C under a continuous hydrogen/argon (v/v: H2/Ar = 5%) gas flow for 6 h. The resulting Fe3O4-MNRs was collected with a magnet and washed with ethanol and distilled water each for eight times. To prepare type I Fe3O4-MNPs, briefly, FeCl3 (0.02 M) and NH3H2PO4 (0.40 mM) were dissolved into 80 mL distilled water, then the obtained solution was transferred into a Teflon-lined stainless-steel autoclave and reacted at 220 °C for 12 h. The resulting precipitate particles were separated by centrifugation and washed with ethanol eight times. Then the precipitates were annealed in a furnace at 380 °C under a continuous hydrogen/argon (v/v: H2/Ar = 5%) gas flow for 6 h. The preparation of Type II Fe3O4-MNPs was the same as Type I Fe3O4-MNPs; the only difference was the concentration of the reactive solutes (FeCl3, 0.02 M and Na2SO4, 0.56 mM).

2.3. Characterization

The morphological of as-synthesized α-Fe2O3-NRs and Fe3O4-MNRs samples were observed by Scanning Electron Microscope (SEM, JEOL JSM-7800F, Tokyo, Japan), transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM, JEOL JEM-2100, Tokyo, Japan). The magnetization values of α-Fe2O3-NRs and Fe3O4-MNRs were measured by the vibrating sample magnetometer (VSM, Lake Shore 7410, Carson, CA, USA). The XRD patterns of Fe3O4-MNRs sample were generated on a X-ray diffraction diffractometer (D8 Advance, Bruker, Billerica, MA, USA) with Cu Kα radiation (λ = 1.5147 Å). The chemical composition of the as-prepared Fe3O4-MNRs was characreized by X-ray photoelectron spectroscopy (XPS, Kratos Axis Ultra DLD, Kyoto, Japan). The transmittance spectra of dyes degradation samples were measured using UV-Vis spectrophotometer (Thermo Scientific NanoDrop One, Waltham, MA, USA). Spectra were recorded at room temperature in steps of 0.5 nm in the range 190–850 nm. The free radicals triggered by Fe3O4-MNRs in H2O2 were recorded with an electron paramagnetic resonance (EPR) spectroscope (Bruker EMXnano, Karlsruhe, Germany).

2.4. Free Radical (•OH) Generation and Detection

For detection of free radicals in the Fenton-like catalysis, EPR was used to record signals of spin adducts that were produced by active free radicals reacting with 5,5-dimethyl-1-pyrroline-N-oxide (DMPO) [30]. Briefly, BMPO was used as a scavenger to capture •OH to form relatively stable adducts DMPO-•OH, and the types of free radical were distinguished according to the EPR spectra of the adducts. Typically, Fe3O4-MNRs (1.0 g∙L−1), BMPO (40 mM), and dyes (RhB, MB, and BPB, respectively, 0.2 mg∙mL−1) were mixed together for 4 min. Each sample was then moved into a capillary and sealed. The capillary was put into a quartz tube, which was inserted in the EPR cavity. Then the 1:2:2:1 multiplicity characteristic peaks of DMPO-•OH adducts were recorded by EPR immediately. The EPR parameters for all samples were as follows: center field = 3510 G, sweep width = 100 G, microwave frequency = 9.85 GHz, microwave power = 6.325 mW, modulation frequency = 100 kHz.

2.5. Catalytic Activity Measurements

The synthesized Fe3O4-MNRs were evaluated through the catalytic oxidation of dyes in presence of H2O2. In brief, effects of the temperature and pH tolerances on the residual activity of Fe3O4-MNRs were tested in buffer solutions at pH 5.0, temperature from 20 to 90 °C and in buffer solutions at 20 °C within the pH range from 3.0 to 11.0 for 2 h, respectively. Influence of reaction conditions such as catalysis reaction time and initial dyes concentration on dye degradation efficiency was also investigated. The concentrations of dyes in the assay solutions were measured by the method reported by previous reports [31,32,33].
Typically, Fe3O4-MNRs (6.0 mg) was firstly dispersed into three dyes (MB, BPB, and RhB) solution (0.2 mg∙mL−1, 1.0 mL) containing 1.0 mL H2O2 at room temperature. Then, 1 µL sample was drawn by a sampler and measured in time course by monitoring the absorbance change at 554 nm for RhB, 665 nm for MB, and 440 nm for BPB with a UV-vis spectrophotometer, respectively. The amount of samples was so small that it could be negligibly compared to the experimental sample. Meanwhile, blank measurements were taken under the same operated condition but without addition of Fe3O4-MNRs.

2.6. The Degradation Mechanism

The products in the reaction solution during the degradation were measured using gas chromatography–mass spectrometry (GC-MS). The intermediates were examined with GC-MS (Agilent 6890 N) equipped with a fused silica capillary column (DB-5, 60 m long, 0.32 mm i.d.) The column temperature was raised from 40 °C to 260 °C at 5 °C/min during the measurement. The production of CO2 was monitored by a Carbon dioxide gas analyzer (Thermo Scientific™ 410i, Waltham, MA, USA).

2.7. Statistical Analysis

Statistical significance was determined using an analysis of variance and Tukey’s test (OriginPro, version 8.0, OriginLab Corporation, Northampton, MA, USA). Statistical significance was established at p < 0.05.

3. Results

3.1. Morphology

The morphology of as-synthesized α-Fe2O3-NRs and Fe3O4-MNRs was evaluated by TEM (Figure 1a,b) and SEM (Figure 1c,d). It showed that the Fe3O4-MRs presented homogeneous shape and relatively uniform size. There was almost no change in the size on conversion from α-Fe2O3 to Fe3O4 nanorings. Meanwhile, the SEM images of the type I and type II Fe3O4 nanoparticles were shown in Figure S1a,b. Figure 1e,f shows HRTEM images of the obtained α-Fe2O3-NRs and Fe3O4-MNRs, respectively. Massive step and terrace atoms oriented along the zone axison were obviously observed [29]. In Figure 1e, the interplanar spacing of 0.250 nm for α-Fe2O3 could be obtained. The selected area electron diffraction (SAED) patterns with dot-matrix shape in the inset indicate that the α-Fe2O3 was a single crystal structure. In Figure 1f, the HRTEM image of Fe3O4-MNRs shows the characteristic lattice fringe of 0.290 nm and 0.480 nm, indicating the formation of Fe3O4-MNRs. Meanwhile, the microcosmic structure characterization of synthesized Fe3O4-MNRs could be confirmed by the SAED patterns in the inset which shows the dot matrix shape. In addition, the Fe3O4-MNRs possessed high specific surface area (about 109.3 m2/g, Figure S2) with Brunauer-Emmett-Teller (BET) analysis, which was important for catalytic reaction.

3.2. Size Distributions

The inner ring average diameter of the Fe3O4-MNRs was determined to be about 75.2 nm. The outer ring average diameter of the Fe3O4-MNRs was determined to be about 155.6 nm (Figure 2, n = 300). The thickness of ring wall should be about 40.2 nm. Meanwhile, the average crystallite size can be computed by Scherrer equation; the correlation calculation results were listed in Table S1; the crystallite sizes of the Fe3O4-MNRs were about 22 to 35 nm, which were near to the result of TEM. Furthermore, the average diameter of the type I and type II Fe3O4 nanoparticles were determined to be about 337.49 (n = 300, Figure S1c) and 196.52 nm (n = 300, Figure S1d), respectively.

3.3. Magnetization

The hysteresis loops of the as-prepared α-Fe2O3-NRs and Fe3O4-MNRs were recorded at room temperature (Figure 3). The saturation magnetization of the material was about 62.4 emu/g, which showed that the Fe3O4-MNRs emerged good magnetic properties and can be easily separated from the solution with an external magnet.

3.4. X-ray Diffraction

Then composition of the obtained nanomaterials was further detected by X-ray diffraction (XRD) analysis (Figure 4). Figure 4 shows typical XRD patterns of the Fe3O4-MNRs; the result indicated that all of the characteristic peaks (30.1°, 35.5°, 43.1°, 53.4°, and 57.0°) matched well with pure spinel Fe3O4 (JCPDS no. 19–0629) [29].

3.5. X-ray Photoelectron Spectroscopy

The element composition and status of Fe3O4-MNRs was measured using X-ray photoelectron spectroscopy (XPS). Typically, the Fe, O, and C elements were observed in XPS spectra of Fe3O4-MNRs (Figure 5). In the inset of Figure 5, the peaks at 711.1 eV and 724.6 eV were assigned to the 2p3/2 and 2p1/2 of Fe, the peak at 530.1 eV was attributed to the 1s of O, and the peak at 285.2 eV was assigned to the C 1s, which were consistent with the previous literature [34]. The above results confirmed the fact that Fe3O4-MNRs were successfully synthesized.

3.6. Hydroxyl Radicals (•OH) Generation and Monitoring

The amount of •OH was determined by using DMPO, which is the •OH specific spin-trapping agent. Accordingly, the Fe3O4-MNRs promoted the production of free radical •OH with the assistance of H2O2; in contrast, the radicals signal was not obvious in H2O2 or Fe3O4-MNRs group alone (Figure 6). The results indicated that the Fe3O4-MNRs could generate •OH effectively, which was ascribed to the Fenton-like effect between the iron ions (release from Fe3O4-MNRs) and H2O2. Then the produced •OH could be used for the subsequent dye decoloration treatment [35].

3.7. Dye Degradation through a Catalytic Fenton-Like Reaction

The quantitative degradation ability of the Fe3O4-MNRs to MB, BPB and RhB solution were examined by UV-vis. The degradation spectra of the MB solution in Fe3O4-MNRs/H2O2 system during the Fenton catalytic decoloration are shown in Figure 7a. The absorbance peaks had a regular reduction with time and almost completely disappeared after 2 days, suggesting that MB was effectively degraded. Next, the spectra of the RhB and BPB solution were also recorded from 30 min to 240 min, as shown in Figure 7b,c and Figure S3; compared to the blank control, the Fe3O4-MNRs also showed good degradation performance for different kinds of dyes. Furthermore, optical images (Figure 7d) of the dye degradation were monitored during the treatment periods. Accordingly, with the assistance of H2O2, the Fe3O4-MNRs exhibited excellent Fenton catalytic efficiency for dye decoloration.

3.8. Dye Degradation Study

To confirm the Fe3O4-MNRs could degrade wastewater efficiently, we performed the experiments of dye decoloration at different treatment conditions, such as pH, temperature, and initial dye concentration. Briefly, the degradation efficiency of Fe3O4-MNRs demonstrated a pH dependence from 3.0 to 11.0; the maximum catalytic efficiency occurred around pH 4.0–6.0 (Figure S4); this phenomenon was related to the fact that the iron metallic ion leaches in acid pH value more effectively. The temperature-dependent performances were also researched over increasing temperatures from 4 to 60 °C, the Fe3O4-MNRs showed excellent removal efficiency (above 70%) at different temperature ranges (Figure S5). The initial concentration of dyes highly affected the removal efficiency. Around 90% of dyes were degraded by Fe3O4-MNRs at low concentrations of 0.1 mg∙mL−1, in comparison with around 70% removal efficiency for a high concentration of 1.0 mg∙mL−1 (Figure S6). This result could be interpreted as follows: The dye removal capacity shows a concentration-dependent behavior.
Meanwhile, the Fe3O4-MNRs presented time-dependent degradation behavior for all the three dyes in the treating processes; the colored pollutant could be eliminated completely after 2 days treatment period (Figure 8 and Table S2). Furthermore, dyes’ (MB, RhB, and BPB) degradation efficiency by different Fe3O4 nanoparticles (240 min, 20 °C, pH 5.0) were shown in Figure S1e. The Fe3O4-MNRs exhibited better degradation effect than Type I and Type II Fe3O4 nanoparticles and exhibited significant difference, probably due to its cavity structure and larger specific surface area. In addition, there was no significant difference in catalytic performance of the three catalysts after 10 cycles, which all showed excellent reusability (Figure S1f). Taken together, the as-prepared Fe3O4-MNRs exhibited more excellent degradation performance for various colored pollutants compared to the other two catalysts.

3.9. Regeneration of the Catalyst

In general, the reuse of a degradation nanomaterial is a very important characteristic once these can be regenerated and reused in another wastewater treatment processes. Figure 9 shows the results obtained from the reuse cycles of Fe3O4-MNRs in the Fenton degradation of the dyes solution; the Fe3O4-MNRs can retain above 85% of its initial activity after being reused for 10 cycles. Furthermore, the Fe3O4-MNRs after 10 cycles were characterized by SEM (Figure S7a), particle size distribution (Figure S7b), XRD pattern (Figure S7c), and XPS spectra (Figure S7d). The result showed that the morphology and composition had no significant difference from the raw Fe3O4-MNRs.

3.10. The Degradation Mechanism

In order to confirm the process of dyes oxidized degradation, the degradation process was monitored by a GC-MS method. Typically, after 60 min degradation period, for the MB solution, some small organic molecules such as methylbenzene, styrene, phenol, p-nitrophenol, trimethylphenol, and 4-Aminothiophenol, N,N,S-trimethyl could be detected (Figure 10a). For the RhB solution, small organic molecules such as methylbenzene, phenol, p-nitrophenol, and trimethylphenol could be detected (Figure 10b). For the BPB solution, some small organic molecules such as tetrahydro-2,5-dimethyl, methylbenzene, phenol, and trimethylphenol could be detected (Figure 10c). The kinetics of dyes disappearance are given in Figure S8. It can be seen that the quantities of dye degradation increased with time. During the 240 min degradation process, the organic molecules were degraded as CO2 (Figure S9) and inorganic ions (Figure 10d–f). For the MB solution, the final ionic products are SO42−, NH4+, and NO3, respectively. For the RhB solution, the final ionic products are NH4+ and NO3. For the BPB solution, the final ionic products are Br and SO42−. Accordingly, the dyes were degraded.

4. Conclusions

In summary, α-Fe2O3-NRs and Fe3O4-MNRs were successfully prepared. The Fe3O4-MNRs exhibited an extraordinarily high catalytic activity for dye degradation in wastewater at room temperature. Surprisingly, EPR measurement combining with scavenger experiment indicated that Fenton-like catalysis contributed to dye decoloration. The range of pH values for Fenton-like oxidation was extended, and the leaching of iron from the synthesized Fe3O4-MNRs after degradation was found to be negligible and therefore could overcome the shortcoming of traditional Fenton reaction in a wide pH range. Moreover, the Fe3O4-MNRs could be recycled easily from solution by an external magnet. All results displayed that the Fe3O4-MNRs were an excellent catalyst with great potential for all kinds of wastewater treatment. However, understanding of the chemical degradation mechanism for different intermediate products is limited and warrants continued intensive study. Next, we will investigate the possible toxicity and complete degradation of these intermediates in our further research.

Supplementary Materials

The following are available online at Figure S1: SEM images (a,b) and size distribution (c,d) of the Type I and Type II Fe3O4 nanoparticles. (e) Dyes (MB, RhB and BPB) degradation efficiency by different Fe3O4 nanoparticles (240 min, 20 °C, pH 5.0). (f) Reusability of different Fe3O4 nanoparticles after 10 cycles reuse. Figure S2: N2 adsorption-desorption isotherms of the as-synthesized Fe3O4-MNRs. Figure S3: UV-vis curves of MB (a), RhB (b) and BPB (c) solution treated with or without Fe3O4-MNRs after 2 day treatment. Figure S4: Dyes degradation efficiency of Fe3O4-MNRs with pH ranges from 3.0 to 11.0. Figure S5: Dyes degradation efficiency of Fe3O4-MNRs at different temperature. Figure S6: Dyes degradation efficiency of Fe3O4-MNRs with various initial concentration. Figure S7: SEM image (a), size distribution (b), XRD pattern (c) and XPS spectra (d) of the as-prepared Fe3O4-MNRs after 10 cycles of use. Figure S8: Kinetics of the degradation of dyes at three different reaction periods. Figure S9: CO2 production process of different dyes. Table S1: Calculation of average crystallite size by using Scherrer equation. Table S2: Kinetic parameters for dyes degradation by Fe3O4-MNRs with different concentration.

Author Contributions

Conceptualization, X.L. and J.B.; methodology, X.L. and W.S.; project administration, J.L.; writing—review and editing, X.L. and J.L.; formal analysis, X.Y. All authors have read and agreed to the published version of the manuscript.


This work was supported by National Natural Science Foundation of China (No. 31800836, 21734002), Young Backbone Teachers Project in Henan Higher Education Institution (No. 2019GGJS083), and Key R&D Program of Henan Province (No. 192102310194).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Fang, Y.Y.; Huang, Q.Z.; Liu, P.Y.; Shi, J.F.; Xu, G. A facile dip-coating method for the preparation of separable MoS2 sponges and their high-efficient adsorption behaviors of Rhodamine, B. Inorg. Chem. Front. 2018, 5, 827–834. [Google Scholar] [CrossRef]
  2. Zhu, Q.; Liu, N.; Zhang, N.; Song, Y.Y.; Stanislaus, M.S.; Zhao, C.Y.; Yang, Y.N. Efficient Photocatalytic Removal of RhB, MO and MB Dyes by Op timized Ni/NiO/TiO2 Composite Thin Films under Solar Light Irradiation. J. Environ. Chem. Eng. 2018, 6, 2724–2732. [Google Scholar] [CrossRef]
  3. Tu, T.H.; Cam, P.T.N.; Huy, L.V.T.; Phong, M.T.; Nam, H.M.; Hieu, N.H. Synthesis and application of graphene oxide aerogel as an adsorbent for removal of dyes from water. Mater. Lett. 2018, 238, 134–137. [Google Scholar] [CrossRef]
  4. Crini, G. Non-conventional low-cost adsorbents for dye removal: A review. Bioresour. Technol. 2006, 97, 1061–1085. [Google Scholar] [CrossRef]
  5. Kurtan, U.; Amir, M.; Baykal, A. Fe3O4@Nico-Ag magnetically recyclable nanocatalyst for azo dyes reduction. Appl. Surf. Sci. 2016, 363, 66–73. [Google Scholar] [CrossRef]
  6. Buscio, V.; Garcia-Jimenez, M.; Vilaseca, M.; Lopez-Grimau, V.; Crespi, M.; Gutierrez-Bouzan, C. Reuse of Textile Dyeing Effluents Treated with Coupled Nanofiltration and Electrochemical Processes. Materials 2016, 9, 490. [Google Scholar] [CrossRef]
  7. Vyrides, I.; Bonakdarpour, B.; Stuckey, D.C. Salinity effects on biodegradation of Reactive Black 5 for one stage and two stages sequential anaerobic aerobic biological processes employing different anaerobic sludge. Int. Biodeterior. Biodegrad. 2014, 95, 294–300. [Google Scholar] [CrossRef]
  8. Lotito, A.M.; De Sanctis, M.; Di Iaconi, C.; Bergna, G. Textile wastewater treatment: Aerobic granular sludge vs activated sludge systems. Water Res. 2014, 54, 337–346. [Google Scholar] [CrossRef]
  9. Lau, Y.Y.; Wong, Y.S.; Teng, T.T.; Morad, N.; Rafatullah, M.; Ong, S.-A. Coagulation-flocculation of azo dye Acid Orange 7 with green refined laterite soil. Chem. Eng. J. 2014, 246, 383–390. [Google Scholar] [CrossRef]
  10. Kumar, S.; Khanchandani, S.; Thirumal, M.; Ganguli, A.K. Achieving Enhanced Visible-Light-Driven Photocatalysis Using Type-II NaNbO3/CdS Core/Shell Heterostructures. ACS Appl. Mater. Interfaces 2014, 6, 13221–13233. [Google Scholar] [CrossRef]
  11. Zhou, L.C.; Shao, Y.M.; Liu, J.R.; Ye, Z.F.; Zhang, H.; Ma, J.; Jia, Y.; Gao, W.J.; Li, Y.F. Preparation and Characterization of Magnetic Porous Carbon Microspheres for Removal of Methylene Blue by a Heterogeneous Fenton Reaction. ACS Appl. Mater. Interfaces 2014, 6, 7275–7285. [Google Scholar] [CrossRef] [PubMed]
  12. Cui, Z.M.; Chen, Z.; Cao, C.Y.; Jiang, L.; Song, W.G. A yolk-shell structured Fe2O3@mesoporous SiO2 nanoreactor for enhanced activity as a Fenton catalyst in total oxidation of dyes. Chem. Commun. 2013, 49, 2332–2334. [Google Scholar] [CrossRef] [PubMed]
  13. Chuang, Y.H.; Mitch, W.A. The Effect of Ozonation and Biological Activated Carbon Treatment of Wastewater Effluents on Formation of Nnitrosamines and Halogenated Disinfection Byproducts. Environ. Sci. Technol. 2017, 51, 2329–2338. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, J.L.; Bai, Z.Y. Fe-based catalysts for heterogeneous catalytic ozonation of emerging contaminants in water and wastewater. Chem. Eng. J. 2017, 312, 79–98. [Google Scholar] [CrossRef]
  15. Jiménez, S.; Andreozzi, M.; Micó, M.M.; Álvarez, M.G.; Contreras, S. Produced water treatment by advanced oxidation processes. Sci. Total Environ. 2019, 666, 12–21. [Google Scholar] [CrossRef] [PubMed]
  16. Cheng, X.M.; Zu, L.H.; Jiang, Y.; Shi, D.L.; Cai, X.M.; Ni, Y.H.; Lin, S.J.; Qin, Y. A titanium-based photo-Fenton bifunctional catalyst of mp-MXene/TiO2−x nanodots for dramatic enhancement of catalytic efficiency in advanced oxidation processes. Chem. Commun. 2018, 54, 11622–11625. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, L.Y.; Hu, X.Y.; Wang, C.H.; Tai, Y.F. Water-dispersible and recyclable magnetic TiO2/graphene nanocomposites in wastewater treatment. Mater. Lett. 2018, 231, 80–83. [Google Scholar] [CrossRef]
  18. Deng, F.; Zhong, F.; Zhao, L.N.; Luo, X.B.; Luo, S.L.; Dionysiou, D.D. One-step in situ hydrothermal fabrication of octahedral CdS/SnIn4S8 nano-heterojunction for highly efficient photocatalytic treatment of nitrophenol and real pharmaceutical wastewater. J. Hazard. Mater. 2017, 340, 85–95. [Google Scholar] [CrossRef]
  19. Ji, B.; Zhang, J.X.; Zhang, C.; Li, N.; Zhao, T.T.; Chen, F.; Hu, L.H.; Zhang, S.D.; Wang, Z.Y. Vertically-aligned ZnO@ZnS nanorod chip with improved photocatalytic activity for antibiotics degradation. ACS Appl. Nano Mater. 2018, 1, 793–799. [Google Scholar] [CrossRef]
  20. Kim, H.; Watthanaphanit, A.; Saito, N.; Saito, N. Simple Solution Plasma Synthesis of Hierarchical Nanoporous MnO2 for Organic Dye Removal. ACS Sustain. Chem. Eng. 2017, 5, 5842–5851. [Google Scholar] [CrossRef]
  21. Sun, B.F.; Li, H.L.; Li, X.Y.; Liu, X.W.; Zhang, C.H.; Xu, H.Y.; Zhao, X.S. Degradation of Organic Dyes over Fenton-Like Cu2O−Cu/C Catalysts. Ind. Eng. Chem. Res. 2018, 57, 14011–14021. [Google Scholar] [CrossRef]
  22. Li, J.; Liu, X.H.; Han, Q.F.; Yao, X.X.; Wang, X. Formation of WO3 nanotube-based bundles directed by NaHSO4 and its application in water treatment. J. Mater. Chem. A 2013, 1, 1246–1253. [Google Scholar] [CrossRef]
  23. Nguyen, X.S.; Zhang, G.K.; Yang, X.F. Mesocrystalline Zn-Doped Fe3O4 Hollow Submicrospheres: Formation Mechanism and Enhanced Photo-Fenton Catalytic Performance. ACS Appl. Mater. Interfaces 2017, 9, 8900–8909. [Google Scholar] [CrossRef] [PubMed]
  24. Subramanian, G.; Madras, G. Remarkable enhancement of Fenton degradation at a wide pH range promoted by thioglycolic acid. Chem. Commun. 2017, 53, 1136–1139. [Google Scholar] [CrossRef] [PubMed]
  25. Saleh, R.; Taufic, A. Degradation of methylene blue and congo-red dyes using Fenton, photo-Fenton, sono-Fenton, and sonophoto-Fenton methods in the presence of iron (II,III) oxide/zinc oxide/graphene (Fe3O4/ZnO/graphene) composites. Sep. Purif. Technol. 2019, 210, 563–573. [Google Scholar] [CrossRef]
  26. Hartmann, M.; Kullmanna, S.; Keller, H. Wastewater treatment with heterogeneous Fenton-type catalysts based on porous materials. J. Mater. Chem. 2010, 20, 9002–9017. [Google Scholar] [CrossRef]
  27. Xu, H.Y.; Wang, Y.; Shi, T.N.; Zhao, H.; Tan, Q.; Zhao, B.C.; He, X.L.; Qi, S.Y. Heterogeneous Fenton-like discoloration of methyl orange using Fe3O4/MWCNTs as catalyst: Kinetics and Fenton-like mechanism. Front. Mater. Sci. 2018, 12, 34–44. [Google Scholar] [CrossRef]
  28. Lopez-Tejedor, D.; Benavente, R.; Palomo, J.M. Iron nanostructured catalysts: Design and applications. Catal. Sci. Technol. 2018, 8, 1754–1776. [Google Scholar] [CrossRef]
  29. Jia, C.J.; Sun, L.D.; Luo, F.; Han, X.D.; Heyderman, L.; Yan, Z.; Yan, C.H.; Zheng, K.; Zhang, Z.; Takano, M.; et al. Large-Scale Synthesis of Single-Crystalline Iron Oxide Magnetic Nanorings. J. Am. Chem. Soc. 2008, 130, 16968–16977. [Google Scholar] [CrossRef] [Green Version]
  30. Zhou, R.; Shen, N.F.; Zhao, J.; Su, Y.; Ren, H.J. Glutathione-coated Fe3O4 nanoparticles with enhanced Fenton-like activity at neutral pH for degrading 2,4-dichlorophenol. J. Mater. Chem. A 2018, 6, 1275–1283. [Google Scholar] [CrossRef]
  31. He, Y.; Jang, D.B.; Jiang, D.Y.; Chen, J.; Zhang, Y.X. Evaluation of MnO2-templated iron oxide-coated diatomites for their catalytic performance in heterogeneous photo Fenton-like system. J. Hazard. Mater. 2018, 344, 230–240. [Google Scholar] [CrossRef] [PubMed]
  32. Cui, K.X.; Yan, B.; Xie, Y.J.; Qian, H.; Wang, X.G.; Huang, Q.X.; He, Y.H.; Jin, S.M.; Zeng, H.B. Regenerable Urchin-like Fe3O4@PDA-Ag Hollow Microspheres as Catalyst and Adsorbent for Enhanced Removal of Organic Dyes. J. Hazard. Mater. 2018, 350, 66–75. [Google Scholar] [CrossRef] [PubMed]
  33. Vilela, C.; Moreirinha, C.; Almeida, A.; Silvestre, A.J.D.; Freire, C.S.R. Zwitterionic Nanocellulose-Based Membranes for Organic Dye Removal. Materials 2019, 12, 1404. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ouyang, J.; Zhao, Z.; Suib, S.L.; Yang, H.M. Degradation of Congo Red dye by a Fe2O3@CeO2-ZrO2/Palygorskite composite catalyst: Synergetic effects of Fe2O3. J. Colloid Interf. Sci. 2019, 539, 135–145. [Google Scholar] [CrossRef]
  35. Ma, Y.; Wang, B.B.; Wang, Q.; Xing, S.T. Facile synthesis of α-FeOOH/γ-Fe2O3 by a pH gradient method and the role of γ-Fe2O3 in H2O2 activation under visible light irradiation. Chem. Eng. J. 2018, 354, 75–84. [Google Scholar] [CrossRef]

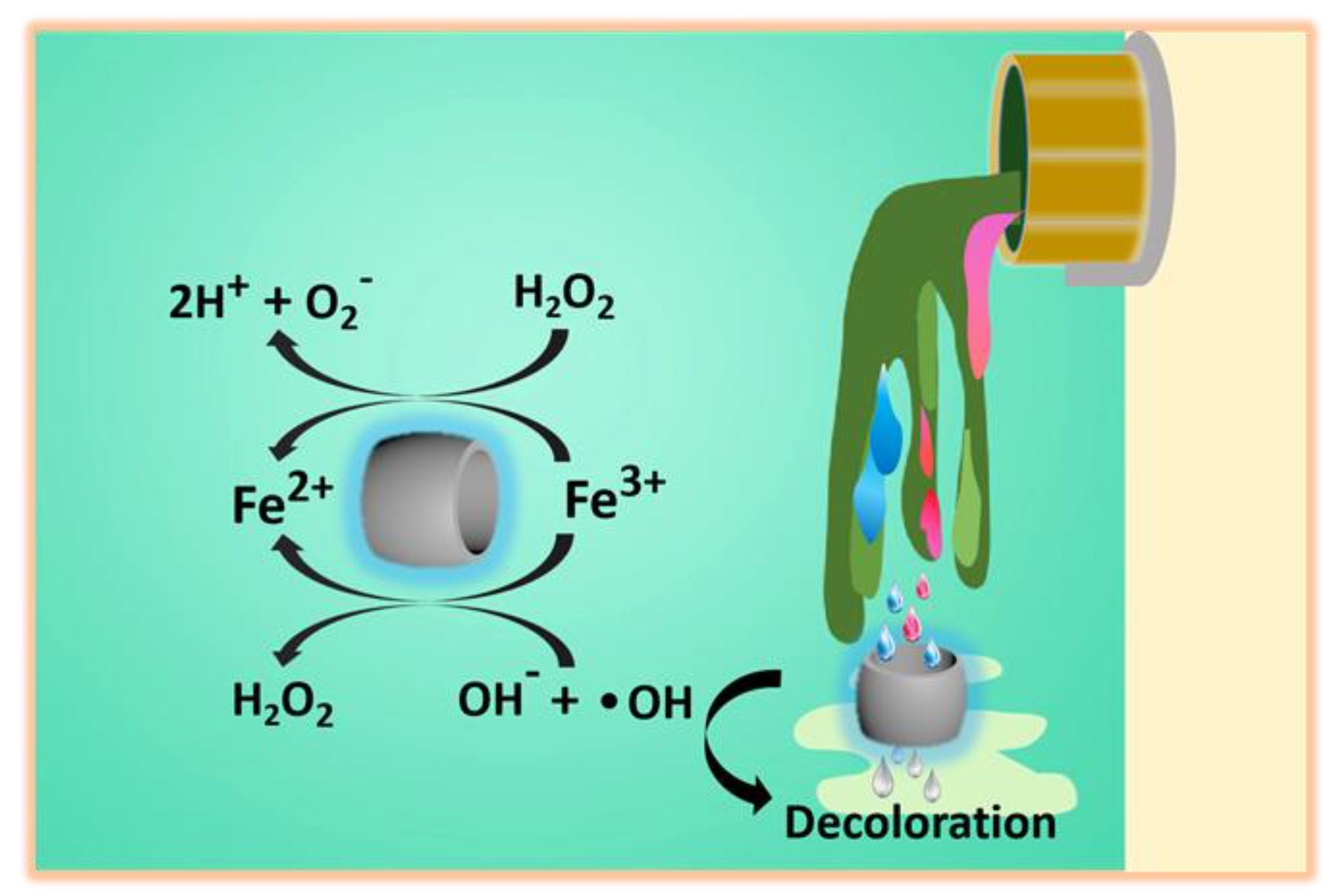

Scheme 1. Schematic mechanism of dye degradation by using Fe3O4-MNRs with the assistance of H2O2.
Scheme 1. Schematic mechanism of dye degradation by using Fe3O4-MNRs with the assistance of H2O2.
Materials 13 00332 sch001

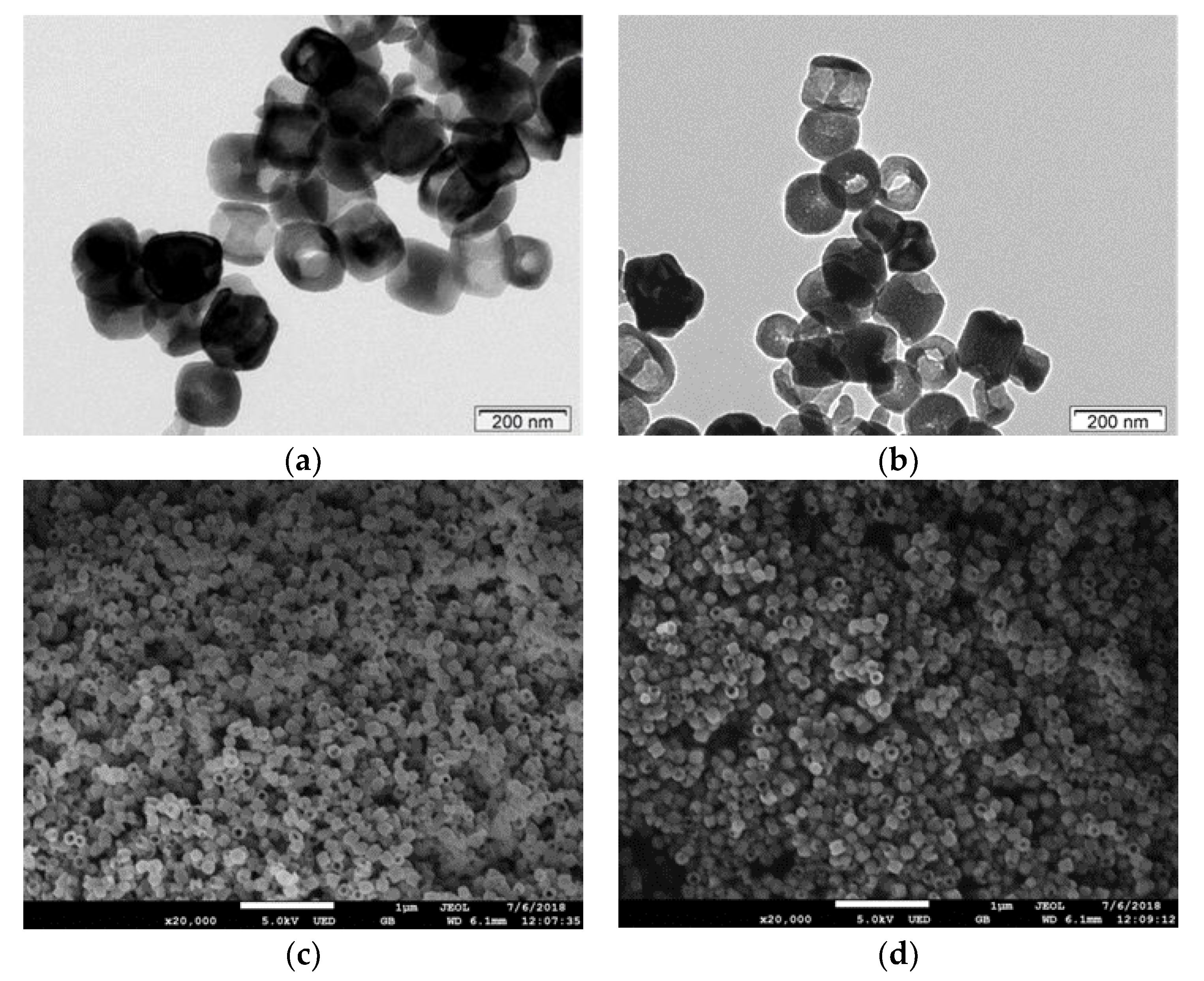

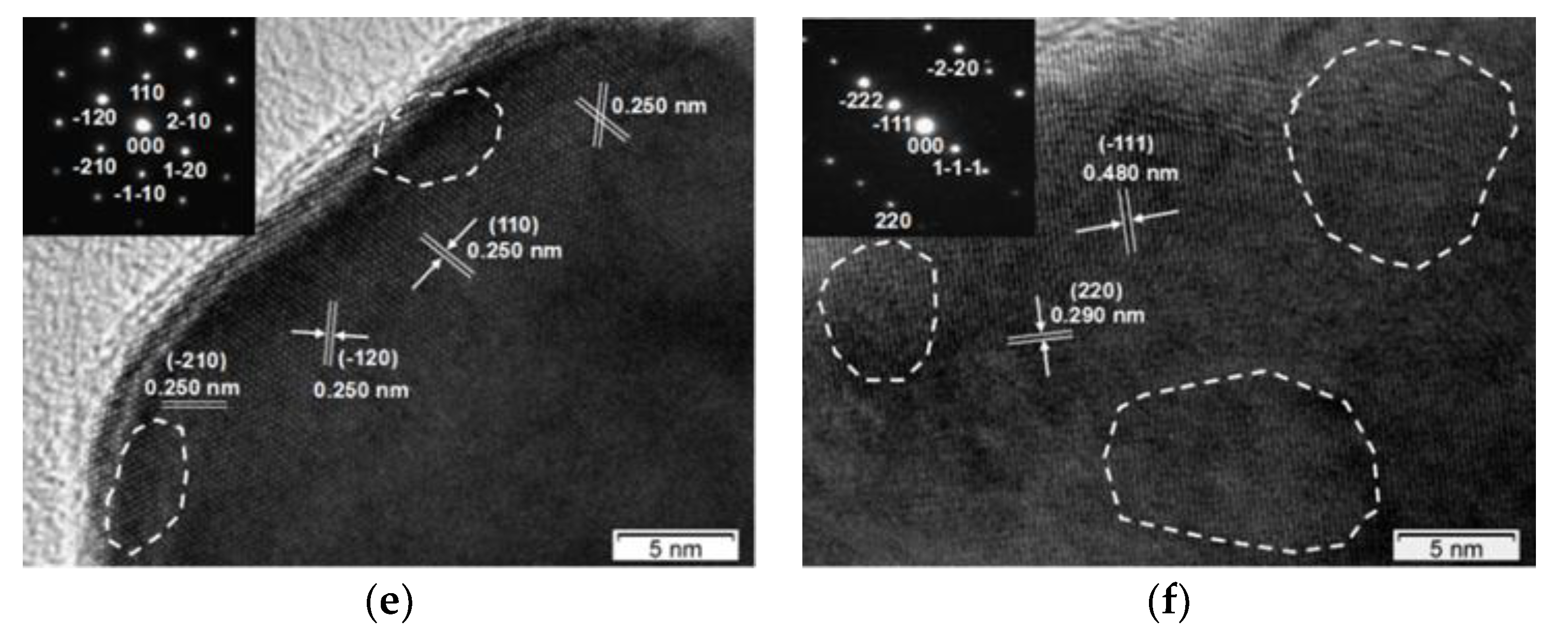

Figure 1. The TEM images (a,b), SEM images (c,d) and the high resolution TEM images (e,f) of the as-synthesized α-Fe2O3-NRs and Fe3O4-MNRs.
Figure 1. The TEM images (a,b), SEM images (c,d) and the high resolution TEM images (e,f) of the as-synthesized α-Fe2O3-NRs and Fe3O4-MNRs.
Materials 13 00332 g001aMaterials 13 00332 g001b

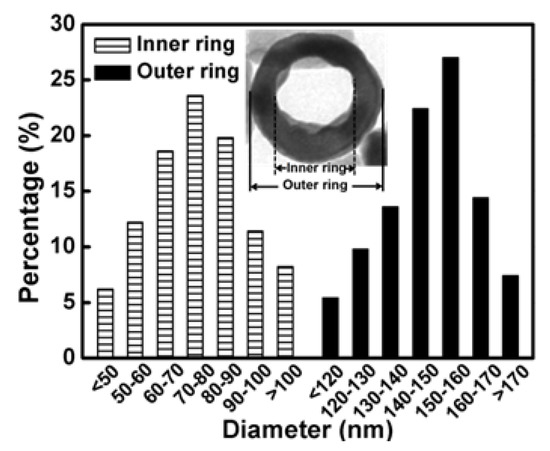

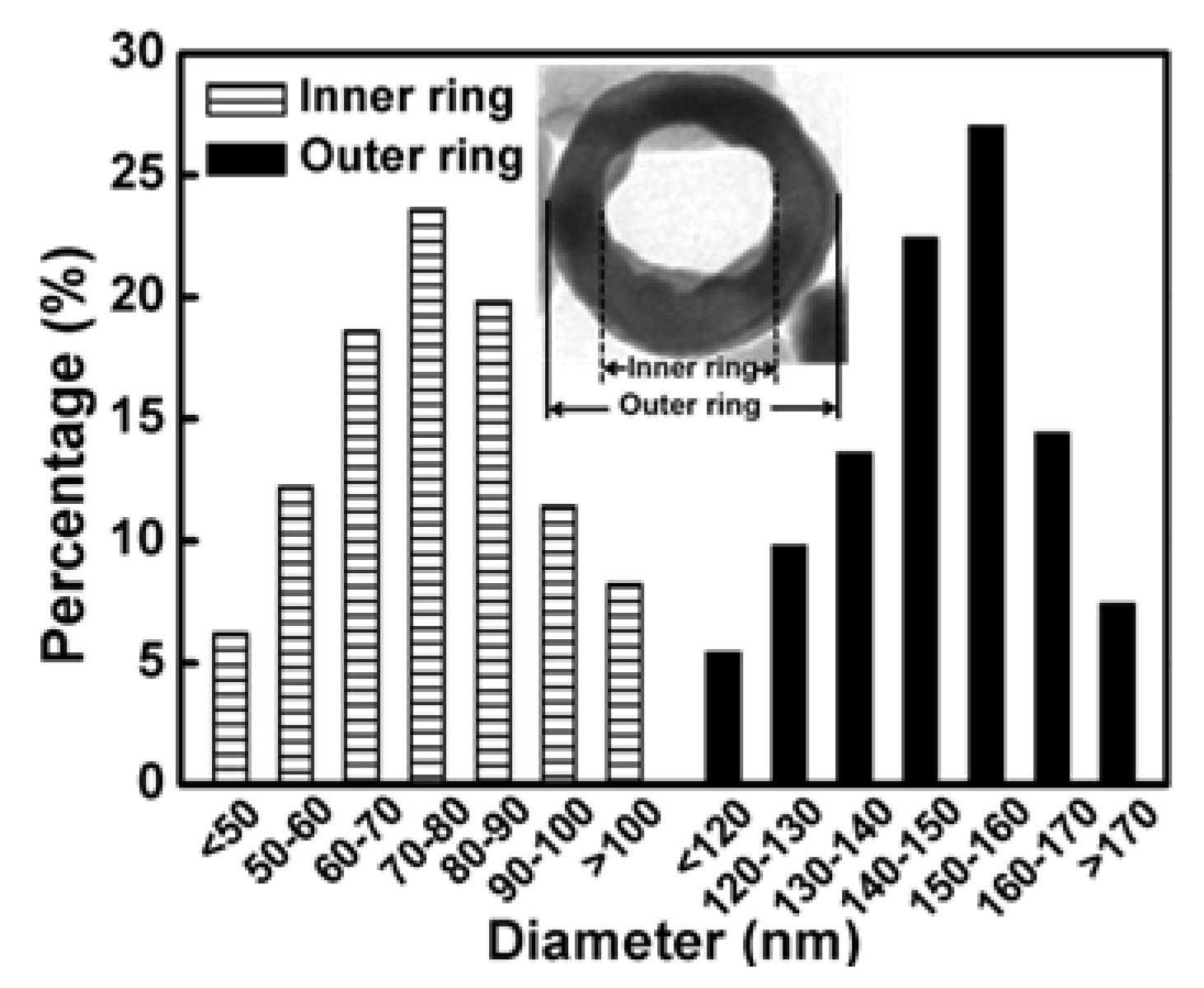

Figure 2. Size distributions of the Fe3O4-MNRs.
Figure 2. Size distributions of the Fe3O4-MNRs.
Materials 13 00332 g002

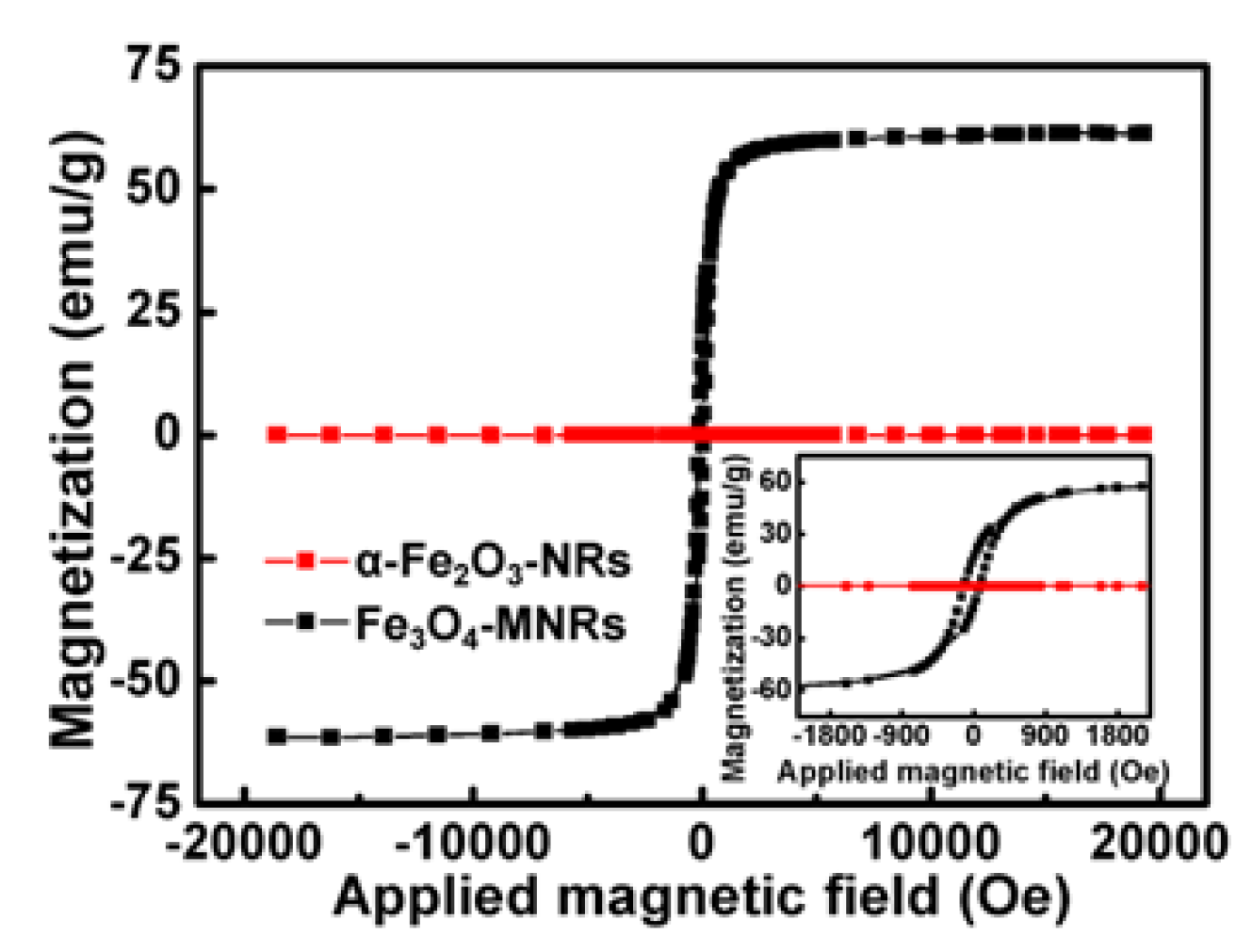

Figure 3. Magnetization curves of the obtained nanorings.
Figure 3. Magnetization curves of the obtained nanorings.
Materials 13 00332 g003

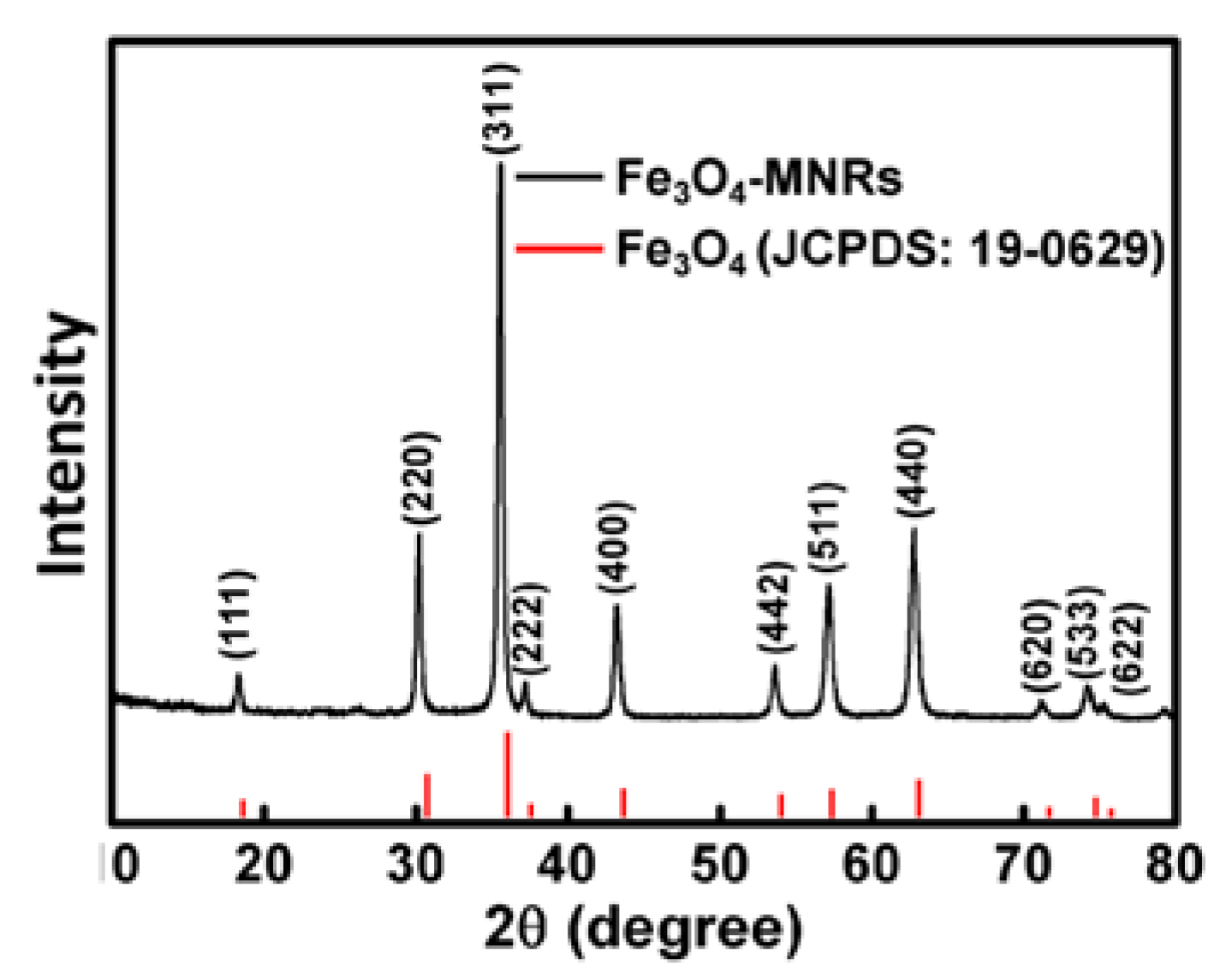

Figure 4. X-ray diffraction patterns of the obtained Fe3O4-MNRs.
Figure 4. X-ray diffraction patterns of the obtained Fe3O4-MNRs.
Materials 13 00332 g004

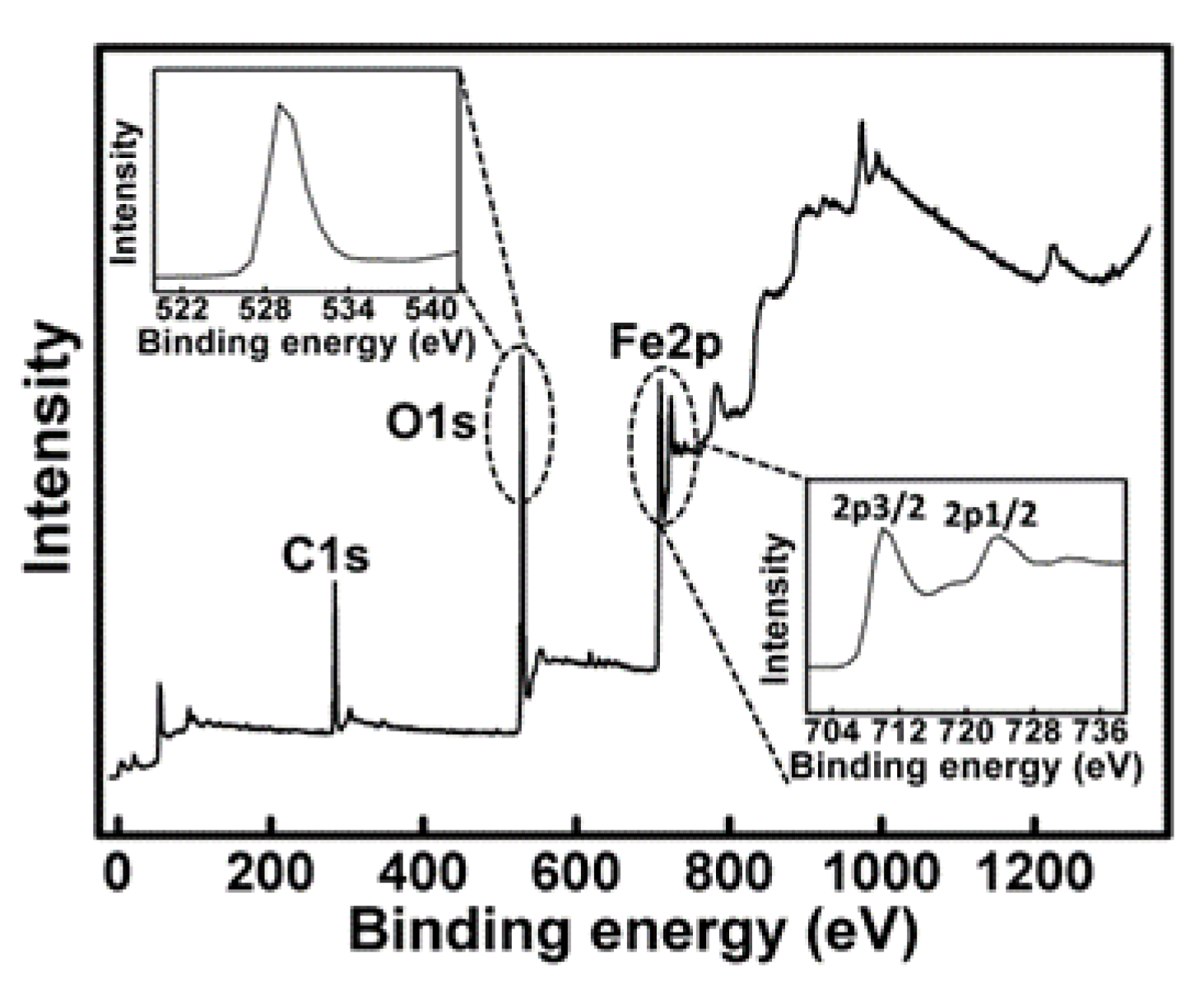

Figure 5. XPS spectra of the as-synthesized Fe3O4-MNRs.
Figure 5. XPS spectra of the as-synthesized Fe3O4-MNRs.
Materials 13 00332 g005

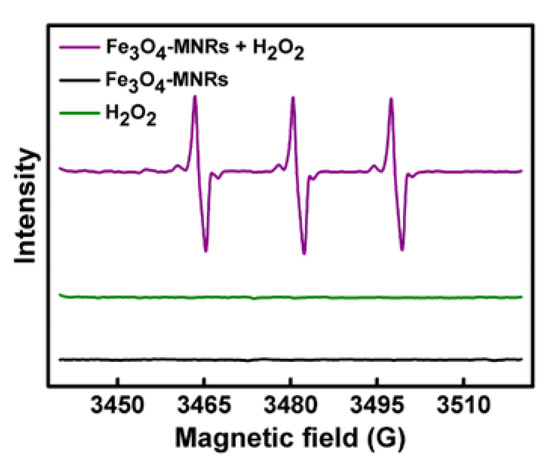

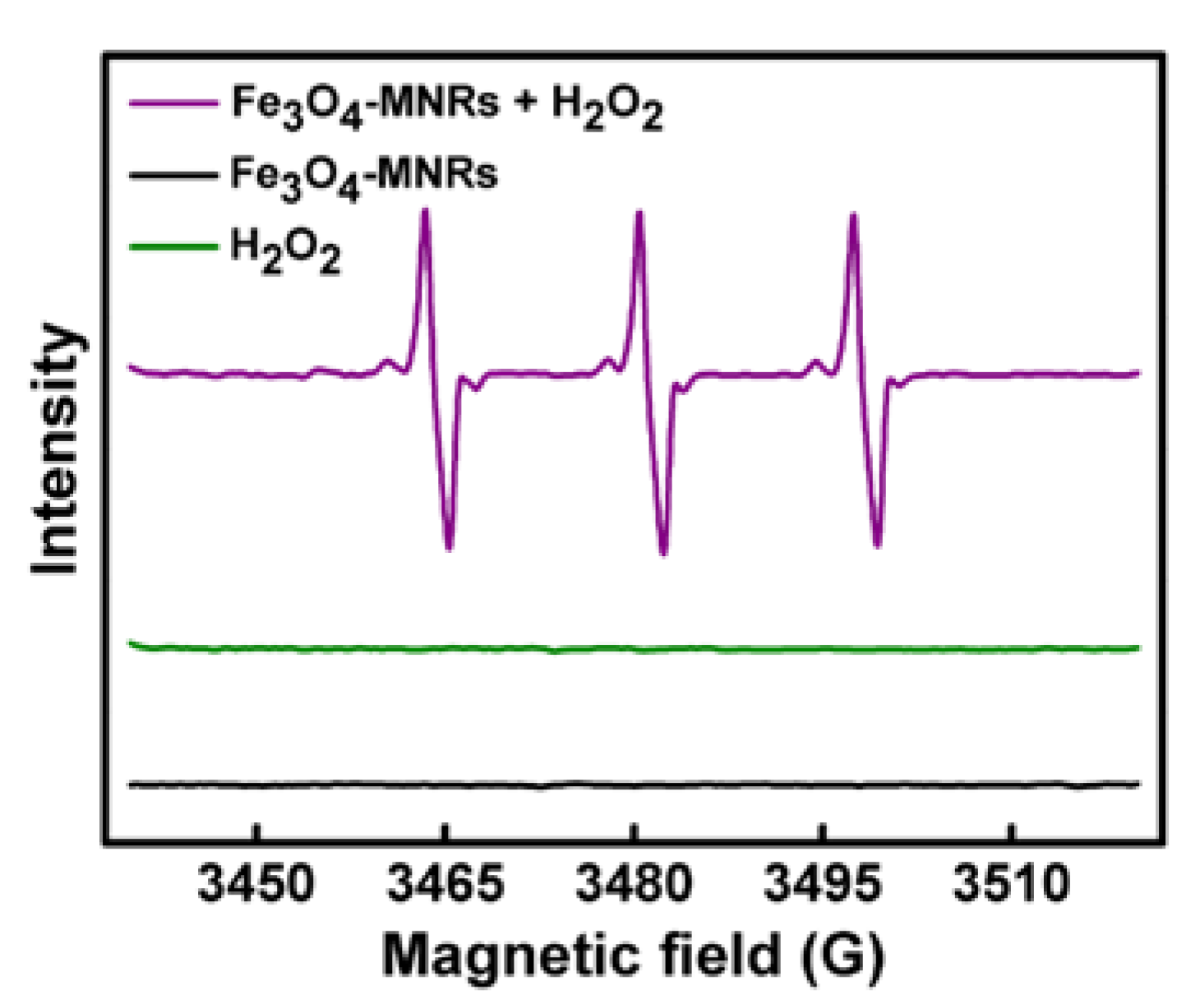

Figure 6. EPR spectra showing the radical production level.
Figure 6. EPR spectra showing the radical production level.
Materials 13 00332 g006

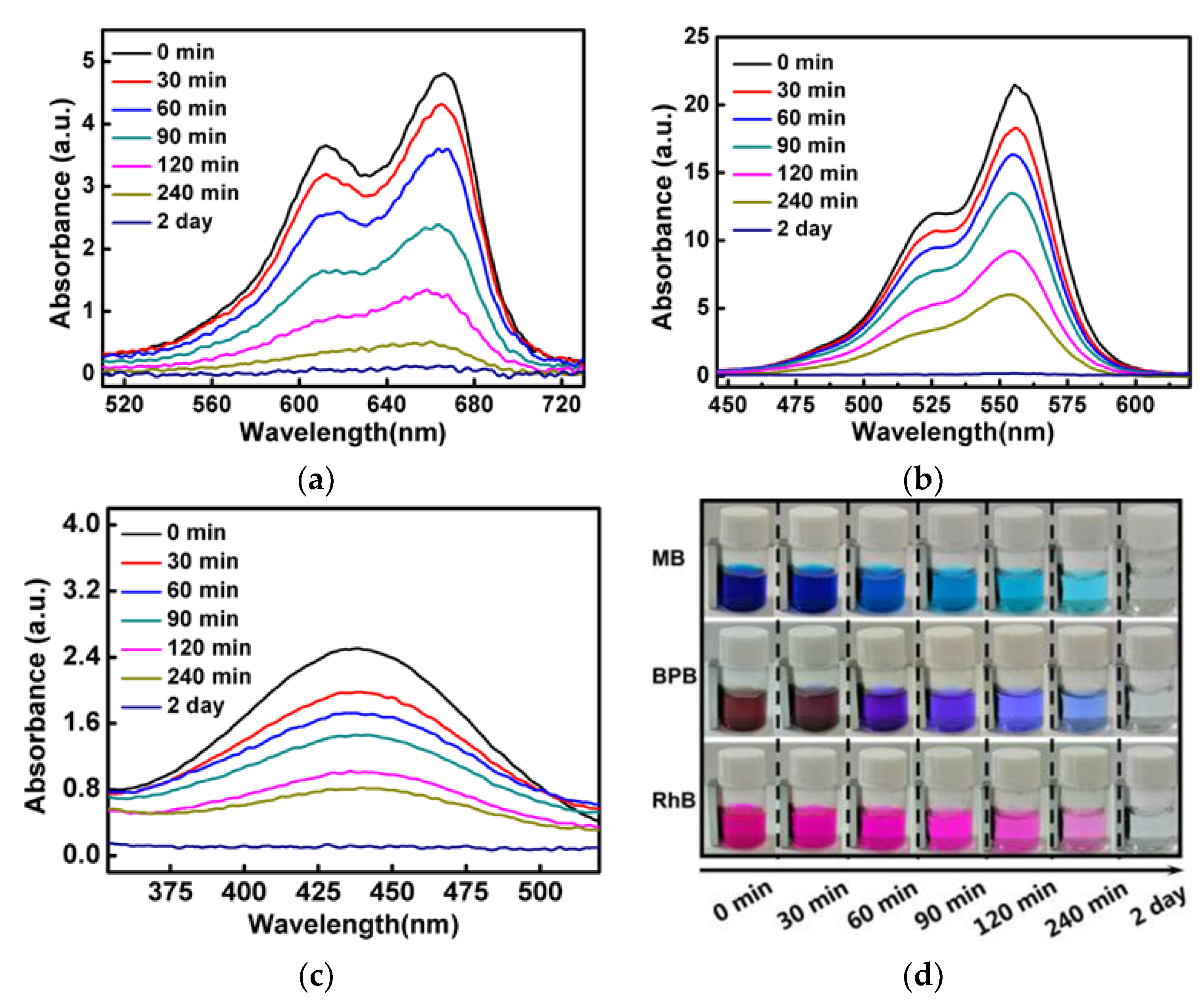

Figure 7. UV-vis curves of MB (a), RhB (b), and BPB (c) solution treated with Fe3O4-MNRs in different periods. (d) Color changing photographs of the dye solution.
Figure 7. UV-vis curves of MB (a), RhB (b), and BPB (c) solution treated with Fe3O4-MNRs in different periods. (d) Color changing photographs of the dye solution.
Materials 13 00332 g007

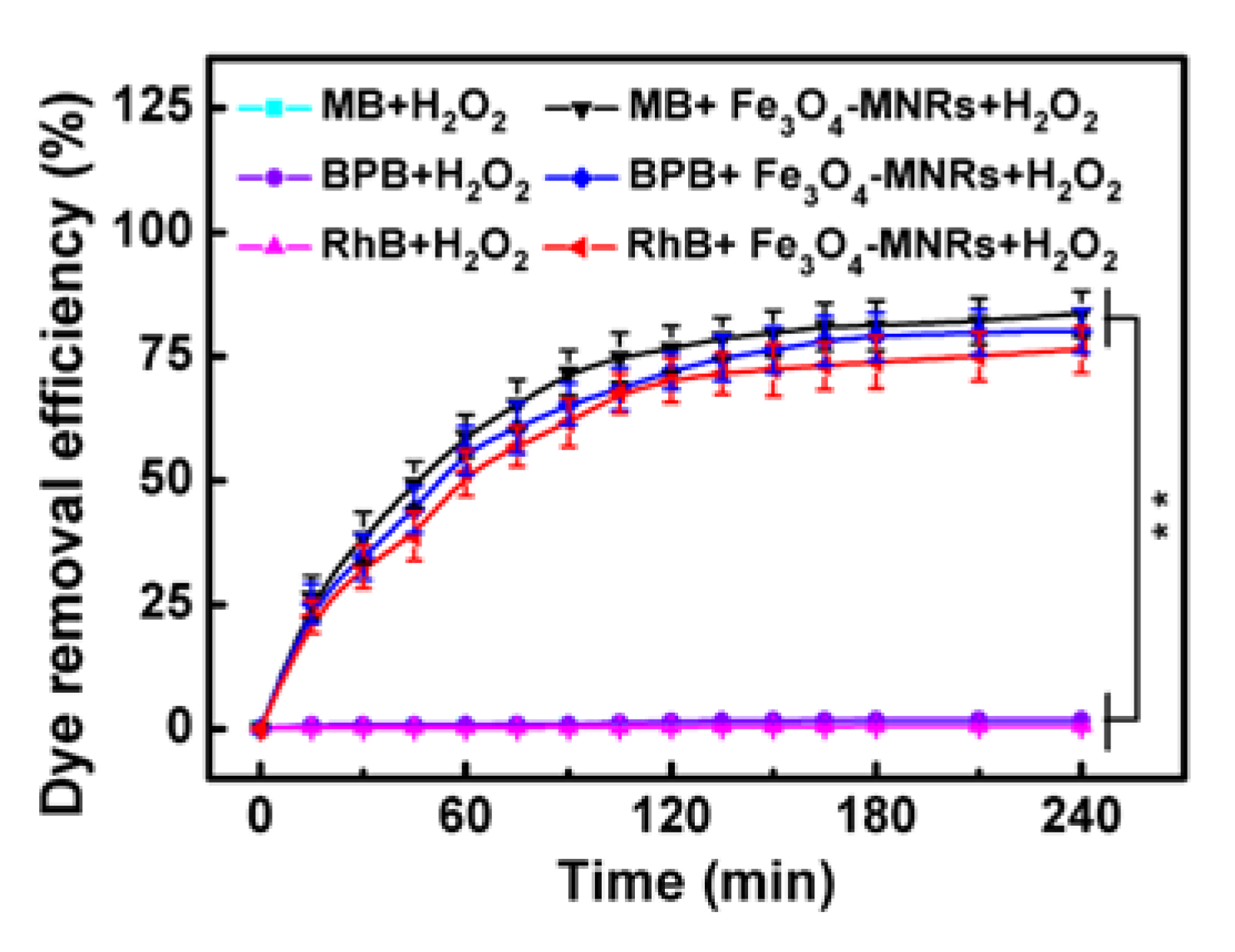

Figure 8. Dye degradation efficiency under different concentrations of the as-synthesized. The asterisk (**) denotes statistically significant differences (p < 0.01).
Figure 8. Dye degradation efficiency under different concentrations of the as-synthesized. The asterisk (**) denotes statistically significant differences (p < 0.01).
Materials 13 00332 g008

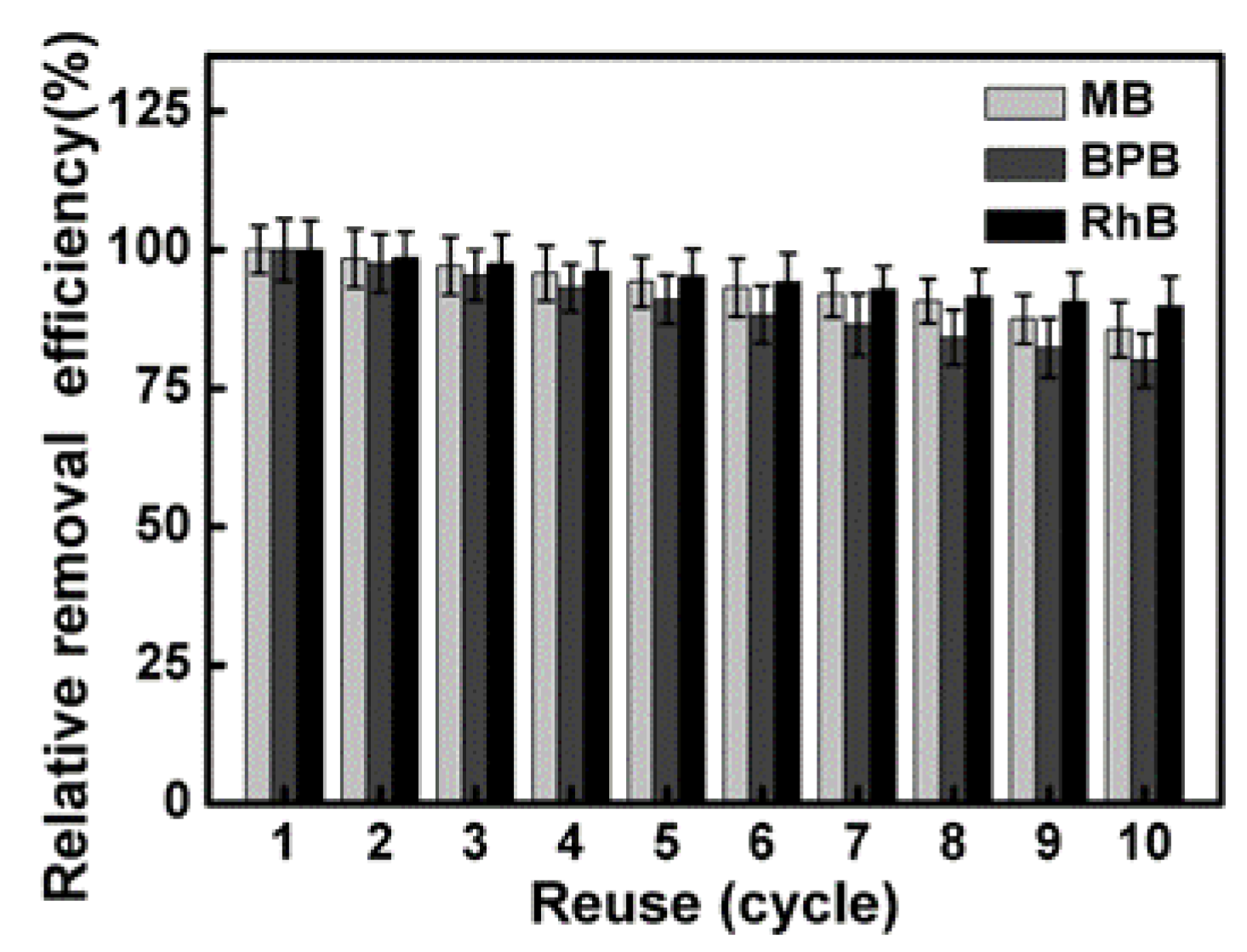

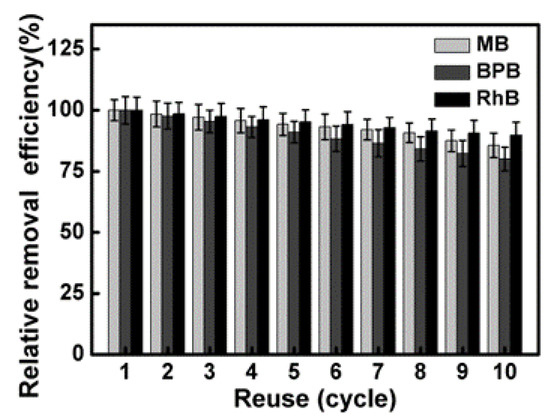

Figure 9. Reusability of as-prepared Fe3O4-MNRs within 10 cycles.
Figure 9. Reusability of as-prepared Fe3O4-MNRs within 10 cycles.
Materials 13 00332 g009

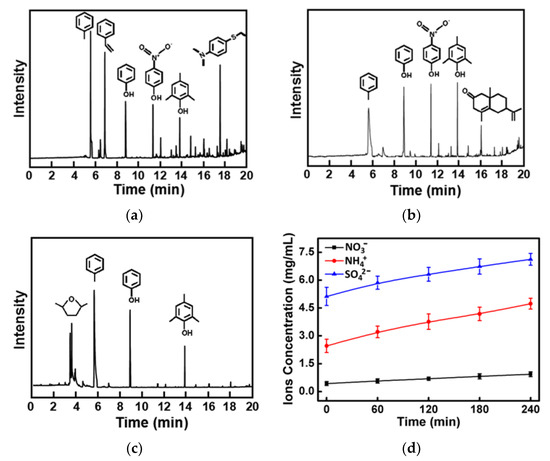

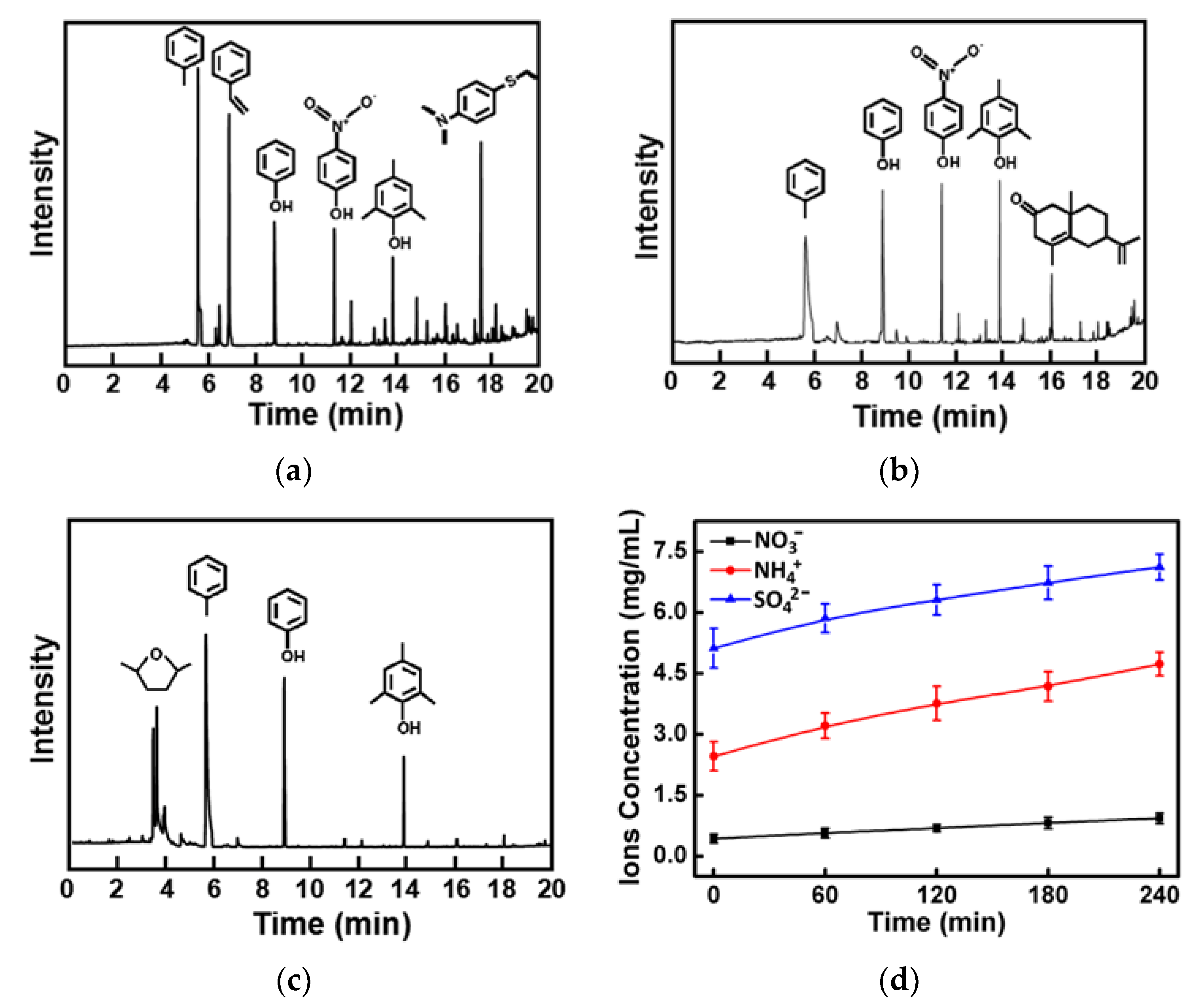

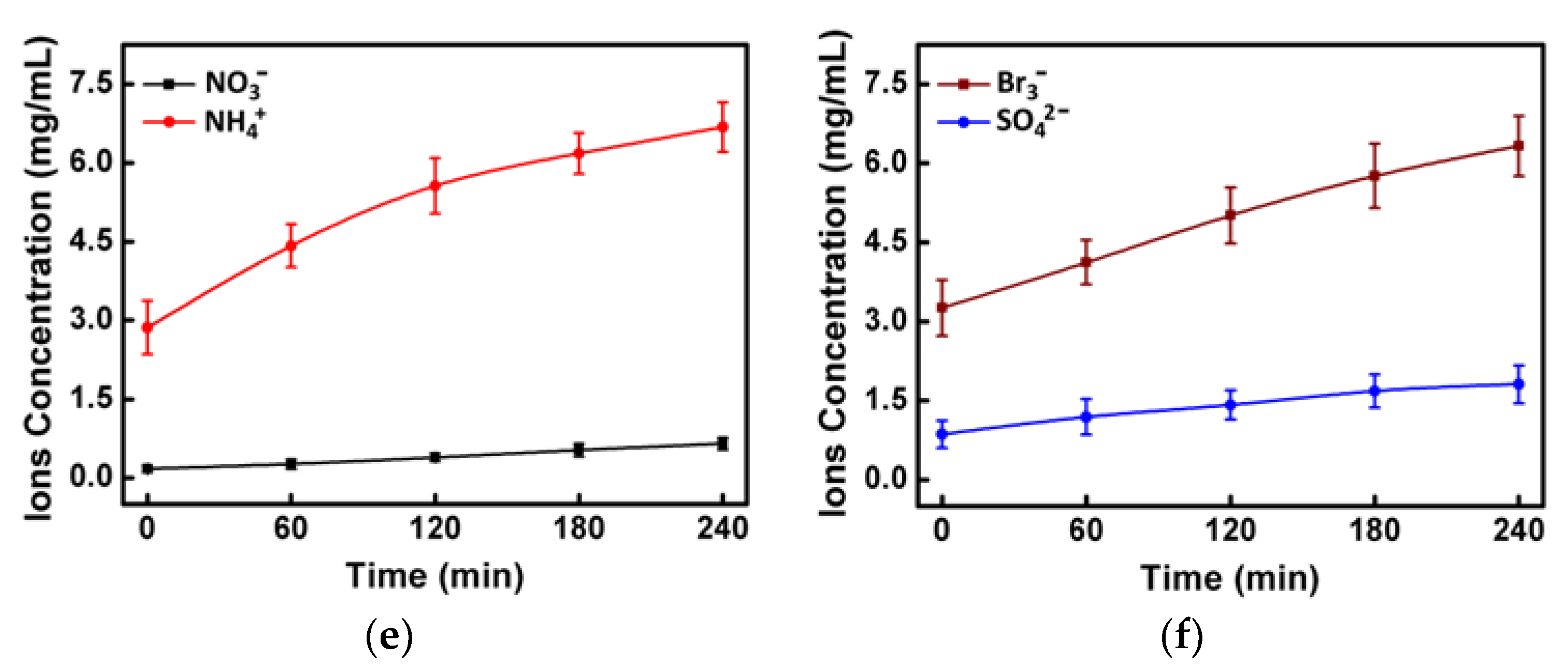

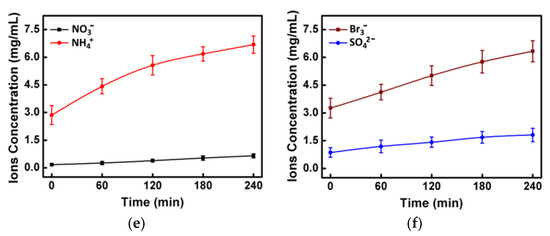

Figure 10. GC-mass spectra for monitoring the oxidation of different dyes: (a) MB, (b) RhB, and (c) BPB. Evolution of inorganic ions during degradation process of different dyes: (d) MB, (e) RhB, and (f) BPB.
Figure 10. GC-mass spectra for monitoring the oxidation of different dyes: (a) MB, (b) RhB, and (c) BPB. Evolution of inorganic ions during degradation process of different dyes: (d) MB, (e) RhB, and (f) BPB.
Materials 13 00332 g010aMaterials 13 00332 g010b
